UTT TECHNOLOGIES REG05-UTT Wireless Router User Manual AC750GW Datasheet
SHANGHAI UTT TECHNOLOGIES CO., LTD. Wireless Router AC750GW Datasheet
Users Manual
DATA SHEET
1
www.utt
g
lobal.com

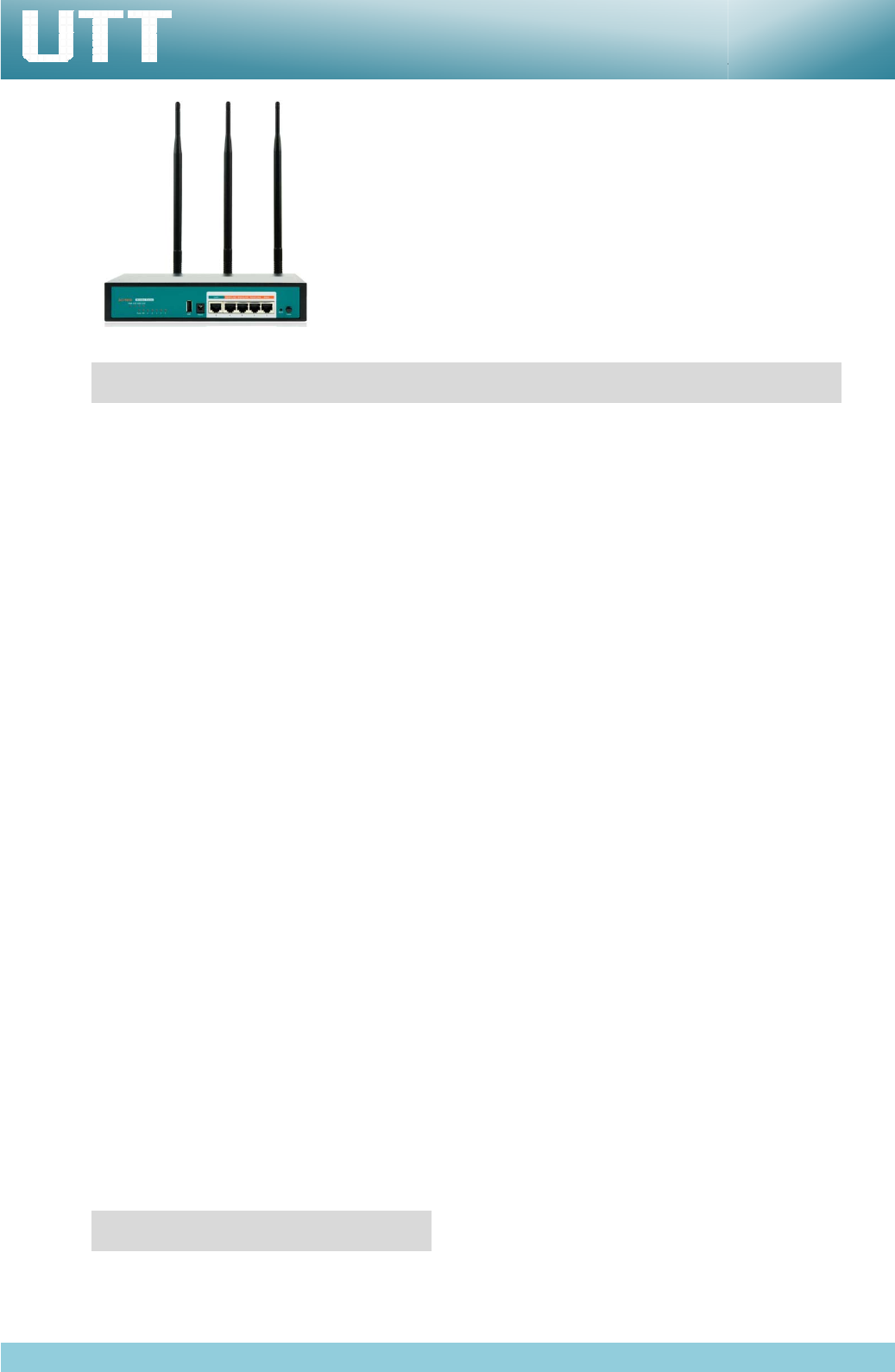

AC750GW 750Mbps Dual-band
Business Wi-Fi Gigabit Router
Highlights
-802.11ac/a/b/g/n, 750Mbps Wireless Speed, dual band (2.4GHz and 5GHz)
-3 x 7dBi fixed antennas, 100 Meters Wireless Coverage
-Local&Remote User Authentication
-Business WiFi System: Facebook/SMS/WeChat Authentication
-Flexible bandwidth management to improve network performance
-IPSec/PPTP VPN
-Extremely friendly and straightforward Web UI
Overview
AC750GW Dual-band Business Wi-Fi Gigabit Router is a purpose-built solution designed
for SOHO enterprises, offices, restaurants and coffee shops.
AC750GW adopts 580MHz CPU and equips 3 fixed 7dBi omni-antennas. It supports
802.11ac WiFi standard and is compatible with 802.11a/b/g/n. Moreover, it works on
2.4GHz band and 5 GHz band, minimizing interference among wireless networks. It
supports MIMO technology, which enables its wireless transmission rate up to 750Mbps.
With a self-developed operating system, AC750GW supports CCA, extended for clear
channel assessment, which can automatically adjust channels to avoid signal interference.
It supports WDS to extend the coverage of wireless network. It supports smart QoS, which
automatically allocates reasonable bandwidth for wireless stations, making sure users can
download movies and play video games at the same time. It also supports files sharing by
one USB port.
AC750GW also offers an interface with Business WiFi System, which can be configured
online and offer a user-defined captive portal when WiFi users joining the WLANs.
Features
Wireless Speed
The maximum wireless transmission
speed can be up to 750 Mbps.
Large-scale of wireless coverage and
steady wireless data transmission will
DATA SHEET
2
www.utt
g
lobal.com
meet user’s high bandwidth demands for
HDTV, streaming media, games, video
chat, wireless monitoring and high-speed
data transmission.
Compatibility
Support IEEE 802.11ac, IEEE 802.11a,
IEEE 802.11b, IEEE 802.11g, IEEE
802.11n. The multi-protocol compatibility
promotes the capability for connecting to
other wireless products.
Wireless Mode
Offer multiple wireless operating modes:
AP, Wireless Repeater, Bridge and AP
Client, which can meet the demands of
different network to expand the wireless
network to a certain extent.
Business WiFi System
Offers an interface with Business WiFi
System. Business WiFi System can be
configured online and offers user-defined
landing page for WLANs. Facebook, SMS,
WeChat Authentication are available to
configure. It also offers statistics to
monitor WiFi user’s behaviors.
Wireless Security
Offer multiple wireless securities: WEP,
WPA-Enterprise, WPA2-Enterprise,
WPA-PSK and WPA2-PSK. Wireless
MAC address filtering provides customers
with comprehensive protection for wireless
transmission to keep your network far
away from intrusions and attacks.
Flexible Bandwidth
This very unique function named Flexible
Bandwidth will largely optimize the
bandwidth utilization. And it only needs 2
steps: enable this function and set the
bandwidth for each Internet connection.
Flexible Bandwidth will guarantee the
webpage browse and essential network
applications.
1. Adjust the bandwidth for users and
applications flexibly, improve the
real-time network performance, and
recognize different application
accurately.
2. Supports priority queues to ensure
smooth transmission of applications
which require large bandwidth.
3. Improved network performance will
solve network congestion and
unreasonable bandwidth allocation.
Reasonable network traffic distribution,
optimized bandwidth utilization, stable,
fast, safe and efficient network
environment
Internet Access Control
Provide personalized Internet access
control, which can meet all the needs of
users. Each host can take a different
access policy, including blocking IM
software (Yahoo messenger, MSN etc.),
blocking P2P software (Bit commit, Bit
torrent, etc.), blocking online games
(WOW.), blocking Face book and Twitter,
blocking online videos (YouTube) and
other abundant functions.
Support Domain name Filtering. Users can
either block websites or only allow
websites. Domain name filtering will make
the network management easy and
convenient.
Support IP/MAC address binding, invalid
IP address or MAC address filtering and
DATA SHEET
3
www.utt
g
lobal.com
easy blacklist and Whitelist setting. It
supports binding all the dynamic IP/MAC
entries with only one-click operation.
VPN
Support various VPN functions such as
IPSec and PPTP, which can be used alone
or combined; Support dynamic IP address
VPN connections; Support Site-to-site
VPN, remote access VPN (client-to-site
and mobile user); PPT/IPSec VPN can be
set up to 8 tunnels.
Configuration and Management
Offer user-friendly Web interface which
delivers an easy-to-use platform with rich
functions. It supports easy management,
which will guide users to finish the initial
configuration one step by one step
automatically. Even users without network
knowledge can get connected to Internet
easily.
Offer System Status, Wireless Host List
and Flow Statistics, which deliver a
convenient platform to trap and remove
network faults.
Key Features
◆Support static IP, DHCP and PPPoE connection
◆Support DSL, FTTX+LAN and Cable Modem Internet access
◆3 10M/100M/1000M LAN ports, 2 10M/100M/1000M WAN ports
◆1 USB 2.0 port, 1 TF port to share files
◆Three 7 dBi Antennas support MIMO
◆Support IEEE 802.11ac, IEEE 802.11a,IEEE 802.11b, IEEE 802.11g and IEEE 802.11n
wireless speed up to 750Mbps
◆Work on 2.4GHz band and 5GHz band
◆Support multiple wireless operating modes: Access Point, Wireless Repeater, Bridge and
AP Client
◆Support channel 1-11, 149,153, 157, 161,165
◆WEP, WPA-Enterprise, WPA2-Enterprise, WPA-PSK and WPA2-PSK
◆Support SSID Broadcast Control and hiding
◆Support WMM (Wi-Fi Multimedia, Wireless Multimedia) function
◆Wireless MAC address filter, Whitelist, blacklist, one-click filtering of wireless address
◆Support NAT, NAPT,DMZ
◆Support DDNS(No-IP,DYNDNS)
◆Support UPnP
◆Support DHCP Server, DHCP Client and DHCP static binding
◆Support PPPoE Server
◆Support PPPoE Account Billing
◆Support Web Authentication(Local and Remote)
◆Support Authentication URL whitelist
◆Support Business Wi-Fi System
DATA SHEET
4
www.utt
g
lobal.com
◆Support Web Authentication
◆Support IP/MAC binding
◆Support fixed rate limiting
◆Support flexible bandwidth control, speeding up common online games
◆Support built-in firewall, defense against ARP spoofing, Port scanning, DDoS/DoS attack
◆Support packet filtering based on IP address, protocol. port
◆Support filtering on URL, key words and DNS on application layer
◆Support limitation on maximum NAT sessions
◆Support Notification
◆Support Internet Application Audit
◆Support Internet access control, security management and network maintenance
◆Support static routing
◆Support VPN pass-through
◆Support IPSec/PPTP VPN
◆Web user interface and Quick Wizard
◆System update through HTTP
◆Configuration file backup and restore
◆Display of wireless host status and system status
◆Support SNTP
Specification Description
Port
LAN 3 RJ45 ports(Auto-Negotiation, auto MDI/MDIX)
WAN 2 RJ45(Auto-Negotiation, auto MDI/MDIX)
USB 2.0 1
TF 1
Antennas 3*7dBi
Button Reset, Turbo
LED
Power light: PWR
Wireless light: WLAN
Link/Act: WAN/LAN
Dimensions (H x W x D) 192mm*130mm*26mm
Weight 0.65 kg
Temperature 0~40 Degree Celsius
Altitude 0 ~ 4000 m
Relative Humidity 10~90%, non-condensing
Power Input 24W
Voltage DC 12V, 2A
Protocols and Standards IP, TCP, ARP, UDP, ICMP, NAT, DHCP, SNTP, TELNET,
HTTP, PPP, SNMP, PPPoE, PAP, CHAP,
DATA SHEET
5
www.utt
g
lobal.com
Physical Specifications Each port supports Auto-Negotiation, auto MDI/MDIX and
provides status LEDs.
Routing Protocols Static routing
User Interface Web GUI

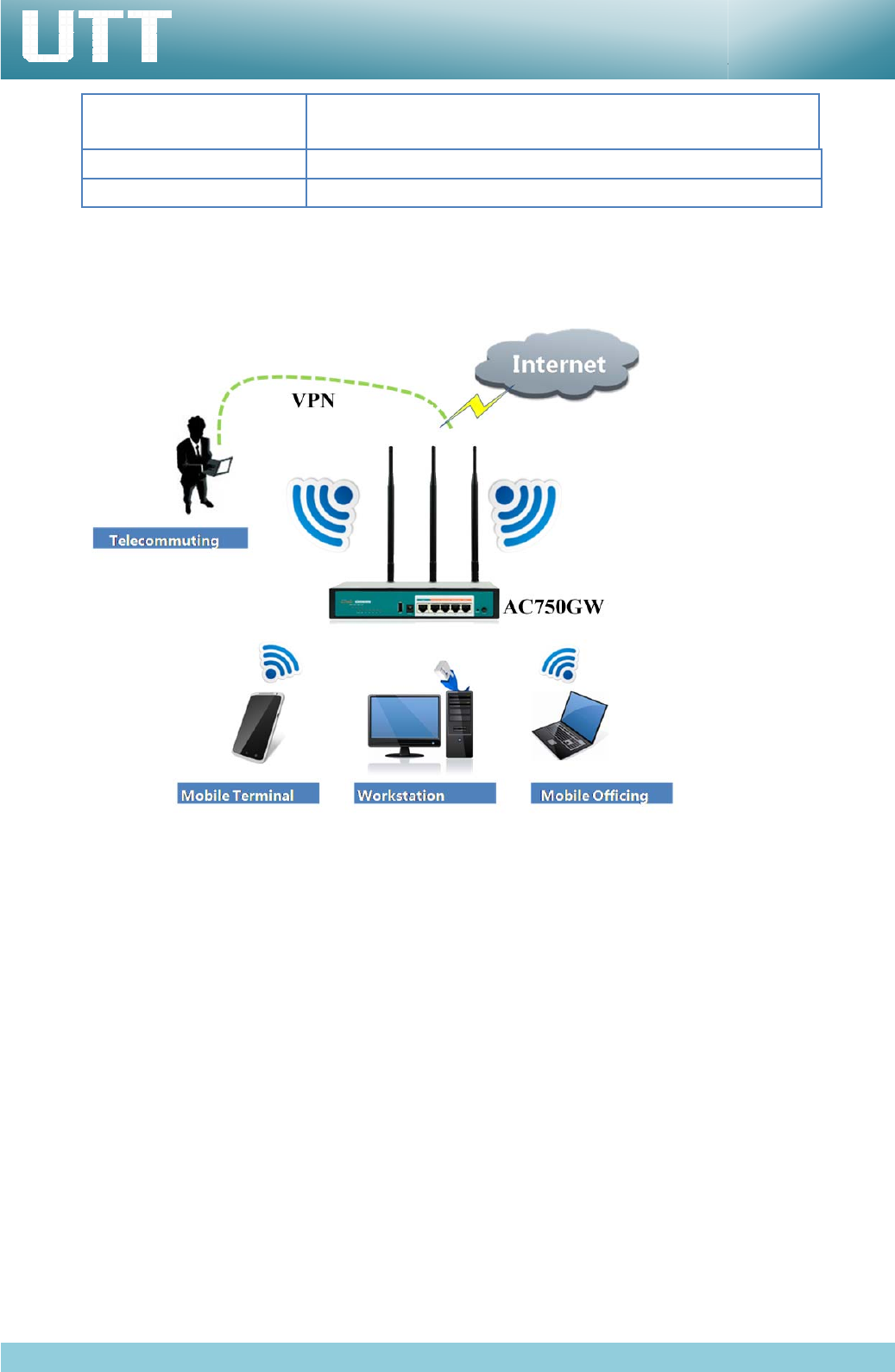

Network Topology
Federal Communication Commission Interference
Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one of the following measures:
z Reorient or relocate the receiving antenna.
z Increase the separation between the equipment and receiver.
z Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
z Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body.
