Ubiqconn Technology VT-1020 PANEL PC User Manual
Ubiqconn Technology, Inc. PANEL PC
User Manual
Regulatory Model/Type
VT1020-ABCXXXXXX
A for power input voltage: can be "L" or "H"
B for touch screen type: can be "R" or blank ,
C for defrost function: can be "D" or blank ,
X for marketing used only : can be alphanumeric or blank
1
Contents
CONTENTS ....................................................................................................................................................................... 1
SAFETY PRECAUTIONS ................................................................................................................................................ 4
REGULATORY AND CERTIFICATION ........................................................................................................................ 6
FCC ..................................................................................................................................................................................................... 6
CE MARKING..................................................................................................................................................................................... 7
R&TTE .............................................................................................................................................................................................. 7
LITHIUM BATTERY SAFETY STATEMENT ...................................................................................................................................... 7
CHAPTER 1. PRODUCT INTRODUCTION ............................................................................................................... 8
HARDWARE SPECIFICATIONS ......................................................................................................................................................... 8
OPERATING SYSTEM SUPPORT ....................................................................................................................................................... 9
ENVIRONMENT ................................................................................................................................................................................. 9
I/O PORTS ...................................................................................................................................................................................... 10

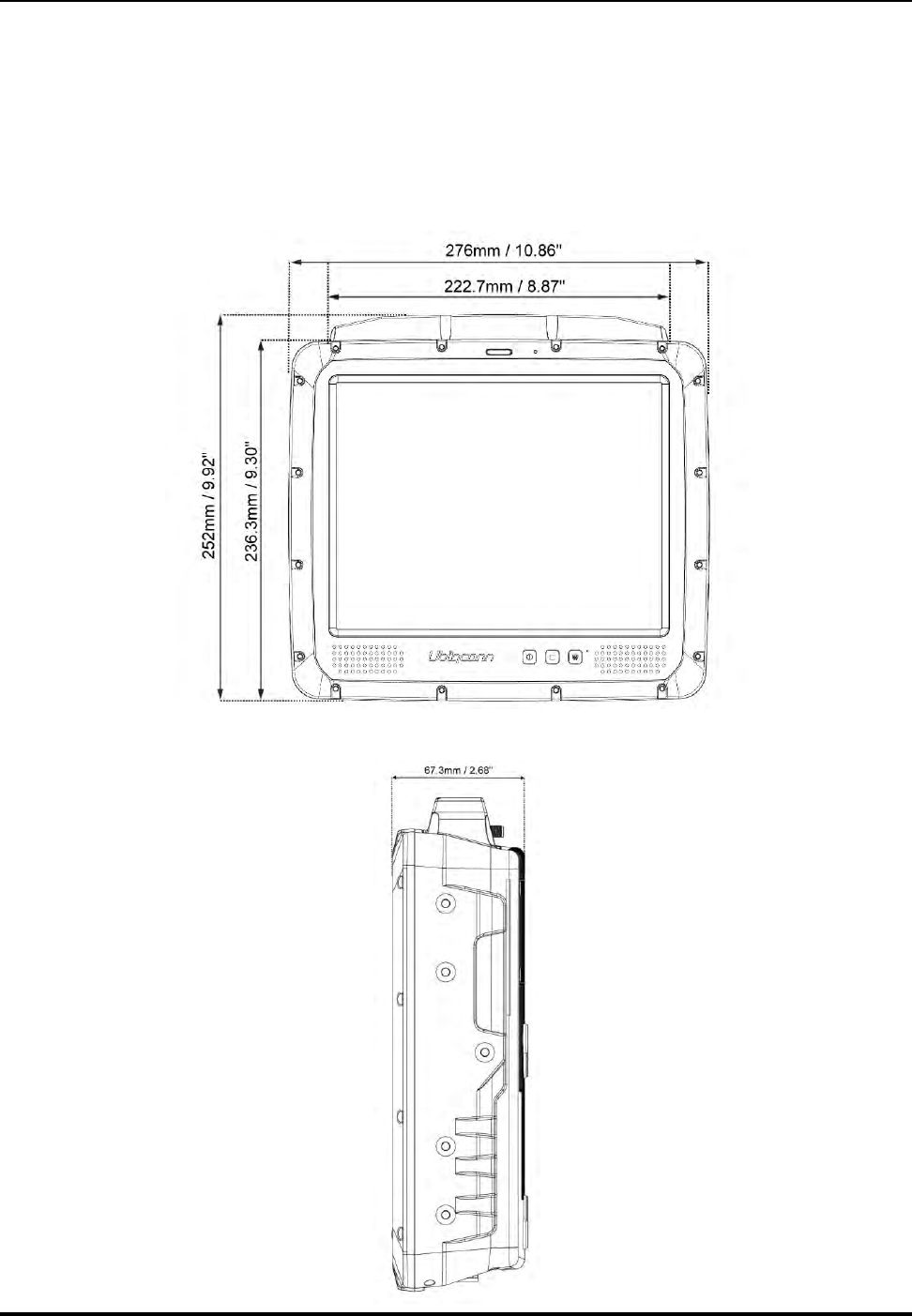

DIMENSION AND WEIGHT ........................................................................................................................................................... 11
PACKAGE LIST ................................................................................................................................................................................ 12

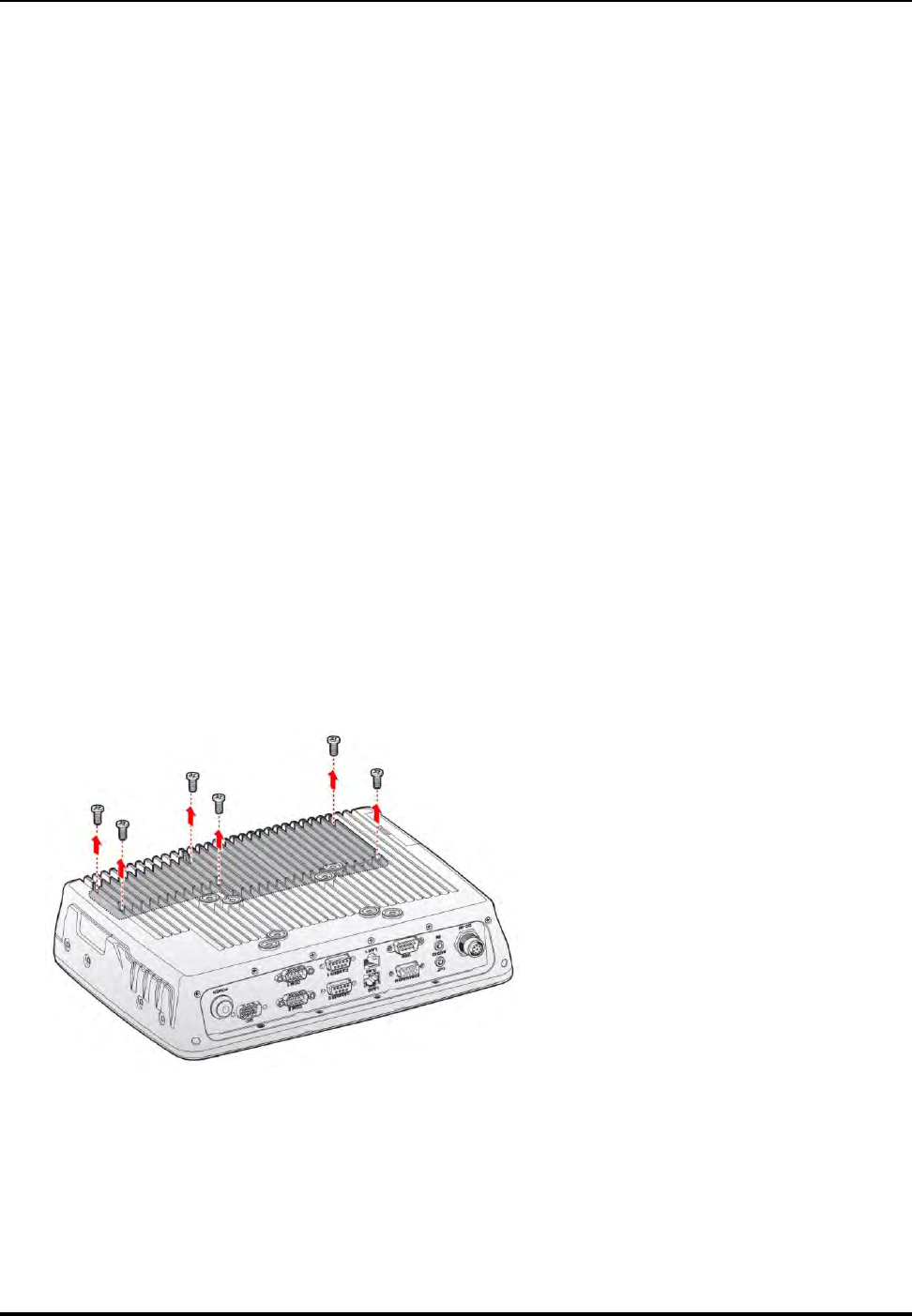

CHAPTER 2. HARDWARE INSTALLATION ............................................................................................................ 13
RAM MODULE ............................................................................................................................................................................... 13

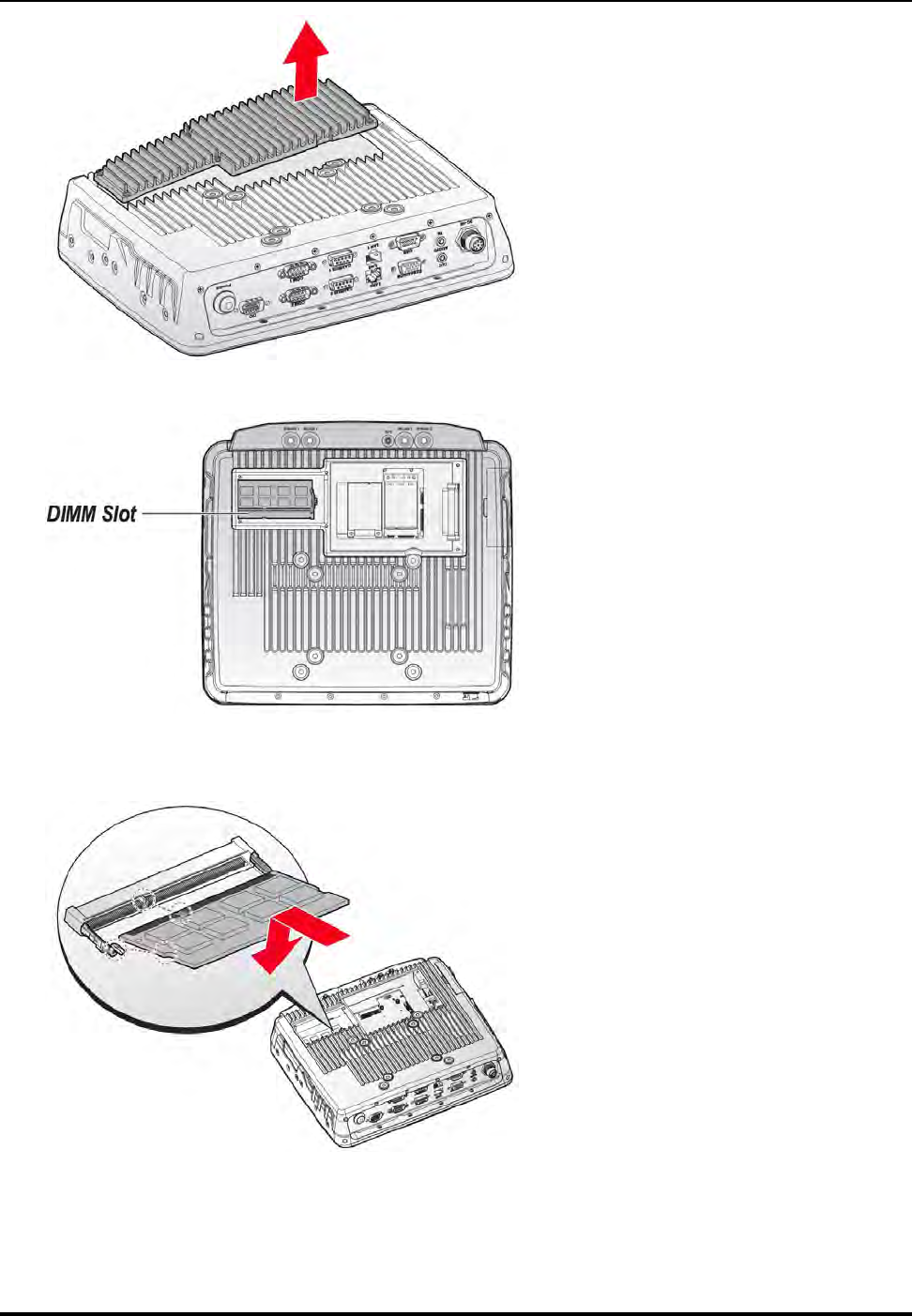

Installing/Removing a RAM Module .................................................................................................................................... 13
SSD MODULE ................................................................................................................................................................................. 15

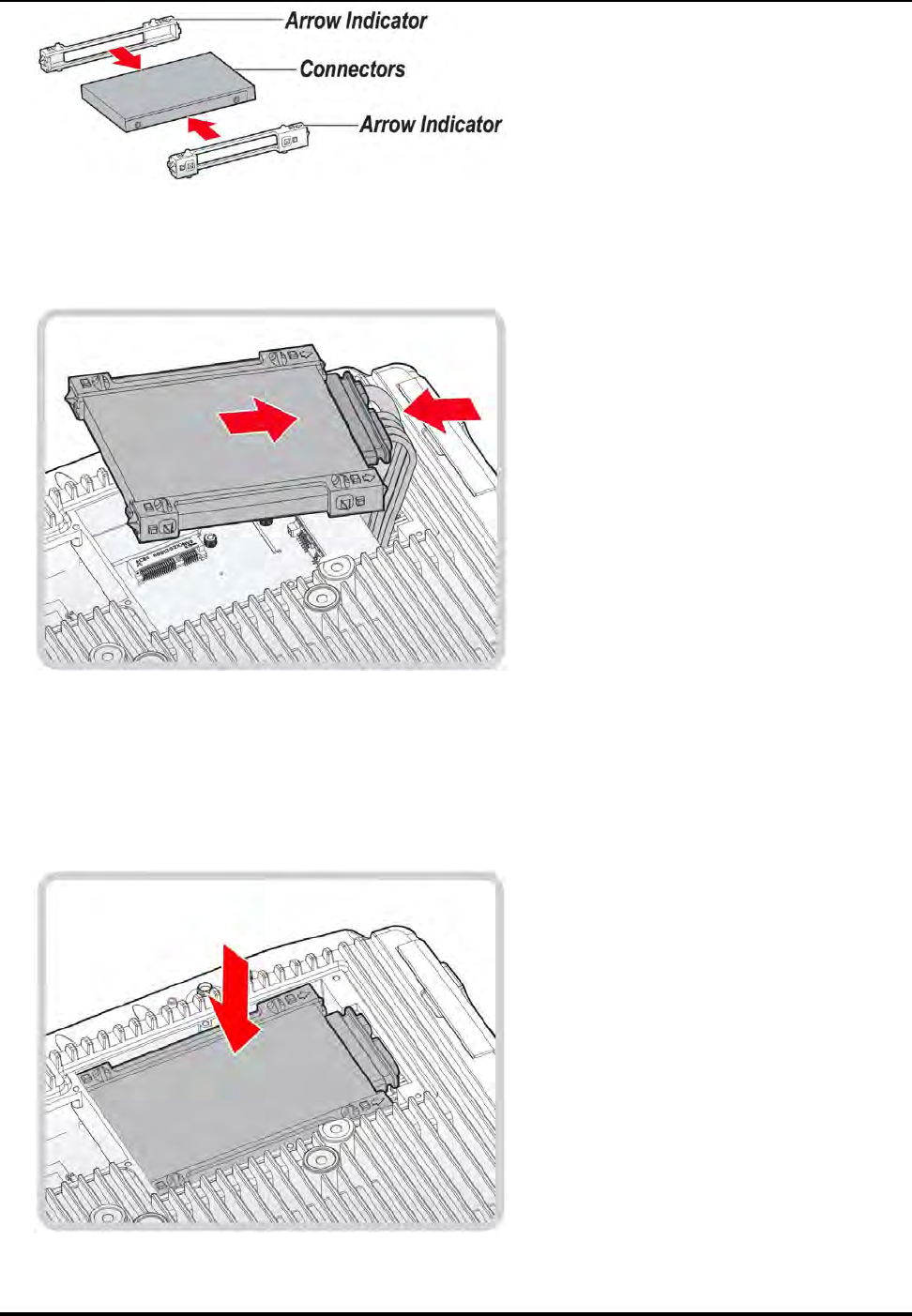

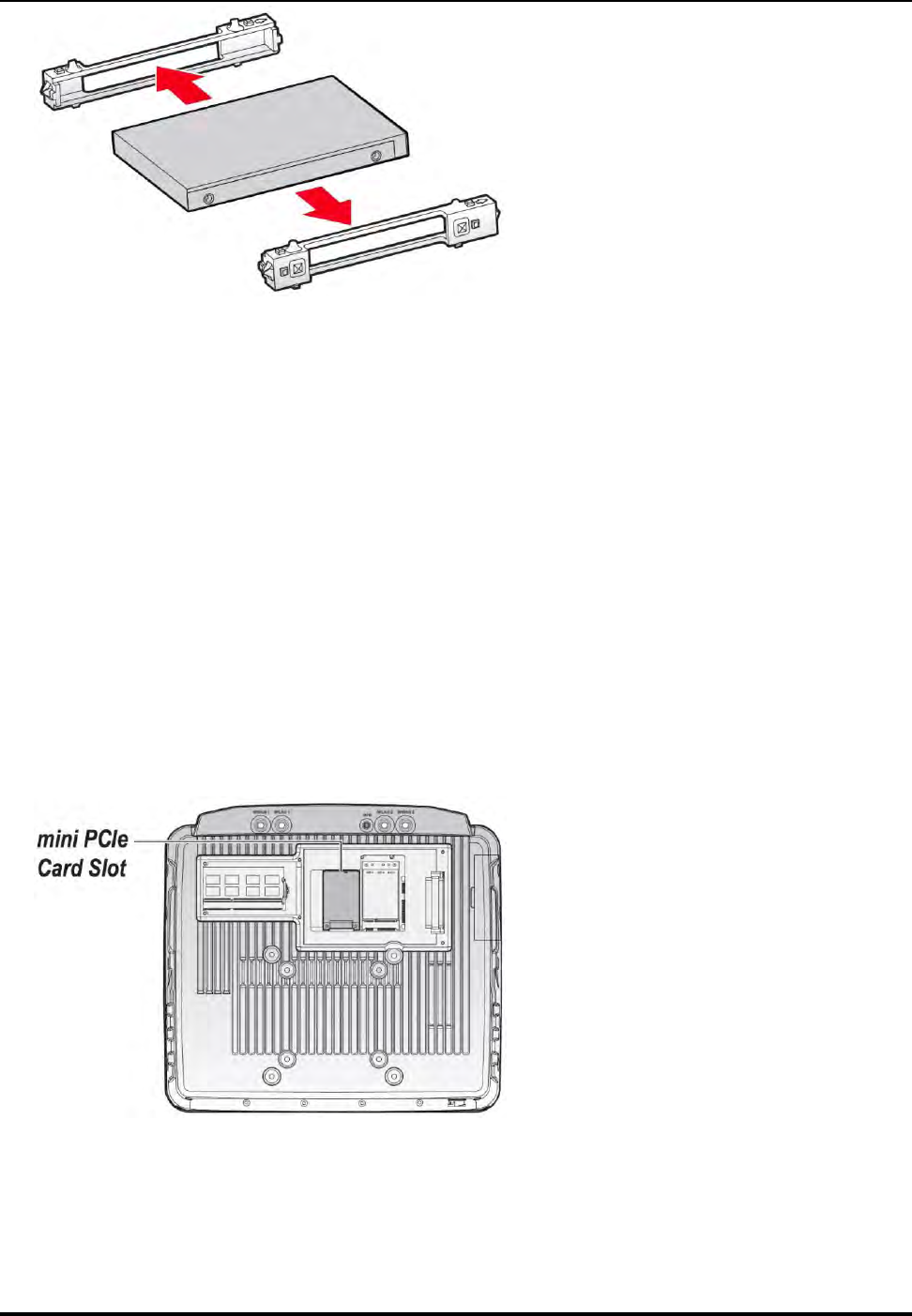

Installing an SSD Module ........................................................................................................................................................... 15

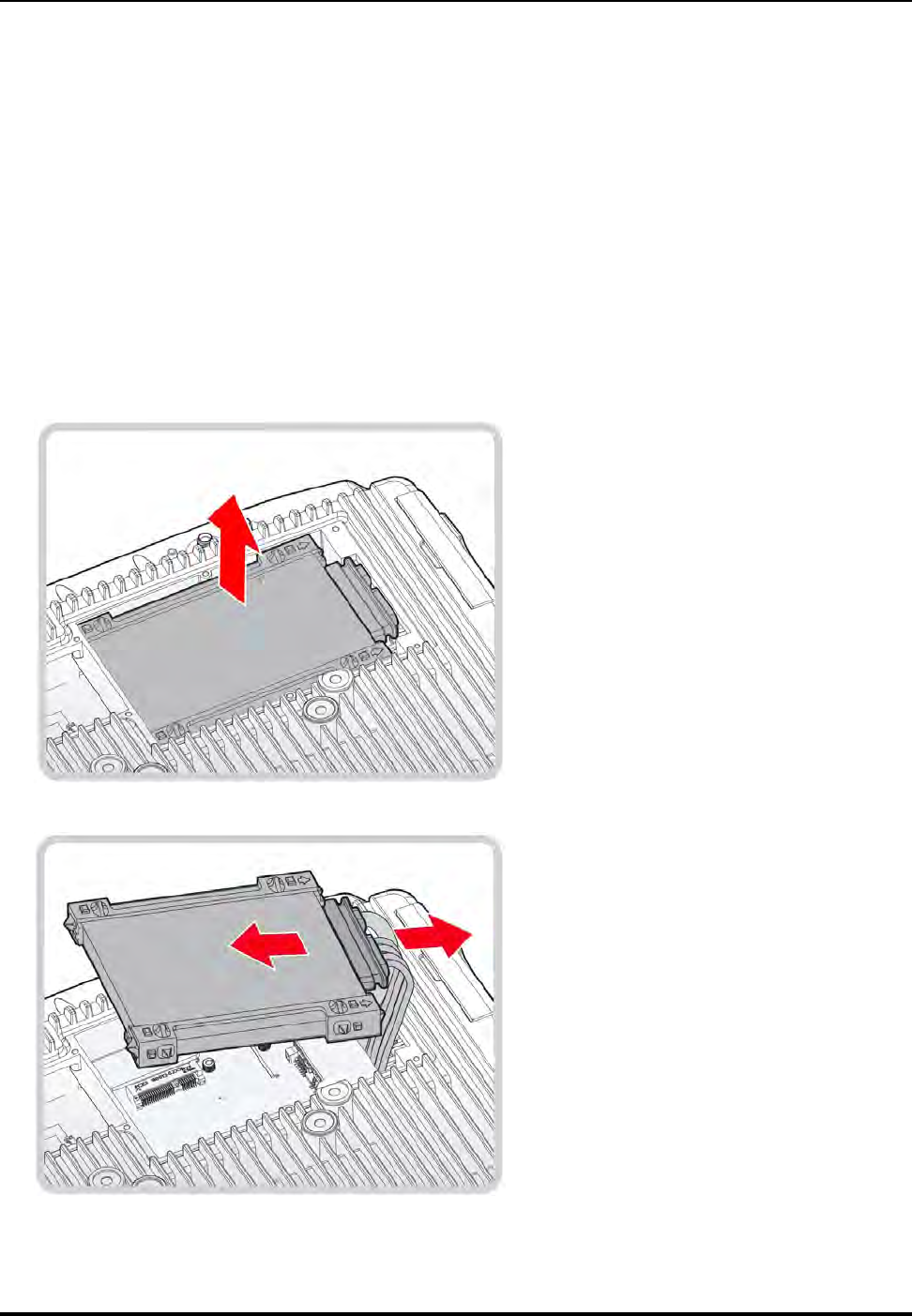

Removing an SSD Module .......................................................................................................................................................... 17
INSTALLING/REMOVING THE MINI-PCIE CARDS ..................................................................................................................... 18
CHAPTER 3. HARDWARE MOUNTING................................................................................................................... 19

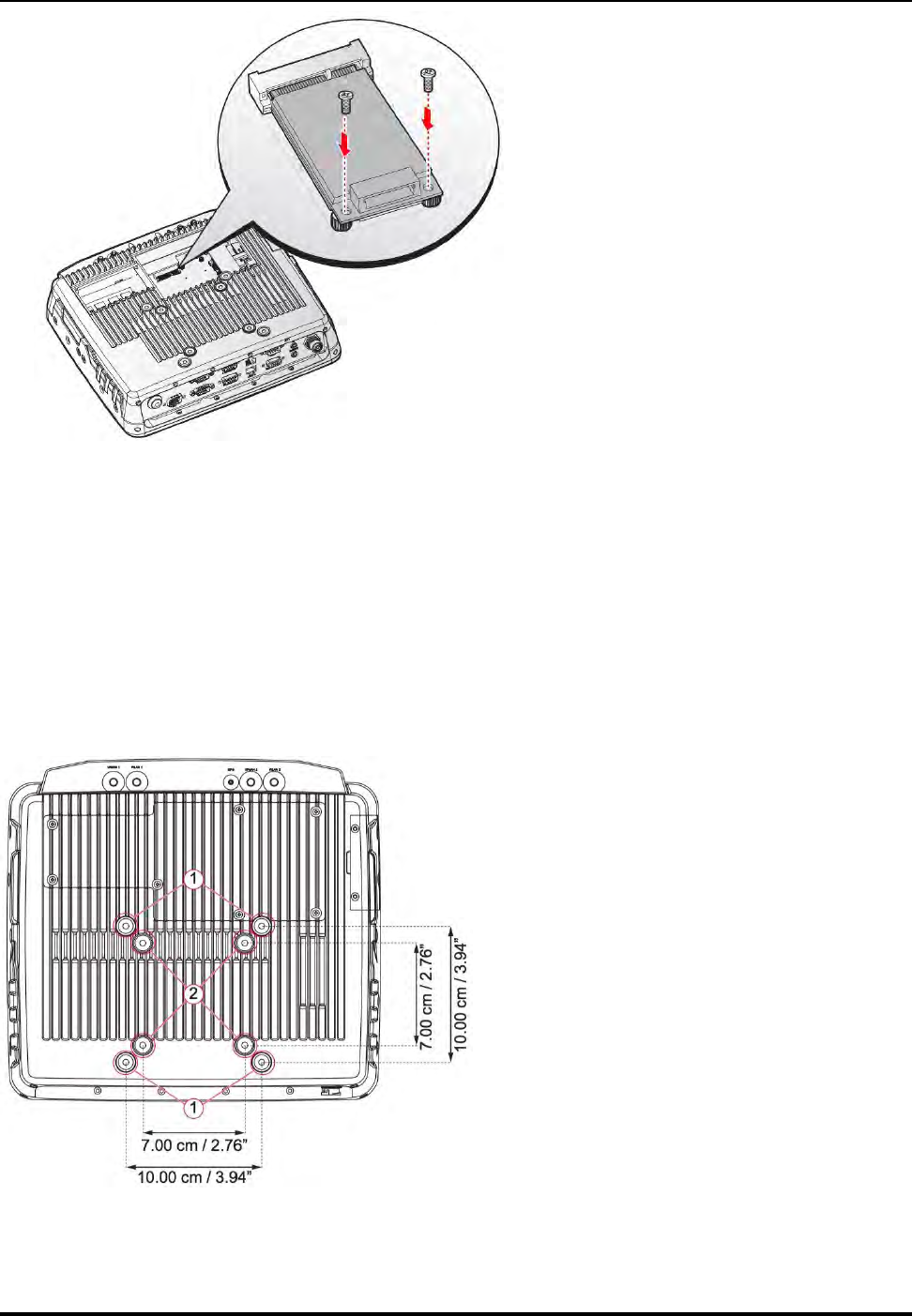

VESA 100 Mounting Option ...................................................................................................................................................... 20
VESA 75 Mounting Option ......................................................................................................................................................... 20
CHAPTER 4. START UP ............................................................................................................................................... 21
POWERING THE SYSTEM .............................................................................................................................................................. 21

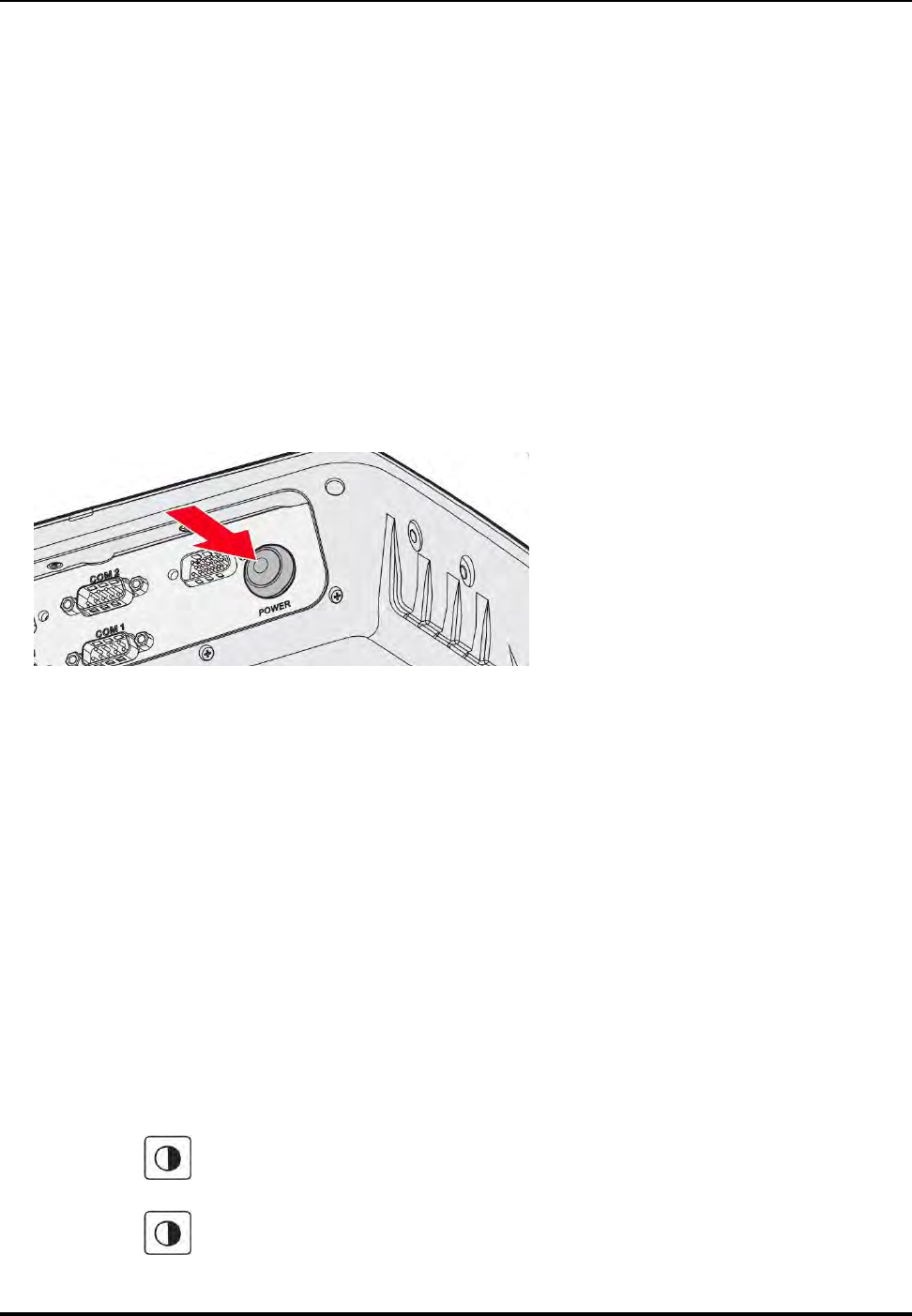

Starting Up the System ............................................................................................................................................................... 21
Powering Down the System ...................................................................................................................................................... 21

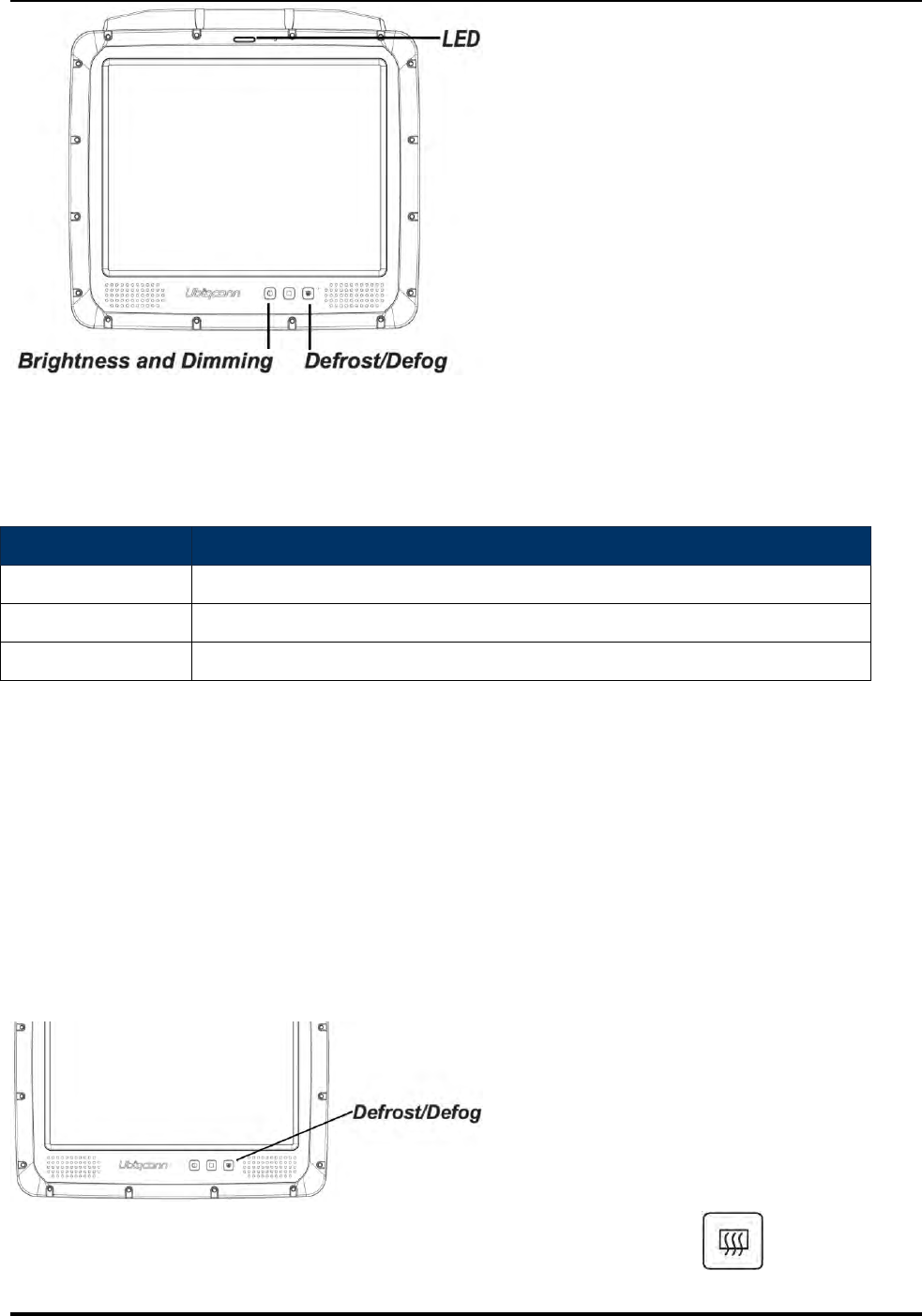

BRIGHTNESS AND DIMMING CONTROL...................................................................................................................................... 21
2
LED STATUS ................................................................................................................................................................................... 22

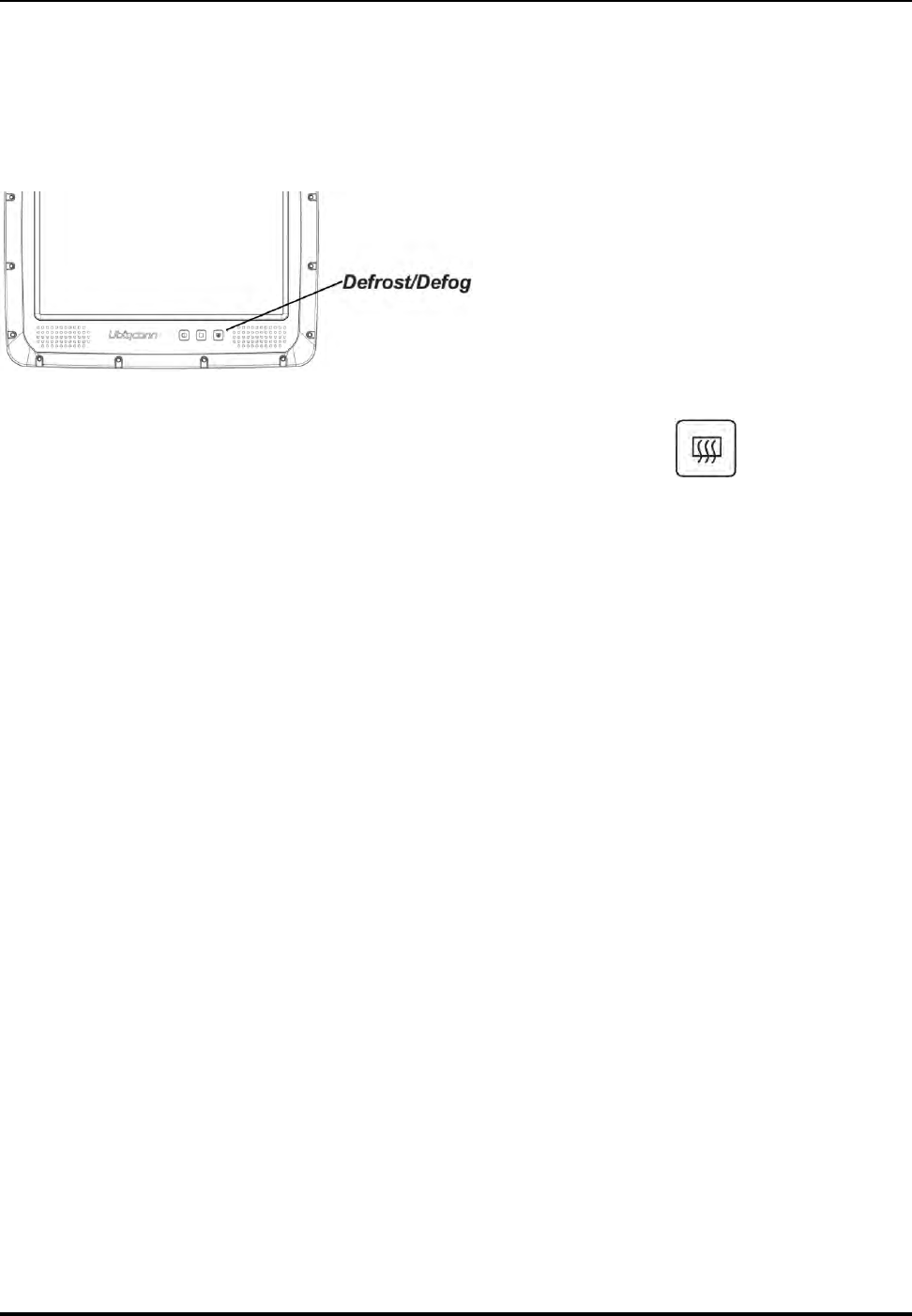

DEFROST/DEFOG OPTION ........................................................................................................................................................... 22
Enabling Defrost Function ........................................................................................................................................................ 22
Enabling Defog Function ........................................................................................................................................................... 23
CALIBRATING THE TOUCH SCREEN ............................................................................................................................................ 23
VT1020 CONFIGURATION OPTIONS ......................................................................................................................................... 24
CHAPTER 5. JUMPERS AND CONNECTORS .......................................................................................................... 25
EXTERNAL CONNECTORS PIN ASSIGNMENTS ........................................................................................................................... 25

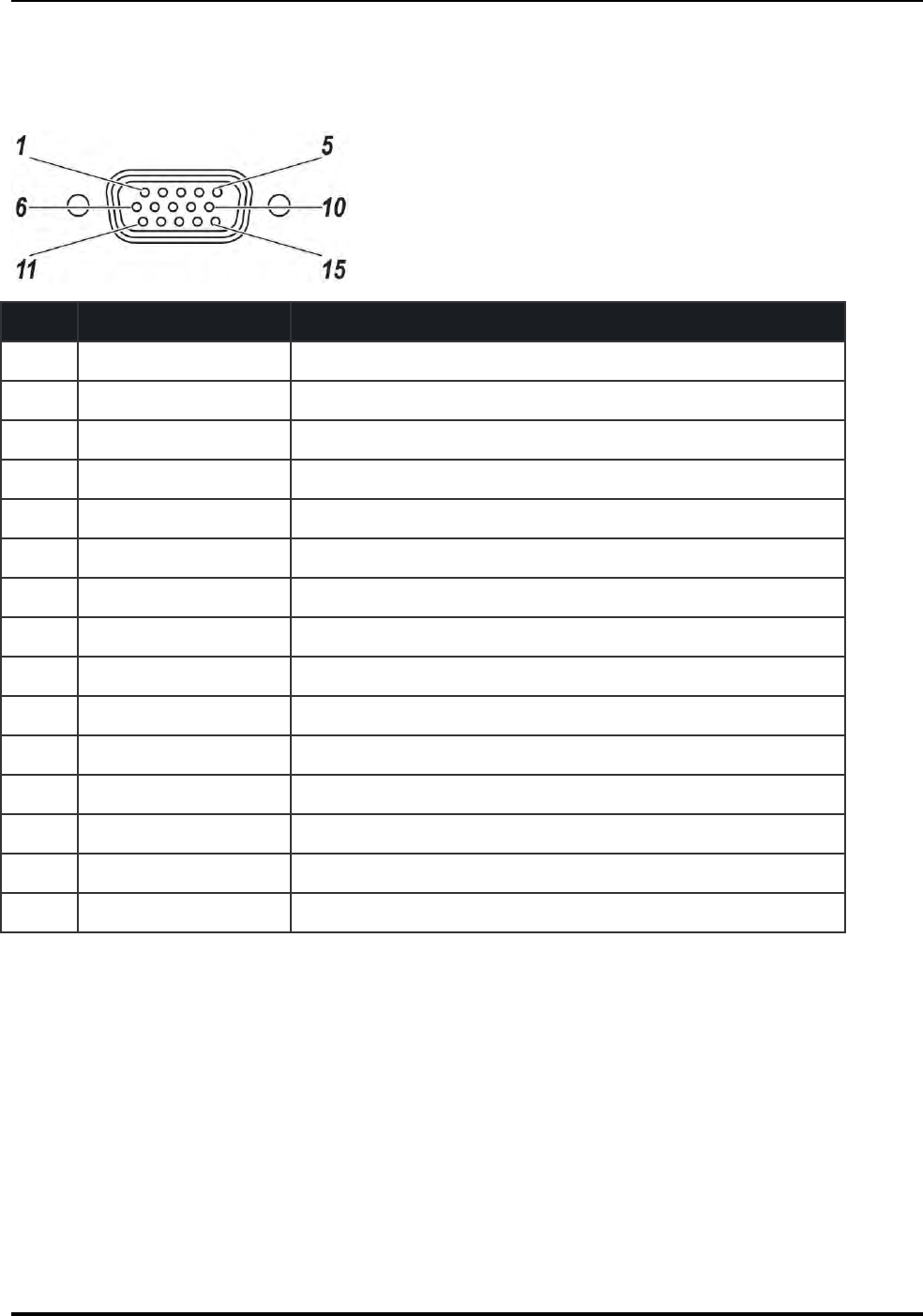

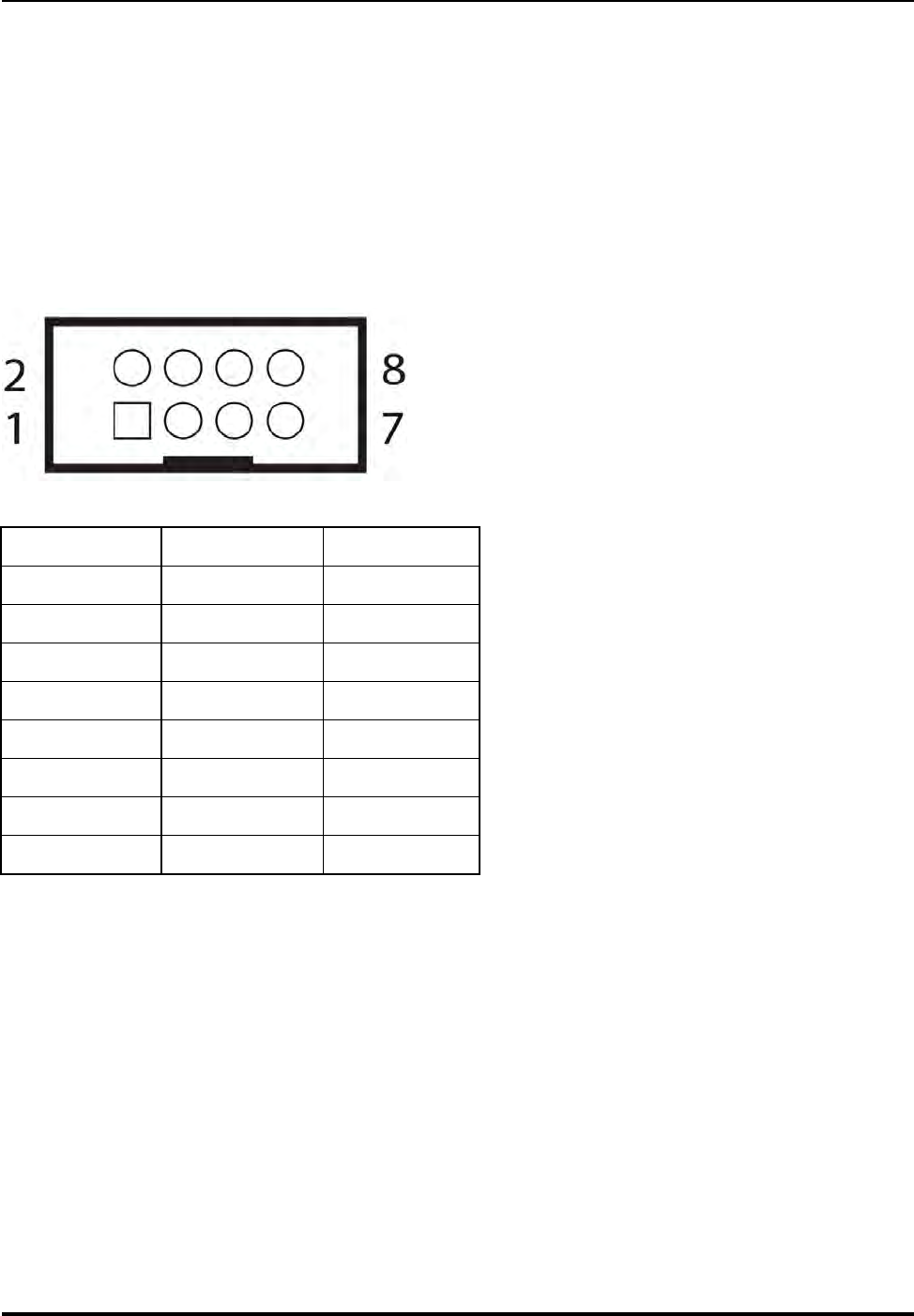

DIO Port ............................................................................................................................................................................................. 25

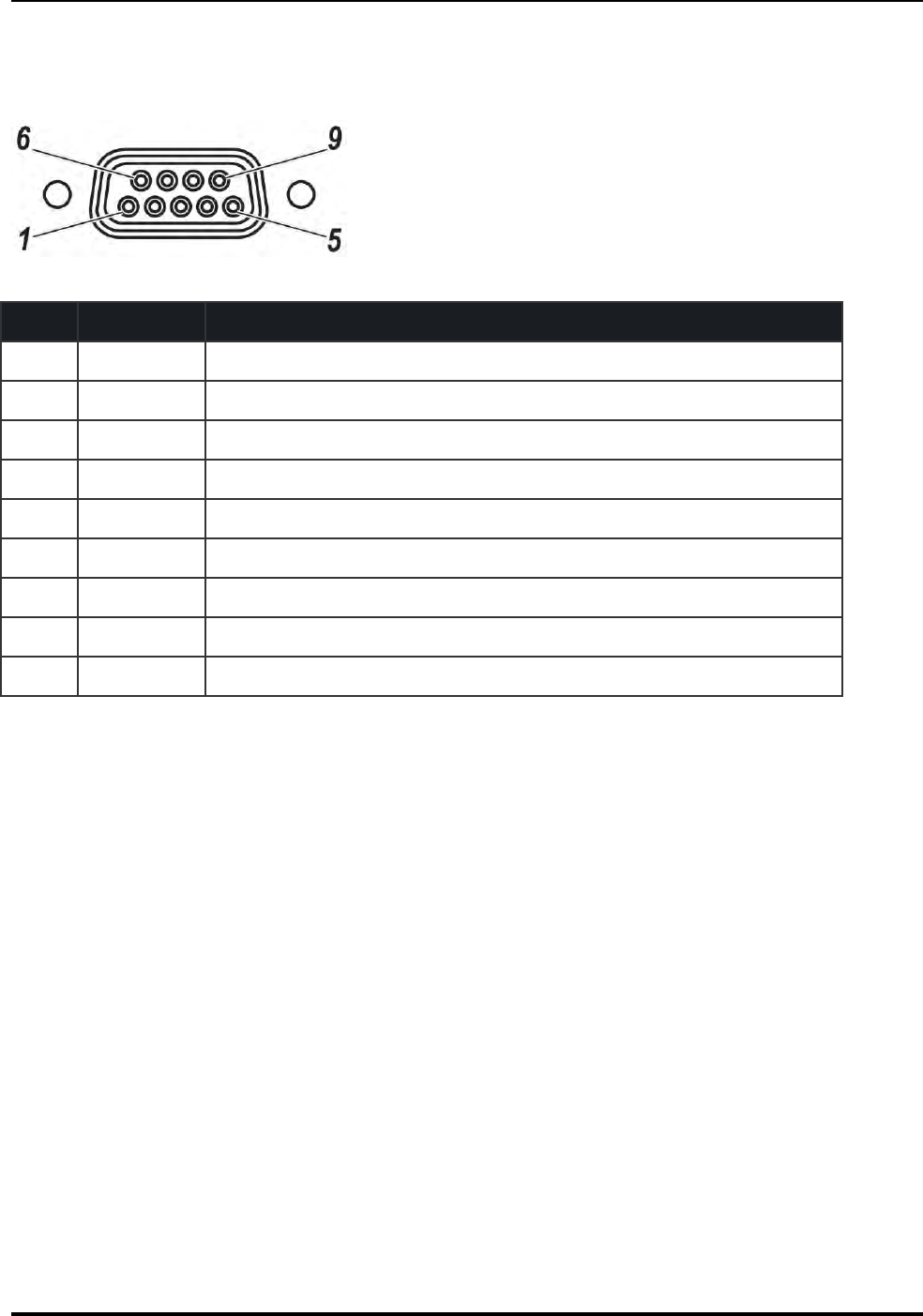

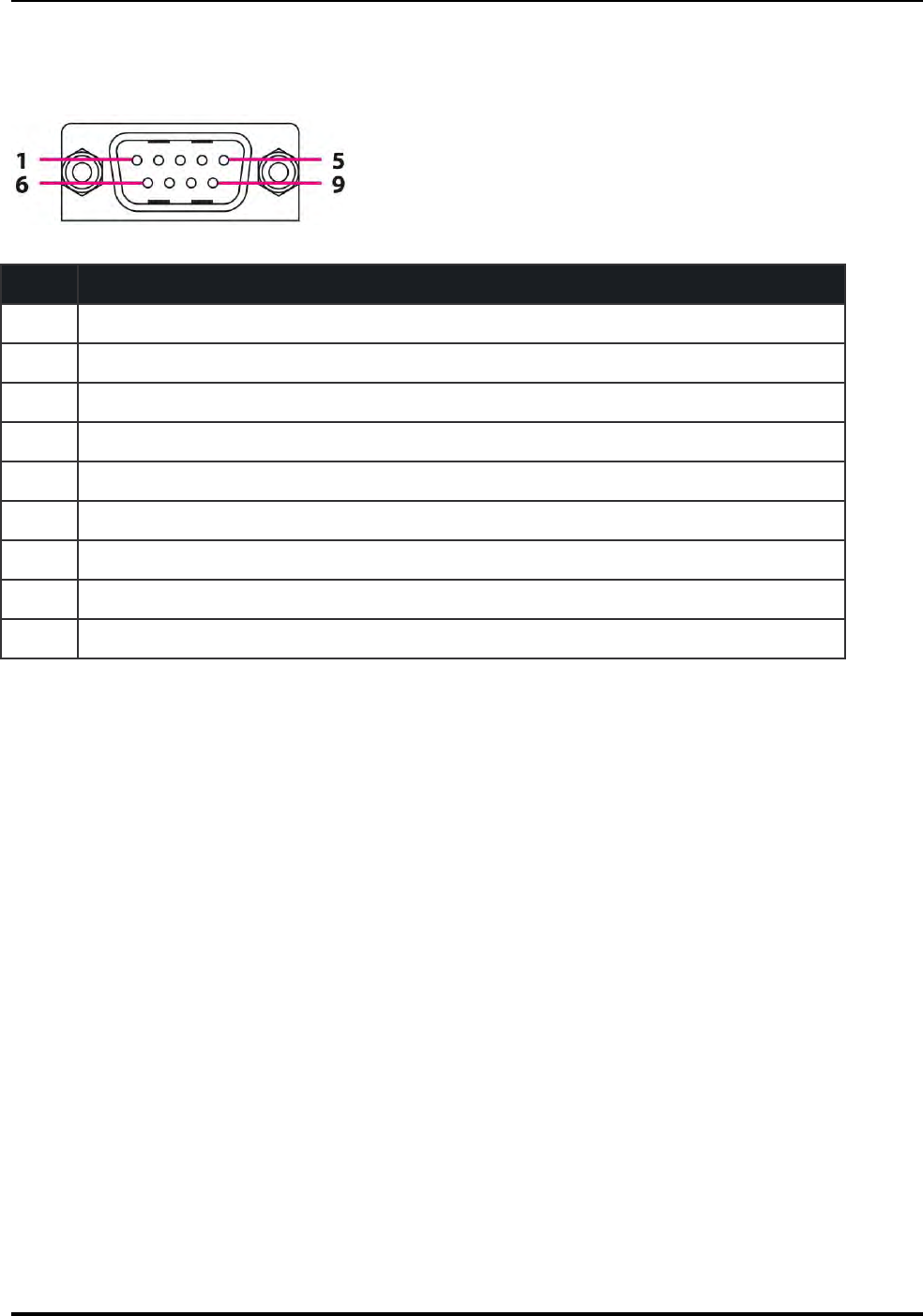

RS-232 Port (COM1)..................................................................................................................................................................... 26

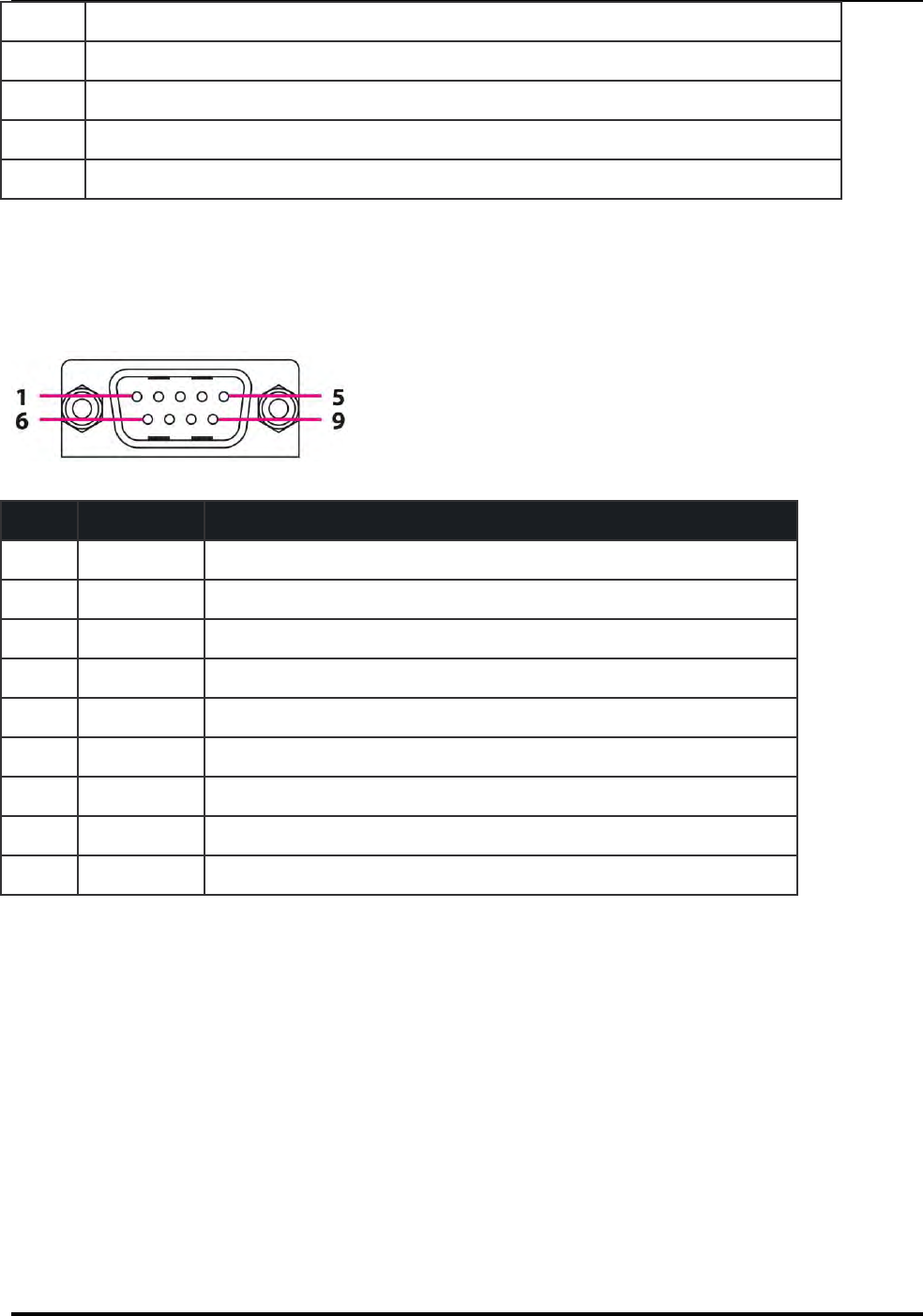

CAN BUS Ports ................................................................................................................................................................................ 27

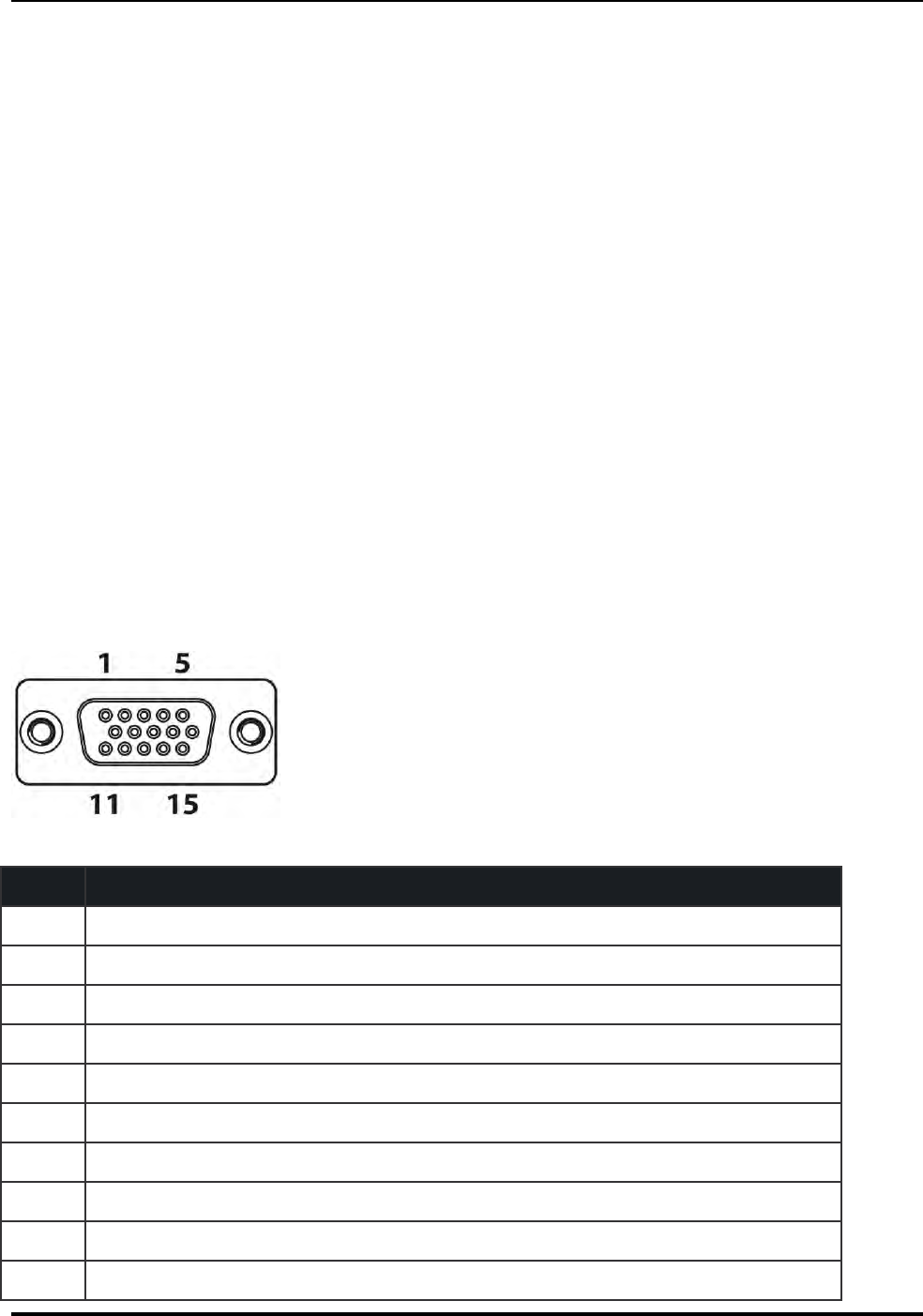

Expansion Port ............................................................................................................................................................................... 28
USB Port ............................................................................................................................................................................................ 29

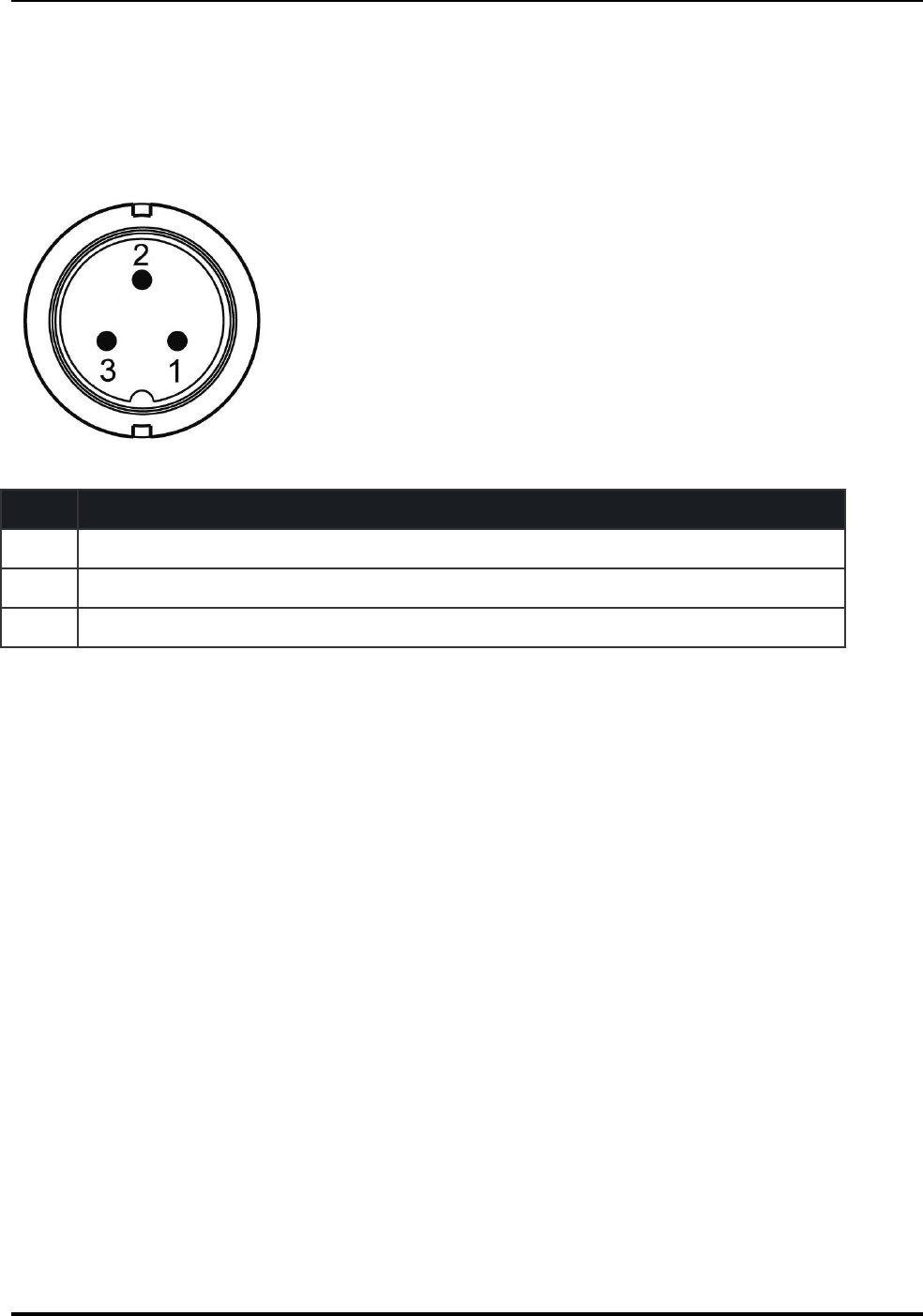

Power Connector ........................................................................................................................................................................... 30

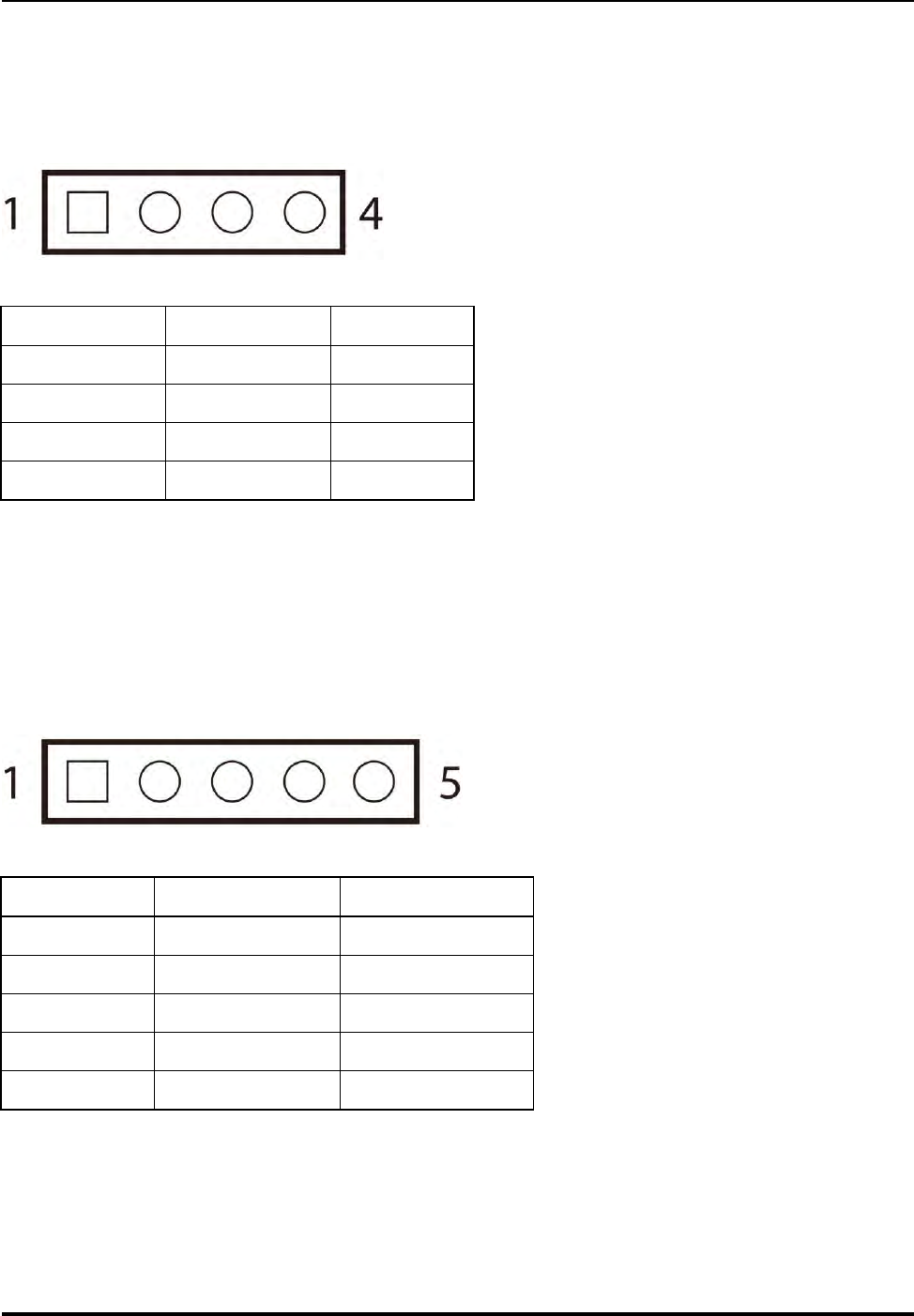

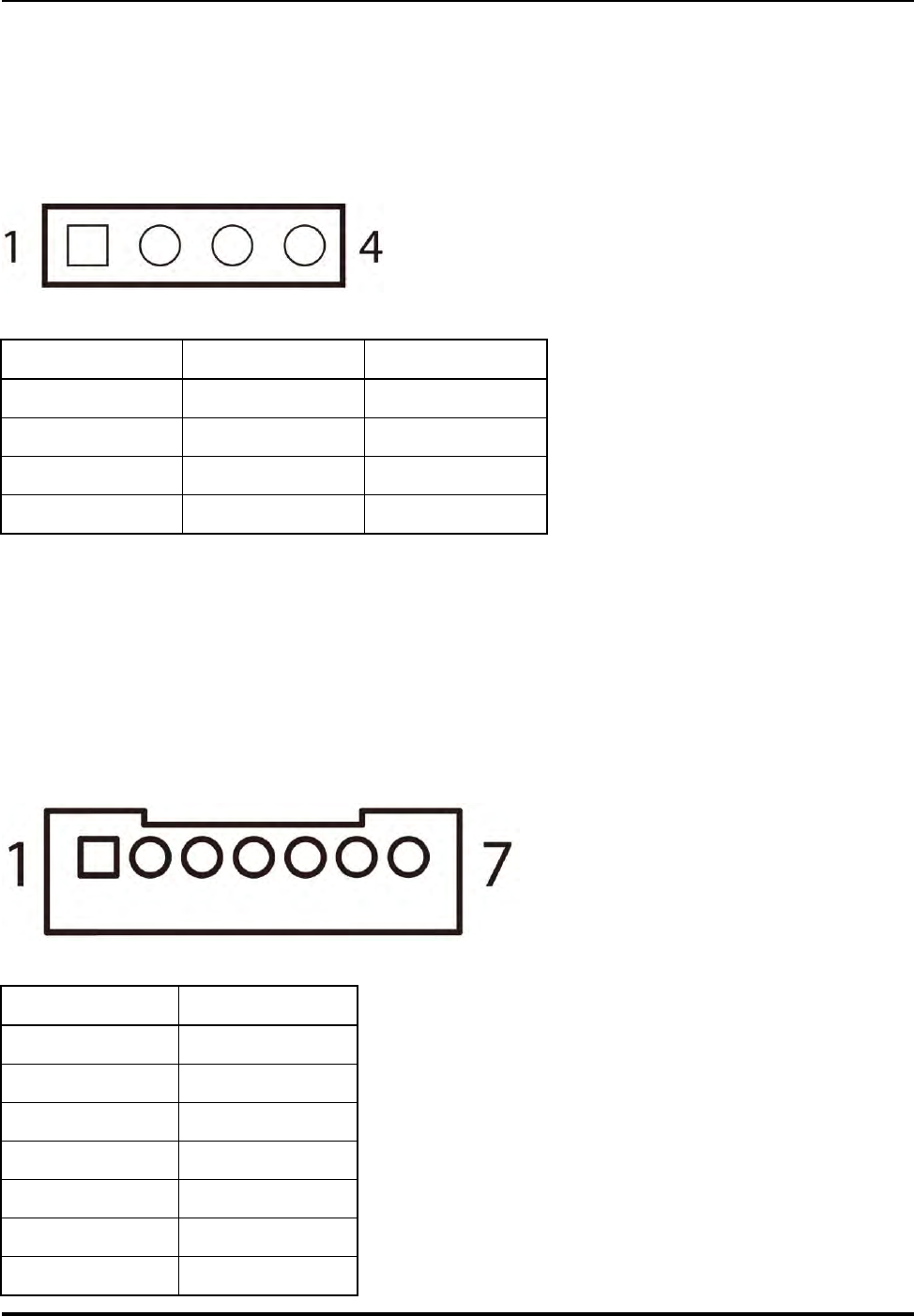

INTERNAL CONNECTORS PIN ASSIGNMENT .............................................................................................................................. 31
Power Connector ........................................................................................................................................................................... 31
LED Connector ................................................................................................................................................................................ 32
Resistive Touch Screen Connector ......................................................................................................................................... 32
GPS Connector ................................................................................................................................................................................ 33
Battery Connector ......................................................................................................................................................................... 33
Power Input Voltage .................................................................................................................................................................... 34

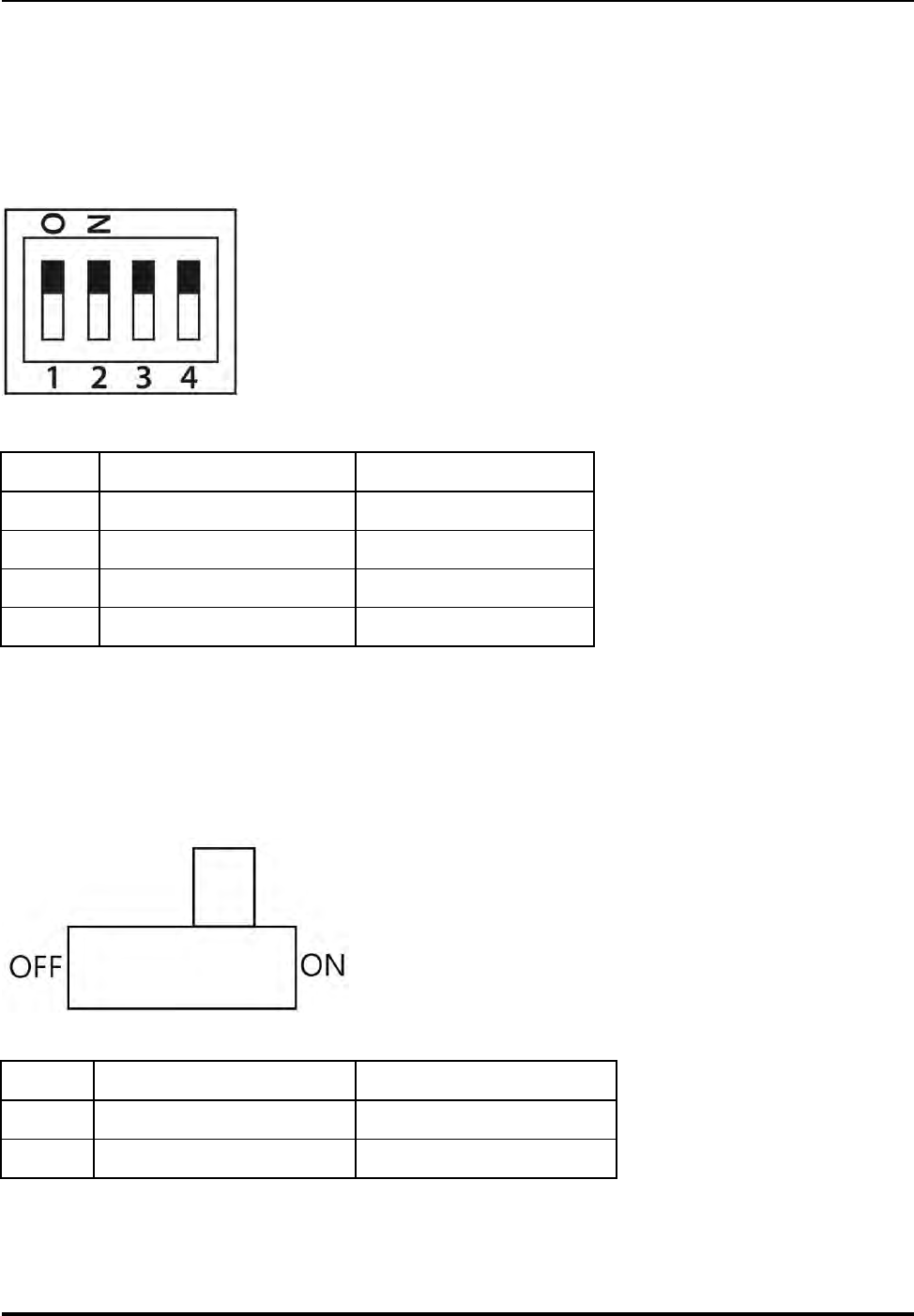

Internal Battery Source Setting ............................................................................................................................................. 34

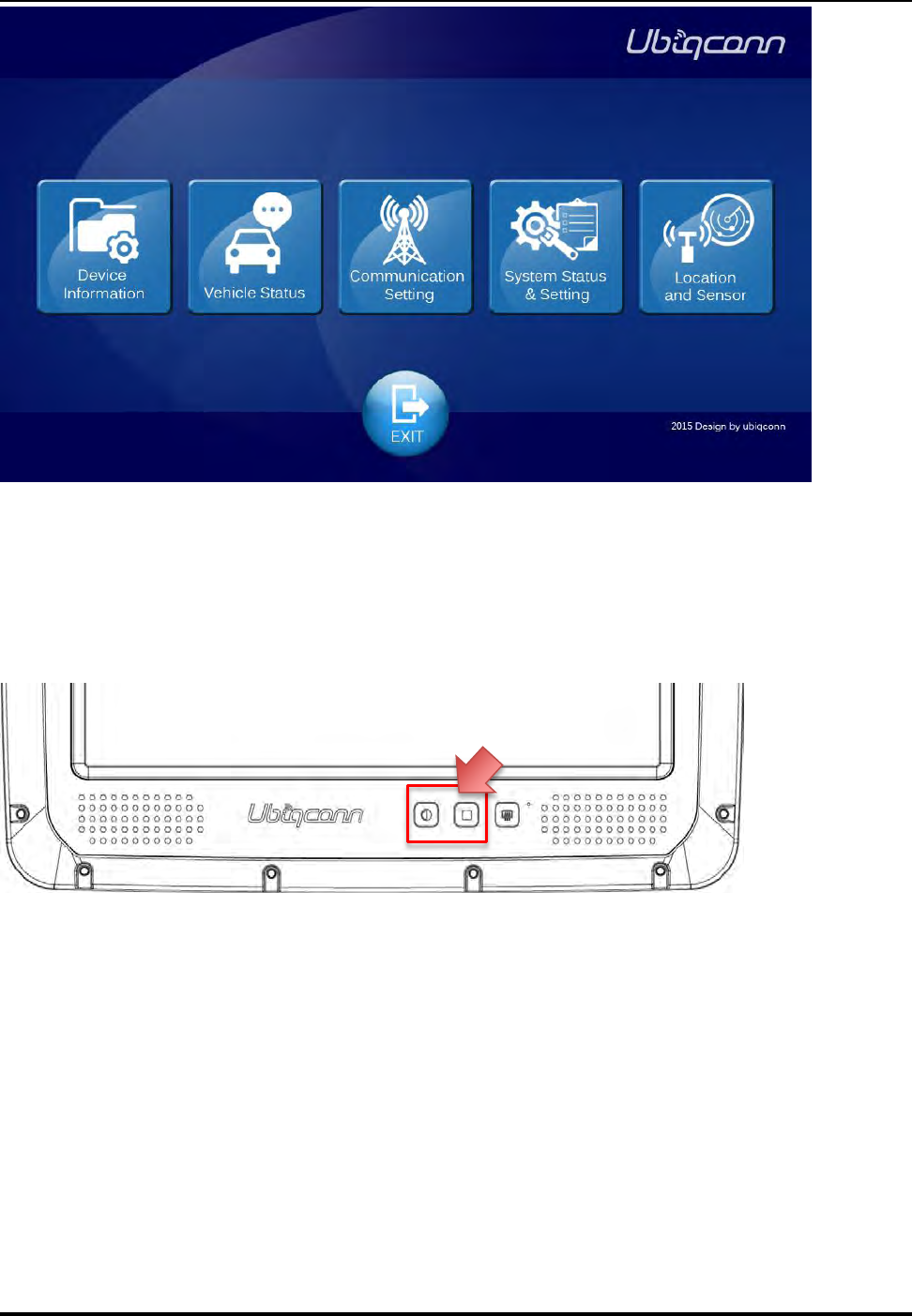

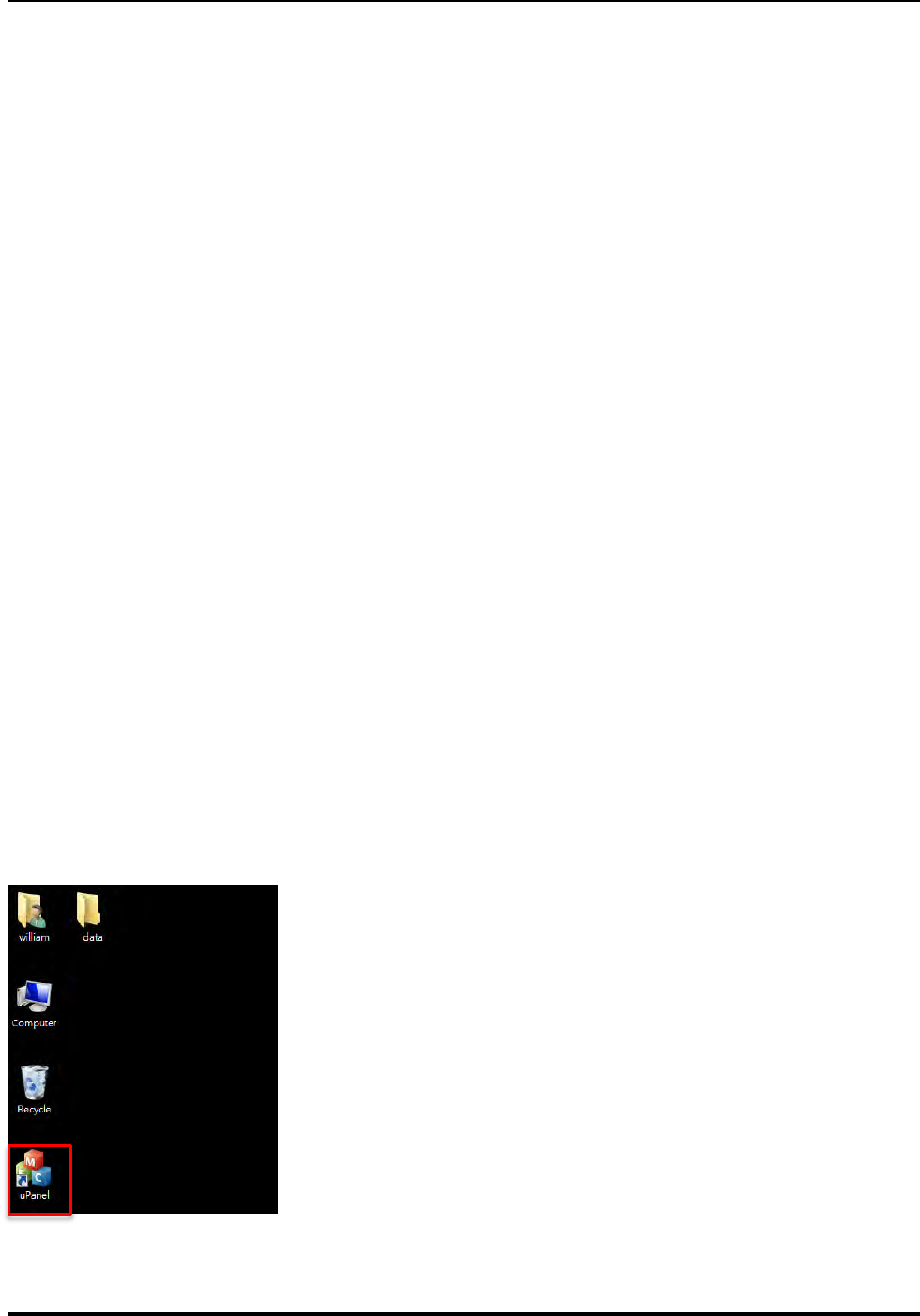

CHAPTER 6. UPANEL SETTING ................................................................................................................................ 35
CHAPTER 7. MAIN BIOS SETTING .......................................................................................................................... 37

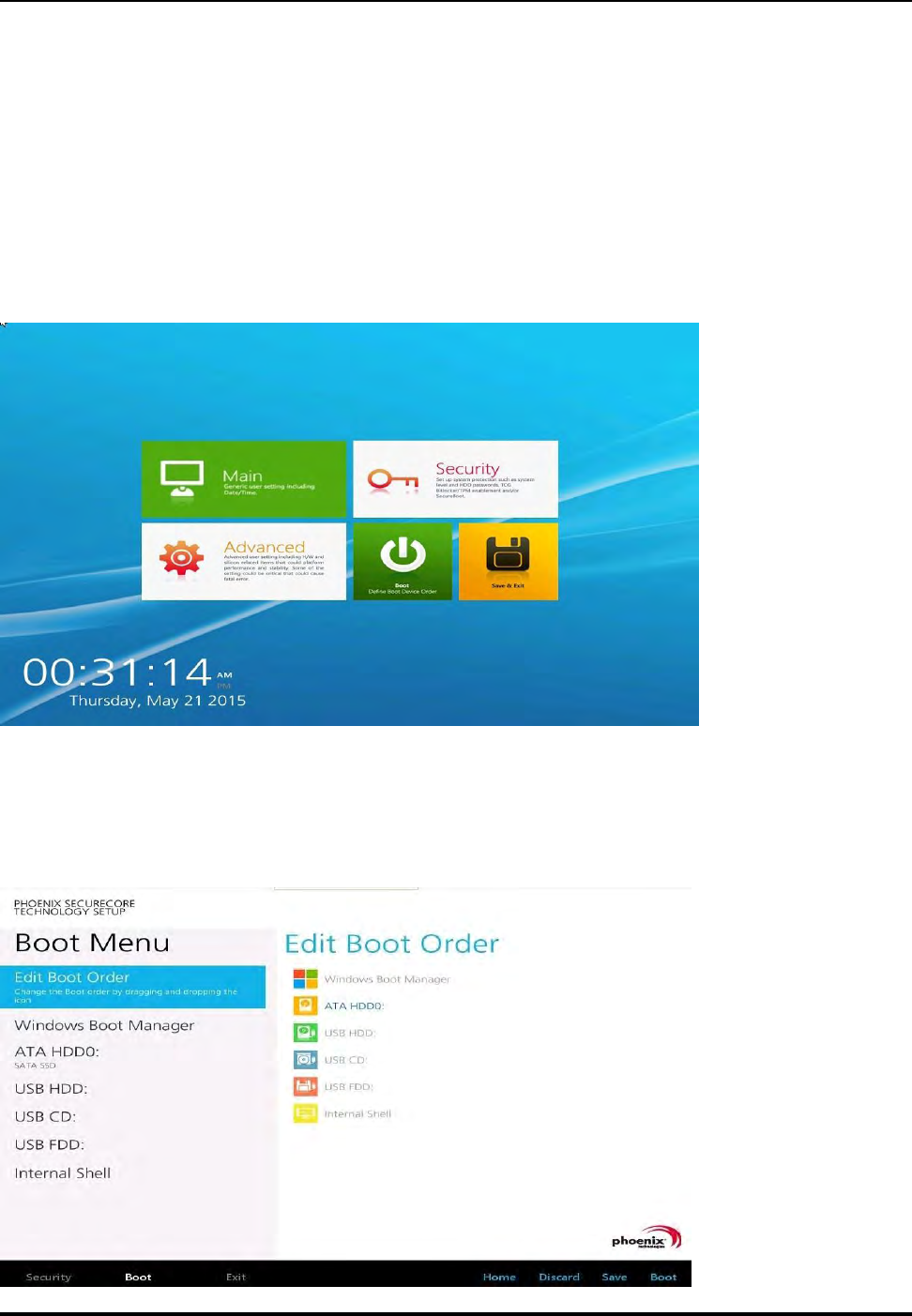

SET BOOT SEQUENCE ................................................................................................................................................................... 37
SET THE SYSTEM CONFIGURATION ............................................................................................................................................. 38

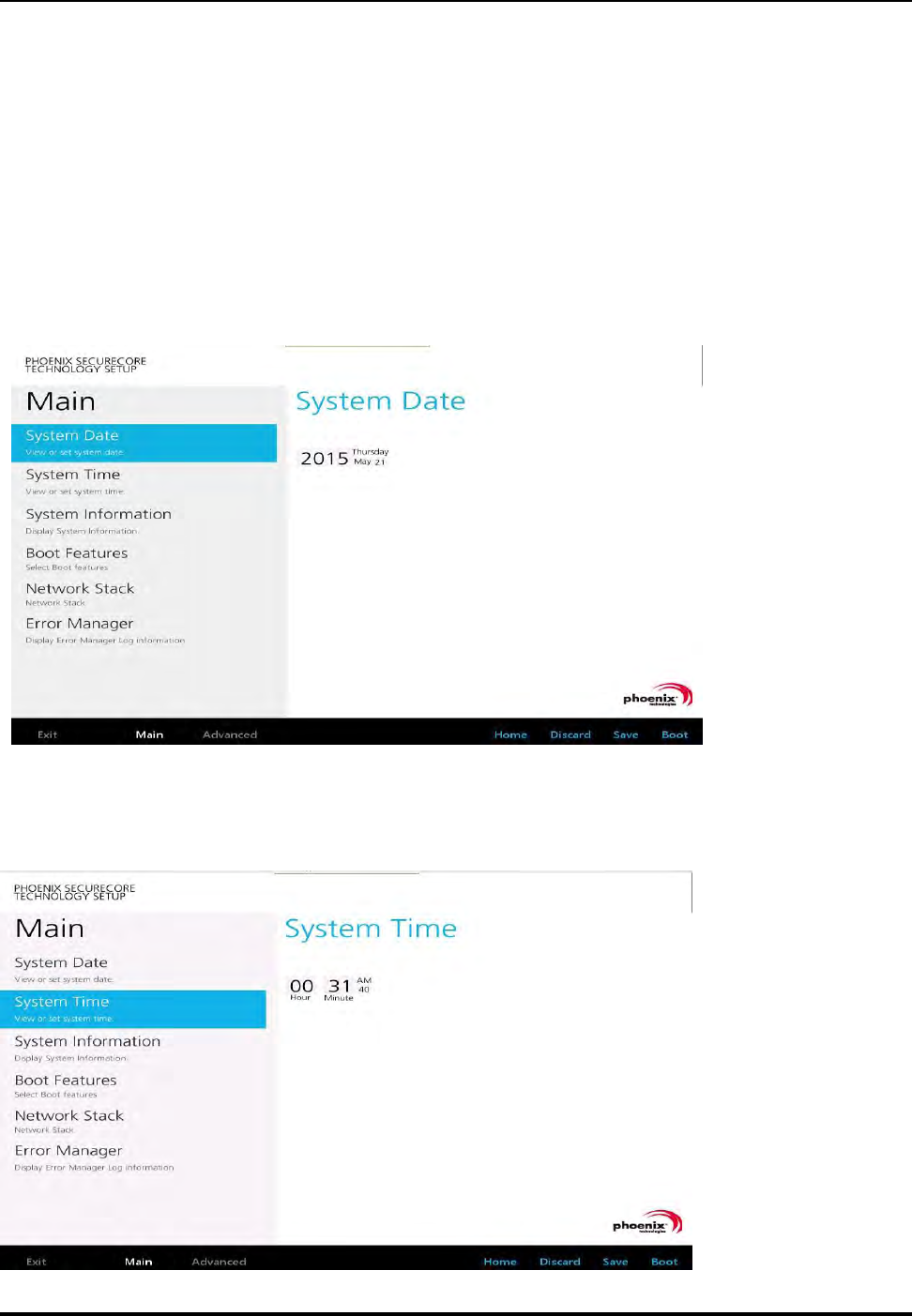

Setting the System Date ............................................................................................................................................................. 38
Setting the System Time ............................................................................................................................................................. 38

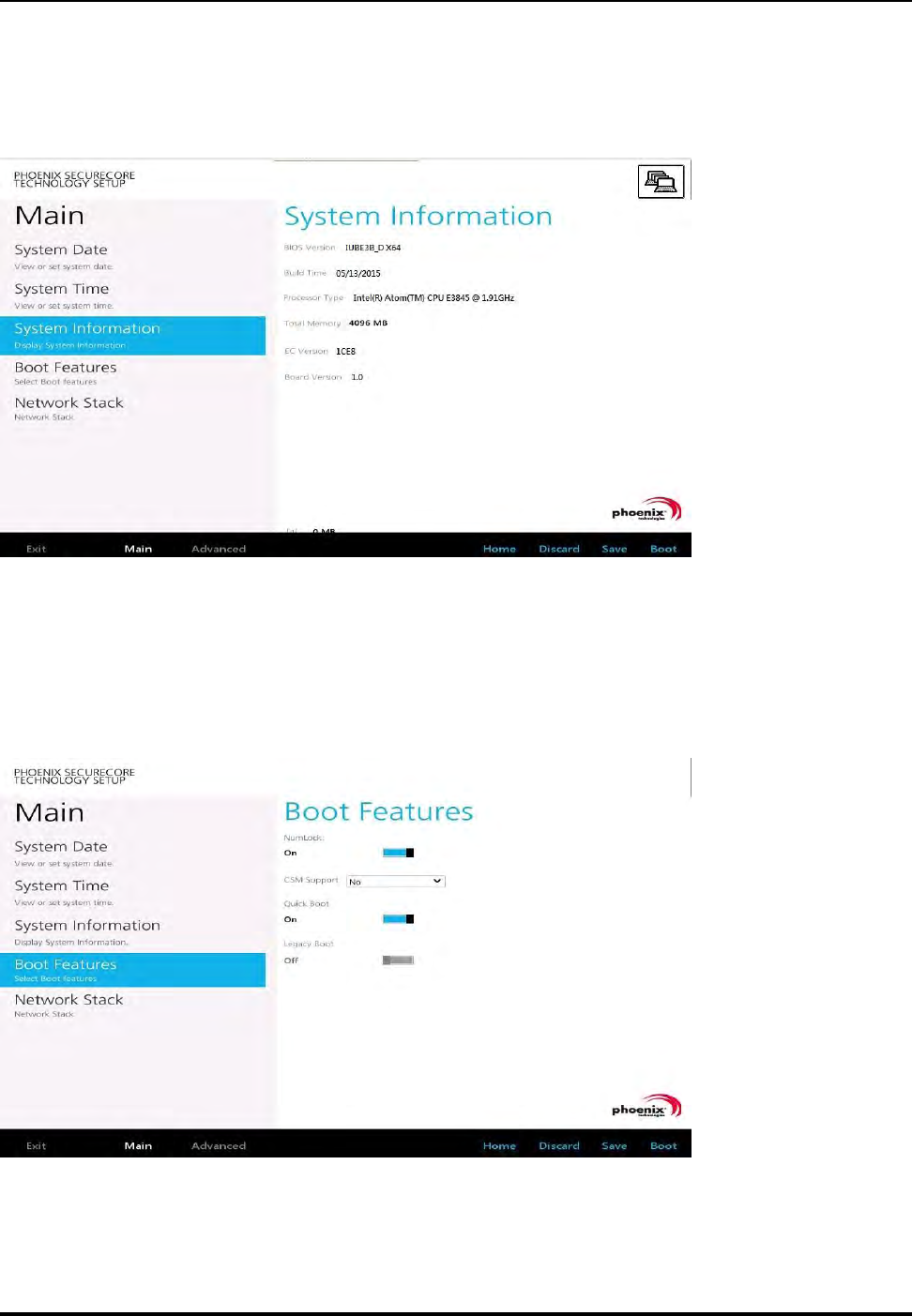

SYSTEM INFORMATION ................................................................................................................................................................. 39
BOOT FEATURES ............................................................................................................................................................................ 39

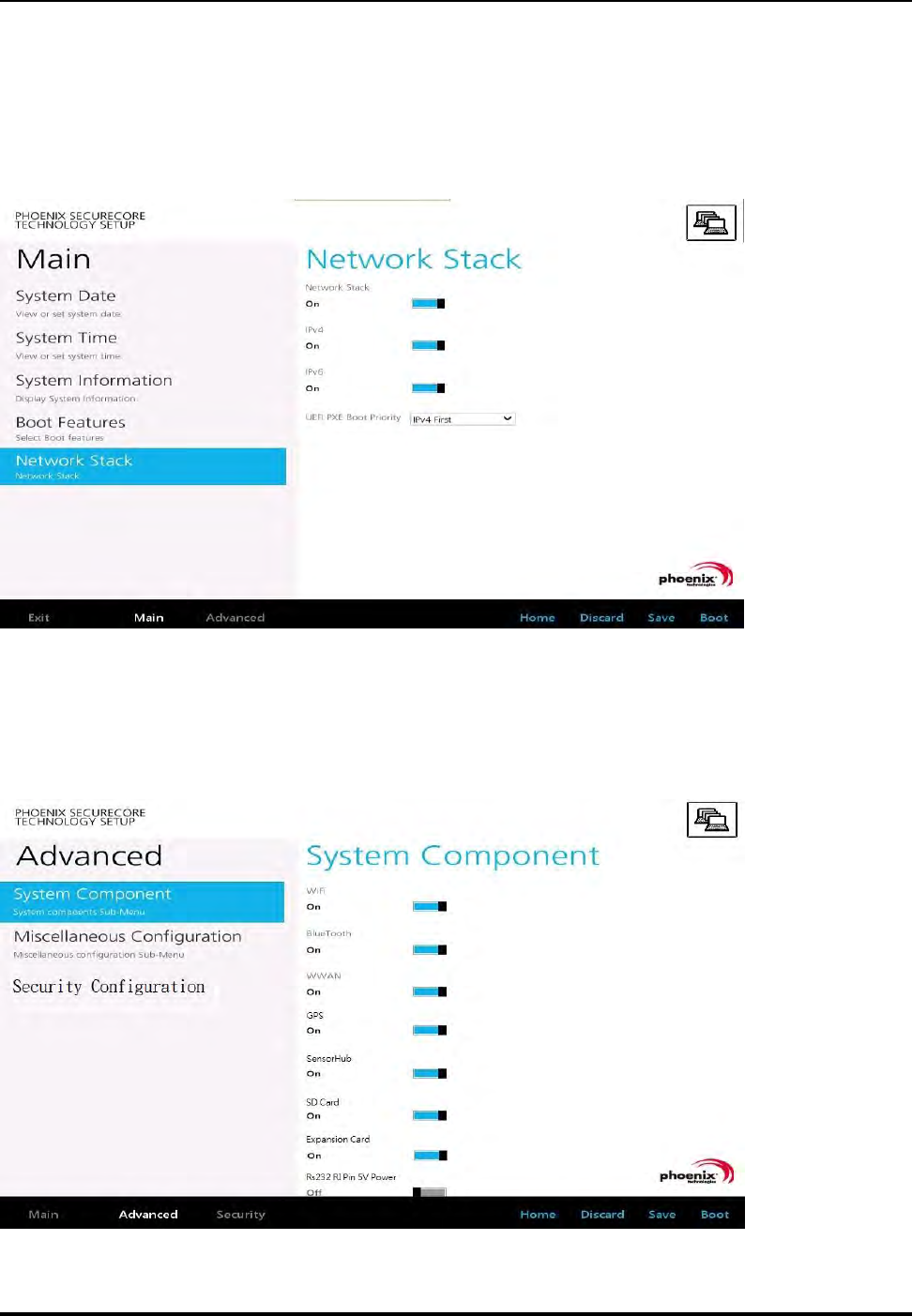

NETWORK STACK .......................................................................................................................................................................... 40
ENABLE/ DISABLE SYSTEM COMPONENTS ............................................................................................................................... 40

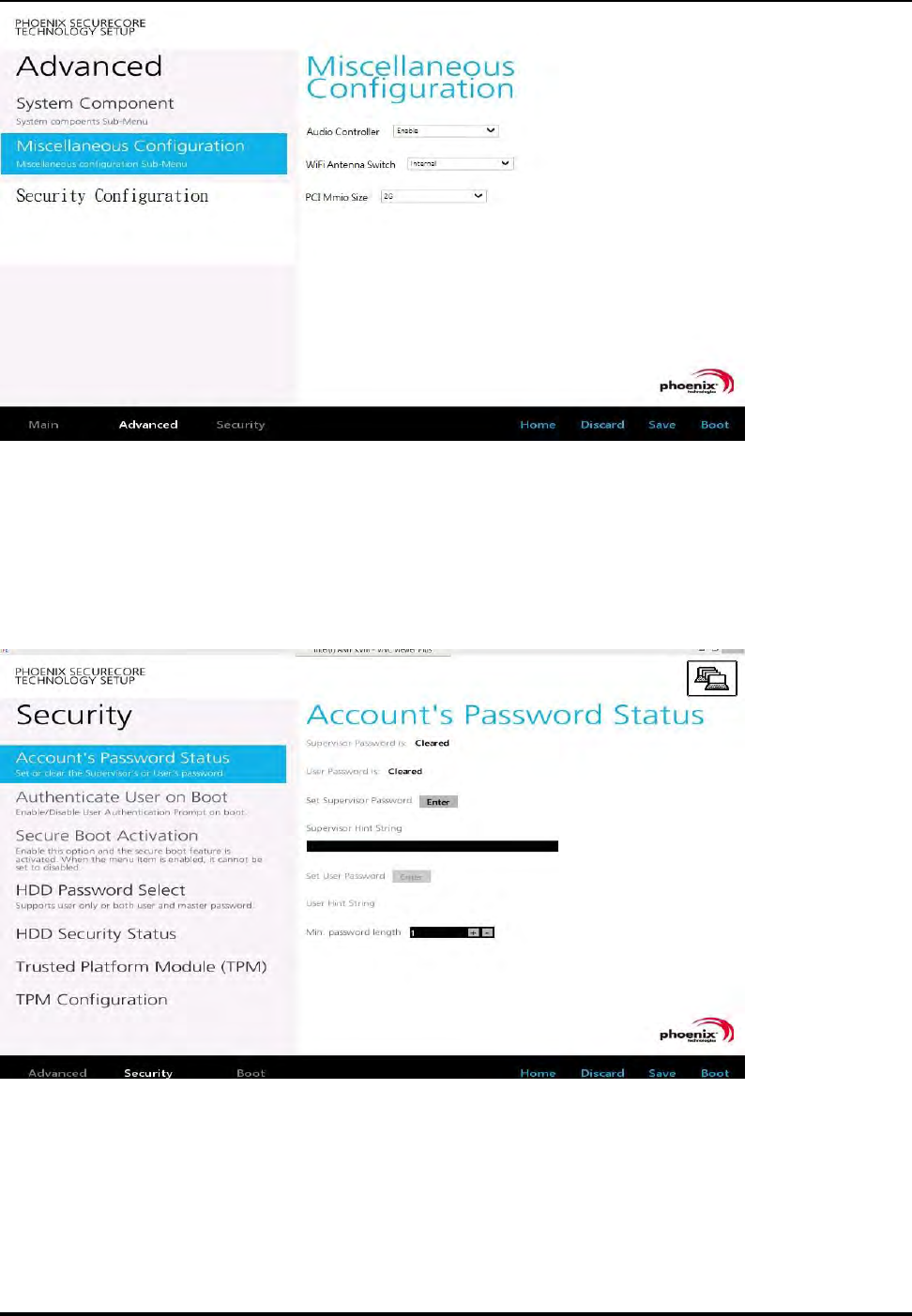

ACCOUNT’S PASSWORD SETTING ................................................................................................................................................ 41

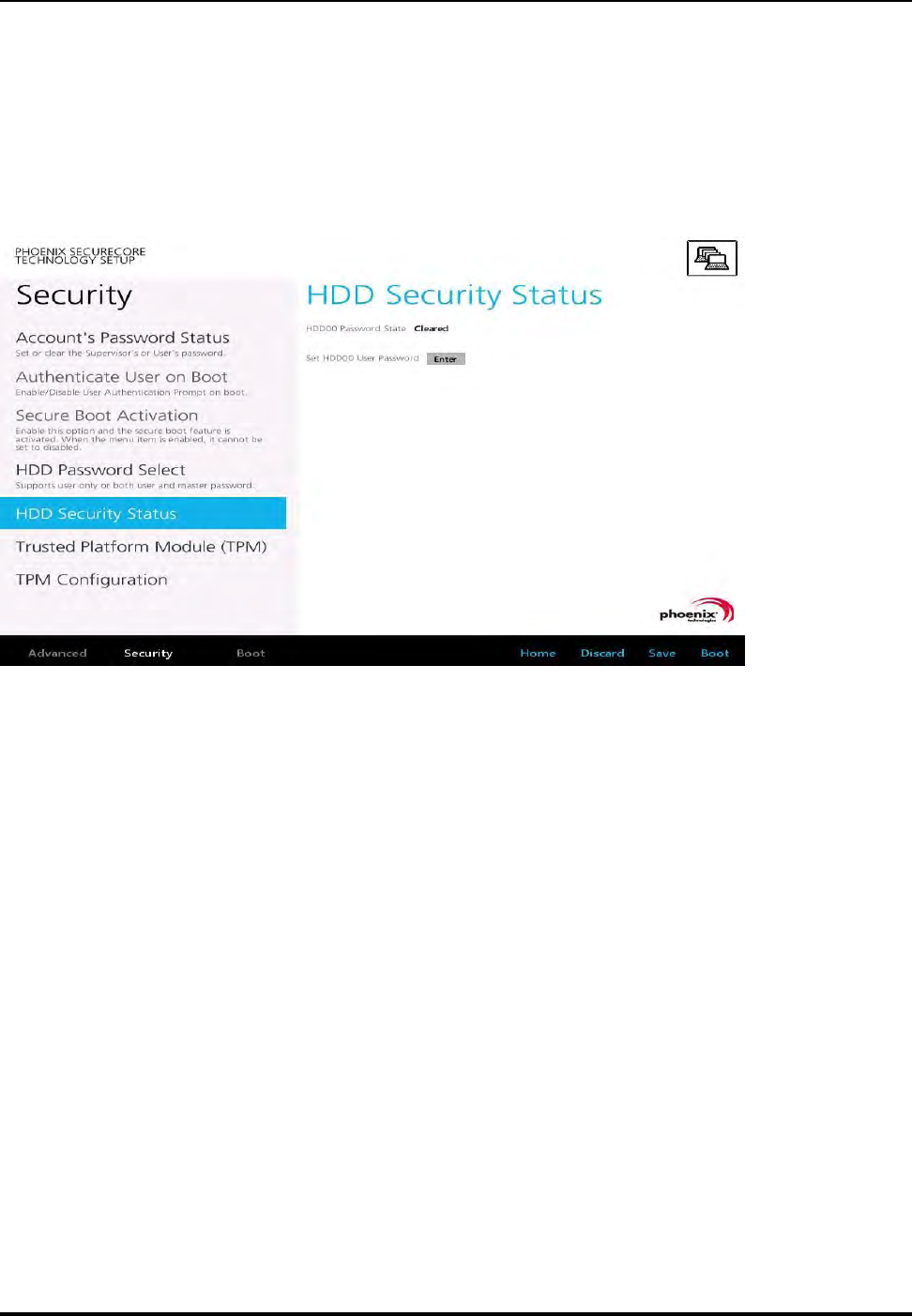

HDD SECURITY SETTING ............................................................................................................................................................. 42
4
Safety Precautions
1. Read these safety instructions carefully.
2. Keep this user’s manual for later reference.
3. Disconnect this equipment from any AC outlet before cleaning. Use a damp cloth. Do not
use liquid or spray detergents for cleaning.
4. For plug-in equipment, the power outlet socket must be located near the equipment and
must be easily accessible.
5. Keep this equipment away from humidity.
6. Put this equipment on a stable surface during installation. Dropping it or letting it fall may
cause damage.
7. Do not leave this equipment in either an unconditioned environment or in an above 40oC
storage temperature as this may damage the equipment.
8. The openings on the enclosure are for air convection to protect the equipment from
overheating. DO NOT COVER THE OPENINGS.
9. Make sure the voltage of the power source is correct before connecting the equipment to
the power outlet.
10. Place the power cord in a way so that people will not step on it. Do not place anything on
top of the power cord. Use a power cord that has been approved for use with the product
and that it matches the voltage and current marked on the product’s electrical range label.
The voltage and current rating of the cord must be greater than the volt- age and current
rating marked on the product.
11. All cautions and warnings on the equipment should be noted.
12. If the equipment is not used for a long time, disconnect it from the power source to avoid
damage by transient overvoltage.
13. Never pour any liquid into an opening. This may cause fire or electrical shock.
14. Never open the equipment. For safety reasons, the equipment should be opened only by
qualified service personnel.
15. If one of the following situations arises, get the equipment checked by service personnel:
a. The power cord or plug is damaged.
b. Liquid has penetrated into the equipment.
c. The equipment has been exposed to moisture.
d. The equipment does not work well, or you cannot get it to work according to the user’s
5
manual.
e. The equipment has been dropped and damaged.
f. f. The equipment has obvious signs of breakage.
16. Do not place heavy objects on the equipment.
17. The unit uses a three-wire ground cable which is equipped with a third pin to ground the
unit and prevent electric shock. Do not defeat the purpose of this pin. If your outlet does
not support this kind of plug, contact your electrician to replace your obsolete outlet.
18. CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY RE- PLACED. REPLACE
ONLY WITH THE SAME OR EQUIVALENT TYPE REC- OMMENDED BY THE
MANUFACTURER. DISCARD USED BATTERIES ACCORDING TO THE MANUFACTURER’S
INSTRUCTIONS.
6
Regulatory and Certification
FCC
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause
undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Shielded interconnect cables and shielded AC power cable must be employed with this
equipment to insure compliance with the pertinent RF emission limits governing this device.
Changes or modifications not expressly approved by the system’s manufacturer could void the
user’s authority to operate the equipment.
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
This device is operation in 5.15 – 5.25GHz frequency range, then restricted in
7
indoor use only, Outdoor operations in the 5.15 – 5.25GHz is prohibit.
CE Marking
This product has passed the CE test for environmental specifications when shielded cables are
used for external wiring. We recommend the use of shielded cables. Please contact your local
representative for ordering information.
This product has passed the CE test for environmental specifications. Test conditions for
passing included the equipment being operated within an industrial enclosure. In order to
protect the product from being damaged by ESD (Electrostatic Discharge) and EMI leakage, we
strongly recommend the use of CE-compliant industrial enclosure products.
R&TTE
This device complies with the essential requirements of the R&TTE Directive 1999/5/EC.
Lithium Battery Safety Statement
Lithium battery inside. Danger of explosion if battery is incorrectly replaced. Replace only with
same or equivalent type recommended by battery manufacturer.
THIS PRODUCT CONTAINS LITHIUM-ION BATTERY PACKS. IT MUST BE DISPOSED
OF PROPERLY. CONTACT LOCAL ENVIRONMENTAL AGENCIES FOR INFORMATION
ON RECYCLING AND DISPOSAL PLANS IN YOUR AREA.
8
Chapter 1. Product Introduction
VT1020 is the ultra-rugged in-vehicle terminal with 10.4” high brightness display, is designed
for the construction, mining, logistics application.
With IP66 protection rating, wide temperature design, wide power range input, and rich
expanding interfaces supporting in-vehicle connectivity, VT1020 is a well thought-out
in-vehicle device suitable to overcome the demanding challenge.
Hardware Specifications
Item
Description
Processor
Intel® Bay Trail-I E3845 1.91GHz (Quad Core)
Memory
4GB SO-DIMM DDR3L SDRAM, up to 8GB
Storage
SSD x 1, SD slot x 1
Display
10.4-inch XGA (1024 x 768); 70,000 hours backlight life
1,000 nits sunlight readable (MIL STD 85762A) to 0.1 nits hyper
dimming for night mode operation
Viewing angel: 140(H)/ 120(V) (CR>10)
Anti-reflection tempered 5-wire resistive touch panel
PCT (Gorilla) by request only
Touch Panel
5-wire Resistive Touch Screen
Defrost/Defog function (Option)
Wireless
Connectivity
802.11 ac/a/b/g/n 2x2
Bluetooth 4.0 + HS
GPS / QZSS or GLONASS
1 mini PCIe slot (full size) for cellular module
External RP-SMA connectors for wireless expansion, SMB for GPS
Item
Description
Power Input
VT1020-HR : 18-60VDC 4.5A
VT1020-HRD: 18-60VDC 4.5A
VT1020-LR: 9-32VDC 9A
VT1020-LRD: 9-32VDC 9A
9
Battery
2,900mAh, 7.5V
Housing
(Mechanical)
Die-cast aluminum alloy, fanless design
Video Capturing
Optional video input up to 4 ports with comprehensive SDK included
Certification
CE, FCC, CB
Operating System Support
Windows 7 Professional with Service Pack 1 x64
Windows Embedded 8.1 Industry x64
Windows Embedded 8 Standard x64
Windows Embedded Standard 7 x64
Linux Kernel Version 3.19
Environment
Operating temperature:
-30°C (-22°F) to 55°C (122°F)
In accordance with MIL-STD-810G Method 501.5 High Temperature Procedure II –
Operation
In accordance with MIL-STD-810G Method 502.5 Low Temperature Procedure II –
Operation
Storage temperature:
-30°C (-22°F) to 70 °C (158°F)
In accordance with MIL-STD-810G Method 501.5 High Temperature Procedure I –
Storage
In accordance with MIL-STD-810G Method 502.5 Low Temperature Procedure I –
Storage
Relative humidity:5% to 95% @ 30°C (86°F) to 60°C (140°F) non-condensating in
accordance with MIL-STD-810G Method 507.5 Humidity Procedure II Aggravated Cycles
Vibration Test:
Operating: MIL-STD-810G Method 514.6 Procedure 1, Category 4,Fig 514.6C-1
10
Common carrier (US highway truck vibration exposure);Fig 514.6C-2 Composite
two-wheeled trailer; Fig 514.6C-3 Composite wheeled vehicle
Non-Operating: MIL-STD-810G Method 514.6 Procedure 1, Category 24, Fig 514.6E-1
(General minimum integrity exposure)
Shock Test:
Operation: MIL-STD-810G Method 516.6 Procedure 1 Functional Shock (40g, 11ms)
Non-Operation: MIL-STD-810G Method 516.6 Procedure V Crash Hazard Shock (75g, 8~13ms)
I/O Ports
2 x RJ45 connector with Gigabit LAN for teaming / redundant function support
1 x DB9 male type RS-232 with power supply 0/5/12V (COM1)
1 x DB9 male type RS-232 (COM2)
1 x DB9 female type RS-232 (COM3)
2 x USB (2.0 and 1.x compliant)
1 x DB9 female type CAN bus with 2.5KVrms isolation protection and NMEA 2000 physical
layer support
3KVrms isolation protection for 4 DI + 4 DO
Stereo microphone x 1 or line-in, stereo HD audio x 1
Waterproof speakers
11
Dimension and Weight
Dimension: 276mm (W) x 252mm (H) x 67.3mm (D)/ 10.86in. (W) x 9.92in. (H) x 2.68in. (D)
Weight: 3.8 kg (include SSD) /8.38 lbs (include SSD)
Front View Dimension:
Side View Dimension:
12
Package List
Before you begin the installation or configuration process make sure to inspect all components
and accessories. Contact your representative if there are any missing or damaged items.
Please verify the delivery of the contents upon receipt
VT1020 system
The power supply cable with circular connector plug
DB9 serial to dual USB cable
DB9 male to DB9 male for COM3
NOTE: The packaging material has been selected to optimally protect your device. After
unpacking, store the original packaging material in the event that you need to return
shipment.
13
Chapter 2. Hardware Installation
This chapter provides information for the installation and removal of RAM, SSD and mini PCIe
card.
RAM Module
Prevention of EMI interference in this device is not guaranteed if the original components are
replaced.
A single DIMM module slot is available for memory expansion. The device supports up to 8GB
of SO-DIMM DDR3L SDRAM.
Installing/Removing a RAM Module
1. Shut down the system properly and disconnect from all power sources.
2. Un-mount the device from the mounting apparatus; make sure that the display surface is
protected.
3. Remove the screws securing the service cover and remove the cover.
14
4. Locate the RAM module slot, see the following image.
5. Insert the RAM module into the slot and press it down until the clips lock or pull the
locking levers to unlock the DIMM and remove it from slot.
15
6. Replace the service cover.
SSD Module
Prevention of EMI interference in this device is not guaranteed if the original components are
replaced.
Installing an SSD Module
1. Shut down the system properly and disconnect from all power sources.
2. Un-mount the device from the mounting apparatus; make sure that the display surface is
protected.
3. Remove the screws securing the service cover and remove the cover.
4. Locate the SSD connector on the VT1020.
5. Align the arrow indicators on the silicone guard strips to the front (connector side) of the
SSD module.
6. Insert the guard strips over the sides of the SSD module.
16
7. Grasp the SATA cable from the SSD bay and pull it forward to release it from its enclosure.
8. Align the SATA cable with the connectors on the SSD module.
9. Connect the SSD to the SATA cable.
10. Hold the SSD module with one hand. With the other hand push in the SATA cabling
underneath the chassis. It is necessary to tuck the cables in to allow for enough space to
install the SSD module.
11. Angle the SSD connectors into the SSD bay to correctly seat the SSD module.
12. Lower the rear of the SSD in the bay and press it down gently to seat it correctly.
13. Replace the service cover.
17
Removing an SSD Module
1. Shut down the system properly and disconnect from all power sources.
2. Un-mount the device from the mounting apparatus; make sure that the display surface is
protected.
3. Remove the screws securing the service cover and remove the cover.
4. It may be necessary to grasp the silicone guard strip and gently pull them up to remove the
SSD module from the bay. For best results, pull up on the rear of the SSD module. The SSD
module angles up.
5. Slide the SSD module out of the bay.
6. Disconnect the SSD module from the SATA cable.
7. Remove the silicone guard strips from the SSD module. Do not throw them away the guard
strips away.
Keep the guard strips for later use on the replacement SSD module.
18
8. Replace the service cover.
Installing/Removing the mini-PCIe Cards
The mini-PCIe card for the performance extension of your system can be installed Video. Please
follow the guideline for installation.
1. Shut down the system properly and disconnect from all power sources.
2. Un-mount the device from the mounting apparatus; make sure that the display surface is
protected.
3. Open the service cover; mini PCIe card slots are under the SSD, so please remove the SSD
module first.
4. Locate the mini PCIe slot, see the following image, designated for a video card.
5. Fasten/Loosen the corresponding screws, install/remove the card.
19
6. Install the SSD module and then replace the service cover.
Chapter 3. Hardware Mounting
The VT1020 supports two types of standard VESA mounting, it support VESA 75 mounting and
VESA 100 mounting.
Notes: To prevent any damage or injury, make sure the mounting bracket is securely attached.
The VT1020 also supports two types of VESA mounts.
20
VESA 100 Mounting Option
VESA 100 mounting option, M5 thread
The VT1020 supports a standard VESA version MIS-D, 100, C (100 mm distance quadrate order,
M5 thread, deepness 7.5 mm) through the four drill holes on the back side of the device.
VESA 75 Mounting Option
VESA 75 mounting option, M5 thread
The VT1020 supports a standard VESA version MIS-D, 75, C (75 mm distance quadrate order,
M5 thread, deepness 7.5 mm) through the four drill holes on the back side of the device.
21
Chapter 4. Start up
Powering the System
Starting Up the System
Connect the power cable to power input connector and then, press the power switch for 2
seconds. The system will be turned on.
Powering Down the System
The VT1020 can be powered down by using the power switch or through the Windows
operating system.
To power down the device, press the power switch 5 seconds, the system will be turned off.
Brightness and Dimming Control
Adjust the brightness of the display to setup optimal conditions in Sunlight or Night mode
operations.
Press the button to decrease the brightness to Night mode.
Press the button to increase the brightness to Sunlight mode.
22
LED Status
See the following description.
Color
Description
None
Hyper dimming mode or shut down.
Green
Normal.
Red
Battery mode.
Defrost/Defog Option
The touch screen equipped with optional for defrost and defog function for users who use the
device in extreme temperature environments.
Enabling Defrost Function
In extreme cold conditions (moving into a cold environment), press the button to
23
enable the defrost function and allow the device to heat up the screen to 2 degrees. The defrost
function is automatically shuts off once the temperature reaches 2 degrees.
Enabling Defog Function
In environments where an extreme temperature changes occurs, cold to hot temperature
change, the display can fog up. To enable the defog function, press the button to enable
the function. The device heats up to 35 degrees. Once the 35 degree temperature is achieved,
the function automatically shuts off.
Notes: Once the device reaches 35 degrees, the function automatically shuts off. Pressing the
Defrost/Defog key does not re-enable the function.
Calibrating the Touch Screen
The touch screens of all VT1020 devices that come delivered with an operating system
(Windows or Linux) are already calibrated.
You may need to calibrate your screen if you tap on one area and it registers in a different area
of the screen. Make sure you use the stylus to complete the alignment process.
1. Tap Start > All Programs > HIDeGalaxTouch Tool > HIDeGalaxTouch Tool. The
HIDeGalaxTouch Tool appears.
2. Tap 4 Points Calibration, 9 Points Linearization or 25 Points Linearization to begin the
process. The calibration process beings and calibration points are displayed on the screen.
3. Tap each calibration point as directed by the process.
4. Tap and hold until the display shows OK.
5. Continue to follow the instructions until the process is finished.
6. Once calibration is achieved a prompt displays. Tap OK to complete the calibrate process.
24
VT1020 Configuration Options
In additional to setting in Windows Control Panel, VT1020 also provide the utility, uPanel, to
set the configuration including power management and system setup. Please refer the
Chapter 6 for configuration setting in uPanel.
Date and Time
Use the following to set the Date and Time.
Press FN Key > press or tap Control Panel > Clock, Language an Region > Date and
Time
Power Management
Use the following to set the power management options.
Press FN Key > press or tap Control Panel > Hardware and Sound > Power Options
Speaker Volume
Use the following to set the speaker volume.
Press FN Key > press or tap Start > Control Panel > Hardware and Sound > Sound
Connect Bluetooth Devices
Use the following to set the speaker volume. Press FN Key > press or tap Control
Panel > Bluetooth Devices
Restart/Shutdown
Use the Windows interface to restart or shut down the VT1020. To restart: Press FN
Key > press or tap Start > arrow next to Shut down > Restart
25
To shut down: Press FN Key > press or tap Start > Shut down
Chapter 5. Jumpers and Connectors
External Connectors Pin Assignments
Use this section as a reference for the pin assignments of the various ports available on the
VT1020.
DIO Port
Pin
Signal
1
Digital OUT-1
2
Digital OUT-2
3
Digital OUT-3
4
Digital OUT-4
5
Digital IN-1
6
Digital IN-2
7
Digital IN-3
8
Digital IN-4
9
No connected
10
No connected
26
11
No connected
12
No connected
13
No connected
14
GND
15
GND
RS-232 Port (COM1)
Pin
Signal
Description
1
DCD
Data carrier detect (input)
2
RXD
Receive data (input)
3
TXD
Transmit data (output)
4
DTR
Data terminal ready (output)
5
GND
Signal/power ground
6
DSR
Data set ready (input)
7
RTS
Request to send (output)
8
CTS
Clear to send (input)
9
RI / PWR
Bar code scanner power (1 A max) or Ring indicator (input)
27
CAN BUS Ports
Pin
Signal
Description
1
CAN_L
CAN_L bus line dominant low 5V level
2
-
No connected
3
CAN_H
CAN_H bus line dominant high 5V level
4
GND
GND
5
GND
GND
6
-
No connected
7
-
No connected
8
-
No connected
9
-
No connected
28
Expansion Port
Pin
Signal
Description
1
CH1: Audio Left
Audio left input
2
CH2: Video
Video input
3
CH2: Audio Right
Audio right input
4
NC
No connected
5
CH3: Audio Right
Audio right input
6
CH1: Video
Video
7
CH1: Audio Right
Audio right input
8
CH2: Audio Left
Audio left input
9
CH3: Video
Video
10
CH3: Audio Left
Audio left input
11
CH4: Video
Video
12
GND
GND
13
CH4: Audio Left
Audio left input
14
CH4: Audio Right
Audio right input
15
GND
GND
29
USB Port
Pin
Signal
1
USB2_D-
2
USB2_D+
3
GND
4
USB1_D+
5
USB1_D-
6
GND
7
USB2_PWR
8
USB1_PWR
9
Not used
We provide the DB9 to standard USB type A connector cable.
Please contact your local representative for ordering information
30
Power Connector
If you are connecting to an external DC/DC supply, you must apply power to DC+. If you are
connecting to 10 to 60V vehicle power, connect power to V In+.
Pin
Signal
1
DC+
2
GND
3
DC-
31
Internal Connectors Pin Assignment
Power Connector
Location: CN12
Mainboard side
Power Board
1
1
ADPIN+
2
2
GND
3
3
ADPIN+
4
4
GND
5
5
ADPIN+
6
6
GND
7
7
ADPIN+
8
8
GND
32
LED Connector
Location: CN18
Mainboard side
LED side
1
1
PMU3V
2
2
LEDG_VCC
3
3
LEDR_VCC
4
4
GND
Resistive Touch Screen Connector
Location: CN25
Mainboard side
Touch for Resistor
Signal
1
5
X+/UL
2
4
Y+/UR
3
3
PROBE
4
2
X-/LR
5
1
Y-/LL
33
GPS Connector
Location: CN15
Mainboard side
GPS side
Signal
1
1
GPS_3VIN
2
2
GPS_3VIN
3
3
GND
4
4
GND
Battery Connector
Location: CN28
Mainboard side
Signal
7
BAT_VCC
6
BAT_VCC
5
SMDAT
4
SMCLK
3
BIN1
2
GND
1
GND
34
Power Input Voltage
Location: CN9
Pin
Status
Function
1
Reserve
Reserve
2
OFF: 12V / ON: 24V
12V / 24V
3
OFF / ON
BIOS_RECOVER#
4
Reserve
Reserve
Internal Battery Source Setting
Location: CN10
Pin
Status
Function
1
ON
Internal Battery ON
2
OFF
Internal Battery OFF
35
Chapter 6. uPANEL Setting
uPanel is an utility to configure the device for your demo or test. We also provide the
corresponding SDK for your application development. The utility is auto-running in
background while the system turn on. This section is to brief what function are included in
uPanel and how to set up.
1. Device Information
Provide the system hardware, software, and firmware version information.
2. Vehicle Status
This section is to demo how to read the vehicle information such as vehicle battery voltage,
fuel, speed and so on while connecting with vehicle OBDII or SAE J1939. We use the
simulator to run the demo.
3. Communication Setting
This is to enable / disable WiFi/BT and configure the related setting.
4. System Status & Setting
This section contains the major configuration of the system device. Power management,
wake up event, IO configuration, brightness and watchdog timer setting are included.
5. Location & Sensor
GPS configuration setting and temperature status
Double click the uPanel icon into the utility if uPanel is not running in background
36
Click the icon you like to configure or “EXIT” to quit uPanel.
For any reason, if you like to load the default setting of uPanel, please press and hold the
“Brightness and Dimming Control” and “FN Key” for 6 seconds.
Press and hold these keys
37
Chapter 7. Main BIOS Setting
VT1020 is equipped with a Phoenix BIOS, which is stored in EEPROM chip.
This chapter provides information for BIOS main feature setting in hardware system.
When the system turn on, press <F2> to enter Setup
The system displays the BIOS setup interface, you can select what functions do you want to
change.
Set Boot Sequence
This section enable the user define and modify the boot options of bootable devices.
38
Set the system configuration
Used the Main menu for basic system configuration, user can setting the system date, time
and drive parameters and related settings via the HDD Sub-menu.
Setting the System Date
Setting the System Time
39
System Information
Display the system configuration information such as CPU, Memory size, firmware version.
Boot Features
User can set the boot options for CSM support or Quick Boot, please note if the operating
system is Windows 8, please setting [Off] for “Legacy Boot”
40
Network Stack
If the system needs to boot by network, enable this function.
Enable/ Disable System Components
Use Advanced menu to set the system I/0 device function.
41
Account’s Password Setting
Used the Security Menu can establish the system password to protection for entering the BIOS
or system start-up.
42
HDD Security Setting
To establish password protection to restrict access to the contents of the hard disk drive, the
HDD password is written to the system BIOS and to the hard disk drive to ensure that the
password can protect your hard disk drive should it be moved to another computer.
