Ubiquiti AF11FX Licensed Point-to-Point Wireless Backhaul User Manual airFiber AF 11FX Quick Start Guide

Ubiquiti Networks, Inc. Licensed Point-to-Point Wireless Backhaul airFiber AF 11FX Quick Start Guide

User Manual

11 GHz FDD
Backhaul Radio
Models: AF‑11FX‑H, AF‑11FX‑L
Introduction
Thank you for purchasing the Ubiquiti Networks® airFiber®
AF-11FX. This Quick Start Guide is designed to guide you
through installation.

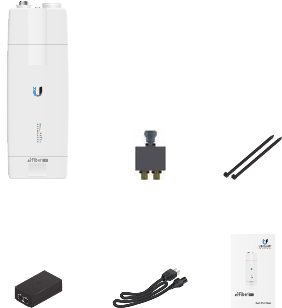

Package Contents
airFiber AF-11FX Duplexer1Cable Ties
(Qty. 2)
11 GHz FDD
Backhaul Radio
Models: AF-11FX-H, AF-11FX-L
airFiber Gigabit PoE
(50V, 1.2A)
Power Cord Quick Start Guide
1. High-band Duplexer (AF-11FX-H) or low-band Duplexer (AF-11FX-L)
TERMS OF USE: Ubiquiti radio devices must be professionally installed. Shielded Ethernet
cable and earth grounding must be used as conditions of product warranty. TOUGHCable™
is designed for outdoor installations. It is the customer’s responsibility to follow local country
regulations, including operation within legal frequency channels, output power, and Dynamic
Frequency Selection (DFS) requirements.
Antenna Compatibility
The airFiber AF-11FX radio is designed for use with the
following airFiber X antenna models:
• AF-11G361
Installation Requirements
• Clear line of sight between airFiber radios
• Vertical mounting orientation
• Mounting point:
• At least 1 m below the highest point on the structure
• For tower installations, at least 3 m below the top of
thetower
• Ground wires – min. 10 AWG (5 mm2) and max. length:
1m. Asa safety precaution, ground the airFiber radio to
grounded masts, poles, towers, or grounding bars.
WARNING: Failure to properly ground your
airFiber radio will void your warranty.
• (Recommended) 2 Outdoor Gigabit PoE surge protectors
Note: For guidelines about grounding and lightning
protection, follow your local electrical regulatory
codes.
• (Optional) DC power source (if not using PoE)
• Outdoor, shielded Category 6 (or above) cabling and
shielded RJ-45 connectors are required for all wired Ethernet
connections.
² Check your local/regional regulations for the maximum antenna gain
allowed for your application.

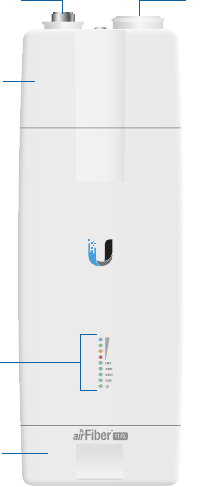

Hardware Overview
Port Cover
LED
Panel
Duplexer
Shroud
CH1 Port
(Under Cap)
CH0 Port:
Connects to
AF-11G36
Antenna
Ports
Reset
Button

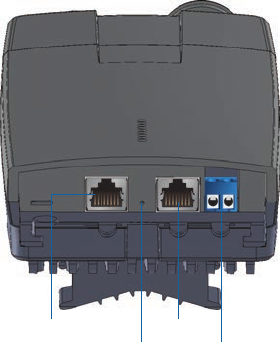

Management
Port
Data
Port VDC
Management Port 10/100 Mbps, secured Ethernet port for
configuration. In-Band Management is enabled by default
in the airFiber Configuration Interface. When In-Band
Management is disabled, the MGMT port is the only port that
can monitor, configure, and/or update firmware.
Reset Button To reset to factory defaults, press and hold the
Reset button for more than 10 seconds while the device is
already poweredon.
Data Port Gigabit PoE port for handling all user traffic and
powering the device.
VDC The VDC terminal block, labeled (+) and (-), is used to
power the AF-11FX using 50VDC instead of PoE.
Duplexer Ports
AF-11FX
Radio
(Duplexer
Shroud
removed)
RX0
TX0 TX1
RX1
TX0, RX0 Transmit and Receive SMA ports for low-band
Duplexer (SISO mode) or high-band Duplexer (MIMO mode).
RX1, TX1 Receive and Transmit SMA ports for high-band
Duplexer (MIMO mode only).
Duplexer
N Connector
SMA Port SMA Port
N Connector Female N-type connector into which the
antenna cable is plugged.
SMA Port High-band and low-band channel SMA ports.
LEDs
Signal LEDs
Signal 4 LED will light blue when on.
Signal 3 LED will light green when on.
Signal 2 LED will light yellow when on.
Signal 1 LED will light red when on.
Bootup to airOS When powering on, the Power, MIMO, LINK,
and Signal 1-4 LEDs light on. Once the CPU code takes over, the
MIMO, LINK, and Signal 1-3 LEDs turn off. Signal 4 LED remains
on to indicate the boot sequence is underway.
Initializing airFiber Software When the airFiber application
begins to boot under airOS, the Signal 4 LED goes from solidly
on to a 2.5 Hz flash. This continues until the AF-11FX is fully
booted.
Signal Level Once fully booted, the Signal 1-4 LEDs act as a
bar graph showing how close the AF-11FX is to ideal aiming.
This is auto-scaled based on the link range, the antenna gains,
and the configured TX power of the remote AF-11FX. Each
Signal LED has three possible states: On, Flashing, and Off. All
Signal LEDs would be solidly on in an ideal link. If the link has a
1 dB loss, the Signal4 LED will flash; a 2 dB loss and the Signal
4 LED will turn off. The full bar graph LED states are shown
below.

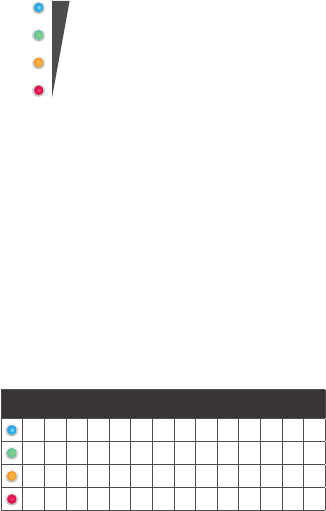

dB
loss 0 -1 -2 -3 -4 -5 -6 -7 -8 -9 -10 -11 -12 -13
1F000000000000
111F0000000000
11111FF0000000
1111111111FFF0
0 = Off, 1 = On, F = Flashing
Additional LEDs
LED State Status
LINK
Off RF Off
Short Flash* Syncing
Normal Flash* Beaconing
Long Flash* Registering
On Operational
MIMO Off Radio configured in SISO mode
On Radio configured in MIMO mode
MGMT
Off No Ethernet Link
On Ethernet Link Established
Random Flashing Ethernet Activity
DATA
Off No Ethernet Link
On Ethernet Link Established
Random Flashing Ethernet Activity
Off No Power
On Powered On
* Short Flash (1:3 on/off cycle)
Normal Flash (1:1 on/off cycle)
Long Flash (3:1 on/off cycle)
Installation Overview
We recommend that you configure your paired AF-11FX radios
before site installation. The overview below summarizes the
installation procedure, and the subsequent sections provide
detailed installation information.
• Install the Duplexer(s) in the AF-11FX radio.
• Connect power (PoE or DC) to the AF-11FX and connect your
computer to the MGMTport.
• Configure the AF-11FX.
• Install a ground wire and mount the AF-11FX on the
airFiber AF-11G36 antenna (or a compatible antenna).
• At the installation site, install the antenna with the mounted
AF-11FX radio (see the antenna’s Quick Start Guide for
installation instructions).
• Establish and optimize the RF link.

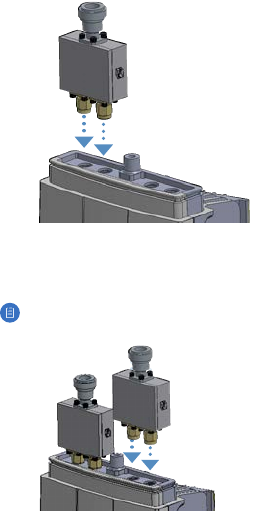

Installing the Duplexer
Install the included Duplexer as follows:
1. Loosen the screw on top of the Duplexer Shroud and
remove the Duplexer Shroud.
2. Insert the TX and RX ports of the Duplexer into the TX0 and
RX0 ports of the AF-11FX radio.
3. If you will be using the AF-11FX in SISO mode, go to step 5.
4. To use the AF-11FX in MIMO mode:
a. Attach the second Duplexer (not included) to the
AF-11FX radio’s TX1 and RX1 ports.
Note: The Duplexers must be installed in reverse order
on opposite sides of the link.
b. Remove the cap on the top right side of the AF-11FX.
5. Re-attach the Duplexer Shroud to the AF-11FX radio.
Connecting Power
Follow the instructions for the source of power that you are
using: Power over Ethernet or DC Power.

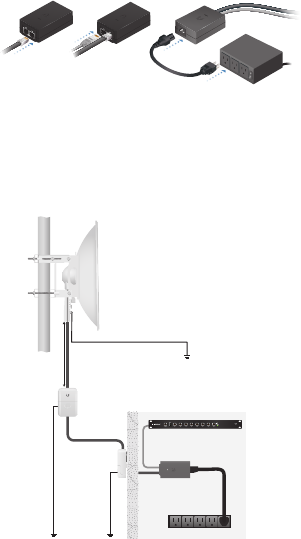

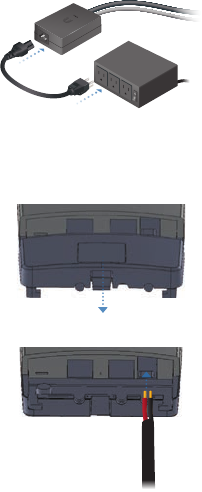

Power over Ethernet

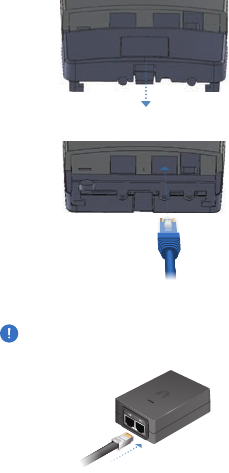

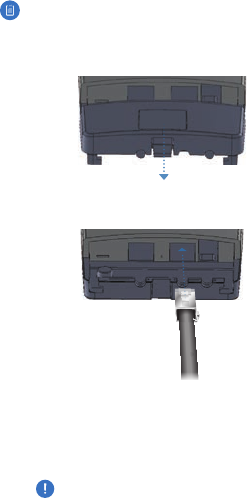

1. Lift the release latch on the bottom of the AF-11FX and
slide the Port Cover off.
2. Connect an Ethernet cable to the DATA port.
3. Connect the Ethernet cable from the DATA port of the
AF-11FX to the POE port of the adapter.
WARNING: Use only the included adapter, model
GP-C500-120G. Failure to do so can damage the unit
and void the product warranty.
4. Connect the Power Cord to the adapter’s power port.
Connect the other end of the Power Cord to a poweroutlet.
DC Power
To use DC input power instead of PoE, follow these steps:
1. Lift the release latch on the bottom of the AF-11FX and
slide the Port Cover off.
2. Connect a DC power cable to the Terminal Block.
3. Connect the other end of the DC power cable to a DC
power supply.
4. Connect the DC power supply to its source.
airFiber Configuration
The instructions in this section explain how to access the
airFiber Configuration Interface and configure the following
settings:
• Wireless Mode Configure one AF-11FX as the Master and
the other as the Slave.
• Frequency Setting The TX Frequency and RX Frequency
settings must be the reverse of each other on both the
Master and the Slave.

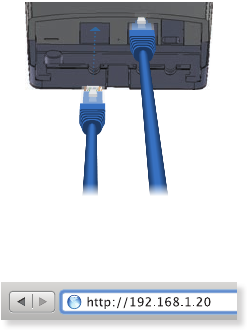

1. Connect an Ethernet cable from your computer to the
MGMT port on the AF-11FX.
2. Configure the Ethernet adapter on your computer with a
static IP address on the 192.168.1.x subnet.

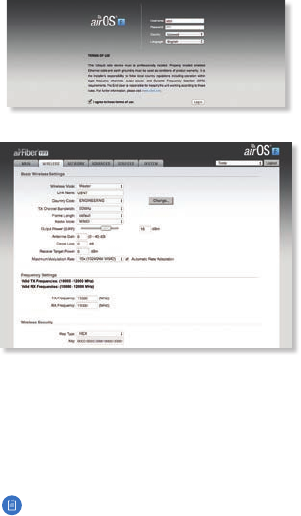

3. Launch your web browser. Type http://192.168.1.20 in the
address field and press enter (PC) or return (Mac).
4. The login screen will appear. Enter ubnt in the Username
and Password fields. Select your Country and Language.
You must agree to the Terms of Use to use the product.
Click Login.
5. Click the Wireless tab.
6. Configure the Basic Wireless Settings:
a. For one AF-11FX, select Master as the Wireless Mode.
For the other AF‑11FX, keep the default,Slave.
b. Enter a name in the Link Name field. This should be the
same on both the Master and the Slave.
c. If needed, change the Channel Bandwidth, Output Power
and/or Maximum Modulation Rate settings.

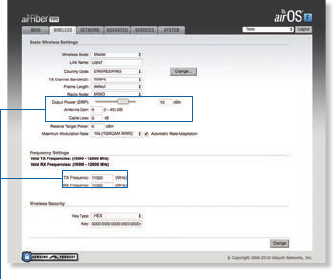

7. Configure the TX Frequency and RX Frequency.
Note: One airFiber radio’s TX Frequency is the other
radio’s RX Frequency, and vice versa.
8. Configure the Wireless Security:
a. Select the AES Key Type, HEX or ASCII.
b. For the Key field:
- HEX Enter 16 bytes (eight, 16-bit hexadecimal digits:
0-9, A-F, or a-f). You can omit zeroes and use colons,
similar to the IPv6 format.
Note: The airFiber Configuration Interface
supports IPv6 formats excluding dotted quad
and “::” (double-colon) notation.
- ASCII Enter a combination of alphanumeric
characters (0-9, A-Z, or a-z).
9. Click Change and then click Apply.

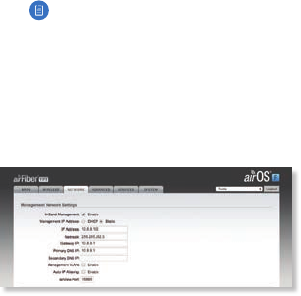

10. In-Band Management is enabled by default, so each airFiber
radio must have a unique IP Address. (If the airFiber radios
use the same IP Address, you may lose access to the airFiber
radios via the DATA ports.) Click the Network tab.
a. For the Management IP Address option:
- DHCP Keep the default, DHCP, to use DHCP
reservation on your router to assign a unique
IPAddress.
- Static
Change the IP Address, Netmask, and other
settings to make them compatible with your network.
b. Click Change and then click Apply.
11. Disconnect the Ethernet cable from the MGMT port on the
AF-11FX. Configuration of the AF-11FX radio is complete.
Repeat the instructions in the airFiber Configuration section on
the other AF-11FX radio.
Hardware Installation
Install a Ground Wire

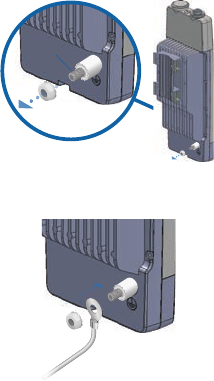

1. Remove the nut from the Ground Bonding Point located on
the back of the AF-11FX.
Ground
Bonding
Point
2. Attach a ground wire (min. 10 AWG or 5 mm2) to the lug
and replace the nut to secure the wire.
*640-00256-01*
640-00256-01
3. At the installation site, secure the other end of the ground
wire to a grounded mast, pole, tower, or grounding bar.
WARNING: Failure to properly ground your
airFiber radio will void your warranty.
Note: The ground wire should be as short as
possible and no longer than one meter in length.

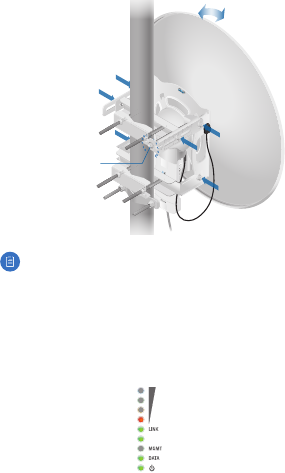

Mount to the airFiber Antenna
Follow the instructions in this section to mount the AF-11FX to
an airFiber AF-11G36 antenna:

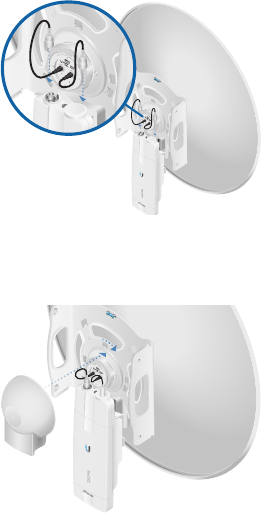

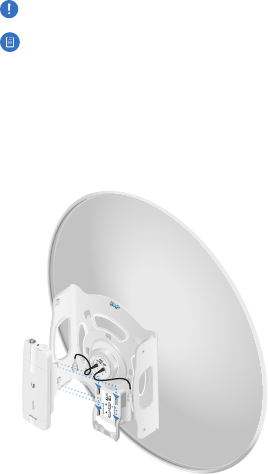

1. Attach the airFiber X radio to the antenna by aligning the
four tabs on the back of the radio with the slots of the radio
mount. Then slide the radio down to lock it into place.
2. Attach the RF connector labeled V to the radio’s CH0 port.
Ifyou are using MIMO mode, attach the RF connector
labeled H to the radio’s CH1 port.
3. Attach the protective shroud.
a. Align the hash mark on the top of the shroud with the
notch on the dish antenna.
b. Rotate the shroud clockwise until it locks into place.
Connecting Data
Note: Skip this section if you are using DC power which
was already connected as described in DC Power.
1. Lift the release latch on the bottom of the AF-11FX and
slide the Port Cover off.
2. Connect an outdoor, shielded Ethernet cable to the
DATAport.
3. If you are using DC power, connect the other end of the
Ethernet cable to your LAN. Connection is complete.
4. If you are using Power over Ethernet:
a. Connect the Ethernet cable from the DATA port of the
AF-11FX to the POE port of the adapter.
WARNING: Use only the included adapter, model
GP-C500-120G. Failure to do so can damage the
unit and void the product warranty.
b. Connect an Ethernet cable from your LAN to the
adapter’s LAN port.
c. Connect the Power Cord to the adapter’s power port.
Connect the other end of the Power Cord to a power
outlet.
Surge Protection
For added protection, install two surge suppressors, such as
the Ubiquiti Ethernet Surge Protector, model ETH-SP, at the
end of each link. Install the first surge protector within one
meter of the airFiber DATA port, and install the second surge
protector at the ingress point of the location housing the
wired network equipment.
Ground to Pole, Tower,
or Grounding Block:
Max. 1 m from AF-11FX
Max. 1 m
airFiber
PoE Adapter
EdgeRouter™
Power Source
ETH-SP
ETH-SP
AF-11FX
Mounted on
AF-11G36
Alignment
Tips
• To accurately align the airFiber radios for best performance,
you MUST align only one end of the link at a time.
• You may need to use additional hardware to compensate for
issues such as the improper orientation of a mounting pole
or significant elevation differences between airFiber radios.
Establishing a Link
Adjust the positions of the Master and the Slave to establish
a link. The following section features the airFiber X antenna,
AF-11G36:
Note: The Master must be aimed first at the Slave because
the Slave does not transmit any RF signal until it detects
transmissions from the Master.
1. Master Visually aim the Master at the Slave. To adjust the
Master’s position, adjust the azimuth and the elevation.
Adjust the azimuth:
a. Loosen the four flange nuts on the two pole clamps.
b. Rotate the antenna to point towards the other end of
the link.
c. Tighten the four flange nuts on the two pole clamps.
Adjust the elevation angle:
a. Loosen the six hex head bolts to so that the washers
can spin freely by hand.
b. Tighten or loosen the Elevation Adjustment Bolt to set
the desired tilt.
c. Tighten the six hex head bolts.
Elevation
Adjustment Bolt
Note: Do NOT make simultaneous adjustments on
the Master and Slave.
2. Slave Visually aim the Slave at the Master. To adjust the
Slave’s position, adjust the azimuth and elevation as
described in step 1.
3. Check to see if a link is established. Ensure that the LINK
LED is solidly lit green and the Signal LEDs of the Slave are
displaying signal levels.
MIMO
4. Slave Aim the Slave at the Master to achieve the strongest
signal level on the Master.
Note: Refer to the Signal LEDs section for details on
the signal values.
Note: Maximum signal strength can best be
achieved by iteratively sweeping through both
azimuth and elevation.
5. Master Aim the Master at the Slave to achieve the
strongest signal level on the Slave.
6. Repeat steps 4 and 5 until you achieve an optimal link, with
all four Signal LEDs solidly lit. This ensures the best possible
data rate between the airFiber radios.
7. Lock the alignment on both airFiber antennas by
tightening all the nuts and bolts.
8. Observe the Signal LEDs of each airFiber radio to ensure
that the values remain constant while tightening the nuts
and bolts. If any LED value changes during the locking
process, loosen the nuts and bolts, finalize the alignment
of each airFiber antenna again, and retighten the nuts
and bolts.
Installer Compliance Responsibility
Devices must be professionally installed and it is the
professional installer’s responsibility to make sure the device is
operated within local country regulatory requirements.
The Output Power, Antenna Gain, Cable Loss, TX Frequency and
RX Frequency fields are provided to the professional installer to
assist in meeting regulatory requirements.
Specifications
airFiber AF-11FX
Dimensions 327 x 112 x 86 mm (12.87 x 4.41 x 3.39")
Weight 2.26 kg (5.0 lb)
RF Connectors (4) RP-SMA Weatherproof, Two per Chain:
TX0, RX0 (CH0) and TX1, RX1 (CH1)
(2) N-Type Waterproof, One per Duplexer
Power Supply 50V, 1.2A PoE Gigabit Adapter (Included)
Power Method
Passive Power over Ethernet or DC Power Block
Supported Voltage
Range
42-58VDC
Certications FCC 47 CFR Part 101
Wind Loading 480 N @ 200 km/hr (108 lbf @ 125 mph)
Wind Survivability 200 km/hr (125 mph)
Mounting Enlarged airFiber X Mount
Operating Temperature -40 to 55° C (-40 to 131° F)
Networking Interface
Data Port (1) 10/100/1000 Ethernet Port
Management Port (1) 10/100 Ethernet Port
System
Processor INVICTUS™ IC
Maximum Throughput 1.2+ Gbps
Encryption 128-bit AES
OS airOS F
Wireless Modes Master/Slave
Radio
Operating Frequency 10.7-11.7 GHz1
Max. Conducted TX
Power
30 dBm1
Frequency Accuracy ± 1 ppm
Channel Bandwidth
3.5/5/7/10/14/20/28/30/40/50/56 MHz Selectable2
Programmable Uplink and Downlink Duty Cycles
1 Depends on Regulatory Region
2 Channel widths may vary according to country/region regulations.
Compliance
FCC
This device has been verified by Ubiquiti Networks as being in compliance
with the requirements of the rules of the Federal Communications
Commission (FCC), 47 C.F.R. Part 101, and may not be operated without a
station license. In the United States such licenses are issued by the FCC
to entities other than agencies of the United States government. Federal
government agencies are licensed by the National Telecommunications
and Information Administration (NTIA) acting upon the recommendation
of the Interdepartment Radio Advisory Committee (IRAC).
RF Exposure Warning
The antennas used for this transmitter must be installed to provide a
separation distance of at least 186 cm from all persons and must not be
located or operating in conjunction with any other antenna or transmitter.
Les antennes utilisées pour ce transmetteur doivent être installé en
considérant une distance de séparation de toute personnes d’au moins
186cm et ne doivent pas être localisé ou utilisé en conflit avec tout autre
antenne ou transmetteur.
Australia and New Zealand
Warning: This is a Class B product. In a domestic environment this
product may cause radio interference in which case the user may
be required to take adequate measures.
CE Marking
CE marking on this product represents the product is in compliance with all
directives that are applicable to it.
RoHS/WEEE Compliance Statement
English
European Directive 2012/19/EU requires that the equipment bearing
this symbol on the product and/or its packaging must not be disposed
of with unsorted municipal waste. The symbol indicates that this
product should be disposed of separately from regular household waste
streams. It is your responsibility to dispose of this and other electric and
electronic equipment via designated collection facilities appointed by the
government or local authorities. Correct disposal and recycling will help
prevent potential negative consequences to the environment and human
health. For more detailed information about the disposal of your old
equipment, please contact your local authorities, waste disposal service, or
the shop where you purchased the product.
Deutsch
Die Europäische Richtlinie 2012/19/EU verlangt, dass technische
Ausrüstung, die direkt am Gerät und/oder an der Verpackung mit diesem
Symbol versehen ist, nicht zusammen mit unsortiertem Gemeindeabfall
entsorgt werden darf. Das Symbol weist darauf hin, dass das Produkt
von regulärem Haushaltmüll getrennt entsorgt werden sollte. Es
liegt in Ihrer Verantwortung, dieses Gerät und andere elektrische
und elektronische Geräte über die dafür zuständigen und von der
Regierung oder örtlichen Behörden dazu bestimmten Sammelstellen zu
entsorgen. Ordnungsgemäßes Entsorgen und Recyceln trägt dazu bei,
potentielle negative Folgen für Umwelt und die menschliche Gesundheit
zu vermeiden. Wenn Sie weitere Informationen zur Entsorgung Ihrer
Altgeräte benötigen, wenden Sie sich bitte an die örtlichen Behörden oder
städtischen Entsorgungsdienste oder an den Händler, bei dem Sie das
Produkt erworben haben.
Español
La Directiva 2012/19/UE exige que los equipos que lleven este símbolo en
el propio aparato y/o en su embalaje no deben eliminarse junto con otros
residuos urbanos no seleccionados. El símbolo indica que el producto
en cuestión debe separarse de los residuos domésticos convencionales
con vistas a su eliminación. Es responsabilidad suya desechar este y
cualesquiera otros aparatos eléctricos y electrónicos a través de los puntos
de recogida que ponen a su disposición el gobierno y las autoridades
locales. Al desechar y reciclar correctamente estos aparatos estará
contribuyendo a evitar posibles consecuencias negativas para el medio
ambiente y la salud de las personas. Si desea obtener información más
detallada sobre la eliminación segura de su aparato usado, consulte a las
autoridades locales, al servicio de recogida y eliminación de residuos de su
zona o pregunte en la tienda donde adquirió el producto.
Français
La directive européenne 2012/19/UE exige que l’équipement sur lequel
est apposé ce symbole sur le produit et/ou son emballage ne soit pas jeté
avec les autres ordures ménagères. Ce symbole indique que le produit
doit être éliminé dans un circuit distinct de celui pour les déchets des
ménages. Il est de votre responsabilité de jeter ce matériel ainsi que tout
autre matériel électrique ou électronique par les moyens de collecte
indiqués par le gouvernement et les pouvoirs publics des collectivités
territoriales. L’élimination et le recyclage en bonne et due forme ont pour
but de lutter contre l’impact néfaste potentiel de ce type de produits
sur l’environnement et la santé publique. Pour plus d’informations sur le
mode d’élimination de votre ancien équipement, veuillez prendre contact
avec les pouvoirs publics locaux, le service de traitement des déchets, ou
l’endroit où vous avez acheté le produit.
Italiano
La direttiva europea 2012/19/UE richiede che le apparecchiature
contrassegnate con questo simbolo sul prodotto e/o sull’imballaggio non
siano smaltite insieme ai rifiuti urbani non differenziati. Il simbolo indica
che questo prodotto non deve essere smaltito insieme ai normali rifiuti
domestici. È responsabilità del proprietario smaltire sia questi prodotti sia
le altre apparecchiature elettriche ed elettroniche mediante le specifiche
strutture di raccolta indicate dal governo o dagli enti pubblici locali. Il
corretto smaltimento ed il riciclaggio aiuteranno a prevenire conseguenze
potenzialmente negative per l’ambiente e per la salute dell’essere umano.
Per ricevere informazioni più dettagliate circa lo smaltimento delle vecchie
apparecchiature in Vostro possesso, Vi invitiamo a contattare gli enti
pubblici di competenza, il servizio di smaltimento rifiuti o il negozio nel
quale avete acquistato il prodotto.
Declaration of Conformity
Česky
[Czech]
UBIQUITI NETWORKS tímto prohlašuje, že toto UBIQUITI
NETWORKS zařízení, je ve shod se základními požadavky a dalšími
příslušnými ustanoveními směrnice 1999/5/ES.
Dansk
[Danish]
Hermed, UBIQUITI NETWORKS, erklærer at denne UBIQUITI
NETWORKS enhed, er i overensstemmelse med de væsentlige krav
og øvrige relevante krav i direktiv 1999/5/EF.
Nederlands
[Dutch]
Hierbij verklaart UBIQUITI NETWORKS, dat deze UBIQUITI
NETWORKS apparaat, in overeenstemming is met de essentiële
eisen en de andere relevante bepalingen van richtlijn 1999/5/EG.
English
Hereby, UBIQUITI NETWORKS, declares that this UBIQUITI
NETWORKS device, is in compliance with the essential requirements
and other relevant provisions of Directive 1999/5/EC.
Eesti
[Estonian]
Käesolevaga UBIQUITI NETWORKS kinnitab, et antud UBIQUITI
NETWORKS seade, on vastavus olulistele nõuetele ja teistele
asjakohastele sätetele direktiivi 1999/5/EÜ.
Suomi
[Finnish]
Täten UBIQUITI NETWORKS vakuuttaa, että tämä UBIQUITI
NETWORKS laite, on yhdenmukainen olennaisten vaatimusten ja
muiden sitä koskevien direktiivin 1999/5/EY.
Français
[French]
Par la présente UBIQUITI NETWORKS déclare que l’appareil
UBIQUITI NETWORKS, est conforme aux exigences essentielles et
aux autres dispositions pertinentes de la directive 1999/5/CE.
Deutsch
[German]
Hiermit erklärt UBIQUITI NETWORKS, dass sich dieses UBIQUITI
NETWORKS Gerät, in Übereinstimmung mit den grundlegenden
Anforderungen und den anderen relevanten Vorschriften der
Richtlinie 1999/5/EG befindet.
Ελληνική
[Greek]
Δια του παρόντος, UBIQUITI NETWORKS, δηλώνει ότι αυτή η
συσκευή UBIQUITI NETWORKS, είναι σε συμμόρφωση με τις
βασικές απαιτήσεις και τις λοιπές σχετικές διατάξεις της οδηγίας
1995/5/ΕΚ.
Magyar
[Hungarian]
Ezennel UBIQUITI NETWORKS kijelenti, hogy ez a UBIQUITI
NETWORKS készülék megfelel az alapvető követelményeknek és
más vonatkozó 1999/5/EK irányelv rendelkezéseit.
Íslenska
[Icelandic]
Hér, UBIQUITI NETWORKS, því yfir að þetta UBIQUITI NETWORKS
tæki er í samræmi við grunnkröfur og önnur viðeigandi ákvæði
tilskipun 1999/5/EB.
Italiano
[Italian]
Con la presente, UBIQUITI NETWORKS, dichiara che questo
dispositivo UBIQUITI NETWORKS, è conforme ai requisiti essenziali
ed alle altre disposizioni pertinenti della direttiva 1999/5/CE.
Latviski
[Latvian]
Ar šo, UBIQUITI NETWORKS, deklarē, ka UBIQUITI NETWORKS
ierīce, ir saskaņā ar būtiskajām prasībām un citiem attiecīgiem
noteikumiem Direktīvā 1999/5/EK.
Lietuviškai
[Lithuanian]
UBIQUITI NETWORKS deklaruoja, kad šis UBIQUITI NETWORKS
įrenginys atitinka esminius reikalavimus ir kitas 1999/5/EB
Direktyvos nuostatas.
Malti
[Maltese]
Hawnhekk, UBIQUITI NETWORKS, tiddikjara li dan il-mezz
UBIQUITI NETWORKS huwa konformi mar-rekwiżiti essenzjali u
dispożizzjonijiet rilevanti oħrajn ta ‘Direttiva 1999/5/KE.
Norsk
[Norwegian]
Herved UBIQUITI NETWORKS, erklærer at denne UBIQUITI
NETWORKS enheten, er i samsvar med de grunnleggende kravene
og andre relevante bestemmelser i direktiv
1999/5/EF.
Polski
[Polish]
Niniejszym, Ubiquiti Networks, oświadcza, że urządzenie UBIQUITI
NETWORKS, jest zgodny z zasadniczymi wymaganiami oraz
pozostałymi stosownymi postanowieniami Dyrektywy 1999/5/WE.
Português
[Portuguese]
UBIQUITI NETWORKS declara que este dispositivo UBIQUITI
NETWORKS, está conforme com os requisitos essenciais e outras
disposições da Directiva 1999/5/CE.
Română
[Romanian]
Prin prezenta, UBIQUITI NETWORKS declară că acest dispozitiv
UBIQUITI NETWORKS este în conformitate cu cerințele esențiale și
alte prevederi relevante ale Directivei 1999/5/CE.
Slovensky
[Slovak]
Týmto
UBIQUITI NETWORKS
, prehlasuje, že toto
UBIQUITI
NETWORKS
zariadenie, je v súlade so základnými požiadavkami a
ďalšími relevantnými ustanoveniami smernice 1999/5/ES.
Español
[Spanish]
Por medio de la presente UBIQUITI NETWORKS declara que este
dispositivo UBIQUITI NETWORKS, cumple con los requisitos
esenciales y cualesquiera otras disposiciones aplicables o exigibles
de la Directiva 1999/5/CE.
Svenska
[Swedish]
Härmed UBIQUITI NETWORKS, intygar att denna UBIQUITI
NETWORKS enhet är i överensstämmelse med de väsentliga
egenskapskrav och övriga relevanta bestämmelser som framgår
av direktiv 1999/5/EG.
Online Resources
Support support.ubnt.com
Community community.ubnt.com
Downloads downloads.ubnt.com
©2016 Ubiquiti Networks, Inc. All rights reserved. Ubiquiti, Ubiquiti Networks,
the Ubiquiti U logo, the Ubiquiti beam logo, airFiber, airOS, EdgeRouter,
INVICTUS, and TOUGHCable are trademarks or registered trademarks of
Ubiquiti Networks, Inc. in the United States and in other countries. All other
trademarks are the property of their respective owners. AI081116
www.ubnt.com

Navigation menu
