User Manual

QUICK START GUIDE
MODEL: AFi-P-HD
1
Getting Started

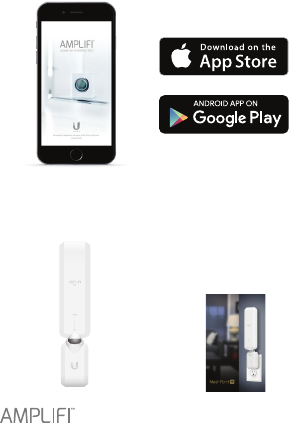

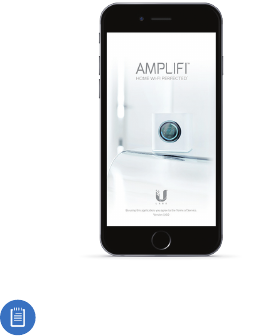

Thank you for purchasing the AmpliFi™
Mesh Point. To get started, download and
install the AmpliFi app from the App Store
or Google Play™ Store.
Package Contents
QUICK START GUIDE
MODEL: AFi-P-HD
Mesh Point Quick Start Guide
2

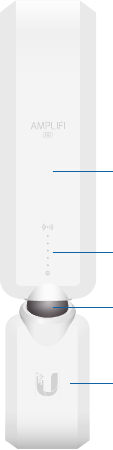

Mesh Point
Signal LEDs
Magnetic Connector
Mesh Point Base
Adjustable Antenna
3
Installing the Mesh Points
Find a suitable location for each Mesh
Point with an accessible power outlet. The
Mesh Points should be placed in dierent
directions between the Router and the
areas farthest from the Router.
Tip: If a Mesh Point is powered on
and has been congured with the
app but does not appear online,
try relocating the Mesh Point
closer to the Router.
4

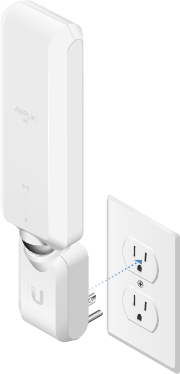

1 Plug the Mesh Point into a power
outlet.
5
2 Launch the app and follow the
on‑screen instructions to congure
your AmpliFi Mesh Point.
iPhone® Users: Ensure that
Bluetooth is enabled.
Android™ Users: Ensure that
Wi‑Fi is enabled.
6

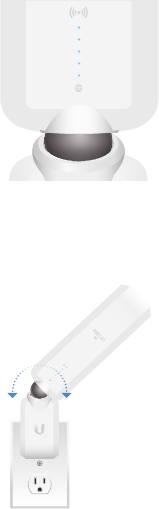

3 After about a minute, all ve signal
LEDs should be lit solid once the Mesh
Point is connected to the Router.
4 The Mesh Point antenna can be
adjusted to provide optimal signal
coverage for your location.
7

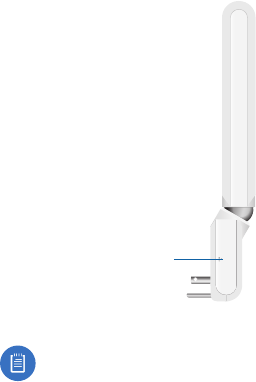

Resetting to Factory Defaults
Factory default settings can be restored
by using an object such as a straightened
paper clip or pin to press the Mesh Point
Reset for approximately 10 seconds until
the LED turns o.
Mesh Point Reset
If the Router is reset, all MeshPoints
should also be reset.
8
Mesh Point Specifications
Dimensions 243.83 x 54 x 57.75 (9.60 x 2.13 x 2.27")
Weight 224 g (7.90 oz)
Max. TX Power 26 dBm
Radios 2
MIMO Chains 6
Speed 1750 Mbps
ESD/EMP Protection ± 24kV Air/Contact
Buttons Reset
Antennas (1) Dual‑Band Antenna, Tri‑Polarity
Wi‑Fi Standard 802.11ac
Power Save Supported
Wireless Security WPA2‑PSK AES/TKIP
OperatingTemperature 14 to 131° F (‑10 to 55° C)
Operating Humidity 5 to 95% Noncondensing
Certications FCC / CE / IC
Supported Data Rates
802.11ac 13 Mbps to 1300 Mbps (MCS0 ‑ MCS9, VHT 20/40/80)
802.11n 6.5 Mbps to 450 Mbps (MCS0 ‑ MCS23, HT 20/40)
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
9
Limited Warranty
UBIQUITI NETWORKS, Inc (“UBIQUITI NETWORKS”) warrants that the product(s)
furnished hereunder (the “Product(s)”) shall be free from defects in material
and workmanship for a period of one (1) year from the date of shipment by
UBIQUITI NETWORKS under normal use and operation. UBIQUITI NETWORKS’
sole and exclusive obligation and liability under the foregoing warranty shall
be for UBIQUITI NETWORKS, at its discretion, to repair or replace any Product
that fails to conform to the above warranty during the above warranty period.
The expense of removal and reinstallation of any Product is not included in this
warranty. The warranty period of any repaired or replaced Product shall not
extend beyond its original term.
Warranty Conditions
The above warranty does not apply if the Product:
(I) has been modied and/or altered, or an addition made thereto, except
by Ubiquiti Networks, or Ubiquiti Networks’ authorized representatives,
or as approved by Ubiquiti Networks in writing;
(II) has been painted, rebranded or physically modied in any way;
(III) has been damaged due to errors or defects in cabling;
(IV) has been subjected to misuse, abuse, negligence, abnormal physical,
electromagnetic or electrical stress, including lightning strikes, or
accident;
(V) has been damaged or impaired as a result of using third party rmware;
(VI) has no original Ubiquiti MAC label, or is missing any other original
Ubiquiti label(s); or
(VII) has not been received by Ubiquiti within 30 days of issuance of the
RMA.
In addition, the above warranty shall apply only if: the product has been
properly installed and used at all times in accordance, and in all material
respects, with the applicable Product documentation; all Ethernet cabling runs
use CAT5 (or above), and for outdoor installations, shielded Ethernet cabling is
used, and for indoor installations, indoor cabling requirements are followed.
Returns
No Products will be accepted for replacement or repair without obtaining a
Return Materials Authorization (RMA) number from UBIQUITI NETWORKS
during the warranty period, and the Products being received at UBIQUITI
NETWORKS’ facility freight prepaid in accordance with the RMA process
of UBIQUITI NETWORKS. Products returned without an RMA number will
not be processed and will be returned freight collect or subject to disposal.
Information on the RMA process and obtaining an RMA number can be found
at: www.ampli.com/support/warranty.
10
Disclaimer
EXCEPT FOR ANY EXPRESS WARRANTIES PROVIDED HEREIN, UBIQUITI
NETWORKS, ITS AFFILIATES, AND ITS AND THEIR THIRD PARTY DATA, SERVICE,
SOFTWARE AND HARDWARE PROVIDERS HEREBY DISCLAIM AND MAKE NO
OTHER REPRESENTATION OR WARRANTY OF ANY KIND, EXPRESS, IMPLIED
OR STATUTORY, INCLUDING, BUT NOT LIMITED TO, REPRESENTATIONS,
GUARANTEES, OR WARRANTIES OF MERCHANTABILITY, ACCURACY, QUALITY
OF SERVICE OR RESULTS, AVAILABILITY, SATISFACTORY QUALITY, LACK OF
VIRUSES, QUIET ENJOYMENT, FITNESS FOR A PARTICULAR PURPOSE AND
NON‑INFRINGEMENT AND ANY WARRANTIES ARISING FROM ANY COURSE
OF DEALING, USAGE OR TRADE PRACTICE IN CONNECTION WITH SUCH
PRODUCTS AND SERVICES. BUYER ACKNOWLEDGES THAT NEITHER UBIQUITI
NETWORKS NOR ITS THIRD PARTY PROVIDERS CONTROL BUYER’S EQUIPMENT
OR THE TRANSFER OF DATA OVER COMMUNICATIONS FACILITIES, INCLUDING
THE INTERNET, AND THAT THE PRODUCTS AND SERVICES MAY BE SUBJECT
TO LIMITATIONS, INTERRUPTIONS, DELAYS, CANCELLATIONS AND OTHER
PROBLEMS INHERENT IN THE USE OF COMMUNICATIONS FACILITIES. UBIQUITI
NETWORKS, ITS AFFILIATES AND ITS AND THEIR THIRD PARTY PROVIDERS
ARE NOT RESPONSIBLE FOR ANY INTERRUPTIONS, DELAYS, CANCELLATIONS,
DELIVERY FAILURES, DATA LOSS, CONTENT CORRUPTION, PACKET LOSS, OR
OTHER DAMAGE RESULTING FROM ANY OF THE FOREGOING. In addition,
UBIQUITI NETWORKS does not warrant that the operation of the Products
will be error‑free or that operation will be uninterrupted. In no event shall
UBIQUITI NETWORKS be responsible for damages or claims of any nature
or description relating to system performance, including coverage, buyer’s
selection of products (including the Products) for buyer’s application and/or
failure of products (including the Products) to meet government or regulatory
requirements.
Limitation of Liability
EXCEPT TO THE EXTENT PROHIBITED BY LOCAL LAW, IN NO EVENT WILL
UBIQUITI OR ITS SUBSIDIARIES, AFFILIATES OR SUPPLIERS BE LIABLE FOR
DIRECT, SPECIAL, INCIDENTAL, CONSEQUENTIAL OR OTHER DAMAGES
(INCLUDING LOST PROFIT, LOST DATA, OR DOWNTIME COSTS), ARISING OUT
OF THE USE, INABILITY TO USE, OR THE RESULTS OF USE OF THE PRODUCT,
WHETHER BASED IN WARRANTY, CONTRACT, TORT OR OTHER LEGAL THEORY,
AND WHETHER OR NOT ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
Note
Some countries, states and provinces do not allow exclusions of implied
warranties or conditions, so the above exclusion may not apply to you. You may
have other rights that vary from country to country, state to state, or province
to province. Some countries, states and provinces do not allow the exclusion
or limitation of liability for incidental or consequential damages, so the above
limitation may not apply to you. EXCEPT TO THE EXTENT ALLOWED BY LOCAL
LAW, THESE WARRANTY TERMS DO NOT EXCLUDE, RESTRICT OR MODIFY, AND
ARE IN ADDITION TO, THE MANDATORY STATUTORY RIGHTS APPLICABLE TO
THE LICENSE OF ANY SOFTWARE (EMBEDDED IN THE PRODUCT) TO YOU. The
United Nations Convention on Contracts for the International Sale of Goods
shall not apply to any transactions regarding the sale of the Products.
11
Compliance
FCC
Changes or modications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions.
1 This device may not cause harmful interference, and
2 This device must accept any interference received, including interference
that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment o and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Operations of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference
at his own expense.
The AmpliFi Mesh Point has been approved by FCC under FCC ID: SWX‑AFPHD
CAN ICES‑3(B)/NMB‑3(B)
This Class B digital apparatus complies with Canadian CAN ICES‑003.
To reduce potential radio interference to other users, the antenna type and
its gain should be so chosen that the equivalent isotropically radiated power
(e.i.r.p.) is not more than that permitted for successful communication.
This device complies with Industry Canada licence‑exempt RSS standard(s).
Operation is subject to the following two conditions:
1 This device may not cause interference, and
2 This device must accept any interference, including interference that may
cause undesired operation of the device.
12
The AmpliFi Mesh Point has been approved by Industry Canada under IC:
6545A‑AFPHD. The device for the band 5150‑5250 MHz is only for indoor
usage to reduce potential for harmful interference to co‑channel mobile
satellite systems.
CAN ICES‑3(B)/NMB‑3(B)
Cet appareil numérique de la classe B est conforme à la norme NMB‑003 du
Canada.
Pour réduire le risque d’interférence aux autres utilisateurs, le type d’antenne
et son gain doivent être choisies de façon que la puissance isotrope
rayonnée équivalente (PIRE) ne dépasse pas ce qui est nécessaire pour une
communication réussie.
Cet appareil est conforme à la norme RSS Industrie Canada exempts de licence
norme(s). Son fonctionnement est soumis aux deux conditions suivantes:
1 Cet appareil ne peut pas provoquer d’interférences et
2 Cet appareil doit accepter toute interférence, y compris les interférences
qui peuvent causer un mauvais fonctionnement du dispositif.
Le Mesh Point ont été approuvés par Industrie Canada en vertu IC :
6545A‑AFPHD. Les dispositifs fonctionnant dans la bande 5150‑5250 MHz
sont réservés uniquement pour une utilisation à l’intérieur an de réduire les
risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant
les mêmes canaux.
RF Exposure Warning
The antennas used for this transmitter must be installed to provide a
separation distance of at least 20 cm from all persons and must not be located
or operating in conjunction with any other antenna or transmitter.
Les antennes utilisées pour ce transmetteur doivent être installé en considérant
une distance de séparation de toute personnes d’au moins 20 cm et ne doivent
pas être localisé ou utilisé en conit avec tout autre antenne ou transmetteur.
CE Marking
CE marking on this product represents the product is in compliance with all
directives that are applicable to it.
Alert Sign (!) Follows CE Marking
Alert sign must be indicated if a restriction on use applied to the product and
it must follow the CE marking.
13
RoHS/WEEE Compliance Statement
English
European Directive 2012/19/EU requires that the equipment bearing this
symbol on the product and/or its packaging must not be disposed of with
unsorted municipal waste. The symbol indicates that this product should
be disposed of separately from regular household waste streams. It is your
responsibility to dispose of this and other electric and electronic equipment
via designated collection facilities appointed by the government or local
authorities. Correct disposal and recycling will help prevent potential negative
consequences to the environment and human health. For more detailed
information about the disposal of your old equipment, please contact your
local authorities, waste disposal service, or the shop where you purchased the
product.
Deutsch
Die Europäische Richtlinie 2012/19/EU verlangt, dass technische Ausrüstung,
die direkt am Gerät und/oder an der Verpackung mit diesem Symbol versehen
ist, nicht zusammen mit unsortiertem Gemeindeabfall entsorgt werden darf.
Das Symbol weist darauf hin, dass das Produkt von regulärem Haushaltmüll
getrennt entsorgt werden sollte. Es liegt in Ihrer Verantwortung, dieses Gerät
und andere elektrische und elektronische Geräte über die dafür zuständigen
und von der Regierung oder örtlichen Behörden dazu bestimmten
Sammelstellen zu entsorgen. Ordnungsgemäßes Entsorgen und Recyceln
trägt dazu bei, potentielle negative Folgen für Umwelt und die menschliche
Gesundheit zu vermeiden. Wenn Sie weitere Informationen zur Entsorgung
Ihrer Altgeräte benötigen, wenden Sie sich bitte an die örtlichen Behörden
oder städtischen Entsorgungsdienste oder an den Händler, bei dem Sie das
Produkt erworben haben.
Español
La Directiva 2012/19/EU exige que los equipos que lleven este símbolo en
el propio aparato y/o en su embalaje no deben eliminarse junto con otros
residuos urbanos no seleccionados. El símbolo indica que el producto en
cuestión debe separarse de los residuos domésticos convencionales con
vistas a su eliminación. Es responsabilidad suya desechar este y cualesquiera
otros aparatos eléctricos y electrónicos a través de los puntos de recogida que
ponen a su disposición el gobierno y las autoridades locales. Al desechar y
reciclar correctamente estos aparatos estará contribuyendo a evitar posibles
consecuencias negativas para el medio ambiente y la salud de las personas.
Si desea obtener información más detallada sobre la eliminación segura de
su aparato usado, consulte a las autoridades locales, al servicio de recogida
y eliminación de residuos de su zona o pregunte en la tienda donde adquirió
el producto.
14
Français
La directive européenne 2012/19/EU exige que l’équipement sur lequel est
apposé ce symbole sur le produit et/ou son emballage ne soit pas jeté avec les
autres ordures ménagères. Ce symbole indique que le produit doit être éliminé
dans un circuit distinct de celui pour les déchets des ménages. Il est de votre
responsabilité de jeter ce matériel ainsi que tout autre matériel électrique ou
électronique par les moyens de collecte indiqués par le gouvernement et les
pouvoirs publics des collectivités territoriales. L’élimination et le recyclage en
bonne et due forme ont pour but de lutter contre l’impact néfaste potentiel
de ce type de produits sur l’environnement et la santé publique. Pour plus
d’informations sur le mode d’élimination de votre ancien équipement, veuillez
prendre contact avec les pouvoirs publics locaux, le service de traitement des
déchets, ou l’endroit où vous avez acheté le produit.
Italiano
La direttiva europea 2012/19/EU richiede che le apparecchiature
contrassegnate con questo simbolo sul prodotto e/o sull’imballaggio non
siano smaltite insieme ai riuti urbani non dierenziati. Il simbolo indica che
questo prodotto non deve essere smaltito insieme ai normali riuti domestici.
È responsabilità del proprietario smaltire sia questi prodotti sia le altre
apparecchiature elettriche ed elettroniche mediante le speciche strutture di
raccolta indicate dal governo o dagli enti pubblici locali. Il corretto smaltimento
ed il riciclaggio aiuteranno a prevenire conseguenze potenzialmente negative
per l’ambiente e per la salute dell’essere umano. Per ricevere informazioni
più dettagliate circa lo smaltimento delle vecchie apparecchiature in Vostro
possesso, Vi invitiamo a contattare gli enti pubblici di competenza, il servizio di
smaltimento riuti o il negozio nel quale avete acquistato il prodotto.
Declaration of Conformity
Česky
[Czech]
UBIQUITI NETWORKS tímto prohlašuje, že toto UBIQUITI NETWORKS
zařízení, je ve shod se základními požadavky a dalšími příslušnými
ustanoveními směrnice 1999/5/ES.
Dansk
[Danish]
Hermed, UBIQUITI NETWORKS, erklærer at denne UBIQUITI
NETWORKS enhed, er i overensstemmelse med de væsentlige krav
og øvrige relevante krav i direktiv 1999/5/EF.
Nederlands
[Dutch]
Hierbij verklaart UBIQUITI NETWORKS, dat deze UBIQUITI
NETWORKS apparaat, in overeenstemming is met de essentiële eisen
en de andere relevante bepalingen van richtlijn 1999/5/EG.
English
Hereby, UBIQUITI NETWORKS, declares that this UBIQUITI NETWORKS
device, is in compliance with the essential requirements and other
relevant provisions of Directive 1999/5/EC.
Eesti
[Estonian]
Käesolevaga UBIQUITI NETWORKS kinnitab, et antud UBIQUITI
NETWORKS seade, on vastavus olulistele nõuetele ja teistele
asjakohastele sätetele direktiivi 1999/5/EÜ.
Suomi
[Finnish]
Täten UBIQUITI NETWORKS vakuuttaa, että tämä UBIQUITI
NETWORKS laite, on yhdenmukainen olennaisten vaatimusten ja
muiden sitä koskevien direktiivin 1999/5/EY.
15
Français
[French]
Par la présente UBIQUITI NETWORKS déclare que l’appareil UBIQUITI
NETWORKS, est conforme aux exigences essentielles et aux autres
dispositions pertinentes de la directive 1999/5/CE.
Deutsch
[German]
Hiermit erklärt UBIQUITI NETWORKS, dass sich dieses UBIQUITI
NETWORKS Gerät, in Übereinstimmung mit den grundlegenden
Anforderungen und den anderen relevanten Vorschriften der
Richtlinie 1999/5/EG bendet.
Ελληνική
[Greek]
Δια του παρόντος, UBIQUITI NETWORKS, δηλώνει ότι αυτή η
συσκευή UBIQUITI NETWORKS, είναι σε συμμόρφωση με τις βασικές
απαιτήσεις και τις λοιπές σχετικές διατάξεις της οδηγίας 1995/5/ΕΚ.
Magyar
[Hungarian]
Ezennel UBIQUITI NETWORKS kijelenti, hogy ez a UBIQUITI
NETWORKS készülék megfelel az alapvető követelményeknek és más
vonatkozó 1999/5/EK irányelv rendelkezéseit.
Íslenska
[Icelandic]
Hér, UBIQUITI NETWORKS, því yr að þetta UBIQUITI NETWORKS
tæki er í samræmi við grunnkröfur og önnur viðeigandi ákvæði
tilskipun 1999/5/EB.
Italiano
[Italian]
Con la presente, UBIQUITI NETWORKS, dichiara che questo
dispositivo UBIQUITI NETWORKS, è conforme ai requisiti essenziali
ed alle altre disposizioni pertinenti della direttiva 1999/5/CE.
Latviski
[Latvian]
Ar šo, UBIQUITI NETWORKS, deklarē, ka UBIQUITI NETWORKS
ierīce, ir saskaņā ar būtiskajām prasībām un citiem attiecīgiem
noteikumiem Direktīvā 1999/5/EK.
Lietuviškai
[Lithuanian]
UBIQUITI NETWORKS deklaruoja, kad šis UBIQUITI NETWORKS
įrenginys atitinka esminius reikalavimus ir kitas 1999/5/EB Direktyvos
nuostatas.
Malti
[Maltese]
Hawnhekk, UBIQUITI NETWORKS, tiddikjara li dan il‑mezz UBIQUITI
NETWORKS huwa konformi mar‑rekwiżiti essenzjali u dispożizzjonijiet
rilevanti oħrajn ta ‘Direttiva 1999/5/KE.
Norsk
[Norwegian]
Herved UBIQUITI NETWORKS, erklærer at denne UBIQUITI NETWORKS
enheten, er i samsvar med de grunnleggende kravene og andre
relevante bestemmelser i direktiv
1999/5/EF.
Polski
[Polish]
Niniejszym, Ubiquiti Networks, oświadcza, że urządzenie UBIQUITI
NETWORKS, jest zgodny z zasadniczymi wymaganiami oraz
pozostałymi stosownymi postanowieniami Dyrektywy 1999/5/WE.
Português
[Portuguese]
UBIQUITI NETWORKS declara que este dispositivo UBIQUITI
NETWORKS, está conforme com os requisitos essenciais e outras
disposições da Directiva 1999/5/CE.
Română
[Romanian]
Prin prezenta, UBIQUITI NETWORKS declară că acest dispozitiv
UBIQUITI NETWORKS este în conformitate cu cerințele esențiale și
alte prevederi relevante ale Directivei 1999/5/CE.
Slovensky
[Slovak]
Týmto
UBIQUITI NETWORKS
, prehlasuje, že toto
UBIQUITI NETWORKS
zariadenie, je v súlade so základnými požiadavkami a ďalšími
relevantnými ustanoveniami smernice 1999/5/ES.
Español
[Spanish]
Por medio de la presente UBIQUITI NETWORKS declara que
este dispositivo UBIQUITI NETWORKS, cumple con los requisitos
esenciales y cualesquiera otras disposiciones aplicables o exigibles
de la Directiva 1999/5/CE.
Svenska
[Swedish]
Härmed UBIQUITI NETWORKS, intygar att denna UBIQUITI
NETWORKS enhet är i överensstämmelse med de väsentliga
egenskapskrav och övriga relevanta bestämmelser som framgår av
direktiv 1999/5/EG.
16
Support
Online
help.ampli.com
Email
help@ampli.com
©2016 Ubiquiti Networks, Inc. All rights reserved. Ubiquiti, Ubiquiti Networks,
the Ubiquiti U logo, ULabs, the ULabs logo, AmpliFi, and Home Wi‑Fi Perfected
are trademarks or registered trademarks of Ubiquiti Networks, Inc. in the
United States and in other countries. Apple, the Apple logo, and iPhone are
trademarks of Apple Inc., registered in the U.S. and other countries. App Store
is a service mark of Apple Inc. Android, Google, Google Play, the Google Play
logo and other marks are trademarks of Google Inc. All other trademarks are
the property of their respective owners.
640‑00240‑02 • RR072016

Navigation menu
