Package Contents
Package Contents

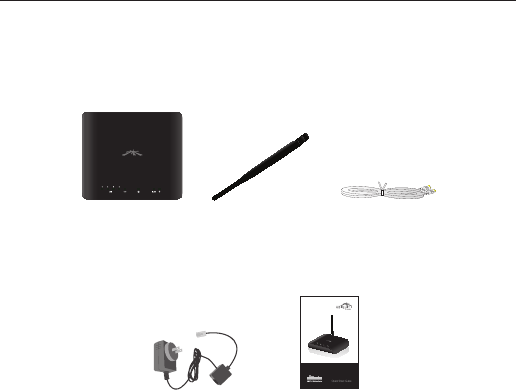

AirRouter HP Antenna Ethernet Cable
5V/2A PoE Adapter Quick Start Guide
System Requirements
• Microsoft Windows XP, Windows Vista, Windows 7, Linux, or Mac
OS X
• Java Runtime Environment 1.6 (or above) for the AirView utility
• Web Browser: Mozilla Firefox, Apple Safari, or Microsoft Internet
Explorer
![](/img.php?id=1582891&img=bg4.png)
2
AirRouter HP 802.11n Wireless Router
Hardware Installation
To install the AirRouter HP, perform the following steps:

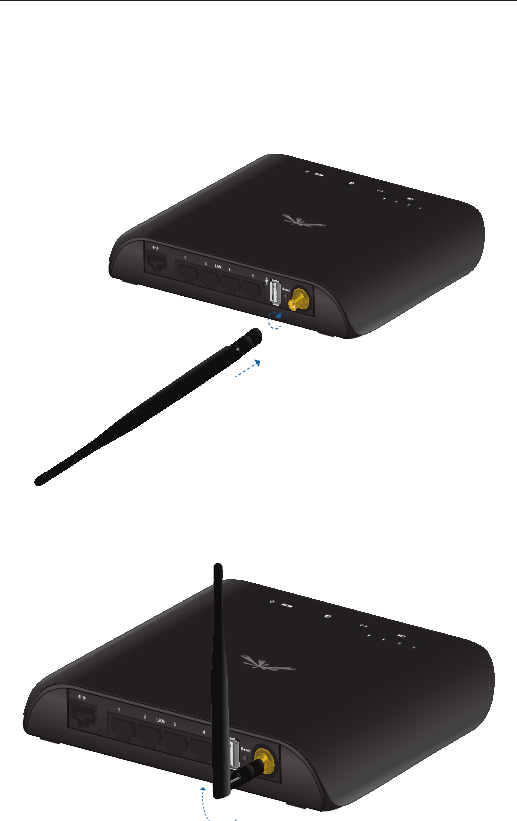

1. Connect the antenna to the antenna connector on the
AirRouter HP by rotating it clockwise.
2. Raise the antenna to an upright position.
![](/img.php?id=1582891&img=bg5.png)
3
Hardware Installation

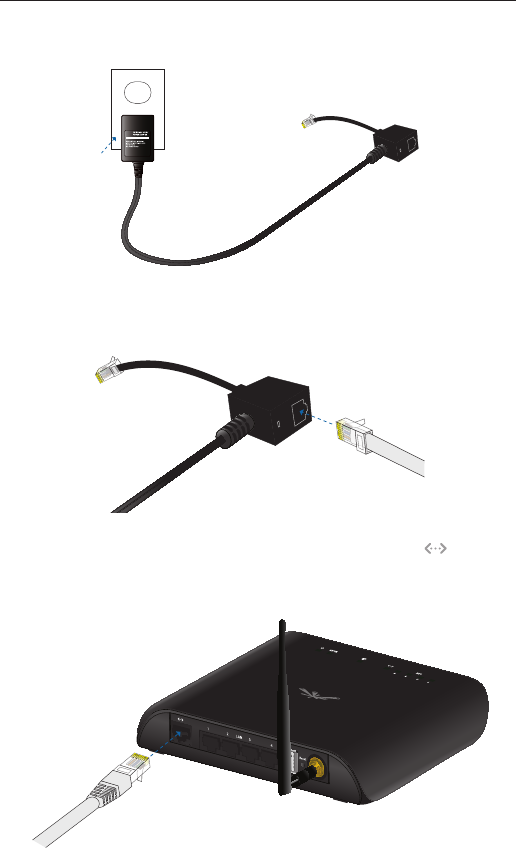

3. Connect the power adapter to a power outlet.
4. Connect an Ethernet cable to the Ethernet port on the power
adapter.
5. Connect the other end of the Ethernet cable to the (WAN)
port on the AirRouter HP. The Power LED will light up on the
front of the AirRouter HP.
![](/img.php?id=1582891&img=bg6.png)
4
AirRouter HP 802.11n Wireless Router
6. Connect the Ethernet connector on the power adapter to your
broadband modem. Connect another Ethernet cable from your
computer to a LAN port (1, 2, 3, or 4) on the AirRouter HP.
Broadband Modem
WAN Port
LAN Port 1, 2, 3, or 4
Ethernet Port on
Computer
7. Launch your Web browser and type http://192.168.1.1 in the
address field and press enter (PC) or return (Mac).
Note: Your computer needs to be on the
192.168.1.x subnet. If you have DHCP enabled on
your Ethernet adapter, it should receive an address
automatically. If not, you will need to set a static IP
address in the 192.168.1.2 - 192.168.1.254 range.
![](/img.php?id=1582891&img=bg7.png)
5
Hardware Installation

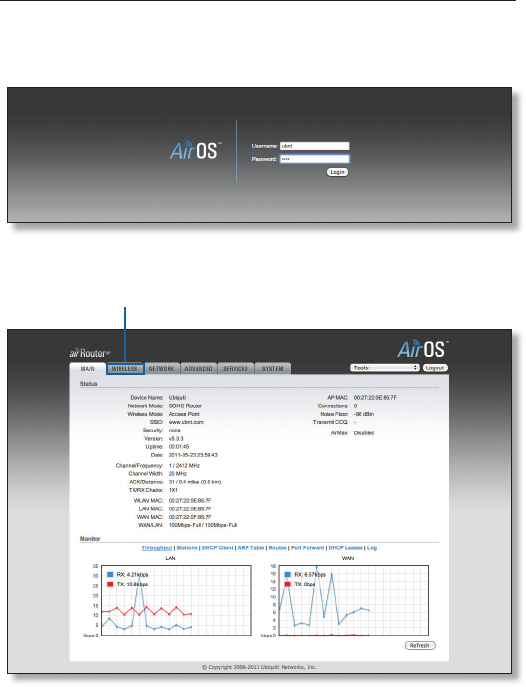

8. The login screen will appear. Enter ubnt in the Username and
Password fields and click Login.

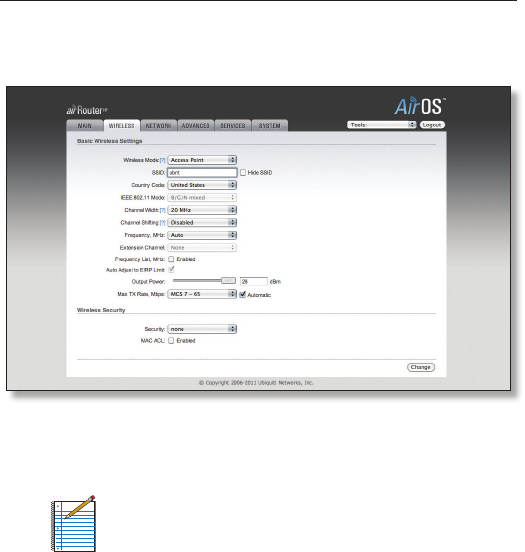

9. The AirOS interface will appear. Go to the Wireless tab.
Wireless tab
![](/img.php?id=1582891&img=bg8.png)
6
AirRouter HP 802.11n Wireless Router
10. Customize your wireless network and secure your network by
entering the basic wireless network information:
a. Enter a name for your wireless network in the SSID field.
b. Select the type of security that you want to use for your
wireless network from the Security drop-down.
Note: WPA2-AES security is the srongest wireless
security method. If all of your devices support this
option, it is recommended that you select it.
c. Enter a passphrase in the WPA Preshared Key field. You
can click the Show option to see the characters that you are
typing.
d. Click Change. You will be prompted to apply the changes.
To proceed, click Apply.
Congratulations! Basic router installation is complete. The next
page provides information for connecting wireless clients.
For additional information on configuring and using the AirRouter
HP, refer to the User Guide on our website at:
www.ubnt.com/airrouter
![](/img.php?id=1582891&img=bg9.png)
7
Connecting a Wireless Client to the AirRouter HP
Connecting a Wireless Client to the AirRouter HP
Windows
1. Go to Connect to Network.
- Windows 7 Right-click on the Network icon.
- Windows Vista Go to Start > Connect To.
- Windows XP Right-click the Wireless Network icon in the
System Tray (lower right corner of the screen) and then click
View Available Wireless Networks.
2. Select the wireless network (SSID) that you entered in the SSID
field in step 7a and then click Connect.
3. Type the passphrase that you entered in the WPA Preshared Key
field in step 7c and click OK or Connect.
4. Launch your web browser to begin browsing the web.
Mac
1. Click the AirPort icon in the menu bar (top left side of the
screen).
2. Select the wireless network (SSID) that you entered in the SSID
field in step 7a.
3. Type the passphrase that you entered in the WPA Preshared Key
field in step 7c and click OK.
4. Once connected the AirPort icon will change from gray
to solid black. The number of black lines indicates the signal
strength. Launch your web browser to begin browsing the
web.
![](/img.php?id=1582891&img=bga.png)
8
AirRouter HP 802.11n Wireless Router
General Warranty
UBIQUITI NETWORKS, Inc (“UBIQUITI NETWORKS”) represents and
warrants that the Products furnished hereunder shall be free from defects
in material and workmanship for a period of one (1) year from the date
of shipment by UBIQUITI NETWORKS under normal use and operation.
UBIQUITI NETWORKS sole and exclusive obligation under the foregoing
warranty shall be to repair or replace, at its option, any defective Product
that fails during the warranty period. The expense of removal and
reinstallation of any item is not included in this warranty.
The foregoing warranty is exclusive and in lieu of all other warranties,
express or implied, including the implied warranties of merchantability and
fitness for a particular purpose and any warranties arising from a course
of dealing, usage or trade practice with respect to the products. Repair or
replacement in the manner provided herein shall be the sole and exclusive
remedy of Buyer for breach of warranty and shall constitute fulfillment
of all liabilities of UBIQUITI NETWORKS with respect to the quality and
performance of the Products. UBIQUITI NETWORKS reserves the right
to inspect all defective Products (which must be returned by Buyer to
UBIQUITI NETWORKS factory freight prepaid).
No Products will be accepted for replacement or repair without obtaining
a Return Materials Authorization (RMA) number from UBIQUITI NETWORKS.
Products returned without an RMA number will not be processed and will
be returned to Buyer freight collect. UBIQUITI NETWORKS shall have no
obligation to make repairs or replacement necessitated by catastrophe,
fault, negligence, misuse, abuse, or accident by Buyer, Buyer’s customers or
any other parties. The warranty period of any repaired or replaced. Product
shall not extend beyond its original term.
Warranty Conditions
The foregoing warranty shall apply only if:
(I) The Product has not been subjected to misuse, neglect or unusual
physical, electrical or electromagnetic stress, or some other type of
accident.
(II) No modification, alteration or addition has been made to the Product
by persons other than UBIQUITI NETWORKS or UBIQUITI NETWORK’S
authorized representatives or otherwise approved by UBIQUITI
NETWORKS.
(III) The Product has been properly installed and used at all times in
accordance, and in all material respects, with the applicable Product
documentation.
(IV) All Ethernet cabling runs use CAT5 (or above) shielded cabling.
![](/img.php?id=1582891&img=bgb.png)
9
Returns
Disclaimer: UBIQUITI NETWORKS does not warrant that the operation of
the products is error-free or that operation will be uninterrupted. In no
event shall UBIQUITI NETWORKS be responsible for damages or claims
of any nature or description relating to system performance, including
coverage, buyer’s selection of products for buyer’s application and/or
failure of products to meet government or regulatory requirements.
Returns
In the unlikely event a defect occurs, please work through the dealer or
distributor from which this product was purchased.
Compliance
FCC
Changes or modifications not expressly approved by Ubiquiti Networks,
Inc. could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions:
1. This device may not cause interference, and
2. This device must accept any interference, including interference that
may cause undesired operation of the device.
Note: This equipment has been tested and found to comply with the
limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely
to cause harmful interference in which case the user will be required to
correct the interference at his own expense.
![](/img.php?id=1582891&img=bgc.png)
10
AirRouter HP 802.11n Wireless Router
Industry Canada
This Class A digital apparatus complies with Canadian ICES-003.
Operation is subject to the following two conditions: (1) this device may
not cause interference, and (2) this device must accept any interference,
including interference that may cause undesired operation of the device.
To reduce potential radio interference to other users, the antenna
type and its gain should be so chosen that the equivalent isotropically
radiated power (e.i.r.p.) is not more than that permitted for successful
communication.
The device has been designed to operate with the antennas listed below
and having a maximum gain of 6 dBi*. Antennas not included in this list
or having a gain greater than 8 dBi are strictly prohibited for use with this
device. The required antenna impedance is 50 ohms.
Model: AirRouter HP antenna gain is 6 dBi.
Cet appareil numérique de la classe A est conforme à la norme NMB-003
du Canada.
Son fonctionnement est soumis aux deux conditions suivantes: (1) cet
appareil ne peut pas provoquer d'interférences et (2) cet appareil doit
accepter toute interférence, y compris les interférences susceptibles de
provoquer un fonctionnement du dispositif.
Pour réduire le risque d'interférence aux autres utilisateurs, l'antenne
type et son gain doivent être choisies de façon que l'équivalent puissance
isotrope rayonnée équivalente (pire) n'est pas plus que cela autorisé pour
une communication réussie.
Le dispositif a été conçu pour fonctionner avec les antennes énumérés
ci-dessous et ayant un gain maximal de 6 dBi *. Antennes pas inclus dans
cette liste ou ayant un gain supérieur à 8 dBi sont strictement interdite
pour une utilisation avec cet appareil. L'antenne doit impédance est de 50
ohms.
Modèle: AirRouter HP gain d'antenne 6 dBi est.
![](/img.php?id=1582891&img=bgd.png)
11
Declaration of Conformity
Declaration of Conformity
Česky
[Czech]
UBIQUITI NETWORKS tímto prohla uje, e tento UBIQUITI
NETWORKS device, je ve shod se základními po adavky a dal ími p
íslu n mi ustanoveními sm rnice 1999/5/ES.
Dansk
[Danish]
Undertegnede UBIQUITI NETWORKS erklærer herved, at følgende
udstyr UBIQUITI NETWORKS device, overholder de væsentlige krav
og øvrige relevante krav i direktiv 1999/5/EF.
Nederlands
[Dutch]
Hierbij verklaart UBIQUITI NETWORKS dat het toestel UBIQUITI
NETWORKS device, in overeenstemming is met de essentiële eisen
en de andere relevante bepalingen van richtlijn 1999/5/EG.
Bij deze verklaart UBIQUITI NETWORKS dat deze UBIQUITI
NETWORKS device, voldoet aan de essentiële eisen en aan de
overige relevante bepalingen van Richtlijn 1999/5/EC.
English
Hereby, UBIQUITI NETWORKS, declares that this UBIQUITI
NETWORKS device, is in compliance with the essential
requirements and other relevant provisions of Directive 1999/5/EC.
Eesti
[Estonian]
Käesolevaga kinnitab UBIQUITI NETWORKS seadme UBIQUITI
NETWORKS device, vastavust direktiivi 1999/5/EÜ põhinõuetele ja
nimetatud direktiivist tulenevatele teistele asjakohastele sätetele.
Suomi
[Finnish]
UBIQUITI NETWORKS vakuuttaa täten että UBIQUITI NETWORKS
device, tyyppinen laite on direktiivin 1999/5/EY oleellisten
vaatimusten ja sitä koskevien direktiivin muiden ehtojen
mukainen.
Français
[French]
Par la présente UBIQUITI NETWORKS déclare que l’appareil
UBIQUITI NETWORKS, device est conforme aux exigences
essentielles et aux autres dispositions pertinentes de la directive
1999/5/CE.
Par la présente, UBIQUITI NETWORKS déclare que ce UBIQUITI
NETWORKS device, est conforme aux exigences essentielles et
aux autres dispositions de la directive 1999/5/CE qui lui sont
applicables.
Deutsch
[German]
Hiermit erklärt UBIQUITI NETWORKS, dass sich diese UBIQUITI
NETWORKS device, in Übereinstimmung mit den grundlegenden
Anforderungen und den anderen relevanten Vorschriften der
Richtlinie 1999/5/EG befindet”. (BMWi)
Hiermit erklärt UBIQUITI NETWORKS die Übereinstimmung des
Gerätes UBIQUITI NETWORKS device, mit den grundlegenden
Anforderungen und den anderen relevanten Festlegungen der
Richtlinie 1999/5/EG. (Wien)
Ελληνική
[Greek]
ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ UBIQUITI NETWORKS ΔΗΛΩΝΕΙ ΟΤΙ UBIQUITI
NETWORKS device, ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ
ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ
1995/5/ΕΚ.
![](/img.php?id=1582891&img=bge.png)
12
AirRouter HP 802.11n Wireless Router
RR111511
Magyar
[Hungarian]
Alulírott, UBIQUITI NETWORKS nyilatkozom, hogy a
UBIQUITI NETWORKS device, megfelel a vonatkozó alapvetõ
követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak.
Íslenska
[Icelandic]
Hér me l sir UBIQUITI NETWORKS yfir ví a UBIQUITI NETWORKS
device, er í samræmi vi grunnkröfur og a rar kröfur, sem ger ar eru í
tilskipun 1999/5/EC.
Italiano
[Italian]
Con la presente UBIQUITI NETWORKS dichiara che questo
UBIQUITI NETWORKS device, è conforme ai requisiti essenziali ed
alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.
Latviski
[Latvian]
Ar o UBIQUITI NETWORKS deklar , ka UBIQUITI NETWORKS device,
atbilst Direkt vas 1999/5/EK b tiskaj m pras b m un citiem ar to saist
tajiem noteikumiem.
Lietuviškai
[Lithuanian]
UBIQUITI NETWORKS deklaruoja, kad šis UBIQUITI NETWORKS
įrenginys atitinka esminius reikalavimus ir kitas 1999/5/EB
Direktyvos nuostatas.
Malti
[Maltese]
Hawnhekk, UBIQUITI NETWORKS, jiddikjara li dan UBIQUITI
NETWORKS device, jikkonforma mal- ti ijiet essenzjali u ma
provvedimenti o rajn relevanti li hemm fid-Dirrettiva 1999/5/EC.
Norsk
[Norwegian]
UBIQUITI NETWORKS erklærer herved at utstyret UBIQUITI
NETWORKS device, er i samsvar med de grunnleggende krav og
øvrige relevante krav i direktiv 1999/5/EF.
Slovensky
[Slovak]
UBIQUITI NETWORKS t mto vyhlasuje, e UBIQUITI NETWORKS
device, sp a základné po iadavky a v etky príslu né ustanovenia
Smernice 1999/5/ES.
Svenska
[Swedish]
Härmed intygar UBIQUITI NETWORKS att denna UBIQUITI
NETWORKS device, står I överensstämmelse med de väsentliga
egenskapskrav och övriga relevanta bestämmelser som framgår
av direktiv 1999/5/EG.
Español
[Spanish]
Por medio de la presente UBIQUITI NETWORKS declara que el
UBIQUITI NETWORKS device, cumple con los requisitos esenciales
y cualesquiera otras disposiciones aplicables o exigibles de la
Directiva 1999/5/CE.
Polski
[Polish]
Niniejszym, firma UBIQUITI NETWORKS o wiadcza, e produkt serii
UBIQUITI NETWORKS device, spełnia zasadnicze wymagania i inne
istotne postanowienia Dyrektywy 1999/5/EC.
Português
[Portuguese]
UBIQUITI NETWORKS declara que este UBIQUITI NETWORKS
device, está conforme com os requisitos essenciais e outras
disposições da Directiva 1999/5/CE.
Română
[Romanian]
Prin prezenta, declarăm că acest produs este în conformitate cu
cerinţele esenţiale şi cu alte prevederi relevante din Directiva
1999/5/CE.
