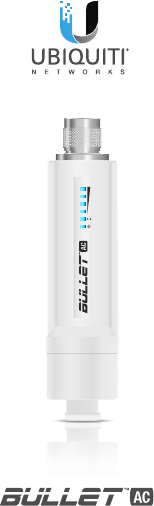

Ubiquiti BDBAC Bullet User Manual Bullet 5AC Quick Start Guide

Ubiquiti Networks, Inc. Bullet Bullet 5AC Quick Start Guide

Quick Start Guide

Dual-Band airMAX® ac Radio with
Dedicated Wi-Fi Management
Model: B-DB-AC
Introduction
Thank you for purchasing the Ubiquiti Networks® Bullet
AC. This Quick Start Guide is designed to guide you through
installation and also includes warranty terms.
Package Contents
Dual-Band airMAX® ac Radio with
Dedicated Wi-Fi Management
Model: B-DB-AC
Bullet AC Compression
Seal
Quick Start Guide
Installation Requirements
Shielded Category 5 (or above) cabling with drain wire
should be used for all outdoor wired Ethernet connections
and should be grounded through the AC ground of the PoE.
We recommend that you protect your networks from
harmful outdoor environments and destructive ESD events
with industrial‑grade, shielded Ethernet cable from Ubiquiti
Networks. For more details, visit
www.ubnt.com/toughcable
Surge protection should be used for all outdoor installations.
We recommend that you use two Ethernet Surge Protectors,
model ETH‑SP, one near the B‑DB‑AC and the other at the
entry point to the building. The ETH‑SP will absorb power
surges and safely discharge them into the ground.
To LAN
To Antenna
ETH-SP
ETH-SP
ES-8-150W
B-DB-AC
TERMS OF USE: Ubiquiti radio devices must be professionally
installed. Shielded Ethernet cable and earth grounding must
be used as conditions of product warranty. TOUGHCable
is designed for outdoor installations. It is the professional
installer’s responsibility to follow local country regulations,
including operation within legal frequency channels, output
power, and Dynamic Frequency Selection (DFS) requirements.
Hardware Overview
Cable Gland
Body
Compression
Seal
Ethernet
Port
N-Type
Connector
LEDs

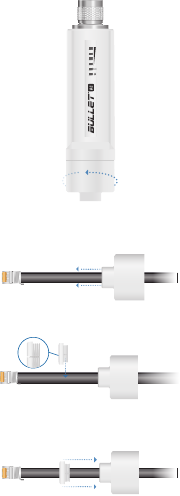

Hardware Installation
1. Unscrew the Cable Gland Body and detach it from
the Bullet.
2. Feed the Ethernet cable through the Cable
Gland Body.
3. Slip the Compression Seal around the cable.
4. Seat the CompressionSeal into the
CableGlandBody.
5. Connect the Ethernet cable to the port located on
the bottom of the Bullet.
6. Securely attach the Cable Gland Body onto the
Bullet. Ensure the Compression Seal is securely
compressed and tightly sealed around the cable.
24V 1A PoE
M/N: BM5HP
RESET

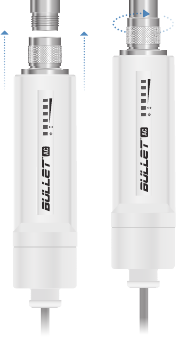

7. Connect the Bullet to the N‑Type connector of
the antenna.
Accessing airOS via Wi‑Fi
Verify connectivity in the airOS Configuration
Interface. There are two methods, the UNMS App
and Web Portal. Both are available for 15minutes
immediately after you power on the device. If
necessary, you can power cycle the Bullet AC to
re‑enable its Wi‑Fi.
Proceed to the appropriate instructions:
UNMS App
1. Download the UNMS app from the AppStore
(iOS) or Google Play (Android).
2. Connect your device’s Wi‑Fi to the Bullet AC SSID
named: B-DB-AC:<MAC Address>
Note: Ensure that DHCP is enabled
on your Wi‑Fiadapter.
3. Launch the app.
4. Tap the Bullet AC on the Connections screen.
Bullet AC
BDBAC
192.168.172.1
:F08FC2552017
5. Tap Connect on the Login screen.
Bullet AC
BDBAC:F09FC25EXXXX
192.168.172.1
6. Select your Country and tap Done.
United Kingdom
Argentina
Armenia
Aruba
Australia
Austria
Azerbaijan
Bahrain
Barbados
Belarus
Note:
For the Country setting, U.S. product
versions are restricted to a choice of Canada,
Puerto Rico, or the U.S. to ensure compliance
with FCC/IC regulations.
7. Under Configuration, customize your settings
as needed.
Bullet AC
(Not Applicable)

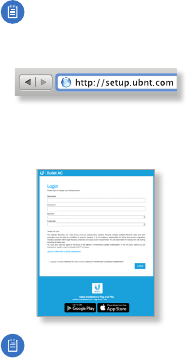

Web Portal
1. Connect your device’s Wi‑Fi connection to the
BulletAC SSID named: B-DB-AC:<MACAddress>
Note: Ensure that your Wi‑Fi
connection has DHCP enabled.
2. Launch a web browser and go to:
http://setup.ubnt.com
3. Enter ubnt in the Username and Password fields.
Select your Country and Language. You must
agree to the Terms of Use to use the product.
Click Login.
Username
Password
Select Your Country
English
Note:
For the Country setting, U.S.
product versions are restricted to a
choice of Canada, Puerto Rico, or the
U.S. to ensure compliance with
FCC/IC regulations.
The airOS Configuration Interface will appear,
allowing you to customize your settings as needed.
For additional details on the airOS Configuration
Interface, refer to the User Guide available at:
www.ubnt.com/download/airmax
Installer Compliance Responsibility
Devices must be professionally installed and it is the
professional installer’s responsibility to make sure the
device is operated within local country regulatory
requirements.
The Output Power field is provided to the professional
installer to assist in meeting regulatory requirements.
Specifications
Bullet AC
Dimensions 190 x 46 mm (7.48 x 1.81")
Weight 196 g (6.91 oz)
Enclosure Powder-Coated Aluminum
Networking
Interface
Gigabit Ethernet Port
Antenna Connector N-Type Connector
LEDs Power, Ethernet, (4) Signal Strength
Max. Power
Consumption
8W
Output Power 22 dBm
Power Supply AC to 24VDC, 0.5 A Gigabit PoE
Adapter
Power Method 24V Passive PoE
(Pairs 4, 5+; 7, 8 Return)
ESD/EMP Protection ± 24 kV Contact / Air
Operating Temp -40 to 70° C (-40 to 158° F)
Operating Humidity 5 to 95% Condensing
Shock and Vibration ETSI300-019-1.4
Certications CE, FCC, IC
Operating Frequency (MHz)
Worldwide 2412 - 2472
5150 - 5875
USA
2412 - 2462
U-NII-1:
5150 - 5250
U-NII-3:
5725 - 5850
Safety Notices
1. Read, follow, and keep these instructions.
2. Heed all warnings.
3. Only use attachments/accessories specified by
the manufacturer.
WARNING: Do not use this product in location
that can be submerged by water.
WARNING: Avoid using this product during an
electrical storm. There may be a remote risk of
electric shock from lightning.
Electrical Safety Information
1. Compliance is required with respect to voltage,
frequency, and current requirements indicated
on the manufacturer’s label. Connection to a
different power source than those specified may
result in improper operation, damage to the
equipment or pose a fire hazard if the limitations
are not followed.
2. There are no operator serviceable parts inside this
equipment. Service should be provided only by a
qualified service technician.
Limited Warranty
UBIQUITI NETWORKS, Inc (“UBIQUITI NETWORKS”)
warrants that the product(s) furnished hereunder (the
“Product(s)”) shall be free from defects in material
and workmanship for a period of one (1) year from
the date of shipment by UBIQUITI NETWORKS under
normal use and operation. UBIQUITI NETWORKS’
sole and exclusive obligation and liability under the
foregoing warranty shall be for UBIQUITI NETWORKS,
at its discretion, to repair or replace any Product
that fails to conform to the above warranty during
the above warranty period. The expense of removal
and reinstallation of any Product is not included in
this warranty. The warranty period of any repaired
or replaced Product shall not extend beyond its
original term.
*640-00311-05*
640-00311-05
Warranty Conditions
The above warranty does not apply if the Product:
(I) has been modified and/or altered, or an
addition made thereto, except by Ubiquiti
Networks, or Ubiquiti Networks’ authorized
representatives, or as approved by Ubiquiti
Networks in writing;
(II) has been painted, rebranded or physically
modified in any way;
(III) has been damaged due to errors or defects
in cabling;
(IV) has been subjected to misuse, abuse,
negligence, abnormal physical, electromagnetic
or electrical stress, including lightning strikes,
or accident;
(V) has been damaged as a result of using third
party firmware;
(VI) has no original Ubiquiti MAC label, or is missing
any other original Ubiquiti label(s); or
(VII) has not been received by Ubiquiti within 30
days of issuance of the RMA.
In addition, the above warranty shall apply only if: the
product has been properly installed and used at all
times in accordance, and in all material respects, with
the applicable Product documentation; all Ethernet
cabling runs use CAT5 (or above), and for outdoor
installations, shielded Ethernet cabling is used, and
for indoor installations, indoor cabling requirements
are followed.
Returns
No Products will be accepted for replacement or repair
without obtaining a Return Materials Authorization
(RMA) number from UBIQUITI NETWORKS during the
warranty period, and the Products being received
at UBIQUITI NETWORKS’ facility freight prepaid
in accordance with the RMA process of UBIQUITI
NETWORKS. Products returned without an RMA
number will not be processed and will be returned
freight collect or subject to disposal. Information on
the RMA process and obtaining an RMA number can
be found at: www.ubnt.com/support/warranty
Disclaimer
EXCEPT FOR ANY EXPRESS WARRANTIES PROVIDED
HEREIN, UBIQUITI NETWORKS, ITS AFFILIATES, AND ITS
AND THEIR THIRD PARTY DATA, SERVICE, SOFTWARE AND
HARDWARE PROVIDERS HEREBY DISCLAIM AND MAKE
NO OTHER REPRESENTATION OR WARRANTY OF ANY
KIND, EXPRESS, IMPLIED OR STATUTORY, INCLUDING,
BUT NOT LIMITED TO, REPRESENTATIONS, GUARANTEES,
OR WARRANTIES OF MERCHANTABILITY, ACCURACY,
QUALITY OF SERVICE OR RESULTS, AVAILABILITY,
SATISFACTORY QUALITY, LACK OF VIRUSES, QUIET
ENJOYMENT, FITNESS FOR A PARTICULAR PURPOSE AND
NON‑INFRINGEMENT AND ANY WARRANTIES ARISING
FROM ANY COURSE OF DEALING, USAGE OR TRADE
PRACTICE IN CONNECTION WITH SUCH PRODUCTS
AND SERVICES. BUYER ACKNOWLEDGES THAT NEITHER
UBIQUITI NETWORKS NOR ITS THIRD PARTY PROVIDERS
CONTROL BUYER’S EQUIPMENT OR THE TRANSFER OF
DATA OVER COMMUNICATIONS FACILITIES, INCLUDING
THE INTERNET, AND THAT THE PRODUCTS AND SERVICES
MAY BE SUBJECT TO LIMITATIONS, INTERRUPTIONS,
DELAYS, CANCELLATIONS AND OTHER PROBLEMS
INHERENT IN THE USE OF COMMUNICATIONS FACILITIES.
UBIQUITI NETWORKS, ITS AFFILIATES AND ITS AND THEIR
THIRD PARTY PROVIDERS ARE NOT RESPONSIBLE FOR ANY
INTERRUPTIONS, DELAYS, CANCELLATIONS, DELIVERY
FAILURES, DATA LOSS, CONTENT CORRUPTION, PACKET
LOSS, OR OTHER DAMAGE RESULTING FROM ANY OF THE
FOREGOING. In addition, UBIQUITI NETWORKS does not
warrant that the operation of the Products will be error‑
free or that operation will be uninterrupted. In no event
shall UBIQUITI NETWORKS be responsible for damages
or claims of any nature or description relating to system
performance, including coverage, buyer’s selection of
products (including the Products) for buyer’s application
and/or failure of products (including the Products) to
meet government or regulatory requirements.
Limitation of Liability
EXCEPT TO THE EXTENT PROHIBITED BY LOCAL LAW,
IN NO EVENT WILL UBIQUITI OR ITS SUBSIDIARIES,
AFFILIATES OR SUPPLIERS BE LIABLE FOR DIRECT,
SPECIAL, INCIDENTAL, CONSEQUENTIAL OR OTHER
DAMAGES (INCLUDING LOST PROFIT, LOST DATA,
OR DOWNTIME COSTS), ARISING OUT OF THE USE,
INABILITY TO USE, OR THE RESULTS OF USE OF THE
PRODUCT, WHETHER BASED IN WARRANTY, CONTRACT,
TORT OR OTHER LEGAL THEORY, AND WHETHER OR NOT
ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
Note
Some countries, states and provinces do not allow
exclusions of implied warranties or conditions, so the
above exclusion may not apply to you. You may have
other rights that vary from country to country, state to
state, or province to province. Some countries, states
and provinces do not allow the exclusion or limitation
of liability for incidental or consequential damages,
so the above limitation may not apply to you. EXCEPT
TO THE EXTENT ALLOWED BY LOCAL LAW, THESE
WARRANTY TERMS DO NOT EXCLUDE, RESTRICT OR
MODIFY, AND ARE IN ADDITION TO, THE MANDATORY
STATUTORY RIGHTS APPLICABLE TO THE LICENSE OF
ANY SOFTWARE (EMBEDDED IN THE PRODUCT) TO
YOU. The United Nations Convention on Contracts for
the International Sale of Goods shall not apply to any
transactions regarding the sale of the Products.
Compliance
FCC
Changes or modifications not expressly approved by
the party responsible for compliance could void the
user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions.
1. This device may not cause harmful interference,
and
2. This device must accept any interference
received, including interference that may cause
undesired operation.
This equipment has been tested and found to comply
with the limits for a Class A digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful
interference when the equipment is operated in a
commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and,
if not installed and used in accordance with the
instruction manual, may cause harmful interference to
radio communications. Operations of this equipment
in a residential area is likely to cause harmful
interference in which case the user will be required to
correct the interference at his own expense.
This radio transmitter (FCC: SWX‑BDBAC) has been
approved by FCC to operate with the antenna types
listed below with the maximum permissible gain and
required antenna impedance for each antenna type
indicated. Antenna types not included on
page 18, having a gain greater than the maximum
gain indicated for that type, are strictly prohibited for
use with this device.
ISED Canada
CAN ICES‑3(A)/NMB‑3(A)
This device complies with ISED Canada licence‑
exempt RSS standard(s). Operation is subject to the
following two conditions:
1. This device may not cause interference, and
2. This device must accept any interference,
including interference that may cause undesired
operation of the device.
This radio transmitter (IC: 6545A‑BDBAC) has been
approved by ISED Canada to operate with the antenna
types listed below with the maximum permissible
gain and required antenna impedance for each
antenna type indicated. Antenna types not included
on page 18, having a gain greater than the maximum
gain indicated for that type, are strictly prohibited for
use with this device.
CAN ICES‑3(A)/NMB‑3(A)
Le présent appareil est conforme aux CNR d’ISDE
Canada applicables aux appareils radio exempts
de licence. Lexploitation est autorisée aux deux
conditions suivantes :
1. l’appareil ne doit pas produire de brouillage;
2. l’appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage
est susceptible d’en compromettre le
fonctionnement.
Le présent émetteur radio (IC: 6545A‑BDBAC) a
été approuvé par ISDE Canada pour l’exploitation
avec l’antenne types énumérés ci‑dessous avec le
gain maximal admissible et requis l’impédance de
l’antenne pour chaque type d’antenne indiqué. Types
d’antenne non inclus dans cette liste, ayant un gain
supérieur au gain maximal indiqué pour ce type,
sont strictement interdits pour une utilisation avec
cet appareil.
Ceritifed Antenna Types (Types d’antennes certifiées)
Antenna Frequency Gain
Omni 2.4 GHz
5 GHz
13 dBi
13 dBi
Sector 2.4 GHz
5 GHz
17 dBi
22 dBi
Dish 2.4 GHz
5 GHz
24 dBi
34 dBi
RF Exposure Warning
The antennas used for this transmitter must be
installed to provide a separation distance of at least
20 cm from all persons and must not be located or
operating in conjunction with any other antenna or
transmitter.
Les antennes utilisées pour ce transmetteur
doivent être installé en considérant une distance de
séparation de toute personnes d’au moins 20 cm et ne
doivent pas être localisé ou utilisé en conflit avec tout
autre antenne ou transmetteur.
Australia and New Zealand
Warning: This is a Class A product. In a
domestic environment this product may cause
radio interference in which case the user may
be required to take adequate measures.
CE Marking
CE marking on this product represents the product is
in compliance with all directives that are applicable
to it.
CE RF Exposure Warning
This device meets the EU requirements (2014/53/EU
Article 3.1a) on the limitation of exposure of the general
public to electromagnetic fields by way of health
protection. The device complies with RF specifications
when the device is used at 29 cm from your body.
Country List
AT BE BG CY CZ DE DK EE EL ES FI FR HR HU
IE IT LV LT LU MT NL PL PT RO SE SI SK UK
BFWA (Broadband Fixed Wireless Access) members noted in blue
Note: This device meets Max. TX power limit per
ETSI regulations.
The following apply to products that operate in the
5 GHz frequency range:
Note: This device is restricted to indoor use only
when operating in the 5150 ‑ 5350 MHz frequency
range within all member states.
Note: All countries listed may operate at 30 dBm.
BFWA member states may operate at 36 dBm.
Note: Operation in the 5.8 GHz frequency band is
prohibited in BFWA member states. Other countries
listed may use the 5.8 GHz frequency band.
RoHS/WEEE Compliance Statement
English
European Directive 2012/19/EU requires that the
equipment bearing this symbol on the product and/or
its packaging must not be disposed of with unsorted
municipal waste. The symbol indicates that this
product should be disposed of separately from regular
household waste streams. It is your responsibility
to dispose of this and other electric and electronic
equipment via designated collection facilities
appointed by the government or local authorities.
Correct disposal and recycling will help prevent
potential negative consequences to the environment
and human health. For more detailed information
about the disposal of your old equipment, please
contact your local authorities, waste disposal service,
or the shop where you purchased the product.
Deutsch
Die Europäische Richtlinie 2012/19/EU verlangt, dass
technische Ausrüstung, die direkt am Gerät und/oder
an der Verpackung mit diesem Symbol versehen ist,
nicht zusammen mit unsortiertem Gemeindeabfall
entsorgt werden darf. Das Symbol weist darauf
hin, dass das Produkt von regulärem Haushaltmüll
getrennt entsorgt werden sollte. Es liegt in Ihrer
Verantwortung, dieses Gerät und andere elektrische
und elektronische Geräte über die dafür zuständigen
und von der Regierung oder örtlichen Behörden
dazu bestimmten Sammelstellen zu entsorgen.
Ordnungsgemäßes Entsorgen und Recyceln trägt
dazu bei, potentielle negative Folgen für Umwelt und
die menschliche Gesundheit zu vermeiden. Wenn Sie
weitere Informationen zur Entsorgung Ihrer Altgeräte
benötigen, wenden Sie sich bitte an die örtlichen
Behörden oder städtischen Entsorgungsdienste oder
an den Händler, bei dem Sie das Produkt erworben
haben.
Español
La Directiva 2012/19/UE exige que los equipos que
lleven este símbolo en el propio aparato y/o en
su embalaje no deben eliminarse junto con otros
residuos urbanos no seleccionados. El símbolo indica
que el producto en cuestión debe separarse de los
residuos domésticos convencionales con vistas a su
eliminación. Es responsabilidad suya desechar este y
cualesquiera otros aparatos eléctricos y electrónicos
a través de los puntos de recogida que ponen a su
disposición el gobierno y las autoridades locales. Al
desechar y reciclar correctamente estos aparatos
estará contribuyendo a evitar posibles consecuencias
negativas para el medio ambiente y la salud de
las personas. Si desea obtener información más
detallada sobre la eliminación segura de su aparato
usado, consulte a las autoridades locales, al servicio
de recogida y eliminación de residuos de su zona o
pregunte en la tienda donde adquirió el producto.
Français
La directive européenne 2012/19/UE exige que
l’équipement sur lequel est apposé ce symbole sur le
produit et/ou son emballage ne soit pas jeté avec les
autres ordures ménagères. Ce symbole indique que
le produit doit être éliminé dans un circuit distinct
de celui pour les déchets des ménages. Il est de votre
responsabilité de jeter ce matériel ainsi que tout autre
matériel électrique ou électronique par les moyens de
collecte indiqués par le gouvernement et les pouvoirs
publics des collectivités territoriales. Lélimination et
le recyclage en bonne et due forme ont pour but de
lutter contre l’impact néfaste potentiel de ce type de
produits sur l’environnement et la santé publique.
Pour plus d’informations sur le mode d’élimination
de votre ancien équipement, veuillez prendre
contact avec les pouvoirs publics locaux, le service
de traitement des déchets, ou l’endroit où vous avez
acheté le produit.
Italiano
La direttiva europea 2012/19/UE richiede che le
apparecchiature contrassegnate con questo simbolo
sul prodotto e/o sull’imballaggio non siano smaltite
insieme ai rifiuti urbani non differenziati. Il simbolo
indica che questo prodotto non deve essere smaltito
insieme ai normali rifiuti domestici. È responsabilità
del proprietario smaltire sia questi prodotti sia le altre
apparecchiature elettriche ed elettroniche mediante
le specifiche strutture di raccolta indicate dal governo
o dagli enti pubblici locali. Il corretto smaltimento
ed il riciclaggio aiuteranno a prevenire conseguenze
potenzialmente negative per l’ambiente e per la
salute dell’essere umano. Per ricevere informazioni
più dettagliate circa lo smaltimento delle vecchie
apparecchiature in Vostro possesso, Vi invitiamo a
contattare gli enti pubblici di competenza, il servizio
di smaltimento rifiuti o il negozio nel quale avete
acquistato il prodotto.
Declaration of Conformity
български [Bulgarian] С настоящото UBIQUITI NETWORKS
декларира, че този тип радиосъоръжение NBE‑5AC‑Gen2 е в
съответствие с Директива 2014/53/ЕС. Цялостният текст на ЕС
декларацията за съответствие може да се намери на следния
интернет адрес:
www.ubnt.com/compliance
Hrvatski [Croatian] UBIQUITI NETWORKS ovime izjavljuje da
je radijska oprema tipa NBE‑5AC‑Gen2 u skladu s Direktivom
2014/53/EU. Cjeloviti tekst EU izjave o sukladnosti dostupan je na
sljedećoj internetskoj adresi:
www.ubnt.com/compliance
Čeština [Czech] Tímto UBIQUITI NETWORKS prohlašuje, že
typ rádiového zařízení NBE‑5AC‑Gen2 je v souladu se směrnicí
2014/53/EU. Úplné znění EU prohlášení o shodě je k dispozici na
této internetové adrese:
www.ubnt.com/compliance
Dansk [Danish] Hermed erklærer UBIQUITI NETWORKS, at
radioudstyrstypen NBE‑5AC‑Gen2 er i overensstemmelse med
direktiv 2014/53/EU. EU‑overensstemmelseserklæringens
fulde tekst kan findes på følgende internetadresse:
www.ubnt.com/compliance
Nederlands [Dutch] Hierbij verklaar ik, UBIQUITI NETWORKS, dat
het type radioapparatuur NBE‑5AC‑Gen2 conform is met Richtlijn
2014/53/EU. De volledige tekst van de EU‑conformiteitsverklaring
kan worden geraadpleegd op het volgende internetadres:
www.ubnt.com/compliance
English
Hereby, UBIQUITI NETWORKS declares that the
radio equipment type
NBE‑5AC‑Gen2
is in compliance with
Directive 2014/53/EU. The full text of the EU declaration of
conformity is available at the following internet address:
www.ubnt.com/compliance
Eesti keel [Estonian] Käesolevaga deklareerib UBIQUITI
NETWORKS, et käesolev raadioseadme tüüp NBE‑5AC‑Gen2
vastab direktiivi 2014/53/EL nõuetele. ELi vastavusdeklaratsiooni
täielik tekst on kättesaadav järgmisel internetiaadressil:
www.ubnt.com/compliance
Suomi [Finnish] UBIQUITI NETWORKS vakuuttaa, että
radiolaitetyyppi NBE‑5AC‑Gen2 on direktiivin 2014/53/EU
mukainen. EU‑vaatimustenmukaisuusvakuutuksen täysimittainen
teksti on saatavilla seuraavassa internetosoitteessa:
www.ubnt.com/compliance
Français [French] Le soussigné, UBIQUITI NETWORKS, déclare que
l’équipement radioélectrique du type NBE‑5AC‑Gen2 est conforme
à la directive 2014/53/UE. Le texte complet de la déclaration
UE de conformité est disponible à l’adresse internet suivante:
www.ubnt.com/compliance
Deutsch [German] Hiermit erklärt UBIQUITI NETWORKS, dass
der Funkanlagentyp NBE‑5AC‑Gen2 der Richtlinie 2014/53/EU
entspricht. Der vollständige Text der EU‑Konformitätserklärung
ist unter der folgenden Internetadresse verfügbar:
www.ubnt.com/compliance
Ελληνικά [Greek] Με την παρούσα ο/η UBIQUITI NETWORKS,
δηλώνει ότι ο ραδιοεξοπλισμός NBE‑5AC‑Gen2 πληροί την οδηγία
2014/53/ΕΕ. Το πλήρες κείμενο της δήλωσης συμμόρφωσης
ΕΕ διατίθεται στην ακόλουθη ιστοσελίδα στο διαδίκτυο:
www.ubnt.com/compliance
Magyar [Hungarian] UBIQUITI NETWORKS igazolja, hogy a
NBE‑5AC‑Gen2 típusú rádióberendezés megfelel a 2014/53/EU
irányelvnek. Az EU‑megfelelőségi nyilatkozat teljes szövege elérhető
a következő internetes címen:
www.ubnt.com/compliance
Íslenska [Icelandic] Hér með lýsir UBIQUITI NETWORKS yfir
því að NBE‑5AC‑Gen2 er í samræmi við grunnkröfur og aðrar
kröfur, sem gerðar eru í tilskipun 2014/53/EU. Fullur texti
ESB samræmisyfirlýsing er að finna á eftirfarandi netfangi:
www.ubnt.com/compliance
Italiano [Italian] Il fabbricante, UBIQUITI NETWORKS, dichiara
che il tipo di apparecchiatura radio NBE‑5AC‑Gen2 èconforme
alla direttiva 2014/53/UE. Il testo completo della dichiarazione
di conformità UE è disponibile al seguente indirizzo Internet:
www.ubnt.com/compliance
Latvių kalba [Latvian] Ar šo UBIQUITI NETWORKS deklarē, ka
radioiekārta NBE‑5AC‑Gen2 atbilst Direktīvai 2014/53/ES. Pilns ES
atbilstības deklarācijas teksts ir pieejams šādā interneta vietnē:
www.ubnt.com/compliance
Lietuvių kalba [Lithuanian] Aš, UBIQUITI NETWORKS, patvirtinu,
kad radijo įrenginių tipas NBE‑5AC‑Gen2 atitinka Direktyvą
2014/53/ES. Visas ES atitikties deklaracijos tekstas prieinamas šiuo
interneto adresu:
www.ubnt.com/compliance
Malti [Maltese]
B’dan, UBIQUITI NETWORKS, niddikjara li dan it‑tip
ta’ tagħmir tar‑radju
NBE‑5AC‑Gen2
huwa konformi mad‑Direttiva
2014/53/UE. Id‑dikjarazzjoni tal‑konformità tista’ tiġi kkonsultata
minn www.ubnt.com/compliance
Norsk [Norwegian]
UBIQUITI NETWORKS erklærer herved at
utstyret
NBE‑5AC‑Gen2
er i samsvar med de grunnleggende
krav og øvrige relevante krav i direktiv 2014/53/EU. Den fulle
teksten til EU‑samsvarserklæringen er tilgjengelig på følgende
internettadresse: www.ubnt.com/compliance
Polski [Polish] UBIQUITI NETWORKS niniejszym oświadcza,
że typ urządzenia radiowego NBE‑5AC‑Gen2 jest zgodny z
dyrektywą 2014/53/UE. Pełny tekst deklaracji zgodności UE
jest dostępny pod następującym adresem internetowym:
www.ubnt.com/compliance
Português [Portuguese] O(a) abaixo assinado(a) UBIQUITI
NETWORKS declara que o presente tipo de equipamento de rádio
NBE‑5AC‑Gen2 está em conformidade com a Diretiva 2014/53/UE.
O texto integral da declaração de conformidade está disponível no
seguinte endereço de Internet:
www.ubnt.com/compliance
Română [Romanian] Prin prezenta, UBIQUITI NETWORKS declară
că tipul de echipamente radio NBE‑5AC‑Gen2 este în conformitate
cu Directiva 2014/53/UE. Textul integral al declarației UE de
conformitate este disponibil la următoarea adresă internet:
www.ubnt.com/compliance
Slovenčina [Slovak]
UBIQUITI NETWORKS
týmto vyhlasuje, že
rádiové zariadenie typu NBE‑5AC‑Gen2 je v súlade so smernicou
2014/53/EÚ. Úplné EÚ vyhlásenie o zhode je k dispozícii na tejto
internetovej adrese:
www.ubnt.com/compliance
Slovenščina [Slovenian]
UBIQUITI NETWORKS potrjuje, da je tip
radijske opreme
NBE‑5AC‑Gen2
skladen z Direktivo 2014/53/EU.
Celotno besedilo izjave EU o skladnosti je na voljo na naslednjem
spletnem naslovu: www.ubnt.com/compliance
Español [Spanish] Por la presente, UBIQUITI NETWORKS declara
que el tipo de equipo radioeléctrico NBE‑5AC‑Gen2 es conforme
con la Directiva 2014/53/UE. El texto completo de la declaración UE
de conformidad está disponible en la dirección Internet siguiente:
www.ubnt.com/compliance
Svenska [Swedish] Härmed försäkrar UBIQUITI NETWORKS att
denna typ av radioutrustning NBE‑5AC‑Gen2 överensstämmer
med direktiv 2014/53/EU. Den fullständiga texten till EU‑försäkran
om överensstämmelse finns på följande webbadress:
www.ubnt.com/compliance
Online Resources
Support help.ubnt.com
Community community.ubnt.com
Downloads downloads.ubnt.com
©2017 Ubiquiti Networks, Inc. All rights reserved. Ubiquiti,
UbiquitiNetworks, the Ubiquiti U logo, airMAX, airOS,
Bullet, and UNMSare trademarks or registered trademarks
of UbiquitiNetworks, Inc. in the United States and in other
countries. Android, Google, Google Play, the Google Play
logo and other marks are trademarks of Google Inc. Apple,
the Apple logo, and iPhone are trademarks of Apple Inc.,
registered in the U.S. and other countries. App Store is a
service mark of Apple Inc. All other trademarks are the
property of their respectiveowners.
www.ubnt.com
Ubiquiti Networks, Inc.
685 Third Avenue, 27th Floor
New York, NY 10017
USA

Navigation menu
