Ubiquiti EMS EtherMagic Powerline User Manual

Ubiquiti Networks, Inc. EtherMagic Powerline

Contents

User Manual

Gigabit+ Powerline System with
802.3af/at or 24V Passive PoE
Models: EM-S, EM-EP, EM-KIT
Introduction
Thank you for purchasing the Ubiquiti Networks® EtherMagic
Gigabit+ Powerline System with 802.3af/at or 24V Passive PoE.
This Quick Start Guide is designed to guide you through the
installation and also includes the warranty terms.

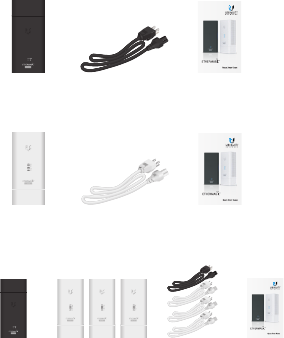

Package Contents
The package contents shown below will vary depending on
the model purchased:
EM-S
Gigabit+ Powerline
and PoE System
Model: EM-S, EM-EP
EtherMagic Switch Optional Power
Cord
Quick Start Guide
EM-EP
Gigabit+ Powerline
and PoE System
Model: EM-S, EM-EP
EtherMagic EndPoint Optional Power
Cord
Quick Start Guide
EM-KIT
Gigabit+ Powerline
and PoE System
Model: EM-S, EM-EP
(1) EtherMagic
Switch
(3) EtherMagic
EndPoints
(4) Optional
Power Cords
Quick Start
Guide
TERMS OF USE: It is the customer’s responsibility to follow local country regulations, including
operation within legal frequency channels, output power, and indoor cabling requirements.
EtherMagic Overview
An EtherMagic Gigabit+ network consists of one EtherMagic
Switch and one or more EtherMagic EndPoints. Each EndPoint
provides 802.3af/at or 24V passive PoE, and must be paired
with a Switch to create a network. Up to 10EtherMagic
networks are supported on the same electrical circuit, and up
to 32 EndPoints may be paired with a single Switch.
DHCP Server
(Gateway)
EtherMagic
Switch
(Up to 10
per circuit)
Powerline Circuit
EtherMagic
EndPoints
(Up to 32
per Switch)
24V Passive
802.3af 802.3af
Internet

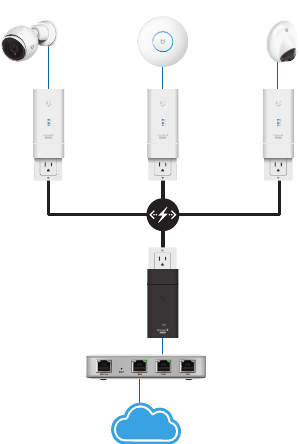

EtherMagic Network Example
Hardware Overview
EtherMagic Switch
LAN Port
Reset Button
Wall Plug
Adapter
LEDs
Bottom View
Wall Plug Adapter Connects and mounts the Switch directly
to the power outlet. The adapter can be removed and replaced
with the included Power Cord for remote mounting.
LAN Port Gigabit Ethernet port used to connect the Switch to
the LAN and DHCP server.
Reset Button To reset the Switch to factory defaults, press
and hold the button for more than 10 seconds while the
Switch is powered on. The Switch can also be reset using the
EtherMagic app.
LEDs
LED Description
PLC Flashes blue for up to 120 seconds while
pairing is in progress, and lights steady blue
once paired with an EndPoint and the PLC link
is active.
Bluetooth Flashes blue during bootup and
lights steady blue when powered on and ready.
Locate Feature When the Locate action is
selected in the EtherMagic app, the LED will
flash blue for 20seconds.
EtherMagic EndPoint
PoE Port
LEDs
Wall Plug
Adapter
Top View
Reset Button
Reset Button To reset the EndPoint to factory defaults, press
and hold the button for more than 10 seconds while the
EndPoint is powered on. The EndPoint can also be reset using
the EtherMagic app.
PoE Port 48V 802.3af/at auto-sensing or 24V passive PoE
Gigabit Ethernet port used to power and connect a device to
the EtherMagic network. 802.3af/at is the default setting. PoE
settings can be configured using the EtherMagic app.
Wall Plug Adapter Connects and mounts the EndPoint
directly to the power outlet. The adapter can be removed and
replaced with the included Power Cord for remote mounting.
LEDs
LED Description
Link Quality One LED indicates poor link
quality; Two LEDs indicate good link quality;
Three LEDs indicate excellent link quality.
PLC Flashes blue for up to 120 seconds while
pairing is in progress, and lights steady blue
once paired with the Switch and the PLC link
is active.
Locate Feature Only when paired with a
switch, the LED with flash in sync with the
Bluetooth LED when the Locate action is
selected in the EtherMagic app.
Bluetooth Flashes blue during bootup and
lights steady blue when powered on and ready.
Locate Feature When the Locate action is
selected in the EtherMagic app, the LED will
flash blue for 20seconds.
Hardware Installation
For optimal performance, connect the EtherMagic Switch and
EndPoints directly to wall outlets of the same electrical circuit.
The Switch and EndPoints can be plugged in and mounted to
the outlets directly using the Wall Plug Adapter, or plugged in
using the optional Power Cord.
WARNING: EtherMagic is for indoor use only. To reduce
the risk of fire or electric shock, do not expose the
EtherMagic modules to rain or moisture.

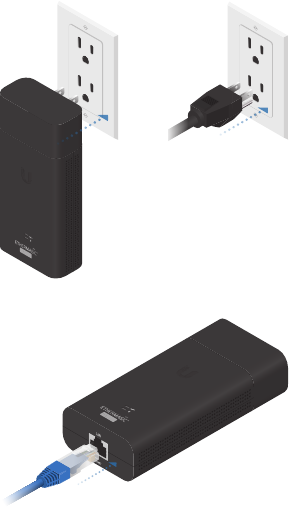

EtherMagic Switch Installation

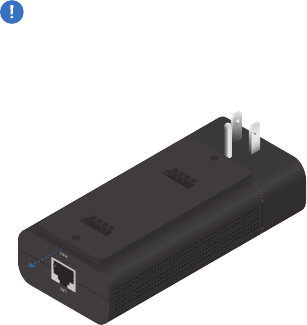

1. Detach the Mounting Bracket from the Switch by sliding it
in the direction shown below.

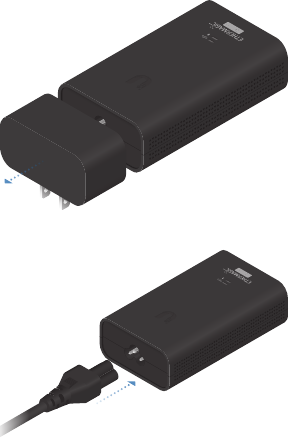

2. (Optional) If using the Power Cord:
a. Detach the Wall Plug Adapter from the Switch.
b. Connect the Power Cord.
3. Plug the Switch directly to an electrical outlet.
or
4. Connect an Ethernet cable to the LAN port on the Switch.
5. Connect the other end of the Ethernet cable to your LAN
(switch or router).
EtherMagic EndPoint Installation

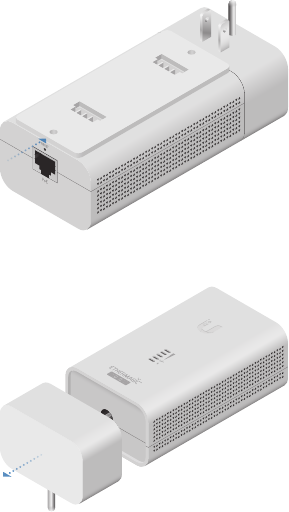

1. Detach the Mounting Bracket from the EndPoint by sliding
it in the direction shown below.

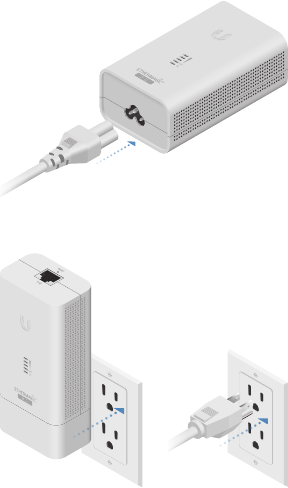

2. (Optional) If using the Power Cord:
a. Detach the Wall Plug Adapter from the EndPoint.
b. Connect the Power Cord.
3. Plug the EndPoint directly to an electrical outlet.
or

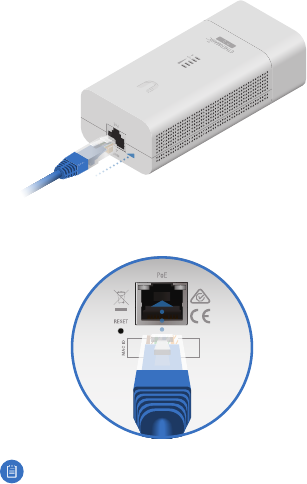

4. Connect an Ethernet cable to the PoE port on the
EndPoint.
5. Connect the other end of the Ethernet cable to your
24V/48V PoE device.
Note: Non-PoE devices can be safely connected to the
EndPoint for EtherMagic networking without PoE. The
PoE port is set to 48V auto (802.3af/at) by default. For
24Vpassive PoE, use the EtherMagic app to configure
the PoE setting to 24Vpassive.
Mounting (Optional)
If the Power Cord is being used, the EtherMagic module may be
mounted for added stability.
1. Place the Mounting Bracket at the desired location with the
mounting tabs facing up, and mark the two holes.
2. Pre-drill the holes if necessary, and secure the bracket
using two fasteners (not included).
3. Align the slots on the EtherMagic module with the tabs of
the Mounting Bracket, and then slide the module down.
*640-00257-01*
640-00257-01
EtherMagic App
The EtherMagic app is used to set up and manage your
EtherMagic devices, and also provides device and network
statistics. The EtherMagic app is available as a free download
from the Google Play store.
Note: The mobile device must be operating Android
version 4.3 or above to support Bluetooth LE.
When using the app, ensure Bluetooth is on, and the Switch and
Wi-Fi of your mobile device are connected to the same LAN.
Pairing
Each EndPoint must be paired with a Switch.
Note: The EtherMagic System bundle (EM-KIT) is Plug
and Play ready with each EndPoint already pre-paired
with the included Switch.
1. Launch the EtherMagic app.

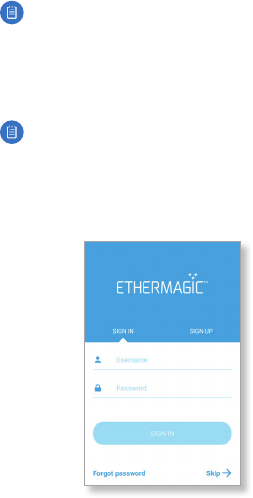

2. The sign-in screen will appear. Enter your UBNT Single Sign
On (SSO) credentials and tap Sign In, or tap Sign Up to
create an SSO account.

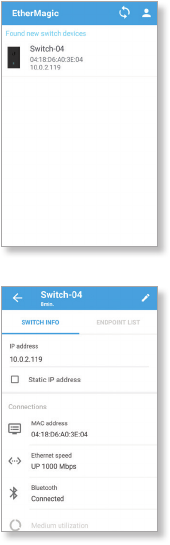

3. A list of new Switches will appear. Tap the Switch you
would like to pair.
4. Switch Info will appear, displaying the Switch details.

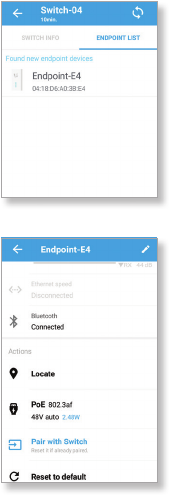

5. Tap the EndPoint List tab, and then tap the EndPoint you
would like to pair with the Switch.
6. Scroll down and tap Pair with Switch.
7. Upon successful pairing, the Link Quality of the connection
will be displayed. Repeat steps 5 and 6 to pair additional
Endpoints with the Switch.
Specifications
EM-S, EM-EP
Dimensions
EM-S
EM-EP
107 x 62.4 x 31.7 mm (4.21 x 2.46 x 1.25")
107 x 62.4 x 40.7 mm (4.21 x 2.46 x 1.60")
Weight
EM-S
EM-EP
135 g (4.76 oz)
190 g (6.70 oz)
Networking Interfaces (1) PLC, 1200 Mbps
(1) RJ45, 10/100/1000 Mbps
Management Interface EtherMagic App
PoE Out (EM-EP Only)
Modes
PoE+ Voltage Range
Max. PoE+ Wattage
Passive PoE Voltage Range
Max. Passive PoE Wattage
802.3af/at (PoE+), 24V Passive, Off
48VDC Nominal
32W
24VDC
16W
PLC Standard HomePlug AV2
Power Method AC Utility Power
Max. Power Consumption
EM-S
EM-EP
6W
8W
Supported Voltage Range 100 to 240V
Operating Temperature -10 to 45° C (14 to 113° F)
Operating Humidity 10 to 90% Noncondensing
Certications CE, FCC, IC
Safety Notices
1. Read, follow, and keep these instructions.
2. Heed all warnings.
3. Only use attachments/accessories specified by the manufacturer.
WARNING: Do not use this product in location that can
be submerged by water.
WARNING: Avoid using this product during an electrical
storm. There may be a remote risk of electric shock from
lightning.
Electrical Safety Information
1. Compliance is required with respect to voltage, frequency, and current
requirements indicated on the manufacturer’s label. Connection to a
different power source than those specified may result in improper
operation, damage to the equipment or pose a fire hazard if the
limitations are not followed.
2. There are no operator serviceable parts inside this equipment. Service
should be provided only by a qualified service technician.
3. This equipment is provided with a detachable power cord which has
an integral safety ground wire intended for connection to a grounded
safety outlet.
a. Do not substitute the power cord with one that is not the provided
approved type. Never use an adapter plug to connect to a 2-wire
outlet as this will defeat the continuity of the grounding wire.
b. The equipment requires the use of the ground wire as a part of the
safety certification, modification or misuse can provide a shock
hazard that can result in serious injury or death.
c. Contact a qualified electrician or the manufacturer if there
are questions about the installation prior to connecting the
equipment.
d. Protective earthing is provided by Listed AC adapter. Building
installation shall provide appropriate short-circuit backup
protection.
e. Protective bonding must be installed in accordance with local
national wiring rules and regulations.
Limited Warranty
UBIQUITI NETWORKS, Inc (“UBIQUITI NETWORKS”) warrants that the
product(s) furnished hereunder (the “Product(s)”) shall be free from defects
in material and workmanship for a period of one (1) year from the date
of shipment by UBIQUITI NETWORKS under normal use and operation.
UBIQUITI NETWORKS’ sole and exclusive obligation and liability under
the foregoing warranty shall be for UBIQUITI NETWORKS, at its discretion,
to repair or replace any Product that fails to conform to the above
warranty during the above warranty period. The expense of removal and
reinstallation of any Product is not included in this warranty. The warranty
period of any repaired or replaced Product shall not extend beyond its
original term.
Warranty Conditions
The above warranty does not apply if the Product:
(I) has been modified and/or altered, or an addition made thereto,
except by Ubiquiti Networks, or Ubiquiti Networks’ authorized
representatives, or as approved by Ubiquiti Networks in writing;
(II) has been painted, rebranded or physically modified in any way;
(III) has been damaged due to errors or defects in cabling;
(IV) has been subjected to misuse, abuse, negligence, abnormal physical,
electromagnetic or electrical stress, including lightning strikes, or
accident;
(V) has been damaged or impaired as a result of using third party
firmware;
(VI) has no original Ubiquiti MAC label, or is missing any other original
Ubiquiti label(s); or
(VII) has not been received by Ubiquiti within 30 days of issuance of
the RMA.
In addition, the above warranty shall apply only if: the product has been
properly installed and used at all times in accordance, and in all material
respects, with the applicable Product documentation; all Ethernet cabling
runs use CAT5 (or above), and for outdoor installations, shielded Ethernet
cabling is used, and for indoor installations, indoor cabling requirements
are followed.
Returns
No Products will be accepted for replacement or repair without obtaining
a Return Materials Authorization (RMA) number from UBIQUITI NETWORKS
during the warranty period, and the Products being received at UBIQUITI
NETWORKS’ facility freight prepaid in accordance with the RMA process of
UBIQUITI NETWORKS. Products returned without an RMA number will not
be processed and will be returned freight collect or subject to disposal.
Information on the RMA process and obtaining an RMA number can be
found at: www.ubnt.com/support/warranty.
Disclaimer
EXCEPT FOR ANY EXPRESS WARRANTIES PROVIDED HEREIN, UBIQUITI
NETWORKS, ITS AFFILIATES, AND ITS AND THEIR THIRD PARTY DATA,
SERVICE, SOFTWARE AND HARDWARE PROVIDERS HEREBY DISCLAIM
AND MAKE NO OTHER REPRESENTATION OR WARRANTY OF ANY KIND,
EXPRESS, IMPLIED OR STATUTORY, INCLUDING, BUT NOT LIMITED TO,
REPRESENTATIONS, GUARANTEES, OR WARRANTIES OF MERCHANTABILITY,
ACCURACY, QUALITY OF SERVICE OR RESULTS, AVAILABILITY,
SATISFACTORY QUALITY, LACK OF VIRUSES, QUIET ENJOYMENT, FITNESS
FOR A PARTICULAR PURPOSE AND NON-INFRINGEMENT AND ANY
WARRANTIES ARISING FROM ANY COURSE OF DEALING, USAGE OR
TRADE PRACTICE IN CONNECTION WITH SUCH PRODUCTS AND SERVICES.
BUYER ACKNOWLEDGES THAT NEITHER UBIQUITI NETWORKS NOR
ITS THIRD PARTY PROVIDERS CONTROL BUYER’S EQUIPMENT OR THE
TRANSFER OF DATA OVER COMMUNICATIONS FACILITIES, INCLUDING
THE INTERNET, AND THAT THE PRODUCTS AND SERVICES MAY BE
SUBJECT TO LIMITATIONS, INTERRUPTIONS, DELAYS, CANCELLATIONS
AND OTHER PROBLEMS INHERENT IN THE USE OF COMMUNICATIONS
FACILITIES. UBIQUITI NETWORKS, ITS AFFILIATES AND ITS AND THEIR THIRD
PARTY PROVIDERS ARE NOT RESPONSIBLE FOR ANY INTERRUPTIONS,
DELAYS, CANCELLATIONS, DELIVERY FAILURES, DATA LOSS, CONTENT
CORRUPTION, PACKET LOSS, OR OTHER DAMAGE RESULTING FROM ANY
OF THE FOREGOING. In addition, UBIQUITI NETWORKS does not warrant
that the operation of the Products will be error-free or that operation will
be uninterrupted. In no event shall UBIQUITI NETWORKS be responsible
for damages or claims of any nature or description relating to system
performance, including coverage, buyer’s selection of products (including
the Products) for buyer’s application and/or failure of products (including
the Products) to meet government or regulatory requirements.
Limitation of Liability
EXCEPT TO THE EXTENT PROHIBITED BY LOCAL LAW, IN NO EVENT WILL
UBIQUITI OR ITS SUBSIDIARIES, AFFILIATES OR SUPPLIERS BE LIABLE FOR
DIRECT, SPECIAL, INCIDENTAL, CONSEQUENTIAL OR OTHER DAMAGES
(INCLUDING LOST PROFIT, LOST DATA, OR DOWNTIME COSTS), ARISING
OUT OF THE USE, INABILITY TO USE, OR THE RESULTS OF USE OF THE
PRODUCT, WHETHER BASED IN WARRANTY, CONTRACT, TORT OR OTHER
LEGAL THEORY, AND WHETHER OR NOT ADVISED OF THE POSSIBILITY OF
SUCH DAMAGES.
Note
Some countries, states and provinces do not allow exclusions of implied
warranties or conditions, so the above exclusion may not apply to you.
You may have other rights that vary from country to country, state to
state, or province to province. Some countries, states and provinces do not
allow the exclusion or limitation of liability for incidental or consequential
damages, so the above limitation may not apply to you. EXCEPT TO
THE EXTENT ALLOWED BY LOCAL LAW, THESE WARRANTY TERMS DO
NOT EXCLUDE, RESTRICT OR MODIFY, AND ARE IN ADDITION TO, THE
MANDATORY STATUTORY RIGHTS APPLICABLE TO THE LICENSE OF ANY
SOFTWARE (EMBEDDED IN THE PRODUCT) TO YOU. The United Nations
Convention on Contracts for the International Sale of Goods shall not apply
to any transactions regarding the sale of the Products.
Compliance
FCC
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions.
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including
interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Operations of this equipment in a residential area is likely to cause
harmful interference in which case the user will be required to correct the
interference at his own expense.
This radio transmitter (FCC: SWX-EMS) has been approved by FCC
to operate with the antenna types listed below with the maximum
permissible gain and required antenna impedance for each antenna type
indicated. Antenna types not included in this list, having a gain greater
than the maximum gain indicated for that type, are strictly prohibited for
use with this device.
Antenna Information: Integrated antenna, Gain: 2 dBi
Industry Canada
CAN ICES-3(B)/NMB-3(B)
This Class B digital apparatus complies with Canadian CAN ICES-003.
To reduce potential radio interference to other users, the antenna
type and its gain should be so chosen that the equivalent isotropically
radiated power (e.i.r.p.) is not more than that permitted for successful
communication.
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions:
1. This device may not cause interference, and
2. This device must accept any interference, including interference that
may cause undesired operation of the device.
This radio transmitter (IC: 6545A-EMS) has been approved by Industry
Canada to operate with the antenna types listed below with the maximum
permissible gain and required antenna impedance for each antenna type
indicated. Antenna types not included in this list, having a gain greater
than the maximum gain indicated for that type, are strictly prohibited for
use with this device.
Antenna Information: Integrated antenna, Gain: 2 dBi
CAN ICES-3(B)/NMB-3(B)
Cet appareil numérique de la classe B est conforme à la norme NMB-003
du Canada.
Pour réduire le risque d’interférence aux autres utilisateurs, le type
d’antenne et son gain doivent être choisies de façon que la puissance
isotrope rayonnée équivalente (PIRE) ne dépasse pas ce qui est nécessaire
pour une communication réussie.
Cet appareil est conforme à la norme RSS Industrie Canada exempts de
licence norme(s). Son fonctionnement est soumis aux deux conditions
suivantes:
1. Cet appareil ne peut pas provoquer d’interférences et
2. Cet appareil doit accepter toute interférence, y compris les
interférences qui peuvent causer un mauvais fonctionnement du
dispositif.
Cet émetteur radio (IC: 6545A-EMS) a été approuvée par Industrie Canada
pour l’exploitation avec l’antenne types énumérés ci-dessous avec le gain
maximal admissible et requis l’impédance de l’antenne pour chaque type
d’antenne indiqué. Types d’antenne non inclus dans cette liste, ayant un
gain supérieur au gain maximal indiqué pour ce type, sont strictement
interdits pour une utilisation avec cet appareil.
Informations d’antenne: Antenne intégré, Gain: 2 dBi
RF Exposure Warning
The antennas used for this transmitter must be installed to provide a
separation distance of at least 20 cm from all persons and must not be
located or operating in conjunction with any other antenna or transmitter.
Les antennes utilisées pour ce transmetteur doivent être installé en
considérant une distance de séparation de toute personnes d’au moins
20 cm et ne doivent pas être localisé ou utilisé en conflit avec tout autre
antenne ou transmetteur.
CE Marking
CE marking on this product represents the product is in compliance with all
directives that are applicable to it.
RoHS/WEEE Compliance Statement
English
European Directive 2012/19/EU requires that the equipment bearing
this symbol on the product and/or its packaging must not be disposed
of with unsorted municipal waste. The symbol indicates that this
product should be disposed of separately from regular household waste
streams. It is your responsibility to dispose of this and other electric and
electronic equipment via designated collection facilities appointed by the
government or local authorities. Correct disposal and recycling will help
prevent potential negative consequences to the environment and human
health. For more detailed information about the disposal of your old
equipment, please contact your local authorities, waste disposal service, or
the shop where you purchased the product.
Deutsch
Die Europäische Richtlinie 2012/19/EU verlangt, dass technische
Ausrüstung, die direkt am Gerät und/oder an der Verpackung mit diesem
Symbol versehen ist, nicht zusammen mit unsortiertem Gemeindeabfall
entsorgt werden darf. Das Symbol weist darauf hin, dass das Produkt
von regulärem Haushaltmüll getrennt entsorgt werden sollte. Es
liegt in Ihrer Verantwortung, dieses Gerät und andere elektrische
und elektronische Geräte über die dafür zuständigen und von der
Regierung oder örtlichen Behörden dazu bestimmten Sammelstellen zu
entsorgen. Ordnungsgemäßes Entsorgen und Recyceln trägt dazu bei,
potentielle negative Folgen für Umwelt und die menschliche Gesundheit
zu vermeiden. Wenn Sie weitere Informationen zur Entsorgung Ihrer
Altgeräte benötigen, wenden Sie sich bitte an die örtlichen Behörden oder
städtischen Entsorgungsdienste oder an den Händler, bei dem Sie das
Produkt erworben haben.
Español
La Directiva 2012/19/UE exige que los equipos que lleven este símbolo en
el propio aparato y/o en su embalaje no deben eliminarse junto con otros
residuos urbanos no seleccionados. El símbolo indica que el producto
en cuestión debe separarse de los residuos domésticos convencionales
con vistas a su eliminación. Es responsabilidad suya desechar este y
cualesquiera otros aparatos eléctricos y electrónicos a través de los puntos
de recogida que ponen a su disposición el gobierno y las autoridades
locales. Al desechar y reciclar correctamente estos aparatos estará
contribuyendo a evitar posibles consecuencias negativas para el medio
ambiente y la salud de las personas. Si desea obtener información más
detallada sobre la eliminación segura de su aparato usado, consulte a las
autoridades locales, al servicio de recogida y eliminación de residuos de su
zona o pregunte en la tienda donde adquirió el producto.
Français
La directive européenne 2012/19/UE exige que l’équipement sur lequel
est apposé ce symbole sur le produit et/ou son emballage ne soit pas jeté
avec les autres ordures ménagères. Ce symbole indique que le produit
doit être éliminé dans un circuit distinct de celui pour les déchets des
ménages. Il est de votre responsabilité de jeter ce matériel ainsi que tout
autre matériel électrique ou électronique par les moyens de collecte
indiqués par le gouvernement et les pouvoirs publics des collectivités
territoriales. L’élimination et le recyclage en bonne et due forme ont pour
but de lutter contre l’impact néfaste potentiel de ce type de produits
sur l’environnement et la santé publique. Pour plus d’informations sur le
mode d’élimination de votre ancien équipement, veuillez prendre contact
avec les pouvoirs publics locaux, le service de traitement des déchets, ou
l’endroit où vous avez acheté le produit.
Italiano
La direttiva europea 2012/19/UE richiede che le apparecchiature
contrassegnate con questo simbolo sul prodotto e/o sull’imballaggio non
siano smaltite insieme ai rifiuti urbani non differenziati. Il simbolo indica
che questo prodotto non deve essere smaltito insieme ai normali rifiuti
domestici. È responsabilità del proprietario smaltire sia questi prodotti sia
le altre apparecchiature elettriche ed elettroniche mediante le specifiche
strutture di raccolta indicate dal governo o dagli enti pubblici locali. Il
corretto smaltimento ed il riciclaggio aiuteranno a prevenire conseguenze
potenzialmente negative per l’ambiente e per la salute dell’essere umano.
Per ricevere informazioni più dettagliate circa lo smaltimento delle vecchie
apparecchiature in Vostro possesso, Vi invitiamo a contattare gli enti
pubblici di competenza, il servizio di smaltimento rifiuti o il negozio nel
quale avete acquistato il prodotto.
Declaration of Conformity
Česky
[Czech]
UBIQUITI NETWORKS tímto prohlašuje, že toto UBIQUITI
NETWORKS zařízení, je ve shod se základními požadavky a dalšími
příslušnými ustanoveními směrnice 1999/5/ES.
Dansk
[Danish]
Hermed, UBIQUITI NETWORKS, erklærer at denne UBIQUITI
NETWORKS enhed, er i overensstemmelse med de væsentlige krav
og øvrige relevante krav i direktiv 1999/5/EF.
Nederlands
[Dutch]
Hierbij verklaart UBIQUITI NETWORKS, dat deze UBIQUITI
NETWORKS apparaat, in overeenstemming is met de essentiële
eisen en de andere relevante bepalingen van richtlijn 1999/5/EG.
English
Hereby, UBIQUITI NETWORKS, declares that this UBIQUITI
NETWORKS device, is in compliance with the essential requirements
and other relevant provisions of Directive 1999/5/EC.
Eesti
[Estonian]
Käesolevaga UBIQUITI NETWORKS kinnitab, et antud UBIQUITI
NETWORKS seade, on vastavus olulistele nõuetele ja teistele
asjakohastele sätetele direktiivi 1999/5/EÜ.
Suomi
[Finnish]
Täten UBIQUITI NETWORKS vakuuttaa, että tämä UBIQUITI
NETWORKS laite, on yhdenmukainen olennaisten vaatimusten ja
muiden sitä koskevien direktiivin 1999/5/EY.
Français
[French]
Par la présente UBIQUITI NETWORKS déclare que l’appareil
UBIQUITI NETWORKS, est conforme aux exigences essentielles et
aux autres dispositions pertinentes de la directive 1999/5/CE.
Deutsch
[German]
Hiermit erklärt UBIQUITI NETWORKS, dass sich dieses UBIQUITI
NETWORKS Gerät, in Übereinstimmung mit den grundlegenden
Anforderungen und den anderen relevanten Vorschriften der
Richtlinie 1999/5/EG befindet.
Ελληνική
[Greek]
Δια του παρόντος, UBIQUITI NETWORKS, δηλώνει ότι αυτή η
συσκευή UBIQUITI NETWORKS, είναι σε συμμόρφωση με τις
βασικές απαιτήσεις και τις λοιπές σχετικές διατάξεις της οδηγίας
1995/5/ΕΚ.
Magyar
[Hungarian]
Ezennel UBIQUITI NETWORKS kijelenti, hogy ez a UBIQUITI
NETWORKS készülék megfelel az alapvető követelményeknek és
más vonatkozó 1999/5/EK irányelv rendelkezéseit.
Íslenska
[Icelandic]
Hér, UBIQUITI NETWORKS, því yfir að þetta UBIQUITI NETWORKS
tæki er í samræmi við grunnkröfur og önnur viðeigandi ákvæði
tilskipun 1999/5/EB.
Italiano
[Italian]
Con la presente, UBIQUITI NETWORKS, dichiara che questo
dispositivo UBIQUITI NETWORKS, è conforme ai requisiti essenziali
ed alle altre disposizioni pertinenti della direttiva 1999/5/CE.
Latviski
[Latvian]
Ar šo, UBIQUITI NETWORKS, deklarē, ka UBIQUITI NETWORKS
ierīce, ir saskaņā ar būtiskajām prasībām un citiem attiecīgiem
noteikumiem Direktīvā 1999/5/EK.
Lietuviškai
[Lithuanian]
UBIQUITI NETWORKS deklaruoja, kad šis UBIQUITI NETWORKS
įrenginys atitinka esminius reikalavimus ir kitas 1999/5/EB
Direktyvos nuostatas.
Malti
[Maltese]
Hawnhekk, UBIQUITI NETWORKS, tiddikjara li dan il-mezz
UBIQUITI NETWORKS huwa konformi mar-rekwiżiti essenzjali u
dispożizzjonijiet rilevanti oħrajn ta ‘Direttiva 1999/5/KE.
Norsk
[Norwegian]
Herved UBIQUITI NETWORKS, erklærer at denne UBIQUITI
NETWORKS enheten, er i samsvar med de grunnleggende kravene
og andre relevante bestemmelser i direktiv
1999/5/EF.
Polski
[Polish]
Niniejszym, Ubiquiti Networks, oświadcza, że urządzenie UBIQUITI
NETWORKS, jest zgodny z zasadniczymi wymaganiami oraz
pozostałymi stosownymi postanowieniami Dyrektywy 1999/5/WE.
Português
[Portuguese]
UBIQUITI NETWORKS declara que este dispositivo UBIQUITI
NETWORKS, está conforme com os requisitos essenciais e outras
disposições da Directiva 1999/5/CE.
Română
[Romanian]
Prin prezenta, UBIQUITI NETWORKS declară că acest dispozitiv
UBIQUITI NETWORKS este în conformitate cu cerințele esențiale și
alte prevederi relevante ale Directivei 1999/5/CE.
Slovensky
[Slovak]
Týmto
UBIQUITI NETWORKS
, prehlasuje, že toto
UBIQUITI
NETWORKS
zariadenie, je v súlade so základnými požiadavkami a
ďalšími relevantnými ustanoveniami smernice 1999/5/ES.
Español
[Spanish]
Por medio de la presente UBIQUITI NETWORKS declara que este
dispositivo UBIQUITI NETWORKS, cumple con los requisitos
esenciales y cualesquiera otras disposiciones aplicables o exigibles
de la Directiva 1999/5/CE.
Svenska
[Swedish]
Härmed UBIQUITI NETWORKS, intygar att denna UBIQUITI
NETWORKS enhet är i överensstämmelse med de väsentliga
egenskapskrav och övriga relevanta bestämmelser som framgår
av direktiv 1999/5/EG.
Online Resources
Support help.ubnt.com
Community community.ubnt.com
Downloads downloads.ubnt.com
©2016 Ubiquiti Networks, Inc. All rights reserved. Ubiquiti, Ubiquiti Networks,
the Ubiquiti U logo, the Ubiquiti beam logo, and EtherMagic are trademarks
or registered trademarks of Ubiquiti Networks, Inc. in the United States and in
other countries. Google, Android, and Google Play are trademarks of Google
Inc. All other trademarks are the property of their respective owners. PH091916

Navigation menu
