Quick Start Guide

Introduction

Thank you for purchasing the FrontRow Camera. This Quick

Start Guide is designed to guide you through installation

and also includes warranty terms.

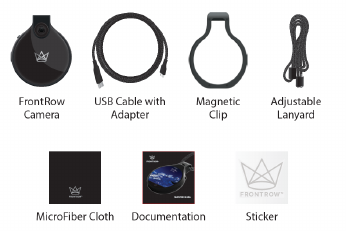

Package Contents

Hardware Overview

Front

The

Main Camera

has a 147.5° viewing angle fisheye lens.

The LED behavior is described below:

LED

Description

Solid Blue

Fully Charged

Blinking Blue

Charging

Blinking Red

Recording

Back

The

Reverse Camera

incorporates a lens

with an 85° viewing

angle.

The Media Button

allows you to start and

stop recording in Video

mode or take pictures

in Photo mode.

The adjustable,

full‑color

Touchscreen

display accesses the

controls, photos, and

videos.

The

Home

button returns you to the main menu.

Power

Use the Power Button to

power on the FrontRow

Camera. When the FrontRow

Camera is powered on,

pressing the Power Button

will enter or exit sleep mode.

Press and hold the Power

Button to access the Reboot

and

Power off

options.

The Type C end of the

USB

Cable

connects to this port.

Connecting Attachments

FrontRow can be used with the included adjustable lanyard,

magnetic clip, an optional car dash adapter, or the optional

coil adapter for mounting. Simply attach the desired

accessory (

Magnetic Clip

shown below).

The

Magnetic Clip

can be tilted for use as a stand,

used as a clip, or used on a magnetic surface.

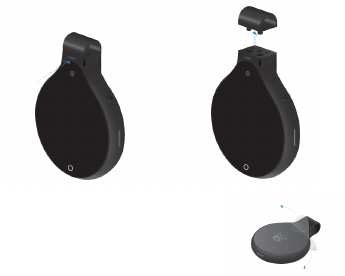

Disconnecting Attachments

Press and hold the

Release Button

while you remove the

connected accessory.

Before You Begin

Remove the protective film from both

sides of the FrontRow Camera.

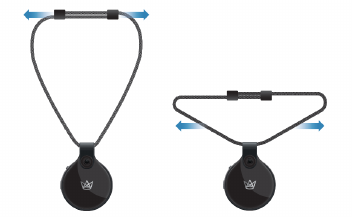

Adjusting the Lanyard

To tighten, press and hold

the adjustment buttons and

slide outwards.

To loosen, pull outwards

on the cord from both

sides.

Installation

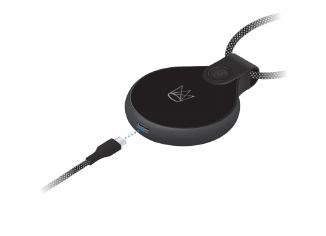

Connect the

USB Cable

to the

USB Port

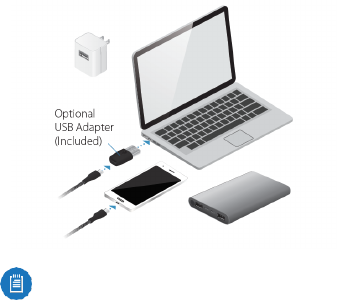

Connect the other end of the

USB Cable

to your power

adapter, laptop, power bank, or mobile phone.

For versatility, it can be charged using the included

USB Adapter

or remove the adapter to use the USB

Type C connector.

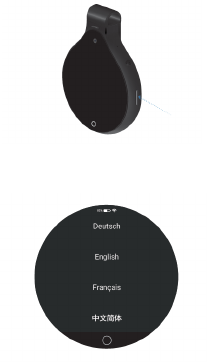

Press the

Power Button

on the side of your FrontRow.

Select your language.

Select your wireless network.

Enter your password and tap

Done

82%

password

q w e r t y u i o p

a s d f g h j k l

z x c v b n m

123 Done

82%

Wi-Fi

AmpliFi-OC

UBNT-OC

UBNT_Test

UBNT_Mesh

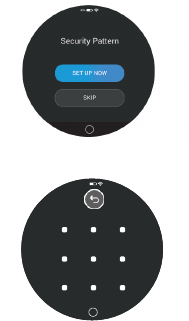

Tap

Set Up Now

to set up a security pattern.

Draw an unlock pattern and confirm it.

82%

Draw an unlock pattern

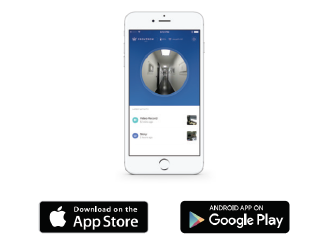

FrontRow App

Download and install the FrontRow app from the App Store

or Google Play™ Store.

The FrontRow app connects your FrontRow Camera to your

mobile device for video review, editing, and remote access.

Preview the video feed, remotely start, and stop recording

without disrupting the camera view.

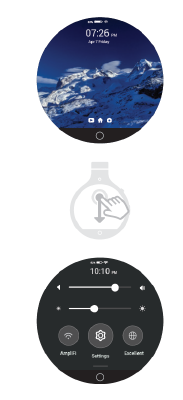

Touchscreen Features

The

Home

screen displays the battery status, wireless signal

strength, time, and date. Swipe from the right towards the

center to access the primary modes of operation.

Swipe to rotate between the

Story

Live

, and

Record

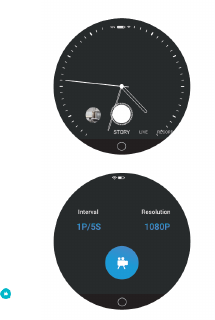

Story Mode

Story Mode snaps a photo

every few moments and

create a condensed video of

your activities.

You can adjust how often

the images are captured and

the recording resolution. To

configure, swipe down from

the home screen and tap

Settings, tap System and

then Story Options.

Interval determines the

time between captures

and

Resolution

defines the

recording quality. Tap the

home button to return or

to begin recording.

Live Mode

Live mode allows you to

livestream to your

social media accounts

by connecting to a Wi‑Fi

network or tethering from

your mobile device with a

Wi‑Fi hotspot enabled.

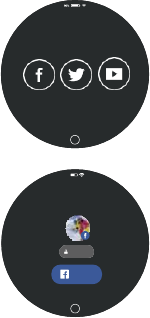

To connect your account:

•

Select your preferred

social media platform.

•

the specified web address

from a computer or

smartphone and enter the

code provided.

Add Live Account

Facebook Twitter YouTube

STOR Y

LIVE

REC OR D

82%

Describe your live video

Friends

Go Live

STORY LIVE R ECORD

Record Mode

Record mode allows you

to record HD video or take

high‑resolution photos.

Tap the record button to

begin video recording.

Press the button to the right

to snap a photo.

Video and photo capture

settings can be adjusted to

your preferences. The Media

button on the device allows

you to start and stop video

recordings.

RY LI VE

RECORD

Photo Button

Settings

On the

Home

screen, swipe

from the top down towards

the center to access settings.

Here you can adjust the

volume, display brightness,

enable/disable Wi‑Fi, and

access additional settings.

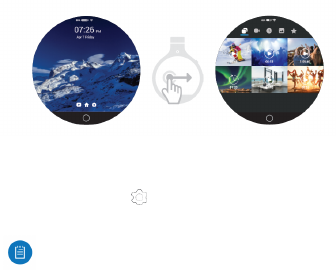

Gallery

To access your story recordings, video clips, and photos on

the FrontRow, swipe from the left towards the center on the

Home

screen.

24/7 Live Chat Support

Live chat support is available within the app, 24 hours a day,

7 days a week. Tap the

icon in the upper right of the app

and then tap Live Support.

Live chat is also available at

help.amplifi.com

selecting

Chat with us

in the bottom right.

Specifications

Dimensions

59.8 x 70.3 x 12.1 mm (2.354 x 2.768 x 0.476")

Weight

59 g (2.08 oz)

RAM / Storage

2 GB / 32 GB (Shared with Other Applications)

Connectivity

USB 3.0/2.0 Type C, 802.11b/g/n/ac, Bluetooth 4.1 LE

Camera

Front IMX179 (8M) / Rear S5K5E2YA (5M)

Lens

Main F2.2 / Reverse F2.0

View Angle

Main 147.5° / Reverse 85°

Video Compression

4K @ 30 fps, 1080p @ 60 Hz, H.264, H.265, VP8

Resolution

1080p (1920 x 1080)

Maximum Frame Rate

30 fps

Microphone / Speaker

Stereo / Mono

Sensors

Accelerometer, Gyro

Management Interface

Touchscreen UI

Display

1.96‑inch LTPS Round, 640 x 572, 327 ppi

G+F Virtual Multi‑Touch, Full Color

Max. Power Consumption

Power Method

USB (5V, 3A)

Certifications

FCC, CE, IC

Operating Temperature Information

In very cold conditions, outside of or the same as the operating range, may

temporarily shorten battery life and could cause the device to turn off. FrontRow

does generate heat during operation to help keep the battery pack from getting too

cold and therefore help minimize a reduction in run times. FrontRow does include

a rechargeable lithium ion battery pack, which holds up best in cold temperatures.

Product Warranty

Warranty Terms

Each of our manufactured products (a “Product”) is warranted against defects in

materials and workmanship for a period of one (1) year from the date of original

purchase when used under normal conditions and consistent with applicable Product

documentation, subject to the other terms in this Product Warranty.

Warranty Service

If we determine that the hardware components of a Product do not conform to this

Product Warranty during the applicable warranty period we will, at our option, repair

or replace the Product, or refund the original purchase price of the Product.

Returns

To benefit from this Product Warranty, you must obtain an RMA during the warranty

period. You will be responsible for delivering the Product to the designated RMA

address, freight prepaid, for warranty service. We will pay the return freight for the

Product using a service of our choice. You may request, and will be solely responsible

for, payment of any shipping upgrades. Any Product shipped to us under an RMA, but

which is not covered by this Product Warranty, will not be returned.

To obtain an RMA, please use our online RMA Request form, located at:

www.amplifi.com/RMA

You will be required to supply the following information: name, contact information,

and shipping information; date of purchase of the Product (we may request a copy of

the invoice as proof of purchase); problem description; MAC Address of the Product;

and troubleshooting actions taken so far. By submitting an RMA Request, you confirm

all terms in this Product Warranty.

Following warranty service, a repaired or replacement product may be returned to

you as the Product was configured when originally purchased. You are responsible for

all back‑up, recovery and reinstallation of other software or data.

For customers outside of the United States: you are required to use your own shipping

account when sending the Product; the commercial invoice must declare “return for

repair” and “no commercial value”; the total value of the commercial invoice cannot

exceed $10.00 USD. If these steps are not followed, the RMA Request will not be

accepted or fulfilled. You are responsible for all applicable duties and customs charges

for shipment of a Product to and from us.

Limitations of Warranty and Liability

This Product Warranty sets forth our sole and exclusive liability, and the sole and

exclusive remedies available in relation to any non‑conformity, defect or similar claim.

This Product Warranty is provided only to the original purchaser of the Product. This

Product Warranty does not, among other things, cover labor cost for removing and

reinstalling a Product for repair, any consumable parts that are readily replaced in

normal use, problems caused by normal wear and tear or otherwise due to the normal

aging of the Product, or cosmetic damage. No representation or warranty is made

with respect to services that may be delivered or made available in connection with

a Product.

This Product Warranty does not apply to any Product that we determine has been,

in any way: dis‑assembled, modified or altered, other than by us or as authorized by

us; painted, rebranded or physically modified; improperly installed or not used at all

times in accordance with the applicable Product documentation; damaged due to

improper cabling or installation; subjected to misuse, abuse, negligence, or abnormal

physical, electromagnetic or electrical stress; damaged or impaired as a result of the

use of third party hardware, firmware or software; or, has had its original Ubiquiti

Networks MAC address label removed; or, has not been received by us within thirty

(30) days of issuance of the RMA.

For a Product to be eligible under this Product Warranty, you shall: use only CAT5

(or above) cabling for all Ethernet cabling runs; use shielded Ethernet cabling for

outdoor installations; follow indoor cabling requirements for indoor installations;

operate the Product in accordance with the applicable Product documentation; use

all software updates made available for your Product; comply with all applicable laws

and regulations governing the installation and use of the Product; obtain all locally

required authorizations, permits, and licenses; not export to, or use the Product in,

any jurisdiction or for any person in a manner that would cause a violation of U.S.

or other laws.

TO THE EXTENT PERMITTED BY APPLICABLE LAW, NEITHER UBIQUITI NETWORKS

NOR ANY OF ITS AFFILITATES ARE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL

OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE PURCHASE OR USE OF A

PRODUCT, INCLUDING WITHOUT LIMITATION ANY LOST PROFITS OR LOST SAVINGS

(INCLUDING LOSS OF REVENUE OR PROFITS ON CONTRACTS, LOSS OF THE USE OF

MONEY, LOSS OF GOODWILL, LOSS OF OPPORTUNITY, DAMAGE TO REPUTATION, OR

LOSS OF USE OR INTERRUPTION OF BUSINESS, COST OF COVER OR PROCUREMENT

OF SUBSTITUTE GOODS), HOWEVER CAUSED, ARISING IN CONTRACT, TORT, BREACH

OF WARRANTY, NEGLIGENCE, STRICT LIABILITY OR OTHERWISE. THIS PRODUCT

WARRANTY AND REMEDIES SET FORTH HEREIN ARE EXCLUSIVE AND IN LIEU OF

ALL OTHER WARRANTIES, REMEDIES, AND CONDITIONS, WHETHER ORAL, WRITTEN,

EXPRESS, STATUTORY OR IMPLIED. EXCEPT FOR ANY EXPRESS WARRANTIES SET

FORTH HEREIN, UBIQUITI NETWORKS, ITS AFFILIATES, AND ITS AND THEIR SUPPLIERS,

LICENSORS, SERVICE AND OTHER PROVIDERS HEREBY DISCLAIM AND MAKE NO

OTHER REPRESENTATION OR WARRANTY OF ANY KIND, EXPRESS, IMPLIED OR

STATUTORY, INCLUDING, BUT NOT LIMITED TO, REPRESENTATIONS, GUARANTEES, OR

WARRANTIES OF MERCHANTABILITY, ACCURACY, QUALITY OF SERVICE OR RESULTS,

AVAILABILITY, SATISFACTORY QUALITY, LACK OF VIRUSES, LACK OF VULNERABILITY

TO INTRUSION OR ATTACK, QUIET ENJOYMENT, FITNESS FOR A PARTICULAR PURPOSE

AND NON‑INFRINGEMENT AND ANY WARRANTIES ARISING FROM ANY COURSE OF

DEALING, USAGE OR TRADE PRACTICE IN CONNECTION WITH SUCH PRODUCTS

AND SERVICES. YOU ACKNOWLEDGE THAT NEITHER UBIQUITI NETWORKS NOR

ITS THIRD PARTY PROVIDERS CONTROL YOUR EQUIPMENT OR THE TRANSFER OF

DATA OVER COMMUNICATIONS FACILITIES, INCLUDING THE INTERNET, AND THAT

THE PRODUCTS AND SERVICES MAY BE SUBJECT TO LIMITATIONS, INTERRUPTIONS,

DELAYS, CANCELLATIONS AND OTHER PROBLEMS INHERENT IN THE USE OF

COMMUNICATIONS FACILITIES. UBIQUITI NETWORKS, ITS AFFILIATES AND ITS AND

THEIR SUPPLIERS AND SERVICE AND OTHER PROVIDERS ARE NOT RESPONSIBLE FOR

ANY INTERRUPTIONS, DELAYS, CANCELLATIONS, DELIVERY FAILURES, DATA LOSS,

CONTENT CORRUPTION, PACKET LOSS, OR OTHER DAMAGE RESULTING FROM ANY

OF THE FOREGOING. IF IMPLIED WARRANTIES CANNOT BE DISCLAIMED, THEN SUCH

WARRANTIES ARE LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY OR

AS OTHERWISE REQUIRED BY LAW. EXCEPT FOR THE WARRANTIES EXPLICITLY MADE

TO YOU UNDER THIS PRODUCT WARRANTY, AND ANY OTHER WARRANTY REQUIRED

BY APPLICABLE LAW, ALL PRODUCTS AND SERVICES ARE PROVIDED ON AN “AS IS”

BASIS WITHOUT ANY WARRANTY WHATSOEVER. WE DO NOT WARRANT THAT THE

OPERATION OF THE PRODUCT WILL BE ERROR FREE OR UNINTERRUPTED, OR THAT

THE PRODUCT WILL CONFORM TO SPECIFICATIONS THAT ARE NOT DEFINED IN THIS

PRODUCT WARRANTY. NO WARRANTY OR REMEDY SHALL APPLY OR BE AVAILABLE

TO A PRODUCT FOR WHICH AN RMA HAS NOT BEEN REQUESTED DURING THE

WARRANTY PERIOD. These limitations and disclaimers apply even if the express

warranty may be deemed to fail of its essential purpose. No person is authorized to

waive or modify the terms of this Product Warranty. Some jurisdictions do not allow

the exclusions of certain implied warranties or certain terms and conditions, so some

of the above limitations and exclusions may not apply to you. The United Nations

Convention on Contracts for the International Sale of Goods shall not apply to any

transactions regarding the sale of the Product.

Compliance

FCC

Changes or modifications not expressly approved by the party responsible for

compliance could void the user’s authority to operate the equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions.

This device may not cause harmful interference, and

This device must accept any interference received, including interference that

may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class

B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses, and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined

by turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

•

Reorient or relocate the receiving antenna.

•

Increase the separation between the equipment and receiver.

•

Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

•

Consult the dealer or an experienced radio/TV technician for help.

The FrontRow Camera has been approved by the FCC under FCC ID: SWX‑FR

CAN ICES‑3(B)/NMB‑3(B)

This Class B digital apparatus complies with Canadian CAN ICES‑003.

To reduce potential radio interference to other users, the antenna type and its gain

should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not

more than that permitted for successful communication.

This device complies with Industry Canada licence‑exempt RSS standard(s).

Operation is subject to the following two conditions:

This device may not cause interference, and

This device must accept any interference, including interference that may cause

undesired operation of the device.

The FrontRow Camera has been approved by Industry Canada under IC: 6545A‑FR.

The

device could automatically discontinue transmission in case of absence of

information to transmit, or operational failure. Note that this is not intended to

prohibit transmission of control or signaling information or the use of repetitive codes

where required by the technology.

The device for operation in the band 5150‑5250 MHz is only for indoor use to reduce

the potential for harmful interference to co‑channel mobile satellite systems. In

addition, high‑power radars are allocated as primary users (i.e. priority users) of the

bands 5250‑5350 MHz and 5650‑5850 MHz and these radars could cause interference

and/or damage to LE‑LAN devices.

CAN ICES‑3(B)/NMB‑3(B)

Cet appareil numérique de la classe B est conforme à la norme NMB‑003 du Canada.

Pour réduire le risque d’interférence aux autres utilisateurs, le type d’antenne et son

gain doivent être choisies de façon que la puissance isotrope rayonnée équivalente

(PIRE) ne dépasse pas ce qui est nécessaire pour une communication réussie.

Cet appareil est conforme à la norme RSS Industrie Canada exempts de licence

norme(s). Son fonctionnement est soumis aux deux conditions suivantes:

Cet appareil ne peut pas provoquer d’interférences et

Cet appareil doit accepter toute interférence, y compris les interférences qui

peuvent causer un mauvais fonctionnement du dispositif.

La Caméra FrontRow a été approuvée par Industrie Canada en vertu IC : 6545A‑FR.

Le dispositif doit interrompre automatiquement l’émission en cas d’absence

d’information à transmettre ou en cas de panne. À noter que l’objectif de cette

disposition n’est pas d’empêcher la transmission d’informations de contrô le ou de

signalisation, ni l’utilisation de codes répétitifs exigés par la technique.

Les dispositifs fonctionnant dans la bande de 5 150 à 5 250 MHz sont réservés

uniquement pour une utilisation à l’intérieur afin de réduire les risques de brouillage

préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux. De plus,

les radars de haute puissance sont désignés utilisateurs principaux (c.‑à‑d., qu’ils ont

la priorité) des bandes de 5 250 à 5 350 MHz et de 5 650 à 5 850 MHz et, ces radars

pourraient causer du brouillage et/ou des dommages aux dispositifs de RL‑EL.

CAUTION

RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.

DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS

RF Exposure Warning

This device has been tested and meets applicable limits for Radio Frequency (RF)

exposure. Specific Absorption Rate (SAR) refers to the rate at which the body absorbs

RF energy. SAR limits are 1.6 Watts per kilogram (over a volume containing a mass

of 1 gram of tissue) in countries that follow the United States FCC limit and 2.0 W/

kg (averaged over 10 grams of tissue) in countries that follow the Council of the

European Union limit. Tests for SAR are conducted using standard operating positions

with the device transmitting at its highest certified power level in all tested frequency

bands.

CE Marking

CE marking on this product represents the product is in compliance with all directives

that are applicable to it.

Alert Sign (!) Follows CE Marking

Alert sign must be indicated if a restriction on use applied to the product and it must

follow the CE marking.

RoHS/WEEE Compliance Statement

English

European Directive 2012/19/EU requires that the equipment bearing this symbol on

the product and/or its packaging must not be disposed of with unsorted municipal

waste. The symbol indicates that this product should be disposed of separately from

regular household waste streams. It is your responsibility to dispose of this and other

electric and electronic equipment via designated collection facilities appointed by

the government or local authorities. Correct disposal and recycling will help prevent

potential negative consequences to the environment and human health. For more

detailed information about the disposal of your old equipment, please contact

your local authorities, waste disposal service, or the shop where you purchased the

product.

Deutsch

Die Europäische Richtlinie 2012/19/EU verlangt, dass technische Ausrüstung, die

direkt am Gerät und/oder an der Verpackung mit diesem Symbol versehen ist,

nicht zusammen mit unsortiertem Gemeindeabfall entsorgt werden darf. Das

Symbol weist darauf hin, dass das Produkt von regulärem Haushaltmüll getrennt

entsorgt werden sollte. Es liegt in Ihrer Verantwortung, dieses Gerät und andere

elektrische und elektronische Geräte ü ber die dafü r zuständigen und von der

Regierung oder örtlichen Behö rden dazu bestimmten Sammelstellen zu entsorgen.

Ordnungsgemäßes Entsorgen und Recyceln trägt dazu bei, potentielle negative

Folgen für Umwelt und die menschliche Gesundheit zu vermeiden. Wenn Sie weitere

Informationen zur Entsorgung Ihrer Altgeräte benötigen, wenden Sie sich bitte an die

örtlichen Behö rden oder städtischen Entsorgungsdienste oder an den Händler, bei

dem Sie das Produkt erworben haben.

Español

La Directiva 2012/19/EU exige que los equipos que lleven este símbolo en el propio

aparato y/o en su embalaje no deben eliminarse junto con otros residuos urbanos no

seleccionados. El símbolo indica que el producto en cuestió n debe separarse de los

residuos domésticos convencionales con vistas a su eliminació n. Es responsabilidad

suya desechar este y cualesquiera otros aparatos eléctricos y electró nicos a través

de los puntos de recogida que ponen a su disposición el gobierno y las autoridades

locales. Al desechar y reciclar correctamente estos aparatos estará contribuyendo

a evitar posibles consecuencias negativas para el medio ambiente y la salud de las

personas. Si desea obtener información más detallada sobre la eliminació n segura

de su aparato usado, consulte a las autoridades locales, al servicio de recogida

y eliminación de residuos de su zona o pregunte en la tienda donde adquirió el

producto.

Français

La directive européenne 2012/19/EU exige que l’équipement sur lequel est apposé ce

symbole sur le produit et/ou son emballage ne soit pas jeté avec les autres ordures

ménagères. Ce symbole indique que le produit doit être éliminé dans un circuit

distinct de celui pour les déchets des ménages. Il est de votre responsabilité de jeter

ce matériel ainsi que tout autre matériel électrique ou électronique par les moyens

de collecte indiqués par le gouvernement et les pouvoirs publics des collectivités

territoriales. L’élimination et le recyclage en bonne et due forme ont pour but de

lutter contre l’impact néfaste potentiel de ce type de produits sur l’environnement et

la santé publique. Pour plus d’informations sur le mode d’élimination de votre ancien

équipement, veuillez prendre contact avec les pouvoirs publics locaux, le service de

traitement des déchets, ou l’endroit où vous avez acheté le produit.

Italiano

La direttiva europea 2012/19/EU richiede che le apparecchiature contrassegnate

con questo simbolo sul prodotto e/o sull’imballaggio non siano smaltite insieme

ai rifiuti urbani non differenziati. Il simbolo indica che questo prodotto non deve

essere smaltito insieme ai normali rifiuti domestici. È responsabilità del proprietario

smaltire sia questi prodotti sia le altre apparecchiature elettriche ed elettroniche

mediante le specifiche strutture di raccolta indicate dal governo o dagli enti pubblici

locali. Il corretto smaltimento ed il riciclaggio aiuteranno a prevenire conseguenze

potenzialmente negative per l’ambiente e per la salute dell’essere umano. Per ricevere

informazioni più dettagliate circa lo smaltimento delle vecchie apparecchiature in

Vostro possesso, Vi invitiamo a contattare gli enti pubblici di competenza, il servizio di

smaltimento rifiuti o il negozio nel quale avete acquistato il prodotto.

Declaration of Conformity

Česky

[Czech]

UBIQUITI NETWORKS tímto prohlašuje, že toto UBIQUITI NETWORKS

zařízení, je ve shodě se základními požadavky a dalšími příslušnými

ustanoveními směrnice 1999/5/ES.

Dansk

[Danish]

Hermed, UBIQUITI NETWORKS, erklæ rer at denne UBIQUITI NETWORKS

enhed, er i overensstemmelse med de væ sentlige krav og øvrige relevante

krav i direktiv 1999/5/EF.

Nederlands

[Dutch]

Hierbij verklaart UBIQUITI NETWORKS, dat deze UBIQUITI NETWORKS

apparaat, in overeenstemming is met de essentiële eisen en de andere

relevante bepalingen van richtlijn 1999/5/EG.

English

Hereby, UBIQUITI NETWORKS, declares that this UBIQUITI NETWORKS

device, is in compliance with the essential requirements and other relevant

provisions of Directive 1999/5/EC.

Eesti

[Estonian]

Käesolevaga UBIQUITI NETWORKS kinnitab, et antud UBIQUITI NETWORKS

seade, on vastavus olulistele nõuetele ja teistele asjakohastele sätetele

direktiivi 1999/5/EÜ .

Suomi

[Finnish]

Täten UBIQUITI NETWORKS vakuuttaa, että tämä UBIQUITI NETWORKS

laite, on yhdenmukainen olennaisten vaatimusten ja muiden sitä

koskevien direktiivin 1999/5/EY.

Français

[French]

Par la présente UBIQUITI NETWORKS déclare que l’appareil UBIQUITI

NETWORKS, est conforme aux exigences essentielles et aux autres

dispositions pertinentes de la directive 1999/5/CE.

Deutsch

[German]

Hiermit erklärt UBIQUITI NETWORKS, dass sich dieses UBIQUITI NETWORKS

Gerät, in Ü bereinstimmung mit den grundlegenden Anforderungen und

den anderen relevanten Vorschriften der Richtlinie 1999/5/EG befindet.

Ελληνική

[Greek]

Δια του παρόντος, UBIQUITI NETWORKS, δηλώνει ότι αυτή η συσκευή

UBIQUITI NETWORKS, είναι σε συμμόρφωση με τις βασικές απαιτήσεις και

τις λοιπές σχετικές διατάξεις της οδηγίας 1995/5/ΕΚ.

Magyar

[Hungarian]

Ezennel UBIQUITI NETWORKS kijelenti, hogy ez a UBIQUITI NETWORKS

készülék megfelel az alapvető kö vetelményeknek és más vonatkozó

1999/5/EK irányelv rendelkezéseit.

Íslenska

[Icelandic]

Hér, UBIQUITI NETWORKS, því yfir að þetta UBIQUITI NETWORKS tæ ki er í

samræ mi við grunnkröfur og önnur viðeigandi ákvæ ði tilskipun 1999/5/EB.

Italiano

[Italian]

Con la presente, UBIQUITI NETWORKS, dichiara che questo dispositivo

UBIQUITI NETWORKS, è conforme ai requisiti essenziali ed alle altre

disposizioni pertinenti della direttiva 1999/5/CE.

Latviski

[Latvian]

Ar šo, UBIQUITI NETWORKS, deklarē, ka UBIQUITI NETWORKS ierīce, ir

saskaņā ar būtiskajām prasībām un citiem attiecīgiem noteikumiem

Direktīvā 1999/5/EK.

Lietuviškai

[Lithuanian]

UBIQUITI NETWORKS deklaruoja, kad šis UBIQUITI NETWORKS įrenginys

atitinka esminius reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas.

Malti

[Maltese]

Hawnhekk, UBIQUITI NETWORKS, tiddikjara li dan il‑mezz UBIQUITI

NETWORKS huwa konformi mar‑rekwiżiti essenzjali u dispożizzjonijiet

rilevanti oħrajn ta ‘Direttiva 1999/5/KE.

Norsk

[Norwegian]

Herved UBIQUITI NETWORKS, erklæ rer at denne UBIQUITI NETWORKS

enheten, er i samsvar med de grunnleggende kravene og andre relevante

bestemmelser i direktiv 1999/5/EF.

Polski

[Polish]

Niniejszym, Ubiquiti Networks, oświadcza, że urządzenie UBIQUITI

NETWORKS, jest zgodny z zasadniczymi wymaganiami oraz pozostałymi

stosownymi postanowieniami Dyrektywy 1999/5/WE.

Português

[Portuguese]

UBIQUITI NETWORKS declara que este dispositivo UBIQUITI NETWORKS,

está conforme com os requisitos essenciais e outras disposições da

Directiva 1999/5/CE.

Română

[Romanian]

Prin prezenta, UBIQUITI NETWORKS declară că acest dispozitiv UBIQUITI

NETWORKS este în conformitate cu cerințele esențiale și alte prevederi

relevante ale Directivei 1999/5/CE.

Slovensky

[Slovak]

Týmto UBIQUITI NETWORKS, prehlasuje, že toto UBIQUITI NETWORKS

zariadenie, je v súlade so základnými požiadavkami a ďalšími relevantnými

ustanoveniami smernice 1999/5/ES.

Español

[Spanish]

Por medio de la presente UBIQUITI NETWORKS declara que este dispositivo

UBIQUITI NETWORKS, cumple con los requisitos esenciales y cualesquiera

otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE.

Svenska

[Swedish]

Härmed UBIQUITI NETWORKS, intygar att denna UBIQUITI NETWORKS

enhet är i överensstämmelse med de väsentliga egenskapskrav och övriga

relevanta bestämmelser som framgår av direktiv 1999/5/EG.

Support

Online

help.amplifi.com

help@amplifi.com

Ubiquiti U logo, U Labs, the U Labs logo, and FrontRow are trademarks or registered

trademarks of Ubiquiti Networks, Inc. in the United States and in other countries.

Apple, the Apple logo, and iPhone are trademarks of Apple Inc., registered in the

U.S. and other countries. App Store is a service mark of Apple Inc. Android, Google,

Google Play, the Google Play logo and other marks are trademarks of Google Inc. All

other trademarks are the property of their respective owners.

640‑00231‑01 • RRJL042017

Ubiquiti FR Front Row Camera User Manual Front Row Quick Start Guide

Ubiquiti Networks, Inc. Front Row Camera Front Row Quick Start Guide

User Manual

Navigation menu

Namespaces

Views

Navigation
