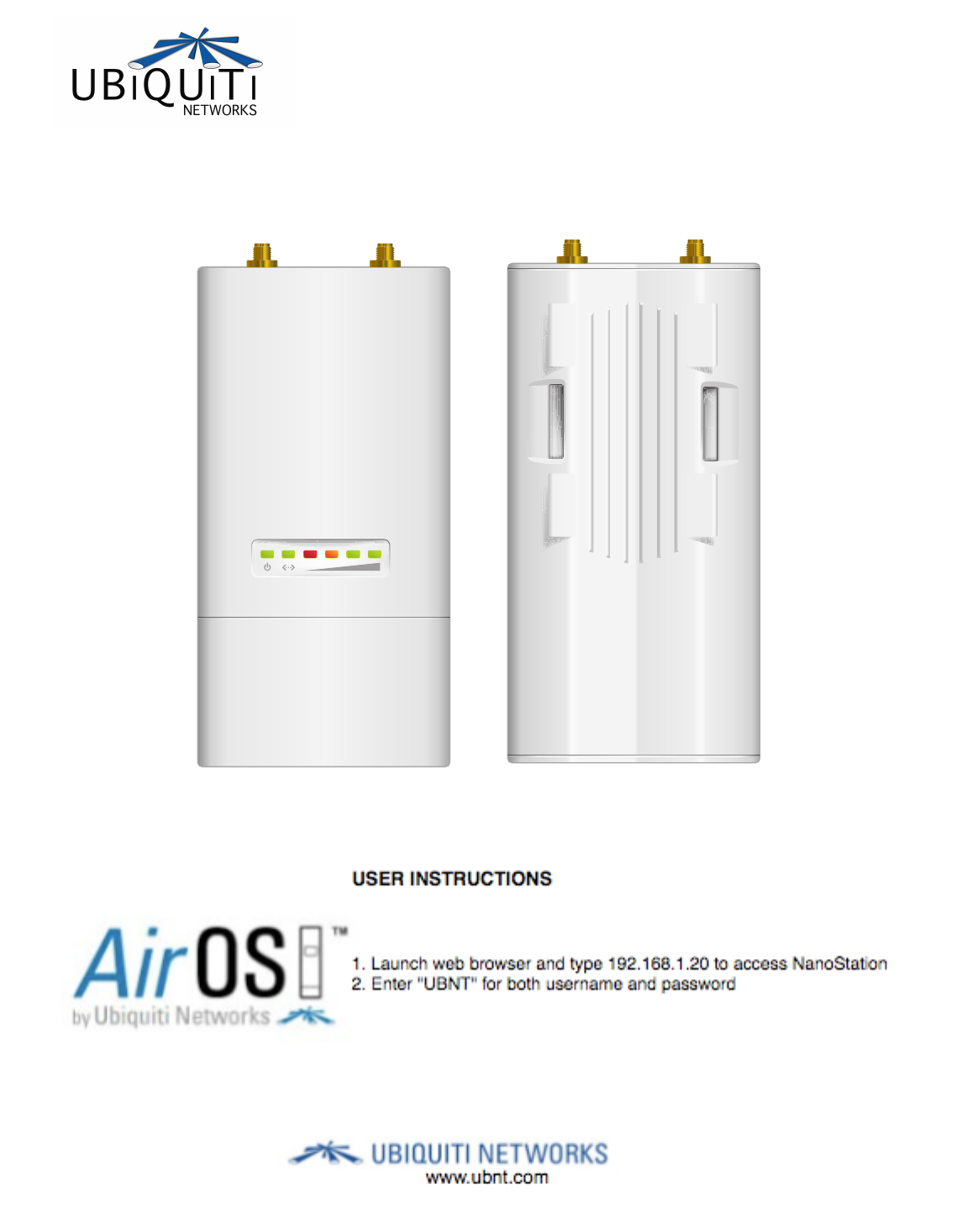

User Manual
M365
OEM Users Guide
TECH SPECS
DataRate Avg. TX Tolerance DataRate Sensitivity Tolerance
MCS0 23 dBm +/-2dB MCS0 -94 dBm +/-2dB
MCS1 23 dBm +/-2dB MCS1 -93 dBm +/-2dB
MCS2 23 dBm +/-2dB MCS2 -90 dBm +/-2dB
MCS3 23 dBm +/-2dB MCS3 -89 dBm +/-2dB
MCS4 22 dBm +/-2dB MCS4 -86 dBm +/-2dB
MCS5 20 dBm +/-2dB MCS5 -83 dBm +/-2dB
MCS6 19 dBm +/-2dB MCS6 -77 dBm +/-2dB
MCS7 18 dBm +/-2dB MCS7 -74 dBm +/-2dB
MCS8 23 dBm +/-2dB MCS8 -93 dBm +/-2dB
MCS9 23 dBm +/-2dB MCS9 -91 dBm +/-2dB
MCS10 23 dBm +/-2dB MCS10 -89 dBm +/-2dB
MCS11 23 dBm +/-2dB MCS11 -87 dBm +/-2dB
MCS12 22 dBm +/-2dB MCS12 -84 dBm +/-2dB
MCS13 20 dBm +/-2dB MCS13 -79 dBm +/-2dB
MCS14 19 dBm +/-2dB MCS14 -78 dBm +/-2dB
MCS15 18 dBm +/-2dB MCS15 -75 dBm +/-2dB
TX POWER SPECIFICATIONS
RX SPECIFICATIONS
11n / AirMax
11n / Airmax
PHYSICAL / ELECTRICAL / ENVIRONMENTAL
Operating Humidity
5 to 95% Condensing
Shock and Vibration
ETSI300-019-1.4
SYSTEM INFORMATION
Processor Specs
Atheros MIPS 24KC, 400MHz
Memory Information
64MB SDRAM, 8MB Flash
Networking Interface
1 X 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet Interface
Power Supply
24V, 1A POE Supply Included
Power Method
Passive Power over Ethernet (pairs 4,5+; 7,8 return)
Operating Temperature
-30C to 75C
Enclosure Characteristics
Outdoor UV Stabalized Plastic
Mounting Kit
Pole Mounting Kit included
Max Power Consumption
6.5 Watts
Enclosure Size
16cm length x 8cm width x 3cm height
Weight
0.5 kg
RF Connector
2x RPSMA (Waterproof)
RoHS Compliance
YES
OPERATING FREQUENCY 3675MHz-3700MHz
Wireless Approvals
FCC Part 15.247, IC RS210, CE
REGULATORY / COMPLIANCE INFORMATION
COMPLIANCE INFORMATION
FCC
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to pro-vide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be required to correct the
interference at his own expense.
!
The antennas used for this transmitter must be installed to provide a separation
distance of at least 28cm from all persons and must not be located or
operating in conjunction with any other antenna or transmitter.
!
INDUSTRY CANADA
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe A est conforme à! la norme NMB-003 du
Canada.
!
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including
interference that may cause undesired operation of the device.
!!
To reduce potential radio interference to other users, the antenna type and its
gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.)
is not more than that permitted for successful communication.!
This equipment is required to be professionally installed
