Ubiquiti M365P 3.65-3.675 GHz 2x2 MIMO Bridge User Manual PowerBridge Quick Start Guide
Ubiquiti Networks, Inc. 3.65-3.675 GHz 2x2 MIMO Bridge PowerBridge Quick Start Guide
Ubiquiti >
User's Manual
Carrier Class
AirMax BaseStation
Models: M3/M365/M5
1

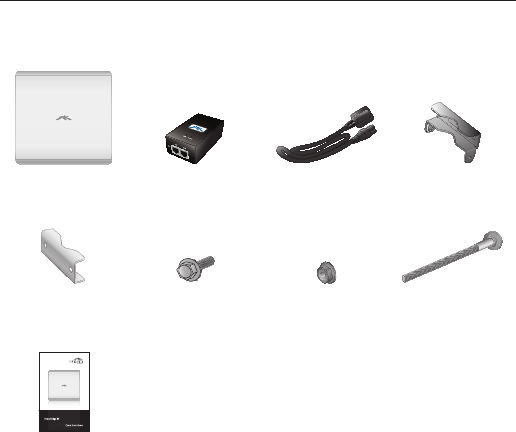

Package Contents
Package Contents
PowerBridge 24V PoE Adapter Power Cord Antenna Bracket
Clamps (Qty. 2)
Pole Bracket
Clamps (Qty. 2)
Serrated Flange
Bolts (Qty. 4)
Serrated Flange
Lock Nuts (Qty. 4)
M8X135 Carriage
Bolts (Qty. 4)
Carrier Class
AirMax BaseStation
Models: M3/M365/M5
Quick Start Guide
Installation Requirements
• Adjustable wrench or one 16 mm and one 24 mm wrench
• Flathead screwdriver
• Shielded Category 5 (or above) cabling should be used for all
wired Ethernet connections and should be grounded through
the AC ground of the PoE.
We recommend that you protect your networks from the
most brutal environments and devastating ESD attacks
with industrial‑grade shielded Ethernet cable from Ubiquiti
Networks. For more details, visit www.ubnt.com/toughcable
2
PowerBridge
Hardware Installation
To install the PowerBridge, perform the following steps:

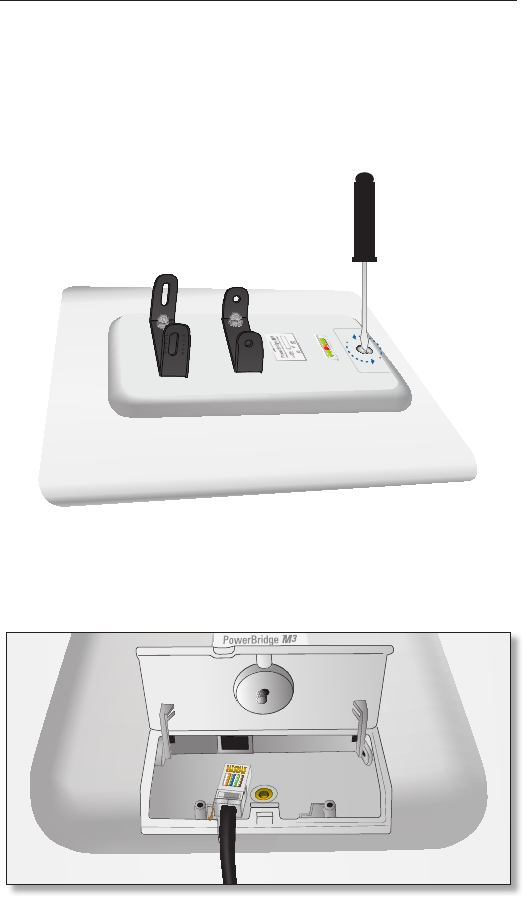

1. Use a flathead screwdriver to unlock the PowerBridge case.
Turn the screw counter‑clockwise until it is loose. The screw
remains attached to the compartment.
Compliant
RoHS
2. Lift the cover on the PowerBridge by pressing down and raising
it up. Connect an Ethernet cable. There is an opening for the
Ethernet cable. Slide the cover over the cable and secure it with
the screw.
3
Hardware Installation

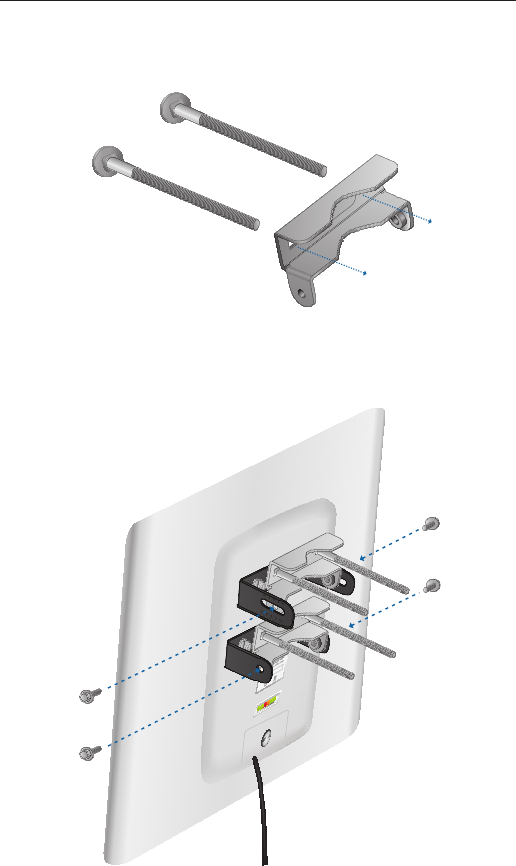

3. Insert the M8X135 Carriage Bolts into the Antenna Bracket
Clamps.
4. Connect the Antenna Bracket Clamps to the PowerBridge using
the four Serrated Flange Bolts.
Compliant
RoHS
4
PowerBridge

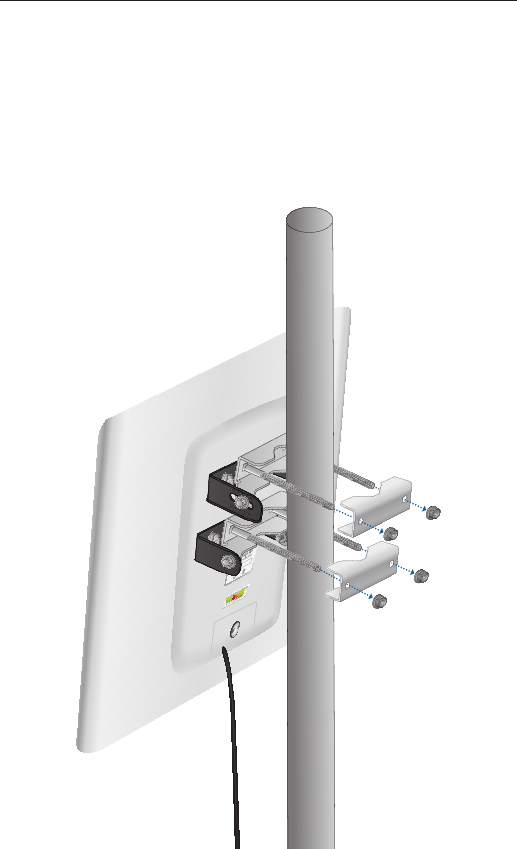

5. Mount the PowerBridge to the pole by performing the
following steps:
a. Position the PowerBridge in the desired mounting location
on the pole.
b. Slide the Pole Bracket Clamps on to the Carriage Bolts.
c. Use the four Serrated Flange Lock Nuts to secure the
PowerBridge to the pole.
Compliant
RoHS
5
Hardware Installation

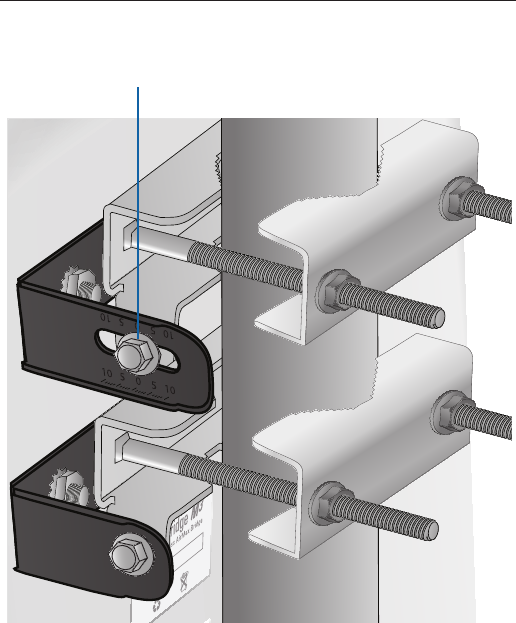

6. Adjust the operating angle of the PowerBridge by adjusting the
Serrated Flange Bolts on the top Antenna Bracket Clamp.
Compliant
RoHS
6
PowerBridge

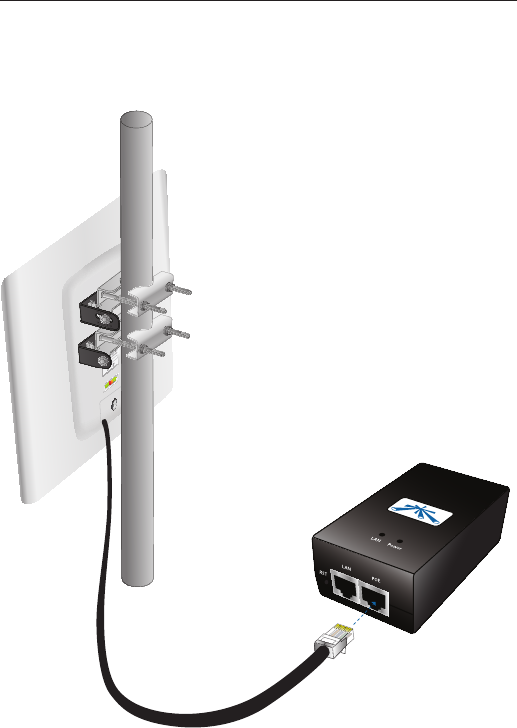

7. Connect the other end of the Ethernet cable from the
PowerBridge to the Ethernet port labeled POE on the PoE
Adapter.
Compliant
RoHS
7
Hardware Installation

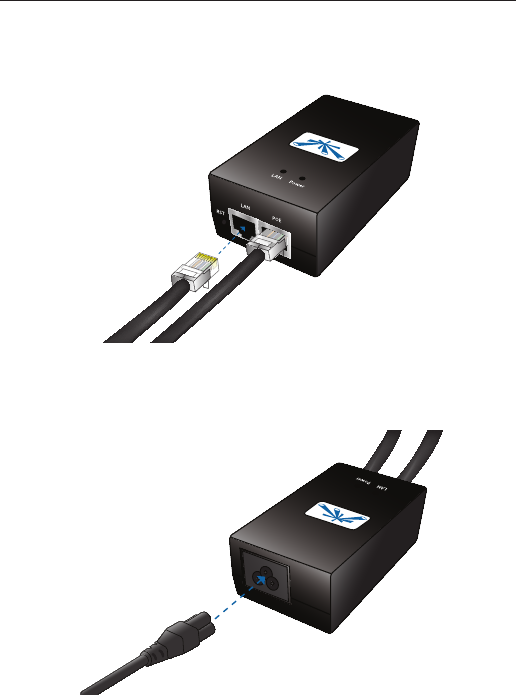

8. Connect an Ethernet cable from your LAN to the Ethernet port
labeled LAN on the PoE Adapter.
9. Connect the power cord to the power port on the PoE Adapter.
Connect the other end of the power cord to a power outlet.
8
PowerBridge

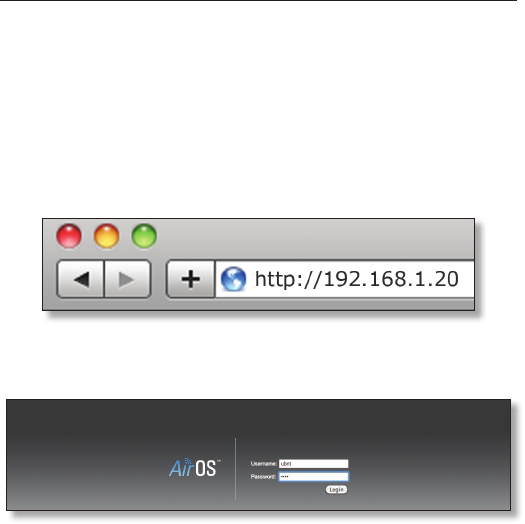

Accessing the AirOS Utility
1. Make sure that your host machine is connected to the LAN that
is connected to the PowerBridge.
2. Configure the Ethernet adapter on your host system with a
static IP address on the 192.168.1.x subnet (e.g. 192.168.1.100).
3. Launch your Web browser and type http://192.168.1.20 in the
address field and press enter (PC) or return (Mac).
4. The login screen will appear. Enter ubnt in the Username and
Password fields and click Login.
The AirOS Interface will appear allowing you to customize your
settings as needed.
Congratulations! Installation is complete.
9
General Warranty
General Warranty
UBIQUITI NETWORKS, Inc (“UBIQUITI NETWORKS”) represents and
warrants that the Products furnished hereunder shall be free from defects
in material and workmanship for a period of one (1) year from the date
of shipment by UBIQUITI NETWORKS under normal use and operation.
UBIQUITI NETWORKS sole and exclusive obligation under the foregoing
warranty shall be to repair or replace, at its option, any defective Product
that fails during the warranty period. The expense of removal and
reinstallation of any item is not included in this warranty.
The foregoing warranty is exclusive and in lieu of all other warranties,
express or implied, including the implied warranties of merchantability
and fitness for a particular purpose and any warranties arising from a
course of dealing, usage or trade practice with respect to the products.
Repair or replacement in the manner provided herein shall be the sole
and exclusive remedy of Buyer for breach of warranty and shall constitute
fulfillment of all liabilities of UBIQUITI NETWORKS with respect to the
quality and performance of the Products. UBIQUITI NETWORKS reserves
the right to inspect all defective Products (which must be returned by
Buyer to UBIQUITI NETWORKS factory freight prepaid).
No Products will be accepted for replacement or repair without obtaining
a Return Materials Authorization (RMA) number from UBIQUITI NETWORKS.
Products returned without an RMA number will not be processed and will
be returned to Buyer freight collect. UBIQUITI NETWORKS shall have no
obligation to make repairs or replacement necessitated by catastrophe,
fault, negligence, misuse, abuse, or accident by Buyer, Buyer’s customers or
any other parties. The warranty period of any repaired or replaced. Product
shall not extend beyond its original term.
Warranty Conditions
The foregoing warranty shall apply only if:
(I) The Product has not been subjected to misuse, neglect or unusual
physical, electrical or electromagnetic stress, or some other type of
accident.
(II) No modification, alteration or addition has been made to the Product
by persons other than UBIQUITI NETWORKS or UBIQUITI NETWORK’S
authorized representatives or otherwise approved by UBIQUITI
NETWORKS.
(III) The Product has been properly installed and used at all times in
accordance, and in all material respects, with the applicable Product
documentation.
(IV) All Ethernet cabling runs use CAT5 (or above) shielded cabling.
Disclaimer: UBIQUITI NETWORKS does not warrant that the operation of
the products is error‑free or that operation will be uninterrupted. In no
event shall UBIQUITI NETWORKS be responsible for damages or claims
of any nature or description relating to system performance, including
coverage, buyer’s selection of products for buyer’s application and/or
failure of products to meet government or regulatory requirements.
10
PowerBridge
Returns
In the unlikely event a defect occurs, please work through the dealer or
distributor from which this product was purchased.
Compliance
FCC
Changes or modifications not expressly approved by Ubiquiti Networks,
Inc. could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions:
1. This device may not cause interference, and
2. This device must accept any interference, including interference that
may cause undesired operation of the device.
NOTE: This equipment has been tested and found to comply with the
limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provice reasonable protection against
harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio
communications. Operations of this equipment in a residential area is likely
to cause harmful interference in which case the user will be required to
correct the interference at his own expense.
For MPE and antenna usage details, please visit our website at
www.ubnt.com/compliance
RF Exposure Warning
The transceiver described here emits radio frequency energy. Although
the power level is low, the concentrated energy from a directional antenna
may pose a health hazard. Do not allow people to come closer than 40 cm
to the antenna when the transmitter is operating.
Additional information on RF exposure is available on the Internet at
www.fcc.gov/oet/info/documents/bulletins
L'émetteur‑récepteur décrit ici émet de l'énergie de fréquence radio.
Bien que le niveau de puissance est faible, l'énergie concentrée à partir
d'une antenne directionnelle peut présenter un danger pour la santé. Ne
pas permettre aux gens de se rapprocher de 40 cm à l'antenne lorsque
l'émetteur est en marche.
Des renseignements supplémentaires sur l'exposition aux RF est
disponible sur Internet à www.fcc.gov/oet/info/documents/bulletins
11
Declaration of Conformity
CE Marking
CE marking on this product represents the product is in compliance with
all directives that are applicable to it.
Alert sign! Follows CE marking
Alert sign must be indicated if a restriction on use applied to the product
and it must follow the CE marking.
NB‑Identification number (if there is any)
Notified body number is indicated if it is involved in the conformity
assessment procedure.
Please check the CE mark on the product label to find out which notified
body was involved during assessment.
Declaration of Conformity
Česky
[Czech]
UBIQUITI NETWORKS tímto prohla uje, e tento UBIQUITI
NETWORKS device, je ve shod se základními po adavky a dal ími p
íslu n mi ustanoveními sm rnice 1999/5/ES.
Dansk
[Danish]
Undertegnede UBIQUITI NETWORKS erklærer herved, at følgende
udstyr UBIQUITI NETWORKS device, overholder de væsentlige krav
og øvrige relevante krav i direktiv 1999/5/EF.
Nederlands
[Dutch]
Hierbij verklaart UBIQUITI NETWORKS dat het toestel UBIQUITI
NETWORKS device, in overeenstemming is met de essentiële eisen
en de andere relevante bepalingen van richtlijn 1999/5/EG.
Bij deze verklaart UBIQUITI NETWORKS dat deze UBIQUITI
NETWORKS device, voldoet aan de essentiële eisen en aan de
overige relevante bepalingen van Richtlijn 1999/5/EC.
English
Hereby, UBIQUITI NETWORKS, declares that this UBIQUITI
NETWORKS device, is in compliance with the essential
requirements and other relevant provisions of Directive 1999/5/EC.
Eesti
[Estonian]
Käesolevaga kinnitab UBIQUITI NETWORKS seadme UBIQUITI
NETWORKS device, vastavust direktiivi 1999/5/EÜ põhinõuetele ja
nimetatud direktiivist tulenevatele teistele asjakohastele sätetele.
Suomi
[Finnish]
UBIQUITI NETWORKS vakuuttaa täten että UBIQUITI NETWORKS
device, tyyppinen laite on direktiivin 1999/5/EY oleellisten
vaatimusten ja sitä koskevien direktiivin muiden ehtojen
mukainen.
Français
[French]
Par la présente UBIQUITI NETWORKS déclare que l’appareil
UBIQUITI NETWORKS, device est conforme aux exigences
essentielles et aux autres dispositions pertinentes de la directive
1999/5/CE.
12
PowerBridge
Deutsch
[German]
Hiermit erklärt UBIQUITI NETWORKS, dass sich diese UBIQUITI
NETWORKS device, in Übereinstimmung mit den grundlegenden
Anforderungen und den anderen relevanten Vorschriften der
Richtlinie 1999/5/EG befindet”. (BMWi)
Ελληνική
[Greek]
ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ UBIQUITI NETWORKS ΔΗΛΩΝΕΙ ΟΤΙ UBIQUITI
NETWORKS device, ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ
ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ
1995/5/ΕΚ.
Magyar
[Hungarian]
Alulírott, UBIQUITI NETWORKS nyilatkozom, hogy a
UBIQUITI NETWORKS device, megfelel a vonatkozó alapvetõ
követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak.
Íslenska
[Icelandic]
Hér me l sir UBIQUITI NETWORKS yfir ví a UBIQUITI NETWORKS
device, er í samræmi vi grunnkröfur og a rar kröfur, sem ger ar eru í
tilskipun 1999/5/EC.
Italiano
[Italian]
Con la presente UBIQUITI NETWORKS dichiara che questo UBIQUITI
NETWORKS device, è conforme ai requisiti essenziali ed alle altre
disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.
Latviski
[Latvian]
Ar o UBIQUITI NETWORKS deklar , ka UBIQUITI NETWORKS device,
atbilst Direkt vas 1999/5/EK b tiskaj m pras b m un citiem ar to saist
tajiem noteikumiem.
Lietuviškai
[Lithuanian]
UBIQUITI NETWORKS deklaruoja, kad šis UBIQUITI NETWORKS
įrenginys atitinka esminius reikalavimus ir kitas 1999/5/EB
Direktyvos nuostatas.
Malti
[Maltese]
Hawnhekk, UBIQUITI NETWORKS, jiddikjara li dan UBIQUITI
NETWORKS device, jikkonforma mal- ti ijiet essenzjali u ma
provvedimenti o rajn relevanti li hemm fid-Dirrettiva 1999/5/EC.
Norsk
[Norwegian]
UBIQUITI NETWORKS erklærer herved at utstyret UBIQUITI
NETWORKS device, er i samsvar med de grunnleggende krav og
øvrige relevante krav i direktiv 1999/5/EF.
Slovensky
[Slovak]
UBIQUITI NETWORKS t mto vyhlasuje, e UBIQUITI NETWORKS
device, sp a základné po iadavky a v etky príslu né ustanovenia
Smernice 1999/5/ES.
Svenska
[Swedish]
Härmed intygar UBIQUITI NETWORKS att denna UBIQUITI
NETWORKS device, står I överensstämmelse med de väsentliga
egenskapskrav och övriga relevanta bestämmelser som framgår av
direktiv 1999/5/EG.
Español
[Spanish]
Por medio de la presente UBIQUITI NETWORKS declara que el
UBIQUITI NETWORKS device, cumple con los requisitos esenciales
y cualesquiera otras disposiciones aplicables o exigibles de la
Directiva 1999/5/CE.
Polski
[Polish]
Niniejszym, firma UBIQUITI NETWORKS o wiadcza, e produkt serii
UBIQUITI NETWORKS device, spełnia zasadnicze wymagania i inne
istotne postanowienia Dyrektywy 1999/5/EC.
Português
[Portuguese]
UBIQUITI NETWORKS declara que este UBIQUITI NETWORKS device,
está conforme com os requisitos essenciais e outras disposições da
Directiva 1999/5/CE.
RR042111
Ubiquiti Networks Support
Email: support@ubnt.com
Phone (9 a.m. ‑ 5 p.m. PST): 408-942-1153
Online Resources
Wiki Page: www.ubnt.com/wiki
Support Forum: www.ubnt.com/forum
Knowledge Base: www.ubnt.com/kb
Downloads: www.ubnt.com/support/downloads
www.ubnt.com
© 2011 Ubiquiti Networks, Inc. All rights reserved.
