Ubiquiti M5GHP Access Point User Manual airGrid AGM5 HP 1724 Quick Start Guide
Ubiquiti Networks, Inc. Access Point airGrid AGM5 HP 1724 Quick Start Guide
Ubiquiti >
User manual
5 GHz High-Performance
Model:
M5GHP
1
Introduction
Introduction
Thank you for purchasing the Ubiquiti Networks™ airGrid™
5GHz High-Performance Integrated InnerFeed Antenna, model
AGM5-HP-1724. This Quick Start Guide is designed to guide you
through the installation, and show you how to access the airOS™
Configuration Interface.
Package Contents
Antenna Feed Feed Extender Grid Reflector
Rear Housing L-Bracket Pole Clamp M8 U-Bolt
5 GHz High-Performance
Integrated InnerFeed
Antenna
Model: AGM5-HP-1724
M8 Flange Nuts
(Qty. 2)
PoE Adapter
(24V, 0.5A)
Power Cord Quick Start Guide
Grid reflector and mounting hardware packaged separately. Products may be
different from pictures and are subject to change without notice.
2
airGrid™ AGM5-HP-1724 Quick Start Guide
Installation Requirements
• 13 mm or ½" wrench
• Shielded Category 5 (or above) cabling should be used for all
wired Ethernet connections and should be grounded through
the AC ground of the PoE.
We recommend that you protect your networks from the
most brutal environments and devastating ESD attacks
with industrial-grade shielded Ethernet cable from Ubiquiti
Networks. For more details, visit www.ubnt.com/toughcable

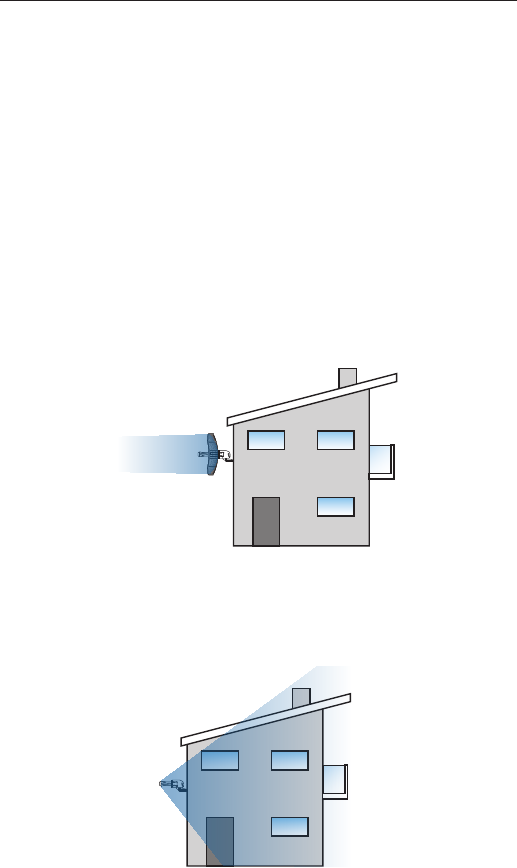

Application Examples
The airGrid mounted outdoors with the Grid Reflector installed
provides directional outdoor coverage (gain reflector-dependent).
The airGrid mounted outdoors without the Grid Reflector installed
provides outdoor-to-indoor coverage using the 3 dBi Antenna Feed
only.
3
LEDs
LEDs
Signal In airOS, you can modify the wireless signal
strength threshold values for each LED on the
Advanced tab under Signal LED Thresholds. The
default values are shown below:
LED will light green when the wireless signal
strength is above -65 dBm.
LED will light green when the wireless signal
strength is above -73 dBm.
LED will light amber when the wireless signal
strength is above -80 dBm.
LED will light red when the wireless signal
strength is above -94 dBm.
Ethernet The Ethernet LED will light steady green
when an active Ethernet connection is made and
flash when there is activity.
Power The Power LED will light green when the
device is connected to a power source.
4
airGrid™ AGM5-HP-1724 Quick Start Guide
Hardware Installation
Assemble the airGrid according to your chosen polarization.

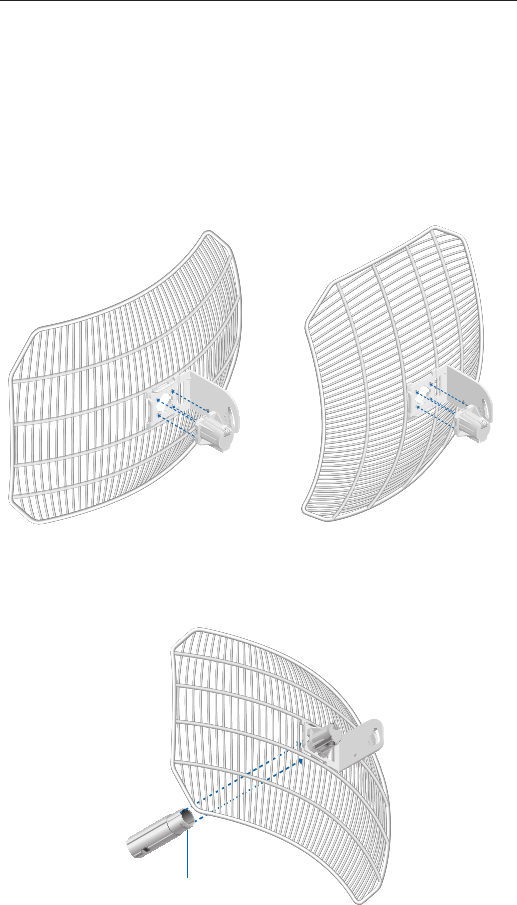

1. Attach the L-Bracket to the Grid Reflector by sliding the tabs
into the slots.
Vertical Polarization Horizontal Polarization
WARNING: The polarization of the airGrid must match
the polarization of its corresponding device (horizontal
to horizontal, vertical to vertical).
2. On the front of the airGrid, ensure the polarization mark, V or H,
properly matches your desired polarization.
Vertical Polarization Horizontal Polarization
5
Hardware Installation
3. Attach the Rear Housing:
a. Ensure the four alignment holes on the Grid Reflector and
L-Bracket are lined up.
b. Orient the Rear Housing with the locking tab of the cable
feed door facing up.
c. Insert the alignments pins of the Rear Housing into the
alignment holes, and push until the Rear Housing locks into
place with a click.
Vertical Polarization Horizontal Polarization
4. Insert the Feed Extender into the Rear Housing with the Release
Button facing down. Push until it locks into place with a click.
Release Button
6
airGrid™ AGM5-HP-1724 Quick Start Guide

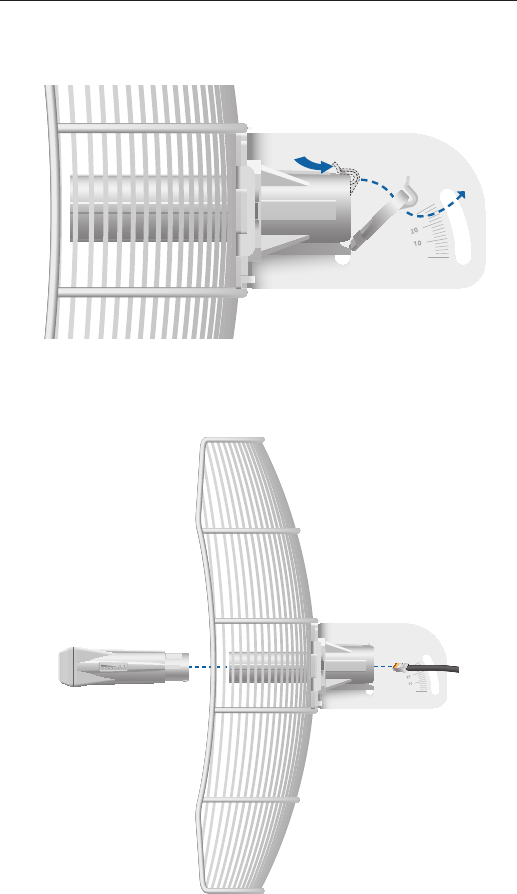

5. Lift the locking tab of the cable feed door and detach the door
from the Rear Housing.
6. Route an Ethernet cable through the Rear Housing and Feed
Extender. Connect the cable to the Ethernet port on the back of
the Antenna Feed.
7
Hardware Installation
7. Attach the Antenna Feed:
a. Rotate the Antenna Feed to match the signal polarization.
b. Insert the Antenna Feed into the Feed Extender, and push
until it locks into place with a click.
Vertical Polarization Horizontal Polarization
8. Lightly pull the Antenna Feed to ensure that the Release Button
is fully engaged and locked into place.
Antenna Feed
Feed Extender
Release Button
Bottom View
8
airGrid™ AGM5-HP-1724 Quick Start Guide

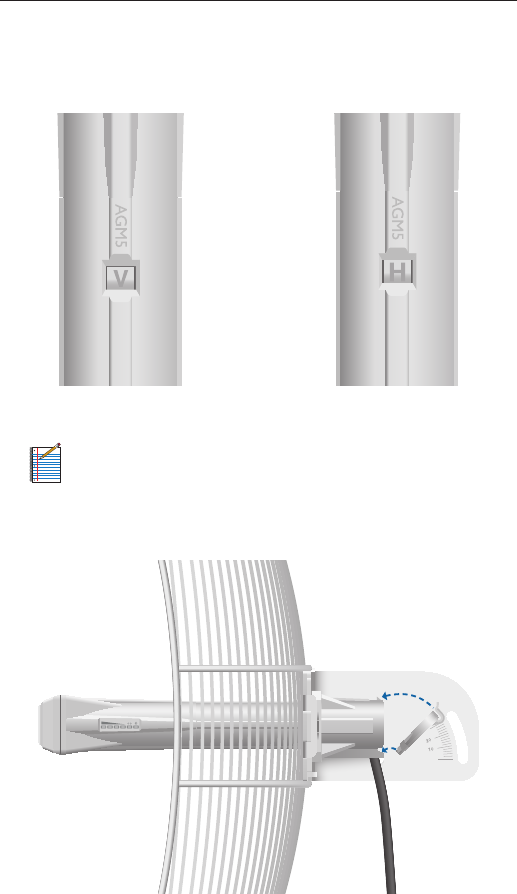

9. The Release Button indicates the Antenna Feed polarization.
Confirm that the Antenna Feed polarization matches the Grid
Reflector polarization shown in step 2.
Vertical Polarization Horizontal Polarization
Note: If you need to remove the Antenna Feed, you must
depress the Release Button first.
10. Re-attach the cable feed door to the Rear Housing. Ensure the
locking tab securely latches to the Rear Housing.
9
Hardware Installation
11. Slide the Pole Clamp onto the L-Bracket.
12. Insert the M8 U-Bolt into the Pole Clamp and L-Bracket. Secure
each end of the M8 U-Bolt with a M8 Flange Nut.
9 N-m
(80 lb-in)
Note: The mounting assembly can accommodate a
Ø 1.25" - 2.2" pole.
10
airGrid™ AGM5-HP-1724 Quick Start Guide

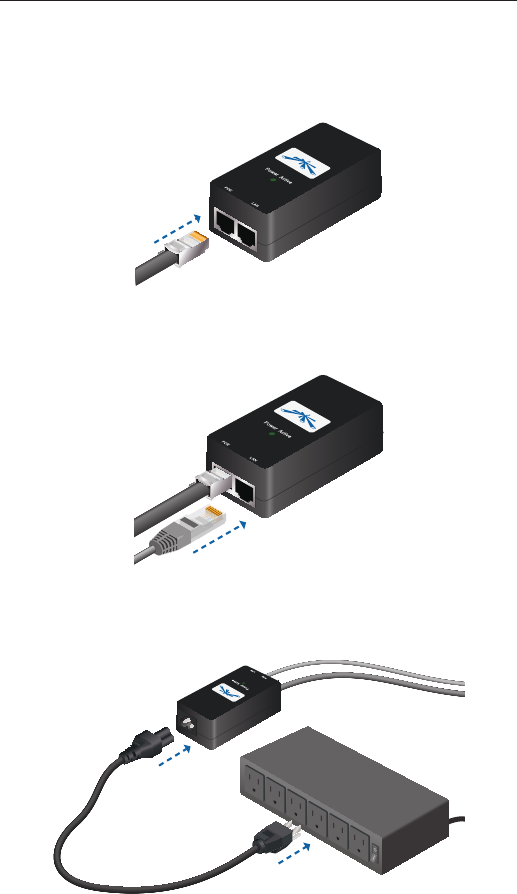

Connecting Power over Ethernet
1. Connect the other end of the Ethernet cable from the airGrid
to the Ethernet port labeled POE on the PoE Adapter.
2. Connect an Ethernet cable from your LAN to the Ethernet port
labeled LAN on the PoE Adapter.
3. Connect the Power Cord to the power port on the PoE Adapter.
Connect the other end of the Power Cord to a power outlet.
11
airOS Configuration
airOS Configuration
Verify connectivity in the airOS Configuration Interface and select
the airGrid antenna size.
1. Make sure that your host machine is connected via Ethernet to
the airGrid.
2. Configure the Ethernet adapter on your host system with a
static IP address on the 192.168.1.x subnet.
3. Launch your web browser and type https://192.168.1.20 in
the address field. Press enter (PC) or return (Mac).
4. The login screen will appear. Enter ubnt in the Username and
Password fields. Select your Country and Language. You must
agree to the Terms of Use to use the product. Click Login.
Note: U.S. product versions are locked to the U.S. Country
Code to ensure compliance with FCC regulations.
12
airGrid™ AGM5-HP-1724 Quick Start Guide
5. Select the airGrid antenna size:
a. Click the Wireless tab.
b. From the Antenna drop-down list, select the appropriate
option.
c. Click Change to save.
d. Click OK to confirm.
Customize additional settings as needed to complete
the installation. Please review the Installer Compliance
Responsibility section on the following page.
For additional details on the airOS Configuration Interface, refer
to the User Guide available at documentation.ubnt.com
13
Installer Compliance Responsibility
Installer Compliance Responsibility
Devices must be professionally installed and it is the professional
installer's responsibility to make sure the device is operated within
local country regulatory requirements.
Since Ubiquiti Networks equipment can be paired with a variety
of antennas and cables, the Antenna and Output Power fields
are provided to the professional installer to assist in meeting
regulatory requirements.
14
airGrid™ AGM5-HP-1724 Quick Start Guide
Specifications
AGM5-HP-1724
Dimensions 620 x 460 x 360 mm (Mount Included)
Weight 2585 g (Mount Included)
Networking Interface (1) 10/100 Ethernet Port
Enclosure Outdoor UV Stabilized Plastic
Frequency Worldwide: 5170 – 5875 MHz
USA: 5725 – 5825 MHz
Gain 28 dBi
Max. Power Consumption 3.0 W
Power Supply 24V, 0.5A PoE Adapter (Included)
Power Method Passive Power over Ethernet
(Pairs 4, 5+; 7, 8 Return)
Max. VSWR 1.5:1
Wind Survivability 125 mph
Wind Loading 5 lbf @ 100 mph
ETSI Specication EN 302 326 DN2
Shock and Vibration ETSI300-019-1.4
Certications FCC, IC, CE
Operating Temperature -30 to 75° C
Operating Humidity 5 to 95% Condensing
15
Safety Notices
Safety Notices
1. Read, follow, and keep these instructions.
2. Heed all warnings.
3. Only use attachments/accessories specified by the manufacturer.
WARNING: Do not use this product in location that can be
submerged by water.
WARNING: Avoid using this product during an electrical storm.
There may be a remote risk of electric shock from lightning.
Electrical Safety Information
1. Compliance is required with respect to voltage, frequency, and current
requirements indicated on the manufacturer’s label. Connection to a
different power source than those specified may result in improper
operation, damage to the equipment or pose a fire hazard if the
limitations are not followed.
2. There are no operator serviceable parts inside this equipment. Service
should be provided only by a qualified service technician.
3. This equipment is provided with a detachable power cord which has
an integral safety ground wire intended for connection to a grounded
safety outlet.
a. Do not substitute the power cord with one that is not the provided
approved type. Never use an adapter plug to connect to a 2-wire
outlet as this will defeat the continuity of the grounding wire.
b. The equipment requires the use of the ground wire as a part of the
safety certification, modification or misuse can provide a shock
hazard that can result in serious injury or death.
c. Contact a qualified electrician or the manufacturer if there are
questions about the installation prior to connecting the equipment.
d. Protective earthing is provided by Listed AC adapter. Building
installation shall provide appropriate short-circuit backup
protection.
e. Protective bonding must be installed in accordance with local
national wiring rules and regulations.
16
airGrid™ AGM5-HP-1724 Quick Start Guide
General Warranty
UBIQUITI NETWORKS, Inc (“UBIQUITI NETWORKS”) represents and
warrants that the Products furnished hereunder shall be free from defects
in material and workmanship for a period of one (1) year from the date
of shipment by UBIQUITI NETWORKS under normal use and operation.
UBIQUITI NETWORKS sole and exclusive obligation under the foregoing
warranty shall be to repair or replace, at its option, any defective Product
that fails during the warranty period. The expense of removal and
reinstallation of any item is not included in this warranty.
The foregoing warranty is exclusive and in lieu of all other warranties,
express or implied, including the implied warranties of merchantability and
fitness for a particular purpose and any warranties arising from a course
of dealing, usage or trade practice with respect to the products. Repair or
replacement in the manner provided herein shall be the sole and exclusive
remedy of Buyer for breach of warranty and shall constitute fulfillment
of all liabilities of UBIQUITI NETWORKS with respect to the quality and
performance of the Products. UBIQUITI NETWORKS reserves the right
to inspect all defective Products (which must be returned by Buyer to
UBIQUITI NETWORKS factory freight prepaid).
No Products will be accepted for replacement or repair without obtaining
a Return Materials Authorization (RMA) number from UBIQUITI NETWORKS.
Products returned without an RMA number will not be processed and will
be returned to Buyer freight collect. UBIQUITI NETWORKS shall have no
obligation to make repairs or replacement necessitated by catastrophe,
fault, negligence, misuse, abuse, or accident by Buyer, Buyer’s customers or
any other parties. The warranty period of any repaired or replaced Product
shall not extend beyond its original term.
EXCEPT FOR ANY EXPRESS WARRANTIES PROVIDED HEREIN, UBIQUITI
NETWORKS’ PRODUCTS AND SERVICES ARE PROVIDED "AS IS", WITHOUT
WARRANTY OR CONDITION OF ANY KIND, EITHER EXPRESS OR IMPLIED.
UBIQUITI NETWORKS, ITS AFFILIATES, AND ITS AND THEIR THIRD PARTY
DATA, SERVICE, SOFTWARE AND HARDWARE PROVIDERS HEREBY
DISCLAIM AND MAKE NO OTHER REPRESENTATION OR WARRANTY OF ANY
KIND, EXPRESS, IMPLIED OR STATUTORY, INCLUDING BUT NOT LIMITED TO
REPRESENTATIONS, GUARANTEES, OR WARRANTIES OF MERCHANTABILITY,
ACCURACY, QUALITY OF SERVICE OR RESULTS, AVAILABILITY,
SATISFACTORY QUALITY, LACK OF VIRUSES, TITLE, QUIET ENJOYMENT,
FITNESS FOR A PARTICULAR PURPOSE AND NON-INFRINGEMENT.
BUYER ACKNOWLEDGE THAT NEITHER UBIQUITI NETWORKS NOR ITS
THIRD PARTY PROVIDERS CONTROLS BUYER’S EQUIPMENT OR THE
TRANSFER OF DATA OVER COMMUNICATIONS FACILITIES, INCLUDING THE
INTERNET, AND THAT THE PRODUCTS AND SERVICES MAY BE SUBJECT
TO LIMITATIONS, INTERRUPTIONS, DELAYS, CANCELLATIONS AND OTHER
PROBLEMS INHERENT IN THE USE OF THE COMMUNICATIONS FACILITIES.
UBIQUITI NETWORKS, ITS AFFILIATES AND ITS AND THEIR THIRD PARTY
PROVIDERS ARE NOT RESPONSIBLE FOR ANY INTERRUPTIONS, DELAYS,
CANCELLATIONS, DELIVERY FAILURES, DATA LOSS, CONTENT CORRUPTION,
PACKET LOSS, OR OTHER DAMAGE RESULTING FROM THESE PROBLEMS.
17
General Warranty
Warranty Conditions
The foregoing warranty shall apply only if:
(I) The Product has not been subjected to misuse, neglect or unusual
physical, electrical or electromagnetic stress, or some other type of
accident.
(II) No modification, alteration or addition has been made to the Product
by persons other than UBIQUITI NETWORKS or UBIQUITI NETWORK’S
authorized representatives or otherwise approved by UBIQUITI
NETWORKS.
(III) The Product has been properly installed and used at all times in
accordance, and in all material respects, with the applicable Product
documentation.
(IV) All Ethernet cabling runs use CAT5 (or above) shielded cabling.
Disclaimer: UBIQUITI NETWORKS does not warrant that the operation of
the products is error-free or that operation will be uninterrupted. In no
event shall UBIQUITI NETWORKS be responsible for damages or claims
of any nature or description relating to system performance, including
coverage, buyer’s selection of products for buyer’s application and/or
failure of products to meet government or regulatory requirements.
Returns
In the unlikely event a defect occurs, please work through the dealer or
distributor from which this product was purchased.
18
airGrid™ AGM5-HP-1724 Quick Start Guide
Compliance
FCC
For MPE and antenna usage details, please visit our website at
www.ubnt.com/products
Industry Canada
This Class B digital apparatus complies with Canadian CAN ICES-3(B)
To reduce potential radio interference to other users, the antenna
type and its gain should be so chosen that the equivalent isotropically
radiated power (e.i.r.p.) is not more than that permitted for successful
communication.
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions:
1. This device may not cause interference, and
2. This device must accept any interference, including interference that
may cause undesired operation of the device.
Cet appareil numérique de la classe B est confrome à la norme NMB-3(B)
Canada.
Pour réduire le risque d’interférence aux autres utilisateurs, le type
d’antenne et son gain doivent être choisies de façon que la puissance
isotrope rayonnée équivalente (PIRE) ne dépasse pas ce qui est nécessaire
pour une communication réussie.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void the
user‘s authority to operate the equipment.
******************************************************************************************************
**********************
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
19
Compliance
Cet appareil est conforme à la norme RSS Industrie Canada exempts de
licence norme(s). Son fonctionnement est soumis aux deux conditions
suivantes:
1. Cet appareil ne peut pas provoquer d’interférences et
2. Cet appareil doit accepter toute interférence, y compris les
interférences qui peuvent causer un mauvais fonctionnement du
dispositif.
RF Exposure Warning
The antennas used for this transmitter must be installed to provide a
separation distance of at least 55 cm from all persons and must not be
located or operating in conjunction with any other antenna or transmitter.
Les antennes utilisées pour ce transmetteur doivent être installé en
considérant une distance de séparation de toute personnes d'au moins 55 cm
et ne doivent pas être localisé ou utilisé en conflit avec tout autre
antenne ou transmetteur.
CE Marking
CE marking on this product represents the product is in compliance with
all directives that are applicable to it.
Alert Sign (!) Follows CE Marking
Alert sign must be indicated if a restriction on use applied to the product
and it must follow the CE marking.
20
airGrid™ AGM5-HP-1724 Quick Start Guide
RoHS/WEEE Compliance Statement
English
European Directive 2002/96/EC requires that the equipment bearing
this symbol on the product and/or its packaging must not be disposed
of with unsorted municipal waste. The symbol indicates that this
product should be disposed of separately from regular household waste
streams. It is your responsibility to dispose of this and other electric and
electronic equipment via designated collection facilities appointed by the
government or local authorities. Correct disposal and recycling will help
prevent potential negative consequences to the environment and human
health. For more detailed information about the disposal of your old
equipment, please contact your local authorities, waste disposal service, or
the shop where you purchased the product.
Deutsch
Die Europäische Richtlinie 2002/96/EC verlangt, dass technische
Ausrüstung, die direkt am Gerät und/oder an der Verpackung mit diesem
Symbol versehen ist , nicht zusammen mit unsortiertem Gemeindeabfall
entsorgt werden darf. Das Symbol weist darauf hin, dass das Produkt
von regulärem Haushaltmüll getrennt entsorgt werden sollte. Es liegt
in Ihrer Verantwortung, dieses Gerät und andere elektrische und
elektronische Geräte über die dafür zuständigen und von der Regierung
oder örtlichen Behörden dazu bestimmten Sammelstellen zu entsorgen.
Ordnungsgemäßes Entsorgen und Recyceln trägt dazu bei, potentielle
negative Folgen für Umwelt und die menschliche Gesundheit zu
vermeiden. Wenn Sie weitere Informationen zur Entsorgung Ihrer
Altgeräte benötigen, wenden Sie sich bitte an die örtlichen Behörden oder
städtischen Entsorgungsdienste oder an den Händler, bei dem Sie das
Produkt erworben haben.
Español
La Directiva 2002/96/CE de la UE exige que los equipos que lleven este
símbolo en el propio aparato y/o en su embalaje no deben eliminarse
junto con otros residuos urbanos no seleccionados. El símbolo indica
que el producto en cuestión debe separarse de los residuos domésticos
convencionales con vistas a su eliminación. Es responsabilidad suya
desechar este y cualesquiera otros aparatos eléctricos y electrónicos a
través de los puntos de recogida que ponen a su disposición el gobierno y
las autoridades locales. Al desechar y reciclar correctamente estos aparatos
estará contribuyendo a evitar posibles consecuencias negativas para el
medio ambiente y la salud de las personas. Si desea obtener información
más detallada sobre la eliminación segura de su aparato usado, consulte a
las autoridades locales, al servicio de recogida y eliminación de residuos de
su zona o pregunte en la tienda donde adquirió el producto.
21
Compliance
Français
La directive européenne 2002/96/CE exige que l’équipement sur
lequel est apposé ce symbole sur le produit et/ou son emballage ne
soit pas jeté avec les autres ordures ménagères. Ce symbole indique
que le produit doit être éliminé dans un circuit distinct de celui pour
les déchets des ménages. Il est de votre responsabilité de jeter ce
matériel ainsi que tout autre matériel électrique ou électronique par
les moyens de collecte indiqués par le gouvernement et les pouvoirs
publics des collectivités territoriales. L’élimination et le recyclage en
bonne et due forme ont pour but de lutter contre l’impact néfaste
potentiel de ce type de produits sur l’environnement et la santé
publique. Pour plus d’informations sur le mode d’élimination de
votre ancien équipement, veuillez prendre contact avec les pouvoirs
publics locaux, le service de traitement des déchets, ou l’endroit où
vous avez acheté le produit.
Italiano
La direttiva europea 2002/96/EC richiede che le apparecchiature
contrassegnate con questo simbolo sul prodotto e/o sull’imballaggio
non siano smaltite insieme ai rifiuti urbani non differenziati. Il simbolo
indica che questo prodotto non deve essere smaltito insieme ai
normali rifiuti domestici. È responsabilità del proprietario smaltire sia
questi prodotti sia le altre apparecchiature elettriche ed elettroniche
mediante le specifiche strutture di raccolta indicate dal governo
o dagli enti pubblici locali. Il corretto smaltimento ed il riciclaggio
aiuteranno a prevenire conseguenze potenzialmente negative per
l’ambiente e per la salute dell’essere umano. Per ricevere informazioni
più dettagliate circa lo smaltimento delle vecchie apparecchiature
in Vostro possesso, Vi invitiamo a contattare gli enti pubblici di
competenza, il servizio di smaltimento rifiuti o il negozio nel quale
avete acquistato il prodotto.
22
airGrid™ AGM5-HP-1724 Quick Start Guide
Declaration of Conformity
Česky
[Czech]
UBIQUITI NETWORKS tímto prohla uje, e tento UBIQUITI
NETWORKS device, je ve shod se základními po adavky a dal ími p
íslu n mi ustanoveními sm rnice 1999/5/ES.
Dansk
[Danish]
Undertegnede UBIQUITI NETWORKS erklærer herved, at følgende
udstyr UBIQUITI NETWORKS device, overholder de væsentlige krav
og øvrige relevante krav i direktiv 1999/5/EF.
Nederlands
[Dutch]
Hierbij verklaart UBIQUITI NETWORKS dat het toestel UBIQUITI
NETWORKS device, in overeenstemming is met de essentiële eisen
en de andere relevante bepalingen van richtlijn 1999/5/EG.
Bij deze verklaart UBIQUITI NETWORKS dat deze UBIQUITI
NETWORKS device, voldoet aan de essentiële eisen en aan de
overige relevante bepalingen van Richtlijn 1999/5/EC.
English
Hereby, UBIQUITI NETWORKS, declares that this UBIQUITI
NETWORKS device, is in compliance with the essential
requirements and other relevant provisions of Directive 1999/5/EC.
Eesti
[Estonian]
Käesolevaga kinnitab UBIQUITI NETWORKS seadme UBIQUITI
NETWORKS device, vastavust direktiivi 1999/5/EÜ põhinõuetele ja
nimetatud direktiivist tulenevatele teistele asjakohastele sätetele.
Suomi
[Finnish]
UBIQUITI NETWORKS vakuuttaa täten että UBIQUITI NETWORKS
device, tyyppinen laite on direktiivin 1999/5/EY oleellisten
vaatimusten ja sitä koskevien direktiivin muiden ehtojen
mukainen.
Français
[French]
Par la présente UBIQUITI NETWORKS déclare que l’appareil
UBIQUITI NETWORKS, device est conforme aux exigences
essentielles et aux autres dispositions pertinentes de la directive
1999/5/CE.
Deutsch
[German]
Hiermit erklärt UBIQUITI NETWORKS, dass sich diese UBIQUITI
NETWORKS device, in Übereinstimmung mit den grundlegenden
Anforderungen und den anderen relevanten Vorschriften der
Richtlinie 1999/5/EG befindet”. (BMWi)
Ελληνική
[Greek]
ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ UBIQUITI NETWORKS ΔΗΛΩΝΕΙ ΟΤΙ UBIQUITI
NETWORKS device, ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ
ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ
1995/5/ΕΚ.
Magyar
[Hungarian]
Alulírott, UBIQUITI NETWORKS nyilatkozom, hogy a
UBIQUITI NETWORKS device, megfelel a vonatkozó alapvetõ
követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak.
Íslenska
[Icelandic]
Hér me l sir UBIQUITI NETWORKS yfir ví a UBIQUITI NETWORKS
device, er í samræmi vi grunnkröfur og a rar kröfur, sem ger ar eru í
tilskipun 1999/5/EC.
Italiano
[Italian]
Con la presente UBIQUITI NETWORKS dichiara che questo UBIQUITI
NETWORKS device, è conforme ai requisiti essenziali ed alle altre
disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.
23
Declaration of Conformity
Latviski
[Latvian]
Ar o UBIQUITI NETWORKS deklar , ka UBIQUITI NETWORKS device,
atbilst Direkt vas 1999/5/EK b tiskaj m pras b m un citiem ar to saist
tajiem noteikumiem.
Lietuviškai
[Lithuanian]
UBIQUITI NETWORKS deklaruoja, kad šis UBIQUITI NETWORKS
įrenginys atitinka esminius reikalavimus ir kitas 1999/5/EB
Direktyvos nuostatas.
Malti
[Maltese]
Hawnhekk, UBIQUITI NETWORKS, jiddikjara li dan UBIQUITI
NETWORKS device, jikkonforma mal- ti ijiet essenzjali u ma
provvedimenti o rajn relevanti li hemm fid-Dirrettiva 1999/5/EC.
Norsk
[Norwegian]
UBIQUITI NETWORKS erklærer herved at utstyret UBIQUITI
NETWORKS device, er i samsvar med de grunnleggende krav og
øvrige relevante krav i direktiv 1999/5/EF.
Slovensky
[Slovak]
UBIQUITI NETWORKS t mto vyhlasuje, e UBIQUITI NETWORKS
device, sp a základné po iadavky a v etky príslu né ustanovenia
Smernice 1999/5/ES.
Svenska
[Swedish]
Härmed intygar UBIQUITI NETWORKS att denna UBIQUITI
NETWORKS device, står I överensstämmelse med de väsentliga
egenskapskrav och övriga relevanta bestämmelser som framgår av
direktiv 1999/5/EG.
Español
[Spanish]
Por medio de la presente UBIQUITI NETWORKS declara que el
UBIQUITI NETWORKS device, cumple con los requisitos esenciales
y cualesquiera otras disposiciones aplicables o exigibles de la
Directiva 1999/5/CE.
Polski
[Polish]
Niniejszym, firma UBIQUITI NETWORKS o wiadcza, e produkt serii
UBIQUITI NETWORKS device, spełnia zasadnicze wymagania i inne
istotne postanowienia Dyrektywy 1999/5/EC.
Português
[Portuguese]
UBIQUITI NETWORKS declara que este UBIQUITI NETWORKS device,
está conforme com os requisitos essenciais e outras disposições da
Directiva 1999/5/CE.
Română
[Romanian]
Prin prezenta, UBIQUITI NETWORKS declară că acest dispozitiv
UBIQUITI NETWORKS este în conformitate cu cerințele esențiale și
alte prevederi relevante ale Directivei 1999/5/CE.
PH013013
English
We recommend that you protect your networks
from the most brutal environments and
devastating ESD attacks with industrial-grade
shielded Ethernet cable from Ubiquiti Networks.
For more details, visit www.ubnt.com/toughcable
Deutsch
Schützen Sie Ihre Netzwerke vor extremen Umwelteinflüssen
und verheerender elektrostatischer Entladung (ESD), indem
Sie abgeschirmte Ethernetkabel in Unternehmensqualität von
Ubiquiti Networks verwenden. Weitere Informationen erhalten Sie
unter www.ubnt.com/toughcable
Español
Le recomendamos que proteja sus redes de los entornos más
hostiles y los devastadores efectos de las descargas electrostáticas
utilizando cable Ethernet blindado con calidad-industrial de
Ubiquiti Networks. Para obtener más información, visite
www.ubnt.com/toughcable
Français
Nous vous recommandons de protéger vos réseaux contre les
environnements les plus brutaux et les décharges électrostatiques
les plus dévastatrices avec un câble Ethernet Ubiquiti Networks
avec blindage renforcé. Pour en savoir plus, rendez-vous sur
www.ubnt.com/toughcable
Italiano
Si consiglia di proteggere le reti dagli ambienti e dagli attacchi
ESD più invasivi con il cavo Ethernet schermato-di tipo industriale
di Ubiquiti Networks. Per ulteriori informazioni, visitare il sito Web
www.ubnt.com/toughcable
www.ubnt.com
© 2013 Ubiquiti Networks, Inc. All rights reserved.
Support support.ubnt.com
Wiki Page wiki.ubnt.com
Support Forum forum.ubnt.com
Downloads downloads.ubnt.com
