Ubiquiti NS2 NanoStation2 User Manual NS2datasheet graffle
Ubiquiti Networks, Inc. NanoStation2 NS2datasheet graffle
Ubiquiti >
User Guide
www.ubnt.com

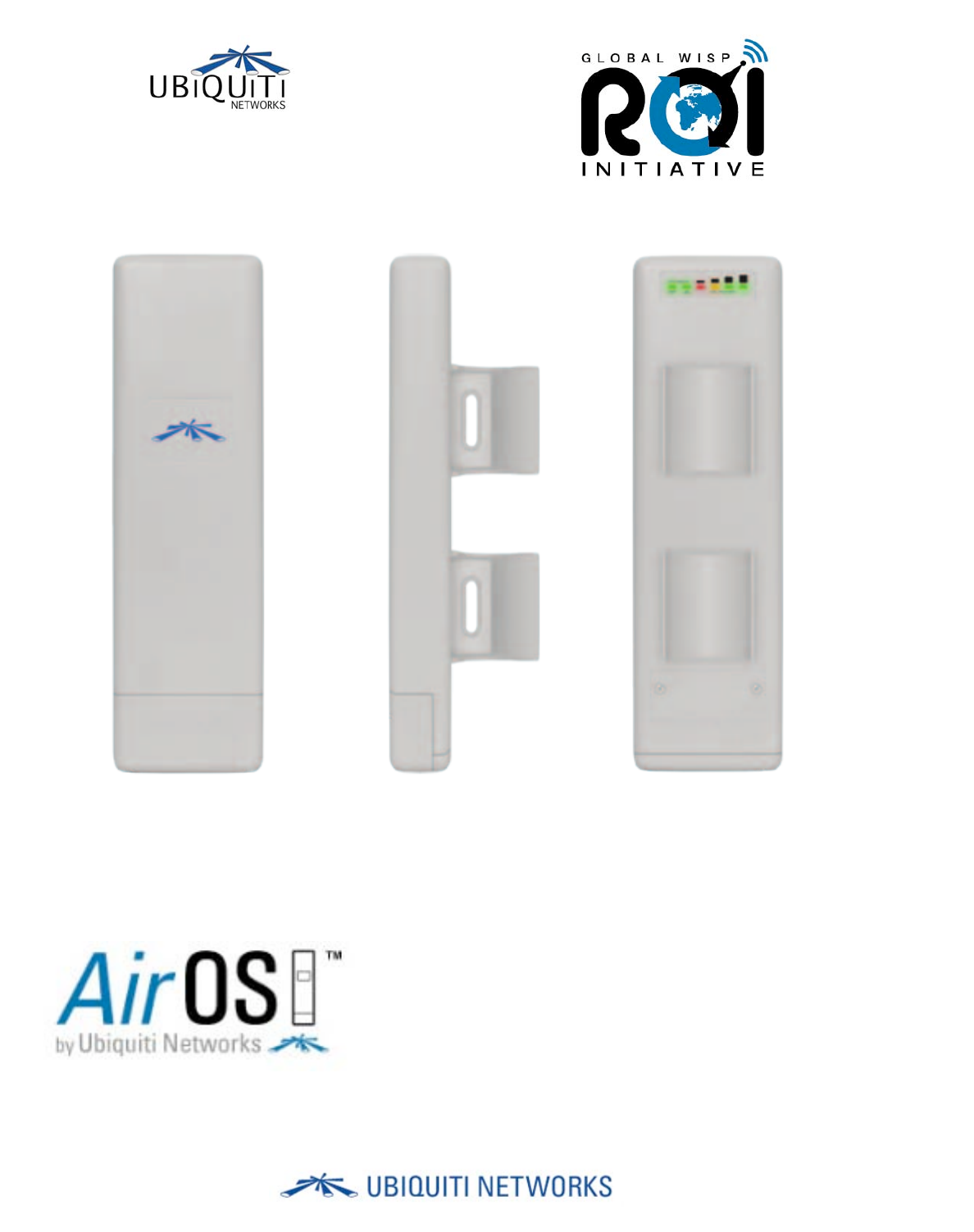

NanoStation2
User Guide

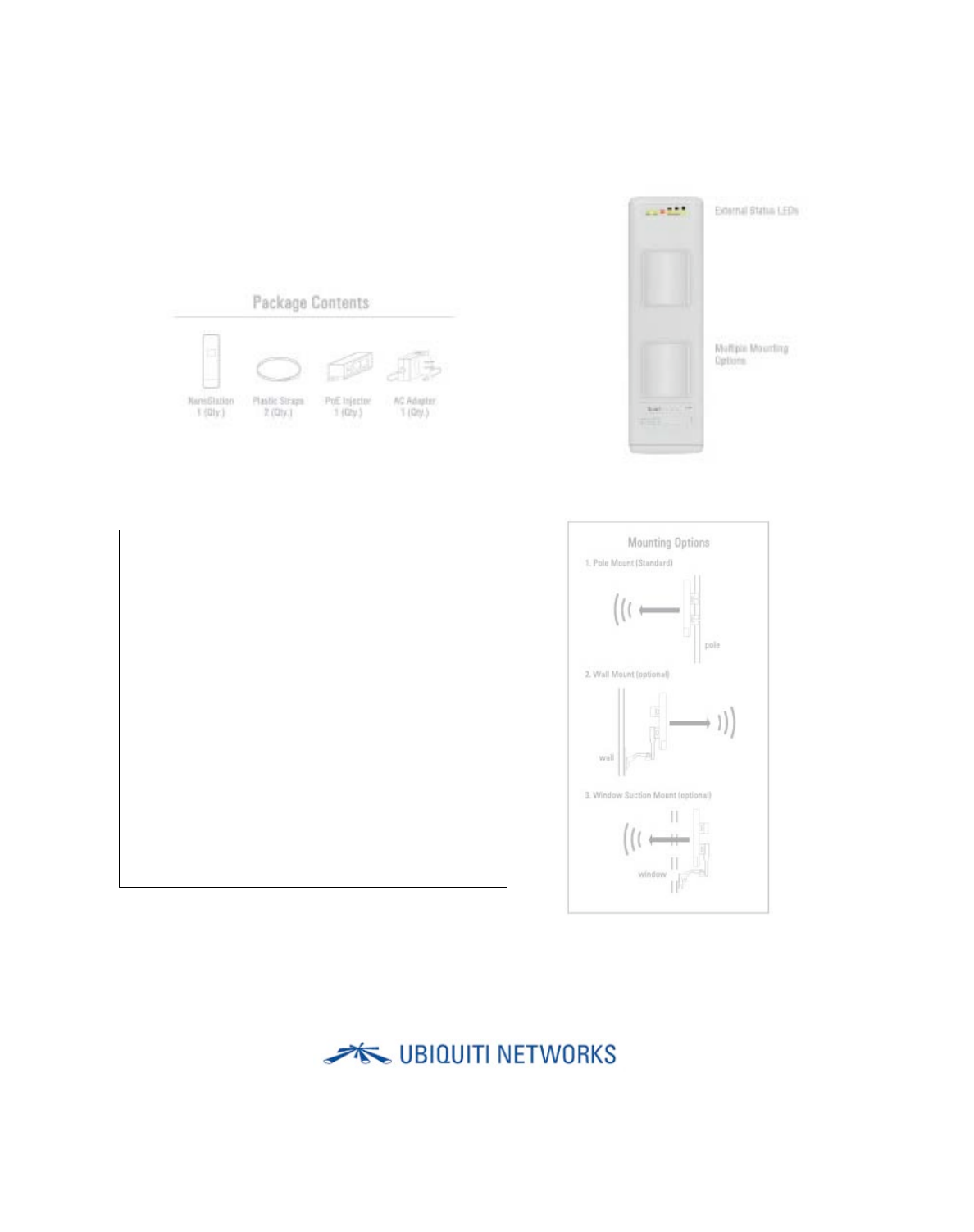

USER INSTRUCTIONS
1. Launch web browser and type 192.168.1.20 to access NanoStation
2. Enter "UBNT" for both username and password
www.ubnt.com

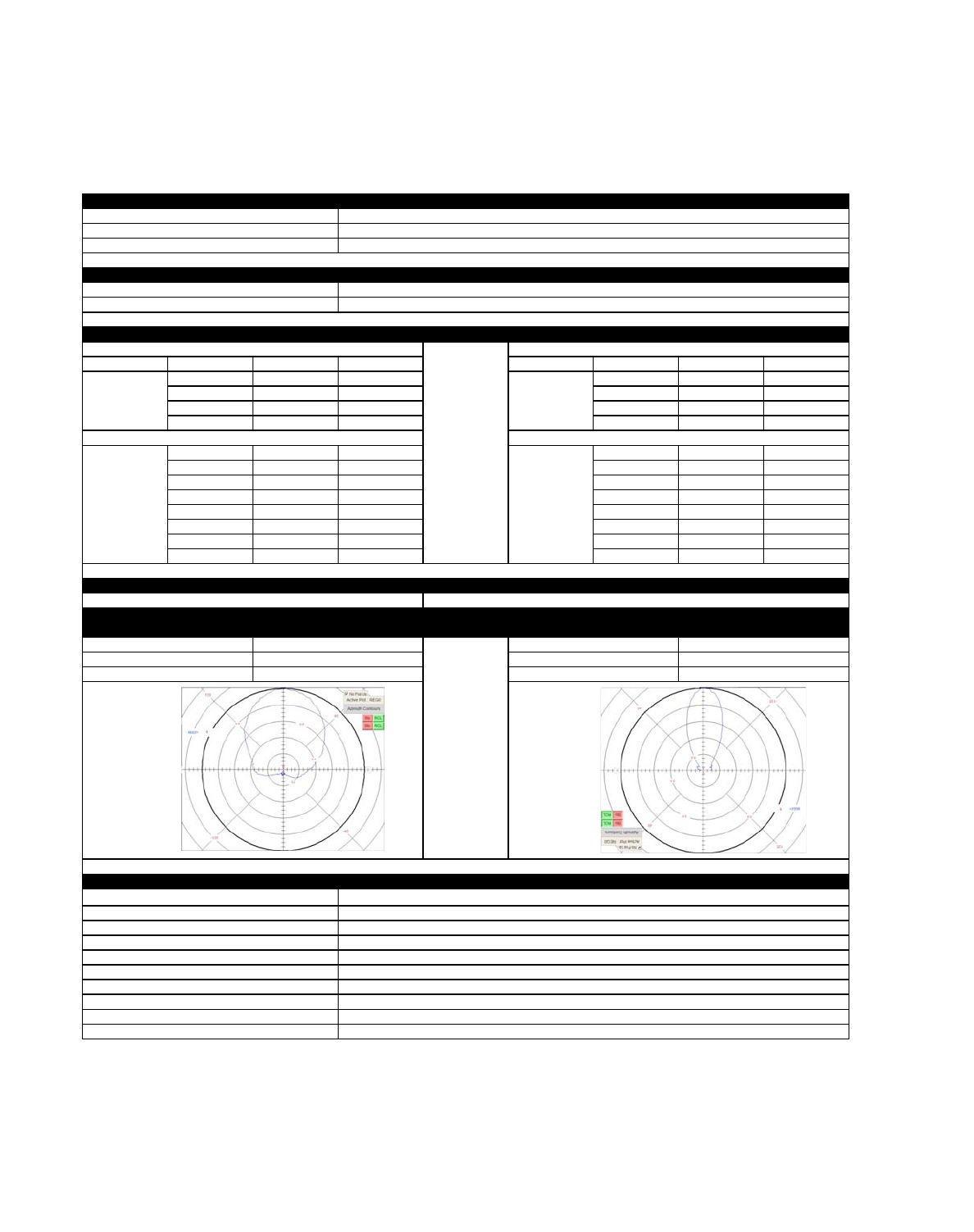

TECHNICAL SPECIFICATIONS
DataRate TX Power Tolerance DataRate Sensitivity Tolerance
1Mbps 26 dBm +/-1dB 1Mbps -97 dBm +/-1dB
2Mbps 26 dBm +/-1dB 2Mbps -96 dBm +/-1dB
5.5Mbps 26 dBm +/-1dB 5.5Mbps -95 dBm +/-1dB
11Mbps 26 dBm +/-1dB 11Mbps -92 dBm +/-1dB
6Mbps 26 dBm +/-1dB 6Mbps -94 dBm +/-1dB
9Mbps 26 dBm +/-1dB 9Mbps -93 dBm +/-1dB
12Mbps 26 dBm +/-1dB 12Mbps -91 dBm +/-1dB
18Mbps 26 dBm +/-1dB 18Mbps -90 dBm +/-1dB
24Mbps 26 dBm +/-1dB 24Mbps -86 dBm +/-1dB
36Mbps 24 dBm +/-1dB 36Mbps -83 dBm +/-1dB
48Mbps 23 dBm +/-1dB 48Mbps -77 dBm +/-1dB
54Mbps 22 dBm +/-1dB 54Mbps -74 dBm +/-1dB
Shock and Vibration
ETSI300-019-1.4
Power Method
Passive Power over Ethernet (pairs 4,5+; 7,8 return)
Max Power Consumption
4 Watts
Power Supply
Operating Temperature
-20C to +70C
Operating Humidity
5 to 95% Condensing
12V, 1A (12 Watts). Supply and injector included
Enclosure Characteristics
Outdoor UV Stabalized Plastic
Mounting Kit
Pole Mounting Kit included
Enclosure Size
26.4 cm x 8 cm x 3cm
Weight
0.4kg
Azimuth
Elevation
PHYSICAL / ELECTRICAL / ENVIRONMENTAL
Multi-Polarized
3dB Beamwidth Elevation
30 degrees
Polarization Selection
Software Controlled
3dB Beamwidth Azimuth
60 degrees
Polarization
Networking Interface
2 X 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet Interface
Gain
10dBi (2400-2500MHz)
RoHS Compliance
YES
REGULATORY / COMPLIANCE INFORMATION
SYSTEM INFORMATION
Processor Specs
Atheros AR2315 SOC, MIPS 4KC, 180MHz
Memory Information
16MB SDRAM, 4MB Flash
Wireless Approvals
FCC Part 15.247, IC RS210, CE
RADIO OPERATING FREQUENCY 2412-2462 MHz
ANTENNA
Outdoor (BaseStation Antenna Dependent):
Over 15km
RANGE PERFORMANCE
802.11b
802.11g OFDM
802.11g OFDM
TX SPECIFICATIONS
RX SPECIFICATIONS
802.11b
www.ubnt.com
NOTE: This equipment has been tested and found
to comply with the limits for a Class A digital
device, pursuant to part 15 of the FCC Rules.
These limits are designed to pro-vide reasonable
protection against harmful interference when the
equipment is operated in a commercial
environment. This equipment generates, uses, and
can radiate radio frequency energy and, if not
installed and used in accordance with the
instruction manual, may cause harmful
interference to radio communications. Operation
of this equipment in a residential area is likely to
cause harmful interference in which case the user
will be required to correct the interference at his
own expense.
!
Changes or modifications not expressly approved
by the party responsible for compliance could void
the user’s authority to operate the equipment.
ADDITIONAL INFORMATION AND COMPLIANCE
This is a Point-to-Point CPE Wireless Device.
