Ubiquiti SR5 5.8 GHz 802.11a Mini-PCI Card User Manual
Ubiquiti Networks, Inc. 5.8 GHz 802.11a Mini-PCI Card Users Manual
Ubiquiti >
Users Manual
SR5 MANUAL
The SR5 hi-power mini-PCI 802.11a radio card module has been specifically
designed for use in outdoor wireless applications where additional link gain is
critical. It is compatible with existing Atheros linux drivers and is capable of
operation in the 5725-5850 MHz frequency range. Power and frequency limits
are hard programmed into the radio card EEPROM, but card compatibility can
be achieved with any Atheros Linux based software. Many SBC host platforms
have been qualified for use with the SR5 module including:
-Mikrotik Router Boards
-PC Engines WRAP boards
-Many SBC platforms from large telecommunication companies
It is necessary that the system integrators perform all applicable retesting and
certification for their final system configurations.
EXAMPLE OEM SYSTEM USAGE
MODULAR USAGE
PC ENGINES
WRAP Wireless
Router Board
ATHEROS
PUBLIC
MADWIFI Driver
Ubiquiti Networks, Inc.
778 N. First St.
San Jose, CA 95112
(408)-385-1103
SR5
Pac Wireless Roo Tenna
Antenna/Enclosure
Software Driver
SR5 IMPORTANT MODULAR APPROVAL INFORMATION
This device is intended only form OEM integrator under the following conditions:
1) The antenna must be installed such that 20cm is maintained between the antenna and
users, and
2) The transmitter module may not be co-located with any other transmitter or antenna.
IMPORTANT NOTE: In the event that these conditions cannot be met (for example
certain laptop configurations or co-location with another transmitter), then the FCC
authorization is no longer considered valid and the FCC ID cannot be used on the final
product. In these circumstances, the OEM integrator will be responsible for re-evaluating
the end product (including the transmitter) and obtaining a separate FCC authorization.
End Product Labeling
This transmitter module is authorized only for use in devices where the antenna may be
installed such that 20 cm may be maintained between the antenna and users (for example
access points, routers, wireless ADSL modems, and similar equipment). The final end
product must be labeled in visible area with the following:
“Contains TX FCC ID SWX-SR5:
End Product Manual Information
The user manual for end users must include the following information in a prominent
location “IMPORTANT NOTE: To comply with FCC RF exposure compliance
requirements, the antenna used for this transmitter must be installed to provide a
separation distance of at least 20cm from all persons and must not be co-located or
operating in conjunction with any other antenna or transmitter.”

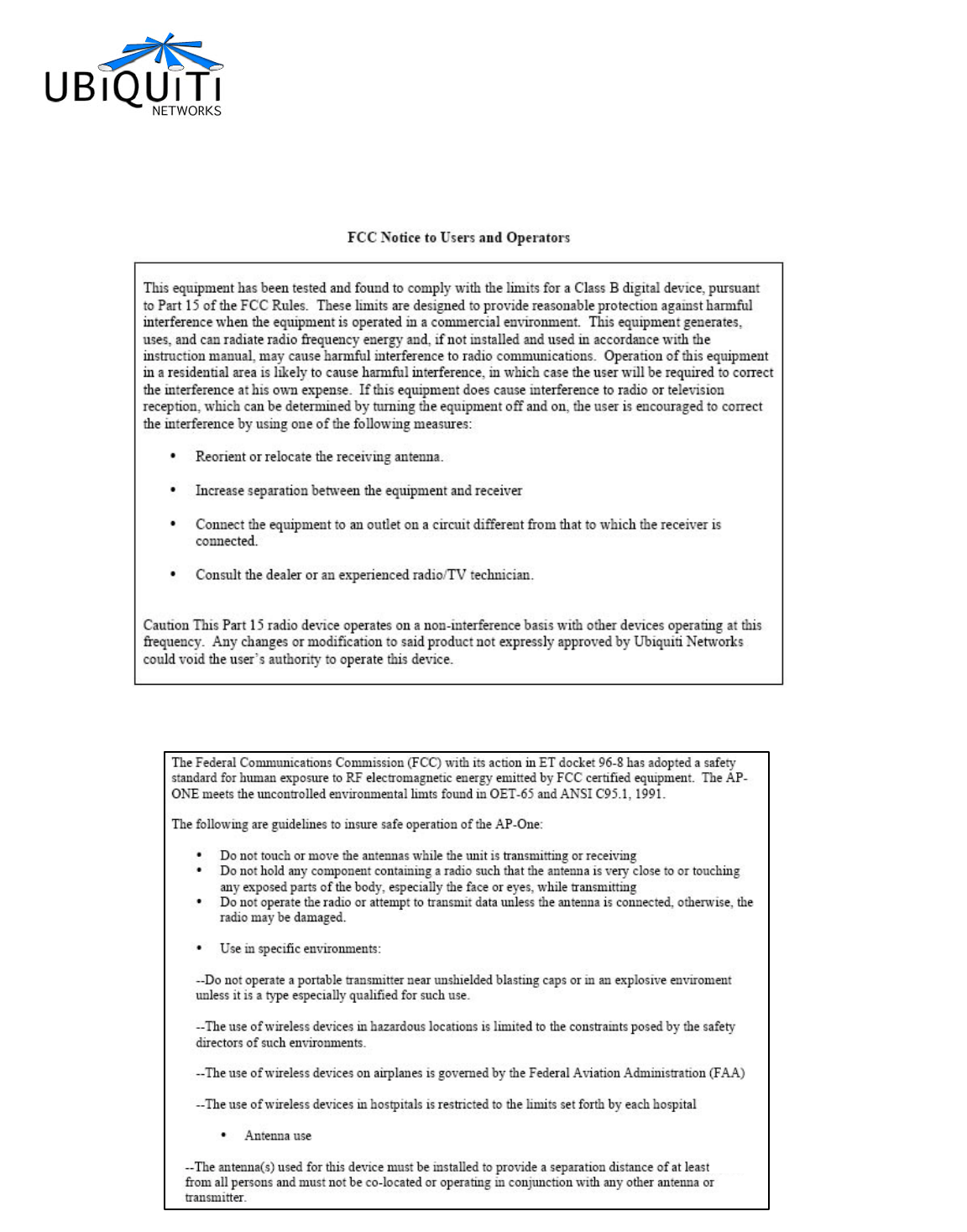

SR5 IMPORTANT OPERATION INFORMATION
Safety Information
20 cm
