Ubiquiti SR71 802.11a/b/g/n Module User Manual SR71 guide graffle

Ubiquiti Networks, Inc. 802.11a/b/g/n Module SR71 guide graffle

Contents

Manual

SR71-A
Outdoor 3x3 802.11n MIMO mini-PCI Module
www.ubnt.com
DataRate Avg. TX Tolerance DataRate Sensitivity Tolerance
1-24Mbps 24 dBm +/-2dB 1-24Mbps -97 dBm +/-3dB
36Mbps 22 dBm +/-2dB 36Mbps -90 dBm +/-3dB
48Mbps 20 dBm +/-2dB 48Mbps -86 dBm +/-3dB
54Mbps 19 dBm +/-2dB 54Mbps -84 dBm +/-3dB
MCS0 24 dBm +/-2dB MCS0 -97 dBm +/-3dB
MCS1 24 dBm +/-2dB MCS1 -96 dBm +/-3dB
MCS2 24 dBm +/-2dB MCS2 -93 dBm +/-3dB
MCS3 22 dBm +/-2dB MCS3 -91 dBm +/-3dB
MCS4 22 dBm +/-2dB MCS4 -87 dBm +/-3dB
MCS5 22 dBm +/-2dB MCS5 -84 dBm +/-3dB
MCS6 18 dBm +/-2dB MCS6 -78 dBm +/-3dB
MCS7 15 dBm +/-2dB MCS7 -75 dBm +/-3dB
MCS8 24 dBm +/-2dB MCS8 -96 dBm +/-3dB
MCS9 24 dBm +/-2dB MCS9 -94 dBm +/-3dB
MCS10 22 dBm +/-2dB MCS10 -91 dBm +/-3dB
MCS11 20 dBm +/-2dB MCS11 -88 dBm +/-3dB
MCS12 20 dBm +/-2dB MCS12 -85 dBm +/-3dB
MCS13 17 dBm +/-2dB MCS13 -80 dBm +/-3dB
MCS14 17 dBm +/-2dB MCS14 -79 dBm +/-3dB
MCS15 15 dBm +/-2dB MCS15 -76 dBm +/-3dB
DataRate Avg. TX Tolerance DataRate Sensitivity Tolerance
1-24Mbps 24 dBm +/-2dB 1-24Mbps -96 dBm +/-3dB
36Mbps 22 dBm +/-2dB 36Mbps -95 dBm +/-3dB
48Mbps 20 dBm +/-2dB 48Mbps -94 dBm +/-3dB
54Mbps 19 dBm +/-2dB 54Mbps -91 dBm +/-3dB
MCS0 24 dBm +/-2dB MCS0 -96 dBm +/-3dB
MCS1 24 dBm +/-2dB MCS1 -95 dBm +/-3dB
MCS2 24 dBm +/-2dB MCS2 -92 dBm +/-3dB
MCS3 22 dBm +/-2dB MCS3 -90 dBm +/-3dB
MCS4 22 dBm +/-2dB MCS4 -86 dBm +/-3dB
MCS5 22 dBm +/-2dB MCS5 -83 dBm +/-3dB
MCS6 18 dBm +/-2dB MCS6 -77 dBm +/-3dB
MCS7 15 dBm +/-2dB MCS7 -74 dBm +/-3dB
MCS8 24 dBm +/-2dB MCS8 -95 dBm +/-3dB
MCS9 24 dBm +/-2dB MCS9 -93 dBm +/-3dB
MCS10 22 dBm +/-2dB MCS10 -90 dBm +/-3dB
MCS11 20 dBm +/-2dB MCS11 -87 dBm +/-3dB
MCS12 20 dBm +/-2dB MCS12 -84 dBm +/-3dB
MCS13 17 dBm +/-2dB MCS13 -79 dBm +/-3dB
MCS14 17 dBm +/-2dB MCS14 -78 dBm +/-3dB
MCS15 15 dBm +/-2dB MCS15 -75 dBm +/-3dB
MODE 6Mbps MCS0 MCS15 MODE 6Mbps MCS0 MCS15
100% TX 1.25A 1.25A 1.25A 100% TX 1.25A 1.25A 1.25A
Real-World 0.75A 0.80A 0.45A Real-World 0.75A 0.80A 0.35A
Idle 0.30A 0.30A 0.30A Idle 0.30A 0.30A 0.30A
RoHS Compliance
-20C to +70C (extended temp version up to +95C)
802.11i with AES-CCM & TKIP Encryption, 802.1x, 64/128/152bit WEP
Legacy 802.11a/b/g (1-54Mbps), 802.11n (up to 300Mbps)
Data Rates
Security
Temperature Range
YES
Radio Operation
Wireless Chipset
IEEE 802.11a/b/g/n
Atheros AR9160 with DFS SUPPORT
Operation Voltage
Interface
3.3VDC
(3) MMCX for 3x3 MIMO Operation
32-bit mini-PCI Type IIIA
Antenna Ports
OPERATING FREQUENCY 2412MHz-2462MHz
greater than 60km
Wireless Modular Approvals
FCC , Industry Canada, CE (100mW limited)
2.4GHz RX SPECIFICATIONS
REGULATORY INFORMATION
11b/g
Ubiquiti LiteStationX + AirOS
11b/g
Outdoor (Antenna Dependent):
Indoor (Antenna Dependent):
OPERATING FREQUENCY 5745MHz-5825MHz
AVG. CURRENT CONSUMPTION INFORMATION
greater than 300m
RANGE PERFORMANCE
DRIVER INFORMATION
For help with special driver support, please e-mail support@ubnt.com
2.4GHz 11n HT20 / HT40
Operating System Support
2.4GHz 11n HT20 / HT40
2.4GHz TX POWER SPECIFICATIONS
5GHz RX SPECIFICATIONS
11a
11a
5GHz TX POWER SPECIFICATIONS
5GHz 11n
5GHz 11n
COMPLIANCE INFORMATION
FCC
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to pro-vide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be required to correct the
interference at his own expense.
!
The antennas used for this transmitter must be installed to provide a separation
distance of at least 194.09cm from all persons and must not be located or
operating in conjunction with any other antenna or transmitter.
!
INDUSTRY CANADA
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe A est conforme à! la norme NMB-003 du
Canada.
!
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including
interference that may cause undesired operation of the device.
!!
To reduce potential radio interference to other users, the antenna type and its
gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.)
is not more than that permitted for successful communication.!

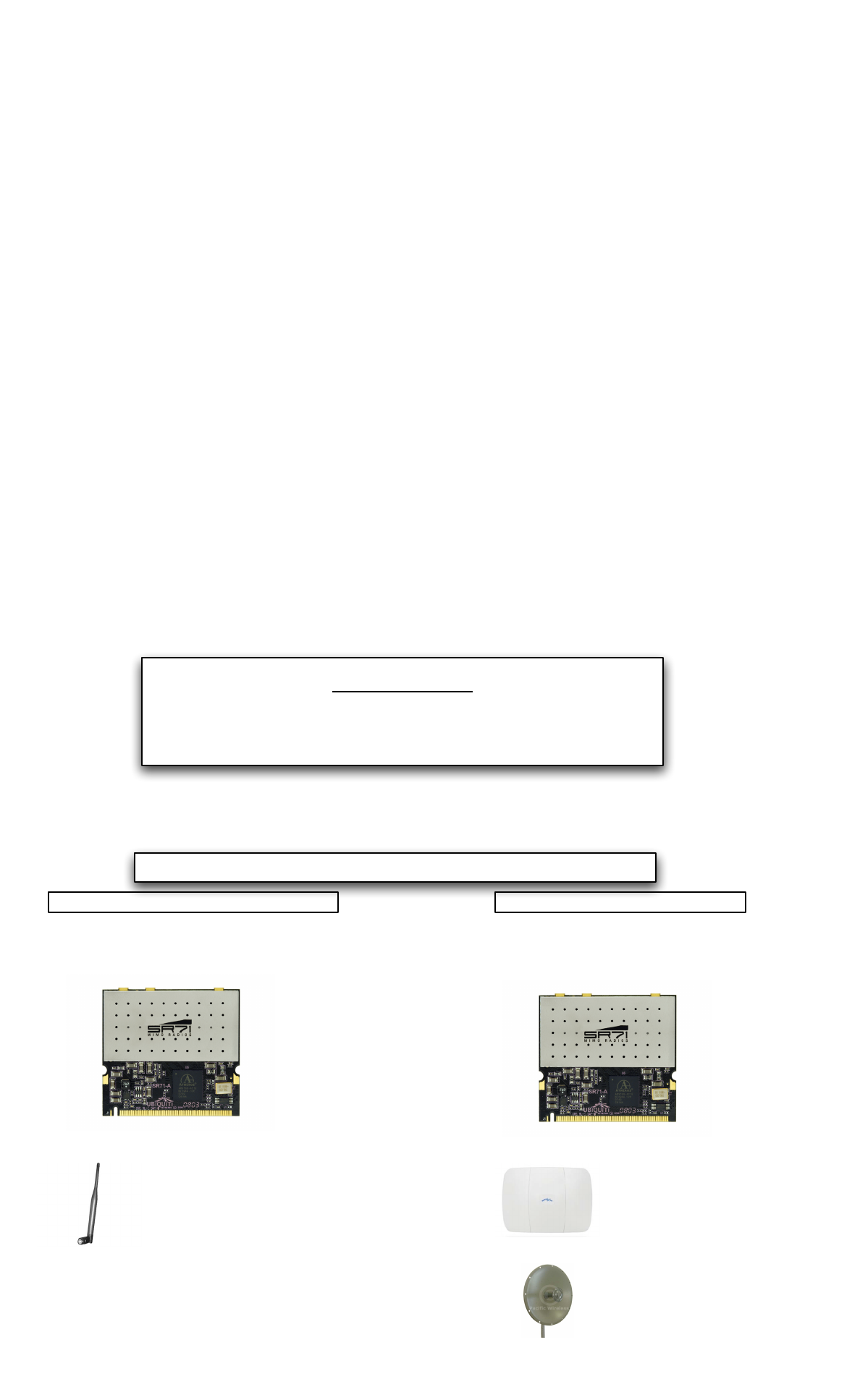

Antenna Use (Point to Multipoint) Antenna Use (Point to Point)
Chain0 Chain1 Chain2 Chain0
1x1 Operation
3x3 Operation
Pacific Wireless HDDA5W-32
UBIQUITI PANEL24-17
UBIQUITI OMNI24-5
IMPORTANT NOTE REGARDING ANTENNA USE
FCCID: SWX-SR71
IMPORTANT NOTE: EQUIPMENT MANUFACTURERS ARE
RESPONSIBLE FOR DISPLAYING SR71 MODULAR FCC ID ON
FINAL INTEGRATED EQUIPMENT
