SuperRangeXpress
OEM INTEGRATION GUIDE

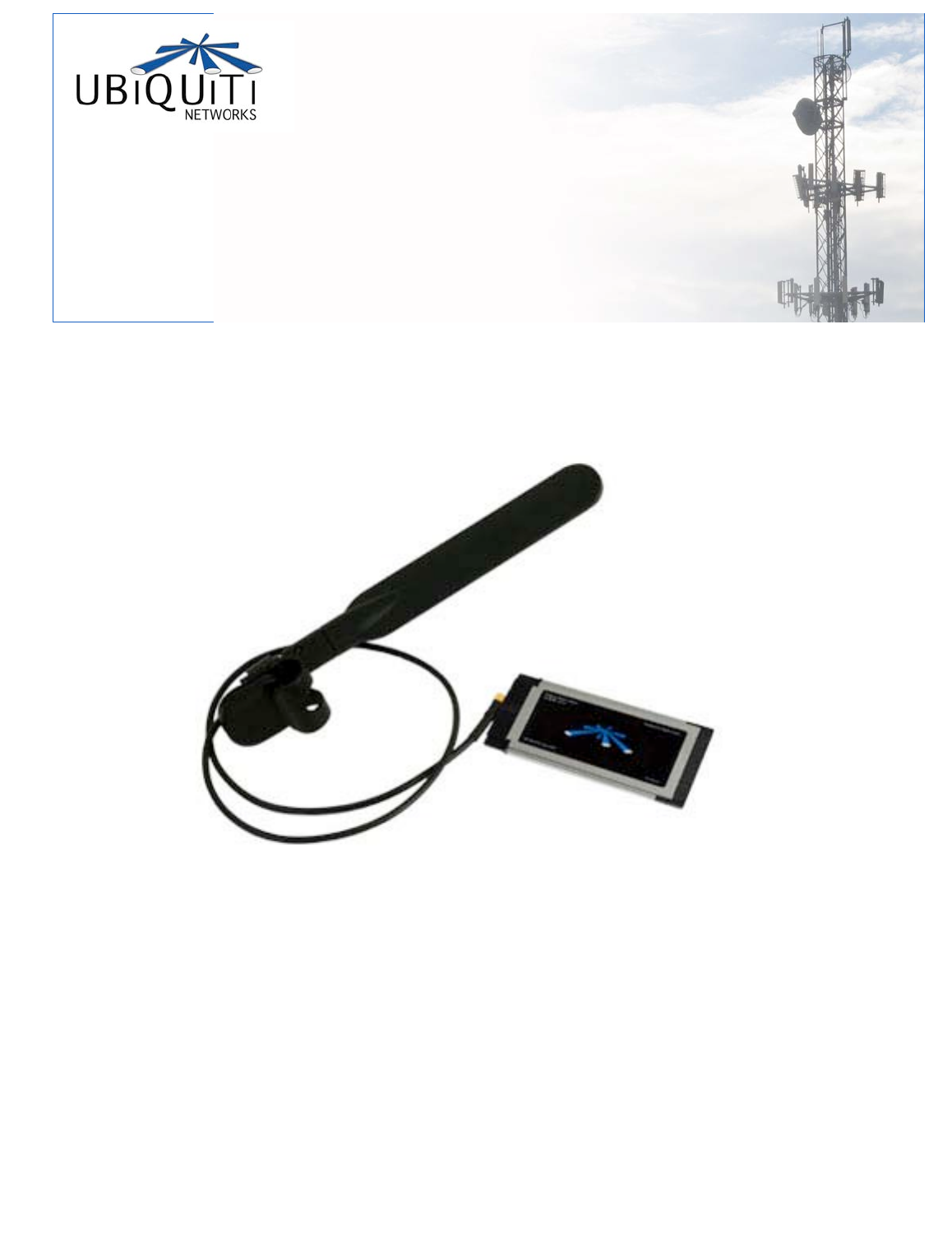

34mm Long Range Xpress Card
TECHNICAL SPECIFICATIONS
XTREMERange9
DataRate TX Power Tolerance DataRate Sensitivity Tolerance
1Mbps 24 dBm +/-1dB 1Mbps -96 dBm +/-1dB
2Mbps 24 dBm +/-1dB 2Mbps -95 dBm +/-1dB
5.5Mbps 24 dBm +/-1dB 5.5Mbps -94 dBm +/-1dB
11Mbps 24 dBm +/-1dB 11Mbps -91 dBm +/-1dB
6Mbps 24 dBm +/-1dB 6Mbps -94 dBm +/-1dB
9Mbps 24 dBm +/-1dB 9Mbps -93 dBm +/-1dB
12Mbps 24 dBm +/-1dB 12Mbps -91 dBm +/-1dB
18Mbps 24 dBm +/-1dB 18Mbps -90 dBm +/-1dB
24Mbps 24 dBm +/-1dB 24Mbps -86 dBm +/-1dB
36Mbps 23 dBm +/-1dB 36Mbps -83 dBm +/-1dB
48Mbps 22 dBm +/-1dB 48Mbps -77 dBm +/-1dB
54Mbps 20 dBm +/-1dB 54Mbps -74 dBm +/-1dB
6Mbps 19 dBm +/-1dB 6Mbps -94 dBm +/-1dB
9Mbps 19 dBm +/-1dB 9Mbps -93 dBm +/-1dB
12Mbps 19 dBm +/-1dB 12Mbps -91 dBm +/-1dB
18Mbps 19 dBm +/-1dB 18Mbps -90 dBm +/-1dB
24Mbps 19 dBm +/-1dB 24Mbps -86 dBm +/-1dB
36Mbps 18 dBm +/-1dB 36Mbps -83 dBm +/-1dB
48Mbps 16 dBm +/-1dB 48Mbps -77 dBm +/-1dB
54Mbps 15 dBm +/-1dB 54Mbps -74 dBm +/-1dB
DataRate TX Power Tolerance DataRate Sensitivity Tolerance
1Mbps 0.80 A +/-100 mA 1Mbps 350 mA +/-100 mA
2Mbps 0.80 A +/-100 mA 2Mbps 350 mA +/-100 mA
5.5Mbps 0.80 A +/-100 mA 5.5Mbps 350 mA +/-100 mA
11Mbps 0.80 A +/-100 mA 11Mbps 350 mA +/-100 mA
6-24Mbps 0.80 A +/-100 mA 6-24Mbps 350 mA +/-100 mA
36Mbps 0.75 A +/-100 mA 36Mbps 350 mA +/-100 mA
48Mbps 0.70 A +/-100 mA 48Mbps 350 mA +/-100 mA
54Mbps 0.60 A +/-100 mA 54Mbps 350 mA +/-100 mA
802.11a OFDM
802.11a OFDM
2.4GHz TX SPECIFICATIONS
11g/a
11g/a
802.11b
802.11b
RX CURRENT CONSUMPTION
TX CURRENT CONSUMPTION
Antenna Gain
5dBi
5.1 in x 0.83 in
Up to 150meters
RANGE PERFORMANCE
WindowsXP/2000 Utility with Enhanced Mobility Driver from Ubiquiti
CCX 4.0 Supported Driver/Utility also available from Ubiquiti
Mounting Type
Adjustable Laptop Clip Mount and Sticker Mount Included
For help with special driver support, please e-mail support@ubnt.com
Cisco Support
18 in with MMCX plug
Omni-directional / Vertically Polarized
Antenna Type / Polarization
Cable
Antenna Dimensions
LAPTOP ANTENNA INFORMATION
Advanced Mobility / QuickHandoff
Operating System Support
DRIVER INFORMATION
802.11b
802.11b
Outdoor (Antenna Dependent):
Indoor (Antenna Dependent):
OPERATING FREQUENCY 5745MHz-5825MHz
CURRENT CONSUMPTION INFORMATION
5GHz TX SPECIFICATIONS
5GHz RX SPECIFICATIONS
YES
OPERATING FREQUENCY 2412MHz-2462MHz
Linux, WindowsXP, Windows2000
Over 1km
Wireless Modular Approvals
FCC , Industry Canada, CE (100mW limited)
2.4GHz RX SPECIFICATIONS
Operation Voltage
Interface
3.3VDC
Single MMCX for External Antenna (internal Antenna also integrated)
PCI-Xpress Card, 34mm form factor
Antenna Ports
Radio Operation
Wireless Chipset
CARD INFORMATION
IEEE 802.11a/b/g with CCK/OFDM at BPSK/QPSK/16QAM/64QAM
Atheros 5006
-40C to +80C
WPA, WPA2, AES-CCM & TKIP Encryption, 802.1x, 64/128/152bit WEP
6Mbps, 9Mbps, 12Mbps, 24Mbps, 36Mbps, 48Mbps. 54Mbps
802.11g OFDM
802.11g OFDM
Data Rates
Security
Temperature Range
REGULATORY INFORMATION
RoHS Compliance
