Ubiquiti >
Users Manual
Enterprise VoIP Phone
of the Future
Model: UVP-X
Introduction
Thank you for purchasing the Ubiquiti Networks® UniFi® VoIP
Phone X. This Quick Start Guide is designed to guide you
through installation and includes the warranty terms.
Package Contents
Enterprise VoIP Phone
of the Future
Model: UVP-X
UniFi VoIP Phone X Micro Cloth Quick Start Guide
Installation Requirements
• 802.3 af 48V PoE or 5V/2A Micro-USB Adapter
• UniFi Controller or UniFi VoIP Controller
• Third-Party SIP/PBX Provider
TERMS OF USE: All Ethernet cabling runs must use CAT5 (or above). It is the customer’s
responsibility to follow local country regulations and indoor cabling requirements.
Before You Begin
Remove the protective
covering from the handset.
Remove the protective film
from the touchscreen.
Hardware Overview
Front
Calculator
Calculator
Calendar
Calendar
Chrome
Chrome
Clock
Clock
Downloads
Downloads
Drive
Drive
Email
Email
File Manager
File Manager
Gmail
Gmail
Gallery
Gallery
Google
Google
Google Settings
Google Settings
Maps
Maps
Hangouts
Hangouts
Google+
Google+
Keep
Keep
People
People
Phone
Phone
News & Weather
News & Weather
Photos
Photos
Touchscreen
LED
Volume
Touchscreen The 4" (diagonal) touchscreen display is used for
all interface navigation and dialing.
Volume Use the volume arrows to adjust audio levels.
LED The LED will light when the device is first connected to
a power source. Once the phone has started up, the LED will
turn off.
IMPORTANT: The LED will flash when a firmware update
is occurring. Do not disconnect power/Ethernet from the
device during this time.
Back Ports
PoE/LAN PCUSB
USB The USB port can be used to power the UniFi VoiP
PhoneX using a 5V/2A Micro-USB adapter.
802.3af 48V PoE/LAN Connects data and power to the
phone. Can be powered by a PoE adapter or switch that
supports 802.3af 48V PoE.
PC The Ethernet port labeled PC is used for bridging.
WARNING: Do not connect a powered Ethernet
connection to the port labeled PC.
Side Ports
Headset Jack 3.5 mm jack for optional wired stereo
and microphone headsets.
Handset
Mute
button
Mute Press the Mute button to mute the microphone on the
handset.

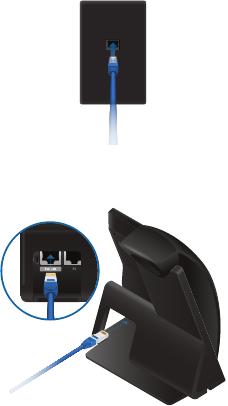

Hardware Installation
The UniFi VoIP Phone X is designed for desktop placement. To
connect the phone, perform the following steps:
1. Connect one end of an Ethernet cable to the wall jack that
is connected to your data network or service provider.
2. Connect the other end of the Ethernet cable to the port
labeled PoE/LAN on the UniFi VoIP Phone X.
*640-00186-06*
640-00186-06
Powering the UniFi VoIP Phone X
The UniFi VoIP Phone X can be powered using either of the
following methods:
• Power over Ethernet Use a switch or PoE adapter that
supports 802.3af/48V PoE.
• Micro-USB Adapter Use a 5V/2A Micro-USB adapter.
Power over Ethernet
If using PoE on a switch, ensure that the switch port connected
to the UniFi VoIP Phone supports 802.3af/48V.
NOTE: We recommend using the UniFi Switch to power
your UniFi VoIP Phones.
Micro-USB Adapter
If using a Micro-USB adapter, plug the Micro-USB connector
into the USB port on the UniFi VoIP Phone X and the power
connector to a power outlet.
Software Configuration
The UniFi VoIP Phone X can be setup via three primary
methods:
• Auto-configuration by your service provider If your
phone was shipped to you by your ISP (Internet Service
Provider) or ITSP (Internet Telephony Service Provider),
follow the hardware installation instructions and the phone
should automatically configure itself when connected.
• Auto-configuration via DHCP Option 66 To automatically
configure UVPs on a Local Area Network, DHCP Option 66
can be used. Refer to: ubnt.link/dhcpoption66
• Configuration using a Ubiquiti Controller The UniFi
VoIP Phone X can be used with the UniFi Controller or the
UniFi VoIP Controller software. The phone is automatically
detected by the Controller software.
NOTE: Ensure that you are using the latest version of the
Controller software. Earlier versions will not detect the
UniFi VoIP Phone X.
Installing the Controller Software
If you haven’t already installed the Controller software or
need to update to the latest version, you can download it at:
downloads.ubnt.com/unifi
Adopting the Phone in the Controller Software
NOTE: The UniFi Controller software is shown but the
steps are the same using the UniFi VoIP Controller.
1. Launch the Controller software and go to the Devices tab.
2. Click Adopt.
Navigating the Interface
The Home screen contains a Google™ search widget, five
default icons at the bottom of the screen, and three action
baricons.
Google Search Widget
Use the Google search widget to type or speak voice
commands. Touch the bar to bring up a virtual keyboard, or
touch the microphone icon to say a voice command.
Default Home Screen Icons
Icon Description
Phone Use the keypad to make a call or access
contacts, voicemail, and recent calls.
People Press to view a list of contacts.
Apps Press to access the Apps screen. This
default icon is the only one that cannot be
removed from the Home screen.
Google Play™ Store Press to open the Google
Play store. Download apps, music, movies,
books, games, and other media. A new or
existing account is required for access.
Google Apps Folder Contains the Google
suite of apps including Gmail™, YouTube™,
Chrome™, Hangouts™, Google Drive™,
GoogleMaps™, and more.
Action Bar Icons
Icon Description
Back Opens the previous screen you were
working in, even if it was in a different app.
Once you return to the Home screen, you can’t
go back any further.
Home Returns to the Home screen.
Recent Apps Displays a list of recently used
apps. Press an app to open it. To close an app
and remove it from the list, swipe it left or right.
Customizing the Home Screen
Widgets and shortcuts to favorite apps can be placed on the
Home screen. Multiple app shortcuts can also be grouped into
one folder.
Adding App Shortcuts to the Home Screen
To place an app on the Home screen, press the Apps icon on
the Home screen. The Apps screen will be displayed. Press and
hold the icon until it appears on the Home screen. Drag the
icon to the desired location and release it.
Creating Folders on the Home Screen
To create a folder containing multiple app shortcuts, drag an
app shortcut over another app shortcut on the Home screen.
Removing Items from the Home Screen
To remove a widget or app shortcut from the Home screen,
press and hold the item until the Remove text appears at the
top of the screen. Drag the item to the Remove text.
Making a Call
Lift the handset to make a call and the dialer screen will
appear. Use the touchscreen to enter the phone number.
Use the Delete button to correct any mistakes. Press the Call
button to make a call.
Delete
Contacts
Call
Voicemail
Recents
Favorites
Smart
Search
Call Manager
Volume
Slider
Connected
Number
Connection
Status
SpeakerMute
Contacts
Hold
Add New Call
Keypad
Conference
Transfer
Connected Number Displays the extension or phone number
that is being dialed or that is currently connected.
Volume Slider Use the slider to increase or decrease the
volume level.
NOTE: The volume buttons on the front of the product
will also adjust the volume level.
Connection Status Displays “Dialing” or the total elapsed
time of the currently connected call.

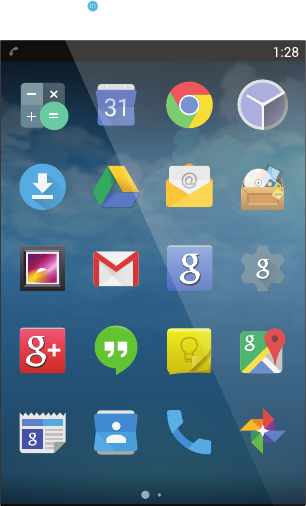

Apps Screen
Pressing the Apps icon brings up the Apps screen. Touch an
app icon to launch an app.
Calculator
Calculator
Calendar
Calendar
Chrome
Chrome
Clock
Clock
Downloads
Downloads
Drive
Drive
Email
Email
File Manager
File Manager
Gmail
Gmail
Gallery
Gallery
Google
Google
Google Settings
Google Settings
Maps
Maps
Hangouts
Hangouts
Google+
Google+
Keep
Keep
People
People
Phone
Phone
News & Weather
News & Weather
Photos
Photos
For additional details on using the UniFi VoIP Phone X, refer to
the UniFi VoIP Phone User Guide at documentation.ubnt.com
Specifications
UVP-X
Dimensions 148.06 x 136.80 x 103.32 mm (5.83 x 5.39 x 4.07")
Weight 735 g (1.62 lbs)
Display 4" (Diagonal), 480 x 800 ppi, G&F Virtual
Multi-Touch, Full-Color
LED Power: White, Glowing
Handset Dynamic Receiver 32 ohm/101 dB/30 mW
Microphone Omnidirectional/-36dB/2.2Kohm
Power Input 802.3af PoE (10W)
USB 5V/2A
Hands-Free Speaker Mono 1W
Hands-Free
Microphone
Omnidirectional/SNR 66 dB
Sensitivity -38 dB
Analog Silicon Microphone
Connectivity (2) 10/100 Ethernet Ports
(1) USB 2.0 Micro-USB Port
Wi-Fi 802.11b/g/n
Headset Support 3.5 mm Audio Jack
30mW CTIA (LRGM)
Bluetooth 4.0
Accessory Detection Media Detection
Processor Dual-Core Cortex A7, 1.3 GHz
Storage 8 GB (Shared with Other Applications)
SDRAM 512 MB
Software
OS Android™ 5.1, Lollipop
Protocol SIP/SDP/RTP/RTCP/VLAN/DHCP/STUN
Import Warning Regarding Emergency Calls
NOTE THAT THE LIMITATIONS SET FORTH BELOW ARE APPLICABLE TO
ALL EMERGENCY CALLS, FUNCTIONS AND SERVICES, INCLUDING 911,
ENHANCED 911 AND 112 CALLS (COLLECTIVELY, “EMERGENCY SERVICES”).
1. You should be aware that:
a. Emergency Services may not connect to the Public Service
Answering Point (“PSAP”), or may ring to the administrative line
of the PSAP, which may not be staffed after hours, or by trained
emergency operators.
b. VoIP customers may need to provide location or other information
to their VoIP providers, and update this information if they change
locations, for their Emergency Services to function properly.
c. VoIP service may not work during a power outage, or when
the Internet connection fails or becomes overloaded. Consider
installing a backup power supply, maintaining a traditional phone
line or having a wireless phone as a backup.
d. VoIP service will not function if the telephone equipment or other
equipment necessary to place calls is not correctly configured.
e. Emergency Services may correctly connect to the PSAP, but may
not transmit the user’s phone number and/or location information.
f. VoIP calls may not be capable of being received and/or processed
by an emergency call center due to the center’s technical
limitations.
g. VoIP calls may be affected by other factors or force majeure events,
such as the quality of the broadband connection and network
congestion.
2. You should:
a. Provide your accurate physical address to your interconnected
VoIP service provider to ensure that emergency services can
quickly be dispatched to your location.
b. Be familiar with your VoIP service provider’s procedures for
updating your address, and promptly update address information
in the event of a change.
c. Have a clear understanding of any limitations of your Emergency
Services.
d. Inform children, babysitters and visitors about your VoIP service
and its Emergency Services limitations.
3. By installing the phone, you are affirmatively acknowledging that (i)
you have read and understood this Warning, (ii) you understand that
you may not be able to contact emergency services by dialing or using
any Emergency Service, and (iii) you understand that you must inform
users of the phone that they may not be able to contact emergency
services by dialing or using any Emergency Service.
4. IN NO EVENT SHALL UBIQUITI NETWORKS, ITS AFFILIATES,
OFFICERS, DIRECTORS, EMPLOYEES, REPRESENTATIVES, AGENTS
OR ANY OTHER THIRD-PARTY PROVIDER OR VENDOR WHO MAY
FURNISH SERVICES OR PRODUCTS TO YOU IN CONNECTION WITH
THE VOIP SERVICES OR THE EQUIPMENT BE HELD LIABLE FOR
ANY CLAIM, DAMAGE, OR LOSS WHATSOEVER ARISING FROM OR
RELATING TO EMERGENCY SERVICES, AND YOU HEREBY WAIVE
ANY AND ALL SUCH CLAIMS OR CAUSES OF ACTION ARISING
THEREFROM OR RELATING THERETO.
Safety Notices
1. Read, follow, and keep these instructions.
2. Heed all warnings.
3. Only use attachments/accessories specified by the manufacturer.
WARNING: Do not use this product in location that can
be submerged by water.
Electrical Safety Information
1. Compliance is required with respect to voltage, frequency, and current
requirements indicated on the manufacturer’s label. Connection to a
different power source than those specified may result in improper
operation, damage to the equipment or pose a fire hazard if the
limitations are not followed.
2. There are no operator serviceable parts inside this equipment. Service
should be provided only by a qualified service technician.
3. This equipment is provided with a detachable power cord which has
an integral safety ground wire intended for connection to a grounded
safety outlet.
a. The equipment requires the use of the ground wire as a part of the
safety certification, modification or misuse can provide a shock
hazard that can result in serious injury or death.
b. Contact a qualified electrician or the manufacturer if there
are questions about the installation prior to connecting the
equipment.
c. Protective earthing is provided by Listed AC adapter. Building
installation shall provide appropriate short-circuit backup
protection.
d. Protective bonding must be installed in accordance with local
national wiring rules and regulations.
Limited Warranty
UBIQUITI NETWORKS, Inc (“UBIQUITI NETWORKS”) warrants that the
product(s) furnished hereunder (the “Product(s)”) shall be free from defects
in material and workmanship for a period of one (1) year from the date
of shipment by UBIQUITI NETWORKS under normal use and operation.
UBIQUITI NETWORKS’ sole and exclusive obligation and liability under
the foregoing warranty shall be for UBIQUITI NETWORKS, at its discretion,
to repair or replace any Product that fails to conform to the above
warranty during the above warranty period. The expense of removal and
reinstallation of any Product is not included in this warranty. The warranty
period of any repaired or replaced Product shall not extend beyond its
original term.
Warranty Conditions
The above warranty does not apply if the Product:
(I) has been modified and/or altered, or an addition made thereto,
except by Ubiquiti Networks, or Ubiquiti Networks’ authorized
representatives, or as approved by Ubiquiti Networks in writing;
(II) has been painted, rebranded or physically modified in any way;
(III) has been damaged due to errors or defects in cabling;
(IV) has been subjected to misuse, abuse, negligence, abnormal physical,
electromagnetic or electrical stress, including lightning strikes, or
accident;
(V) has been damaged or impaired as a result of using third party
firmware;
(VI) has no original Ubiquiti MAC label, or is missing any other original
Ubiquiti label(s); or
(VII) has not been received by Ubiquiti within 30 days of issuance of
the RMA.
In addition, the above warranty shall apply only if: the product has been
properly installed and used at all times in accordance, and in all material
respects, with the applicable Product documentation; all Ethernet cabling
runs use CAT5 (or above), and for outdoor installations, shielded Ethernet
cabling is used, and for indoor installations, indoor cabling requirements
are followed.
Returns
No Products will be accepted for replacement or repair without obtaining
a Return Materials Authorization (RMA) number from UBIQUITI NETWORKS
during the warranty period, and the Products being received at UBIQUITI
NETWORKS’ facility freight prepaid in accordance with the RMA process of
UBIQUITI NETWORKS. Products returned without an RMA number will not
be processed and will be returned freight collect or subject to disposal.
Information on the RMA process and obtaining an RMA number can be
found at: www.ubnt.com/support/warranty.
Disclaimer
EXCEPT FOR ANY EXPRESS WARRANTIES PROVIDED HEREIN, UBIQUITI
NETWORKS, ITS AFFILIATES, AND ITS AND THEIR THIRD PARTY DATA,
SERVICE, SOFTWARE AND HARDWARE PROVIDERS HEREBY DISCLAIM
AND MAKE NO OTHER REPRESENTATION OR WARRANTY OF ANY KIND,
EXPRESS, IMPLIED OR STATUTORY, INCLUDING, BUT NOT LIMITED TO,
REPRESENTATIONS, GUARANTEES, OR WARRANTIES OF MERCHANTABILITY,
ACCURACY, QUALITY OF SERVICE OR RESULTS, AVAILABILITY,
SATISFACTORY QUALITY, LACK OF VIRUSES, QUIET ENJOYMENT, FITNESS
FOR A PARTICULAR PURPOSE AND NON-INFRINGEMENT AND ANY
WARRANTIES ARISING FROM ANY COURSE OF DEALING, USAGE OR
TRADE PRACTICE IN CONNECTION WITH SUCH PRODUCTS AND SERVICES.
BUYER ACKNOWLEDGES THAT NEITHER UBIQUITI NETWORKS NOR
ITS THIRD PARTY PROVIDERS CONTROL BUYER’S EQUIPMENT OR THE
TRANSFER OF DATA OVER COMMUNICATIONS FACILITIES, INCLUDING
THE INTERNET, AND THAT THE PRODUCTS AND SERVICES MAY BE
SUBJECT TO LIMITATIONS, INTERRUPTIONS, DELAYS, CANCELLATIONS
AND OTHER PROBLEMS INHERENT IN THE USE OF COMMUNICATIONS
FACILITIES. UBIQUITI NETWORKS, ITS AFFILIATES AND ITS AND THEIR THIRD
PARTY PROVIDERS ARE NOT RESPONSIBLE FOR ANY INTERRUPTIONS,
DELAYS, CANCELLATIONS, DELIVERY FAILURES, DATA LOSS, CONTENT
CORRUPTION, PACKET LOSS, OR OTHER DAMAGE RESULTING FROM ANY
OF THE FOREGOING. In addition, UBIQUITI NETWORKS does not warrant
that the operation of the Products will be error-free or that operation will
be uninterrupted. In no event shall UBIQUITI NETWORKS be responsible
for damages or claims of any nature or description relating to system
performance, including coverage, buyer’s selection of products (including
the Products) for buyer’s application and/or failure of products (including
the Products) to meet government or regulatory requirements.
Limitation of Liability
EXCEPT TO THE EXTENT PROHIBITED BY LOCAL LAW, IN NO EVENT WILL
UBIQUITI OR ITS SUBSIDIARIES, AFFILIATES OR SUPPLIERS BE LIABLE FOR
DIRECT, SPECIAL, INCIDENTAL, CONSEQUENTIAL OR OTHER DAMAGES
(INCLUDING LOST PROFIT, LOST DATA, OR DOWNTIME COSTS), ARISING
OUT OF THE USE, INABILITY TO USE, OR THE RESULTS OF USE OF THE
PRODUCT, WHETHER BASED IN WARRANTY, CONTRACT, TORT OR OTHER
LEGAL THEORY, AND WHETHER OR NOT ADVISED OF THE POSSIBILITY OF
SUCH DAMAGES.
Note
Some countries, states and provinces do not allow exclusions of implied
warranties or conditions, so the above exclusion may not apply to you.
You may have other rights that vary from country to country, state to
state, or province to province. Some countries, states and provinces do not
allow the exclusion or limitation of liability for incidental or consequential
damages, so the above limitation may not apply to you. EXCEPT TO
THE EXTENT ALLOWED BY LOCAL LAW, THESE WARRANTY TERMS DO
NOT EXCLUDE, RESTRICT OR MODIFY, AND ARE IN ADDITION TO, THE
MANDATORY STATUTORY RIGHTS APPLICABLE TO THE LICENSE OF ANY
SOFTWARE (EMBEDDED IN THE PRODUCT) TO YOU. The United Nations
Convention on Contracts for the International Sale of Goods shall not apply
to any transactions regarding the sale of the Products.
Compliance
FCC
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions:
1.
This device may not cause harmful interference, and
2.
This device must accept any interference received, including
interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and receiver.
•
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
•
Consult the dealer or an experienced radio/TV technician for help.
Operations of this equipment in a residential area is likely to cause
harmful interference in which case the user will be required to correct the
interference at his own expense.
Industry Canada
CAN ICES-3(B)/NMB-3(B)
This Class B digital apparatus complies with Canadian CAN ICES-003.
To reduce potential radio interference to other users, the antenna
type and its gain should be so chosen that the equivalent isotropically
radiated power (e.i.r.p.) is not more than that permitted for successful
communication.
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions:
1.
This device may not cause interference, and
2.
This device must accept any interference, including interference that
may cause undesired operation of the device.
This radio transmitter (IC: 6545A-UVPX) has been approved by Industry
Canada to operate with the antenna types listed below with the maximum
permissible gain and required antenna impedance for each antenna type
indicated. Antenna types not included in this list, having a gain greater
than the maximum gain indicated for that type, are strictly prohibited for
use with this device.
CAN ICES-3(B)/NMB-3(B)
Cet appareil numérique de la classe B est conforme à la norme NMB-003
du Canada.
Pour réduire le risque d’interférence aux autres utilisateurs, le type
d’antenne et son gain doivent être choisies de façon que la puissance
isotrope rayonnée équivalente (PIRE) ne dépasse pas ce qui est nécessaire
pour une communication réussie.
Cet appareil est conforme à la norme RSS Industrie Canada exempts de
licence norme(s). Son fonctionnement est soumis aux deux conditions
suivantes:
1.
Cet appareil ne peut pas provoquer d’interférences et
2.
Cet appareil doit accepter toute interférence, y compris les
interférences qui peuvent causer un mauvais fonctionnement du
dispositif.
Cet émetteur radio (IC: 6545A-UVPX) a été approuvée par Industrie Canada
pour l’exploitation avec l’antenne types énumérés ci-dessous avec le gain
maximal admissible et requis l’impédance de l’antenne pour chaque type
d’antenne indiqué. Types d’antenne non inclus dans cette liste, ayant un
gain supérieur au gain maximal indiqué pour ce type, sont strictement
interdits pour une utilisation avec cet appareil.
RF Exposure Warning
The antennas used for this transmitter must be installed to provide a
separation distance of at least 20 cm from all persons and must not be
located or operating in conjunction with any other antenna or transmitter.
Les antennes utilisées pour ce transmetteur doivent être installé en
considérant une distance de séparation de toute personnes d’au moins
20 cm et ne doivent pas être localisé ou utilisé en conflit avec tout autre
antenne ou transmetteur
CE Marking
CE marking on this product represents the product is in compliance with all
directives that are applicable to it.
RoHS/WEEE Compliance Statement
English
European Directive 2002/96/EC requires that the equipment bearing
this symbol on the product and/or its packaging must not be disposed
of with unsorted municipal waste. The symbol indicates that this
product should be disposed of separately from regular household waste
streams. It is your responsibility to dispose of this and other electric and
electronic equipment via designated collection facilities appointed by the
government or local authorities. Correct disposal and recycling will help
prevent potential negative consequences to the environment and human
health. For more detailed information about the disposal of your old
equipment, please contact your local authorities, waste disposal service, or
the shop where you purchased the product.
Deutsch
Die Europäische Richtlinie 2002/96/EC verlangt, dass technische
Ausrüstung, die direkt am Gerät und/oder an der Verpackung mit diesem
Symbol versehen ist, nicht zusammen mit unsortiertem Gemeindeabfall
entsorgt werden darf. Das Symbol weist darauf hin, dass das Produkt
von regulärem Haushaltmüll getrennt entsorgt werden sollte. Es
liegt in Ihrer Verantwortung, dieses Gerät und andere elektrische
und elektronische Geräte über die dafür zuständigen und von der
Regierung oder örtlichen Behörden dazu bestimmten Sammelstellen zu
entsorgen. Ordnungsgemäßes Entsorgen und Recyceln trägt dazu bei,
potentielle negative Folgen für Umwelt und die menschliche Gesundheit
zu vermeiden. Wenn Sie weitere Informationen zur Entsorgung Ihrer
Altgeräte benötigen, wenden Sie sich bitte an die örtlichen Behörden oder
städtischen Entsorgungsdienste oder an den Händler, bei dem Sie das
Produkt erworben haben.
Español
La Directiva 2002/96/CE de la UE exige que los equipos que lleven este
símbolo en el propio aparato y/o en su embalaje no deben eliminarse
junto con otros residuos urbanos no seleccionados. El símbolo indica
que el producto en cuestión debe separarse de los residuos domésticos
convencionales con vistas a su eliminación. Es responsabilidad suya
desechar este y cualesquiera otros aparatos eléctricos y electrónicos a
través de los puntos de recogida que ponen a su disposición el gobierno y
las autoridades locales. Al desechar y reciclar correctamente estos aparatos
estará contribuyendo a evitar posibles consecuencias negativas para el
medio ambiente y la salud de las personas. Si desea obtener información
más detallada sobre la eliminación segura de su aparato usado, consulte a
las autoridades locales, al servicio de recogida y eliminación de residuos de
su zona o pregunte en la tienda donde adquirió el producto.
Français
La directive européenne 2002/96/CE exige que l’équipement sur lequel
est apposé ce symbole sur le produit et/ou son emballage ne soit pas jeté
avec les autres ordures ménagères. Ce symbole indique que le produit
doit être éliminé dans un circuit distinct de celui pour les déchets des
ménages. Il est de votre responsabilité de jeter ce matériel ainsi que tout
autre matériel électrique ou électronique par les moyens de collecte
indiqués par le gouvernement et les pouvoirs publics des collectivités
territoriales. L’élimination et le recyclage en bonne et due forme ont pour
but de lutter contre l’impact néfaste potentiel de ce type de produits
sur l’environnement et la santé publique. Pour plus d’informations sur le
mode d’élimination de votre ancien équipement, veuillez prendre contact
avec les pouvoirs publics locaux, le service de traitement des déchets, ou
l’endroit où vous avez acheté le produit.
Italiano
La direttiva europea 2002/96/EC richiede che le apparecchiature
contrassegnate con questo simbolo sul prodotto e/o sull’imballaggio non
siano smaltite insieme ai rifiuti urbani non differenziati. Il simbolo indica
che questo prodotto non deve essere smaltito insieme ai normali rifiuti
domestici. È responsabilità del proprietario smaltire sia questi prodotti sia
le altre apparecchiature elettriche ed elettroniche mediante le specifiche
strutture di raccolta indicate dal governo o dagli enti pubblici locali. Il
corretto smaltimento ed il riciclaggio aiuteranno a prevenire conseguenze
potenzialmente negative per l’ambiente e per la salute dell’essere umano.
Per ricevere informazioni più dettagliate circa lo smaltimento delle vecchie
apparecchiature in Vostro possesso, Vi invitiamo a contattare gli enti
pubblici di competenza, il servizio di smaltimento rifiuti o il negozio nel
quale avete acquistato il prodotto.
Declaration of Conformity
Česky
[Czech]
UBIQUITI NETWORKS tímto prohlašuje, že toto UBIQUITI
NETWORKS zařízení, je ve shod se základními požadavky a dalšími
příslušnými ustanoveními směrnice 1999/5/ES.
Dansk
[Danish]
Hermed, UBIQUITI NETWORKS, erklærer at denne UBIQUITI
NETWORKS enhed, er i overensstemmelse med de væsentlige krav
og øvrige relevante krav i direktiv 1999/5/EF.
Nederlands
[Dutch]
Hierbij verklaart UBIQUITI NETWORKS, dat deze UBIQUITI
NETWORKS apparaat, in overeenstemming is met de essentiële
eisen en de andere relevante bepalingen van richtlijn 1999/5/EC.
English
Hereby, UBIQUITI NETWORKS, declares that this UBIQUITI
NETWORKS device, is in compliance with the essential requirements
and other relevant provisions of Directive 1999/5/EC.
Eesti
[Estonian]
Käesolevaga UBIQUITI NETWORKS kinnitab, et antud UBIQUITI
NETWORKS seade, on vastavus olulistele nõuetele ja teistele
asjakohastele sätetele direktiivi 1999/5/EÜ.
Suomi
[Finnish]
Täten UBIQUITI NETWORKS vakuuttaa, että tämä UBIQUITI
NETWORKS laite, on yhdenmukainen olennaisten vaatimusten ja
muiden sitä koskevien direktiivin 1999/5/EY.
Français
[French]
Par la présente UBIQUITI NETWORKS déclare que l’appareil
UBIQUITI NETWORKS, est conforme aux exigences essentielles et
aux autres dispositions pertinentes de la directive 1999/5/CE.
Deutsch
[German]
Hiermit erklärt UBIQUITI NETWORKS, dass sich dieses UBIQUITI
NETWORKS Gerät, in Übereinstimmung mit den grundlegenden
Anforderungen und den anderen relevanten Vorschriften der
Richtlinie 1999/5/EG befindet.
Ελληνική
[Greek]
Δια του παρόντος, UBIQUITI NETWORKS, δηλώνει ότι αυτή η
συσκευή UBIQUITI NETWORKS, είναι σε συμμόρφωση με τις
βασικές απαιτήσεις και τις λοιπές σχετικές διατάξεις της οδηγίας
1995/5/ΕΚ.
Magyar
[Hungarian]
Ezennel UBIQUITI NETWORKS kijelenti, hogy ez a UBIQUITI
NETWORKS készülék megfelel az alapvető követelményeknek és
más vonatkozó 1999/5/EK irányelv rendelkezéseit.
Íslenska
[Icelandic]
Hér, UBIQUITI NETWORKS, því yfir að þetta UBIQUITI NETWORKS
tæki er í samræmi við grunnkröfur og önnur viðeigandi ákvæði
tilskipun 1999/5/EC.
Italiano
[Italian]
Con la presente, UBIQUITI NETWORKS, dichiara che questo
dispositivo UBIQUITI NETWORKS, è conforme ai requisiti essenziali
ed alle altre disposizioni pertinenti della direttiva 1999/5/CE.
Latviski
[Latvian]
Ar šo, UBIQUITI NETWORKS, deklarē, ka UBIQUITI NETWORKS
ierīce, ir saskaņā ar būtiskajām prasībām un citiem attiecīgiem
noteikumiem Direktīvā 1999/5/EK.
Lietuviškai
[Lithuanian]
UBIQUITI NETWORKS deklaruoja, kad šis UBIQUITI NETWORKS
įrenginys atitinka esminius reikalavimus ir kitas 1999/5/EB
Direktyvos nuostatas.
Malti
[Maltese]
Hawnhekk, UBIQUITI NETWORKS, tiddikjara li dan il-mezz
UBIQUITI NETWORKS huwa konformi mar-rekwiżiti essenzjali u
dispożizzjonijiet rilevanti oħrajn ta ‘Direttiva 1999/5/EC.
Norsk
[Norwegian]
Herved UBIQUITI NETWORKS, erklærer at denne UBIQUITI
NETWORKS enheten, er i samsvar med de grunnleggende kravene
og andre relevante bestemmelser i direktiv
1999/5/EF.
Slovensky
[Slovak]
Týmto
UBIQUITI NETWORKS
, prehlasuje, že toto
UBIQUITI
NETWORKS
zariadenie, je v súlade so základnými požiadavkami a
ďalšími relevantnými ustanoveniami smernice 1999/5/ES.
Svenska
[Swedish]
Härmed UBIQUITI NETWORKS, intygar att denna UBIQUITI
NETWORKS enhet är i överensstämmelse med de väsentliga
egenskapskrav och övriga relevanta bestämmelser som framgår av
direktiv 1999/5/EG.
Español
[Spanish]
Por medio de la presente UBIQUITI NETWORKS declara que este
dispositivo UBIQUITI NETWORKS, cumple con los requisitos
esenciales y cualesquiera otras disposiciones aplicables o exigibles
de la Directiva 1999/5/CE.
Polski
[Polish]
Niniejszym, Ubiquiti Networks, oświadcza, że urządzenie UBIQUITI
NETWORKS, jest zgodny z zasadniczymi wymaganiami oraz
pozostałymi stosownymi postanowieniami Dyrektywy 1999/5/EC.
Português
[Portuguese]
UBIQUITI NETWORKS declara que este dispositivo UBIQUITI
NETWORKS, está conforme com os requisitos essenciais e outras
disposições da Directiva 1999/5/CE.
Română
[Romanian]
Prin prezenta, UBIQUITI NETWORKS declară că acest dispozitiv
UBIQUITI NETWORKS este în conformitate cu cerințele esențiale și
alte prevederi relevante ale Directivei 1999/5/CE.
Online Resources
Support support.ubnt.com
Community community.ubnt.com
Downloads downloads.ubnt.com
www.ubnt.com
©2015-2016 Ubiquiti Networks, Inc. All rights reserved. Ubiquiti, Ubiquiti
Networks, the Ubiquiti U logo, the Ubiquiti beam logo, and UniFi are
trademarks or registered trademarks of Ubiquiti Networks, Inc. in the United
States and in other countries. Google, Android, Google Play and other marks
are trademarks of Google Inc. All other trademarks are the property of their
respective owners. RRAI011916
