Ubiquiti WSM5 5 GHz 802.11 an Module User Manual WSM5 Compliance Sheet
Ubiquiti Networks, Inc. 5 GHz 802.11 an Module WSM5 Compliance Sheet
Ubiquiti >
Uses Manual Revised 070212
ComplianCe Sheet
Model: WSM5
Modular Usage

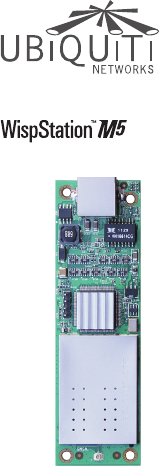

The powerful 5 GHz WISP
OEM Station (model: WSM5) is
designed specifically for the WISP
OEM market. The transmitter
must only be used with the
approved antenna(s). Please refer
to www.ubnt.com/products
fordetails.
The WSM5 is compatible with
existing Atheros Linux drivers and
is only capable of 5745-5850MHz
frequency range per the FCC/IC
grant. Power and frequency limits
are hardcoded into the radio card
EEPROM.
It is necessary that the
system integrators perform
all applicable retesting and
certification for their final
system configurations.
Important Modular Approval
Information
This device is intended only for
the OEM integrator under the
following conditions:
• The antenna must be installed
such that 66 cm is maintained
between the antenna and
users, and
• The transmitter module may not
be co-located with any other
transmitter or antenna.
IMPORTANT NOTE: In the event
that these conditions cannot be
met (for example, certain laptop
configurations or co-location with
another transmitter), then the
FCC authorization is no longer
considered valid and the FCC
ID cannot be used on the final
product. In these circumstances,
the OEM integrator will be
responsible for re-evaluating
the end product (including the
transmitter) and obtaining a
separate FCC authorization.
End Product Labeling
This transmitter module is
authorized only for use in devices
where the antenna may be
installed such that 66cm may be
maintained between the antenna
and users (for example, access
points, routers, wireless ADSL
modems, and similar equipment).
The final end product must be
labeled in a visible area with the
following:
Contains FCC ID: SWX-WSM5 and
IC: 6545A-WSM5
End Product Manual
Information
The user manual for end users
must include the following
information in a prominent
location:
IMPORTANT NOTE: To comply
with FCC RF exposure compliance
requirements, the antenna used
for this transmitter must be
installed to provide a separation
distance of at least 66 cm from
all persons and must not be
co-located or operating in
conjunction with any other
antenna or transmitter.
JL062012
www.ubnt.com
© 2012 Ubiquiti Networks, Inc.
All rights reserved.
WSm5 important
operation information
FCC Part 15.247 (b)(4) (iii) –
Professional Install Statement
The professional installer is
responsible for ensuring that the
system is used exclusively for
fixed, point-to-point operations.
Installer Compliance
Responsibility
Devices must be professionally
installed. Ubiquiti Networks does
not allow operation outside of
the approved 5745-5850 MHz
frequencyrange.
FCC Notice to Users and
Operators
Changes or modifications not
expressly approved by the party
responsible for compliance
could void the user’s authority to
operate the equipment.
This device complies with Part
15 of the FCC Rules. Operation
is subject to the following two
conditions:
1. This device may not cause
harmful interference, and
2. This device must accept any
interference received, including
interference that may cause
undesired operation.
NOTE: This equipment has been
tested and found to comply with
the limits for a Class A digital
device, pursuant to part 15 of
the FCC Rules. These limits are
designed to provide reasonable
protection against harmful
interference when the equipment
is operated in a commercial
environment. This equipment
generates, uses, and can radiate
radio frequency energy and, if not
installed and used in accordance
with the instruction manual, may
cause harmful interference to
radio communications. Operations
of this equipment in a residential
area is likely to cause harmful
interference in which case the
user will be required to correct the
interference at his own expense.
Industry Canada
This Class A digital apparatus
complies with Canadian ICES-003.
To reduce potential radio
interference to other users,
the antenna type and its gain
should be so chosen that the
equivalent isotropically radiated
power (e.i.r.p.) is not more than
that permitted for successful
communication.
This device complies with Industry
Canada licence-exempt RSS
standard(s). Operation is subject
to the following two conditions:
3. This device may not cause
interference, and
4. This device must accept
any interference, including
interference that may cause
undesired operation of the
device.
Cet appareil numérique de la
classe A est confrome à la norme
NMB-003 Canada.
Pour réduire le risque
d’interférence aux autres
utilisateurs, le type d’antenne et
son gain doivent être choisies de
façon que la puissance isotrope
rayonnée équivalente (PIRE) ne
dépasse pas ce qui est nécessaire
pour une communication réussie.
Cet appareil est conforme à la
norme RSS Industrie Canada
exempts de licence norme(s). Son
fonctionnement est soumis aux
deux conditions suivantes:
1. Cet appareil ne peut pas
provoquer d’interférences et
2. Cet appareil doit accepter
toute interférence, y
compris les interférences qui
peuvent causer un mauvais
fonctionnement du dispositif.
RF Exposure Warning
The antennas used for this
transmitter must be installed to
provide a separation distance of at
least 66 cm from all persons and
must not be located or operating
in conjunction with any other
antenna or transmitter.
Les antennes utilisées pour ce
transmetteur doivent être installé
en considérant une distance de
séparation de toute personnes
d’au moins 66 cm et ne doivent
pas être localisé ou utilisé en
conflit avec tout autre antenne ou
transmetteur.
For MPE and antenna usage
details, please visit our website at
www.ubnt.com/products
IC Requirement - RSS-GEN
for Permanently Attached
Antennas
Under Industry Canada
regulations, this radio transmitter
may only operate using an
antenna of a type and maximum
(or lesser) gain approved for
the transmitter by Industry
Canada. To reduce potential
radio interference to other users,
the antenna type and its gain
should be so chosen that the
equivalent isotropically radiated
power (e.i.r.p.) is not more than
that necessary for successful
communication.
