Ubiquiti XR2 2.4GHz mini-PCI 802.11b/g User Manual xr2 OEM guide graffle
Ubiquiti Networks, Inc. 2.4GHz mini-PCI 802.11b/g xr2 OEM guide graffle
Ubiquiti >
User Manual
XTREMERange2
OEM INTEGRATION GUIDE

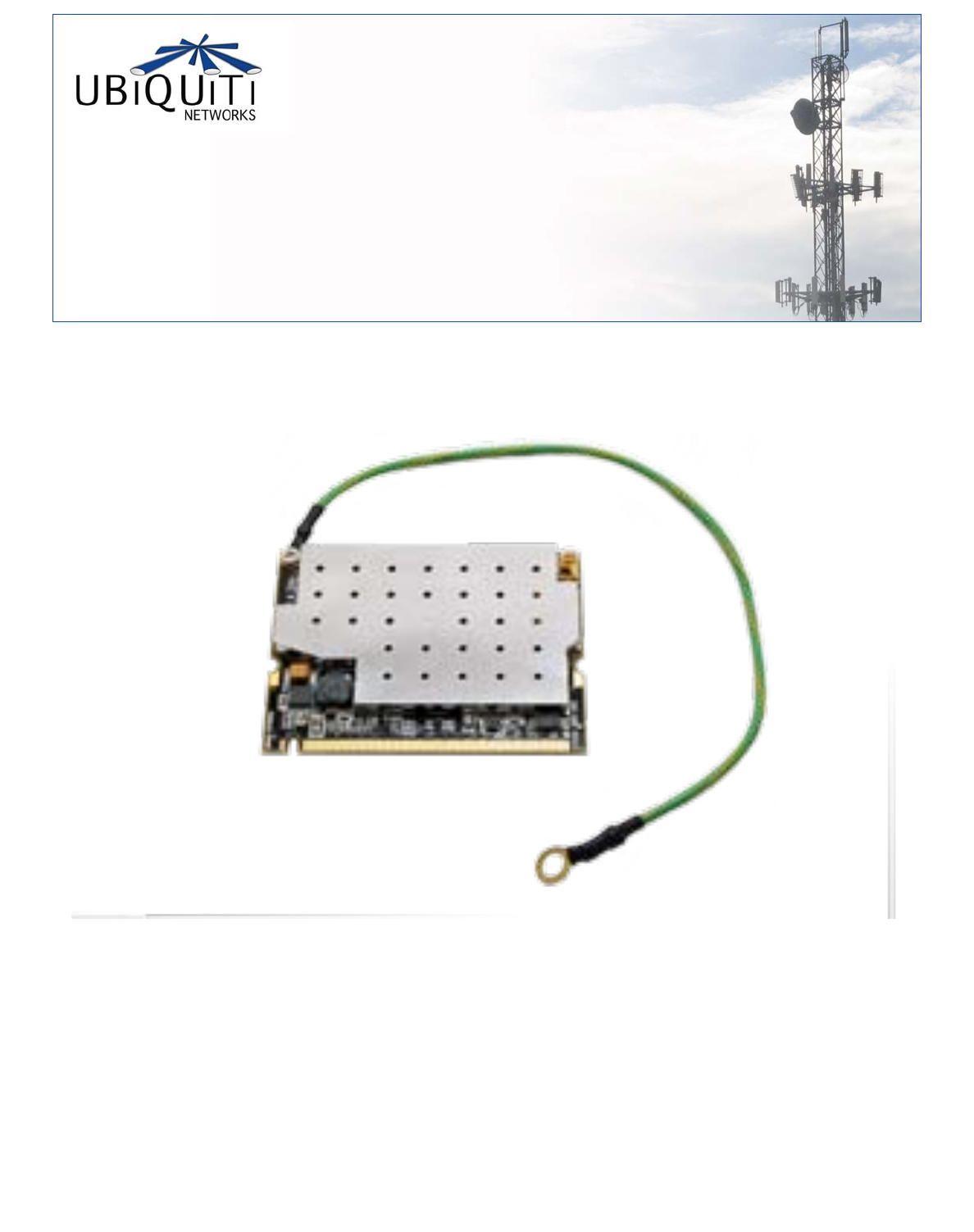

Carrier-Class 2.4GHz 802.11b/g Radio Module
TECHNICAL SPECIFICATIONS
XTREMERange2
DataRate TX Power Tolerance DataRate Sensitivity Tolerance
1Mbps 26 dBm +/-1dB 1Mbps -97 dBm +/-1dB
2Mbps 26 dBm +/-1dB 2Mbps -96 dBm +/-1dB
5.5Mbps 26 dBm +/-1dB 5.5Mbps -95 dBm +/-1dB
11Mbps 26 dBm +/-1dB 11Mbps -92 dBm +/-1dB
6Mbps 26 dBm +/-1dB 6Mbps -94 dBm +/-1dB
9Mbps 26 dBm +/-1dB 9Mbps -93 dBm +/-1dB
12Mbps 26 dBm +/-1dB 12Mbps -91 dBm +/-1dB
18Mbps 26 dBm +/-1dB 18Mbps -90 dBm +/-1dB
24Mbps 26 dBm +/-1dB 24Mbps -86 dBm +/-1dB
36Mbps 24 dBm +/-1dB 36Mbps -83 dBm +/-1dB
48Mbps 23 dBm +/-1dB 48Mbps -77 dBm +/-1dB
54Mbps 22 dBm +/-1dB 54Mbps -74 dBm +/-1dB
DataRate Current Tolerance DataRate Sensitivity Tolerance
1Mbps 1.30 A +/-100mA 1Mbps 300 mA +/-100mA
2Mbps 1.30 A +/-100mA 2Mbps 300 mA +/-100mA
5.5Mbps 1.30 A +/-100mA 5.5Mbps 300 mA +/-100mA
11Mbps 1.30 A +/-100mA 11Mbps 300 mA +/-100mA
6Mbps 1.30 A +/-100mA 6Mbps 300 mA +/-100mA
9Mbps 1.30 A +/-100mA 9Mbps 300 mA +/-100mA
12Mbps 1.30 A +/-100mA 12Mbps 300 mA +/-100mA
18Mbps 1.30 A +/-100mA 18Mbps 300 mA +/-100mA
24Mbps 1.30 A +/-100mA 24Mbps 300 mA +/-100mA
36Mbps 1.10 A +/-100mA 36Mbps 300 mA +/-100mA
48Mbps 1.00 A +/-100mA 48Mbps 300 mA +/-100mA
54Mbps 0.90 A +/-100mA 54Mbps 300 mA +/-100mA
Indoor (Antenna Dependent):
Outdoor (Antenna Dependent):
CARD INFORMATION
Chipset
Atheros, 6th Generation, AR2316
Radio Operation
IEEE 802.11b/g, 2.4GHz
Interface
32-bit mini-PCI Type IIIA
Operation Voltage
3.3VDC
Antenna Ports
Single MMCX
Temperature Range
-40C to +80C (extended temp version up to +95C)
Security
WPA, WPA2, AES-CCM & TKIP Encryption, 802.1x, 64/128/152bit WEP
Data Rates
6Mbps, 9Mbps, 12Mbps, 24Mbps, 36Mbps, 48Mbps. 54Mbps
TX Channel Width Support
5MHz / 10MHz / 20MHz / 40MHz
RoHS Compliance
YES
REGULATORY INFORMATION
Wireless Modular Approvals
FCC Part 15.247, IC RS210
Linux MADWIFI, WindowsXP, Windows2000
802.11g OFDM
CURRENT CONSUMPTION INFORMATION
40MHz (Turbo)
20MHz
10MHz
5MHz
RADIO OPERATING FREQUENCY 2412-2462 MHz (2312-2732 MHz*)
TX SPECIFICATIONS
RX SPECIFICATIONS
TX CURRENT CONSUMPTION
RX CURRENT CONSUMPTION
802.11b
802.11b
802.11g OFDM
DRIVER INFORMATION
RANGE PERFORMANCE
Operating System Support
Copper / 4.3mm diameter
Ground end to enclosure point tied to Earth Ground
Attachment Procedure
Terminal Material / Dimensions
Over 50km
802.11b
802.11b
802.11g OFDM
802.11g OFDM
ADJUSTABLE CHANNEL SIZE SUPPORT (Increase Channel Capacity or Increase Throughput)
ESD/EMP CABLE SPECIFICATIONS
8 in length, 0.55mm diameter (26AWG)
Cable Dimensions
Up to 200meters

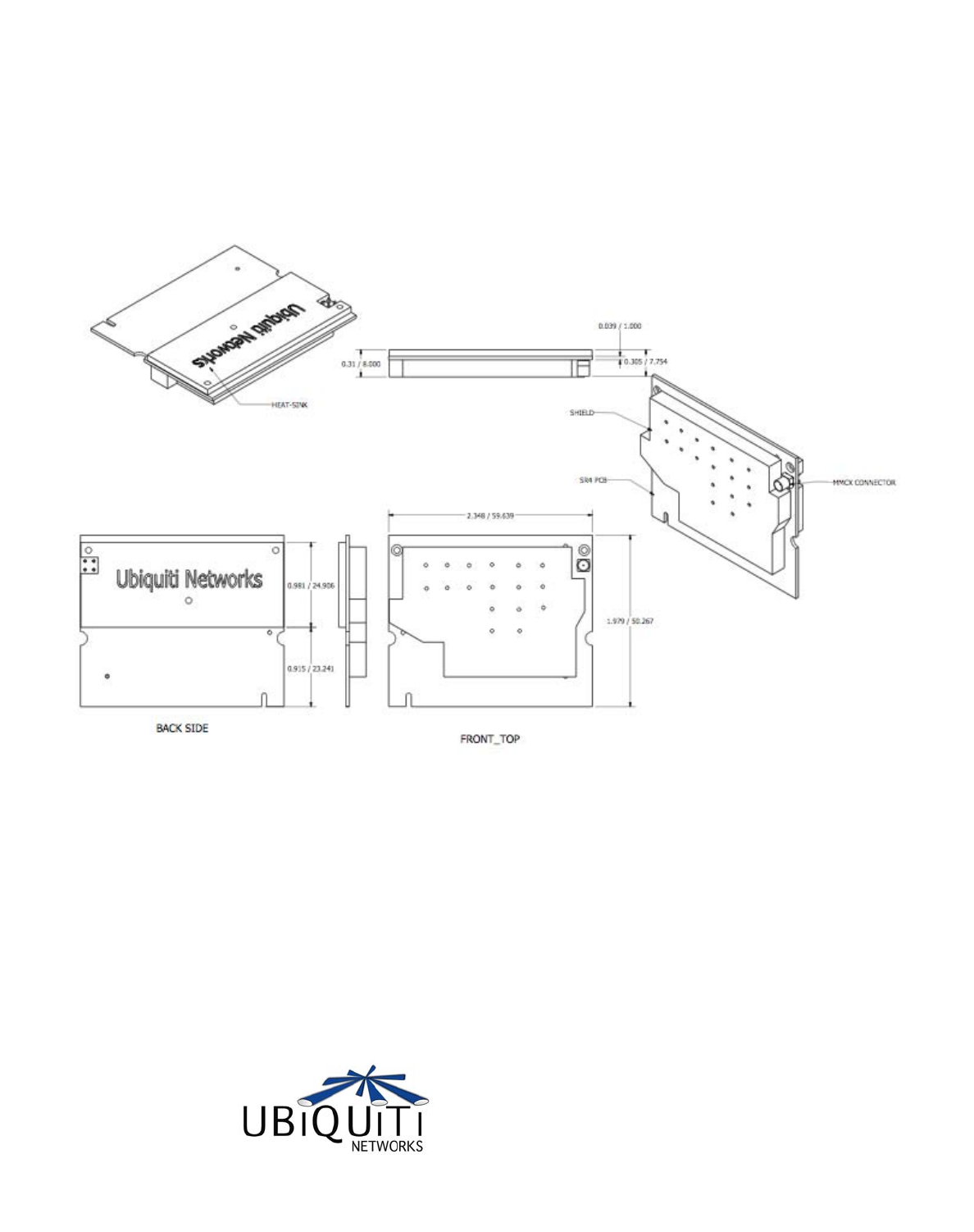

MECHANICAL DIMENSIONS
495-499 Montague Expwy.
Milpitas, CA 95035
San Jose, CA 95112
T (408)-942-3085
F (408)-351-4973
http://www.ubnt.com
XTREMERange2
