OEM Guide
XTREMERange3
OEM INTEGRATION GUIDE

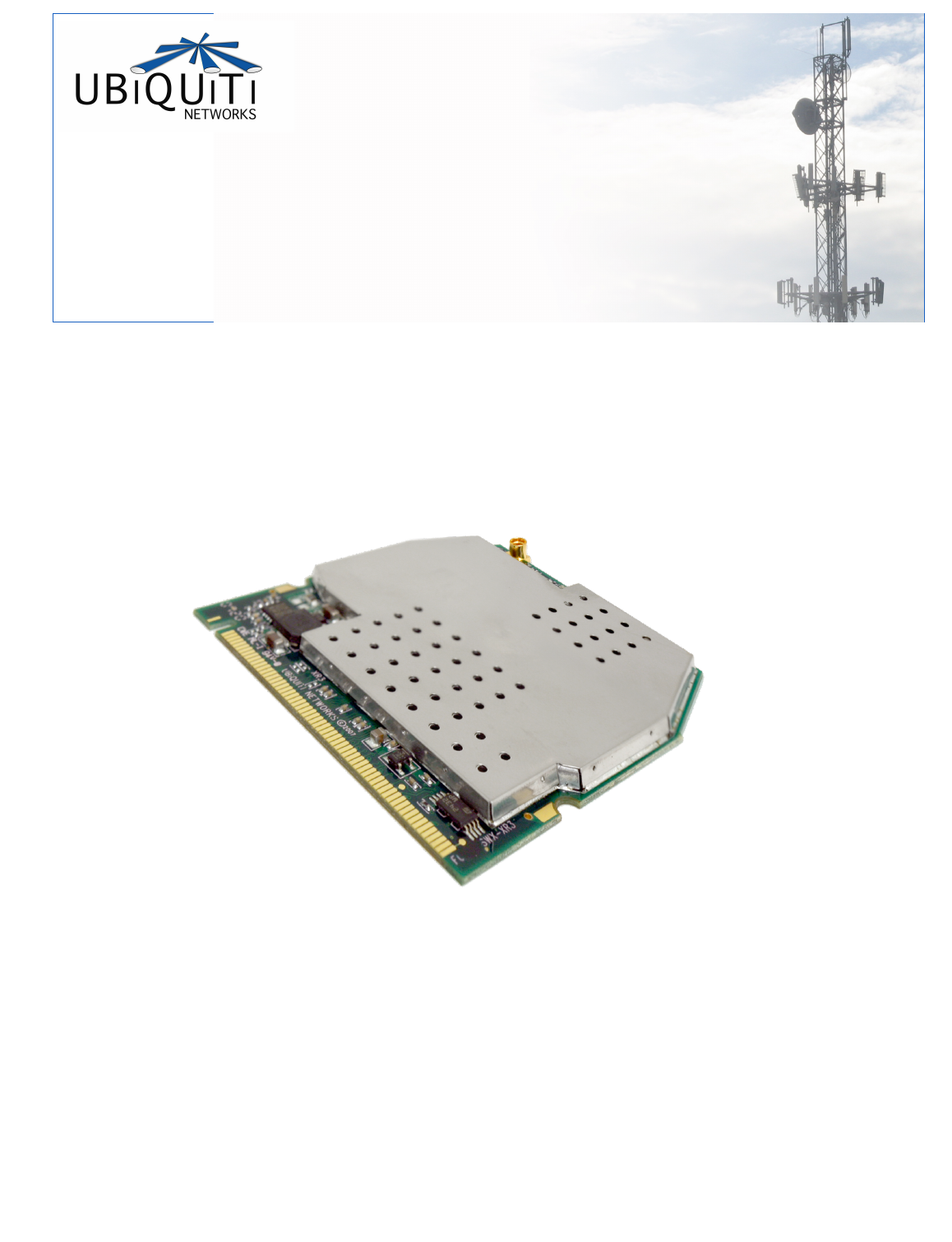

Carrier-Class 3.65GHz Radio Module
TECHNICAL SPECIFICATIONS
XTREMERange3
DataRate Avg.Power Tolerance DataRate Sensitivity Tolerance
6Mbps 25 dBm +/-1.5dB 6Mbps -92 dBm +/-1.5dB
9Mbps 25 dBm +/-1.5dB 9Mbps -90 dBm +/-1.5dB
12Mbps 25 dBm +/-1.5dB 12Mbps -89 dBm +/-1.5dB
18Mbps 25 dBm +/-1.5dB 18Mbps -88 dBm +/-1.5dB
24Mbps 25 dBm +/-1.5dB 24Mbps -84 dBm +/-1.5dB
36Mbps 21 dBm +/-1.5dB 36Mbps -81 dBm +/-1.5dB
48Mbps 19 dBm +/-1.5dB 48Mbps -75 dBm +/-1.5dB
54Mbps 18 dBm +/-1.5dB 54Mbps -73 dBm +/-1.5dB
DataRate Current Tolerance DataRate Current Tolerance
6Mbps 1.20 A +/-100 mA 6Mbps 400 mA +/-100 mA
9Mbps 1.20 A +/-100 mA 9Mbps 400 mA +/-100 mA
12Mbps 1.20 A +/-100 mA 12Mbps 400 mA +/-100 mA
18Mbps 1.20 A +/-100 mA 18Mbps 400 mA +/-100 mA
24Mbps 1.20 A +/-100 mA 24Mbps 400 mA +/-100 mA
36Mbps 1.00 A +/-100 mA 36Mbps 400 mA +/-100 mA
48Mbps 0.80 A +/-100 mA 48Mbps 400 mA +/-100 mA
54Mbps 0.70 A +/-100 mA 54Mbps 400 mA +/-100 mA
Indoor (Antenna Dependent):
Outdoor (Antenna Dependent):
*XR3-3.5 is a General Purpose Engineering Card that can be used to qualify performance up to 3.7GHz
CARD INFORMATION
Radio Operation
802.11 Based MAC/PHY
Interface
32-bit mini-PCI Type IIIA
Chipset
Atheros, 6th Generation, AR5414 with SuperA/Turbo Support
Operation Voltage
3.3VDC
Antenna Ports
Single MMCX
Temperature Range
-45 to +85C (extended temp version up to +95C)
Security
WPA, WPA2, AES-CCM & TKIP Encryption, 802.1x, 64/128/152bit WEP
Data Rates
6Mbps, 9Mbps, 12Mbps, 24Mbps, 36Mbps, 48Mbps. 54Mbps
RoHS Compliance
YES
TX Channel Width Support
5MHz / 10MHz / 20MHz / 40MHz
FREQUENCY RANGE (3.65-3.7GHz)
Up to 150meters
RANGE PERFORMANCE
RADIO PERFORMANCE
TX SPECIFICATIONS
RX SPECIFICATIONS
20MHz
10MHz
5MHz
802.11a OFDM
Operating System Support
Linux MADWIFI, WindowsXP, Windows2000
802.11a OFDM
802.11a OFDM
ADJUSTABLE CHANNEL SIZE SUPPORT (Increase Channel Capacity or Increase Throughput)
CURRENT CONSUMPTION INFORMATION
Over 50km
40MHz (Turbo)
RX CURRENT CONSUMPTION
TX CURRENT CONSUMPTION
802.11a OFDM
For help with MADWIFI or other Special Driver Support, Please e-mail support@ubnt.com
Advanced Mobility / QuickHandoff
WindowsXP/2000 Utility with Enhanced Mobility Driver from Ubiquiti
Cisco Support
CCX 4.0 Supported Driver/Utility also available from Ubiquiti
DRIVER INFORMATION

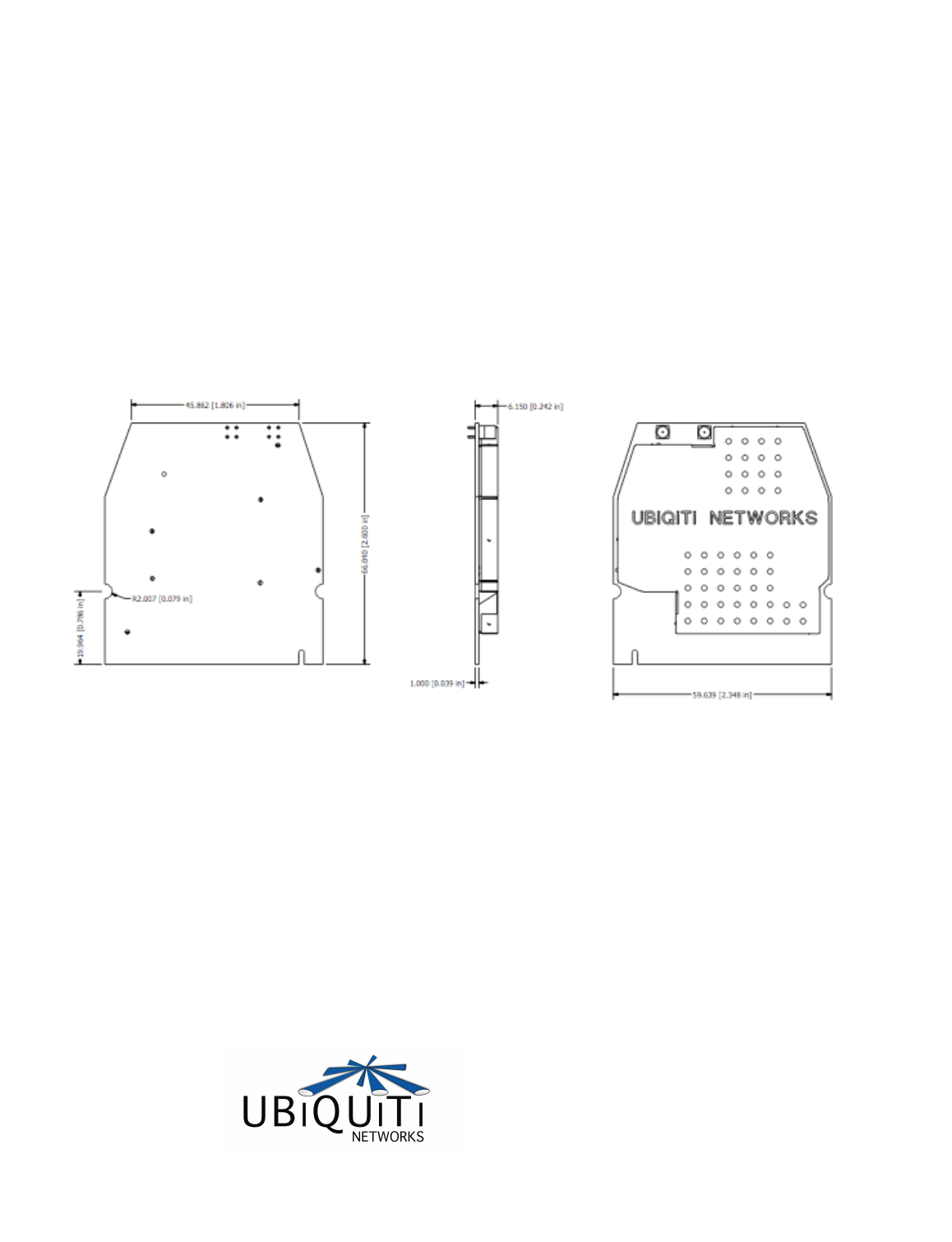

MECHANICAL DIMENSIONS
495-499 Montague Expwy.
Milpitas, CA 95035
San Jose, CA 95112
T (408)-942-3085
F (408)-351-4973
http://www.ubnt.com
XTREMERange3
