Copyright © 2007 Ubisense Limited, All Rights Reserved
Ultra-wideband In-Building
Location System
Ubitag V2.0
User’s Manual
Written By
Andy Ward, Paul Webster
Ubisense Limited
St Andrew’s House,
St Andrew’s Road, Chesterton, Cambridge, CB4 1DL, ENGLAND
Tel: +44 (0)1223 535170
Fax: +44 (0)1223 535167
Email: support@ubisense.net
WWW: http://www.ubisense.net/
Revised: February 2007
Copyright © 2007 Ubisense Limited, All Rights Reserved
Table of Contents
Introduction .................................................................................................................................1
Information to the User................................................................................................................1
Features of the Ubitag.................................................................................................................2
Installation and Operation Instructions.........................................................................................3
Switching the Ubitag on for the first time...............................................................................3
Replacing the batteries in the Ubitag ....................................................................................4
Troubleshooting ...................................................................................................................5
Ubitag Specifications...................................................................................................................6
Requirements for indoor UWB device operation ..........................................................................6
1
Ubisense – Ultra-wideband In-Building Location System – Ubitag V2.0
Introduction
The Ubitag V2.0 is a wireless device intended to be used for the real-time location of objects
within buildings. It transmits ultra-wideband (UWB) pulses which are picked up by a network of
basestations (Ubisensors) placed inside the building, allowing the 3D position of the tag to be
found. The use of UWB technology enables greater positioning accuracy within buildings than
other wireless technologies, because it is much less susceptible to multipath interference effects.
Applications of the system include healthcare, workplace productivity, security, retail
management and manufacturing.
This document describes the features and specifications of the Ubitag, important regulatory
information concerning its use, and details on how to diagnose potential problems.
Information to the User
The Ubitag V2.0 is an ultra-wideband (UWB) wireless device certified under FCC Part 15.517. Its
use is subject to technical requirements for indoor UWB systems, in particular the stipulation that
the devices must only be used indoors. Users should note carefully the following information:
CAUTION: This equipment may only be operated indoors. Operation outdoors is in
violation of 47 U.S.C. 301 and could subject the operator to serious penalties.
Ubitags will only operate (i.e. transmit UWB signals) in conjunction with an in-building
Ubisensor network, which must be professionally installed. The installed Ubisensor
network will be configured to cover only the area inside the building, preventing Ubitags
from emitting UWB signals outdoors. Contact your system administrator if you are unsure
as to the extent of coverage of the Ubisense In-Building Location System in your building.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
Users should also carefully note the following information:
CAUTION: Any changes or modifications made to the Ubitag which are not expressly
approved by the Ubisense Limited could void the user's authority to operate the
equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
![](/img.php?id=765777&img=bg4.png)
2
Ubisense – Ultra-wideband In-Building Location System – Ubitag V2.0
Features of the Ubitag

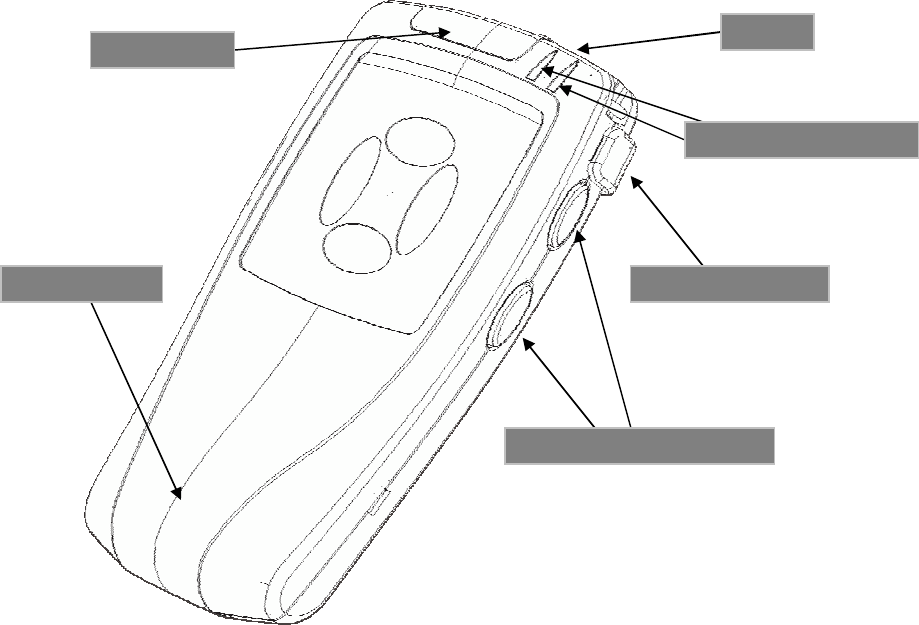

The diagram below shows several important features of the Ubitag:
Pro
g
rammable buttons
Belt cli
p
(
o
p
tional
)
Buzzer
Pro
g
rammable LEDs
UWB antenna
Batter
y
lid
![](/img.php?id=765777&img=bg5.png)
3
Ubisense – Ultra-wideband In-Building Location System – Ubitag V2.0
Installation and Operation Instructions
Switching the Ubitag on for the first time
The Ubitag is supplied with a battery. A paper tab prevents the device from operating and
drawing current from the battery until it is removed by the user.

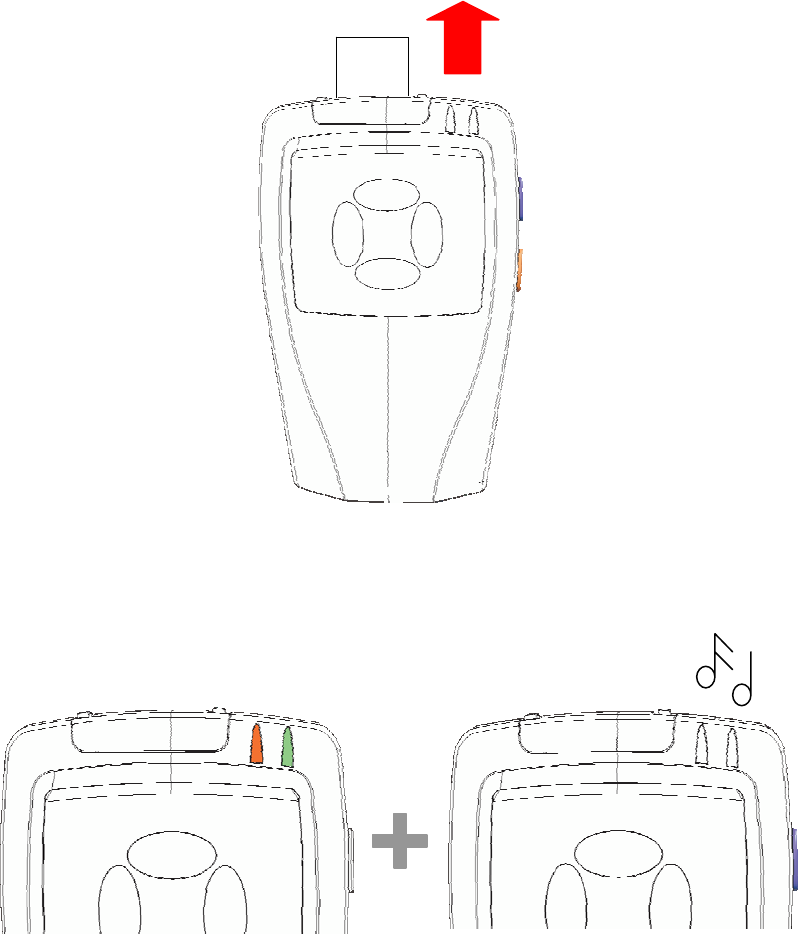

The Ubitag can be switched on for the first time by pulling the paper tab directly away from the
body of the Ubitag and clear of the device, as shown in the drawing below:
The Ubitag will bleep once and flash its LEDs to indicate correct start-up, and the Ubisense In-
Building Location System will then be able to determine the Ubitag’s location.
PULL
![](/img.php?id=765777&img=bg6.png)
4
Ubisense – Ultra-wideband In-Building Location System – Ubitag V2.0
Replacing the batteries in the Ubitag
The Ubitag uses a Panasonic CR2477 3V lithium coin cell (or equivalent). Ubitags frequently
report their battery health to the system via the Ubisensors, so system administrators should be
notified by the system when the battery in a particular tag requires replacement.

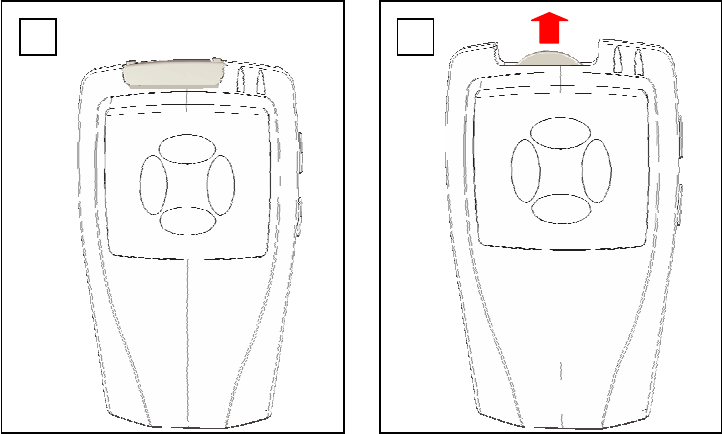

To replace the battery in a Ubitag:
1. Remove the battery compartment lid by pushing the two lugs towards each other
2. Remove the old battery and dispose of safely. You may need to tap the tag gently on the
opposite edge to the buttons to release the cell sufficiently to allow a solid grip.
3. Slide a new battery into the compartment observing the correct polarity
4. Replace the battery compartment lid, taking care not to snap the two lugs
When the battery has been replaced, the Ubitag will bleep once and flash its LEDs to indicate
correct start-up, and the Ubisense In-Building Location System will then be able to determine the
Ubitag’s location. Replace the back of the Ubitag and tighten the four screws removed previously
to complete reassembly of the device.
Should the Ubitag not bleep and flash its LEDs to indicate correct start-up after the battery has
been replaced, remove the battery, check that it is fresh, wait for 30 seconds, and reinsert the
battery. Contact your system administrator if you continue to have problems replacing the battery
in the Ubitag.
21
![](/img.php?id=765777&img=bg7.png)
5
Ubisense – Ultra-wideband In-Building Location System – Ubitag V2.0
Troubleshooting

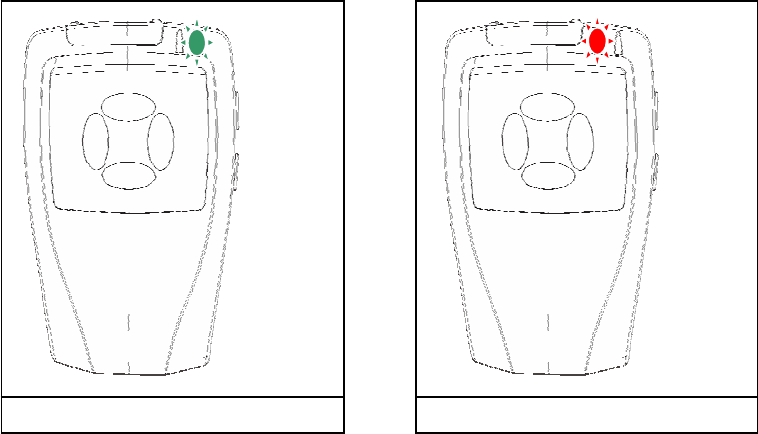

The activity of the LEDs on the front of the Ubitag may be used to diagnose potential problems
with the device:
Periodic, short (less than 1/10th second) flashes of the green LED indicate that the tag is
in communication with the local Ubisensor network, and that the device is emitting ultra-
wideband signals enabling its position to be found.
Longer (half-second) flashes of the red LED indicate that the tag is searching for signals
from the local Ubisensor network, and that tracking functionality is not available at that
location. Ensure that the tag is within an area of the building covered by the Ubisense In-
Building Location System.
If you are still unsure as to whether or not the Ubitag is operating correctly, contact your system
administrator, who should be able to use Ubisense’s monitoring tools to determine the extent and
cause of any potential problem.
Searchin
g
… Correct O
p
eration
~10Hz
~2Hz
![](/img.php?id=765777&img=bg8.png)
6
Ubisense – Ultra-wideband In-Building Location System – Ubitag V2.0
Ubitag Specifications
UWB transmitter section
Operates under: FCC Part 15.517
Centre frequency: 7.241GHz
-10dB bandwidth: 1.167GHz
Conventional radio transceiver
Operates under: FCC Part 15.249
Lowest channel frequency: 2402.5MHz
Highest channel frequency: 2480.5MHz
General specifications
Dimensions (WxHxD): 59mm x 94mm x 16mm
Power supply: 1 x Panasonic CR2477 3V lithium cell (or equivalent)
Operating temperature range: -20ºC to +70ºC
Requirements for indoor UWB device operation
This section lists the technical requirements laid down in the FCC’s rules which must be met by
UWB devices operating indoors under §15.517 of those rules. Ubitags operating with a correctly-
installed Ubisense location system will meet these requirements.
(1) Indoor UWB devices, by the nature of their design, must be capable of operation only indoors.
The necessity to operate with a fixed indoor infrastructure, e.g., a transmitter that must be
connected to the AC power lines, may be considered sufficient to demonstrate this.
(2) The emissions from equipment operated under this section shall not be intentionally directed
outside of the building in which the equipment is located, such as through a window or a doorway,
to perform an outside function, such as the detection of persons about to enter a building.
(3) The use of outdoor mounted antennas, e.g., antennas mounted on the outside of a building or
on a telephone pole, or any other outdoors infrastructure is prohibited.
(4) Field disturbance sensors installed inside of metal or underground storage tanks are
considered to operate indoors provided the emissions are directed towards the ground.
(5) A communications system shall transmit only when the intentional radiator is sending
information to an associated receiver.
