Uni Art Precise DHP381A-001T 2.4GHz Wireless Headphone User Manual

Uni-Art Precise Products Ltd 2.4GHz Wireless Headphone

User Manual

DHP380A 2.4GHz Digital Wireless Headphone User Manual Please read before using this headphone.

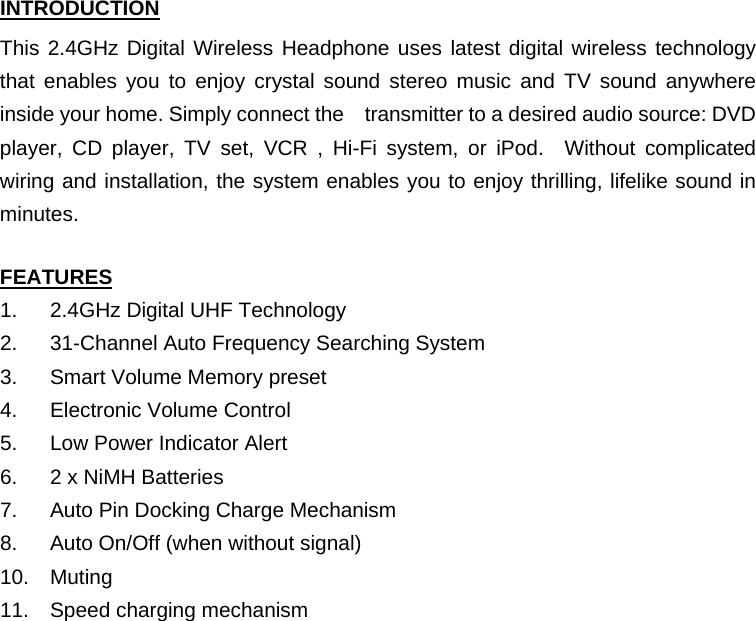

INTRODUCTION This 2.4GHz Digital Wireless Headphone uses latest digital wireless technology that enables you to enjoy crystal sound stereo music and TV sound anywhere inside your home. Simply connect the transmitter to a desired audio source: DVD player, CD player, TV set, VCR , Hi-Fi system, or iPod. Without complicated wiring and installation, the system enables you to enjoy thrilling, lifelike sound in minutes. FEATURES 1. 2.4GHz Digital UHF Technology 2. 31-Channel Auto Frequency Searching System 3. Smart Volume Memory preset 4. Electronic Volume Control 5. Low Power Indicator Alert 6. 2 x NiMH Batteries 7. Auto Pin Docking Charge Mechanism 8. Auto On/Off (when without signal) 10. Muting 11. Speed charging mechanism

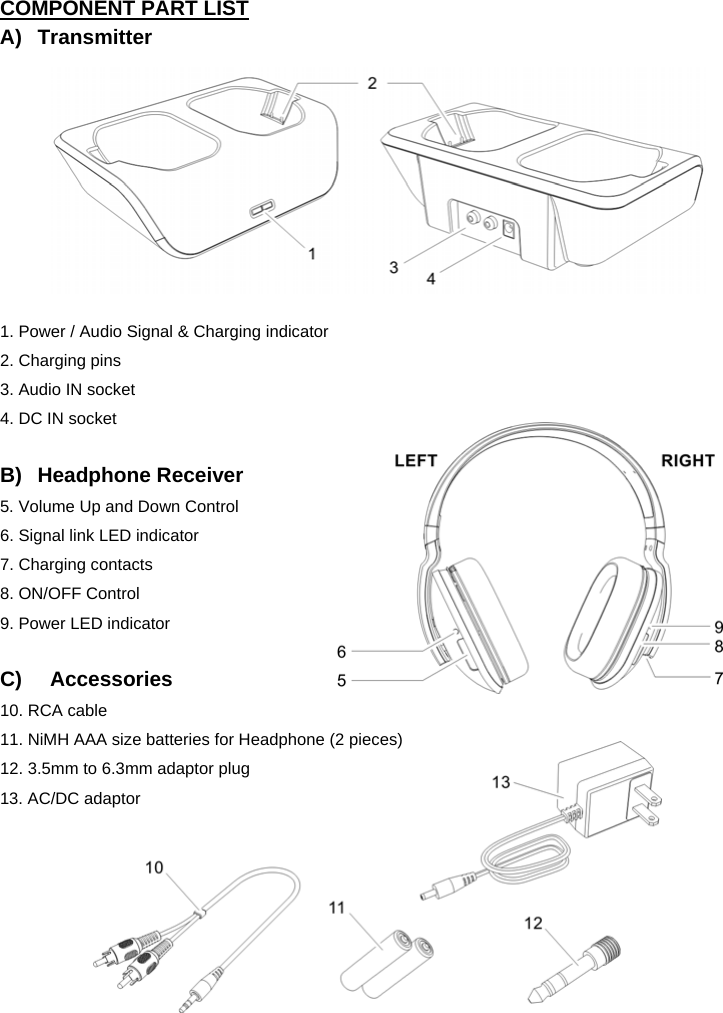

COMPONENT PART LIST A) Transmitter 1. Power / Audio Signal & Charging indicator 2. Charging pins 3. Audio IN socket 4. DC IN socket B) Headphone Receiver 5. Volume Up and Down Control 6. Signal link LED indicator 7. Charging contacts 8. ON/OFF Control 9. Power LED indicator C) Accessories 10. RCA cable 11. NiMH AAA size batteries for Headphone (2 pieces) 12. 3.5mm to 6.3mm adaptor plug 13. AC/DC adaptor

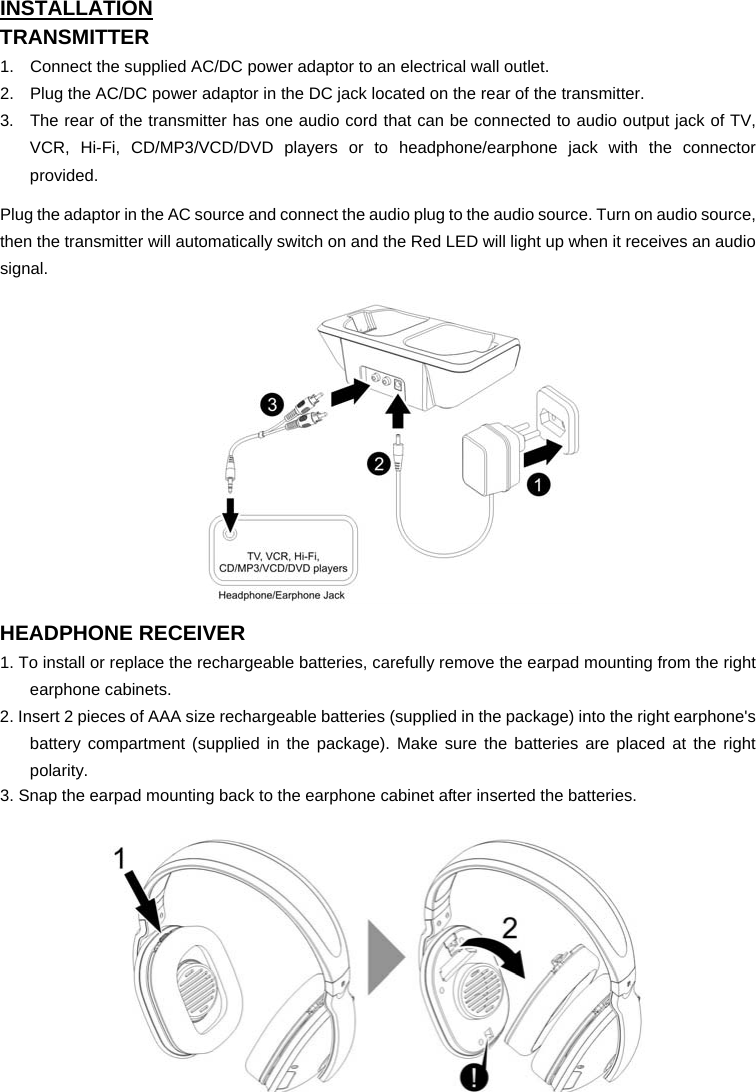

INSTALLATION TRANSMITTER 1. Connect the supplied AC/DC power adaptor to an electrical wall outlet. 2. Plug the AC/DC power adaptor in the DC jack located on the rear of the transmitter. 3. The rear of the transmitter has one audio cord that can be connected to audio output jack of TV, VCR, Hi-Fi, CD/MP3/VCD/DVD players or to headphone/earphone jack with the connector provided. Plug the adaptor in the AC source and connect the audio plug to the audio source. Turn on audio source, then the transmitter will automatically switch on and the Red LED will light up when it receives an audio signal. 12 HEADPHONE RECEIVER 1. To install or replace the rechargeable batteries, carefully remove the earpad mounting from the right earphone cabinets. 2. Insert 2 pieces of AAA size rechargeable batteries (supplied in the package) into the right earphone's battery compartment (supplied in the package). Make sure the batteries are placed at the right polarity. 3. Snap the earpad mounting back to the earphone cabinet after inserted the batteries.

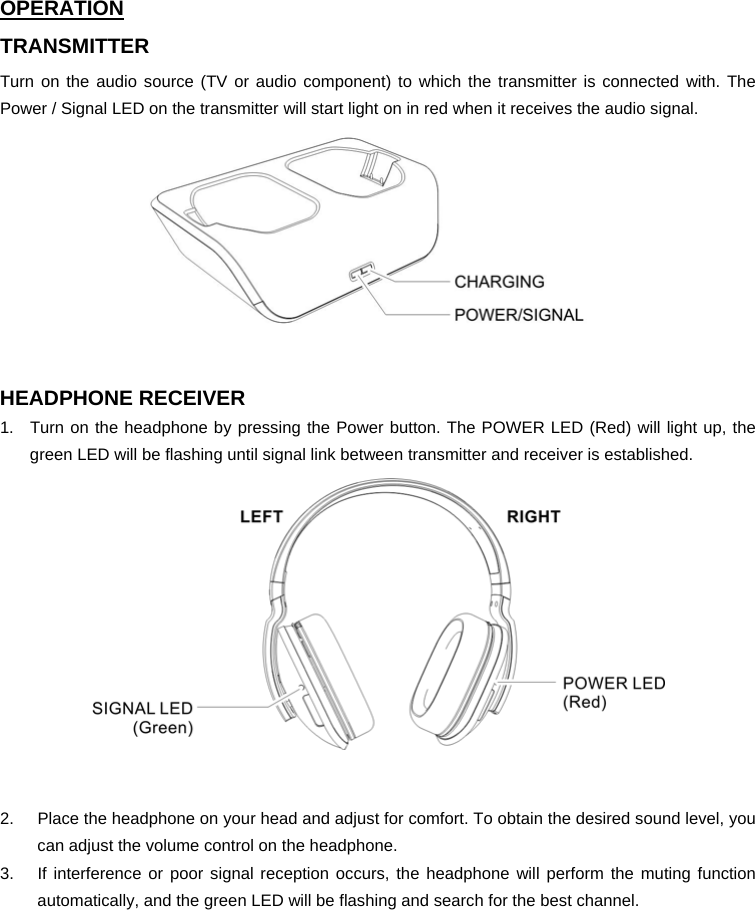

OPERATION TRANSMITTER Turn on the audio source (TV or audio component) to which the transmitter is connected with. The Power / Signal LED on the transmitter will start light on in red when it receives the audio signal. HEADPHONE RECEIVER 1. Turn on the headphone by pressing the Power button. The POWER LED (Red) will light up, the green LED will be flashing until signal link between transmitter and receiver is established. 2. Place the headphone on your head and adjust for comfort. To obtain the desired sound level, you can adjust the volume control on the headphone. 3. If interference or poor signal reception occurs, the headphone will perform the muting function automatically, and the green LED will be flashing and search for the best channel.

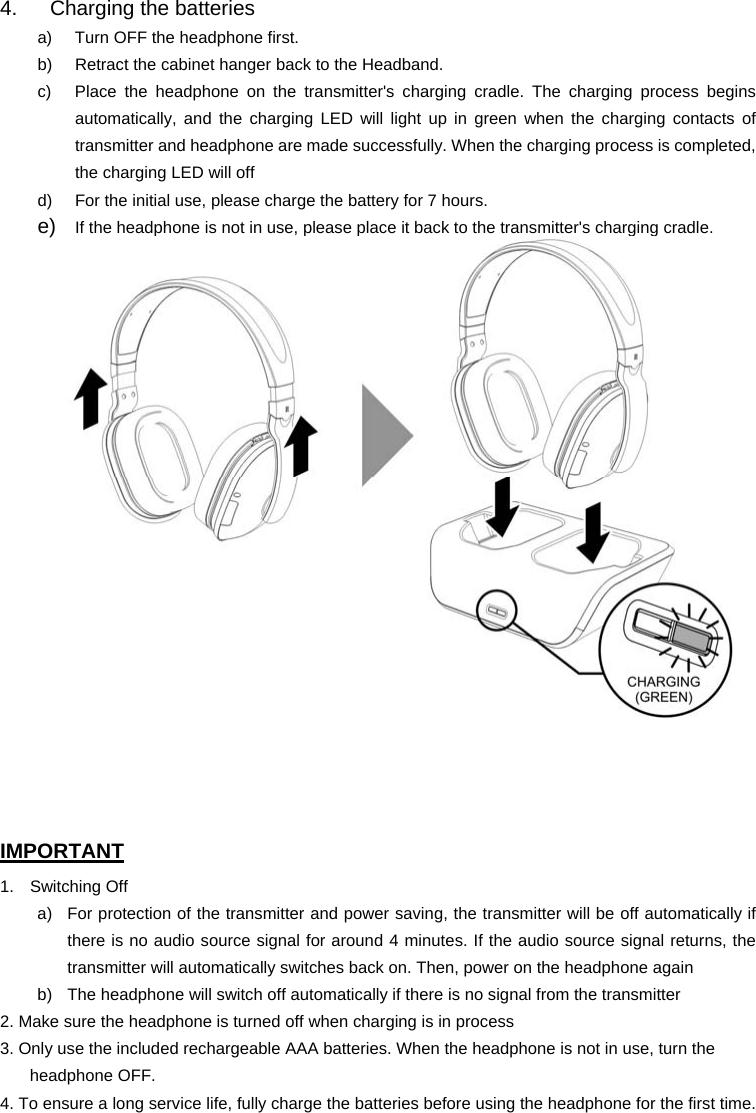

4. Charging the batteries a) Turn OFF the headphone first. b) Retract the cabinet hanger back to the Headband. c) Place the headphone on the transmitter's charging cradle. The charging process begins automatically, and the charging LED will light up in green when the charging contacts of transmitter and headphone are made successfully. When the charging process is completed, the charging LED will off d) For the initial use, please charge the battery for 7 hours. e) If the headphone is not in use, please place it back to the transmitter's charging cradle. IMPORTANT 1. Switching Off a) For protection of the transmitter and power saving, the transmitter will be off automatically if there is no audio source signal for around 4 minutes. If the audio source signal returns, the transmitter will automatically switches back on. Then, power on the headphone again b) The headphone will switch off automatically if there is no signal from the transmitter 2. Make sure the headphone is turned off when charging is in process 3. Only use the included rechargeable AAA batteries. When the headphone is not in use, turn the headphone OFF. 4. To ensure a long service life, fully charge the batteries before using the headphone for the first time.

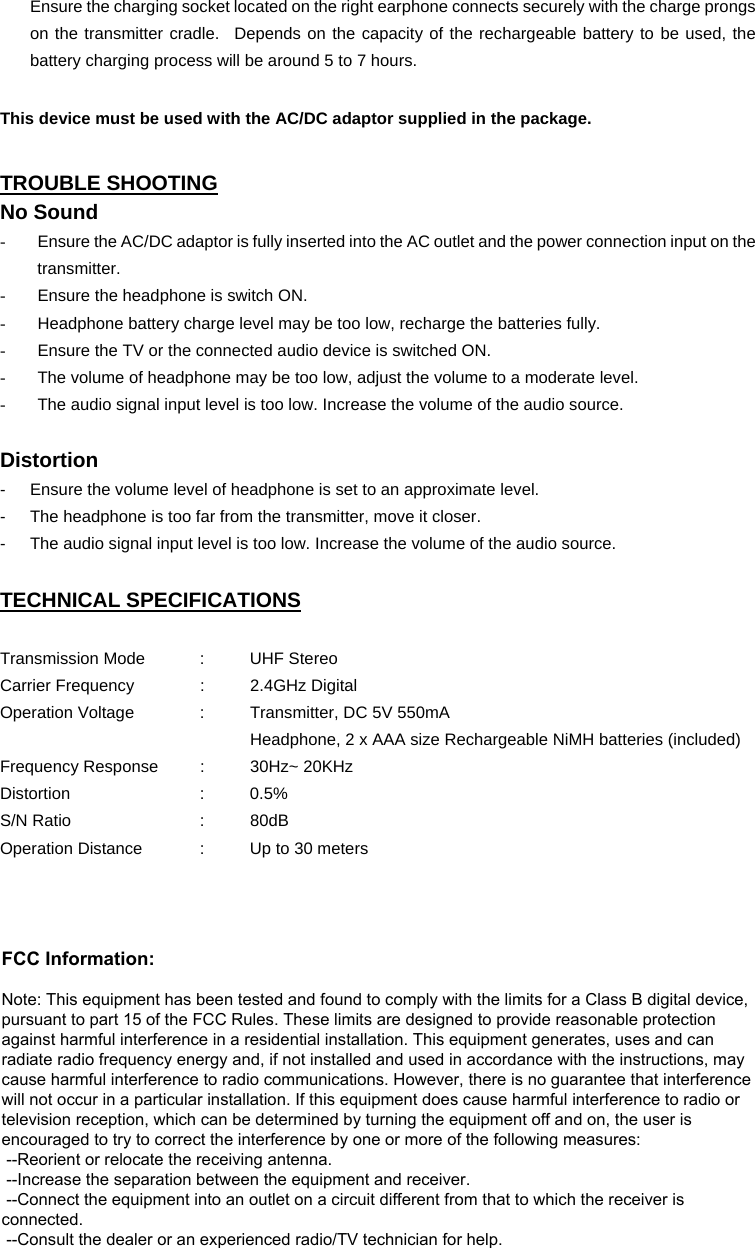

Ensure the charging socket located on the right earphone connects securely with the charge prongs on the transmitter cradle. Depends on the capacity of the rechargeable battery to be used, the battery charging process will be around 5 to 7 hours. This device must be used with the AC/DC adaptor supplied in the package. TROUBLE SHOOTING No Sound - Ensure the AC/DC adaptor is fully inserted into the AC outlet and the power connection input on the transmitter. - Ensure the headphone is switch ON. - Headphone battery charge level may be too low, recharge the batteries fully. - Ensure the TV or the connected audio device is switched ON. - The volume of headphone may be too low, adjust the volume to a moderate level. - The audio signal input level is too low. Increase the volume of the audio source. Distortion - Ensure the volume level of headphone is set to an approximate level. - The headphone is too far from the transmitter, move it closer. - The audio signal input level is too low. Increase the volume of the audio source. TECHNICAL SPECIFICATIONS Transmission Mode : UHF Stereo Carrier Frequency : 2.4GHz Digital Operation Voltage : Transmitter, DC 5V 550mA Headphone, 2 x AAA size Rechargeable NiMH batteries (included) Frequency Response : 30Hz~ 20KHz Distortion : 0.5% S/N Ratio : 80dB Operation Distance : Up to 30 meters FCC Information: Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help.

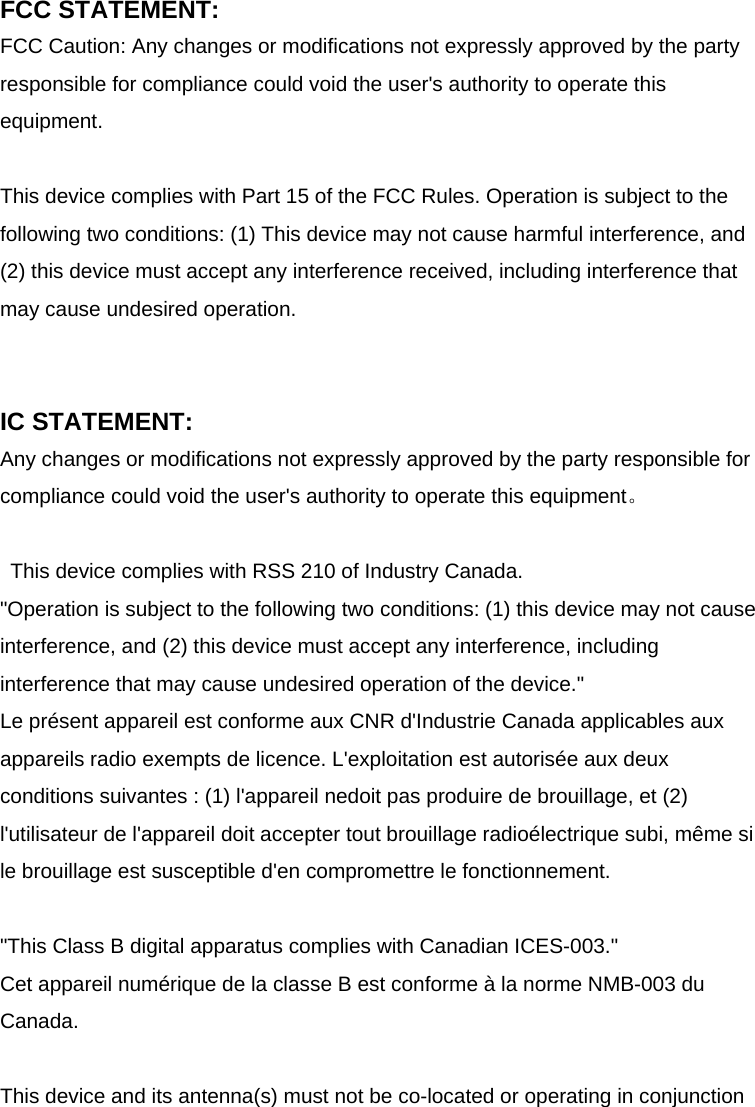

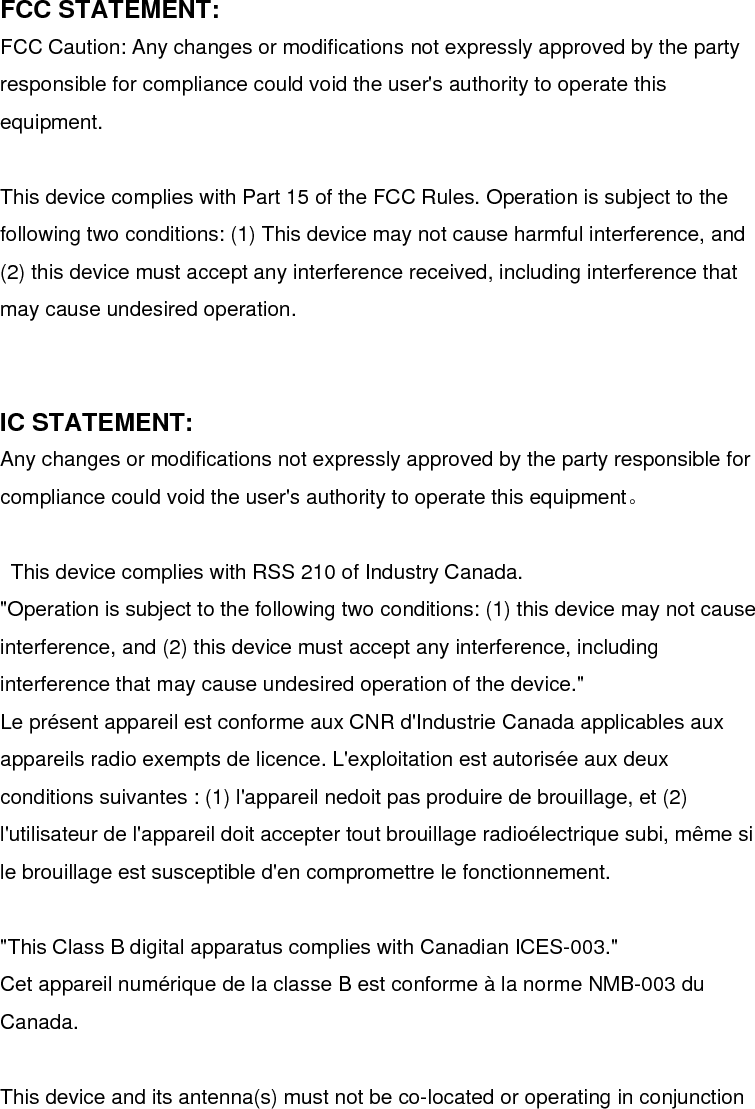

FCC STATEMENT: FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IC STATEMENT: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment。 This device complies with RSS 210 of Industry Canada. "Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device." Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil nedoit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. "This Class B digital apparatus complies with Canadian ICES-003." Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. This device and its antenna(s) must not be co-located or operating in conjunction
with any other antenna or transmitter. Cet appareil et son antenne (s) ne doit pas être co-localisés ou fonctionnant en conjonction avec une autre antenne ou transmetteur.
