Uni Art Precise SP3292-001R Wireless Speaker Receiver User Manual
Uni-Art Precise Products Ltd Wireless Speaker Receiver
User Manual
SP3290
900MHz Wireless Outdoor/Indoor Speakers
System
User’s Manual
Please read before using the equipment
P.1
INTRODUCTION

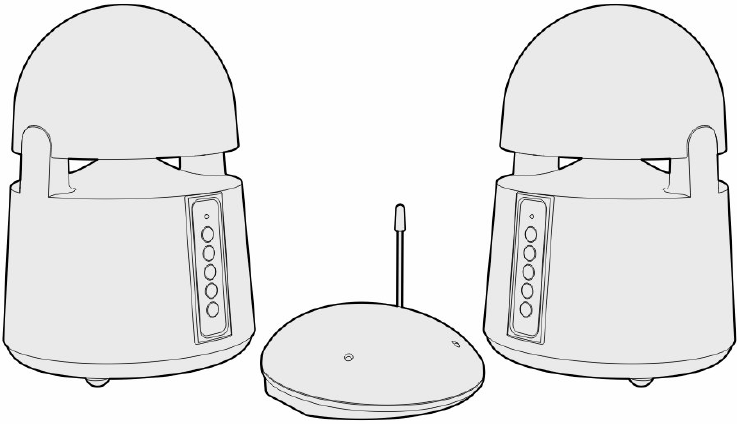

This 900 MHz wireless speaker system uses latest wireless technology that enables
you to enjoy music and TV sound anywhere inside or outside your home. You can
simply connect the system to any audio source such as Radio, TV, VCR, Hi-Fi and
CD/MP3/VCD/DVD player. Without complicated wiring and installation with your
Audio/Video equipments and rear channel amplifier, the system enables you to
enjoy thrilling, lifelike sound in minutes.
FEATURES
1. 900 MHz RF technology panel-like speaker system.
2. Phase Lock Loop (PLL) technology on transmitter.
3. RF technology lets you roam freely throughout your house.
4. Operating distance up to 100 Meters.
5. No line of sight limitation.
6. Virtually interference free stereo quality.
P.2

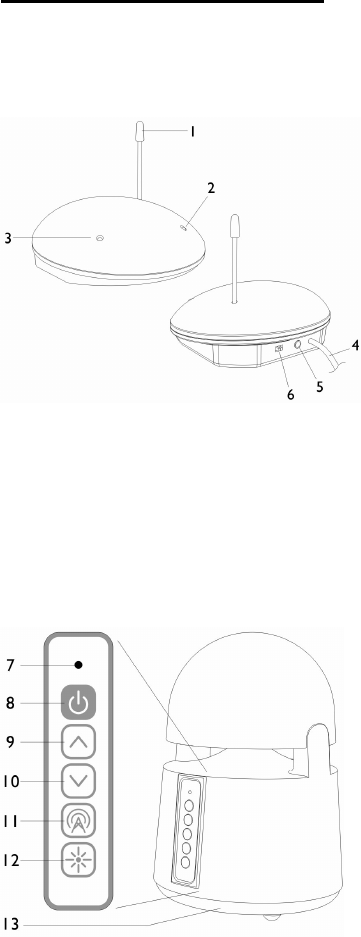

COMPONENT IDENTIFICATION
TRANSMITTER
1. Antenna Tube
2. Power LED
3. Signal LED
4. Audio Cord
5. CD Jack
6. Channel Selector
SPEAKER RECEIVERS
7. Power LED
8. Power ON/OFF
9. Volume Up
10. Volume Down
11. Auto Scan
12. Ligth ON/OFF
13. Battery Compartment
P.1
INSTALLATION
TRANSMITTER

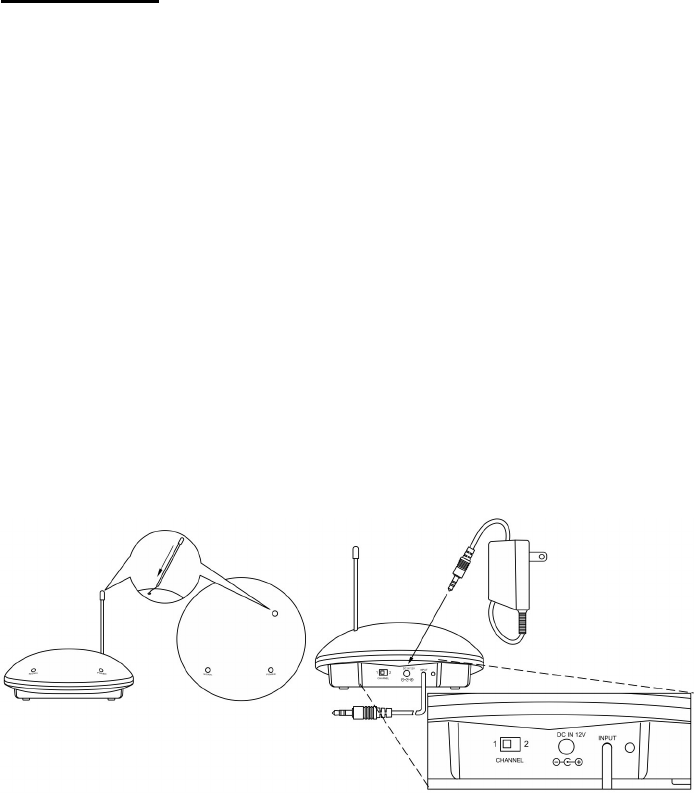

1. Insert the antenna tube into the antenna wire.
2. Connect the supplied AC/DC power adaptor to an electrical wall outlet.
3. Plug the AC/DC power adaptor in the DC jack located on the rear of the
transmitter.
4. When the AC adaptor is plugged in, the green POWER LED illuminates. If the
green POWER LED does not illuminate, make sure the adaptor is plugged in.
5. The rear of the transmitter has one audio cord that can be connected to audio
output jack of TV, Monitor, VCR, Radio recorder, CD/MP3/VCD/DVD players or
to headphone/earphone jack with the connector provided.
When the transmitter received an audio signal, the blue SIGNAL LED and the green
POWER LED will illuminate together. If the blue SIGNAL LED does not illuminate,
ensure the audio source is turned on.
SPEAKER RECEIVERS

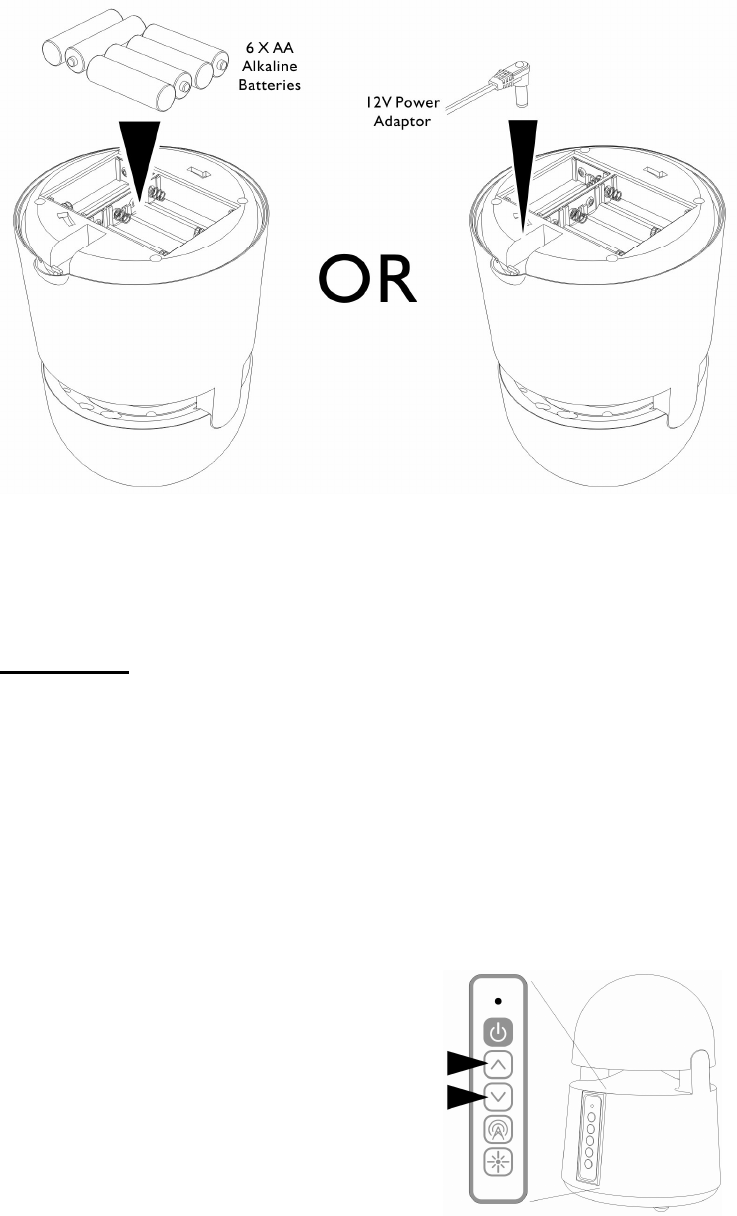

1. Insert 6 pieces ‘AA’ size ALKALINE battery into the battery compartment with
correct polarity at the bottom of the speakers (batteries not included in the
package) or connect the 12V power adaptor to the DC input jack on the bottom
of each speaker, then plug it to the wall AC outlet.
P.2
2. Press POWER button and turn the speakers ON. The POWER LED will light
up in blue. Switch off the speakers by pressing the POWER button on the
speaker, and the LED will be off.
OPERATION
1. Turn on the audio source (TV or audio component) to which the transmitter is
connected with. The blue Signal LED on the transmitter will light up.
2. Select the channel (1 or 2) of the transmitter for best performance in your
location.
3. Press the “POWER” button on the speaker to turn on the speaker. Press the
“AUTO SCAN” button to get the best tuning reception in the speakers. When
the button is pressed, frequency tuning starts automatically and it stops when a
signal is detected.
4.
Volume can be adjusted up
by pressing “+” button or
down by pressing the button
“-“ to the desired listening
level.
NOTE :
a). Keep a distance of the speaker up to 7 meters apart from the transmitter,
and then press “AUTO SCAN” button for the best reception.
b) Whenever you find frequency jam, move your channel switch from one
channel to the other channel (there are two channels for selection) on the
transmitter, and then press the “AUTO SCAN” button again.
6. You should now be able to place the speakers freely from room to room
without disruption. Should there is any disruption (signal cuts off or carries
distortion), press the speaker’s “AUTO SCAN” button to maximize the best
reception.
If you hear interference from other components, switch on the channel control
of transmitter, and then move the speakers to other free location. You can
re-adjust the tuning control by moving it either channel 1 or 2 of the transmitter,
then pressing “AUTO SCAN” button for best reception.
When transmitting / receiving over long distances, the signal from the system
will become weaker.
7. Switching Off
a) For protection of the transmitter and power saving, the transmitter will cut
off automatically if there is no/weak operation input signal from audio
source for 4 minutes.
In other words, if the signal comes back, the transmitter will work again
automatically.
b) Press the “POWER” button to turn off the speaker and the LED light goes
off.
P.1
TROUBLE SHOOTING
NO SOUND
-
Ensure the AC/DC adaptor is fully inserted into the AC outlet and the
power connection input on the transmitter.
-
Ensure the speaker is switch ON.
-
Speaker’s battery capacity is too low, replace with new batteries or
connect the AC/DC adaptors to the speakers.
-
Ensure the TV or audio component is ON.
-
The connected audio / video equipment is not playing. Start playing the
equipment.
-
The volume of speaker is too low, adjust the volume to an appropriate
level.
DISTORTED
-
Press the “AUTO SCAN” button on the speakers until matching the
frequency of the transmitter.
-
Change the position of the channel selector on the transmitter. You
must then press the “AUTO SCAN” button on the speakers.
-
Battery capacity is too low. Replace with the new battery.
-
Ensure the volume level of speakers is adjusted properly.
-
The speaker is too far away from the transmitter, move it closer.
-
The input level of the audio signal is too low. Turn up the volume of the
audio source equipment.
P.2
TECHNICAL SPECIFICATIONS
Transmission Mode : UHF
Carrier Frequency : 900 MHz
Operation Voltage : Transmitter, DC 12V 200mA
Speaker, 6 X ‘AA’
size Alkaline batteries or DC
9V 1A adaptor.
Frequency Response : 40Hz – 12KHz
Distortion : 1%
S/N Ratio : 65dB (typical)
Channel Separation : 50dB (typical)
Operation Distance : Up to 50 meters (open area)
Output Power : 2 x 3Watts (RMS)
WARNING : Modification of this device to receive cellular radio-telephone
service signals is prohibited under FCC rule and Federal Law
Changes or modifications to this unit not expressly approved by the
party responsible for compliance could void the user’s authority to
operate the equipment. Operation is subject to the following two
conditions: (1) this device may not cause interference, and (2) this
device must accept any interference, including interference that
may cause undesired operation of the device.
This device must be used with the AC/DC adaptor supplied in the
package.
