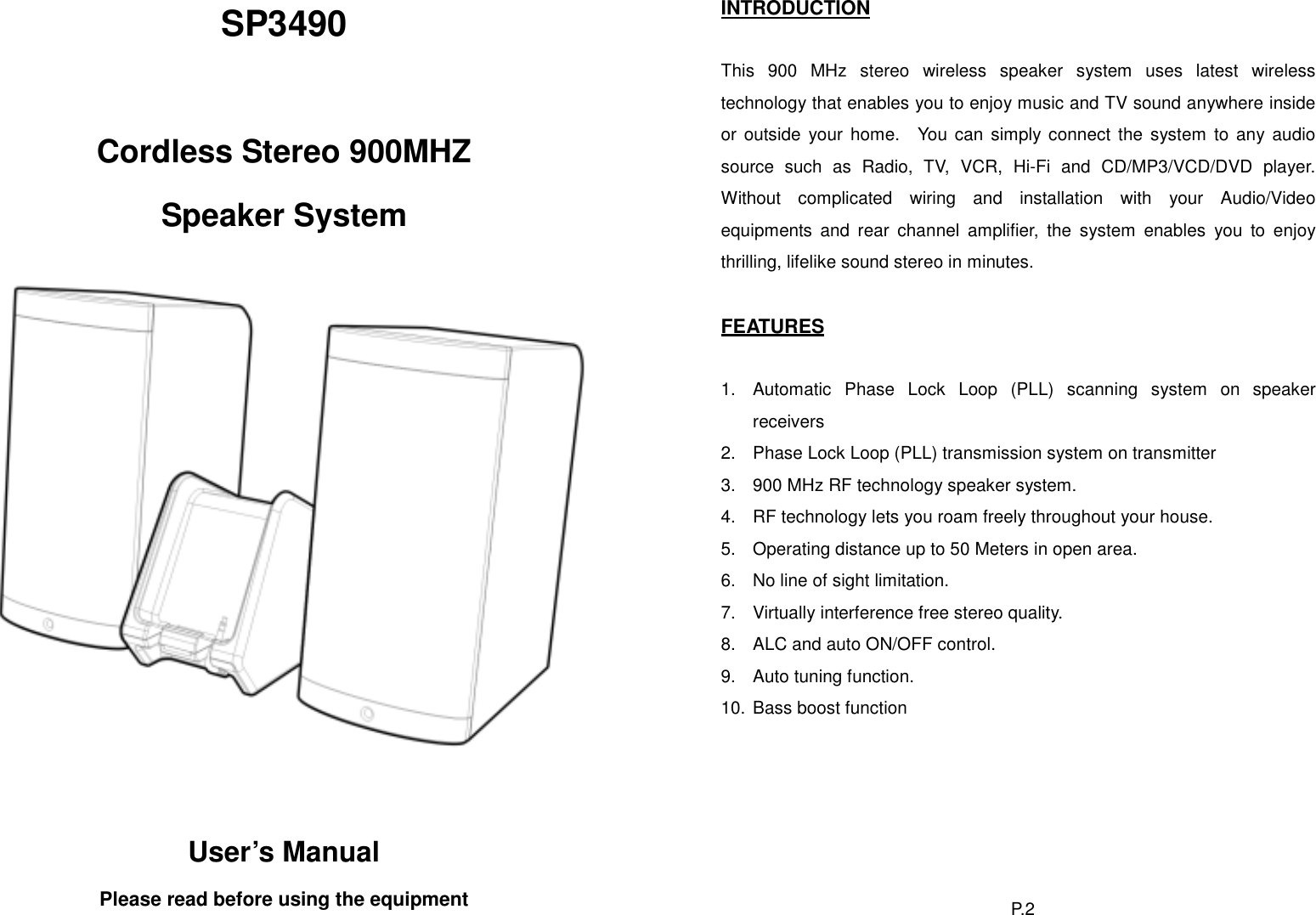

INTRODUCTION SP3490 This 900 MHz stereo wireless speaker system uses latest wireless technology that enables you to enjoy music and TV sound anywhere inside or outside your home. You can simply connect the system to any audio source such as Radio, TV, VCR, Hi-Fi and CD/MP3/VCD/DVD player. Without complicated wiring and installation with your Audio/Video equipments and rear channel amplifier, the system enables you to enjoy thrilling, lifelike sound stereo in minutes. Cordless Stereo 900MHZ Speaker System FEATURES 1. Automatic Phase Lock Loop (PLL) scanning system on speaker receivers 2. Phase Lock Loop (PLL) transmission system on transmitter 3. 900 MHz RF technology speaker system. 4. RF technology lets you roam freely throughout your house. 5. Operating distance up to 50 Meters in open area. 6. No line of sight limitation. 7. Virtually interference free stereo quality. 8. ALC and auto ON/OFF control. 9. Auto tuning function. 10. Bass boost function User’s Manual Please read before using the equipment P. 2
COMPONENT IDENTIFICATION P. 4 TRANSMITTER SPEAKER RECEIVERS P. 3

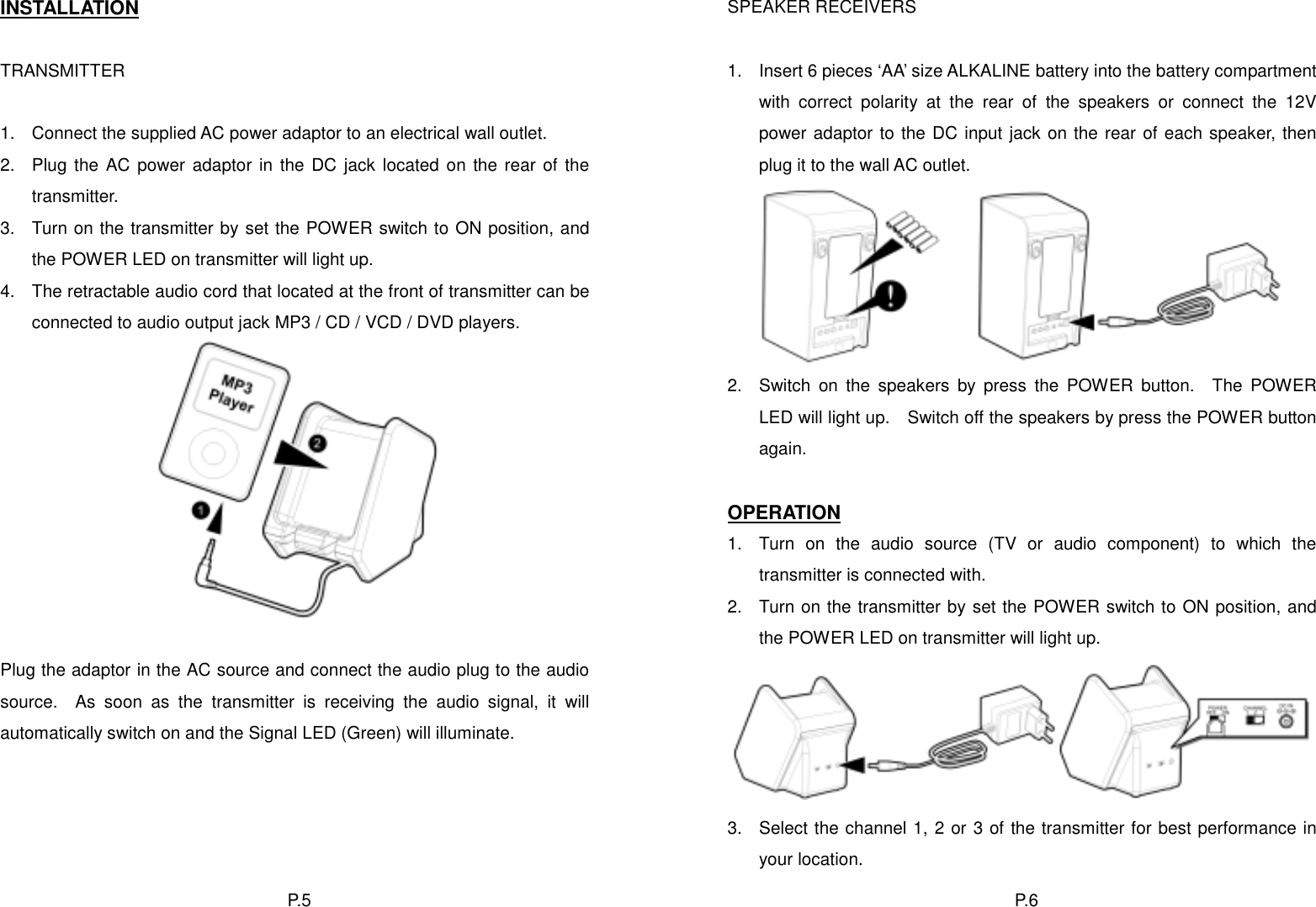

INSTALLATION SPEAKER RECEIVERS TRANSMITTER 1. Insert 6 pieces ‘AA’ size ALKALINE battery into the battery compartment with correct polarity at the rear of the speakers or connect the 12V power adaptor to the DC input jack on the rear of each speaker, then plug it to the wall AC outlet. 1. Connect the supplied AC power adaptor to an electrical wall outlet. 2. Plug the AC power adaptor in the DC jack located on the rear of the transmitter. 3. Turn on the transmitter by set the POWER switch to ON position, and the POWER LED on transmitter will light up. 4. The retractable audio cord that located at the front of transmitter can be connected to audio output jack MP3 / CD / VCD / DVD players. 2. Switch on the speakers by press the POWER button. The POWER LED will light up. Switch off the speakers by press the POWER button again. OPERATION 1. Turn on the audio source (TV or audio component) to which the transmitter is connected with. 2. Turn on the transmitter by set the POWER switch to ON position, and the POWER LED on transmitter will light up. Plug the adaptor in the AC source and connect the audio plug to the audio source. As soon as the transmitter is receiving the audio signal, it will automatically switch on and the Signal LED (Green) will illuminate. 3. Select the channel 1, 2 or 3 of the transmitter for best performance in your location. P. 6 P. 5

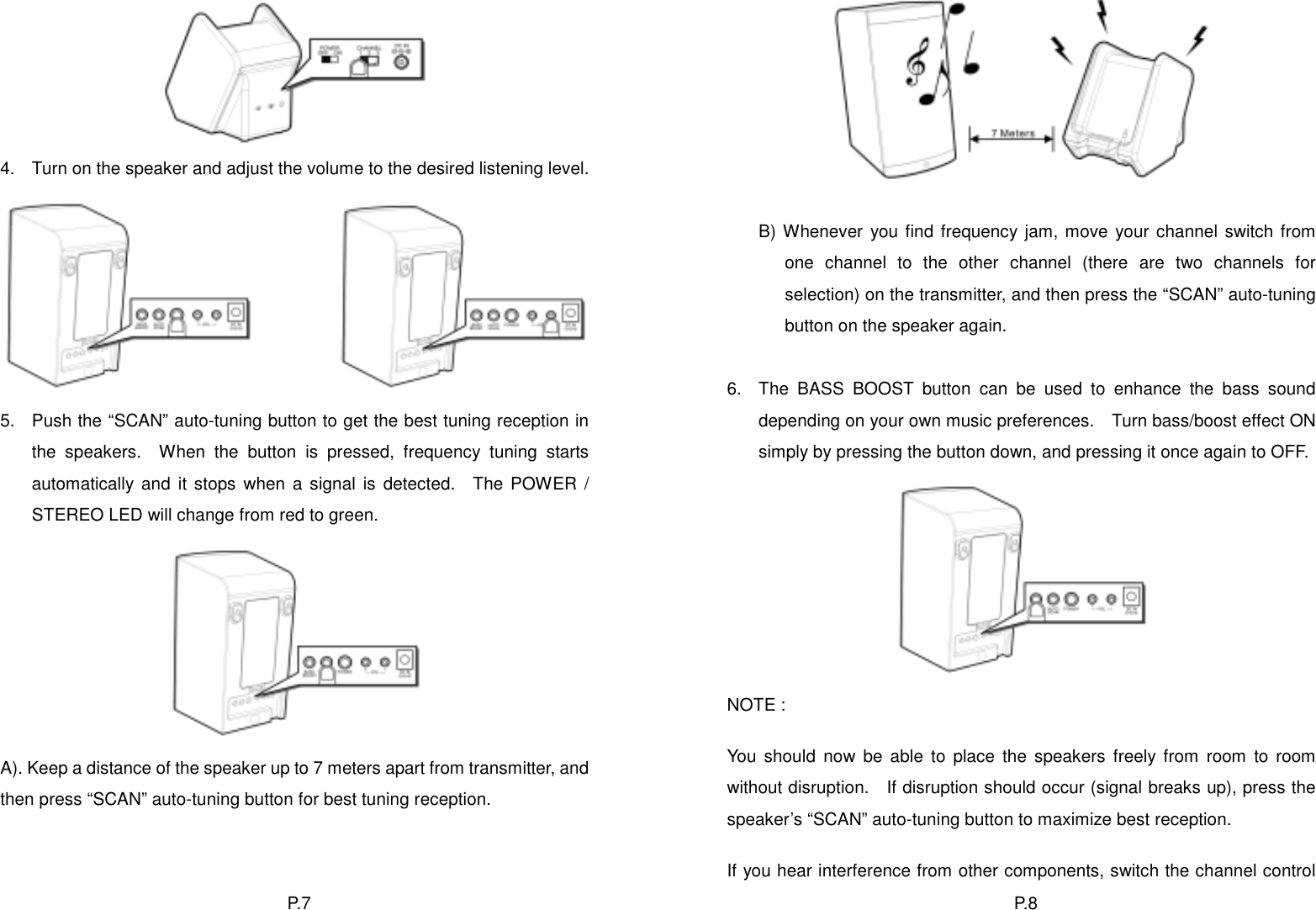

P. 8 4. Turn on the speaker and adjust the volume to the desired listening level. B) Whenever you find frequency jam, move your channel switch from one channel to the other channel (there are two channels for selection) on the transmitter, and then press the “SCAN” auto-tuning button on the speaker again. 6. The BASS BOOST button can be used to enhance the bass sound depending on your own music preferences. Turn bass/boost effect ON simply by pressing the button down, and pressing it once again to OFF. 5. Push the “SCAN” auto-tuning button to get the best tuning reception in the speakers. When the button is pressed, frequency tuning starts automatically and it stops when a signal is detected. The POWER / STEREO LED will change from red to green. NOTE : You should now be able to place the speakers freely from room to room without disruption. If disruption should occur (signal breaks up), press the speaker’s “SCAN” auto-tuning button to maximize best reception. A). Keep a distance of the speaker up to 7 meters apart from transmitter, and then press “SCAN” auto-tuning button for best tuning reception. If you hear interference from other components, switch the channel control P. 7

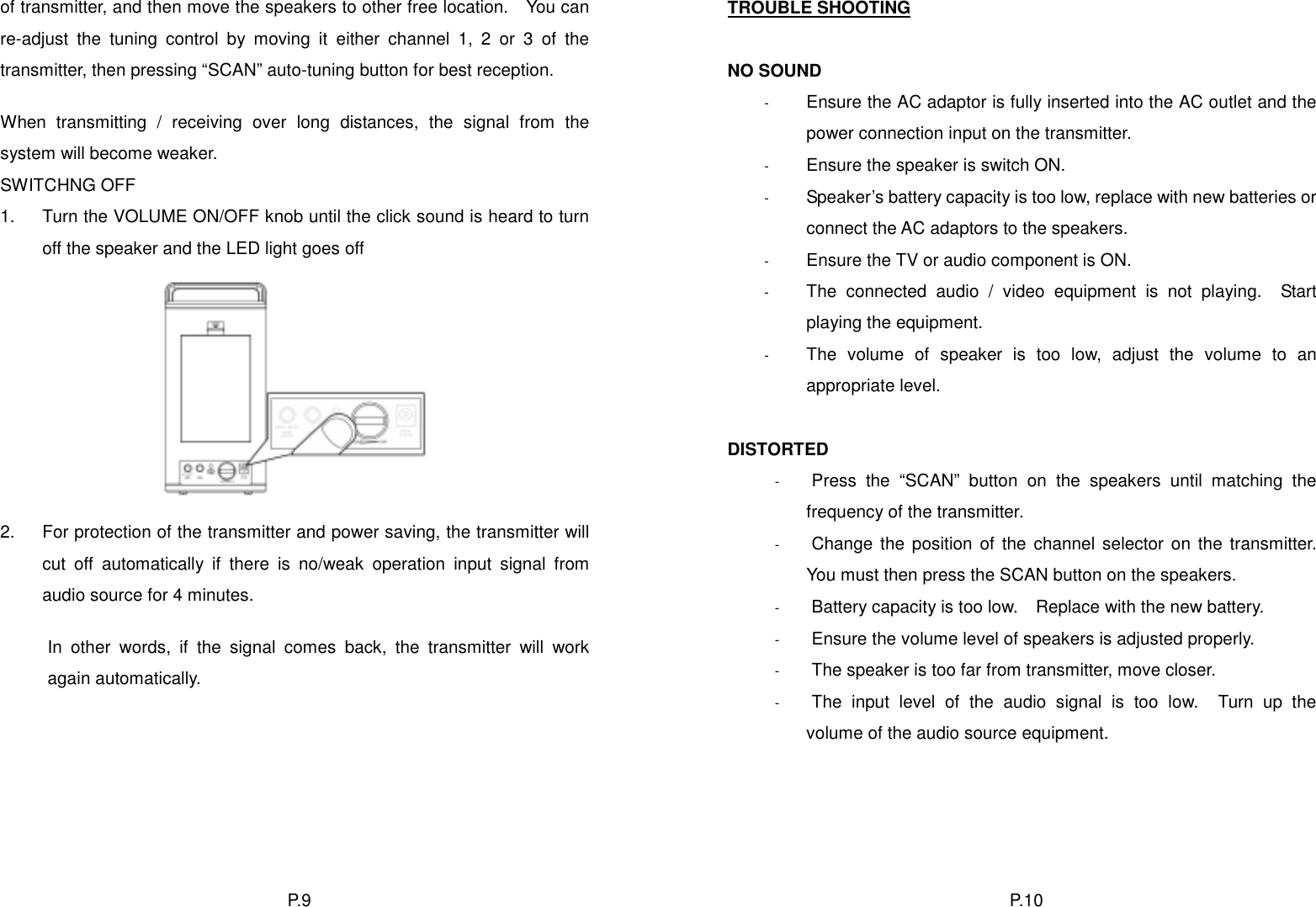

of transmitter, and then move the speakers to other free location. You can re-adjust the tuning control by moving it either channel 1, 2 or 3 of the transmitter, then pressing “SCAN” auto-tuning button for best reception. TROUBLE SHOOTING NO SOUND Ensure the AC adaptor is fully inserted into the AC outlet and the power connection input on the transmitter. - - - - - - - - - - - - When transmitting / receiving over long distances, the signal from the system will become weaker. Ensure the speaker is switch ON. SWITCHNG OFF Speaker’s battery capacity is too low, replace with new batteries or connect the AC adaptors to the speakers. 1. Turn the VOLUME ON/OFF knob until the click sound is heard to turn off the speaker and the LED light goes off Ensure the TV or audio component is ON. The connected audio / video equipment is not playing. Start playing the equipment. The volume of speaker is too low, adjust the volume to an appropriate level. DISTORTED Press the “SCAN” button on the speakers until matching the frequency of the transmitter. 2. For protection of the transmitter and power saving, the transmitter will cut off automatically if there is no/weak operation input signal from audio source for 4 minutes. Change the position of the channel selector on the transmitter. You must then press the SCAN button on the speakers. Battery capacity is too low. Replace with the new battery. Ensure the volume level of speakers is adjusted properly. In other words, if the signal comes back, the transmitter will work again automatically. The speaker is too far from transmitter, move closer. The input level of the audio signal is too low. Turn up the volume of the audio source equipment. P. 1 0 P. 9

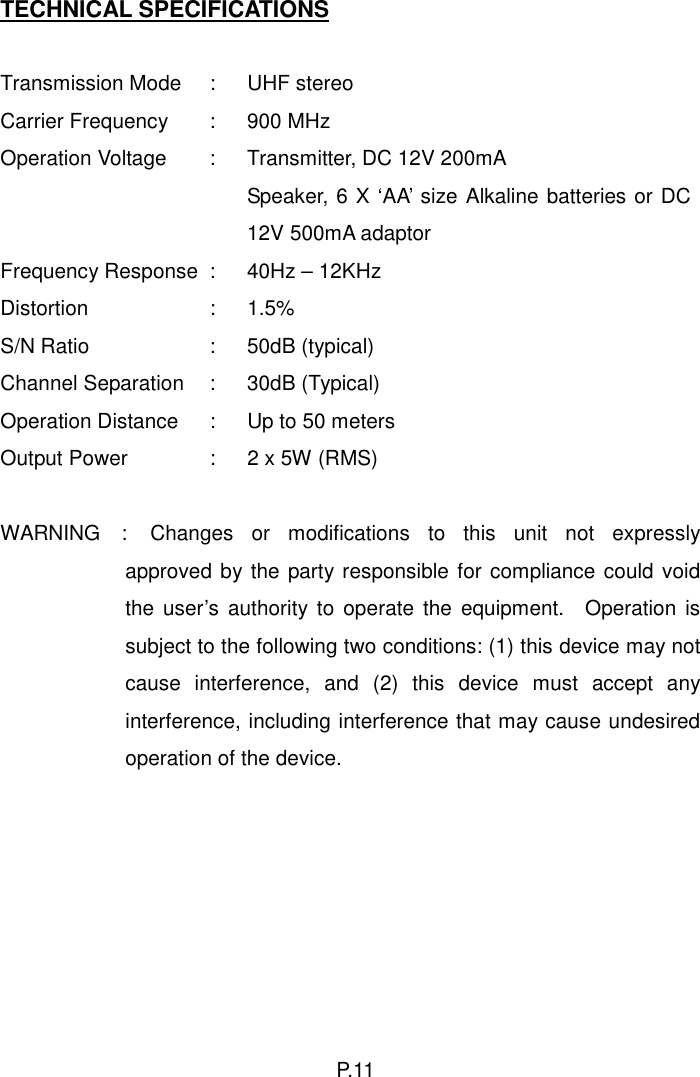

TECHNICAL SPECIFICATIONS Transmission Mode : UHF stereo Carrier Frequency : 900 MHz Operation Voltage : Transmitter, DC 12V 200mA Speaker, 6 X ‘AA’ size Alkaline batteries or DC 12V 500mA adaptor Frequency Response : 40Hz – 12KHz Distortion : 1.5%S/N Ratio : 50dB (typical) Channel Separation : 30dB (Typical) Operation Distance : Up to 50 meters Output Power : 2 x 5W (RMS) WARNING : Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. P. 11
