Uni Art Precise SP3992-001R 900MHz Wireless Speaker System User Manual SP3990 20091204

Uni-Art Precise Products Ltd 900MHz Wireless Speaker System SP3990 20091204

Users Manual

SP3990 Floating 900MHz Wireless Speaker System User’s Manual Please read before using the equipment

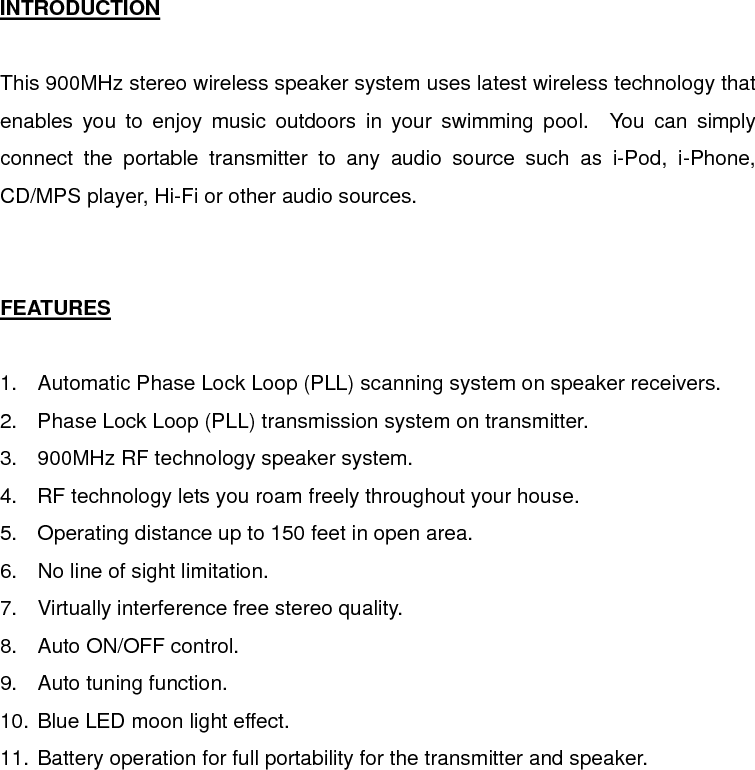

INTRODUCTION This 900MHz stereo wireless speaker system uses latest wireless technology that enables you to enjoy music outdoors in your swimming pool. You can simply connect the portable transmitter to any audio source such as i-Pod, i-Phone, CD/MPS player, Hi-Fi or other audio sources. FEATURES 1. Automatic Phase Lock Loop (PLL) scanning system on speaker receivers. 2. Phase Lock Loop (PLL) transmission system on transmitter. 3. 900MHz RF technology speaker system. 4. RF technology lets you roam freely throughout your house. 5. Operating distance up to 150 feet in open area. 6. No line of sight limitation. 7. Virtually interference free stereo quality. 8. Auto ON/OFF control. 9. Auto tuning function. 10. Blue LED moon light effect. 11. Battery operation for full portability for the transmitter and speaker.

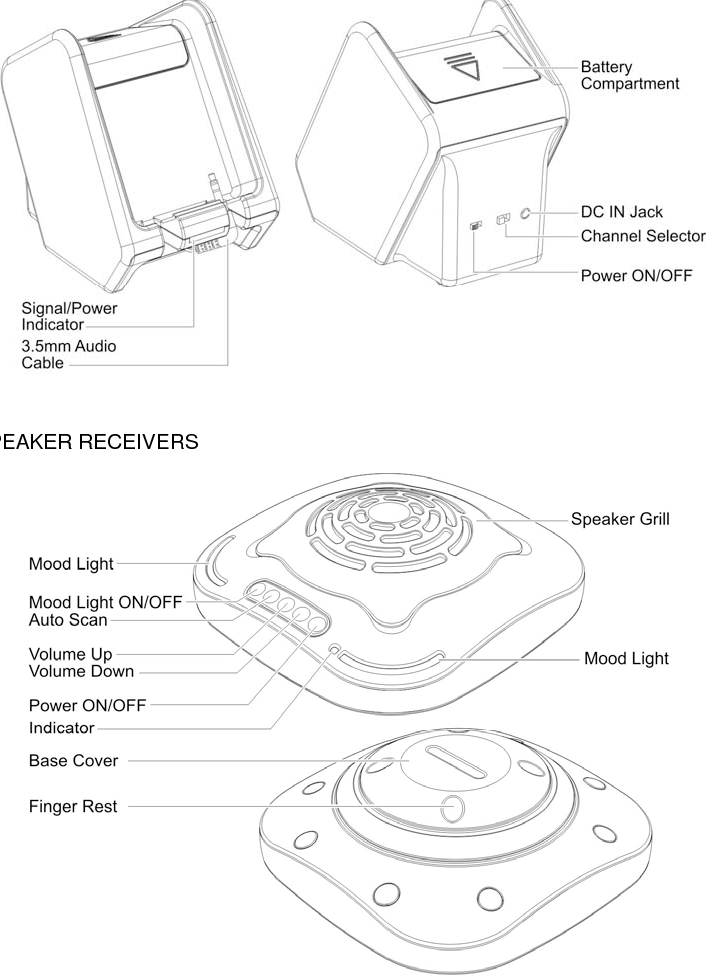

COMPONENT IDENTIFICATION TRANSMITTER SPEAKER RECEIVERS

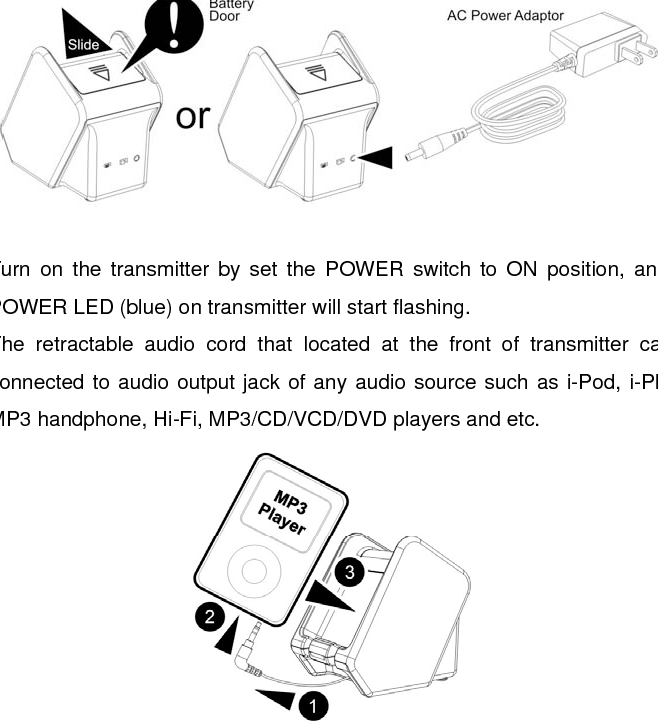

INSTALLATION TRANSMITTER 1. Connect the supplied AC power adaptor to an electrical wall outlet. 2. Plug the AC power adaptor (12V/200mA) in the DC jack located on the rear of the transmitter, or you can insert 4 X “AA” size ALKALINE batteries into the battery compartment of the transmitter with correct polarity. 3. Turn on the transmitter by set the POWER switch to ON position, and the POWER LED (blue) on transmitter will start flashing. 4. The retractable audio cord that located at the front of transmitter can be connected to audio output jack of any audio source such as i-Pod, i-Phone, MP3 handphone, Hi-Fi, MP3/CD/VCD/DVD players and etc. 5. As soon as the transmitter is receiving the audio signal, the POWER LED (blue) will illuminate steadily.

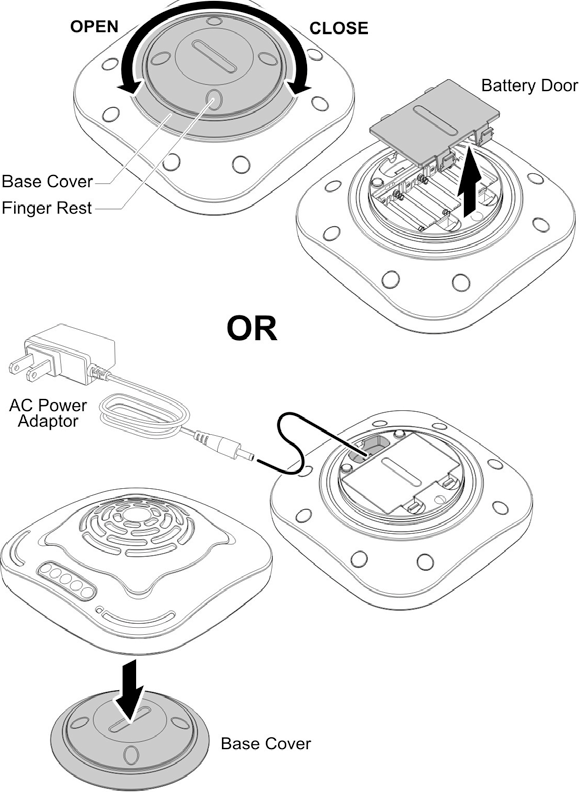

SPEAKER RECEIVERS 1. Insert 6 pieces of ‘AA’ size ALKALINE battery into the battery compartment with correct polarity at the bottom of the speaker, or you connect an AC power adaptor (9V/1.2A) to the DC input jack on the rear of each speaker, then plug it to the wall AC outlet. 2. Tighten the battery door clockwise and ensure the battery door is closed firmly without any gap.

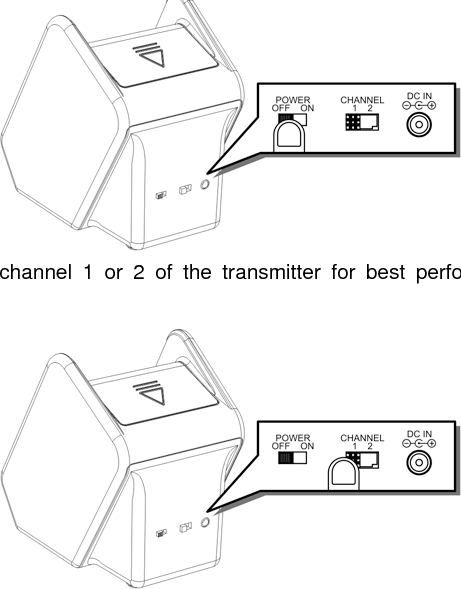

3. Switch on the speakers by press the POWER button. The Mood Light (blue) will illuminate steadily, and the POWER LED (blue) will start flashing. As soon as the connection between the transmitter and speakers are accomplished, the POWER LED (blue) will illuminate steadily. Switch off the speakers by press the POWER button again. OPERATION 1. Turn on the audio source to which the transmitter is connected with. 2. Turn on the transmitter by set the POWER switch to ON position, and the POWER LED on transmitter will light up. 3. Select the channel 1 or 2 of the transmitter for best performance in your location. 4. Turn on the speaker and adjust the volume to the desired listening level.

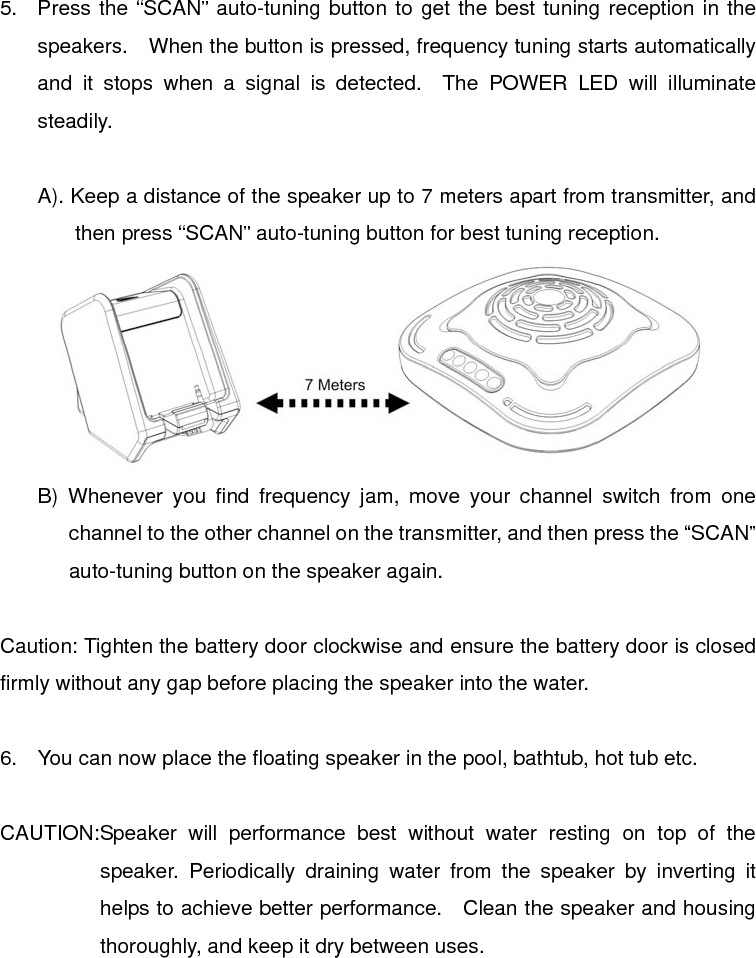

5. Press the “SCAN” auto-tuning button to get the best tuning reception in the speakers. When the button is pressed, frequency tuning starts automatically and it stops when a signal is detected. The POWER LED will illuminate steadily. A). Keep a distance of the speaker up to 7 meters apart from transmitter, and then press “SCAN” auto-tuning button for best tuning reception. B) Whenever you find frequency jam, move your channel switch from one channel to the other channel on the transmitter, and then press the “SCAN” auto-tuning button on the speaker again. Caution: Tighten the battery door clockwise and ensure the battery door is closed firmly without any gap before placing the speaker into the water. 6. You can now place the floating speaker in the pool, bathtub, hot tub etc. CAUTION: Speaker will performance best without water resting on top of the speaker. Periodically draining water from the speaker by inverting it helps to achieve better performance. Clean the speaker and housing thoroughly, and keep it dry between uses.

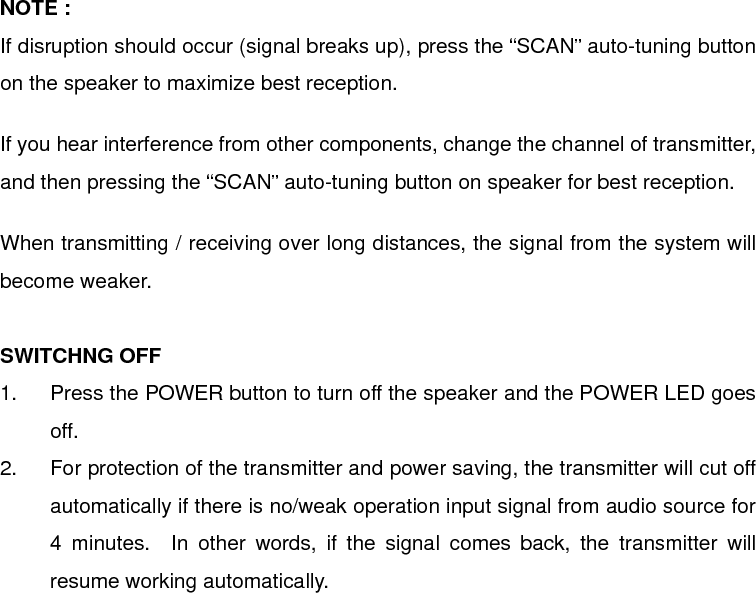

NOTE : If disruption should occur (signal breaks up), press the “SCAN” auto-tuning button on the speaker to maximize best reception. If you hear interference from other components, change the channel of transmitter, and then pressing the “SCAN” auto-tuning button on speaker for best reception. When transmitting / receiving over long distances, the signal from the system will become weaker. SWITCHNG OFF 1. Press the POWER button to turn off the speaker and the POWER LED goes off. 2. For protection of the transmitter and power saving, the transmitter will cut off automatically if there is no/weak operation input signal from audio source for 4 minutes. In other words, if the signal comes back, the transmitter will resume working automatically.

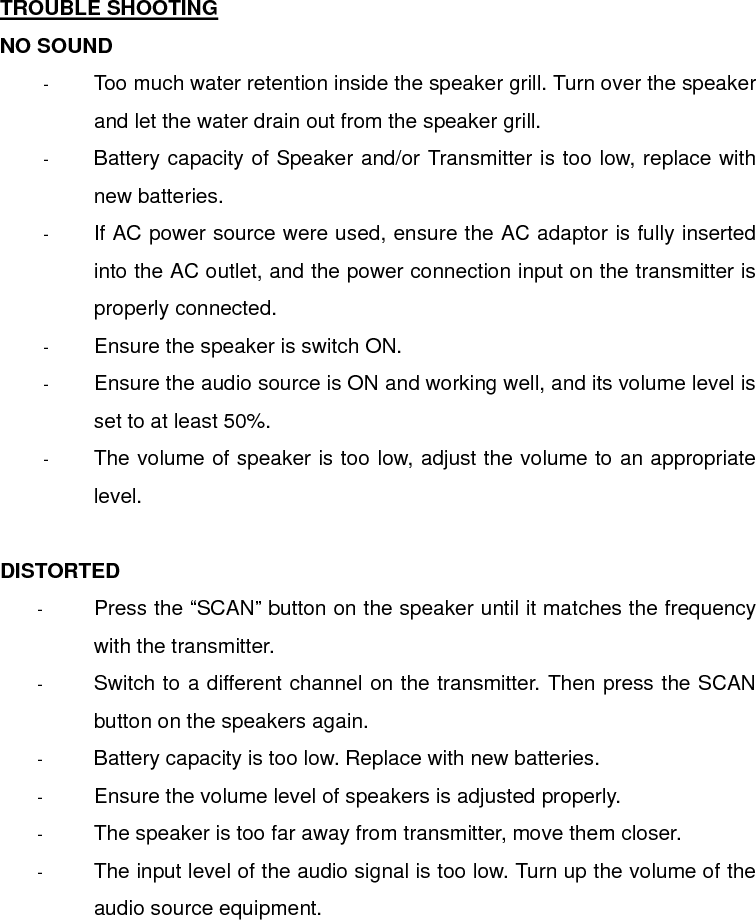

TROUBLE SHOOTING NO SOUND - Too much water retention inside the speaker grill. Turn over the speaker and let the water drain out from the speaker grill. - Battery capacity of Speaker and/or Transmitter is too low, replace with new batteries. - If AC power source were used, ensure the AC adaptor is fully inserted into the AC outlet, and the power connection input on the transmitter is properly connected. - Ensure the speaker is switch ON. - Ensure the audio source is ON and working well, and its volume level is set to at least 50%. - The volume of speaker is too low, adjust the volume to an appropriate level. DISTORTED - Press the “SCAN” button on the speaker until it matches the frequency with the transmitter. - Switch to a different channel on the transmitter. Then press the SCAN button on the speakers again. - Battery capacity is too low. Replace with new batteries. - Ensure the volume level of speakers is adjusted properly. - The speaker is too far away from transmitter, move them closer. - The input level of the audio signal is too low. Turn up the volume of the audio source equipment.

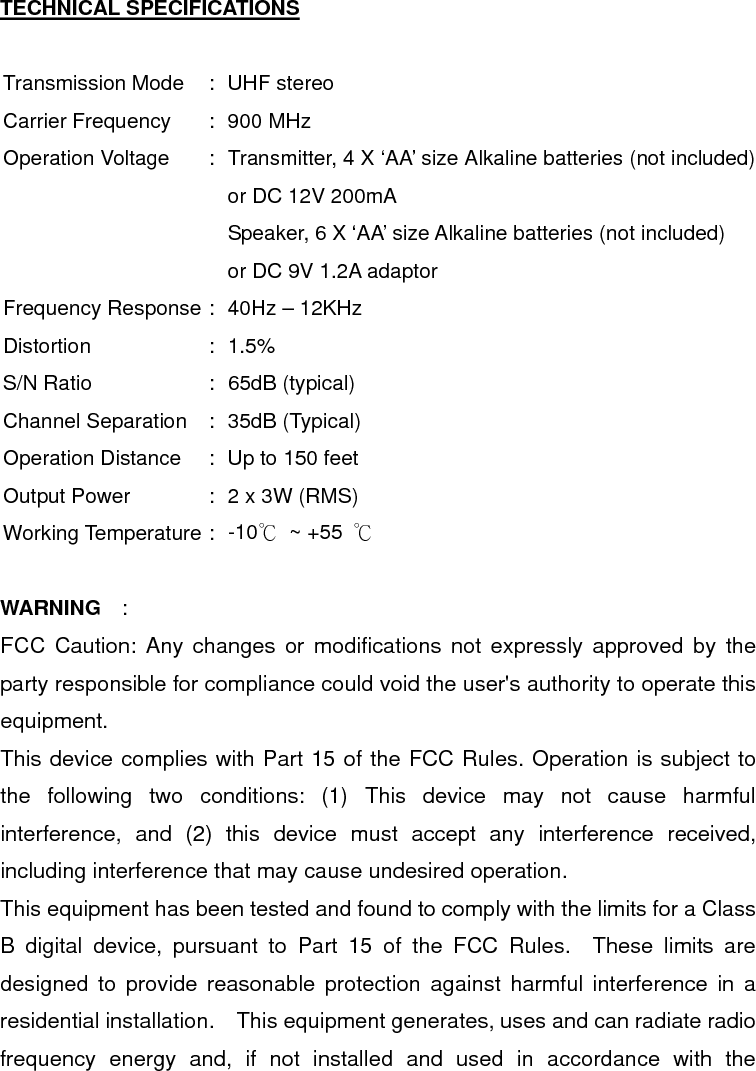

TECHNICAL SPECIFICATIONS Transmission Mode : UHF stereo Carrier Frequency : 900 MHz Operation Voltage : Transmitter, 4 X ‘AA’ size Alkaline batteries (not included) or DC 12V 200mA Speaker, 6 X ‘AA’ size Alkaline batteries (not included) or DC 9V 1.2A adaptor Frequency Response : 40Hz – 12KHz Distortion : 1.5% S/N Ratio : 65dB (typical) Channel Separation : 35dB (Typical) Operation Distance : Up to 150 feet Output Power : 2 x 3W (RMS) Working Temperature : -10℃ ~ +55 ℃ WARNING : FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the

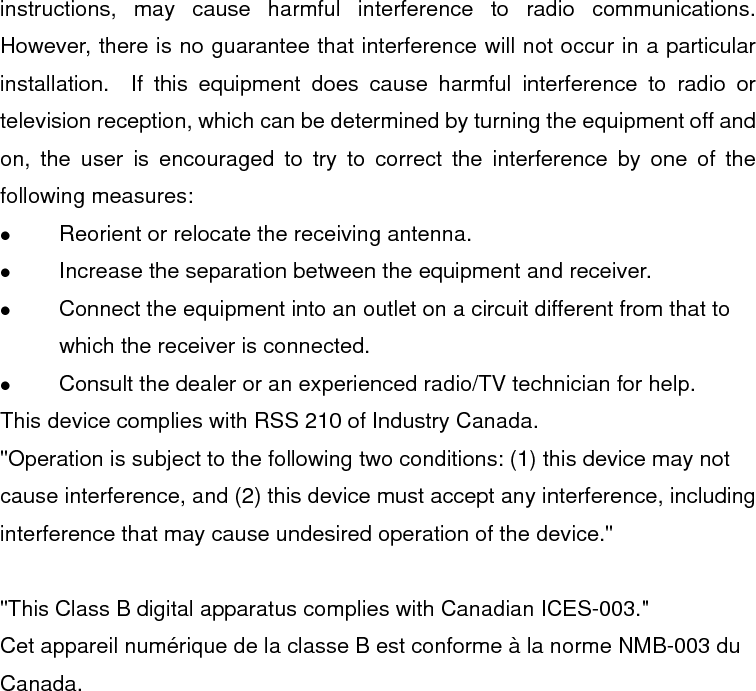

instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. This device complies with RSS 210 of Industry Canada. "Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device." "This Class B digital apparatus complies with Canadian ICES-003." Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
