Uni Art Precise SP4092-001R Wireless Stereo 900MHz Speaker System User Manual

Uni-Art Precise Products Ltd Wireless Stereo 900MHz Speaker System

user manual

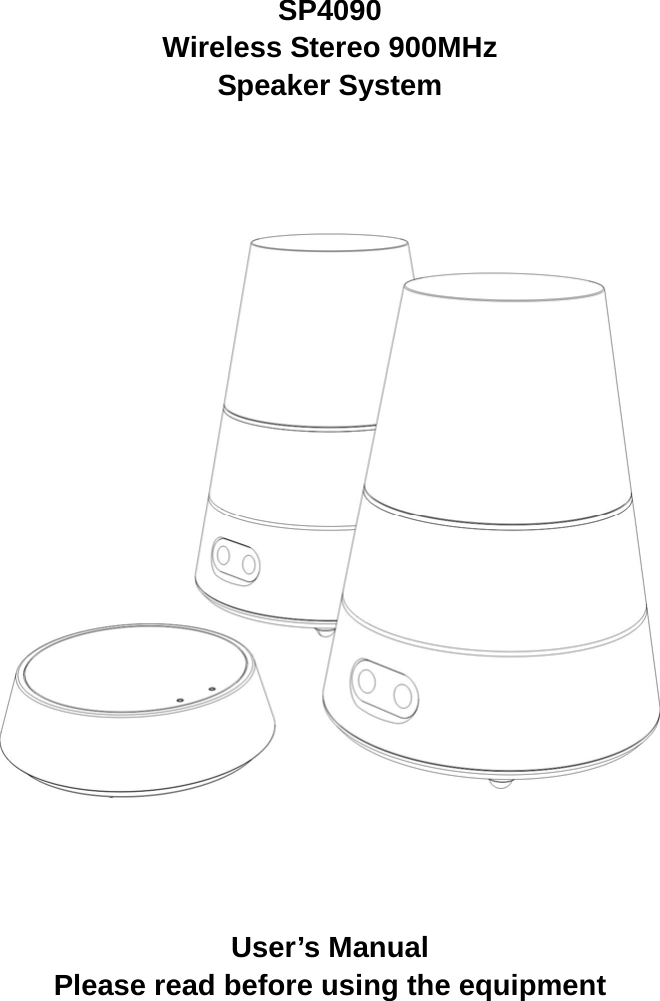

SP4090 Wireless Stereo 900MHz Speaker System User’s Manual Please read before using the equipment

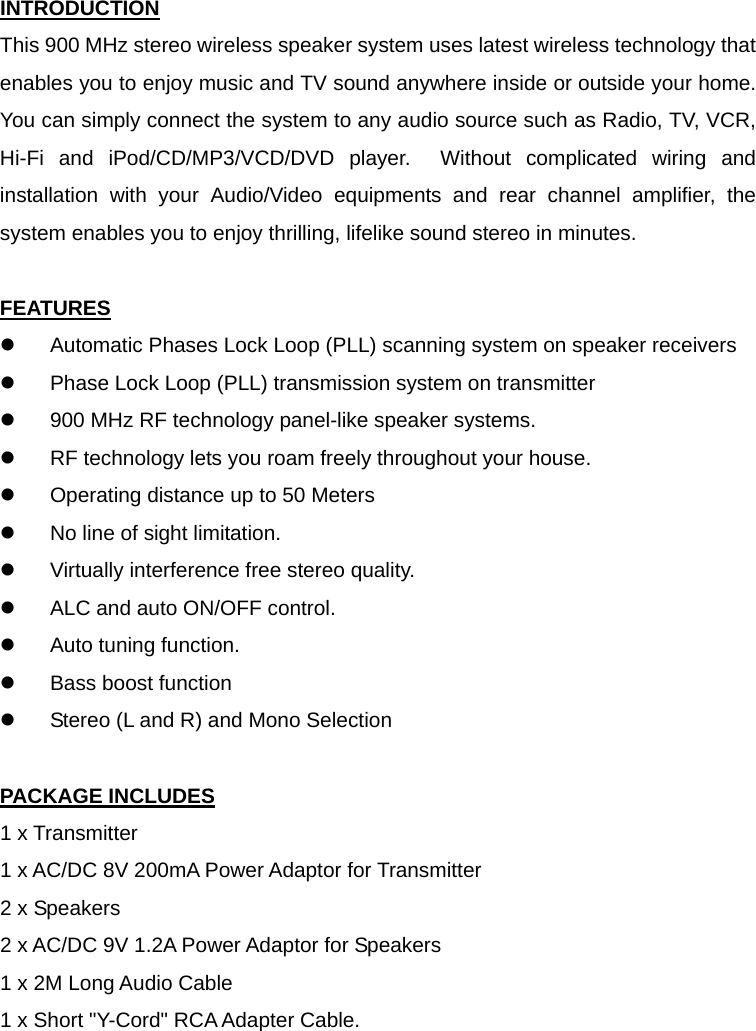

INTRODUCTION This 900 MHz stereo wireless speaker system uses latest wireless technology that enables you to enjoy music and TV sound anywhere inside or outside your home. You can simply connect the system to any audio source such as Radio, TV, VCR, Hi-Fi and iPod/CD/MP3/VCD/DVD player. Without complicated wiring and installation with your Audio/Video equipments and rear channel amplifier, the system enables you to enjoy thrilling, lifelike sound stereo in minutes. FEATURES z Automatic Phases Lock Loop (PLL) scanning system on speaker receivers z Phase Lock Loop (PLL) transmission system on transmitter z 900 MHz RF technology panel-like speaker systems. z RF technology lets you roam freely throughout your house. z Operating distance up to 50 Meters z No line of sight limitation. z Virtually interference free stereo quality. z ALC and auto ON/OFF control. z Auto tuning function. z Bass boost function z Stereo (L and R) and Mono Selection PACKAGE INCLUDES 1 x Transmitter 1 x AC/DC 8V 200mA Power Adaptor for Transmitter 2 x Speakers 2 x AC/DC 9V 1.2A Power Adaptor for Speakers 1 x 2M Long Audio Cable 1 x Short "Y-Cord" RCA Adapter Cable.

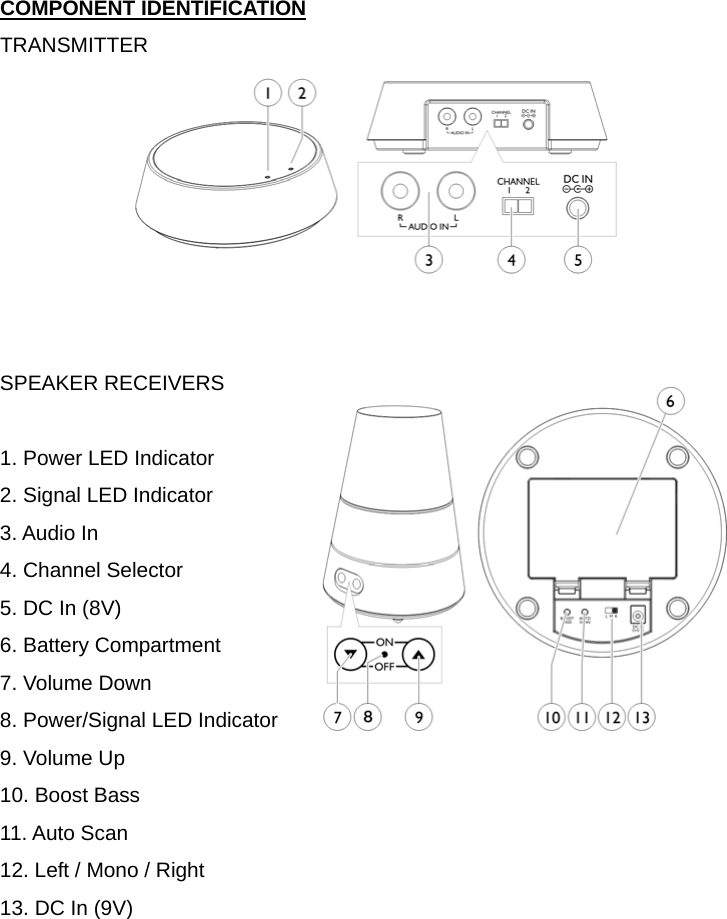

COMPONENT IDENTIFICATION TRANSMITTER SPEAKER RECEIVERS 1. Power LED Indicator 2. Signal LED Indicator 3. Audio In 4. Channel Selector 5. DC In (8V) 6. Battery Compartment 7. Volume Down 8. Power/Signal LED Indicator 9. Volume Up 10. Boost Bass 11. Auto Scan 12. Left / Mono / Right 13. DC In (9V)

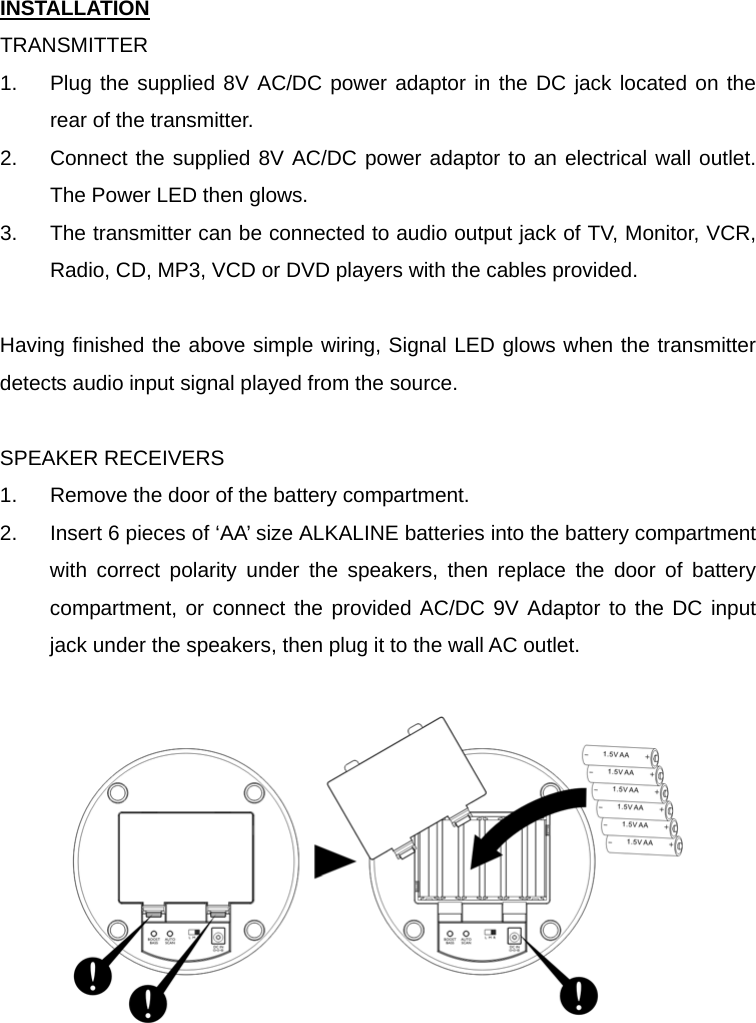

INSTALLATION TRANSMITTER 1. Plug the supplied 8V AC/DC power adaptor in the DC jack located on the rear of the transmitter. 2. Connect the supplied 8V AC/DC power adaptor to an electrical wall outlet. The Power LED then glows. 3. The transmitter can be connected to audio output jack of TV, Monitor, VCR, Radio, CD, MP3, VCD or DVD players with the cables provided. Having finished the above simple wiring, Signal LED glows when the transmitter detects audio input signal played from the source. SPEAKER RECEIVERS 1. Remove the door of the battery compartment. 2. Insert 6 pieces of ‘AA’ size ALKALINE batteries into the battery compartment with correct polarity under the speakers, then replace the door of battery compartment, or connect the provided AC/DC 9V Adaptor to the DC input jack under the speakers, then plug it to the wall AC outlet.

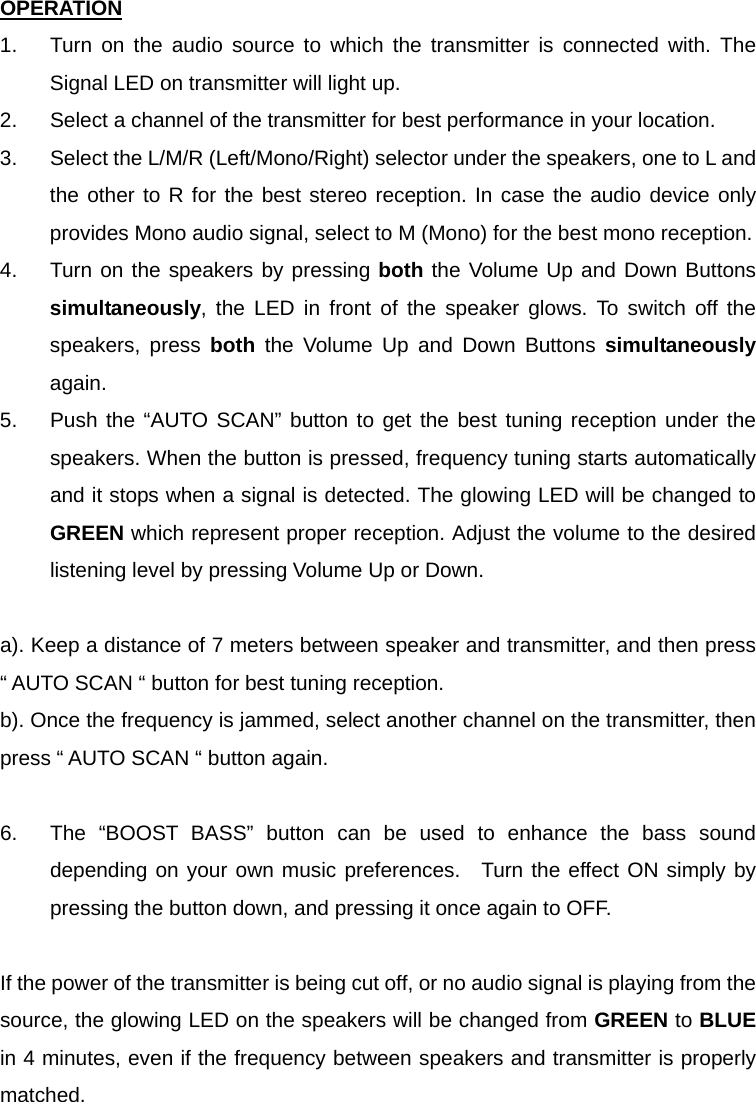

OPERATION 1. Turn on the audio source to which the transmitter is connected with. The Signal LED on transmitter will light up. 2. Select a channel of the transmitter for best performance in your location. 3. Select the L/M/R (Left/Mono/Right) selector under the speakers, one to L and the other to R for the best stereo reception. In case the audio device only provides Mono audio signal, select to M (Mono) for the best mono reception. 4. Turn on the speakers by pressing both the Volume Up and Down Buttons simultaneously, the LED in front of the speaker glows. To switch off the speakers, press both the Volume Up and Down Buttons simultaneously again. 5. Push the “AUTO SCAN” button to get the best tuning reception under the speakers. When the button is pressed, frequency tuning starts automatically and it stops when a signal is detected. The glowing LED will be changed to GREEN which represent proper reception. Adjust the volume to the desired listening level by pressing Volume Up or Down. a). Keep a distance of 7 meters between speaker and transmitter, and then press “ AUTO SCAN “ button for best tuning reception. b). Once the frequency is jammed, select another channel on the transmitter, then press “ AUTO SCAN “ button again. 6. The “BOOST BASS” button can be used to enhance the bass sound depending on your own music preferences. Turn the effect ON simply by pressing the button down, and pressing it once again to OFF. If the power of the transmitter is being cut off, or no audio signal is playing from the source, the glowing LED on the speakers will be changed from GREEN to BLUE in 4 minutes, even if the frequency between speakers and transmitter is properly matched.

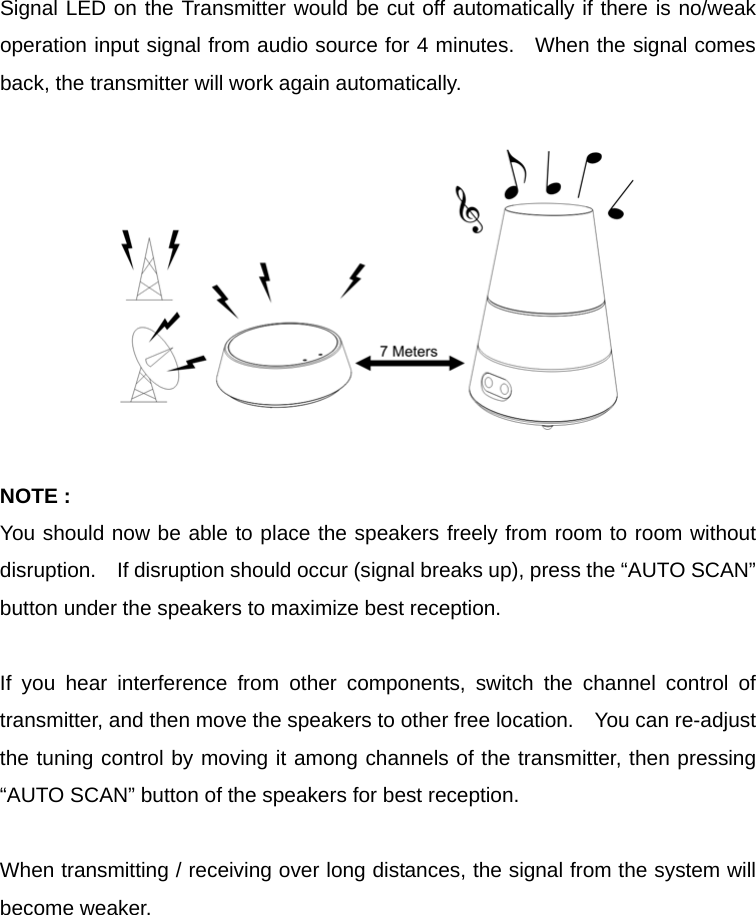

Signal LED on the Transmitter would be cut off automatically if there is no/weak operation input signal from audio source for 4 minutes. When the signal comes back, the transmitter will work again automatically. NOTE : You should now be able to place the speakers freely from room to room without disruption. If disruption should occur (signal breaks up), press the “AUTO SCAN” button under the speakers to maximize best reception. If you hear interference from other components, switch the channel control of transmitter, and then move the speakers to other free location. You can re-adjust the tuning control by moving it among channels of the transmitter, then pressing “AUTO SCAN” button of the speakers for best reception. When transmitting / receiving over long distances, the signal from the system will become weaker.

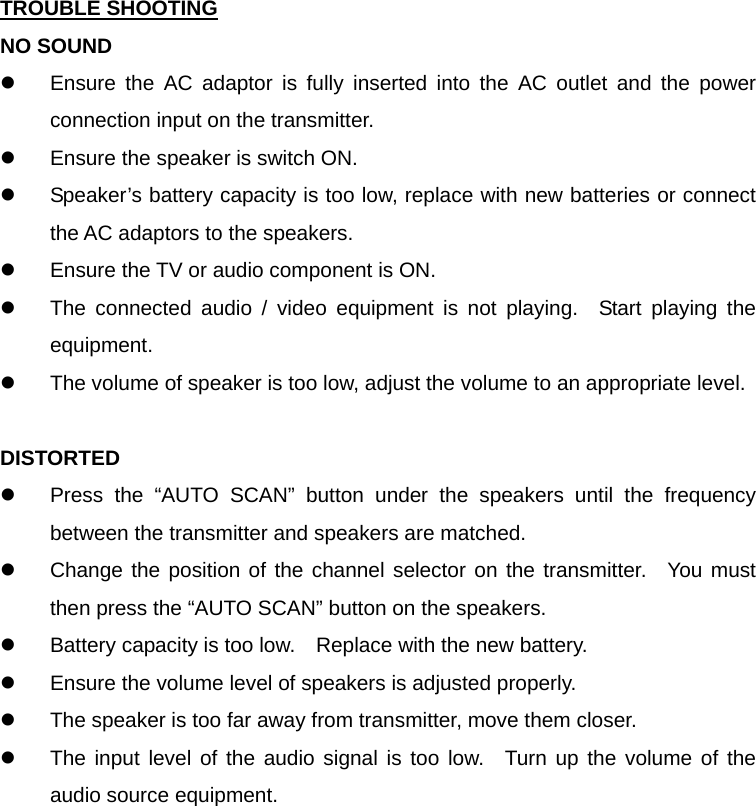

TROUBLE SHOOTING NO SOUND z Ensure the AC adaptor is fully inserted into the AC outlet and the power connection input on the transmitter. z Ensure the speaker is switch ON. z Speaker’s battery capacity is too low, replace with new batteries or connect the AC adaptors to the speakers. z Ensure the TV or audio component is ON. z The connected audio / video equipment is not playing. Start playing the equipment. z The volume of speaker is too low, adjust the volume to an appropriate level. DISTORTED z Press the “AUTO SCAN” button under the speakers until the frequency between the transmitter and speakers are matched. z Change the position of the channel selector on the transmitter. You must then press the “AUTO SCAN” button on the speakers. z Battery capacity is too low. Replace with the new battery. z Ensure the volume level of speakers is adjusted properly. z The speaker is too far away from transmitter, move them closer. z The input level of the audio signal is too low. Turn up the volume of the audio source equipment.

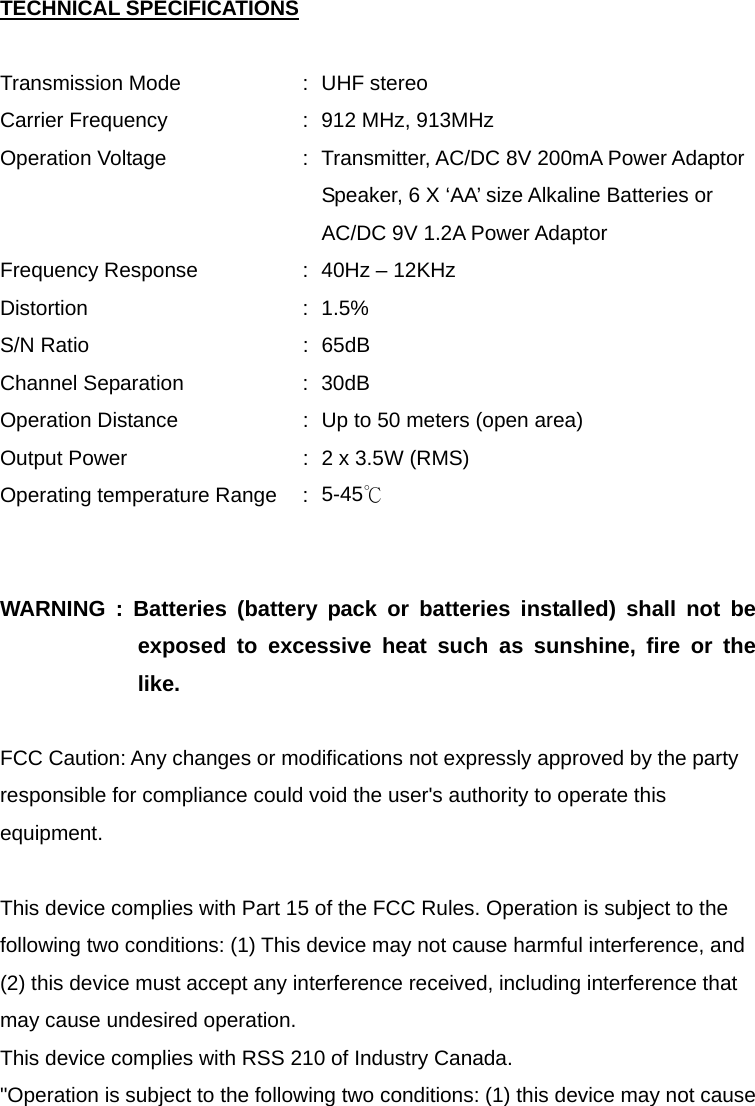

TECHNICAL SPECIFICATIONS Transmission Mode : UHF stereo Carrier Frequency : 912 MHz, 913MHz Operation Voltage : Transmitter, AC/DC 8V 200mA Power Adaptor Speaker, 6 X ‘AA’ size Alkaline Batteries or AC/DC 9V 1.2A Power Adaptor Frequency Response : 40Hz – 12KHz Distortion : 1.5% S/N Ratio : 65dB Channel Separation : 30dB Operation Distance : Up to 50 meters (open area) Output Power : 2 x 3.5W (RMS) Operating temperature Range : 5-45℃ WARNING : Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device complies with RSS 210 of Industry Canada. "Operation is subject to the following two conditions: (1) this device may not cause

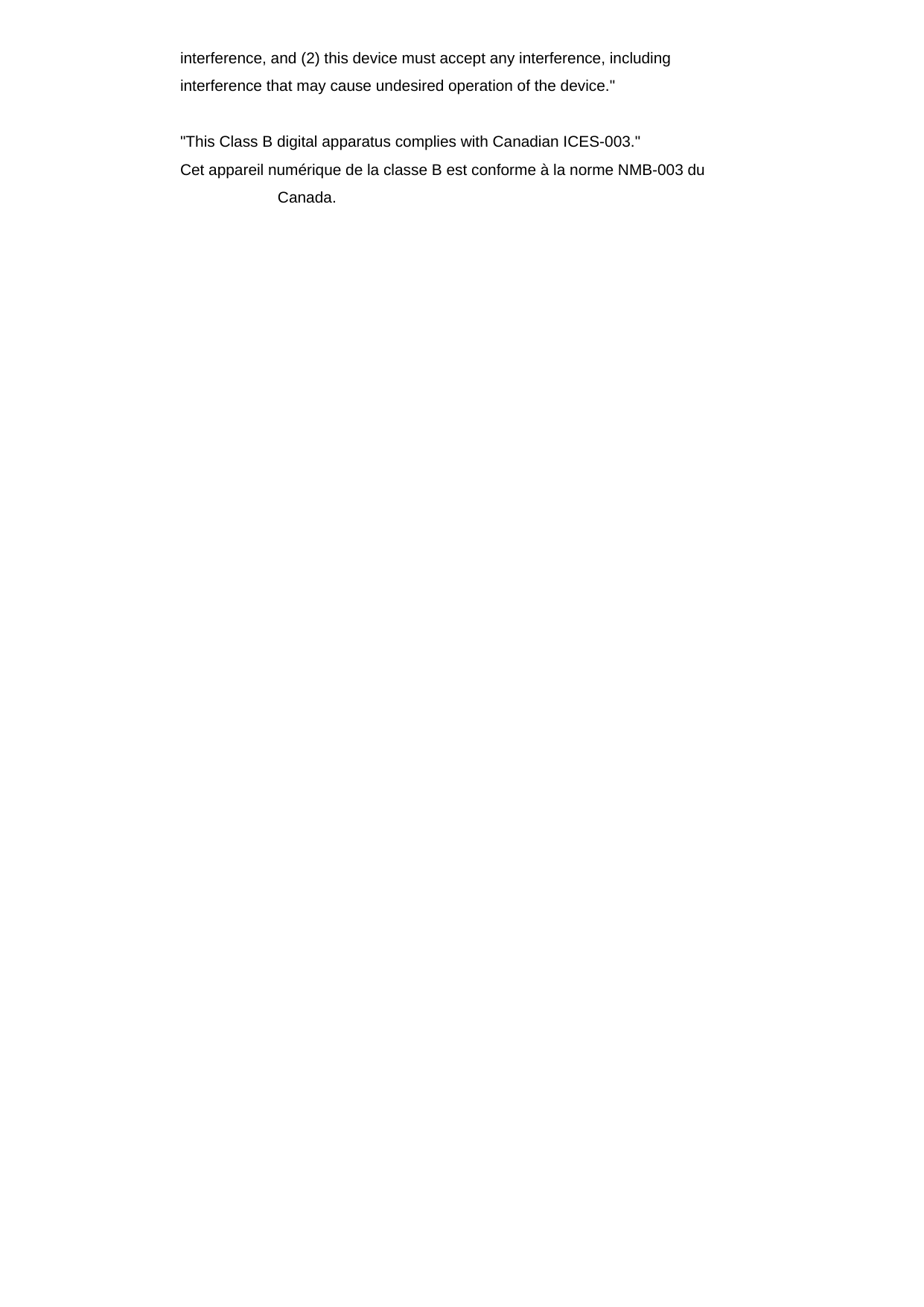

interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device." "This Class B digital apparatus complies with Canadian ICES-003." Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
