Uniden America LRD350 RADAR DETECTOR User Manual
Uniden America Corporation RADAR DETECTOR
User Manual
UNIDEN LONG RANGE RADAR/
LASER DETECTOR
LRD350
DISCLAIMER: Radar detectors are illegal in some states.
Some states prohibit mounng any object on your
windshield. Check applicable law in your state and
any state in which you use the product to verify
that using and mounng a radar detector is legal.
Uniden radar detectors are not manufactured
and/or sold with the intent to be used for illegal
purposes. Drive safely and exercise cauon while
using this product. Do not change sengs of the
product while driving. Uniden expects consumer’s
use of these products to be in compliance with
all local, state and federal law. Uniden expressly
disclaims any liability arising out of or related to
your use of this product.
FEATURES
• X, K, and Ka band alarms
• Laser alarms
• Highway/City/City 1 modes
• Invisible to VG-2 and Spectre I/IV/IV+ radar detectors
• Mute alarm audio
• Memory feature saves user’s last settings (except MUTE)
when the unit is powered down/disconnected from
power.
WHAT’S IN THE BOX
• LRD350 radar detector
• Straight 12V DC Power Cord
• Windshield Mounting Bracket
• Hook and loop fastener tape
• Spare fuse for DC Power Cord
LRD350

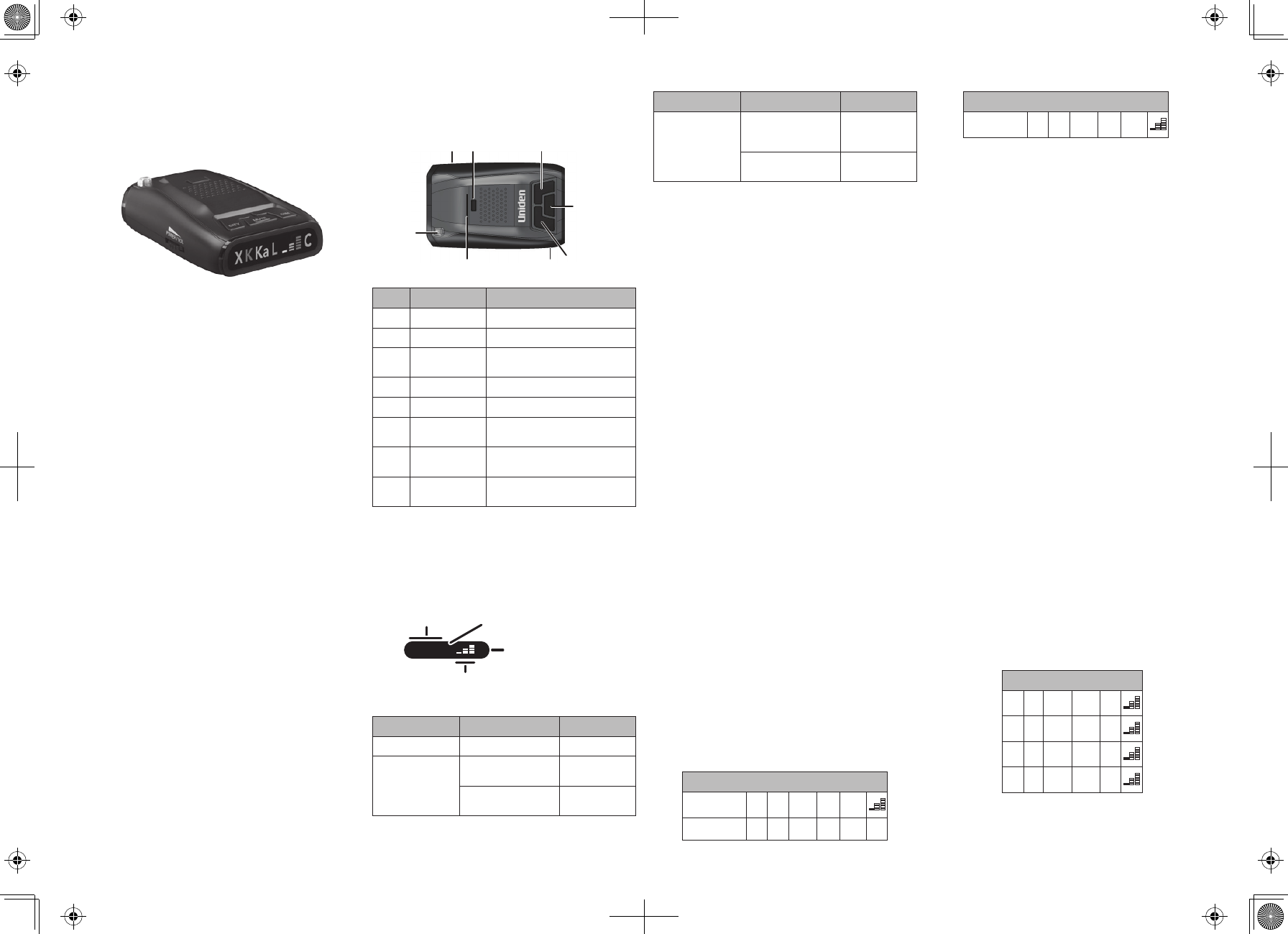

HARDWARE
NO. NAME WHAT IT DOES
1Eagle Eye 360° Laser detection
2Power Jack Plugs into power source.
3 Eject Releases LRD350 from
mounting hardware.
4DIM Dims the display brightness.
5MUTE Turns off the sound.
6CITY Sets the unit to CITY, CITY I, or
HIGHWAY mode.
7 Power/
Volume Dial
Turns unit on and adjusts
volume.
8 Mounting
Bracket Slot
The mounting bracket fits into
this slot.
LED DISPLAY
When a signal is detected, the display will show the band type,
City/Highway setting, and signal strength. If the LRD350 detects
a laser, the display shows L. (Laser is used in close proximity and
has no signal associated with it.)
The Signal Strength Meter bars indicate the following:
SS METER BAR BAR STATUS MEANING
SSM Bar 1 Solid SSM Level 1
SSM Bar 3 Solid SSM Bar 1 +
Blinking Bar 3
SSM Level 2
Solid SSM Bar 1 and
Bar 3
SSM Level 3
SS METER BAR BAR STATUS MEANING
SSM Bar 5 Solid SSM Bars 1
and 3 + Blinking Bar
5
SSM Level 4
Solid SSM Bars 1, 3,
and 5
SSM Level 5
INSTALLATION AND TURN UP
Install the LRD350 on the front windshield or on the dashboard.
For best performance, position the detector as low as possible
in the center of the front windshield. Be sure the unit’s view of
the road, either to the front or the back, is clear.
INSTALLATION
WINDSHIELD
1. Clean the windshield and the rubber cups of the mounting
bracket. Attach the rubber cups to the bracket.
2. Push the bracket firmly onto the windshield.
3. Slide the unit onto the bracket.
4. Gently adjust the bracket angle if needed.
Do not use the detector to adjust the bracket angle.
5. Plug the power cord into the detector.
6. Plug the cigarette lighter adapter into the vehicle’s cigarette
lighter.
You can remove the detector by pressing the Eject button.
Dashboard
1. Place the unit on the dashboard so that it has a clear, level
view of the road.
The unit cannot be readjusted aer nal installaon.
2. Remove the backing from one side of the hook and loop
fastener tape.
3. Place that fastener tape on the dashboard where you want
the unit.
4. Attach the other piece of the fastener tape to the bottom of
the unit and attach the unit to the dashboard fastener tape.
You can remove the unit as needed.
5. Plug the power cord into the detector.
6. Plug the cigarette lighter adapter into the vehicle’s cigarette
lighter.
TURN UP
Once the detector is installed and the car is turned on, turn the
volume dial away from you until it clicks. The unit is now turned
on.
The LED cycles through the display in this order: X - K - Ka -
Laser, then signal strength except for Laser (L).
Once the cycle is complete, the detector turns to standby
mode.
STANDBY MODE
Highway XKKa LC
City XKKa LC
STANDBY MODE
City 1 X K Ka LC
DETECTION
The LRD350 detects emissions from radar guns and sounds an
audio alert for the driver. The detector determines which band
range the signal is from and displays that frequency type on the
display (X, K, Ka, or L). The signal strength (1 through 5) also
displays as applicable. If there is a specific alert code, that is
also displayed.
False signals can come from other devices such as the
automac doors at a supermarket or even another
car’s cruise control; these devices operate in the
same frequency ranges as radar guns.
BANDS
The LRD350 recognizes:
• X Band: This band was the first frequency band assigned to
police radar. It operated on a lower frequency (10.525GHz)
with a higher power output.
• K Band: This band is the most common frequency used in
radar detectors (24.150). Its relatively small wavelength gives
it a clocking distance of about 1/4 mile although, depending
on the environment, it can detect up to 2 miles.
• Ka Band: Over the years, the Ka band incorporated the
Ka-Band, the Ka Wide-Band, and the Ka Super Wide-Band.
Most photo radars (also known as stop light cameras) use
this band.
• Laser: Police use the laser’s narrower light pulses for
speed detection as it is more accurate and faster. Laser
beams are more detectable after they have bounced off
their target and begin to disperse on the return trip.
MODES
The LRD350 operates in three modes:
• Highway. Provides audio and visual alerts any time all bands
and laser are detected. Recommended for highway or rural
driving. (X, K, Ka Laser)
• City. Provides audio and visual alerts any time all bands and
laser are detected. Provides a stronger signal for the X band
so it can pick up weaker signals. (X, K, Ka, Laser)
• City I. Similar to City mode, but no X band is detected. (K, Ka,
Laser)
HIGHWAY
XKKa L C
XKKa L C
XKKa L C
XKKa LC
1
MUTECITY DIM
3 4
5
6
2
78
City (C)
City 1 (C + SSM Bar 1)
Highway (SSM Bar 1)
Various Alerts
X K Ka L C
Band Type
Signal Strength
Meter Bars (1, 3, 5)
Laser
(L + SSM Bars
1, 3, and 5)
CITY CITY 1
XKKa LCC+
XKKa LCC+
XKKa LCC+
XKKa LCC+
OPERATION
SETUP
After installing your radar detector, you can set it to your own
specifications.
• Mute/Auto Mute. When an audio alert sounds, pressing
MUTE lets you turn off the audio alarm. Press and hold
MUTE to set Auto Mute to ON to reduce the audio
alarm by 50% automatically after 3 seconds during an
alert.
• Dim. Change the brightness of the display. (Default -
Bright)
• Set City, City I, or Highway
–City mode delays all X band audio alerts until the signal is
at level 2.
–City I mode does not recognize X band transmissions.
–Highway mode recognizes all bands and is recommended
for highway driving. (Default)
The following table provides an overview of key operations.
KEY PRESS TO... PRESS AND HOLD
TO...
MUTE Turn alert audio off
(1 beep) during alert
audio. Mute
cancelled 10 seconds
after alert ends.
Turn Auto Mute on (1
beeps) and off (2
beeps) during standby.
DIM Change brightness
from:
BRIGHT (3 beeps) to
DIM (1 beeps)
to DARK (2 beeps).
NA
CITY Change mode from:
HIGHWAY (3 beeps)
to CITY (1 beeps)
to CITY I (2 beeps).
NA
DIM +
CITY
NA Return to factory
settings:
• Highway
• Bright
• Mute OFF
• Auto Mute ON
MONITORING SPEED
A radar gun transmits radio waves at certain frequencies that
bounce off objects and return to the radar gun’s receivers. The
radar gun then calculates the speed of the object. The LRD350
recognizes the following bands/frequencies used by radar guns:
BAND FREQUENCY
X10.525 GHz
K24.150 GHz
Ka 33.400 - 36.000 GHz
Laser 800 nm - 1100 nm
RADAR DETECTOR DETECTORS
(RDD)
Radar detectors are illegal in some states. Law enforcement
officers use special equipment to detect signals radiated by
radar detectors. If they are in a state where radar detectors are
illegal and the officer detects a vehicle using a radar detector,
the operator of that vehicle could lose the radar detector and
be fined.
The LRD350 is designed to be invisible to signals from the
Spectre l, Spectre lV, and VG-2 RDDs.
CARE AND MAINTENANCE
Use common sense and your LRD350 will provide trouble-free
service. Please keep the following tips in mind:
• Don’t leave your unit on the dashboard during summer
months. Interior heat may exceed safe operating levels.
• Do not spray cleaners or other liquids on the unit.
Remove the unit when you are using these liquids.
• Do not use abrasive cleansers on the unit’s exterior.
TROUBLESHOOTING
IF... TRY THIS...
No display or audio. Check the fuse in the plug.
Replace if necessary.
The unit alarms
when the vehicle
hits bumps.
Check the connections. Be sure
they are all secure.
The unit alarms
briefly in the same
location but no radar
source was in view.
There may be a motion sensor or
house alarm in use within range.
The detector did not
alert when a police
car was in view.
The officer may not have radar/
laser units turned on.
SPECIFICATIONS
Receiver Type:
Radar Double Conversion Superheterodyne
Self-Contained Antenna
Laser Pulsed Laser Signal Receiver
Frequency:
X10.525 GHz
K24.150 GHz
Ka 33.400 - 36.000 GHz
Laser 800 nm - 1100 nm
Detector Type:
Radar Scanning Frequency Discriminator
Laser Pulse Width Discriminator
Alarm Type Beep (Detected Band and Signal
strength)
Antenna Type:
Radar Linear Polarized E-vector Vertical
Laser
Front
Convex Condenser Lens
Laser
Back
Concave Condenser Lens
Dimensions 110.00 mm (D) x 69.00 mm (W) x 29.50
mm (H)
Weight 3.4 oz (95g)
Operating
Temp.
-4° to +185° F (Radar/Laser)
-20° to +85° C (Radar/Laser)
Storage
Temp.
-22° to +203° F (Radar/Laser)
-30° to +95° C (Radar/Laser)
Operating
Power Soure
DC 11.0 to 16.0 V
FCC/Industry Canada Information
FCC: AMWLRD350
ICC: 513C-LRD350
This device complies with part 15 of the FCC Rules. Operaon is subject to the fol-
lowing two condions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operaon.
Unauthorized changes or modicaons to this equipment may void compliance
with the FCC Rules. Any change or modicaon must be approved in wring by
Uniden. Changes or modicaons not approved by Uniden could void the user’s
authority to operate the equipment.
L’appareil est conforme aux normes d’Industrie Canada. Son fonconnement est
soumis aux deux condions suivantes : (1) Ce disposif ne doit pas causer
d’interférences et (2), il doit pouvoir accepter les interférences, incluant celles
pouvant nuire à son fonconnement normal.
Tous les changements apportés à cet appareil, s’ils ne sont pas expressément
approuvés par Uniden ou toute ulisaon de celui-ci d’une autre manière que
celle décrite dans ce guide peut annuler votre autorisaon de le faire fonconner.
One Year Limited Warranty
Keep your receipt! Proof of purchase is required for
warranty service.
WARRANTOR: UNIDEN AMERICA CORP.
(“Uniden”)
ELEMENTS OF WARRANTY: Uniden warrants, for one year, to the original retail
owner, this Uniden Product to be free from defects in materials and crasmanship
with only the limitaons or exclusions set out below.
WARRANTY DURATION: This warranty to the original user shall terminate and be
of no further eect 12 months aer the date of original retail sale. The warranty is
invalid if the Product is (A) damaged or not maintained as reasonable or neces-
sary, (B) modied, altered, or used as part of any conversion kits, subassemblies,
or any conguraons not sold by Uniden, (C) improperly installed, (D) serviced or
repaired by someone other than an authorized Uniden service center for a defect
or malfuncon covered by this warranty, (E) used in any conjuncon with equip-
ment or parts or as part of any system not manufactured by Uniden, or (F)
installed or programmed by anyone other than as detailed by the Operang Guide
for this product.
STATEMENT OF REMEDY: In the event that the product does not conform to this
warranty at any me while this war-ranty is in eect, warrantor will repair the
defect and return it to you without charge for parts, service, or any other cost
(except shipping and handling) incurred by warrantor or its representaves in con-
necon with the performance of this warranty. THE LIMITED WARRANTY SET
FORTH ABOVE IS THE SOLE AND ENTIRE WARRANTY PERTAINING TO THE
PRODUCT AND IS IN LIEU OF AND EXCLUDES ALL OTHER WARRANTIES OF ANY
NATURE WHATSOEVER, WHETHER EXPRESS, IMPLIED OR ARISING BY OPERATION
OF LAW, INCLUDING, BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. THIS WARRANTY
DOES NOT COVER OR PROVIDE FOR THE REIMBURSEMENT OR PAYMENT OF
INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states do not allow this exclu-
sion or limitaon of incidental or consequenal damages so the above limitaon
or exclusion may not apply to you.
LEGAL REMEDIES: This warranty gives you specic legal rights, and you may also
have other rights which vary from state to state. This warranty is void outside the
United States of America.
PROCEDURE FOR OBTAINING PERFORMANCE OF WARRANTY: If, aer following the
instrucons in this Operang Guide, you are certain that the Product is defecve,
pack the Product carefully (preferably in its original packaging). Include evidence
of original purchase and a note describing the defect that has caused you to
return it. The Product should be shipped freight prepaid, by traceable means, or
delivered, to warrantor at:
Uniden America Corporaon
C/O Saddle Creek
743 Henriea Creek Rd., Suite 100
Roanoke, TX 76262
(800) 297-1023, 8 a.m. to 4:30 p.m., Central, Monday through Friday
POP Mode is a trademark of MPH Industries, Inc.
Issue 1, March 2015
L
