Uniden America UC003 CORDLESS TELEPHONE BASE User Manual EXAI5180
Uniden America Corporation CORDLESS TELEPHONE BASE EXAI5180
MANUAL
Step 2 Install and Charge the Handset Battery
TO INSTALL THE HANDSET BATTERY
When the handset battery pack is fully charged,
after 15-20 hours of charging, plug the telephone
cord into the base unit and then into a telephone
wall jack.
Your phone is set for tone dialing. If your local
network requires pulse dialing, please see
“Choosing the dialing mode” on page 16.
ARemove the cover.
TO SET CALLER ID, LANGUAGE AND DIALING OPTIONS
APress and hold call id/menu.
BPress vol/ / or vol/ / to move
the pointer to an option.
CPress select to change the option setting.
DPress end to exit, and return the handset
to the base.
OPTIONS INCLUDE
AAuto Talk On/Off
BCIDCW On/Off
(Caller ID on call waiting)
CArea Code Enter/Remove
DDial Pulse/Tone
DPlug the AC adapter cord into the base
unit and then into a 120V AC outlet.
EPlace the handset in the base and charge
continuously for 15 - 20 hours before using
the phone.
BConnect the battery pack
connector with the
correct polarity.
CReplace the cover.
memorydeleteselectredial
vol
Note: There are five setup options available. They are
Caller ID options [Auto Talk, CIDCW (Caller ID on Call
Waiting), Area Code], Dial Mode and Language.
QUICK REFERENCE GUIDE
Step 3 Connect to Phone Line
Step 4
Setting Menu Options
Uniden Parts Department at
(800) 554-3988
Hours: M-F 8:00 a.m. to
5:00 p.m. CST.
We can also be reached on
the web at www.uniden.com
Make sure you have received the following items in
the package. If any of these items are missing or
damaged, contact the Uniden Parts Department.
• Base unit
• Handset
• AC adapter
• Rechargeable battery
• Telephone cord
• Beltclip
• This owner’s manual
• Other printed
material
QUICK REFERENCE GUIDE [ 3 ]www.uniden.com
Step 1 Checking the Package Contents
ELanguage English/French/Spanish
Step 4
Set Answering System
Tthe answering system is on
by default.
A pre-recorded greeting will
play and your system
is ready to accept calls.
To record a personal outgoing
greeting to callers, please see
page 43.
volume SELECT
SETringer find hs
MENU/CLOCK
answer on/off greeting
memo
rec
charge in use
EXAI5180 8/27/03 3:02 PM Page 3
[ 4 ] www.uniden.com
Contents
Quick Reference Guide 3
Welcome/Features 5
Controls and Functions 6
Getting Started
Setting up the Phone 8

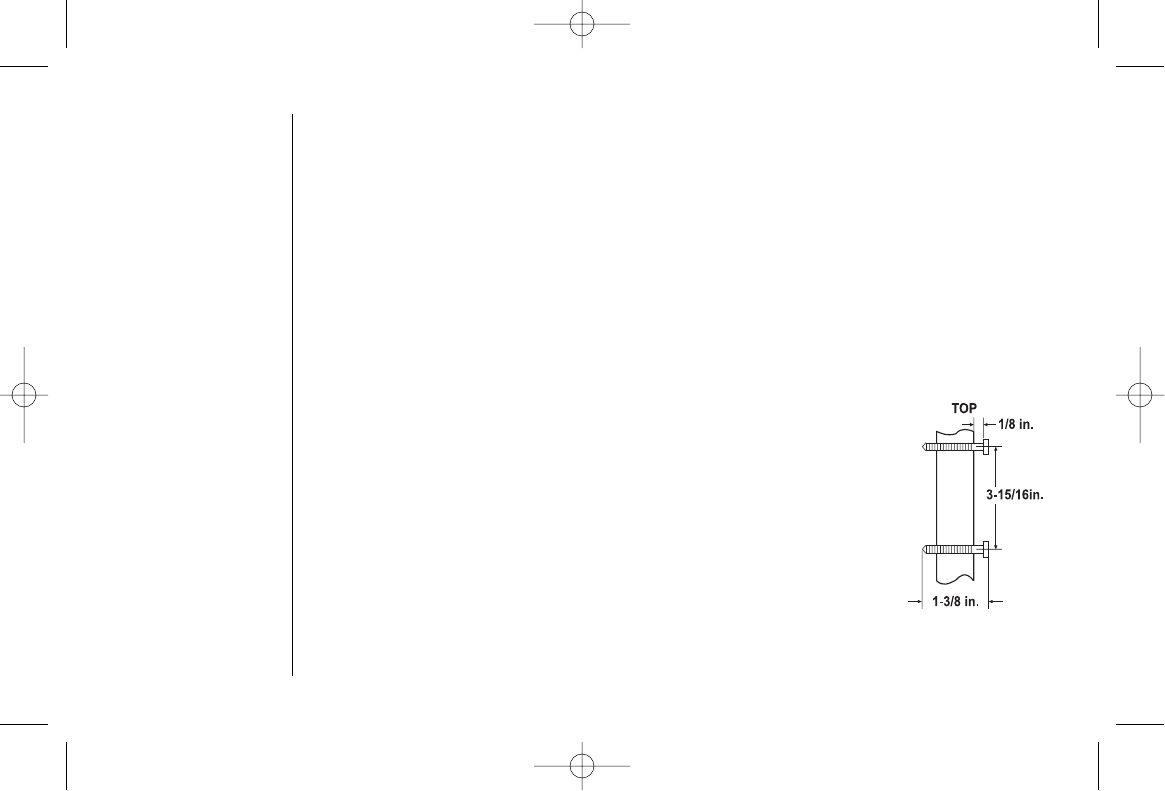

Mounting the Base Unit on a Wall 13
Setting Menu Options 15
Basics
Making and Receiving Calls 18
Adjusting the Handset Ringer and
Earpiece Volume 19
Redial 20
Tone Dialing Switch Over 20
Traveling Out-of-Range 20
Selecting a Different Channel 21
Page 21
Flash and Call Waiting 21
Voice Mail Waiting Indicator 22
Memory Dialing
Storing Phone Numbers and Names 23
Steps for Entering Names and Special Characters 24
Making Calls with Memory Dialing 25
Chain Dialing 26
Editing a Stored Name and/or Phone Number 27
Erasing a Stored Name and Phone Number 29
RocketDial
RocketDial 30
Storing and Editing the RocketDial 30
Making Calls with the RocketDial 30
Deleting the RocketDial 31
Caller ID Features
Caller ID and CIDCW (Caller ID on Call Waiting) 32
When the Telephone Rings 32
Viewing the Caller ID Message List 33
Deleting Information from the Caller ID List 34
Using the Caller ID List 36
The Integrated Answering Device
The Integrated Answering Device 38
Features 38
Turning the Answering System On/Off 39
Setting up Your Answering System 40
Using Your Answering System 48
Additional Information
Changing the Digital Security Code 55
Installing the Beltclip 55
Headset Installation 55
Note on Power Sources 56
Maintenance 56
Troubleshooting 57
General Information 60
Precautions & Warranty 61
I.C. Notice 63
Index 64
EXAI5180 8/27/03 3:02 PM Page 4
[ 5 ]www.uniden.com
Welcome Congratulations on your purchase of the Uniden cordless phone. This cordless phone is
designed and engineered to exacting standards for reliability, long life, and outstanding
performance.
Note: Some illustrations in this manual may differ from the actual unit for
explanation purposes. The color of your cordless telephone may vary.
Be sure to visit our web site: www.uniden.com
Uniden®and RocketDial®are registered trademarks of Uniden America Corporation.
AutoTalk, AutoStandby, UltraClear Plus, Random Code and AutoSecure are trademarks of
Uniden America Corporation.
Features •5.8 GHz Extended Range Technology
•3 Line Backlit Display
•Integrated Telephone Answering Device
(ITAD) (Tri-lingual Announcement Option)
•Voice Prompted Guidance through ITAD
Setup Menu
•10 Number Memory Dialing
•RocketDial
•Caller ID and Caller ID on Caller Waiting
•32 Digit Redial
•Flash and Pause
•Tone/Pulse Dialing
•Page/Find handset
•Earpiece Volume Control
•Ringer Volume Control (High-Low-Off)
•Hearing Aid Compatible
•20 Channel Autoscan
•English, French or Spanish Display Option
As an ENERGY STAR®Partner, Uniden has determined that this product or
product models meets the ENERGY STAR®guidelines for energy efficiency.
ENERGY STAR®is a U.S. registered mark.
EXAI5180 8/27/03 3:02 PM Page 5
CONTROLS AND FUNCTIONS[ 6 ] www.uniden.com
memorydeleteselectredial
pause channel
call id/menu RocketDial
vol
2
3
4
1
5
7
6
8
9
12
20
16
15
14
11
10
13
19
18
17
1. Handset antenna
2. Beltclip hole
3. Optional headset jack
4. Handset battery compartment
5. Handset earpiece
6. LCD display
7. call id (Caller ID)/menu key
8. vol/ / (volume & scroll) key
9. vol/ / (volume & scroll) key
10. /tone/ (left cursor) key
11. redial/pause key
12. select key
13. Handset microphone and
ringer speaker
14. RocketDial key
15. end key
16. talk/flash key
17. #/ (right cursor) key
18. memory key
19. delete/channel key
20. Handset charging contacts
Controls and Functions
EXAI5180 8/27/03 3:02 PM Page 6
CONTROLS AND FUNCTIONS [ 7]www.uniden.com
volume SELECT
SETringer find hs
MENU/CLOCK
answer on/off greeting
mic
memo
rec
charge in use
36 37
21
27
28
29
30
31
32
33
34
35
22
23
24
25
26
21. Base antenna
22. (Repeat/rewind) key
23. volume/SELECT (up) key
24. volume/SELECT (down)
key
25. Answer on/off key
26. Ringer key
27. Charge/in use LED
28. (Play/stop) key
29. (Skip/fast forward) key
30. (Delete) key
31. MENU/CLOCK key
32. Greeting key
33. Find hs key
34. Set key
35. Base charging contacts
36. DC IN 9V jack
37. Telephone line jack
EXAI5180 8/27/03 3:02 PM Page 7
GETTING STARTED[ 8 ] www.uniden.com
Setting up the Phone
Do the following steps:
A. Choose the best location C. Connect the base unit
B. Install the rechargeable battery pack into the handset
A. Choose the best location
Before choosing a location for your new phone, read the INSTALLATION
CONSIDERATIONS included in the PRECAUTIONS. Here are some important guidelines
you should consider:
•The location should be close to both a phone jack and a continuous power outlet
which is not switchable.
•Keep the base and handset away from sources of electrical noise such as motors,
microwave ovens, and fluorescent lighting.
•The base can be placed on a desk, tabletop, or mounted on a standard wall plate.
Avoid excessive moisture,
extremely low temperatures,
dust, mechanical vibration,
or shock
Avoid heat sources, such as radiators,
air ducts, and sunlight
Avoid television sets and other
electronic equipment
Avoid noise sources such as a window
by a street with heavy traffic
Avoid microwave ovens
Avoid personal computers
Avoid other cordless telephones
Choose a central location
If your home has
specially wired alarm
equipment connected to
the telephone line, be
sure that installing the
system does not disable
your alarm equipment.
If you have questions
about what will disable
your alarm equipment,
contact your telephone
company or a qualified
installer.
EXAI5180 8/27/03 3:02 PM Page 8
GETTING STARTED
GETTING STARTED [ 9 ]www.uniden.com
B. Install the rechargeable battery pack into the handset
The handset is powered by a rechargeable battery pack.
The battery recharges automatically when the handset is
placed on the base unit.
Charge the handset battery pack for at least 15-20
hours before using your new cordless telephone for the
first time! To maximize the charge capacity of your battery
pack, DO NOT plug the telephone cord into the base unit
and wall jack until the battery is fully charged.
1) Press down on the handset battery case cover (use the
finger indention for a better grip) and slide the cover
downward to remove.
2) Plug the battery pack connector (red & black wires) into
the small jack inside the battery compartment.
(The connector notches fit into the grooves of the jack only
one-way.) Match the wire colors to the polarity label in the
battery compartment, connect the battery, and listen for
a click to insure connection.
3) Make sure you have a good connection by slightly pulling
on the battery wires. If the connection is secure, the
battery jack will remain in place.
For optimum
performance use only
the Uniden BT-800
rechargeable battery
pack supplied with your
phone.
EXAI5180 8/27/03 3:02 PM Page 9
GETTING STARTED[ 10 ] www.uniden.com
4) Place the battery case cover back on the handset by sliding
it upwards until it clicks into place.
5) Place the handset on the base unit face forward for 15-20
hours without interruption. The base unit’s LED light
(labeled as charge/in use) illuminates once the handset is
placed on the base. The LED light will illuminate regardless
if the battery pack is connected or not.
DO NOT rely on the LED light as an indicator that the
battery pack is connected and the handset is charging!
If the base charge/in use LED light does not illuminate:
• Check to see if the AC adapter is plugged into the base
unit and the electrical wall outlet properly. (Use only the
supplied AC adapter. Do not use any other AC adapter.)
• Check to see if the handset is sitting correctly on the
base and making good contact with the base unit’s
charging contacts.
•Replacement batteries
are also available
through the Uniden
Parts Department at
(800) 554-3988,
Monday through Friday
from 8:00 a.m. to
5:00 p.m. or online at
www.uniden.com
•The handset should
always sit in charging
cradle face forward to
make good contact
with base unit’s
charge contacts.
EXAI5180 8/27/03 3:02 PM Page 10
GETTING STARTED
GETTING STARTED [ 11 ]www.uniden.com
•Even when the
battery pack is not
being used, it will
gradually discharge
over a long period
of time. For optimum
performance, be sure
to return the handset
to the base unit after
a telephone call.
•Talk Mode -
The handset is off the
base and talk/flash
has been pressed,
enabling a dial tone.
•Standby Mode -
The handset is not in
use. The handset may
be on or off the base,
but talk/flash has
not been pressed.
Cleaning the battery charging contacts
To maintain a good charge, it is important to clean the
charging contacts on both the handset and base unit once
a month. Using water only, dampen a cloth to clean the
charging contacts. Then make sure to go back over the
charging contacts with a dry cloth before returning the
handset to the base to charge.
The last number dialed in the redial memory, the names, the numbers stored in the
memory locations and CID list are retained for up to 30 minutes while you replace the
battery pack.
Low battery alert
When the battery pack is very low and needs to be charged,
the phone is programmed to eliminate functions in order to
save power. If the phone is not in use, ¨Low Battery¨
appears on the LCD and none of the keys will operate.
If the phone is in use, ¨Low Battery¨ flashes and the
handset beeps. Complete your conversation as quickly as
possible and return the handset to the base unit for charging.
Do not use paint thinner, benzene, alcohol, or other chemical products. Doing so
may discolor the surface of the telephone and damage the finish.
EXAI5180 8/27/03 3:02 PM Page 11
GETTING STARTED[ 12 ] www.uniden.com
Place the power cord so
that it does not create
a trip hazard or where
it could become chafed
and create a fire or
electrical hazard.
Use only the supplied
AD-314 AC adapter.
Do not use any other
AC adapter.
•Connect the AC adapter to a continuous power supply.
•Place the base unit close to the AC outlet so that you can unplug the AC adapter easily.
C. Connect the base unit
1) Connect the AC adapter to the DC IN 9V jack
and to a standard 120V AC wall outlet.
2) Set the base on a desk or tabletop, and
place the handset on the base unit.
3) Make sure that the charge/in use LED illuminates.
If the LED does not illuminate, check to see that the AC adapter is plugged in
and that the handset makes good contact with the base charging contacts.
Route the cord.
•After installing the battery pack in the handset, charge your handset at least 15-20
hours before plugging into the phone line. Once the handset battery pack is fully
charged, connect the telephone line cord to the base and telephone wall outlet.
4) Connect the telephone line cord to the TEL LINE jack and
to a telephone outlet once the handset is fully charged.
Modular
If your telephone outlet isn't modular,
contact your telephone company
for assistance.
EXAI5180 8/27/03 3:02 PM Page 12
GETTING STARTED
GETTING STARTED [ 13 ]www.uniden.com
Mounting the Base Unit on a Wall
Standard wall plate mounting
This phone can be mounted on any standard wall plate.
1) Plug the AC adapter into the DC IN 9V jack.
2) Wrap the AC adapter cord inside the molded
wiring channel as shown.
3) Plug the AC adapter into a standard 120V AC
wall outlet.
4) Plug the telephone line cord into the TEL LINE
jack. Wrap the cord inside the molded wiring
channel as shown.
5) Plug the telephone line cord into the telephone
outlet.
6) Align the mounting slots on the base with the
mounting posts on the wall. Then push in and
down until the phone is firmly seated.
DO NOT use an AC
outlet controlled by
a wall switch.
EXAI5180 8/27/03 3:02 PM Page 13
GETTING STARTED[ 14 ] www.uniden.com
Direct wall mounting
If you don't have a standard wall plate, you can mount your phone directly to the
wall. Before doing this, consider the following:
•Avoid electrical cables, pipes, or other items behind the mounting location that
could cause a hazard when inserting screws into the wall.
•Try to mount your phone within 5 feet of a working phone jack to avoid excessive
lengths.
•Make sure the wall material is capable of supporting the weight of the base
and handset.
•Use #10 screws (minimum length of 1-3/8 inches) with anchoring devices suitable
for the wall material where the base unit will be placed.
1) Insert two mounting screws into the wall (with their
appropriate anchoring device), 3-15/16 inches apart.
Allow about 1/8 of an inch between the wall and screw heads
for mounting the phone.
2) Refer to steps 1 through 6 on page 13 to mount the telephone.
EXAI5180 8/27/03 3:02 PM Page 14
GETTING STARTED
GETTING STARTED [ 15 ]
Setting Menu Options
There are five setup options available. They are Caller ID options [AutoTalk, CIDCW
(Caller ID on Call Waiting), Area Code], Dial Mode and Language.
AutoTalk allows you to answer the phone without pressing the talk/flash button.
If the phone rings when AutoTalk is on, simply remove the handset from the base
and the phone automatically answers the call. If the phone rings when AutoTalk
is off, you must press talk/flash to answer the call.
Caller ID options
To change your AutoTalk and CIDCW:
1) Press and hold call id/menu in standby mode. The following
screen appears.
2) Use vol/ / or vol/ / to move the pointer to the
selection that you would like to change.
Press select to toggle between ¨On¨ and ¨Off¨ for AutoTalk and CIDCW.
3) Press end and return the handset to the base unit to complete the setting.
The handset returns to standby mode.
To enter your Area Code:
If you enter a 3-digit area code number in the Area Code option, your local area
code does not appear in Caller ID messages. Do not program this option if your
calling area requires 10-digit dialing. When reviewing Caller ID messages, you will
see only the local seven digit number. For calls received from outside your local area
code, you will see a full 10-digit number.
•If your calling area
requires 10-digit
dialing, do not
program the Area
Code option.
•The cordless phone
features include
AutoTalkTM and
AutoStandbyTM.
AutoTalk allows you
to answer a call by
just removing the
handset from the base
so you don't have to
waste time pushing
buttons. AutoStandby
allows you to hang up
by simply returning
the handset to the
base.
www.uniden.com
EXAI5180 8/27/03 3:02 PM Page 15
GETTING STARTED[ 16 ] www.uniden.com
Make sure your battery
pack is fully charged
before choosing the
dialing mode.
1) When the phone is in standby mode, press and hold
call id/menu. The Caller ID setting screen appears.
2) Press vol/ / twice to select ¨Area Code¨.
3) Press select.
4) Use the number keys (0 - 9), or delete/channel to enter the
3-digit area code.
5) Press select. A confirmation tone sounds and the displayed area code is entered.
6) Press end or return the handset to the base unit to complete the setting.
The handset returns to standby mode.
When the area code has already been stored in memory, the
stored area code will be displayed. To change it, use
delete/channel and the number keys to enter the new area
code. Then press select. A confirmation tone sounds.
To complete the setting, press end or return the handset to the
base unit.
Choosing the dialing mode
Most phone systems use tone dialing which sends DTMF tones through the phone
lines. However, some phone systems (such as those in rural areas) still use pulse
dialing. The default setting is tone dialing. Depending on your dialing system, set
the mode as follows:
EXAI5180 8/27/03 3:02 PM Page 16
GETTING STARTED
GETTING STARTED [ 17 ]www.uniden.com
1) When the phone is in standby mode, press and hold
call id/menu. The following screen appears.
2) Press vol/ / three times to select ¨Dial¨.
3) Press select to toggle between ¨Tone¨ and ¨Pulse¨ for
each setting.
4) Press end or return the handset to the base unit to complete the setting.
The handset returns to standby mode.
•If you are not sure of your dialing system, set for tone dialing and make a trial call.
If the call connects, leave the setting as is. Otherwise, set for pulse dialing.
•If your phone system requires pulse dialing and you need to send the DTMF tones for
certain situations during a call, you may "Switch Over" to tone dialing. (Refer to
"Tone Dialing Switch Over" on page 20.)
Setting the language
1) When the phone is in standby mode, Press and hold
call id/menu. The following screen appears.
2) Press vol/ / four times to select ¨Language¨.
3) Press select to toggle ¨Eng¨ (English), ¨Fr.¨ (French) or
¨Esp¨ (Spanish) for each setting.
4) Press end or return the handset to the base unit to complete the setting. The
handset returns to standby mode.
There are three
languages to choose
from; English, French
and Spanish.
EXAI5180 8/27/03 3:02 PM Page 17
BASICS[ 18 ] www.uniden.com
Making and Receiving Calls
Pick up the handset (AutoTalk:
On) or pick up the handset and
press talk/flash (AutoTalk: Off).
1) Pick up the handset.
2) Press talk/flash.
3) Listen for the dial tone.
4) Enter the number.
OR
1) Pick up the handset.
2)
Enter the number, then press
talk/flash
.
1) Pick up the handset.
2) Press talk/flash.
3) Listen for the dial tone.
4) Press redial/pause.
OR
1) Pick up the handset.
2) Press redial/pause, then
press talk/flash.
Handset On Base Handset Off Base
To receive
a call
To make
a call
To hang up
To redial
Press talk/flash (AutoTalk: Off),
or press talk/flash, /tone/ ,
#/ or any number key
(AntoTalk: On).
1) Press talk/flash.
2) Listen for the dial tone.
3) Enter the number.
OR
Enter the number, then press
talk/flash.
1) Press talk/flash.
2) Listen for the dial tone.
3) Press redial/pause.
OR
Press redial/pause, then press
talk/flash.
Press end or return the handset to the base (AutoStandby).
Refer to page 15
"Setting Menu Options"
to turn On the AutoTalk
feature if desired.
EXAI5180 8/27/03 3:02 PM Page 18
BASICS
BASICS [ 19 ]www.uniden.com
Adjusting the Handset Ringer and Earpiece Volume
Handset ringer tone and volume
Press the volume up key or volume down key (labeled as
vol/ / or vol/ / ) in standby mode to select one of five
ringer tones and volume combinations.
Earpiece volume
Press the volume up key or volume down key (labeled as vol/
/or vol/ / ) during a call to change the earpiece volume
of the handset. This setting will remain in effect after the tele-
phone call has ended.
Temporarily Mute Ringer
If the handset is off the base, simply press end to temporarily mute the incoming
ring. The ringer will sound with the next incoming call.
call id/menu RocketDial
vol
EXAI5180 8/27/03 3:02 PM Page 19
BASICS[ 20 ] www.uniden.com
Redial
The redial/pause key redials the last number dialed. The redialed number can be up
to 32 digits long.
Tone Dialing Switch over
Some telephone companies use equipment that requires
pulse dialing (sometimes referred to as rotary dialing).
If you need to enter tone dialing digits, you can switch
over to tone dialing during the call. This feature is useful
when you need tone dialing to use automated systems, for
example, entering your bank account number after you have called your bank.
Initially make your call with the pulse dialing mode. Once your call connects, press
/tone/ . Enter the desired number. These digits will be sent as tone dialing.
Once the call ends, the tone mode is canceled and pulse dialing mode resumes.
Traveling Out-of-Range
During a call, as you begin to move your handset too far from your base unit, noise
increases. If you pass the range limits of the base unit, your call will terminate
within 1 minute.
memorydeleteselectredial
pause channel
•The tone feature only
applies when the dial
mode is set to pulse.
•This special number
can be stored in a
memory location. This
is referred to as Chain
Dialing (See page
27).
EXAI5180 8/27/03 3:02 PM Page 20
BASICS
BASICS [ 21 ]www.uniden.com
The UltraClear PlusTM
true compander circuitry
virtually eliminates
background noise. This
innovative technology,
together with 20
different channels,
provides you with the
best possible reception
during all your
conversations.
Flash and Call Waiting
If you have "Call Waiting" service and a call waiting tone
sounds while you are on a call, press talk/flash to accept
the waiting call. There is a short pause, then you will hear
the new caller. To return to the original caller, press
talk/flash again.
call id/menu RocketDial
vol
Page
To locate the handset (while it's off the base), press
find hs on the base. The handset beeps for 60 seconds.
Paging is canceled when pressing any key or the handset is
returned to the base.
volume SELECT
SETringer find hs
MENU/CLOCK
answer on/off greeting
mic
memo
rec
charge in use
Selecting a Different Channel
If you encounter interference while using your phone, you can manually change the
phone´s channel for clear operation. This function works only when the phone is
in use. Press delete/channel. ¨Scanning¨ appears on the display, indicating the
phone is changing to another channel. For more information on interference, refer to
"Precautions" on page 45.
You can cancel paging
by pressing the find hs
on the base.
hints
You must subscribe through your local telephone company to
receive Call Waiting service.
EXAI5180 8/27/03 3:02 PM Page 21
MEMORY DIALING[ 22 ] www.uniden.com
Storing Phone Numbers and Names
Memory Dialing allows you to dial a number using just a few key presses.
Your cordless telephone stores up to 10 names/numbers in the handset.
1) Press memory in standby mode, ¨Select Memory¨ is
displayed.
2) Press vol/ / or vol/ / ,or enter a number
(1- 0) to select the memory location where you would
like to store the number.
3) Press memory or select.
4) Press memory or select. The Store Name screen appears and
a cursor flashes indicating that the display is ready for the
name to be entered.
If the Edit screen appears, the selected memory location is
already stored. Then you must either edit the entry in
this location, delete the entry in this location, or select
¨Go Back¨ to choose another location.
5) To enter a name (up to 13 characters), use the number keys.
• See the "Steps for Entering Names and Special Characters" (see page 25).
• Use #/ and /tone/ to move the cursor to the desired location.
• Use delete/channel to delete characters as needed.
• Press and hold delete/channel to delete all the characters.
• If a name is not required, go to step 6.
Select Memory
01
02 JOHN DOE
Store Name
Edit Memory01
Delete Memory01
Go Back
•In memory dialing
operation, you must
press a key within 30
seconds or the phone
will return to standby
mode. If you return
the handset to the
base, the phone will
return to standby
mode also.
•You have 30 seconds
after pressing
memory or select to
enter the number you
wish to store.
Otherwise, an error
tone will sound and
the phone will returns
to standby mode.
01:(Empty)
Press Select
to edit
EXAI5180 8/27/03 3:02 PM Page 22
MEMORY DIALING
MEMORY DIALING [ 23 ]www.uniden.com
6) Press memory or select. ¨Store Number¨ is displayed.
The cursor flashes indicating that the display is ready for
the number to be entered.
7) Use the number keys, /tone/ or #/ to enter the
phone number.
The phone number cannot exceed 20 digits.
Use redial/pause to enter a pause in the dialing sequence.
The display shows a ¨P¨. Each pause counts as one digit and
represents a two second delay of time between the digits.
Use delete/channel to delete digits as needed.
8) Press memory or select. You will hear a confirmation tone,
and the following screen appears. Memory storage is
complete.
For example, if you store a name and number into memory
location number 01, the display shows ¨Memory01 Stored¨.
After about 2 seconds, the following screen is displayed.
Repeat steps 2 - 8 to store more numbers.
9) Press end to exit memory setup mode, returning to standby.
Store Number
8007303456
Memory01 Stored
01 Movies
02 JOHN DOE
03 MOM AND DAD
Store Number
The pause feature is
useful for long distance
calling, credit card
dialing, or sequences
that require a pause
between digits.
EXAI5180 8/27/03 3:02 PM Page 23
MEMORY DIALING[ 24 ] www.uniden.com
Steps for Entering Names and Special Characters
Refer to the letters on the number keys to select the desired characters.
With each press of a numeric key, the displayed character appears in the following
order: Upper case letters first, lower case letters next and finally the number
corresponding to the key.
If you make a mistake while entering a name
Use /tone/ or #/ to move the cursor to the incorrect character.
Press delete/channel to erase the wrong character, then enter the correct character.
To delete all characters, press and hold delete/channel.
For example, to enter Movies.
1) Pick up the handset. Press memory.
2) Enter a number or press vol/ / or vol/ / to select a memory location.
3) Press memory or select.
4) Press memory or select. (When there is information already stored in the select-
ed memory location, ¨Edit MemoryXX¨ is displayed. See page 28 for informa-
tion on “Editing a Stored Name and/or Phone Number”.)
5) Press 6then press #/ to move the cursor to the right.
6) Press 6six times.
7) Press 8six times.
8) Press 4six times.
9) Press 3five times.
10) Press 7eight times.
11) When finished, press memory or select.
To continue to store the telephone number,
proceed to step 7 on page 24.
Number of times key is pressed
keys 1 2 3 4 5 6 7 8 9
1
ABCabc2
DEFdef3
GHIghi4
JKLjkl5
MNOmno6
PQRSpqrs7
TUVtuv8
WXYZwxyz9
*#-&()
(blank) 0
2
abc
3
def
4
ghi
5
jkl
6
mno
7
pqrs
8
tuv
9
wxyz
0
1
oper
If the next character
uses the same number
key, you must press
#/to move the
cursor over. Otherwise
the next time you press
the number key, it
overwrite the existing
character.
EXAI5180 8/27/03 3:02 PM Page 24
MEMORY DIALING
MEMORY DIALING [ 25 ]www.uniden.com
Making Calls with Memory Dialing
Memory dialing from Standby Mode
1) Press memory. The handset displays your programmed memory
locations.
2) Press vol/ / or vol/ / ,or enter the number (1- 0)
to select the memory location you would like to dial.
3) Press talk/flash. ¨Talk¨ and the volume setting appear
on the display. Then the displayed number is dialed.
Select Memory
01 Movies
02 JOHN DOE
Talk
8007303456
To exit the memory function without dialing, press end.
The handset returns to standby mode.
•If you press memory
or select before
talk/flash, you can
confirm the name and
the number stored in
the selected memory
location.
•Whenever you are
using a memory menu
screen, you must
press a key within 30
seconds or the phone
will return to standby
mode.
EXAI5180 8/27/03 3:02 PM Page 25
MEMORY DIALING[ 26 ] www.uniden.com
Memory dialing from Talk Mode
1) Press talk/flash. ¨Talk¨ and the
volume setting appears.
2) Press memory.
3) Press vol/ / or vol/ / , or enter a number
(1- 0) to select the memory location of the desired phone
number. If you press select, the number is dialed.
4) The phone number in the memory will be dialed when the
select is pressed.
5) To hang up, press end.
Chain Dialing
The memory locations on the handset are not limited to phone numbers. You can
also store a group of numbers (up to 20 digits) that you need to enter once your
call connects. This is referred to as Chain Dialing.
An example of this is a bank account number. Once you have called your bank and
are prompted to enter the account number, press memory and select the location
number where the special number has been stored. Then press select.
Store your special number with an identifying name. (Refer to "Storing Phone
Numbers and Names" on page 23.)
Talk Talk
Volume High
Select Memory
01 Movies
02 JOHN DOE
Talk 0:35
8007303456
EXAI5180 8/27/03 3:02 PM Page 26
MEMORY DIALING
MEMORY DIALING [ 27 ]www.uniden.com
Editing a Stored Name and/or Phone Number
1) Press memory in standby mode. ¨Select Memory¨ is
displayed.
2) Press vol/ / or vol/ / ,or enter a number
(1- 0) to select the memory location you would like to
edit, and press memory or select.
3) Press memory or select.
The following screen appears with the memory location
number that you have selected.
4) Press vol/ / or vol/ / to select ¨Edit MemoryXX¨,
then press memory or select. The following screen appears.
The cursor flashes indicating that the display is ready for
the name to be edited. When a name has not been stored,
the cursor appears at the beginning of the second line.
5) Use the number keys, /tone/ , #/ , or delete/channel
to edit the name. (See page 25.) To edit only the phone
number, skip this step.
6) Press memory or select. The following screen appears.
The cursor flashes indicating that the display is ready for
the number to be edited.
Select Memory
01 Movies
02 JOHN DOE
Edit Memory01
Delete Memory01
Go Back
Store Name
Movies
Store Number
8007303456
01:Movies
8007303456
EXAI5180 8/27/03 3:02 PM Page 27
MEMORY DIALING[ 28 ] www.uniden.com
7) Use the number key, /tone/ , #/ , redial/pause or
delete/channel to edit the phone number. The phone number cannot
exceed 20 digits (see page 24).
If you don´t want to change the phone number, skip this step.
8) Press memory or select. If you changed either name or
phone number, a confirmation display shows up. If it is
correct, press vol/ / and press select. You hear a
confirmation tone, and the following screen appears. The
memory storage is complete.
For example, if you edit a name and number into memory
location number 01, the display shows ¨Memory01
Stored¨. After about 2 seconds, Select Memory is
displayed.
9) Press end to return to standby mode.
Memory01 Stored
01 Movies
02 JOHN DOE
03 MOM AND DAD
Replace Memory?
Yes
No
EXAI5180 8/27/03 3:02 PM Page 28
MEMORY DIALING
MEMORY DIALING [ 29 ]www.uniden.com
Erasing a Stored Name and Phone Number
1) Press memory, ¨Select Memory¨ is displayed.
2) Press vol/ / or vol/ / ,or enter a number
(1 - 0) to select the memory location you would like to
erase.
3) Press memory or select.
4) Press memory or select.
The Edit screen appears with the memory location number
that you have selected in the display.
5) Press vol/ / to move the pointer down to ¨Delete
MemoryXX¨.
6) Press memory or select. The ¨Delete MemoryXX?¨ screen
appears.
7) Press vol/ / to move the pointer to ¨Yes¨.
8) Press select or delete/channel.
You hear a confirmation tone, and the ¨MemoryXX
Deleted¨ screen appears.
9) After about 2 seconds, the display returns to the
Select Memory screen. You may delete the information in
another memory location (return to step 2) or press end to
return to standby mode.
Select Memory
01 Movies
02 JOHN DOE
Edit Memory02
Delete Memory02
Go Back
Delete Memory02?
Yes
No
Memory02 Deleted
01 Movies
02
03 MOM AND DAD
02:JOHN DOE
5452930
EXAI5180 8/27/03 3:02 PM Page 29
ROCKETDIAL[ 30 ] www.uniden.com
Edit Number
Delete Number
Go Back
Store Number
Number Stored
RocketDial
You can store your most frequently dialed number in the RocketDial
location. The RocketDial allows you to dial a number with one key
press. (There is no need to press talk/flash. The phone will
automatically dial the number stored.) If you subscribe to voice
mail service, you can store your access number in this location.
Storing and Editing the RocketDial
1) When the phone is in standby mode, press and hold
RocketDial. The following display appears.
If the Edit screen appears, there is a number already stored.
Press vol/ / or vol/ / to select ¨Edit Number¨,
then press select.
2) Store the number by following step 7 under "Storing Phone
Numbers and Names" on page 24.
3) Press select.
You hear a confirmation tone, and the ¨Number Stored¨
screen appears. Memory storage is complete.
Making Calls with the RocketDial
When the phone is in standby mode, simply press RocketDial. The number stored in
the RocketDial memory location is instantly dialed.
Store Number
Store Number Store Number
800
call id/menu RocketDial
vol
•RocketDial®is a
one touch speed
dial key that
automatically dials
your most
important or
frequently called
number. The
number dialed, is a
preset number
stored by the user.
•Number stored in
RocketDial is
independent from
the numbers stored
in Memory Dial.
•If the RocketDial does
not have a stored
number, the handset
will beep rapidly and
the phone will not
dial.
EXAI5180 8/27/03 3:03 PM Page 30
ROCKETDIAL
ROCKETDIAL [ 31 ]www.uniden.com
Deleting the RocketDial
1) When the phone is in standby mode, press and hold
RocketDial. The following display appears.
2) Press vol/ / or vol/ / to select ¨Delete Number¨.
3) Press select. The following display appears.
4) Press vol/ / to move the pointer to ¨Yes¨.
5) Press select or delete/channel.
You hear a confirmation tone, and the following display
appears. After about 2 seconds, the handset returns to
standby mode.
Edit Number
Delete Number
Go Back
Delete Number?
Yes
No
Number Deleted
EXAI5180 8/27/03 3:03 PM Page 31
CALLER ID FEATURES[ 32 ] www.uniden.com
•If you answer a call
before the Caller ID
message is received
(for example, before
the second ring), the
Caller ID message will
not appear.
•When the call is
received via a
telephone company
that does not offer
Caller ID service, the
caller´s phone
number and name
do not appear.
(This includes
international calls.)
•When the call is via
a private branch
exchange (PBX), the
caller´s phone
number and name
may not appear.
Caller ID and CIDCW (Caller ID on Call Waiting)
You must subscribe to Caller ID services through your local telephone provider
to use these features.
When the telephone rings, the Caller ID feature allows you to view the caller´s name,
phone number, date and time of call. With Call Waiting Caller ID, you will hear a Call
Waiting tone while you are on a call, and the Caller ID data is displayed. To accept
the waiting call, press talk/flash (see page 19). Additionally, you can dial a number
stored in the Caller ID list or save data to your Memory dial list.
When the Telephone Rings
1) When the Caller ID message is received, the display shows the caller´s phone
number along with the date and time. The incoming call information is stored
in the Caller ID record. If the Caller ID service includes the caller´s name, the
caller´s name appears on the display (up to 15 letters).
You may receive any one of the following messages:
When invalid data is received “Incomplete Data”
When a private name is received “Private Name”
When a private number is received “Private Number”
When a unknown name is received “Unknown Name”
When a unknown number is received “Unknown Number”
5/11 12:30PM
Jane Smith
214-555-1234
The date and
time received
Caller's name
Caller's phone number
EXAI5180 8/27/03 3:03 PM Page 32
CALLER ID FEATURES
CALLER ID FEATURES [ 33 ]www.uniden.com
Viewing the Caller ID Message List
The Caller ID list stores information for up to 30 messages (Caller ID
names/numbers) - even unanswered calls.
1) Press call id/menu.
The summary screen appears. The screen shows the number
of new messages and total messages.
2) Press vol/ / to display the latest Caller ID message.
3) Press vol/ / to see the next message. Or press vol/
/key to see the previous message.
4) Press end to return to standby mode.
Data errors appear as ¨ ¨.
Caller ID
New :01
Total:02
5/17 12:30PM 03
Jane Smith
214-555-1234
2) When you pick up the phone, the display changes to ¨Talk¨. (AutoTalk feature
is set to on.)
•In Caller ID operation,
if no key is pressed for
more than 30 seconds,
an error tone sounds
and the handset
returns to standby
mode.
•If a call comes in via a
telephone system that
does not offer Caller
ID service, no
information is stored.
•Each message can be
up to 15 characters
for the phone number
and the name.
•The number of calls
from the same Caller
ID appears next to
the received time.
Once you view the
new message, the
number will be
cleared and disappear.
EXAI5180 8/27/03 3:03 PM Page 33
CALLER ID FEATURES[ 34 ] www.uniden.com
•While using the
¨Delete All?¨ or
¨Delete Message?¨
screen, if no key is
pressed for more than
30 seconds, an error
tone sounds, and the
telephone returns
to standby mode.
•If you get an
incoming call or page,
the deleting operation
is canceled, and you
can answer the call or
page.
Deleting Information from the Caller ID List
The cordless phone stores up to 30 messages (Caller ID names/numbers). If the
phone receives the 31st message, the oldest one in the list is automatically deleted.
Caller ID data can also be deleted manually.
Deleting a Caller ID message
1) Press call id/menu. Display the message to be deleted from
the Caller ID list by pressing vol/ / or vol/ / .
2) Press delete/channel.
3) Press vol/ / or vol/ / to select ¨Yes¨ or ¨No¨.
4) Press select or delete/channel.
When the pointer is at ¨Yes¨:
A tone sounds and the Caller ID message is deleted. The next Caller ID message is
then displayed.
When the pointer is at ¨No¨:
The display returns to the Caller ID message.
Deleting all Caller ID names/numbers
1) Press call id/menu.
2) Press delete/channel.
5/17 12:30PM 03
Jane Smith
214-555-1234
Delete Message?
Yes
No
Caller ID
New :01
Total:02
EXAI5180 8/27/03 3:03 PM Page 34
CALLER ID FEATURES
CALLER ID FEATURES [ 35 ]www.uniden.com
3) Press vol/ / or vol/ / to select ¨Yes¨ or ¨No¨.
4) Press select or delete/channel.
When the pointer is at ¨Yes¨:
A tone sounds and all stored Caller ID messages
are deleted.
When the pointer is at ¨No¨:
The display returns to the summary screen.
Caller ID
Total:00
Caller ID
New :01
Total:02
Delete All?
Yes
No
EXAI5180 8/27/03 3:03 PM Page 35
CALLER ID FEATURES[ 36 ] www.uniden.com
•You cannot make a
call from the Caller ID
list if your cordless
telephone is
connected to a
private branch
exchange (PBX).
•When a long distance
call has been set, ¨1¨
appears in the
display.
Using the Caller ID List
Calling a party from the Caller ID list
You can place a call from the Caller ID list. The cordless phone stores up to
30 messages (Caller ID names/numbers).
1) Press call id/menu. Select the phone number that you
want to dial by pressing vol/ / or vol/ / .
2) Press talk/flash. The displayed phone number dials
automatically.
Long Distance calls and Area Code Setting/Cancellation
Pressing 1while the incoming Caller ID information is displayed (in step 1) will
place the prefix ¨1¨ in the display to set up for a long distance call. Pressing 3will
set or cancel an area code setting.
5/17 12:30PM 03
Jane Smith
214-555-1234
Talk
2145551234
You can place a call from Talk Mode. Press talk/flash, then press
call id/menu. Select the phone number that you want to dial by
pressing vol/ / or vol/ / , then press select.
The displayed phone number will be dialed.
EXAI5180 8/27/03 3:03 PM Page 36
CALLER ID FEATURES
CALLER ID FEATURES [ 37 ]www.uniden.com
Storing Caller ID messages in Memory dialing
Messages (Caller ID names/numbers) shown in the Caller ID list can be stored in
memory dialing.
1) Press call id/menu.
Select the phone number to be stored from the Caller ID list
by pressing vol/ / or vol/ / .
2) Press memory.
3) Press vol/ / or vol/ / or enter a number
(1- 0) to select the memory location to be stored.
4) Press select.
You hear a confirmation tone, and the number is stored
in memory. The display returns to the Caller ID list.
5/17 12:30PM 03
Jane Smith
214-555-1234
Select Memory
01
02 JOHN DOE
5/17 12:30PM 03
Jane Smith
214-555-1234
Replace Memory?
Yes
No
If a message has already been stored in the selected memory
number location, a confirmation screen is displayed.
Press vol/ / to select ¨Yes¨. Press select to overwrite.
The display returns to the Caller ID list.
You cannot store a
Caller ID message if no
phone number appears
in the message.
EXAI5180 8/27/03 3:03 PM Page 37
THE INTEGRATED ANSWERING DEVICE[ 38 ] www.uniden.com
Digital Tapeless Recording allows you to quickly review, save, or delete the messages
you choose. You will never have to worry about a tape wearing out, jamming, or
resetting improperly.
The Integrated Answering System is easy and convenient to use, but please read
through all of the instructions carefully.
•Digital Tapeless Recording
•11 Minutes of Recording Time
•Call Screening
•Selectable Outgoing Messages
•Voice Prompts for Guidance
(Tri-lingual Announcement Option)
•Time and Day Announcement
•Remote Message Retrieval
•Toll Saver
•Conversation Recording
•Voice Memo
The Integrated Answering Device
The cordless phone has a built-in answering system that answers and records
incoming calls. You can also use your answering system to record a conversation,
leave a voice memo message, or to announce a special outgoing message to callers
when you're away from your phone.
Features
EXAI5180 8/27/03 3:03 PM Page 38
THE INTEGRATED
ANSWERING DEVICE
THE INTEGRATED ANSWERING DEVICE [ 39 ]www.uniden.com
Turning the Answering System On/Off
1) To turn the answering system on, press answer
on/off.
The system will announce “Answering system is on”.
The current greeting message will be played, and
you will hear a confirmation tone. The message
counter displays the number of messages stored in
memory. If the display flashes, then there are new
messages waiting for you.
2) To turn the answering system off, press answer
on/off again. After the announcement “Answering
system is off”, the message counter display will no
longer be illuminated. To turn the answering system
back on, press answer on/off.
volume SELECT
SETringer find hs
MENU/CLOCK
answer on/off greeting
mic
memo
rec
charge in use
EXAI5180 8/27/03 3:03 PM Page 39
THE INTEGRATED ANSWERING DEVICE[ 40 ] www.uniden.com
Setting up Your Answering System
Using the Menu Mode
The Menu mode allows you to set the following Answering System functions.
•To scroll through the menu options, repeatedly press
MENU/CLOCK in standby mode. The system returns to
standby after the last menu option. You hear a
confirmation tone to indicate standby mode.
•If any of the following occurs during menu setup, the
system returns to standby. Start over with the menu
function prior to the interruption.
-Press talk/flash
-Press play/stop
-10 second lapse of time
-Receive a call
•The idle time default setting is 10 seconds. If the base
remains idle for 10 seconds, an error tone sounds and the
system returns to standby.
"Time"
"Security Code"
"Ring Time"
"Record Time"
"Language"
clock/menu
clock/menu
clock/menu
clock/menu
"Message Alert."
clock/menu
clock/menu
clock/menu
Return to standby
with tone sounds.
•For your convenience,
voice prompts will
guide you through the
menu mode.
•After the setting, press
play/stop to exit the
menu mode, or
MENU/CLOCK to move
to the next menu
option. Or the system
automatically returns to
standby in 10 seconds
after the setting.
•You have 5 seconds of
idle time just after the
1st and last guidance
of each menu setting.
EXAI5180 8/27/03 3:03 PM Page 40
THE INTEGRATED
ANSWERING DEVICE
THE INTEGRATED ANSWERING DEVICE [ 41 ]www.uniden.com
Setting the Time
The clock on the cordless phone’s answering system starts when power is supplied to
the base. Follow these steps to set the clock to the correct time.
1) Press MENU/CLOCK in standby mode.
The system announces “Time”, the current time and
the guidance for setting the time.
2) Press volume/SELECT or until the
correct day is announced. The numbers [ ] through
[] are displayed on the base.
3) Press SET to select the day.
4) Press volume/SELECT or until you hear the
correct hour setting. The numbers [ ] through [ ]
are displayed on the base as each hour is announced.
5) Press SET to select the hour.
6) Press volume/SELECT or until you hear the
correct minute setting. The numbers [ ] through
[] are displayed on the base as each minute is
announced.
volume SELECT
SETringer find hs
MENU/CLOCK
answer on/off greeting
mic
memo
rec
charge in use
• Normally the idle time
for the menu mode is
10 seconds before the
system returns to
standby. However for
setting the time, the
idle time is extended
to two minutes.
• Press and hold
volume/SELECT or
to quickly scroll
through the numbers
on the display.
EXAI5180 8/27/03 3:03 PM Page 41
THE INTEGRATED ANSWERING DEVICE[ 42 ] www.uniden.com
7) Press SET to select the minute.
8) Press volume/SELECT or until you hear the correct AM or PM setting. The
message counter displays [ ] or [ ].
9) Press SET to select the AM/PM setting.
You hear a confirmation tone, then the announcement “Time” and the time and day
are announced for your review. After a few seconds, the system announces “To set
security code, press menu again”.
Setting a Personal Security Code (PIN)
To play your messages from a remote location, you need to enter a two-digit
Personal Identification Number (PIN) code (01-99). To select a PIN, perform the
following steps:
1) Press MENU/CLOCK twice in standby mode.
The system announces “Security code”, and the current PIN code is announced as
it is displayed on the base. Then the system announces the guidance for setting
the PIN code.
2) Press volume/SELECT or until the desired number appears.
3) Press SET to select the PIN code. You hear a confirmation tone, then the
announcement “Security code” followed by the new PIN code is announced. After a
few seconds, the system announces “To set ring time, press menu again”.
The PIN code is set to
"80" when you purchase
the cordless phone.
EXAI5180 8/27/03 3:03 PM Page 42
THE INTEGRATED
ANSWERING DEVICE
THE INTEGRATED ANSWERING DEVICE [ 43 ]www.uniden.com
Setting the Ring Time
The ring time setting allows you to set the number of rings the caller hears before
your answering system plays the outgoing message. You can set the ring time to
answer after two, four, or six rings. Setting (Toll Saver), the answering system
picks up after two rings if you have new messages, and after four rings if there are
none. This way, if you make a long distance call to check your messages, you can
hang up after the second ring to avoid billing charges.
1) Press MENU/CLOCK three times in standby mode.
You hear “Ring time” and the current ring time ([ ] 2, [ ] 4, [ ] 6, [ ]
Toll saver), and it is displayed on the base. Then you hear the guidance for setting
the ring time.
2) Press volume/SELECT or until the desired ring time appears.
3) Press SET to select the new ring time. You hear a confirmation tone, then the
announcement “Ring time” followed by the new ring time is announced. After a
few seconds, the system announces “To set record time, press menu again”.
EXAI5180 8/27/03 3:03 PM Page 43
THE INTEGRATED ANSWERING DEVICE[ 44 ] www.uniden.com
Selecting the message Record Time
You have three record time options. The options "1minute" or "4minutes" set the
duration for recording the incoming messages. "Announce only" answers the call
with the preset greeting or your personal greeting but prevents the caller from
leaving a message.
1) Press MENU/CLOCK four times in standby mode.
You hear “Record time” and the current recording time ([ ] 1 minute, [ ] 4
minutes, [ ] Announce only, No recording), and it is displayed on the base.
Then you hear the guidance for setting the record time.
2) Press volume/SELECT or until the desired time appears.
3) Press SET to select the new recording time. You will hear a confirmation tone,
then the announcement “Record time” followed by the new recording time is
announced. After a few seconds, the system announces “To set message alert,
press menu again”.
▼Announce only feature
The announce only feature plays a prerecorded outgoing message “Hello, no one is
available to take your call. Please call again.”, and it will not allow the caller to
leave a message. To set “Announce only”, follow the steps above.
To scroll between the prerecorded message or your own personal greeting, press the
greeting key when the outgoing message is played. If you want to use your own
greeting or want to omit the prompt “to leave a message from your greeting”, refer
to “Recording a personal outgoing message (Greeting)” on page 43.
After setting the
Announce only feature,
you may want to change
your outgoing message
not to prompt the caller
to leave a message.
However, the prerecorded
message changes
automatically.
EXAI5180 8/27/03 3:03 PM Page 44
THE INTEGRATED
ANSWERING DEVICE
THE INTEGRATED ANSWERING DEVICE [ 45 ]www.uniden.com
Setting the Message Alert tone
Message Alert feature lets you know you have new messages by sounding a short
beeping tone. If you set the Message Alert to On and when a new message is
received, the alert tone will sound every 15 seconds.
1) Press MENU/CLOCK five times in standby mode.
You hear “Message alert” and the current setting ([ ] Off
or [ ] On), and it is displayed on the base. Then you hear the guidance for
setting the Message Alert.
2) Press volume/SELECT or to make your selection.
3) Press SET to select the new setting. You hear a confirmation tone, then the
announcement “Message alert” followed by the current setting you have selected
is announced. After a few seconds, the system announces “To set language, press
menu again”. When the first new message is received, the alert tone will begin to
sound.
Turning the Message Alert tone Off by pressing any key.
1) To quickly turn Message Alert tone off, press any key on the base unit and the
tone will automatically deactivate. To reset, go back into the menu setup mode
(steps 1 - 3 above.)
Turning Message Alert tone Off when you’re away from your phone.
1) When all new messages are played back using the remote playback feature (see
page 49) the Message Alert tone will automatically deactivate. The tone will not
deactivate until all messages are played back.
EXAI5180 8/27/03 3:03 PM Page 45
THE INTEGRATED ANSWERING DEVICE[ 46 ] www.uniden.com
Selecting the Language
The answering system voice announcements can be heard in English, French or
Spanish.
To choose the language of the answering system voice announcements:
1) Press MENU/CLOCK six times in standby mode.
You hear the announcement “Language, English” followed by the guidance for
setting the language. The current setting (“ ”, “ ” or “ ”) appears on the
base.
2) Press volume/SELECT or to select the desired language.
3) Press SET. A confirmation tone is heard along with the setting in the language
selected.
Setting Your Outgoing Message (Greeting)
When you receive a call, the answering system automatically plays either a preset
message or your own greeting.
▼Preset message
The following message is prerecorded:
"Hello, no one is available to take your call. Please leave a message after the tone."
▼Recording a personal outgoing message (Greeting)
1) Press and hold greeting in standby mode.
You will hear the announcement “Record greeting” and a confirmation tone.
[] flashes on the message counter.
See "Selecting the message Record Time", page 41 on how to set the announce only feature.
•You can record a
greeting more than 2
seconds up to 30
seconds long.
• Position yourself as
near to the base as
possible and speak
clearly when recording
your outgoing message.
EXAI5180 8/27/03 3:03 PM Page 46
THE INTEGRATED
ANSWERING DEVICE
THE INTEGRATED ANSWERING [ 47 ]www.uniden.com
▼Choosing between the two outgoing messages
Press the greeting key in standby mode. Then press the greeting key again when the
outgoing message is played. This switches between the prerecorded greeting and the
personal greeting. After finishing playing back the message, a confirmation tone is
heard.
Setting the base ringer volume
You will hear three ringer options. One allows you to turn the ringer off. The other
two are volume levels.
1) Press ringer.
You hear the ringer at the current volume level
([ ] High, [ ] Low, [ ] off) (if you set the
base ringer volume to off, “Ringer off” is
announced) and it is displayed on the base.
2) Press ringer until the desired ringer option appears.
3) The system displays the new ringer volume.
To delete the personal Greeting, press during the announcement and the system announces
“Greeting has been deleted”.
volume SELECT
SETringer find hs
MENU/CLOCK
answer on/off greeting
memo
rec
charge in use
When you have set the
base ringer to off and
the handset is on the
base, you will still hear
the ringer from the
handset.
2) Start recording your message. You have 30 seconds, and the message counter
starts to count down [ ] to [ ] every second.
3) When you are finished recording your greeting, press greeting, play/stop or SET.
You will hear a confirmation tone, and then your greeting plays back for you.
EXAI5180 8/27/03 3:03 PM Page 47
THE INTEGRATED ANSWERING DEVICE[ 48 ] www.uniden.com
Using Your Answering System
The message counter displays the number of messages stored in memory. If the
display flashes, then there are new messages waiting for you. The flashing
number represents the number of new messages, not total messages. The cordless
phone is designed to play your new messages first. After you play all your new
messages, you can then play your old messages.
When the answering system is full, is displayed on the base, and the system announces "No
remaining time". You should delete some messages so that the system can record new messages.
(Refer to "Deleting a message" on page 47.)
Temporarily Mute the Base Ringer
Press play/stop to temporarily mute the incoming ring. The ringer will sound with
the next incoming call.
Adjusting the speaker volume level
You can adjust the volume of the base speaker by pressing volume/SELECT or
on the base. Press for louder or for softer while the base speaker is being
used except for menu mode. The numbers - are displayed on the base indicating
the volume levels. being the softest and being the loudest.
When you press
volume/SELECT at 9
or volume/SELECT at
0, an error tone sounds.
EXAI5180 8/27/03 3:03 PM Page 48
THE INTEGRATED
ANSWERING DEVICE
THE INTEGRATED ANSWERING DEVICE [ 49 ]www.uniden.com
Playing your messages
1) Press play/stop in standby mode.
The system announces the number of new and old
messages. The LED displays the number of new
messages, and the number flashes. The day and time
that each message was received is announced after the
message is played. The message counter displays the
number of current messages stored.
When all new messages have been played, you hear a
confirmation tone and an announcement “End of
messages”. The system returns to standby.
2) After you have reviewed your new messages, you can
play your old messages by again pressing play/stop.
Once you have listened to a new message, it becomes
an old message. The old messages will be played in the
order in which they were received.
volume SELECT
SETringer find hs
MENU/CLOCK
answer on/off greeting
mic
memo
rec
charge in use
To stop playing your
messages, press
play/stop again at
any time.
Repeating a message
1) Press play/stop to review your messages. The number of stored messages are
announced.
2) After a message has played for a few seconds, press repeat/rew to replay the
message. If you have several messages, press repeat/rew repeatedly until you
return to the message you want to replay.
EXAI5180 8/27/03 3:03 PM Page 49
THE INTEGRATED ANSWERING DEVICE[ 50 ] www.uniden.com
Skipping a message
1) Press play/stop to review your messages. The number of messages is announced.
2) Press skip/ff at anytime to skip to the next message.
Each time skip/ff is pressed, the system scans forward one message. If you have
several messages, press skip/ff repeatedly to find the message you want to play.
3) Press play/stop at any time to stop reviewing your messages and return to stand-
by. The message counter shows the number of messages stored in memory.
To quickly scroll forward through a message, press and hold skip/ff.
3) Press play/stop at any time to stop reviewing messages and return to standby.
The message counter shows the number of messages stored in memory.
To quickly scroll backward through a message, press and hold repeat/rew.
EXAI5180 8/27/03 3:03 PM Page 50
THE INTEGRATED
ANSWERING DEVICE
THE INTEGRATED ANSWERING DEVICE [ 51 ]www.uniden.com
Deleting a message
To maintain maximum record time, delete the old
messages.
1) Press play/stop to review your messages.
2) Press anytime during the message
to delete.
3) You hear a confirmation tone and the message
is deleted.
You can also delete all the messages.
1) Press in standby mode.
You hear an announcement “To delete all messages,
press delete again”.
2) Press again.
You hear a confirmation tone and is displayed on
the base. All the messages are deleted.
volume SELECT
SETringer find hs
MENU/CLOCK
answer on/off greeting
mic
memo
rec
charge in use
When you try to delete all messages without first listening to your new messages, you
hear several short beeps followed by an announcement “Please playback all messages”.
This protects you from accidentally erasing messages you have not yet reviewed.
When you press , you
are permanently deleting
the message. Once
deleted, the message
cannot be replayed.
EXAI5180 8/27/03 3:03 PM Page 51
THE INTEGRATED ANSWERING DEVICE[ 52 ] www.uniden.com
Voice memo
The voice memo function allows you to record messages
(more than 2 seconds up to 4 minutes).
1) Press and hold memo rec in standby mode.
You hear an announcement “Record memo message” and
a tone. [ ] flashes on the message counter.
2) Start your recording.
3) When you have finished, press play/stop, memo rec or
SET to stop recording. You hear a confirmation tone
and the system returns to standby.
volume SELECT
SETringer find hs
MENU/CLOCK
answer on/off greeting
mic
memo
rec
charge in use
Recording a conversation
You can record up to 10 minutes of conversation while you are using your phone.
Any conversation that lasts less than 2 seconds will not be recorded.
1) During a conversation from the handset, press and hold memo rec.
The unit begins recording with a confirmation tone and [ ] flashes on the
message counter.
A beep that can be heard by both parties,sounds during recording.
2) To stop recording, press play/stop or memo rec.
You hear a confirmation tone.
If you receive a call waiting tone while recording a conversation, press the talk/flash to accept the
waiting call. The recording feature continues recording the new call. The original call is put on hold.
•The voice memo
function is completely
independent of the
greeting message.
•The voice memo
messages are recorded
as incoming messages.
•When the answering
system is full,
appears on
the message counter
and recording is
terminated.
•A recorded
conversation is treated
as a typical message
and will be added to
the stored messages.
•When recording a
conversation, all
dialing features except
for flash operation
(see page 19) are
disabled.
Stop recording if you
need to enable any
other handset keys.
EXAI5180 8/27/03 3:03 PM Page 52
THE INTEGRATED
ANSWERING DEVICE
THE INTEGRATED ANSWERING DEVICE [ 53 ]www.uniden.com
Remote access away from home
You can operate your answering system from a remote location using any touch-tone
telephone. Use this function to check for recorded messages, to play or delete
messages, even to record a new greeting message.
1) Call your telephone number.
2) During the greeting message, press 0and enter your PIN code.
(See "Setting a Personal Security Code (PIN)", page 39).
3) The answering system announces the current time and the number of messages
stored in memory. Then you hear "To play incoming messages, press zero two.
For help, press one zero".
4) You may continue to listen to the Help Guidance, or you may select a command
from the following chart:
Command Function
0 then 1Repeat a Message
0 then 2Playing Incoming Messages
0 then 3Skipping a Message
0 then 4Deleting a Message
0 then 5Stop Operation
0 then 6Answering System On
0 then 7Memo Record/Stop*
0 then 8Greeting Message Record/Stop*
0 then 9Answer System Off
1 then 0Help Guidance
For your convenience
remote operation cards
are provided for you to
use while away from
home (located backward
of this manual).
You must enter a
command within 15
seconds of entering
command waiting mode
or the answering system
automatically hangs up
and returns to standby.
EXAI5180 8/27/03 3:03 PM Page 53
THE INTEGRATED ANSWERING DEVICE[ 54 ] www.uniden.com
*For Memo Record and Greeting Message Record function, the first time you enter
the corresponding command, it starts the Recording function. If you want to stop
the recording, enter the command again.
5) After all of the Help Guidance prompts have played, you hear intermittent beeps
indicating that the system is in the command waiting mode. You may enter
another command at this time from the chart.
6) When you are finished, hang up to exit the system. The answering system
automatically returns to standby.
Turn on the answering system remotely
If you have forgotten to turn on your answering system, you can turn it on remotely
from any touch-tone telephone.
1) Call your telephone number.
2) Wait ten rings until the system answers. You hear a beep.
3) Press 0and then enter your PIN code. The answering system announces the
number of messages stored in memory. You hear "To play incoming messages,
press zero two. For help, press one zero".
4) Press 0then 6to turn the answering system On. You hear the outgoing message
and a confirmation tone.
5) Hang up the phone and subsequent calls will be answered by the system.
EXAI5180 8/27/03 3:03 PM Page 54
ADDITIONAL
INFORMATION
ADDITIONAL INFORMATION [ 55 ]www.uniden.com
Changing the Digital Security Code
The digital security code is an identification code used to connect the handset and
the base unit. Normally, setting the code is not necessary. The first time you charge
your handset, the security code is automatically set.
In the rare situation that you suspect another cordless telephone is using the same
security code, you can change the code.
1) Remove the handset from the base unit. Press and hold find handset on the base.
2) While holding find handset,place the handset in the base unit, and leave the
handset on the base for more than 3 seconds. A new random security code is set.
Installing the Beltclip
To attach the beltclip
Insert the beltclip into the holes on each side of the handset. Press down until it clicks.
To remove the beltclip
Pull both sides of the beltclip to release the tabs from the holes.
Headset Installation
Your phone may be used with an optional headset, the Uniden HS910.
To use this feature, insert the headset plug into the headset jack.
Your phone is ready for hands-free conversations.
(Headset may be purchased by calling the Uniden Parts Department or
visiting the web site, see QUICK REFERENCE GUIDE on page 3.)
•To protect you against
misbilled calls which
might result from your
phone being activated
by other equipment,
the cordless phone
provides AutoSecureTM
to electronically locks
your phone when the
handset is in the
base. Also, the
Random CodeTM digital
security which
automatically selects
one of over 262,000
digital security codes
for the handset and
base.
•If the handset battery
pack is completely
discharged or the
battery pack is
removed, the digital
security code will be
lost. If this happens,
a new security code is
set automatically the
next time the battery
pack is charged.
EXAI5180 8/27/03 3:03 PM Page 55
ADDITIONAL INFORMATION[ 56 ] www.uniden.com
Note on Power Sources
Battery replacement and handling
When the operating time becomes short, even after a battery is recharged, please replace the battery.
With normal usage, your battery should last about one year. Please contact your place of purchase or the
Uniden Parts Department for a replacement battery.
Warning: To avoid the risk of personal injury or property damage from fire or electrical shock, only use the
Uniden battery model and Uniden adapter model specifically designated for this product.
Power Failure
During the period that the power is off, you will not be able
to make or receive calls with the telephone.
Caution
• Use only the specified Uniden battery pack.
• Do not remove the battery from the handset to charge it.
• Never throw the battery into a fire, disassemble it, or heat it.
• Do not remove or damage the battery casing.
Caution
Do not use paint thinner,
benzene, alcohol, or other
chemical products. Doing
so may discolor the sur-
face of the telephone and
damage the finish.
Maintenance
To maintain a good charge, it is important to clean the charging contacts on
both the handset and base unit once a month. Using water only, dampen a cloth
to clean the charging contacts. Then, make sure to go back over the charging
contacts with a dry cloth.
EXAI5180 8/27/03 3:03 PM Page 56
ADDITIONAL
INFORMATION
ADDITIONAL INFORMATION [ 57 ]www.uniden.com
Troubleshooting
If your phone is not performing to your expectations, please try these simple steps first.
Symptom
The charge/in use LED won't
illuminate when the handset
is placed in the base.
The audio sounds weak and/or
scratchy.
Can't make or receive calls.
The handset doesn't ring or
receive a page.
Severe noise interference.
Suggestion
•Make sure the AC adapter is plugged into the base and wall outlet.
•Make sure the handset is properly seated on the base.
•Make sure the charging contacts on the handset and base are clean.
•Move the handset and/or base to a different location away from metal objects or
appliances and try again.
•Press delete/channel to help eliminate background noise.
•Make sure that you are not too far from the base.
•Check both ends of the base telephone line cord.
•Make sure the AC adapter is plugged into the base and wall outlet.
•Disconnect the AC adapter for a few minutes, then reconnect it.
•Change the digital security code (see page 39).
•Make sure that you are not too far from the base.
•The battery pack may be weak. Charge the battery for 15-20 hours.
•The handset may be too far away from the base unit.
•Place the base unit away from appliances or metal objects.
•Change the digital security code (see page 39).
•Check the battery pack to insure there is a secure connection.
•Make sure ringer volume isn’t set to turned off.
•Keep the handset away from microwave ovens, computers, remote control toys,
wireless microphones, alarm systems, intercoms, room monitors, fluorescent
lights, electrical appliances, other cordless telephones and other devices that use
electricity.
•Move to another location or turn off the source of interference.
EXAI5180 8/27/03 3:03 PM Page 57
ADDITIONAL INFORMATION[ 58 ] www.uniden.com
Symptom
The Caller ID does not display.
The answering system does not
work.
The answering system does not
record any messages.
Messages are incomplete.
After a power failure, the
outgoing message is deleted.
No sound on the base unit
speaker during call monitoring
or message playback.
Cannot access remote call-in
features from another touch-
tone phone.
If you still have a problem.
Suggestion
•The handset was picked up before the second ring. The Caller ID is displayed
between the first and second ring.
•The call was placed through a switchboard.
•
Call your local telephone company to verify your Caller ID service is current.
•Charge the handset.
•Make sure the base unit is plugged in.
•Make sure the answering system is turned on.
•Set the record time to either the one minute or four minute option.
•The memory may be full. Delete some or all of the saved messages.
•The incoming messages may be too long. Remind callers to leave a brief message.
•The memory may be full. Delete some or all of the saved messages.
•Record your personal outgoing message again. The default message should remain.
•Adjust the speaker volume on the base unit.
•Make sure you're using the correct PIN code.
•Make sure that the touch-tone phone you're using can transmit the tone for at least
two seconds. If it cannot, you may have to use another phone to access your mes-
sages.
•Call our customer hotline at 1-800-297-1023.
EXAI5180 8/27/03 3:03 PM Page 58
ADDITIONAL
INFORMATION
ADDITIONAL INFORMATION [ 59 ]www.uniden.com
Case
If the handset or base is exposed to
moisture or liquid, but liquid only
affects the exterior plastic housing.
If moisture or liquid has entered the
plastic-housing (i.e. liquid can be
heard in the phone or liquid has
entered the handset battery
compartment or vent openings on the
base).
Action
Wipe off the liquid and, use as normal.
Handset:
1. Remove the battery cover and leave it off for ventilation.
2. Remove the battery pack by disconnecting.
3. Leave the battery cover off and the battery pack disconnected for at least 3 days.
4. Once the phone is completely dry, reconnect the battery pack and the battery cover.
5. Recharge the handset’s battery pack for 20 hours in the base unit before using the phone.
Base:
1. Disconnect the AC adapter from the base unit, cutting off electrical power.
2. Disconnect the telephone cord from the base unit.
3. Let dry for at least 3 days.
IMPORTANT: You must unplug the telephone line while recharging the battery pack to
avoid charge interruption.
CAUTION:
DO NOT use a microwave oven to speed up the drying process. This will cause permanent
damage to the handset, base and the microwave oven.
After following these steps, if your cordless telephone does not work, please send to:
Uniden America Corporation
Parts and Service Division
4700 Amon Carter Blvd.
Ft. Worth, TX76155
1-800-554-3988. Monday through Friday
8 a.m. to 5 p.m. CST
Liquid Damage
Moisture and liquid can damage your cordless phone. In case of accidental submersion, please read the
following steps.
EXAI5180 8/27/03 3:03 PM Page 59
ADDITIONAL INFORMATION[ 60 ] www.uniden.com
General Information
The phone complies with FCC Parts 15 and 68.
Operating temperature: -10°to 50°C (+14°F to +122°F)
AC Adapter Information
AC Adapter part number: AD-314
Input Voltage: 120V AC 60Hz
Output Voltage: 9V DC 350 mA
Battery Information
Battery part number: BT-800
Capacity: 800 mAH, 3.6V
Frequency 925.181-927.451 MHz
5739.320-5746.130 MHz
Recharge your phone on a regular basis by returning the handset to the base after each phone call.
When the operating time becomes short, even after the battery is recharged, please replace the battery.
With normal usage, the battery should last about one year.
A replacement Uniden adapter and battery may be purchased at your local Uniden dealer or by contacting
the Uniden Parts Department (800) 554-3988. Hours are from 8:00 a.m. to 5:00 p.m. Central Time, Monday
through Friday. We can also be reached on the web at www.uniden.com.
Specifications, features, and availability of optional accessories are all subject to change without prior
notice.
•To avoid damage to the phone use only Uniden AD-314 and BT-800 (or BT-905 having less usage time) with your phone.
•If the handset is left off of the base, the actual Talk mode duration will be reduced respective to the amount of time the handset
is off the base.
You can also use BT-905, but its usage time is less than BT-800.
Purchase BT-800 at Uniden Website www.uniden.com.
EXAI5180 8/27/03 3:03 PM Page 60
ADDITIONAL
INFORMATION
ADDITIONAL INFORMATION [ 61 ]www.uniden.com
Precautions!
Before you read anything else, please observe the following:
Warning!
Uniden America Corporation DOES NOT represent this unit to be
waterproof. To reduce the risk of fire, electrical shock, or damage
to the unit, DO NOT expose this unit to rain or moisture.
Rechargeable Nickel-Cadmium Battery Warning
•This equipment contains a rechargeable nickel-cadmium battery.
•Cadmium is a chemical known to the State of California to cause
cancer.
•The rechargeable nickel-cadmium battery contained in this
equipment may explode if disposed of in a fire.
•Do not short-circuit the battery.
•Do not charge the rechargeable nickel-cadmium battery used in this
equipment in any charger other than the one designed to charge
this battery as specified in the owner’s manual. Using another
charger may damage the battery or cause the battery to explode.
Rechargeable Nickel-Cadmium
Batteries Must Be Recycled or
Disposed of Properly
•Uniden voluntarily participates in an RBRC®
industry program to collect and recycle nickel-cadmium batteries at
the end of their useful life, when taken out of service within the
United States.
The RBRC® program provides a convenient alternative to placing
used nickel-cadmium batteries into the trash or municipal waste
stream, which is illegal in some areas.
•Through the RBRC® program, Uniden makes it easy for you to drop
off the used battery at local retailers of replacement nickel-cadmium
batteries. You may also contact your local recycling center for
information on where to return the used battery. Please call 1-800-
8-BATTERY for information on Ni-Cd battery recycling in your area.
Uniden's involvement in this program is part of its commitment to
protecting our environment and conserving natural resources.
•RBRC® is a registered trademark of the Rechargeable Battery
Recycling Corporation.
Uniden works to reduce lead content in our PVC coated cords in our
product and accessories.
Warning!
The cords on this products and/or accessories contain lead, a chemical
known to the State of California to cause birth defects or other
reproductive harm. Wash hands after handling.
Important Safety Instructions
When using your telephone equipment, these basic safety precautions
should always be followed to reduce the risk of fire, electrical shock,
and injury to persons:
1. Read and understand all instructions.
2. Follow all warnings and instructions marked on the product.
3. Unplug this product from the wall outlet before cleaning. Use a dry
cloth for cleaning without liquid or aerosol cleaners.
4. Do not use this product near water; for example, near a bathtub,
wash bowl, kitchen sink or laundry tub, in a wet basement, or near a
swimming pool.
5. Do not place this product on an unstable cart, stand, or table.
The telephone may fall, causing serious damage to the unit.
6. Slots and openings in the cabinet and the back or bottom are
provided for ventilation. To protect the product from overheating,
these openings must not be blocked or covered. This product should
never be placed near or over a radiator or heat register. This product
should not be placed in a built-in installation unless proper
ventilation is provided.
7. This product should be operated only from the type of power source
indicated on the marking label. If you are not sure of the type of
power supply to your home, consult your dealer or local power
company.
8. Do not allow anything to rest on the power cord. Do not locate this
product where the cord will be damaged by persons walking on it.
9. Do not overload wall outlets and extension cords, as this can result
in the risk of fire or electrical shock.
10. Never push objects of any kind into this product through cabinet
slots, as they may touch dangerous voltage points or short out parts
that could result in a risk of fire or electric shock. Never spill liquid
of any kind on the product.
11. To reduce the risk of electric shock, do not disassemble this product.
Take it to qualified service personnel when service or repair work is
required. Opening or removing covers may expose you to dangerous
voltages or other risks. Incorrect reassembly can cause electric shock
when the appliance is subsequently used.
12. Unplug this product from the wall outlet and refer servicing to
qualified service personnel under the following conditions:
A. When the power supply cord is damaged or frayed.
B. If liquid has been spilled into the product.
C. If the product has been exposed to rain or water.
D. If the product does not operate normally when following the
operating instructions. (Adjust only those controls that are
covered by the operating instructions. Improper adjustment
of other controls may result in damage and will often require
extensive repair work by a qualified technician.)
E. If the product has been dropped or the cabinet has been
damaged.
F. If the product exhibits a distinct change in performance.
13. Do not use the telephone to report a gas leak in the vicinity of the
leak.
Additional Battery Safety Precautions
Caution! To reduce the risk of fire or injury to persons by the
battery, read and follow these instructions:
1. Use only the Uniden battery pack specified in the owner’s manual.
2. Do not dispose of the battery pack in a fire. The cell may explode.
Check the nickel-cadmium battery disposal package insert for
disposal instructions.
3. Do not open or mutilate the battery pack. Released electrolyte is
corrosive and may cause damage to the eyes or skin. It may be toxic
if swallowed.
4. Exercise care in handling the battery in order not to short the
battery with conducting materials such as rings, bracelets, and keys.
The battery or conductor may overheat and cause burns.
5. Charge the battery pack provided with or identified for use with this
product only in accordance with the instructions and limitations
specified in the owner’s manual provided for this product.
6. Observe proper polarity orientation between the battery pack and
battery charger.
SAVE THESE INSTRUCTIONS!
Important Electrical Considerations
Unplug all electrical appliances when you know an electrical storm is
approaching. Lightning can pass through your household wiring and
damage any device connected to it. This phone is no exception.
The FCC Wants You To Know
Changes or modifications to this product not expressly approved by
Uniden, or operation of this product in any way other than as detailed
by the owner’s manual, could void your authority to operate this
product. Your telephone compiles with Part 68 of FCC Rules. You must,
upon request, provide the FCC registration number and the REN to your
telephone company. Both numbers are on the base unit.
NOTE: You must not connect your phone to:
• coin-operated systems
• most electronic key telephone systems
Range
Your new phone is designed to achieve the maximum possible range by
transmitting and receiving according to the highest specifications set
forth by the FCC. We have rated this phone to operate at a maximum
distance with the qualification that the range depends upon the
environment in which the telephone is used. Many factors limit range,
and it would be impossible to include all the variables in our rating.
The Maximum Range rating of this phone is meant to be used as a
means of comparison against other range claims.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the appliance.
EXAI5180 8/27/03 3:03 PM Page 61
ADDITIONAL INFORMATION[ 62 ] www.uniden.com
Telephone Line Problems
The FCC has granted the telephone company the right to disconnect
service in the event that your phone causes problems on the telephone
line. Also, the telephone company may make changes in facilities and
services which may affect the operation of your unit. However, your
telephone company must give adequate notice in writing prior to such
actions to allow you time for making necessary arrangements to
continue uninterrupted service.
If you are having trouble with your telephone service, you must first
disconnect your phone to determine if it is the cause of your problem.
If you determine that it is the cause, you must leave it disconnected
until the trouble has been corrected.
Radio Interference
Radio interference may occasionally cause buzzing and humming in your
cordless handset, or clicking noises in the base. This interference is
caused by external sources such as TV, refrigerator, vacuum cleaner,
fluorescent lighting, or electrical storm. Your unit is NOT DEFECTIVE.
If these noises continue and are too distracting, please check around
your home to see what appliances may be causing the problem.
In addition, we recommend that the base not be plugged into a circuit
that also powers a major appliance because of the potential for
interference. Be certain that antenna on the unit is fully extended.
In the unlikely event that you consistently hear other voices or
distracting transmissions on your phone, you may be receiving radio
signals from another cordless telephone or other source of interference.
If you cannot eliminate this type of interference, you need to change to
a different channel.
Finally, it should be noted that some cordless telephones operate at
frequencies that may cause interference to nearby TVs and VCRs.
To minimize or prevent such interference, the base of the cordless
telephone should not be placed near or on top of a TV or VCR.
If interference is experienced, moving the cordless telephone farther
away from the TV or VCR will often reduce or eliminate the interference.
More Than One Cordless Telephone
If you want to use more than one cordless telephone in your home,
they must operate on different channels. Press the channel key to select
a channel that provides the clearest communication.
Cordless Telephone Privacy
Cordless telephones are radio devices. Communications between the
handset and base of your cordless telephone are accomplished by means
of radio waves which are broadcast over the open airways. Because of
the inherent physical properties of radio waves, your communications
can be received by radio receiving devices other than your own cordless
telephone unit. Consequently, any communications using your cordless
telephone may not be private.
Installation Considerations
Selecting a Location
Before choosing a location for your new phone, there are some
important guidelines you should consider:
•The location should be close to both a phone jack and continuous
power outlet. (A continuous power outlet is an AC outlet which does
not have a switch to interrupt its power.)
•Keep the base and handset away from sources of electrical noise
such as motors or fluorescent lighting.
•Be sure there is sufficient space to fully extend the base antenna.
•The base can be placed on a desk or tabletop or mounted on a
standard telephone wall plate.
•You should charge your new phone for 15-20 hours before
completing the installation or using the handset.
Telephone Line Outlets
There are two types of phone outlets:
Modular Jack
Most phone equipment available now uses modular jacks. Phone cords
are fitted with a molded plastic connector which plugs into this type
of jack. If you do not have modular phone jacks, contact your local
telephone company for information about their installation.
Hardwired Jack
Some equipment is wired directly to a phone jack, and these types of
installations require a modular jack converter. This type of installation
is not difficult; however, you should contact your Uniden telephone
dealer or a telephone supply store for advice about the proper adapter
or converter for your particular situation.
Connecting the Telephone Cords
Consider these safety guidelines before connecting the telephone cords:
Caution!
•Never install telephone wiring during a lightning storm.
•Never touch uninsulated telephone wires or terminals unless the
telephone line has been disconnected.
•Use caution when installing or modifying telephone lines.
Applying Power to the Base
This phone requires an AC outlet, without a switch to interrupt power,
and the included AC adapter. To relieve strain on the DC plug when the
phone is placed on a desk or table, wrap the power cord around the
strain relief notch on the back of the base.
NOTE: Place the power cord so that it does not create a trip
hazard, or where it could become chafed and create a
fire or other electrical hazards.
One Year Limited Warranty
Important:Evidence of original purchase is required for warranty service.
WARRANTOR: UNIDEN AMERICA CORPORATION (“Uniden”)
ELEMENTS OF WARRANTY: Uniden warrants, for one year, to the original
retail owner, this Uniden Product to be free from defects in materials
and craftsmanship with only the limitations or exclusions set out below.
WARRANTY DURATION: This warranty to the original user shall terminate
and be of no further effect 12 months after the date of original retail
sale. The warranty is invalid if the Product is (A) damaged or not
maintained as reasonable or necessary, (B) modified, altered, or used as
part of any conversion kits, subassemblies, or any configurations not
sold by Uniden, (C) improperly installed, (D) serviced or repaired by
someone other than an authorized Uniden service center for a defect or
malfunction covered by this warranty, (E) used in any conjunction with
equipment or parts or as part of any system not manufactured by
Uniden, or (F) installed or programmed by anyone other than as
detailed by the owner’s manual for this product.
STATEMENT OF REMEDY: In the event that the product does not conform
to this warranty at any time while this warranty is in effect, warrantor
will either, at its option, repair or replace the defective unit and return
it to you without charge for parts, service, or any other cost (except
shipping and handling) incurred by warrantor or its representatives in
connection with the performance of this warranty. Warrantor, at its
option, may replace the unit with a new or refurbished unit. THE
LIMITED WARRANTY SET FORTH ABOVE IS THE SOLE AND ENTIRE
WARRANTY PERTAINING TO THE PRODUCT AND IS IN LIEU OF AND
EXCLUDES ALL OTHER WARRANTIES OF ANY NATURE WHATSOEVER,
WHETHER EXPRESS, IMPLIED OR ARISING BY OPERATION OF LAW,
INCLUDING, BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. THIS
WARRANTY DOES NOT COVER OR PROVIDE FOR THE REIMBURSEMENT OR
PAYMENT OF INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states do
not allow this exclusion or limitation of incidental or consequential
damages so the above limitation or exclusion may not apply to you.
LEGAL REMEDIES: This warranty gives you specific legal rights, and you
may also have other rights which vary from state to state. This warranty
is void outside the United States of America and Canada.
PROCEDURE FOR OBTAINING PERFORMANCE OF WARRANTY: If, after
following the instructions in the owner’s manual you are certain that
the Product is defective, pack the Product carefully (preferably in its
original packaging). The Product should include all parts and accessories
originally packaged with the Product. Include evidence of original
purchase and a note describing the defect that has caused you to return
it. The Product should be shipped freight prepaid, by traceable means,
to warrantor at:
Uniden America Corporation
Parts and Service Division
4700 Amon Carter Blvd. Fort Worth, TX 76155
(800) 297-1023, 8 a.m. to 5 p.m. Central, Monday through Friday
EXAI5180 8/27/03 3:03 PM Page 62
ADDITIONAL
INFORMATION
ADDITIONAL INFORMATION [ 63 ]www.uniden.com
I.C. Notice
TERMINAL EQUIPMENT
NOTICE: This equipment meets the applicable Industry Canada Terminal Equipment Technical Specifications.
This is confirmed by the registration number. The abbreviation, IC, before the registration number signifies
that registration was performed based on a Declaration of Conformity indicating that Industry Canada
technical specifications were met. It does not imply that Industry Canada approved the equipment.
NOTICE: The Ringer Equivalence Number (REN) for this terminal equipment is marked on the equipment
itself. The REN assigned to each terminal equipment provides an indication of the maximum number of
terminals allowed to be connected to a telephone interface. The termination on an interface may consist
of any combination of devices subject only to the requirement that the sum of the Ringer Equivalence
Numbers of all the devices does not exceed five.
RADIO EQUIPMENT
The term “IC:” before the radio certification number only signifies that Industry Canada technical
specifications were met.
Operation is subject to the following two conditions: (1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired operation
of the device. “Privacy of communications may not be ensured when using this telephone”.
EXAI5180 8/27/03 3:03 PM Page 63
ADDITIONAL INFORMATION[ 64 ]
A
AC adapter information ................57
Announce only feature ................41
Answering system
Deleting a message ..................47
Playing a message....................45
Recording a conversation ..........48
Remote access ........................49
Repeating a message ................46
Skipping a message ..................46
Turning on/off ........................36
B
Base location ..............................6
Battery pack
Information ............................57
Installing ................................7
Preparing and charging ..............7
Replacement and handling ........52
Beltclip installation ....................51
C
Caller ID
Caller ID service ........................30
Call Waiting ............................19
Deleting ................................32
Setting Caller ID options ..........13
Using ....................................33
Viewing..................................31
Call Waiting ..............................19
Chain dialing ............................24
Channel ....................................19
Charging the battery pack ............10
Cleaning contacts ........................9
Clock........................................38
Connect the base unit..................10
Controls and functions ..................4
D
Dialing mode..............................15
Digital security code ..................51
E, F, G, H, I, J, K, L
Earpiece volume..........................17
Flash ........................................19
General information ....................57
Greeting....................................43
Headset installation ....................51
I.C. Notice ................................60
Interference ..............................19
Liquid damage............................56
M, N, O, P, Q
Maintenance ..............................52
Making a call ............................16
Memory dialing
Editing a stored name and
phone number ......................25
Erasing a stored name and
phone number ......................27
Making calls with memory
dialing ..............................23
Storing phone numbers and
names ................................20
Menu mode ................................37
Message alert ............................42
Outgoing message ......................43
Package contents..........................1
Page ........................................19
Personal security code (PIN code) ..39
Precautions................................58
Quick reference guide ....................1
R
Receiving a call..........................16
Recording time ..........................41
Redial ......................................18
Remote access............................49
Repeating..................................46
Ringer volume
Base......................................44
Handset ................................17
Ring time ..................................40
RocketDial ................................28
S
Setting menu options ..................13
Setting up the phone ....................6
Storing phone number..................20
T, U
Tone dialing switch-over ..............18
Traveling out-of-range ................18
Troubleshooting..........................53
V, W, X, Y, Z
Voice memo ..............................48
Volume control
Base......................................44
Handset ................................17
Wall mounting ............................11
Warranty ..................................59
EXAI5180 8/27/03 3:03 PM Page 64
Remote Operation Card
REMOTE OPERATION CARD
C U T
Remote access away from home
1. Call your phone number from a
touch-tone phone.
2. During the outgoing message,
press 0 and enter your PIN
code. The answering system
announces the number of
messages stored in memory
and the help guidance. The
phone stands by for you to
enter a command.
3. To quit, hang up the phone.
Turn on the answering system remotely
1. Call your phone and let it ring
10 times until it answers.
2. Press 0 and enter your PIN
code.
3. Press 0 then 5 to stop
the announcement.
4. Press 0 then 6 to turn the
answering system on.
REMOTE OPERATION CARD
C U T
Remote access away from home
1. Call your phone number from a
touch-tone phone.
2. During the outgoing message,
press 0 and enter your PIN
code. The answering system
announces the number of
messages stored in memory
and the help guidance. The
phone stands by for you to
enter a command.
3. To quit, hang up the phone.
Turn on the answering system remotely
1. Call your phone and let it ring
10 times until it answers.
2. Press 0 and enter your PIN
code.
3. Press 0 then 5 to stop
the announcement.
4. Press 0 then 6 to turn the
answering system on.
REMOTE OPERATION CARD
C U T
Remote access away from home
1. Call your phone number from a
touch-tone phone.
2. During the outgoing message,
press 0 and enter your PIN
code. The answering system
announces the number of
messages stored in memory
and the help guidance. The
phone stands by for you to
enter a command.
3. To quit, hang up the phone.
Turn on the answering system remotely
1. Call your phone and let it ring
10 times until it answers.
2. Press 0 and enter your PIN
code.
3. Press 0 then 5 to stop
the announcement.
4. Press 0 then 6 to turn the
answering system on.
REMOTE OPERATION CARD
C U T
Remote access away from home
1. Call your phone number from a
touch-tone phone.
2. During the outgoing message,
press 0 and enter your PIN
code. The answering system
announces the number of
messages stored in memory
and the help guidance. The
phone stands by for you to
enter a command.
3. To quit, hang up the phone.
Turn on the answering system remotely
1. Call your phone and let it ring
10 times until it answers.
2. Press 0 and enter your PIN
code.
3. Press 0 then 5 to stop
the announcement.
4. Press 0 then 6 to turn the
answering system on.
EXAI5180 8/27/03 3:03 PM Page 65
Remote Operation Card
C U T C U T
C U T C U T
Task Key
Repeat a Message 0 1
Playing Incoming Messages 0 2
Skipping a Message 0 3
Deleting a Message 0 4
Stop Operation 0 5
Answering System On 0 6
Memo Record/Stop 0 7
Greeting Message Record/Stop 0 8
Answer System Off 0 9
Help Guidance 1 0
Task Key
Repeat a Message 0 1
Playing Incoming Messages 0 2
Skipping a Message 0 3
Deleting a Message 0 4
Stop Operation 0 5
Answering System On 0 6
Memo Record/Stop 0 7
Greeting Message Record/Stop 0 8
Answer System Off 0 9
Help Guidance 1 0
Task Key
Repeat a Message 0 1
Playing Incoming Messages 0 2
Skipping a Message 0 3
Deleting a Message 0 4
Stop Operation 0 5
Answering System On 0 6
Memo Record/Stop 0 7
Greeting Message Record/Stop 0 8
Answer System Off 0 9
Help Guidance 1 0
Task Key
Repeat a Message 0 1
Playing Incoming Messages 0 2
Skipping a Message 0 3
Deleting a Message 0 4
Stop Operation 0 5
Answering System On 0 6
Memo Record/Stop 0 7
Greeting Message Record/Stop 0 8
Answer System Off 0 9
Help Guidance 1 0
EXAI5180 8/27/03 3:03 PM Page 66
At Uniden, we´ll take care of you!
If you need any assistance with this product, please call our Customer Hotline at 1-800-297-1023
or visit our web site at www.uniden.com
PLEASE DO NOT RETURN THIS PRODUCT TO THE PLACE OF PURCHASE.
Our Uniden representatives will be happy to help you with any matters regarding
the operation of this unit, available accessories, or any other related matters.
Thank you for purchasing a Uniden product.
Hours: M-F 8:00 AM to 5:00 PM CST.
For information on the accessibility features of this product, please call
1-800-874-9314 (V/TTY)
?
Accessibility
EXAI5180 8/27/03 3:03 PM Page 67
