WELCOME/FEATURES [ 2 ]
www.uniden.com
As an Energy Star£ Partner, Uniden has determined that this product or product
models meets the Energy Star£ guidelines for energy efficiency. Energy Star£ is
a U.S. registered mark.
Welcome
Features • 900MHz Extended Range Technology
• Weather Forecast Display at both Handset
& Base
• Weather Forecast Display (Barometric
Variation, Moon Phase, Tide Level, Tem-
perature, Indoor and Outdoor Humidity)
• Time & Calendar Display
•Alarm with Snooze Feature
• Backlight and LCD Contrast Control
• 3 Line Backlit Display
• Caller ID and Caller ID on Call Waiting
• 10 Number Memory Dialing
• Last Number Redial
• Voice Mail Waiting Indicator
• English, French or Spanish Support
• Pulse/Tone Dialing
•Find Handset Locator
• Earpiece Volume Control
•Ringer Volume Control
• Hearing Aid Compatible
• 17 Channel Autoscan
Be sure to visit our web site: www.uniden.com
Uniden® is registered trademark of Uniden America Corporation.
AutoTalk, AutoStandby, UltraClear Plus, Random Code, and AutoSecure are trademarks of
Uniden America Corporation.
Congratulations on your purchase of the Uniden cordless telephone. This phone is designed and
engineered to exacting standards for reliability, long life, and outstanding performance.
Note:Illustrations in this manual are used for explanation purposes. Some
illustrations in this manual may differ from the actual unit. The color of your
cordless phone may vary.
WELCOME/FEATURES
UP033BH_EXI7246C.book Page 2 Wednesday, June 2, 2004 1:30 PM
[3] CONTROLS & FUNCTIONS
www.uniden.com
Controls and Functions
5
6
8
7
9
10
11
1
3
4
2
12
13
15
14
16
17
18
19
CONTROLS & FUNCTIONS

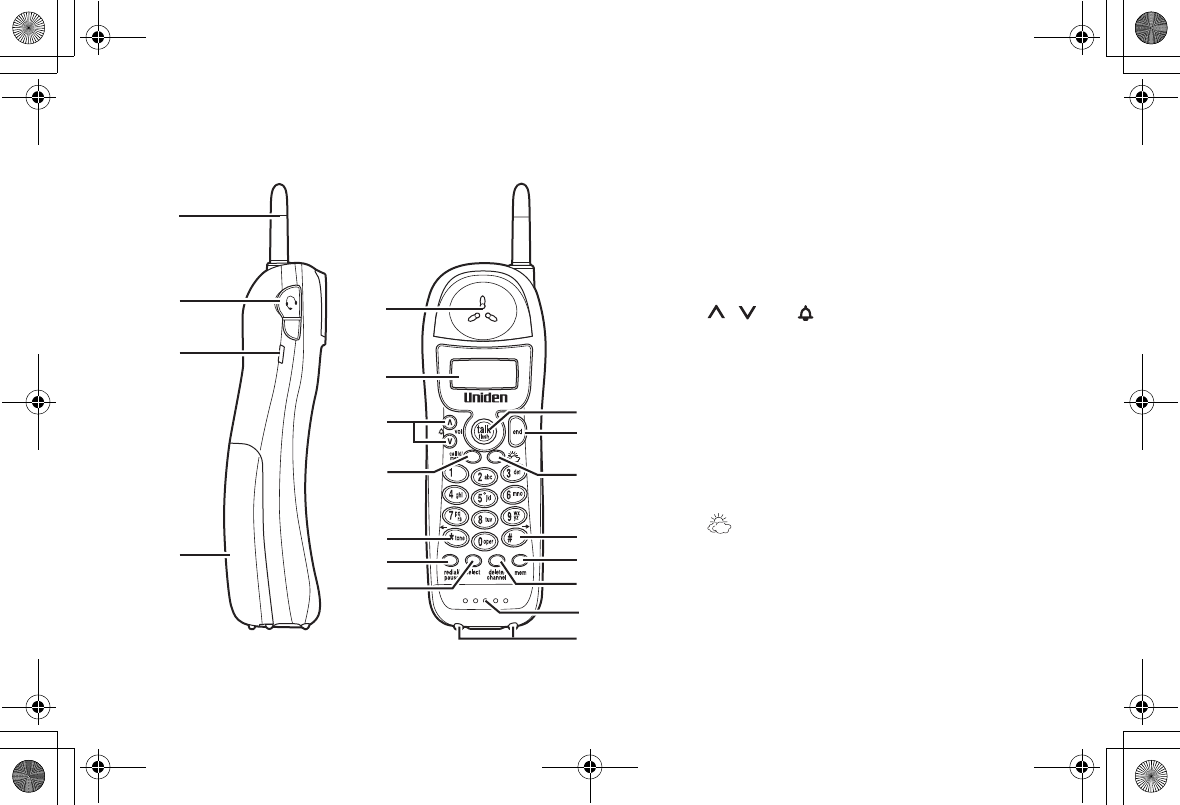

1. Handset antenna
2. Jack for optional headset
3. Beltclip hole
4. Handset battery compartment
5. Handset earpiece
6. LCD display
7. / /vol/ (earpiece volume, ringer
volume and scroll) key (pages 19, 22 and
38)
8. call id/menu key (pages 19 and 28)
9. */tone/mkey (left cursor) key
(pages 24 and 41)
10. redial/pause key (pages 25 and 37)
11. select key (page 19)
12. talk/flash key (pages 35 and 42)
13. end key (pages 36 and 38)
14. key (page 35)
15. #/o(right cursor) key (page 24)
16. mem key (page 23)
17. delete/channel key (pages 24, 29 and 41)
18. Handset microphone and ringer speaker
19. Handset charging contacts
Handset
CH06_Controls.fm Page 3 Wednesday, June 2, 2004 6:05 PM
CONTROLS & FUNCTIONS [ 4 ]
www.uniden.com
31 32 33
20
21
26 27
29 3022
23
24
25
28
CONTROLS &
FUNCTIONS
20. Base charging contacts
21. charge/in use and VMWI
(Voice Mail Waiting Indicator) LED
22. Snooze button (page 18)
23. LCD display
24. alarm switch (page 17)
25. find handset key (pages 42 and 44)
26. select key (page 14)
27. or key (page 14, page 17)
28. enter key (page 14)
29. DC IN 9V jack
30. Telephone line jack
(Inside the outside unit compartment)
31. Channel switch (page 10)
32. Check Battery button
33. battery check LED
Base
Outside unit
UP033BH_EXI7246C.book Page 4 Wednesday, June 2, 2004 1:30 PM
[5] TERMS USED IN THIS MANUAL
www.uniden.com
Terms Used in this Manual
•Standby Mode - The handset may be sitting in or off the base, but is NOT in use. The talk/flash key has not
been pressed and there is no dial tone.
•Talk Mode - The handset is off the base and the talk/flash key has been pressed, enabling a dial tone.
•CID - Caller ID
•CIDCW - Caller ID on Call Waiting
•Outdoor sensor - The outdoor sensor senses the temperature and humidity and sends the received data to
the base.
TERMS USED IN THIS MANUAL
UP033BH_EXI7246C.book Page 5 Wednesday, June 2, 2004 1:30 PM
GETTING STARTED [6]
www.uniden.com
Installing the Phone and Outdoor Sensor
Do the following steps:
A. Choose the Best Location (Base and Handset)
B. Install the Rechargeable Battery Pack into the Handset
C. Connect the Base, Set up the Outdoor sensor and Charge the Handset
D. Wall Mounting the Outdoor sensor
E. Mount the Base Unit on a Wall
A. Choose the Best Location
(Base and Handset)

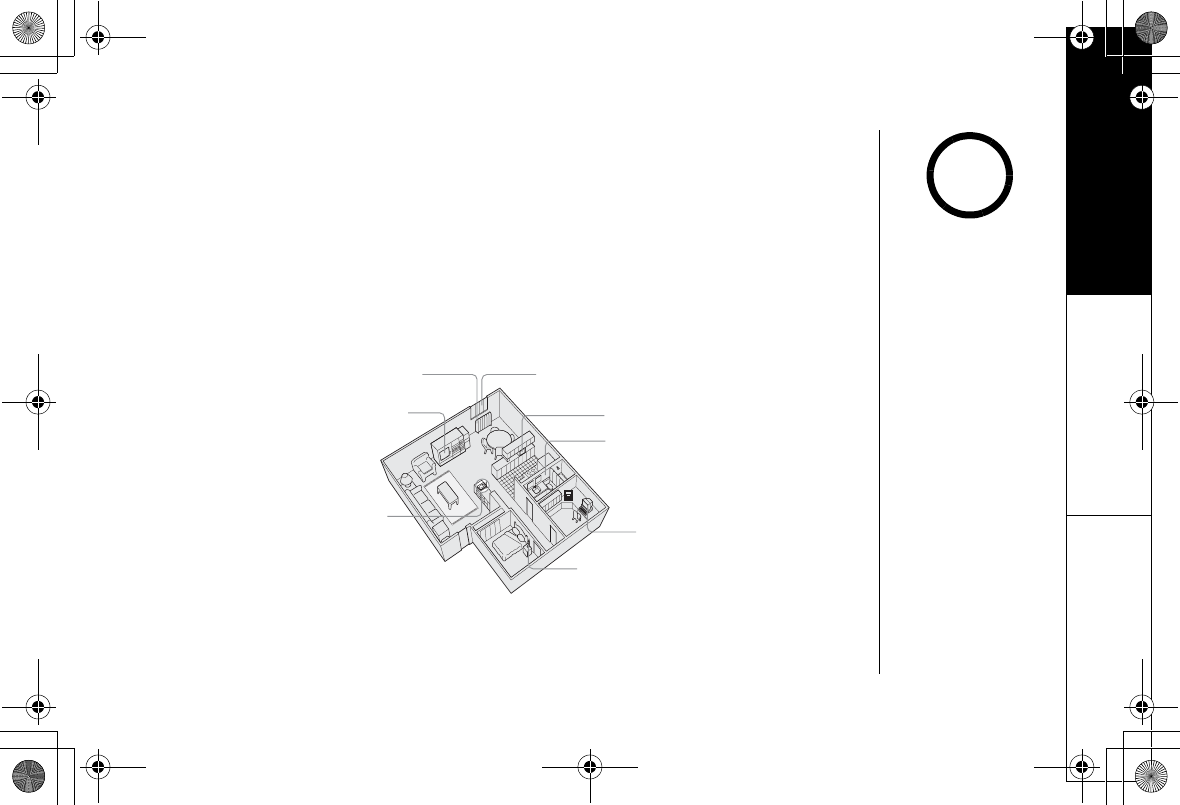

When choosing a location for your new phone, here are some important guidelines you should
consider:
Avo
id h
eat sources, suc
h
as ra
di
ators,
air ducts, and sunlight
Avoid television sets and other
electronic equipment
Choose a central location
Avo
id
no
i
se sources suc
h
as a w
i
n
d
ow
b
y
a street with heavy traffic
Avoid microwave ovens
Avoid excessive moisture,
extremely low temperatures, dust,
mechanical vibration, or shock
Avoid personal computers
Avoid other cordless telephones
If your home has
specially wired alarm
equipment connected to
the telephone line, be
sure that installing the
system does not disable
your alarm equipment.
If you have questions
about what will disable
your alarm equipment,
contact your telephone
company or a qualified
installer.
note
GETTING STARTED
UP033BH_EXI7246C.book Page 6 Wednesday, June 2, 2004 1:30 PM
[7] GETTING STARTED
www.uniden.com
• Depending on the base location, there is any possiblity that the correct temperature and
humidity can't be displayed.
• Do not place any object around the base.
• The base should be placed on a location with proper ventilation.
• The location should be close to both a phone jack and a continuous power outlet (one
which is not connected to a switch).
• The base and handset should be kept away from sources of electrical noise such as motors,
microwave ovens, and fluorescent lighting.
• The base can be placed on a desk, tabletop, or mounted on a standard wall plate.
(Outdoor sensor)
The outdoor sensor senses the temperature and humidity and sends the received data to the
base.
If you have a thermometer shelter, set up the outdoor sensor in it. If not, follow the
guidelines below when choosing a location for the outdoor sensor:
• Avoid heat sources and direct sunlight.
• Set up the outdoor sensor at least 60 inches from the ground.
• Set up the outdoor sensor where it will receive proper ventilation.
("X" inches below, and "X" inches to each side.)
• Do not place the outdoor sensor where it will be exposed to rain or snow.
GETTING STARTED
UP033BH_EXI7246C.book Page 7 Wednesday, June 2, 2004 1:30 PM
GETTING STARTED [8]
www.uniden.com
B. Install the Rechargeable Battery Pack into the Handset
The handset is powered by a rechargeable battery pack.
The battery recharges automatically when the handset is placed
in the base unit.
1) Press down on the handset battery case cover (use the
finger indention for a better grip) and slide the cover
downward to remove.
2) Plug the battery pack connector (red & black wires) into the
jack inside the battery compartment. (The connector
notches fit into the grooves of the jack only one way.)
Match the wire colors to the polarity label in the battery
compartment, connect the battery and listen for a click to
insure connection.
3) Make sure you have a good connection by slightly pulling on
the battery wires. If the connection is secure, the battery
jack will remain in place.
4) Place the battery case cover back in the handset by sliding
it upwards until it clicks into place.
•Use only the Uniden
(BT-905) rechargeable
battery pack supplied
with your cordless
telephone.
•Replacement batteries
are also available
through the Uniden
Parts Department at
(800) 554-3988,
Monday through Friday
from 8:00 a.m. to 5:00
p.m. or online at
www.uniden.com
!
GETTING STARTED
UP033BH_EXI7246C.book Page 8 Wednesday, June 2, 2004 1:30 PM
[9] GETTING STARTED
www.uniden.com
C. Connect the Base, Set up the Outdoor sensor and Charge the Hand-
set
1) Connect the AC adapter to the DC IN 9V jack and to
standard 120V AC wall outlet.
The base can't receive the channel data from the
outdoor sensor only for the fixed time after connecting
the AC adapter. As soon as the AC adapter is connected,
the Alkaline batteries should be installed into the
outdoor sensor.
2) Take off the knob on the back of the outdoor sensor with a
screwdriver or a coin. Remove the cover.
•Connect the AC adapter
to a continuous power
supply.
•Place the base unit
close to the AC outlet
to avoid long
extension cords.
•Use only the supplied
AD-314 AC adapter.
Do not use any other
AC adapter.
!
GETTING STARTED
CH07_Getting.fm Page 9 Wednesday, June 2, 2004 5:58 PM
GETTING STARTED [10]
www.uniden.com
3) Install the Alkaline batteries into the battery
compartment observing the correct polarity. Make sure
the outdoor temperature and humidity appear on the
base display within two or three minutes. If the outdoor
temperature and humidity don't appear, switch the
Channel another channel and remove the batteries.
Install the batteries again.
4) Replace the cover and tighten the knob with a screwdriver
or a coin.
5) Place the handset in the base unit with the keypad
facing forward. Set up the outdoor sensor according to
page 7.
6) Make sure the charge/in use LED illuminates.
If the LED does not illuminate, check to see that the
AC adapter is plugged in and the handset makes good
contact with the base charging contacts.
Charge your handset at least 15-20 hours before
plugging into the phone line.
7) Once the handset battery pack is fully charged,
connect the telephone line cord to the TEL LINE
jack and a telephone outlet.
If your telephone outlet isn't modular, contact
your telephone company for assistance.
Modular
•Use only the Alkaline
batteries supplied with
your outdoor sensor.
•The base LCD will blink
and prompt you to set
the day and time. See
"Setting the Time" on
page 14 for the
instructions on how to
set the day and time.
•Once the outdoor
temperature and
humidity appear on
the base display, do
not change the
channel unless you
replace the batteries.
•Do not place the power
cord where it creates a
trip hazard or where it
could become chafed
and create a fire or
electrical hazard.
!
GETTING STARTED
CH07_Getting.fm Page 10 Wednesday, June 2, 2004 5:58 PM
[11] GETTING STARTED
www.uniden.com
D. Wall Mounting the Outdoor sensor
Be sure to mount the outdoor sensor on a wall of outside your house. The outdoor sensor may
not receive the outdoor temperature and humidity without appropriately mounting. The
followings are cautions you should consider when mounting the outdoor sensor.
• Avoid electrical cables, pipes, or other items behind the mounting location that could
cause a hazard when inserting screws into the wall.
• Make sure the wall material is capable of supporting the weight of the outdoor sensor.
• Use # 10 screws (minimum length of 1-3/8 inches) with anchoring devices suitable for the
wall material where the wall mount holder unit will be placed.

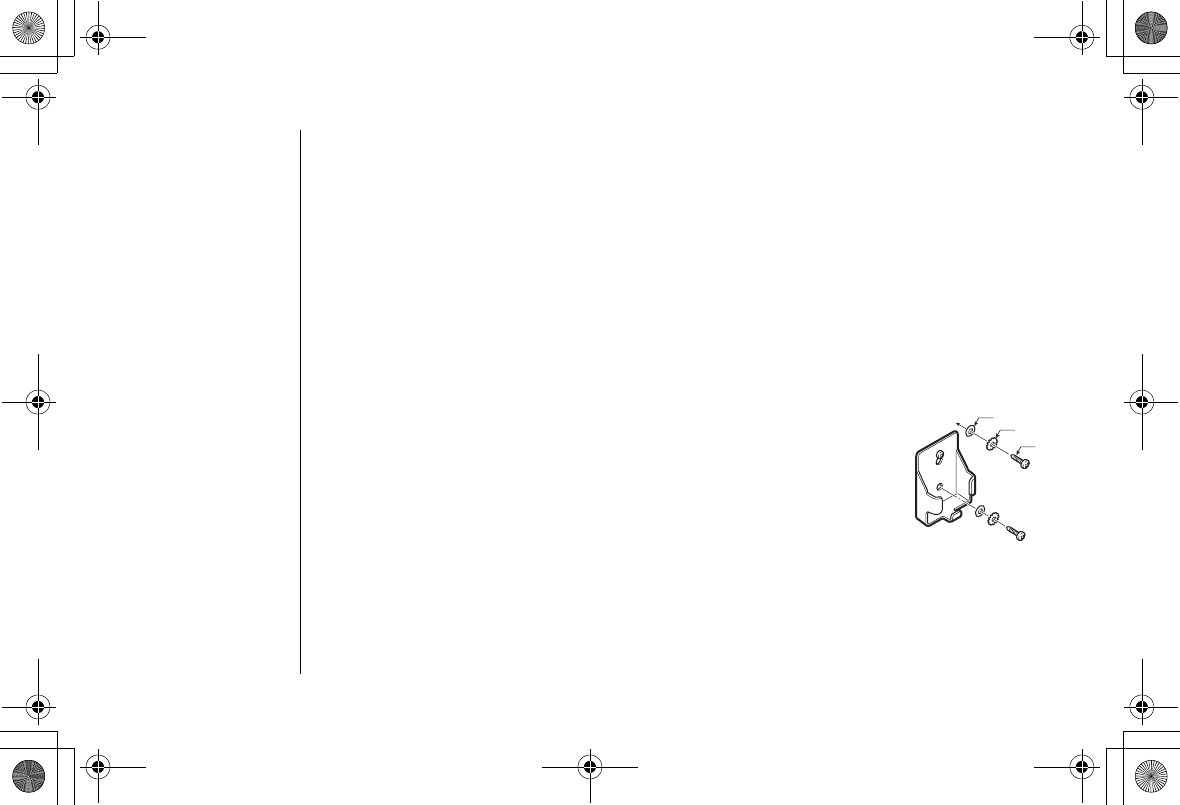

1) Thread a screw through two kinds of washers in accordance with the order as shown.
2) Insert the screw with the two washers into the wall with a little
looseness to fix the upper hole of the wall mount holder as shown.
3) Thread the other screw through two kinds of washers with the same
order in step 1, and then insert it into the lower hole of the wall
mount holder as shown.
4) Tighten both upper and lower screws using a screwdriver.
5) Insert the outdoor sensor in the wall mount holder.
1
2
3
GETTING STARTED
UP033BH_EXI7246C.book Page 11 Wednesday, June 2, 2004 1:30 PM
GETTING STARTED [12]
www.uniden.com
E. Mount the Base Unit on a Wall
Standard wall plate mounting
This phone can be mounted on any standard
wall plate.
1) Plug the AC adapter to the DC IN 9V jack.
2) Route the AC adapter cord through the
molded wiring channel as shown.
3) Plug the AC adapter into a standard 120V
AC wall outlet.
4) Plug the telephone line cord into the TEL
LINE jack. Route the cord through the
molded wiring channel as shown.
5) Plug the telephone line cord into the
telephone outlet.
6) Align the mounting slots on the base with
the mounting posts on the wall. Then push
in and down until the phone is firmly
seated.
23
14
6
5
GETTING STARTED
UP033BH_EXI7246C.book Page 12 Wednesday, June 2, 2004 1:30 PM
[13] GETTING STARTED
www.uniden.com
Direct wall mounting
If you don't have a standard wall plate, you can mount your phone
directly to the wall. Before doing this, consider the following:
• Avoid electrical cables, pipes, or other items behind the mounting
location that could cause a hazard when inserting screws into the
wall.
• Try to mount your phone within 5 feet of a working phone jack to
avoid excessive cord lengths.
• Make sure the wall material is capable of supporting the weight of
the base and handset.
• Use #10 screws (minimum length of 1-3/8 inches) with anchoring
devices suitable for the wall material where the base unit will be
placed.

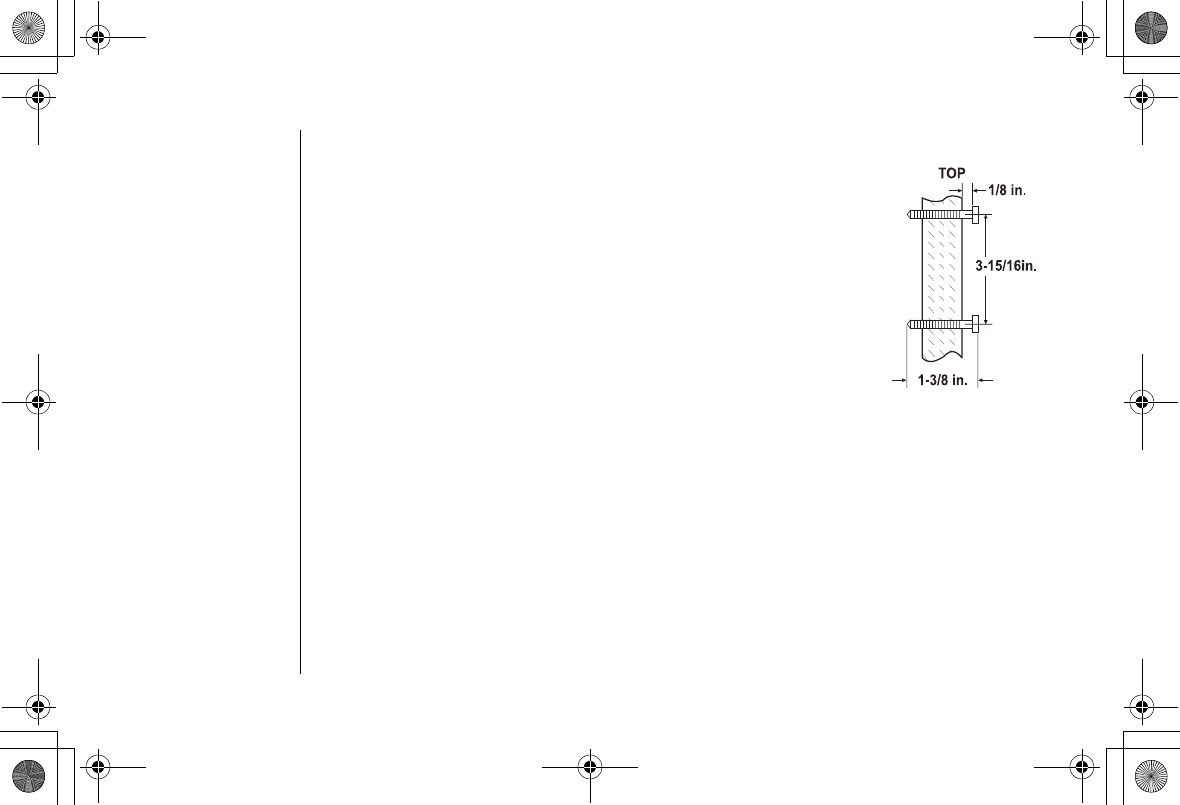

1) Insert two mounting screws into the wall, (with their appropriate anchoring device), 3-
15/16 inches apart. Allow about 1/8 of an inch between the wall and screw heads for
mounting the phone.
2) Refer to steps 1 through 6 on page 12 to mount the telephone.
GETTING STARTED
UP033BH_EXI7246C.book Page 13 Wednesday, June 2, 2004 1:30 PM
GETTING STARTED [14]
www.uniden.com
Weather Menu Options
To set the following four options, you must enter the base setup menu mode.
To scroll through the menu options, repeatedly press the select key in standby mode. The
system returns to standby after the each last menu option.
• If any of the following occurs during menu setup, you will have to
start over with the procedure you were performing.
-Caller ID message is received
-The alarm switch is changed to "set."
-Two minutes elapse without a key press
-The AC power is off
• If the alarm setting is "on" and the time you have set comes, the
alarm will ring.
A. Set the Time
1) Press the select key on the base once.
2) Use the or key to select 12-hour (
J
) or 24-hour (
J
) time display, and then
press the enter key.
select
Time
Date
Temperature
select
select
select
LCD backlight
GETTING STARTED
UP033BH_EXI7246C.book Page 14 Wednesday, June 2, 2004 1:30 PM
[15] GETTING STARTED
www.uniden.com
3) Use the or key to set the hour (
) for 12-hour style or (
) for 24-hour
style, and then press the enter key.
4) Use the or key to set the minute (
), and then press the enter key.
5) If you select
J
in Step 2. you need to select
#/
or
2/
. Use the or key to choose
AM or PM, and then press the enter key. The setting is complete; the phone returns to
standby mode.
Press and hold the or key to scroll quickly through the numbers for hour and
minute on the display.
B. Set the Date
1) Press the select key on the base twice.
2) Use the or key to select the year (
) and then press the enter key.
3) Use the or key to set the month, and then press the enter key.
4) Use the or key to set the day (
), and then press the enter key. The setting is
complete; the phone returns to standby mode.
•Once a data is entered, the day of the week, Tide and Moon Phase change automatically.
•Press and hold the or key to scroll quickly through the display.
Press and hold the
or key to scroll
quickly through the
numbers on the display.
note
GETTING STARTED
UP033BH_EXI7246C.book Page 15 Wednesday, June 2, 2004 1:30 PM
GETTING STARTED [16]
www.uniden.com
C. Set the Temperature
1) Press the select key on the base three times.
Use the or key to choose
6GORGTCVWTG
°
(
or 6GORGTCVWTG °
%
and then press
the enter key. The setting is complete, and the phone returns to standby mode.
D. Set Display Backlight
1) Press the select key on the base four times.
2) Use the or key to choose
$CEMNKIJV*KIJ
or
$CEMNKIJV.QY
and then
press the enter key. The setting is complete, and the phone returns to standby mode.
GETTING STARTED
CH08'_Direct&Others.fm Page 16 Wednesday, June 2, 2004 6:00 PM
[17] GETTING STARTED
www.uniden.com
Set the Alarm Clock
Set the Alarm
1) Slide the alarm switch on the base to "set"( the alarm switch is on the right of the
display.) The current alarm time on the display blinks, and
#.#4/5'6
appears on the
display.
2) Use the or key to select the time you want the alarm to go off.
3) Slide the alarm switch on the base to on, and then
#.#4/10
and setting time appears on
the display.
•The alarm operation is
completely
independent from the
handset operation. The
alarm tone continues
to ring despite any
handset operation.
•If an incoming call is
received while you are
setting the alarm time,
the display shows the
Caller ID message, then
the phone returns to
the alarm setting
mode.
note
GETTING STARTED
UP033BH_EXI7246C.book Page 17 Wednesday, June 2, 2004 1:30 PM
GETTING STARTED [18]
www.uniden.com
Turning off the Alarm
When the alarm is "set" and the selected time comes, the alarm tone rings for ten minutes.
To turn off the alarm tone, slide the alarm switch to "off."
Snooze Feature
To stop the alarm tone temporarily, press the snooze button.
The alarm tone will ring again in five minutes.
Adjust the Base LCD Contrast
With the phone in standby mode, Use the or to select
%QPVTCUV*KIJ
or
%QPVTCUV.QY
.
If the alarm is reset
while the snooze feature
is on, the phone returns
to standby mode.
note
GETTING STARTED
UP033BH_EXI7246C.book Page 18 Wednesday, June 2, 2004 1:30 PM
[19] GETTING STARTED
www.uniden.com
Basic Phone Setup
There are five basic options that you will need to set up: AutoTalk, CIDCW (Caller ID on Call
Waiting), Area Code, Dial Mode and Language.
Activating AutoTalk (on/off)
AutoTalk allows you to answer the phone simply by removing the handset from the base. You
do not have to press any keys.
1) When the phone is in standby mode, press and hold the Call id/
menu key. The following screen appears.
2) Press the select key to turn AutoTalk on.
3) Press the end key to complete the setting. The handset returns to standby mode.
Activating CIDCW (Caller ID on Call Waiting)
Caller ID allows you to see the name and number of the calling party before you answer the
phone. Caller ID on Call Waiting (CIDCW) lets you see the name and number of a call that
comes in when you are on the line.
You must subscribe to Caller ID service through your local telephone provider to use this
feature.
1) When the phone is in standby mode, press and hold the Call id/
menu key. The following screen appears.
GETTING STARTED
UP033BH_EXI7246C.book Page 19 Wednesday, June 2, 2004 1:30 PM
GETTING STARTED [20]
www.uniden.com
2) Press the /vol/ key to select
%+&%9
.
3) Press the select key to toggle and turn on Caller ID on Call Waiting.
4) Press the end key and return the handset to the base unit to complete the setting. The
handset returns to standby mode.
Entering Your Area Code
If you enter a 3-digit area code number in the
#TGC%QFG
option, your local area code does not
appear in Caller ID messages. Do not program this option if your calling area requires 10-digit
dialing. When reviewing Caller ID messages, you will see only the local seven digit number. For
calls received from outside your local area code, you will see a full 10-digit number.
1) When the phone is in standby mode, press and hold the Call id/
menu key. The following screen appears.
2) Press the /vol/ key twice to select
#TGC%QFG
.
3) Press the select key. If an area code was already stored, the
phone will display it.
4) Use the number keys (0 - 9) to enter the 3-digit area code. If you
make an error or delete the current area code, use the delete/
channel key to backspace.
5) Press the select key. A confirmation tone sounds.
GETTING STARTED
UP033BH_EXI7246C.book Page 20 Wednesday, June 2, 2004 1:30 PM
[21] GETTING STARTED
www.uniden.com
6) Press the end key to complete the setting. The handset returns to standby mode.
Choosing the Dialing Mode (pulse vs. tone)
Most phone systems use tone dialing. However some phone systems (such as in rural areas)
still use pulse dialing. Your Uniden phone supports both tone and pulse dialing. The default
setting is tone dialing. If your phone system uses pulse dialing, follow the steps below to
change the dialing mode:
1) When the phone is in standby mode, press and hold the Call id/
menu key. The following screen appears.
2) Press the /vol/ key three times to select
&KCN
.
3) Press the select key to set the phone to pulse dialing.
4) Press the end key to complete the setting. The handset returns to
standby mode.
Setting the Language (English, French or Spanish)
There are three languages to choose from: English, French and Spanish.
1) When the phone is in standby mode, press and hold the Call id/
menu key. The following screen appears.
2) Press the /vol/ key four times to select
.CPIWCIG
.
•If you are not sure of
your dialing system,
make a trial call. If the
call connects, leave
the setting as is.
Otherwise, set for
pulse dialing.
•If your phone system
requires pulse dialing
and you need to send
DTMF tones during a
call, you can
temporarily switch
over to tone dialing.
(Refer to “Tone Dialing
Switch-over” on
page 41.)
note
GETTING STARTED
UP033BH_EXI7246C.book Page 21 Wednesday, June 2, 2004 1:30 PM
GETTING STARTED [22]
www.uniden.com
3) Press the select key to select
'PI
.
(English),
(T
.
(French) or
'UR
(Spanish).
4) Press the end key to complete the setting. The handset returns to
standby mode.
Selecting the Ring Tone and Volume
Your phone has five different ringer tone/volume combinations you can choose from.
1) With the phone in standby mode, press the /vol/ or /vol/ key.
2) The phone will sound the different ring tones at different volumes.
3) When the phone sounds the ring tone and volume you wish to use, press the end key.
GETTING STARTED
UP033BH_EXI7246C.book Page 22 Wednesday, June 2, 2004 1:30 PM
[23] GETTING STARTED
www.uniden.com
Programming Memory Locations/Caller ID/Speed
Dialing
The speed dial memory allows you to store up to 10 names and numbers in the handset. You
can dial these numbers with just a few key presses.
The speed dial memory is not limited to phone numbers. You can store any number (up to 20
digits) that you need to enter once your call connects. This is referred to as Chain Dialing.
For example, you can save your bank account number to speed dial memory. When you call
your bank's telephone teller service and are prompted to enter your account number, simply
press the mem key and the speed dial number where you stored your account number. Then
press the select key.
Storing Names and Numbers in Speed Dial Memory
Entering letters and special characters
1) With the phone in standby mode, press the mem key.
2) Enter 0-9 to select the speed dial number where you would like to
store this entry. You can also scroll through the list with the /
vol/ and /vol/ keys. Press the select key twice.
3) 5VQTG0COG appears and a cursor flashes indicating that the
display is ready for the name to be entered.
When editing the speed
dial memory, you must
press a key within 30
seconds or the phone
will return to standby
mode. If you return the
handset to the base, the
phone will return to
standby mode also.
note
GETTING STARTED
UP033BH_EXI7246C.book Page 23 Wednesday, June 2, 2004 1:30 PM
GETTING STARTED [24]
www.uniden.com
If the selected speed dial number is already assigned, the Edit
screen appears. You can select 'FKV to edit this entry, select
&GNGVG to erase this entry, or select )Q$CEM to choose another
speed dial number.
4) Enter a name according to the instructions below, then press the select key. If no name is
required, go to "Entering phone numbers" on page 25.
• The name can be up to 13 characters.
•Use the #/oand*/tone/mkeys to move the cursor to the desired location.
•Use the delete/channel key to delete characters as needed.
• Press and hold the delete/channel key to delete all the characters.
Refer to the letters on the number keys to select the desired characters.
With each press of a numeric key, the displayed character appears in the following order:
Upper case letters first, lower case letters next and finally the number corresponding to
the key.
If you make a mistake while entering a name
Use the*/tone/mor #/okey to move the cursor to the incorrect character.
Press the delete/channel key to erase the wrong character. Then enter the correct
character. To delete all characters, press and hold the delete/channel key.
If the next character
uses the same number
key, you must press the
#/okey to move the
cursor over. Otherwise
the next time you press
the number key, it
changes the character
that was previously set.
note
GETTING STARTED
UP033BH_EXI7246C.book Page 24 Wednesday, June 2, 2004 1:30 PM
[25] GETTING STARTED
www.uniden.com
For example, to enter Movies.
1) Press 6. Then press the #/okey to
move the cursor to the right.
2) Press 6 six times.
3) Press 8 six times.
4) Press 4 six times.
5) Press 3 five times.
6) Press 7 eight times.
Entering phone numbers

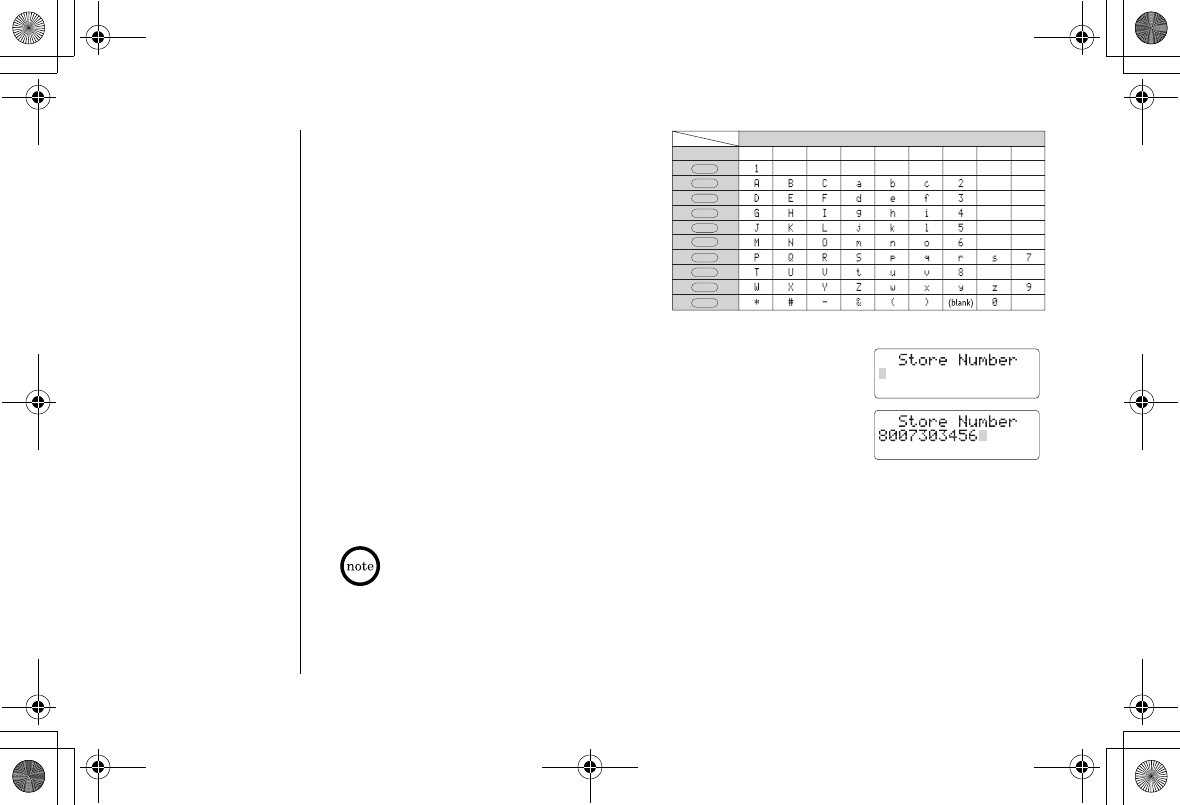

1) 5VQTG0WODGT is displayed. The cursor flashes indicating that the
display is ready for the number to be entered.
2) Use the keypad to enter the phone number; each number can be up
to 20 digits.
If you need the phone to pause during the dialing sequence, press
the redial/pause key to insert a two-second delay between the
numbers. You can enter multiple pauses to increase the delay. Each
pause counts as a digit. The display shows a
2
for every pause.
When storing numbers into memory, if the handset is idle (i.e., no key is pressed) for more
than 30 seconds, it will beep rapidly, and the phone will return to standby mode.
Number of times key is pressed
keys 1 2 3 4 5 6 7 8 9
2abc
3def
4ghi
5jkl
6mno
7pqrs
8tuv
9wxyz
0
1
oper
GETTING STARTED
UP033BH_EXI7246C.book Page 25 Wednesday, June 2, 2004 1:30 PM
GETTING STARTED [26]
www.uniden.com

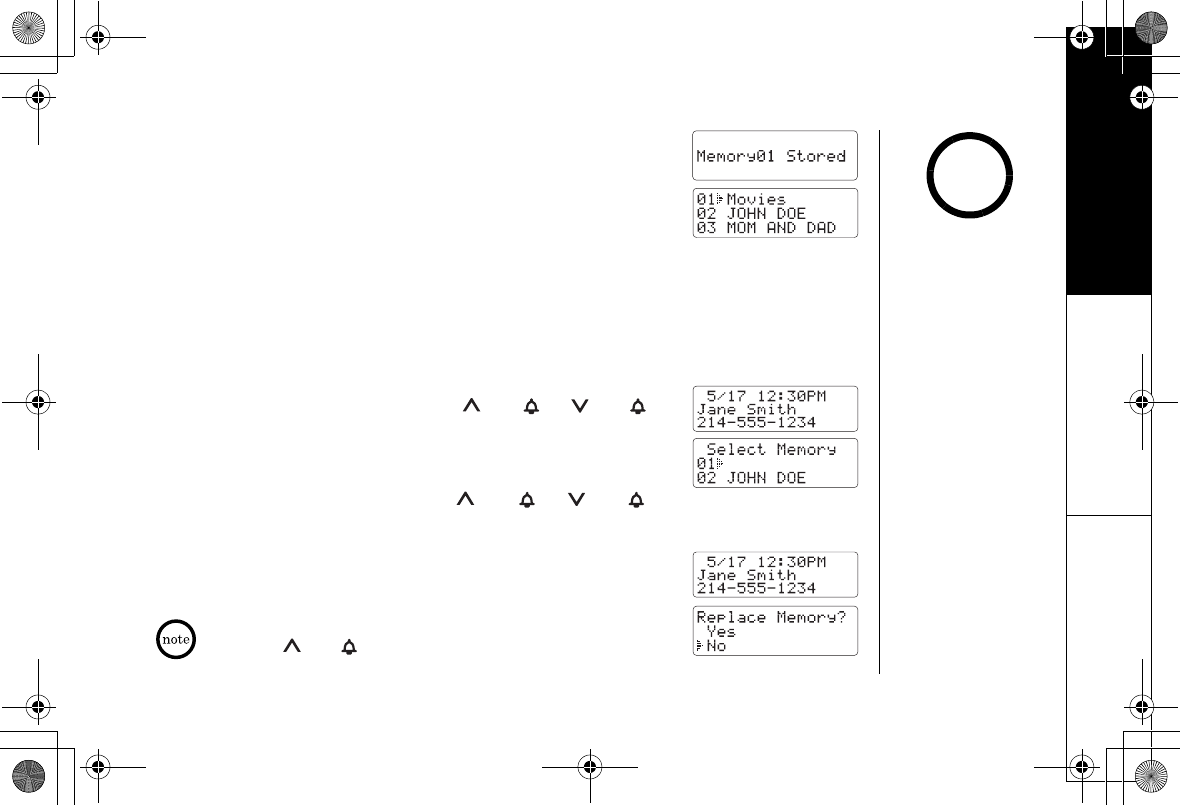

3) Press the mem key. You will hear a confirmation tone, and the
following screen appears.
Memory storage is complete.
After about 2 seconds, the following screen displays all the speed
dial memory entries.
4) Press the end key to exit memory setup mode. The phone returns to standby.
Storing Caller ID Messages in Speed Memory Locations
Messages (Caller ID names/numbers) shown in the Caller ID list can be stored in memory
dialing. For instructions on viewing the Caller ID Message list, see page 28.
1) Press the Call id/menu key. Select the phone number to be stored
from the Caller ID list by pressing the /vol/ or /vol/ key.
2) Press the mem key.
3) Enter a number (0-9) or press the /vol/ or /vol/ key
to select the memory location to be stored.
4) Press the select key. You hear a confirmation tone, and the number
is stored in memory. The display returns to the Caller ID list.
If a message has already been stored in the selected memory
number location, a confirmation screen is displayed.
Press the /vol/ key to select ;GU. Press the select key to
overwrite. The display returns to the Caller ID list.
You cannot store a
Caller ID message if no
phone number appears
in the message.
note
GETTING STARTED
UP033BH_EXI7246C.book Page 26 Wednesday, June 2, 2004 1:30 PM
[27] GETTING STARTED
www.uniden.com
Caller ID and CIDCW (Caller ID on Call Waiting)
You must subscribe to Caller ID service through your local telephone provider to use
this feature. When the telephone rings, the Caller ID feature allows you to view the caller's
name, phone number, date and time of call (The date and time display only on the handset).
The Caller ID list stores information for up to 30 incoming calls - even unanswered calls. With
CIDCW (Caller ID on Call Waiting), you will hear a Call Waiting tone while you are on a call,
and the Caller ID data is displayed. To accept the waiting call, press the talk/flash key (see
page 42.)
Additionally, you can dial a number stored in the Caller ID list or save data to your Memory
dial list (see page 26).
When the Telephone Rings
When the Caller ID message is received, the display shows the caller's phone number. The
handset display shows the date and time also. The incoming call information is stored in the
handset Caller ID record. If the Caller ID service includes the caller's name, the caller's name
appears on the display (up to 15 letters).
You may receive any one of the following messages:
When invalid data is received+PEQORNGVG&CVC
When a private name is received2TKXCVG0COG
The date and
time received
Caller's name
Caller's phone number
(Base)
The current time
Caller's name
Caller's phone number
(H
an
d
set
)
•If you answer a call
before the Caller ID
message is received
(for example, before
the second ring), the
Caller ID message will
not appear.
•When the call is
received via a
telephone company
that does not offer
Caller ID service, the
caller's phone number
and name do not
appear. (This includes
international calls.)
•When the call is via a
private branch
exchange (PBX), the
caller's phone number
and name may not
appear.
note
GETTING STARTED
UP033BH_EXI7246C.book Page 27 Wednesday, June 2, 2004 1:30 PM
GETTING STARTED [28]
www.uniden.com
When a private number is received2TKXCVG0WODGT
When a unknown name is received7PMPQYP0COG
When a unknown number is received7PMPQYP0WODGT
Data errors appear as ¨ ¨.
Viewing the Caller ID Message List

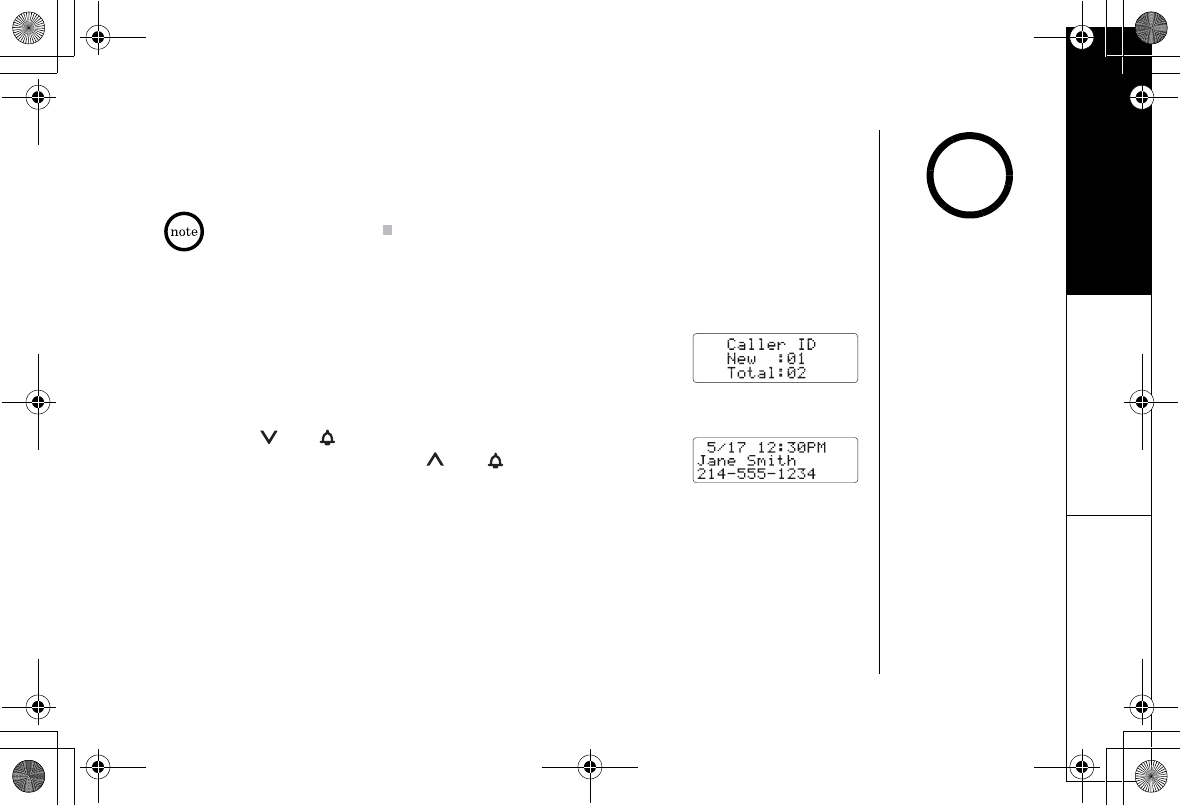

1) With the phone in standby mode, press the Call id/menu key on
the handset.
The summary screen appears. The screen shows the number of new
messages and total messages.
2) Press the /vol/ key to view the messages from the most
recent to the oldest. Press the /vol/ key to view messages
from the oldest to the most recent.
3) Press the end key to return to standby mode.
•In Caller ID operation,
if no key is pressed for
more than 30 seconds,
an error tone sounds
and the telephone
returns to standby
mode.
•Each message can be
up to 15 characters for
the name and 15 digits
for the phone number.
•The number of calls
from the same Caller ID
appears next to the
received time. Once
you view the new
message, the number
will be cleared and
disappear.
note
GETTING STARTED
UP033BH_EXI7246C.book Page 28 Wednesday, June 2, 2004 1:30 PM
[29] GETTING STARTED
www.uniden.com
Deleting Information from the Caller ID List
The cordless phone stores up to 30 Caller ID names/numbers. If the phone receives the 31st
Caller ID, the oldest one in the list is automatically deleted. Caller ID data can also be
deleted manually.
Deleting a Caller ID message
1) With the phone is standby mode, press the call id/menu key on
the handset. Find the message to be deleted from the Caller ID
list by pressing the /vol/ or /vol/ key.
2) Press the delete/channel key.
3) Press the /vol/ or /vol/ key to select ;GU, and then
press the select key.
Deleting all Caller ID names/numbers
1) With the phone in standby mode, press the Call id/menu key.
2) Press the delete/channel key.
3) Press the /vol/ or /vol/ key to select ;GU, and then
press the select key.
You hear a confirmation tone and all stored Caller ID messages are
deleted.
•While using the &GNGVG
#NN! or &GNGVG
/GUUCIG! screen, if no
key is pressed for more
than 30 seconds, an
error tone sounds, and
the handset returns to
standby mode.
•If you get an incoming
call or page, the
deleting operation is
canceled, and you can
answer the call or
page.
note
GETTING STARTED
UP033BH_EXI7246C.book Page 29 Wednesday, June 2, 2004 1:30 PM
USING YOUR EWC1936 [30]
www.uniden.com
Using the Weather Station
Reading the Weather Display at the Base
A. The Weather Forecast
The Weather Forecast system displays the weather type forecasted for the next 12 hours to 24
hours. There are three types of Weather: Sunny, Cloudy or Rainy. These weather types are
displayed on the base with the icons shown below:
USING YOUR EWC1936
UP033BH_EXI7246C.book Page 30 Wednesday, June 2, 2004 1:30 PM
These description will be moved before the
forcast marks(Sunny, Cloudy, Rainy) on the
next page.
[31] USING YOUR EWC1936
www.uniden.com
Example of the standby mode display
The phase of the moon
The barometric variation
The tide level
Outdoor temperature
Indoor temperature
Time
Alarm setting time
Weather forcast
Outdoor humidity
Indoor humidity
Day of the week and yea
r
USING YOUR EWC1936
UP033BH_EXI7246C.book Page 31 Wednesday, June 2, 2004 1:30 PM
This illustration will be moved to previous
page.
USING YOUR EWC1936 [32]
www.uniden.com
B. The Barometric Variation
The barometric variation system displays the current changes in barometric pressure using
the icons shown below:
Sunny Cloudy Rainy
Rising pressure Stable pressure Falling pressure
USING YOUR EWC1936
UP033BH_EXI7246C.book Page 32 Wednesday, June 2, 2004 1:30 PM
[33] USING YOUR EWC1936
www.uniden.com
C. The Phases of the Moon
The phases of the moon system displays the current phase of the moon using the 12 icons
shown below. The phases of the moon displayed depend on the day and time set on the base; if
an incorrect day or time is set on the base, the phases of the moon may not display correctly.
New Moon Small Waxing
Crescent
Large Waxing
Crescent
First Quarter
Large Waxing
Gibbous
Small Waxing
Gibbous
Full Moon Small Waning
Gibbous
Large Waning
Gibbous
Last Quarter Large Waning
Crescent
Small Waning
Crescent
USING YOUR EWC1936
UP033BH_EXI7246C.book Page 33 Wednesday, June 2, 2004 1:30 PM
USING YOUR EWC1936 [34]
www.uniden.com
D. The Tide Level
The tide level system displays the current tide level using the three icons shown below. The
tide level displayed depends on the day and time set on the base; if an incorrect day or time
is set on the base, the tide level may not display correctly.
E. Indoor and Outdoor Temperature and /Humidity
The weather system displays temperature and humidity for both the indoors and the
outdoors. You can check the temperature/humidity both for indoor and outdoor on the
display. The outdoor temperature and humidity data can be received from the Outdoor sensor.
•You can change the temperature format from to °( or °%. For details, see "Set the
temperature format" on page 16.
•When the base can't receive the data from the Outdoor sensor for ten minutes, --.- or --
appears on the base display. Check the status of the batteries in the Outdoor sensor.
Replace the batteries if necessary. (See "Battery replacement and handling (Outdoor
sensor)" on page 46.)
High Tide Mid Tide Low Tide
USING YOUR EWC1936
UP033BH_EXI7246C.book Page 34 Wednesday, June 2, 2004 1:30 PM
[35] USING YOUR EWC1936
www.uniden.com
Reading the Weather Data from the Handset
You can check the temperature, humidity and weather forecast from the handset.
1) With phone in standby or talk mode, press the key on the
handset. The display flashes
%QPPGEVKPI
; the data from the base
appears on the handset display for ten seconds.
2) To return to standby mode or talk mode, press the key.
Making Calls from Speed Dial Memory
1) Press the mem key. The handset displays your programmed speed
dial number.
2) Enter the number (0-9), or press the /vol/ or /vol/
key to select the speed dial number you would like to dial.
3) Press the talk/flash key. 6CNM and the number selected appear on
the display. Then the displayed number is dialed.
To cancel speed dialing
Press the end key to cancel speed dialing. The handset returns to standby mode.
Also, if the handset is idle (e.g., no key is pressed) for 30 seconds, the phone returns to
standby mode.
•If the handset can't
receive any data for
five seconds, an error
tone sounds and the
handset returns to
standby mode.
•If the base can't
received weather data
from the outdoor
sensor, appears on the
handset display.
•You can receive the
weather data even
while in talk mode.
note
USING YOUR EWC1936
UP033BH_EXI7246C.book Page 35 Wednesday, June 2, 2004 1:30 PM
USING YOUR EWC1936 [36]
www.uniden.com
Using Your Phone
Making and Receiving Calls
Making a call
1) Remove the handset from the base.
2) Press the talk/flash key.
3) Listen for the dial tone.
4) Dial the number.
OR
1) Remove the handset from the base.
2) Dial the number.
3) Press the talk/flash key.
Receiving a call
1) Remove the handset from the base. (If AutoTalk is on, the phone will automatically
answer the call when you pick it up.)
2) Press the talk/flash key.
OR
1) If the handset is off the base, press the talk/flash key or any number key. (AutoTalk is
on.)
Hanging up
Press the end key or return the handset to the base.
USING YOUR EWC1936
Refer to page 19
"Basic Phone Setup" to
turn on the AutoTalk
feature if desired.
note
UP033BH_EXI7246C.book Page 36 Wednesday, June 2, 2004 1:30 PM
[37] USING YOUR EWC1936
www.uniden.com
Redialing the last dialed number
1) Remove the handset from the base.
2) Press the talk/flash key.
3) Listen for the dial tone.
4) Press the redial/pause key.
OR
1) Remove the handset from the base.
2) Press the redial/pause key.
3) Press the talk/flash key.
Making Calls from Speed Dial Memory
1) Press the mem key. The handset displays your programmed speed
dial number.
2) Enter the number (0-9), or press the /vol/ or /vol/
key to select the speed dial number you would like to dial.
3) Press the talk/flash key. 6CNM and the number selected appear on
the display. Then the displayed number is dialed.
To cancel speed dialing
Press the end key to cancel speed dialing. The handset returns to standby mode.
Also, if the handset is idle (e.g., no key is pressed) for 30 seconds, the phone returns to
standby mode.
USING YOUR EWC1936
UP033BH_EXI7246C.book Page 37 Wednesday, June 2, 2004 1:30 PM
USING YOUR EWC1936 [38]
www.uniden.com
Making a Call from the Caller ID List
You can place a call from the Caller ID list.
1) With the phone is standby mode, press the call id/menu key on
the handset. Select the phone number that you want to dial by
pressing the /vol/ or /vol/ key.
2) To have the phone dial a "" before the displayed Caller ID number to set a long distance
call, press 1. To have the phone dial the stored area code before the displayed Caller ID
number, press 3.
3) Press the talk/flash key. The displayed phone number dials automatically.
Adjusting the Earpiece Volume
To change the earpiece volume, press the /vol/ or /vol/
key during a call.
Temporarily Mute Ringer
If the handset is off the base while an incoming call is ringing,
simply press the end key to temporarily mute the incoming ring.
The ringer will sound with the next incoming call.
You cannot make a call
from the Caller ID list if
your cordless phone is
connected to a private
branch exchange (PBX).
note
USING YOUR EWC1936
UP033BH_EXI7246C.book Page 38 Wednesday, June 2, 2004 1:30 PM
[39] USING YOUR EWC1936
www.uniden.com
Using a Headset
Headset installation
Your phone may be used with an optional headset, the Uniden HS910.
Your phone is ready for hands-free conversations.
(Headset may be purchased by calling the Uniden Parts Department or
visiting the web site. See page 48.)
1) Place the headset on your head so the against the speaker covers your
ear. The other end of the headset should rest comfortably againstthe
side of your head above your ear. Do not place the end of the headband
against the other ear.
2) The microphone arm swings over the top of the headset so you can wear the headset on
the left or right ear. Position the flexible arm so the microphone is about 2 inches away
from your mouth.
3) To use the headset, plug the headset plug into the headset jack.
Making calls with the headset
1) Remove the handset from the base and place the headset on your head with the earpiece
over either ear.
2) Press the talk/flash key.
3) Listen for the dial tone from the headset.
4) Dial the number.
OR
USING YOUR EWC1936
UP033BH_EXI7246C.book Page 39 Wednesday, June 2, 2004 1:30 PM
USING YOUR EWC1936 [40]
www.uniden.com
1) Remove the handset from the base and place the headset on your head with the earpiece
over either ear.
2) Dial the number.
Receiving calls with the headset
1) Place the headset on your head with the earpiece over either ear and remove the handset
from the base. (If AutoTalk is on, the phone will automatically answer the call when your
pick it up.)
2) Press the talk/flash key.
OR
1) If the handset is off the base, place the headset on your head with the earpiece over
either ear.
2) Press the talk/flash key or any number key. (AutoTalk is on.)
Installing the Beltclip
To attach the beltclip
Insert the beltclip into the holes on each side of the handset. Press down until it clicks.
To remove the beltclip
Pull both sides of the beltclip to release the tabs from the holes.
USING YOUR EWC1936
UP033BH_EXI7246C.book Page 40 Wednesday, June 2, 2004 1:30 PM
[41] USING YOUR EWC1936
www.uniden.com
The UltraClear PlusTM
true compander circuitry
virtually eliminates
background noise. This
innovative technology,
together with 20
different channels,
provides you with the
best possible reception
during all your
conversations.
note
USING YOUR EWC1936
Tone Dialing Switch-over
If your telephone company requires pulse dialing, you can switch-
over to tone dialing after the call connects. This feature is useful
when you need tone dialing to use any automated menu systems,
such as telephone bank tellers, telephone prescription refills,
customer support menus, etc.
If your phone is set to pulse dialing mode, make your call
normally. Once your call connects, press the*/tone/mkey. Any
digits you enter from then on will be sent as tone digits. When
this particular call ends, the phone automatically returns to pulse dialing mode.
Traveling Out-of-Range
During a call, as you begin to move your handset too far from your base unit, noise
increases. If you pass the range limits of the base unit, your call will terminate within five
minutes.
Selecting a Different Channel
If you encounter interference while using your phone, you can manually change the phone's
channel for clear operation. While using your phone, press the delete/channel key. 5ECPPKPI
appears on the display, indicating the phone is changing to another channel. For more
information on interference, refer to "Precautions" on page 54.
UP033BH_EXI7246C.book Page 41 Wednesday, June 2, 2004 1:30 PM
USING YOUR EWC1936 [42]
www.uniden.com

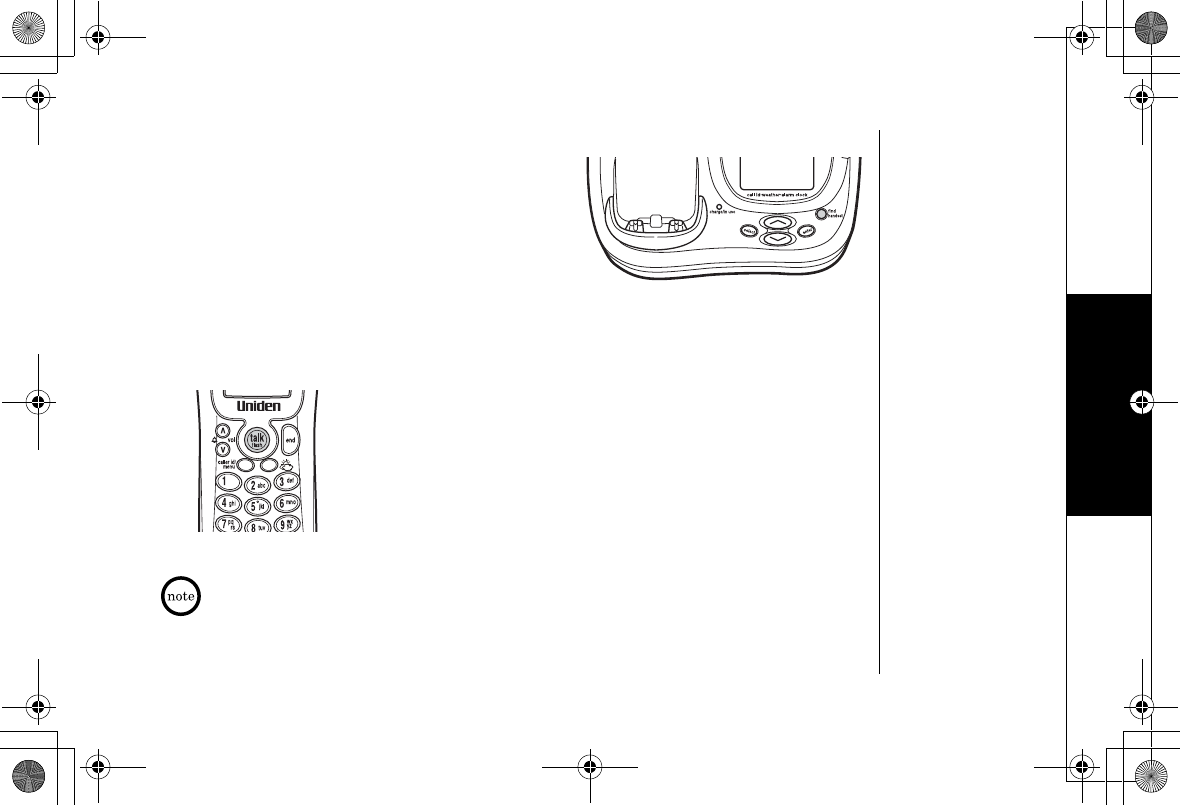

Finding a Lost Handset
To locate the handset, press the find handset key on
the base. The handset beeps for 60 seconds.
To cancel paging, press any key on the handset, return
the handset to the base, or press the find handset key
on the base.
Paging is canceled automatically when the phone
receives and incoming call.
Using Call Waiting
If you have Call Waiting service, you can receive calls while on
the line.
1) If a call comes in while you are on the phone, you will hear a
call waiting tone. If you have CIDCW activated, you will see
the name and number of the incoming caller.
2) Press the talk/flash key to accept the waiting call. After a
short pause, you will hear the new caller.
3) To return to the original caller, press the talk/flash key again.
You must subscribe through your local telephone company to receive Call Waiting
service.
USING YOUR EWC1936
UP033BH_EXI7246C.book Page 42 Wednesday, June 2, 2004 1:30 PM
[43] USING YOUR EWC1936
www.uniden.com
Voice Mail Waiting Indicator
If you subscribe to voice mail service, you can use your cordless telephone to access your
voice mailbox. The charge/in use LED on the base of your phone flashes whenever you have
messages waiting in your voice mailbox.
Just dial the access number supplied by your voice mail provider to enter your mailbox.
You can program your voice mail access number to a speed dial number.
If the voice mail waiting indicator remains on after you have retrieved your messages, press
and hold the find handset key for 5 seconds. This will reset the indicator.
You must subscribe to
voice mail service from
your telephone company
in order to use this fea-
ture. The voice mail
company will provide
you with the access
number.
note
USING YOUR EWC1936
UP033BH_EXI7246C.book Page 43 Wednesday, June 2, 2004 1:30 PM
ADDITIONAL INFORMATION [44]
www.uniden.com
ADDITIONAL
INFORMATION
Changing the Digital Security Code
To protect you against misbilled calls which might result from your phone being activated by
other equipment, the cordless phone provides AutoSecureTM (which electrically locks your phone
when the handset is in the base) and Random CodeTM digital security which automatically selects
one of over 262,000 digital security codes for the handset and base.
If the handset battery pack is completely discharged or the battery pack is removed, the digital
security code will be lost. If this happens, a new security code is set automatically the next time
the battery pack is charged. In the rare situation that you suspect another cordless telephone
is using the same security code, you can change the code.
1) Remove the handset from the base unit. Press and hold the find handset key on the base.
2) While holding the find handset key, place the handset in the base unit, and leave the
handset in the base for more than 3 seconds. A new random security code is set.
UP033BH_EXI7246C.book Page 44 Wednesday, June 2, 2004 1:30 PM
[45] ADDITIONAL INFORMATION
www.uniden.com
Note on Power Sources
Low battery alert (Handset)
When the battery pack is very low and needs to be charged, the phone is
programmed to eliminate functions in order to save power. If the phone is not in
use,
.QY$CVVGT[
appears on the LCD and none of the keys will operate.
If the phone is in use,
.QY$CVVGT[
flashes and the handset beeps. Complete your
conversation as quickly as possible and return the handset to the base unit for
charging.
Dial mode setting, last number dialed, names and numbers stored in memory
locations and CID list are retained up to 30 minutes while you replace the battery pack.
Even when the battery pack is not being used, it will gradually discharge over a long period of time. For optimum
performance, be sure to return the handset to the base unit after a telephone call.
Low battery confirmation (Outdoor sensor)
To check the battery status of the Outdoor sensor, remove the cover with a screwdriver or a coin and press the Check
Battery button inside the battery compartment. The battery check LED on the right side of the Check Battery button
shows the current battery status:
• The battery check LED is turned on. o The battery is full.
• The battery check LED is blinking. o The battery is low.
• The battery check LED is turned off. o The battery is empty. Replace with new "AA" size Alkaline batteries.
ADDITIONAL
INFORMATION
UP033BH_EXI7246C.book Page 45 Wednesday, June 2, 2004 1:30 PM
ADDITIONAL INFORMATION [46]
www.uniden.com
Battery replacement and handling (Handset)
When the operating time becomes short even after a battery is recharged, please replace the battery.With normal
usage, your battery should last about one year.
Please contact your place of purchase or the Uniden Parts Department for a replacement battery.
Warning: To avoid the risk of personal injury or property damage from fire or electrical shock, only use the Uniden
battery model and Uniden adapter model specifically designated for this product.
Battery replacement and handling (Outdoor sensor)
When you check the Outdoor sensor's battery status and the battery check LED is off, the batteries are empty. Please
replace with new "AA" size Alkaline batteries.
Power Failure
During the period that the power is off, you will not
be able to make or receive calls with the telephone.
Caution
• Use only the specified Uniden battery pack (BT-905) for the
handset.
• Use only "AA" size Alkaline batteries for the Outdoor sensor.
To avoid risk of fire or damage to the unit, do not use other
types of batteries.
• Do not remove the battery from the handset or Outdoor
sensor to charge it.
• Never throw the battery into a fire, disassemble it, or heat it.
• Do not remove or damage the battery casing.
ADDITIONAL
INFORMATION
UP033BH_EXI7246C.book Page 46 Wednesday, June 2, 2004 1:30 PM
[47] ADDITIONAL INFORMATION
www.uniden.com
Cleaning the battery charging contacts
To maintain a good charge, clean the charging contacts on the handset
once a month.Dampen a cloth with plain water. Gently rub the damp
cloth over the charging contacts until all visible dirt is removed. Dry the
contacts thoroughly before returning the handset to the base.
Caution
Do not use paint thinner, benzene,
alcohol, or other chemical products.
Doing so may discolor the surface of
the telephone and damage the finish.
ADDITIONAL
INFORMATION
UP033BH_EXI7246C.book Page 47 Wednesday, June 2, 2004 1:30 PM
ADDITIONAL INFORMATION [48]
www.uniden.com
General Information
The phone complies with FCC Parts 15 and 68.
Operating temperature: -10°C to +50°C (+14°F to +122°F) (for Band & Handset)
Operating temperature: -20°C to +60°C (+4°F to +140°F) (for Outdoor sensor)
AC Adapter Information
AC Adapter part number: AD-314
Input Voltage: 120V AC 60Hz
Output Voltage: 9V DC 350 mA
Battery Information (for Handset)
Battery part number: BT-905(for Handset)
Capacity: 600 mAh, 3.6V
Battery Information (for Outdoor sensor)
Type: Alkaline Battery "AA" size
•To avoid damage to the phone use only Uniden AD-314 and BT-905 with your phone.
•Use only "AA" size Alkaline batteries for the outdoor unit.
•If the handset is left off of the base, the actual Talk mode duration will be reduced respective to the amount of
time the handset is off the base.
Recharge your phone on a regular basis by returning the handset to the base after each phone call. When the
operating time becomes short, even after the battery is recharged, please replace the battery. With normal usage, the
battery should last about one year.
A replacement Uniden adapter and battery may be purchased at your local Uniden dealer or by contacting the Uniden
Parts Department (800) 554-3988. Hours are from 8:00 a.m. to 5:00 p.m. Central Time, Monday through Friday. We
can also be reached on the web at www.uniden.com. Specifications, features, and availability of optional accessories
are all subject to change without prior notice.
ADDITIONAL
INFORMATION
UP033BH_EXI7246C.book Page 48 Wednesday, June 2, 2004 1:30 PM
[49] ADDITIONAL INFORMATION
www.uniden.com
Troubleshooting
If your phone is not performing to your expectations, please try these simple steps first.
Symptom Suggestion
The charge/in use LED won't
illuminate when the handset is
placed in the base.
• Make sure the AC adapter is plugged into the base and wall outlet.
• Make sure the handset is properly seated in the base.
• Make sure the charging contacts on the handset are clean.
The audio sounds weak and/or
scratchy.
• Move the handset and/or base away from metal objects or appliances and try again.
•Press the delete/channel key in the Talk mode to help eliminate background noise.
• Make sure that the handset is not too far from the base.
Can't make or receive calls. • Check both ends of the telephone line cord.
• Make sure the AC adapter is plugged into the base and wall outlet.
• Disconnect the AC adapter for a few minutes. Then reconnect it.
• Change the digital security code (see page 44).
• Make sure that the handset is not too far from the base.
• Check the dialing mode used by your telephone company.
• Charge the handset.
ADDITIONAL
INFORMATION
UP033BH_EXI7246C.book Page 49 Wednesday, June 2, 2004 1:30 PM
ADDITIONAL INFORMATION [50]
www.uniden.com
Symptom Suggestion
The handset doesn't ring or
receive a page.
• The battery pack may be weak. Charge the battery for 15-20 hours.
• The handset may be too far from the base unit.
• Place the base unit away from appliances or metal objects.
• Change the digital security code (see page 44).
• Check the battery pack to ensure there is a secure connection.
• Make sure ringer volume isn't set to turned "off."
• Charge the handset.
Severe noise interference. • Keep the handset away from microwave ovens, computers, remote control toys, wireless
microphones, alarm systems, intercoms, room monitors, fluorescent lights, and electrical
appliances.
• Move to another location or turn off the source of interference.
• Make sure that the handset is not too far from the base.
The Caller ID does not display. • The call was answered before the second ring.
• The call was placed through a switchboard.
• Charge the handset.
• Your Caller ID service may not be active; contact your local telephone service provider.
ADDITIONAL
INFORMATION
UP033BH_EXI7246C.book Page 50 Wednesday, June 2, 2004 1:30 PM
[51] ADDITIONAL INFORMATION
www.uniden.com
Voice Message Indication does
not work.
• Contact your local telephone company to make sure that your telephone receives FSK message
signaling.
• Reset the indicator by pressing and holding the find handset key for 5 seconds.
--.- or -- The outdoor
temperature and humidity
doesn't appear on the base
display.
• Check the battery status of the Outdoor sensor. If the battery is full, switch the Channel another
channel and remove the batteries. Then re-install the batteries.
• Check the battery status of the Outdoor sensor. If the battery is empty, remove the batteries.
Then install new batteries.
If you still have a problem. • Call our customer hotline at 1-800-297-1023.
Symptom Suggestion
ADDITIONAL
INFORMATION
UP033BH_EXI7246C.book Page 51 Wednesday, June 2, 2004 1:30 PM
ADDITIONAL INFORMATION [52]
www.uniden.com
Liquid Damage
Moisture and liquid can damage your cordless phone and outdoor sensor. In case of accidental submersion, please follow
these steps.
Case Action
If the handset, base or outdoor sensor is
exposed to moisture or liquid, but it only
affects the exterior plastic housing.
Wipe off the liquid, and use as normal.
If moisture or liquid has entered the
plastic housing (i.e., liquid can be heard
in the phone or liquid has entered the
handset battery compartment or vent
openings on the base).
Handset and Outdoor sensor:
1.Remove the battery cover and leave it off for ventilation
2.Remove the battery pack by disconnecting
3.Leave the battery cover off and the battery pack disconnected for at least 3 days
4.Once the handset is completely dry, reconnect the battery pack and the battery cover.
5.Recharge the handset's battery pack for 20 hours before using again (only for the handset).
Base:
1.Disconnect the AC adapter from the base unit, cutting off electrical power.
2.Disconnect the telephone cord from the base unit.
3.Let dry for at least 3 days.
IMPORTANT: You must unplug the telephone line while recharging the battery pack to
avoid charge interruption.
CAUTION:
DO NOT use a microwave oven to speed up the drying process. This will cause permanent
damage to the handset, base and the microwave oven.
After following these steps, if your cordless telephone does not work, please send to:
Uniden America Corporation
Parts and Service Division
4700 Amon Carter Blvd.
Ft. Worth, TX 76155
1-800-554-3988, Monday through Friday
8 a.m. to 5 p.m. CST
ADDITIONAL
INFORMATION
UP033BH_EXI7246C.book Page 52 Wednesday, June 2, 2004 1:30 PM
[53] ADDITIONAL INFORMATION
www.uniden.com
Precautions!
Before you read anything else, please observe the following:
Warning!
Uniden America Corporation DOES NOT represent this unit to be
waterproof. To reduce the risk of fire, electrical shock, or damage to the
unit, DO NOT expose this unit to rain or moisture.
Rechargeable Nickel-Metal-Hydride Battery Warning
•This equipment contains a rechargeable nickel-cadmium battery.
•Cadmium is a chemical known to the State of California to cause cancer.
•The rechargeable nickel-cadmium battery contained in this equipment
may explode if disposed of in a fire.
•Do not short-circuit the battery.
•Do not charge the rechargeable nickel-cadmium battery used in this
equipment in any charger other than the one designed to charge this
battery as specified in the owner's manual.
Using another charger may damage the battery or cause the battery to
explode.
Rechargeable Nickel-Cadmium
Batteries Must Be Recycled or
Disposed of Properly
•Uniden voluntarily participates in an RBRC® industry program to collect
and recycle nickel-cadmium batteries at the end of their useful life,
when taken out of service within the United States.
The RBRC® program provides a convenient alternative to placing used
nickel-cadmium batteries into the trash or municipal waste stream,
which is illegal in some areas.
•Through the RBRC® program, Uniden makes it easy for you to drop off
the used battery at local retailers of replacement nickel-cadmium
batteries. You may also contact your local recycling center for
information on where to return the used battery. Please call 1-800-8-
BATTERY for information on Ni-Cd battery recycling in your area.
Uniden's involvement in this program is part of its commitment to
protecting our environment and conserving natural resources.
•RBRC® is a registered trademark of the Rechargeable Battery Recycling
Corporation.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the appliance.
Uniden works to reduce lead content in our PVC coated cords in our
product and accessories.
WARNING: The cords on this products and/or accessories contain lead, a
chemical known to the State of California to cause birth defects or other
reproductive harm. Wash hands after handling.
Important Safety Instructions
When using your telephone equipment, these basic safety precautions
should always be followed to reduce the risk of fire, electrical shock, and
injury to persons:
1. Read and understand all instructions.
2. Follow all warnings and instructions marked on the product.
3. Unplug this product from the wall outlet before cleaning. Use a dry
cloth for cleaning without liquid or aerosol cleaners.
4. Do not use this product near water; for example, near a bathtub, wash
bowl, kitchen sink or laundry tub, in a wet basement, or near a
swimming pool.
5. Do not place this product on an unstable cart, stand, or table.
The telephone may fall, causing serious damage to the unit.
6. Slots and openings in the cabinet and the back or bottom are
provided for ventilation. To protect the product from overheating,
these openings must not be blocked or covered. This product should
never be placed near or over a radiator or heat register. This product
should not be placed in a built-in installation unless proper
ventilation is provided.
7. This product should be operated only from the type of power source
indicated on the marking label. If you are not sure of the type of power
supply to your home, consult your dealer or local power company.
8. Do not allow anything to rest on the power cord. Do not locate this
product where the cord will be damaged by persons walking on it.
9. Do not overload wall outlets and extension cords, as this can result in
the risk of fire or electrical shock.
10. Never push objects of any kind into this product through cabinet
slots, as they may touch dangerous voltage points or short out parts
that could result in a risk of fire or electric shock. Never spill liquid of
any kind on the product.
11. To reduce the risk of electric shock, do not disassemble this product.
Take it to qualified service personnel when service or repair work is
required. Opening or removing covers may expose you to dangerous
voltages or other risks. Incorrect reassembly can cause electric shock
when the appliance is subsequently used.
12.Unplug this product from the wall outlet and refer servicing to
qualified service personnel under the following conditions:
A. When the power supply cord is damaged or frayed.
B. If liquid has been spilled into the product.
C. If the product has been exposed to rain or water.
D. If the product does not operate normally when following the
operating instructions. (Adjust only those controls that are
covered by the operating instructions. Improper adjustment of
other controls may result in damage and will often require
extensive repair work by a qualified technician.)
E. If the product has been dropped or the cabinet has been damaged.
F. If the product exhibits a distinct change in performance.
13. Do not use the telephone to report a gas leak in the vicinity of the leak.
Additional Battery Safety Precautions
Caution! To reduce the risk of fire or injury to persons by the battery,
read and follow these instructions:
1. Use only the Uniden power cord and batteries specified in the owner's manual.
2. Do not dispose of the battery pack in a fire. The cell may explode.
Check with local codes for possible special disposal instructions.
3. Do not open or mutilate the battery pack. Released electrolyte is
corrosive and may cause damage to the eyes or skin. It may be toxic
if swallowed.
4. Exercise care in handling the battery in order not to short the battery
with conducting materials such as rings, bracelets, and keys. The
battery or conductor may overheat and cause burns.
5. Charge the battery pack provided with or identified for use with this
product only in accordance with the instructions and limitations
specified in the owner's manual provided for this product.
6. Observe proper polarity orientation between the battery pack and
battery charger.
7. Batteries must be disconnected and removed from the product before
shipment to prevent accidental operation during transport.
Any batteries transported with the product must be separately
secured and cushioned with any exposed terminals covered to prevent
their breakage, leakage, movement within the packaging, or short
circuits. Failure to follow these recommendations for shipment may
result in serious damage and/or personal injury during transport and
may be against the U.S. Department of Transportation (DOT),
International Civil Aviation Administration (ICAO), International Air
Transport Association (IATA), and/or the International Maritime
Organization (IMO) regulations.
8. Avoid using a telephone (other than a cordless type) during an electrical
storm. There may be a remote risk of electric shock from lightning.
SAVE THESE INSTRUCTIONS!
Important Electrical Considerations
Unplug all electrical appliances when you know an electrical storm is
approaching. Lightning can pass through your household wiring and
damage any device connected to it. This phone is no exception.
The FCC Wants You To Know
Changes or modifications to this product not expressly approved by
Uniden, or operation of this product in any way other than as detailed by
the owner's manual, could void your authority to operate this product.
Your telephone compiles with Part 68 of FCC Rules. You must, upon
request, provide the FCC registration number and the REN to your
telephone company. Both numbers are on the base unit.
Note: You must not connect your phone to:
• coin-operated systems
• most electronic key telephone systems
This device complies with Part 15 of the FCC rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) This device must accept any interference received,
including interference that may cause undesired operation. Privacy of
communications may not be ensured when using this phone.
Range
Your new phone is designed to achieve the maximum possible range by
transmitting and receiving according to the highest specifications set forth by
the FCC. We have rated this phone to operate at a maximum distance with the
qualification that the range depends upon the environment in which the
telephone is used. Many factors limit range, and it would be impossible to
include all the variables in our rating. The Maximum Range rating of this phone
is meant to be used as a means of comparison against other range claims.
ADDITIONAL
INFORMATION
UP033BH_EXI7246C.book Page 53 Wednesday, June 2, 2004 1:30 PM
ADDITIONAL INFORMATION [54]
www.uniden.com
Telephone Line Problems
The FCC has granted the telephone company the right to disconnect
service in the event that your phone causes problems on the telephone
line. Also, the telephone company may make changes in facilities and
services which may affect the operation of your unit. However, your
telephone company must give adequate notice in writing prior to such
actions to allow you time for making necessary arrangements to continue
uninterrupted service.
If you are having trouble with your telephone service, you must first
disconnect your phone to determine if it is the cause of your problem. If
you determine that it is the cause, you must leave it disconnected until
the trouble has been corrected.
Radio Interference
Radio interference may occasionally cause buzzing and humming in your
cordless handset, or clicking noises in the base. This interference is
caused by external sources such as TV, refrigerator, vacuum cleaner,
fluorescent lighting, or electrical storm. Your unit is NOT DEFECTIVE.
If these noises continue and are too distracting, please check around
your home to see what appliances may be causing the problem.
In addition, we recommend that the base not be plugged into a circuit
that also powers a major appliance because of the potential for
interference. Be certain that antenna on the unit is fully extended.
In the unlikely event that you consistently hear other voices or
distracting transmissions on your phone, you may be receiving radio
signals from another cordless telephone or other source of interference.
If you cannot eliminate this type of interference, you need to change to
a different channel.
Finally, it should be noted that some cordless telephones operate at
frequencies that may cause interference to nearby TVs and VCRs.
To minimize or prevent such interference, the base of the cordless
telephone should not be placed near or on top of a TV or VCR.
If interference is experienced, moving the cordless telephone farther
away from the TV or VCR will often reduce or eliminate the interference.
More than One Cordless Telephone
If you want to use more than one cordless telephone in your home, they
must operate on different channels. Press the delete/channel key to
select a channel that provides the clearest communication.
Cordless Telephone Privacy
Cordless telephones are radio devices. Communications between the
handset and base of your cordless telephone are accomplished by means
of radio waves which are broadcast over the open airways. Because of the
inherent physical properties of radio waves, your communications can be
received by radio receiving devices other than your own cordless
telephone unit. Consequently, any communications using your cordless
telephone may not be private.
Installation Considerations
Selecting a Location
(Base and Handset)
Before choosing a location for your new phone, there are some important
guidelines you should consider:
• The location should be close to both a phone jack and continuous
power outlet. (A continuous power outlet is an AC outlet which does
not have a switch to interrupt its power.)
• Keep the base and handset away from sources of electrical noise such
as motors or fluorescent lighting.
• The base can be placed on a desk or tabletop or mounted on a standard
telephone wall plate.
• You should charge your new phone for 15-20 hours before completing
the installation or using the handset.
(Outdoor sensor)
• Avoid heat sources and direct sunlight.
• Set up the Outdoor sensor at least 60 inches from the ground.
• Set up the Outdoor sensor where it will receive proper ventilation.
• The unit require the proper space for ventilation
• Do not place the Outdoor sensor where it will be exposed to rain or snow.
Telephone Line Outlets
There are two types of phone outlets:
Modular Jack
Most phone equipment available now uses modular jacks. Phone cords are
fitted with a molded plastic connector which plugs into this type of jack.
If you do not have modular phone jacks, contact your local telephone
company for information about their installation.
Hardwired Jack
Some equipment is wired directly to a phone jack, and these types of
installations require a modular jack converter. This type of installation is
not difficult; however, you should contact your Uniden telephone dealer
or a telephone supply store for advice about the proper adapter or
converter for your particular situation.
Connecting the Telephone Cords
Consider these safety guidelines before connecting the telephone cords:
Caution!
• Never install telephone wiring during a lightning storm.
• Never touch uninsulated telephone wires or terminals unless the
telephone line has been disconnected.
• Use caution when installing or modifying telephone lines.
Applying Power to the Base
This phone requires an AC outlet, without a switch to interrupt power,
and the included AC adapter. To relieve strain on the DC plug when the
phone is placed on a desk or table, wrap the power cord around the strain
relief notch on the back of the base.
NOTE: Place the power cord so that it does not create a trip hazard, or
where it could become chafed and create a fire or other
electrical hazards.
One Year Limited Warranty
Important: Evidence of original purchase is required for warranty service.
WARRANTOR: UNIDEN AMERICA CORPORATION ("Uniden")
ELEMENTS OF WARRANTY: Uniden warrants, for one year, to the original
retail owner, this Uniden Product to be free from defects in materials and
craftsmanship with only the limitations or exclusions set out below.
WARRANTY DURATION: This warranty to the original user shall terminate
and be of no further effect 12 months after the date of original retail
sale. The warranty is invalid if the Product is (A)
damaged or not maintained as reasonable or necessary, (B) modified,
altered, or used as part of any conversion kits, subassemblies, or any
configurations not sold by Uniden, (C) improperly installed,
(D) serviced or repaired by someone other than an authorized Uniden
service center for a defect or malfunction covered by this warranty, (E)
used in any conjunction with equipment or parts or as part of any system
not manufactured by Uniden, or (F) installed or programmed by anyone
other than as detailed by the owner's manual for this product.
STATEMENT OF REMEDY: In the event that the product does not conform
to this warranty at any time while this warranty is in effect, warrantor
will either, at its option, repair or replace the defective unit and return it
to you without charge for parts, service, or any other cost (except
shipping and handling) incurred by warrantor or its representatives in
connection with the performance of this warranty. Warrantor, at its
option, may replace the unit with a new or refurbished unit. THE LIMITED
WARRANTY SET FORTH ABOVE IS THE SOLE AND ENTIRE WARRANTY
PERTAINING TO THE PRODUCT AND IS IN LIEU OF AND EXCLUDES ALL
OTHER WARRANTIES OF ANY NATURE WHATSOEVER, WHETHER EXPRESS,
IMPLIED OR ARISING BY OPERATION OF LAW, INCLUDING, BUT NOT
LIMITED TO ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE. THIS WARRANTY DOES NOT COVER OR
PROVIDE FOR THE REIMBURSEMENT OR PAYMENT OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES. Some states do not allow this exclusion or
limitation of incidental or consequential damages so the above limitation
or exclusion may not apply to you.
LEGAL REMEDIES: This warranty gives you specific legal rights, and you
may also have other rights which vary from state to state. This warranty
is void outside the United States of America and Canada.
PROCEDURE FOR OBTAINING PERFORMANCE OF WARRANTY: If, after
following the instructions in the owner's manual you are certain that the
Product is defective, pack the Product carefully (preferably in its original
packaging). The Product should include all parts and accessories
originally packaged with the Product. Include evidence of original
purchase and a note describing the defect that has caused you to return
it. The Product should be shipped freight prepaid, by traceable means, to
warrantor at:
Uniden America Corporation
Parts and Service Division
4700 Amon Carter Blvd. Fort Worth, TX 76155
(800) 297-1023, 8 a.m. to 5 p.m. CST, Monday through Friday
or visit our website at www.uniden.com
ADDITIONAL
INFORMATION
UP033BH_EXI7246C.book Page 54 Wednesday, June 2, 2004 1:30 PM
[55] ADDITIONAL INFORMATION
www.uniden.com
I.C. Notice
TERMINAL EQUIPMENT
NOTICE: This equipment meets the applicable Industry Canada Terminal Equipment Technical Specifications. This is
confirmed by the registration number. The abbreviation, IC, before the registration number signifies that
registration was performed based on a Declaration of Conformity indicating that Industry Canada technical
specifications were met. It does not imply that Industry Canada approved the equipment.
NOTICE: The Ringer Equivalence Number (REN) for this terminal equipment is marked on the equipment itself. The
REN assigned to each terminal equipment provides an indication of the maximum number of terminals
allowed to be connected to a telephone interface. The termination on an interface may consist of any
combination of devices subject only to the requirement that the sum of the Ringer Equivalence Numbers of
all the devices does not exceed five.
RADIO EQUIPMENT
The term "IC:" before the radio certification number only signifies that Industry Canada technical specifications were
met.
Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device
must accept any interference, including interference that may cause undesired
operation of the device. "Privacy of communications may not be ensured when using this telephone".
ADDITIONAL
INFORMATION
UP033BH_EXI7246C.book Page 55 Wednesday, June 2, 2004 1:30 PM
[56]
www.uniden.com
Index
A
AC adapter information . . . . . . . 48
Access the weather data from the
handset . . . . . . . . . . . . . . . . . 35
Alarm clock . . . . . . . . . . . . . . 17
AutoTalk . . . . . . . . . . . . . . . . 19
B
Base display icons . . . . . . . . . . 30
Basic phone setup . . . . . . . . . . 19
Battery pack (Handset)
Information . . . . . . . . . . . . . 48
Installing . . . . . . . . . . . . . . . 8
Replacement and handling . . . 46
Battery pack (outdoor unit)
Information . . . . . . . . . . . . . 48
Installing . . . . . . . . . . . . . . . 9
Replacement and handling . . . 46
Beltclip installation . . . . . . . . . 40
C
Call waiting . . . . . . . . . . . . . . 42
Caller ID service . . . . . . . . . . . 27
Call waiting . . . . . . . . . . . . . 42
Deleting . . . . . . . . . . . . . . . 29
Making a call . . . . . . . . . . . . 36
Viewing . . . . . . . . . . . . . . . 28
Channel . . . . . . . . . . . . . . . . . 41
Charging the handset battery pack .10
CIDCW . . . . . . . . . . . . . . . . . . 19
Cleaning contacts . . . . . . . . . . . 47
Connect the base unit . . . . . . . . .9
Controls and functions . . . . . . 3, 4
D
Dial mode . . . . . . . . . . . . . . . . 21
Digital security code . . . . . . . . . 44
E, F, G, H, I, J, K, L
Earpiece volume . . . . . . . . . . . . 38
Find handset . . . . . . . . . . . . . . 42
General information . . . . . . . . . 48
Headset installation . . . . . . . . . 39
I.C. Notice . . . . . . . . . . . . . . . 55
Installing the phone . . . . . . . . . .6
Interference . . . . . . . . . . . . . . 54
Language . . . . . . . . . . . . . . . . 21
Liquid damage . . . . . . . . . . . . . 52
M, N, O, P, Q
Making a call . . . . . . . . . . . . . . 36
Mount the Outdoor sensor . . . . . 11
Precautions . . . . . . . . . . . . . . . 53
R
Making a call . . . . . . . . . . . . . . 36
Mount the outdoor unit . . . . . . . 11
Precautions . . . . . . . . . . . . . . . 53
S
Set the weather display . . . . . . . 30
Snooze feature . . . . . . . . . . . . 18
Speed dial memory . . . . . . . . 23
T, U
Tone dialing switch-over . . . . . . 41
Traveling out-of-range . . . . . . . 41
Troubleshooting . . . . . . . . . . . 49
V, W, X, Y, Z
Voice mail waiting indicator . . . 43
Wall mounting . . . . . . . . . . . . 12
Warranty . . . . . . . . . . . . . . . . 54
CH20_Index.fm Page 56 Wednesday, June 2, 2004 6:01 PM
[57]
C U T C U T
C U T C U T
MEMORY LOCATION MEMO
Phone NumberName
Memory
Location
1*
2
3
4
5
MEMORY LOCATION MEMO
Phone NumberName
Memory
Location
6
7
8
9
10
MEMORY LOCATION MEMO
Phone NumberName
Memory
Location
1*
2
3
4
5
6
7
8
9
10
MEMORY LOCATION MEMO
Phone NumberName
Memory
Location
Memory List
UP033BH_EXI7246C.book Page 57 Wednesday, June 2, 2004 1:30 PM
[58]
www.uniden.com
Memo
UP033BH_EXI7246C.book Page 58 Wednesday, June 2, 2004 1:30 PM
At Uniden, we'll take care of you!
If you need any assistance with this product, please call our Customer Hotline at 1-800-297-1023
or visit our web site at www.uniden.com
PLEASE DO NOT RETURN THIS PRODUCT TO THE PLACE OF PURCHASE.
Our Uniden representatives will be happy to help you with any matters regarding
the operation of this unit, available accessories, or any other related matters.
Thank you for purchasing a Uniden product.
Hours: M-F 8:00 AM to 5:00 PM CST.
For information on the accessibility features of this product, please call
1-800-874-9314 (V/TTY)
May be covered under one or more of the following U.S. patents:
4,523,058 4,595,795 4,797,916 5,381,460 5,426,690 5,434,905
5,491,745 5,493,605 5,533,010 5,574,727 5,581,598 5,650,790
5,660,269 5,661,780 5,663,981 5,671,248 5,696,471 5,717,312
5,732,355 5,754,407 5,758,289 5,768,345 5,787,356 5,794,152
5,801,466 5,825,161 5,864,619 5,893,034 5,912,968 5,915,227
5,929,598 5,930,720 5,960,358 5,987,330 6,044,281 6,070,082
6,125,277 6,253,088 6,314,278 6,418,209 6,618,015 6,671,315
For my info. The numbers will be revised after checking the latest patent numbers.
?
Accessibility
UP033BH_EXI7246C.book Page 59 Wednesday, June 2, 2004 1:30 PM
UCZZ01435EZ
©2004 Uniden America Corporation, Fort Worth, Texas. Contains additional foreign articles. Custom manufactured in China.
THANK YOU FOR BUYING A UNIDEN PRODUCT.
REGISTER ONLINE TODAY!
FOR
ACCESSORIES,
GO ONLINE @
WWW.UNIDEN.COM
