USERS MANUAL 2 HTML Version

1. USERS MANUAL 1
2. USERS MANUAL 2

USERS MANUAL 2

UP095BH.indd A

9/26/2006 5:51:19 PM

Setup Guide

EXI4560/EXI4561

Step 1 Check the Package Contents

Make sure your cordless phone’s

packaging includes the following

items.

Base Handset AC adapter

Rechargeable

battery Telephone

cord

Also included: • Owner’s manual

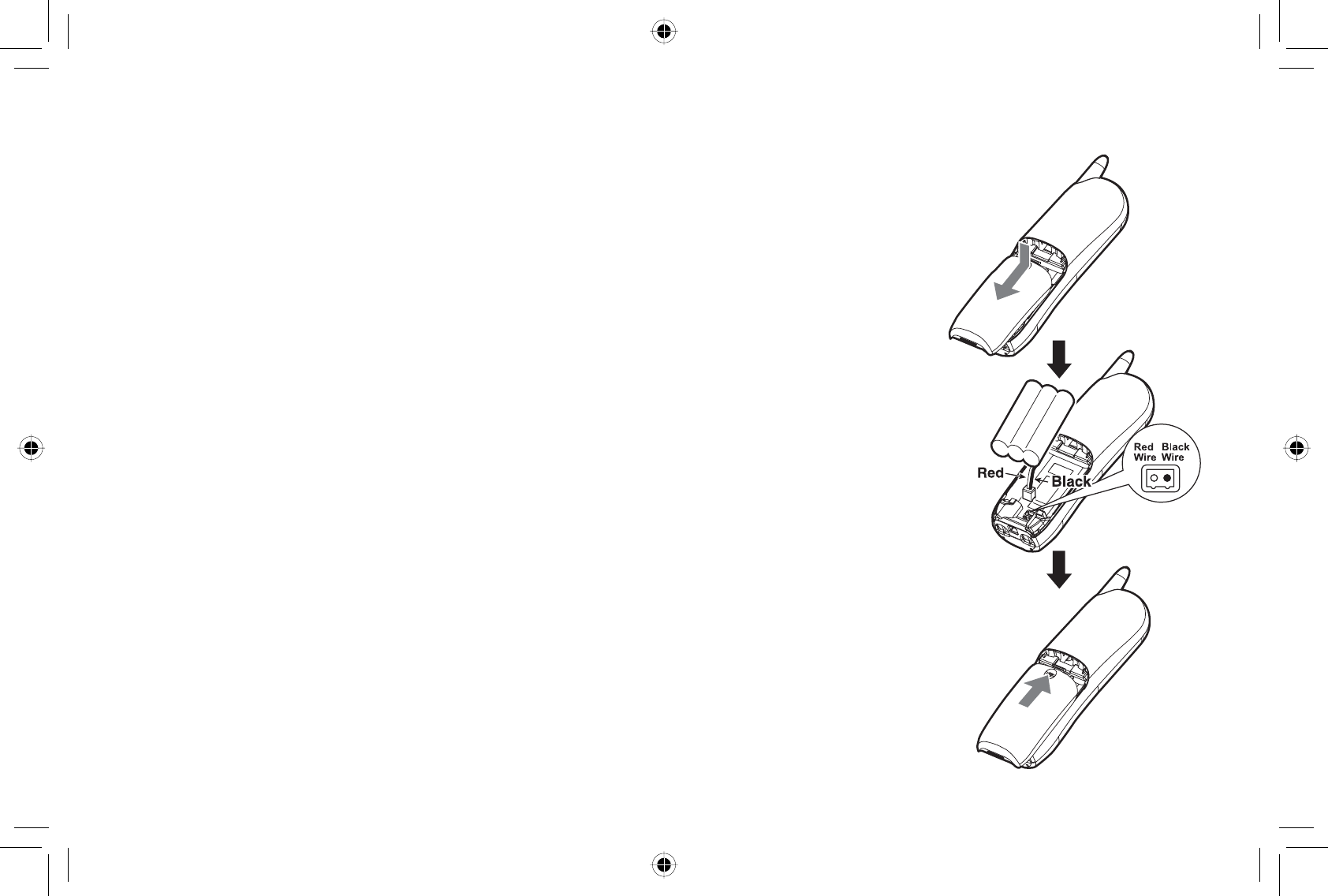

Step 2 Install the Handset Battery Pack

Note Use ONLY the Uniden

rechargeable battery pack

supplied with your new

phone!

Remove the

cover.

Connect the

battery pack

with the correct

polarity.

Replace the

cover.

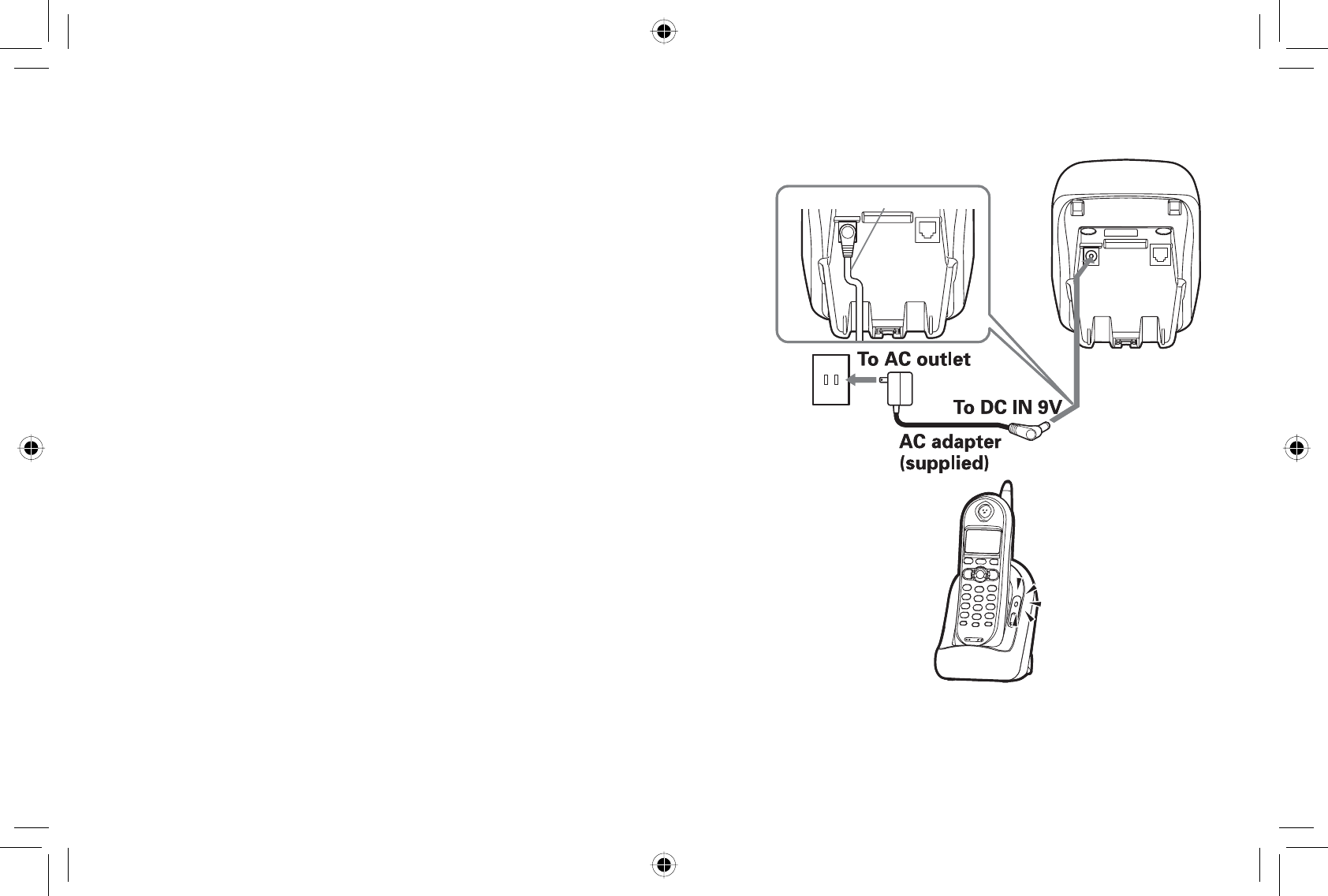

Step 3 Set up the Base

Plug the AC adapter cord to

the DC IN 9V jack (yellow).

Route the cord.

Plug the AC adapter to a

120V AC power outlet.

Note Use ONLY the Uniden AC

adapter supplied with your

new phone!

Step 4 Charge the Handset

Place the handset in

the base.

Make sure that

charge LED

illuminates.

Charge for 15-20 hours before

using your phone.

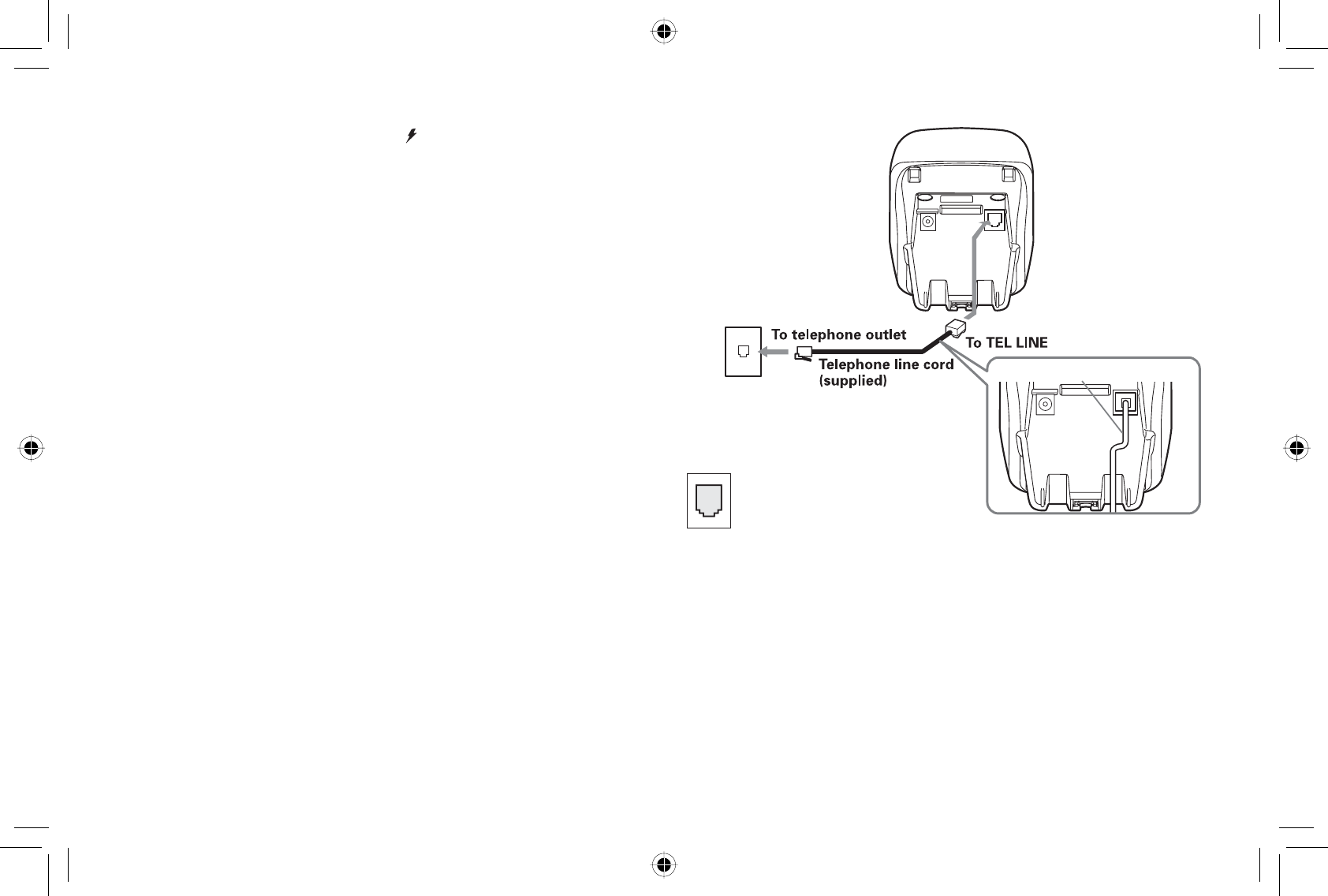

Step 5 Connect to the Phone Line

Plug the other

end into the

telephone wall

jack.

Route the cord.

Plug one end of the

telephone cord into

the base TEL LINE

jack.

Step 6 Make & Receive Calls

To Make a Call

Press talk/ﬂ ash .

Listen for dial tone.

Dial the desired

number.

To Receive a Call

Pick up the handset and

press talk/ﬂ ash .

To Hang Up a Call

Press end or return the

handset to the base.

Additional Features

For more information on these

and other features, please refer to

your Owner’s Manual. For your

convenience, listed below are

important features that will help

you set up your new cordless

phone.

Handset/Base Set up:

- Adjust the Earpiece

Volume o P.25

- Set the Ringer Volume o P.25

- Set Tone/Pulse Dialing o P.17

Caller ID:

Set Caller ID on Call Waiting

(CIDCW) o P.15

Note: You must subscribe to

Caller ID services through your

local telephone provider to use

Caller ID and CIDCW.

Refer to your Owner’s Manual for

detailed operations.

For answers to questions and to

order genuine Uniden parts and

accessories 24 hours a day visit

our website at www.uniden.com. If

you have any problems, you can

also call our Customer Hotline at

1-800-297-1023, Mon-Fri 7 a.m.

to 7 p.m., Sat/Sun 9 a.m. to 5 p.m.

CST. (Phone support is closed on

holidays.)

UP095BH.indd 1

9/26/2006 5:51:20 PM

Guía de programación

EXI4560/EXI4561

1° Paso Inspección del contenido del embalaje

Asegúrese de que haya recibido los

siguientes artículos en el paquete

Base Receptor

Adaptador CA

Pila

recargable Cable

telefónico

Además va incluido: • Manual del usuario

2° Instalación del paquete de pilas del receptor

Nota ¡Use SOLAMENTE el

paquete de pilas recargable

de Uniden suministrado con

su nuevo teléfono!

Quite la tapa.

negro

negronegro

rojo rojo

Conecte el

paquete de pilas

con la polaridad

correcta.

Reponga la tapa

3° Paso Preparación de la base

Conecte el adaptador CA

en el enchufe (amarillo) DC

IN 9V.

Pase el cable

A la toma CA

Al enchufe

DC IN 9V

Adaptador CA

(suministrado)

Conecte el adaptador CA en

una toma de 120V CA.

Nota ¡Use SOLAMENTE el

adaptador CA de Uniden

suministrado con su

teléfono!

4° Paso Carga del receptor

Coloque el receptor

en la base.

Asegúrese de que el

LED de carga se

ilumine.

Cargue el receptor de 15 a 20

horas antes de usar el teléfono.

5° Paso Conexión de la línea telefónica

Conecte el otro

extremo en el

enchufe telefónico

de la pared.

Al enchufe telefónico

Pase el cable

Cable de la línea

telefónica (suministrado)

Al enchufe

TEL LINE

Conecte un

extremo de la

línea telefónica en

el enchufe TEL

LINE en la base.

6° Paso Realización y recepción de llamadas

Para hacer una llamada

Oprima talk/ﬂ ash .

Espere por el tono de

marcación.

Marque el número

deseado.

Para recibir una llamada

Levante el receptor y

oprima talk/ﬂ ash .

Para colgar una llamada

Oprima end o devuelva

el receptor a la base.

Características adicionales

Para más información sobre estas y otras

características, le rogamos que consulte su

Manual del usuario. Para su conveniencia, hemos

listado abajo unas características importantes, las

cuales le ayudarán a programar su nuevo teléfono

inalámbrico de Uniden.

Programación del receptor/base:

- Ajuste del volumen del auricular y del

altavoz o P.25

- Programación del volumen del timbre

o P.25

- Programación de la marcación por

tono/pulso o P.17

Identiﬁ cación de llamadas (Caller ID):

Programe la Identiﬁ cación de llamadas en

Llamadas en espera (CIDCW) o P.15

Nota: Usted debe estar suscrito al

servicio de Identiﬁ cación de llamadas

con su proveedor de telefonía local para

poder usar las características de Caller

ID y de CIDCW

Consulte su manual del usuario para

operaciones más detalladas.

Para hacer preguntas u ordenar partes

genuinas y accesorios de Uniden, llame a

nuestra línea para atención al cliente en

el 1-800-297-1023.

Horario:

Lunes - viernes: 7 de la mañana- 7 de la

tarde. Sábado/domingo: 9 de la mañana

- 5 de la tarde. No habrá ayuda telefónica

los días festivos. O, visite nuestra página

Web: http://www.uniden.com

UP095BH.indd 2

9/26/2006 5:51:21 PM

Setup Guide ...................................................................1

Welcome/ Accessibility .................................................4

Terminology/ Manual Conventions ..............................5

Product Overview ..........................................................6

Controls and Functions ................................................7

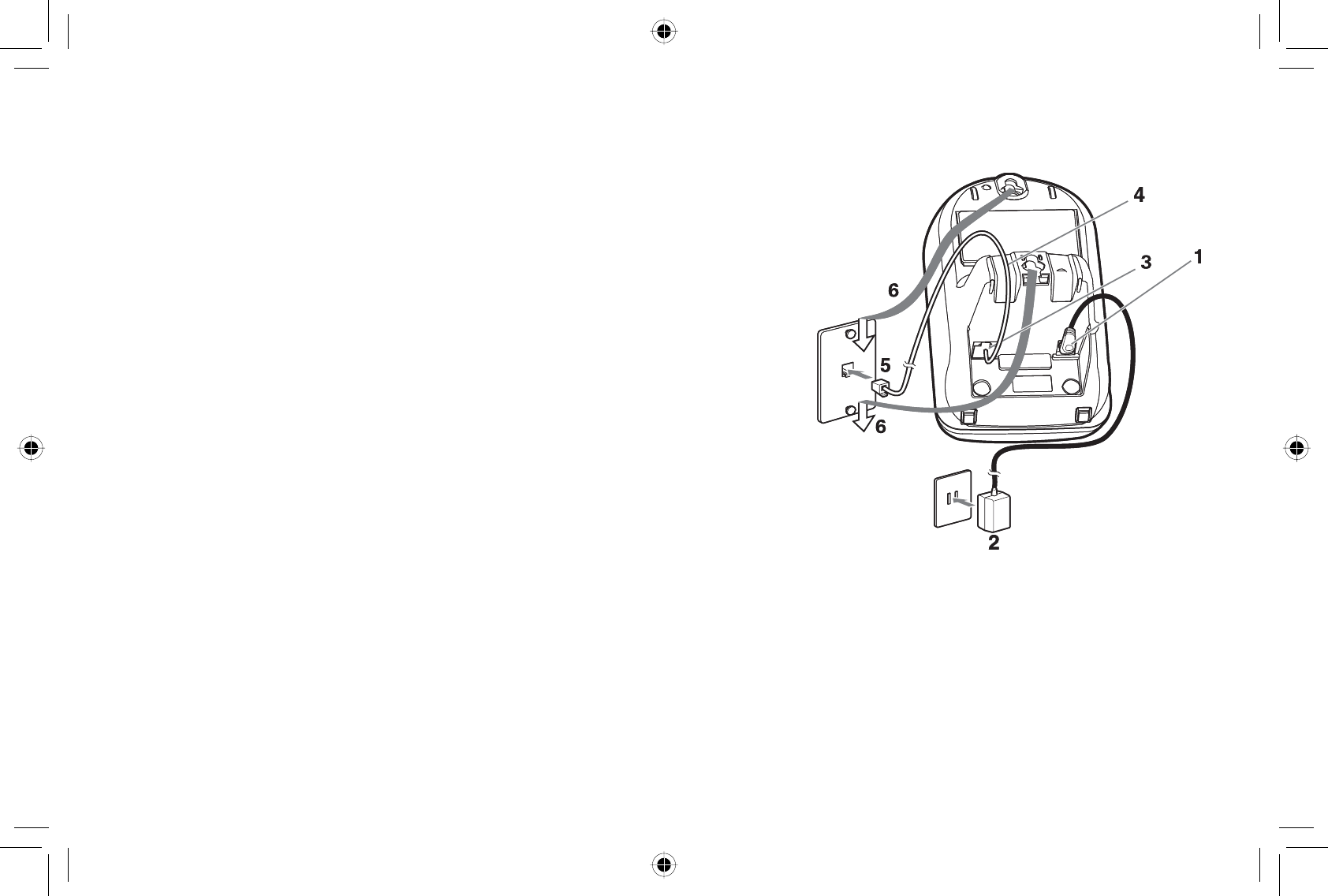

Installing the Phone ......................................................9

Choosing the Best Location ................................................ 9

Installing the Rechargeable Battery Pack into the

Handset....................................................................... 10

Installing the Base Unit ..................................................... 11

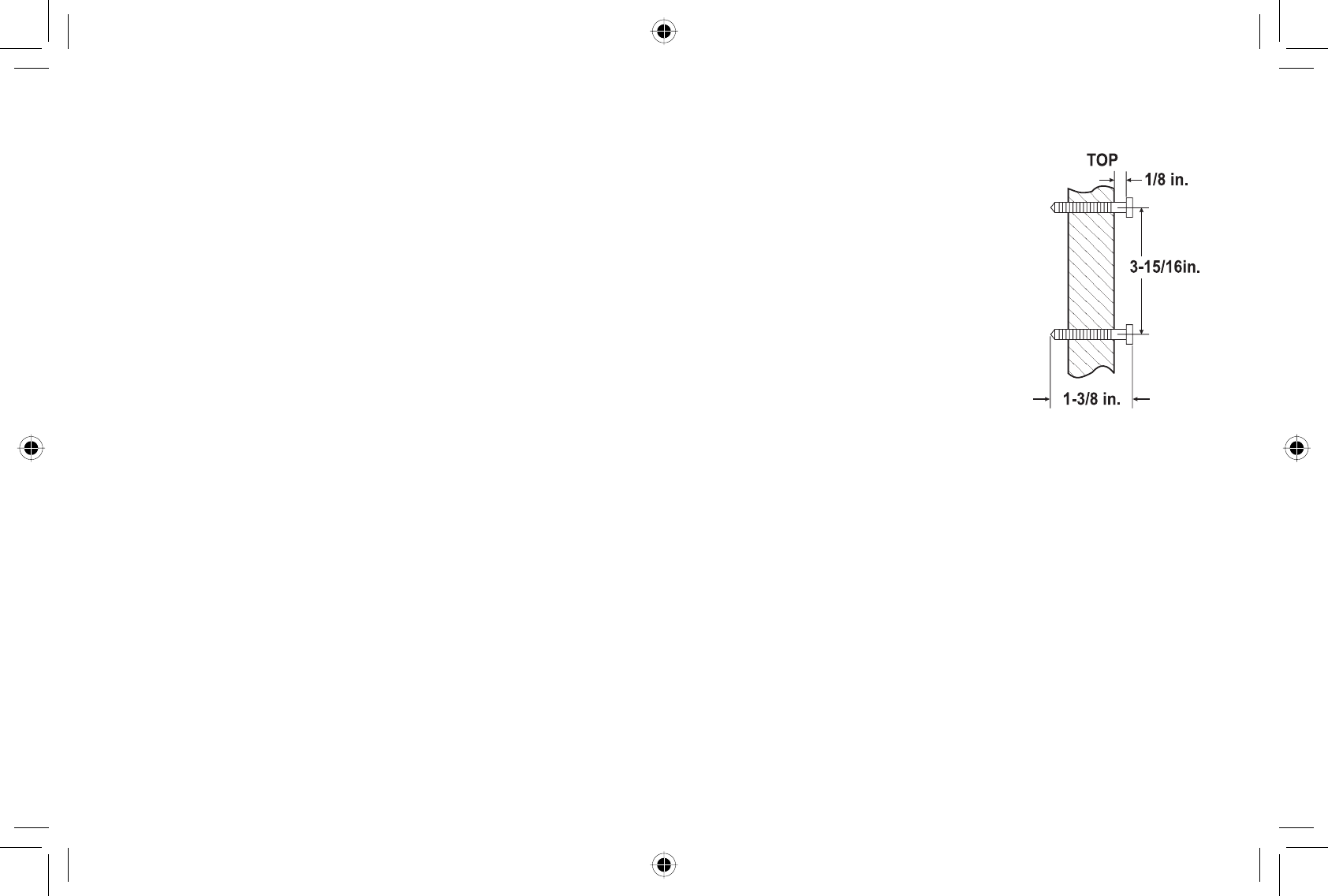

Mounting the Base Unit on a Wall ..................................... 13

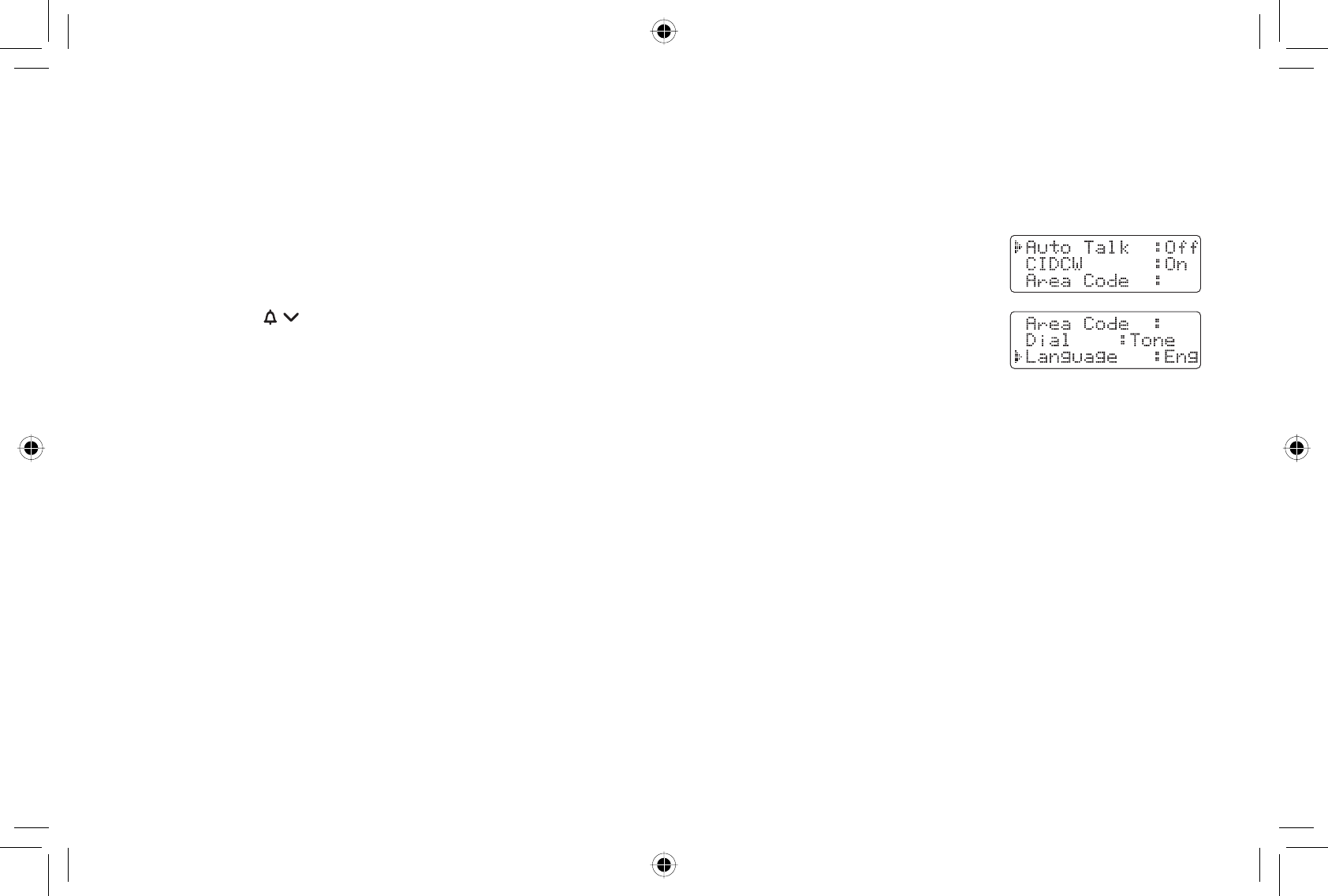

Basic Setup ..................................................................15

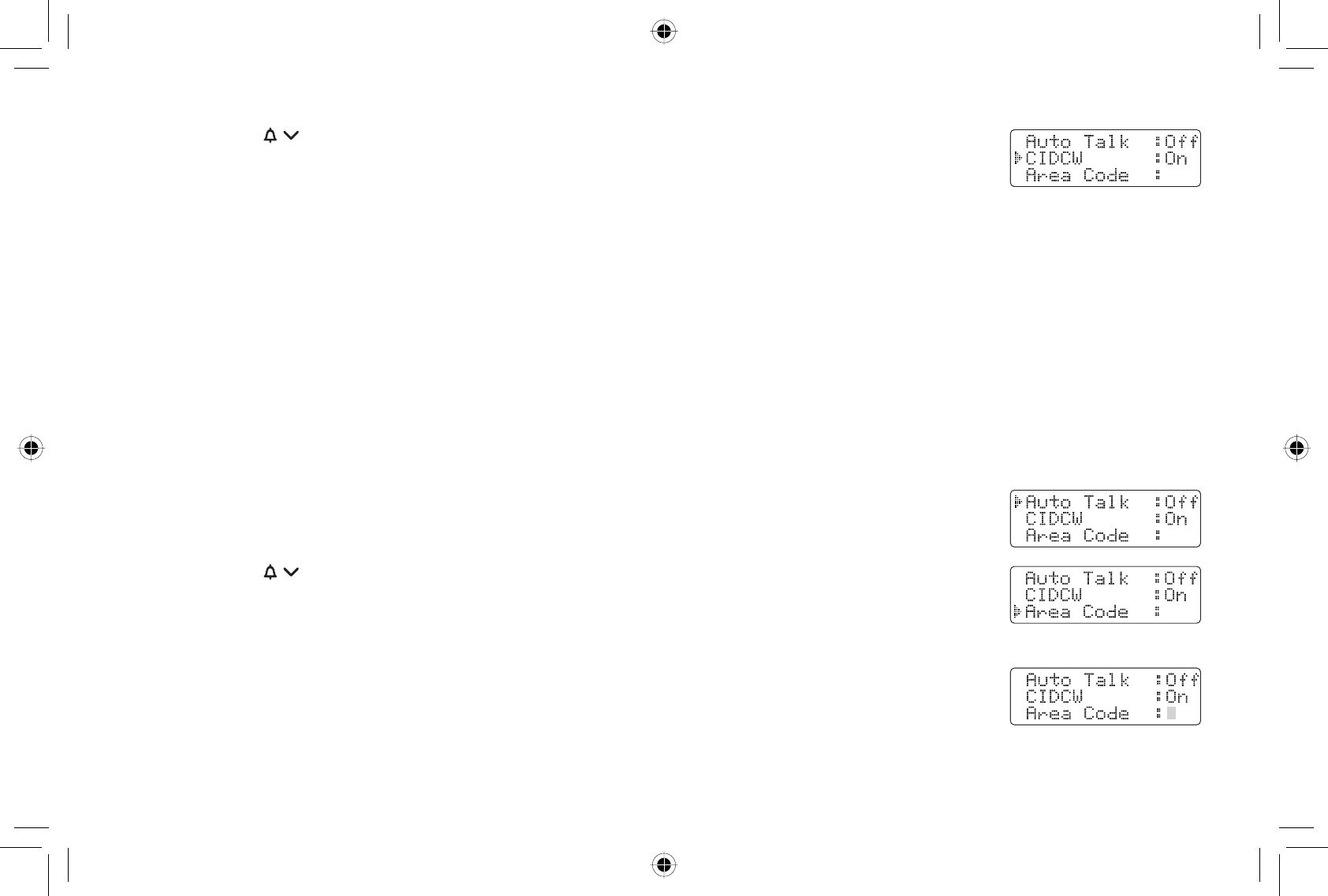

Activating AutoTalk ............................................................ 15

Activating Caller ID on Call Waiting .................................. 15

Programming Your Area Code .......................................... 16

Choosing the Dialing Mode ............................................... 17

Setting the Language ........................................................ 18

Using the Speed Dial Memory ....................................19

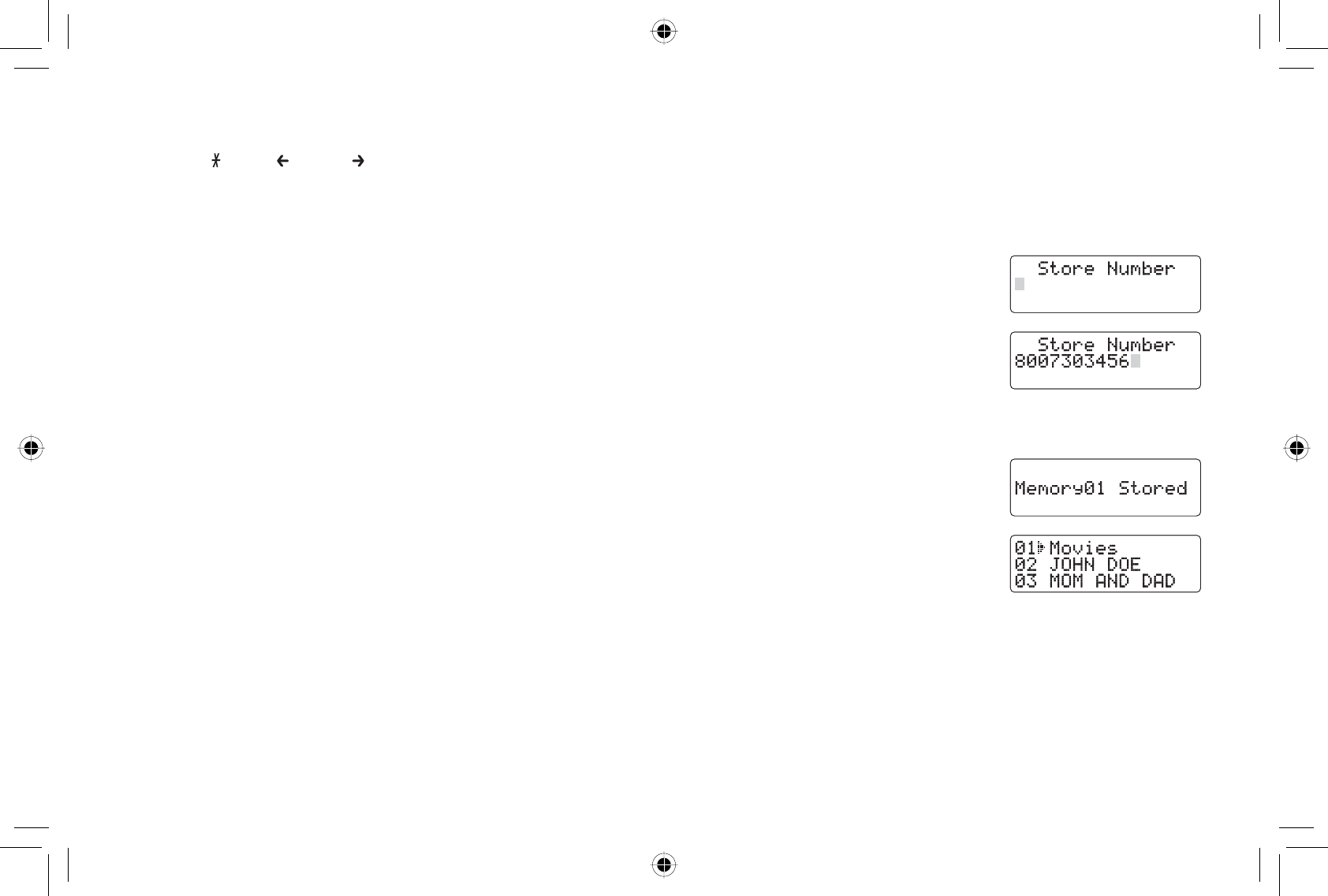

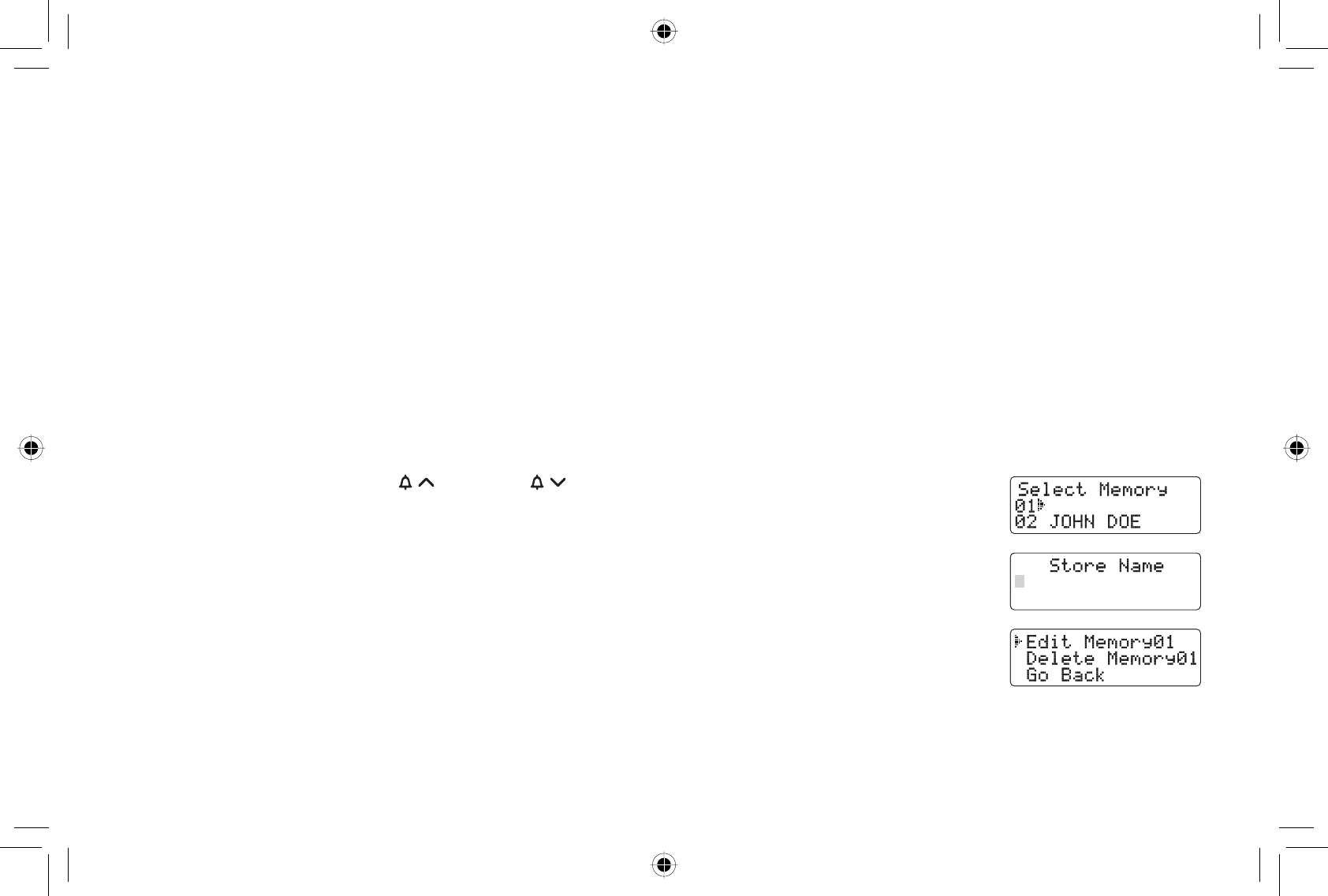

Storing a Name and Number in Memory .......................... 19

Storing Caller ID in Speed Dial Memory ........................... 22

Using Your Phone ........................................................23

Making and Receiving Calls .............................................23

Making a Call from Speed Dial Memory ........................... 23

Making a Call from the Caller ID List ................................ 24

Redialing the Last Dialed Number .................................... 24

Selecting the Ring Tone and Volume ................................ 25

Adjusting the Earpiece Volume ......................................... 25

Using Call Waiting ............................................................. 26

Selecting a Different Channel ........................................... 26

Find Handset ....................................................................26

Tone Dialing Switch-over .................................................. 27

Voice Mail Waiting Indicator .............................................. 27

Caller ID and CIDCW (Caller ID on Call Waiting) ......28

Caller ID on Call Waiting (CIDCW) ................................... 29

Viewing the Caller ID Message List .................................. 29

Deleting Information from the Caller ID List ...................... 30

Changing the Digital Security Code ..........................31

Maintenance ................................................................. 32

Troubleshooting ..........................................................35

Liquid Damage .................................................................. 37

Precautions ..................................................................38

The FCC Wants You To Know .......................................... 39

I.C. Notice ......................................................................... 41

One Year Limited Warranty .........................................42

Contents

UP095BH.indd 3

9/26/2006 5:51:22 PM

Welcome

Congratulations on your purchase of the Uniden cordless telephone. This cordless phone is designed for reliability,

long life, and outstanding performance.

Note: Illustrations in this manual are used for explanation purposes. Some illustrations in this

manual may differ from the actual unit. The color of your cordless telephone may vary.

Uniden® is a registered trademark of Uniden America Corporation.

AutoTalk, AutoStandby and UltraClear Plus are trademarks of Uniden America Corporation.

Accessibility

Uniden provides a customer service hotline for accessibility questions. If you have a disability and need customer

service assistance or if you have any questions about how Uniden’s products can accommodate

persons with disabilities, please call the accessibility voice/TTY line:

1-800-874-9314.

A representative is available to talk to you M-F, 8:00 am to 5:00 pm, CST. After hours, you can leave us a message,

and we will call you back. Information is also available on our website, www.uniden.com, under the "Accessibility"

link.

UP095BH.indd 4

9/26/2006 5:51:22 PM

Terminology

Base The main part of the phone that connects to your phone line and lets you make and receive calls.

CID Caller ID is available from your telephone provider. With this service, you can see the name and number of incoming

callers.

CIDCW Caller ID on Call Waiting is available from your telephone provider. With this service, you can see incoming caller

information while on another call.

Handset A cordless handset that can be placed anywhere in your home or ofﬁ ce where AC power is available.

Standby The handset may be sitting on the base charging or out of the base cradle, but is NOT in use.

[talk/ﬂ ash] has not been pressed and there is no dial tone.

Talk When a dial tone has been enabled allowing the user to dial and carry on a conversation with an outside party.

Manual Conventions

This manual uses several different type styles to help you distinguish between different parts of the phone:

•lower case bold text with “[ ]” indicates a key or button on the phone

• ALL CAPITALS indicates text on the display, such as menu options, prompts, and conﬁ rmation messages

•lower case bold text indicates a status light on the phone base

UP095BH.indd 5

9/26/2006 5:51:22 PM

Product Overview

Main Phone Features

• 2.4 GHz Extended Range Technology

• Caller ID/Caller ID on Call Waiting

• 3-Line Backlit LCD

• Trilingual Menu Displays

• 30 Caller ID Memory

• 10 Number Memory Dialing

• Last Number Redial

• Tone/Pulse Dialing

• Page/Find Handset Key

• Earpiece/Ringer Volume Controls

• Mute or Turn Ringer Off

• Hearing Aid Compatible

• 20-Channel Auto Scan

• Desk or Wall Mountable

UP095BH.indd 6

9/26/2006 5:51:22 PM

Controls and Functions

Handset 1. Handset antenna

2. Handset battery compartment

3. Handset earpiece

4. LCD display

5. [vol/ / / ]

(volume & ringer up/down) key

6. [cid/menu] key

7. [/tone/ ] (left cursor) key

8. [redial/pause] key

9. [select] key

10. [memory] key

11. [end] key

12. [talk/ﬂ ash] key

13. [#/ ] (right cursor) key

14. [delete/channel] key

15. Handset ringer speaker

16. Handset microphone

17. Handset charging contacts

915

UP095BH.indd 7

9/26/2006 5:51:22 PM

Main Base Unit

18. in use/ LED

19. [ﬁ nd] key

20. Base charging contacts

21. Base DC IN 9V jack

22. TEL LINE jack

21 22

UP095BH.indd 8

9/26/2006 5:51:23 PM

Installing the Phone

Choosing the Best Location

Before choosing a location for your new phone, here are some important guidelines you should consider:

• The location should be close to both a phone jack and a continuous power outlet (one which is not connected to a

switch).

• The base and handset should be kept away from sources of electrical noise such as motors, microwave ovens,

and ﬂ uorescent lighting.

• The base can be placed on a desk, tabletop, or mounted on a standard wall plate. For better reception, place the

base as high as possible.

• The base should be placed in an open area for optimum range and reception.

• If your home has specially wired alarm equipment connected to the telephone line, be sure that installing

the system does not disable your alarm equipment. If you have questions about what will disable your alarm

equipment, contact your telephone company or a qualiﬁ ed installer.

Avoid television sets and other

electronic equipment

Choose a central location

Avoid noise sources such as a window by

a street with heavy trafﬁ c

Avoid microwave ovens

Avoid excessive moisture,

extremely low temperatures, dust,

mechanical vibration, or shock

Avoid other cordless telephones

Avoid heat sources, such as radiators,

air ducts, and sunlight

Avoid personal computers

Avoid television sets and other

electronic equipment

Choose a central location

Avoid noise sources such as a window by

a street with heavy trafﬁ c

Avoid microwave ovens

Avoid excessive moisture,

extremely low temperatures, dust,

mechanical vibration, or shock

Avoid other cordless telephones

Avoid heat sources, such as radiators,

air ducts, and sunlight

Avoid personal computers

UP095BH.indd 9

9/26/2006 5:51:23 PM

Installing the Rechargeable Battery Pack into the Handset

The handset is powered by a rechargeable battery pack. Once installed, the battery

charges automatically when the handset is placed in the base unit.

To install the rechargeable battery pack:

1) Press down on the handset battery case cover (use the ﬁ nger indention for a better

grip) and slide the cover downward to remove.

2) Plug the battery pack connector (red & black wires) into the small jack inside the

battery compartment. (The connector notches ﬁ t into the grooves of the jack only

one-way.) Match the wire colors to the polarity label in the battery compartment,

connect the battery, and listen for a click to insure connection.

3) Make sure you have a good connection by slightly pulling on the battery wires. If

the connection is secure, the battery jack will remain in place.

4) Place the battery case cover back in the handset by sliding it upwards until it clicks

into place.

Note: Use only the Uniden (BT-1006) rechargeable battery pack supplied

with your phone.

UP095BH.indd 10

9/26/2006 5:51:23 PM

Installing the Base Unit

1) Connect the AC adapter to the DC IN 9V jack and to the

standard 120V AC wall outlet.

Note:

• Use only the supplied AD-0001 AC adapter. Do not

use any other AC adapter.

• Do not place the power cord where it creates a trip

hazard or where it could become chafed and create a

ﬁ re or electrical hazard.

2) Charge the handset by placing in the base unit with the keypad

facing forward.

Route the cord.Route the cord.

UP095BH.indd 11

9/26/2006 5:51:23 PM

3) Make sure that the in use/ LED illuminates. If the LED

does not illuminate, check to see that the AC adapter is

plugged in and that the handset makes good contact with

the base's charging contacts.

Note:

• Connect the AC adapter to a continuous power

supply (not controlled by a wall switch).

• Place the base unit close to the AC outlet to

avoid long extension cords.

• Charge your handset at least 15 - 20 hours

before plugging into the phone line.

4) Once the handset battery pack is fully charged, connect

the telephone line cord to the TEL LINE jack and a

telephone outlet. If your telephone outlet isn't modular,

contact your telephone company for assistance. Modular

Modular

Route the cord.

UP095BH.indd 12

9/26/2006 5:51:24 PM

Mounting the Base Unit on a Wall

Standard wall plate mounting

This phone can be mounted on any standard wall plate.

1) Plug the AC adapter to the DC IN 9V jack.

2) Plug the AC adapter into a standard120V AC wall outlet.

3) Plug the telephone line cord into the TEL LINE jack.

4) Route the telephone line cord through the groove as shown.

5) Plug the telephone line cord into the telephone outlet.

6) Align the mounting slots on the base with the mounting posts on the

wall. Then push in and down until the phone is ﬁ rmly seated.

UP095BH.indd 13

9/26/2006 5:51:24 PM

Direct wall mounting

If you don’t have a standard wall plate, you can mount your phone directly to the wall. Before

doing this, consider the following:

• Avoid electrical cables, pipes, or other items behind the mounting location that could cause a

hazard when inserting screws into the wall.

• Try to mount your phone within 5 feet of a working phone jack to avoid excessive lengths.

• Make sure the wall material is capable of supporting the weight of the base and handset.

• Use #10 screws (minimum length of 1-3/8 inches) with anchoring devices suitable for the wall

material where the base unit will be placed.

1) Insert two mounting screws into the wall (with their appropriate anchoring device), 3-15/16

inches apart. Allow about 1/8 of an inch between the wall and screw heads for mounting the

phone.

2) Refer to steps 1 through 6 on page 13 to mount the telephone.

UP095BH.indd 14

9/26/2006 5:51:24 PM

Basic Setup

There are ﬁ ve basic options that you will need to set up: AutoTalk, CIDCW (Caller ID on Call Waiting), Area Code,

Dial Mode and Language.

Activating AutoTalk

AutoTalk will allow you to answer the phone simply by removing the handset from the base. You do not have to press

a key to answer the incoming call.

To activate:

1) When the phone is in standby, press and hold [cid/menu]. The following screen appears.

2) Press [select] to turn AutoTalk on.

3) Press [end] or return the handset to the base unit to complete the setting. The handset

returns to standby.

Activating Caller ID on Call Waiting

Caller ID allows you to see the name and number of the calling party before you answer the phone. Caller ID on Call

Waiting (CIDCW) lets you see the name and number of a call that comes in when you are on the line. You must

subscribe to Caller ID service through your local telephone provider to use this feature.

1) When the phone is in standby, press and hold [cid/menu]. The following screen appears.

UP095BH.indd 15

9/26/2006 5:51:24 PM

2) Press [vol/ / ] to move the pointer to select CIDCW.

3) Press [select] to toggle and turn on Caller ID on Call Waiting.

4) Press [end] and return the handset to the base unit to complete the setting. The handset

returns to standby.

Note: To enable the setting change of CIDCW, you need to return the handset to the base unit when

you complete the setting.

Programming Your Area Code

In some areas the telephone company may allow you to place a local call by dialing only 7 digits (instead of 10).

If this is the case in your area, you can program your local area code in your phone. Programming your area code

will allow you to see the caller’s 7-digit phone number which will allow you to easily return the local call without

modifying the number before dialing. If you get a call from outside your area code, you'll see all 10 digits.

To program your area code:

1) When the phone is in standby, press and hold [cid/menu]. The following screen appears.

2) Press [vol/ / ] to move the pointer to select AREA CODE.

3) Press [select]. If an area code was already stored, the phone will display it.

4) Use the number keys ( [0] – [9] ) to enter the 3-digit area code.

If you make an error, use [delete/channel] to backspace.

5) Press [select]. A conﬁ rmation tone sounds.

6) Press [end] or return the handset to the base unit to complete the setting. The handset returns to standby.

UP095BH.indd 16

9/26/2006 5:51:24 PM

Choosing the Dialing Mode

Your phone can communicate with the telephone network in two different ways: tone dialing and pulse dialing. These

days, most telephone networks use a method called tone dialing, so your phone comes programmed for tone dialing

by default.

If your phone company uses pulse dialing, you'll need to change your phone's dial mode. There's an easy way to tell:

try making a call. If your call connects, your phone's setting is ﬁ ne. If not, you may need to change the dial mode.

To change the dial mode:

1) When the phone is in standby, press and hold [cid/menu]. The following screen appears.

2) Press [vol/ / ] to move the pointer to select DIAL.

3) Press [select] to set the phone to pulse dialing.

4) Press [end] or return the handset to the base unit to complete the setting. The handset

returns to standby.

Note: If your phone system requires pulse dialing and you need to send the DTMF tones during a

call, you can temporarily switch over to tone dialing. (Refer to “Tone Dialing Switch-over” on page

27.)

UP095BH.indd 17

9/26/2006 5:51:26 PM

Setting the Language

You can change the language the handset menu displays. Choose from English, French, or Spanish.

To change the language setting:

1) When the phone is in standby, Press and hold [cid/menu]. The following screen appears.

2) Press [vol/ / ] to move the pointer to select LANGUAGE.

3) Press [select] to select ENG, FR. or ESP.

4) Press [end] or return the handset to the base unit to complete the setting. The handset returns to standby.

UP095BH.indd 18

9/26/2006 5:51:27 PM

Using the Speed Dial Memory

Your cordless phone allows you to store up to 10 names and numbers in the handset. You can dial these numbers

with just a few key presses. The speed dial memory is not limited to phone numbers. You can store any number

(up to 20 digits) that you need to enter once your call connects. This is referred to as Chain Dialing. An example

is a frequently reﬁ lled prescription number. Store your pharmacy phone number in one speed dial and your most

frequently reﬁ lled prescription number as another speed dial. To use, once you ring your pharmacy's automated

prescription line, simply press [memory] and the speed dial number where you stored your prescription number and

press [select].

Note: When editing the speed dial memory, you must press a key within 30 seconds or the phone

will return to standby. If you return the handset to the base, the phone will return to standby also.

Storing a Name and Number in Memory

1) With the phone in standby, press [memory].

2) Enter [0] - [9] or use [vol/ / ] and [vol/ / ] to select the speed dial location where you

would like to store this entry, and then press [select] twice.

3) STORE NAME appears and a cursor ﬂ ashes indicating that the phone is ready for the

name to be entered.

Note: If the selected speed dial number is already assigned, the Edit screen

appears. You can select EDIT MEMORY to edit this entry, select DELETE

MEMORY to erase this entry, or select GO BACK to choose another speed dial

number.

UP095BH.indd 19

9/26/2006 5:51:27 PM

4) Enter a name according to the instructions below, then press [select]. If no name is required, go to step 5.

• The name can be up to 13 characters.

• Use [/tone/ ] and [#/ ] to move the cursor to the desired location.

• Press [delete/channel] to delete characters as needed or press and hold to delete all characters.

Refer to the letters on the number keys to select the desired characters.

With each press of a numeric key, the displayed character appears in the following order: upper case letters ﬁ rst,

lower case letters next and ﬁ nally the number corresponding to the key.

Note: If the next character uses the same number key, you must press [#/ ] to move the cursor over.

Otherwise the next time you press the number key, it changes the character that was previously set.

For example, to enter Movies.

1) Press [6] once. Then press [#/ ] to

move the cursor to the right.

2) Press [6] six times.

3) Press [8] six times.

4) Press [4] six times.

5) Press [3] ﬁ ve times.

6) Press [7] eight times.

Number of times key is pressed

keys 1 2 3 4 5 6 7 8 9

2abc

3def

4ghi

5jkl

6mno

7pqrs

8tuv

9wxyz

oper

Number of times key is pressed

keys 1 2 3 4 5 6 7 8 9

2abc

3def

4ghi

5jkl

6mno

7pqrs

8tuv

9wxyz

oper

UP095BH.indd 20

9/26/2006 5:51:28 PM

If you make a mistake while entering a name

Use [/tone/ ] or [#/ ] to move the cursor to the incorrect character.

Press [delete/channel] to erase the wrong character. Then enter the correct character. To delete all characters,

press and hold [delete/channel].

5) STORE NUMBER is displayed. The cursor ﬂ ashes indicating that the phone is ready for

the number to be entered.

6) Use the keypad to enter the phone number; each number can be up to 20 digits. If you

need the phone to pause during the dialing sequence, press [redial/pause] to insert a

two-second delay between the numbers. You can enter multiple pauses to increase the

delay. Each pause counts as a digit. The display shows a P for every pause.

7) Press [memory]. You will hear a conﬁ rmation tone, and the following screen appears.

Memory storage is complete.

8) After about 2 seconds, the following screen displays all the speed dial memory entries.

9) Press [end] to exit memory setup mode. The phone returns to standby.

Note: When storing numbers into memory, if the handset is idle (i.e., no key is pressed) for more

than 30 seconds, it will beep rapidly, and the phone will return to standby.

UP095BH.indd 21

9/26/2006 5:51:28 PM

Storing Caller ID in Speed Dial Memory

Caller ID names and numbers shown in the Caller ID list can be stored in speed dial memory.

To store a caller id name/number to memory:

1) Press [cid/menu]. Select the phone number to be stored from the Caller ID list by

pressing [vol/ / ] or [vol/ / ].

2) Press [memory].

3) Enter a number ( [0] – [9] ) or press [vol/ / ] or [vol/ / ] to select the memory location

to be stored.

4) Press [select]. You hear a conﬁ rmation tone, and the number is stored in memory. The

display returns to the Caller ID list.

Note:

• If a number has already been stored in the selected memory number

location, a conﬁ rmation screen is displayed. To overwrite, press [vol/ / ] to

YES and press [select]. The display returns to the Caller ID list.

• You cannot store a Caller ID message if no phone number appears in the message.

UP095BH.indd 22

9/26/2006 5:51:29 PM

Using Your Phone

Making and Receiving Calls

Handset on the base Handset off the base

Making a call 1) Pick up the handset from the base.

2) Dial the number.

3) Press [talk/ﬂ ash].

1) Press [talk/ﬂ ash].

2) Listen for the dial tone.

3) Dial the number.

Receiving a call

1) Pick up the handset from the base. (If

AutoTalk is on, the phone will answer the

call when you pick it up.)

2) Press [talk/ﬂ ash].

Press [talk/ﬂ ash],[/tone/ ],[#/ ] or any

number key. (AutoTalk is on.)

Hanging up Press [end] or return the handset to the base.

Note: To turn on the AutoTalk feature, see "Activating AutoTalk" on page 15.

Making a Call from Speed Dial Memory

To make a call from speed dial memory:

1) Press [memory]. The handset displays your programmed speed dial number.

2) Enter the number ( [0] – [9] ), or press [vol/ / ] or [vol/ / ] to select the speed dial

number you would like to dial.

3) Press [talk/ﬂ ash]. TALK and the volume setting and the number selected appear on the

display. Then the displayed number is dialed.

UP095BH.indd 23

9/26/2006 5:51:32 PM

To cancel speed dialing

Press [end] to cancel speed dialing. The handset returns to standby. Also, if the handset is idle (e.g., no key is

pressed) for 30 seconds, the phone returns to standby.

Making a Call from the Caller ID List

You can place a call directly from the Caller ID list.

1) Press [cid/menu] in standby. Use [vol/ / ] or [vol/ / ] to select the phone number that

you want to dial.

2) To have the phone dial a “1” before the displayed Caller ID number, press [1]. To have the

phone dial the stored area code before the displayed Caller ID number, press [3].

3) Press [talk/ﬂ ash]. The displayed phone number dials automatically.

Note: You cannot make a call from the Caller ID list if your cordless telephone is connected to a

private branch exchange (PBX).

Redialing the Last Dialed Number

1) Remove the handset from the base.

2) Press [talk/ﬂ ash].

3) Listen for the dial tone.

4) Press [redial/pause].

1) Remove the handset from the base.

2) Press [redial/pause].

3) Press [talk/ﬂ ash].

UP095BH.indd 24

9/26/2006 5:51:32 PM

Selecting the Ring Tone and Volume

Your phone has ﬁ ve different ringer tone/volume combinations you can choose from.

To select the ringer:

1) With the phone in standby, press [vol/ / ] or [vol/ / ].

2) The phone will sound the different ring tones at different volumes. To turn the ringer

off, select RINGER OFF.

3) When the phone sounds the ring tone and volume you wish to use, press [end].

Temporarily Mute Ringer

If the handset is off the base while an incoming call is ringing, simply press [end] to mute

the incoming ring. The ringer will sound with the next incoming call.

Note: You can only mute the handset ringer if the handset is off the base when the phone starts

ringing.

Adjusting the Earpiece Volume

To change the earpiece volume, press [vol/ / ] or [vol/ / ] during a call.

UP095BH.indd 25

9/26/2006 5:51:33 PM

Using Call Waiting

If you subscribe to Call Waiting through your local telephone company, you can receive calls while on the line.

To answer a call waiting call:

1) While on the phone, you will hear a call waiting tone. (If you have CIDCW service

activated, you will see the name and number of the incoming caller. See page 28 for

more information)

2) Press [talk/ﬂ ash] to accept the waiting call. After a short pause, you will hear the new

caller.

3) To return to the original caller, press [talk/ﬂ ash] again.

Selecting a Different Channel

Your phone incorporates UltraClear Plus™ true compander circuitry which virtually

eliminates background noise. This innovative technology, together with 20 different

channels, provides you with the best possible reception during all your conversations. If

you happen to encounter interference while using your phone, you can manually change

the phone’s channel for clear operation. To change the channel during a call, press

[delete/channel]. SCANNING appears on the display, indicating the phone is changing

to another channel. For more information on interference, refer to "Radio Interference" on

page 40.

Find Handset

To locate a lost handset, press [ﬁ nd] on the base. The handset will beep for 60 seconds.

The beeping will stop when any handset key is pressed, when the handset is returned

to the base, or when [ﬁ nd] is pressed. The handset will also stop beeping automatically

when an incoming call is received.

UP095BH.indd 26

9/26/2006 5:51:33 PM

Tone Dialing Switch-over

If your telephone company requires pulse dialing, you can temporarily switch over to tone

dialing after the call connects. This feature is useful when you need tone dialing to use

automated such as telephone bank tellers, telephone prescription reﬁ lls, customer support

menus, etc.

If your phone is set to pulse dialing mode, make your call normally. Once your call

connects, press [/tone/ ]. Any digits you enter from then on will be sent as tone dialing.

When this particular call ends, the phone automatically returns to pulse dialing mode.

Voice Mail Waiting Indicator

If you subscribe to voice mail service through your local telephone company, you can use your cordless telephone to

access your voice mailbox. The voice mail company will provide you with the access number.

The in use/ LED on the base of your phone ﬂ ashes whenever you have messages waiting in your voice mailbox.

To access your voice mailbox

Just dial the access number supplied by your voice mail provider to enter your mailbox.

You can program your voice mail access number to a speed dial number.

If the voice mail waiting indicator remains on after you have retrieved your messages, press and hold the [ﬁ nd] for 5

seconds. This will reset the indicator.

UP095BH.indd 27

9/26/2006 5:51:34 PM

Caller ID and CIDCW (Caller ID on Call Waiting)

You must subscribe to Caller ID services through your local telephone provider to use these features.

When the telephone rings, the Caller ID feature allows you to view the caller’s name, phone number, date and time

of call. The incoming call information is stored in the Caller ID record. If the Caller ID service includes the caller’s

name, the caller’s name appears on the display (up to 15 letters).

The date and

time received

Caller's name

Caller's phone number

You may receive any one of the following messages:

When invalid data is received INCOMPLETE DATA

When a private name is received PRIVATE NAME

When a private number is received PRIVATE NUMBER

When an unknown name is received UNKNOWN NAME

When an unknown number is received UNKNOWN NUMBER

Note:

• Data errors appear as ” ”.

• If you answer a call before the Caller ID message is received (for example, before the second ring),

the Caller ID message will not appear.

• When the call is received via a telephone company that does not offer Caller ID service, the caller’s

phone number and name do not appear. (This includes international calls.)

• When the call is received via a private branch exchange (PBX), the caller’s phone number and

name may not appear.

UP095BH.indd 28

9/26/2006 5:51:34 PM

Caller ID on Call Waiting (CIDCW)

If you subscribe to CIDCW offered by your telephone company, you will hear a Call Waiting tone while you are on a

call, and the Caller ID data will be displayed at the handset. To accept the waiting call, press [talk/ﬂ ash] (see page

26).

Viewing the Caller ID Message List

The Caller ID list stores information for up to 30 incoming calls - even unanswered calls. You can also view the Caller

ID list during a call.

1) Press [cid/menu]. The summary screen displays the number of new messages and total

messages.

2) Use [vol/ / ] to scroll through the messages from the latest to the earliest, or use [vol/

/ ] to scroll through the messages from the earliest to the latest.

3) Press [cid/menu] to return to the call, or press [end] to return to standby.

Note:

• In Caller ID operation, if no key is pressed for more than 30 seconds, an error tone sounds and the

handset returns to standby.

• Each message can be up to 15 characters for the name and 15 digits for the phone number.

• The number of calls from the same Caller ID appears next to the received time. Once you view the

new message, the number will be cleared and disappear.

• During a call, don't press [end], or the call will be disconnected.

UP095BH.indd 29

9/26/2006 5:51:35 PM

Deleting Information from the Caller ID List

If the phone receives more Caller ID messages than it can store, the oldest one in the list is automatically deleted.

Caller ID data can also be deleted manually.

Deleting a Caller ID message

1) Press [cid/menu] in standby. Find the message to be deleted from the Caller ID list by

pressing [vol/ / ] or [vol/ / ].

2) Press [delete/channel].

3) Press [vol/ / ] or [vol/ / ] to select YES, and then press [select].

Deleting all Caller ID names/numbers

1) With the phone in standby, press [cid/menu].

2) Press [delete/channel].

3) Press [vol/ / ] or [vol/ / ] to select YES, and then press [select].

You hear a conﬁ rmation tone and all stored Caller ID messages are deleted.

Note:

• While using the DELETE ALL? or DELETE MESSAGE? screen, if no key is pressed for more than

30 seconds, an error tone sounds, and the handset returns to standby.

• If you get an incoming call or page, the deleting operation is canceled and you can answer the call

or page.

UP095BH.indd 30

9/26/2006 5:51:36 PM

Changing the Digital Security Code

To protect you against misbilled calls which might result from your phone being activated by other equipment, the

cordless phone provides AutoSecure™ (which electronically locks your phone when the handset is in the base)

and Random Code™ digital security which automatically selects one of over 262,000 digital security codes for the

handset and the base. If the handset battery pack is completely discharged or the battery pack is removed, the

digital security code will be lost. If this happens, a new security code is set automatically the next time the battery

pack is charged. In the rare situation that you suspect another cordless telephone is using the same security code,

you can change the code.

1) Remove the handset from the base unit. Press and hold [ﬁ nd] on the base.

2) While holding [ﬁ nd], place the handset in the base, and leave the handset in the base for more than 3 seconds.

A new random security code is set.

UP095BH.indd 31

9/26/2006 5:51:37 PM

Maintenance

Speciﬁ cations

The phone complies with FCC Parts 15 and 68.

Operating temperature -10°C to 50°C (+14°F to +122°F)

AC Adapter

Part number AD-0001

Input Voltage 120V AC 60Hz

Output Voltage 9V DC 210mA

Battery Part number BT-1006

Capacity 500mAh, 3.6V

Frequency 924.516925 - 926.704425MHz

2,405.155942 - 2,411.718441 MHz

Note: To avoid damage to the phone use only Uniden AD-0001 and BT-1006 with your phone.

Speciﬁ cations, features, and availability of optional accessories are all subject to change without prior notice.

Power Failure

During the period that the power is off, you will not be able to make or receive calls with the telephone.

UP095BH.indd 32

9/26/2006 5:51:37 PM

Talk and Standby Times

With average use, your handset battery provides approximately 6 hours of talk time and approximately 7 days

of standby time. When your handset is not being used and are left off of their base unit, the battery will gradually

discharge. You can achieve optimum battery life and performance by returning the handset to the base unit after

each use. If the handset is left off of the base unit, the actual talk time duration will be reduced respective to the

amount of time the handset is off of the base unit.

Low battery alert

When the battery pack is very low and needs to be charged, the phone is programmed to eliminate functions in order

to save power. If the phone is not in use, LOW BATTERY appears on the LCD and none of the keys will operate.

During a call, LOW BATTERY ﬂ ashes and the handset beeps. Complete your conversation as quickly as possible

and return the handset to the base unit for charging.

Note: Information stored in the phone's memory will be retained for 30 minutes after the battery pack

is removed. This includes all setup information, last number dialed, speed dial memory, and the CID

list.

Even when the battery pack is not being used, it will gradually discharge over a long period of time. For optimum

performance, be sure to return the handset to the base unit after a telephone call.

UP095BH.indd 33

9/26/2006 5:51:37 PM

Battery replacement and handling

Recharge your phone on a regular basis by returning the handset to the base after each phone call. When the

operating time becomes short even after a battery is recharged, please replace the battery. With normal usage, your

battery should last about one year. To order replacement batteries, please contact Uniden’s Parts Department. The

contact information is listed on the back cover page.

Warning:

To avoid the risk of personal injury or

property damage from ﬁ re or electrical

shock, only use the Uniden battery

model and Uniden adapter model

speciﬁ cally designated for this product.

Caution

• Use only the speciﬁ ed Uniden battery pack (BT-1006).

• Do not remove the battery from the handset to charge it.

• Never throw the battery into a ﬁ re, disassemble it, or heat it.

• Do not remove or damage the battery casing.

Cleaning the battery charging contacts

To maintain a good charge, clean the charging contacts on the handset once

a month. Dampen a cloth with plain water. Gently rub the damp cloth over the

charging contacts until all visible dirt is removed. Dry the contacts thoroughly

before returning the handset to the base.

Caution

Do not use paint thinner, alcohol, or other chemical products. Doing so

may discolor the surface of the telephone and damage the ﬁ nish.

UP095BH.indd 34

9/26/2006 5:51:37 PM

Troubleshooting

Traveling Out-of-Range

During a call, as you begin to move your handset too far from your base unit, noise increases. If you pass the range

limits of the base, your call will terminate within one minute.

Common Issues

If your phone is not performing to your expectations, please try these simple steps ﬁ rst. If these steps do not solve

your problem, please call our Customer Hotline. See back cover page for contact information.

Symptom Suggestion

The in use/ LED won't

illuminate when the handset is

placed in the base.

• Make sure the AC adapter is plugged into the base and wall outlet.

• Make sure the handset is properly seated in the base.

• Make sure the charging contacts on the handset are clean.

The audio sounds weak and/

or scratchy.

• Move the handset and/or base away from metal objects or appliances and try

again.

• Press [delete/channel] during a call to help eliminate background noise.

• Make sure that the handset is not too far from the base.

Can’t make or receive calls.

• Check both ends of telephone line cord.

• Make sure the AC adapter is plugged into the base and wall outlet.

• Disconnect the AC adapter for a few minutes, then reconnect it.

• Change the digital security code (see page 31).

• Make sure that the handset is not too far from the base.

• Check the dialing mode used by your telephone company.

UP095BH.indd 35

9/26/2006 5:51:37 PM

Symptom Suggestion

The handset doesn’t ring or

receive a page.

• The battery pack may be weak. Charge the battery for 15-20 hours.

• The handset may be too far away from the base unit.

• Place the base unit away from appliances or metal objects.

• Change the digital security code (see page 31).

• Check the battery pack to ensure there is a secure connection.

• Make sure ringer volume isn’t set to “off.”

Severe noise interference.

• Keep the handset away from microwave ovens, computers, remote control toys,

wireless microphones, alarm systems, intercoms, room monitors, ﬂ uorescent

lights, and electrical appliances.

• Move the base to another location or turn off the source of interference.

The Caller ID does not

display.

• The call was answered before the second ring.

• The call was placed through a switchboard.

• Charge the handset.

• Your Caller ID service may not be active; contact your local telephone service

provider.

Voice Message Indication

does not work.

• Contact your local telephone company to make sure that your telephone receives

FSK message signaling.

• Reset the indicator by pressing and holding [ﬁ nd] for 5 seconds.

UP095BH.indd 36

9/26/2006 5:51:37 PM

Liquid Damage

Moisture and liquid can damage your cordless phone.

• If the handset or base is exposed to moisture or liquid, but only the exterior plastic housing is affected, wipe off the

liquid, and use as normal.

• If moisture or liquid has entered the plastic housing (i.e. liquid can be heard in the phone or liquid has entered the

handset battery compartment or vent openings on the base), follow the steps below:

Handset Base

1) Remove the battery cover and leave it off for ventilation.

2) Disconnect the battery pack. Leave the battery cover off

and the battery pack disconnected for at least 3 days.

3) Once the handset is completely dry, reconnect the

battery pack and the battery cover.

4) Recharge the handset's battery pack for 15 to 20 hours

before using.

1) Disconnect the AC adapter from the base,

cutting off electrical power.

2) Disconnect the telephone cord from the base.

3) Let dry for at least 3 days.

IMPORTANT:

You must unplug the telephone line while recharging the battery pack to avoid charge interruption.

CAUTION:

DO NOT use a microwave oven to speed up the drying process. This will cause permanent damage to the handset,

base and the microwave oven. After following these steps, if your cordless telephone does not work, please call our

Customer Service Hotline. See back cover page for contact information.

UP095BH.indd 37

9/26/2006 5:51:37 PM

Precautions!

Before you read anything else, please note the following:

Warning!

Uniden America Corporation DOES NOT represent this unit

to be waterproof. To reduce the risk of ﬁ re, electrical shock,

or damage to the unit, DO NOT expose this unit to rain or

moisture.

Rechargeable Nickel-Cadmium Battery Warning

• This equipment contains a rechargeable nickel-cadmium

battery.

• Cadmium is a chemical known to the State of California to

cause cancer.

• The rechargeable nickel-cadmium battery contained in this

equipment may explode if disposed of in a ﬁ re.

• Do not short-circuit the battery.

• Do not charge the rechargeable nickel-cadmium battery used

in this equipment in any charger other than the one designed

to charge this battery as speciﬁ ed in the owner's manual.

Using another charger may damage the battery or cause the

battery to explode.

Rechargeable Nickel-Cadmium

Batteries Must Be Recycled or

Disposed of Properly

• Uniden voluntarily participates in an RBRC®

industry program to collect and recycle nickel-

cadmium batteries at the end of their useful life, when taken

out of service within the United States.

• The RBRC® program provides a convenient alternative to

placing used nickel-cadmium batteries into the trash or

municipal waste stream, which is illegal in some areas.

• Through the RBRC® program, Uniden makes it easy for you

to drop off the used battery at local retailers of replacement

nickel-cadmium batteries. You may also contact your local

recycling center for information on where to return the used

battery.

Please call 1-800-8-BATTERY for information on Ni-Cd battery

recycling in your area. Uniden’s involvement in this program

is part of its commitment to protecting our environment and

conserving natural resources.

• RBRC® is a registered trademark of the Rechargeable Battery

Recycling Corporation.

The exclamation point within an equilateral

triangle is intended to alert the user to

the presence of important operating and

maintenance (servicing) instructions in the

literature accompanying the appliance.

Uniden works to reduce lead content in our PVC coated cords

in our products and accessories.

Warning!

The cords on this product and/or accessories contain lead, a

chemical known to the State of California to cause birth defects

or other reproductive harm. Wash hands after handling.

UP095BH.indd 38

9/26/2006 5:51:37 PM

Important Safety Instructions

When using your telephone equipment, basic safety

precautions should always be followed to reduce the risk of ﬁ re,

electric shock and injury to persons, including the following:

1. Do not use this product near water, for example, near a

bath tub, wash bowl, kitchen sink or laundry tub, in a wet

basement or near a swimming pool.

2. Avoid using a telephone (other than a cordless type) during

an electrical storm. There may be a remote risk of electric

shock from lightning.

3. Do not use the telephone to report a gas leak in the vicinity

of the leak.

4. Use only the power cord and batteries indicated in this

manual. Do not dispose of batteries in a ﬁ re. They may

explode. Check with local authorities for possible battery

disposal instructions.

5. Do not disassemble any component of this product.

SAVE THESE INSTRUCTIONS

CAUTION!

Risk of explosion if battery is replaced by an incorrect type.

Dispose of used batteries according to the instructions. Do not

open or mutilate the battery, and disconnect the battery before

shipping this product.

The FCC Wants You To Know

This equipment complies with Part 68 of the FCC rules and the

requirements adopted by the ACTA.

On the bottom of this equipment is a label that contains,

among other information, a product identiﬁ er in the format US:

AAAEQ##TXXXX. If requested, this number must be provided

to the telephone company.

An applicable Universal Service Order Codes (USOC)

certiﬁ cation for the jacks used in this equipment is provided (i.e.,

RJ11C) in the packaging with each piece of approved terminal

equipment. A plug and jack used to connect this equipment to

the premises wiring and telephone network must comply with

the applicable FCC Part 68 rules and requirements adopted by

the ACTA.

A compliant telephone cord and modular plug is provided with

this product. It is designed to be connected to a compatible

modular jack that is also compliant. See installation instructions

for details.

The REN is used to determine the number of devices that may

be connected to a telephone

line. Excessive RENs on a telephone line may result in the

devices not ringing in response to an incoming call. In most but

not all areas, the sum of RENs should not exceed ﬁ ve (5.0). To

be certain of the number of devices that may be connected to

a line, as determined by the total RENs, contact the telephone

provider. For products approved after July 23,

2001, the REN for this product is part of the product identiﬁ er

that has the format US:AAAEQ##TXXXX. The digits

represented by ## are the REN without a decimal point (e.g.,

03 is a REN of 0.3). For earlier products, the REN is separately

UP095BH.indd 39

9/26/2006 5:51:38 PM

shown on the label.

If this equipment causes harm to the telephone network, the

telephone company will notify you in advance that temporary

discontinuance of service may be required. But if advance

notice isn't practical, the telephone company will notify the

customer as soon as possible. Also, you will be advised of

your right to ﬁ le a complaint with the FCC if you believe it is

necessary. The telephone company may make changes in its

facilities, equipment, operations or procedures that could affect

the operation of the equipment. If this happens the telephone

company will provide advance notice in order for you to make

necessary modiﬁ cations to maintain uninterrupted service.

Please follow instructions for repairing, if any (e.g. battery

replacement section); otherwise do not substitute or repair

any parts of the device except as speciﬁ ed in this manual.

Connection to party line service is subject to state tariffs.

Contact the state public utility commission, public service

commission or corporation commission for information. This

equipment is hearing aid compatible.

Should you experience trouble with this equipment, please

contact Uniden customer service at 800-297-1023. If the

equipment is causing harm to the telephone network, the

telephone company may request that you disconnect the

equipment until the problem is resolved.

NOTICE: According to telephone company reports, AC electrical

surges, typically resulting from lightning strikes, are very

destructive to telephone equipment connected to AC power

sources. To minimize damage from these types of surges, a

surge arrestor is recommended.

Changes or modiﬁ cations to this product not expressly

approved by Uniden, or operation of this product in any way

other than as detailed by the owner's manual, could void your

authority to operate this product.

This device complies with part 15 of the FCC rules. Operation

is subject to the following two conditions: (1) This device may

not cause harmful interference, and (2) This device must accept

any interference received, including interference that may cause

undesired operation. Privacy of communications may not be

ensured when using this phone.

To insure the safety of users, the FCC has established

criteria for the amount of radio frequency energy various

products may produce depending on their intended usage.

This product has been tested and found to comply with the

FCC's exposure criteria. For body worn operation, the FCC RF

exposure guidelines were also met when used with the Uniden

accessories supplied or designed for this product. Use of other

accessories may not ensure compliance with FCC RF exposure

guidelines and should be avoided.

Radio Interference

Radio interference may occasionally cause buzzing and

humming in your cordless handset, or caused by external

sources such as TV, refrigerator, vacuum cleaner, ﬂ uorescent

lighting, or electrical storm. Your unit is NOT DEFECTIVE. If

these noises continue and are too distracting, please check

around your home to see what appliances may be causing

the problem. In addition, we recommend that the base not

be plugged into a circuit that also powers a major appliance

because of the potential for interference. Be certain that

the antenna on the unit is fully extended when needed. In

UP095BH.indd 40

9/26/2006 5:51:38 PM

the unlikely event that you consistently hear other voices or

distracting transmissions on your phone, you may be receiving

radio signals from another cordless telephone or other source

of interference. If you cannot eliminate this type of interference,

you need to change to a different channel. Finally, it should be

noted that some cordless telephones operate at frequencies

that may cause interference to nearby TVs and VCRs. To

minimize or prevent such interference, the base of the cordless

telephone should not be placed near or on top of a TV or VCR.

If interference is experienced, moving the cordless telephone

farther away from the TV or VCR will often reduce or eliminate

the interference.

Cordless Telephone Privacy

Cordless telephones are radio devices. Communications

between the handset and base of your cordless telephone

are accomplished by means of radio waves which are

broadcast over the open airways. Because of the inherent

physical properties of radio waves, your communications can

be received by radio receiving devices other than your own

cordless telephone unit. Consequently, any communications

using your cordless telephone may not be private.

I.C. Notice

Terminal Equipment

NOTICE: This equipment meets the applicable Industry Canada

Terminal Equipment Technical Speciﬁ cations. This is conﬁ rmed

by the registration number. The abbreviation, IC, before the

registration number signiﬁ es that registration was performed

based on a Declaration of Conformity indicating that Industry

Canada technical speciﬁ cations were met. It does not imply that

Industry Canada approved the equipment

NOTICE: The Ringer Equivalence Number (REN) for this

terminal equipment is marked on the equipment itself. The REN

assigned to each terminal equipment provides an indication

of the maximum number of terminals allowed to be connected

to a telephone interface. The termination on an interface may

consist of any combination of devices subject only to the

requirement that the sum of the Ringer Equivalence Numbers of

all the devices does not exceed ﬁ ve.

Radio Equipment

The term “IC:” before the radio certiﬁ cation number only

signiﬁ es that Industry Canada technical speciﬁ cations were

met. Operation is subject to the following two conditions: (1) this

device may not cause interference, and (2) this device must

accept any interference, including interference that may cause

undesired operation of the device. "Privacy of communications

may not be ensured when using this telephone".

UP095BH.indd 41

9/26/2006 5:51:38 PM

One Year Limited Warranty

Important: Evidence of original purchase is required for warranty

service. WARRANTOR: UNIDEN AMERICA CORPORATION

("Uniden") ELEMENTS OF WARRANTY: Uniden warrants, for

one year, to the original retail owner, this Uniden Product to be

free from defects in materials and craftsmanship with only the

limitations or exclusions set out below.

WARRANTY DURATION: This warranty to the original user

shall terminate and be of no further effect 12 months after the

date of original retail sale. The warranty is invalid if the Product

is (A) damaged or not maintained as reasonable or necessary,

(B) modiﬁ ed, altered, or used as part of any conversion kits,

subassemblies, or any conﬁ gurations not sold by Uniden, (C)

improperly installed, (D) serviced or repaired by someone

other than an authorized Uniden service center for a defect

or malfunction covered by this warranty, (E) used in any

conjunction with equipment or parts or as part of any system

not manufactured by Uniden, or (F) installed or programmed by

anyone other than as detailed by the owner's manual for this

product.

STATEMENT OF REMEDY: In the event that the product does

not conform to this warranty at any time while this warranty is

in effect, warrantor will either, at its option, repair or replace

the defective unit and return it to you without charge for parts,

service, or any other cost (except shipping at its option, may

replace the unit with a new or refurbished unit. THE LIMITED

WARRANTY SET FORTH ABOVE IS THE SOLE AND ENTIRE

WARRANTY PERTAINING TO THE PRODUCT AND IS IN

LIEU OF AND EXCLUDES ALL OTHER WARRANTIES OF

ANY NATURE WHATSOEVER, WHETHER EXPRESS,

IMPLIED OR ARISING BY OPERATION OF LAW, INCLUDING,

BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF

MERCHANTABILITY OR FITNESS FOR A PARTICULAR

PURPOSE. THIS WARRANTY DOES NOT COVER OR

PROVIDE FOR THE REIMBURSEMENT OR PAYMENT

OF INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some

states do not allow this exclusion or limitation of incidental or

consequential damages so the above limitation or exclusion

may not apply to you.

LEGAL REMEDIES: This warranty gives you speciﬁ c legal

rights, and you may also have other rights which vary from

state to state. This warranty is void outside the United States

of America and Canada. PROCEDURE FOR OBTAINING

PERFORMANCE OF WARRANTY: If, after following the

instructions in the owner's manual you are certain that the

Product is defective, pack the Product carefully (preferably in

its original packaging). Disconnect the battery from the Product

and separately secure the battery in its own separate packaging

within the shipping carton. The Product should include all parts

and accessories originally packaged with the Product. Include

evidence of original purchase and a note describing the defect

that has caused you to return it. The Product should be shipped

freight prepaid, by traceable means, to warrantor at:

Uniden America Service

4700 Amon Carter Blvd.

Fort Worth, TX 76155

UP095BH.indd 42

9/26/2006 5:51:38 PM

AC adapter information.................. 32

Basic setup .................................... 15

Battery pack

Information................................. 32

Installing .................................... 10

Preparing and charging ....... 10, 11

Replacement and handling ........ 34

Caller ID service ............................ 28

Caller ID on call waiting ............. 29

Deleting ..................................... 30

Making a call.............................. 24

Viewing ...................................... 29

Call waiting .................................... 26

Channel ......................................... 26

Charging the battery pack ............. 11

Cleaning contacts .......................... 34

Controls and functions ................. 7, 8

Dial mode ...................................... 17

Digital security code ...................... 31

E, F, G, H, I, J, K, L

Earpiece volume ............................ 25

Find handset .................................. 26

Installing the phone ......................... 9

Interference ................................... 40

Liquid damage ............................... 37

M, N, O, P, Q

Maintenance .................................. 32

Making a call.................................. 23

Precautions.................................... 38

Receiving a call ............................. 23

Redial ............................................ 24

Ringer tone and volume ................ 25

Speed dial memory

Making calls from speed dial

memory...................................... 23

Storing names and numbers in

speed dial memory .................... 19

T, U

Talk and standby times .................. 33

Technical information ..................... 32

Tone dialing switch-over ................ 27

Traveling out-of-range ................... 35

Troubleshooting ............................. 35

V, W, X, Y, Z

Voice mail waiting indicator ........... 27

Wall mounting ................................ 13

Warranty ........................................ 42

Index

UP095BH.indd 43

9/26/2006 5:51:38 PM

Memo

UP095BH.indd 44

9/26/2006 5:51:38 PM

Memo

UP095BH.indd 45

9/26/2006 5:51:38 PM

At Uniden, we’ll take care of you!

Thank you for purchasing a Uniden product. If you have any questions or problems,

please do not return this product to the place of purchase.

Having Trouble? Our customer care specialists are here to help you! Visit our website at www.uniden.com or

call our Customer Hotline at 1-800-297-1023, Mon-Fri, 7 a.m. to 7 p.m. or Sat/Sun, 9 a.m. to

5 p.m. CST. (Phone support is closed on holidays.)

Need a Part? To order headsets, additional handsets, replacement batteries or other accessories, visit our

website at www.uniden.com or call 1-800-554-3988, Mon-Fri, 8 a.m. to 5 p.m. CST.

Help for our

Special Needs

Customers

If you need special assistance due to a disability or have questions on the accessibility

features of this product, please call 1-800-874-9314 (voice or TTY)

May be covered under one or more of the following U.S. patents:

4,797,916 5,426,690 5,434,905 5,491,745 5,493,605 5,533,010

5,574,727 5,581,598 5,650,790 5,660,269 5,661,780 5,663,981

5,671,248 5,696,471 5,717,312 5,732,355 5,754,407 5,758,289

5,768,345 5,787,356 5,794,152 5,801,466 5,825,161 5,864,619

5,893,034 5,912,968 5,915,227 5,929,598 5,930,720 5,960,358

5,987,330 6,044,281 6,070,082 6,125,277 6,253,088 6,314,278

6,418,209 6,618,015 6,671,315 6,714,630 6,782,098 6,788,920

6,788,953 6,839,550 6,889,184 6,901,271 6,907,094 6,914,940

6,953,118 7,023,176

Other patents pending.

UP095BH.indd 46

9/26/2006 5:51:38 PM

UPZZ01095BZ(0)

UP095BH.indd 47

9/26/2006 5:51:38 PM

Uniden America UP095 CORDLESS TELEPHONE- BASE UNIT User Manual USERS MANUAL 2

Uniden America Corporation CORDLESS TELEPHONE- BASE UNIT USERS MANUAL 2

Contents

USERS MANUAL 2

Navigation menu

Namespaces

Views

Navigation
