Uniden America UP300 2.4GHz FHSS Cordless Phone w/ Belt-Clip User Manual
Uniden America Corporation 2.4GHz FHSS Cordless Phone w/ Belt-Clip Users Manual
Users Manual
OWNER'S MANUAL
DRAFT
DCT5260 SERIES
(FCC ID: AMWUP300)
Contents
WELCOME/FEATURES 3
QUICK REFERENCE GUIDE 5
CONTROLS AND FUNCTIONS 6
DISPLAYS AND ICONS 8
ABOUT SOFT KEY FUNCTION 9
TERMINOLOGY 9
GETTING STARTED 10
Read this First 10
Checking the Package Contents 11
Setting up the Phone 12
DCT5260 flow chart 16
About Menu 18
Setting up the Menu 20
BASICS 26
Making and Receiving Calls 26
Holding a Call 27
Redialing a Call 28
Ringer Mute (temporarily) 29
Adjusting the Earpiece and Handset Speaker Volume 29
Mute Microphone 29
Tone Dialing Switch-over 30
Traveling Out-of-Range 30
Clarity Booster 30
Find Handset 31
Flash and Call Waiting 31
Using One Touch Voice Mail Access 32
PHONEBOOK 33
Storing Phone Numbers, Names,
Distinctive Rings, and Speed Dial 33

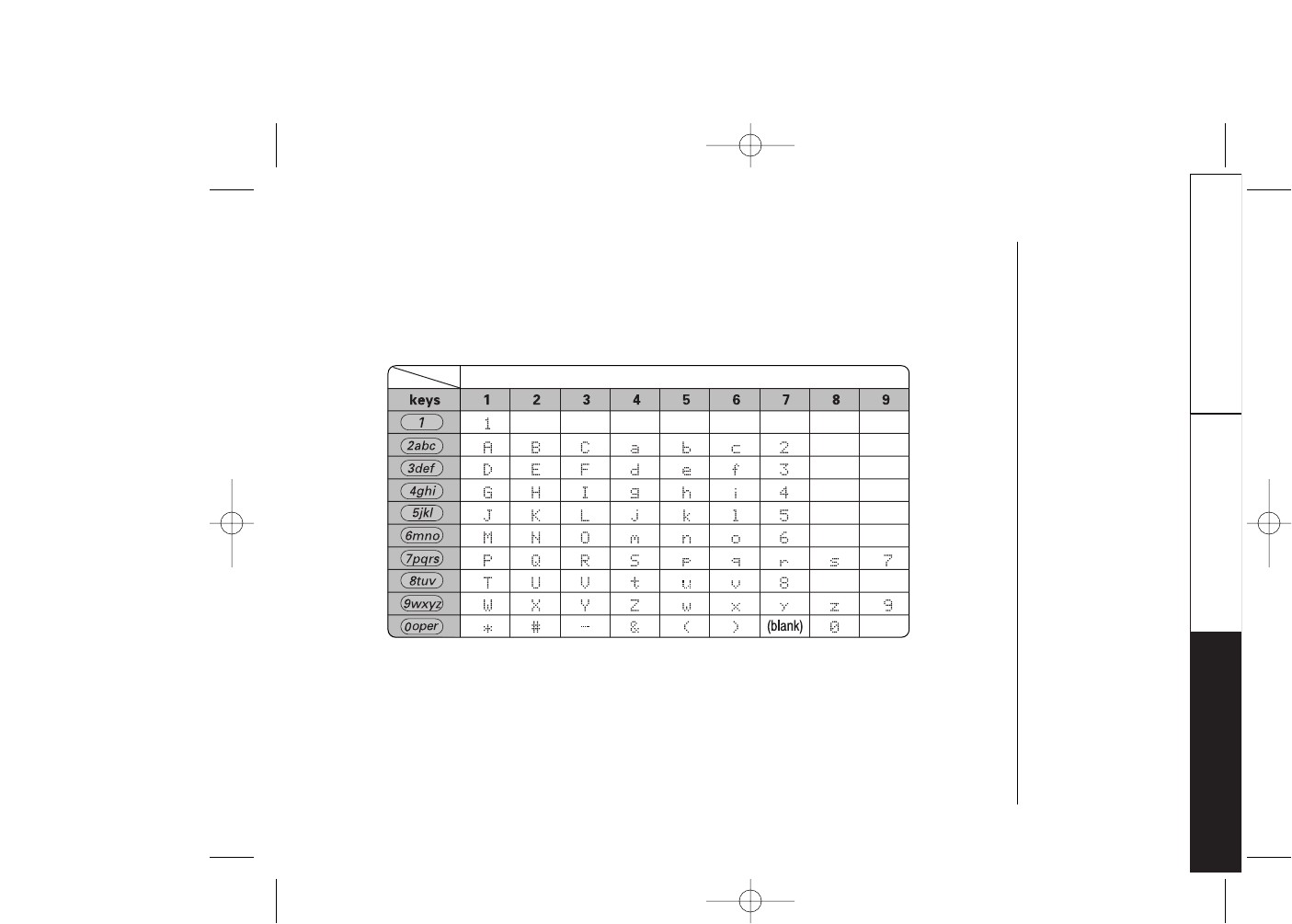

Steps for Entering Names and Special Characters 35
Viewing the Phonebook 37
Making Calls Using the Phonebook 38
Speed Dialing 38
Editing or Erasing a Stored Name,
Phone Number, Distinctive Ring, and Speed Dial 39
Chain Dialing 40
CALLER ID 41
Viewing the Caller ID List 42
Deleting Information from the Caller ID List 43
Using the Caller ID Message List 44
Call Waiting Deluxe Features 45
EXPANDING YOUR PHONE 46
Setting up an Extra Handset 47
Registering an Extra Handset 47
Using the Transceiver 48
3-Way Conferencing 49
Intercom/Call transfer Feature 49
Replacing the Base 50
ADDITIONAL INFORMATION 51
Changing the Digital Security Code 51
Installing the Beltclip 51
Headset Installation 51
Note on Power Sources 52
Maintenance 52
General Information 53
TROUBLESHOOTING 54
liquid Damage 56
PRECAUTIONS & WARRANTY 57
I.C. NOTICE 59
INDEX 60
[ 2 ]
DCT5260_OM 10/1/02 5:29 PM Page 2
Welcome
Features
Congratulations on your purchase of the Uniden DCT5260 series Multi Handset Cordless
System telephone. This unit is different from conventional cordless telephones.
When the base unit is connected to AC power and a telephone line, it can support up
to 8 handsets. Using extra handsets, you can establish a 3-way conference (2 handsets
and an outside line), while two other handsets are making an intercom call. You can
now place a fully featured cordless handset anywhere in your home or office where AC
power is available to connect the handset chargers.
Note: Some illustrations in this manual may differ from the actual unit for
explanation purposes.
As an Energy Star® Partner, Uniden has determined that this product or
product models meets the Energy Star® guidelines for energy efficiency.
Energy Star® is a U.S. registered mark.
• 2.4 GHz Frequency Hopping Spread Spectrum
• Multi Handset Expandability (Max 8 handsets)
• Hands Free Speakerphone in the Handset
• Call Waiting Deluxe
• Caller ID on Call Waiting
• Dynamic Memory Location for Caller ID Messages and
Phonebook Locations (up to 100 numbers in total)
• Trilingual Language Option
• 6 Hour Talk Time
• 14 Day Standby Battery Life
• 4-Line, 16 Character Backlit Handset Display/Backlit Handset Key
• Intercom/Call Transfer
• 32 Digit Redial / 3 Last Number Redial Locations (handset only)
• 16 Distinctive Ring Options (8 ringers and 8 melodies)
• Mute Feature
• Flash and Pause
• Find Handset
WELCOME/FEATURES [ 3 ]
DCT5260_OM 10/1/02 5:29 PM Page 3
WELCOME/FEATURES[ 4 ]
The DCT5260 series features include AutoTalk™ and AutoStandby™. AutoTalk allows you to answer a call by just
removing the handset from the base so you don’t have to waste time pushing buttons. AutoStandby allows you
to hang up by simply returning the handset to the base.
To protect you against mis-billed calls, which might result from your phone being activated by other
equipment, the DCT5260 series has Random Code™ digital security, which automatically selects one of over
approx. 130,000 digital security codes for the handset and base.
Frequency Hopping Spread Spectrum (FHSS) technology improves calling range and clarity, and eliminates cross
talk. Because it rapidly changes transmission frequencies within the 2.4 GHz badwidth, this cordless phone
helps reduce the possibility of eavesdropping.
Be sure to visit our web site: www.uniden.com
Uniden® is a registered trademark of Uniden America Corporation.
AutoTalk, AutoStandby, and Random Code are trademarks of Uniden America Corporation.
• Hearing Aid Compatible
• Tone/Pulse Dialing
• Handset Earpiece, Handset Speaker, and Ringer Volume Control
• 88 Channel Auto Scan
• DirectLink Mode
• Voice Mail Access
• Banner Display
• Battery Level Indicator
• Clock Display
• Call Timer
• 3-way Conference Operation
DCT5260_OM 10/1/02 5:29 PM Page 4
QUICK REFERENCE GUIDE [ 5 ]
QUICK REFERENCE GUIDE
INSTALL THE HANDSET BATTERY
Remove the cover.
Install the battery
supplied with your
phone. Check for
correct + - polarity.
Replace the cover.
PLUG INTO AC POWER
Plug the AC adapter cord into the base unit and
then to a 120V AC outlet.
Place the handset in the base.
Note:
You must charge the battery pack continuously
for
15-20 hours before using the phone.
Step 1 Charging the Battery Step 2 Connecting
CONNECT TO A PHONE LINE
When the handset battery pack is fully charged, plug
the telephone cord into the base unit and then into a
telephone wall jack.
Your phone is set for tone dialing. If your local network
requires pulse dialing, please see “Dial Mode Setting”
on page 24.
TO MAKE A CALL
Press talk/flash and listen for the dial tone.
Dial the desired number (for phonebook dial
feature, see “Phonebook” on page 33 in the
owner’s manual.
Press end or return the handset to the base.
TO ANSWER A CALL
Press talk/flash and speak. Adjust handset volume
louder or softer.
Louder - press volume ▲
Softer - press volume ▼
Step 3 Using the Phone
TO ADJUST HANDSET RINGER
Press the MENU soft key in the standby mode.
Press ▲or ▼to select “Handset Setup”,
then the OK soft key.
Press ▲or ▼to select “Ringer Volume”,
then the OK soft key.
Press ▲or ▼to select a ringer setting,
then the OK soft key.
SUN 12:00A
Handset #1
New:100
MENU CID
RDL
PB
DCT5260_OM 10/1/02 5:29 PM Page 5
Controls and Functions
CONTROLS AND FUNCTIONS[ 6 ]
2
1
3
5
4
6
7
8
9
10
11
19
13
12
16
17
14
18
15
1. Handset Antenna
2. Headset Jack Cover
3. Beltclip Hole
4. Hands Free Speaker
5. Handset Battery Compartment
6. Voice Mail LED
7. Handset Earpiece
8. LCD Display
9. Talk/flash Key
10. /tone/tKey
11. Speaker Key
12. Soft Keys
13. ▲(up)/Volume Key
14. End Key
15. ▼(down)/Volume Key
16. #/sKey
17. Intercom/hold Key
18. Handset Microphone
19. Handset Charging Contacts
DCT5260_OM 10/1/02 5:29 PM Page 6
CONTROLS AND FUNCTIONS [ 7 ]
20
21 23
24
25
22
(DCT5260-2 only)
26
28
27
20. Base Antenna
21. Charge LED
22. Find handset Key
23. Base Charging Contacts
24. Telephone Line Jack
25. DC Power Input
26. Charging Contacts (DCT5260-2 only)
27. Charge LED (DCT5260-2 only)
28. DC Power Input (DCT5260-2 only)
DCT5260_OM 10/1/02 5:29 PM Page 7
DISPLAY AND ICONS[ 8 ]
Display and Icons
Day and time (hh:mm/A/P) / battery icon
Handset No.
Total number of new Caller ID calls received
Soft key menu
SUN 11:59P
Handset #1
New:100
MENU CID
RDL
PB
Example of the standby mode display
ICON DESCRIPTION
Ringer off icon indicates that ringer is set to off.
Mute icon appears when you mute the handset.
Battery icons indicate the handset battery status. This icon cycles
depends on the battery status (empty, low, medium, and full).
indicates that the battery inserted is not available to the phone.
Speaker icon appears when the handset speaker phone is used.
Voice mail soft key is used to access the voice mail.
(You will need to program the voice mail number to use this feature)
DCT5260_OM 10/1/02 5:29 PM Page 8
ABOUT SOFT KEY FUNCTION [ 9 ]
About Soft Key Function
In the standby mode In the Talk mode
Soft key function consists of soft key icons and soft keys (No.1, 2, and 3). Each soft key
correspond to the icon displayed above, and each icon will be changed depending on the
operation. Press the corresponding soft key to enter a menu, select an item, or make your
selection. In this manual, we refer to this combination of icons and keys as the soft key.
For example, you will use the soft keys when you want to:
- Set up CIDCW options
- Access Caller ID messages stored
- Store or edit phone numbers
- Redial the last numbers dialed from the handset
- Register an extra handset
- etc….
SUN 11:59P
Handset #1
New:100
MENU CID
RDL
PB
Soft key 1 Soft key 2 Soft key 3
Talk 999:59
1234567890
MUTE MENU CWDX
Throughout this manual, terms such as Standby and Talk Mode are used. Below is the terminology explanation.
Standby Mode - The handset is not in use, is off the base, and talk/flash or speaker has not been pressed.
A dial tone is not present.
Talk Mode - The handset is not in the base and talk/flash or speaker has been pressed enabling a dial tone.
“Talk” appears on the display.
Terminology
DCT5260_OM 10/1/02 5:29 PM Page 9
GETTING STARTED[ 10 ]
Read this First
This cordless telephone must be set up before use. Follow these steps:
About the digital security code
This cordless telephone uses a digital
security code to prevent unauthorized
access to your base unit. This security
code prevents other cordless handsets
from making calls through your base
unit. If you want to change the
security code, see page 51.
Step 1 (page 11)
Unpack the telephone and accessories.
Step 2 (page 12)
Next, choose the best location to set up the
base unit.
Step 3 (page 13 to 15)
Then, insert the battery pack into the
handset. Connect the base unit. You must
charge the battery pack for 15-20 hours
before plugging into the phone line and
using the phone. Then set the dial mode.
Step 4 (page 16 to 25)
Finally, set the menu. You can set, for example
clock, CIDCW setting, area code, and Autotalk
from the menu.
DCT5260_OM 10/1/02 5:29 PM Page 10
GETTING STARTED [ 11 ]
Checking the Package Contents
Make sure you have received the following items in the package. If any of these
items are missing or damaged, contact the Uniden Parts Department.
•Base unit (1)
•Handset [DCT5260 (1) / DCT5260-2 (2)*]
•AC adapter [DCT5260 (1) / DCT5260-2 (2)*]
•Rechargeable battery [DCT5260 (1) / DCT5260-2 (2)*]
•Telephone cord (1)
•Beltclip [DCT5260 (1) / DCT5260-2 (2)]
•Charger (1) [DCT5260-2 only]
Also included:
•This Owner’s Manual
•Other Printed Material
* For operations and restrictions on using multi handsets, read “Expanding your
phone” on page 46.
GETTING STARTED
Uniden Parts Department
(800) 554-3988
Hours: M-F 7:00 a.m. to 5:00 p.m. CST.
We can also be reached on the web at www.uniden.com.
DCT5260_OM 10/1/02 5:29 PM Page 11
GETTING STARTED[ 12 ]
Setting up the Phone
Do the following steps:
A. Choose the best location C. Connect the base unit
B. Install the battery pack D. Choose the dialing mode
A. Choose the best location
Before choosing a location for your new phone, read “Installation Considerations”
on page 58. Here are some important guidelines you should consider:
Avoid excessive
moisture, extremely
low temperatures,
dust, mechanical
vibration, or shock
Avoid heat sources, such as
radiators, air ducts, and sunlight
Avoid television sets and
other electronic equipment
Avoid noise sources such as a window
by a street with heavy traffic
Avoid microwave ovens
Avoid personal computers
Avoid other cordless telephones
Choose a central location
DCT5260_OM 10/1/02 5:29 PM Page 12
GETTING STARTED
GETTING STARTED [ 13 ]
B. Install the battery pack
Charge the battery pack for at least 15-20 hours before
plugging the phone line into your base unit.
1) Press down on the battery cover release and slide the
cover down until it comes off.
2) Install the batteries supplied with your phone observing
correct + - polarity.
If you put any battery which is not available to the
phone, “use rechargeable battery only” appears
on the display.
3) Securely close the battery compartment cover by sliding it
up until it snaps into place.
4) Place the handset in the charging cradle with the keypad
facing up.
•Use only the Uniden
battery (BT-xxx)
supplied with your
phone. Replacement
batteries are also
available through
the Uniden Parts
Department.
(See page 11.)
•Recharge your phone
on a regular basis by
returning the handset
to the base after
each phone call.
Battery use time (per charge)
Fully charged (15-20 hours charge time)
•6 hours continuous use
•14 days when the handset is in the standby mode
DCT5260_OM 10/1/02 5:30 PM Page 13
GETTING STARTED[ 14 ]
Cleaning the battery charging contacts
To maintain a good charge, it is important to
clean the charging contacts on both the handset
and the base unit once a month. Use a dry
cloth or pencil eraser to clean. If the contacts
become very dirty, use water only, dampen a
cloth to clean the charging contacts. Then make
sure to go back over the charging contacts with
a dry cloth before returning the handset to the
base to charge. contacts
Low battery alert
When the batteries are very low and need to be charged, the phone is programmed to
eliminate functions in order to save power.
The battery pack needs to be charged when:
- The battery icon appears.
- “Low Battery” appears on the LCD, or
a beep tone sounds.
If the phone is in the standby mode, none of keys will operate. If you are making a call,
complete your conversation as quickly as possible, and return the handset to the base.
Low Battery
C. Connect the base unit
1) Connect the AC adapter to the DC IN 9V jack
and to a standard 120V AC wall outlet.
2) Set the base on a desk or tabletop, and place
the handset in the base unit as shown.
DCT5260_OM 10/1/02 5:30 PM Page 14
GETTING STARTED
GETTING STARTED [ 15 ]
•Use only the supplied AD-xxx AC adapter.
Do not use any other AC adapter.
•Connect the AC adapter to a continuous power supply.
•Place the base unit close to the AC outlet so that you
can unplug the AC adapter easily.
3) Make sure the charge LED illuminates. If the LED does
not illuminate, check to see that the AC adapter is
plugged in and that the handset makes good contact
with the base charging contacts.
Place the power cord
so that it does not
create a trip hazard
or where it could
become chafed and
create a fire or
electrical hazard.
•After installing the battery pack in the handset, charge your handset at least 15-20
hours before plugging into the phone line. Once the handset battery pack is fully
charged, connect the telephone line cord to the base and telephone wall outlet.
4) Connect the telephone line cord to the TEL LINE jack and to
a telephone outlet once the handset is fully charged.
If your telephone outlet isn't
modular type, contact your
telephone company for assistance. Modular
D. Choose the dialing mode
Most phone systems use tone dialing, which sends DTMF tones through the phone
lines. However some phone systems still use pulse dialing such as in rural areas.
The default setting is tone dialing. Depending on your dialing system, set the
mode. To set up the dial mode, see page 24.
•If you are not sure of your dialing system, set the unit to tone dialing. Make a trial call.
If the call connects, leave the setting as is, otherwise set the unit to pulse dialing.
•If your phone system requires pulse dialing and you need to send DTMF tones in certain
situations during a call, you may “switch-over” to tone dialing. (Refer to “Tone Dialing
Switch-over” on page 30.)
DCT5260_OM 10/1/02 5:30 PM Page 15
GETTING STARTED[ 16 ]
DCT5260 Flow Chart
Caller ID
Redial History
Phonebook
BACK BACK OK
Handset #1
New:100
MENU CID
RDL
PB
SUN 11:59P DirectLink Mode
Handset Setup
Global Setup
OKBACK
To enter
DirectLink mode
Press [ENTER]
BACK BACK ENTER
OKBACK
Ringer Tones
Distinct. Ring
Auto Talk
Anykey Answer
Language
Contrast
Banner
<HANDSET SETUP>
Edit Voice Mail
Ringer Volume
Sun 11:59P
Handset #1
DirectLink Mode
CANCEL DirectLink
Sun 11:59P
Handset #1
DirectLink Mode
CANCEL DirectLink
DirectLink Mode
Handset Setup
Global Setup
OKBACK
• From the standby mode
▲
or
▼
▲
or
▼
Set up the menu
•See page 41 for Caller ID
•See page 28 for Redial
•See page 33 for Phonebook
Access the voice mail
dial (See page 21)
Go to DirectLink operation
(See page 21, 48)
the OK soft key
CID
RDL
PB
M
E
N
U
▼▼
Set up the menu
(See 21-23)
the OK soft key
the OK soft key the OK soft key
the ENTER soft key
the DirectLink soft key
Normal standby mode
the CANCEL soft key,
then OK
DCT5260_OM 10/1/02 5:30 PM Page 16
GETTING STARTED [ 17 ]
GETTING STARTED
DirectLink Mode
Handset Setup
Global Setup
OKBACK
Handset Setup
Global Setup
System Reset
OKBACK
Talk 999:59
1234567890
MUTE MENU CWDX
▼ ▼
OKBACK
Area Code
Dial Mode
<GLOBAL SETUP>
Day & Time
CIDCW
▲
or
▼
Set up the menu (See 24)
the OK soft key
<SYSTEM RESET>
Deregister HS
Replacing Base
BACK BACK OK
▲
or
▼
Set up the menu (See 25)
the OK soft key
• From the Talk mode
•Press the MUTE soft key to mute
a call.
•Press the MENU soft key to view
Caller ID list, Redial history,
and phonebook locations.
•Press the CWDX soft key to use
CWDX feature.
DCT5260_OM 10/1/02 5:30 PM Page 17
GETTING STARTED[ 18 ]
Most of the handset settings are set from Menu. Menu has 4 main menus (DirectLink
Mode, Handset Setup, Global Setup, and System Reset) and submenus respectively.
Summary of the Main Menu and Submenu
DIRECTLINK MODE
Select this menu to enter the handset into directlink mode. If you have 2 or more
handsets, a pair of handsets works as transceivers. To use this feature, you must set
the two handsets to the DirectLink mode first (see page 21).
About Menu
HANDSET SETUP
This is the menu for setting specific to the handset. All settings must be set
separately for each handset.
This menu is only apply when you have 2 or more handsets.
Submenu name Description
Edit Voice mail Program or delete the voice mail access number (see page 21).
Ringer Volume Adjust the ringer volume (see page 21).
Ringer Tone Adjusting the ringer tone (see page 22).
Distinct. Ring Set the Distinctive ring (see page 22). “Distinctive Ringer” allows you to
(Distinctive ring) preset memory locations with a designated ring tone. When an incoming call
is received and the Caller ID information matches the information in one of
the memory locations, the Distinctive Ring that has been stored for that
particular Caller will sound.
If you have set multiple memory locations with distinctive rings,
switching the setting to “Distinctive Off” will result in no distinctive ringing.
All incoming calls will have a normal ring tone. Switching to “Distinctive On”
will activate all programmed distinctive ring memory locations.
DCT5260_OM 10/1/02 5:30 PM Page 18
GETTING STARTED [ 19 ]
GLOBAL SETUP
This is the menu for global settings. If you change the setting in one of the
handsets, you change settings for all handset(s). Only one handset can change a
setting at a time.
GETTING STARTED
Make sure the line is not used, and the handset is within the range
limit of the base.
Submenu name Description
AutoTalk Allows you to answer the phone without pressing talk/flash or speaker.
When the AutoTalk is set to On, simply remove the handset from the base
and the phone automatically answers the call (see page 22).
Anykey Answer Allow you to answer the phone without pressing talk/flash or speaker.
When the Anykey Answer is On, you can answer a call by pressing any number
key, /tone/t, or #/son the handset. (see page 22).
Banner Customize the name of your handset, and display it in the LCD in the standby
mode. For example, you can name the handset “MAM” (see page 23).
Language Language option can be used to choose the language of your display.
You can select from English, French, or Spanish (see page 23).
Contrast Adjust the handset LCD brightness for better viewing (10 levels). (see page 23)
Submenu name Description
Day and time Set the day and time of your display (see page 24).
CIDCW Set the Caller ID on Call Waiting (CIDCW) setting. CIDCW performs the same as
regular Caller ID on call waiting number (see page 24). CW Deluxe allows you to
handle call waiting calls in seven different ways (see page 45).
Area Code Store or edit the area code. If you enter a 3-digit area code number in the
“Area Code” option, your local area code does not appear in Caller ID message.
For calls received from outside your local area code, you will see a full 10-digit
number. (see page 24).
Note: If your calling area requires 10-digit dialing, do not program this option.
Dial Mode Set the dial mode to tone or pulse (see page 24)
DCT5260_OM 10/1/02 5:30 PM Page 19
GETTING STARTED[ 20 ]
How to Use the Menu Function
1) Press the MENU soft key in the standby mode.
2) Press ▲or ▼to move the pointer to a desired main
menu (DirectLink Mode, Handset Setup, Global Setup,
and System Reset).
3) Press the OK soft key to enter the submenu. To return
to the previous menu screen, press the BACK soft key.
In the submenu, ▲or ▼is used to select an item.
Press the the OK soft key to confirm your setting.
To return to the main menu, press the BACK soft key. For detailed
instructions, see the following sections for the desired submenu.
4) To exit the menu, press end.
SYSTEM RESET
This menu is used to clear the handset ID from the base, or the base ID from the base.
Submenu name Description
Deregister HS Clear the handset ID from the base. Use this menu, for example when
you change the digital security code (see page 25).
Replacing Base Clear the base ID. Use this menu, for example, if you replace
the base of the same model. (see page 25).
•If any of the following occurs during the menu operation, the operation will be cancelled.
- Press end.
- Press talk/flash or speaker.
- Charge the handset.
- Receive an outside/intercom call or page.
•If the handset remains idle for 30 seconds,
the phone will return to the standby mode.
MENU
SUN 11:59P
Handset #1
New:100
MENU CID
RDL
PB
DirectLink Mode
Handset Setup
Global Setup
OKBACK
Setting up the Menu
DCT5260_OM 10/1/02 5:30 PM Page 20
GETTING STARTED [ 21 ]
DIRECTLINK MODE
Using the DirectLink Mode
1) In the DirectLink Mode menu, press the ENTER soft key
to enter the DirectLink mode. You will hear a
confirmation tone.
2) To back to the normal mode, exit the DirectLink mode.
To exit the DirectLink mode, press the CANCEL soft key,
then the OK soft key, or return the handset to the cradle.
HANDSET SETUP
Programming your Voice Mail Access Number
1) Enter the “Edit Voice Mail” submenu of
the “Handset Setup” menu (see page 20)
2) Enter your personal access number using the
number keypad (0-9), /tone/t, #/s,
or the DELETE soft key.
3) Press the OK soft key. You will hear a confirmation tone and “Done!” appears.
To delete the current Voice Mail Access Number, delete all numbers in Step 2 using
the DELETE soft key and press the OK soft key.
Setting a Ringer Volume
1) Enter the “Ringer Volume” submenu of the “Handset
Setup” menu (see page 20).
2) Press ▲or ▼to adjust the ringer settings (Ringer
volume Off, Ringer volume Low, or Ringer volume High).
You will hear a ringer or melody at the selected volume
(if you select “Ringer volume Off”, no ringer or melody will sound).
3) Press the OK soft key. You will hear a confirmation tone.
GETTING STARTED
To enter
DirectLink mode
Press [ENTER]
BACK BACK ENTER
Edit V_mail No.
1234567890
DELETE PAUSE OK
Ringer Volume
High
BACK BACK OK
If you select “Ringer volume off”, icon appears on the display.
DCT5260_OM 10/1/02 5:30 PM Page 21
GETTING STARTED[ 22 ]
Selecting a Ringer Tone
1) Enter the “Ringer Tone” submenu of the “Handset
Setup” menu (see page 20).
You can choose from 8 ringers or 8 melodies:
- Ringers [Flicker, Clatter, Soft Alert, Wake Up, Light
Bug, Beep Boop, Tone Board, Chip Chop]
- Melodies [Beethoven’s Symphony#9 (Beethoven9),
For Elise (Elise), We wish a Merry Christmas
(Merry-Xmas), Home Sweet Home (Hm Swt Hm),
Lorri Song#6 (Lorri Song), When the Irish eyes are
smiling (Irish eyes), Oura Lee, Let me call you sweet
heart (Sweetheart)]
2) Press ▲or ▼to move the pointer. You will hear the
ringer of melody as you scroll through the options.
3) Press the OK soft key. You will hear a confirmation tone.
If you set the ringer to Off, the ringer tone will not sound.
Distinctive Ringer Setup
1) Enter the “Distinct. Ring” submenu of the
“Handset Setup” menu (see page 20).
2) Press ▲or ▼to select “On” or “Off”.
3) Press the OK soft key. You will hear a confirmation tone.
Setting the AutoTalk
1) Enter the “Auto Talk” submenu of the “Handset
Setup” menu (see page 20).
2) Press ▲or ▼to change the selection, “On” or “Off”.
3) Press the OK soft key and you will hear a
confirmation tone.
OKBACK
Soft Alert
Wake Up
Light Bug
Beep Boop
Chip Chop
Elise
Merry-Xmas
Hm Swt Hm
Lorri Song
Irish Eyes
Aura Lee
Sweetheart
Beethoven9
Tone Board
Ringer Tones
Flicker
Clatter
Distinctive Ring
On
Off
BACK BACK OK
Auto Talk
On
Off
BACK BACK OK
DCT5260_OM 10/1/02 5:30 PM Page 22
GETTING STARTED [ 23 ]
Setting the Anykey Answer
1) Enter the “Any Answer” submenu of the “Handset
Setup” menu (see page 20).
2) Press ▲or ▼to change the selection, “On” or “Off”.
3) Press the OK soft key and you will hear a
confirmation tone.
Setting the Banner
1) Enter the “Banner” submenu of the “Handset Setup”
menu (see page 20).
2) Use the number keypad (0-9), /tone/t, #/s,
or the DELETE soft key to enter the name.
3) Press the OK soft key and you will hear a
confirmation tone.
To delete the current banner, press the DELETE soft key and then press the OK soft key.
Selecting a Language
1) Enter the “Language” submenu of the “Handset
Setup” menu (see page 20).
2) Press ▲or ▼to choose English, French (Français),
or Spanish (Español).
3) Press the OK soft key and you will hear a
confirmation tone.
Setting the LCD Contrast Setting
1) Enter the “Contrast” submenu of the “Handset
Setup” menu (see page 20).
2) Press ▲or ▼to adjust the contrast of the LCD
(10 levels).
3) Press the OK soft key and you will hear a
confirmation tone.
GETTING STARTED
If you press ▲in the highest volume level or ▼in the lowest volume level,
you will hear a beep.
Anykey Answer
On
Off
BACK BACK OK
Banner
Handset
BACK DELETE OK
OKBACK
Contrast
- +
BACK BACK OK
DCT5260_OM 10/1/02 5:30 PM Page 23
GETTING STARTED[ 24 ]
GLOBAL SETUP
Setting Day and Time
1) Enter the “Day & Time” submenu of the “Global
Setup” menu (see page 20).
2) Press ▲or ▼to select the day,
then press the OK soft key.
3) Press the number keypad (0-9) to change the time,
then press the OK soft key.
4) Press ▲or ▼to choose “AM” or “PM”, then press the
OK soft key. You will hear a confirmation tone.
CIDCW setting
1) Enter the “CIDCW” submenu of the “Global Setup”
menu (see page 20).
2) Press ▲or ▼to select “CW On/CWDX On”, “CW
On/CWDX Off”, or “CW Off/CWDX Off”, then press
the OK soft key. You will hear a confirmation tone.
Area Code setting
1) Enter the “Area Code” submenu of the “Global Setup” menu (see page 20).
2) Press the number keypad (0-9) to enter a 3-digit area code.
3) Press the OK soft key. You will hear a confirmation tone.
When the area code has already been stored in memory, the stored area code will be displayed.
To change it, use the DELETE soft key and number keys to enter the new area code.
Dial Mode setting
1) Enter the “Dial Mode” submenu of the “Global
Setup” menu (see page 20).
2) Press ▲or ▼to change the selection, “Tone” or
“Pulse” (The initial setting is Tone).
3) Press the OK soft key. You will hear a confirmation tone.
Day & Time
SUN 11:59 PM
BACK BACK NEXT
Day & Time
SUN 11:59 PM
BACK BACK OK
OKBACK
CW Off/CWDX Off
CIDCW
CW On/CWDX On
CW On/CWDX Off
Dial Mode
Tone
Pulse
BACK BACK OK
DCT5260_OM 10/1/02 5:30 PM Page 24
GETTING STARTED [ 25 ]
GETTING STARTED
SYSTEM RESET
De-register HS
1) Enter the “Deregister HS” submenu of the “System
Setup” menu (see page 20).
2) Press ▲or ▼to select the handset to be de-registered
from the list.
3) Press the OK soft key and you will hear a confirmation
tone.
When de-registration is complete, “Deregistration Complete!” appears,
and the handset returns to the standby mode.
Replacing base setting
1) Enter the “Deregister HS” submenu of the “System
Setup” menu (see page 20). “Do you want to
replace Base?” appears.
2) Press the OK soft key. The base information will be deleted.
When replacing the base is complete, “Please Register” appears, register
the handset(s) to the new base (see page 47).
Which Handset?
Handset #1
Handset #2
BACK BACK OK
Are you sure
to deregister
Handset #1?
BACK BACK OK
Do you want to
replace Base?
BACK BACK OK
DCT5260_OM 10/1/02 5:30 PM Page 25
On the handset, you may also use the speakerphone while talking to an outside call.
Using the handset speakerphone is called “hands-free conversation”. This feature
allows you to easily communicate while performing other tasks, such as cooking.
appears during hands-free conversation.
You can easily switch a call from normal conversation to “hands-free conversation”.
To switch a call, press speaker during the call.
From the Handset
Normal conversation Hands-free conversation
To answer a call Handset On the Base
Pick up the handset (AutoTalk)
or pick up the handset and
press talk/flash.
Handset Off the Base Handset Off the Base
Press any number key, /tone/t, Press speaker.
or #/s(Any Key Answer),
or press talk/flash.
To make a call Handset Off the Base Handset Off the Base
1) Press talk/flash. 1) Press speaker.
2) Listen for the dial tone. 2) Listen for the dial tone.
3) Dial the number. 3) Dial the number.
OR OR
Dial the number, then Dial the number, then
press talk/flash. press speaker.
Note: If a call is not established, you will hear a beep
and “Unavailable” will appear in the display.
To hang up Press end, or return the handset to the base (AutoStandby).
To enter a pause When you dial the number, press the PAUSE soft key.
within the “P” appears in the display, which represents a pause.
dialing sequence
BASICS[ 26 ]
Making and Receiving Calls
•To set “Autotalk” or
“Anykey Answer”
eesee page 22.
•The handset
microphone is located
at the bottom of the
handset (see “Controls
and Functions” on
page 6). Position
yourself as near to the
handset as possible
and speak clearly.
•If the line is used
by DCT5260 or
DCX520 handsets,
“Line in use”
appears in another
idle handsets display.
•Only one handset can
make an outside call
at a time.
DCT5260_OM 10/1/02 5:30 PM Page 26
BASICS
BASICS [ 27 ]
Holding a Call
1) During a call, press intercom/hold.
2) After 10 seconds has passed or press end, the call
will be put on hold.
3) To talk to the caller, press talk/flash or speaker
on a handset. The phone will back to the call.
•While an outside line is on hold, “Line on Hold press talk
key for call” appears on the idle handset(s).
•You can hold a call for 5 minutes, when 5 minutes passed, the call
is disconnected and the phone return to the standby.
•If another handset(s) make a call, holding operation is canceled.
•While holding a call, CIDCW can not be received.
Hold to transfer
Handset #2
Handset #3
BACK BACK OK
MENU CID
RDL
PB
Line On Hold
Press TALK key
for Call
DCT5260_OM 10/1/02 5:30 PM Page 27
[ 28 ] BASICS
Redialing from Talk Mode
1) Press the MENU soft key during a call.
2) Select the number you dialed by following steps 2-3 in “Redialing from the standby
mode”. To go back a call, press the BACK soft key.
3) Press the DIAL soft key
4) To hang up, press end.
Deleting a Redial Record
1) In the standby mode, while the desired name appears, press the DELETE soft key.
2) Press the OK soft key and the redialed number is deleted.
Redialing a Call
The last three phone numbers dialed can be
quickly redialed.
Redialing from Standby Mode
1) Press the CID RDL PB soft key in the
standby mode.
2) Press ▲or ▼to select “Redial History”,
then press the OK soft key. The phone number
that was last dialed appears on the display.
3) Press ▲or ▼to toggle through last three phone
numbers dialed.
4) Press talk/flash. The selected number is dialed.
5) To hang up, press end.
•If you have not pressed any key for 30 seconds, the
phone returns to the standby mode.
•If you press end, the operation is canceled and the
phone will return to the standby mode.
<Rediall>
8002971023
BACK BACK DELETE
<Redial2>
2145551234
BACK BACK DELETE
<Redial3>
9725554321
BACK BACK DELETE
or
or
•If the number
exceeds 32 digits,
only the first 32
digits are retained
in redial memory.
•If the redial memory
is empty, you will
hear a beep.
DCT5260_OM 10/1/02 5:30 PM Page 28
BASICS
[ 29 ]
You can temporarily mute the ringer tone. When the handset is off the
base and the phone is ringing, press end. The ringer tone will return to
the previous setting starting with the next incoming call.
Ringer Mute (temporarily)
BASICS
Adjusting the Earpiece and
Handset Speaker Volume
You can select different volume levels for the handset earpiece and the handset
speaker (6 levels: Low to Max). The volume can only be adjusted during a call.
Press ▲or ▼to select the volume settings. When you hang up, the phone keeps
the last volume setting selected.
If you press ▲in the maximum volume level or ▼in the lowest volume level,
you will hear a beep.
Mute Microphone
You can temporarily turn Off the microphone so that the person you are talking
with cannot hear you.
During a telephone call press the MUTE soft key to turn Off the microphone, and
“Mute” appears in the display. Press the MUTE OFF soft key to cancel muting.
If you press end to
cancel muting, the
call is disconnected
and the phone
will return to the
standby mode.
DCT5260_OM 10/1/02 5:30 PM Page 29
[ 30 ]
Tone Dialing Switch-over
Some telephone companies use equipment that requires pulse
dialing (sometimes referred to as rotary dialing). If you need to
enter tone dialing digits, you can switch-over to tone dialing
during the call. For example, entering your bank account
number after you have called your bank.
Initially make your call with the pulse dialing mode. Once your
call connects, press /tone/t. Enter the desired number.
These digits will be sent as tone dialing. Once the call ends,
the tone mode is canceled and pulse dialing mode resumes.
•The tone feature only
applies when the dial
mode is set to pulse.
•This special number
can be stored in a
memory location.
This is referred to as
Chain Dialing. (See
page 40.)
BASICS
Traveling Out-of-Range
During a call, as you begin to move your handset too far from your base unit,
noise increases. If you pass the range limits of the base unit, you will hear a
beep and “Out of Range” appears, then the handset return to the standby
mode within 5 seconds. You may back to the call, if you move your handset
within the range limits of the base, you can return the call by pressing
talk/flash or speaker shortly.
Clarity Booster
If you encounter interference while using your phone, you can manually improve
the sound quality for clear operation. This works only when the phone is in use.
1) Press MENU.
2) Select “Booster On”, then OK. “Clarity Booster” appears in the display.
To turn off the booster, press MENU. Select “Booster Off”, then OK again.
DCT5260_OM 10/1/02 5:30 PM Page 30
BASICS
[ 31 ]BASICS
Find Handset
To locate the handset, press find handset on the base
when the base is in the standby mode. The handset
beeps for 60 seconds, and “Paging” appears on the
handset display.
Paging is canceled when pressing the STOP soft key or
any key on the handset or find handset on the base.
Additionally, if you receive an outside/intercom call or
intercom, page is canceled.
Flash and Call Waiting
If you have Call Waiting service and a call waiting tone
sounds while you are on a call, press talk/flash to accept
the waiting call. There is a short pause, then you will hear
the new caller. To return to the original caller, press
talk/flash again.
•If the handset
batteries are
completely drained,
the handset will not
beep when paging.
•You must subscribe
through your local
telephone company
to receive Call
Waiting Service.
DCT5260_OM 10/1/02 5:31 PM Page 31
BASICS[ 32 ]
Using One Touch Voice Mail Access
If you subscribe to voice mail service, you can use your phone to access your
voice mailbox. The voice mail LED flashes whenever you have messages
waiting in your voice mailbox. Just program the handset with your access
number and you can get your messages at the touch of a button. (The voice
mail service provider will supply you with the access number. This number
may be simply a phone number. Refer to the provider’s literature.)
• To program your Voice Mail Access Number eeSee page 21.
• To delete your Voice Mail Access Number eeSee page 21.
Dialing your Voice Mail Service
Once you’ve programmed your personal access number, you can dial your
mailbox with the touch of a button. When you have messages, simply pick
up the handset and press the soft key. If you have not entered the
access number or it has been deleted, when you press the soft key,
you will hear a beep and the phone returns to the standby mode.
Voice Mail Access
The voice mail LED on the handset is designed to work with your voice mail
service provided by your local telephone company. The LED flashes when you
have new incoming messages in the voice mail service.
You may need to occasionally reset the indicators if they remain On after
you’ve retrieved your messages. To reset the indicators, when the phone is in
the standby mode press and hold find handset on the base until the
paging sound stops (about 5 seconds).
You must subscribe
to voice mail service
from your telephone
company in order to
use this feature. The
voice mail service
company will
provide you with
the access number.
DCT5260_OM 10/1/02 5:31 PM Page 32
PHONEBOOK [ 33 ]
PHONEBOOK
Phonebook allows you to dial a number using just a few key presses.
Your phone stores names/numbers in the phonebook memory location, and you can
search names in alphabetical order. You have a total of 100 locations that can be used
for the phonebook (including the Speed dials) and Caller ID messages.
1) When the phone is in the standby mode, press the CID RDL PB soft key.
2) Press ▲or ▼to move pointer to “Phonebook”, then press OK soft key.
The handset displays the following items:
(1st line) The number of the phonebook locations used
(2nd line) How to search (press the number keypad, ▲or ▼)
(3rd line) How to enter the storing operation (press the STORE soft key)
(4th line) The BACK and the STORE soft keys.
Storing Phone Numbers, Names, Distinctive
Rings, and Speed Dial
Phonebook
Phonebook :100
Search [A-Z/ / ]
Store [STORE]
BACK BACK STORE
•If any of the following occurs during a phonebook operation, the operation will be canceled.
-Press end. The phone will return to the standby mode (or the call will be disconnected).
-Press talk/flash or speaker.
-Receive an outside/intercom call or page.
-Charge the handset
-Receive a CIDCW (Caller ID on Call Waiting) (during a call only).
•If the handset remains idle for 30 seconds, the phone will return to the standby mode (or
back to the call).
DCT5260_OM 10/1/02 5:31 PM Page 33
PHONEBOOK[ 34 ]
3) Press the STORE soft key, “Store/Edit Name” appears.
4) Enter the name (up to 16 characters) by using the
number keypad. (See the “Steps for entering names and
special characters” on page 35).
If a name is not required, go to step 5. <No Name> will
be stored as the name.
5) Press the OK soft key to store the name,
“Store/Edit No.” appears.
6) Press the number keypad to enter the phone number (up
to 20 digits), press the OK soft key to store the number.
7) “Distinctive Ring” appears. Press ▲or ▼to move
the pointer to one of the Distinctive Ring options, then
press the OK soft key.
8) “Speed Dial” appears. Press ▲or ▼to move the
pointer to select the Speed dial location (10 locations:
SPD1-SPD0).
9) Press the OK soft key. You will hear a confirmation
tone and “Done!” appears on the display.
If you choose not to store a “Distinctive Ring”,
simply select the “No Selectn” option.
If you choose not to store the name/number as a Speed
Dial, simply select the “No Selectn” option.
Store/Edit Name
BACK DELETE OK
Store/Edit No.
DELETE PAUSE OK
Distinctive Ring
No Selectn
Flicker
BACK OK
Speed Dial
No Selectn
SPD1:<Empty>
BACK OK
Speed Dial
No Selectn
SPD1:<Empty>
BACK OK
•Selecting a speed
dial location where a
number is already
stored, release the
old number’s speed
dial setting. New
number will be
stored in the speed
dial location.
•When the memory is
full, you will hear a
beep and “Memory
Full” appears. You
cannot store names
and numbers.
•The pause key counts
as one digit. Pressing
the PAUSE soft key
more than once
increases the length
of pause between
numbers.
DCT5260_OM 10/1/02 5:31 PM Page 34
PHONEBOOK
PHONEBOOK [ 35 ]
Steps for Entering Names and Special Characters
Refer to the letters on the number keys to select the desired characters. With each
press of a number key (0-9), the displayed character appears in the following order:
Upper case letters first, lower case letters next and finally the number corresponding
to the key.
Number of times key is pressed
DCT5260_OM 10/1/02 5:31 PM Page 35
PHONEBOOK[ 36 ]
If you make a mistake while entering a name
Use /tone/tor #/sto move the cursor to the incorrect character.
Press the DELETE soft key to erase the wrong character, then enter the correct
character. To delete all characters, press and hold the DELETE soft key.
For example, to enter John:
1) When the phone is in the standby mode, recall the “Phonebook” menu by
following step1-2 in the “Storing Phone Numbers, Names, Distinctive Rings,
and Speed Dial” on page 33.
2) Press the STORE soft key, “Store/Edit Name” appears.
3) Press 5once.
4) Press 6six times.
5) Press 4five times.
6) Press 6five times.
7) When finished, press the OK soft key.
To continue to store the telephone number, proceed to step 6 on page 34.
If the next character
uses the same number
key, you must press
#/sto move the
cursor over. Otherwise
the next time you
press the number key,
it changes the
character that was
previously set.
DCT5260_OM 10/1/02 5:31 PM Page 36
PHONEBOOK
PHONEBOOK [ 37 ]
“/SPDn” appears
when you view a
speed dial.
Viewing the Phonebook
Your phone stores names/numbers in the phonebook memory locations, and
you can search names in alphabetical order. You can view the phonebook
even while the phone is in use.
1) Press the CID RDL PB soft key.
(or the MENU soft key during a call).
2) Press ▲or ▼to move the pointer to “Phonebook”,
then press the OK soft key.
If you recall the phonebook during a call,
the following screen appears.
3) Press ▲or ▼, or the number keypad to scroll through the phonebook
locations. Phonebook locations appear in alphabetical order (from first
to last when you press ▼, from last to first when you press ▲).
Or, refer to the letters on the number keys to select the first letter of
the desired name. (See the table in “Steps for Entering Names and
Special Characters” on page 35). Press a number key (2-9and 0) once
for the first letter, press twice for the second letter, and so on. The first
location that begins with the letter you entered appears.
For example, to search for “John”, press 5once.
Press ▲or ▼until the phonebook location is displayed.
4) To finish the viewing operation, press the BACK soft key (if you view
the phonebook during a call) or end.
Phonebook :100
Search [A-Z/ / ]
Store [STORE]
BACK BACK STORE
Phonebook :100
Search [A-Z/ / ]
BACK BACK OK
DCT5260_OM 10/1/02 5:31 PM Page 37
PHONEBOOK[ 38 ]
Making Calls Using the Phonebook
From Standby Mode
1) When the phone is in the standby mode, view the phonebook
location to dial. (see “Viewing the Phonebook” on page 37).
2) Press talk/flash or speaker. The displayed number is dialed.
3) To hang up press end.
From Talk Mode
1) Press talk/flash or speaker.
2) View the phonebook location to dial. (see “Viewing the
Phonebook” on page 37).
3) Press the DIAL soft key. The number in the displayed
phonebook location is dialed.
4) To hang up press end.
Speed Dialing
If you store a phone number in a speed dial memory location (10 locations:
SPD1 - SPD0), you can use the speed dialing feature. When the phone is in
the standby mode, press and hold a number key (0-9) associated with the
speed dial. The number stored in the speed dial (SPD1 - SPD0) is dialed.
DCT5260_OM 10/1/02 5:31 PM Page 38
PHONEBOOK
PHONEBOOK [ 39 ]
1) When the phone is in the standby mode,
press the CID RDL PB soft key.
2) Press ▲or ▼to move the pointer to “phonebook”,
then press the OK soft key.
3) Press ▲or ▼, or the number keypad to view the
phonebook locations (see “Viewing the Phonebook” on
page 37).
a. Editing the Stored Data
1) When the phonebook location to be edited appears,
press the EDIT soft key. “Store/Edit Name” appears.
2) Follow the steps 4 to 8 under “Storing Phone Numbers,
Names, Distinctive Rings, and Speed Dial” on page 34 to
complete the editing operation.
3) Press the OK soft key. You will hear a confirmation tone.
b. Deleting the Stored Data
1) When the phonebook location to be deleted appears,
press the DELETE soft key. “Delete Memory?” appears.
2) Press ▲to move the pointer to “Yes”.
3) Press the OK soft key. You hear a confirmation tone.
“Deleted!” appears in the display.
Editing or Erasing a Stored Name, Phone
Number, Distinctive Ring, and Speed Dial
Phonebook :100
Search [A-Z/ / ]
Store [STORE]
BACK BACK STORE
Store/Edit Name
John Smith
BACK DELETE OK
Delete Memory?
Yes
No
BACK BACK OK
Delete Memory?
Yes
No
BACK BACK OK
DCT5260_OM 10/1/02 5:31 PM Page 39
[ 40 ] PHONEBOOK
Chain Dialing
The memory locations in the handset are not limited to phone numbers. You can
also store a group of numbers (up to 20 digits), that you need to enter once your
call connects. This is referred to as Chain Dialing.
An example of this is a bank account number. Store a special number in the
phonebook location (refer to “Storing Phone Numbers, Names, Distinctive Rings and
Speed Dial” on page 33). Once you have called your bank, and when you are
prompted to enter the account number, just as you do when viewing the phonebook
location, view the special number, then press the OK soft key.
DCT5260_OM 10/1/02 5:31 PM Page 40
CALLER ID
CALLER ID [ 41 ]
You must subscribe to Caller ID service to use this feature.
When the telephone rings, the Caller ID feature allows you to view the caller’s
name and phone number on the display before you answer the phone. Additionally,
you can dial the displayed number and store the information for memory dialing.
Make sure you have turned on the CIDCW feature. (See page 24.)
Important:
Memory locations for Caller ID messages and Phonebook locations (including Speed
Dials) are common, you can store up to 100 in total. A Caller ID message is not
stored when you have stored 100 of the phonebook locations. The earliest Caller ID
message is overwritten when you have stored 100 of the phonebook locations and
Caller ID messages in total.
•If you answer a call
before the Caller ID
message is received
(Example: before the
second ring), the
Caller ID message will
not appear.
•When the call is
received via a
telephone company
that does not offer
Caller ID service, the
caller´s phone
number and name do
not appear. (This
includes some
international calls.)
•When the call is via a
private branch
exchange (PBX), the
caller´s phone
number and name
may not appear.
1) When the Caller ID message is received, the display shows the caller’s phone
number along with the date and time. The incoming call information is stored in
the Caller ID record. If the
Caller ID service includes
the caller’s name, the name
will appear on the display.
(up to 15 characters.)
Caller ID
•If any of the following occurs during Caller ID operation, the operation will be canceled.
-Press end. The phone will return to the standby mode (or the call will be disconnected).
-Press talk/flash or speaker.
-Receive an outside/intercom call or page.
-Receive a CIDCW (Caller ID on Call Waiting) (during a call only).
-Charge the handset.
•If the handset remains idle for 30 seconds, the phone will return to the standby mode
(or back to the call).
12/12 12:30AM 99
John Smith
800-297-1023
BACK DELETE STORE
The date and
time received
Caller’s name
Caller’s phone number
DCT5260_OM 10/1/02 5:31 PM Page 41
CALLER ID[ 42 ]
Viewing the Caller ID List
The Caller ID list stores information for incoming calls – even unanswered calls. You
can store 100 of the Caller ID messages and Phonebook locations (including Speed
Dials) in total. You can view the Caller ID list during a call or when the phone is in
the standby mode.
1) Press the CID RDL PB soft key (or the MENU soft key during a call).
2) Press ▲or ▼to move the pointer to “Caller ID”, then
press the OK soft key. The screen shows the number of
new messages and the total number of messages.
3) To view the Caller ID messages in historical order (from
new to old or from old to new), repeatedly press ▼to scroll through the messages
from the latest to the earliest, or ▲to scroll back through the messages.
Or, to view the Caller ID messages with alphabetical search, press the number key
pad (2-9and 0) with the letter associated with the first letter of desired message.
3) To finish the viewing operation, press the BACK soft key (if you view the
Caller ID list during a call) or end.
Once you view the Caller ID list with alphabetical search, you cannot switch
back to historical order (from new to old or from old to new) unless you exit
and re-enter the operation.
Caller ID
New :100
Total:100
BACK BACK DELETE
You may receive any one of the following messages:
When invalid data is received “Incomplete Data”
When a private name is received “Private Name”
When a private number is received “Private Number”
When a unknown name is received “Unknown Name”
When a unknown number is received “Unknown Number”
2) When you receive the call, the display changes to “Talk”.
The number of calls
from the same Caller
ID appears next to
the received time.
Once you have
reviewed the new
message, the number
will be cleared
and disappears.
DCT5260_OM 10/1/02 5:31 PM Page 42
CALLER ID
CALLER ID [ 43 ]
Deleting a Caller ID message
1) When the phone is in the standby mode, view the Caller
ID information to be deleted.
2) Press the DELETE soft key.
“Delete Message?” appears.
3) Press ▲or ▼to choose “Yes”.
4) Press the OK soft key. You will hear a confirmation tone.
Deleting all Caller ID names/numbers
1) When the phone is in the standby mode,
press the CID RDL PB soft key.
2) Press ▲or ▼to move the pointer to “Caller ID”,
then press the OK soft key. The total number of the new
and total records appear.
3) Press the DELETE soft key.
4) Press ▲or ▼to choose “Yes”.
5) Press the OK soft key. You will hear a confirmation tone.
Deleting Information from the Caller ID List
Once the Caller ID
data has been
deleted, the
information cannot
be retrieved.
Delete Message?
Yes
No
BACK BACK OK
Caller ID
New :100
Total:100
BACK BACK DELETE
Delete All?
Yes
No
BACK BACK OK
DCT5260_OM 10/1/02 5:31 PM Page 43
CALLER ID[ 44 ]
Calling a party from the Caller ID list
From Standby mode
1) When the phone is in the standby mode, view the Caller
ID message.
2) Press talk/flash or speaker. The displayed phone
number dials automatically.
From Talk mode
1) Press talk/flash or speaker.
2) View the Caller ID message you want to dial.
3) Press the DIAL soft key. The displayed phone number will be dialed.
Long Distance calls and Area Code Setting/Cancellation
While the present Caller ID information is displayed, pressing /tone/twill
place or remove the prefix “1” in the display to set the call for a long distance
call, or pressing #/swill set or cancel an area code. (See page 24.)
Storing Caller ID messages in the Phonebook
Messages shown in the Caller ID list can be stored in the phonebook. The phone
number and name of the party on the Caller ID list can be stored in memory.
1) When the phone is in the standby mode, view the Caller ID message to be
stored. Then press the STORE soft key. “Store/Edit Name” appears.
2) To complete the setting, follow the steps 5-9 in “ Storing Phone Number, Names,
Distinctive Rings, and Speed dial” on page 33.
Using the Caller ID Message List
Caller ID
New :100
Total:100
BACK BACK DELETE
•You cannot make a call
from the Caller ID list
if your phone is
connected to a private
branch exchange (PBX).
•When a long distance
call has been set, “1”
appears in the display.
•If a call comes in via a
telephone system that
does not offer Caller ID
service, no information
is stored.
•If the Caller ID
message was received
as private/unknown
number, or the
message does not have
the number, you
cannot store the
message, or it was
received as
private/unknown name,
the message will be
stored as <No Name>.
•Even if the memory
locations are full, the
message will be stored
in the Phonebook,
however, the message
will be erased from the
Caller ID List.
DCT5260_OM 10/1/02 5:31 PM Page 44
Call Waiting Deluxe Features
•To activate features,
select “CW On/CWDX
On” in the Caller ID
setup. See page 24.
•You can also answer a
waiting call
immediately by
pressing talk/flash,
the first caller will be
placed on hold. To
return to the original
caller, press
talk/flash again.
•To return back to a
call, press the BACK
soft key.
Your phone gives you new options for call waiting. At the touch of a button, you can
place the caller on hold, send them to your voice mail service, or conference them into
your current call. You may be required to subscribe to Call Waiting and Call Waiting
Deluxe to use these features. Not all features are available in all areas. Check with your
local telephone company for details.
1) When you receive a Call Waiting call, press the CWDX soft key for a list of options.
2) Press ▲or ▼, or the number keypad (1-7) to select an option. For example:
press ▼4 times press ▼2 times
3) Press the OK soft key. A confirmation screen will appear, and returns back to the call.
Your phone is pre-programmed with seven call waiting options. You may select to ask
the calling party to hold, send them a busy message, forward them to your voice mail,
or answer and drop the first caller. You may also select to conference them into the
current call or, at any time, choose to drop the first or drop the last caller.
Check with your local telephone company for a full list of options.
1 Ask to Hold
2 Tell Busy
3 Forward Call
BACK BACK OK
3 Forward Call
4 Answer/Drop 1
5 Conference
BACK BACK OK
5 Conference
6 Drop First
7 Drop Last
BACK BACK OK
CALLER ID
CALLER ID [ 45 ]
DCT5260_OM 10/1/02 5:31 PM Page 45
EXPANDING YOUR PHONE[ 46 ]
Your phone supports up to 8 handsets (including the handset(s) supplied with your
phone). You can now place a fully featured cordless handset anywhere AC power is
available to connect the handset charger.
You can register up to 8 handsets at the base, and 4 handsets can be used for
outside/intercom call. For the DirectLink call, you can enjoy it regardress of the
number of the handsets in use.
For example, the phone permits 3-way conferencing (2 handsets and an outside
line), while one intercom call using other 2 handsets.
Settings in the global set up menu are global settings. If you change a setting in
one of the handsets, you change settings for all the handsets.
For all other features they must be set separately through each handset.
Expanding Your Phone
•To use a DCX520,
register it to the
DCT5260 series base.
•Save this manual for
detailed operation.
•All of the handset
ring when calls
are received.
DCT5260_OM 10/1/02 5:31 PM Page 46
EXPANDING YOUR
PHONE
[ 47 ]
Registering an Extra Handset
Setting up an Extra Handset
If you purchase extra handsets, you need to register the handsets before use.
Only one handsets can be registered at a time.
An extension number for the supplied handset(s) was assigned at the factory,
which has #1 (#1 and #2 for DCT5260-2) on the display. When you register
additional handset to the base, handset ID will be assigned
An extra handset can be registered when the base is in the standby mode.
1) After charging the handset, remove the handset form the charger and place it in
the base.
2) Registration starts automatically.
While registering “Handset Registrating” appears.
3) When the registration is complete, “Registration complete” appears.
If the registration fails, “Registration Failed” appears. Try the steps above again.
1) Plug the AC adapter into an outlet.
2) Remove the handset battery cover
by pressing on the indent and
sliding downward.
3) Place the new battery pack supplied with
your phone. Check for correct + - polarity
(see page 13).
4) Replace the battery cover by sliding
it upward.
5) Place the handset in the charge cradle,
and allow it to charge for 15-20 hours.
EXPANDING YOUR PHONE
DCT5260_OM 10/1/02 5:31 PM Page 47
EXPANDING YOUR PHONE[ 48 ]
If you have 2 or more handsets, 2 of the handsets work as transceivers. To use
this feature, you must enter the two handset to the DirectLink mode first.
To enter the DirectLink mode eeSee page 21
Transceiver call
1) When the phone is in the DirectLink standby mode,
press the DirectLink soft key. (example of DirectLink
from the handset #1)
2) Select the party by pressing the number keys (1-8).
Your handset will page the other handset.
3) On the receiving handset, press the ANSWER soft key,
or any number key, /tone/t, or #/s(when any key
answer is On).
4) To finish your conversation, press end key on either handset.
When you finish your conversation, or to return to normal mode,
return the handset to the base. Or press the CANCEL soft key,
then the OK soft key.
Using the Transceiver
•During DirectLink mode, battery use time when fully charged is as follows:
6 hours continuous use.
35 hours when the handset is in the standby mode with DirectLink mode.
•Charging the handset in the cradle cause the handset exit the DirectLink mode.
Sun 11:59P
Handset #1
DirectLink Mode
CANCEL DirectLink
To DirectLink
Press 1-8
BACK
DirectLink
from Handset #1
BACK ANSWER OK
DCT5260_OM 10/1/02 5:31 PM Page 48
EXPANDING YOUR PHONE [ 49 ]
EXPANDING YOUR
PHONE
3-Way Conferencing
Intercom / Call Transfer Feature
The phone permits 3-way conversations between 2 handsets, and an outside line.
1) During a call, press talk/flash on another handset to initiate
the 3-way conversation.
2) To remove either caller from your conversation, press end on either of the handset.
The other handset will still be connected to the call.
If you have one or more extra handset, you can enjoy an intercom call between
handsets. Also, you can place a outside call on hold and transfer the call to
another handset.
•If the party is busy or is in the out of range, the handset returns to the standby mode.
•If any of the following occurs while selecting the other handset,
the operation will be canceled.
- Press talk/flash or speaker.
- Receive an outside/intercom call or page.
•When the party does not answer within 1 minute, the operation is canceled. If a call
transfer is canceled due to the out of range, to back to the call, press talk/flash on
the initiated handset shortly.
Intercom
1) Press intercom/hold in the standby mode.
2) Select the handset you want to talk with from the
selection list within 10 seconds. To select the handset,
press ▲or ▼, then press the OK soft key.
If you select “All”, all handsets will be paged.
An intercom tone sounds.
To intercom
Handset #2
Handset #3
BACK BACK OK
DCT5260_OM 10/1/02 5:31 PM Page 49
EXPANDING YOUR PHONE[ 50 ]
3) On the receiving handset, to answer the call, press talk/flash, intercom/hold,
or the ANSWER soft key. If you set the AutoTalk On, pick up the handset from the
base. If Anykey Answer is On, press any number key, /tone/t, or #/s.
4) To finish the intercom call, press end or the END soft key on either handsets.
Call Transfer Feature
1) During a call, press intercom/hold. The call will automatically be placed on
hold, and an intercom tone sounds.
2) Select a handset to transfer the call to. (refer to step 2
in the intercom section).
To cancel the transfer, press talk/flash or speaker on
the initiating handset.
3) On the receiving party handset, to answer the page, press talk/flash,
intercom/hold, or the ANSWER soft key. If you set the AutoTalk On, pick up the
handset from the base. If Anykey Answer is On, press any number key,
/tone/t, or #/s. The intercom mode is activated, but the caller is still on hold.
4) To transfer the call, press end or the END soft key on the initiating handset, and
press talk/flash or speaker on the receiving party handset.
Replacing the Base
When you replace the base with the different base of the same model, you
need to clear the handset(s) and base ID. To do this, perform “Deregister
HS”option (see page 25) and “Replacing Base” option (see page 25), then
register all the handsets you have. (See page 47).
Hold to transfer
Handset #2
Handset #3
BACK BACK OK
DCT5260_OM 10/1/02 5:31 PM Page 50
ADDITIONAL INFORMATION [ 51 ]
The digital security code is an identification code used to connect the handset and the
base unit. Normally, setting the code is not necessary. The first time you charge your
handset, the security code is automatically set. (See “About the digital security code”,
page 10.) In the rare situation that you suspect another cordless telephone is using the
same security code, you can change the code. To change the digital security code, de-
register the handset ID of all handset(s), then register all handset(s) for a different code.
To de-register the code eeSee “Deregister HS” on page 25
Change the security code
1) Place all handsets in the base.
2) Registration starts automatically.
While registering “Handset Registrating” appears.
3) When the registration is complete, “Registration complete” appears.
If the registration fails, “Registration Failed” appears. Try the steps above again.
Changing the Digital Security Code
YOU WILL NEED TO
RE-REGISTER ALL
HANDSETS EACH TIME
YOU CHANGE THE
DIGITAL SECURITY
CODE OF THE BASE.
Installing the Beltclip
To attach the beltclip
Insert the beltclip into the holes on each side of the handset.
Press down until it clicks.
To remove the beltclip
Pull both sides of the beltclip to release the tabs from the holes.
Your phone may be used with an optional headset, the Uniden
HS910. To use this feature, insert the headset plug into the
headset jack. Your phone is ready for hands-free conversations.
(Headset may be purchased by calling the Uniden Parts Department
or visiting the web site. See page 11.)
Headset Installation
ADDITIONAL
INFORMATION
DCT5260_OM 10/1/02 5:31 PM Page 51
ADDITIONAL INFORMATION[ 52 ]
Note on Power Sources
Battery replacement and handling
When the operating time becomes short, even after a battery is recharged, please replace the battery.
With normal usage, your battery should last about one year.
Please contact your place of purchase or the Uniden Parts Department for a replacement battery. (See page 11)
Warning
To avoid the risk of personal injury or property damage from fire or electrical shock, only use the Uniden
battery model and Uniden adapter model specifically designated for this product.
Power Failure
During the period that the power is off, you will not be able to make or receive calls with the telephone.
Caution
•Use the specified Uniden battery pack (BT-xxx).
•Do not remove the battery from the handset to charge it.
•Never throw the battery into a fire, disassemble it, or heat it.
•Do not remove or damage the battery casing.
Maintenance
When the charging terminals become very dirty on
both the handset and base unit
Use water only, dampen a cloth to clean the charging
terminals. Then make sure to go back over the charging
terminals with a dry cloth before returning the handset
to the base unit to charge.
Caution
Do not use paint thinner, benzene, alcohol,
or other chemical products.
Doing so may discolor the surface of the
telephone and damage the finish.
DCT5260_OM 10/1/02 5:31 PM Page 52
ADDITIONAL INFORMATION [ 53 ]
General Information
The phone complies with FCC Parts 15 and 68. Operating temperature: 0 ºC to +50 ºC (+32 ºF to +122 ºF)
AC Adapter Information
AC Adapter part number: AD-xxx for the base AD-xxx for the charger (DCT5260-2 only)
Input Voltage: 120V AC 60Hz 120V AC 60Hz
Output Voltage: 9V DC 350 mA xV DC xxx mA
Battery Information
Battery part number: BT-446
Capacity: 1300 mAh, 1.2V
Battery use time (per charge)
From fully charged
Talk mode duration: 14 hours (6 hours in DirectLink mode)
Standby mode duration: 6 days (35 hours in DirectLink mode)
Recharge your phone on a regular basis by returning the handset to the base after each phone call. When the
operating time becomes short, even after the battery is recharged, please replace the battery. With normal
usage, the battery should last about one year.
A replacement Uniden adapter and battery may be purchase Uniden accessories at your local Uniden dealer or
by contacting the Uniden Parts Department (800) 554-3988. Hours are from 7:00 a.m. to 5:00 p.m. CST,
Monday through Friday. We can also be reached on the web at www.uniden.com.
Specifications, features, and availability of optional accessories are all subject to change without prior notice.
If the handset is left off of the base, the actual Talk mode duration will
be reduced respective to the amount of time the handset is off the base.
ADDITIONAL
INFORMATION
DCT5260_OM 10/1/02 5:31 PM Page 53
TROUBLESHOOTING[ 54 ]
Troubleshooting
If your phone is not performing to your expectations, please try these simple steps first.
Symptom Suggestion
The charge LED won’t illuminate •Make sure the AC adapter is plugged into the base and wall outlet.
when the handset is placed in •Make sure the handset is properly seated in the base.
the base. •Make sure the charging contacts on the handset and base are clean.
The audio sounds weak •Move the handset and/or base to a different location away from
and/or scratchy. metal objects or appliances and try again.
•Make sure that you are not too far from the base.
Can’t make or receive calls. •Check both ends of the base telephone line cord.
•Make sure the AC adapter is plugged into the base and wall outlet.
•Disconnect the AC adapter for a few minutes, then reconnect it.
•Remove the base ID (see “Replacing the base” on page 50) and
place the handset in the base.
•Make sure that you are not too far from the base.
•If more than one user is using the line, you may not be
able to make a call.
The handset doesn’t ring or •Charge the battery in the base unit for 15-20 hours
receive a page. •The battery pack may be weak. Charge the battery.
•The handset may be too far away from the base unit.
•Place the base unit away from appliances or metal objects.
•Remove the base ID (see “Replacing the base” on page 50) and
place the handset in the base.
•If more than one other user is using the line, you may not be
able to page.
DCT5260_OM 10/1/02 5:31 PM Page 54
Symptom Suggestion
Severe noise interference. •Keep the handset away from microwave ovens, computers,
remote control toys, wireless microphones, alarm systems, intercoms,
room monitors, fluorescent lights, and electrical appliances.
•Move to another location or turn off the source of interference.
The Caller ID does not display. •The handset was picked up before the second ring.
•The call was placed through a switchboard.
•Call your local telephone company to verify your
Caller ID service is current.
You cannot register the •Charge the battery pack in the charge for 15-20 hours
handset at the base . •Remove the base ID (see “Replacing the base” on page 50).
The handset doesn’t communicate •Remove the base ID (see “Replacing the base” on page 50) and
with the base or other handsets. place the handset in the base.
•Make sure that you have registered all handsets (DCX520 only).
An extra handset can’t join •Only one handset at a time can talk with an outside caller (up to
the conversation. 2 handsets during 3 way conference).
If you still have a problem. •Call our customer hotline at 1-800-297-1023.
TROUBLESHOOTING
TROUBLESHOOTING [ 55 ]
DCT5260_OM 10/1/02 5:31 PM Page 55
TROUBLESHOOTING[ 56 ]
Liquid Damage
Moisture and liquid can damage your cordless phone. In case of accidental submersion,
please read the following steps.
Case Action
If the handset or base is Wipe off the liquid and use as normal.
exposed to moisture or liquid,
but only affects the exterior
plastic housing.
If moisture or liquid has entered 1) Remove the battery cover of the handset and leave it off for ventilation.
the plastic-housing (i.e. liquid 2) Remove the battery pack by disconnecting.
can be heard in the phone or 3) Leave the battery cover off and the battery pack disconnected
battery compartment). for 3 days for maximum drying time.
4) Once completely dry, reconnect the battery pack and the battery cover.
5) Recharge the handset’s battery pack for 20 hours in the base unit
before using the phone.
IMPORTANT: You must unplug the telephone line while recharging
the battery pack to avoid charge interruption.
If the base unit or the handset Handset:
is submerged or covered in a 1) Remove the battery cover of the handset and the battery pack by disconnecting.
sticky substance, such as juice. 2) Rinse the handset in warm distilled water.
3) Let dry for at least 3 days.
4) Once completely dry, reconnect the battery pack and the battery cover.
5) Recharge the handset’s battery pack for 20 hours in the base unit before using
the phone.
Base:
1) Disconnect the AC adapter from the base unit, ending power supply.
2) Disconnect the telephone cord from the base unit.
3) Rinse the base in warm distilled water.
4) Let dry for at least 3 days.
CAUTION:
DO NOT use a microwave oven to speed up the drying time. This will cause
permanent damage to the handset and the microwave oven.
DCT5260_OM 10/1/02 5:31 PM Page 56
PRECAUTIONS &
WARRANTY
PRECAUTIONS & WARRANTY [ 57 ]
Precautions!
Before you read anything else, please observe the following:
Warning!
Uniden America Corporation DOES NOT represent this unit to be
waterproof. To reduce the risk of fire, electrical shock, or damage to
the unit, DO NOT expose this unit to rain or moisture.
Rechargeable Nickel-Metal-Hydride Battery Warning
•
This equipment contains a rechargeable Nickel-Metal-Hydride battery.
•Nickel is a chemical known to state of California to cause cancer.
•The rechargeable Nickel-Metal-Hydride battery contained in this
equipment may explode if disposed of in a fire.
•Do not short-circuit the battery.
•Do not charge the rechargeable Nickel-Metal-Hydride battery
used in this equipment in any charger other than the one
designed to charge this battery as specified in the owner’s
manual. Using another charger may damage the battery or
cause the battery to explode.
Rechargeable Nickel-Metal-Hydride
Batteries Must Be Recycled or
Disposed of Properly
Important Safety Instructions
When using your telephone equipment, these basic safety precautions
should always be followed to reduce the risk of fire, electrical shock,
and injury to persons:
1. Read and understand all instructions.
2. Follow all warnings and instructions marked on the product.
3. Unplug this product from the wall outlet before cleaning. Use a
dry cloth for cleaning without liquid or aerosol cleaners.
4. Do not use this product near water; for example, near a bathtub,
wash bowl, kitchen sink or laundry tub, in a wet basement, or
near a swimming pool.
5. Do not place this product on an unstable cart, stand, or table.
The telephone may fall, causing serious damage to the unit.
6. Slots and openings in the cabinet and the back or bottom are
provided for ventilation. To protect the product from overheating,
these openings must not be blocked or covered. This product
should never be placed near or over a radiator or heat register.
This product should not be placed in a built-in installation unless
proper ventilation is provided.
7. This product should be operated only from the type of power
source indicated on the marking label. If you are not sure of the
type of power supply to your home, consult your dealer or local
power company.
8. Do not allow anything to rest on the power cord. Do not locate
this product where the cord will be damaged by persons walking
on it.
9. Do not overload wall outlets and extension cords, as this can
result in the risk of fire or electrical shock.
10. Never push objects of any kind into this product through cabinet
slots, as they may touch dangerous voltage points or short out
parts that could result in a risk of fire or electric shock. Never
spill liquid of any kind on the product.
11.
To reduce the risk of electric shock, do not disassemble this product.
Take it to qualified service personnel when service or repair work is
required. Opening or removing covers may expose you to dangerous
voltages or other risks. Incorrect reassembly can cause electric shock
when the appliance is subsequently used.
12. Unplug this product from the wall outlet and refer servicing to
qualified service personnel under the following conditions:
A. When the power supply cord is damaged or frayed.
B. If liquid has been spilled into the product.
C. If the product has been exposed to rain or water.
D. If the product does not operate normally when following the
operating instructions. (Adjust only those controls that are
covered by the operating instructions. Improper adjustment
of other controls may result in damage and will often require
extensive repair work by a qualified technician.)
E. If the product has been dropped or the cabinet has
been damaged.
F. If the product exhibits a distinct change in performance.
13. Do not use the telephone to report a gas leak in the vicinity of
the leak.
Additional Battery Safety Precautions
Caution! To reduce the risk of fire or injury to persons by the
battery, read and follow these instructions:
1. Use only the Uniden battery pack specified in the
owner’s manual.
2. Do not dispose of the battery pack in a fire. The cell may explode.
Check the Nickel Metal Hydride battery disposal package insert for
disposal instructions.
3. Do not open or mutilate the battery pack. Released electrolyte is
corrosive and may cause damage to the eyes or skin. It may be
toxic if swallowed.
4. Exercise care in handling the battery in order not to short the
battery with conducting materials such as rings, bracelets, and
keys. The battery or conductor may overheat and cause burns.
5. Charge the battery pack provided with or identified for use with
this product only in accordance with the instructions and
limitations specified in the owner¬s manual provided for
this product.
6. Observe proper polarity orientation between the battery pack and
battery charger.
SAVE THESE INSTRUCTIONS!
Important Electrical Considerations
Unplug all electrical appliances when you know an electrical storm is
approaching. Lightning can pass through your household wiring and
damage any device connected to it. This phone is no exception.
Warning!
Please do not attempt to unplug any appliance during an
electrical storm.
The FCC Wants You To Know
Changes or modifications to this product not expressly approved by
Uniden, or operation of this product in any way other than as detailed
by the owner’s manual, could void your authority to operate this
product. The equipment cannot be used on public coin phone service
provided by the telephone company. Connection to party line service
is subject to state tariffs. (Contact the state public utility
commission, public service commission or corporation commission
for information.)
Range
Your new phone is designed to achieve the maximum possible range
by transmitting and receiving according to the highest specifications
set forth by the FCC. We have rated this phone to operate at a
maximum distance with the qualification that the range depends upon
the environment in which the telephone is used. Many factors limit
range, and it would be impossible to include all the variables in our
rating. The Maximum Range rating of this phone is meant to be used
as a means of comparison against other range claims.
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and maintenance
(servicing) instructions in the literature
accompanying the appliance.
DCT5260_OM 10/1/02 5:31 PM Page 57
PRECAUTIONS & WARRANTY[ 58 ]
Telephone Line Problems
The FCC has granted the telephone company the right to disconnect
service in the event that your phone causes problems on the
telephone line. Also, the telephone company may make changes in
facilities and services which may affect the operation of your unit.
However, your telephone company must give adequate notice in
writing prior to such actions to allow you time for making necessary
arrangements to continue uninterrupted service.
If you are having trouble with your telephone service, you must first
disconnect your phone to determine if it is the cause of your problem.
If you determine that it is the cause, you must leave it disconnected
until the trouble has been corrected.
Radio Interference
Radio interference may occasionally cause buzzing and humming in
your cordless handset, or clicking noises in the base. This interference
is caused by external sources such as TV, refrigerator, vacuum cleaner,
fluorescent lighting, or electrical storm. Your unit is NOT DEFECTIVE. If
these noises continue and are too distracting, please check around
your home to see what appliances may be causing the problem. In
addition, we recommend that the base not be plugged into a circuit
that also powers a major appliance because of the potential for
interference. Be certain that the antenna on the unit is fully extended
when needed.
In the unlikely event that you consistently hear other voices or
distracting transmissions on your phone, you may be receiving radio
signals from another cordless telephone or other source of
interference. If you cannot eliminate this type of interference, you
need to change to a different channel.
Finally, it should be noted that some cordless telephones operate at
frequencies that may cause interference to nearby TVs and VCRs. To
minimize or prevent such interference, the base of the cordless
telephone should not be placed near or on top of a TV or VCR. If
interference is experienced, moving the cordless telephone farther
away from the TV or VCR will often reduce or eliminate
the interference.
More than One Cordless Telephone
If you want to use more than one cordless telephone in your home,
they must operate on different channels. Press the channel key to
select a channel that provides the clearest communication.
Cordless Telephone Privacy
Cordless telephones are radio devices. Communications between the
handset and base of your cordless telephone are accomplished by
means of radio waves which are broadcast over the open airways.
Because of the inherent physical properties of radio waves, your
communications can be received by radio receiving devices other than
your own cordless telephone unit. Consequently, any communications
using your cordless telephone may not be private.
Installation Considerations
Selecting a Location
Before choosing a location for your new phone, there are some
important guidelines you should consider:
•The location should be close to both a phone jack and continuous
power outlet. (A continuous power outlet is an AC outlet which
does not have a switch to interrupt its power.)
•Keep the base and handset away from sources of electrical noise
such as motors or fluorescent lighting.
•The base can be placed on a desk or tabletop or mounted on a
standard telephone wall plate.
•You should charge your new phone for 15-20 hours before
completing the installation or using the handset.
Telephone Line Outlets
There are two types of phone outlets:
Modular Jack
Most phone equipment available now uses modular jacks. Phone cords
are fitted with a molded plastic connector which plugs into this type
of jack. If you do not have modular phone jacks,
contact your local telephone company for information about
their installation.
Hardwired Jack
Some equipment is wired directly to a phone jack, and these types of
installations require a modular jack converter. This type of installation
is not difficult; however, you should contact your Uniden telephone
dealer or a telephone supply store for advice about the proper adapter
or converter for your particular situation.
Connecting the Telephone Cords
Consider these safety guidelines before connecting the
telephone cords:
Caution!
•Never install telephone wiring during a lightning storm.
•Never touch uninsulated telephone wires or terminals unless the
telephone line has been disconnected.
•Use caution when installing or modifying telephone lines.
Applying Power to the Base
This phone requires an AC outlet, without a switch to interrupt power,
and the included AC adapter. To relieve strain on the DC plug when
the phone is placed on a desk or table, wrap the power cord around
the strain relief notch on the bottom of the base.
NOTE: Place the power cord so that it does not create a trip
hazard, or where it could become chafed and create a fire
or other electrical hazards.
Plug the AC Adapter into a standard 120 VAC wall outlet.
Do not use an outlet controlled by a wall switch.
Use only the Uniden AC Adapter supplied with this phone.
One Year Limited Warranty
Important: Evidence of original purchase is required
for warranty service.
WARRANTOR: UNIDEN AMERICA CORPORATION (“Uniden”)
ELEMENTS OF WARRANTY: Uniden warrants, for one year, to the
original retail owner, this Uniden Product to be free from defects
in materials and craftsmanship with only the limitations or
exclusions set out below.
WARRANTY DURATION: This warranty to the original user shall
terminate and be of no further effect 12 months after the date of
original retail sale. The warranty is invalid if the Product is
(A) damaged or not maintained as reasonable or necessary,
(B) modified, altered, or used as part of any conversion kits,
subassemblies, or any configurations not sold by Uniden,
(C) improperly installed, (D) serviced or repaired by someone other
than an authorized Uniden service center for a defect or malfunction
covered by this warranty, (E) used in any conjunction with equipment
or parts or as part of any system not manufactured by Uniden, or
(F) installed or programmed by anyone other than as detailed by the
owner’s manual for this product.
STATEMENT OF REMEDY: In the event that the product does not
conform to this warranty at any time while this warranty is in
effect, warrantor will either, at its option, repair or replace the
defective unit and return it to you without charge for parts,
service, or any other cost (except shipping and handling) incurred
by warrantor or its representatives in connection with the
performance of this warranty. Warrantor, at its option, may replace
the unit with a new or refurbished unit. THE LIMITED WARRANTY
SET FORTH ABOVE IS THE SOLE AND ENTIRE WARRANTY PERTAINING
TO THE PRODUCT AND IS IN LIEU OF AND EXCLUDES ALL OTHER
WARRANTIES OF ANY NATURE WHATSOEVER, WHETHER EXPRESS,
IMPLIED OR ARISING BY OPERATION OF LAW, INCLUDING, BUT NOT
LIMITED TO ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE. THIS WARRANTY DOES NOT
COVER OR PROVIDE FOR THE REIMBURSEMENT OR PAYMENT OF
INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states do not
allow this exclusion or limitation of incidental or consequential
damages so the above limitation or exclusion may not apply to you.
LEGAL REMEDIES: This warranty gives you specific legal rights, and
you may also have other rights which vary from state to state.
This warranty is void outside the United States of America.
PROCEDURE FOR OBTAINING PERFORMANCE OF WARRANTY: If, after
following the instructions in the owner’s manual you are certain
that the Product is defective, pack the Product carefully
(preferably in its original packaging). The Product should include
all parts and accessories originally packaged with the Product.
Include evidence of original purchase and a note describing the
defect that has caused you to return it. The Product should be
shipped freight prepaid, by traceable means, to warrantor at:
Uniden America Corporation
Parts and Service Division
4700 Amon Carter Blvd.
Fort Worth, TX 76155
1-800-297-1023, 8 a.m. to 5 p.m. CST, Monday through Friday
DCT5260_OM 10/1/02 5:31 PM Page 58
I.C. NOTICE
I.C. NOTICE [ 59 ]
I.C. Notice
TERMINAL EQUIPMENT
NOTICE: This equipment meets the applicable Industry Canada Terminal Equipment Technical
Specifications. This is confirmed by the registration number. The abbreviation, IC, before the
registration number signifies that registration was performed based on a Declaration of Conformity
indicating that Industry Canada technical specifications were met. It does not imply that Industry
Canada approved the equipment.
NOTICE: The Ringer Equivalence Number (REN) for this terminal equipment is marked on the equipment
itself. The REN assigned to each terminal equipment provides an indication of the maximum number of
terminals allowed to be connected to a telephone interface. The termination on an interface may
consist of any combination of devices subject only to the requirement that the sum of the Ringer
Equivalence Numbers of all the devices does not exceed five.
RADIO EQUIPMENT
The term “IC:” before the radio certification number only signifies that Industry Canada technical
specifications were met.
Operation is subject to the following two conditions: (1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired operation
of the device. “Privacy of communications may not be ensured when using this telephone”.
DCT5260_OM 10/1/02 5:31 PM Page 59
[ 60 ]
Index
0 - 9
3-way conferencing ....................49
16 ring options ..........................22
A
Anykey Answer ..........................23
Area Code ..................................24
AutoTalk....................................22
B
Banner......................................23
Battery pack
Preparing and charging ..............13
Replacement and handling..........52
Beltclip ....................................51
Booster ....................................30
C
Caller ID....................................41
Caller ID service ......................41
Calling ....................................44
Call Waiting........................19, 45
Deleting ..................................43
Setting....................................24
Storing....................................44
Using......................................44
Viewing ..................................42
Call transfer feature ....................43
Chain dialing ............................40
Channel ....................................30
Clock ........................................24
D
Deluxe Call Waiting Features ........45
De-register the handset ..............25
Dialing mode..............................25
Digital security code ..............10, 51
Distinctive Ringer ......................22
E, F, G, H
Earpiece volume..........................29
General information ....................53
Hands-free conversation ..............26
Headset installation ....................51
I, J, K, L
I.C. Notice ................................59
Important Safety Instructions ......57
Language ..................................23
LCD contrast ..............................23
M, N, O
Maintenance ..............................52
Making a call ............................26
Memory dialing ..........................38
Mute ........................................29
P, Q
Package contents ........................11
Phonebook ................................33
Editing....................................39
Erasing....................................39
Making calls ............................38
Storing....................................33
Viewing ..................................37
Precautions................................57
R
Receiving a call ..........................26
Redialing a call ..........................27
Registering an extra handsets ......47
Ringer volume ............................21
S
Setting up ................................12
Base unit ................................14
Handset ..................................13
Soft key function..........................9
Speed dialing ............................38
T, U, V, W, X, Y, Z
Transceiver ................................48
Transferring a call ......................49
Troubleshooting ..........................54
Voice Mail..................................32
Programming............................21
Warranty....................................58
INDEX
DCT5260_OM 10/1/02 5:31 PM Page 60
At Uniden, we’ll take care of you!
If you need any assistance with this product, please call our Customer Hotline at
1-800-297-1023
PLEASE DO NOT RETURN THIS PRODUCT TO THE PLACE OF PURCHASE.
Our Uniden representatives will be happy to help you with any matters regarding
the operation of this unit, available accessories, or any other related matters.
Thank you for purchasing a Uniden product.
Hours: M-F 8:00 AM to 5:00 PM CST.
May be covered under one or more of the following U.S. patents:
4,511,761 4,523,058 4,595,795 4,797,916 5,381,460 5,426,690
5,434,905 5,491,745 5,533,010 5,543,605 5,574,727 5,581,598
5,650,790 5,660,269 5,661,780 5,663,981 5,671,248 5,696,471
5,717,312 5,732,355 5,754,407 5,758,289 5,768,345 5,787,356
5,794,152 5,801,466 5,825,161 5,838,721 5,864,619 5,893,034
5,912,968 5,915,227 5,929,598 5,930,720 5,960,358 5,987,330
6,044,281 6,070,082 6,125,277 6,253,088
?
Accessibility
For information on the accessibility features of this product, please call
1-800-874-9314 (V/TTY)
DCT5260_OM 10/1/02 5:31 PM Page 61
