1. Complete User Manual
2. Compliance page User Manual

Complete User Manual

[1]

www.uniden.com

WELCOME/FEATURES/TERMINOLOGY 2

CONTROLS & FUNCTIONS 4

DISPLAY AND ICONS 6

SOFT KEY FUNCTION 8

GETTING STARTED 9

Setting up the Phone 9

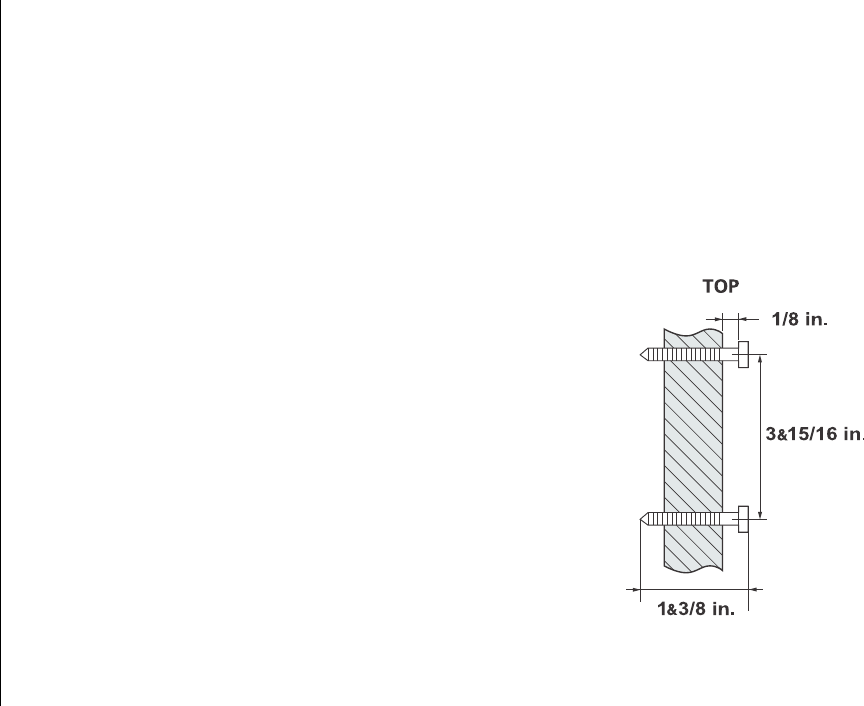

Mounting the Base Unit on a Wall 13

Main the Menu Options 15

Setting Menu Options 17

BASICS 33

Making and Receiving Calls 33

Flash and Call Waiting 34

Placing a Call on Hold 34

Redialing a Call 35

Adjusting the Ringer, and Earpiece and Speaker Volume 36

Do Not Disturb (DND) 36

Mute Microphone 37

Tone Dialing Switch-over 38

Traveling Out of Range 38

Privacy Mode 39

3 or 4-Way Conferencing 39

PHONEBOOK 41

Phonebook (Storing Phone Numbers, names,

Distinctive Rings and Speed Dial) 41

Chain Dialing 42

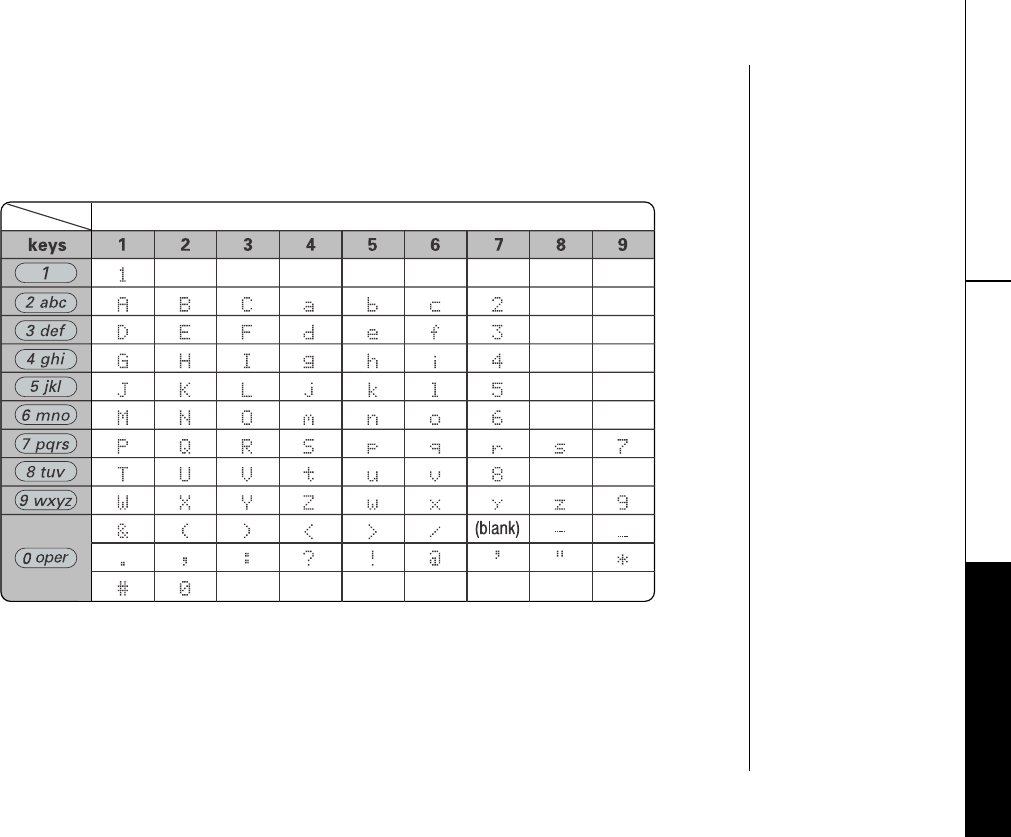

Steps for Entering Names and Special Characters 43

Viewing the Phonebook 45

Making Calls Using the Phonebook 46

Speed Dialing 46

Editing or Erasing a Stored Name, Phone Number, Distinctive

Ring and Speed Dial 47

Copying Phonebook Locations 48

CALLER ID 49

Caller ID and CIDCW (Caller ID on Call Waiting) 49

Viewing the Caller ID List 50

Deleting a Caller ID Message 51

Using the Caller ID Message List 52

Call Waiting Deluxe Features 54

THE INTEGRATED ANSWERING DEVICE 55

The Integrated Telephone Answering Device 55

Turning the Answering System On/Off 56

Setting your outgoing message (Greeting) 56

Using the Answering Setup Menu 57

New Message LED 57

Using your Answering System 58

Remote Operation 62

EXPANDING YOUR PHONE 66

Expanding Your Phone 66

Connecting the Charger 66

Using the DirectLink Mode 68

Intercom/Call Transfer Feature 69

ADDITIONAL INFORMATION 72

Changing the Digital Security Code 72

Find Handset 72

Installing the Beltclip 72

Headset Installation 73

Note on Power Sources 73

Maintenance 74

General Information 75

TROUBLESHOOTING 76

Liquid Damage 79

PRECAUTIONS & WARRANTY 80

I.C. NOTICE 82

MEMORY LIST 83

INDEX 85

REMOTE OPERATION CARD 86

MAIN MENU FLOW CHART 88

Contents

[2] WELCOME/FEATURES/TERMINOLOGY

www.uniden.com

Congratulations on your purchase of the Uniden Multi-Handset Cordless System

telephone. This unit is different from conventional cordless telephones. When the base

unit is connected to AC power and a telephone line, it can support up to 10 handsets.

You can now place a fully-featured cordless handset anywhere in your home or office

where AC power is available to connect the handset chargers. Extra handsets also allow

you to establish a 4-way conference call among 2 handsets, the base speakerphone, and

an outside line.

Note: Some illustrations in this manual may differ from the actual unit for explanation

purposes.

As an Energy Star£ Partner, Uniden has determined that this product or product

models meets the Energy Star£ guidelines for energy efficiency.

Energy Star£ is a U.S. registered mark.

• 5.8GHz Digital Expandable

• Integrated Answering Device

• Dual Keypad with LCD Screen at Base

• 10 Multi-Handset Expandability

• Hands-Free Speakerphone in the Handset and Base

• Caller ID/Caller ID on Call Waiting (subscribe through local telephone company)

• Call Waiting Deluxe (subscribe through local telephone company)

• 100 Programmable Memory Locations

• Trilingual Display Options and Voice Prompts (English, French and Spanish)

• Intercom/Call Transfer Between Handsets

• 20 Distinctive Ring Options (10 ringer tones and 10 melody ringers)

• Mute and Hold Features

• Do Not Disturb (DND) Feature

•DirectLink¥ Mode

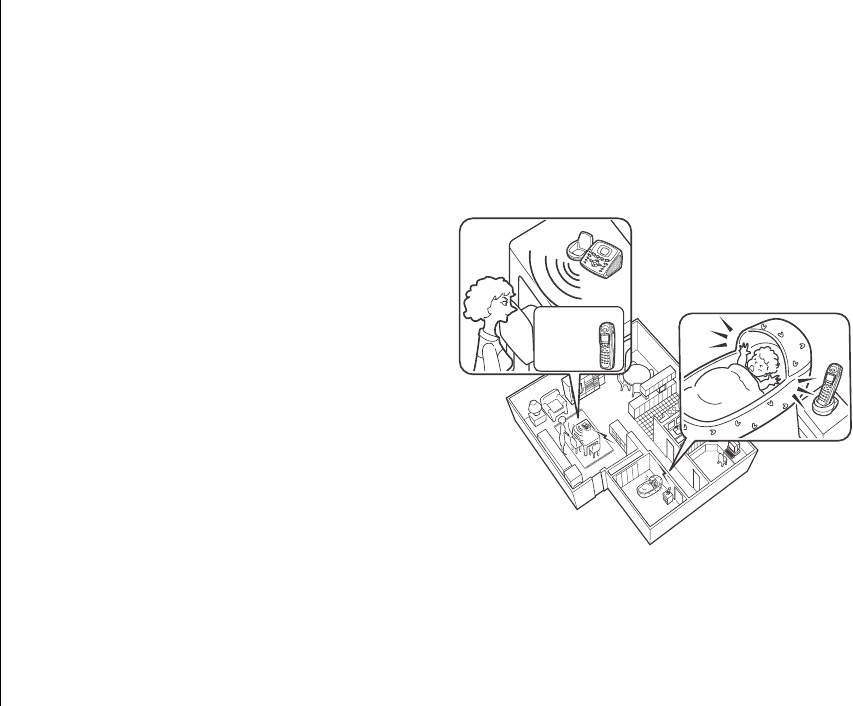

• Room/Baby Monitoring

• Battery Level Indicator

• Clock Display

•Animation Displays

WELCOME/

FEATURES/

Welcome

Features

WELCOME/FEATURES/TERMINOLOGY [3]

www.uniden.com

This series features AutoTalk¥ and AutoStandby¥. AutoTalk allows you to answer a call by just removing

the handset from the cradle so you don't have to waste time pushing buttons. AutoStandby allows you to

hang up by simply returning the handset to the cradle.

To protect you against mis-billed calls that might result from your phone being activated by other

equipment, this series has Random Code¥ digital security, which automatically selects one of over

approx. 65,000 digital security codes for the handset and base.

Digital Spread Spectrum Technology uses a wider frequency band than standard digital transmissions. The

result is a more secure conversation with the clarity of digital sound, extended range, and minimal

interference from other cordless phones.

IntegriSound¥ Built in sound quality which provides lifelike conversations.

With DirectLink¥ mode, you can use 2 or more handsets as radio tranceivers (walkie-talkies).

Be sure to visit our web site: www.uniden.com

Uniden£ is a registered trademark of Uniden America Corporation.

AutoTalk, AutoStandby, DirectLink, IntegriSound and Random Code are trademarks of Uniden America.

Terminology

•Standby Mode - The handset is not in use, and talk/flash has not been pressed. No dial tone is present.

•Talk Mode - The handset is not in the cradle, and talk/flash or speaker has been pressed, enabling a dial tone.

6CNM

appears on the display.

WELCOME/

FEATURES/

[4] CONTROLS & FUNCTIONS

www.uniden.com

Controls & Functions

1. Handset Antenna

2. Beltclip Hole

3. Speaker Phone Speaker and Ringer

4. Handset Battery Compartment

5. New Message LED

6. Handset Earpiece

7. LCD Display

8. Soft Keys (P. 8)

9. /vol and ∧/∨ (P. 36 & 17)

10.

/tone/< (P. 38 & 43)

11.speaker (P. 33)

12.intcom/hold (P. 69 & 34)

13.Headset Jack Cover

14.talk/flash (P. 33 & 34)

15.end (P. 33)

16.cid (Caller ID) (P. 50)

17.#/> (P. 43)

18.phonebook (P. 41)

19.Handset Microphone

20.Handset Charging Contacts

12 19

Play

Skip

Stop

Delete

Repeat

Handset Remote Operation

CONTROLS &

FUNCTIONS

CONTROLS & FUNCTIONS [5]

www.uniden.com

21 33 34

31 41 403029282726

42 4322 32

21. In use LED

22. play/stop (P. 58)

23. cid/exit (P. 50)

24. Charge LED

25. Base Charging Contacts

26. delete message (P. 59)

27. mic (microphone)

28. answer on/off (P. 56)

29. do not disturb (P. 36)/DND LED

30. tone (P. 38)

31. Message Counter Display (P. 8)

32. Soft Keys

33. Base Speaker

34. speaker/speaker LED (P. 33)

35.

phonebook

(P. 41)

36.

intercom

hold

Key (P. 69

34)

37.

flash

find hs

(handset) Key

(P. 34

40)

38.

/volume

and

∧/∨

(P. 36)

39. DC IN 9V Jack

40. TEL LINE Jack

For TRU8885-2/TRU885-3 only

41. Charging Contacts

42. Charge LED

43. DC IN 9V Jack

CONTROLS &

FUNCTIONS

[6] DISPLAY AND ICONS

www.uniden.com

Display and Icons

Example of the standby mode display

•Handset

•Base

* appears if you have a new message.

appears if you turn your answering system off.

** appears when the message strage is full.

appears if you set your answering system to announce only.

ICON Appears During DESCRIPTION

Standby/Talk Battery icons indicate the handset battery status. This icon changes depending on

the battery status (full, medium, low and empty).

Standby The Ringer off icon indicates that ringer is turned off.

Talk The Mute icon appears when you mute the handset or base.

Talk The Speaker icon appears when the handset speaker phone is used (handset only).

Talk The Privacy icon appears when the Privacy Mode is turned on.

Talk The Recording icon appears while recording a conversation.

570#

*CPFUGV

0GY%+&

4'&+#. /'07

Ringer off icon (when the ringer is off)/ day of the week and time / battery icon

Handset ID and Banner

Number of new Caller ID calls received (If there are no new Caller ID messages,

the Handset ID appears here.)

* Status of your

Answering machine

** Number of message

Day of the week and time

Number of new Caller ID calls received

(If there are no new Caller ID messages, the Handset

ID appears here.)

0'9

1((

#059'4

(7..

#PPQWPEG

10.;

DISPLAY AND ICONS

DISPLAY AND ICONS [7]

www.uniden.com

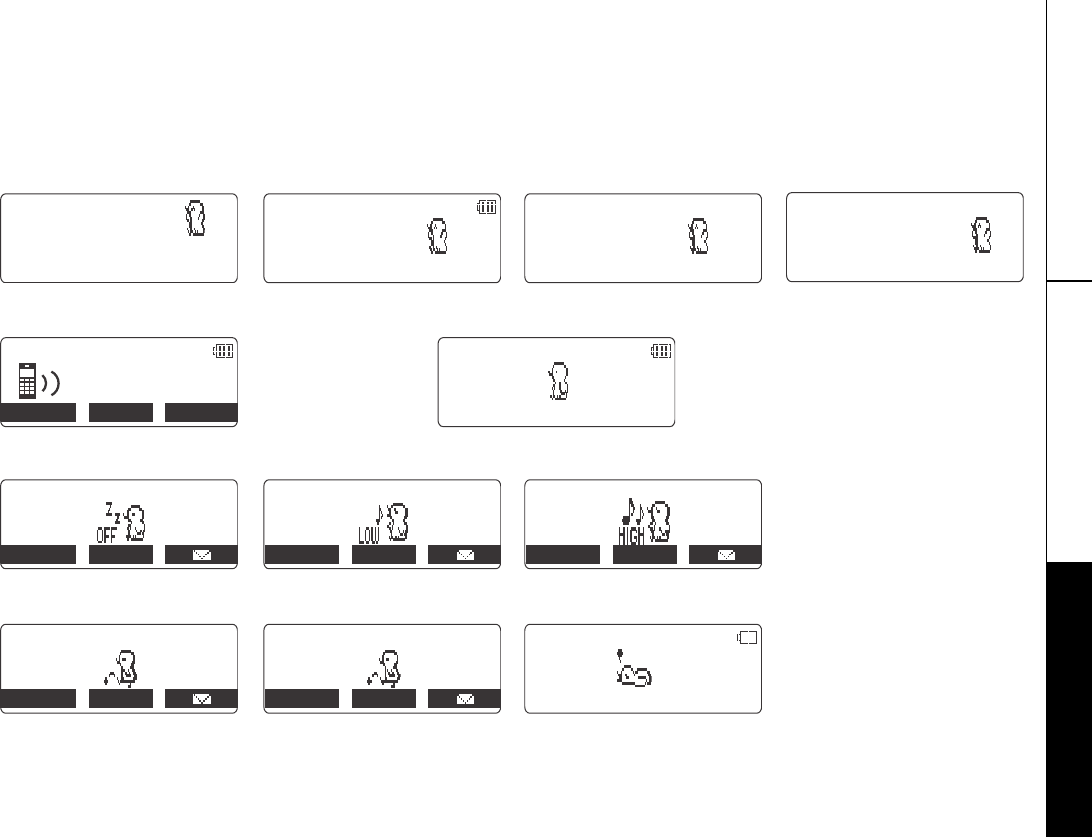

Animation Displays (Handset only)

The handsets have a variety of animation screens. Below are examples of the animation screens and what

they mean:

Turning on the phone Hanging up the phone Confirmation (Done!) Deleting (Deleted!)

Making a call Find Handset/Paging the Handset

Also, the animation screen changes depending on the ringer volume setting.

Out of Range Unavailable Low Battery

9GNEQOG

2NGCUG9CKV



'PF

&QPG &GNGVGF

6CNM



/76' /'07 %9&:

2CIKPI

4KPIGT8QNWOG

4'&+#. /'07

4KPIGT8QNWOG

4'&+#. /'07

4KPIGT8QNWOG

4'&+#. /'07

1WV1H4CPIG

4'&+#. /'07

7PCXCKNCDNG

4'&+#. /'07

.QY$CVVGT[

DISPLAY AND ICONS

[8]

www.uniden.com

Soft Key Function

"Soft" keys are keys that change function during the operation of the phone. There are three soft keys on

the base and three on each handset.

- Access the main menu - Access stored Caller ID messages

- Set up CIDCW options - Store or edit phone numbers

- Store or edit phone numbers - Redial one of the last three numbers dialed from the handset

Note: The soft keys will not appear while the handset is charging.

The function of each soft key is determined by the icon that appears directly abave it. For example, when

the handset is in standby mode, pressing soft key 2 will access the main menu. When the handset is in

talk mode, pressing soft key 1 will mute the microphone.

Complete information on the features controlled by the soft keys can be found under each feature.

In standby mode

Handset Base

In talk mode

Handset Base

570#

*CPFUGV

0GY%+&

4'&+#. /'07

Soft key 1 Soft key 2 Soft key 3

570#

0GY%+&

4'&+#. /'07 4'%14&

Soft key 1 Soft key 2 Soft key 3

6CNM



/76' /'07

522JQPG

/76'

/'07



GETTING STARTED [9]

www.uniden.com

Setting up the Phone

Do the following steps:

A. Choose the best location.

B. Install the rechargeable battery pack into the handset.

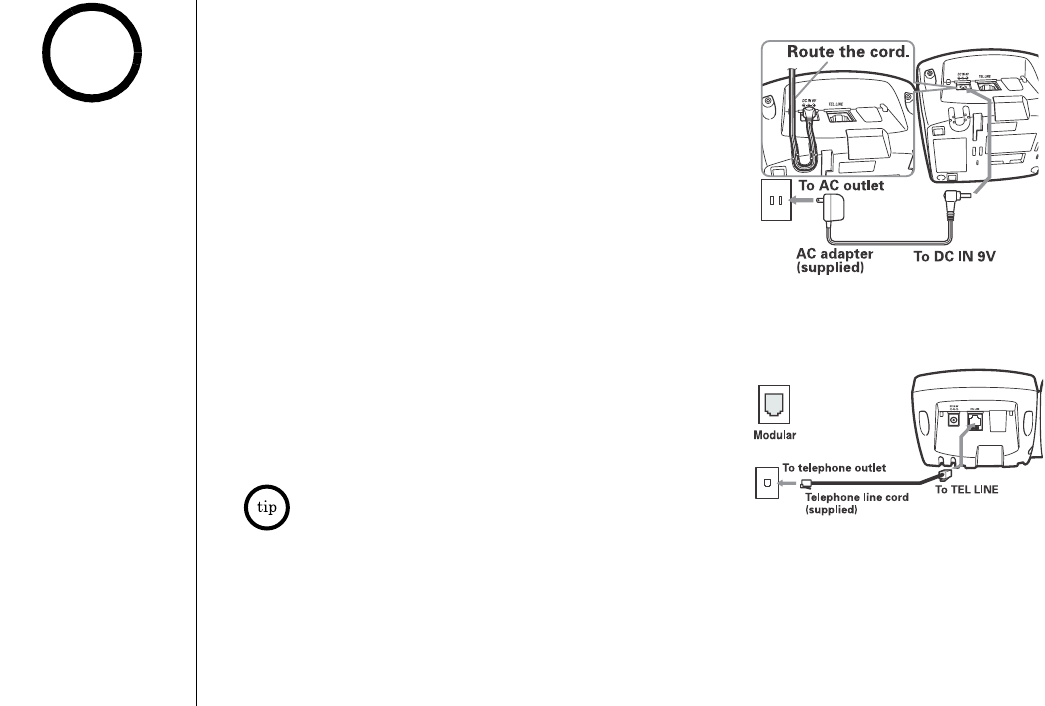

C. Connect the base unit.

A. Choose the best location

Before choosing a location for your new phone, read “Installation Considerations”

on page 81. Here are some important guidelines you should consider:

Avoid noise sources such as a window

by a street with heavy traffic

Avoid microwave ovens

Avoid excessive

moisture, extremely

low temperatures,

dust, mechanical

vibration, or shock

Avoid personal computers

Avoid other cordless telephones

Choose a central location

Avoid heat sources, such as

radiators, air ducts, and sunlight

Avoid television sets and

other electronic equipment

If your home has specially wired alarm equipment connected to phone line, be sure that installing the system does not

disableyour alarm equipment.

If you have questions about what will disable alarm equipment, contact your telephone company or a qualified installer.

note

For maximum range:

•Keep the antenna free

of obstruction.

•When the handset is

not in use place the

handset in an upright

position.

•Do not hold the

handset where you

would block the signal.

•Make sure that metal

door or ferro-concrete

wall is not to be in-

between the handset

and base.

note

Correct

Incorrect

GETTING STARTED

[10]

www.uniden.com

B. Install the rechargeable battery pack into the handset,

and charge for at least 15-20 hours before using!

The handset is powered by a rechargeable battery pack. The battery recharges

automatically when the handset is placed in the base unit. To maximize the charge

capacity of your battery pack, DO NOT plug the telephone cord into the base unit

and wall jack until the battery is fully charged.

1) Press down on the handset battery case cover (use the

finger indention for a better grip) and slide the cover

downward to remove.

2) Turn the battery pack so that the connector with the red

and black wires is near the jack inside the battery

compartment. Match the connector's wire colors to the

polarity label in the battery compartment (the connector

notches fit into the grooves of the jack only one way).

Push the battery pack connector into the jack until it

clicks into place.

3) Make sure you have a good connection by gently pulling on

the battery wires. If the connection is secure, the battery

jack will remain in place.

4) Place the battery case cover back on the handset and slide

it upwards until it clicks into place.

5) Place the handset in the base unit for 15-20 hours without

interruption. The base unit's LED light (labeled charge)

illuminates once the handset is placed in the base. The

LED light will illuminate whether the battery pack is

connected or not.

•

Use only the Uniden

(BT-446) rechargeable

battery pack supplied

with your cordless

telephone.

•

Replacement battery

packs are also available

through the Uniden

Parts Department at

(800) 554-3988,

Monday thru Friday from

8:00 a.m. to 5:00 p.m.

or online at

www.uniden.com

note

GETTING STARTED [11]

www.uniden.com

Low battery alert

When the battery pack is very low, the phone is programmed to eliminate functions

in order to save power.

The battery pack needs to be charged when:

- The empty battery icon appears.

.QY$CVVGT[

appears in the display.

If the phone is in standby mode, none of keys will

operate. If you are on a call, complete your conversation as quickly as possible, and

return the handset to the cradle.

Cleaning the battery charging contacts

To maintain a good charge, it is important to clean the

charging contacts on both the handset and the base

unit once a month. Using water only, dampen a cloth

to clean the charging contacts. Then make sure to go

back over the charging contacts with a dry cloth

before returning the handset to the base to charge.

Caution: Do not use paint thinner, benzene, alcohol, or

other chemical products. Doing so may discolor the

surface of the telephone and damage the finish.

.QY$CVVGT[

contacts

•Even when the battery

pack is not being used,

it will gradually

discharge over a long

period of time.

For optimum performance,

be sure to return the

handset to the base unit

after each telephone call.

note

GETTING STARTED

[12]

www.uniden.com

C. Connect the base unit

1) Connect the AC adapter to the DC IN 9V jack and to

a standard 120V AC wall outlet. Connect the AC

adapter to a continuous power supply (i.e., an outlet

that is not controlled by a switch).

2) Set the base on a desk or tabletop, and place the

handset in the base unit. Place the base unit close

to the AC outlet so that you can unplug the AC

adapter easily.

3) Make sure that the charge LED illuminates.

If the LED does not illuminate, check to see that the

AC adapter is plugged in and the handset makes

good contact with the base charging contacts.

After installing the battery pack in the handset,

charge your handset at least 15-20 hours before

plugging into the phone line.

4) Once the handset battery pack is fully charged,

connect the telephone line cord to the TEL LINE jack

and to a telephone outlet.

If your telephone outlet isn't modular,

contact your telephone company for

assistance.

•Use only the supplied

[AD-830] AC adapter.

Do not use any other

AC adapter.

•Place the power cord

so that it does not

create a trip hazard or

where it could become

chafed and create a

fire or electrical

hazard.

note

GETTING STARTED [13]

www.uniden.com

Mounting the Base Unit on a Wall

Standard wall plate mounting

This phone can be mounted on any standard wall plate.

1) Make the AC adapter and the telephone line cord

through the hole on the wall mount adapter.

2) Plug the AC adapter into the DC IN 9V jack.

3) Plug the telephone line cord into the TEL LINE

jack.

4) Slide the wall mount adapter into the notches on

the base.

5) Plug the AC adapter into a standard 120V AC wall

outlet. Hook the cord on the notch of the wall

mount adapter.

6) Plug the telephone line cord into the telephone

outlet. Hook the cord on the notch of the wall

mount adapter.

7) Align the mounting slots on the base with the

mounting posts on the wall. Then push in and

down until the phone is firmly seated.

To remove, push up

a tab on the wall

mount adapter as

shown.

DO NOT use an AC outlet

controlled by a wall

switch.

GETTING STARTED

[14] GETTING STARTED

www.uniden.com

Direct wall mounting

If you don't have a standard wall plate, you can mount your phone directly to the

wall. Before doing this, consider the following:

• Avoid electrical cables, pipes, or other items behind the mounting location that could

cause a hazard when inserting screws into the wall.

• Try to mount your phone within 5 feet of a working phone jack to avoid excessive lengths.

• Make sure the wall material is capable of supporting the weight of the base and handset.

• Use #10 screws (minimum length of 1 & 3/8 inches) with anchoring devices suitable for

the wall material where the base unit will be placed.

1) Insert two mounting screws into the wall

(with their appropriate anchoring device), 3

& 15/16 inches apart. Allow about 1/8 of an

inch between the wall and screw heads for

mounting the phone.

2) Refer to steps 1 through 7 on page 13 to

mount the telephone.

GETTING STARTED

GETTING STARTED [15]

www.uniden.com

Main the Menu Options

Your phone has seven main menu options: DirectLink Mode, Room/Baby Monitor,

Handset Setup, Base Setup, Answ. Setup, Global Setup and Deregister HS. You

can change Room/Baby Monitor,Answering Setup, and Global Setup settings

from the base or from any handset. DirectLink Mode,Handset Setup, and

Deregister HS are only available from a handset. Base Setup is only available from

the base.

Default Settings

The default settings set from the factory match the features that most people use.

You may not need to change them. However, there are a number of options you

must set and entries you must make in memory to take full advantage of all the

phone features. The table below lists the default settings.

Function Handset Base Function Handset Base

Ringer Volume High CW / CWDX CW on/CWDX off

Ringer Tone Flicker Dial Mode Tone

Distinctive Ring On - Security code 80

Auto Talk Off - Recording Time 1 minute

Anykey Answer Off - Ring Time Toll Saver

Language (LCD) English Message alert Off

Key touch tone On - Call Screen On

Animation Screen On -

• For Global Setup,

Answ. Setup, and

System Reset menu

options, make sure

the line is not in use

and the handsets are

within range of the

base.

•Main menu flow

chart is provided

(refer to pageXX).

note

GETTING STARTED

[16] GETTING STARTED

www.uniden.com

DirectLink Mode (handset only)

In DirectLink mode, a pair of handsets can function as two-way radios. DirectLink

Mode allows two handsets to communicate with each other without the base unit or

a telephone line. Use them at sporting events or while shopping to stay in contact

with family members or friends. You must set both handsets to DirectLink Mode

activate this feature (see page 18).

Room/Baby Monitor

This feature allows you to monitor

sounds in another room (see page 18

for setup). Place the base or a handset

in the room you wish to monitor; it will

function as a microphone. A second

handset can be set to function as a

remote speaker, allowing you to

monitor sounds in the room.

Monitor using

handset or

base unit

GETTING STARTED

GETTING STARTED [17]

www.uniden.com

Setting Menu Options

Entering the Menu

1) In standby mode, press the MENU soft key.

2) Use ring/vol/∧ or ring/vol/∨ to move the pointer to a

desired main menu (DirectLink Mode, Room Monitor,

Handset Setup, Base Setup, Answ. Setup, Global Setup,

and Deregister HS).

3) Press the OK soft key to select the desired main menu.

To return to the previous screen, press the BACK soft

key.

4) Use ring/vol/∧ or ring/vol/∨ to select a desired

submenu and then the OK soft key to enter.

5) In the submenu option, use ring/vol/∧ or ring/vol/∨

to select an item. Press the OK soft key to confirm your

selection. For detailed instructions, see the following

sections for the desired submenu option. To return to

the previous screen, press the BACK soft key.

6) To exit the menu, press end on the handset or caller id/exit on the base.

&KTGEV.KPM/QFG

4QQO/QPKVQT

*CPFUGV5GVWR

$#%- $#%- 1-

•Han

set

4QQO/QPKVQT

$CUG5GVWR

#PUY5GVWR

$#%- $#%- 1-

•Base

GETTING STARTED

[18] GETTING STARTED

www.uniden.com

DirectLink Mode (Handset only)

Using DirectLink Mode

1) Enter the DirectLink Mode menu (see "Entering the

Menu " on page 17).

6QGPVGT&KTGEV.KPMOQFGRTGUU

='06'4?

appears.

2) Press the ENTER soft key to enter the DirectLink mode.

You will hear a confirmation tone, and

&KTGEV.KPM/QFG

%QORNGVG

appears.

3) To return back to the normal mode, press the CANCEL

soft key and then the OK soft key, or return the handset

to the cradle.

Room/Baby Monitor

Using Room/Baby Monitor

1) Enter the Room Monitor menu (see "Entering the Menu" on page 17).

6Q4QQO

/QPKVQT

appears.

2) Select the handset or base you want to monitor by using ring/vol/∧ or

ring/vol/∨.

3) Press the OK soft key.

4QQO/QPKVQT

appears, and you hear sounds in the room

where the handset or the base is installed.

4) To turn off the Room Monitor, press the END soft key,

or end.

6QGPVGT

&KTGEV.KPMOQFG

RTGUU='06'4?

$#%- $#%- '06'4

4QQO/QPKVQT

㨬㨭

*CPFUGV

'0&

•You must have at least

two handsets to use

Direct Link Mode.

•This is an example, if

you have handset #1

and #2.

note

GETTING STARTED

GETTING STARTED [19]

www.uniden.com

Handset Setup / Base Setup

The following submenu options must be set separately for each handset and the

base.

Selecting a Ringer Tone (Handset only)

Adjust the ringer tone.

1) Enter the Handset Setup menu, and then the Ringer

Tones submenu (see "Entering the Menu" on page 17).

There are 10 ringer tones or 10 melodies to choose

from:

- Ringers (Flicker, Clatter, Soft Alert, Wake Up, Light Bug, Beep

Boop, Tone Board, Chip Chop, Party Clap, Reminder)

- Melodies (Beethoven's Symphony #9 [Beethoven9], For Elise [Elise], We Wish You A Merry

Christmas [Merry- Xmas], Home Sweet Home [Hm Swt Hm], Lorri Song #6 [Lorri Song],

When the Irish Eyes Are Smiling [Irish Eyes], Aura Lee, Let Me Call You Sweet Heart

[Sweetheart], Star Spangled Banner [Star Spngl], Old MacDonald [Old MacDld])

2) Press ring/vol/∧ or ring/vol/∨ to move the pointer. You will hear the ringer or

melody as you scroll through the options.

3) Press the OK soft key. You will hear a confirmation tone.

4KPIGT6QPGU

(NKEMGT

%NCVVGT

$#%- &'.'6' 1-

GETTING STARTED

[20] GETTING STARTED

www.uniden.com

Distinctive Ringer Setup (Handset only)

Sets the tone your phone makes when ringing.

"Distinctive Ringer" allows you to assign a designated ring tone to a stored

phonebook number. When a call is received and the Caller ID information matches

the information in one of the phonebook memory locations, the phone uses the

distinctive ring assigned to that particular Caller. You can assign distinctive rings

to multiple phonebook memory locations. Switching the setting to "Distinctive Off"

disables distinctive ringing: all incoming calls will have a normal ring tone.

Switching to "Distinctive On" activates all programmed distinctive ring memory

locations.

1) Enter the Handset Setup menu or the Base Setup menu,

and then the Distinct. Ring submenu (see "Entering the

Menu" on page 17).

2) Press ring/vol/∧ or ring/vol/∨ to select

1HH

3) Press the OK soft key. You will hear a confirmation tone.

&KUVKPEVKXG4KPI

1HH

$#%- &'.'6' 1-

GETTING STARTED

GETTING STARTED [21]

www.uniden.com

Setting the AutoTalk (Handset Only)

Allows you to answer the phone without pressing talk/flash or speaker. When the

AutoTalk is set to on, simply remove the handset from the cradle and the phone

automatically answers the call.

1) Enter the Handset Setup menu, and then the AutoTalk

submenu (see "Entering the Menu" on page 17).

2) Press ring/vol/∧ or ring/vol/∨ to select

1HH

3) Press the OK soft key. You will hear a confirmation

tone.

Setting the Anykey Answer (Handset only)

Allows you to answer the phone without pressing talk/flash or speaker. When the

Anykey Answer is on, you can answer a call by pressing any number key, */tone/<,

or #/> on the handset.

1) Enter the Handset Setup menu, and then the Anykey

Answer submenu (see "Entering the Menu" on page 17).

2) Press ring/vol/∧ or ring/vol/∨ to select

1HH

3) Press the OK soft key. You will hear a confirmation tone.

#WVQ6CNM

1HH

$#%- &'.'6' 1-

#P[MG[#PUYGT

1HH

$#%- &'.'6' 1-

GETTING STARTED

[22] GETTING STARTED

www.uniden.com

Setting the True Banner (Handset only)

Customizes your handset(s) by giving it a banner name.

The name will be displayed on the LCD screen during Standby Mode, Intercom,

Intercom Hold, Room Monitor and Copy Phonebook operation. The banner name will

be displayed on the receiving handset as well.

1) Enter the Handset Setup menu, and then the Banner

submenu (see "Entering the Menu" on page 17).

2) Use the number keypad (0-9), */tone/<, #/>, or the

DELETE soft key to enter or edit the name.

3) Press the OK soft key. You will hear a confirmation

tone.

Selecting a Language

Selects which language the menu display will use. Choose from English, French, or

Spanish.

1) Enter the Handset Setup or the Base Setup menu, and

then the Language submenu (see "Entering the Menu"

on page 17).

2) Press ring/vol/∧ or ring/vol/∨ to choose “English”,

“Français” (French), or “Español” (Spanish).

3) Press the OK soft key. You will hear a confirmation tone.

$CPPGT

/QOU2JQPG



$#%- &'.'6' 1-

.CPIWCIG

'PINKUJ

(TCP㩟CKU

$#%- 1-

GETTING STARTED

GETTING STARTED [23]

www.uniden.com

Adjusting the LCD Contrast

Adjusts the handset LCD brightness. You can choose one from the 10 levels for

better viewing.

1) Enter the Handset Setup or the Base Setup menu, and

then the Contrast submenu (see "Entering the Menu" on

page 17).

2) Press ring/vol/∧ or ring/vol/∨ to adjust the contrast

of the LCD (10 levels.)

3) Press the OK soft key. You will hear a confirmation tone.

Setting the Key Touch Tone (Handset only)

Allows you to set your phone's key touch-tone to on or off (tone your keypad makes

when keys are pressed).

1) Enter the Handset Setup menu, and then the Key Touch

Tone submenu (see "Entering the Menu" on page 17).

2) Press ring/vol/∧ or ring/vol/∨ to select

1HH

3) Press the OK soft key. You will hear a confirmation

tone.

%QPVTCUV



$#%-

-G[6QWEJ6QPG

1HH

$#%- &'.'6' 1-

GETTING STARTED

[24] GETTING STARTED

www.uniden.com

Setting the Animation Screen (Handset Only)

Displays animation on the handset LCD (see page 7). The animations will be

displayed on the LCD screen during a call, ringer volume setting, paging operation,

or when you hangup and so on.

1) Enter the Handset Setup menu, and then the Animating

Screen submenu (see "Entering the Menu" on page 17).

2) Press ring/vol/∧ or ring/vol/∨ to select

1HH

3) Press the OK soft key. You will hear a confirmation

tone.

See "Animation Screen (Handset only)" on page 7 for detailed screen.

Answering System Setup

This main menu option allows you to set up TAD settings.

Record a Personal Outgoing Message from the Base

Allows you to record a personal outgoing message (greeting) which the answering

system automaticlly plays when you receive a call.

1) Enter the Answ. Setup menu, and then the

Record Greeting submenu (see "Entering the

Menu" on page 17).

6QTGEQTFITGGVKPIRTGUU

=56#46?

appears.

2) Press the START soft key. You will hear “Record Greeting.“ The message counter

displays 30 and then begins to count down.

#PKOCVKQP5ETGGP

1HH

$#%- &'.'6' 1-

6QTGEQTF

ITGGVKPI

RTGUU=56#46?

$#%- /'07 56#46

•The greeting must be

more than 2 seconds

long, or it will not be

recorded.

•To delete the personal

outgoing message,

press the DELETE soft

key while the message

is playing. The system

announces “Greeting

has been deleted.“

note

GETTING STARTED

GETTING STARTED [25]

www.uniden.com

3) Position yourself near the base microphone and record your greeting.

4) When you are finished recording, press the STOP soft key. Your greeting will

playback for confirmation.

Selecting Your Greeting (Base only)

Allows you to choose between the two outgoing messages, a pre-recorded message

or your own greeting.

1) Enter the Answ. Setup menu, and then the

Select Greeting submenu (see "Entering the

Menu” on page 17).

2NC[DCEMITGGVKPI

appears, and the current outgoing message is

played. LCD is an example if you recorded your greeting.

2) Once you have recorded a personal greeting, press the CHANGE soft key to

choose the greeting. The selected outgoing message is played. Each time you

press the CHANGE soft key, the phone switches the outgoing message between

the prerecorded and the personal outgoing message.

Setting a PIN Code

Selects a two-digit Personal Identification Number (PIN) code. A PIN code is

required to play your messages from a remote location.

1) Enter the Answ. Setup menu, and then the Security

Code submenu (see Entering the Menu" on page 17).

2) Enter a two-digit PIN code (01-99) using the number

keypad (0-9).

2NC[DCEM

ITGGVKPI

4'&+#. 5612 %*#0)'

5GEWTKV[%QFG



$#%- &'.'6' 1-

GETTING STARTED

[26] GETTING STARTED

www.uniden.com

3) Press the OK soft key. You will hear a confirmation tone.

Setting the Ring Time

Allows you to set the number of rings the caller hears before your answering system

plays the outgoing message. You can set the ring time to answer after two, four, or

six rings. If you enable the Toll Saver (TS), the answering system picks up after two

rings if you have new messages and after four rings if there are none.

1) Enter the Answ. Setup menu, and then the Ring Time

submenu (see "Entering the Menu Option" on

page 17).

2) Press ring/vol/∧ or ring/vol/∨ to select a Ring Time

(Toll Saver, 2 Times, 4 Times, or 6 Times).

3) Press the OK soft key. You will hear a confirmation tone.

Setting the Record Time

Sets the duration for recording the incoming messages. You have three record time

options. The options "1 minute" or "4 minutes" set the duration for recording the

incoming messages. "Announce only" answers the call but prevents the caller from

leaving a message.

1) Enter the Answ. Setup menu, and then the Record

Time submenu (see "Entering the Menu" on page 17).

2) Press ring/vol/∧ or ring/vol/∨ to select Record Time

(1 Minute, 4 Minutes, or Announce Only).

4KPI6KOG

6QNN5CXGT

6KOGU

$#%- &'.'6' 1-

4GEQTF6KOG

/KPWVG

/KPWVGU

$#%- &'.'6' 1-

GETTING STARTED

GETTING STARTED [27]

www.uniden.com

3) Press the OK soft key. You will hear a confirmation tone.

Setting the Message Alert On or Off

Allows you to turn Message Alert on or off. Message Alert feature let you know when

you have a new incoming message by sounding a short alert tone. If you set the

Message Alert on, and when a new message is received, the alert tone will sound

every 15 seconds.

1) Enter the Answ. Setup menu, and then the Message

Alert submenu (see "Entering the Menu" on page 17).

2) Press ring/vol/∧ or ring/vol/∨ to select

1HH

3) Press the OK soft key. You will hear a confirmation

tone.

Turning the message alert tone off by pressing any key

To quickly turn off Message Alert tone, press any key on the base unit and the tone

will automatically deactivate.

Turning the message alert tone off when you are away from your phone

When all new messages are played back using the remote playback feature (see

pages 62) the Message Alert tone will automatically deactivate. The tone will not

deactivate until all new messages are played back.

/GUUCIG#NGTV

1HH

$#%- &'.'6' 1-

GETTING STARTED

[28] GETTING STARTED

www.uniden.com

Setting the Language of your Answering System

Selects the Language of your answering system announcements from English,

French, or Spanish.

1) Enter the Answ. Setup menu option, and then the

Language submenu (see "Entering the Menu" on

page 17).

2) Press ring/vol/∧ or ring/vol/∨ to choose English,

Français (French), or Español (Spanish).

3) Press the OK soft key. You will hear a confirmation tone.

Setting the Call Screen

Allows you to screen an incoming call before answering the call. Set the call-

screening feature to on or off.

1) Enter the Answ. Setup menu and then the Call Screen

submenu (see "Entering the Menu” on page 17).

2) Press ring/vol/∧ or ring/vol/∨ to select

1HH

3) Press the OK soft key. You will hear a confirmation

tone.

.CPIWCIG

'PINKUJ

(TCPCKU

$#%- &'.'6' 1-

%CNN5ETGGP

1HH

$#%- &'.'6' 1-

GETTING STARTED

GETTING STARTED [29]

www.uniden.com

Global Setup

If you change one of the Global settings, you change that setting for all additional

handsets. Only one handset can change Global settings at a time.

Setting Day and Time

Sets the day and time of your display.

1) Enter the Global Setup menu, and then the Day & Time

submenu option (see "Entering the Menu" on

page 17).

2) Press ring/vol/∧ or ring/vol/∨ to select the day of

the week, and then the → soft key.

3) Press ring/vol/∧ or ring/vol/∨ to set hour, and then press the → soft key.

4) Press ring/vol/∧ or ring/vol/∨ to set minute, and then press the → soft key.

5) Press ring/vol/∧ or ring/vol/∨ to choose

, and then press the SAVE soft

key. You will hear a confirmation tone.

&C[6KOG

/10#/

=?

$#%- 5#8'

•Any changes to the

global settings menu

affect all registered

handsets and the base.

•For setting the Day and

Time, the idle time-out

is extended to 2

minutes.

If the area code has

already been stored in

memory, the stored area

code will be displayed.

To change it, use the

DELETE soft key and

number keys to enter

the new area code.

note

GETTING STARTED

[30] GETTING STARTED

www.uniden.com

Setting CIDCW (Caller ID on Call Waiting)

Sets the Caller ID on Call Waiting (CIDCW) setting. CIDCW performs the same as

regular Caller ID on a call waiting number. Call Waiting Deluxe allows you to handle

call waiting calls in seven different ways.

1) Enter the Global Setup menu, and then the CIDCW

submenu (see "Entering the Menu" on page 17).

2) Press ring/vol/∧ or ring/vol/∨ to select

%91P

%9&:

%91P

%9&:1HH

, or

%91HH

%9&:1HH

, and then press

the OK soft key. You will hear a confirmation tone.

Setting the Area Code

Stores or edits the area code. If you enter a 3-digit area code number in the "Area

Code" option, your local area code does not appear in the Caller ID message. For

calls received from outside your local area code, you will see a full 10-digit number.

1) Enter the Global Setup menu, and then the Area Code

submenu (see "Entering the Menu" on page 17).

2) Press the number keypad (0-9) to enter a 3-digit area

code.

3) Press the OK soft key. You will hear a confirmation tone.

%+&%9

%91P%9&:1P

%91P%9&:1HH

$#%- &'.'6' 1-

#TGC%QFG

㨫AA

$#%- &'.'6' 1-

GETTING STARTED [31]

www.uniden.com

Setting the Dial Mode

Sets the dial mode to tone or pulse. Most phone systems use tone dialing; the

default setting is tone dialing. Set the dialing mode to match the dialing system

used by your local phone service.

• If you are not sure of your dialing system, set the unit to tone dialing. Make a trial call. If

the call connects, leave the setting as is; otherwise set the unit to pulse dialing.

• If your phone system requires pulse dialing and you need to send DTMF tones in certain

situations during a call, you may switch over to tone dialing (refer to “Tone Dialing switch-

over” on page 38).

1) Enter the Global Setup menu, and then the Dial Mode

submenu (see "Entering the Menu" on page 17).

2) Press ring/vol/∧ or ring/vol/∨ to select

6QPG

2WNUG

(the initial setting is Tone).

3) Press the OK soft key. You will hear a confirmation tone.

&KCN/QFG

6QPG

2WNUG

$#%- &'.'6' 1-

GETTING STARTED

[32] GETTING STARTED

www.uniden.com

De-register the Handset (Handset only)

Deregister HS is used to clear the handset's ID from the main base unit or the base

ID from the handset. Use this option, for example, when you change the digital

security code (see page 32).

1) In standby mode, select Deregister HS in the menu and

press the OK soft key.

&GTGIKUVGT*5!

appears.

2) Press ring/vol/∧ or ring/vol/∨ to select

;GU

and then

the OK soft key.

When de-registration is complete you will hear a confirmation tone, and

&GTGIKUVTCVKQP%QORNGVG

appears.

4) After de-registering the handset, place the handset to the base to register.

&GTGIKUVGT*5!

;GU

$#%- &'.'6' 1-

BASICS [33]www.uniden.com

Making and Receiving Calls

This handset has a built-in speakerphone that allows you to

have a hands-free conversation. This feature allows you to easily

communicate while performing other tasks, such as cooking.

appears on the display during hands-free conversations.

You can easily switch a call from

normal conversation to hands-free

conversation. To switch a call,

press speaker during the call.

From the Handset

From the Base

Normal conversation Hands-free conversation

To answer a call

Handset On the Cradle

Pick up the handset (AutoTalk is:

on) or pick up the handset and press

talk/flash (AutoTalk is: off).

Handset Off the Cradle

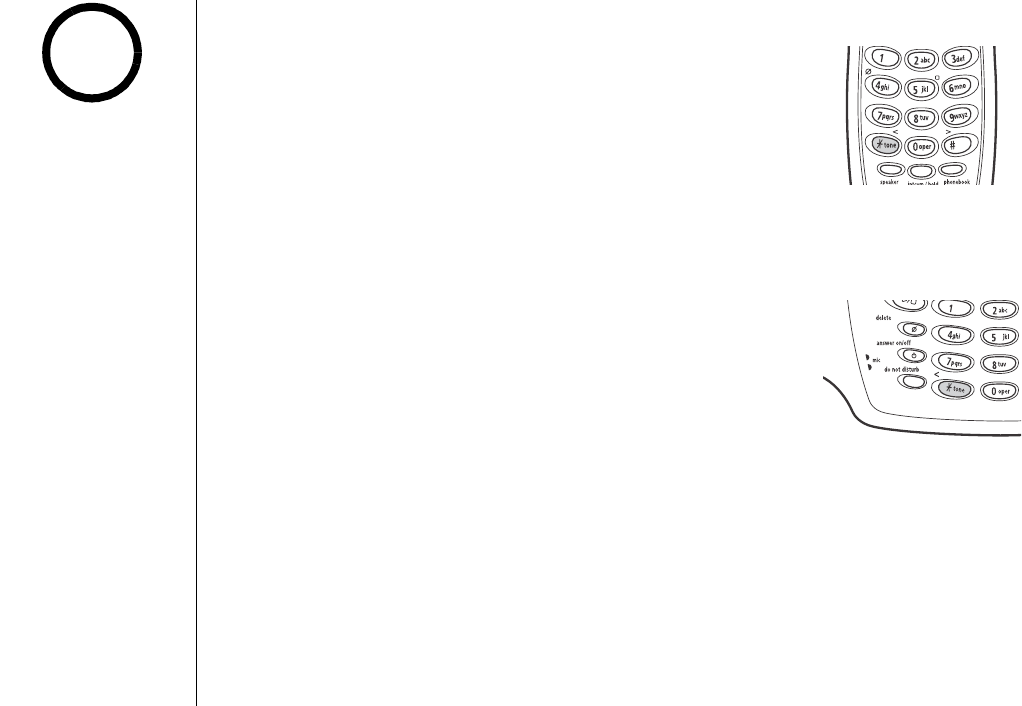

Press any number key,

/tone/<, or

#/> (Any Key Answer), or press

talk/flash.

Handset Off the Cradle

Press speaker.

To make a call

Handset Off the Cradle

1) Press talk/flash.

2) Listen for the dial tone.

3) Dial the number.

Dial the number, and then press

talk/flash.

Handset Off the Cradle

1) Press speaker.

2) Listen for the dial tone.

3) Dial the number.

Dial the number, and then press

speaker.

1) Press speaker.

2) Listen for the dial tone.

3) Dial the number.

Dial the number, and then press

speaker.

To hang up Press end or return the handset to the cradle (AutoStandby). Press speaker.

To enter a pause

within the dialing

sequence

When you dial the number in standby mode, press PAUSE soft key.

appears in the display, which represents a pause.

Press speaker. When you dial

the number press the PAUSE

soft key.

6CNM



/76' /'07

•To set "Autotalk", see

page 21 or to set

"Anykey Answer" see

page 21.

•The handset

microphone is located

at the bottom of the

handset (see "Controls

and Functions" on

page 4). Position

yourself as near to the

handset as possible

and speak clearly.

•If the line is in use by

another handset(s),

.KPG+P7UG

appears in the display

of all registered

handset's display that

are not in use.

•The base microphone is

located under the base

(see "Controls and

Functions" on page 5).

Position yourself as

near to the base as

possible.

note

BASICS

[34] BASICS www.uniden.com

Flash and Call Waiting

If you have Call Waiting service and a call waiting

tone sounds while you are on a call, press talk/flash

on the handset or flash/find hs on the base to accept

the waiting call. There is a short pause, and then you

will hear the new caller. To return to the original

caller, press talk/flash or flash/find hs on the base

again.

Placing a Call on Hold

1) During a call, press intercom/hold on the handset or

base. The call will be put on hold.

If you leave a call on hold for more than 10 seconds, the

display screen will read,

.KPGQP*QNF

2) To talk to the caller, press talk/flash or speaker on a handset (or speaker on the

base). The phone will return back to the call.

*QNFVQVTCPUHGT

*CPFUGV

*CPFUGV

$#%- &'.'6' 1-

•You can place a call on

hold for 5 minutes.

When 5 minutes has

passed, the call is

disconnected, and the

phone returns to

standby mode.

•While a call is on hold,

CIDCW can not be

received.

note

BASICS

BASICS [35]www.uniden.com

Redialing a Call

The last three phone numbers dialed can be quickly

redialed from the handset or base.

1) Press the REDIAL soft key in standby mode.

2) Press ring/vol/∧ or ring/vol/∨. Each press of ring/

vol/∧ or ring/vol/∨ will display one of the last three

number redialed.

3) Press talk/flash or speaker on the handset (or

speaker on the base). The selected number is dialed.

4) To hang up, press end (or speaker on the base).

Deleting a Redial Record (Handset only)

1) Press the REDIAL soft key in standby mode.

2) Press ring/vol/∧ or ring/vol/∨ repeatedly to display

the number to be deleted.

3) Press the DELETE soft key.

4) Press ring/vol/∧ or ring/vol/∨ to choose

;GU

5) Press the OK soft key. The redialed number is deleted.

Storing a Redial Record (from the handset only)

1) Press the REDIAL soft key in standby mode.

2) Press ring/vol/∧ or ring/vol/∨ repeatedly to display the number to be stored.

3) Press STORE.

5VQTG'FKV0COG

appears.

4) To complete the setting, follow the steps 3-8 in "Storing Phone Numbers, Names,

Distinctive Rings, and Speed dial" on page 41.

4GFKCN



$#%- &'.'6'

&'.'6'

5614'

4GFKCN



$#%- 5614'

4GFKCN



$#%- 5614'

ring/vol/∧

or ring/vol/∨

ring/vol/∧

or ring/vol/∨

&GNGVG4GFKCN!

;GU

$#%- $#%- 1-

•If the number exceeds

32 digits, only the first

32 digits are retained

in redial memory.

•If the redial memory is

empty, you will hear a

beep.

•Redial numbers stored

in the handset and the

base are independent

from each other.

note

BASICS

[36] BASICS www.uniden.com

Adjusting the Ringer, and Earpiece and Speaker

Volume

Ringer volume

In standby mode, press the volume up key or volume

down key on the handset or base to select one of three

ringer volume (Off, Low, or High).

Earpiece and Speaker Volume

You can select from among of six volume levels on the

handset, and ten levels on the base. Pressing the

volume up key or volume down key on the handset or

base during a call will change the earpiece or speaker

volume. This setting will remain in effect after the

telephone call has ended.

If you press the volume up key when the earpiece is at

the maximum volume level, an error tone sounds.

The error tone also sounds if you press the volume down key at the lowest volume.

Do Not Disturb (DND)

The do not disturb feature (DND) allows you to mute the ringer, the base, and any

registered handsets at the same time. The phone must be in standby mode. Press

and hold do not disturb on the base. You will hear a confirmation tone, and the

BASICS

BASICS [37]www.uniden.com

DND LED illuminates. To cancel the DND feature, press do not disturb again. You

can also mute the ringer tone while the phone is ringing by pressing do not disturb

on the base.

Activating the DND while the answering system is off will turn the answering

system on automatically. The answering system setting will reset to the original

setting when you cancel the DND.

If you press

answer on/off

when the DND and the answering system is on, both of the DND

and the answering system will turn off.

To mute the ringer tone temporarily for each handsets or the base, when the phone

is ringing, press the MUTE soft key on the handset or the base. The ringer tone will

return to the previous setting starting with the next incoming call.

Mute Microphone

With the handset

You can temporarily mute the microphone so that the

caller cannot hear you. Press the MUTE soft key during

talk mode (while the phone is in use) to mute the

microphone.

/WVG1P

and appear in the display. To

cancel muting, press the MUTE soft key again.

/WVG1HH

appears.

With the base

While using the base speakerphone, press the MUTE soft key on the base to mute

the microphone.

/WVG1P

and appear in the display. To cancel muting, press the

MUTE soft key again or press speaker.

/WVG1HH

appears.

6CNM



/76' /'07

/WVG1P

BASICS

[38] BASICS www.uniden.com

Tone Dialing Switch-over

Some telephone companies use equipment that

requires pulse dialing (sometimes referred to as rotary

dialing). If you need to enter tone dialing digits, you

can switch to tone dialing during the call. This

feature is useful when you need tone dialing to use

automated systems. For example, you can call your

bank's telephone teller system, then switch over to

tone dialing to enter your bank account number and

make menu selections.

Initially make your call with pulse dialing mode. Once

your call connects, press

/tone/< on the handset or

base to enter tone dialing mode. Any digits entered

will be sent in tone dialing mode. Once the call ends,

tone mode is canceled, and pulse dialing mode

resumes.

Traveling Out of Range

During a call, as you begin to move your handset too far from your base unit, noise

may increase. If you pass the range limits of the base unit, you will hear a beep and

see

1WVQH4CPIG

on the display, and then the handset returns to standby mode. You

may return to the call if you move your handset within the range limits of the base

and press talk/flash or speaker within 30 seconds.

•The tone feature only

applies when the dial

mode is set to pulse.

•This special number

can be stored in a

memory location. This

is referred to as Chain

Dialing (see page 42).

note

BASICS

BASICS [39]www.uniden.com

Privacy Mode

Privacy prevents interruption from other registered

handsets or the base. This works only when the phone

is in use.

1) Press the MENU soft key on the handset or base

during talk mode.

2) Press ring/vol/∧ or ring/vol/∨ to move the pointer to

2TKXCE[/QFG

and then the OK soft key.

2TKXCE[/QFG1P

and appear in the display. To exit

the Privacy Mode, repeat above step again when the

Privacy Mode is on.

2TKXCE[/QFG1HH

appears.

3 or 4-Way Conferencing

The phone permits 3 or 4-way conversations between the handset, base, and an

outside line.

3-Way Conferencing

When speaking on the handset

1) Press speaker on the base to initiate the 3-way

conversation.

2) To hang up, press speaker on the base. The handset

will still be connected to the call.

$CUG5GVWR

#PUY5GVWR

)NQDCN5GVWR

$#%- $#%- 1-

*CPFUGV5GVWR

#PUY5GVWR

)NQDCN5GVWR

$#%- $#%- 1-

•If you have more than

one handset, the

phone permits 4-way

conversations, see "4-

way Conferencing" on

page 68 for details.

note

BASICS

[40] BASICS www.uniden.com

When speaking on the base

1) Press talk/flash or speaker on the handset to

initiate the 3-way conversation.

2) To hang up, return the handset to the cradle, or

press end on the handset. The base will still be

connected to the call.

4-Way Conferencing

If you have more than one handsets, up to four people

can participate in a conference call (4-way conferencing), one on an outside line

and two on handsets, and one on the base. To join a call already in progress, press

talk/flash on the handset or speaker on the base. To exit a conference call, press

end on the handset or speaker on the base.

•If the battery pack is

completely drained,

the handset will not

beep when paging.

You must subscribe

through your local tele-

phone company to

receive Call Waiting or

Caller ID on call waiting

service.

note

BASICS

PHONEBOOK [41]

www.uniden.com

Phonebook (Storing Phone Numbers, names, Distinctive

Rings and Speed Dial)

You can store names and numbers in your phone’s phonebook, search for names

alphabetically, and dial phonebook entries with just a few key presses. You can

store up to 100 numbers in the base and up to 100 additional numbers in each

registered handset.

The phone uses the same memory locations to store phonebook entries and Called

ID messages. Any empty phonebook locations are used to store Caller ID messages.

For example, if you have stored 100 phonebook entries on your base unit, the base

will not store Caller ID messages.

1) When the phone is in standby mode, press phonebook.

The following items appear:

(1st line) The number of the phonebook locations used

(2nd line) How to search (press the number keypad,

ring/vol/∧ or ring/vol/∨)

(3rd line) How to store (press the STORE soft key)

(4th line) The BACK and COPY, and STORE soft keys.

2) Press the STORE soft key,

5VQTG'FKV0COG

appears.

3) Enter the name (up to 16 characters) by using the

number keypad (see the "Steps for Entering Names

and Special Characters" on page 43).

If a name is not required, go to step 4. <No Name> will be used as the name.

2JQPGDQQM

5GCTEJ=#<

㨲㨱

5VQTG=5614'?

$#%- %12; 5614'

5VQTG'FKV0COG

7PKFGP%QTR

㨫

$#%- &'.'6' 1-

•Selecting a speed dial

location where a

number is already

stored, overwrites the

old number's speed

dial setting.

The new number will be

stored in the speed dial

location.

•When the memory is

full, you will hear a

beep and

/GOQT[(WNN

appears. You cannot

store names and

numbers.

•The pause key counts

as one digit. Pressing

the PAUSE soft key

more than once

increases the length of

the pause between

numbers. Each pause

represents a 2 second

delay.

note

PHONEBOOK

[42] PHONEBOOK

www.uniden.com

4) Press the OK soft key to store the name;

5VQTG'FKV0Q

appears.

5) Use the number keypad,

/tone/<,#/> to enter the

phone number (up to 20 digits).

If you make an error, use the DELETE soft key to erase

the incorrect digits. When you are finished, press the OK soft key to store the

number.

6) If you store the phonebook location from the handset,

&KUVKPEVKXG4KPI

appears. Press ring/vol/∧ or ring/

vol/∨ to move the pointer to one of the Distinctive

Ring options and then press the OK soft key.

5RGGF&KCN

appears. Press ring/vol/∧ or ring/vol/∨ to

move the pointer to select the Speed dial location (10

locations: SPD1-SPD0).

8) Press the OK soft key. You will hear a confirmation

tone, and

&QPG

appears in the display.

Chain Dialing

The memory locations in the handset are not limited to phone numbers. You can

also store a group of numbers (up to 20 digits) that you need to enter once your

call connects. This is referred to as Chain Dialing.

An example of this is a bank account number. Store the account number in one of

the phonebook locations (refer to "Storing Phone Numbers, Names, Distinctive

Rings and Speed Dial" on page 41). When you call your bank and are prompted to

enter the account number, scroll through your phonebook locations until you find

your account number, and then press the DIAL soft key.

5VQTG'FKV0Q



㨫

&'.'6' 2#75' 1-

&KUVKPEVKXG4KPI

0Q5GNGEVKQP

(NKEMGT

$#%- &'.'6' 1-

5RGGF&KCN

0Q5GNGEVKQP

52&'ORV[

$#%- &'.'6' 1-

/QXKGU



$GGVJQXGP52&

$#%- &'.'6' '&+6

•If you choose not to

store a Distinctive

Ring, simply select the

"No Selection" option.

•If you choose not to

store the name/

number as a Speed

Dial, simply choose the

"No Selection" option.

note

PHONEBOOK

PHONEBOOK [43]

www.uniden.com

Steps for Entering Names and Special Characters

Refer to the letters on the number keys to select the desired characters. With each press

of a number key (0-9), the displayed character appears in the following order:Upper case

letters first, lower case letters next and finally the number corresponding to the key.

If you make a mistake while entering a name

Use

/tone/< or #/> to move the cursor to the incorrect character.

Press the DELETE soft key to erase the wrong character, and then enter the correct

character. To delete all characters press and hold the DELETE soft key.

Number of times key is pressed

PHONEBOOK

[44] PHONEBOOK

www.uniden.com

For example, to enter Movies:

1) When the phone is in standby mode, press the STORE soft key.

5VQTG'FKV0COG

appears.

2) Press 6 once, and then press #/> to move the cursor to the right.

3) Press 6 six times.

4) Press 8 six times.

5) Press 4 six times.

6) Press 3 five times.

7) Press 7 eight times.

8) When finished, press the OK soft key.

To continue to store the telephone number, proceed to step 5 in “Storing Phone

Numbers, Names, Distinctive Rings, and Speed dial” on page 41.

If the next character

uses the same number

key, you must press #/>

to move the cursor over.

Otherwise the next time

you press the number

key, it changes the

character that was

previously set.

note

PHONEBOOK

PHONEBOOK [45]

www.uniden.com

Viewing the Phonebook

Your phone stores names/numbers in the phonebook memory locations, and you can

search names in alphabetical order. You can view the phonebook even while the

phone is in use.

1) Press phonebook. If you recall the phonebook during

a call, the COPY and STORE soft key will not appear.

2) Press ring/vol/∧,ring/vol/∨, or the number keypad

to scroll through the phonebook locations. Phonebook locations appear in

alphabetical order (from first to last when you press ring/vol/∨, from last to

first when you press ring/vol/∧).

You can also use the letters on the number keys to select the first letter of the

desired name. Press a number key (2-9 and 0) once for the first letter, twice for

the second letter, and so on. The first location that begins with the letter you

entered appears.

For example, to search for Movies, press 6 once. Press ring/vol/∧ or ring/vol/∨,

until the phonebook location is displayed.

3) To finish the viewing operation:

From Handset - press end (or the BACK soft key or talk/flash during a call).

From Base - press Cid/exit key

2JQPGDQQM

5GCTEJ=#<

㨲㨱

5VQTG=5614'?

$#%- %12; 5614'

During a call, don't

press end on the

handset or the call will

be disconnected.

note

PHONEBOOK

[46] PHONEBOOK

www.uniden.com

Making Calls Using the Phonebook

From Standby Mode

1) When the phone is in standby mode, view the

phonebook location to dial (see "Viewing the

Phonebook" on page 45).

2) Press talk/flash or speaker on the handset or speaker

on the base. The displayed number is dialed.

3) To hang up press end on the handset or speaker on the base.

From Talk Mode

1) Press talk/flash or speaker on the handset or speaker on the base.

2) View the phonebook location to dial (see "Viewing the Phonebook" on page 45).

3) Press the DIAL soft key. The number in the displayed phonebook location is

dialed.

4) To hang up press end on the handset or speaker on the base.

Speed Dialing

If you store a phone number in a speed dial memory location (10 locations: SPD1 -

SPD0), you can use the speed dialing feature. When the phone is in standby mode,

press and hold a number key (0-9) associated with the speed dial until the phone

number appears, and then press talk/flash or speaker on the handset or speaker

on the base. The number stored in the speed dial (SPD1 - SPD0) is dialed.

/QXKGU



$GGVJQXGP52&

$#%- &'.'6' '&+6

PHONEBOOK

PHONEBOOK [47]

www.uniden.com

Editing or Erasing a Stored Name, Phone Number,

Distinctive Ring and Speed Dial

1) When the phone is in standby mode, press

phonebook.

2) Press ring/vol/∧,ring/vol/∨, or the number keypad

to view the phonebook locations (see "Viewing the

Phonebook" on page 45).

a. Editing the Stored Data

1) When the phonebook location to be edited appears,

press the EDIT soft key.

5VQTG'FKV0COG

appears.

2) Follow the steps 3 to 7 under "Storing Phone

Numbers, Names, Distinctive Rings, and Speed Dial"

on page 41 to complete the editing operation.

3) Press the OK soft key. You will hear a confirmation tone.

b. Deleting the Stored Data

1) When the phonebook location to be deleted appears,

press the DELETE soft key.

&GNGVG/GOQT[!

appears.

2) Press ring/vol/∧ or ring/vol/∨ to move the pointer to

;GU

3) Press the OK soft key. You hear a confirmation tone.

&GNGVGF

appears in the display.

2JQPGDQQM

5GCTEJ=#<

㨲㨱

$#%- %12; 5614'

5VQTG'FKV0COG

7PKFGP%QTR

㨫

$#%- &'.'6' 1-

&GNGVG/GOQT[!

;GU

0Q

$#%- $#%- 1-

PHONEBOOK

[48] PHONEBOOK

www.uniden.com

Copying Phonebook Locations

Copy Phonebook allows you to transfers stored phonebook locations from handset

to handset or from base to handset without having to manually re-enter names and

numbers. You can transfer one memory (phonebook location) at a time, or all

memory locations at once.

1) When the phone is in standby mode, press phonebook.

2) Press the COPY soft key.

3) Press ring/vol/∨ or ring/vol/∧, to select the handset or

base to which you want transfer the phonebook

locations and then press the OK soft key.

4) Press ring/vol/∧ or ring/vol/∨ to select

1PG/GOQT[

#NN

/GOQT[

and then press the OK soft key.

If you select All Memory,

#TG[QWUWTG!

appears on the

display screen.

Press ring/vol/∨ or ring/vol/∧ to select

;GU

, and then press the OK soft key.

If you select One Memory, press ring/vol/∨ or ring/vol/

∧, or the number key (2-9 and 0) to select the

phonebook location you want to export and then press

the COPY soft key.

5) The phonebook locations will be transferred to the

handset (or the base).

%QR[KPI

and the receiving handset

name (or base) appear. When the transfer is completed

&QPG

appears on the handset (or the base).

%QR[2JQPGDQQM

1PG/GOQT[

#NN/GOQT[

$#%- &'.'6' 1-

6QYJKEJWPKV!

*CPFUGV

*CPFUGV

$#%- &'.'6' 1-

6QUGNGEV

RJQPGDQQM

RTGUU=#<

㨲



㨱

$#%-

%QR[KPI

*CPFUGV

%#0%'.

If the memory location

on the receiving the

handset or base, and

can not store the

phonebook locations,

you will hear a beep.

note

PHONEBOOK

CALLER ID [49]

www.uniden.com

Caller ID and CIDCW (Caller ID on Call Waiting)

You must subscribe to Caller ID services through your local telephone provider to

use these features.

When the telephone rings, the Caller ID feature allows you to view the caller’s

name, phone number, date and time of call. With CIDCW (Caller ID on Call Waiting),

you will hear a call waiting tone while you are on a call, and the Caller ID data is

displayed. To accept the waiting call, press talk/flash on the handset or flash/find

hs on the base (see page 34). Additionally, you can dial a number stored in the

Caller ID list or save data to your Phonebook locations.

Important:

Memory locations for Caller ID messages and Phonebook locations (including Speed

Dials) are common, you can store up to 100 locations for each handset and the

base. A Caller ID message is not stored when you have stored 100 of the phonebook

locations. When you have stored 100 of the phonebook locations and Caller ID

messages in total, the earliest Caller ID message is overwritten.

1) When the Caller ID message is received, the display shows the caller's phone

number along with the date and time. The incoming call information is stored in

the Caller ID record. If the Caller ID service includes the caller's name, the name

will appear in the display (up to 15 characters).

2/

,CPG5OKVJ



$#%- &'.'6' 5614'

The date and time received

Caller's name

Caller's phone number

•If you answer a call

before the Caller ID

message is received

(for example, before

the second ring), the

Caller ID message will

not appear.

•When the call is

received via a

telephone company

that does not offer

Caller ID service, the

caller’s phone number

and name does not

appear. (This includes

some international

calls.)

•When the call is via a

private branch

exchange (PBX), the

caller's phone number

and name may not

appear.

note

CALLER ID

[50] CALLER ID

www.uniden.com

You may receive any one of the following messages:

When invalid data is received;

+PEQORNGVG&CVC

When a private name is received;

2TKXCVG0COG

When a private number is received;

2TKXCVG0WODGT

When a unknown name is received;

7PMPQYP0COG

When a unknown number is received;

7PMPQYP0WODGT

2) When you pick up the phone, the display changes to

6CNM

(AutoTalk feature is set to on).

Data errors appear as "❚."

Viewing the Caller ID List

The Caller ID list stores information for incoming calls - even unanswered calls.

You can store up to 100 Caller ID messages and Phonebook locations (including

Speed Dials) for each handset and the base. You can view the Caller ID list through

the handset or base during a call or when the phone is in standby mode.

1) Press cid (or cid/exit).

The summary screen appears. The screen shows the

number of new messages and total messages.

%CNNGT+&

0GY

6QVCN

$#%- &'.'6'

•The number of calls

from the same Caller ID

appears next to the

received time. Once

you view the new

message, the number

will be cleared and

disappear.

note

CALLER ID

CALLER ID [51]

www.uniden.com

2) To view the Caller ID messages in historical order (from new to old or from old to

new), repeatedly press ring/vol/∨ to scroll through the messages from the latest

to the earliest, or ring/vol/∧ to scroll back through the messages.

To view the Caller ID messages with alphabetical search, press the number key pad

(2-9 and 0) with the letter associated with the first letter of the desired message.

Once you view the Caller ID list with alphabetical search, you cannot switch

back to historical order (from new to old or from old to new) unless you

exit and re-enter the operation.

3) To finish the viewing operation:

From Handset - press end (or the BACK soft key or talk/flash during a call).

From Base - press cid/exit key

Deleting a Caller ID Message

Deleting Information from the Caller ID List

1) When the phone is in standby mode, view the Caller ID

information to be deleted (see "Viewing the Caller ID

List" on page 50).

2) Press the DELETE soft key.

&GNGVG%CNNGT+&

appears.

3) Press ring/vol/∧ or ring/vol/∨ to choose

;GU

4) Press the OK soft key. You will hear a confirmation tone.

&GNGVG%CNNGT+&

;GU

0Q

$#%- $#%- 1-

•During a call, don't

press end on the

handset or the call will

be disconnected.

•Once the Caller ID data

has been deleted, the

information cannot be

retrieved.

•Standby Mode -

The handset is not in

use, and talk/flash

has not been pressed.

No dial tone is present.

•

Talk Mode -

The handset is not in

the cradle, and talk/

flash or speaker has

been pressed, enabling

a dial tone.

6CNM

appears on the display.

note

CALLER ID

[52] CALLER ID

www.uniden.com

Deleting all Caller ID names/numbers

1) When the phone is in standby mode, press cid.

Press the DELETE soft key.

&GNGVG#NN!

appears.

2) Press ring/vol/∧ or ring/vol/∨ to choose

;GU

3) Press the OK soft key. You will hear a confirmation tone.

Using the Caller ID Message List

Calling a party from the Caller ID list

From Standby mode

1) When the phone is in standby mode, select the Caller ID

message (see "Viewing the Caller ID List" on page 50).

2) Press talk/flash or speaker on the handset or speaker

on the base. The displayed phone number dials

automatically.

From Talk mode

1) Press talk/flash or speaker on the handset or speaker on the base.

2) Select the Caller ID message you want to dial (see "Viewing the Caller ID List" on

page 50).

3) Press the DIAL soft key. The displayed phone number will be dialed.

%CNNGT+&

0GY

6QVCN

$#%- &'.'6'

&GNGVG#NN!

;GU

0Q

$#%- $#%- 1-

2/

,CPG5OKVJ



$#%- &'.'6' 5614'

•You cannot make a call

from the Caller ID list if

your phone is connected

to a private branch

exchange (PBX).

note

CALLER ID

CALLER ID [53]

www.uniden.com

Long Distance calls and Area Code Setting/Cancellation

While the present Caller ID information is displayed, pressing

/tone/< will place

or remove the prefix "1" in the display to set the call for a long distance call, or

pressing #/> will set or cancel an area code (see page 30).

Storing Caller ID messages in the Phonebook

Messages shown in the Caller ID list can be stored in the phonebook. The phone

number and name of the party on the Caller ID list can be stored in memory.

1) When the phone is in standby mode, select the Caller ID message to be stored.

Then the STORE soft key.

5VQTG'FKV0COG

appears. If the Caller ID message is

already stored in memory, you will hear a beep and

6JKUFCVCKUCNTGCF[

UVQTGF

appears. The number will not be stored.

2) To complete the setting, follow the steps 4-8 in "Storing Phone Numbers, Names,

Distinctive Rings, and Speed dial" on page 41.

•When a long distance call

has been set, "



" appears

in the display.

•If a call comes in via a

telephone system that

does not offer Caller ID

service, no information is

stored.

•If the Caller ID message

was received as a private/

unknown number, or the

message does not have

the number, you cannot

store the message in the

Phonebook. If it was

received as private/

unknown name, the

message will be stored as

<No Name>.

•Even if the 100 memory

locations are full, the

message will be stored in

the Phonebook. However,

the message will be erased

from the Caller ID list.

note

CALLER ID

[54] CALLER ID

www.uniden.com

Call Waiting Deluxe Features

Your phone gives you new options for call waiting. At the touch of a button, you

can place the caller on hold, send them to your voice mail service, or conference

them into your current call. You must subscribe to Call Waiting and Call Waiting

Deluxe to use these features. Not all features are available in all areas. Check with

your local telephone company for details.

1) When you receive a Call Waiting call, press the CWDX soft key for a list of

options.

3) Press ring/vol/∧ or ring/vol/∨ or the number keypad (1-7) to select an option.

For example:

press ring/vol/∨ 4 times press ring/vol/∨ 2 times

3) Press the OK soft key. A confirmation screen will appear, and the phone returns

to the call.

Your phone is pre-programmed with seven call waiting options. You may select to

ask the calling party to hold, send them a busy message, forward them to your voice

mail, or answer and drop the first caller. You may also select to conference them

into the current call or, at any time, choose to drop the first or drop the last caller.

Check with your local telephone company for a full list of options.

#UMVQ*QNF

6GNN$WU[

(QTYCTF%CNN

$#%- $#%- 1-

(QTYCTF%CNN

#PUYGT&TQR

%QPHGTGPEG

$#%- $#%- 1-

%QPHGTGPEG

&TQR

&TQR.CUV

$#%- $#%- 1-

•To activate features

and display the CWDX

soft key, select

%9

1P%9&:1P

in the

CIDCW option. See

page 30.

•You can also answer a

waiting call

immediately by

pressing talk/flash,

the first caller will be

placed on hold. To

return to the original

caller, press talk/flash

again.

•If you don't press a key

within 30 seconds

while in the operation,

the phone back to a

call. To return back to

a call, press the BACK

soft key.

note

CALLER ID

THE INTEGRATED ANSWERING DEVICE [55]

www.uniden.com

The Integrated Telephone Answering Device

The phone has a built-in answering system that answers and records incoming calls.

You can also use your answering system to record a conversation, leave a voice

memo message, or to announce a special outgoing message to callers when you're

away from your phone.

Features

• Digital Tapeless Recording

• Up-to 12 minutes of Recording Time

• Call Screening

• Personal or pre-recorded Outgoing Messages

• Voice Prompts for TAD (English, Spanish, or French)

• Time and Day Announcement

• Remote Message Retrieval

• Toll Saver

• Conversation Recording

•Voice Memo

• Message Alert On/Off

• Retrieve TAD Messages using Handset

THE INTEGRATED

ANSWERING DEVICE

[56] THE INTEGRATED ANSWERING DEVICE

www.uniden.com

Turning the Answering System On/Off

1) To turn the answering system on, press answer on/

off on the base when the phone is in standby

mode. and the number of messages stored

in memory appears on the sub-display. If the sub-

display flashes, then there are new messages

waiting for you.

2) To turn the answering system off, press answer on/

off on the base. appears on the sub-display.

Setting your outgoing message (Greeting)

When you receive a call, the answering system automatically plays either the pre-

recorded message or your own greeting. To record your own greeting, or choose

between the two outgoing messages, refer to “Setting up the Menu”, “Answering

System Setup” on page 17.

The following message is pre-recorded: "Hello, no one is available to take your call.

Please leave a message after the tone."

Announce only feature

The announce only feature plays a pre-recorded outgoing message or your own personal

outgoing message, but it will not allow the caller to leave a message. To set announce

only, follow the steps on "Setting the Record Time" page 27. If you want to use your

own greeting and you want to change your greeting to omit the prompt to leave a

message, refer to "Selecting Your Greeting (Base only)" on page 25.

/'55#)'

1((

#059'4

•When the answering

system is full, you will

hear “No Remaining

Time“ and

/5)(7..

appears on the sub-

display. You should

delete some messages

so that the system can

record new messages.

•Position yourself as

near to the base as

possible and speak

clearly when recording

your outgoing

message.

•If you make an outside

call, or a call is

received on the base

during the operation,

the operation is

canceled.

note

THE INTEGRATED

ANSWERING DEVICE

THE INTEGRATED ANSWERING DEVICE [57]

www.uniden.com

The following message is pre-recorded:

"Hello, no one is available to take your call. Please call again."

Using the Answering Setup Menu

The Answering Setup menu allows you to set the following Answering System

functions through the handset or the base. For detailed instructions, see “Setting

up the Menu“, “Answering System Setup“ on page 24.

New Message LED

The new message LED on the handset flashes when you have new messages in your

answering system. The LED stops flashing when all new messages are played back.

Menu Options Base Handset Menu Options Base Handset

Record Greeting X Record Time 

Select Greeting X Message Alert 

Security Code Language 

Ring Time Call Screen 

THE INTEGRATED

ANSWERING DEVICE

[58] THE INTEGRATED ANSWERING DEVICE

www.uniden.com

Using your Answering System

The message counter displays the number of messages

stored in memory. If the display flashes, then there

are new messages waiting for you. The answering

system is designed to play your new messages first.

After you play all your new messages, you can then

play your old messages.

Playing your messages

1) When the base is in standby mode, press play/stop.

The system announces the number of new and old messages while the message

counter displays only the number of new messages. The time and day that each

message was received is announced after the message is played. The message

counter will then display the number of current stored messages.

2) When all new messages have been played, you hear a confirmation tone and the

system announces "End of messages." The system returns to standby. After you

have reviewed your new messages, you can play your old messages by pressing

play/stop again. Once you have listened to a new message, it then becomes an

old message. The old messages will be played in the order in which they were

received.

Repeating a message

1) Press play/stop to review your messages. The number of stored messages is

announced.

2) To repeat the current message, press the |<< soft key after a few seconds of

beginning the message. To quickly scroll backwards through a message, press and

hold the |<< soft key. To repeat the previous message, press the |<< soft key

The time stamp will not

be heard until you have

set the time.

note

THE INTEGRATED

ANSWERING DEVICE

THE INTEGRATED ANSWERING DEVICE [59]

www.uniden.com

within a few seconds (about 4 seconds during remote operation) after a message

begins playing. If you have several messages, press the |<< soft key repeatedly

until you return to the message you want to replay. If the current message is the

first new message, the system plays back from the beginning of the current

message (it does not go back into the old message group).

3) Press play/stop at any time to stop reviewing messages and return to standby.

The message counter shows the number of messages stored in memory.

Skipping a message

1) Press play/stop to review your messages. The number of stored messages is

announced.

2) Press the >>| soft key at anytime to skip to the next message.

Each time the >>| soft key is pressed, the system scans forward one message. If

you have several messages, press the >>| soft key repeatedly to find the message

you want to play. To quickly scroll through a message, press and hold the >>|

soft key. The system advances through the playback at double speed.

3) Press play/stop at anytime to stop reviewing your messages and return to

standby. The message counter shows the number of messages stored in memory.

Deleting a message

To maintain maximum record time, delete the old messages.

1) Press play/stop to review your messages.

2) Press the DELETE soft key at anytime during the message to delete the message.

You hear a confirmation tone and the message is deleted.

THE INTEGRATED

ANSWERING DEVICE

[60] THE INTEGRATED ANSWERING DEVICE

www.uniden.com

3) To delete all messages, press delete messege in standby mode. Press delete

messege again after the announcement "To delete all messages, press delete

again."

When you try to delete all messages without first listening to your new messages,

you hear several short beeps followed by an announcement "Please playback all

messages." This protects you from accidentally erasing messages you have not yet

reviewed.

Important:

When you press delete messege, you are permanently deleting the message. Once

deleted, the message cannot be replayed or retrieved.

Voice memo

The voice memo function allows the user to record messages (more than 2 seconds

and less than 4 minutes).

1) In stand by mode, press the RECORD soft key on the base. You will hear a beep.

2) Press the START soft key.

3) Start your recording after the announcement "Record Memo Message" and a

confirmation tone.

4) When you have finished, press the STOP soft key to stop recording. The system

returns to standby.

THE INTEGRATED

ANSWERING DEVICE

THE INTEGRATED ANSWERING DEVICE [61]

www.uniden.com

Recording a conversation

You can record a conversation from the handset or the base (more than 2 seconds

and less than 10 minutes).

1) During a conversation, press the MENU soft key.

2) Press ring/vol/∧ or ring/vol/∨ to select

%CNN4GEQTF

, and then press the OK soft

key.

4GEQTFKPIC%CNN

appears on the display.

A confirmation tone, that can be heard by both parties, sounds during recording.

3) To stop recording:

From Handset - press the MENU soft key and ring/vol/∧ or ring/vol/∨ to select

%CNN

4GEQTF

, and then press the OK soft key. You will hear a confirmation

tone.

From Base - press play/stop.

Screening a call

From the base

To screen an incoming call, use the following steps:

1) After the answering system answers, the base speaker will let you hear the calls

as the machine records the message. To adjust the volume, press ring/volume/∧

or ring/volume/∨. If you set the answering system to off, you cannot screen a

call.

•To active this feature,

you must turn the Call

Screen feature on. See

“Answering System

Setup“, “Setting the

Call Screen“ on

page 28.

note

THE INTEGRATED

ANSWERING DEVICE

[62] THE INTEGRATED ANSWERING DEVICE

www.uniden.com

a)To mute the Call Screen, press the MUTE soft key or play/stop. to cancel

muting, press the SCREEN soft key.

b)To answer the call, press speaker or pick up the handset from the base (when

AutoTalk is set to on). If the handset is away from the base, press talk/flash,

speaker or any number key,

/tone/<, or #/> (when AutoTalk is set to on). The

answering system will disconnect automatically.

From the handset

Press the SCREEN soft key when the system is answering. To mute the Call Screen,

press the MUTE soft key. To answer the call, press talk/flash.

Remote Operation

You can check, play, or delete messages, even record a new greeting message from a

remote location (when you are away from home, or from another room using a

handset). Additionally, you can turn on or off your answering system remotely.

Remote access away from home

You can operate your answering system from a remote location using any touch-

tone telephone.

1) Call your telephone number and wait for the system to answer. If the answering

system is off, it will answer after about 10 rings and sounds a series of beeps.

2) During the greeting message (or a series of beeps when the answering system is

off), press 0 and enter your PIN code within 2 seconds (see "Setting a PIN Code"

on page 25).

•If you press the

SCREEN soft key while

another handset is

screening a call, you

will hear a beep and

you can not screen a

call.

note

THE INTEGRATED

ANSWERING DEVICE

THE INTEGRATED ANSWERING DEVICE [63]

www.uniden.com

3) The answering system announces the current time and the number of messages

stored in memory. You hear "To play incoming messages, press zero-two. For

help, press one-zero." You will hear a beep.

4) Enter a command within 15 seconds, each command there after must be entered

within 2 seconds. You may select a command from the following chart:

* For the Repeat a Message function, press 0 then 1 within about four seconds to

repeat the previous message, or press 0 then 1 after about four seconds to repeat

the current message.

**For the Memo Record and Greeting Message Record function, the first time you

enter the corresponding command, it starts the Recording function. If you want

to stop the recording, press 0 then 7,8 or 5.

5) After the command has finished, you hear intermittent beeps indicating that the

system is in the command waiting mode. You may enter another command at this

time from the chart above.

Command Function Command Function

0 then 1Repeat a Message* 0 then 6Answering System On

0 then 2Playing incoming Messages 0 then 7Memo Record/Stop**

0 then 3Skipping a Message 0 then 8Greeting Message Record/Stop**

0 then 4Deleting a Message 0 then 9Answer System Off

0 then 5Stop Operation 1 then 0Help

•Time stamp will not be

heard until you have set

the time. See "Setting

the Time" on page 29.

•The system will only

playback messages for

four minutes and then

it returns to the

command waiting mode.

To continue playing

your messages, press 0

then 2 again within 15

seconds.

•If you enter an

incorrect PIN code three

times, you will hear a

beep and the system

will return to standby.

•During the remote

operation,

.KPG

4GOQVG

appears on the

display.

•If the answering system

is recording an

incoming message, the

recording operation is

canceled when you start

remote operation.

•For your convenience a

remote operation card is

provided for you to use

while away from home

(refer to page 86).

note

THE INTEGRATED

ANSWERING DEVICE

[64] THE INTEGRATED ANSWERING DEVICE

www.uniden.com

6) When you are finished, hang up to exit the system. The answering system

automatically returns to standby.

Remote access with the handset

You can operate your answering system from another room using a handset.

• If you press end before the answering system answers, the phone will return to standby.

• When the answering system does not answer within 6 seconds, you hear a beep and the

phone will return to standby.

• The base's keypad is disabled during remote operation.

• When you receive a call, the remote operation is canceled.

• You can change the handset volume during a remote operation.

• During the remote operation

#PUYGTKPI/CEJKPGQRGTCVKQP

appears on the base.

• If you have new messages and old messages, after you have reviewed your new

messages, you can play your old messages by pressing 2 again.

1) When the phone is in standby mode, press the  soft key on the handset.

4GOQVG

#PUYGTKPI/CEJKPGQRGTCVKQP

appears on the handset display. The answering

system announces the current time and the number of messages stored in the

memory. Messages will be played in the order in which they were received. The

time and day that each message was received is announced after the message is

played.

2) You hear "To play incoming messages, press two. For help, press zero."

You will hear a beep.

3) Enter a command within 30 seconds. Each command there after must be entered

within 2 seconds. Select a command from the following chart:

•Time stamp will not be

heard until you have

set the time.

•When the answering

system is full,

appears on the base.

You should delete

some messages so that

the system can record

new messages.

(Refer to "Deleting a

message" on page 59.)

note

(7..

THE INTEGRATED

ANSWERING DEVICE

THE INTEGRATED ANSWERING DEVICE [65]

www.uniden.com

Remote Key Function

* For the Repeat a Message function, press 1 within about four seconds to repeat

the previous message, or press 1 after about four seconds to repeat the current

message.

**For the Memo Record and Greeting Message Record function, the first time you

enter the corresponding command, it starts the Recording function. If you want

to stop the recording, press 7,8 or 5.

5) After the command has finished, you will hear intermittent beeps indicating that

the system is waiting for a command. You may enter another command at this

time from the chart above.

6) When you are finished, hang up or press end to exit the system. The answering

system automatically returns to standby.

|<</1 Repeat a Message* 6Answering System On

/2 Playing incoming Messages 7Memo Record/Stop**

>>|/3 Skipping a Message 8Greeting Message Record/Stop**

∅/4 Deleting a Message 9Answer System Off

/5 Stop Operation 0Help Guidance

•The voice memo

messages are recorded

as an incoming

messages.

•When the answering

system is full,

appears on the display,

and recording is

terminated.

•If an outside call is

received during the

operation, the

operation is canceled.

•Every state has

different regulations

governing the

recording of

conversations over the

telephone. Make sure

to check your local,

state and federal laws

before using this

product to record any

telephone

conversation in order

to determine that your

use is in compliance

with such laws or

guidelines.

•You cannot record 3-way or

intercom conversations.

note

(7..

THE INTEGRATED

ANSWERING DEVICE

[66] EXPANDING YOUR PHONE

www.uniden.com

Expanding Your Phone

10 Handset Expandability

Your phone supports up to 10 handsets,

including any handsets supplied with your

phone. You can now place a fully-featured

cordless handset anywhere AC power is

available to connect the handset charger.

Up to 2 handsets can be used in DirectLink

Mode or on an intercom call without interfering with incoming calls. It is possible

to have a 4-way conference among the base, 2 handsets, and one outside line.

All of the handsets ring when a call is received.

Connecting the Charger

1) Connect the AC adapter to the DC IN 9V jack

and to a standard 120V AC wall outlet.

2) Set the charger on a desk or tabletop, and

place the handset in the charger with the

keypad facing forward. (See "Install the

rechargeable battery pack into the handset,

and charge for at least 15-20 hours before

using" on page 10.)

IMPORTANT:

If you purchase a TXC880 extra handset, please register the handset to the original/main

base before use. The TXC880 will not operate until it is registered.

If you change a global setting in one handset, you change that particular setting for all

registered handsets. All other settings (not included under Global Setup) must be set

separately through each handset.

•Charge the handset

battery pack for at

least 15-20 hours

before using your new

cordless telephone for

the first time.

note

EXPANDING YOUR

PHONE

EXPANDING YOUR PHONE [67]

www.uniden.com

If you purchase an extra handset, you need to register the handset before use. Only

one handset can be registered at a time.

Handsets supplied with the phone are registered to the

base by the factory. When charged, pre-registered

handsets display a handset ID number. Handsets that have

not been registered display

2NCEGJCPFUGVQPOCKPDCUGVQ

TGIKUVGT

. When you register an extra handset to the base, the handset ID will be

assigned.

1) Before registering the extra handset,

the battery pack MUST be charged for

15-20 hours.

2) Place the extra handset in the main

base unit to begin registration.

3) While the handset is registering,

*CPFUGV4GIKUVGTKPI

will appear in the

LCD. When

4GIKUVTCVKQP%QORNGVG

displayed, the handset has been

registered to the base. If

4GIKUVTCVKQP

(CKNGF

appears, please try these steps

again.

2NCEGJCPFUGV

QPOCKPDCUG

VQTGIKUVGT

/76' %9&:

4GIKUVTCVKQP

%QORNGVG

•An extra handset can

be registered when the

main base is in

standby mode.

note

EXPANDING YOUR PHONE

[68] EXPANDING YOUR PHONE

www.uniden.com

Using the DirectLink Mode

To use this feature, you must enter the handsets

into DirectLink mode first.

To enter DirectLink mode, see page 18.

DirectLink call

1) When the phone is in the DirectLink standby

mode, press the DirecLink soft key (example of

DirectLink from handset #1).

2) Select the handset to which you wish to DirectLink

with by pressing the number keys (0-9). Your handset

will then page the other handset.

3) On the receiving handset, press talk/flash,the

ANSWER soft key, or if Any Key Answer is on, press any

number key,

/tone/<, or #/>.

4) When you finish your conversation, press end or the

END soft key on either handset. Return the handset to the cradle, or press the

CANCEL soft key and then the OK soft key to return to normal standby mode

(canceling DirectLink mode).

570#

*CPFUGV

&KTGEV.KPM/QFG

%#0%'. &KTGEV.KPM

6Q&KTGEV.KPM

CJCPFUGV

RTGUU=?

$#%-

&KTGEV.KPM

*CPFUGV

'0&

Handsets can be in

Direct Link mode while

other handsets are in

use.

note

EXPANDING YOUR

PHONE

EXPANDING YOUR PHONE [69]

www.uniden.com

Intercom/Call Transfer Feature

Intercom and Call Transfer features are available for your phone.

Intercom

From handset to handset or handset to the base

1) In standby mode, press intercom/hold.

2) Select the base or the handset you want to talk with

within 30 seconds. To select the handset (or the

base), press ring/vol/∧ or ring/vol/∨, and then press

the OK soft key. If you select

#NN

, all other handsets

and the base will be paged. An intercom tone sounds.

To cancel intercom, press the CANCEL soft key.

6QKPVGTEQO

*CPFUGV

*CPFUGV

$#%- &'.'6' 1-

If the party is busy or

out of range, the

handset returns to

standby mode.

note

EXPANDING YOUR PHONE

[70] EXPANDING YOUR PHONE

www.uniden.com

3) To answer the page on a handset, press talk/flash,

intercom/hold, or the ANSWER soft key. If Any Key

Answer is enabled, pressing a number key,

/tone/<, or

#/> will answer the page. If AutoTalk is enabled, you

can answer the page by simply picking up the handset.

To answer a page from the base, press intercom/hold,speaker, or the ANSWER

soft key.

4) To hang up the intercom call, press end or the END soft key on either handset (or

the END soft key or intercom/hold on the base).

From the base to a handset

1) In standby mode, press intercom/hold on the base.

2) Select the handset you want to talk with within 30 seconds. To select the

handset, press ring/volume/∧ or ring/volume/∨, and then press the OK soft key.

If you select

#NN

, all handsets will be paged. An intercom tone sounds. To cancel

intercom, press intercom/hold or the CANCEL soft key.

3) Follow the steps 3-4 under “From handset to handset or handset to the base“ on

page 69.

Call Transfer Feature

From handset to handset or to the base

1) During a call, press intercom/hold on the handset.

2) Select a handset or the base to transfer the call to

within 10 seconds. To select the handset (or the base),

press ring/volume/∧ or ring/volume/∨, and then press

the OK soft key. If you select

#NN

, all other handsets

and the base will be paged.

+PVGTEQO

*CPFUGV

#059'4

*QNFVQVTCPUHGT

*CPFUGV

*CPFUGV

$#%- &'.'6' 1-

•If any you receive an

outside/intercom call

or page while selecting

the other handset (or

the base), the

operation will be

canceled.

•If the party does not

answer within one

minute, the operation

is canceled.

•Standby Mode -

The handset is not in

use, and talk/flash

has not been pressed.

No dial tone is present.

note

EXPANDING YOUR

PHONE

EXPANDING YOUR PHONE [71]

www.uniden.com

The call will automatically be placed on hold, and an intercom tone sounds.

To cancel the transfer, press talk/flash or speaker on the initiating handset.

3) To answer the page on a handset, press talk/flash, intercom/hold, or the

ANSWER soft key. If Any Key Answer is enabled, pressing a number key,

/tone/<, or #/> will answer the page. If AutoTalk is enabled, you can answer

the page by simply picking up the handset. To answer a page from the base, press

intercom/hold, speaker, or the ANSWER soft key.

4) To speak to the caller, press talk/flash on the receiving handset or speaker on

the base.

From the base to a handset

1) During a call, press intercom/hold on the base. The call will automatically be

placed on hold.

2) Select the handset you want to talk with within 10 seconds. To select the

handset, press ring/volume/∧ or ring/volume/∨ and then press the OK soft key.

If you select

#NN

, all handsets will be paged. An intercom tone sounds. To cancel

the transfer, press intercom/hold,speaker or the CANCEL soft key on the base.

3) To answer the page on a handset, press talk/flash,intercom/hold, or the

ANSWER soft key. If Any Key Answer is enabled, pressing a number key,

/tone/

<, or #/> will answer the page. If AutoTalk is enabled, you can answer the page

by simply picking up the handset.

4) To speak to the caller, press talk/flash on the receiving handset.

EXPANDING YOUR PHONE

[72] ADDITIONAL INFORMATION

www.uniden.com

Changing the Digital Security Code

The digital security code is an identification code used to connect the handset and

the base unit. Normally, setting the code is not necessary. In the rare situation that

you suspect another cordless telephone is using the same security code, you can

change the code. To change the digital security code:

1. De-register all the handsets you have (see “De-register the handset“ on page 32).

2. Register the handsets by following step 2-3 in “Registering the handset to the

base“ on page 67.

Find Handset

To locate the handset, press flash/find hs on the base

when the phone is in standby mode. All registered

handsets beep for 60 seconds, and

2CIKPI

appears on

the handset display. To cancel paging, press any key

on the handset or flash/find hs on the base.

Installing the Beltclip

To attach the beltclip

Insert the beltclip into the holes on each side of the

handset. Press down until it clicks.

To remove the beltclip

Pull either side of the beltclip to release the tabs from

the holes.

ADDITIONAL

INFORMATION

ADDITIONAL INFORMATION [73]

www.uniden.com

Headset Installation

Your phone may be used with an optional headset. To use

this feature, insert the headset plug into the headset jack.

Your phone is ready for hands-free conversations.

(Headset may be purchased by calling the Uniden Parts

Department or visiting the web site. See page 75.)

Note on Power Sources

Battery replacement and handling

When the operating time becomes short, even after a battery is recharged, please

replace the battery. With normal usage, your battery should last about one year.

Please contact your place of purchase or the Uniden Parts Department for a

replacement battery.

Warning

To avoid the risk of personal injury or property damage from fire or electrical shock,

only use the Uniden battery model and Uniden adapter model specifically

designated for this product.

Power Failure

During the period that the power is off, you will not be able to make or receive calls

with the telephone.

Caution

•Use only the specified Uniden battery pack (BT-446).

•Do not remove the batteries from the handset to charge them.

•Never throw the battery into a fire, disassemble them, or heat them.

•Do not remove or damage the battery casing.

ADDITIONAL

INFORMATION

[74] ADDITIONAL INFORMATION

www.uniden.com

Maintenance

To maintain a good charge, it is important to clean the charging contacts on both

the handset and the base unit once a month. Using water only, dampen a cloth to

clean the charging contacts. Then make sure to go back over the charging contacts

with a dry cloth.

Caution

D o n o t u s e p a i n t t h i n n e r , b e n z e n e , a l c o h o l , o r o t h e r c h e m i c a l p r o d u c t s .

Doing so may discolor the surface of the telephone and damage the finish.

ADDITIONAL

INFORMATION

ADDITIONAL INFORMATION [75]

www.uniden.com

General Information

The phone complies with FCC Parts 15 and 68. Operating temperature:

0 °C to +50 °C (+32 °F to +122 °F)

AC Adapter Information

AC Adapter part number: AD-830 for the base AD-005 for the charger (TRU8885-2 only)

Input Voltage: 120 AC 60Hz 120V AC 60Hz

Output Voltage: 9V DC 400mA 9V DC 210mA

Battery Information

Battery part number: BT-446

Capacity: 800mAh, 3.6V

•To avoid damage to the phone use only Uniden AD-830 and BT-446 with your phone.

•If the handset is left off of the base, the actual Talk mode duration will be reduced

respective to the amount of time the handset is off the base.

Recharge your phone on a regular basis by returning the handset to the base after

each phone call. When the operating time becomes short even after the battery is

recharged, please replace the battery. With normal usage, the battery should last

about one year.

A replacement Uniden adapter or battery may be purchased by contacting the

Uniden Parts Department (800) 554-3988. Hours are from 8:00 a.m. to 5:00 p.m.

Central Time, Monday through Friday, or www.uniden.com.

Specifications, features, and availability of optional accessories are all subject to

change without prior notice.

ADDITIONAL

INFORMATION

[76] TROUBLESHOOTING

www.uniden.com

Troubleshooting

If your phone is not performing to your expectations, please try these simple steps first.

Symptom Suggestion

The charge LED won't illuminate

when the handset is placed in

the cradle.

• Make sure the AC adapter is plugged into the base or the charger (if you have more than one

handset) and wall outlet.

• Make sure the handset is properly seated in the cradle.

• Make sure the charging contacts on the handset and the base or the charger (if you have more

than one handset) are clean.

The audio sounds weak. • Move the handset and/or base away from metal objects or appliances and try again.

• Make sure that you are not too far from the base.

Can't make or receive calls.

• Check both ends of the base telephone line cord.

• Make sure the AC adapter is plugged into the base and wall outlet.

• Disconnect the AC adapter for a few minutes, and then reconnect it.

• De-register the handset (see "De-register the Handset" on page 31) and register the handset

(see “Register the Handset to the Base" on page 72).

• Make sure that you are not too far from the base.

•Make sure the line is not in use.

• If an outside call is already established, you can not make another outside call.

The handset doesn't ring or

receive a page.

• Charge the batteries in the handset for 15-20 hours by placing the handset on the base or

charging cradle.

• Make sure that you are not too far from the base.

• De-register the handset (see "De-register the Handset" on page 31) and register the handset.

7PCXCKNCDNG

appears in

the display.

• Make sure that another handset(s) or the base is not in use, and try the phone again.

• Make sure that you are not too far from the base.

TROUBLESHOOTING

TROUBLESHOOTING [77]

www.uniden.com

Severe noise interference.

• Keep the handset away from microwave ovens, computers, remote control toys, wireless

microphones, alarm systems, intercoms, room monitors, fluorescent lights, and electrical

appliances.

• Move to another location or turn off the source of interference.

The Caller ID does not display.

• The handset was picked up before the second ring.

• The call was placed through a switchboard.

• Call your local telephone company to verify your Caller ID service is current. There may be a

problem with your Caller ID service.

You cannot register the handset

at the base.

• Charge the battery pack for 15-20 hours.

• De-register the handset (see "De-register the Handset" on page 31) and register the handset

(see "Register the Handset to the Base" on page 72).

The handset doesn't

communicate with other

handsets.

• De-register the handset (see "De-register the Handset" on page 31) and register the handset

(see "Register the Handset to the Base" on page 72).

• Make sure that you have registered all handsets.

An extra handset can't join

the conversation. • Make sure there are not 2 handsets already using the 3-way conference feature.

The handset or the base can't

join the conversation • Make sure that another handset or base is in privacy mode.

The answering system does

not work.

• Make sure the base unit is plugged in.

• Make sure that the answering system is turned on.

• Make sure that the message record time is not set to Announce only (see page 25).

Messages are incomplete. • The incoming messages may be too long. Remind callers to leave a brief message.

• The memory may be full. Delete some or all of the saved messages.

After a power failure, the

outgoing message is deleted. • Record your greeting again. The default message should remain.

Symptom Suggestion

TROUBLESHOOTING

[78] TROUBLESHOOTING

www.uniden.com

No sound on the base unit

speaker during call monitoring

or message playback.

• Adjust the speaker volume on the base unit.

• Make sure the call screen feature is set to on.

Cannot access remote call-in

features from another touch-

tone phone.

• Make sure you are using the correct PIN number.

• Make sure that the touch-tone phone you're using can transmit the tone for at least two

seconds. If it cannot, you may have to use another phone to access your phone.

Time stamp cannot be heard. • Make sure you have set the time (see "Setting Day and Time" on page 28).

If you still have a problem. • Call our customer hotline at 1-800-297-1023.

Symptom Suggestion

TROUBLESHOOTING

TROUBLESHOOTING [79]

www.uniden.com

Liquid Damage

Moisture and liquid can damage your cordless phone. In case of accidental submersion, please read the following steps.

Case Action

If the handset or base is exposed to

moisture or liquid, but only affects the

exterior plastic housing.

Wipe off the liquid, and use as normal.

If moisture or liquid has entered the

plastic-housing (i.e. liquid can be heard

in the phone or liquid has entered the

handset battery compartment or vent

openings on the base).

Handset:

1)Remove the battery cover and leave it off for ventilation.

2)Remove the battery pack by disconnecting.

3)Leave the battery cover off and the battery pack disconnected for at least 3 days.

4)Once the handset is completely dry, reconnect the battery pack and the battery cover.

5)Recharge the handset's battery pack for 20 hours before using again.

Base:

1)Disconnect the AC adapter from the base unit, cutting off electrical power.

2)Disconnect the telephone cord from the base unit.

3)Let dry for at least 3 days.

IMPORTANT: You must unplug the telephone line while recharging the battery packs to

avoid charge interruption.

CAUTION:

DO NOT use a microwave oven to speed up the drying process. This will cause permanent

damage to the handset, base and the microwave oven.

After following these steps, if your cordless telephone does not work, please send to:

Uniden America Corporation

Parts and Service Division

4700 Amon Carter Blvd.

Ft. Worth TX 76155

1-800-554-3988. Monday through Friday

8 a.m. to 5 p.m. CST

TROUBLESHOOTING

[80] PRECAUTIONS & WARRANTY

www.uniden.com

PRECAUTIONS &

WARRANTY

Precautions!

Before you read anything else, please observe the following:

Warning!

Uniden America Corporation DOES NOT represent this unit to be

waterproof. To reduce the risk of fire, electrical shock, or damage to the

unit, DO NOT expose this unit to rain or moisture.

Rechargeable Nickel-Metal-Hydride Battery Warning

• This equipment contains a rechargeable Nickel-Metal-Hydride battery.

• Nickel is a chemical known to state of California to cause cancer.

• The rechargeable Nickel-Metal-Hydride battery contained in this

equipment may explode if disposed of in a fire.

• Do not short-circuit the battery.

• Do not charge the rechargeable Nickel-Metal-Hydride battery used in

this equipment in any charger other than the one designed to charge

this battery as specified in the owner's manual. Using another charger

may damage the battery or cause the battery to explode.

Rechargeable Nickel-Metal-Hydride

Batteries Must Be Recycled or

Disposed of Properly

The exclamation point within an equilateral triangle is

intended to alert the user to the presence of important

operating and maintenance (servicing) instructions in the

literature accompanying the appliance.

Uniden works to reduce lead content in our PVC coated cords in our

products and accessories.

Warning!

The cords on this product and/or accessories contain lead, a chemical

known to the State of California to cause birth defects or other

reproductive harm. Wash hands after handling.

Important Safety Instructions

When using your telephone equipment, these basic safety precautions

should always be followed to reduce the risk of fire, electrical shock, and

injury to persons:

1. Read and understand all instructions.

2. Follow all warnings and instructions marked on the product.

3. Unplug this product from the wall outlet before cleaning. Use a dry

cloth for cleaning without liquid or aerosol cleaners.

4. Do not use this product near water; for example, near a bathtub, wash

bowl, kitchen sink or laundry tub, in a wet basement, or near a

swimming pool.

5. Do not place this product on an unstable cart, stand, or table.

The telephone may fall, causing serious damage to the unit.

6. Slots and openings in the cabinet and the back or bottom are

provided for ventilation. To protect the product from overheating,

these openings must not be blocked or covered.

This product should never be placed near or over a radiator or heat

unless proper ventilation is provided.

7. This product should be operated only from the type of power source

indicated on the marking label. If you are not sure of the type of

power supply to your home, consult your dealer or local power

company.

8. Do not allow anything to rest on the power cord. Do not locate this

product where the cord will be damaged by persons walking on it.

9. Do not overload wall outlets and extension cords, as this can result in

the risk of fire or electrical shock.

10.Never push objects of any kind into this product through cabinet

slots, as they may touch dangerous voltage points or short out parts

that could result in a risk of fire or electric shock. Never spill liquid of

any kind on the product.

11. To reduce the risk of electric shock, do not disassemble this product.

Take it to qualified service personnel when service or repair work is

required. Opening or removing covers may expose you to dangerous

voltages or other risks. Incorrect reassembly can cause electric shock

when the appliance is subsequently used.

12.Unplug this product from the wall outlet and refer servicing to

qualified service personnel under the following conditions:

A. When the power supply cord is damaged or frayed.

B. If liquid has been spilled into the product.

C. If the product has been exposed to rain or water.

D. If the product does not operate normally when following the

operating instructions. (Adjust only those controls that are

covered by the operating instructions. Improper adjustment of

other controls may result in damage and will often require

extensive repair work by a qualified technician.)

E. If the product has been dropped or the cabinet has been

damaged.

F. If the product exhibits a distinct change in performance.

13.Do not use the telephone to report a gas leak in the vicinity of the

leak.

Additional Battery Safety Precautions

Caution! To reduce the risk of fire or injury to persons by the battery,

read and follow these instructions:

1. Use only the Uniden battery pack specified in the owner's manual.

2. Do not dispose of the battery pack in a fire. The cell may explode.

Check the Nickel Metal Hydride battery disposal package insert for

disposal instructions.

3. Do not open or mutilate the battery pack. Released electrolyte is

corrosive and may cause damage to the eyes or skin. It may be toxic

if swallowed.

4. Exercise care in handling the battery in order not to short the battery

with conducting materials such as rings, bracelets, and keys. The

battery or conductor may overheat and cause burns.

5. Charge the battery pack provided with or identified for use with this

product only in accordance with the instructions and limitations

specified in the owners manual provided for this product.

6. Observe proper polarity orientation between the battery pack and

battery charger.

SAVE THESE INSTRUCTIONS!

Important Electrical Considerations

Unplug all electrical appliances when you know an electrical storm is

approaching. Lightning can pass through your household wiringand

damage any device connected to it. This phone is no exception.

The FCC Wants You To Know

Changes or modifications to this product not expressly approved by

Uniden, or operation of this product in any way other than as detailed by

the owner's manual, could void your authority to operate this product.

Your telephone complies with Part 68 of FCC Rules. You

must, upon request, provide the FCC registration number and the REN to

your telephone company. Both numbers are on the base unit.

Note: You must not connect your phone to:

• coin-operated systems

• most electronic key telephone systems

This device complies with part 15 of the FCC rules. Operation is subject

to the following two conditions: (1) This device may not cause harmful

interference, and (2) This device must accept any interference received,

including interference that may cause undesired operation. Privacy of

communications, may not be ensured when using this phone.

To insure the safety of users, the FCC has established criteria for the

amount of radio frequency energy various products may produce

depending on their intended usage. This product has been tested and

found to comply with the FCC's exposure criteria. For body worn

operation, the FCC RF exposure guidelines were also met when used with

the Uniden accessories supplied or designed for this product. Use of

other accessories may not ensure compliance with FCC RF exposure

guidelines and should be avoided.

Range

Your new phone is designed to achieve the maximum possible range by

transmitting and receiving according to the highest specifications set

forth by the FCC. We have rated this phone to operate at a maximum

distance with the qualification that the range depends upon the

environment in which the telephone is used. Many factors limit range,

and it would be impossible to include all the variables in our rating. The

Maximum Range rating of this phone is meant to be used as a means of

comparison against other range claims.

PRECAUTIONS & WARRANTY [81]

www.uniden.com

Telephone Line Problems

The FCC has granted the telephone company the right to disconnect

service in the event that your phone causes problems on the telephone

line. Also, the telephone company may make changes in facilities and

services which may affect the operation of your unit. However, your

telephone company must give adequate notice in writing prior to such

actions to allow you time for making necessary arrangements to continue

uninterrupted service. If you are having trouble with your telephone

service, you must first disconnect your phone to determine if it is the

cause of your problem. If you determine that it is the cause, you must

leave it disconnected until the trouble has been corrected.

Radio Interference

Radio interference may occasionally cause buzzing and humming in your

cordless handset, or clicking noises in the base. This interference is

caused by external sources such as TV, refrigerator, vacuum cleaner,

fluorescent lighting, or electrical storm. Your unit is NOT DEFECTIVE. If

these noises continue and are too distracting, please check around your

home to see what appliances may be causing the problem. In addition,

we recommend that the base not be plugged into a circuit that also

powers a major appliance because of the potential for interference. Be

certain that the antenna on the unit is fully extended when needed.

In the unlikely event that you consistently hear other voices or

distracting transmissions on your phone, you may be receiving radio

signals from another cordless telephone or other source of interference.

If you cannot eliminate this type of interference, you need to change to

a different channel.

Finally, it should be noted that some cordless telephones operate at

frequencies that may cause interference to nearby TVs and VCRs. To

minimize or prevent such interference, the base of the cordless

telephone should not be placed near or on top of a TV or VCR. If

interference is experienced, moving the cordless telephone farther away

from the TV or VCR will often reduce or eliminate the interference.

More than One Cordless Telephone

If you want to use more than one cordless telephone in your home, they

must operate on different channels. Press the channel key to select a

channel that provides the clearest communication.

Cordless Telephone Privacy

Cordless telephones are radio devices. Communications between the

handset and base of your cordless telephone are accomplished by means

of radio waves which are broadcast over the open airways.

Because of the inherent physical properties of radio waves, your

communications can be received by radio receiving devices other than

your own cordless telephone unit. Consequently, any communications

using your cordless telephone may not be private.

Installation Considerations

Selecting a Location

Before choosing a location for your new phone, there are some important

guidelines you should consider:

• The location should be close to both a phone jack and continuous

power outlet. (A continuous power outlet is an AC outlet which does

not have a switch to interrupt its power.)

• Keep the base and handset away from sources of electrical noise such

as motors or fluorescent lighting.

• Be sure there is sufficient space to fully extend the base antenna.

• The base can be placed on a desk or tabletop or mounted on a standard

telephone wall plate.

• You should charge your new phone for 15-20 hours before completing

the installation or using the handset.

Telephone Line Outlets

There are two types of phone outlets:

Modular Jack

Most phone equipment available now uses modular jacks. Phone cords are

fitted with a molded plastic connector which plugs into this type of jack.

If you do not have modular phone jacks, contact your local telephone

company for information about their installation.

Hardwired Jack

Some equipment is wired directly to a phone jack, and these types of

installations require a modular jack converter. This type of installation is

not difficult; however, you should contact your Uniden telephone dealer

or a telephone supply store for advice about the proper adapter or

converter for your particular situation.

Connecting the Telephone Cords

Consider these safety guidelines before connecting the telephone cords:

Caution!

• Never install telephone wiring during a lightning storm.

• Never touch uninsulated telephone wires or terminals unless the

telephone line has been disconnected.

• Use caution when installing or modifying telephone lines.

Applying Power to the Base

This phone requires an AC outlet, without a switch to interrupt power,

and the included AC adapter. To relieve strain on the DC plug when the

phone is placed on a desk or table, wrap the power cord around the

strain relief notch on the bottom of the base.

NOTE: Place the power cord so that it does not create a trip hazard, or

where it could become chafed and create a fire or other electrical

hazards.

One Year Limited Warranty

Important: Evidence of original purchase is required for warranty service.

WARRANTOR: UNIDEN AMERICA CORPORATION ("Uniden") ELEMENTS OF

WARRANTY: Uniden warrants, for one year, to the original retail owner,

this Uniden Product to be free from defects in materials and

craftsmanship with only the limitations or exclusions set out below.

WARRANTY DURATION: This warranty to the original user shall terminate

and be of no further effect 12 months after the date of original retail

sale. The warranty is invalid if the Product is

(A) damaged or not maintained as reasonable or necessary, (B) modified,

altered, or used as part of any conversion kits, subassemblies, or any

configurations not sold by Uniden, (C) improperly installed, (D) serviced

or repaired by someone other than an authorized Uniden service center

for a defect or malfunction covered by this warranty, (E) used in any

conjunction with equipment or parts or as part of any system not

manufactured by Uniden, or (F) installed or programmed by anyone other

than as detailed by the owner's manual for this product.

STATEMENT OF REMEDY: In the event that the product does not conform

to this warranty at any time while this warranty is in effect, warrantor

will either, at its option, repair or replace the defective unit and return it

to you without charge for parts, service, or any other cost (except

shipping and handling) incurred by warrantor or its representatives in

connection with the performance of this warranty. Warrantor, at its

option, may replace the unit with a new or refurbished unit. THE LIMITED

WARRANTY SET FORTH ABOVE IS THE SOLE AND ENTIRE WARRANTY

PERTAINING TO THE PRODUCT AND IS IN LIEU OF AND EXCLUDES ALL

OTHER WARRANTIES OF ANY NATURE WHATSOEVER, WHETHER EXPRESS,

IMPLIED OR ARISING BY OPERATION OF LAW, INCLUDING, BUT NOT

LIMITED TO ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS

FOR A PARTICULAR PURPOSE. THIS WARRANTY DOES NOT COVER OR

PROVIDE FOR THE REIMBURSEMENT OR PAYMENT OF INCIDENTAL OR

CONSEQUENTIAL DAMAGES. Some states do not allow this exclusion or

limitation of incidental or consequential damages so the above limitation

or exclusion may not apply to you.

LEGAL REMEDIES: This warranty gives you specific legal rights, and you

may also have other rights which vary from state to state. This warranty

is void outside the United States of America and Canada.

PROCEDURE FOR OBTAINING PERFORMANCE OF WARRANTY: If, after

following the instructions in the owner's manual you are certain that the

Product is defective, pack the Product carefully (preferably in its original

packaging). The Product should include all parts and accessories

originally packaged with the Product. Include evidence of original

purchase and a note describing the defect that has caused you to return

it. The Product should be shipped freight prepaid, by traceable means, to

warrantor at:

Uniden America Corporation

Parts and Service Division

4700 Amon Carter Blvd.

Fort Worth, TX 76155

(800) 297-1023, 8 a.m. to 5 p.m. CST, Monday through Friday

PRECAUTIONS &

WARRANTY

[82] I.C. NOTICE

www.uniden.com

I.C. Notice

TERMINAL EQUIPMENT

NOTICE: This equipment meets the applicable Industry Canada Terminal Equipment Technical Specifications.

This is confirmed by the registration number. The abbreviation, IC, before the registration number signifies

that registration was performed based on a Declaration of Conformity indicating that Industry Canada

technical specifications were met. It does not imply that Industry Canada approved the equipment.

NOTICE: The Ringer Equivalence Number (REN) for this terminal equipment is marked on the equipment itself. The

REN assigned to each terminal equipment provides an indication of the maximum number of terminals

allowed to be connected to a telephone interface. The termination on an interface may consist of any

combination of devices subject only to the requirement that the sum of the Ringer Equivalence Numbers of

all the devices does not exceed five.

RADIO EQUIPMENT

The term "IC:" before the radio certification number only signifies that Industry Canada technical specifications were

met.

Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device

must accept any interference, including interference that may cause undesired operation of the device. "Privacy of

communications may not be ensured when using this telephone".

I.C. NOTICE

[83]

www.uniden.com

Name Phone No.

100

Name Phone No.

MEMORY LIST

Memory List

[84]

www.uniden.com

Memo

INDEX [85]

www.uniden.com

Index

0-9

20 ring options . . . . . . . . . . . . . 19

3-Way Conferencing . . . . . . . . . . 39

4-way conferencing . . . . . . . . . . 40

Animation screen . . . . . . . . . . . . 24

Announce only feature . . . . . . . . 56

Answering system

Deleting a message . . . . . . . . . 59

Playing your messages . . . . . . . 58

Recording a conversation . . . . . 61

Remote access . . . . . . . . . . . . 62

Repeating a message . . . . . . . . 58

Skipping a message . . . . . . . . . 59

Turning On/Off . . . . . . . . . . . . 56

Anykey Answer . . . . . . . . . . . . . . 21

Area Code . . . . . . . . . . . . . . . . . 30

AutoTalk . . . . . . . . . . . . . . . . . . 21

Banner . . . . . . . . . . . . . . . . . . . 22

Battery

Preparing and charging . . . . . . 10

Replacement and handling . . . . 73

Beltclip . . . . . . . . . . . . . . . . . . 72

Call transfer feature . . . . . . . . . . 70

Caller ID

Call Waiting . . . . . . . . . . . . . . 34

Caller ID services . . . . . . . . . . 49

Calling . . . . . . . . . . . . . . . . . 52

Deleting . . . . . . . . . . . . . . . . 51

Setting . . . . . . . . . . . . . . . . . 30

Storing . . . . . . . . . . . . . . . . . . 53

Viewing . . . . . . . . . . . . . . . . . 50

Chain dialing . . . . . . . . . . . . . . . 42

Clock . . . . . . . . . . . . . . . . . . . . 29

Contrast . . . . . . . . . . . . . . . . . . 23

Copying phonebook . . . . . . . . . . . 48

Deluxe Call Waiting Features . . . . . 54

De-register the handset . . . . . . . . 32

Dial mode . . . . . . . . . . . . . . . . . 31

Digital security code . . . . . . . . . . 72

DirectLink . . . . . . . . . . . . . . . . . 18

Distinctive ringer . . . . . . . . . . . . 20

E, F, G, H

Earpiece volume . . . . . . . . . . . . . 36

Expanding your phone . . . . . . . . . 66

General information . . . . . . . . . . . 75

hands-free conversation . . . . . . . . 33

Headset installation . . . . . . . . . . 73

I, J, K, L

I.C. notice . . . . . . . . . . . . . . . . . 82

Important safety instructions . . . . 80

Intercom . . . . . . . . . . . . . . . . . . 69

Key touch tone . . . . . . . . . . . . . . 23

Language . . . . . . . . . . . . . . . . . . 22

Liquid damage . . . . . . . . . . . . . . 79

M, N, O

Maintenance . . . . . . . . . . . . . . . 74

Making a call . . . . . . . . . . . . . . . 33

Mute . . . . . . . . . . . . . . . . . . . . . 37

New message LED . . . . . . . . . . . . 57

Outgoing message . . . . . . . . . 24, 56

P, Q

Phonebook

Editing . . . . . . . . . . . . . . . . . .47

Erasing . . . . . . . . . . . . . . . . . .47

Making calls . . . . . . . . . . . . . .46

Storing . . . . . . . . . . . . . . . . . .41

Viewing . . . . . . . . . . . . . . . . .45

Precautions . . . . . . . . . . . . . . . . .80

Privacy Mode . . . . . . . . . . . . . . .39

Receiving a call . . . . . . . . . . . . . .33

Redialing a call . . . . . . . . . . . . . .35

Remote . . . . . . . . . . . . . . . . . . .64

Remote access

away from home . . . . . . . . . . . .62

from your handset . . . . . . . . . .64

Ringer

Adjusting . . . . . . . . . . . . . . . .36

Do not disturb . . . . . . . . . . . . .36

mute . . . . . . . . . . . . . . . . . . .36

Room/baby monitor . . . . . . . . . . .18

Setting up

base unit . . . . . . . . . . . . . . . .12

extra handset . . . . . . . . . . . . .67

Handset . . . . . . . . . . . . . . 10, 19

Menu options . . . . . . . . . . . . . .17

Soft Key . . . . . . . . . . . . . . . . . . . 8

Speed dialing . . . . . . . . . . . . . . .46

T, U, V, W, X, Y, Z

Transfering a call . . . . . . . . . . . . .70

Voice memo . . . . . . . . . . . . . . . .60

Warranty . . . . . . . . . . . . . . . . . .81

[86] REMOTE OPERATION CARD

www.uniden.com

Remote Operation Card

CUT

REMOTE OPERATION CARD

Remote access away from

home

1. Call your phone number from a

touch-tone phone.

2. During the outgoing message,

press 0 and enter your PIN code.

The answering system announces

the number of messages stored in

memory and the voice prompts.

3. To quit, hang up the phone.

Turn on the answering

system remotely

1. Call your phone and let it ring

10 times until you hear a beep.

2. Press 0 and then enter your

PIN code.

3. Press 0 then 5 to stop

the announcement.

4. Press 0 then 6 to turn the

answering system on.

CUT

REMOTE OPERATION CARD

Remote access away from

home

1. Call your phone number from a

touch-tone phone.

2. During the outgoing message,

press 0 and enter your PIN code.

The answering system announces

the number of messages stored in

memory and the voice prompts.

3. To quit, hang up the phone.

Turn on the answering

system remotely

1. Call your phone and let it ring

10 times until you hear a beep.

2. Press 0 and then enter your

PIN code.

3. Press 0 then 5 to stop

the announcement.

4. Press 0 then 6 to turn the

answering system on.

CUT

REMOTE OPERATION CARD

Remote access away from

home

1. Call your phone number from a

touch-tone phone.

2. During the outgoing message,

press 0 and enter your PIN code.

The answering system announces

the number of messages stored in

memory and the voice prompts.

3. To quit, hang up the phone.

Turn on the answering

system remotely

1. Call your phone and let it ring

10 times until you hear a beep.

2. Press 0 and then enter your

PIN code.

3. Press 0 then 5 to stop

the announcement.

4. Press 0 then 6 to turn the

answering system on.

CUT

REMOTE OPERATION CARD

Remote access away from

home

1. Call your phone number from a

touch-tone phone.

2. During the outgoing message,

press 0 and enter your PIN code.

The answering system announces

the number of messages stored in

memory and the voice prompts.

3. To quit, hang up the phone.

Turn on the answering

system remotely

1. Call your phone and let it ring

10 times until you hear a beep.

2. Press 0 and then enter your

PIN code.

3. Press 0 then 5 to stop

the announcement.

4. Press 0 then 6 to turn the

answering system on.

REMOTE OPERATION

REMOTE OPERATION CARD [87]

www.uniden.com

CUT

Task Key

Repeat a Message

Playing incoming Messages

Skipping a Message

Deleting a Message

Stop Operation

Answering System On

Memo Record/Stop

Greeting Message Record/Stop

Answer System Off

Help Guidance

CUT

Task Key

Repeat a Message

Playing incoming Messages

Skipping a Message

Deleting a Message

Stop Operation

Answering System On

Memo Record/Stop

Greeting Message Record/Stop

Answer System Off

Help Guidance

CUT

Task Key

Repeat a Message

Playing incoming Messages

Skipping a Message

Deleting a Message

Stop Operation

Answering System On

Memo Record/Stop

Greeting Message Record/Stop

Answer System Off

Help Guidance

CUT

Task Key

Repeat a Message

Playing incoming Messages

Skipping a Message

Deleting a Message

Stop Operation

Answering System On

Memo Record/Stop

Greeting Message Record/Stop

Answer System Off

Help Guidance

REMOTE OPERATION REMOTE OPERATION

[88] GETTING STARTED

www.uniden.com

GETTING STARTED

Main Menu Flow Chart

•From standby mode

4QQO/QPKVQT

$CUG5GVWR

#PUY5GVWR

$#%- $#%- 1-

4QQO/QPKVQT

$CUG5GVWR

#PUY5GVWR

$#%- $#%- 1-

570#

*CPFUGV

0GY%+&

4'&+#. /'07

&KTGEV.KPM/QFG

4QQO/QPKVQT

*CPFUGV5GVWR

$#%- $#%- 1-

&KTGEV.KPM/QFG

4QQO/QPKVQT

*CPFUGV5GVWR

$#%- $#%- 1-

&KTGEV.KPM/QFG

4QQO/QPKVQT

*CPFUGV5GVWR

$#%- $#%- 1-

6QGPVGT

&KTGEV.KPMOQFG

RTGUU='06'4?

$#%- $#%- '06'4

*CPFUGV

*CPFUGV

$CUG

*CPFUGV

*CPFUGV

*CPFUGV

*CPFUGV

*CPFUGV

6Q4QQO/QPKVQT

*CPFUGV

*CPFUGV

$#%- $#%- 1-

%QPVTCUV

-G[6QWEJ6QPG

#PKOCVKQP5ETGGP

#P[MG[#PUYGT

$CPPGT

.CPIWCIG

4KPIGT6QPGU

&KUVKPEVKXG4KPI

*#0&5'65'672

#WVQ6CNM

$#%- $#%- 1-

.CPIWCIG

%QPVTCUV

$#5'5'672

$#%- $#%- 1-

570#

*CPFUGV

&KTGEV.KPM/QFG

%#0%'. &KTGEV.KPM

570#

0GY%+&

4'&+#. /'07 4'%14&

•Base

•Handset

/'07 /'07

∧

∨

/'07

∨

'PVGT

∧

∨

∧

∨

1- 1-

∨∨

MAIN MENU FLOW CHART [89]

www.uniden.com

4QQO/QPKVQT

$CUG5GVWR

#PUY5GVWR

$#%- $#%- 1-

4QQO/QPKVQT

*CPFUGV5GVWR

#PUY5GVWR

$#%- $#%- 1-

/GUUCIG#NGTV

.CPIWCIG

%CNN5ETGGP

4KPI6KOG

4GEQTF6KOG

5GEWTKV[%QFG

#0595'672

$#%- $#%- 1-

/GUUCIG#NGTV

.CPIWCIG

%CNN5ETGGP

4KPI6KOG

4GEQTF6KOG

5GEWTKV[%QFG

4GEQTF)TGGVKPI

5GNGEV)TGGVKPI

#0595'672

$#%- $#%- 1-

$CUG5GVWR

#PUY5GVWR

)NQDCN5GVWR

$#%- $#%- 1-

%+&%9

#TGC%QFG

&KCN/QFG

&C[6KOG

).1$#.5'672

$#%- $#%- 1-

#PUY5GVWR

)NQDCN5GVWR

&GTGIKUVGT*5

$#%- $#%- 1-

&GTGIKUVGT*5!

;GU

$#%- $#%- 1-

&GTGIKUVTCVKQP

%QORNGVG

$#%- $#%- 1-

2NCEGJCPFUGV

QPOCKPDCUG

VQTGIKUVGT

4'&+#. /'07

522JQPG

/76'

/'07



6CNM



/76' /'07

•Base

•Handset

∧

∨

∧

∨

*CPFUGV5GVWR

#PUY5GVWR

)NQDCN5GVWR

$#%- $#%- 1-

•Base

∨

∧

∨

∨ ∨

• From talk mode

•Handset

∧

∨

MAIN MENU FLOW CHART

At Uniden, we'll take care of you!

If you need any assistance with this product, please call our Customer Hotline at

1-800-297-1023

PLEASE DO NOT RETURN THIS PRODUCT TO THE PLACE OF PURCHASE.

Our Uniden representatives will be happy to help you with any matters regarding

the operation of this unit, available accessories, or any other related matters.

Thank you for purchasing a Uniden product.

Hours: M-F 8:00 AM to 5:00 PM CST.

www.uniden.com

For information on the accessibility features of this product, please call

1-800-874-9314 (V/TTY)

May be covered under one or more of the following U.S. patents:

4,523,058 4,595,795 4,797,916 5,381,460 5,426,690 5,434,905

5,491,745 5,493,605 5,533,010 5,574,727 5,581,598 5,650,790

5,660,269 5,661,780 5,663,981 5,671,248 5,696,471 5,717,312

5,732,355 5,754,407 5,758,289 5,768,345 5,787,356 5,794,152

5,801,466 5,825,161 5,864,619 5,893,034 5,912,968 5,915,227

5,929,598 5,930,720 5,960,358 5,987,330 6,044,281 6,070,082

6,125,277 6,253,088 6,314,278 6,418,209

Uniden America UP737 5.8 GHz DSS Cordless Telephone User Manual Complete

Uniden America Corporation 5.8 GHz DSS Cordless Telephone Complete

Contents

Complete User Manual

Navigation menu

Namespaces

Views

Navigation
