DECT1480 base
with answering
system and
cordless
handset
Battery
cover
Accessory handset
and charger
If you purchased
model number:
You should
have:
DECT1480-2 1 of each
DECT1480-3 2 of each
DECT1480-4 3 of each
DECT1480-5 4 of each
DECT1480-6 5 of each
You will also nd:
Not pictured:
Rechargeable battery
(BT-1007)
AC adapter (PS-0035)
Telephone cord
-
-
-
If any items are missing or damaged, contact our Customer Care Line
immediately. Never use damaged products!
Need help? Get answers 24/7 at our website: www.uniden.com.
If You... Contact Uniden’s... Phone Number
have a question or problem Customer Care Line* 817-858-2929 or
800-297-1023
need a replacement part or an
accessory Parts Department* 800-554-3988
need special assistance due to
a disability Accessibility Help Line 800-874-9314
(voice or TTY)
* During regular business hours, Central Standard Time; see our website for
detailed business hours.
DECT1480 Series User's Guide
What's in the box?
Not pictured:
Rechargeable
battery (BT-1007)
Battery cover
AC adapter
(PS-0035)
-
-
-
© 2010 Uniden America Corp. Printed in Vietnam
Ft. Worth, Texas UNZZ01130FZ(0)
2
When using your telephone equipment, basic safety precautions
should always be followed to reduce the risk of fire, electric shock and
injury to persons, including the following:
This unit is NOT waterproof. DO NOT expose this unit to rain or
moisture.
Do not use this product near water, for example, near a bath tub,
wash bowl, kitchen sink or laundry tub, in a wet basement or near a
swimming pool.
Avoid using a telephone (other than a cordless type) during an
electrical storm. There may be a remote risk of electric shock from
lightning.
Do not use the telephone to report a gas leak in the vicinity of the
leak.
Use only the power cord and batteries indicated in this manual. Do
not dispose of batteries in a fire. They may explode. Check with local
codes for possible special disposal instructions.
What’s in the manual?
............................ 3
Installing Your Phone .................. 3
Geng to Know Your Phone ...... 5
Using the Menu .......................... 8
...................... 10
Basics ........................................ 10
Using the Phonebook ............... 12
Finding a Lost Handset .............. 13
............... 13
Chain Dialing ............................. 13
Mulhandset Features ............. 13
Voice Message Nocaon ...... 15
..... 15
Answering System Opons
(Ans. Setup) ............................ 15
Accessing the Answering
System .................................... 16
Personalizing the Greeng........ 17
Geng Your Messages ............. 18
Using the System While You're
Away from Home ................... 19
.............. 20
Solving Problems ...................... 20
AC Adapter and Baery
Informaon ............................ 23
Compliance Informaon ........... 24
1-Year Limited Warranty .......... 27
3
Do not place the handset in any charging cradle without the battery
installed and the battery cover securely in place.
product.
For more details, see the Important Information section.
Charge the Baery

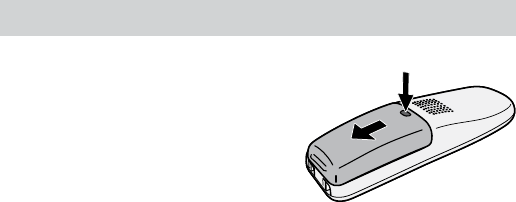

Unpack all handsets, battery packs,
and battery covers. If you need to
remove a battery cover, press in on
the notch and slide the cover down
and off.
Line up the battery connector with the jack inside the handset.
(The battery connector will only fit one way.)
Push the connector in until it clicks into place; tug gently on the
wires to make sure the battery pack is securely connected.
Replace the battery cover and slide it into place.
Connect the AC adapters to the
AC IN 8V
jacks on the base and on
each charger. Set the plugs into the notches.
Plug the other end of the adapters into standard 120V AC outlets.
Place one handset in the base and the other(s) in the charger(s)
with the displays facing forward. The display on each handset
should light up; if it doesn’t, reseat the handset or try plugging the
AC adapter into a different outlet.
1.
2.
3.
4.
5.
6.
7.
4
them.
Connect the Telephone Cord
Use the telephone cord to connect the
TEL LINE
jack on the base to a
standard telephone wall jack.
Test the Connecon
Pick up the handset from the cradle and press
Talk
. You should
hear a dial tone, and the display should say Talk.
If you don't hear a dial tone or the display says Check Tel Line, try
checking the connection between the base and the phone jack.
Make a quick test call. (Press
End
to hang up.)
If you keep hearing a dial tone, try changing to pulse dialing mode.
If there is a lot of noise, see page 21 for tips on avoiding
interference.
Test all your handsets the same way. If you can't get a dial tone, try
moving the handset closer to the base.
Changing from Tone to Pulse Dialing
Your phone communicates with the telephone network in two ways:
tone dialing or pulse dialing. Most telephone companies use tone
dialing. If your phone company uses pulse dialing, you will need to
change your phone’s dial mode.
From a handset, open the menu and select Global Setup. (See page
8 for details on using the menu.)
Select Dial Mode, then select Pulse. The phone sounds a
confirmation tone.
If you use pulse dialing and you need to send DTMF tones during a call
(if you're using an automated response system, for example), press
*
to temporarily switch to tone dialing. When the call ends, the phone
automatically returns to pulse dialing mode.
1.
2.
3.
1.
2.
5
Parts of the handset
Microphone
Twelve-
key dial
pad
STATUS
Display
Charging
contacts
Earpiece
UP
PHONEBOOK /
LEFT
SPEAKER
DOWN
CALLER ID/
RIGHT
REDIAL/
PAUSE
MESSAGES/
MUTE
CLEAR /
INTERCOM MENU/
SELECT
END
TALK /
FLASH
Parts of the base
UP
REV DOWN FWD
Charging
contacts
DELETE
PLAY/
STOP
ANSWERING
SYSTEM
STATUS
ON/OFF FIND
6
Base keys/LEDs and how they work
What it does
Up (+)
In standby: increase the ringer volume.
While a message is playing: increase the speaker volume.
-
-
down (–)
In standby: decrease the ringer volume.
While a message is playing: decrease the speaker volume.
-
-
Fwd ( )
While a message is playing: skip to the next message.-
REV ( )
While playing messages: for the first 2 seconds, go to
the previous message; after that: go to the start of the
current message.
-
play/sTop
( )
In standby: start playing messages.
While a message is playing: stop playing messages.
If the phone is ringing: mute the ringer for this call only.
-
-
-
on / oFF
In standby: turn the answering system on or off.-
dElETE
( )
While a message is playing: delete this message.
In standby: delete all messages.
-
-
Find
In standby: page all handsets.-
LED What it means
play/sTop
On: a message is playing.
Blinking: there are new messages.
-
-
sTaTUs
On: the answering machine is on.
Off: the answering machine is off.
Blinking: the base is paging all handsets.
-
-
-
Handset keys/LEDs and how they work
What it does
ClEaR/
inTERCom
In standby: start an intercom call.
During a call: put the call on hold and start a call
transfer to another handset.
While entering text: delete one character, or press
and hold to delete all the characters.
-
-
-
Talk/Flash
In standby: start a telephone call (get a dial tone).
During a call: switch to a waiting call.
-
-
7
What it does
End
During a call: hang up.
In the menu or any list: exit and go to standby.
-
-
mEnU/sElECT
In standby: open the menu.
In the menu or any list: select the highlighted item.
-
-
Up ( )
In standby: increase the ringer volume.
During a call: increase the audio volume.
In any menu or list: move the cursor up one line.
-
-
-
down ( )
In standby: decrease the ringer volume.
During a call: decrease the audio volume.
In any menu or list: move the cursor down one line.
-
-
-
phonEbook/
lEFT ( )
In standby or during a call: open the phonebook.
In the menu: go back to the previous screen.
During text entry: move the cursor to the left.
-
-
-
CallER id/
RighT ( )
In standby or during a call: open the Caller ID list.
During text entry: move the cursor to the right.
-
-
REdial/
paUsE
In standby: open the redial list.
While entering a phone number: insert a 2-second
pause.
-
-
mEssagEs/
mUTE ( )
In standby: access your answering system.
During a call: mute the microphone.
If the phone is ringing: mute the ringer for this call
only.
-
-
-
spEakER ( )
Switch a normal call to the speakerphone (& back).-
LED What it means
sTaTUs
On: the battery is charging.
Blinking: there are new messages.
-
-
Reading the Display
This table shows possible status icons and what they mean. Since the
icons appear based on what you're doing with the phone, you won't
ever see all of these icons at the same time.
8
Icon What it means
The ringer is turned off and will not ring for new calls.
You have a voice message waiting.
Privacy Mode is on: no other handset can join the call.
The speakerphone is on.
The microphone is muted; the caller can't hear you.
T-coil mode is on (see page 21).
The battery is 1) fully charged, 2) half charged, 3) getting
low, or 4) empty.
[Aa] [aA] Enter 1) capital or 2) lower case letters (see page 9).
If you open the
menu during a call,
use
lEFT
to back out
of the menu without
hanging up.
If you don't press
any keys for about
thirty seconds, the
handset exits the
menu.
Handset Setup
Menu
You can change these settings separately for each handset.
T-coil Turn on T-coil mode to reduce noise on some hearing
aids (for more details, see page 21).
Ringer Tones
Choose this handset's ring tone. As you highlight each
ring tone, the phone plays a sample. When you hear
the tone you want, press
mEnU/sElECT
.
Handset Setup
Ans. Setup
Day & Time
To open the
menu, press
MENU/SELECT.Press MENU/SELECT
to choose the
highlighted option
.
press END
to exit the
menu
.
To go back a
screen, press
PHONEBOOK/LEFT
The cursor
shows the
highlighted
option.
To move the
cursor, use
UP & DOWN.
OR
<HANDSET SETUP>
T-coil
Ringer Tones
Handset Setup
Ans. Setup
Day & Time
To open the
menu, press
MENU/SELECT.Press MENU/SELECT
to choose the
highlighted option
.
press END
to exit the
menu
.
To go back a
screen, press
PHONEBOOK/LEFT
The cursor
shows the
highlighted
option.
To move the
cursor, use
UP & DOWN.
OR
<HANDSET SETUP>
T-coil
Ringer Tones
9
AutoTalk Have this handset answer a call when you pick it up
from the cradle (without pressing any buttons).
Any Key
Answer
Have this handset answer a call when you press any
key on the 12-key dialpad.
Banner Change the name used on the handset's display.
Handset
Language Change the display language.
Key Touch Tone Have the keypad sound a tone when you press a key.
Ans Setup
Menu
Refer to page 15 for details on setting up your answering system.
Day & Time
Menu
Use this menu to set the clock manually. (If you have Caller ID, the
phone sets the day and time from the CID data.) Select the day of week,
then use the number keypad to enter the hour and minutes in HHMM
format (e.g., enter 0345 for 3:45). Then, select AM or PM.
Global Setup
Menu
The settings on this menu affect all handsets. Only one handset at a
time can change these menu options.
Dial Mode Change the way your phone communicates with the
telephone network (see page 4).
Set Line Mode Do not change this setting unless instructed to by
customer service.
VMWI Reset Reset your Visual Message Waiting Indicator to
bring it back in sync with your voice mail service.
Entering Text on Your Phone
Use the 12-key dial pad when you want to enter text into your phone
(a name in the phonebook, the handset banner, etc.).
The phone defaults to a capital letter for the first letter and any
letter after a space; otherwise, it uses small letters.
10
To switch to all capital letters, press
*
.
The phone defaults to all
capital letters first (e. g. ABCabc2) until you enter a blank space or
press
*
again. (Any time you want to change case, just press
*
.)
If two letters in a row use the same number key, enter the first letter
and wait a few seconds (or press
RighT
); the cursor will move to the
next space. Enter the next letter.
Press
#
to enter a blank space.
To change a letter, move the cursor to that letter and press
ClEaR
to
erase the letter. Then, enter the new one.
To erase the entire entry, press and hold
ClEaR
.
Press
0
to cycle through all available symbols and punctuation.
Basics
To... Earpiece
make a call: Dial the
number, then Press
Talk/Flash
. Press
spEakER
.
answer a call Press
Talk/Flash
. Press
spEakER
.
hang up Press
End
or put the handset in the cradle.
switch between the
speaker & earpiece Press
spEakER
.
mute the microphone
during a call
Press
mEssagEs/mUTE
. Press again to turn
the microphone back on.
put a call on hold Press
ClEaR/inTERCom
. After 5 minutes on
hold, the call will be disconnected.
return to a call on hold Press
Talk/Flash
. Press
spEakER
.
mute the ringer for this
call only
While the phone is ringing, press
mEssagEs/
mUTE
.
Changing the Volume
You can set speaker volume levels separately for the base and each
handset. You can also set the earpiece volume on each handset.
Anytime you are listening to a speaker or earpiece, press
Up
to
increase the volume and
down
to decrease it.
11
You can also set the ringer volume separately: when the phone is in
standby, press
Up
to increase the ringer volume and
down
to decrease.
If you turn the ringer volume all the way down, the ringer turns off.
Using the Caller ID and Redial Lists
Caller ID (CID) is a service available from your telephone provider
that shows the phone number (and sometimes the caller’s name) of
incoming calls. Contact your telephone provider for more information.
When a call comes in, the phone displays the
number and name (if available) of the caller.
The phone saves the information for the last
30 received calls to the CID list.
When it’s in standby, the handset shows how
many calls came in since the last time you
checked the CID list.
-
-
-
Each handset
remembers the
last 5 numbers
you dialed on it.
The redial list is
separate for each
handset.
-
To…
Open the CID list Press
CallER id/RighT
.
Open the redial list
REdial/paUsE.
Scroll through the
lists
Press
down
to scroll from newest to oldest.
Press
Up
to scroll from oldest to newest.
Dial a number from
the lists
Highlight the number you want and press
Talk/
Flash
or
spEakER
.*
Close the lists Press
phonEbook/lEFT
.
* If the number is a toll or long distance call, but there's no 1 at the front of
the CID record, press
*
to add the 1 before dialing.
To select a number, highlight the number and press
mEnU/sElECT
. The
phone gives you the following options:
Delete Entry Erase the number from the list.
12
Store Into Pb Add the number to the phonebook. The handset prompts
you to edit the name and number.
Delete All (CID list only) Erase all numbers from the list.
Using Call Waing
Call Waiting, a service available from your telephone provider, lets you
receive calls while you are on another call. Caller ID on Call Waiting
(CIDCW) service displays Caller ID information for a waiting call.
If you get a Call Waiting call, the phone sounds a tone and displays any
CID information received from the waiting call. Press
Talk/Flash
to
switch between the current call and the waiting call; each time you
switch, there is a short pause before you're connected to the other call.
The phone can store up to 70 entries in its phonebook. All handsets
share the same phonebook, so only one handset may access the
phonebook at a time.
To... Press...
Open/close the phonebook
phonEbook/lEFT.
Scroll through the entries
down
(to scroll through the phonebook
from A to Z) or
Up
(to scroll from Z to A).
Jump to entries that start
with a certain letter
the number key corresponding to the
letter you want.
Dial an entry
Up
or
down
to find the entry you want to
dial, then press
Talk/Flash
or
spEakER
.
Phonebook Menu Opons
Open the phonebook with the phone in standby, then press
mEnU/
sElECT
to open the phonebook menu. Choose one of these options:
Create New Add an entry to your phonebook. The phone prompts you
to enter a name and number.
Delete All Erase all the entries in the phonebook.
13
If you need the phone to pause before sending the next set of digits,
press
REdial/paUsE
to insert a 2-second pause. The pause shows as a
P
in the display.
You can insert as many pauses as you need, but each pause counts
as one of your 20 digits.
Phonebook Entry Opons
With the phone in standby, open the phonebook and find the entry
you want. Press
mEnU/sElECT
to open the individual phonebook entry
menu. The phone prompts you to edit or delete the entry.
With the phone in standby, press
Find
on the base. All the handsets will
beep in a 3-beep pattern for 1 minute or until you press
Find
again.
You can also end the page by pressing any key from the found handset.
If you often have to enter a series of digits or a code number during a
call, you can save that code number to a phonebook entry and use the
phonebook to send the code number.
Enter the code number (up to 20 digits) into the phonebook just
like a regular phonebook entry. Be sure to enter the code number
into the phonebook exactly as you would enter it during a call.
When you hear the prompt that tells you to enter the number,
open the phonebook and find the entry that contains your code
number. Press
mEnU/sElECT
to transmit the code. The phone
transmits the code number entered in the previous step. If you
change your mind, use
phonEbook/lEFT
to close the phonebook.
Conference Calling
When an outside call comes in, two handsets can join in a conference
call with the outside caller.
1.
2.
14
To join the call, just press
Talk/Flash
or
spEakER
.
To leave the conference call, hang up normally; the other handset
remains connected to the call.
Privacy Mode
To prevent other handsets from joining a call:
Start your call as usual, then press
mEnU/sElECT
. The display shows
Call Privacy.
Press
mEnU/sElECT
again to turn privacy mode on (you'll see a in
the display).
Privacy mode turns off automatically when you hang up.
As long you have privacy mode on, no other handsets can
interrupt your call. To accept another handset in the call, turn
privacy mode off by repeating the process above (press
mEnU/
sElECT
twice).
Intercom
Whenever the phone is in standby, you can make an intercom call
between handsets without using the phone line.
You can make an intercom call from any handset, but only two
handsets can be in an intercom call at any time.
If an outside call comes in during an intercom page, the phone
cancels the page so you can answer the incoming call.
If an outside call comes in during an intercom call, press
Talk/Flash
to hang up the intercom call and answer the outside call.
To...
make an intercom
page
Press
ClEaR/inTERCom
.
Select the handset you want to talk with, or
All to page all handsets at the same time.
1.
2.
cancel a page Press
End
.
answer a page Press
ClEaR/inTERCom
or
Talk/Flash
.
end an intercom call Press
End
. Both handsets return to standby.
1.
2.
15
Call Transfer
To...
transfer a call
Press
ClEaR/inTERCom
to put the call on hold.
Select the handset you want to page (select All to
page all handsets at the same time).
When another handset accepts the call, you'll be
disconnected (press
Talk/Flash
to rejoin the call).
1.
2.
3.
cancel a transfer Press
Talk/Flash
to return to the call.
accept a
transferred call
To answer the page and speak to the transferring
handset using the intercom, press
ClEaR/inTERCom.
To speak to the outside caller, press
Talk/Flash
.
1.
2.
If you subscribe to a voice mail service, your phone can notify
you when you have a new message waiting. This feature supports
Frequency-Shift Keying (FSK) message notification. Contact your
voice mail provider for information.
When you have new messages, the voice message icon appears in
the display, and the
STATuS
light on the handset blinks.
After you listen to your messages, the voice message icon turns off.
If it doesn’t, you can reset it: With the phone in standby, open the
menu and select Global Setup; select VMWI Reset, then select Yes.
Ans. Setup
You can set or change the answering system options from any handset.
Just open the menu and select Ans. Setup. Select one of the following:
Security Code Enter a 2-digit PIN so you can access your answering
system from any touch-tone phone (see page 19).
Ring Time
Set the number of rings (2, 4, or 6) before the answering
system answers the phone. Choose Toll Saver to
have the system pick up after 2 rings if you have new
messages or after 4 rings if you don't.
16
Record Time
Set the amount of time (1 or 4 minutes) callers have to
leave a message. Choose Announce Only if you don't
want the system to let callers to leave a message.
Message
Alert
Have the system beep every 15 seconds when you have
a new message; the beeping stops when you listen to all
your new messages. (To mute the alert without listening
to your messages, press any key on the base.)
Ans.
Language Change the language of the system's voice prompts.
Call Screen Turn on the call screen feature so you can hear callers as
they leave messages on the base speaker (see page 18).
Ans. On/off Turn your answering system on or off. (To turn your
system on or off from the base, just press
on/oFF
.)
You can access your system from a handset whenever the phone is in
standby.
During remote operation, the phone beeps to let you know it's
waiting for your next command.
You can press the number key next to the commands instead of
scrolling through them.
5:Stop
[ / /select]
Press
MESSAGES/MUTE
to start
remote operation mode.
Press
MENU/
SELECT
to choose
the displayed option.
Press
END
to
exit remote
operation mode.
4:Delete
3:Skip
2:Play
1:Repeat
6:SelectGreeting
8:RecNewGreeting
Use
PHONEBOOK/
LEFT
to go to the
previous option:
Use
CALLER ID/
RIGHT
to go to the
next option:
5:Stop
[ / /select]
Press
MESSAGES/MUTE
to start
remote operation mode.
Press
MENU/
SELECT
to choose
the displayed option.
Press
END
to
exit remote
operation mode.
4:Delete
3:Skip
2:Play
1:Repeat
6:SelectGreeting
8:RecNewGreeting
Use
PHONEBOOK/
LEFT
to go to the
previous option:
Use
CALLER ID/
RIGHT
to go to the
next option:
17
If you take no action for 30 seconds, the phone returns to standby.
Only one handset can access the system at a time.
Your personal outgoing message or greeting can be between 3
seconds and 30 seconds long.
If you don't want to record a greeting, the system uses a pre-
recorded greeting: Hello, no one is available to take your call. Please
leave a message after the tone.
After you record a greeting, you can switch between the pre-
recorded greeting to your personal greeting at any time.
Record a Personal Greeng
Access the answering system from any handset. Wait until the
system finishes its announcements, or press
5 (
Stop
)
to skip them.
Press
8
(RecNewGreeting).
Wait for the system to say "Record greeting," then begin speaking.
When you're finished, press
8
to stop recording. The system plays
back your new greeting.
To keep this greeting, press
End
. To re-record it, go back to step 2.
Switch Between the Two Greengs
Access the answering system from any handset. Wait until the
system finishes its announcements or press
5 (
Stop
)
to skip them.
Press
6
(SelectGreeting) to play back the current greeting.
Press
6
again to switch greetings.
Delete Your Greeng
Switch to your personal greeting following the steps above, then press
4
(Delete) while the system is playing back your greeting.
1.
2.
3.
4.
5.
1.
2.
3.
18
To...
play new
messages
Press
play/sTop.
Press
mEssagEs/mUTE
.
The system announces the number of new and old
messages, then plays each new message (followed by
the day and time) in the order it was received.
replay an earlier
message
Within 2 seconds after a message starts playing,
press
REV.
select 1:Repeat.
restart the
current message
Wait at least 3 seconds after
a message starts playing,
then press
REV.
Wait at least 5 seconds
after a message starts
playing, then select 1:
Repeat.
skip a message Press
Fwd
. Select 3:Skip.
delete a
message
While the message is playing,
press
dElETE
.
While the message is
playing, Select 4:Delete.
delete all of
your messages
With the phone in standby,
press
dElETE
. When
prompted, press
dElETE
again.
Not available.
play old
messages
After the system plays all new messages,
press
play/sTop
again. Select 2:Play.
stop playback press
play/sTop
. Select 5:Stop.
Screening Your Calls
Another feature your answering system gives you is call screening.
While the system is taking a message, you can hear the caller on the
base speaker (if you turn on Call Screen) or from a handset. Only one
handset at a time can screen calls. If another handset tries to screen
the call, the second handset beeps and returns to standby.
To...
hear the caller leaving
a message
Listen to the caller
over the speaker. Press
mEssagEs/mUTE
.
19
To...
answer the call NA Press
Talk/Flash
.
mute the call screen
without answering* Press
play/sTop
. Press
End
or return the
handset to the cradle.
* If you mute the call screen, the system connues taking the message: it just
stops playing through the speaker.
You can also use your answering system from any touch-tone phone.
Before you can use this feature, you must program a security code.
Programming a security code
With the phone in standby, open the menu from any handset.
Select Ans. Setup, then select Security Code.
Use the number keypad to enter a two-digit security code (01 to
99). Press
mEnU/sElECT
when you’re finished.
Dialing In to Your System
Call your telephone number and wait for the system to answer.
(If your answering system is off, it will answer after ten rings and
sound a series of beeps instead of your greeting.)
During the greeting or beeps, press
0
and immediately enter your
security code. If you enter it incorrectly 3 times, the system hangs
up and returns to standby.
The system announces the current time, the number of messages
stored in memory, and a help prompt. It will beep intermittently to
let you know it's waiting for your command.
When you
hear beeping,
enter a 2-digit
command from
this chart:
1.
2.
3.
1.
2.
3.
4.
01 Repeat message
02 Play message
03 Skip message
04 Delete message
05 Stop playback
06 Turn the system on
09 Turn the system off
10 Hear help prompts
01 Repeat message
02 Play message
03 Skip message
04 Delete message
05 Stop playback
06 Turn the system on
09 Turn the system off
10 Hear help prompts
20
up and return to standby.
If you have any trouble with your phone, try these simple steps first. If
you need help, call our Customer Care Line listed on the front cover.
If… Try…
No handsets can make
or receive calls.
Checking the telephone cord connection.
Disconnecting the base AC adapter. Wait a
few minutes, then reconnect it.
Making sure the base is plugged in.
-
-
-
A handset can’t make
or receive calls.
Moving the handset closer to the base.-
A handset can make
calls, but it won’t ring.
Making sure the ringer is turned on.-
A handset is not
working.
Charging the battery for 15-20 hours.
Checking the battery connection.
-
-
A handset says
Unavailable.
Moving the handset closer to the base.
Seeing if another handset is in Privacy Mode.
-
-
No handsets display
Caller ID information.
Letting calls ring twice before answering.
Making sure your Caller ID service is active.
-
-
Caller ID displays
briefly & then clears.
You may have to change the line mode.
Contact Customer Service for instructions.
-
I can’t transfer calls.
You may have to reset the handset. Contact
Customer Service for instructions.
-
Two handsets can’t
talk to the caller.
Making sure no handset is in Privacy Mode.-
The answering system
does not work.
Making sure the answering system is on.
Making sure the base is plugged in.
-
-
21
If… Try…
The system won't
record messages.
Making sure the
Record Time
is not set to
Announce Only
.
Deleting messages (memory may be full).
-
-
A handset can't access
the answering system.
Seeing if another handset is using the system.
Making sure the phone is in standby.
-
-
My outgoing message
is gone.
If there was a power failure, you may
have to re-record your personal outgoing
message.
-
I can’t hear the base
speaker.
Making sure call screening is turned on.
Changing the base speaker volume.
-
-
Messages are
incomplete.
The incoming messages may be too long.
Remind callers to leave a brief message.
Deleting messages (memory may be full).
-
-
When I answer on an
extension, the phone
keeps ringing (or
keeps recording.)
You may have to change the line mode.
Contact Customer Service for instructions
-
Weak or Hard To Hear Audio
If a caller’s voice sounds weak or
soft, the signal might be blocked
by large metal objects or walls;
you might also be too far from
the base, or the handset’s battery
may be weak.
Try moving around while
you’re on a call or moving
closer to the base to see if the
sound gets louder.
Make sure the handset’s
battery is fully charged.
Try adjusting the earpiece
volume.
If you have a hearing aid equipped
with a telecoil (T-coil) feature, the
interacon between the hearing aid
& digital cordless phones can cause
noise in the handset. If you have a T-
coil hearing aid & you have problems
with noise on the line, try turning on
T-coil
mode. Open the menu. Select
Handset Setup,
then select
T-coil
.
Using T-coil mode can shorten the
handset’s talk me; make sure to
watch the baery status and keep
the baery charged.
•
•
If you have a hearing aid equipped
with a telecoil (T-coil) feature, the
interacon between the hearing aid
& digital cordless phones can cause
noise in the handset. If you have a T-
coil hearing aid & you have problems
with noise on the line, try turning on
T-coil
mode. Open the menu. Select
Handset Setup,
then select
T-coil
.
Using T-coil mode can shorten the
handset’s talk me; make sure to
watch the baery status and keep
the baery charged.
•
•
22
oise or Stac on the Lineoise or Stac on the Line
Interference is the most common cause of noise or static on a cordless
phone. Here are some common sources of interference:
electrical appliances, especially microwave ovens
computer equipment, especially wireless LAN equipment and DSL
modems
radio-based wireless devices, such as room monitors, wireless
controllers, or wireless headphones or speakers
fluorescent light fixtures (especially if giving off a buzzing noise)
other services that use your phone line, like alarm systems,
intercom systems, or broadband Internet service
If static is on 1 handset or in 1
Check nearby for one of the
common interference sources.
Try moving the handset away
from a suspected source, or try
moving the suspected source so
it’s not between the handset and
the base.
There is always more noise at
the edges of the base's range.
If an
Out of Range
message
displays, try moving closer to the
base.
-
-
-
Check near the base for the
source of interference.
Try moving the base away
from a suspected source, or
turn off the source if possible.
If the base has an adjustable
antenna, try raising the
antenna so it stands straight
up.
If you have any service that
uses the phone line, you might
need a filter (see below).
-
-
-
-
Installing a Line Filter or DSL Filter
Sometimes, broadband Internet services that use the telephone line
can interfere with phones. One of these services−DSL−often causes
static on telephones. A DSL filter or telephone line filter usually solves
this problem. The technician who installed your DSL service might
have left some filters for you; if not, call your DSL provider or look in
any electronics store.
23
Plug the DSL filter into the telephone wall jack and plug your phone’s
base into the filter. Make a test call to make sure the noise is gone.
Liquid Damage
Moisture and liquid can damage your cordless phone.
If the exterior housing of the handset or base is exposed to moisture
or liquid, wipe off the liquid, and use as normal.
If moisture or liquid is inside the plastic housing (i.e. liquid can
be heard in the phone or liquid has entered the handset battery
compartment or vent openings on the base), follow these steps:
Base
Remove the battery cover and disconnect
the battery.
Let dry for at least 3 days with the battery
disconnected and the cover off.
After the handset dries, reconnect the
battery and replace the cover. Recharge the
battery fully (15-20 hours) before using.
1.
2.
3.
Disconnect the AC
adapter to cut off
the power.
Disconnect the
telephone cord.
Let dry for at least
3 days before
reconnecting.
1.
2.
3.
Use only the supplied AC adapters. Be sure to use the proper adapter for the
base & any chargers.
Do not place the power cord where it creates a trip hazard or where it could
become chafed and create a
re or electrical hazard.
Do not place the unit in direct
sunlight or subject it to high
temperatures.
Fully charged, the baery
should provide about 10
hours of talk me and about 7
•
•
•
•
AC
adapter
Base/Charger
Part number PS-0035
Input voltage 120V AC, 60 Hz
Output voltage 8V AC @ 300mA
Baery
pack
Part number BT-1007
Capacity 500mAh, 2.4V DC
AC
adapter
Base/Charger
Part number PS-0035
Input voltage 120V AC, 60 Hz
Output voltage 8V AC @ 300mA
Baery
pack
Part number BT-1007
Capacity 500mAh, 2.4V DC
days of standby me. For best results,
return the handset to the cradle aer
each call to keep it fully charged.
When the baery gets too low, the
handset shows a low baery alert. If
you hear a strange beep during a call,
check the display: if you see the low
baery alert, nish your conversaon
as quickly as possible and return the
handset to the cradle. If the handset
is in standby, none of the keys will
operate.
With normal use, the baery should
last about one year. Replace the bat-
tery when the talk me becomes short
even when the baery is charged. To
buy a replacement baery, call the
Parts Department listed on the front
cover.
This equipment contains a recharge-
able Nickel-Cadmium (Ni-Cd) baery.
Cadmium and Nickel are chemicals
known to the State of California to
cause cancer.
Do not short-circuit the baery.
The rechargeable Ni-Cd baeries con-
tained in this equipment may explode
if disposed of in a re.
Do not charge the baery used in
this equipment in any charger other
than the one designed to charge this
baery as specied in the owner's
manual. Using another charger may
damage the baery or cause it to
explode.
As part of our commitment to
protecng our environment and
•
•
•
•
•
•
•
•
conserving natural resources, Uniden
voluntarily parcipates in an RBRC
®
industry program to collect and
recycle used Ni-Cd baeries within the
United States. Please call 1-800-8-BAT-
TERY for informaon on Ni-Cd baery
recycling in your area.
(RBRC
®
is a
registered
trademark of the
Rechargeable
Baery Recycling
Corporaon.)
our products & accessories.
product and/or accessories
cause birth defects or other
This equipment complies with Part
68 of the FCC rules and the require-
ments adopted by the ACTA. On the
boom of this equipment is a label
that contains, among other informa-
on, a product idener in the format
US: AAAEQ##TXXXX. If requested,
this number must be provided to the
phone company.
An applicable Universal Service Order
Codes (USOC) cercaon for the jacks
used in this equipment is provided
(i.e., RJ11C) in the packaging with each
piece of approved terminal equipment.
A plug and jack used to connect this
equipment to the premises wiring and
telephone network must comply with
the applicable FCC Part 68 rules and
requirements adopted by the ACTA. A
compliant telephone cord and modular
plug is provided with this product. It is
designed to be connected to a compat-
ible modular jack that is also compliant.
See installaon instrucons for details.
The REN is used to determine the
number of devices that may be con-
nected to a phone line. Excessive RENs
on a phone line may result in devices
not ringing in response to an incoming
call. In most but not all areas, the sum
of RENs should not exceed ve (5.0).
To be certain of the number of devices
that may be connected to a line, as
determined by the total RENs, contact
the telephone provider. The REN for
this product is part of the product
idener that has the format US:
AAAEQ##TXXXX. The digits represented
by ## are the REN without a decimal
point (e.g., 03 is a REN of 0.3).
If this equipment causes harm to the
telephone network, the telephone
company will nofy you in advance
that temporary disconnuance of ser-
vice may be required. But if advance
noce isn't praccal, the telephone
company will nofy the customer as
soon as possible. Also, you will be
advised of your right to le a com-
plaint with the FCC if you believe it is
necessary. The telephone company
may make changes in its facilies,
equipment, operaons or procedures
that could aect the operaon of
the equipment. If this happens the
telephone company will provide ad-
vance noce in order for you to make
necessary modicaons to maintain
uninterrupted service.
Please follow instrucons for repair-
ing, if any (e.g. baery replacement
secon); otherwise do not substute
or repair any parts of the device
except as specied in this manual.
Connecon to party line service is
subject to state taris. Contact the
state public ulity commission, public
service commission or corporaon
commission for informaon. This
equipment is hearing aid compable.
If you experience trouble with this
equipment, contact the manufacturer
(see the cover of this manual for
contact informaon) or an authorized
agent. If the equipment is causing
harm to the telephone network, the
telephone company may request that
you disconnect the equipment unl
the problem is resolved.
If your home has wired alarm equip-
ment connected to a phone line, be
sure that installing the system does
not disable your alarm equipment. If
you have quesons about what will
disable alarm equipment, contact your
telephone company or a qualied
installer.
Any changes or modicaons to this
product not expressly approved by the
manufacturer or other party responsible
for compliance could void your authority
to operate this product.
NOTICE: According to telephone
company reports, AC electrical surges,
typically resulng from lightning
strikes, are very destrucve to tele-
phone equipment connected to AC
power sources. To minimize damage
from these types of surges, a surge
arrestor is recommended.
This device complies with part 15 of
the FCC rules. Operaon is subject
to the following two condions: (1)
This device may not cause harmful
interference, and (2) This device must
accept any interference received,
including interference that may
cause undesired operaon. Privacy of
communicaons may not be ensured
when using this phone.
Note: This
equipment has been tested and
found to comply with the limits for
a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits
are designed to provide reasonable
protecon against harmful interfer-
ence in a residenal installaon.
This equipment generates, uses and
can radiate radio frequency energy
and, if not installed and used in ac-
cordance with the instrucons, may
cause harmful interference to radio
communicaons. However, there is
no guarantee that interference will
not occur in a parcular installaon.
If this equipment does cause harmful
interference to radio or television
recepon, which can be determined
by turning the equipment o and on,
the user is encouraged to try to cor-
rect the interference by one or more
of the following measures:
Reorient or relocate the receiving
antenna.
Increase the separaon between the
equipment and receiver.
Connect the equipment into an outlet
on a circuit dierent from that to
which the receiver is connected.
Consult the dealer or an experienced
radio/TV technician for help.
This product complies with FCC
radiaon exposure limits under the
following condions:
The base must be placed to allow a
minimum of 20 cm (8 inches) between
the antenna and all persons during
normal operaon.
The base must not be collocated or
operated in conjuncon with any
other antenna or transmier.
The handset is designed for body-
worn operaon and meets FCC RF
exposure guidelines when used with
any belt clip, carrying case, or other
accessory supplied with this product.
(All necessary accessories are included
in the package; any addional or op-
onal accessories are not required for
compliance with the guidelines.) Third
party accessories (unless approved by
the manufacturer) should be avoided
•
•
•
•
•
•
•
as these might not comply with FCC RF
exposure guidelines.
Terminal equipment
NOTICE: This equipment meets the
applicable Industry Canada TerminalIndustry Canada Terminal
Equipment Technical Specicaons.
This is conrmed by the registraon
number. The abbreviaon IC before
the registraon number signies that
registraon was performed based on
a Declaraon of Conformity indicat-
ing that Industry Canada technical
specicaons were met. It does not
imply that Industry Canada approved
the equipment.
NOTICE: The Ringer Equivalence Num-
ber (REN) for this terminal equipment
is marked on the equipment itself.
The REN assigned to each terminal
equipment provides an indicaon
of the maximum number of termi-
nals allowed to be connected to a
telephone interface. The terminaon
on an interface may consist of any
combinaon of devices subject only to
the requirement that the sum of the
Ringer Equivalence Numbers of all the
devices does not exceed 5.
Radio equipment
The term IC before the radio cerca-
on number only signies that Indus-
try Canada technical specicaons
were met. Operaon is subject to
the following two condions: (1) this
device may not cause interference,
and (2) this device must accept any
interference, including interference
that may cause undesired operaon
of the device. "Privacy of communica-
ons may not be ensured when using
this telephone".
1-Year Limited Warranty
WARRANTOR: UNIDEN AMERICA
CORPORATION ("Uniden")
ELEMENTS OF WARRANTY: Uniden
warrants, for one year, to the original
retail owner, this Uniden Product to
be free from defects in materials and
crasmanship with only the limitaons
or exclusions set out below.
WARRANTY DURATION: This warranty
to the original user shall terminate
and be of no further eect 12 months
aer the date of original retail sale.
The warranty is invalid if the Product
is (A) damaged or not maintained as
reasonable or necessary, (B) modi-
ed, altered, or used as part of any
conversion kits, subassemblies, or any
conguraons not sold by Uniden, (C)
improperly installed, (D) serviced or
repaired by someone other than an
authorized Uniden service center for a
defect or malfuncon covered by this
warranty, (E) used in any conjuncon
with equipment or parts or as part of
any system not manufactured by Un-
iden, or (F) installed or programmed
by anyone other than as detailed by
the owner's manual for this product.
STATEMENT OF REMEDY: In the event
that the product does not conform to
this warranty at any me while this
warranty is in eect, warrantor will
either, at its opon, repair or replace
the defecve unit and return it to you
without charge for parts, service, or
any other cost (except shipping and
handling) incurred by warrantor or its
representaves in connecon with
the performance of this warranty.
Warrantor, at its opon, may replace
the unit with a new or refurbished
unit.
THE LIMITED WARRANTY SET
FORTH ABOVE IS THE SOLE AND
ENTIRE WARRANTY PERTAINING TO
THE PRODUCT AND IS IN LIEU OF AND
EXCLUDES ALL OTHER WARRANTIES OF
ANY NATURE WHATSOEVER, WHETHER
EXPRESS, IMPLIED OR ARISING BY OP-
ERATION OF LAW, INCLUDING, BUT NOT
LIMITED TO ANY IMPLIED WARRANTIES
OF MERCHANTABILITY OR FITNESS FOR
A PARTICULAR PURPOSE. THIS WAR-
RANTY DOES NOT COVER OR PROVIDE
FOR THE REIMBURSEMENT OR PAY-
MENT OF INCIDENTAL OR CONSEQUEN-
TIAL DAMAGES.
Some states do not
allow this exclusion or limitaon of
incidental or consequenal damages
so the above limitaon or exclusion
may not apply to you.
LEGAL REMEDIES: This warranty gives
you specic legal rights, and you may
also have other rights which vary
from state to state. This warranty
is void outside the United States of
America and Canada.
PROCEDURE FOR OBTAINING PERFOR-
MANCE OF WARRANTY: If, aer fol-
lowing the instrucons in the owner's
manual you are certain that the
Product is defecve, pack the Product
carefully (preferably in its original
packaging). Disconnect the baery
from the Product and separately
secure the baery in its own separate
packaging within the shipping carton.
The Product should include all parts
and accessories originally packaged
with the Product. Include evidence of
original purchase and a note describ-
ing the defect that has caused you
to return it. The Product should be
shipped freight prepaid, by traceable
means, to warrantor at:
Uniden America Service
4700 Amon Carter Blvd.
Fort Worth, TX 76155
As an Energy Star
®
Partner, Uniden has
determined that this
product meets the
Energy Star
®
guidelines
for energy eciency.
Energy Star
®
is a U.S. registered mark.
Uniden
®
is a registered trademark of
Uniden America Corporaon.
The pictures in this manual are for
example only. Your phone may not
look exactly like the pictures.
May be covered under one or more of the
following U.S. patents:
5,915,227 5,929,598 5,930,720
5,960,358 5,987,330 6,044,281
6,070,082 6,076,052 6,125,277
6,253,088 6,321,068 6,418,209
6,618,015 6,714,630 6,782,098
6,788,920 6,788,953 6,839,550
6,889,184 6,901,271 6,907,094
6,914,940 6,953,118 7,023,176
7,030,819 7,146,160 7,203,307
7,206,403 7,310,398 7,460,663
Other patents pending.
•
•
