[ 2 ] www.uniden.com

Contents

Welcome/Features 3

Controls and Functions 4

Terms Used in this Manual 6

Accessibility 6

Installing the Phone 7

A. Choose the Best Location 7

B.

Install the Rechargeable Battery Packs into the Handsets

8

C.

Connect the Main Base and Charging Cradles, and Charge the Handsets

9

D. Mount the Main Base on a Wall 11

Installing the Beltclip 12

Headset Installation 13

Register Handsets to the Main Base before Using!

13

When to Re-register Handsets 14

Basic Setup 15

Activating AutoTalk 15

Activating Caller ID on Call Waiting (Handset 1 only) 15

Entering Your Area Code 16

Choosing the Dialing Mode (Handset 1 only) 16

Setting the Language 17

Selecting the Ring Tone and Volume 17

Using Your Phone 18

Making and Receiving Calls 18

Transferring a Call 19

Redialing the Last Dialed Number 19

Adjusting the Earpiece Volume 20

Tone Dialing Switch-over 20

Traveling Out-of-Range 21

Selecting a Different Channel 21

Find Handset 21

Using Call Waiting 22

Using the Speed Dial Memory 23

Storing Names and Numbers in Speed Dial Memory 23

Storing Caller ID Messages in Speed Dial Memory 26

Making Calls from Speed Dial Memory 27

Caller ID and CIDCW (Caller ID on Call Waiting)

28

Viewing the Caller ID Message List 29

Deleting Information from the Caller ID List 30

Making a Call from the Caller ID List 31

Caller ID on Call Waiting (CIDCW) 31

The Integrated Answering System 32

Setting Up Your Answering System 33

Turning the Answering System On/Off 41

Using Your Answering System 42

Remote Operation 46

Changing the Digital Security Code 49

Note on Power Sources 50

General Information 52

Troubleshooting 53

Liquid Damage 56

Precautions & Warranty 57

I.C. Notice 59

Index 60

Remote Operation Card

WELCOME/FEATURES [ 3 ]www.uniden.com

Welcome Congratulations on your purchase of the Uniden multi-handset cordless telephone and

answering system. This cordless phone is designed for reliability, long life, and

outstanding performance.

Note: Illustrations in this manual are used for explanation purposes. Some

illustrations in this manual may differ from the actual unit. The color

of your cordless telephone may vary.

If you have any trouble with your phone, call our Customer Hotline at 1- 800-297-1023,

Mon-Fri 7 am to 7 pm, Sat/Sun 9 am to 5 pm, CST. (Phone support is closed on holidays.)

For more information on Uniden products and accessories, be sure to visit our web site:

www.uniden.com

Uniden®is a registered trademark of Uniden America Corporation.

AutoTalk, AutoStandby, UltraClear Plus, Random Code and AutoSecure are trademarks of

Uniden America Corporation.

Features • 5.8GHz Extended Range Technology

• Multi-Handset System

(Extra Handsets & Chargers Included)

• Call Transfer from Handset to Handset

• Integrated Answering System

• Caller ID/Caller ID on Call Waiting

• 3-Line Backlit LCD

• Trilingual Menu Displays/Voice Prompts

• 30 Caller ID Memory

• 10 Number Memory Dialing

• Last Number Redial

• Tone/Pulse Dialing

• Page/Find Handset Key

• Earpiece/Ringer Volume Controls

• Mute or Turn Ringer Off

• Hearing Aid Compatible

• 20 Channel Auto Scan

• Desk or Wall Mountable

CONTROLS AND FUNCTIONS[ 4 ] www.uniden.com

2

4

3

5

1

6

8

7

9

20

15

14

13

10

12

11

18

19

16

17

1. Handset antenna

2. Beltclip hole

3. Jack for optional headset

4. Handset ringer speaker

5. Handset battery compartment

6. Handset earpiece

7. LCD display

8. ▼(volume & scroll down) key

9. Call id (Caller ID)/menu key

10. /tone/ (left cursor) key

11. Redial/pause key

12. Select/channel key

13. ▲(volume & scroll up) key

14. End key

15. Talk/flash key

16. #/ (right cursor) key

17. Memory key

18. Delete/transfer key

19. Handset microphone

20. Handset charging contacts

Controls and Functions

Handsets

CONTROLS AND FUNCTIONS [ 5 ]www.uniden.com

22

23

24

25

26

27

28

21

30

29

31

32

33

34

35

36

37

38

39 40

21. Main Base antenna

22. Charge/in use LED

23. Memo/record key

24. (answer on/off) key

25. (repeat/rewind) key

26. Menu/clock key

27. Base charging contacts

28. Ringer key

29. Message counter LED

30. Greeting key

31. (delete) key

32. (skip/fast forward) key

33. (play/stop) key

34. Find hs key

35. Set key

36. Volume/select (up) key

37. Volume/select (down) key

38. Mic (microphone)

39. Telephone line jack

40. DC IN 9V jack

41. Charging contacts

42. Charge LED

43. DC IN 9V jack

Extra Charging Cradle

41

43

42

Main Base Unit

ACCESSIBILITY[ 6 ] www.uniden.com

Accessibility

Uniden provides a customer service hotline for accessibility questions. If you have a disability and need

customer service assistance or if you have any questions about how Uniden's products accommodate

persons with disabilities, please call the accessibility voice/TTY line:

1-800-874-9314

A representative is available to talk to you M-F, 8:00 am to 5:00 pm, CST. After hours, you can leave a

message, and we will call you back. Information is also available on our web site, www.uniden.com,

under the "Accessibility" link.

Terms Used in this Manual

•Standby Mode - The handset may be sitting in or off the cradle, but is NOT in use. The talk/flash key has

not been pressed and there is no dial tone.

•Talk Mode - The handset is off the cradle and the talk/flash key has been pressed, enabling a dial tone.

•CID - Caller ID

•CIDCW - Caller ID on Call Waiting

INSTALLING THE PHONE [ 7 ]www.uniden.com

INSTALLING THE

PHONE

Installing the Phone

Do the following steps:

A. Choose the Best Location

B. Install the Rechargeable Battery Packs into the Handsets

C. Connect the Main Base and Charging Cradle, and Charge the Handsets

D. Mount the Main Base on a Wall

A. Choose the Best Location

Before choosing a location for your new phone, here are some important guidelines

you should consider:

•The location should be close to both a phone jack and a continuous power outlet

(one which is not connected to a switch).

•The main base and each handset should be kept away from sources of electrical

noise such as motors, microwave ovens, and fluorescent lighting.

•The cradle can be placed on a desk, tabletop, or mounted on a standard wall plate.

For better reception, place the main base as high as possible.

•The main base should be placed in an open area for optimum range and reception.

Avoid excessive moisture,

extremely low temperatures,

dust, mechanical vibration,

or shock

Avoid heat sources, such as radiators,

air ducts, and sunlight

Avoid television sets and other

electronic equipment

Avoid noise sources such as a window

by a street with heavy traffic

Avoid microwave ovens

Avoid personal computers

Avoid other cordless telephones

Choose a central location

If your home has

specially wired alarm

equipment connected to

the telephone line, be

sure that installing the

system does not disable

your alarm equipment.

If you have questions

about what will disable

your alarm equipment,

contact your telephone

company or a qualified

installer.

INSTALLING THE PHONE[ 8 ] www.uniden.com

B. Install the Rechargeable Battery Packs into the

Handsets

All handsets are powered by rechargeable battery packs.

The battery recharges automatically when the handset is

placed in the main base or charging cradle.

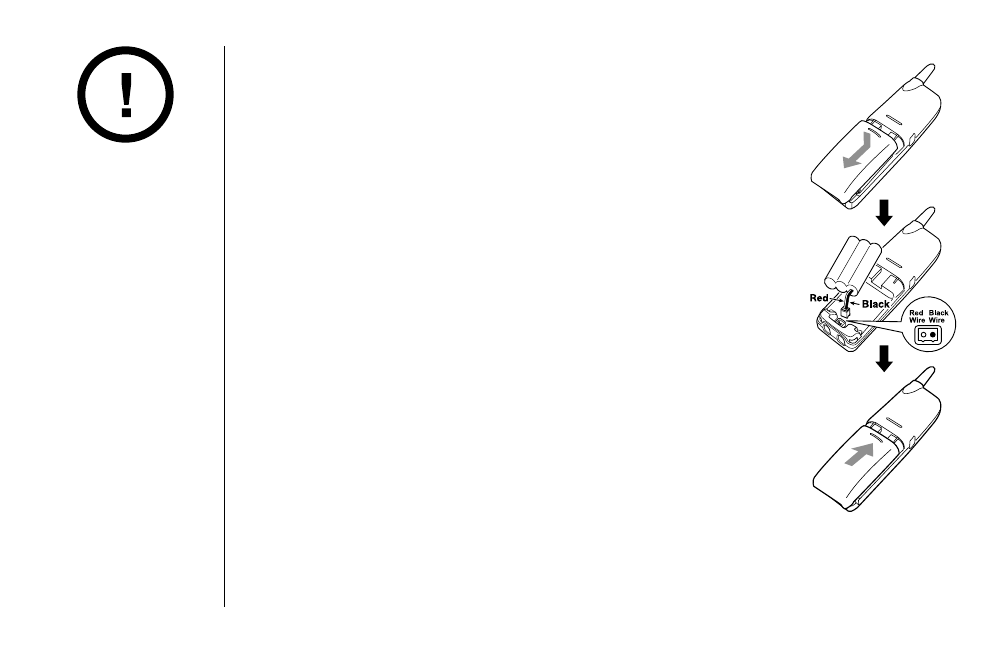

1) Press down on the handset battery case cover (use the

finger indention for a better grip) and slide the cover

downward to remove.

2) Plug the battery pack connector (red & black wires) into

the small jack inside the battery compartment.

(The connector notches fit into the grooves of the jack only

one-way.) Match the wire colors to the polarity label in the

battery compartment, connect the battery, and listen for

a click to insure connection.

3) Make sure you have a good connection by slightly pulling

on the battery wires. If the connection is secure, the

battery jack will remain in place.

4) Place the battery case cover back in the handset by sliding

it upwards until it clicks into place.

Use only the Uniden

(BT-800) rechargeable

battery pack supplied

with your phone.

INSTALLING THE

PHONE

INSTALLING THE PHONE [ 9 ]www.uniden.com

•Connect the AC adapter to a continuous power supply.

•Place each cradle close to the AC outlet to avoid long extension cords.

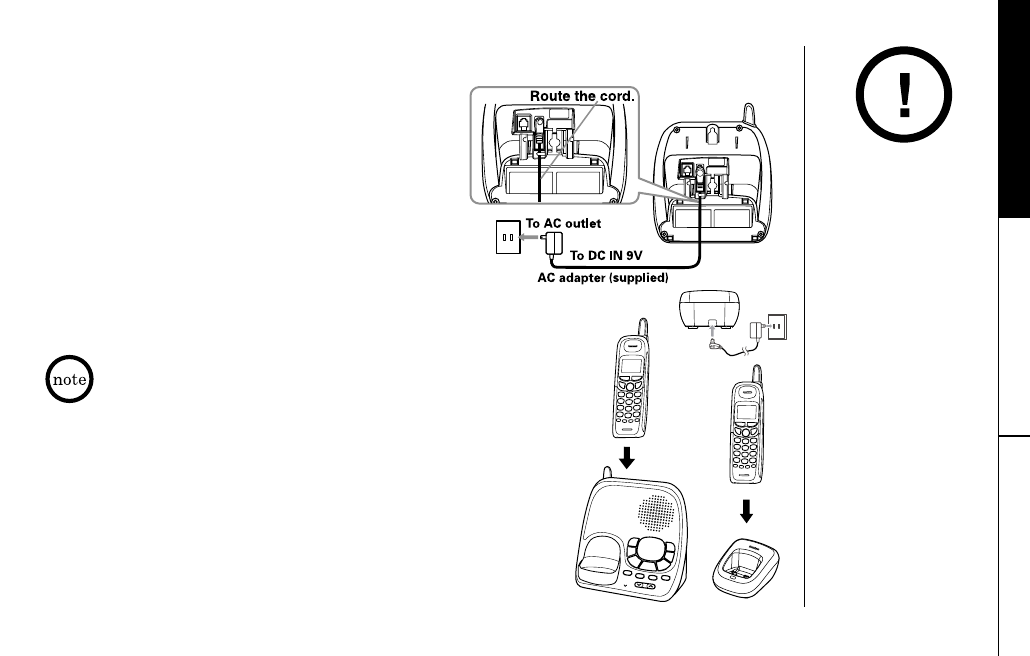

C. Connect the Main Base and Charging Cradles, and Charge the Handsets

1) Connect each AC adapter to the DC IN 9V

jack and to each standard 120V AC wall

outlet.

2) Place one handset in the main base and

other handsets in the charging cradles with

the keypad facing forward.

3) Make sure that the charge/in use LED and

charge LED illuminate. If the LED does not

illuminate, check to see that the AC adapter is

plugged in and that the handset makes good

contact with the cradle's charging contacts.

•Use only the supplied

AD-314 AC adapter

for the main base and

AD-310 or AD-1010

for the charging

cradle.

Do not use any other

AC adapter.

•Do not place the power

cord where it creates a

trip hazard or where it

could become chafed

and create a fire or

electrical hazard.

4) Charge your handsets at least 15-20 hours before

plugging into the phone line.

INSTALLING THE PHONE[ 10 ] www.uniden.com

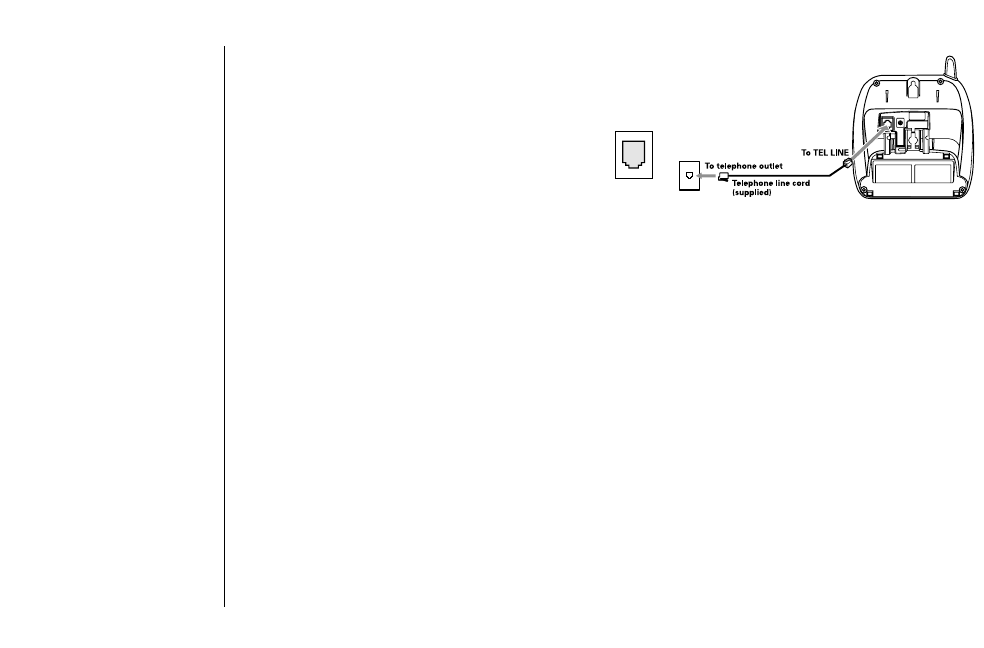

5) Once the handset battery packs are fully

charged, connect the telephone line cord to

the TEL LINE jack and a telephone outlet.

If your telephone outlet isn't modular,

contact your telephone company for

assistance.

Modular

INSTALLING THE

PHONE

INSTALLING THE PHONE [ 11 ]www.uniden.com

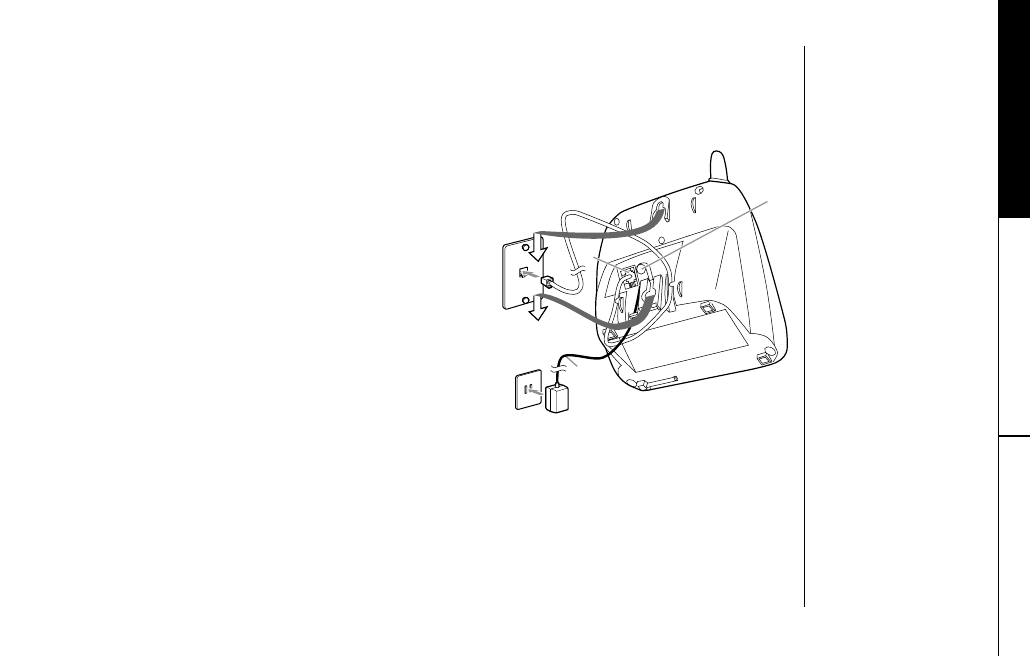

Standard wall plate mounting

This phone can be mounted on any standard wall

plate.

1) Plug the AC adapter to the DC IN 9V jack.

2) Route the AC adapter cord through the molded

wiring channel as shown.

3) Plug the AC adapter into a standard 120V AC

wall outlet.

4) Plug the telephone line cord into the TEL

LINE jack. Route the cord through the molded

wiring channel as shown.

5) Plug the telephone line cord into the

telephone outlet.

6) Align the mounting slots on the main base

with the mounting posts on the wall. Then

push in and down until the phone is firmly

seated.

Wall

plate

AC

outlet

4

1

6

5

6

3

2

AC

adapter

D. Mount the Main Base on a Wall

INSTALLING THE PHONE[ 12 ] www.uniden.com

Direct wall mounting

If you don't have a standard wall plate, you can mount your phone

directly to the wall. Before doing this, consider the following:

•Avoid electrical cables, pipes, or other items behind the

mounting location that could cause a hazard when inserting

screws into the wall.

•Try to mount your phone within 5 feet of a working phone jack

to avoid excessive lengths.

•Make sure the wall material is capable of supporting the weight

of the main base and handset.

•Use #10 screws (minimum length of 1-3/8 inches) with anchoring

devices suitable for the wall material where the main base will

be placed.

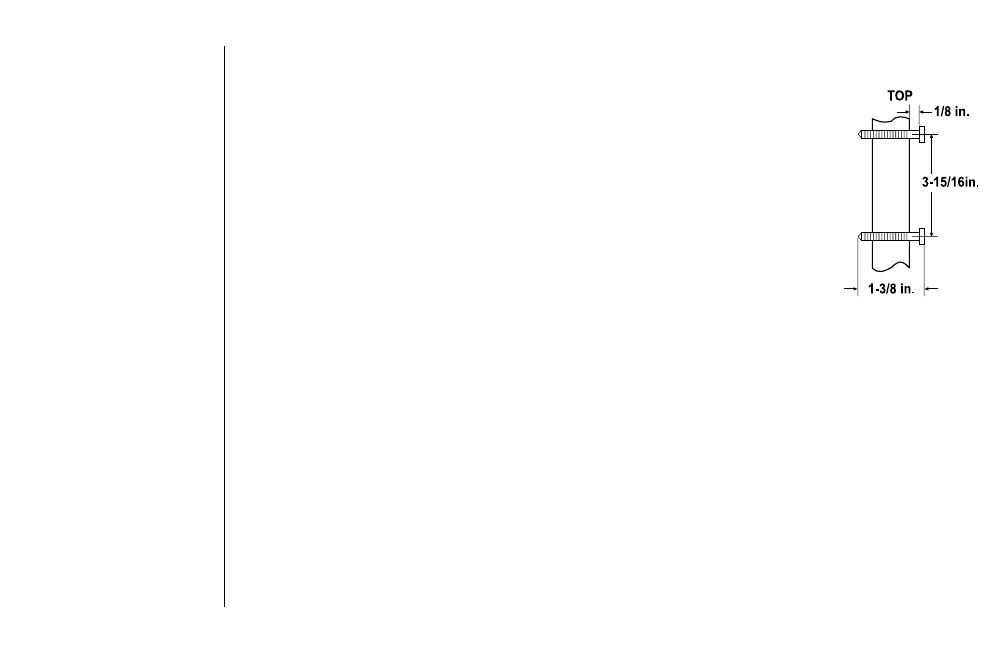

1) Insert two mounting screws into the wall (with their appropriate anchoring

device), 3-15/16 inches apart.

Allow about 1/8 of an inch between the wall and screw heads for mounting the

phone.

2) Refer to steps 1 through 6 on page 11 to mount the telephone.

Installing the Beltclip

To attach the beltclip

Insert the beltclip into the holes on each side of the handset. Press down until it clicks.

To remove the beltclip

Pull both sides of the beltclip to release the tabs from the holes.

INSTALLING THE

PHONE

INSTALLING THE PHONE [ 13 ]www.uniden.com

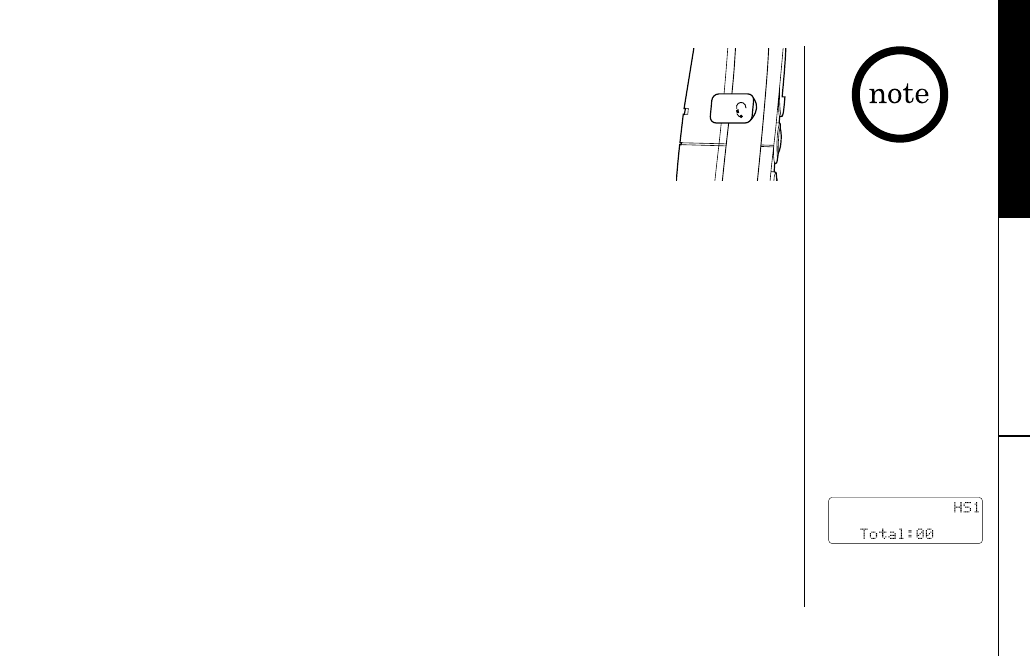

Headset Installation

Your phone may be used with an optional headset. To use this feature,

insert the headset plug into the headset jack.

Your phone is ready for hands-free conversations.

(Headsets may be purchased by visiting our website at www.uniden.com

or by calling our Parts Department. See page 52.)

Register Handsets to the Main Base before Using!

Whichever handset you choose to charge in the main base will automatically register

to the main base.

The handsets charging in the extra charging cradle MUST also be registered to the

main base before use. Follow the steps below to register all handsets.

1) Be sure all handsets are fully charged.

2) Remove the handset from the charging cradle, and place it in the main base. The

charge/in use LED light on the main base will begin to flash, indicating that the

registration is taking place.

3) Wait for at least 5 seconds, then remove the handset from the main base.

4) Repeat steps 2 - 3 for the rest of the handsets.

5) Press the talk/flash key on one handset. If "Talk" appears on the display, the

handset is registered, press the end key. Then try with all other handsets. If each

handset displays "Talk", the handset has been registered to the base. Otherwise,

return to step 1 and try again.

6) Once all handsets are registered, it doesn’t matter which handset is placed in the

main base or the charging cradle.

•When you charge the

handsets, Caller ID

summary screen and

the name of the

handset appears.

Following display is

the example of handset

No.1 (HS1).

•The charging cradle

can be used to charge

any handset.

WHEN TO RE-REGISTER HANDSETS[ 14 ] www.uniden.com

Make sure to return the

handsets to the cradles

after each phone call.

When to Re-register Handsets

1) You’ll need to re-register all handsets (follow steps on page 13) each time the

digital security code is changed. Refer to page 49 for details regarding the Digital

Security Code.

2) When there is a power failure for more than one hour:

If power failure occurs (e.g. due to electrical storm or if the unit is unplugged

during a move), all handsets will need to be re-registered. To re-register, follow

the same registration process on page 13.

3) If any handset’s battery becomes very low, the handset must be recharged for 15-

20 hours and re-registered to the main base unit.

BASIC SETUP

BASIC SETUP [ 15 ]www.uniden.com

Basic Setup

There are five basic options that you will need to set up: AutoTalk, CIDCW (Caller ID

on Call Waiting), Area Code, Dial Mode and Language.

CIDCW and Dial Mode options can only be set by using Handset 1.

If you try to set by using other handset, you will not see these

options listed on the LCD screen. (Handset 1 shows HS1 in the

display while the phone is charging.) AutoTalk, Area Code and

Language options can be set by using any handset.

Activating AutoTalk

AutoTalk allows you to answer the phone simply by removing the handset from the

cradle. You do not have to press any keys.

1) When the phone is in standby mode, press and hold the

call id/menu key. The following screen appears.

2) Press the select/channel key to turn AutoTalk on.

3) Press the end key or return the handset to the charging cradle to complete the

setting. The handset returns to standby mode.

Activating Caller ID on Call Waiting (Handset 1 only)

Caller ID allows you to see the name and number of the calling party before you

answer the phone. Caller ID on Call Waiting (CIDCW) lets you see the name and

number of a call that comes in when you are on the line.

You must subscribe to Caller ID service through your local

telephone provider to use this feature.

1) When the phone is in standby mode, press and hold the

call id/menu key. The following screen appears.

2) Press the ▼key to move the pointer to select CIDCW.

BASIC SETUP[ 16 ] www.uniden.com

1) When the phone is in standby mode, press and hold the

call id/menu key. The following screen appears.

2) Press the ▼key to move the pointer to select Area Code.

3) Press the select/channel key. If an area code was already

stored, the phone will display it.

4) Use the number keys (0- 9) to enter the 3-digit area code.

If you make an error, use the delete/transfer key to back-

space.

5) Press the select/channel key. A confirmation tone sounds.

6) Press the end key or return the handset to the charging cradle

to complete the setting. The handset returns to standby mode.

Choosing the Dialing Mode (Handset 1 only)

Your phone can communicate with the telephone network in two different ways: tone

dialing and pulse dialing. These days, most phone networks use a method called tone

dialing, so your phone comes programmed for tone dialing.

If your phone company uses pulse dialing, you'll need to change your phone's dial

mode. There's an easy way to tell: try making a call. If your call connects, your

phone's setting is fine. If not, follow the steps below:

3) Press the select/channel key to toggle and turn on Caller ID on Call Waiting.

4) Press the end key and return the handset to the main base to complete the

setting. The handset returns to standby mode.

Entering Your Area Code

If you can make a call by dialing only 7 digits (instead of 10), you can program your

local area code in your phone. If you get a call from within your area code, you'll

only see the 7-digit phone number. If you get a call from outside your area code,

you'll see all 10 digits.

•If your phone system

requires pulse dialing

and you need to send

the DTMF tones during

a call, you can tem-

porarily switch over to

tone dialing. (Refer to

"Tone Dialing Switch-

over" on page 20.)

•To enable the setting

change of CIDCW or

Dialing Mode, you

need to return the

handset to the base

unit when you

complete the setting.

BASIC SETUP

BASIC SETUP [ 17 ]www.uniden.com

1) When the phone is in standby mode, press and hold the

call id/menu key. The following screen appears.

2) Press the ▼key to move the pointer to select Dial.

3) Press the select/channel key to set the phone to pulse

dialing.

4) Press the end key and return the handset to the main base to complete the

setting. The handset returns to standby mode.

Setting the Language

You can change the language the menu display uses. Choose from English, French, or

Spanish.

1) When the phone is in standby mode, Press and hold the

call id/menu key. The following screen appears.

2) Press the ▼key to move the pointer to select Language.

3) Press the select/channel key to select Eng, Fr. or Esp.

4) Press the end key or return the handset to the charging

cradle to complete the setting. The handset returns to

standby mode.

Selecting the Ring Tone and Volume

Your phone has five different ringer tone/volume combinations you can choose from.

1) With the phone in standby mode, press the ▲or ▼key.

2) The phone will sound the different ring tones at different volumes. To turn the

ringer off, select Ringer Off.

3) When the phone sounds the ring tone and volume you wish to use, press the end key.

USING YOUR PHONE[ 18 ] www.uniden.com

Using Your Phone

Making and Receiving Calls

Making a call

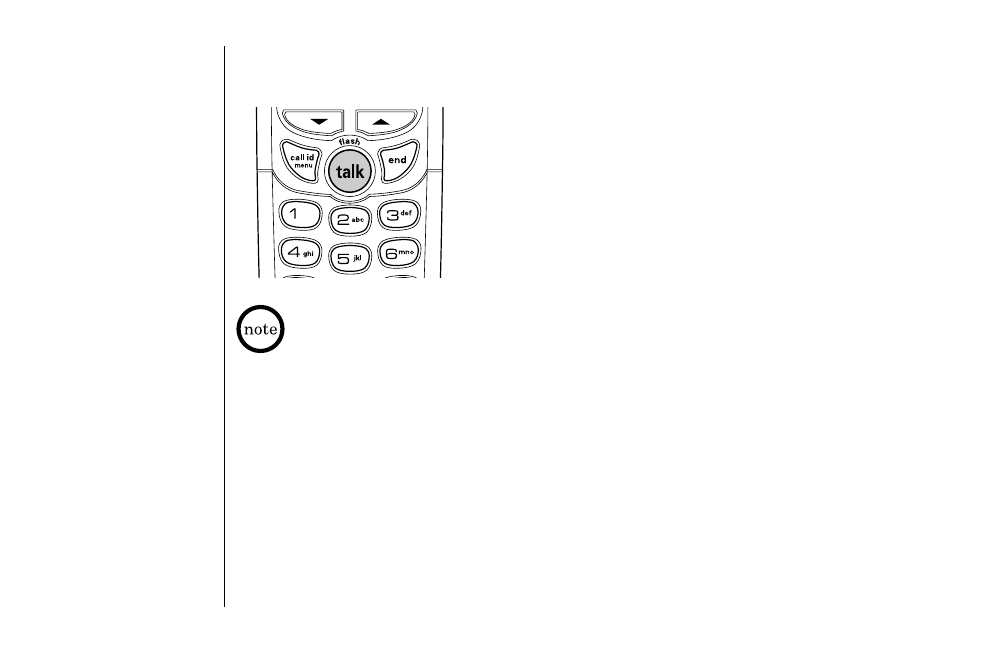

1) Remove the handset from the cradle.

2) Press the talk/flash key.

3) Listen for the dial tone.

4) Dial the number.

OR

1) Remove the handset from the cradle.

2) Dial the number.

3) Press the talk/flash key.

Receiving a call

1) Remove the handset from the cradle. (If AutoTalk is on, the phone will

automatically answer the call when you pick it up.)

2) Press the talk/flash key.

OR

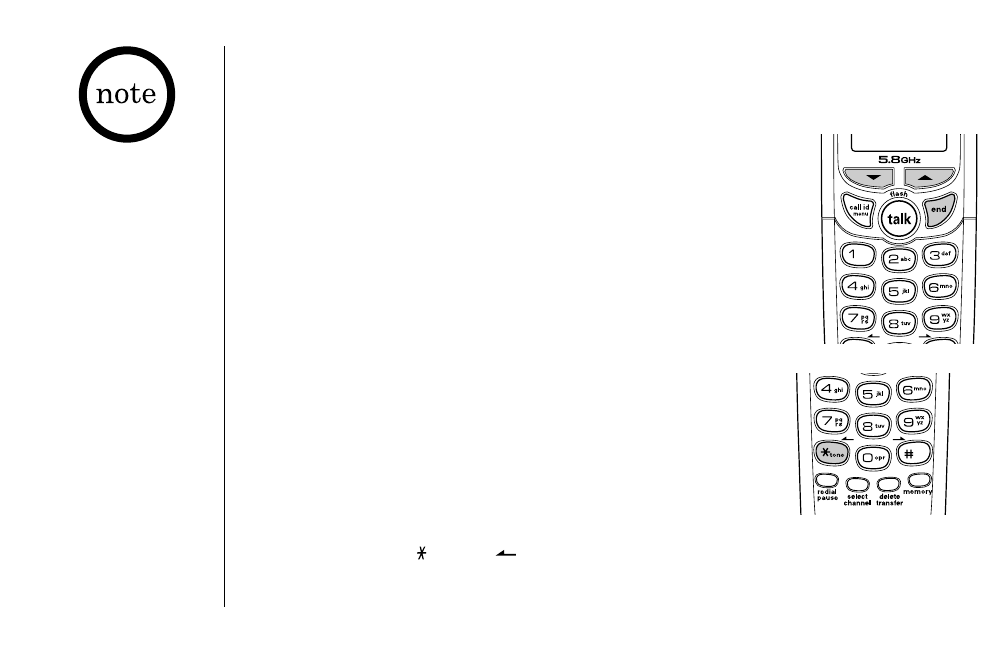

1) If the handset is off the cradle, press the talk/flash, /tone/ , #/ or any

number key. (AutoTalk is on.)

Hanging up

Press the end key or return the handset to the cradle.

To turn on the AutoTalk

feature, see "Activating

AutoTalk" on page 15.

USING YOUR PHONE

USING YOUR PHONE [ 19 ]www.uniden.com

Transferring a Call

Your cordless phone allows you to transfer outside calls from handset to handset,

only one handset at a time can talk with an outside caller. While one handset is in

use, other handsets cannot go off hook to listen to conversations or make an

outgoing call.

To transfer a call

1) During a call, press the delete/transfer key. The call will

automatically be placed on hold.

2) Press a number key (1- 3for 3-handset model, 1- 4for

4-handset model) to select from the Handset No., and the

transfer tone sounds.

3) When the other handset receives the call, the transfer tone stops.

To cancel the transfer and return to the caller, press the

delete/transfer or talk/flash key on the handset.

To receive a transfer call

Pick up the handset from the cradle (when AutoTalk is set to

on), or pick up the handset and press the talk/flash key to

answer the transferred call. Additionally, you can answer the transferred call by

pressing any number key, the /tone/ or #/ key (when AutoTalk is set to on).

Redialing the Last Dialed Number

1) Remove the handset from the cradle.

2) Press the talk/flash key.

3) Listen for the dial tone.

4) Press the redial/pause key.

OR

If you transfer a call

and it is not picked up

after 5 minutes, the call

will be disconnected.

USING YOUR PHONE[ 20 ] www.uniden.com

Adjusting the Earpiece Volume

To change the earpiece volume, press the ▲or ▼key during a

call.

Temporarily Mute Ringer

If the handset is off the cradle while an incoming call is

ringing, simply press the end key to mute the incoming ring.

The ringer will sound with the next incoming call.

You can only mute the

handset ringer if the

handset is off the cradle

when the phone starts

ringing.

Tone Dialing Switch-over

If your telephone company requires pulse dialing, you can

switch over to tone dialing after the call connects.

This feature is useful when you need tone dialing to use

automated such as telephone bank tellers, telephone

prescription refills, customer support menus,etc.

If your phone is set to pulse dialing mode, make your call normally. Once your call

connects, press the /tone/ key. Any digits you enter from then on will be sent

as tone dialing. When this particular call ends, the phone automatically returns to

pulse dialing mode.

1) Remove the handset from the cradle.

2) Press the redial/pause key.

3) Press the talk/flash key.

USING YOUR PHONE

USING YOUR PHONE [ 21 ]www.uniden.com

Traveling Out-of-Range

During a call, as you begin to move your handset too far from your main base, noise

increases. If you pass the range limits of the main base, your call will terminate

within one minute.

Selecting a Different Channel

If you encounter interference while using your phone, you can manually change the

phone´s channel for clear operation. While using your phone, press the

select/channel key. Scanning appears on the display, indicating the phone is

changing to another channel. For more information on interference, refer to "Radio

Interference" on page 58.

The UltraClear PlusTM

true compander circuitry

virtually eliminates

background noise. This

innovative technology,

together with 20

different channels,

provides you with the

best possible reception

during all your

conversations.

Find Handset

To locate the handset, press the find hs key on the main base.

The handsets beep for 60 seconds.

To cancel paging, press any key on a handset or the find hs

key on the main base.

Paging is also canceled when the phone receives an incoming

call.

USING YOUR PHONE[ 22 ] www.uniden.com

Using Call Waiting

If you have Call Waiting, you can receive calls while on the line.

You must subscribe to Call Waiting through your local telephone company.

1) If a call comes in while you are on the phone, you will

hear a call waiting tone. If you have CIDCW activated,

you will see the name and number of the incoming

caller.

2) Press the talk/flash key to accept the waiting call.

After a short pause, you will hear the new caller.

3) To return to the original caller, press the talk/flash

key again.

USING THE SPEED

DIAL MEMORY

USING THE SPEED DIAL MEMORY [ 23 ]www.uniden.com

Using the Speed Dial Memory

The speed dial memory allows you to store up to 10 names and numbers in each

handset. You can dial these numbers with just a few key presses.

The speed dial memory is not limited to phone numbers. You can store any number

(up to 20 digits) that you need to enter once your call connects. This is referred to

as Chain Dialing. An example is a frequently refilled prescription number. Store your

pharmacy phone number in one speed dial and your most frequently refilled

prescription number as another speed dial. To use, once you ring your pharmacy's

automated prescription line, simply press the memory key and the speed dial number

where you stored your prescription number and press the select/channel key.

Storing Names and Numbers in Speed Dial Memory

1) With the phone in standby mode, press the memory key.

2) Enter 0-9to select the speed dial number where you would

like to store this entry. You can also scroll through the list with the ▲and ▼

keys. Press the select/channel key twice.

3) Store Name appears and a cursor flashes indicating that the

phone is ready for the name to be entered.

If the selected speed dial number is already assigned, the Edit

screen appears. You can select Edit Memory to edit this

entry, select Delete Memory to erase this entry, or select

Go Back to choose another speed dial number.

Select Memory

01

02 JOHN DOE

Store Name

Edit Memory01

Delete Memory01

Go Back

When editing the speed

dial memory, you must

press a key within 30

seconds or the phone

will return to standby

mode. If you return the

handset to the cradle,

the phone will return to

standby mode also.

USING THE SPEED DIAL MEMORY[ 24 ] www.uniden.com

4) Enter a name according to the instructions below, then press the select/channel

key. If no name is required, go to step 5.

• The name can be up to 13 characters.

• Use the #/ and /tone/ keys to move the cursor to the desired location.

• Use the delete/transfer key to delete characters as needed.

• Press and hold the delete/transfer key to delete all the characters.

Refer to the letters on the number keys to select the desired characters.

With each press of a numeric key, the displayed character appears in the following

order: upper case letters first, lower case letters next and finally the number

corresponding to the key.

If you make a mistake while entering a name

Use the /tone/ or #/ key to move the cursor to the incorrect character.

Press the delete/transfer key to erase the wrong character. Then enter the correct

character. To delete all characters, press and hold the delete/transfer key.

Number of times key is pressed

keys 123456789

1

ABCabc2

DEFdef3

GHIghi4

JKLjkl5

MNOmno6

PQRSpqrs7

TUVtuv8

WXYZwxyz9

*#-&()

(blank) 0

2abc

3def

4ghi

5jkl

6mno

7pqrs

8tuv

9wxyz

0

1

oper

For example, to enter Movies.

1) Press 6once. Then press the

#/ key to move the cursor to

the right.

2) Press 6six times.

3) Press 8six times.

4) Press 4six times.

5) Press 3five times.

6) Press 7eight times.

If the next character

uses the same number

key, you must press the

#/ key to move the

cursor over. Otherwise

the next time you press

the number key, it

changes the character

that was previously set.

USING THE SPEED

DIAL MEMORY

USING THE SPEED DIAL MEMORY [ 25 ]www.uniden.com

5) Store Number is displayed. The cursor flashes indicating

that the phone is ready for the number to be entered.

6) Use the keypad to enter the phone number; each number

can be up to 20 digits.

If you need the phone to pause during the dialing sequence,

press the redial/pause key to insert a two-second delay

between the numbers. You can enter multiple pauses to

increase the delay. Each pause counts as a digit. The

display shows a Pfor every pause.

7) Press the memory key. You will hear a confirmation tone,

and the following screen appears.

Memory storage is complete.

After about 2 seconds, the following screen displays all the

speed dial memory entries.

8) Press the end key to exit memory setup mode. The phone

returns to standby.

Store Number

8007303456

Memory01 Stored

01 Movies

02 JOHN DOE

03 MOM AND DAD

Store Number

When storing numbers into memory, if the handset is idle (i.e., no key is pressed) for

more than 30 seconds, it will beep rapidly, and the phone will return to standby mode.

USING THE SPEED DIAL MEMORY[ 26 ] www.uniden.com

Storing Caller ID Messages in Speed Dial Memory

Messages (Caller ID names/numbers) shown in the Caller ID list can be stored in

memory dialing. For instructions on viewing the Caller ID Message list, see page 29.

1) Press the call id/menu key. Select the phone number to be

stored from the Caller ID list by pressing the ▲or ▼key.

2) Press the memory key.

3) Enter a number (0- 9) or press the ▲or ▼key to select the

memory location to be stored.

4) Press the select/channel key. You hear a confirmation tone,

and the number is stored in memory. The display returns to

the Caller ID list.

If a number has already been stored in the selected memory

number location, a confirmation screen is displayed.

Press the ▲key to select Yes. Press the select/channel key to

overwrite. The display returns to the Caller ID list.

Replace Memory?

Yes

No

5/17 12:30PM 03

Jane Smith

214-555-1234

5/17 12:30PM

Jane Smith

214-555-1234

Select Memory

01

02 JOHN DOE

You cannot store a

Caller ID message if no

phone number appears

in the message.

USING THE SPEED

DIAL MEMORY

USING THE SPEED DIAL MEMORY [ 27 ]www.uniden.com

Making Calls from Speed Dial Memory

1) Press the memory key. The handset displays your programmed

speed dial number.

2) Enter the number (0- 9), or press the ▲or ▼key to select

the speed dial number you would like to dial.

3) Press the talk/flash key. Connecting changes to Talk, and

the volume setting and the number selected appear on the

display. Then the displayed number is dialed.

To cancel speed dialing

Press the end key to cancel speed dialing. The handset returns to standby mode.

Also, if the handset is idle (e.g., no key is pressed) for 30 seconds, the phone

returns to standby mode.

Select Memory

01 Movies

02 JOHN DOE

Talk

07303456

CALLER ID AND CIDCW[ 28 ] www.uniden.com

Caller ID and CIDCW (Caller ID on Call Waiting)

You must subscribe to Caller ID services through your local telephone provider

to use these features. When the telephone rings, the Caller ID feature allows you

to view the caller´s name, phone number, date and time of call. The incoming call

information is stored in the Caller ID record. If the Caller ID service includes the

caller´s name, the caller´s name appears on the display (up to 15 letters).

You may receive any one of the following messages:

When invalid data is received Incomplete Data

When a private name is received Private Name

When a private number is received Private Number

When an unknown name is received Unknown Name

When an unknown number is received Unknown Number

5/11 12:30PM

Jane Smith

214-555-1234

The date and

time received

Caller's name

Caller's phone number

Data errors appear as ¨¨.

•If you answer a call

before the Caller ID

message is received

(for example, before

the second ring), the

Caller ID message will

not appear.

•When the call is

received via a

telephone company

that does not offer

Caller ID service, the

caller´s phone

number and name

do not appear.

(This includes

international calls.)

•When the call is

received via a private

branch exchange

(PBX), the caller´s

phone number and

name may not appear.

CALLER ID

AND CIDCW

CALLER ID AND CIDCW [ 29 ]www.uniden.com

•In Caller ID operation,

if no key is pressed for

more than 30 seconds,

an error tone sounds

and the handset returns

to standby mode.

•Each message can be

up to 15 characters

for the name and 15

digits for the phone

number.

•The number of calls

from the same Caller

ID appears next to the

received time. Once

you view the new

message, the number

will be cleared and

disappear.

•During a call, don't

press the end key, or

the call will be

disconnected.

Viewing the Caller ID Message List

The Caller ID list stores information for up to 30 incoming calls - even unanswered

calls. You can also view the Caller ID list during a call.

1) Press the call id/menu key.

The summary screen displays the number of new messages

and total messages.

2) Use the ▼key to scroll through the messages from the

latest to the earliest, or use the ▲key to scroll through

the messages from the earliest to the latest.

3) Press the call id/menu key to return to talk mode, or press

the end key to return to standby mode.

Caller ID

New :01

Total:02

5/17 12:30PM 03

Jane Smith

214-555-1234

CALLER ID AND CIDCW[ 30 ] www.uniden.com

Deleting Information from the Caller ID List

If the phone receives more Caller ID messages than it can store, the oldest one in

the list is automatically deleted. Caller ID data can also be deleted manually.

Deleting a Caller ID message

1) Press the call id/menu key in standby mode. Find the

message to be deleted from the Caller ID list by pressing the

▲or ▼key.

2) Press the delete/transfer key.

3) Press the ▲or ▼key to select Yes, and then press the

select/channel key.

Deleting all Caller ID names/numbers

1) With the phone in standby mode, press the call id/menu key.

2) Press the delete/transfer key.

3) Press the ▲or ▼key to select Yes, and then press the

select/channel key.

You hear a confirmation tone and all stored Caller ID

messages are deleted.

5/17 12:30PM 03

Jane Smith

214-555-1234

Delete Message?

Yes

No

Caller ID

New :01

Total:02

Caller ID

Total:00

Delete All?

Yes

No

•While using the

Delete All? or

Delete Message?

screen, if no key is

pressed for more than

30 seconds, an error

tone sounds, and the

handset returns

to standby mode.

•If you get an

incoming call or page,

the deleting operation

is canceled and you

can answer the call or

page.

CALLER ID

AND CIDCW

CALLER ID AND CIDCW [ 31 ]www.uniden.com

You cannot make a call

from the Caller ID list if

your cordless telephone

is connected to a

private branch exchange

(PBX).

Making a Call from the Caller ID List

You can place a call from the Caller ID list.

1) Press the call id/menu key in standby mode. Select the

phone number that you want to dial by pressing the ▲or

▼key.

2) To have the phone dial a 1before the displayed Caller ID

number, press 1. To have the phone dial the stored area

code before the displayed Caller ID number, press 3.

3) Press the talk/flash key. The displayed phone number dials

automatically.

Caller ID on Call Waiting (CIDCW)

With CIDCW, you will hear a Call Waiting tone while you are on a call, and the Caller

ID data is displayed. To accept the waiting call, press the talk/flash key (see page

22).

5/17 12:30PM 03

Jane Smith

214-555-1234

Talk

2145551234

THE INTEGRATED ANSWERING DEVICE[ 32 ] www.uniden.com

Digital Tapeless Recording allows you to quickly review, save, or delete the messages

you choose. You will never have to worry about a tape wearing out, jamming, or

resetting improperly.

The Integrated Answering System is easy to use, but please read through all of the

instructions carefully.

•Digital Tapeless Recording

•Up to 13 Minutes of Recording Time

•Call Screening

•Personal or Pre-recorded Outgoing

Message

•Voice Prompts (English, French or

Spanish)

•Time and Day Announcement

•Remote Message Retrieval

•Toll Saver

•Conversation Recording

•Voice Memo

•Selectable Ringer Options (High, Low

or Off)

The Integrated Answering System

The cordless phone has a built-in answering system that answers and records

incoming calls. You can also use your answering system to record a conversation,

leave a voice memo message, or to announce a special outgoing message to callers

when you're away from your phone.

Features

SETTING UP YOUR

ANSWERING SYSTEM

SETTING UP YOUR ANSWERING SYSTEM [ 33 ]www.uniden.com

Setting Up Your Answering System

Answering System Setting

To set the following six functions you must enter the menu mode.

•With the phone in standby mode, use the menu/clock key

to scroll through the menu options. The system returns to

standby and sounds a tone after the last menu option.

•If any of the following occurs during menu setup, the

system returns to standby, and you will have to start over

with the procedure you were performing:

- The talk/flash key is pressed

- The (play/stop) key is pressed

- 10 seconds elapse without a key press

- An incoming call is received

•If the system remains idle for five seconds after the

announcement, the system returns to standby. Once the

volume/select/ or key is pressed, the idle time is

extended to 10 seconds.

"Time"

Standby

"Security Code"

"Ring Time"

"Record Time"

"Language"

menu/clock

menu/clock

menu/clock

menu/clock

"Message Alert"

menu/clock

menu/clock

menu/clock

Return to standby

(tone sounds)

•For your convenience,

voice prompts will

guide you through the

menu mode.

•After the setting, press

the key to exit

the menu mode, or the

menu/clock key to

move to the next menu

option.

SETTING UP YOUR ANSWERING SYSTEM[ 34 ] www.uniden.com

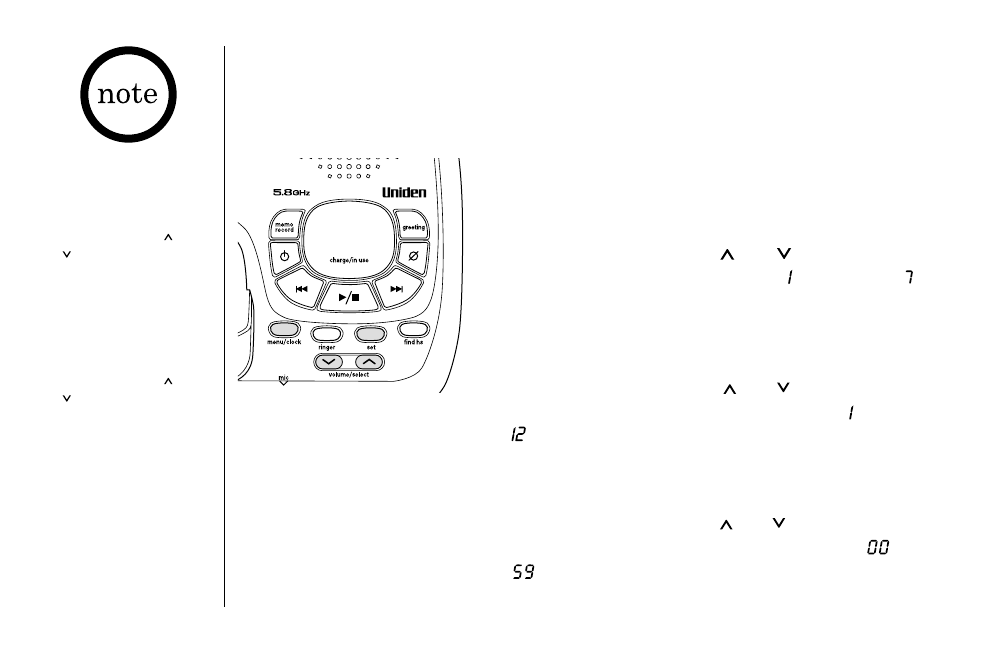

Setting the Time

The clock on the cordless phone’s answering system starts when power is supplied to

the base. Follow these steps to set the clock to the correct time.

1) With the phone in standby mode, press the menu/clock

key.

The system announces "Time" followed by the current

time and the instructions for setting the time.

2) Press the volume/select/ or key until the correct

day is announced. The numbers [ ] through [ ] are

displayed on the main base.

3) Press the set key to select the day.

4) Press the volume/select/ or key until you hear

the correct hour setting. The numbers [ ] through

[ ] are displayed on the main base.

5) Press the set key to select the hour.

6) Press the volume/select/ or key until you hear

the correct minute setting. The numbers [ ] through

[ ] are displayed on the main base as each minute

is announced.

•Normally, the system

will return to standby

if it remains idle for

10 seconds after the

volume/select/ or

key is pressed. For

setting the time,

however, the idle time

is extended to two

minutes.

•Press and hold the

volume/select/ or

key to quickly

scroll through the

numbers on the

display.

SETTING UP YOUR

ANSWERING SYSTEM

SETTING UP YOUR ANSWERING SYSTEM [ 35 ]www.uniden.com

The PIN code is set to

"80" at the factory.

7) Press the set key to select the minute.

8) Press the volume/select/ or key until you hear the correct AM or PM set-

ting. The message counter displays [ ] or [ ].

9) Press the set key to select the AM/PM setting.

You hear a confirmation tone followed by the announcement "Time," and the day and

time are then announced for your review. After a few seconds, the system announces

“To set security code, press menu again.”

Setting a Personal Security Code (PIN)

If you want to be able to play your messages from a remote location, you need to

enter a two-digit Personal Identification Number (PIN) code (01-99). To select a

PIN, perform the following steps:

1) With the phone in standby mode, press the menu/clock key twice.

The system announces “Security code,” and the current PIN code is announced as

it is displayed on the main base. Then the system announces the instructions for

setting the PIN code.

2) Press the volume/select/ or key until the desired number appears.

3) Press the set key to select the PIN code. You hear a confirmation tone, then the

announcement “Security code” followed by the new PIN code is announced. After a

few seconds, the system announces “To set ring time, press menu again.”

SETTING UP YOUR ANSWERING SYSTEM[ 36 ] www.uniden.com

Setting the Ring Time

The ring time setting allows you to set the number of rings the caller hears before

your answering system plays the outgoing message. You can set the ring time to

answer after two, four, or six rings. If you select Toll Saver [ ], the answering

system picks up after two rings if you have new messages, and after four rings if

there are none. This way, if you make a long distance call to check your messages,

you can hang up after the second ring to avoid billing charges.

1) With the phone in standby mode, press the menu/clock key three times.

You hear “Ring time” and the current ring time ([ ], [ ], [ ], [ ] Toll

saver), and it is displayed on the main base. Then you hear the guidance for setting

the ring time.

2) Press the volume/select/ or key until the desired ring time appears.

3) Press the set key to select the new ring time. You hear a confirmation tone, then

the announcement “Ring time” followed by the new ring time. After a few

seconds, the system announces “To set record time, press menu again.”

SETTING UP YOUR

ANSWERING SYSTEM

SETTING UP YOUR ANSWERING SYSTEM [ 37 ]www.uniden.com

After setting the

Announce only feature,

you may want to change

your outgoing message

not to prompt the caller

to leave a message.

However, the prerecorded

message changes

automatically.

Selecting the Message Record Time

You have three record time options: one minute, four minutes, and "Announce only."

"Announce only" answers the call with the preset greeting or your personal greeting

but prevents the caller from leaving a message.

1) With the phone in standby mode, press the menu/clock key four times.

You hear “Record time” and the current recording time ([ ] 1 minute, [ ] 4

minutes, [ ] Announce only, No recording), and it is displayed on the main base.

Then you hear the guidance for setting the record time.

2) Press the volume/select/ or key until the desired time appears.

3) Press the set key to select the new recording time. You hear a confirmation tone,

then the announcement “Record time” followed by the new recording time. After a

few seconds, the system announces “To set message alert, press menu again.”

Setting the Message Alert Tone

The message alert tone beeps every 15 seconds whenever you have unheard

messages. The tone turns off automatically after you listen to all your new messages.

You can also turn off the message alert tone by pressing any key on the main base.

Follow the steps below to turn on the message alert tone:

SETTING UP YOUR ANSWERING SYSTEM[ 38 ] www.uniden.com

1) With the phone in standby mode, press the menu/clock key five times.

You hear “Message alert” and the current setting ([ ] Off or [ ] On), and it

is displayed on the main base. Then you hear the instructions for setting the

Message Alert.

2) Press the volume/select/ or key to make your selection.

3) Press the set key to select the new setting. You hear a confirmation tone, then

the announcement “Message alert” followed by the current setting you have

selected is announced. After a few seconds, the system announces “To set

language, press menu again.” When the first new message is received, the alert

tone will begin to sound.

Selecting the Language

The answering system voice announcements can be heard in English, French or

Spanish. To choose the language of the answering system voice announcements:

1) With the phone in standby mode, press the menu/clock key six times.

You hear the announcement “Language, English” followed by the voice prompts for

setting the language. The current setting ([ ], [ ] or [ ]) appears on the

main base.

2) Press the volume/select/ or key to select the desired language.

3) Press the set key.A confirmation tone is heard along with the setting in the

language selected.

SETTING UP YOUR

ANSWERING SYSTEM

SETTING UP YOUR ANSWERING SYSTEM [ 39 ]www.uniden.com

•Your greeting must be

more than 2 seconds

and less than 30

seconds to record.

• Position yourself as

near to the main

base’s microphone as

possible and speak

clearly when recording

your outgoing message.

Setting Your Outgoing Message (Greeting)

When you receive a call, the answering system automatically plays either a preset

message or your own greeting.

Preset message

The following message is prerecorded:

"Hello, no one is available to take your call. Please leave a message after the tone."

If the answering machine is set to announce only, the preset greeting automatically

changes to:

"Hello. No one is available to take your call. Please call again."

Recording a personal outgoing message (Greeting)

1) With the phone in standby mode, press and hold the greeting key.

You will hear the announcement “Record greeting” and a confirmation tone.

[ ] flashes on the message counter.

2) Start recording your message. You have 30 seconds, and the message counter

starts to count down [ ] to [ ] every second.

3) When you are finished recording your greeting, press the greeting, or set

key. You hear a confirmation tone, and then your greeting plays back for you.

See "Selecting the Message Record Time" on page 37 on how to set the announce only

feature.

SETTING UP YOUR ANSWERING SYSTEM[ 40 ] www.uniden.com

Choosing between the two outgoing messages

With the phone in standby mode, press the greeting key to play the current outgoing

message. While the outgoing message is playing, press the greeting key again to

switch between the prerecorded greeting and the personal greeting. After the

message finishes playing, a confirmation tone is heard.

Setting the Main Base Ringer Volume

The main base has three ringer volume settings: high, low, and off. You can change

the ringer volume while in standby mode or while an incoming call is ringing.

1) Press the ringer key.

You hear the ringer at the current volume level

([ ] High, [ ] Low, [ ] off) (if you set the

main base ringer volume to off, “Ringer off” is

announced) and it is displayed on the main base.

2) Press the ringer key repeatedly until the desired ringer

option appears.

3) The system displays the new ringer volume.

To delete the personal greeting, press the key during the announcement and the system

announces “Greeting has been deleted.”

Even when the main

base ringer is turned off,

the handset will still

ring.

SETTING UP YOUR

ANSWERING SYSTEM

SETTING UP YOUR ANSWERING SYSTEM [ 41 ]www.uniden.com

Temporarily Mute the Main Base Ringer and Call Screen

Press the key to temporarily mute the incoming ring and call screen. The ringer

will sound with the next incoming call. To turn the ringer back on for this call, press

the ringer key. To hear the answering machine and screen this call, press the

volume/select/ or key.

Adjusting the Speaker Volume Level

You can adjust the volume of the main base speaker by pressing the

volume/select/ or key on the main base. Press the volume/select/ key for

louder or the volume/select/ key for softer while the main base speaker is being

used except for menu mode. The numbers [ ]- [ ] are displayed on the main base

indicating the volume levels. [ ] being the softest and [ ] being the loudest.

Turning the Answering System On/Off

To turn the answering system on, press the key. The

system will announce “Answering system is on.” The

current greeting message will be played, and you will hear

a confirmation tone. The message counter displays the

number of messages stored in memory. If the display

flashes, then there are new messages waiting for you.

To turn the answering system off, press the key again.

After the announcement “Answering system is off,” the

message counter display will no longer be illuminated.

USING YOUR ANSWERING SYSTEM[ 42 ] www.uniden.com

Using Your Answering System

The message counter displays the number of messages stored in memory. If the

display flashes, new messages waiting for you. The flashing number represents the

number of new messages, not total messages. The cordless phone plays your new

messages first; after all the new messages are played, you can play the old

messages.

When the answering system is full, [ ] is displayed on the main base, and the system announces

"No remaining time." You should delete some messages so that the system can record new messages.

(Refer to "Deleting a Message" on page 44.)

To stop playing your

messages, press the

key again at any time.

Playing Your Messages

1) With the phone in standby mode, press the key.

The system announces the number of new and old

messages. The LED displays the number of new

messages, and the number flashes. The day and time

that each message was received is announced after the

message is played.

2) When all new messages have been played, you hear a

confirmation tone and an announcement “End of

messages.” The message counter displays the total

number of stored messages, and the system returns to

standby.

USING YOUR

ANSWERING SYSTEM

USING YOUR ANSWERING SYSTEM [ 43 ]www.uniden.com

3) After you have reviewed your new messages, you can play your old messages by

pressing the key again. Once you have listened to a new message, it becomes

an old message. The old messages will be played in the order in which they were

received.

Repeating a Message

1) With the phone in standby mode, press the key to review your messages. The

number of stored messages are announced.

2) To repeat the current message, press the (repeat/rew) key while the message

is playing. To quickly scroll backwards through a message, press and hold the

(repeat/rew) key.

3) To go back to the previous message, press the (repeat/rew) key as soon as a

message begins playing. Each time you press the (repeat/rew) key, the system

skips back one message.

4) Press the key at any time to stop reviewing messages and return to standby.

Skipping a Message

1) With the phone in standby mode, press the key to review your messages. The

number of messages is announced.

2) Press the key at any time to skip to the next message.

USING YOUR ANSWERING SYSTEM[ 44 ] www.uniden.com

Each time the key is pressed, the system scans forward one message. If you

have several messages, press the key repeatedly to find the message you want

to play. To quickly scroll forward through a message, press and hold the

(skip/ff) key.

3) Press the key at any time to stop reviewing your messages and return to

standby. The message counter shows the number of messages stored in memory.

Deleting a Message

To maintain maximum record time, delete the old

messages. When you press the key, you are

permanently deleting the message. Once deleted, the

message cannot be replayed.

1) Press the key to review your messages.

2) Press the key anytime during the message to delete.

3) You hear a confirmation tone and the message is

deleted.

You can also delete all the messages.

1) With the phone in standby mode, press the key.

You hear an announcement “To delete all messages,

press delete again.”

USING YOUR

ANSWERING SYSTEM

USING YOUR ANSWERING SYSTEM [ 45 ]www.uniden.com

2) Press the key again.

You hear a confirmation tone and [ ] is displayed on the main base. All the

messages are deleted.

When you try to delete all messages without first listening to your new messages, you

hear several short beeps followed by an announcement “Please playback all

messages.” This protects you from accidentally erasing messages you have not yet

reviewed.

Voice Memo

The voice memo function allows you to record messages

as short as two seconds and as long as four minutes.

1) With the phone in standby mode, press and hold the

memo/record key.

You hear an announcement “Record memo message” and

a tone. [ ] flashes on the message counter.

2) Start your recording.

3) When you have finished, press the , memo/record

or set key to stop recording. You hear a confirmation

tone and the system returns to standby.

When the answering

system is full, [ ]

appears on the message

counter and recording is

terminated.

USING YOUR ANSWERING SYSTEM[ 46 ] www.uniden.com

Recording a Conversation

You can record up to 10 minutes of conversation while you are using your phone.

Any conversation that lasts less than 2 seconds will not be recorded.

1) During a conversation from the handset, press and hold the memo/record key.

The unit begins recording with a confirmation tone and [ ] flashes on the

message counter.

A beep that can be heard by both parties sounds during recording.

2) To stop recording, press the or memo/record key. You hear a confirmation tone.

If you receive a call waiting tone while recording a conversation, press the talk/flash key to accept the

waiting call. The recording feature continues recording the new call. The original call is put on hold.

•A recorded conversation

is treated as a typical

message and will be

added to the stored

messages.

•When recording a

conversation, all dialing

features except for

using call waiting (see

page 22) are disabled.

Stop recording if you

need to enable any

other handset keys.

•Every state has

different regulations

governing the recording

of conversations over

the telephone. Make

sure to check your

local, state and federal

laws before using this

product to record any

telephone conversation

in order to determine

that your use is in

compliance with such

laws or guidelines.

1) Call your telephone number.

2) During the greeting message, press 0and enter your PIN code (See page 35).

3) The answering system announces the current time and the number of messages

stored in memory. Then you hear "To play incoming message, press zero two.

For help, press one zero."

4) You may continue to listen to the voice prompts, or you may select a command

from the following chart:

Remote Operation

When you are away from home, you can operate your answering system with any

touch-tone telephone. Use this function to check for recorded messages, to play or

delete messages, even record a new greeting message.

USING YOUR

ANSWERING SYSTEM

USING YOUR ANSWERING SYSTEM [ 47 ]www.uniden.com

Command Function

0 then 1Repeat a Message

0 then 2Play Incoming Messages

0 then 3Skip a Message

0 then 4Delete a Message

0 then 5Stop Operation

0 then 6Answering System On

0 then 7Memo Record/Stop*

0 then 8Greeting Message Record/Stop*

0 then 9Answering System Off

1 then 0Voice Prompts

Once you enter the

remote access menu, you

must enter a command

within 15 seconds, or

the answering system

automatically hangs up

and returns to standby.

5) After all of the voice prompts have been played, you hear intermittent beeps

indicating that the system is in the command waiting mode. You may enter

another command at this time from the chart.

6) When you are finished, hang up to exit the system. The answering system

automatically returns to standby.

* For Memo Record and Greeting Message Record functions, the first time you enter

the corresponding command, it starts the Recording function. If you want to stop

the recording, enter the command again.

For your convenience

remote operation cards

are provided for you to

use while away from

home (located back of

this manual).

Turn on the Answering System Remotely

If you have forgotten to turn on your answering system, you can turn it on remotely

from any touch-tone telephone.

1) Call your telephone number.

2) Wait ten rings until the system answers. You hear intermittent beeps.

3) Press 0and then enter your PIN code. The answering system announces the

number of messages stored in memory. You hear "To play incoming message,

press zero two. For help, press one zero."

4) Press 0then 6to turn the answering system On. You hear the outgoing message

and a confirmation tone.

5) Hang up the phone; subsequent calls will be answered by the system.

USING YOUR ANSWERING SYSTEM[ 48 ] www.uniden.com

CHANGING THE DIGITAL

SECURITY CODE

CHANGING THE DIGITAL SECURITY CODE [ 49 ]www.uniden.com

Changing the Digital Security Code

To protect you against misbilled calls which might result from your phone being

activated by other equipment, the cordless phone provides AutoSecureTM (which

electronically locks your phone when each handset is in the cradle) and Random

CodeTM digital security which automatically selects one of over 262,000 digital

security codes for each handset and the main base.

If the handset battery pack is completely discharged or the battery pack is removed,

the digital security code will be lost. If this happens, a new security code is set

automatically the next time the battery pack is charged. In the rare situation that

you suspect another cordless telephone is using the same security code, you can

change the code.

1) Remove the handset from the cradle. Press and hold the find hs key on the main

base.

2) While holding the find hs key, place the handset in the main base, and leave the

handset in the main base for more than 3 seconds.

3) Remove the handset from the main base. Then place the second handset in the

main base and wait for more than three seconds. No need to hold the find hs key

this time.

4) Repeat step 3 for the rest of handsets.

5) Press the talk/flash key on one handset. Once you make sure Talk appears on

the display, press the end key. Then, try with the other handsets. If each

handset displays Talk, a new security code is set. Otherwise, return to step 1

and try again.

NOTE ON POWER SOURCES[ 50 ] www.uniden.com

Note on Power Sources

Even when the battery pack is not being used, it will gradually discharge over a long period of time. For

optimum performance, be sure to return the handset to the cradle after a telephone call.

Low battery alert

When the battery pack is very low and needs to be charged, the phone is

programmed to eliminate functions in order to save power. If the phone is not in

use, Low Battery appears on the LCD and none of the keys will operate.

During a call, Low Battery flashes and the handset beeps. Complete your

conversation as quickly as possible and return the handset to the cradle for

charging.

Information stored in the phone's memory will be retained for 30 minutes after the battery pack is removed. This

includes all setup information, last number dialed, speed dial memory, and the CID list.

Talk and Standby Times

With average use, your handset battery provides approximately 8 hours of talk time and approximately 11

days of standby time. When your handsets are not being used and are left off of their charging cradles,

the battery will gradually discharge. You can achieve optimum battery life and performance by returning

the handset to the charging cradle after each use. If the handset is left off of the charging cradle, the

actual talk time duration will be reduced respective to the amount of time the handset is off of the

charging cradle.

NOTE ON POWER

SOURCES

NOTE ON POWER SOURCES [ 51 ]www.uniden.com

Cleaning the battery charging contacts

To maintain a good charge, clean the charging contacts on

the handset once a month.

Dampen a cloth with plain water. Gently rub the damp

cloth over the charging contacts until all visible dirt is

removed. Dry the contacts thoroughly before returning the

handset to the cradle.

Caution

Do not use paint thinner, alcohol, or other chemical

products. Doing so may discolor the surface of the

telephone and damage the finish.

Battery replacement and handling

When the operating time becomes short even after a battery is recharged, please replace the battery.

With normal usage, your battery should last about one year. A replacement battery may be purchased by

calling 1-800-554-3988 (Mon - Fri 8 am to 5 pm, CST).

Warning: To avoid the risk of personal injury or property damage from fire or electrical shock, only use

the Uniden battery model and Uniden adapter model specifically designated for this product.

Power Failure

During the period that the power is off, you will not be able

to make or receive calls with the telephone.

Caution

• Use only the specified Uniden battery pack (BT-800).

• Do not remove the battery from the handset to charge it.

• Never throw the battery into a fire, disassemble it, or heat it.

• Do not remove or damage the battery casing.

GENERAL INFORMATION[ 52 ] www.uniden.com

General Information

The phone complies with FCC Parts 15 and 68.

Operating temperature: -10°C to 50°C (+14°F to +122°F)

AC Adapter Information

(For the main base) (For the charging cradle)

AC Adapter part number: AD-314 AD-310 or AD-1010

Input Voltage: 120V AC 60Hz 120V AC 60Hz

Output Voltage: 9V DC 350mA 9V DC 210mA

Battery Information

Battery part number: BT-800

Capacity: 800mAh, 3.6V

Frequency 925.181-927.451 MHz

5739.320-5746.130 MHz

Recharge your phone on a regular basis by returning the handset to either cradle after each phone call.

When the operating time becomes short, even after the battery is recharged, please replace the battery.

With normal usage, the battery should last about one year.

A replacement Uniden adapter or battery may be purchased by calling 1-800-554-3988 (Mon - Fri 8 am to

5 pm, CST).

Specifications, features, and availability of optional accessories are all subject to change without prior

notice.

•To avoid damage to the phone use only Uniden AD-314, AD-310 or AD-1010 and BT-800 (or BT-905 having less usage

time) with your phone.

•If the handset is left off the cradle, the actual Talk Mode duration will be reduced respective to the amount of time the handset is

off the cradle.

TROUBLESHOOTING

TROUBLESHOOTING [ 53 ]www.uniden.com

Troubleshooting

If your phone is not performing to your expectations, please try these simple steps first. If these steps do not

solve your problem, please call our Customer Hotline at 1-800-297-1023. (Mon - Fri 7 am to 7 pm, Sat/Sun

9 am to 5 pm, CST. Phone support is closed on holidays.)

Symptom

The charge/in use LED or

charge LED won't illuminate

when the handset is placed in

the cradle.

The audio sounds weak and/or

scratchy.

Can't make or receive calls.

Suggestion

•Make sure the AC adapter is plugged into the cradle and wall outlet.

•Make sure the handset is properly seated in the cradle.

•Make sure the charging contacts on the handsets are clean.

•Move the handset and/or main base away from metal objects or appliances and try

again.

•Press the select/channel key in the talk mode to help eliminate background noise.

•Make sure that the handset is not too far from the main base.

•Re-register all handsets (see page 13).

•Check both ends of telephone line cord.

•Make sure the AC adapter is plugged into the main base and wall outlet.

•Disconnect the AC adapter for a few minutes, then reconnect it.

•Change the digital security code (see page 49).

•Make sure that the handset is not too far from the main base.

•Check the dialing mode used by your telephone company.

TROUBLESHOOTING[ 54 ] www.uniden.com

Symptom

The handset doesn't ring or

receive a page.

Severe noise interference.

The Caller ID does not display.

A handset is not working.

Unavailable message is

displayed on the LCD screen of

the handset.

Suggestion

•Re-register all handsets (see page 13).

•The battery pack may be weak. Charge the battery for 15-20 hours.

•The handset may be too far away from the main base.

•Place the main base away from appliances or metal objects.

•Change the digital security code (see page 49).

•Check the battery pack to ensure there is a secure connection.

•Make sure ringer volume isn’t set to “off.”

•Keep all handsets away from microwave ovens, computers, remote control toys,

wireless microphones, alarm systems, intercoms, room monitors, fluorescent lights,

and electrical appliances.

•Move the main base to another location or turn off the source of interference.

•The call was answered before the second ring.

•The call was placed through a switchboard.

•

Charge the handset.

•Your Caller ID service may not be active; contact your local telephone service

provider.

•Make sure the battery pack is connected to the handset and fully charged.

•Re-register the non-functional handset.

•Make sure the other handset is not already in use. Two or more handsets cannot be

in talk mode at the same time.

•Place the handset in the main base for at least 5 seconds to re-register to the

main base.

•Make sure the handset is not too far from the main base when trying to use.

TROUBLESHOOTING

TROUBLESHOOTING [ 55 ]www.uniden.com

Symptom

The handset doesn’t

communicate with the main

base or the other handset.

No 3- way conversation.

The answering system does not

work.

The answering system does not

record any messages.

Messages are incomplete.

After a power failure, the

outgoing message is deleted.

No sound on the main base

speaker during call monitoring

or message playback.

Cannot access remote call-in

features from another

touch-tone phone.

Suggestion

•Re-register all handsets (see page 13).

•Only one handset at a time can talk with an outside caller. To allow the other hand-

set to talk to the caller, transfer the call.

•Make sure the AC adapter is plugged into wall outlet.

•Make sure the answering system is turned on.

•Set the record time to either the one minute or four minute option.

•The memory may be full. Delete some or all of the saved messages.

•The incoming messages may be too long. Remind callers to leave a brief message.

•The memory may be full. Delete some or all of the saved messages.

•Record your personal outgoing message again. The default message should remain.

•Adjust the speaker volume on the main base.

•Make sure you're using the correct PIN code.

•Make sure that the touch-tone phone you're using can transmit the tone for at least

two seconds. If it cannot, you may have to use another phone to access your

messages.

TROUBLESHOOTING[ 56 ] www.uniden.com

Case

If the handset or base is exposed to

moisture or liquid, but it only affects

the exterior plastic housing.

If moisture or liquid has entered the

plastic housing (i.e. liquid can be

heard in the phone or liquid has

entered the handset battery

compartment or vent openings on the

base).

Action

Wipe off the liquid, and use as normal.

Handset:

1. Remove the battery cover and leave it off for ventilation.

2. Remove the battery pack by disconnecting.

3. Leave the battery cover off and the battery pack disconnected for at least 3 days.

4. Once the phone is completely dry, reconnect the battery pack and the battery cover.

5. Recharge the handset’s battery pack for 20 hours before using again.

Base:

1. Disconnect the AC adapter from the base unit, cutting off electrical power.

2. Disconnect the telephone cord from the base unit.

3. Let dry for at least 3 days.

IMPORTANT: You must unplug the telephone line while recharging the battery pack to

avoid charge interruption.

CAUTION:

DO NOT use a microwave oven to speed up the drying process. This will cause permanent

damage to the handset, base and the microwave oven.

After following these steps, if your cordless telephone does not work, please call our

Customer Service Hotline at 1-800-297-1023.

Liquid Damage

Moisture and liquid can damage your cordless phone. In case of accidental submersion, please read the

following steps.

PRECAUTIONS &

WARRANTY

PRECAUTIONS & WARRANTY [ 57 ]www.uniden.com

Precautions!

Before you read anything else, please observe the following:

Warning!

Uniden America Corporation DOES NOT represent this unit to be

waterproof. To reduce the risk of fire, electrical shock, or damage

to the unit, DO NOT expose this unit to rain or moisture.

Rechargeable Nickel-Cadmium Battery Warning

•This equipment contains a rechargeable nickel-cadmium battery.

•Cadmium is a chemical known to the State of California to cause

cancer.

•The rechargeable nickel-cadmium battery contained in this

equipment may explode if disposed of in a fire.

•Do not short-circuit the battery.

•Do not charge the rechargeable nickel-cadmium battery used in this

equipment in any charger other than the one designed to charge

this battery as specified in the owner’s manual. Using another

charger may damage the battery or cause the battery to explode.

Rechargeable Nickel-Cadmium

Batteries Must Be Recycled or

Disposed of Properly

•Uniden voluntarily participates in an RBRC® industry program to

collect and recycle nickel-cadmium batteries at the end of their

useful life, when taken out of service within the United States. The

RBRC® program provides a convenient alternative to placing used

nickel-cadmium batteries into the trash or municipal waste stream,

which is illegal in some areas.

•Through the RBRC® program, Uniden makes it easy for you to drop

off the used battery at local retailers of replacement nickel-cadmium

batteries. You may also contact your local recycling center for

information on where to return the used battery. Please call 1-800-

8-BATTERY for information on Ni-Cd battery recycling in your area.

Uniden's involvement in this program is part of its commitment to

protecting our environment and conserving natural resources.

•RBRC® is a registered trademark of the Rechargeable Battery

Recycling Corporation.

Uniden works to reduce lead content in our PVC coated cords in our

product and accessories.

Warning!

The cords on this products and/or accessories contain lead, a chemical

known to the State of California to cause birth defects or other

reproductive harm. Wash hands after handling.

Important Safety Instructions

When using your telephone equipment, basic safety precautions should

always be followed to reduce the risk of fire, electric shock and injury

to persons, including the following:

1. Do not use this product near water, for example, near a bath tub,

wash bowl, kitchen sink or laundry tub, in a wet basement or near a

swimming pool.

2. Avoid using a telephone (other than a cordless type) during an

electrical storm. There may be a remote risk of electric shock from

lightning.

3. Do not use the telephone to report a gas leak in the vicinity of the

leak.

4. Use only the power cord and batteries indicated in this manual. Do

not dispose of batteries in a fire. They may explode. Check with local

codes for possible battery disposal instructions.

5. Do not disassemble any component of this product.

SAVE THESE INSTRUCTIONS!

CAUTION

Risk of explosion if battery is replaced by an incorrect type. Dispose of

used batteries according to the instructions. Do not open or mutilate

the battery, and disconnect the battery before shipping this product.

The FCC Wants You To Know

This equipment complies with Part 68 of the FCC rules and the

requirements adopted by the ACTA. On the bottom of this equipment is

a label that contains, among other information, a product identifier in

the format US:AAAEQ##TXXXX. If requested, this number must be

provided to the telephone company.

An applicable Universal Service Order Codes (USOC) certification for the

jacks used in this equipment is provided (i.e., RJ11C) in the packaging

with each piece of approved terminal equipment.

A plug and jack used to connect this equipment to the premises wiring

and telephone network must comply with the applicable FCC Part 68

rules and requirements adopted by the ACTA. A compliant telephone

cord and modular plug is provided with this product. It is designed to

be connected to a compatible modular jack that is also compliant. See

installation instructions for details.

The REN is used to determine the number of devices that may be

connected to a telephone line. Excessive RENs on a telephone line may

result in the devices not ringing in response to an incoming call. In

most but not all areas, the sum of RENs should not exceed five (5.0). To

be certain of the number of devices that may be connected to a line, as

determined by the total RENs, contact the local telephone company. For

products approved after July 23, 2001, the REN for this product is part

of the product identifier that has the format US:AAAEQ##TXXXX. The

digits represented by ## are the REN without a decimal point (e.g., 03

is a REN of 0.3). For earlier products, the REN is separately shown on

the label. If this equipment causes harm to the telephone network, the

telephone company will notify you in advance that temporary

discontinuance of service may be required. But if advance notice isn’t

practical, the telephone company will notify the customer as soon as

possible. Also, you will be advised of your right to file a complaint with

the FCC if you believe it is necessary.

The telephone company may make changes in its facilities, equipment,

operations or procedures that could affect the operation of the

equipment. If this happens the telephone company will provide advance

notice in order for you to make necessary modifications to maintain

uninterrupted service.

Please follow instructions for repairing, if any (e.g. battery replacement

section); otherwise do not substitute or repair any parts of the device

except as specified in this manual.

Connection to party line service is subject to state tariffs. Contact the

state public utility commission, public service commission or

corporation commission for information. This equipment is hearing aid

compatible.

Should you experience trouble with this equipment, please contact

Uniden customer service at 800-297-1023. If the equipment is causing

harm to the telephone network, the telephone company may request

that you disconnect the equipment until the problem is resolved.

NOTICE: According to telephone company reports, AC electrical surges,

typically resulting from lightning strikes, are very destructive to

telephone equipment connected to AC power sources. To minimize

damage from these types of surges, a surge arrest or is recommended.

The exclamation point within an equilateral triangle is

intended to alert the user to the presence of important

operating and maintenance (servicing) instructions in

the literature accompanying the appliance.

PRECAUTIONS & WARRANTY[ 58 ] www.uniden.com

Changes or modifications to this product not expressly approved by

Uniden, or operation of this product in any way other than as detailed

by the owner's manual, could void your authority to operate this

product.

This device complies with part 15 of the FCC rules. Operation is subject

to the following two conditions: (1) This device may not cause harmful

interference, and (2) This device must accept any interference received,

including interference that may cause undesired operation. Privacy of

communications, may not be ensured when using this phone.

To insure the safety of users, the FCC has established criteria for the

amount of radio frequency energy various products may produce

depending on their intended usage. This product has been tested and

found to comply with the FCC’s exposure criteria. For body worn

operation, the FCC RF exposure guidelines were also met when used with

the Uniden accessories supplied or designed for this product. Use of

other accessories may not ensure compliance with FCC RF exposure

guidelines and should be avoided.

Radio Interference

Radio interference may occasionally cause buzzing and humming in your

cordless handset, or clicking noises in the base. This interference is

caused by external sources such as TV, refrigerator, vacuum cleaner,

fluorescent lighting, or electrical storm. Your unit is NOT DEFECTIVE. If

these noises continue and are too distracting, please check around your

home to see what appliances may be causing the problem. In addition,

we recommend that the base not be plugged into a circuit that also

powers a major appliance because of the potential for interference. Be

certain that the antenna on the unit is fully extended when needed.

In the unlikely event that you consistently hear other voices or

distracting transmissions on your phone, you may be receiving radio

signals from another cordless telephone or other source of interference.

If you cannot eliminate this type of interference, you need to change to

a different channel.

Finally, it should be noted that some cordless telephones operate at

frequencies that may cause interference to nearby TVs and VCRs. To

minimize or prevent such interference, the base of the cordless

telephone should not be placed near or on top of a TV or VCR. If

interference is experienced, moving the cordless telephone farther away

from the TV or VCR will often reduce or eliminate the interference.

Cordless Telephone Privacy

Cordless telephones are radio devices. Communications between the

handset and base of your cordless telephone are accomplished by means

of radio waves which are broadcast over the open airways.

Because of the inherent physical properties of radio waves, your

communications can be received by radio receiving devices other than

your own cordless telephone unit. Consequently, any communications

using your cordless telephone may not be private.

One Year Limited Warranty

Important:Evidence of original purchase is required for warranty

service.

WARRANTOR: UNIDEN AMERICA CORPORATION ("Uniden")

ELEMENTS OF WARRANTY: Uniden warrants, for one year, to the original

retail owner, this Uniden Product to be free from defects in materials

and craftsmanship with only the limitations or exclusions set out below.

WARRANTY DURATION: This warranty to the original user shall terminate

and be of no further effect 12 months after the date of original retail

sale. The warranty is invalid if the Product is (A) damaged or not

maintained as reasonable or necessary, (B) modified, altered, or used as

part of any conversion kits, subassemblies, or any configurations not

sold by Uniden, (C) improperly installed, (D) serviced or repaired by

someone other than an authorized Uniden service center for a defect or

malfunction covered by this warranty, (E) used in any conjunction with

equipment or parts or as part of any system not manufactured by

Uniden, or (F) installed or programmed by anyone other than as

detailed by the owner's manual for this product.

STATEMENT OF REMEDY: In the event that the product does not conform

to this warranty at any time while this warranty is in effect, warrantor

will either, at its option, repair or replace the defective unit and return

it to you without charge for parts, service, or any other cost (except

shipping and handling) incurred by warrantor or its representatives in

connection with the performance of this warranty. Warrantor, at its

option, may replace the unit with a new or refurbished unit. THE

LIMITED WARRANTY SET FORTH ABOVE IS THE SOLE AND ENTIRE

WARRANTY PERTAINING TO THE PRODUCT AND IS IN LIEU OF AND

EXCLUDES ALL OTHER WARRANTIES OF ANY NATURE WHATSOEVER,

WHETHER EXPRESS, IMPLIED OR ARISING BY OPERATION OF LAW,

INCLUDING, BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF

MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. THIS

WARRANTY DOES NOT COVER OR PROVIDE FOR THE REIMBURSEMENT OR

PAYMENT OF INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states do

not allow this exclusion or limitation of incidental or consequential

damages so the above limitation or exclusion may not apply to you.

LEGAL REMEDIES: This warranty gives you specific legal rights, and you

may also have other rights which vary from state to state. This warranty

is void outside the United States of America and Canada.

PROCEDURE FOR OBTAINING PERFORMANCE OF WARRANTY: If, after

following the instructions in the owner's manual you are certain that

the Product is defective, pack the Product carefully (preferably in its

original packaging). Disconnect the battery from the Product and

separately secure the battery in its own separate packaging within the

shipping carton. The Product should include all parts and accessories

originally packaged with the Product.

Include evidence of original purchase and a note describing the defect

that has caused you to return it. The Product should be shipped freight

prepaid, by traceable means, to warrantor at:

Uniden America Service

4700 Amon Carter Blvd.

Fort Worth, TX 76155

(800) 297-1023, 7:00 a.m. to 7:00 p.m. CST, Monday through Friday;

9:00 a.m. through 5:00 p.m. CST, Saturday and Sunday

(phone support is closed on holidays).

I.C. NOTICE

I.C. NOTICE [ 59 ]www.uniden.com

I.C. Notice

TERMINAL EQUIPMENT

NOTICE: This equipment meets the applicable Industry Canada Terminal Equipment Technical

Specifications. This is confirmed by the registration number. The abbreviation, IC, before the

registration number signifies that registration was performed based on a Declaration of

Conformity indicating that Industry Canada technical specifications were met. It does not

imply that Industry Canada approved the equipment.

NOTICE: The Ringer Equivalence Number (REN) for this terminal equipment is marked on the equipment

itself. The REN assigned to each terminal equipment provides an indication of the maximum

number of terminals allowed to be connected to a telephone interface. The termination on an

interface may consist of any combination of devices subject only to the requirement that the

sum of the Ringer Equivalence Numbers of all the devices does not exceed five.

RADIO EQUIPMENT

The term "IC:" before the radio certification number only signifies that Industry Canada technical

specifications were met.

Operation is subject to the following two conditions: (1) this device may not cause interference, and (2)

this device must accept any interference, including interference that may cause undesired operation of

the device. "Privacy of communications may not be ensured when using this telephone".

INDEX[ 60 ] www.uniden.com

A

AC adapter information ................52

Answering system

Deleting a message ..................44

Playing a message....................42

Recording a conversation ..........46

Repeating a message ................43

Skipping a message ..................43

Turning on/off ........................41

B

Basic setup................................15

Battery pack

Information ............................52

Installing ................................8

Preparing and charging ..........8, 9

Replacement and handling ........51

Beltclip installation ....................12

C

Call transfer feature ....................19

Caller ID service ........................28

Call waiting ............................22

Deleting ................................30

Making a call ..........................31

Viewing..................................29

Channel ....................................21

Charging the battery pack ..............9

Cleaning contacts ......................51

Clock........................................34

Connect the cradle........................9

Controls and functions ..............4, 5

D

Dialing mode..............................16

Digital security code ..................49

E, F, G, H, I, J, K, L

Earpiece volume..........................20

Find handset..............................21

General information ....................52

Greeting....................................39

Headset installation ....................13

I.C. Notice ................................59

Installing the phone ....................7

Interference ..............................58

Liquid damage............................56

M, N, O, P, Q

Making a call ............................18

Menu mode ................................33

Message alert ............................37

Outgoing message ......................39

Personal security code (PIN code) ..35

Precautions................................57

R

Receiving a call..........................18

Record time ..............................37

Redial ......................................19

Register handsets to the main

base before using ....................13

Remote operation........................46

Ring time ..................................36

Ringer tone ..............................17

Ringer volume (Base) ..................40

S

Speed dial memory

Making calls from

speed dial memory ................27

Storing names and numbers

in speed dial memory ............23

T, U

Technical information ..................52

Tone dialing switch-over ..............20

Transferring a call ......................19

Traveling out-of-range ................21

Troubleshooting..........................53

V, W, X, Y, Z

Voice memo ..............................45

Volume control

Base ................................40, 41

Handset ............................17, 20

Wall mounting ............................11

Warranty ..................................58

Index

Remote Operation Card

REMOTE OPERATION CARD

C U T

Remote access away from home

1. Call your phone number from a

touch-tone phone.

2. During the outgoing message,

press 0 and enter your PIN

code. The answering system

announces the number of

messages stored in memory

and the help guidance. The

phone stands by for you to

enter a command.

3. To quit, hang up the phone.

Turn on the answering system remotely

1. Call your phone and let it ring

10 times until it answers.

2. Press 0 and enter your PIN

code.

3. Press 0 then 5 to stop

the announcement.

4. Press 0 then 6 to turn the

answering system on.

REMOTE OPERATION CARD

C U T

Remote access away from home

1. Call your phone number from a

touch-tone phone.

2. During the outgoing message,

press 0 and enter your PIN

code. The answering system

announces the number of

messages stored in memory

and the help guidance. The

phone stands by for you to

enter a command.

3. To quit, hang up the phone.

Turn on the answering system remotely

1. Call your phone and let it ring

10 times until it answers.

2. Press 0 and enter your PIN

code.

3. Press 0 then 5 to stop

the announcement.

4. Press 0 then 6 to turn the

answering system on.

REMOTE OPERATION CARD

C U T

Remote access away from home

1. Call your phone number from a

touch-tone phone.

2. During the outgoing message,

press 0 and enter your PIN

code. The answering system

announces the number of

messages stored in memory

and the help guidance. The

phone stands by for you to

enter a command.

3. To quit, hang up the phone.

Turn on the answering system remotely

1. Call your phone and let it ring

10 times until it answers.

2. Press 0 and enter your PIN

code.

3. Press 0 then 5 to stop

the announcement.

4. Press 0 then 6 to turn the

answering system on.

REMOTE OPERATION CARD

C U T

Remote access away from home

1. Call your phone number from a

touch-tone phone.

2. During the outgoing message,

press 0 and enter your PIN

code. The answering system

announces the number of

messages stored in memory

and the help guidance. The

phone stands by for you to

enter a command.

3. To quit, hang up the phone.

Turn on the answering system remotely

1. Call your phone and let it ring

10 times until it answers.

2. Press 0 and enter your PIN

code.

3. Press 0 then 5 to stop

the announcement.

4. Press 0 then 6 to turn the

answering system on.

Remote Operation Card

C U T C U T

C U T C U T

Task Key

Repeat a Message 0 1

Play Incoming Messages 0 2

Skip a Message 0 3

Delete a Message 0 4

Stop Operation 0 5

Answering System On 0 6

Memo Record/Stop 0 7

Greeting Message Record/Stop 0 8

Answering System Off 0 9

Voice Prompts 1 0

Task Key

Repeat a Message 0 1

Play Incoming Messages 0 2

Skip a Message 0 3

Delete a Message 0 4

Stop Operation 0 5

Answering System On 0 6

Memo Record/Stop 0 7

Greeting Message Record/Stop 0 8

Answering System Off 0 9

Voice Prompts 1 0

Task Key

Repeat a Message 0 1

Play Incoming Messages 0 2

Skip a Message 0 3

Delete a Message 0 4

Stop Operation 0 5

Answering System On 0 6

Memo Record/Stop 0 7

Greeting Message Record/Stop 0 8

Answering System Off 0 9

Voice Prompts 1 0

Task Key

Repeat a Message 0 1

Play Incoming Messages 0 2

Skip a Message 0 3

Delete a Message 0 4

Stop Operation 0 5

Answering System On 0 6

Memo Record/Stop 0 7

Greeting Message Record/Stop 0 8

Answering System Off 0 9

Voice Prompts 1 0

At Uniden, we'll take care of you!

Thank you for purchasing a Uniden product. If you have any questions or problems,

please do not return this product to the place of purchase.

Having Trouble?

Our customer care specialists are here to help you! Visit our website at www.uniden.com or call

our Customer Hotline at 1-800-297-1023, Mon-Fri, 7 a.m. to 7 p.m. or Sat/Sun, 9 a.m. to

5 p.m. CST. (Phone support is closed on holidays.)

Need a Part?

To order headsets, additional handsets, replacement batteries or other accessories, visit our

website at www.uniden.com or call 1-800-554-3988, Mon-Fri, 8 a.m. to 5 p.m. CST.

Help for our Special Needs Customers

If you need special assistance due to a disability or have questions on the accessibility

features of this product, please call 1-800-874-9314 (voice or TTY)

May be covered under one or more of the following U.S. patents:

4,797,916 5,426,690 5,434,905 5,491,745 5,493,605 5,533,010

5,574,727 5,581,598 5,650,790 5,660,269 5,661,780 5,663,981

5,671,248 5,696,471 5,717,312 5,732,355 5,754,407 5,758,289

5,768,345 5,787,356 5,794,152 5,801,466 5,825,161 5,864,619

5,893,034 5,912,968 5,915,227 5,929,598 5,930,720 5,960,358

5,987,330 6,044,281 6,070,082 6,125,277 6,253,088 6,314,278

6,418,209 6,618,015 6,671,315 6,714,630 6,782,098 6,788,920

6,788,953 6,839,550 6,889,184 6,901,271 6,907,094 6,914,940

6,953,118

Other patents pending.
