Sheet 1

At Uniden, we'll take care of you!

Thank you for purchasing a Uniden product.

If you have any questions or problems,

please do not return this product to the place of purchase.

Having Trouble?

Our customer care specialists are here to help you! Visit our website at

www.uniden.com or call our Customer Hotline at 1-800-297-1023

during regular business hours.*

Need a Part?

To order headsets, replacement batteries or other accessories, visit our

website at www.uniden.com or call 1-800-554-3988 during regular

business hours.*

Help for our Special

Needs Customers

Uniden provides a customer service hotline for accessibility questions. If

you have disability and need customer service assistance or if you have any

questions about how Uniden's products can accommodate persons with

disabilities, please call the accessibility voice/TTY line:

1-800-874-9314 (voice or TTY).

Accessibility information can be found on our website, www.uniden.com,

under the "Accessibility" link. If your call is received outside of our business

hours, leave us a message and we will call you back.

* Central Standard Time. Detailed customer service hours are available at www.uniden.com.

©2007 Uniden America Corporation, Fort Worth, Texas.

Printed in China UCZZ01064BZ(0)

UNIDEN

CORDLESS

TELEPHONES

EXI8560 Series

EXI8560_front_ENG.pdf 11/9/2007 3:18:09 PM

Sheet 2

1) Installing the Phone

1-1. Choosing the Best Location

To get the best performance out of your new phone, put it in the best location:

Near an AC outlet

and a telephone

wall jack.

• Microwave ovens

• Refrigerators

• Fluorescent

lighting

• Dust

• Excessive

moisture

• Other cordless

telephones

In a

centrally-located

open area.

PLACE YOUR BASE

• TVs

• Other electronics

• Direct sunlight

• Extreme temperatures

• Personal computers

• Wireless LAN

equipment

• Dust

• Excessive

moisture

• Areas with

a lot of

background

noise

• Shock

• Vibration

• Shock

• Vibration

TRY TO AVOID

Notes: For maximum range

Keep both the base and handset antennas free of obstruction.

When the handset is not in use, place the handset in an upright position.

Metal and reinforced concrete may aect cordless telephone performance.

•

•

•

1-2. Plug in the Battery

Use only the Uniden BT-905 rechargeable battery pack supplied with your phone.

1Locate the battery pack,

battery cover and the handset. 2Line up the red and black wires

on the battery pack connector

with the sticker in the handset's

battery compartment.

3Place the cover over the

battery compartment and

slide it up into place.

Push the battery connector in firmly.

(You should hear it click into place.)

Red

Black

1Locate the battery pack,

battery cover and the handset. 2Line up the red and black wires

on the battery pack connector

with the sticker in the handset's

battery compartment.

3Place the cover over the

battery compartment and

slide it up into place.

Push the battery connector in firmly.

(You should hear it click into place.)

Red

Black

1-3. Plug in the Base

Don’t put any power cord where people might trip over it or step on it. If a power cord becomes

chafed or worn out, it can create a re or electrical hazard.

Note: For optimum battery life, charge your handset completely before you connect the telephone

cord. The rst time you charge a new battery, allow 15 to 20 hours.

4Connect the AC adapter to the DC IN 9V jack.

Route the cord through the molded wiring channel.

6

5

Connect the AC adapter

to a standard 120V

AC wall outlet.

DO NOT use an AC outlet

controlled by a wall switch.

To AC outlet

AC adapter

(supplied)

To DC IN 9V

4Connect the AC adapter to the DC IN 9V jack.

Route the cord through the molded wiring channel.

6

5

Connect the AC adapter

to a standard 120V

AC wall outlet.

DO NOT use an AC outlet

controlled by a wall switch.

To AC outlet

AC adapter

(supplied)

To DC IN 9V

7Place the handset in the base.

What if the charge LED doesn't

light up?

• Check AC adapter connection.

• Make sure you are not using

an outlet that's controlled by

a wall switch.

Make sure that

the /in use LED

illuminates.

7Place the handset in the base.

What if the charge LED doesn't

light up?

• Check AC adapter connection.

• Make sure you are not using

an outlet that's controlled by

a wall switch.

Make sure that

the /in use LED

illuminates.

Sheet 3

1-4. Connect the Telephone Cord

If you receive high-speed internet service

through your telephone line (referred to as

DSL), you should install a DSL lter between

the telephone base and the wall jack. Standard

telephones often can’t operate correctly without

a DSL lter.

Test the connection

11 Make a quick test call, and then press [END] to hang up.

What if the call doesn't go through?

Try changing the dial mode (see below).

What if there is a lot of static?

Check the sources of interference described in section

1-1 on Choosing the best location: is the base near

any of those?

Changing from tone to pulse dialing (DIAL)

Your phone can communicate with the telephone network in two dierent ways: tone dialing or pulse dialing.

These days, most phone networks use a method called tone dialing, so your phone comes programmed for tone

dialing.

If your phone company uses pulse dialing, you need to change your phone’s dial settings. If you don't get a dial

tone or can't connect to the telephone network, follow the steps below to modify your phone’s settings:

With the phone in standby, press and hold [cid/menu].

Press [ ] to move the pointer to DIAL.

Press [select/channel] to set the phone to pulse dialing.

Press [END] and put the handset back in the base. The handset communicates the new setting to the

base.

Note: If you use pulse dialing and you need to send DTMF tones during a call (if you're using an automated

response system, for example), press [ /tone/ ] to temporarily switch to tone dialing. When the call

ends, the phone automatically returns to pulse dialing mode.

Now your phone is ready to use!

1-5. Attach the Belt Clip

To attach the belt clip

Insert the tabs on the side of the belt clip into the holes on either side of the handset.

Press the belt clip down until it clicks into place. (Tug on the clip to make sure it’s

secure.)

To remove the belt clip

Gently pull the tabs out of the holes, then slide the belt clip o of the handset.

1)

2)

3)

4)

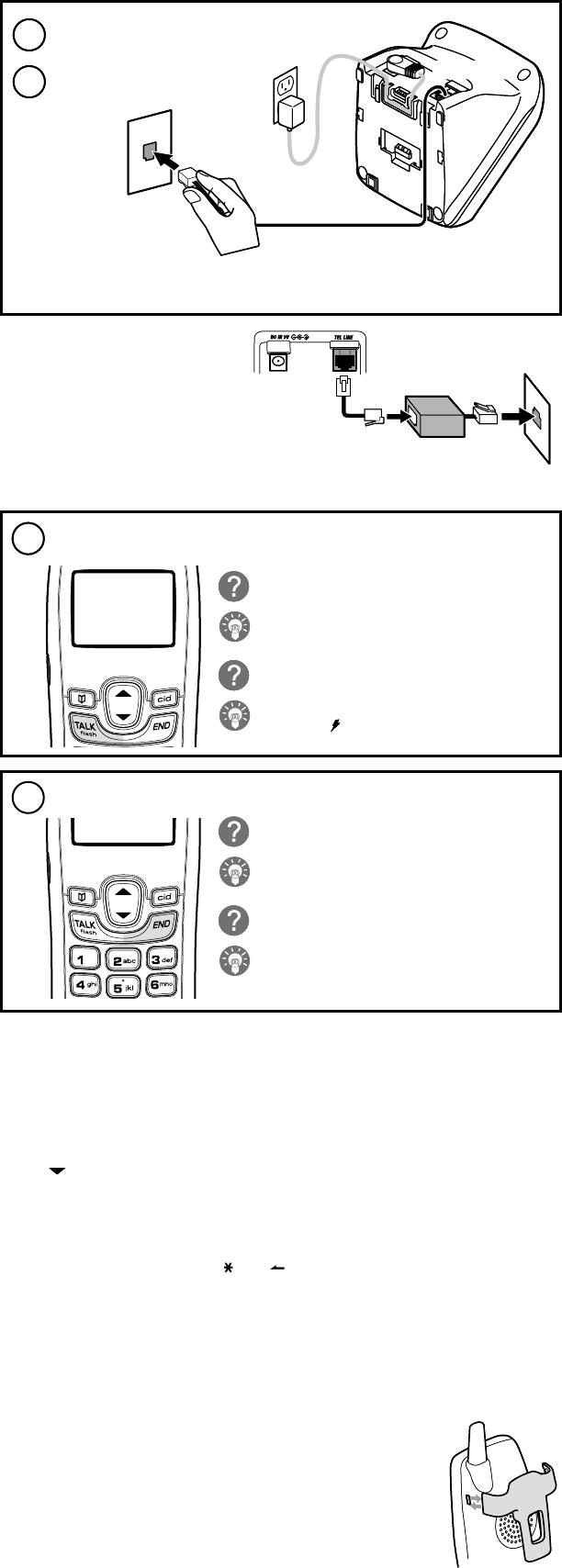

8Connect the telephone cord to the

TEL LINE jack on the rear of the base.

9Connect the telephone cord

to a telephone wall jack.

To telephone

wall jack

Telephone cord (supplied)

Note: If the telephone cord does not fit into your telephone wall jack, contact your

local phone provider for assistance.

To TEL LINE

8Connect the telephone cord to the

TEL LINE jack on the rear of the base.

9Connect the telephone cord

to a telephone wall jack.

To telephone

wall jack

Telephone cord (supplied)

Note: If the telephone cord does not fit into your telephone wall jack, contact your

local phone provider for assistance.

To TEL LINE

Telephone

wall jack

Telephone cord

DSL filter

Telephone

wall jack

Telephone cord

DSL filter

10 Pick up the handset from the base and press [TALK/flash].

You should hear a dial tone, and the display should show TALK.

What if I can't hear a dial tone?

Check the telephone cord connection on the base.

What if the display doesn't show TALK?

Put the handset back in the base for at least five seconds.

Make sure the /in use LED flashes.

Talk 0:01

10 Pick up the handset from the base and press [TALK/flash].

You should hear a dial tone, and the display should show TALK.

What if I can't hear a dial tone?

Check the telephone cord connection on the base.

What if the display doesn't show TALK?

Put the handset back in the base for at least five seconds.

Make sure the /in use LED flashes.

Talk 0:01

Sheet 4

2) Getting to Know Your New Phone

2-1. A few Hints on the Manual

This manual uses several dierent type styles to help you distinguish between dierent parts of the phone:

Bold text with “[ ]” indicates a key or button on the phone

ALL CAPITALS indicates text on the display, such as menu options, prompts, and conrmation messages

lower case bold text indicates a status light on the phone

Terms used in this manual

Base The main part of the phone that connects to your phone line and lets you make and receive

calls.

CID Caller ID is available from your telephone provider. With this service, you can see the name and

number of incoming callers.

CIDCW Caller ID on Call Waiting is available from your telephone provider. With this service, you can

see incoming caller information while on another call.

Handset A cordless handset that you use to dial the phone and talk to callers.

Standby The phone is not in use. (It doesn’t matter whether the handset is in the cradle: the [TALK/

ash] hasn’t been pressed, and there is no dial tone.)

Talk A dial tone has been enabled, so you can dial and carry on a conversation with an outside party.

Note: Illustrations in this manual are used for explanation purposes and may dier from the actual unit.

•

•

•

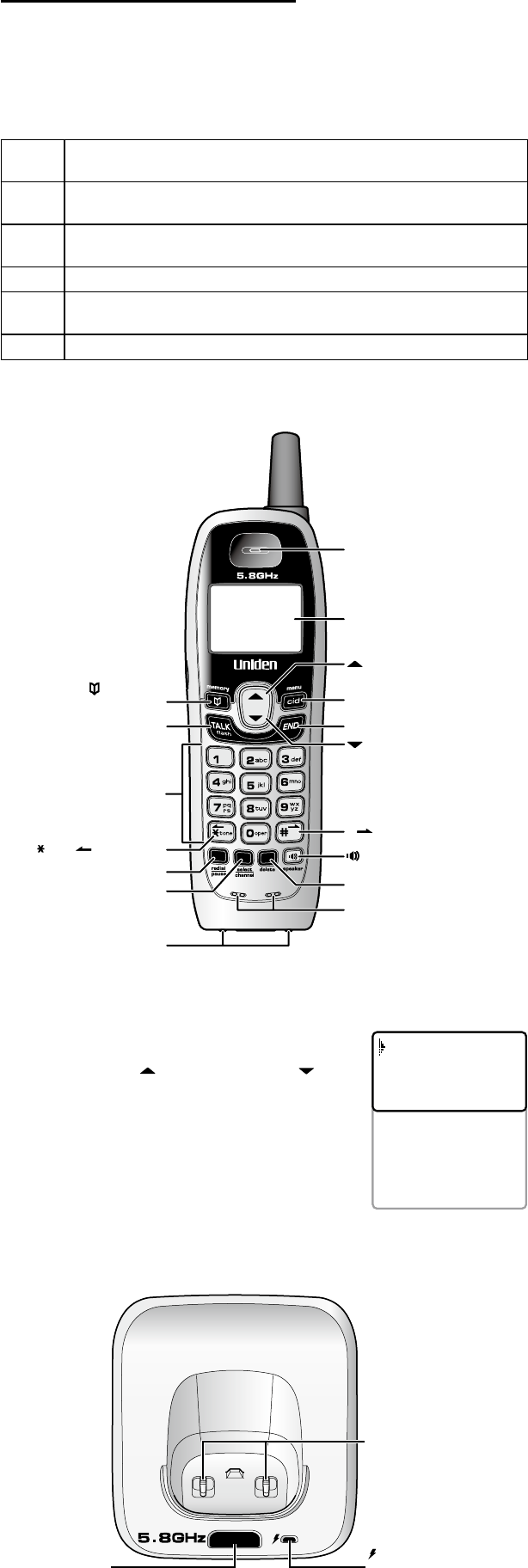

2-2. Parts of the Handset

Earpiece

LCD display

Twelve-key dial pad

Microphone

/memory key

(phonebook/memory)

TALK/flash key

redial/pause key

/tone/ key(*/tone/left)

key (up)

cid/menu key

/speaker key

END key

#/ key (#/right)

delete key

select/channel key

Charging contacts

key (down)

Earpiece

LCD display

Twelve-key dial pad

Microphone

/memory key

(phonebook/memory)

TALK/flash key

redial/pause key

/tone/ key(*/tone/left)

key (up)

cid/menu key

/speaker key

END key

#/ key (#/right)

delete key

select/channel key

Charging contacts

key (down)

Using the handset menu

To open the handset menu, press and hold [cid/menu] for two seconds.

The arrow pointer on the left side of the line shows which menu item is

currently highlighted. Use [ ] to move the pointer up and [ ] to move

the pointer down.

If the phone beeps and stays on the same line, it means you have reached

the top or bottom of the list.

Press [select/channel] to rotate through the available options for the

highlighted menu item.

Press [END] to exit the menu.

Note: You can nd detailed information on the handset menu in section 3 on

Setting Up Your Phone and section 4 on Using Your Phone.

•

•

•

•

•

Ringer :Type A

Ring. Vol.:High

Auto Talk :Off

CIDCW :On

Area Code :

Dial :Tone

Language :Eng

Ringer :Type A

Ring. Vol.:High

Auto Talk :Off

CIDCW :On

Area Code :

Dial :Tone

Language :Eng

2-3. Parts of the Base

in

use

find hs

find hs key

Charging contacts

/in use LED/

Voice mail waiting indicator (flashing)

in

use

find hs

find hs key

Charging contacts

/in use LED/

Voice mail waiting indicator (flashing)

Sheet 5

3-1. Activating Caller ID on Call Waiting (CIDCW)

You must subscribe to Caller ID service through your local telephone provider to use this feature.

Caller ID allows you to see the name and number of the calling party before you answer the phone. Caller ID on

Call Waiting (CIDCW) lets you see the name and number of a call that comes in when you are on the line.

With the phone in standby, press and hold [cid/menu].

Press [ ] to move the pointer to CIDCW.

Press [select/channel] to toggle and turn on Caller ID on Call Waiting.

Press [END] and put the handset back in the base. The handset communicates the new setting to the

base.

3-2. Setting the Display Language (LANGUAGE)

The handset menus can use English (ENG, default), French (FR.) or Spanish (ESP).

With the phone in standby, press and hold [cid/menu].

Press [ ] to move the pointer to LANGUAGE.

Press [select/channel] to select ENG, FR. or ESP.

When the display shows the language you want, use [ ] and [ ] to move the pointer to another menu

item.

OR

If you’re nished, press [END] to return the handset to standby.

3-3. Activating AutoTalk (AUTO TALK)

With Auto Talk, you can answer the phone just by picking up the handset from the base: you don’t have to

press any keys. If the handset is already o the base, Auto Talk also lets you answer by pressing any key on the

twelve-key dial pad (instead of just [TALK/ash]).

With the phone in standby, press and hold [cid/menu].

Press [ ] to move the pointer to AUTO TALK.

Press [select/channel] to turn Auto Talk on.

Use [ ] and [ ] to move the pointer to another menu item.

OR

If you’re nished, press [END] to return the handset to standby.

3-4. Setting the Ringer Tone (RINGER)

With the phone in standby, press and hold [cid/menu].

Press [select/channel] to rotate through the four available ring tones (A, B, C, and D). As you switch to the

next ring tone, the handset sounds a sample of that ringer.

When you hear the ringer you want, use [ ] and [ ] to move the pointer to another menu item.

OR

If you’re nished, press [END] to return the handset to standby.

The handset will use the new ring tone starting with the next incoming call.

3-5. Setting the Ringer Volume

With the phone in standby, press and hold [cid/menu].

Press [ ] to move the pointer to RING VOL.

Press [select/channel] to rotate through the three available volume levels (HIGH, LOW, and OFF). As you

switch to the next volume level, the handset sounds a sample of the current ring tone at that level.

When you hear the volume level you want, use [ ] and [ ] to move the pointer to another menu item.

OR

If you’re nished, press [END] to return the handset to standby.

The handset will use the new ringer volume starting with the next incoming call.

Note: If you set the ring volume to OFF, the handset won’t ring.

1)

2)

3)

4)

1)

2)

3)

4)

1)

2)

3)

4)

1)

2)

3)

1)

2)

3)

4)

3) Setting Up Your Phone

Your phone has four basic options that you need to set up rst. You should only have to set these options once,

and you may not have to change any of them: Dial mode (tone or pulse dialing)

Dial mode (tone or pulse dialing) → See section 1-4

CIDCW (Caller ID on Call Waiting)

•

•

Language

Auto talk

•

•

You might change two handset-specic options --ringer type and ringer volume -- more often, depending on

the situation. There’s another option, area code, that you should only set if you can use seven-digit dialing (see

section 5-3 on Using Seven Digits Instead of Ten).

4) Using Your Phone

4-1. Making and Receiving Calls

...from the handset ...from the handset speaker phone

To make a

call...

Pick up the handset.

Press [TALK/ash].

Listen for the dial tone.

Dial the number.

OR

Pick up the handset.

Dial the number.

Press [TALK/ash].

1)

2)

3)

4)

1)

2)

3)

Pick up the handset.

Press [ ].

Listen for the dial tone.

Dial the number.

OR

Pick up the handset.

Dial the number.

Press [ ].

1)

2)

3)

4)

1)

2)

3)

To answer a

call...

Pick up the handset. (If AutoTalk is on, the

phone automatically answers when you pick it

up from the cradle.)

Press [TALK/ash]. (If Auto Talk is on, you can

also press any key on the twelve-key dial pad.)

1)

2)

Pick up the handset.

Press [ ].

1)

2)

To hang up... Press [END] or return the handset to the cradle.

4-2. Switching a Call to the Handset Speakerphone

To switch a normal call to the speakerphone, press [ ] on the handset. To switch back to a normal call, press

[ ] again.

Sheet 6

4-3. Redialing the Last Dialed Number

Pick up the handset from the cradle.

Press [redial/pause].

Press [TALK/ash] or [ ].

1)

2)

3)

Pick up the handset from the cradle.

Press [TALK/ash] or [ ].

Listen for the dial tone.

Press [redial/pause].

1)

2)

3)

4)

OR

4-4. Adjusting the Speaker Volume

You can change the speaker volume on the handset earpiece, or the handset speakerphone.

When you are on a normal call, press [ ] to make the earpiece louder or [ ] to make it softer.

The handset display shows the current volume level for the earpiece.

When you are using the speakerphone, use [ ] or [ ] to change the speaker volume. The handset display

shows the current volume level for the handset speakerphone.

There are four volume levels: LOW, MEDIUM, HIGH, and MAXIMUM.

Notes:

The handset earpiece and the handset speakerphone have separate volume settings.

If you hear three quick error beeps, it means the earpiece or speaker is already at the lowest (LOW) or highest

(MAXIMUM) volume level.

4-5. Finding the Handset

To locate the handset, press [nd hs] on the base. The handset will beep for sixty seconds.

To cancel paging, press [nd hs] again, press any key on the handset, or put the handset back in the base.

4-6. Muting the Ringer

When the phone is ringing, you can mute the ringer on the handset. Muting stops the ringer for the current call

only: the ringer will sound with the next incoming call. You can only mute the handset ringer if the handset is

already o the cradle when the handset starts ringing. Press [END] to mute the incoming ring.

4-7. Voice Mail Waiting IndicatorVoice Mail Waiting Indicator

If you subscribe to voice mail service through your local telephone company, you can use your cordless

telephone to access your voice mailbox. The voice mail company will provide you with the access number.

The /in use LED on the base of your phone ashes whenever you have messages waiting in your voice mailbox.

To access your voice mailbox

Just dial the access number supplied by your voice mail provider to enter your mailbox. You can program your

voice mail access number to a speed dial number.

If the voice mail waiting indicator remains on after you have retrieved your messages, press and hold [nd hs]

for ve seconds. This will reset the indicator.

4-8. Using an Optional Headset

To install a headset, remove the headset jack cover and insert the headset plug

into the headset jack.

When you connect a headset, the earpiece and speakerphone are automatically

muted. If you want to re-activate the earpiece or speakerphone, remove the

headset plug.

You will still make and receive calls as usual: just use your headset to talk to the

caller once the call connects.

You can purchase headsets from our website at www.uniden.com or by calling our Parts Department (See the

back cover page).

•

•

•

•

•

•

5) Using Caller ID and Call Waiting

If you subscribe to Caller ID from your phone company, your phone will show you the caller's phone number and

name (if available) whenever a call comes in. If you subscribe to both Call Waiting and Caller ID, the phone also

shows you the name and the number of any call that comes in while you're on the line.

5/11 12:30PM

Jane Smith

214-555-1234

The date and time received

Caller's name

Caller's Phone Number

Note: If you answer a call before the Caller ID record is received (for example, before the second ring), the Caller

ID record will not appear.

The phone stores the Caller ID information for up to thirty incoming calls - even unanswered calls. If the phone

receives more Caller ID records than it can store, the oldest record in the list is automatically deleted.

For information on storing Caller ID records in the phonebook, see section 6-6.

5-1. Reviewing the Caller ID Record List

You can review the Caller ID list when the handset is in standby or during a call.

Press [cid/menu]. The summary screen displays the total number of CID

records along with the number of new CID records (that is, calls that you

haven't reviewed yet).

Use [ ] to scroll through the records from the latest to the earliest, or

use [ ] to scroll through the records from the earliest to the latest.

Press [cid/menu] to exit the Caller ID list.

For new Caller ID records, the phone keeps a count of the number of calls

received from the same caller (instead of saving the information multiple

times). The Caller ID record shows the time and date of the most recent call

from that number, and the number of calls appears next to the received time.

The phone only maintains this count for new or “unviewed” records: once you

review that record, the number is cleared.

5-2. Making a Call from the Caller ID List

With the phone in standby, press [cid/menu].

Use [ ] or [ ] to nd the Caller ID record you want to call.

If you need to add or delete a “1” from the displayed phone number, press [1].

What’s this “add or delete a 1” about?

Any phone number in the Caller ID records might (or might not!) have a “1” at the front, depending on how

dierent phone companies send the Caller ID information.

The phone dials the number exactly as it appears in the Caller ID record.

If the phone number is a long distance or toll call, but the Caller ID record does not have a “1” in front of the

number, press [1] to add it.

If the phone number is a local or non-toll call, but the Caller ID record has a “1” in front of the number, press

[1] to delete it.

•

•

•

•

Press [TALK/ash] or [ ] to dial the number.

Note: You can also press [TALK/ash] or [ ] before you access the Caller ID list. When you come to the

phone number you want to dial, press [select/channel].

1)

2)

3)

1)

2)

3)

4)

Caller ID

New :01

Total:17

Caller ID

New :01

Total:17

12/30 11:59PM 01

Jane Smith

214-555-1234

12/30 11:59PM 01

Jane Smith

214-555-1234

Sheet 7

5-3. Using Seven Digits Instead of Ten

If you can make a local call by dialing only seven digits instead of ten, you can tell the phone to hide your local

area code in the Caller ID list; any calls from outside your area code will show all ten digits.

Entering your area code

With the phone in standby, press and hold [cid/menu].

Press [ ] to move the pointer to select AREA CODE. If an area code was already stored, the handset will

display it.

Press [select/channel] to edit the area code.

Use the number keys ([0] – [9]) to enter all three digits of your area code.

If you make a mistake, press [delete] to erase the last digit.

When the number is correct, press [select/channel]. A conrmation tone sounds.

Press [END]. The handset returns to standby.

The phone uses the stored area code as a lter. When a call comes in, the phone compares the incoming area

code to the code programmed in the handset. If the two codes match, the handset hides the area code in the

Caller ID list.

When you’re in the Caller ID list, you can show the hidden area code by pressing [3]. Press [3] again to hide

the area code.

When you dial from a Caller ID list or store a Caller ID record in the phonebook, the phone dials or stores the

digits exactly as they appear on the display. If you need to use ten digits, be sure to press [3] to show the area

code before you dial or store the number. See Section 6-6, Storing Caller ID Records in the Phonebook.

5-4. Deleting Caller ID Records

If you get an incoming call or page, the operation is canceled.

To delete one Caller ID record To delete all the Caller ID records

With the phone in standby, press [cid/menu].

Use [ ] or [ ] to nd the Caller ID record you

want to delete.

Press [delete]. The display asks you to conrm.

To delete the record, leave the pointer at YES.

Or, if you changed your mind, press [ ] to move

the pointer to NO.

Press [select/channel] to conrm.

1)

2)

3)

4)

5)

With the phone in standby, press [cid/menu].

From the CID summary screen, press [delete].

The display asks you to conrm.

To delete all the records, use [ ] to move the

pointer to YES. Or, if you changed your mind, leave

the pointer at NO.

Press [select/channel] to conrm.

1)

2)

3)

4)

5-5. Using Call Waiting

If you subscribe to Call Waiting and a second call comes in when you are

on the phone, the phone sounds a call waiting tone. If you also have Caller

ID service, the phone shows the Caller ID information for the incoming

call. To put the original call on hold and switch to the waiting call, press

[TALK/ash]. After a slight pause, you are connected to the new caller. Press

[TALK/ash] again to switch back to the original caller.

OR

To hang up and answer the new call, press [END]. The phone disconnects the original caller and switches to the

new caller.

1)

2)

3)

4)

5)

6)

•

•

Talk 0:54

Jane Smith

214-555-1234

Talk 0:54

Jane Smith

214-555-1234

6) Using the Phonebook (speed dial memory)

If you enter phone numbers (along with names) into the handset’s phonebook/speed dial memory, you can

dial them with just two key presses.

The handset can store ten dierent phonebook entries (corresponding to 0 through 9 on the number keypad).

You can use the phonebook to store any number up to twenty digits. This is useful if you have a series of digits

that you need to enter after your call connects, such as an access code or account number (See section 6-7 on

Chain Dialing).

When you’re editing the phonebook, you must press a key within thirty seconds or the phone will return to standby.

6-1. Entering a New Number into the Phonebook

With the phone in standby, press [ /memory] to open the phonebook

list.

Enter a number ([0] – [9]) or press [ ] or [ ] to nd a phonebook

entry that shows <EMPTY> beside it, and press [select/channel]. The

handset opens the STORE NAME screen.

Use the letters above the number keys to enter a name for this phonebook

entry. Press [select/channel] when you’re nished (or if you don't want

to enter a name). The handset opens the STORE NUMBER screen.

•

•

•

•

1)

2)

3)

01 Jane Smith

02 <Empty>

03 <Empty>

01 Jane Smith

02 <Empty>

03 <Empty>

Store Name

｡

Store Name

｡

The letters above the number appear in order: press the 2 key once for A, twice for B, and three times for C.

You can also enter lower case letters and symbols (see the table below for all the available characters and

what keys to press to enter them).

For example, to enter Mom

Press [6] once to enter M.

Press [#/ ] to move the cursor to the

right.

Press [6] six times to enter o.

Press [#/ ] to move the cursor to the

right.

Press [6] four times to enter m.

New characters are inserted next to the

character highlighted by the blinking

cursor.

To enter between characters, move the

cursor and enter a new character.

Use [ /tone/ ] and [#/ ] to move the cursor to the desired location.

To enter two characters controlled by the same key, enter the rst character, move the cursor to the right,

then enter the second character.

When the cursor is on the end of the digit, press [delete] to delete characters from last one as needed.

If you made a mistake, move the cursor to the incorrect character and press [delete]. Then enter the correct

character.

To delete all the characters, press and hold [delete].

1)

2)

3)

4)

5)

•

•

•

•

•

•

•

keys 1 2 3 4 5 6 7 8 9

1

A B C a b c 2

D E F d e f 3

G H I g h i 4

J K L j k l 5

M N O m n o 6

P Q R S p q r s 7

T U V t u v 8

W X Y Z w x y z 9

* # - & ( )

(blank)

0

Number of times key is pressed

keys 1 2 3 4 5 6 7 8 9

1

A B C a b c 2

D E F d e f 3

G H I g h i 4

J K L j k l 5

M N O m n o 6

P Q R S p q r s 7

T U V t u v 8

W X Y Z w x y z 9

* # - & ( )

(blank)

0

Number of times key is pressed

Entering text in your phone

Sheet 8

Use the number keypad to enter the phone number. Press [select/

channel] when you’re nished. The handset sounds a conrmation tone

and displays MEMORY STORED.

The number can be up to twenty digits.

If this phone number is a long distance call, be sure to include the “1”

in front of the phone number.

If you need the phone to wait before dialing the next digit (for example, to enter an extension number

or access code), press [redial/pause] to insert a two-second pause between digits. The display shows

a P where the phone will pause. You can add as many pauses as you want anywhere in the phone

number, but each pause does count as a digit.

After a few seconds, the handset goes back to the phonebook list. Use [ ] and [ ] to select another

phonebook entry.

OR

Press [ /memory] to exit the phonebook. The phone returns to standby.

6-2. Finding Phonebook Entries

If you know the number of the phonebook entry you're looking for:

Press and hold the number key (0 through 9) assigned to that phonebook entry.

The handset displays the name and phone number saved for that phonebook entry. If the entry has no

number, the handset displays : <EMPTY> PRESS SELECT TO EDIT.

If the number you picked wasn't the right phonebook entry, just use [ ] and [ ] to scroll through the

phonebook entries. Stop scrolling when you see the phonebook entry you want.

If you don't know the number of the phonebook entry you're looking for:

Press [ /memory] to open the phonebook list.

Use [ ] and [ ] to scroll through the phonebook entries. Stop scrolling when you see the phonebook

entry you want.

6-3. Making a Call from the Phonebook

With the phone in standby, nd the phonebook entry you want to call (See section 6-2 on Finding Phonebook

Entries). Then press [TALK/ash] or [ ] to dial the number.

You can also press [TALK/ash] or [ ] and then nd the phonebook entry you want to call, and press

[select/channel].

6-4. Editing a Number in the Phonebook

With the handset in standby, nd the phonebook entry you want to edit (See section 6-2 on Finding

Phonebook Entries).

Press [select/channel] to open the MENU screen.

On the MENU screen, use [ ] to move the pointer to EDIT MEMORYXX, and press [select/channel].

The handset takes you to the STORE NAME screen from Step 2 of section 6-1 on Entering a New Number into

the Phonebook: just follow the same steps from there.

6-5. Deleting a Number from the Phonebook

With the handset in standby, nd the phonebook entry you want to delete (See section 6-2 on Finding

Phonebook Entries).

Press [select/channel] to open the MENU screen.

On the MENU screen, use [ ] to move the pointer to DELETE MEMORYXX, and press [select/channel]. The

handset asks you to conrm.

To delete the entry, use [ ] to move the pointer to YES and press [select/channel]. The handset sounds a

conrmation tone and goes back to the phonebook list.

OR

If you changed your mind, leave the pointer at NO and press [select/channel]. The handset goes back to the

phonebook list.

6-6. Storing Caller ID Records in the Phonebook

With the phone in standby, press [cid/menu].

Use [ ] or [ ] to nd the Caller ID record you want to save.

Note:

Remember, the phone stores the digits exactly as they appear on the display. If you need to add or delete a

"1" from the displayed phone number, press [1]. (You can always go back and edit the phone number later.)

Press [ /memory] to open the phonebook.

Find the phonebook entry number you want to use (See section 6-2 on Finding Phonebook Entries).

Press [select/channel] to store the Caller ID information to the phonebook and return to the Caller ID list.

Note: If this number already has a phonebook entry saved to it, the handset asks if you want to replace the

existing entry. Select YES to replace the existing entry with the new one, or select NO to cancel and keep

the existing entry. The display returns to the Caller ID list.

6-7. Chain Dialing

If you often have to enter a series of digits or some type of code number during a call, you can save that code

number to a phonebook entry. When your call connects, just use the phonebook speed dial to transmit the

saved code number. (This is referred to as chain dialing.)

Enter the code number (up to twenty digits) into the phonebook (See section 6-1 on Entering a New Number

into the Phonebook). Be sure to enter the code number into the phonebook exactly as you would enter it

during a call.

During a call, when you hear the prompt that tells you to enter the code number, press [ /memory] to

open the phonebook.

Find the phonebook entry number you want to use (See section 6-2 on Finding Phonebook Entries).

Press [select/channel]. The phone sends the digits of the code number exactly as you saved them in the

phonebook entry.

4)

•

•

•

5)

•

•

•

•

1)

2)

3)

4)

1)

2)

3)

4)

1)

2)

3)

4)

5)

1)

2)

3)

4)

Store Number

8007303456｡

Store Number

8007303456｡

Sheet 9

7) Mounting the Base on a Wall

You can mount the phone on any standard telephone jack wall plate.

1Route the AC adapter and the telephone

cords through the hole of the wall

mount bracket.

2Connect the AC adapter and the

telephone cords as shown.

Remember to route the AC adapter

cord through the channel.

3Line up the four tabs on the wall mount bracket (two at the top and

two at the bottom) with the four notches on the bottom of the base.

Slide the bracket into place.

6Place the mounting slots over the pins on the wall plate.

7Slide the base down to lock it into place.

4Hook the AC adapter cord

into the smaller notch at

the bottom of the bracket,

and let the cord hang

below the bracket.

5Plug the telephone cord

into the wall jack.

Hook both sides of the

telephone cord into the

larger notch

OR

tuck the excess cord into the

open space in the bracket.

Wall plate

Wall plate

To AC outlet

AC adapter (supplied)

To telephone

wall jack

Telephone cord (supplied)

1Route the AC adapter and the telephone

cords through the hole of the wall

mount bracket.

2Connect the AC adapter and the

telephone cords as shown.

Remember to route the AC adapter

cord through the channel.

3Line up the four tabs on the wall mount bracket (two at the top and

two at the bottom) with the four notches on the bottom of the base.

Slide the bracket into place.

6Place the mounting slots over the pins on the wall plate.

7Slide the base down to lock it into place.

4Hook the AC adapter cord

into the smaller notch at

the bottom of the bracket,

and let the cord hang

below the bracket.

5Plug the telephone cord

into the wall jack.

Hook both sides of the

telephone cord into the

larger notch

OR

tuck the excess cord into the

open space in the bracket.

Wall plate

Wall plate

To AC outlet

AC adapter (supplied)

To telephone

wall jack

Telephone cord (supplied)

Note: To mount the phone directly on the wall, insert two 1 3/8 inch, #10 screws (not supplied) into the wall

using anchors suitable for the wall material. Place the screws 3 15/16 inches apart, and allow 1/8 inch free

space between the wall and screw heads.

To remove the wall-mount bracket

At the bottom of the base, lift up on the release latch and

push the bracket up.

Release latchRelease latch

8) Troubleshooting and Maintenance

8-1. Solving Common Issues

If your phone is not performing to your expectations, please try these simple steps rst. If these steps do not

solve your problem, please call our Customer Hotline. See back cover page for contact information.

When you have this problem…

Try…

The /in use LED won't turn on

when the handset is placed in the

cradle.

Checking the AC adapter connection.

Re-seating the handset in the cradle.

Cleaning the charging contacts on the handset (See section 8-8).

•

•

•

The audio sounds weak and/or

scratchy.

Moving the handset closer to the base.

Moving the handset and/or base away from metal objects or

appliances and try again.

Changing the channel by pressing [select/channel] during a call.

This can help eliminate background noise.

•

•

•

The phone can't make or receive

calls.

Checking the telephone cord connection.

Disconnecting the AC adapter. Wait a few minutes, then reconnect it.

Asking your telephone company if they use pulse dialing (See section

1-4).

•

•

•

The handset can make calls, but it

doesn’t ring. Making sure the ringer isn’t turned o (see section 3-5).•

The handset’s display doesn’t show

anything.

Charging the battery for 15-20 hours.

Checking the battery pack connection.

•

•

There’s a lot of static during calls.

Changing the channel by pressing [select/channel] during a call to

help eliminate background noise.

Keeping the handset away from microwave ovens, computers, remote

control toys, wireless microphones, alarm systems, intercoms, room

monitors, uorescent lights, and electrical appliances.

Moving the base to a better location (see section 1-1).

•

•

•

Sheet 10

8-2. Re-registering the Handset

When you rst put your handset into the base, it is registered so it can communicate with the base. There may

be some times when you have to re-register your handset to the base:

When you want to change the handset-to-base code.

When there is a power failure that lasts more than one hour.

If the handset's battery is completely discharged. (The handset must be recharged for 15 - 20 hours before

re-registering to the base.)

Any time you experience diculty connecting to the base to make or receive calls.

To re-register the handset:

Pick up the handset from the base. Press and hold [nd hs] on the base.

While holding [nd hs], place the handset in the base. The charge/in use LED on the base begins to ash,

indicating the base is registering the handset. Wait for at least ve seconds.

Pick up the handset from the base and press [TALK/ash]. If the display shows TALK, the handset is

registered. If not, place the handset in the base to try again.

Press [END].

8-3. Changing the Handset-to-base Code

The handset-to-base code prevents other cordless devices from accidentally connecting to your base. If the

battery pack is completely discharged or removed, the handset-to-base code will be lost. If this happens, a new

code is set automatically the next time the handset is charged in the base. In the rare situation that you suspect

another cordless telephone is using the same code, you can change the code.

To change the handset-to-base code, re-register the handset to the base following the instructions in section

8-2 on Re-registering the Handset above.

8-4. Traveling Out of Range

During a call, as you begin to move your handset too far from your base, noise increases. If you pass the range

limits of the base, your call will terminate within one minute.

8-5. Liquid Damage

Moisture and liquid can damage your cordless phone.

If the handset or base is exposed to moisture or liquid, but only the exterior plastic housing is aected, wipe

o the liquid, and use as normal.

If moisture or liquid has entered the plastic housing (i.e. liquid can be heard in the phone or liquid has entered

the handset battery compartment or vent openings on the base), follow the steps below:

Handset Base

Remove the battery cover and leave it o for ventilation.

Disconnect the battery pack. Leave the battery cover o and the

battery pack disconnected for at least three days.

Once the handset is completely dry, reconnect the battery pack and

the battery cover.

Recharge the handset's battery pack for 15 to 20 hours before using.

1)

2)

3)

4)

Disconnect the AC adapter

from the base, cutting o

electrical power.

Disconnect the telephone cord

from the base.

Let dry for at least three days.

1)

2)

3)

IMPORTANT:

You must unplug the telephone line while recharging the battery pack to avoid charge interruption.

CAUTION!

DO NOT use a microwave oven to speed up the drying process. This will cause permanent damage to the

handset, base and the microwave oven. After following these steps, if your cordless telephone does not work,

please call our Customer Service Hotline. See back cover page for contact information.

8-6. Specications

The phone complies with FCC Parts 15 and 68.

Operating temperature 0°C to +50°C (+32°F to +122°F)

AC Adapter

Part number PS-0008

Input Voltage 120V AC 60Hz

Output Voltage 9V DC 210mA

Battery Part number BT-905

Capacity 600mAh, 3.6V

Frequency 921.103102 – 923.787761 MHz

5,856.533347 – 5,863.692437MHz

Note: To avoid damage to the phone, use only Uniden PS-0008 and BT-905 with your phone.

Specications, features, and availability of optional accessories are all subject to change without prior notice.

8-7. Power Failure Operation

During the period that the power is o, you will not be able to make or receive calls with the telephone.

8-8. Battery Information

Average battery life

With average use, your handset battery provides approximately six hours of talk time and approximately

fourteen days of standby time. You can achieve optimum battery life and performance by returning the handset

to the cradle after each use. When your handset is left o of the cradle, the battery will gradually discharge

even if the handset is not being used. The actual talk time duration will be reduced in proportion to the amount

of time the handset is o the cradle.

•

•

•

•

1)

2)

3)

4)

•

•

When you have this problem…

Try…

The handset won’t display any

Caller ID information.

Letting incoming calls ring at least twice before answering.

Checking to see if the call was placed through a switchboard.

Checking with your telephone service provider to make sure your

Caller ID service is active (See section 5).

•

•

•

The handset is not working.

Checking the battery pack connection.

Charging the battery for 15-20 hours.

Changing the handset-to-base code (See section 8-3).

•

•

•

The handset says “Unavailable”.

Moving the handset closer to the base.

Making sure the base is plugged in.

Changing the handset-to-base code (See section 8-3).

•

•

•

The Voice Message Waiting

Indicator does not work.

Contact your local telephone company to make sure that your

telephone receives FSK message signaling.

Reset the indicator by pressing and holding [nd hs] for ve seconds.

•

•

Sheet 11

Low battery alert

When the battery pack is very low and needs to be charged, the phone is

programmed to eliminate functions in order to save power. If the phone is not

in use, LOW BATTERY CHARGE HANDSET appears on the LCD, and none of the

keys will operate. During a call, the handset beeps, and the LCD ashes LOW

BATTERY. Complete your conversation as quickly as possible and return the

handset to the cradle for charging.

Note: Information stored in the phone's memory will be retained for thirty minutes after the battery pack is

removed. This includes all setup information, last number dialed, speed dial memory, and the CID list.

Battery replacement and handling

When the operating time becomes short even after a battery is recharged, please replace the battery. With

normal usage, your battery should last about one year. To order replacement batteries, please contact Uniden’s

Parts Department. The contact information is listed on the back cover page.

Warning:

To avoid the risk of personal injury or property damage from re or electrical shock, only use the Uniden

battery packs and power adapters specically designated for this product.

Caution:

Use only the specied Uniden battery pack (BT-905).

Do not remove the battery from the handset to charge it.

Never throw the battery into a re, disassemble it, or heat it.

Do not remove or damage the battery casing.

•

•

•

•

Cleaning the charging contacts

To maintain a good charge, clean the charging contacts on the handset

once a month. Dampen a cloth with plain water. Gently rub the damp

cloth over the charging contacts until all visible dirt is removed. Dry the

contacts thoroughly before returning the handset to the cradle.

Caution:

Do not use paint thinner, alcohol, or other chemical products. Doing so may discolor the surface of the

telephone and damage the nish.

Low Battery

Charge Handset

Low Battery

Charge Handset

ContactsContacts

9) Legal and Warranty Information

9-1. Precautions!

Before you read anything else, please note the following:

Warning!

Uniden America Corporation DOES NOT represent this unit to be waterproof. To reduce the risk of re,

electrical shock, or damage to the unit, DO NOT expose this unit to rain or moisture.

9-2. Rechargeable Nickel-Cadmium Battery Information

This equipment contains a rechargeable nickel-cadmium battery.

• Cadmium is a chemical known to the State of California to cause cancer.

• The rechargeable nickel-cadmium battery contained in this equipment may explode if disposed of in a re.

• Do not short-circuit the battery.

• Do not charge the rechargeable nickel-cadmium battery used in this equipment in any charger other than the one designed

to charge this battery as specied in the owner's manual. Using another charger may damage the battery or cause the

battery to explode.

• Rechargeable Nickel-Cadmium Batteries Must Be Recycled or Disposed of Properly

• As part of our commitment to protecting our environment and conserving natural resources, Uniden

voluntarily participates in an RBRC® industry program to collect and recycle used Ni-Cd batteries

within the United States. Please call 1-800-8-BATTERY for information on Ni-Cd battery recycling in

your area. (RBRC® is a registered trademark of the Rechargeable Battery Recycling Corporation.)

9-3. Lead Content Information

Warning!

The cords on this product and/or accessories contain lead, a chemical known to the State of California to

cause birth defects or other reproductive harm. Wash hands after handling.

Uniden works to reduce lead content in our PVC coated cords in our products and accessories.

9-4. Important Safety Instructions

When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of re, electric

shock and injury to persons, including the following:

1. Do not use this product near water, for example, near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet

basement or near a swimming pool.

2. Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of electric

shock from lightning.

3. Do not use the telephone to report a gas leak in the vicinity of the leak.

4. Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a re. They may explode.

Check with local authorities for possible battery disposal instructions.

5. Do not disassemble any component of this product.

SAVE THESE INSTRUCTIONS

CAUTION!

Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions. Do not

open or mutilate the battery, and disconnect the battery before shipping this product.

9-5.The FCC Wants You To Know

This equipment complies with Part 68 of the FCC rules and the requirements adopted by the ACTA.

On the bottom of this equipment is a label that contains, among other information, a product identier in the format US:

AAAEQ##TXXXX. If requested, this number must be provided to the telephone company.

An applicable Universal Service Order Codes (USOC) certication for the jacks used in this equipment is provided (i.e., RJ11C)

in the packaging with each piece of approved terminal equipment. A plug and jack used to connect this equipment to the

premises wiring and telephone network must comply with the applicable FCC Part 68 rules and requirements adopted by the

ACTA.

A compliant telephone cord and modular plug is provided with this product. It is designed to be connected to a compatible

modular jack that is also compliant. See installation instructions for details.

The REN is used to determine the number of devices that may be connected to a telephone line. Excessive RENs on a telephone

line may result in the devices not ringing in response to an incoming call. In most but not all areas, the sum of RENs should

not exceed ve (5.0). To be certain of the number of devices that may be connected to a line, as determined by the total RENs,

contact the telephone provider. For products approved after July 23, 2001, the REN for this product is part of the product

identier that has the format US:AAAEQ##TXXXX. The digits represented by ## are the REN without a decimal point (e.g., 03 is

a REN of 0.3). For earlier products, the REN is separately shown on the label.

If this equipment causes harm to the telephone network, the telephone company will notify you in advance that temporary

discontinuance of service may be required. But if advance notice isn't practical, the telephone company will notify the

customer as soon as possible. Also, you will be advised of your right to le a complaint with the FCC if you believe it is

Sheet 12

necessary. The telephone company may make changes in its facilities, equipment, operations or procedures that could

aect the operation of the equipment. If this happens the telephone company will provide advance notice in order for

you to make necessary modications to maintain uninterrupted service. Please follow instructions for repairing, if any

(e.g. battery replacement section); otherwise do not substitute or repair any parts of the device except as specied in this

manual. Connection to party line service is subject to state taris. Contact the state public utility commission, public service

commission or corporation commission for information. This equipment is hearing aid compatible.

Should you experience trouble with this equipment, please contact Uniden customer service at 800-297-1023. If the

equipment is causing harm to the telephone network, the telephone company may request that you disconnect the

equipment until the problem is resolved.

NOTICE: According to telephone company reports, AC electrical surges, typically resulting from lightning strikes, are very

destructive to telephone equipment connected to AC power sources. To minimize damage from these types of surges, a surge

arrestor is recommended.

Changes or modications to this product not expressly approved by Uniden, or operation of this product in any way other than

as detailed by the owner's manual, could void your authority to operate this product.

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may

not cause harmful interference, and (2) This device must accept any interference received, including interference that may

cause undesired operation. Privacy of communications may not be ensured when using this phone.

Cordless telephone privacy

Cordless telephones are radio devices. Communications between the handset and base of your cordless telephone are

accomplished by means of radio waves which are broadcast over the open airways. Because of the inherent physical

properties of radio waves, your communications can be received by radio receiving devices other than your own cordless

telephone unit. Consequently, any communications using your cordless telephone may not be private.

9-6. I.C. Notice

Terminal equipment

NOTICE: This equipment meets the applicable Industry Canada Terminal Equipment Technical Specications. This is conrmed

by the registration number. The abbreviation, IC, before the registration number signies that registration was performed

based on a Declaration of Conformity indicating that Industry Canada technical specications were met. It does not imply that

Industry Canada approved the equipment.

NOTICE: The Ringer Equivalence Number (REN) for this terminal equipment is marked on the equipment itself. The REN

assigned to each terminal equipment provides an indication of the maximum number of terminals allowed to be connected

to a telephone interface. The termination on an interface may consist of any combination of devices subject only to the

requirement that the sum of the Ringer Equivalence Numbers of all the devices does not exceed ve.

Radio equipment

The term "IC:" before the radio certication number only signies that Industry Canada technical specications were met.

Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must

accept any interference, including interference that may cause undesired operation of the device. "Privacy of communications

may not be ensured when using this telephone".

9-7. One Year Limited Warranty

Important: Evidence of original purchase is required for warranty service. WARRANTOR: UNIDEN AMERICA CORPORATION

("Uniden") ELEMENTS OF WARRANTY: Uniden warrants, for one year, to the original retail owner, this Uniden Product to be

free from defects in materials and craftsmanship with only the limitations or exclusions set out below.

WARRANTY DURATION: This warranty to the original user shall terminate and be of no further eect 12 months after the date

of original retail sale. The warranty is invalid if the Product is (A) damaged or not maintained as reasonable or necessary,

(B) modied, altered, or used as part of any conversion kits, subassemblies, or any congurations not sold by Uniden, (C)

improperly installed, (D) serviced or repaired by someone other than an authorized Uniden service center for a defect or

malfunction covered by this warranty, (E) used in any conjunction with equipment or parts or as part of any system not

manufactured by Uniden, or (F) installed or programmed by anyone other than as detailed by the owner's manual for this

product.

STATEMENT OF REMEDY: In the event that the product does not conform to this warranty at any time while this warranty is

in eect, warrantor will either, at its option, repair or replace the defective unit and return it to you without charge for parts,

service, or any other cost (except shipping and handling) incurred by warrantor or its representatives in connection with the

performance of this warranty. Warrantor, at its option, may replace the unit with a new or refurbished unit. THE LIMITED

WARRANTY SET FORTH ABOVE IS THE SOLE AND

ENTIRE WARRANTY PERTAINING TO THE PRODUCT AND IS IN LIEU OF AND EXCLUDES ALL OTHER WARRANTIES OF ANY NATURE

WHATSOEVER, WHETHER EXPRESS, IMPLIED OR ARISING BY OPERATION OF LAW, INCLUDING, BUT NOT LIMITED TO ANY

IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. THIS WARRANTY DOES NOT COVER OR

PROVIDE FOR THE REIMBURSEMENT OR PAYMENT OF INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states do not allow this

exclusion or limitation of incidental or consequential damages so the above limitation or exclusion may not apply to you.

LEGAL REMEDIES: This warranty gives you specic legal rights, and you may also have other rights which vary from state to

state. This warranty is void outside the United States of America and Canada. PROCEDURE FOR OBTAINING PERFORMANCE

OF WARRANTY: If, after following the instructions in the owner's manual you are certain that the Product is defective, pack

the Product carefully (preferably in its original packaging). Disconnect the battery from the Product and separately secure

the battery in its own separate packaging within the shipping carton. The Product should include all parts and accessories

originally packaged with the Product. Include evidence of original purchase and a note describing the defect that has caused

you to return it. The Product should be shipped freight prepaid, by traceable means, to warrantor at:

Uniden America Service

4700 Amon Carter Blvd.

Fort Worth, TX 76155

May be covered under one or more of the following U.S. patents:

4,797,916 5,426,690 5,491,745 5,493,605 5,533,010 5,574,727 5,581,598 5,650,790 5,660,269 5,663,981 5,671,248

5,717,312 5,732,355 5,754,407 5,758,289 5,768,345 5,787,356 5,794,152 5,801,466 5,825,161 5,864,619 5,893,034

5,912,968 5,915,227 5,929,598 5,930,720 5,960,358 5,987,330 6,044,281 6,070,082 6,0760,52 6,125,277 6,253,088

6,314,278 6,321,068 6,418,209 6,618,015 6,671,315 6,714,630 6,782,098 6,788,920 6,788,953 6,839,550 6,889,184

6,901,271 6,907,094 6,914,940 6,940,867 6,953,118 7,023,176 7,030,819 7,146,160 7,203,307 7,206,403

Other patents pending.

Uniden® is a registered trademark of Uniden America Corporation.

As an Energy Star® Partner, Uniden has determined that this product or product models meets the Energy

Star® guidelines for energy eciency. Energy Star® is a U.S. registered mark.
