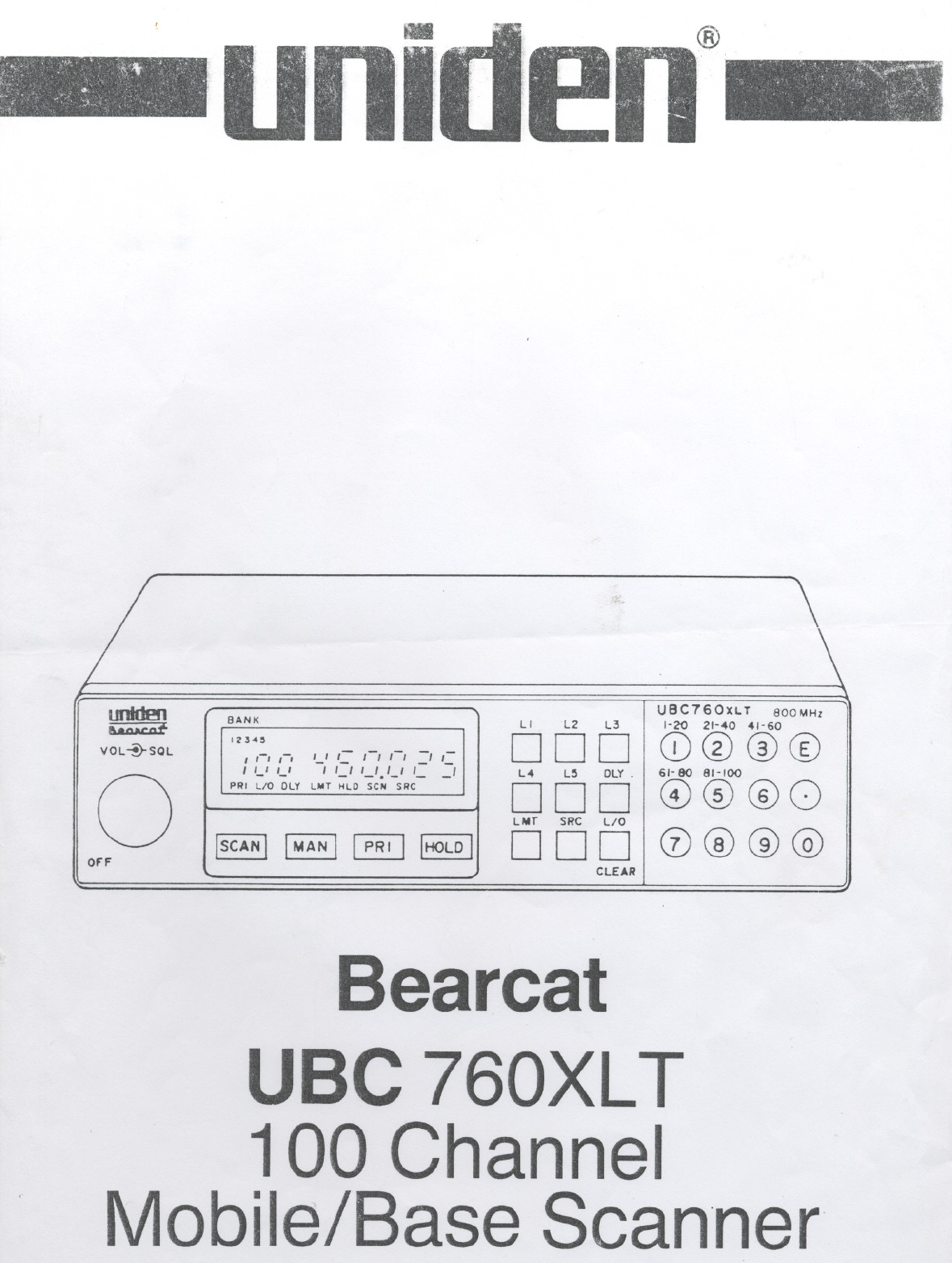

lJI1Iden BANK UBC760XLT 800MHz
A.."..,.", 1'- LI l2 L3 1-20 21-<40 <4'-60
VOL~SQL 12:~:.,,-, '-' c: ,-, ,-, :' C~ D D D CD 0 @ @
0' '-' '-' , '-' '-'.'-' '- -' L<4 L5 OLY. 61-80 81-100
PR' LIO DLY LMT filD SCN SRC D D D 0 @ @0
OFF ISCANIIMANI~ IHOlD! ODD ICV @@@
CLEAR
Bearcat
UBC 760XL T
100 Channel
Mobile/Base Scan'ner

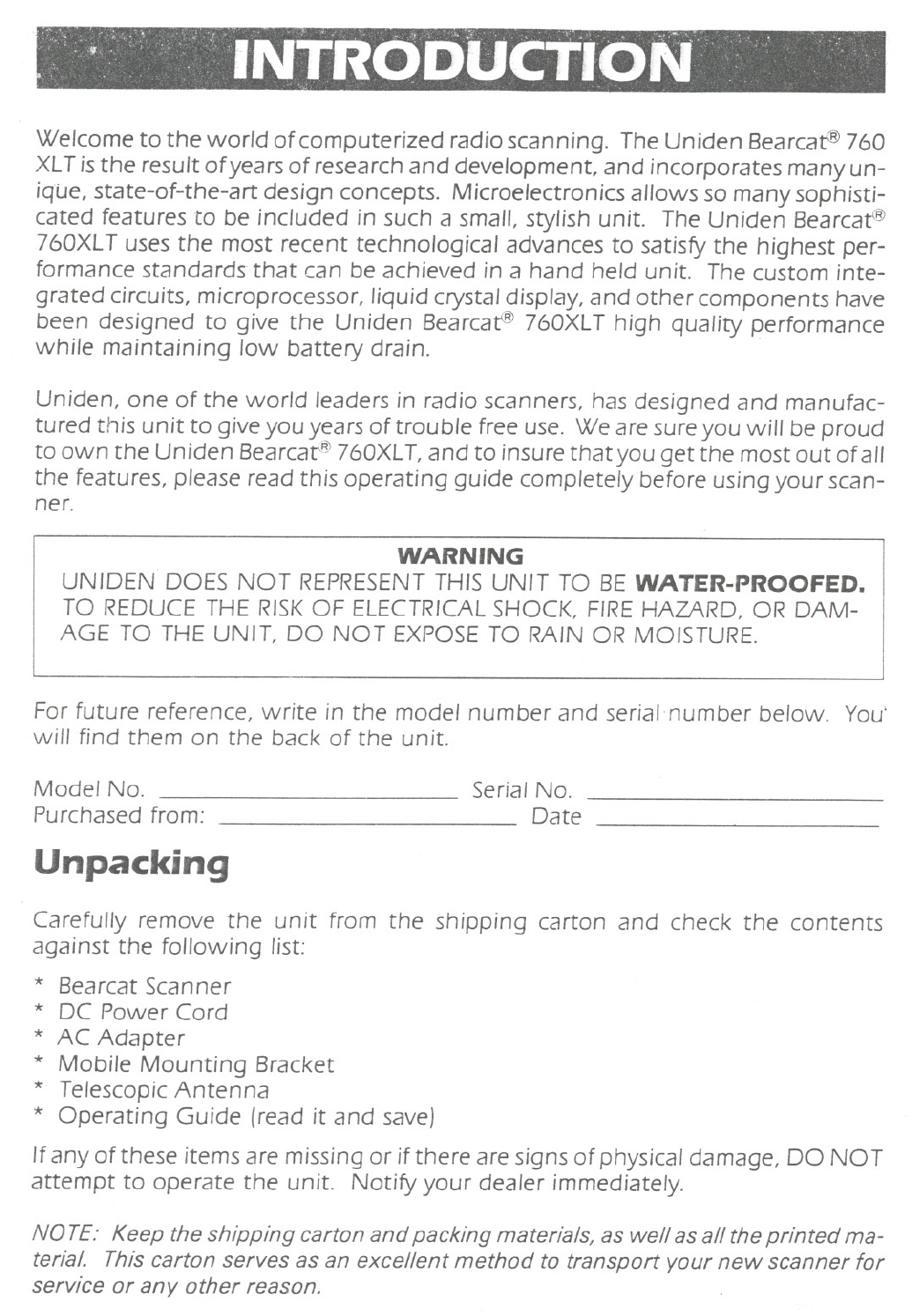

Welcome to the world of computerized radio scanning. The Uniden Bearcat@760
XLTisthe result ofyears of research and development, and incorporates many un-
ique, state-of-the-art design concepts. Microelectronics allows so many sophisti-
cated features to be included in such a small, stylish unit. The Uniden Bearcat@
760XLT uses the most recent technological advances to satisfy the highest per-
formance standards- that can be achieved in a hand held unit. The custom inte-
grated circuits, microprocessor, liquid crystal display, and other components have
been designed to give the Uniden Bearca~ 760XLT high quality performance
while maintaining Iow battery drain.
Uniden, one of the world leaders in radio scanners, has designed and manufac-
tured this unit to give you years of trouble free use. We are sure you will be proud
to own the Uniden Bearcat@760XLT,and to insure that you get the most out of all
the features, please read this operating guide completely before using your scan-
ner.
WARNING
UNIDEN DOES NOT REPRESENT THIS UNIT TO BE WATER-PROOFED.
TO REDUCE THE RISKOF ELECTRICALSHOCK, FIRE HAZARD, OR DAM-
AGE TO THE UNIT, DO NOT EXPOSE TO RAIN OR MOISTURE.
For future reference, write in the model number and serial-number below. You'
will find them on the back of the unit.
Model No.
Purchased from: Serial No.
Date
Unpacking
Carefully remove the unit from the shipping carton and check the contents
against the following list:
*BearcatScanner
*DC Power Cord
*AC Adapter
*Mobile Mounting Bracket
*TelescopicAntenna
*Operating Guide (read it and save)
Ifany of these items are missing or ifthere are signs of physical damage, DO NOT
attempt to operate the unit. Notify your dealer immediately.
NOTE: Keep the shipping carton and packing materials, as wellas allthe printed ma-
terial. This carton serves as an excel/ent method to transport your new scanner for
service or any other reason.

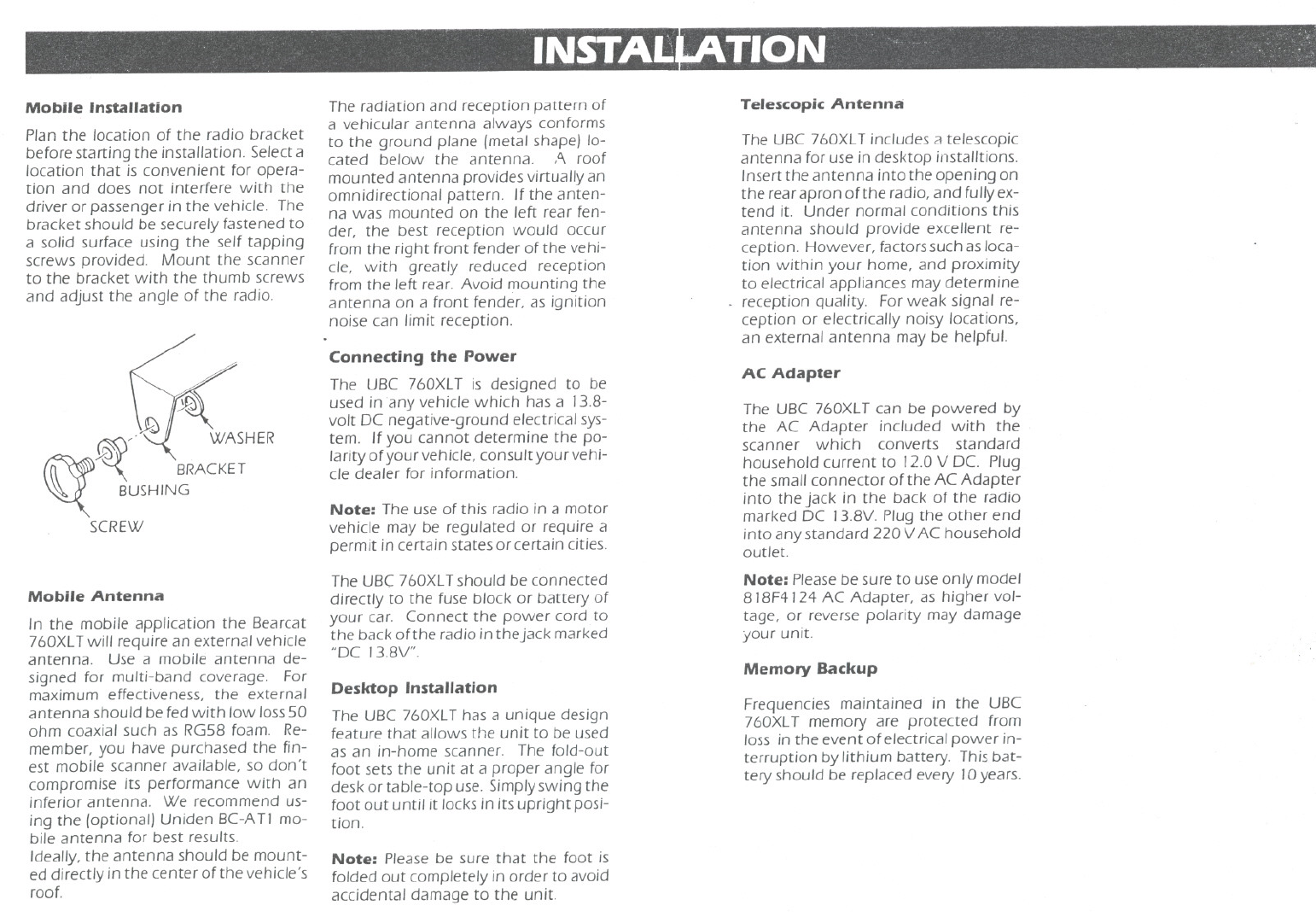

,(,Qqt"QI~~.a;d<F'unqions
unIden
~
VOL -!)-SOL
BANK
"34'
,,-,/-, /_"~'-'/-'~IC
, L' L' I ,_, '-'.I-' '- -'
PR' L/Q Oli cOlT HLD se. SRC
Off
I
CD CV @@@

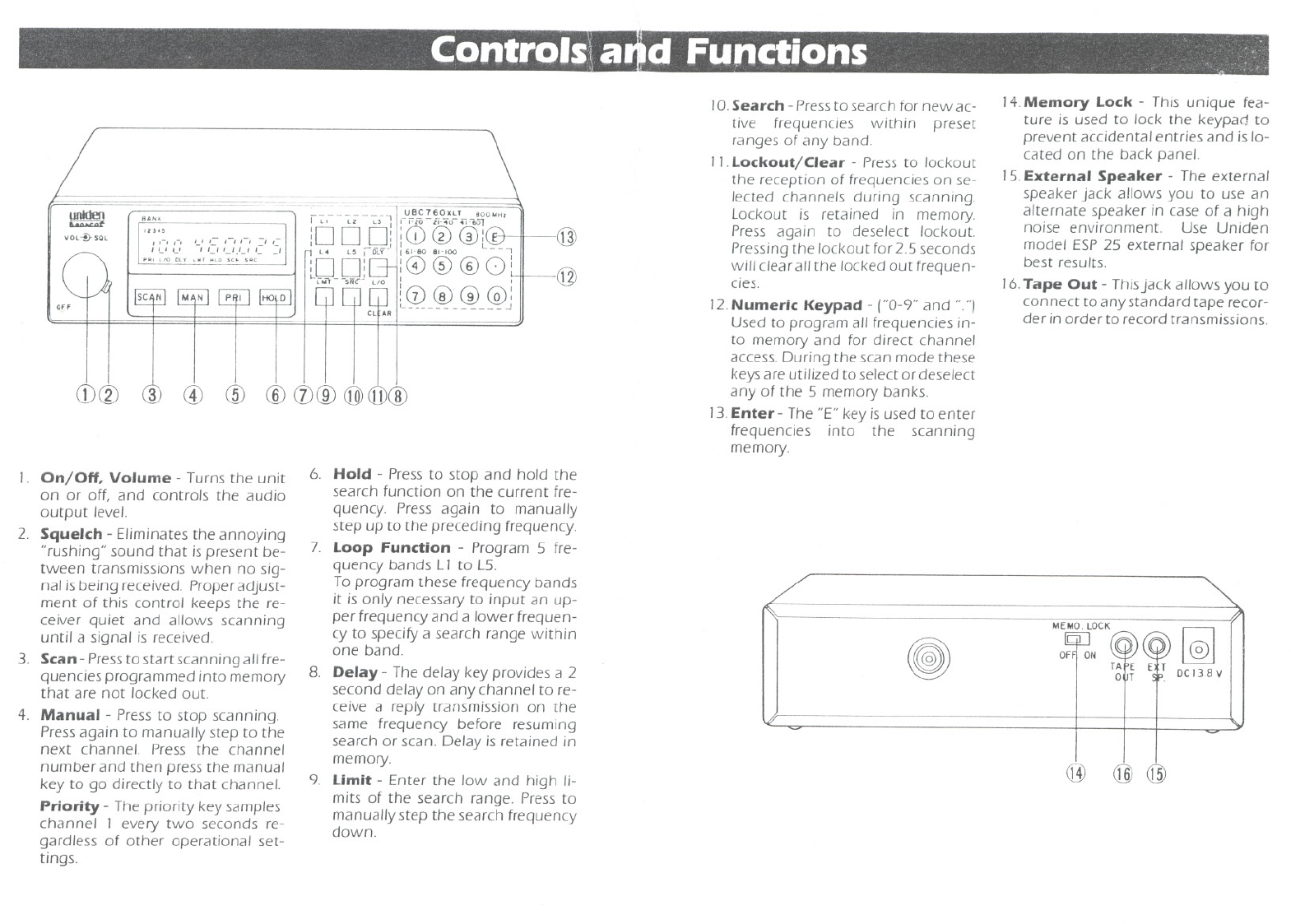

1. On/Off, Volume - Turns the unit
on or off, and controls the audio
output level.
2. Squelch - Eliminates the annoying
"rushing" sound that ispresent be-
tween transmissions when no sig-
nal isbeing received. Proper adjust-
ment of this control keeps the re-
ceiver quiet and allows scanning
until a signal is received.
3. Scan - Press to start scanning all fre-
quencies programmed into memory
that are not locked out.
4. Manual - Press to stop scanning.
Press again to manually step to the
next channel. Press the channel
number and then press the manual
key to go directly to that channel.
Priority -The priority key samples
channel 1 every two seconds re-
gardless of other operational set-
tings.
~~~-~~~~ ~---
~_m__~~~~---
10.Search - Press to search for new ac-
tive frequencies within preset
ranges of any band.
11.Lockout/Clear - Press to lockout
the reception of frequencies on se-
lected channels during scanning.
Lockout is retained in memory.
Press again to deselect lockout.
Pressing the lockout for2.5 seconds
will clear all the locked out frequen-
CIes.
12.Numeric Keypad - ("0-9" and "."J
Used to program all frequencies in-
to memory and for direct channel
access. During the scan mode these
keysare utilized to se'lect or deselect
any of the 5 memory banks.
13.Enter - The "E"key is used to enter
frequencies into the scanning
memory.
@
@
I
@ W@ @@@
6. Hold - Press to stop and hold the
search function on the current fre-
quency. Press again to manually
step up to the preceding frequency.
7. Loop Function - Program 5 fre-
quency bands L1 to L5.
Toprogram these frequency bands
it is only necessary to input an up-
per frequency and a lower frequen-
cy to specify a search range within
one band.
8. Delay - The delay key provides a 2
second delay on any channel to re-
ceive a reply transmission on the
same frequency before resuming
search or scan. Delay is retained in
memory.
9. Limit - Enter the Iow and high li-
mits of the search range. Press to
manually step the search frequency
down.
(@)
14.Memory Lock - This unique fea-
ture is used to lock the keypad to
prevent accidental entries and is lo-
cated on the back panel.
15.External Speaker - The external
speaker jack allows you to use an
alternate speaker in case of a high
noise environment. Use Uniden
model ESP 25 external speaker for
best results.
16.Tape Out - Thisjack allows you to
connect to any standard tape recor-
der in order to record transmissions.
OFAON
MEMO. LOCK
~
T DC 138 V
@@@
;"',;,'.',::::;:;.:,..,.;:".i;s,:,~::"'}:,\,"ii,:;i,',,;l:ji;)t:;,:';f('~" p
"" "" E
'"n',a-r .
" '
0
': "';;" N
"'" ",:",:"scc,'t:;':,
;i;,.?~;j1'~;";:",~t~('>'i;:~"~L;1,f~~;~., ,;;.,::!~:i!.!i ",";, "":.',,",",:!~iJ::l;.A'

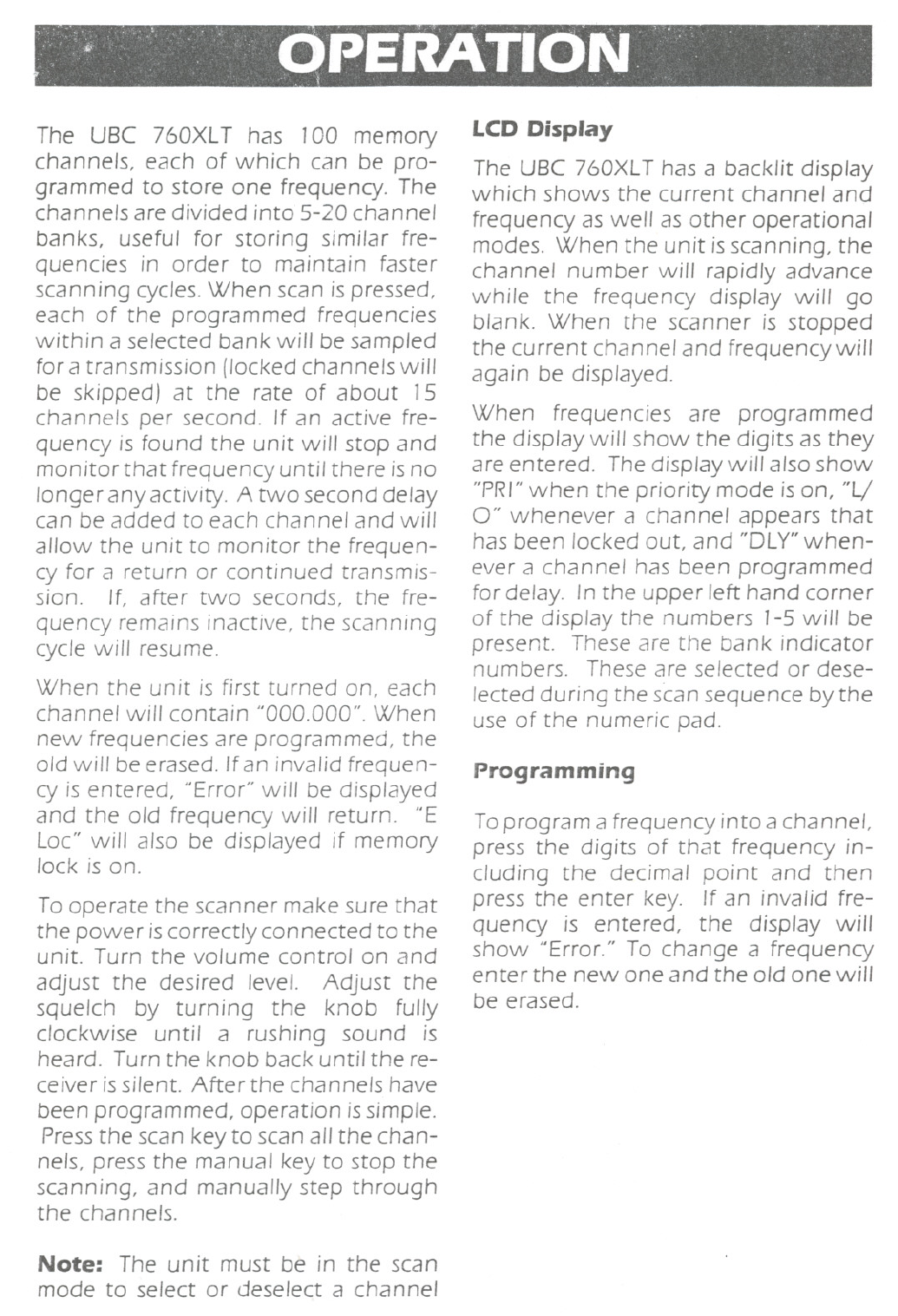

The USC 760XLT has 100 memory
channels, each of which can be pro-
grammed to store one frequency. The
channels are divided into 5-20 channel
banks, useful for storing similar fre-
quencies in order to maintain faster
scanning cycles. When scan ispressed,
each of the programmed frequencies
within a selected bank will be sampled
for a transmission (locked channels will
be skipped} at the rate of about 15
channels per second. If an active fre-
quency is found the unit will stop and
monitor that frequency until there isno
longer any activity. A two second delay
can be added to each channel and will
allow the unit to monitor the frequen-
cy for a return or continued transmis-
sion. If, after two seconds, the fre-
quency remains inactive, the scanning
cycle will resume.
When the unit is first turned on, each
channel will contain "000.000". When
new frequencies are programmed, the
old will be erased. Ifan invalid frequen-
cy is entered, "Error" will be displayed
and the old frequency will return. "E
Loc" will also be displayed if memory
lock is on.
To operate the scanner make sure that
the power iscorrectly connected to the
unit. Turn the volume control on and
adjust the desired level. Adjust the
squelch by turning the knob fully
clockwise until a rushing sound is
heard. Turn the knob back until the re-
ceiver issilent. After the channels have
been programmed, operation issimple.
Press the scan key to scan all the chan-
nels, press the manual key to stop the
scanning, and manually step through
the channels.
Note: The unit must be in the scan
mode to select or deselect a channel
LCDDisplay
The USC 760XLT has a backlit display
which shows the current channel and
frequency as well as other operational
modes. When the unit isscanning, the
channel number will rapidly advance
while the frequency display will go
blank. When the scanner is stopped
the current channel and frequency will
again be displayed.
When frequencies are programmed
the display will show the digits as they
are entered. The display will also show
"PRI"when the priority mode is on, "LI
0" whenever a channel appears that
has been locked out, and "DLY"when-
ever a channel has been programmed
for delay. In the upper left hand corner
of the display the numbers 1-5 will be
present. These are the bank indicator
numbers. These are selected or dese-
lected during the scan sequence by the
use of the numeric pad.
Programming
Toprogram a frequency into a channel,
press the digits of that frequency in-
cluding the decimal point and then
press the enter key. If an invalid fre-
quency is entered, the display will
show "Error." To change a frequency
enter the new one and the old one will
be erased.
."'~.i,:..,:,:';i'.~~';,~:'::)j;:"::'."".'.::::;:!":;'.:;,;~i;j'i,~~.'}""j,',
S
'" "": f!
"""'- E
""" """': e
": """"";;""'7' """""' .
;«\' , ';' ~
' """" I
""" m
:"'>'~: N
""><;:: 5
': """"""";':.",';,;':-..'.., "::"'"""':",,,'',';..>:;'/J.';.,:,..',:.:t.
'"",."<";,.;;.'"-,:",',,,,<,,,,,"c>"';,C;:',t/;, , "'.,",""" "' 1-=-1' "..:, ',' '" '," ",;i"",'"':"'",,,,'>',',,,,"',-',',",,",:;;;;
({~~;~;.~~';;;i',\~~J~t;~:'~~~!\~;,.,.::. :;;~.v.:';;;f:.~'.j:;" ;i~i", ;;,,~;;:,;', ..,,'ti:','";'!;";> ~";i; ,;..',/J.!~:.'(:..Ji;)~;$ii'i;.~i~~~~

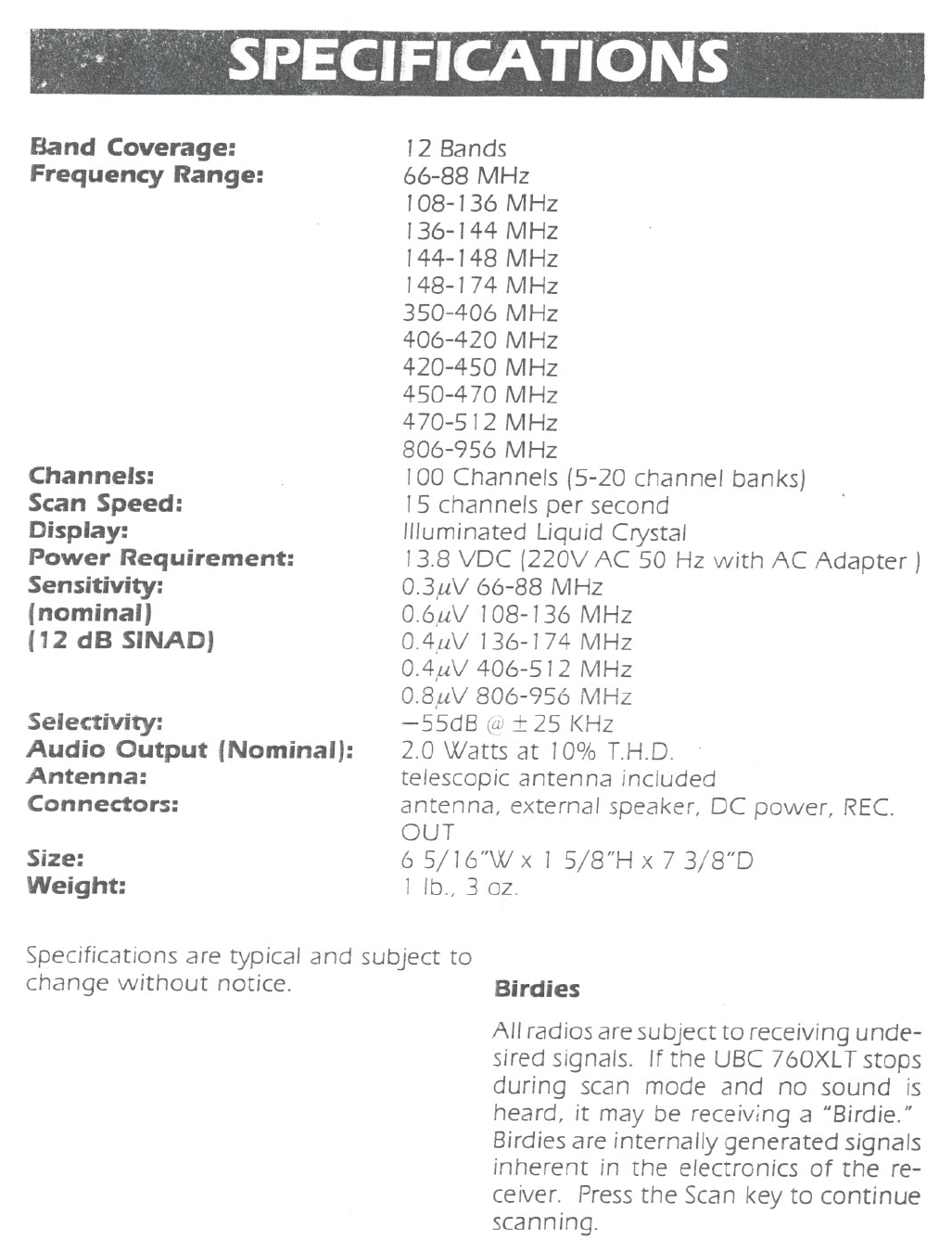

Band Coverage:
Frequency Range:
12 Bands
66-88 MHz
108-136 MHz
136-144 MHz
144-148 MHz
148-174 MHz
350-406 MHz
406-420 MHz
420-450 MHz
450-470 MHz
470-512 MHz
806-956 MHz
100 Channels (5-20 channel banks)
15 channels per second
Illuminated Liquid Crystal
13.8 VDC (220V AC 50 Hz with AC Adapter)
0.3/lV 66-88 MHz
0.6/lV 108-136 MHz
0.4uV 136-174 MHz
I
0.4/lV 406-512 MHz
0.8fiV 806-956 MHz
-55dB @+ 25 KHz
2.0 Watts at 100/0 T.H.D. '
telescopic antenna included
antenna, external speaker, DC power, REC.
OUT
6 5/ 16"W x 1 5/8"H x 7 3/8"0
1 lb., 3 oz.
Channels:
Sean Speed:
Display:
Power Requirement:
Sensitivity:
(nominalJ
(12 dB SINADJ
Selectivity:
Audio Output (Nominal J:
Antenna:
Connectors:
Size:
Weight:
Specifications are typical and subject to
change without notice. Birdies
All radios are subject to receiving unde-
sired signals. If the UBC 760XLT stops
during scan mode and no sound is
heard, it may be receiving a "Birdie."
Birdies are internally generated signals
inherent in the electronics of the re-
ceiver. Press the Scan key to continue
scannIng.
"0" "" , '" .
()f'E

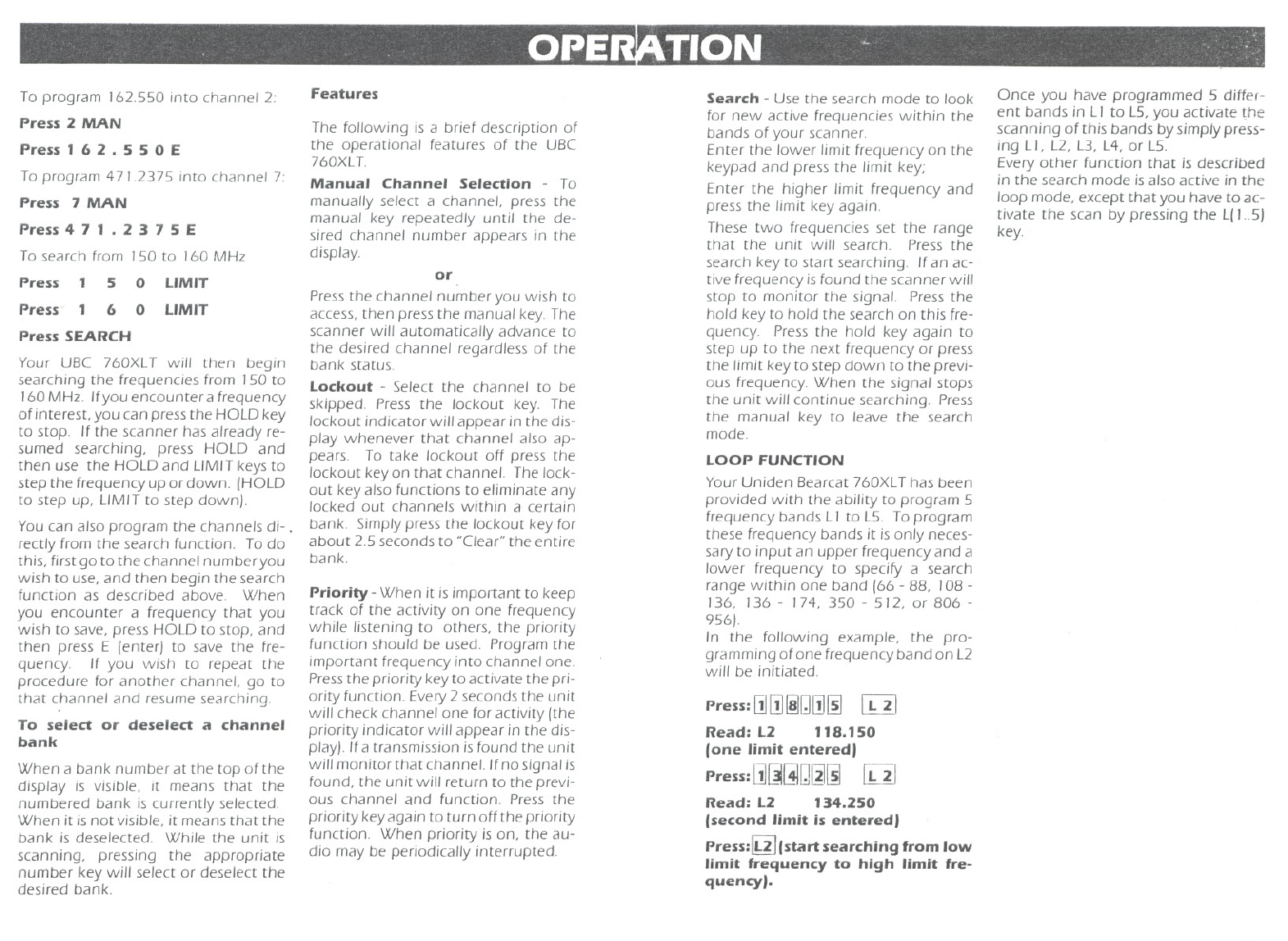

To program 162.550 into channel 2:
Press 2 MAN
Press 1 6 2 .5 5 0 E
To program 47 J.2375 into channel 7:
Press 7 MAN
Press 4 7 1 .2 3 7 5 E
To search from J50 to J60 MHz
Press
Press
1
1
5
6
0
0
LIMIT
LIMIT
Press SEARCH
Your UBC 760XLT will then begin
searching the frequencies from J50 to
J60 MHz. Ifyou encounter a frequency
of interest, you can press the HOLDkey
to stop. If the scanner has already re-
sumed searching, press HOLD and
then use the HOLD and LIMITkeys to
step the frequency up or down. (HOLD
to step up, LIMITto step down).
Youcan also program the channels di- .
rectly from the search function. To do
this, firstgo to the channel numberyou
wish to use, and then begin the search
function as described above. When
you encounter a frequency that you
wish to save, press HOLDto stop, and
then press E (enter) to save the fre-
quency. If you wish to repeat the
procedure for another channel, go to
that channel and resume searching.
To select or deselect a channel
bank
When a bank number at the top of the
display is visible, it means that the
numbered bank is currently selected.
When it is not visible, it means that the
bank is deselected. While the unit is
scanning, pressing the appropriate
number key will select or deselect the
desired bank.
Features Search - Use the search mode to look
for new active frequencies within the
bands of your scanner.
Enter the lower limit frequency on the
keypad and press the limit key;
Enter the higher limit frequency and
press the limit key again.
These two frequencies set the range
that the unit will search. Press the
search key to start searching. Ifan ac-
tive frequency isfound the scanner will
stop to monitor the signal. Press the
hold key to hold the search on this fre-
quency. Press the hold key again to
step up to the next frequency or press
the limit key to step down to the previ-
ous frequency. When the signal stops
the unit will continue searching. Press
the manual key to leave the search
mode.
The following is a brief description of
the operational features of the UBC
760XLT.
Manual Channel Selection - To
manually select a channel, press the
manual key repeatedly until the de-
sired channel number appears in the
display.
or
Press the channel number you wish to
access, then press the manual key. The
scanner will automatically advance to
the desired channel regardless of the
bank status.
Lockout - Select the channel to be
skipped. Press the lockout key. The
lockout indicator will appear in the dis-
play whenever that channel also ap-
pears. To take lockout off press the
lockout keyon that channel. The lock-
out key also functions to eliminate any
locked out channels within a certain
bank. Simplypress the lockout key for
about 2.5 seconds to "Clear" the entire
bank.
LOOP FUNCTION
YourUniden Bearcat 760XLT has been
provided with the ability to program 5
frequency bands LJ to L5. Toprogram
these frequency bands it is only neces-
sary to input an upper frequency and a
lower frequency to specify a search
range within one band (66 - 88, J08 -
136, J36 - J74, 350 - 5 J2, or 806 -
956).
In the following example, the pro-
gramming ofone frequency band on L2
will be initiated.
Priority - When it is important to keep
track of the activity on one frequency
while listening to others, the priority
function should be used. Program the
important frequency into channel one.
Pressthe priority key to activate the pri-
ority function. Every2 seconds the unit
will check channel one for activity Ithe
priority indicator willappear in the dis-
play). Ifa transmission is found the unit
will monitor that channel. Ifno signal is
found, the unit will return to the previ-
ous channel and function. Press the
priority keyagain to turn off the priority
function. When priority is on, the au-
dio may be periodically interrupted.
Press: [!J[j]1iIG1[j]/j] ~
Read: L2 118.150
(one limit entered)
Press: l]~~Q~[j] IL 21
Read: L2 134.250
(second limit is entered)
press:IL21(start searching from Iow
limit frequency to high limit fre-
quency).
Once you have programmed 5 differ-
ent bands in L1to LS,you activate ~he
scanning of this bands by simply press-
ing LJ, L2, L3, L4, or LS.
Every other function that is described
in the search mode isalso active in the
loop mode, except that you have to ac-
tivate the scan by pressing the L(1..5)
key.

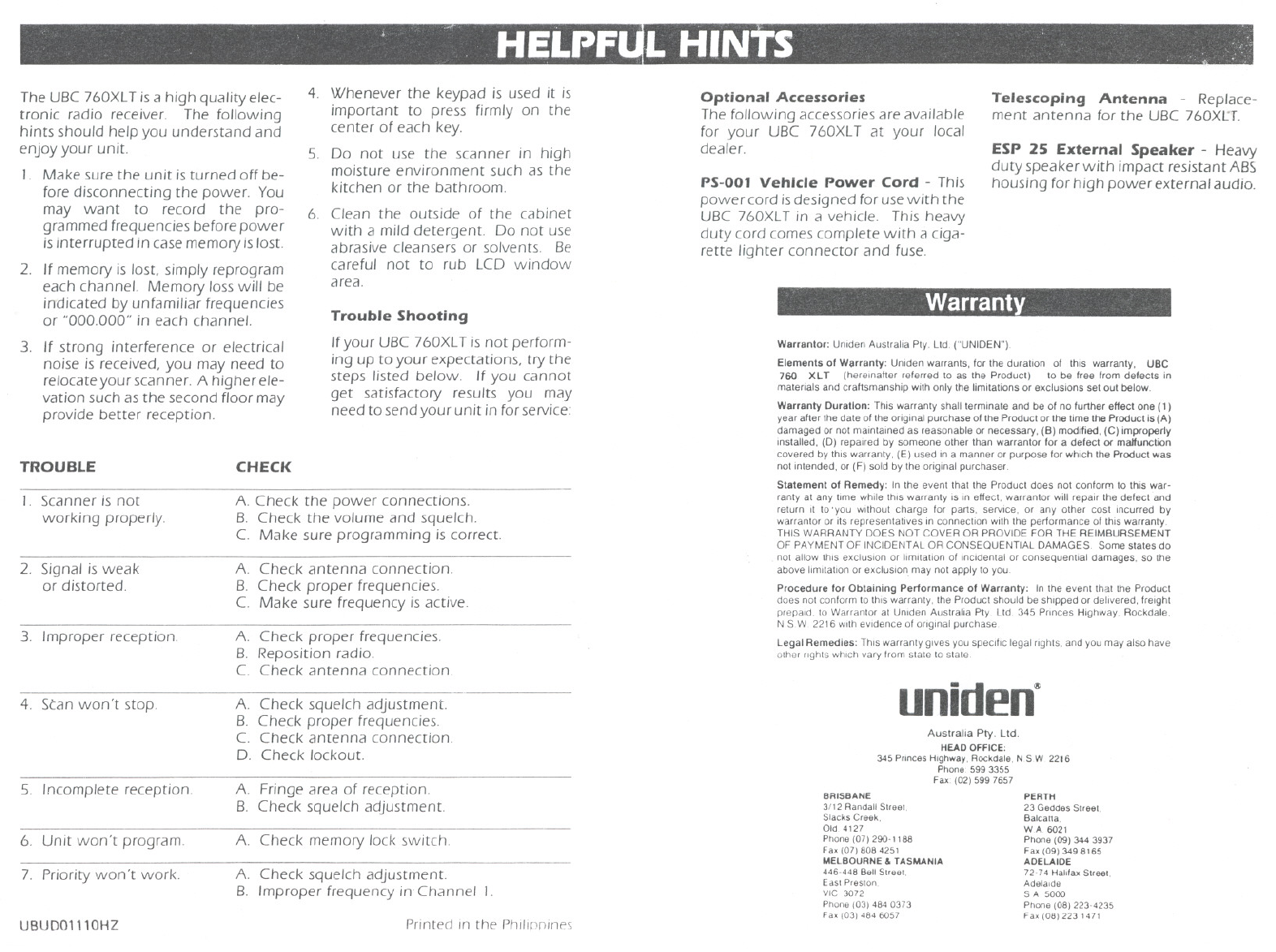

.HEI.PF
The UBC760XLT isa high quality elec-
tronic radio receiver. The following
hints should help you understand and
enjoy your unit.
J. Make sure the unit is turned off be-
fore disconnecting the power. You
may want to record the pro-
grammed frequencies before power
isinterrupted in case memory islost.
2. Ifmemory is lost, simply reprogram
each channel. Memory loss will be
indicated by unfamiliar frequencies
or "000.000" in each channel.
3. If strong interference or electrical
noise is received, you may need to
relocate your scanner. A higher ele-
vation such as the second floor may
provide better reception.
TROUBLE CHECK
l.iHI'l\In."
4. Whenever the keypad is used it is
important to press firmly on the
center of each key.
5. Do not use the scanner in high
moisture environment such as the
kitchen or the bathroom.
6. Clean the outside of the cabinet
with a mild detergent. Do not use
abrasive cleansers or solvents. Be
careful not to rub LCD window
area.
Optional Accessories
The following accessories are available
for your UBC 760XLT at your local
dealer.
Telescoping Antenna - Replace-
ment antenna for the UBC 760XlT
ESP 25 External Speaker -Heavy
dutyspeakerwith impactresistantABS
housing forhigh powerexternalaudio.
PS-OO1Vehicle Power Cord - This
power cord isdesigned for use with the
UBC 760XLT in a vehicle. This heavy
duty cord comes complete with a ciga-
rette lighter connector and fuse.
warranty,.:...,
Trouble Shooting
Ifyour UBC 760XLT is not perform-
ing up to your expectations, try the
steps listed below. If you cannot
get satisfactory results you may
need to send your unit in forseNice:
Warrantor: Unlden Australia Pty. Ltd. ("UNIDEN").
Elements of WClrranty:Uniden warrants, for the duration of this warranty, USC
760 XLT (hereinafter referred to as the Product) to be free from defects in
materials and craftsmanship withonly the limitationsor exclusions set out below.
Warranty Duration: This warranty shall terminate and be of no further effect one (1)
year after the date of the originalpurchase of the Product or the time the Product is (A)
damaged or not maintained as reasonable or necessary, (B) modified, (C) improperly
installed, (D) repaired by someone other than warrantor for a defect or malfunction
covered by this warranty, (E) used in a manner or purpose for which the Product was
not intended, or (F) sold by the originalpurchaser.
Statement of Remedy: In the event that the Product does not conform to this war-
ranty at any time while this warranty is in effect, warrantor willrepair the defect and
return it to 'you without charge for parts, service, or any other cost incurred by
warrantor or its representatives in connection withthe performance of this warranty.
THISWARRANTYDOES NOT COVEROR PROVIDEFOR THE REIMBURSEMENT
OF PAYMENTOF INCIDENTALOR CONSEQUENTIALDAMAGES, Some states do
. not allow this exclusion or limitationof incidental or consequential damages. so the
above limitationor exclusion may not apply to you.
Procedure for Obtaining Performance of Warranty: In the event that the Product
does not conform to this warranty, the Product should be shipped or delivered, freight
prepaid, to Warrantor at Uniden Australia Pty. Lld. 345 Princes Highway,Rockdale,
NSW 2216 withevidence of original purchase
LegalRemedies:Thiswarrantygivesyouspecificlegalrights,andyoumayalsohave
otherrights which varyfrom stateto state.
J. Scanner is not
working properly. A. Check the power connections.
B. Check the volume and squelch.
C. Make sure programming is correct.
2. Signal is weak
or distorted. A. Check antenna connection.
B. Check proper frequencies.
C. Make sure frequency is active.
3. Improper reception. A. Check proper frequencies.
B. Reposition radio.
C. Check antenna connection.
4. Scan won't stop. uniden~
A. Check squelch adjustment.
B. Check proper frequencies.
C. Check antenna connection.
D. Check lockout.
Australia Ply. Ltd.
HEAD OFFICE:
345 Princes Highway, Rockdale, NSW 2216
Phone 599 3355
Fax (02) 599 7657
5. Incomplete reception. A. Fringe area of reception.
B. Check squelch adjustment.
Printed In the Philipnines
BRISBANE
3/12 Randall Street.
Slacks Creek,
Old. 4127
Phone (07)290-1188
Fax (07) 808 4251
MELBOURNE & TASMANIA
446-448 Bell Street,
East Preston.
VIC 3072
Phone (03) 484 0373
Fax (03) 484 6057
PERTH
23 Geddes Street,
Balcana.
WA 6021
Phone (09) 344 3937
Fax (09) 349 8165
ADELAIDE
72-74 Halifax Street,
Adelaide
SA 5000
Phone (08) 223-4235
Fax (08) 2231471
6. Unit won't program. A. Check memory lock switch.
7. Priority won't work.
UBUDO1110HZ
A. Check squelch adjustment.
B. Improper frequency in Channel I.

Navigation menu
