UBC785XLT

SCANNER

1000 Channel

memory State of the art Base station scanner

UB343ZH_UBC785XLT_OM_0628 6/28/06 10:27 AM Page i

UB343ZH_UBC785XLT_OM_0622 6/22/06 3:01 PM Page ii

Contents

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Front and Rear View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

UBC785XLT SHORTCUTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Important Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Terminology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

What is Scanning? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

What is Searching? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Feature Highlights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Where to Obtain More Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Information on the Internet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Included with Your Scanner Package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Connecting an Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Mounting an Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Optional Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Typical Mounting Methods . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Mounting the Scanner in Your Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Applying Power for Vehicle Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Desktop Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Applying Power Using Standard AC Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Connecting an External Speaker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Connecting an Earphone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Listening Safely . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Connecting the Clone Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Connecting the Tape Recorder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Basic Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Turn the Scanner On . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Setting the Squelch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Understanding the Menu System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Menu Description and Numeric Keypad Equivalents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

Storing Frequencies into Channels in Menu Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

Deleting a Stored Frequency . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Editing a Stored Frequency . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Duplicate Frequency Alert . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Transfer Frequencies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

Storing Text Tags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

Beep Alert . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Programming Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Scanning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

Scan Hold Feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

RF Attenuation Feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

Setting the Delay Mode for Frequency . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

Channel Lockout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

Restoring a Locked-out Channel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

Restoring All Locked-out Channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

Priority Scan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

Changing the Priority Channel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

Prioroty Channel Plus Scan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

Searching . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Setting a Search Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Starting Chain Search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

Search Hold Feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

Data Skip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

Frequency Skip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

Storing Search Frequencies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

Auto Storing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

Squelch (SQ) Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

Additional Menu Options for Searching . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38

iii

UB343ZH_UBC785XLT_OM_0622 6/22/06 3:01 PM Page iii

Air Service Search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39

Using Aircraft Service Search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39

Air Service Search Skip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39

Changing the step . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39

Remote Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40

PC Control Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40

Clone Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

Additional Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44

Care and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48

Glossary of Terms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49

Declaration of Conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55

UB343ZH_UBC785XLT_OM_0622 6/22/06 3:01 PM Page iv

Introduction

The UBC785XLT is a state-of-the-art with automatic scanning capabilities. It can store

frequencies such as police, fire/emergency, marine, railroad, air, amateur, and other

communications into 10 banks of 100 channels for a total of 1000 channels.

Use your new scanner to monitor:

• Police and Fire Departments (including rescue and paramedics)

• Business/Industrial Radio

• Utilities

• Marine and Amateur (ham radio) Bands

• Air Band

• And much more...

The scanner has three band plans, which are useful for major regions in Europe.

To change the Band Plan, press and hold the band plan number 1, 2or 3while turning On

the scanner,

Note: This scanner remembers the last band plan.

The chart below identifies the scanner band numbers, the frequency range, the modulation

mode and the default step size settings.

1 25.0000 - 29.9950 FM 5

2 30.0000 - 79.9875 FM 12.5

3 80.0000 - 82.9900 FM 10

4 83.0000 - 87.2875 FM 12.5

5 87.3000 - 87.9500 WFM 50

6 88.0000 - 107.9500 WFM 50

7108.0000 - 136.9875 AM 12.5 / 8.33

108.0000 - 136.9916

8 137.0000 - 137.9950 FM 5

9 138.0000 - 157.9875 FM 12.5

10 158.0000 - 160.5900 FM 10

11 160.6000 - 162.5875 FM 12.5

12 162.6000 - 173.9900 FM 10

13 174.0000 - 215.9500 WFM 50

14 216.0000 - 224.9950 FM 5

15 225.0000 - 399.9500 AM 50

16 400.0000 - 405.9875 FM 12.5

17 406.0000 - 439.9937 FM 6.25

18 440.0000 - 465.9950 FM 5

19 466.0000 - 469.9900 FM 10

20 470.0000 - 512.0000 FM 6.25

21 806.0000 - 960.0000 FM 12.5

22 1240.0000 - 1300.0000 FM 12.5

No. Frequency Range (MHz) Mode Step (kHz)

UB343ZH_UBC785XLT_OM_0622 6/22/06 3:01 PM Page 1

1 25.0000 - 49.9950 FM 5

2 50.0000 - 84.0100 FM 5

3 84.0150 - 87.2950 FM 20 with

15kHz Offset

4 87.3000 - 107.9500 WFM 50

5108.0000 - 136.9875 AM 12.5

108.0000 - 136.9916 8.33

6 137.0000 - 143.9950 FM 5

7 144.0000 - 145.9875 FM 12.5

8 146.0000 - 155.9900 FM 10

9 156.0000 - 157.4250 FM 12.5

10 157.4375 - 160.5875 FM 12.5

11 160.6000 - 162.0250 FM 12.5

12 162.0300 - 173.9900 FM 10

13 174.0000 - 215.9500 WFM 50

14 216.0000 - 224.9950 FM 5

15 225.0000 - 399.9500 AM 50

16 400.0000 - 405.9875 FM 12.5

17 406.0000 - 439.9937 FM 6.25

18 440.0000 - 449.9937 FM 6.25

19 450.0000 - 469.9900 FM 10

20 470.0000 - 512.0000 FM 6.25

21 806.0000 - 960.0000 FM 12.5

22 1240.0000 - 1300.0000 FM 12.5

No. Frequency Range (MHz) Mode Step (kHz)

UB343ZH_UBC785XLT_OM_0622 6/22/06 3:01 PM Page 2

1 25.0000 - 29.9950 FM 5

2 30.0000 - 79.9937 FM 6.25

3 80.0000 - 82.9937 FM 6.25

4 83.0000 - 87.2937 FM 6.25

5 87.3000 - 87.9500 WFM 50

6 88.0000 - 107.9500 WFM 50

7108.0000 - 136.9875 AM 12.5

108.0000 - 136.9916 8.33

8 137.0000 - 137.9950 FM 5

9 138.0000 - 157.9937 FM 6.25

10 158.0000 - 160.5937 FM 6.25

11 160.6000 - 162.5937 FM 6.25

12 162.6000 - 173.9937 FM 6.25

13 174.0000 - 215.9500 WFM 50

14 216.0000 - 224.9950 FM 5

15 225.0000 - 399.9500 AM 50

16 400.0000 - 405.9875 FM 12.5

17 406.0000 - 439.9937 FM 6.25

18 440.0000 - 465.9937 FM 6.25

19 466.0000 - 469.9937 FM 6.25

20 470.0000 - 512.0000 FM 6.25

21 806.0000 - 960.0000 FM 12.5

22 1240.0000 - 1300.0000 FM 12.5

No. Frequency Range (MHz) Mode Step (kHz)

UB343ZH_UBC785XLT_OM_0622 6/22/06 3:01 PM Page 3

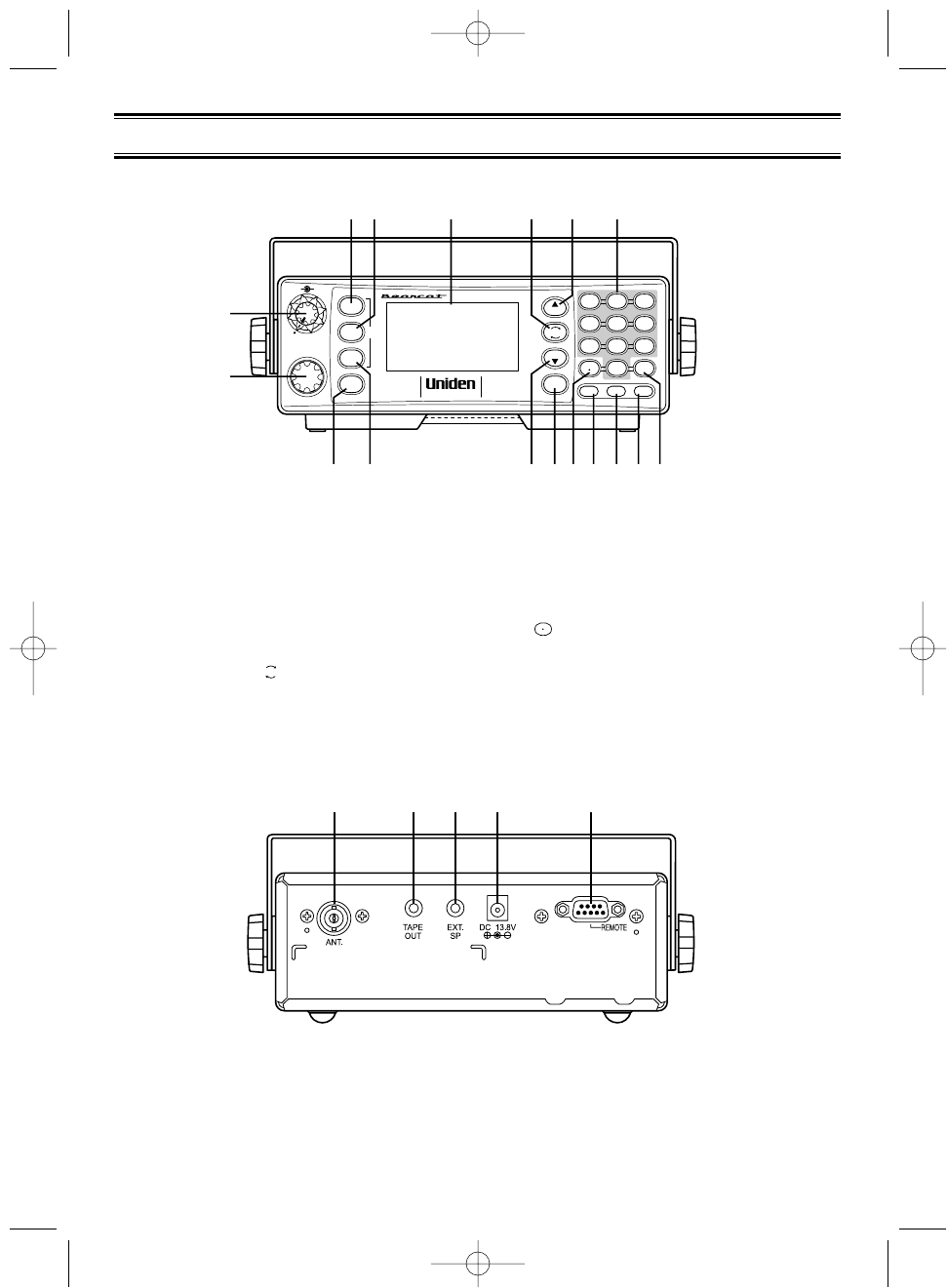

Front and Rear View

1. Volume/Squelch Control

2. VFO/Select

Channel/Frequency Control

3. Scan Key (SCAN)

4. Air Service Search Key (AIR)

5. Display

6. Resume Key ( )

7. Hold/Up/Manual Key (▲/HOLD)

8. Numeric Keypad

9. Menu/Back Key (MENU)

RSM

CHAN/FREQ

VFO/SELECT PUSH

SCAN

AIR

SRCH

VOL SQL

HOLD

LIMIT

RVRS

L/O PRI

TRNFR

MUTE

MANUAL

BACK

MODE

UBC785XLT

1000

CHANNEL

RSM

1-100

301-400

601-700

101-200

401-500

701-800

901-1000

201-300

501-600

801-900

SELECT

34 5 6 78

910 11 12 13 14 15 16 17

33. Antenna Connector

34. Tape Recorder Output Jack

35. External Speaker Jack

36. DC Power Jack

37. Remote Control Terminal

33 34 35 36 37

10. Search Key (SRCH)

11. Limit/Down Key (LIMIT/▼)

12. Reverse Key (RVRS)

13. Decimal Key

()

14. Lockout Key (L/O)

15. Priority Key (PRI)

16. Transfer/Mute Key (TRNFR)

17. Enter/Select Key (E)

UB343ZH_UBC785XLT_OM_0622 6/22/06 3:01 PM Page 4

Uniden®and Bearcat®are registered trademarks of Uniden

America Corporation.

DESCRIPTION

Priority Channel Indicator

Lock Out Mode Indicator

Scan/Search Direction Indicator

Chain Search Mode Indicator

Service Search Mode Indicator

Scan Mode Indicator

Receiving Mode Indicators

Signal Meter

ICON

L/O

SRCH

SRVC

SCAN

AM,FM

WFM,NFM

UB343ZH_UBC785XLT_OM_0622 6/22/06 3:01 PM Page 5

321 33 2

312

391

341

▲/HOLD ▲/HOLD

155 .

SCAN

MENU MENU

reenter

then by rotating the VFO control to

enter the text and using ▲/HOLD or

LIMIT/▼ to the move cursor.

After the text is entered, press

This shortcut card is designed to assist you in getting through the menu

screens using the direct entry mode for commonly used features. Please

read the manual thoroughly before using this card. Be sure to back out of

the menu screen after each shortcut by repeatedly pressing MENU or by

pressing SCAN or SRCH keys.

UBC785XLT SHORTCUTS

UB343ZH_UBC785XLT_OM_0622 6/22/06 3:01 PM Page 6

SRCH

1 2

12 2

3 5

2 2

select

speed

TRNFR

To silence the scanner's audio output,

set the scanner to "Mute On".

Press and hold .

Rotate the VFO control to enter the tag and

use ▲/HOLD or LIMIT/▼ to move the cursor

forward or back and then press .

Rotate the VFO control to enter the tag and

use ▲/HOLD or LIMIT/▼ to move the

cursor and then press .

after each Frequency

entered. To begin Searching between

the Range, press .

To program and control your scanner

remotely from a PC using Uniden’s

E-Scanner third party software, do the

following:

Press

UBC785XLT SHORTCUTS

UB343ZH_UBC785XLT_OM_0622 6/22/06 3:01 PM Page 7

Important Notice

•The installation, possession, or use of this scanning radio in a motor vehicle may be

prohibited, regulated, or require a permit in certain states, cities, and/or local jurisdictions.

Your local law enforcement officials should be able to provide you with information

regarding the laws in your community.

•Changes or modifications to this product are strictly prohibited or operation of this product

in any way other than as detailed by this Owner’s manual. Could void your authority to

operate this product.

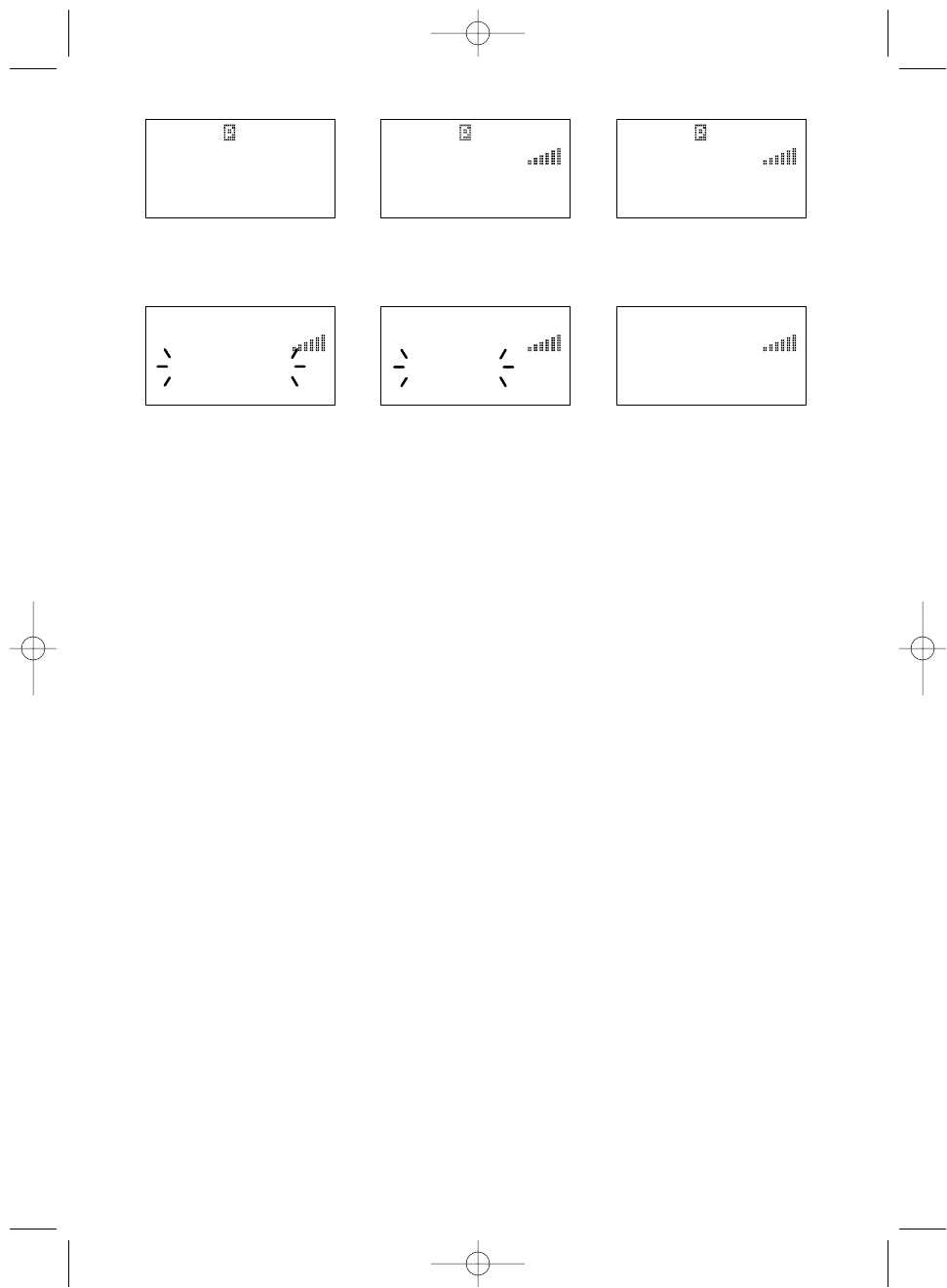

•The screen displays used in this manual are representations of what might appear when

you use your scanner.

UB343ZH_UBC785XLT_OM_0622 6/22/06 3:01 PM Page 8

Terminology

What is Scanning?

Unlike standard AM or FM radio stations, most two-way communications do not transmit

continuously. The UBC785XLT scans the Frequencies you have programmed into the

Scanner’s channels you program until it finds an active frequency.

Scanning stops on an active frequency and remains on that channel as long as the

transmission continues. When the transmission ends, the scanning cycle resumes until

another transmission is received.

What is Searching?

The UBC785XLT can search each of its 22 bands to find active frequencies. This is different

from scanning because you are searching for frequencies that have not been programmed

into your Scanner’s channels. The scanner automatically chooses between two speeds while

searching. Turbo Search can search the VHF FM bands at up to 300 steps per second

(while 5 kHz only).

UB343ZH_UBC785XLT_OM_0622 6/22/06 3:01 PM Page 9

Feature Highlights

•1000 Channels – Program one frequency into each channel. You must have at least one

channel programmed to use the Scan mode.

•22 Bands – Includes 22 bands, with aircraft and 800 MHz.

•25 MHz-1300 MHz – Indicates the range of frequencies that can be searched within the

bands of your scanner.

Note: The frequency coverage is not continuous and excludes 512-806 MHz and

960-1240 MHz.

•10 Priority Channels – You can assign one priority channel in each bank. Assigning a

priority channel allows you to keep track of activity on your most important channel(s)

while monitoring other channels for transmissions.

•Priority Plus Scan – Allows you to scan only priority channels.

•Air Band Service – Allows you to search the aircraft frequencies at the press of a button,

and to choice the step from 12.5 kHz or 8.33 kHz.

•Unique Data Skip – Allows your scanner to skip unwanted data transmissions and

reduces birdies.

•Memory Backup – If power is disconnected, the frequencies programmed in your scanner

are retained in memory.

•Direct Channel Access – Go directly to any channel without entering the Menu mode.

•Attenuator – Reduces the signal strength on a per frequency basis.

•Turbo Search – Increases the search speed to 300 steps per second. This applies only to

transmission bands with 5 kHz steps.

•Text Tags – You can customize your scanner by storing text tags (up to 16 characters).

•Auto Store – The scanner automatically stores found active frequencies into an assigned

bank.

•CTCSS/DCS – The scanner can receive and search for subaudible tones.

UB343ZH_UBC785XLT_OM_0622 6/22/06 3:01 PM Page 10

Where to Obtain More Information

Before using your scanner, you must program frequencies into available channels.

To obtain frequency information for your area, contact your local dealer:

Information on the Internet

If you have access to the internet, you may want to visit one of the following websites for

additional information:

www.racescanner.eu

UB343ZH_UBC785XLT_OM_0622 6/22/06 3:01 PM Page 11

Included with Your Scanner Package

If any of these items are missing or damaged, immediately contact your place of purchase.

• UBC785XLT Scanner

• AC Adapter (AD 773)

• Cigarette Cord

• DC Cord

• Mounting Bracket

• Telescopic Antenna

• Operating Guide

• Other Printed Material

UB343ZH_UBC785XLT_OM_0622 6/22/06 3:01 PM Page 12

Setup

Connecting an Antenna

You must install an antenna before you can operate the scanner. You have been provided a

standard telescopic antenna that works well with this scanner, but you may want to

purchases another type to increase the range. To connect the telescopic antenna, simply

connect it to the BNC type ANT. connector on the rear of the scanner. You can purchase a

variety of scanner antennas for both mobile and base station available at a local electronics

store. Choose the one that best meets your needs.

When deciding on a mobile or base station antenna and its location, consider these points.

•The antenna should be as high as possible on a vehicle or a house.

•The antenna and its cable should be as far as possible from sources of electrical noise

(ignition systems, gauges, and so on).

•The antenna should be vertical for the best performance.

Mounting an Antenna

Once you choose an antenna, follow the mounting instructions supplied with the antenna.

Then route the antenna cable to the scanner.

The antenna connector on your scanner makes it easy to use the scanner with a variety of

antennas, such as an external mobile antenna or an outdoor base station antenna.

Always use 50 ohm coaxial cable, such as RG-58 or RG-8, to connect an outdoor antenna.

For lengths over 50 feet, use RG-8 low-loss dielectric coaxial cable If your antenna’s cable

does not have a BNC connector, you will also need a BNC adapter (available at a local

electronics store).

Follow the Installation instructions supplied with the antenna, route the antenna cable to the

scanner, then connect it to the ANT. jack.

Warning: Use extreme caution when you install or remove an outdoor antenna. If the

antenna starts to fall, let it go! It could contact overhead power lines. If the

antenna touches a power line, contact with the antenna, mast, cable, or guy

wires can cause electrocution and death. Call the power company to remove

the antenna. DO NOT attempt to do it yourself.

Optional Antenna

If you have chosen an optional mobile antenna, connect the antenna plug into the ANT.

connector on the rear of the scanner. (For more information on antenna installation, please

refer to the instruction guide that came with your antenna.)

UB343ZH_UBC785XLT_OM_0622 6/22/06 3:01 PM Page 13

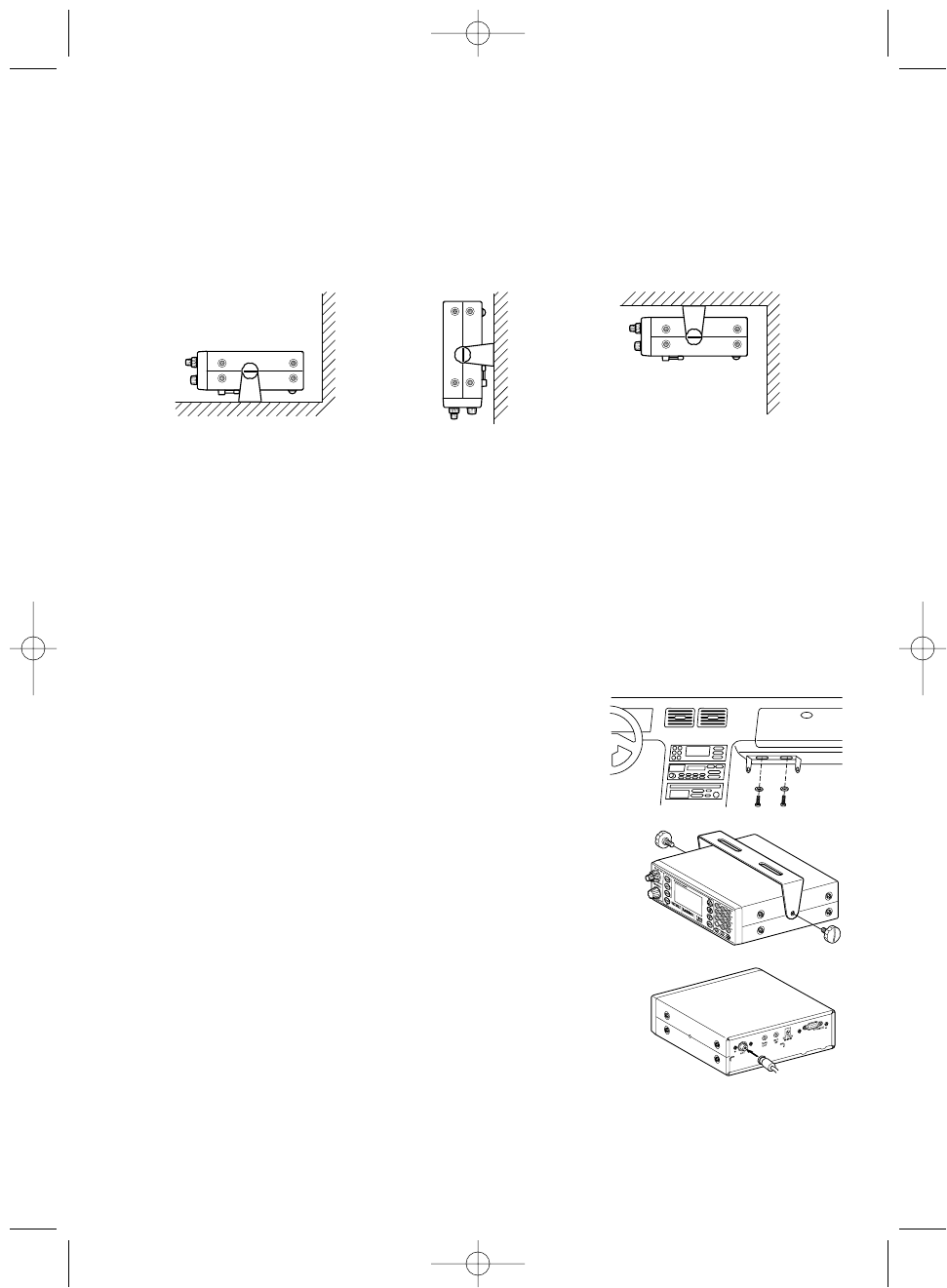

Typical Mounting Methods

The UBC785XLT can be conveniently mounted on a table, bulkhead, overhead, or any other

desired location (refer to figure below for typical mounting methods).

Caution: Make sure there are no hidden electrical wires or other items behind the desired

location before proceeding. Check that free access for mounting and cabling

is available.

Mounting the Scanner in Your Vehicle

Before you mount the scanner, make sure you have all the necessary materials. Then

confirm that the scanner fits your vehicle’s mounting area. This unit requires a mounting

area of 2-3/8 inch high by 6-15/16 inch wide by 6-9/16 inch deep (61 x 176.5 x 167 mm).

Caution: Be sure to avoid obstructions behind the mounting surface.

Follow these steps to mount the scanner in your vehicle.

1. Choose a mounting location, then use the supplied

mounting bracket as a template to mark the positions for

the mounting screw holes.

2. In the marked positions, drill holes slightly smaller than

the supplied screws.

3. Attach the mounting bracket to the mounting location

using the supplied screws and lock washers.

4. Attach the scanner to the mounting bracket using the

supplied mounting knobs.

5. Connect the antenna’s cable to the ANT. connector

on the back of the scanner.

Note: If the antenna cable’s connector does not fit in the ANT.

connector, you might also need a Motorola-to BNC

antenna plug adapter (available at a local

electronics store).

•Table top mount •Bulkhead mount •Overhead mount

UB343ZH_UBC785XLT_OM_0622 6/22/06 3:01 PM Page 14

Applying Power for Vehicle Installation

You can power your scanner using either the supplied DC power cord or your vehicle’s

cigarette lighter socket using DC cigarette lighter power cord.

Caution: You must use a power source that supplies 13.8 V DC and delivers at least

700 mA. Your standard 12 V car battery should be sufficient. The cord

connector’s center tip must be set to positive and its plug must fit the scanner’s

DC 13.8 V jack. The supplied DC power cord meets these specifications. Using a

power cord that does not meet these specifications could damage the scanner or

the adapter.

•Always connect the adapter or DC power cord to the scanner before you connect it to the

power source. When you finish, disconnect the adapter or DC power cord from the power

source before you disconnect it from the scanner.

•For added safety and to protect your scanner,

disconnect the cable from your vehicle battery’s

negative (-) terminal before you begin.

Follow these steps to connect the supplied DC power cord.

1. Connect the power cord’s black wire to a chassis ground, such as a metal screw

attached to a metal part of the vehicle’s frame. Be sure that the screw is not insulated

from the frame by a plastic part.

2. Connect the power cord’s red wire (with in-line fuse) to a source

of voltage that turns on and off with the ignition switch, such as

a spare accessory terminal in your vehicle’s fuse box.

3. Insert the power cord’s barrel plug into the DC 13.8 V jack

on the back of the scanner.

4. Reconnect the cable to the vehicle battery’s negative (-)

terminal.

To power the scanner from a vehicle’s 12 V power source

(such as a cigarette-lighter socket), you need a cigarette-lighter

adapter.

To connect an optional DC cigarette-lighter power cable, insert its barrel plug into the

DC 13.8 V jack on the back of the scanner, then plug the power cable into your vehicle’s

cigarette lighter socket.

Note: If you use a cigarette-lighter power cable and your vehicle’s engine is running, you

might hear electrical noise from the engine while scanning. This is normal.

UB343ZH_UBC785XLT_OM_0622 6/22/06 3:01 PM Page 15

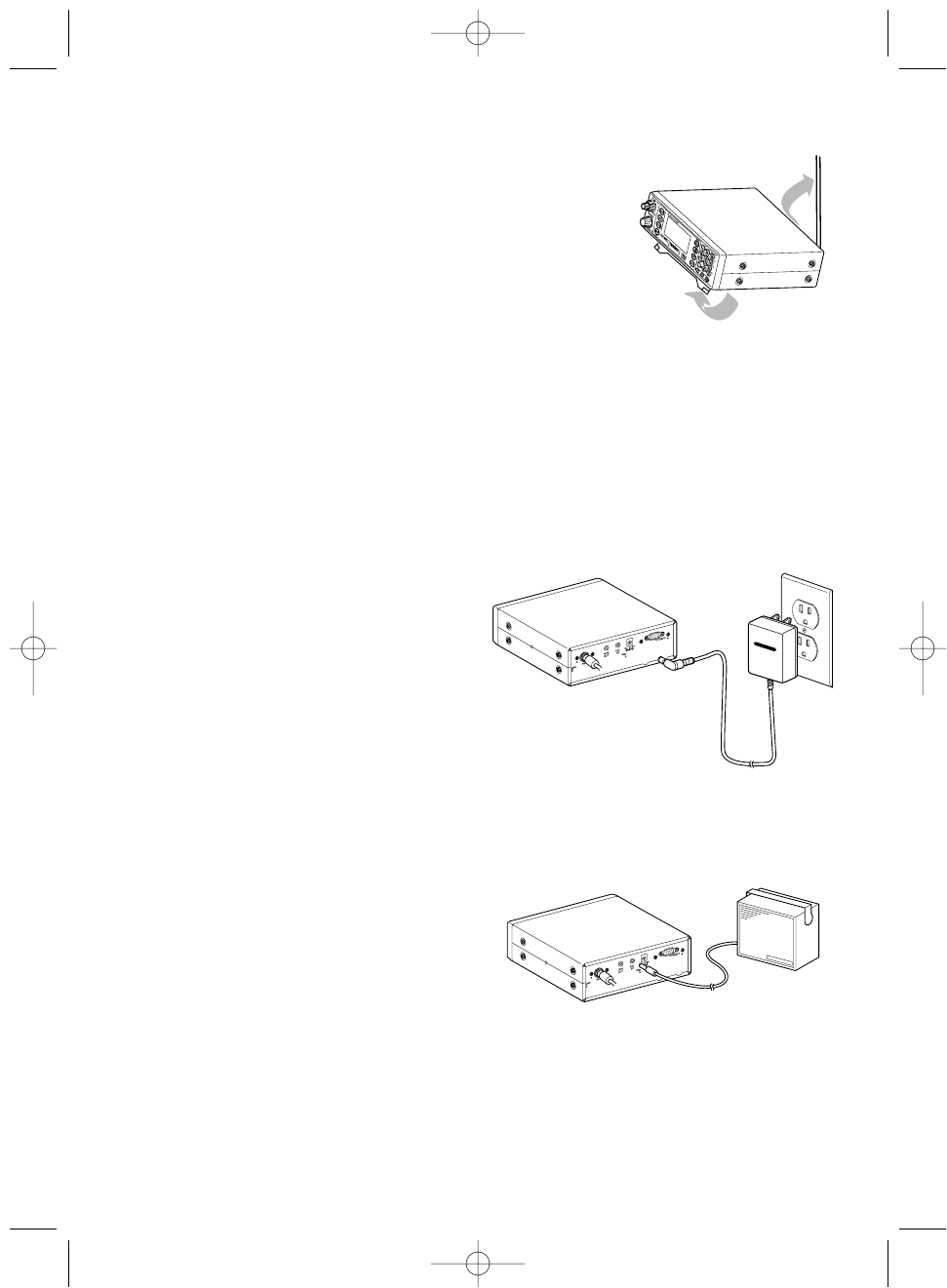

Desktop Installation

You can place this scanner on a desk, shelf, or table to use it as

a base station.

1. Flip up the feet for desk installation.

2. Extend the antenna to full vertical position.

Adjust the angle for best reception.

Applying Power Using Standard AC Power

To power the scanner from an AC outlet, use the provided AC adapter with a 5.5 mm outer

diameter/2.1mm inner diameter tip.

Caution: You must use a Class 2 power source that supplies 13.8 V DC and delivers at

least 700 mA. The cord connector’s center tip must be set to positive and its plug

must fit the scanner’s DC 13.8 V jack. Using an adapter that does not meet these

specifications could damage the scanner or the adapter.

•Always connect the AC adapter to the scanner before you connect it to AC power. When

you finish, disconnect the adapter from the AC power before you disconnect it from

the scanner.

1. Insert the adapter’s barrel plug into the DC

13.8 V jack on the back of the scanner.

2. Plug the adapter into a standard AC outlet.

Note: Use only the AC adapter supplied with

your scanner.

Connecting an External Speaker

In a noisy area, an external speaker (available at a local electronics store) positioned in the

right place might provide more comfortable listening.

Plug the speaker cable’s 1/8 inch (3.5 mm) plug into your scanner’s EXT. SP. jack.

Note: Connecting an external speaker

disconnects the scanner’s

internal speaker.

Connecting an Earphone

For private listening, you can connect an

earphone with a 1/8 inch (3.5 mm) plug to the

EXT. SP. jack on the back of the scanner. Be very careful as damage to your hearing

can result if the VOL control is not set to the lowest level first. See below for "Listening

Safely" instructions. (Your local electronics store should carry a wide selection of earphones.)

Once the earphone is connected, it will automatically disconnects the internal speaker.

13.8V

UB343ZH_UBC785XLT_OM_0622 6/22/06 3:01 PM Page 16

Listening Safely

To protect your hearing, follow these guidelines when you use an earphone or headphones.

•Do not listen at extremely high volume levels. Extended high volume listening can lead to

permanent hearing loss.

•Set the VOL to the lowest setting before you begin listening. After you begin listening,

adjust the VOL to a comfortable level.

•Once you set the VOL, do not increase it. Over time, your ears adapt to the volume level,

so a volume level that does not cause discomfort might still damage your hearing.

Connecting the Clone Cable

You can transfer the programmed data to and from another UBC785XLT scanner using a

RS232C Cable (9 pin to 9 pin) (not supplied). Connect the cable between each scanner’s

REMOTE jacks. See "Clone Mode" on page 41. You can also upload or download the

programmed data to or from a PC using an optional PC interface kit available through your

local electronics store.

Connecting the Tape Recorder

You can use a standard tape recorder or a VOX (Voice Operated Control) recorder. To

connect the recorder to the scanner, connect a cable with a 1/8 inch (3.5 mm) plug from the

tape recorder’s remote jack to the TAPE OUT jack on the back of the scanner. (Your local

electronics store should carry a wide selection of cables and tape recorders.) Refer to the

"Record" section under "Additional Features" in the manual.

Remember!

•You must mark a channel, ID, talkgroup, or bank for Recording in order for this feature to

work.

•This feature does not work if your scanner is set with MUTE ON.

UB343ZH_UBC785XLT_OM_0622 6/22/06 3:01 PM Page 17

Basic Operation

Turn the Scanner On

Turn the VOL control clockwise out of the detent position. The scanner automatically starts

scanning. Since there are no frequencies programmed in your scanner initially, you may not

receive any signals. Once you set the squelch and program some frequencies, you will be

hearing conversations regularly.

Setting the Squelch

To set the squelch, you must be in the hold mode, and you should not be receiving a signal

on your scanner.

1. Press ▲/HOLD until you do not hear a signal.

2. Make sure that the VOL is set to a comfortable

listening level.

3. Think of the Squelch Control as a gate.

Turn the SQUELCH control fully counter-clockwise.

This raises the "Squelch Gate" so high that only very strong

signals can get through.

4. Turn SQUELCH clockwise until you hear a hiss. This lowers the

"Squelch Gate" so that everything gets through – noise, weak

signals, medium signals and strong signals.

5. Turn SQUELCH back counter-clockwise just until the hiss stops.

Now the "Squelch Gate" allows only clear signals through.

STRONG SIGNALS

MEDIUM SIGNALS

WEAK SIGNALS

NOISE

STRONG SIGNALS

MEDIUM SIGNALS

WEAK SIGNALS

NOISE

STRONG SIGNALS

MEDIUM SIGNALS

WEAK SIGNALS

NOISE

UB343ZH_UBC785XLT_OM_0622 6/22/06 3:01 PM Page 18

Next you must program some frequencies (page 24). It is recommended that you read the

next part "Understanding the Menu System" because it will assist you in accessing and

understanding many of the features. Later in a section called "Additional Features", you will

find explanations on how to disable the keypad acknowledgement tones, to mute the audio,

to change the appearance of the display and other general features.

Understanding the Menu System

It is very important for you to understand the Menu screen. To navigate through the Menu

screen is really quite simple. Many of the features of this scanner, can only be accessed by

the Menu screens. There are several ways to get through the screens. First of all, press

MENU to get started. Anytime you want to exit this mode or simply quit from where you are,

repeatedly press MENU until the scanner returns to the original state or you can press

SCAN or SRCH to exit directly MENU MODE. Anytime you are in the Menu mode, the audio

will be muted.

To assist you in understanding the Menu screen, flow charts are provided towards the back

of the manual so you can follow along. Two things to remember are rotate the through the

menu and press Eor VFO to execute the command. For simplicity, we have chosen to

rotate the VFO control up or down in order to scroll through the menu and the Ekey for

entering or executing a command. Once you have pressed the Ekey and executed the final

choice (for instance, ON or OFF), the display backs up to the previous level of options.

Also direct entry of the numbers in the flow chart will get you through the screens, but the

other screen options are not visible. This method should be used only after you have gone

through the manual at least once. Tearout shortcut cards (see pages 4 and 5) are provided

to assist you in the direct entry method for commonly used features.

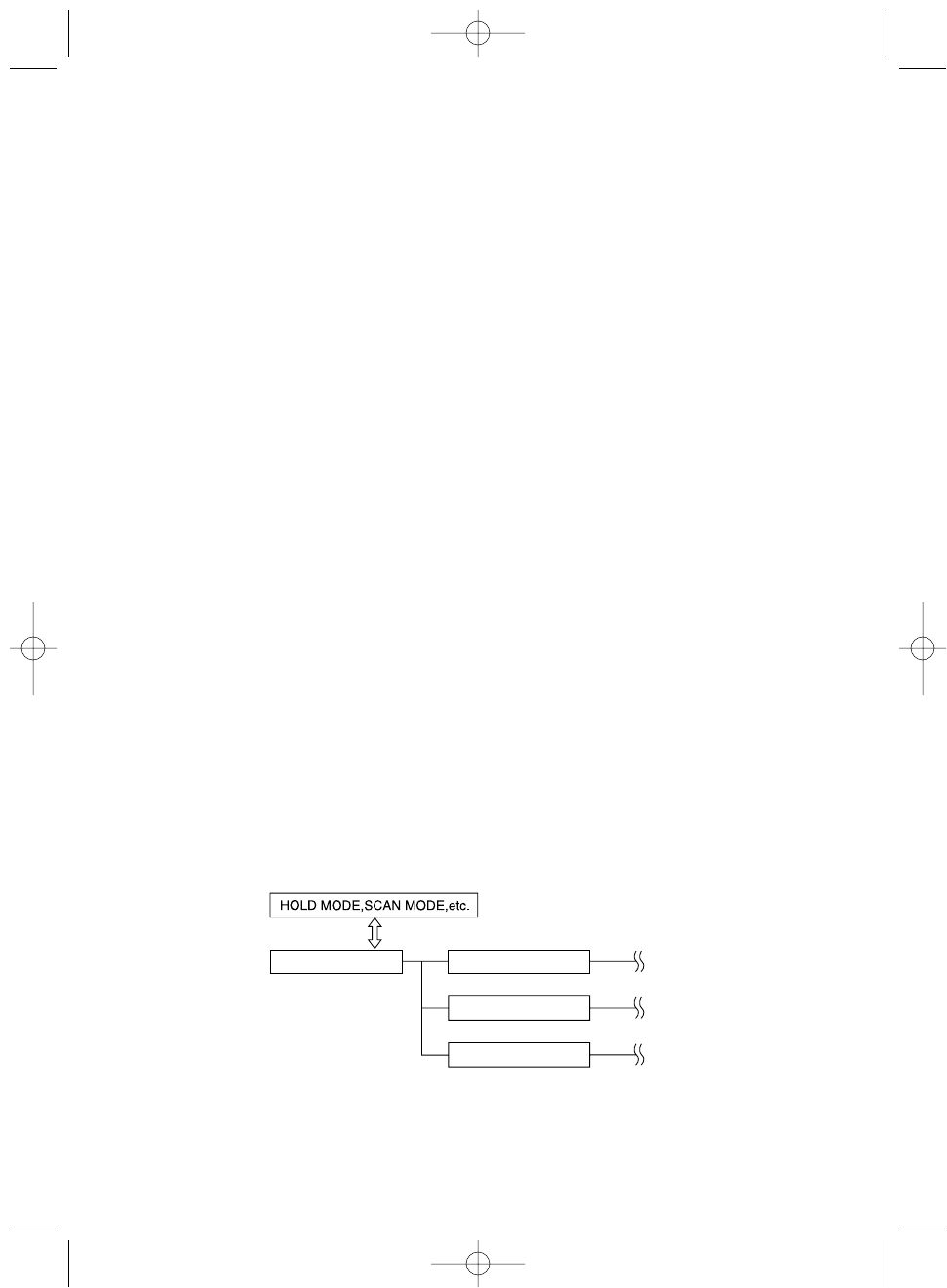

The illustration below shows the first level of the Menu screen. These levels are then

provided in a flow chart on pages 52 to 54. You will find a description section to explain the

meanings of these functions on the next pages. Then, you will be walked through all the

steps of programming, scanning and searching.

☞Hint: You can check the options you programmed on the display when you press and

hold MENU for 2 seconds in the following modes.

•Scan mode/Scan Hold mode.

•Chain Search mode/Chain Search Hold mode

1:SEARCH OPTION

2:SCAN OPTION

3:SYSTEM OPTION

MENU MODE

UB343ZH_UBC785XLT_OM_0622 6/22/06 3:01 PM Page 19

Menu Description and Numeric Keypad Equivalents

Below are the Menu screens and a brief description or purpose of the feature.

1:SEARCH OPTION

1:AIR STEP

You can select the air band step 12.5kHz or 8.33 kHz.

2:CHAIN SEARCH

1:CHAIN SEARCH

You need to turn Chain Search feature to ON if you use the Chain Search

feature.

2:SEARCH RANGE

You can program up to 10 search ranges. The first time you program a range

you will need to do so through the Menu. After the first time you can program

a range as you do on most any other scanner, using the numeric keypad, ▲,

▼and VFO control. Use this Menu item to select the search range that you

want to program.

You can program range 1 through 10, one at a time. For each of the ranges,

the following options can be modified.

1:RANGE

Enter the upper and lower frequency limits of the Search Range.

2:STEPS

You can assign a variety of step sizes to the search range.

Note: The default step is usually acceptable and is listed on page XX.

3:MODE

You can change the Auto receive mode to AM, FM, WFM and NFM.

4:ALPHA TAG

You can name to each channels and banks with up to 16 charactors.

3:DELAY

Set the delay for the search ranges. This applies to all the ranges (See

CHANNEL DATA-STEPS).

4:ATTENUATOR

If you are near an signal source which emits unusually strong signal, the

scanner may be overloaded with its signal. Once overloaded, the scanner

may keep stopping on that signal and miss other transmissions.

UBC785XLT comes with an RF Attenuation feature. It attenuates (reduces)

the strength of a incoming signal in all modes to prevent stronger signals from

overloading the scanner.

5:TONE DATA

The default mode is OFF. This means that you will receive all transmissions

on any frequencies that are active within your search range(s). By selecting

CTCSS (analog) or DCS(digital) subaudible tone you can set the radio to

receive only a particular subaudible tone to be received during your search.

You can also lockout a particular subaudible tone. You may wish to do this if

you want to search a range but not hear transmissions on any frequency that

has a particular subaudible tone.

UB343ZH_UBC785XLT_OM_0622 6/22/06 3:01 PM Page 20

Note: Through the System Menu you can set the radio to operate in Tone

Search mode during Search as well. In this mode, the radio will

automatically determine the active subaudible tone on any frequency

received during the search.

6:RECORD

With this feature set to on, any frequency that is active during the search, can

be recorded to an external tape recorder.

7:AUTO STORE

You can automatically store the active frequencies found during a search into

the memory. You can select the bank to program. The audio will be muted.

2:SCAN OPTION

1:FREQUENCY

Allows you to program a frequency to a memory channel or edit the frequencyl

already programmed. You can also set an alphanumeric text tag (alpha tag) for each

programmed frequencies.

2:DELAY

You can set delay for the memory channel. The default delay is two seconds.

3:TONE DATA

You can set a CTCSS (analog) or DCS (digital) subaudible tone for a frequency. To

do so you must have the SQ Mode in the System Menu set to Tone SQ. You can

also program a subaudible tone easily by pressing the Ekey in Scan Hold mode after

programming a frequency. This will bring up the Tone Data menu without having to

navigate the Menu. By doing this you will receive all transmissions on the frequency,

regardless of the subaudible tone, except the one which you have locked. Any

transmissions with that tone will not be received.

4:BEEP ALERT

You can set a Beep Alert per channel to alert you when specific frequencies are

active. For example, you may wish to be alerted anytime a mutual aid fire frequency

is active. With Beep Alert, you will hear three beeps at the start of each transmission

that you have flagged as such. You will also notice that as you scroll pass the flagged

channel(s), you will hear three beeps.

5:ATTENUATOR

See 1: SEARCH OPTION/ 2:CHAIN SERACH/ 4:ATTENUATOR.

6:STEPS

Your UBCD785D is programmed with default step sizes for each frequency range

(see page 1). Steps are important if you are interested in using the VFO to tune off

from a frequency programmed into memory or if you wish to program a frequency

that the default step size will not accept.

7:MODE

Default Auto receive modes are also programmed into memory. AM for aircraft for

example. You can change the default settings on a per-channel basis with this Menu

item.

UB343ZH_UBC785XLT_OM_0622 6/22/06 3:01 PM Page 21

8:RECORD

You can flag any channel for recording using this menu function. Use your own

recording device plugged into the jack on the back of the scanner.

3:SYSTEM OPTION

1:DIMMER

Allows you to change the brightness of the display.

2:SCREEN MASK

Screen Mask allows you to limit what appears on the display to the alpha tags that

you have set for a channel along with a few function icons. Screen Mask removes the

frequency, receiving mode tone data and signal strength bars. This mode is

particularly useful in public safety vehicles where "information overload" is already a

problem. Screen Mask does not work in Search mode.

3:KEY BEEP

Use this function to turn OFF the keypad acknowledgement beep. The default setting

is ON.

4:ENTER LOCK

Use Enter Lock to prevent accidental re-programming of channels, tone

(CTCSS/DCS) and talk groups entered into memory. The default setting is OFF.

5:PC CONTROL

Use this function to set the transfer speed (baud rate) at which your personal

computer (PC) communicates with the scanner when downloading information into

your scanner using Uniden E-Scanner software. See page 40 for details.

6:CLONE

You can clone all the programming, including frequencies and alpha tags as well as

bank settings and other parameters from another UBC785XLT.

7:DATA SKIP

A scanner will normally stop on any transmission it receives. This means the

UBCD785D will occasionally stop on data signals and unmodulated transmissions.

You can automatically skip many of these types of transmissions during search.

8:SQ MODE

The SQ Mode allows you to set at your option, whether the scanner will stop on all

active transmissions on a particular frequency or it will only respond to transmissions

with a pre-set subaudible tone. This applies to both Conventional Search and Scan

modes. The options are as follows:

UB343ZH_UBC785XLT_OM_0622 6/22/06 3:01 PM Page 22

1. CSQ - The default setting is CSQ (carrier squelch). In this mode the scanner will

stop on any transmission on a programmed frequency.

2. TONE SQ - In Tone Squelch mode, if you have set a subaudible tone for a

frequency, the scanner will only stop on that frequency if the transmission

includes the prescribed tone.

3. TONE SEARCH - In this mode, as soon as the scanner stops on any channel,

the scanner will begin to search for any subaudible tone that is being used on a

transmitted frequency. The scanner will check each CTCSS tone sequentially

and it will find DCS tones instantly.

9:BANK TAG

Allows you to set an alphanumeric text tag for individual banks in the scanner (1-10).

(The "0" key represents Bank number 10.) For example, you may wish to set the

Bank one text tag as Law Enforcement, the second bank as Fire, etc.

UB343ZH_UBC785XLT_OM_0622 6/22/06 3:01 PM Page 23

Programming

Before the UBC785XLT can begin conventional scanning, you must program a frequency

into at least one channel.

Repeat this procedure for each channel you want to program.

Storing Frequencies into Channels in Menu Mode

1. Prepare frequencies you received from your dealer or from various sources on the

internet.

2. Press MENU.

3. Select 2:SCAN OPTION by rotating the VFO and pressing E.

4. Enter the channel number using the keypad, then press E.

5. Select 1:FREQUENCY by rotating the VFO and pressing E.

Then enter the frequency.

6. Enter the alpha tag and press E.

(See page 26.)

7. The following display appears. Select the action by rotating

VFO, then press E.

If you want to program other channel,

select 1:OTHER CHANNEL.

If you want to set other settings for this channel,

select 2: CHANNEL OPTION.

If you want to exit the menu, select 3:DONE.

☞Remember! You can also use ▲or ▼instead of rotating the VFO.

Also instead of pressing E, you can press the VFO control.

1:OTHER CHANNEL

2:CHANNEL OPTION

3:DONE

C 001

855.0000 FM

ALPHA TAG

C 001

1:FREQUENCY

2:DELAY

3:TONE DATA

C 001

855.0000 FM

ENTER CHANNEL No

UB343ZH_UBC785XLT_OM_0622 6/22/06 3:01 PM Page 24

Note: •You can also ▲or ▼when selecting a channel. Press and hold ▲or ▼for

1second to move up/down more quickly.

•To clear a mistake while entering the frequency, press (decimal key) repeatedly

until the display is cleared.

•If you enter a channel or frequency which is out of the

scanner’s range, a beep will sound and ERROR

appears on the display.

•For each channel, you can also change the step size or

the mode. (See page 53).

Deleting a Stored Frequency

1. Press MENU.

2. Select 2:SCAN OPTION by rotating the VFO and

pressing E.

3. Select the channel number you want to edit by rotating the

VFO and pressing E.

4. Select 1:FREQUENCY using the keypad and pressing E.

5. Press 0and pressing E.

☞Remember! You can also use ▲or ▼instead of rotating the VFO.

Also instead of pressing E, you can press the VFO control.

Note: Channels with no frequencies are automatically

locked out.

Editing a Stored Frequency

1. Press MENU.

2. Select 2:SCAN OPTION by rotating the VFO and pressing E.

3. Select the channel number you want to edit using the keypad and pressing E.

4. Select 1:FREQUENCY by rotating the VFO and pressing E.

5. Enter a frequency by using (decimal key) and the keypad and pressing E.

☞Remember! You can use ▲or ▼instead of rotating the VFO.

Also instead of pressing E, you can press the VFO control.

Duplicate Frequency Alert

If you enter a frequency which has been stored in other channel,

you will hear a beep and the scanner displays WARNING.

Press (decimal key) to enter a different frequency.

––– OR –––

Press Eagain to store the frequency in both channels.

C 010

512.0000 FM

ERROR

OUT OF CHANNEL

C 010

512.0000 FM

ERROR

OUT OF BAND

C 010

512.0000 FM

WARNING

DUPLICATE 017

C1000

0000.0000

UB343ZH_UBC785XLT_OM_0622 6/22/06 3:01 PM Page 25

Transfer Frequencies

You can transfer a frequency that has been stored in a channel to another channel.

1. Press ▲/HOLD.

2. Press TRNFR, and the smallest empty channel number along with the frequency will

flash on the display.

If you want to transfer the frequency to other channel, select the channel by rotating the

VFO or using ▲or ▼and pressing E.

3. Press Eand the frequency can be stored in this channel.

Note: When the frequency is transferred, channel data (alpha tag, mode, attenuator, beep

alert and tone data) are also transferred.

Storing Alpha Tags

You can customize your scanner by storing text tags for easy identification of banks, channel

transmissions. The text tags can be set at the Menu mode. (Refer to “Understanding the

Menu System” on page 19.)

Assigning a Bank Tag to a Bank

1. Press MENU.

2. Select 3:SYSTEM OPTION / 9:BANK TAG by rotating the VFO or using ▲or ▼

and pressing E.

3. Select the bank number by rotating the VFO or using ▲or ▼

and pressing E.

4. The cursor appears on the display. Rotate the VFO to select

the letter and then press ▲or ▼to move the cursor right or

left. Both capital and lower case letters are available, as well

as numbers and punctuation marks.

5. After entering the desired text, press E.

Assigning a Text Tag to a Channel

1. Press MENU.

2. Select 2:SCAN OPTION by rotating the VFO or using ▲or ▼and pressing E.

3. Select the channel number by rotating the VFO and pressing E. You can also enter the

channel number by using the keypad and pressing E.

4. Select 1:FREQUENCY by rotating the VFO and pressing E.

Note: You can only assign a text tag to the channel where the frequency is stored.

5. ALPHA TAG and the cursor appear on the display. Rotate

the VFO to select a letter, and press ▲or ▼to move the

cursor right or left. Both capital and lower case letters are

available, as well as numbers and punctuation marks.

6. After entering the desired text, press E.

☞Remember! To enter a blank, press (decimal key) twice.

C 001

855.0000 NFM

ALPHA TAG

BANK TAG 1

Uniden Group

UB343ZH_UBC785XLT_OM_0622 6/22/06 3:01 PM Page 26

Beep Alert

The scanner can alert you with three beeps at the beginning of a transmission on an

assigned frequency.

Assigning the Beep Alert to a Channel

This alert can be set ON/OFF for every channel.

1. Press MENU.

2. Select 2:SCAN OPTION by rotating the VFO and pressing E.

3. Select the channel number by rotating the VFO and pressing E. You can also enter the

channel number by using the keypad and pressing E.

4. Select 4:BEEP ALERT by rotating the VFO and pressing E.

5. Select 1:ON or 2:OFF by rotating the VFO and pressing E.

Note: If NOT REGISTERED appears, make sure a frequency is stored in the channel.

☞Remember! You can also use ▲or ▼instead of rotating the VFO.

Also instead of pressing E, you can press the VFO control.

Programming Tips

•Group similar services into a bank. For example, program police frequencies in channels 1

through 10 and fire/emergency into channels 51 through 60, and so on.

•Put the frequency that you listen to the most or the most important frequency into a

Priority channel.

•To quickly program a series of channels, start with the lowest number channel.

For example, when you are programming five new frequencies into channels 4 through

8, start with channel 4. After you finish programming a channel, rotate the VFO up or

press ▲to go to the next higher channel.

•Write down your programmed channels and frequencies and put them in a convenient

place in case of accidental reprogramming.

•Frequencies are rounded off according to the step of each channel.

•When you are overwriting a tagged channel with a new frequency, the previous alpha tag

will be deleted. Re-register the alpha tag.

•When programming frequencies, a 2 second delay is set automatically but can be

changed in the menu mode.

UB343ZH_UBC785XLT_OM_0622 6/22/06 3:01 PM Page 27

Scanning

1. After programming frequencies, simply press SCAN to begin

scanning. During scanning, when you rotate the VFO, you can

select the direction (↑or ↓) you want to scan.

2. The indicators of active banks appear on the display, and the

bank being currently monitored flashes. You can deselect

banks from active scanning by entering their number on your keypad. The deselected

bank indicator changes to "-", and the bank’s channels are not scanned.

Note: At least one bank must be active. You cannot deactivate all ten banks at the same

time. If you try to deselect all the banks, the first bank is automatically selected.

To restore a bank for active scanning, enter the bank’s number on your keypad.

The bank’s indicator will be displayed again.

3. During normal scanning the scanner skips

unprogrammed or locked out channels.

4. When a transmission is received, the scanner

stops on that channel. When the transmission

ends, scanning resumes automatically.

Scan Hold Feature

If you want to stop on a channel during scanning, press

▲/HOLD.

Note: When you press and hold SCAN for 2 seconds, the

scanner will move to the smallest empty channel.

If you want to resume scanning, press RSM.

To directly access a specific channel:

There are several ways to access a specific channel quickly.

1. Press ▲/HOLD.

2. Using the keypad, enter the channel number.

3. Press ▲/HOLD again.

Another method is as follows:

1. Press ▲/HOLD.

2. When the VFO setting is in the channel mode, rotate the VFO until the desired channel

is displayed. The scanner will automatically go to Hold mode.

1345

9 10

7 8

CHANNELS

Frequency

not entered

Frequency

Locked Out

(L/O)

SCAN

C 001

SCAN

Bank 1234567890

C 001

1300.0000 FM

25cm Amateur 1

UNIDEN Group A

C1000

0000.0000

Bank 10

UB343ZH_UBC785XLT_OM_0622 6/22/06 3:01 PM Page 28

Note: When in Hold mode, you can use the VFO to step up or down through the channels.

You can also switch from stepping up/down through channels to stepping up/down

through frequencies by pressing the VFO.

RF Attenuation Feature

The UBC785XLT comes with an RF Attenuation feature. If you're near an unusually strong

signal source, the signal may overload the scanner. The scanner may stop repeatedly on

that signal and miss other transmissions.

The RF Attenuation feature works in all modes and attenuates (reduces) the incoming signal

strength to prevent stronger signals from overloading the scanner.

1. Press MENU.

2. For Search mode, select 1: SEARCH OPTION / 2:CHAIN SEARCH /

4:ATTENUATOR by rotating the VFO and pressing E.

For Scan mode, select 2:SCAN OPTION by rotating the VFO and pressing E. Then

select the channel number by rotating the VFO and pressing E.

Select 5:ATTENUATOR by rotating the VFO and pressing E.

3. Select 1:ON by rotating the VFO and pressing E.

Note: Attenuation will only be active for the specified channel. In Search mode, it is applied

to the Search ranges in all banks.

☞Remember! You can also use ▲or ▼instead of rotating the VFO.

Also instead of pressing E, you can press the VFO control.

Setting the Delay Mode for Frequency

When scan or search stops on a channel, there is a brief pause before resuming. A default

delay of 2 seconds is automatically set for each frequency . If you want to change the delay

period:

1. Press MENU.

2. For Scan mode, select 2:SCAN OPTION by rotating the VFO and pressing E.

3. Select the channel number of the stored frequency to be delayed by rotating the VFO

and pressing E.

4. Select 2:DELAY and press E.

5. Rotate the VFO to select one of the delay periods and press E.

6. For Search mode, select 1:SEARCH OPTION / :CHAIN SEARCH / 3:DELAY

by rotating the VFO and pressing E, then set to a delay period the same way as the

Scan mode setting.

UB343ZH_UBC785XLT_OM_0622 6/22/06 3:01 PM Page 29

Note: The delay periods are as follows:

• None: Delay feature off

• 1 sec.: Delays for 1 sec. before re-scanning

• 2 sec.: Delays for 2 sec. before re-scanning

• 4 sec.: Delays for 4 sec. before re-scanning

• Infinite: Stays on until RSM is pressed

• -2 sec.: Stays for 2 sec. only before re-scanning *

• -5 sec.: Stays for 5 sec. only before re-scanning *

• -10 sec.: Stays for 10 sec. only before re-scanning *

* Setting negative delay periods are useful if you are only interested in small seg-

ments of conversations. For example: If you set a -5 second delay, you will only

hear 5 seconds of the conversation and then the scanner will resume scanning,

whether or not the conversation is finished.

☞Remember! You can also use ▲or ▼instead of rotating the VFO.

Also instead of pressing E, you can press the VFO control.

Channel Lockout

You can lockout any channel so it is not checked during scanning.

The locked out channel can be restored.

Lockout in Hold Mode

1. Press ▲/HOLD.

2. Enter the channel number you want to lock out using the

keypad, then press ▲/HOLD again.

––– OR –––

Rotate the VFO up or down to change the channel.

3. Press L/O. L/O appears on the display.

C 001

141.5000 FM

UNIDEN Group A

UB343ZH_UBC785XLT_OM_0622 6/22/06 3:01 PM Page 30

Lockout in Scanning Mode

If the scanner keeps stopping on a particular channel due to noise or frequent transmissions,

you may want to keep that channel from scanning.

1. Wait until the scanner stops on the channel.

2. Then press L/O.

3. The scanner immediately resumes scanning because the locked out channel is no longer

in the scanning sequence.

Lockout Tips Write down your locked-out channels and put in a convenient place in

case you need to restore them.

Restoring a Locked-out Channel

1. Press ▲/HOLD.

2. Select a locked out channel by using the keypad, then press ▲/HOLD.

3. Press L/O. The L/O disappears.

Restoring All Locked-out Channels

You can restore all locked-out channels in a bank only when a bank is selected for scan. If

you have deselected a bank and you want to restore all of its locked-out channels using the

steps below, you must press SCAN and then enter the number of the bank on your keypad.

1. Press ▲/HOLD.

Note: You must be in Hold mode before restoring all locked-out channels.

2. Press and hold L/O for about 2 seconds.

You will hear two beeps when all the channels have been restored.

UB343ZH_UBC785XLT_OM_0622 6/22/06 3:01 PM Page 31

Priority Scan

When Priority Scan is turned ON, your scanner checks the priority channel in the banks you

selected every 2 seconds for activity. If a signal is present on the priority channel, your

scanner monitors the channel until the transmission ends, then resumes normal scanning.

You can designate one channel in each bank as a Priority Channel. By default, the first

channel in each bank is the Priority Channel, but you can change this.

To activate Priority Scan (in either the Hold or Scan Mode):

1. Press PRI to select PRIORITY ON.

Note: If you have locked out the priority channel, ERROR

appears when you select Priority mode.

2. Press PRI to select PRIORITY OFF to deactivate Priority

Scan.

Changing the Priority Channel

You cannot eliminate the Priority Channel, but you can change it to any one of the 100

available channels in each bank.

1. Press ▲/HOLD.

2. Select a new Priority Channel using the keypad, then press ▲/HOLD again.

3. Press and hold PRI for 2 seconds to designate this channel

as your new Priority Channel.

Two beeps indicates that the Priority Channel has been

changed. The Picon appears on the display.

Priority Channel Plus Scan

You can scan only the Priority Channels (except for the locked out channels) in the banks

you selected.

To activate Priority Channel Plus (Only in Scan mode):

Press PRI to select PRIORITY PLUS.

To deactivate Priority Channel Plus:

Press PRI to select PRIORITY ON or PRIORITY OFF on the display to deactivate

Priority Channel Plus Scan.

Note: Priority or Priority Plus Scan are disabled while Search mode is selected.

PRIORITY ON

C 010

1240.0000 FM

ERROR

PRI CH LOCKOUT

C 005

512.0000 FM

UHF TV 1

UNIDEN Group A

UB343ZH_UBC785XLT_OM_0622 6/22/06 3:01 PM Page 32

Searching

Setting a Search Range

Note: First you must set the search ranges through the Menu screen prior to searching.

The UBC785XLT can search up to 10 separate frequency ranges to help you discover new

stations in your area.

To set a Search Range, enter into the Menu mode.

1. Press MENU.

2. Select 1:SEARCH OPTION / 2:CHAIN SEARCH / 2:SEARCH RANGE by

rotating the VFO and pressing E.

3. Select a range number by rotating VFO and pressing E.

4. Select 1:RANGE by rotating the VFO and pressing E.

Enter the lowest frequency using the keypad and then

press E. Then repeat the same step for the highest

frequency, then press SRCH. The scanner starts searching.

If an active search is detected, SRCH flashes.

––– OR –––

1. Press and hold SRCH for 2 seconds.

2. Select - range number - 1:RANGE and program the lowest and highest frequencies by

the same way as step 3 and 4 above.

☞Remember! You can also use ▲or ▼instead of rotating the VFO.

Also instead of pressing E, you can press the VFO control.

In Search Hold mode, you can change lowest and highest frequencies to the selected

search range.

1. Press ▲/HOLD.

2. Enter the lowest frequency using the keypad, then press LIMIT/▼.

3. Enter the highest frequency using the keypad, then press LIMIT/▼.

4. Press SRCH.

Note:•The scanner can continuously search up to 10 ranges. (Chain Search)

•You can select or deselect the search range freely by pressing the corresponding

number with the keypad.

•The scanner automatically increases its search speed from 100 to 300 steps per

second for the bands having 5 kHz steps. (Turbo Search)

•After you have set the search range through the Menu the first time for a range,

you will be able to set new ranges for the same range by using the keypad and the

standard direct entry method.

SRCH 12.5k

1240.0000 FM

Range 1234567890

UB343ZH_UBC785XLT_OM_0622 6/22/06 3:01 PM Page 33

Caution: After you have entered the search range while still in the Menu mode, you can set

your alpha tag (see page 26), change the step size of the search, or change the

mode. Once the lower and upper parameters of your search are edited, the Menu

screen backs up one level to allow you to modify the step size, receive mode, and

alpha tag.

Select 2:STEPS for your step size choices and then press Eor VFO. Select

3:MODE for the receiver mode choices and then press Eor VFO.

Select 4:ALPHA TAG to enter an alpha tag using the VFO and then press E.

Starting Chain Search

1. After setting the search ranges, select 1:SEARCH OPTION / 2:CHAIN SEARCH

/ 1:CHAIN SEARCH by rotating the VFO and pressing E.

2. Select 1:ON by rotating the VFO and pressing E.

3. Press SRCH to search up to 10 ranges continuously.

☞Remember! You can also use ▲or ▼instead of rotating the VFO.

Also instead of pressing E, you can press the VFO control.

Note:•If CHAIN SEARCH is OFF, only 1 range can be searched.

•When searching stops, press RSM to resume searching.

•When you rotate the VFO while searching, you can change the search direction to

up or down.

•When searching in WFM, it will stop before reaching the

desired frequency if the step is other than 50 kHz or 100

kHz.

Search Hold Feature

1. Press ▲/HOLD or LIMIT/▼at anytime to stop the search.

2. Press RSM or SRCH to resume searching.

Data Skip

A scanner will normally stop on any transmission it receives. This means the UBC785XLT

will occasionally stop on data signals and unmodulated transmissions. You can automatically

skip many of these types of transmissions during search. To

activate the Data Skip feature, enter into the Menu mode.

1. Press MENU.

2. Select 3:SYSTEM OPTION / 7:DATA SKIP by

rotating the VFO and pressing E.

3. Select 1:ON by rotating the VFO and pressing E.

☞Remember! You can also use ▲or ▼instead of rotating the VFO.

SRCH 12.5k

1240.0000 FM

Range 1

25cm Amateur Grp

SYSTEM OPTION

5:PC CONTROL

6:CLONE

7:DATA SKIP

UB343ZH_UBC785XLT_OM_0622 6/22/06 3:01 PM Page 34

Also instead of pressing E, you can press the VFO control.

When Data Skip is active, your scanner may pause momentarily on an unwanted signal

but will resume searching in 2 or 3 seconds. The Data Skip feature is active as well as

Scan mode. Data Skip does not function during AM/WFM band Scan, Chain Search for

AM/WFM band or Priority Scan.

Frequency Skip

If a particular frequency continues to interrupt search scanning, it is possible to set your

scanner to skip the frequency.

To skip over a frequency, press L/O when stopping at the frequency you want to skip or

when in Search Hold mode.

Note:•You can program up to 200 skip frequencies.

When the 201st skip frequency is programmed, the first frequency is automatically

unlocked.

•If all frequencies in the search range are set to skip, a beep sounds and it moves

to Search Hold mode.

To resume searching.

1) Cancel the Frequency Skip by pressing L/O at the frequencies you want to

resume searching.

––– OR –––

2) Change the Search Frequency range.

To cancel all skipped frequencies, press and hold L/O for 2 seconds in Search Hold

mode.

Storing Search Frequencies

You can quickly store any frequency you find during Search.

1. Press ▲/HOLD or LIMIT/▼to stop searching, or when the scanner stops on the

frequency you want to store, press TRNFR.

2. The smallest empty channel number flashes on the display.

If you want to store the frequency to other channel, select

the channel by rotating the VFO or using ▲or ▼.

3. Press E.

Note:•If the frequency you want to store exists already,

WARNING appears on the display and you will hear a beep. (See “Duplicate

Frequency Alert” on page 25.)

•After storing the frequency, the scanner moves to the Search Hold mode.

•If no free channel exists, the frequency you want to store will automatically be

stored in the previous channel before you entered into Chain Search mode.

4. If you want to store other frequencies, resume search by pressing SRCH or RSM, then

repeat the step 1 to 3.

SRCH 12.5k

1240.0000 NFM

Range 1

C004 0000.0000

UB343ZH_UBC785XLT_OM_0622 6/22/06 3:01 PM Page 35

Auto Storing

The scanner automatically stores active frequencies if its Auto Store feature is turned ON.

But the frequencies already stored can not be stored. To make use of this feature, set a

search range first (see page 33). If you start this feature without setting a search range, NO

LIMIT DATA appears on the display.

1. Press MENU.

2. Select 1:SERVICE OPTION / 2:CHAIN SEARCH / 7:AUTO STORE by

rotating the VFO and pressing E.

3. Select 1:ON by rotating the VFO and pressing E.

☞Remember! You can also use ▲or ▼instead of rotating the

VFO. Also instead of pressing E, you can press the VFO

control.

4. Select the bank number you want to store with the keypad.

The selected bank number appears on the display.

Note: If the selected bank has no free channels to store, CH

DATA FULL will appear on the display and you will

hear a beep.

6. Press SRCH to start auto storing.

7. When the selected bank has no free channel, the scanner

stop auto storing and STORE END appears. If you want to

stop auto storing on the way, press ▲/HOLD.

Squelch (SQ) Mode

The scanner has the following SQ modes.

•Carrier SQ mode (default setting)

The scanner will stop on any active frequencies or squelch opening, regardless of whether

any subaudible tone has been programmed on your scanner for the channel or search

range.

•Tone SQ mode

The scanner will stop on any active frequency for which you have not programmed any

subaudible tone or whose subaudible tone is the same as the one you have programmed.

•Tone Search mode

When the scanner stops on an active frequency, the scanner will begin searching the sub-

audible tone used on the frequency one of which may also be in use. The scanner counts

up through the CTCSS tones and instantly determines any possible DCS tone. See Page

51 for a listing of the tones that the UBC785XLT decodes.

Note: When Tone Search is active and the scanner finds the subaudible tone used on a

frequency, CTCSS or DCS and subaudible tone flashes. You can press Eto pro-

gram that frequency with the found subaudible tone. When you change the mode

to Tone SQ from Tone Search, you can confirm the frequency and subaudible tone

has been programmed.

AUTO STORE

SELECT BANK

12--56----

AUTO STORE

ERROR

CH DATA FULL

C 001

1245.8500 FM

Bank 12--56----

AUTO STORE

UB343ZH_UBC785XLT_OM_0622 6/22/06 3:01 PM Page 36

•Tone Lock (out) mode

You can lock a particular subaudible tone. The scanner won't stop on any transmissions

which have the locked out subaudible tone.

To select the SQ mode:

1. Press MENU.

2. Select 3:SYSTEM OPTION / 8:SQ MODE by rotating the VFO and pressing E.

3. Rotate the VFO to select one the type from (1:CSQ,2:TONE SQ,3:TONE

SEARCH) and press E.

4. To set Tone Lock mode, do the following first, then select 2:TONE SQ in step 3.

1) For Scan mode, select 2:SCAN OPTION - select the channel number - / 3:TONE

DATA / 1:CTCSS or 2:DCS by rotating the VFO and pressing E, than press L/O.

2) For Search mode, select 1:SERVICE OPTION / :CHAIN SEARCH /

5:TONE DATA / 1:CTCSS or 2:DCS by rotating the VFO and pressing E, than

press L/O.

☞Remember! You can also use ▲or ▼instead of rotating the VFO.

Also instead of pressing E, you can press the VFO control.

Note:•To unlock the tone, press Einstead of pressing L/O on step 1) or 2).

•CTCSS: Continuous Tone Coded Squelch System.

•DCS: Digital Coded Squelch.

•When Search mode and Tone Search are selected, the display shows the

frequency and tone data alternately.

•If the delay feature (-2 sec/-5 sec/-10 sec) has been set while in Tone search

mode, it resumes scanning according to the delay period.

UB343ZH_UBC785XLT_OM_0622 6/22/06 3:01 PM Page 37

Additional Menu Options for Searching

Each of these additional menu options applys to all search ranges entered. If there is a

range that you do not want an option to apply, then simply enter the range number on the

numerical keypad. You will see the range number that you have selected disappears from

the display. (For more information on these options refer to the "Menu Descriptions" section

and "Additional Features" section.)

Options:

RECORD (for more information see page 17).

1. Press MENU.

2. Select 1:SERVICE OPTION / :CHAIN SEARCH / 6:RECORD by rotating the

VFO and pressing E.

3. Select 1:ON by rotating the VFO and pressing E.

ATTENUATOR (for more information see page 29).

1. Press MENU.

2. Select 1:SERVICE OPTION / :CHAIN SEARCH / 4:ATTENUATOR by rotating

the VFO and pressing E.

3. Select 1:ON by rotating the VFO and pressing E.

☞Remember! You can also use ▲or ▼instead of rotating the VFO.

Also instead of pressing E, you can press the VFO control.

DELAY

Refer to page 29.

Tone SQ ON,

CTCSS 250.3 Hz setting

Tone Search,

CTCSS 250.3 Hz detect-

ing

Tone Search,

DCS 023 detecting

Tone Search,

no signal received

Tone SQ ON,

DCS 025 setting

Tone SQ ON,

CTCSS & DCS

non-setting

C 001

512.0000 FM

CTCSS 250.3

Bank 1

C 001

512.0000 FM

DCS 025

Bank 1

C 001

512.0000 FM

Bank 1

C 003

512.0000 FM

CTCSS 250.3

UNIDEN Group A

C 003

512.0000 FM

DCS 025

UNIDEN Group A

C 003

512.0000 FM

UNIDEN Group A

UB343ZH_UBC785XLT_OM_0622 6/22/06 3:01 PM Page 38

Air Service Search

Using Aircraft Service Search

You can search the aircraft frequencies by pressing AIR. If the scanner stops on an

frequency, you can resume searching by pressing RSM.

Note: When you rotate the VFO while the Air Service Search is active, you can change the

search direction to up or down.

Air Service Search Skip

You can set the scanner to skip the unwanted frequencies during Air Service Search. 100

skipped frequencies are programmable.

1. To skip over a frequency, press L/O when stopping at the frequency you want to skip.

2. To cancel a skip during search, press ▲/HOLD or LIMIT /▼, select the desired

frequency by rotating the VFO or using ▲or ▼, then press L/O.

To restore all skipped frequencies, press and hold L/O for

2 seconds.

Changing the step

You can choice the step of Aircraft Service Search between 12.5 kHz or 8.33 kHz.

To change the step:

1. Press [MENU].

2. Select 1:SERCH OPTION / 1:AIR STEP by rotating the VFO and pressing E.

3. Select 12.5kHz or 8.33kHz, then press E.

SRVC 12.5k

118.0250 AM

SERVICE SEARCH

AIR

UB343ZH_UBC785XLT_OM_0622 6/22/06 3:01 PM Page 39

Remote Interface

You can communicate and program your UBC785XLT in numerous ways with peripheral

devices using the Remote Interface Cable port (the serial cable is optional). This radio offers

the following modes:

❖PC Control mode

Program and control your scanner from a PC using optional ARC785 software.

❖Clone mode

Clone all the frequencies into your scanner to another UBC785XLT.

PC Control Mode

To connect Scanner to PC:

Plug the scanner end of the RS232C straight cable into the remote port which is on the rear

of the scanner. Plug the other end of the cable (DB-9 serial connector) into a personal

computer’s serial port. A few PC’s may require an adapter, most will not. Of course, make

sure your PC is turned ON.

To program your scanner:

You can program and control your scanner remotely from a PC using optional ARC785

software.

After connecting the scanner to a PC, turn the scanner ON.

To use the Remote (PC Control) mode, you must install optional ARC785 software and use

as directed. Make sure that your scanner is connected to the serial port of the PC using the

RS232C straight cable.

UB343ZH_UBC785XLT_OM_0622 6/22/06 3:01 PM Page 40

Start Remote Mode and Change Transfer Speed:

Through the Menu system, select 3:SYSTEM OPTION /

5:PC CONTROL by rotating the VFO and pressing E. To

start Remote mode, choose from the transfer speed list except

for 5:OFF.

A unique feature of the UBC785XLT is that all the front panel keys as well as the VFO on

the radio remain operational in Remote mode.

For information on purchasing cables, connectors, and optional ARC785 software to

program and control your UBC785XLT, please contact your distributor and /

or you can contact the following :

www.racescanner.eu

PC Control Parameter

For your information:

Transfer speed : 2400/4800/9600/19200 bps (adjustable)

Start/Stop : 1 bit, 1 bit

Data Length : 8 bit

Parity bit : None

Code : ASCII code

Flow Control : None

Return Code : Carriage Return only

Clone Mode

You will need to purchase a RS232C straight cable a null modem adapter. RS232C straight

cables are available as male to male or male to female. Even if the RS232C straight cable

you buy already has the male to male connectors, you will still have to have the null modem

adapter. On the next page you will see the pin connections that are internal to a standard

device. (These items are available at your local electronics stores.)

SPEED

3:9600 bps

4:19200 bps

5:OFF

UB343ZH_UBC785XLT_OM_0622 6/22/06 3:01 PM Page 41

To connect the Scanner to Scanner:

Plug the male end of the RS232C straight interface cable into the

remote port on the rear of one of the two scanners. Then connect the

DB-9 to DB-9 null modem adapter to the cable. Plug the other end of

the null modem adapter into the other scanner.

(DB9 Gender Changers are also available at your local electronics

store.)

You can clone all of the programming of one UBC785XLT into another, including alpha tags,

delay settings, etc. After connecting the two scanners, turn the radios ON. Prepare each

scanner for clone mode as follows.

1. Press MENU.

2. Select 3:SYSTEM OPTION /6:CLONE by rotating the VFO and pressing E.

3. Determine the scanner that has the frequency data that you want to transfer. This one

must be set up as the "Master Unit", and the other must be set as the "Slave Unit".

4. On the scanner that is the "Master Unit", select MASTER,

then press E.

5. On the scanner that is the "Slave Unit", select SLAVE, then

press E.

Female

DB9

Male

DB9

46 & 1

9Not used

Null Modem Adapter

Pin connections

CLONE

SELECT UNIT

MASTER

SLAVE

CLONE

SELECT UNIT

MASTER

SLAVE

UB343ZH_UBC785XLT_OM_0622 6/22/06 3:01 PM Page 42

6. Press SCAN on both scanners.

The data transfer begins from the Master Unit to the Slave

Unit.

During the data transfer, both scanners show the following

displays.

When the data transfer is complete, COMPLETE displays.

If the data transfer is not successful, the following error

message will appear.

Note:•To clear ERROR, press (decimal key).

To exit the Clone mode, press MENU repeatedly.

Note •Once you have completed the cloning of the scanners, reset the scanners by

turning the scanners OFF and then ON again. This is particularly important to know

if you wish to clone another scanner right away.

☞Remember! You can also use ▲or ▼instead of rotating the VFO.

Also instead of pressing E, you can press the VFO control.

CLONE

== >

MASTER UNIT

CLONE

== <

SLAVE UNIT

CLONE

COMPLETE

MASTER UNIT

CLONE

ERROR

MASTER UNIT

UB343ZH_UBC785XLT_OM_0622 6/22/06 3:01 PM Page 43

Additional Features

The following additional features are designed for you to customize your scanner. Once

these features have been turned ON or OFF, they will remain as they are set until you reset

them, even if you turn the scanner OFF and then ON again.

Dimmer

To change brightness of the display:

1. Press MENU.

2. Select 3:SYSTEM OPTION / 1:DIMMER by rotating the VFO and pressing E.

3. Select one from 1:HIGH,2:MEDIUM or 3:OFF by rotating the VFO and pressing E.

Enter Lock

You can lockout the keypad to prevent re-programming of channels.

1. Press MENU.

2. Select 3:SYSTEM OPTION / 4:ENTER LOCK by rotating the VFO and pressing

3. Select 1:ON by rotating the VFO and pressing E.

Key Beep Option

To choose key beep sound 1:ON or 2:OFF:

1. Press MENU.

2. Select 3:SYSTEM OPTION / 3:KEY BEEP by rotating the VFO and pressing E.

3. Select 1:ON or 2:OFF by rotating the VFO and pressing E.

Screen Mask

The frequency, receiving mode, and signal meter indications on the display are masked

when this feature is activated (except while in Search mode). This feature reduces the

amount of displayed information.

Note: While Screen Mask is ON, Enter Lock is active.

1. Press MENU.

2. Select 3:SYSTEM OPTION / 2:SCREEN MASK by rotating the VFO and pressing

3. Select 1:ON or 2:OFF by rotating the VFO and then press E.

Note: With SCREEN MASK on, press the VFO, then SCREEN MASK will be off.

UB343ZH_UBC785XLT_OM_0622 6/22/06 3:01 PM Page 44

Reverse Mode

This key will allow you to observe the reverse frequency of the repeater. While pressing

RVRS, the standard pair frequency will be displayed. For a list of the standard pair

frequencies, refer to the table "Reverse List" in the Appendix. If the frequency that you have

chosen does not have an offset frequency, the display will indicate ERROR and NO

REVERSE.

Channel Step Selection

You can set frequency step, 5 kHz - 100 kHz or Auto in Chain search frequency. The default

receive mode should be the proper mode setting in almost all cases. You may wish to set

some VHF channels for NFM mode, depending on any adjacent channel interference

problems. WFM is typically only used for broadcast frequencies, such as TV audio or FM

radio.

See STEPS in "Menu Description" for details.

Mute On/Off

To manually turn ON the Mute function, press and hold MUTE until MUTE ON is displayed.

You will not hear any audio. To turn it OFF, press and hold MUTE again.

Receiving Mode Selection

You can also set the receiving mode, AM or NFM in Chain Search mode.

See MODE in "Menu Description" for details.

Frequency and Channel Tuning with the VFO Control

The VFO knob can be used for stepping frequencies or through memory channels.

To switch the setting for the VFO control, press the VFO. This will change modes from

Channel to Frequency or Frequency to Channel.

1. In scan hold mode, when the setting for the VFO is channel, rotate the VFO to move up

(to step up through channels) or down (to step down through channels).

2. In Chain Search mode, when the setting for the VFO is frequency, rotate the VFO to move up

to step up through frequencies sequentially or to down to step down through frequencies. To

change the step, you will need to go into the Chain Search menu and adjust the step for the

desired memory location.

☞Remember! When you set Additional Features through the menu screen, you can also

use ▲or ▼instead of rotating the VFO.

Also instead of pressing E, you can press the VFO control.

UB343ZH_UBC785XLT_OM_0622 6/22/06 3:01 PM Page 45

Care and Maintenance

General Use

•Turn the scanner OFF before disconnecting the power.

•Always write down the programmed frequencies in the event of memory loss.

•If memory is lost, simply reprogram each channel.

The display shows 000.0000 in all channels when there has been a memory loss.

•Always press each button firmly until you hear the entry tone for that key entry, unless you

have turned 2:OFF the

3:KEY BEEP in the menu system.

Location

•Do not use the scanner in high-moisture environments such as the kitchen or bathroom.

•Avoid placing the unit in direct sunlight or near heating

elements or vents.

•If the scanner receives strong interference or electrical noise, move it or its antenna away

from the source of the noise. If possible, a higher elevation, may provide better reception.

Cleaning

•Disconnect the power to the unit before cleaning.

•Clean the outside of the scanner with a mild detergent.

To prevent scratches, do not use abrasive cleaners or solvents. Be careful not to rub the

LCD window.

•Do not use excessive amounts of water.

Repairs

•Do not attempt any repair. The scanner contains no user serviceable parts. Contact the

Uniden Customer Service Center or take it to a qualified repair technician.

Birdies

•All radios can receive birdies (undesired signals). If your scanner stops during Scan mode

and no sound is heard, it may be receiving a birdie. Birdies are internally generated

signals inherent in the electronics of the receiver.

Press L/O to lockout the channel, and then press RSM to resume scanning.

UB343ZH_UBC785XLT_OM_0622 6/22/06 3:01 PM Page 46

Troubleshooting

If your UBC785XLT is not performing properly, try the following steps.

Resetting the Scanner

If the scanner's display locks up or stops operating properly, you might need to reset the

scanner.

Caution: This procedure clears all the information (except the band plan data) you have

stored in the scanner. Before you reset the scanner, try turning it off and on to

see if it begins working properly. Reset the scanner only when you are sure it is

not working properly.

1. Turn off the scanner.

2. While holding down 2, 9, and Hold ▲, turn on the scanner. It takes about 15 seconds to

initialize and All Memory Clear please wait appears.

Problem Suggestion

Scanner won't work. 1. Check the connections at both ends of the AC Adapter.

2. Turn ON the wall switch of your room. You could be

using an outlet controlled by the wall switch.

3. Move the AC Adapter to another wall outlet.

Improper reception. 1. Check the antenna connection.

2. Move the scanner.

3. You may be in a remote area which could require an

optional multi-band antenna. Check with your dealer or

local electronics store.

Scan won't stop. 1. Adjust squelch threshold - refer to page 17, "Setting the

Squelch".

2. Check the antenna connection.

3. Check to see if many of the channels are Locked Out.

If so, the scanner has less chance of finding an

active channel.

4. Review each channels frequency to see if it is still

stored in Memory and is correct.

5. Its possible that none of the programmed frequencies

are currently active.

Scan won't start. 1. Press the

SCAN

key again.

2. Adjust the

SQUELCH

control.

3. Check to see if all channels are Locked Out.

UB343ZH_UBC785XLT_OM_0622 6/22/06 3:01 PM Page 47

Specifications

Channel: 1000

Banks: 10 (100 channels each)

Frequency Range: See the band plan on page 1 to 3.

Operating Temperature: –20 °C to +60 °C (–4 °F to +140)

Scan Rate: 100 channels per second

Search Rate: 100 steps per second (Normal Search)

300 steps per second (Turbo Search)

Audio Output: Maximum 3.0W (2.1W normal @ 10% THD)

Internal Speaker: 8 ohms (77 mm outer diameter)

Power Requirements: AD773U AC Adapter (13.8V DC, 700mA)

Antenna: Telescopic Antenna (included)

Antenna Jack: BNC type

External Jacks: External Speaker (EXT.SP.) (3.5 mm)

DC 13.8 V Power Jack, (center is positive)

Remote Control (REMOTE) Jack (DB-9)

Tape Recorder Out (TAPE OUT) Jack (3.5 mm)

Size: 6-15/16 in. (W) x 6-1/4 in. (D) x 2-1/4 in. (H)

176.5mm (W) x 168.3mm (D) x 68.6mm (H)

Weight: 1.33 kg (46.6 oz.)

Features and specifications are all subject to change without notice.

UB343ZH_UBC785XLT_OM_0622 6/22/06 3:01 PM Page 48

Glossary of Terms

Alpha tag - This term refers to an alphanumeric text tag that you can enter to describe the

individual frequencies that you have programmed. Rather than having to associate a

specific frequency to the individuals that are using it, you can enter the actual name of the

group. This will eliminate the need for memorizing the group’s frequency.

Attenuator - This scanner comes with a feature to attenuate or reduce the signal strength.

The built-in attenuator can be turned on specific frequencies to prevent strong signals from

overloading the scanner input, possibly damaging the scanner or missing other

transmissions due to the repeated stopping on the stronger signal.

Clone - This term identifies the ability to set up a duplicate scanner. This function allows

you to clone all the programming information, including frequencies, talkgroups and alpha

tags as well as bank settings and other parameters from one UBC785XLT to another or

UBC785XLT.

CTCSS - (Continuous Tone Controlled Squelch System) refers to a system where the radio

receivers are equipped with tone responsive devices which allow audio signals to appear

at the audio output, select voice processing such as scrambling or control repeater

functions only when a carrier modulated with a specific tone is received. This method may

be used to restrict access to the repeater or receiver, or reduce interference where several

stations with output frequencies in close proximity of each other make it difficult to hear

the conversation you are interested in. With CTCSS squelching, you can eliminate the

possibility of hearing unwanted conversations by selecting one of the 38 standard

subaudible tones. You will only hear those transmissions that have been programmed on

specific frequencies with the specific subaudible tone that you have selected.

DCS - (Digital Controlled Squelch) refers to a system where the radio receivers are

equipped with data burst responsive devices which allow audio signals to appear at the

audio output, select voice processing such as scrambling or control repeater functions only

when a carrier modulated with specific data burst is received. This method may be used to

restrict access to the repeater or receiver, or reduce interference where several stations

with output frequencies in close proximity of each other make it difficult to hear the

conversation you are interested in. With DCS squelching, you can eliminate the possibility

of hearing unwanted conversations by selecting one of the 104 standard data burst

subaudible tones. You will only hear those transmissions that have been programmed on

specific frequencies with the specific subaudible tone that you have selected.

Enter Lock - This is the term used for locking the keypad. This prevents accidental

re-programming of channels and talkgroups entered into memory. The default setting is

OFF.

When ENTER LOCK is enabled, the following functions will be disabled:

• Enter or modify the Memory Channel frequency

• Enter or modify the Tone information

UB343ZH_UBC785XLT_OM_0622 6/22/06 3:01 PM Page 49

Key Beep - This is another term for the tone you hear as a keypad acknowledgement beep.

The default setting is on.

If you have turned the Key Beep off, you now have a silent keypad. You will not hear a

tone each time you press a key.

PC Control - This term is associated with the ability to program frequencies and other

useful information via a computer by means of third party software. You can change the

transfer speed on the scanner needed to be compatible with your PC. (See page 40)

Screen Mask - Screen Mask reduces the amount of information that appears on the

display. Alpha tags that you have set for a channel along with a few function icons will

appear only on the display. This mode is particularly useful in public safety vehicles where

that are already overloaded with information. Screen Mask does not work in Search mode.

UB343ZH_UBC785XLT_OM_0622 6/22/06 3:01 PM Page 50

CTCSS Frequency List (Hz)

DCS Tone Code

67.0

91.5

118.8

156.7

210.7

71.9

94.8

123.0

162.2

218.1

74.4

97.4

127.3

167.9

225.7

77.0

100.0

131.8

173.8

233.6

79.7

103.5

136.5

179.9

241.8

82.5

107.2

141.3

186.2

250.3

85.4

110.9

146.2

192.8

88.5

114.8

151.4

203.5

023

051

114

143

174

245

266

332

411

452

506

612

703

025

053

115

145

205

246

271

343

412

454

516

624

712

026

054

116

152

212

251

274

346

413

455

523

627

723

031

065

122

155

223

252

306

351

423

462

526

631

731

032

071

125

156

225

255

311

356

431

464

532

632

732

036

072

131

162

226

261

315

364

432

465

546

654

734

043

073

132

165

243

263

325

365

445

466

565

662

743

047

074

134

172

244

265

331

371

446

503

606

664

754

UB343ZH_UBC785XLT_OM_0622 6/22/06 3:01 PM Page 51

AIR STEP

CHAIN SEARCH 1

CHAIN SEARCH

SEARCH RANGE

DELAY

ATTENUATOR

TONE DATA

RECORD

AUTO STORE

RANGE

STEPS

MODE

ALPHA TAG

1: 5KHz /2: 6.25KHz /3: 7.5KHz

4: 10KHz /5: 12.5KHz /6: 20KHz

7: 25KHz /8: 50KHz /9: 100 KHz

0: AUTO

1:AM /2:FM /3:WFM /4:NFM

5:AUTO

1:ON /2:OFF

1:NONE /2:1 SECOND

3:2 SECONDS /4:4 SECONDS

5:INFINITE /6:-2 SECONDS

7:-5 SECONDS /8:-10 SECONDS

1: ON /2: OFF

1: CTCSS /2: DCS /3: OFF

1: ON /2: OFF

1: 12.5kHz/2: 8.33 kHz

1 SEAECH OPTION

UBC785XLT Flow Charts

UB343ZH_UBC785XLT_OM_0622 6/22/06 3:01 PM Page 52

(Select Channel)2 SCAN OPTION 1

FREQUENCY

DELAY

TONE DATA

BEEP ALERT

ATTENUATOR

STEPS

MODE

RECORD

(Select Frequency)

1:NONE /2: 1 SECOND

3:2 SECONDS /4:4 SECONDS

5:INFINITE /6: -2 SECONDS

7:-5 SECONDS /8:-10 SECONDS

1: CTCSS/ 2: DCS/ 3: OFF

1:ON /2:OFF

1:5KHz /2:7.5KHz /3:10 KHz

4:12.5 KHz /5:25 KHz /6:50 KHz

7:100 KHz /8: AUTO

1: AM/2: FM/3: WFM/4: NFM

1:ON /2:OFF

1:OTHER CHANNEL

2:CHANNEL OPTION

3:DONE

ALPHA TAG

UB343ZH_UBC785XLT_OM_0622 6/22/06 3:01 PM Page 53

3 SYSTEM OPTION 1 DIMMER 1:HIGH / 2:MEDIUM / 3:OFF

2 SCREEN MASK 1:ON /2: OFF

3 KEY BEEP 1:ON /2: OFF

4 ENTER LOCK 1:ON /2: OFF

5 PC CONTROL 1:2400 bps /2: 4800 bps /3:9600 bps/4:19200 bps /5:OFF"

6 CLONE MASTAR /SLAVE

7 DATA SKIP 1:ON /2: OFF

8 SQ MODE 1:CSQ /2:TONE SQ /3:TONE SEARCH

9 BANK TAG (Select Bank)

UB343ZH_UBC785XLT_OM_0622 6/22/06 3:01 PM Page 54

Declaration of Conformity

Uniden Corporation

2-12-7 Hatchobori

Chuo-Ku, Tokyo 104-8512

Japan

declare, under our sole responsibility, that this equipment “Uniden Bearcat model

UBC785XLT” is in compliance with the essential requirements and other relevant provisions

of the EMC, R&TTE and LVD Council Directives of the EU.

UB343ZH_UBC785XLT_OM_0622 6/22/06 3:01 PM Page 55

UBZZ01343ZZ(0) Printed in P.R.C.

UB343ZH_UBC785XLT_OM_0622 6/22/06 3:01 PM Page 56

Uniden Ubc785Xlt Users Manual

UBC785XLT to the manual 2edbc3ca-e3cd-41cb-a823-ddfe0134620d

Navigation menu

Versions of this User Manual:

Views

Navigation
