To bring outstanding wireless communication products

to people's lives throughout the world.

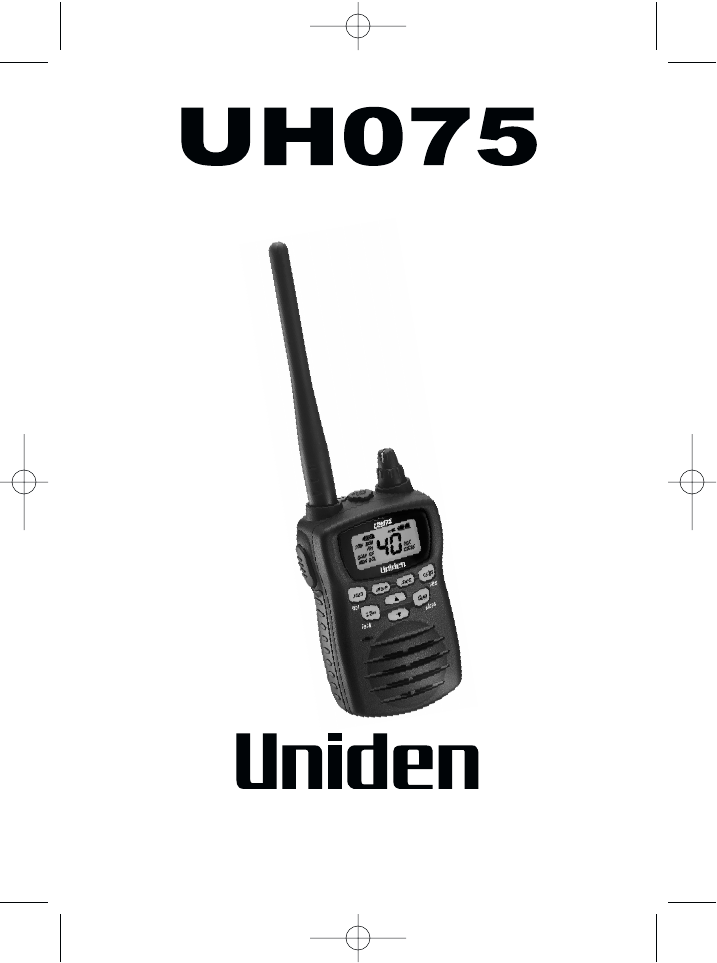

Operating Guide

UT01913ZZ_1 11/21/03 5:50 PM Page i

WATERPROOF: JIS4

Uniden's UH075 radio is designed to meet the water proofing standard of JIS4.

This Means:

"...the unit is able to withstand a steady stream of water from a hose for 5

minutes without leakage..."

The UH075 will only meet this rating if fully assembled and all rubber seals

and bungs are well maintained and correctly fitted. This means that the

speaker microphone bung is inserted, and the battery pack and antenna

are attached and securely fastened.

This is NOT a rating that allows for the unit to be submersed.

LITHIUM ION BATTERY PACK WARNING

➤This equipment contains a Lithium Ion Battery Pack.

➤The Lithium Ion Battery Pack contained in this equipment may explode if

disposed of in a fire.

➤Do not short-circuit the Battery Pack.

➤Do not charge the Lithium Ion Battery Pack used in this equipment in any

charger other than the one designed to charge this Battery Pack. Using

another charger may damage the Battery Pack or cause the Battery Pack to

explode.

➤Lithium Ion batteries must be disposed of properly.

WARNING!

i

UT01913ZZ_1 11/21/03 5:50 PM Page ii

CONTENTS

Introduction

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Included in your Package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Getting Started

Mounting the Drop-in Charger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Attaching the Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Attaching the Battery Pack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Attaching the Beltclip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Charging the Battery Pack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Battery Level Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Operation

Power On/Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Adjusting the Key Beeps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Roger Beep . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Selecting Channel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Squelch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

To Transmit and Receive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

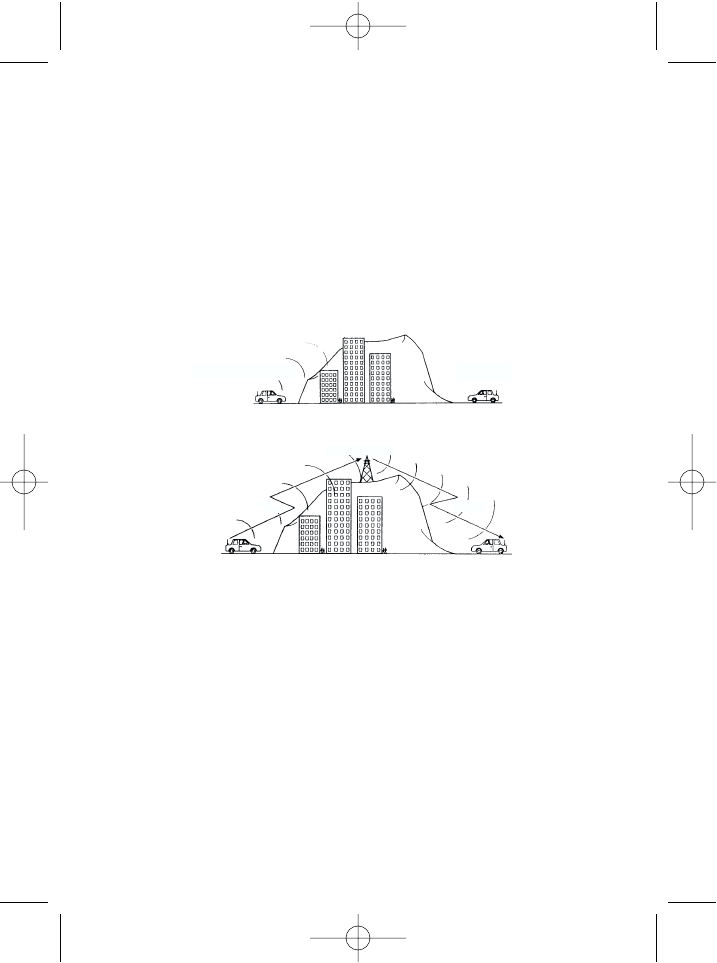

Using a Repeater Channel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

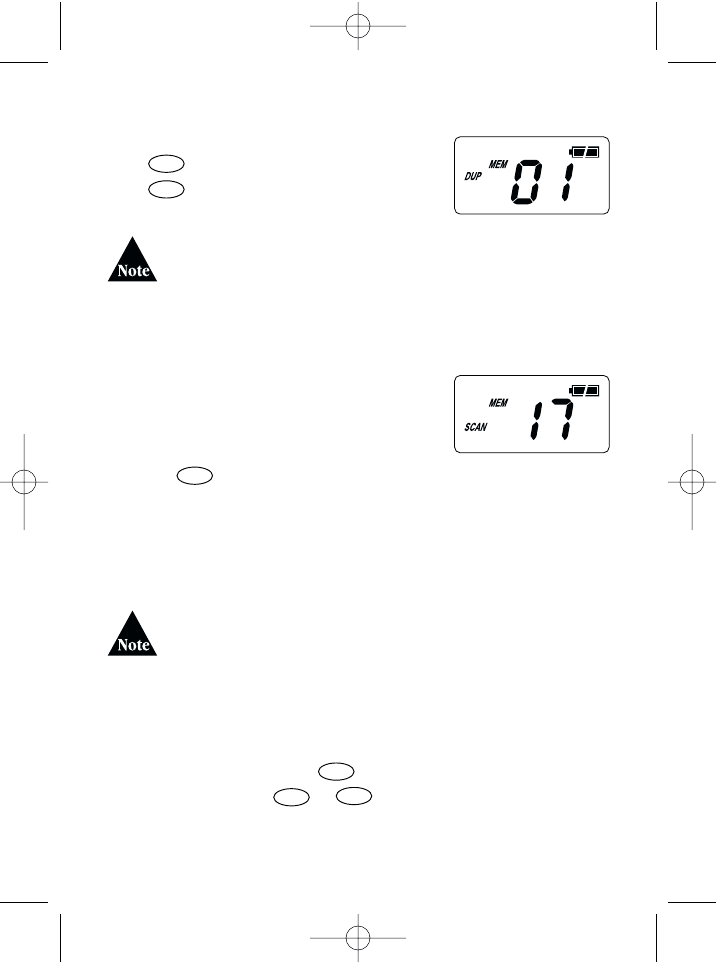

To Operate UH075 in Duplex Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Scanning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Open Scan (OS) Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Group Scan (GS) Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Programming Scan Channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Priority Channel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Choosing a Priority Channel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Drop-Out Delay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Advanced Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

CTCSS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

VOX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Power Save . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Back Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Keypad Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Busy Channel Lock-out (BCL) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

UHF Channel and Frequencies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

CTCSS Codes and Frequencies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Optional Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

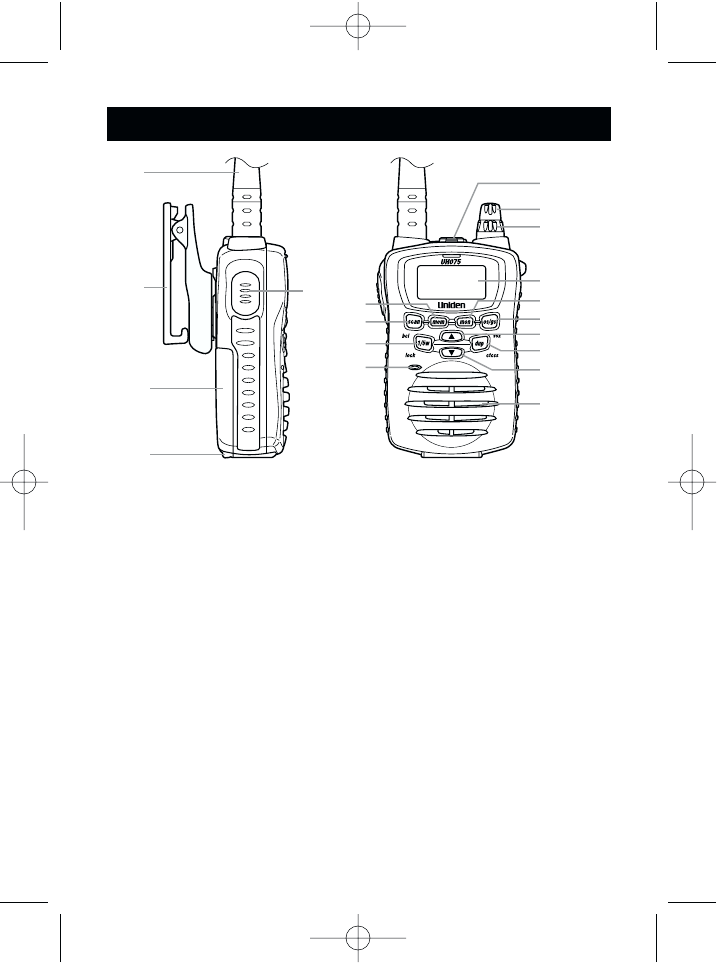

Controls and Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

1

UT01913ZZ_1 11/21/03 5:50 PM Page 1

2

The UH075 is a JIS4 Waterproof, portable two-way UHF-CB radio. It is compact,

rugged and fits easily in your hand. This hand held UHF radio will give you

consistent, outstanding performance in virtually all conditions and situations. To

ensure that you get the most from the UH075 features, please read this

operating guide carefully before using the unit.

FEATURES

➤40 UHF CB Channels

➤5W Max TX Power

➤5W/1W Switchable TX Power

➤Waterproof (meets JIS 4 waterproof specifications)

➤Rubber Grips/Seal

➤CTCSS

➤Backlit Keypad & LCD Display

➤Duplex Mode

➤Open and Group Scan

➤Busy Channel Lockout Function

➤VOX Function

➤Headset Jack

➤Keypad Lock

➤Battery Type: Lithium-lon Rechargeable

➤Low Battery Alert

➤Battery strength Indicator

➤Auto Battery Save

➤Battery Cover with charge contacts

➤Roger Beep

INTRODUCTION

UT01913ZZ_1 11/21/03 5:50 PM Page 2

3

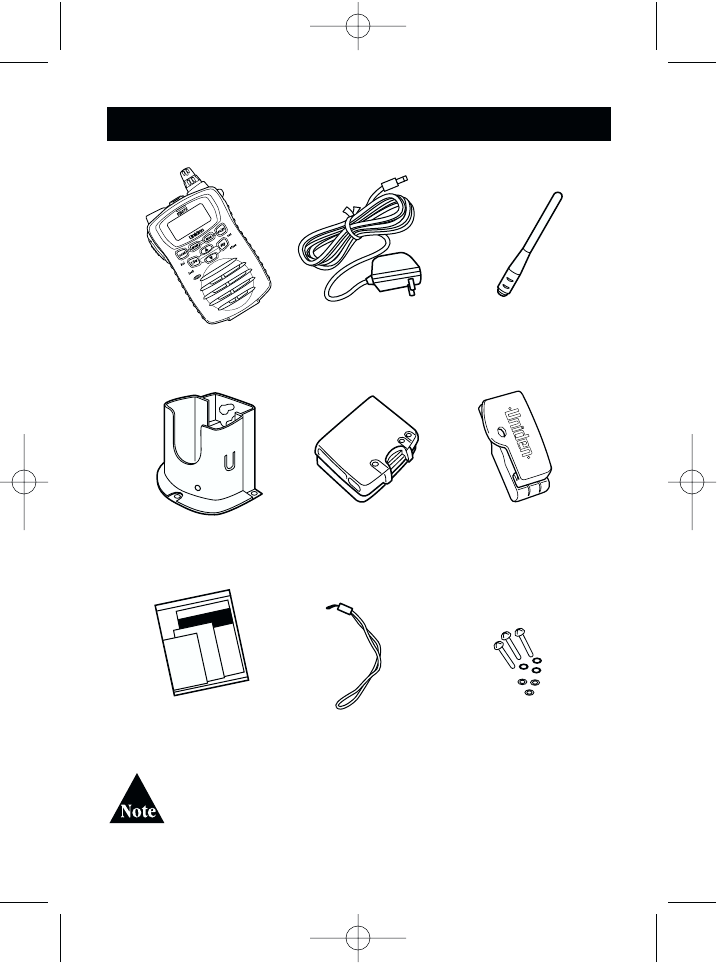

INCLUDED IN YOUR PACKAGE

Drop-in Charger

(DT075)

Beltclip

Wrist Strap

Lithium Battery

(BP075)

AC Adapter

(AAD-075S)

UH075 Antenna

Reference Guide/

Printed Material Mounting Screws

If any of these items are missing from the box, contact your

Uniden Dealer, immediately.

UT01913ZZ_1 11/21/03 5:50 PM Page 3

4

GETTING STARTED

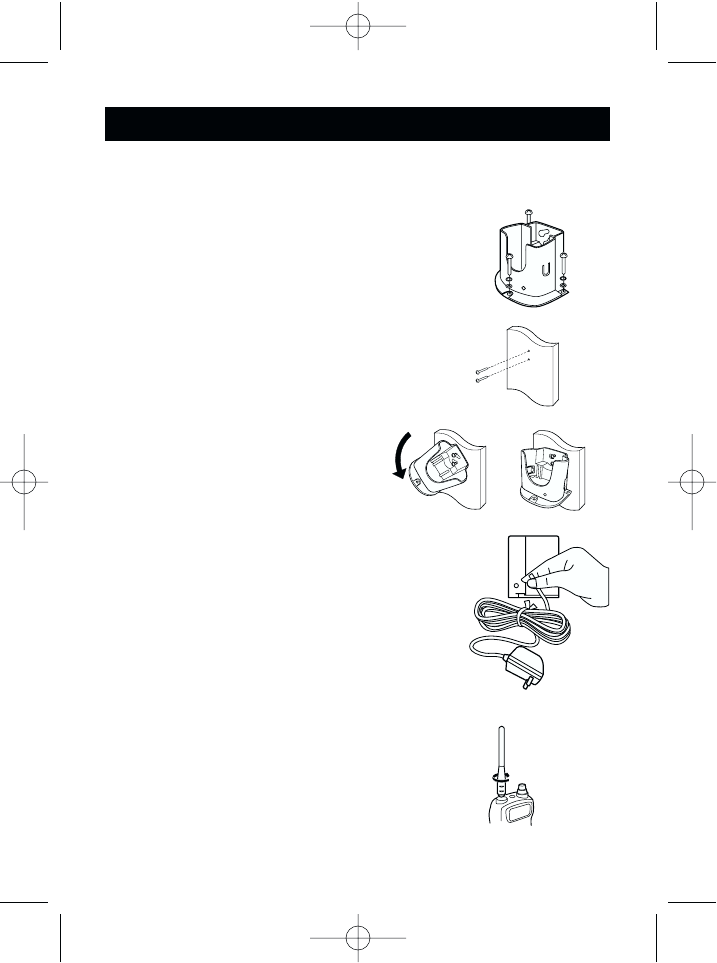

Mounting the Drop-in Charger

1. Mount the drop-in charger to either a table or wall.

Table:

Attach the drop-in charger using the mounting

screws and washers.

Wall:

Insert the two mounting screws into the wall

keeping the same space as the holes on the

charger.

Place the charger with the screws

through the larger holes then turn the

charger.

2. Plug one end of the AC adapter into the wall outlet

and the other end into the drop-in charger.

When you mount the drop-in charger in a mobile

vehicle, use the optional cigarette lead instead.

Attaching the Antenna

Attach the antenna to the UH075.

Be sure the antenna is firmly seated.

UT01913ZZ_1 11/21/03 5:50 PM Page 4

5

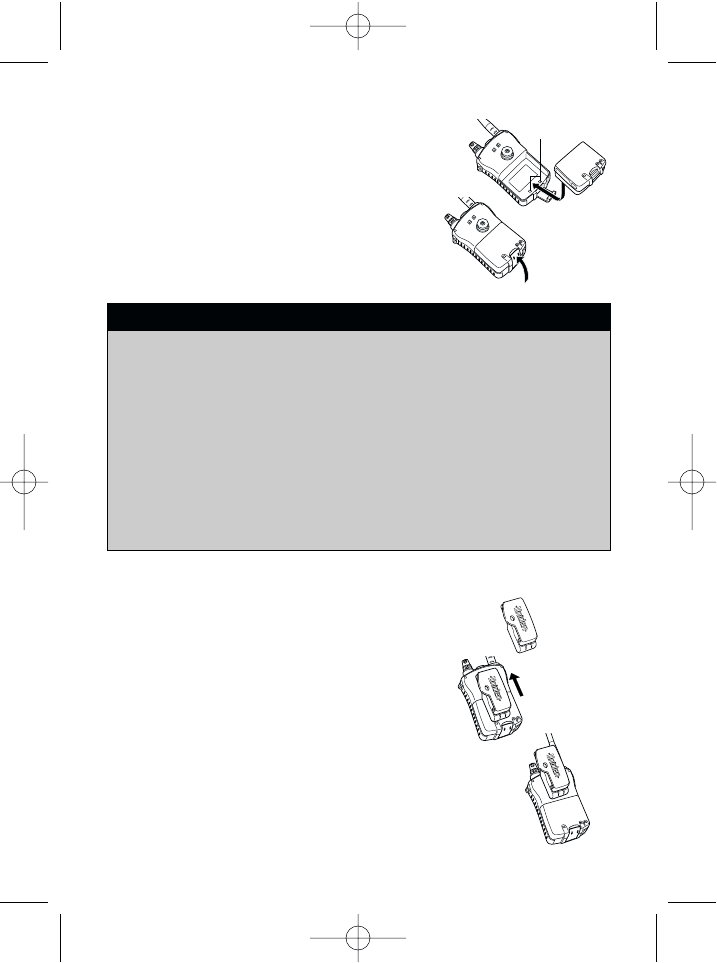

Attaching the Battery Pack

1. Place the battery pack onto the back of the

radio. It will only fit in one way.

2. Snap the battery release clip until it clicks.

Be sure the battery pack fits tightly against

the UH075 body.

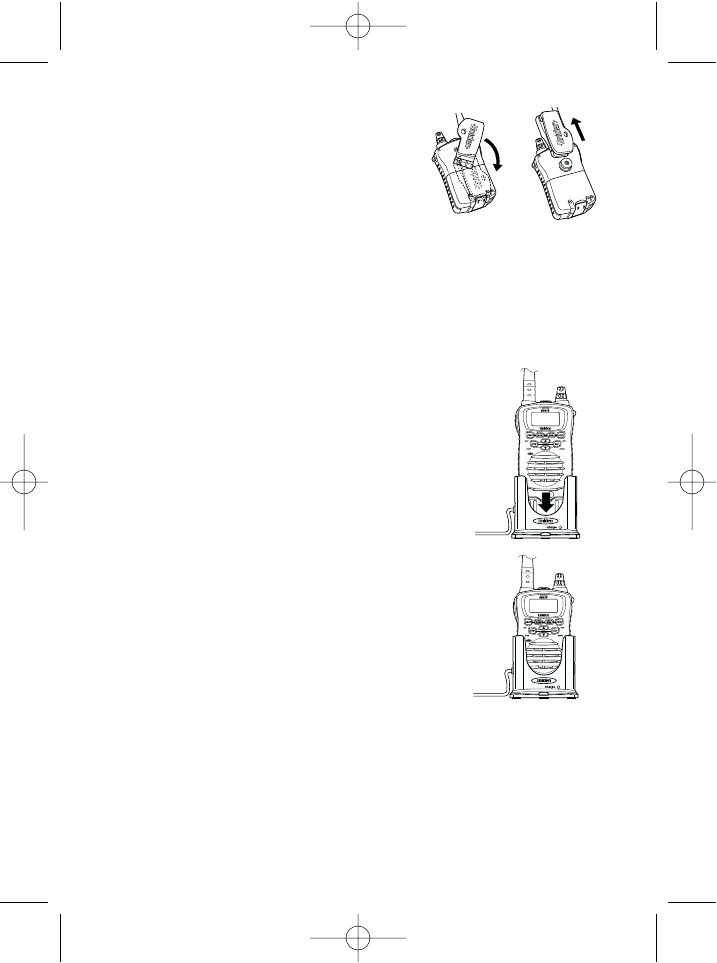

Attaching the Beltclip

1. Hold the beltclip in the direction.

2. Apply it to the hanger piece on the back of

the radio. Then slid it up.

3. You will hear a click. The beltclip is firmly

attached.

Contacts

CAUTION!

Avoid exposing the Lithium Ion battery, attached or unattached to

the radio, in direct sunshine, heated cars, or in areas with

temperatures below –20°C (–4°F) or above +60°C (+140°F).

Exposing the chemicals contained within the battery pack to

temperatures above +60°C (+140°F) may cause the battery to

rupture, fail or reduce performance.

In case of exposure to cell contents, wash the affected area

thoroughly, and seek medical attention.

Additional battery cautions should be applied as described on page

i of your Owner’s Manual.

UT01913ZZ_1 11/21/03 5:50 PM Page 5

6

Charging the Battery Pack

Your radio is powered by a specially designed Lithium Ion battery pack.

•Before operating the UH075, charge the Lithium Ion battery pack for 5

hours without interruption in the drop-in charger.

1. Place the UH075 in the drop-in charger.

2. The red LED illuminates and stays ON, until fully

charged.

•The charger won’t overcharge the battery pack. When charging is

completed, the charge LED is no longer illuminated.

•Do not transmit when the UH075 is in the drop-in charger!

•You can monitor incoming calls while the UH075 is in the drop-in charger.

4. To take the beltclip off the radio, turn it

and slid it up.

UT01913ZZ_1 11/21/03 5:50 PM Page 6

7

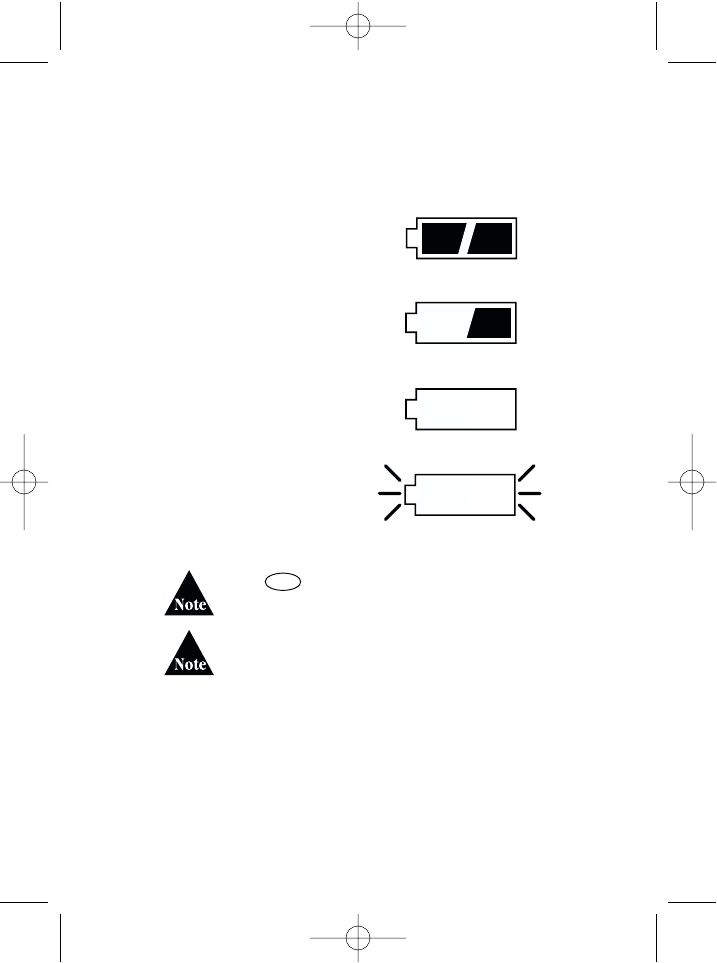

Battery Level Display

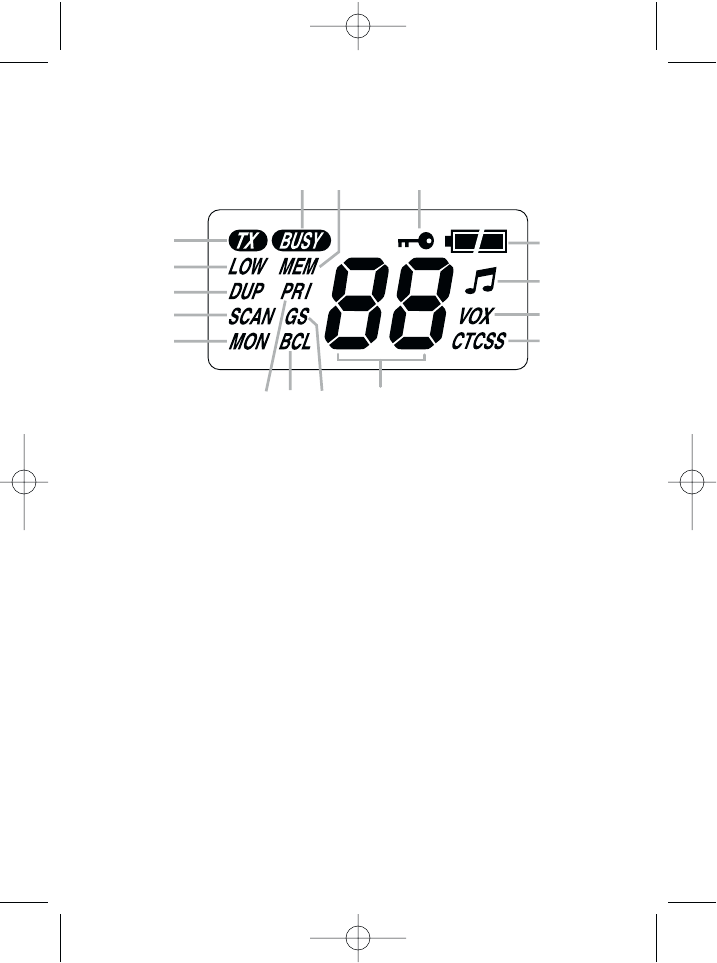

The BATTERY icon in the top right hand corner of the screen indicates the

UH075 current battery voltage level at all times. The battery level is displayed in

4 levels.

LEVEL 4

Battery 100% full

LEVEL 3

Battery approx. 40% capacity

LEVEL 2

Low Battery

LEVEL 1 (flashing)

Empty Battery

When is pressed at Level Empty, battery icon and

channel number will flash, transmission is disabled.

PTT

Recharge the battery at any time. From empty the battery

will take up to 5 hours to fully charge.

Battery Life : 12 Hours (Typical)

This is based on the following Duty Cycle:

Transmit (Low Power) 5%

Receive 5%

Stand-by 90%

UT01913ZZ_1 11/21/03 5:50 PM Page 7

8

OPERATION

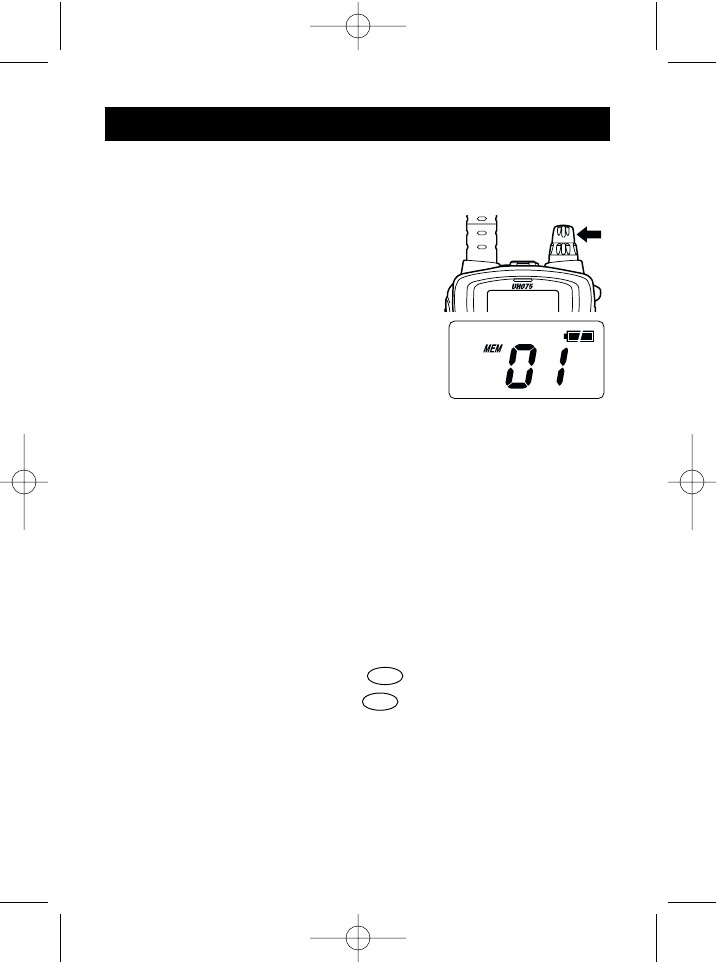

POWER ON/OFF

To turn the unit ON, rotate the [ON/OFF VOL]

clockwise. A channel number and battery level

should appear on the display.

To turn the unit OFF, rotate the [ON/OFF VOL]

knob counter-clockwise. The display will disappear.

ADJUSTING THE KEY BEEPS

Your radio emits a beep each time-one of the keys (except for the PTT or mon)

are pressed.

To turn OFF this beep: Press and hold while turning on the radio.

To turn ON this beep: Press and hold while turning on the radio.

dup

dup

VOLUME

Rotate the [ON/OFF VOL] knob clockwise or counter-clockwise to adjust

speaker volume to desired listening level.

➤See the Controls and Indicators page at the back of this operating guide for

button and key operations.

UT01913ZZ_1 11/21/03 5:50 PM Page 8

9

ROGER BEEP

Roger Beep is a BEEP that is sent to notify the end of transmission (both PTT

and VOX transmission.) Roger Beep can be heard through the speaker when

Key Beep is on. Roger Beep is transmitted even if key beep is turned off.

However Roger Beep will not be heard from the speaker.

To turn OFF Roger Beep: Press and hold while turning on the radio.

To turn ON Roger Beep: Press and hold while turning on the radio.

SELECTING CHANNEL

Press or to select the desired channel.

If you press and hold the or ,

channel number will scroll rapidly.

UT01913ZZ_1 11/21/03 5:50 PM Page 9

10

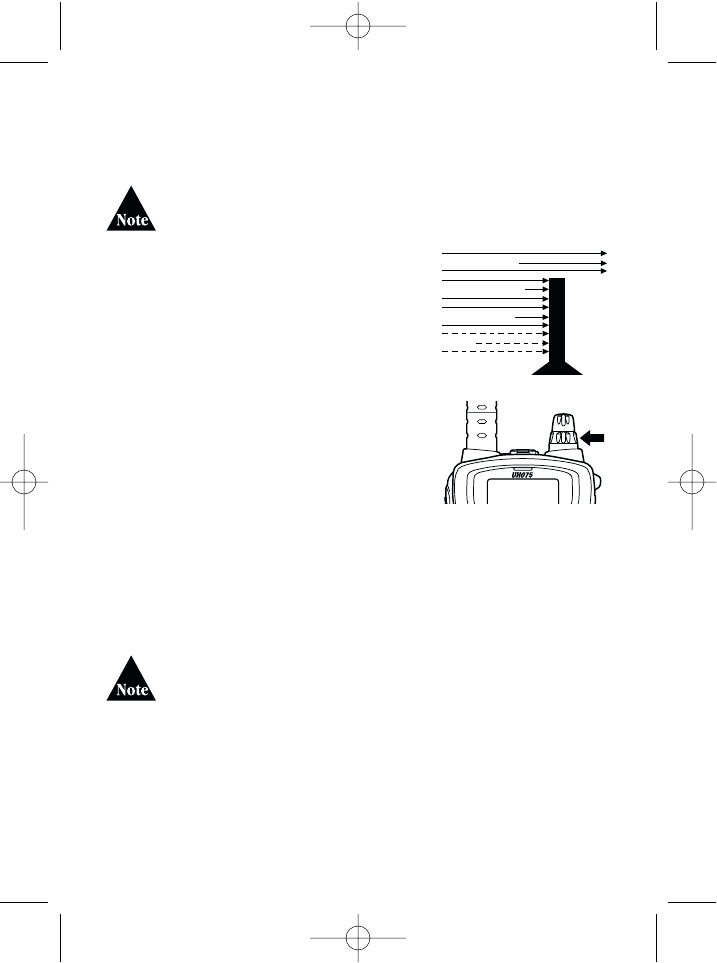

SQUELCH

The squelch is used to eliminate any annoying background noise when there

are no signals present.

Think of squelch as a gate. Turn [SQ] fully

clockwise. This raises the "Squelch Gate" so high

that only the very strong signals can get through.

Turn [SQ] fully counter clockwise until you hear a

hiss. This opens the "Squelch Gate" so that

everything gets through noise, weak signal, and

strong signals.

To set the "Squelch Gate" to the desired level, turn

[SQ] counter-clockwise until you hear noise. Then

turn the [SQ] clockwise just until the noise

stopped. Now only the desired signal can get

through.

If an incoming signal is very weak there is a

possibility that you will have a choppy or broken

reception, due to the sensitivity of the squelch.

In this case, simply rotate the [SQ] clockwise

until the weak signal is heard clearly.

Noise

Weak Signals

Medium Signals

Strong Signals

Make sure to first select a channel not in use before setting the

squelch in your UH075 UHF-CB radio.

UT01913ZZ_1 11/21/03 5:50 PM Page 10

11

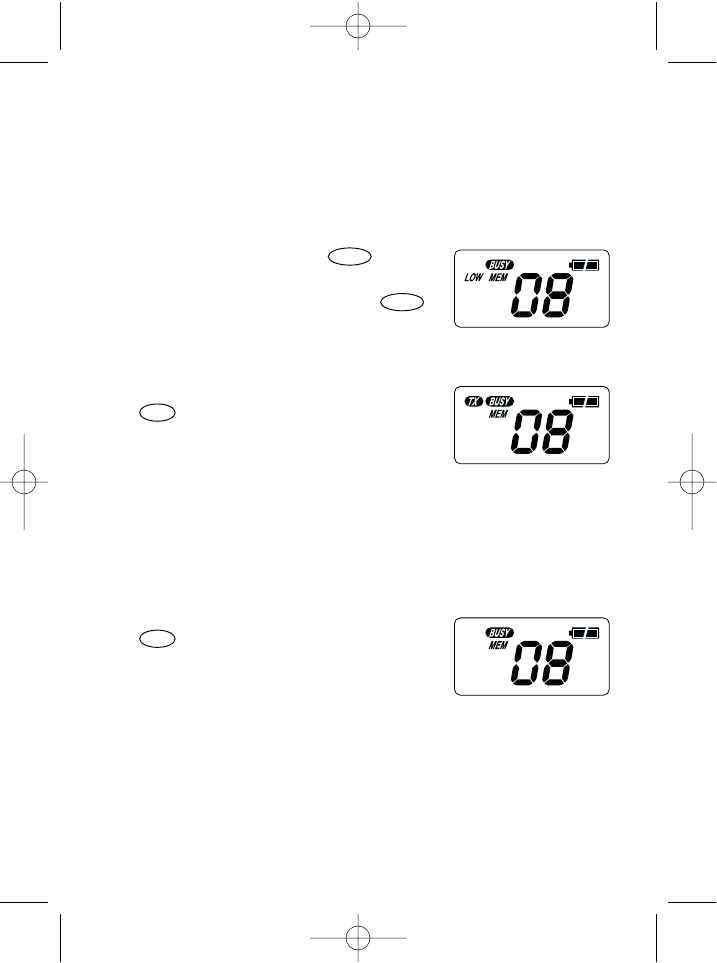

TO TRANSMIT AND RECEIVE

The UH075 uses the 40 UHF-CB Channels. For your reference a list of the

available channels and corresponding frequencies is printed at the end of this

manual.

1. The maximum RF transmit power of UH075 is

5 watts.

To switch to low power, press . LOW

appears on the LCD.

To switch back to higher power, press

again. LOW indicator disappears from the LCD.

2. Before you transmit, listen for activity on the

selected channel.

3. When the channel is clear, press and hold the

to transmit. TX appears on the LCD.

PTT

1/5w

1/5w

4. When you have finished speaking, release the

and listen for a response. TX indicator

then disappears on the LCD.

The display shows BUSY when a transmission

is being received by your radio.

PTT

Hold the radio with microphone approximately

five cms in front of your mouth with the

antenna at approximately 45* angle away from

your head. Speak in a clear, normal

conversational voice.

UT01913ZZ_1 11/21/03 5:50 PM Page 11

12

USING A REPEATER CHANNEL

UHF CB Repeaters are used to retransmit or relay your signal. Repeaters will

extend the range of your radio and overcome the shielding effect caused by

solid obstructions.

In normal Simplex operation, your radio transmits on one particular frequency

and receives on that same frequency. If there is a barrier (i.e. a Tall Building)

that partially blocks your transmitted signal, the possibility of the other radio

receiving the signal is very slim. Valleys, metallic structures, etc., tend to act as a

screen between radios.

With Duplex operation, the signal coming from your radio is received by the

Repeater station and then re-transmitted at the same time on another channel.

Your UH075 is designed with duplex capability on Channels 1 to 8. When any

of these channels are set to operate in duplex mode during transmission, the

UH075 automatically sends the signal at a frequency 30 channels above the

original in order to access the repeater station. After transmitting, the radio

reverts back to its original operating frequency.

For example:

1. CH01 is on Duplex Mode

- will receive on CH01 but Transmit on CH31

2. CH02 is on Duplex Mode

- will Receive on CH02 but Transmit on CH32, etc….

Refer to UHF Channel & Frequencies table on page 20.

Standard Operation without the aid of a Repeater Station

Operation with the aid of a Repeater

Normal Simplex Operation

Transmitting on CH 01

No signal being

received

Repeater Station

CH 31 CH 01

UT01913ZZ_1 11/21/03 5:50 PM Page 12

13

TO OPERATE UH075 IN DUPLEX MODE

Eg. CH01 is being used in your area for repeater use.

Press momentarily. The

DUP icon appears.

Press again to deactivate the duplex operation.

UH075 will return to simplex operation.

dup

dup

SCANNING

The UH075 has two types of scanning; Open Scanning (OS) and Group

Scanning (GS).

Scanning allows you to search for active channels

programmed in the OS or GS memory.

To initiate scanning;

1. Assuming the unit is on CH17 when switched on.

2. Press and scanning starts. Scan icon flashes during scanning.

scan

Open Scan (OS) Mode (the absence of GS icon indicates that the unit is on

OS mode)

Allows continuous scanning of channels stored in the Open Scan (OS) memory.

If an active channel is found, scanning will stop on that channel.

The factory has preprogrammed all the 40 UHF channels into the

Open Scan channel memory. However, you can change or

customize the channels by following the steps on programming

Scan Channels on page 15.

Example: CH40 becomes active

If the received signal cease, the unit will wait for at least 3 seconds for the

signal to return, otherwise scanning resumes.

To skip the active channel, press momentarily. Scanning resumes.

To deactivate SCAN, press or .

PTT

scan

mem

Check with your local retailer for available repeaters.

UT01913ZZ_1 11/21/03 5:50 PM Page 13

14

Group Scan (GS) Mode

Allows you to monitor a Priority Channel while scanning.

To use GS Mode Scanning, press the key. GS icon appears on the

display.

GS Scanning checks the Priority channel activity regularly.

os/gs

If SCAN is deactivated while in an active channel, the UH075 will

stay on that active channel. If no other channels are active, the

UH075 will reinstate the starting channel.

If SCAN is deactivated while it is turned to an active channel, the

UH075 will stay on that active channel. If none of the channels are

active, the UH075 will reinstate the Priority channel.

If GS Scanning is initiated when there are no channels

programmed in GS memory, an error tone will be heard and

scanning will not start.

If the Priority channel becomes active the radio will stay on that channel for as

long as the signal is present. If the received signal ceases, Priority scanning

continues after 3 seconds.

If scanning stops on a channel which is not a Priority Channel the

UH075 will continue monitoring the Priority Channel for activity

while listening to the active one.

To deactivate SCAN, press the or .

PTT

scan

UT01913ZZ_1 11/21/03 5:50 PM Page 14

15

Programming Scan Channels

1. Select which Scanning Mode you wish to use OS or GS Mode.

OS is indicated by the absence of the GS icon.

2. Select the channel you want to store by pressing or .

3. Press and hold for 1.5 secs. to store. MEM icon appears and two

short tone beeps are heard.

4. To remove the channels from Memory, press and hold for 1.5 secs.

once more. Two short tone beeps are heard and the MEM icon disappears.

mem

mem

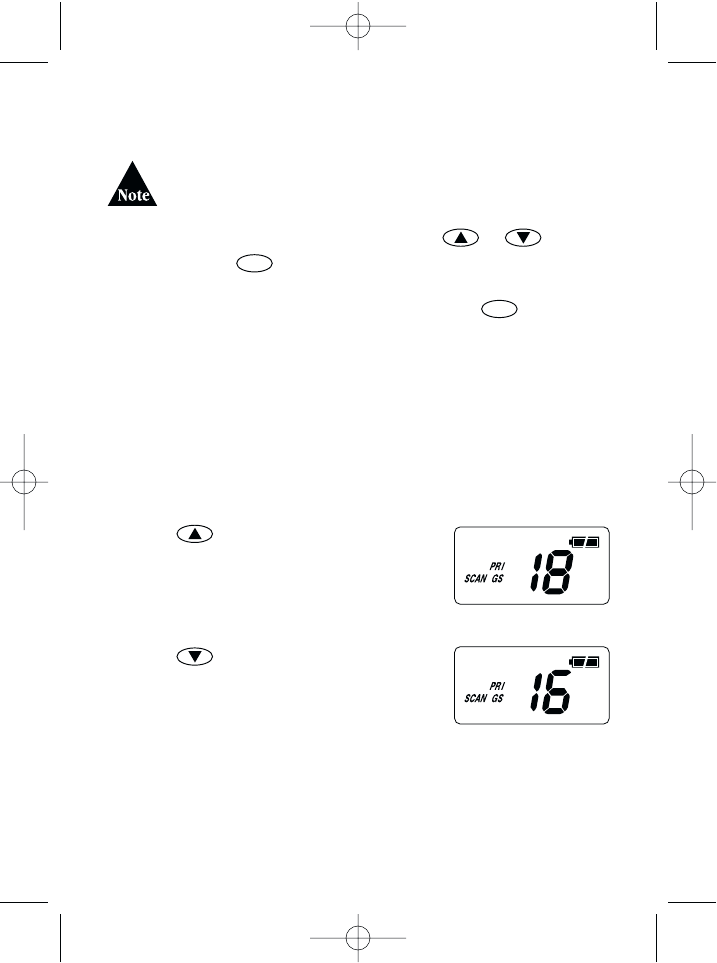

PRIORITY CHANNEL

The Priority Channel feature allows user to monitor one of 40 channels in the

UH075, monitoring it every 1.5 secs. during Group Scanning.

Choosing a Priority Channel

The starting channel, when Group Scanning is initiated, is always the Priority

Channel. To change the priority channel setting while scanning, (eg. PRI

Channel is CH17 (476.825 MHz ))

a. press , to select a higher channel (scanning

pauses).

or

b. press , to select a lower channel.

DROP-OUT DELAY

While scanning, the UH075 stops at a busy channel and receives a

transmission. When the received signal is over, the unit will wait for 3 seconds

for the return of the signal, otherwise, the radio resumes scanning.

UT01913ZZ_1 11/21/03 5:50 PM Page 15

16

Programming CTCSS Code

1. Select a desired channel to be used with CTCSS.

2. Press and hold for 1.5 secs. CTCSS icon blinks.

3. Press or to select the desired CTCSS code.

4. Press to save the selected code. CTCSS icon stops blinking.

UH075 will return to standby mode after 10 secs. of no activity.

CTCSS code can be programmed on every channel. There are 38

available CTCSS tone per channel.

ctcss

ctcss

CTCSS Scan Operation

1. Press to start scanning (GS or OS) mode.

2. Press and hold to change to CTCSS scan mode.

3. When a signal is sensed on a CTCSS CH, the UH075 stops for about 400

msecs (decode time) to decode the CTCSS code. If there is no code or the

receive code does not match the one programmed on the unit, the unit

resumes scanning.

Channels 5 and 35 are used for emergency channels. CTCSS will

not operate on these channels.

ctcss

scan

ADVANCED FEATURES

CTCSS

➤Continuous Tone Coded Squelch System (CTCSS) is a feature that allows a

group to talk to each other without hearing other users on the same

channel.

Uniden discourages the use of CTCSS feature until the Australian

Communications Authority (ACA) grants the use of CTCSS on CB

frequencies.

VOX

➤Built-in Voice Activated Circuit (VOX) feature enables the user to

transmit automatically by speaking on the microphone of the VOX headset

(not supplied) without pressing the PTT switch.

UT01913ZZ_1 11/21/03 5:50 PM Page 16

17

VOX feature will not work without the Vox Headset Microphone.

The built in mic of UH075 is temporarily disabled, however

accidental pressing of will cause the unit to transmit briefly.

PTT

Changing the VOX sensitivity setting to "oF" without removing the

microphone will cause the unit to transmit continuously.

To activate VOX

1. Press and hold for 1.5 secs. "VOX" icon

blinks.

2. Press either or within 10 secs. to

select the desired VOX sensitivity level (9 with

the lowest sensitivity to 1 with the highest

sensitivity).

3. Press to save the selected level. "VOX"

icon stops blinking.

4. Install VOX Headset (not supplied) to UH075.

vox

vox

To De-activate VOX

1. Remove VOX Headset from UH075.

2. Press and hold for 1.5 secs. until "VOX"

blinks.

3. Press repeatedly and until "oF" is

displayed.

4. Press to save the setting. "VOX" icon

disappears.

vox

vox

UT01913ZZ_1 11/21/03 5:50 PM Page 17

18

➤POWER SAVE

Battery Save feature extends the battery life by switching the receiver circuit

power ON and OFF. This feature automatically activates during standby mode

(RX mode without signal).

➤BACK LIGHTING

The Liquid Crystal Display (LCD) and function keys are backlit for easy viewing

at night or in low light situations. The back lighting automatically switches ON

every time a key (except PTT) is pressed. It turns OFF 5 secs after the last key is

pressed.

➤KEYPAD LOCK

To prevent accidental entries, you can lock the keypad.

Press and hold the button until it beeps to activate Key Lock. icon

appears.

To unlock the keypad, press and hold the button again. icon

disappears.

When the Key Lock is active, a warning beep will be heard if you

attempt to press keys. (except for the PTT button)

lock

lock

UT01913ZZ_1 11/21/03 5:50 PM Page 18

19

➤BUSY CHANNEL LOCK-OUT (BCL)

This feature prevents accidental transmission on a busy channel.

This is recommended on channels where CTCSS is being used. If the channel is

"active" and the signal is coming from a non or different CTCSS code user the

BCL feature will prevent you from transmitting.

To activate BCL

Press and hold for 1.5 secs. until "BCL" appears on display.

To De-activate BCL

Press and hold for 1.5 secs. until "BCL" disappears from the display.

➤MONITOR

This feature enables users to listen in for weak signals on the current channel at

the press of a button.

To use monitor

•For brief listening, press .

•For continuous listening. Press and hold for 2 sec. A two tone beep

will be heard and the receiver circuit will stay open letting in both the noise

& weak signals.

•Display shows MON and BUSY icons.

•To return to normal receive mode press .

mon

mon

mon

bcl

bcl

UT01913ZZ_1 11/21/03 5:50 PM Page 19

20

UHF CHANNEL & FREQUENCIES

Simplex Mode Duplex Mode

CH No. Transmit / Receive Transmit

Frequency (MHz) Frequency (MHz)

1 476.425 477.175 CH31

2 476.450 477.200 CH32

3 476.475 477.225 CH33

4 476.500 477.250 CH34

5 476.525 477.275 CH35

6 476.550 477.300 CH36

7 476.575 477.325 CH37

8 476.600 477.350 CH38

9 476.625

10 476.650

11 476.675

12 476.700

13 476.725

14 476.750

15 476.775

16 476.800

17 476.825

18 476.850

19 476.875

20 476.900

Simplex Mode

CH No. Transmit / Receive

Frequency (MHz)

21 476.925

22 476.950

23 476.975

24 477.000

25 477.025

26 477.050

27 477.075

28 477.100

29 477.125

30 477.150

31 477.175

32 477.200

33 477.225

34 477.250

35 477.275

36 477.300

37 477.325

38 477.350

39 477.375

40 477.400

Channel 05 and 35 are Emergency Channels and channel 11 is a

Calling Channel. Channels 22 and 23 are used for telemetry and

telecommand applications, voice communications are not

permitted on these channels.

UT01913ZZ_1 11/21/03 5:50 PM Page 20

21

CTCSS CODES & FREQUENCIES

OPTIONAL ACCESSORIES

•VOX Headset

•Speaker Microphone

Code No. Freq. (Hz) Code No. Freq. (Hz) Code No. Freq. (Hz)

00("oF") OFF 13 103.5 26 162.2

01 67.0 14 107.2 27 167.9

02 71.9 15 110.9 28 173.8

03 74.4 16 114.8 29 179.9

04 77.0 17 118.8 30 186.2

05 79.7 18 123.0 31 192.8

06 82.5 19 127.3 32 203.5

07 85.4 20 131.8 33 210.7

08 88.5 21 136.5 34 218.1

09 91.5 22 141.3 35 225.7

10 94.8 23 146.2 36 233.6

11 97.4 24 151.4 37 241.8

12 100.0 25 156.7 38 250.3

UT01913ZZ_1 11/21/03 5:50 PM Page 21

22

SPECIFICATIONS

General

Channels Transmit 40 (with Duplex Channel Support)

Receive 40

Oper. Temp. 0°C - +55°C

Antenna Flexible Whip

Microphone Built-in Electorate type

Display Liquid Crystal Display

Speaker 8 Ohm 1 Watt

Power Source BP-075

Rechargeable Lithium Ion Battery Pack

850 mAh, 7.4 V

Size (without antenna) 97(H) x 62(W) x 33(D) mm

Weight 250 g (with Antenna & Battery Pack)

Transmitter

Frequency Control Phase Locked Loop

Frequency Range 476.425 to 477.4 MHz

Frequency Stability ± 3 ppm

Power Output 5 W (high)/ 1 W (low)

Spurious Emissions – 50 dBc

Current Drain 1500 mA (high)/ 800 mA (low)

Receiver

Receive Type Dual Conversion

Super Heterodyne

Phase Locked Loop

System for Local Oscillator

Frequency Range 476.425 to 477.4 MHz

Sensitivity @12 dB SINAD – 120 dBm

Squelch Sensitivity – 126 dBm (Threshold)

Audio Frequency Response 500 Hz, 4.5 dB

(ref: 1 KHz, ± 3 KHz Dev.) 2000 Hz, – 6.5 dB

Adjacent Channel Selectivity 57 dB

Hum & Noise Ratio 40 dB

UT01913ZZ_1 11/21/03 5:50 PM Page 22

23

Audio Output Drain 0.6 W (10% THD)

Current Drain

Squelched 40 mA

Max. Audio 170 mA

Charger

Std. Power Supply AAD-075S

Input 230 – 240 V AC, 50 Hz

Output 9 V, 210 mA

Approval No. V/00031

Specifications shown are typical and subject to change without notice.

UT01913ZZ_1 11/21/03 5:50 PM Page 23

24

WARRANTY

UNIDEN UH075 UHF CB RADIO

One Year Warranty

Note:Please keep your sales docket as it provides evidence of warranty.

Warrantor: Uniden Australia Pty Limited / Uniden (NZ) Ltd.

Elements of Warranty: Uniden warrants to the original retail owner for the duration of this

warranty, its UH075 UHF CB Transceiver Radio (hereinafter referred to as the Product) to be free from

defects in materials and craftmanship with only the limitations or exclusions set out below.

Warranty Duration:

This warranty to the original retail owner only, shall terminate and be of no

further effect ONE (1) Year after the date of original retail sale. This warranty will be deemed invalid if

the product is; (A) Damaged or not maintained as reasonable or necessary, (B) Modified, altered, or

used as part of any conversion kits, subassemblies, or any configurations not sold by Uniden, (C)

Improperly installed, (D) Repaired by someone other than an authorized Uniden Repair Agent for a

defect or malfunction covered by this warranty, (E) Used in conjunction with any equipment or parts or

as part of a system not manufactured by Uniden, or (F) installed, programmed or serviced by anyone

other than an authorized Uniden Repair Agent, or (G) Where the Serial Number label of the product has

been removed or damaged beyond recognition. Warranty only valid in the country of original retail/sale.

Parts Covered: This warranty covers for 1 year, the UHF CB Transceiver Unit only. All accessories: AC

Adaptor, Wrist Strap, Battery and Antenna are covered for 90 days.

Statement of Remedy: In the event that the product does not conform to this warranty at any time

while this warranty is in effect, the warrantor at its discretion, will repair the defect or replace and

return it to you without charge for parts and service. This warranty does not cover provide for the

reimbursement or incidental or consequential damages.

Warranty card: If a warranty card has been included with this product, please fill it in and return it

to us within 14 days of purchase. Your name and serial number of the product will then be registered

in our database and this will help us process your claim with greater speed and efficiency should you

require warranty service.

Procedure for obtaining performance of warranty: In the event that the Product does not

conform to this warranty, the product should be shipped or delivered, freight prepaid, with evidence of

original purchase, (eg. a copy of the sales docket, to the warrantor at:

UNIDEN AUSTRALIA PTY LIMITED

Service Division

345 Princes Highway, Rockdale NSW 2216

www.uniden.com.au

Ph. (02) 9599-3100 Ph 1300 366 895 Fax (02) 9599 3278

UNIDEN NEW ZEALAND LTD

Service Division

150 Harris Road, East Tamaki, Auckland

www.uniden.co.nz

Ph. (9) 273 8383 Fax (9) 274 4253 Ph 0800 4 UNIDEN

0800 4 86433

Customers in other states should ship or deliver the Product freight pre-paid to the nearest Uniden

Authorized Repair Centre. (Contact Uniden for the Warranty Agent nearest you.)

UT01913ZZ_1 11/21/03 5:50 PM Page 24

25

CONTROLS & INDICATORS

11

12

13

14

10

15

16

17

18

19

6

8

7

9

1

2

3

4

5

1 Antenna

2 Belt Clip

3 Battery

4 Battery Release Clip

5 PTT (Push to Talk) Key

6 Memory Key (mem)

7 Scan Button (scan)/Busy

Channel Lock-Out Mode (bcl)

8 TX Power/Lock Button

(1/5w/lock)

9 Microphone

10 Speaker MIC (Optional) Jack

11 ON/OFF VOL Knob

12 Squelch Knob (SQ)

13 LCD Display

14 Monitor Button (mon)

15 Open Scan/Group Scan (os/gs)

/VOX

16 Channel Up Button (▲)

17 Duplex Key (dup)/CTCSS Key

(ctcss)

18 Channel Down Button (▼)

19 Speaker

UT01913ZZ_1 11/21/03 5:50 PM Page 25

26

GI

K

L

M

NOP

B

C

D

A

E

F

J

H

LCD Display

A Transmit

B 1W Power

C Duplex Transmit

D Scanning

E Monitor

F Priority

G Busy Channel Lock Out

H Group Scanning

I Channel Numbers

J CTCSS

K VOX

L Roger Beep

M Battery Level Indicator

N Key Lock

O Memory

P Receive

UT01913ZZ_1 11/21/03 5:50 PM Page 26

27

Note:

UT01913ZZ_1 11/21/03 5:50 PM Page 27

©2003 Uniden Australia Pty Limited/Uniden New Zealand Limited

Part Code UTZZ01913ZZ Printed in China

UT01913ZZ_1 11/21/03 5:50 PM Page 30
