OWNER’S MANUAL

UH076SX

Handheld UHF Transceiver

WARNING!

i

WATERPROOF: JIS7

Uniden's UH076SX radio is designed to meet the water proofing

standard of JIS7.

This Means:

Being defined as having no ingress of water when immersed at 1

metre for 30 minutes.

The UH076SX will only meet this rating if fully assembled and all

rubber seals and bungs are well maintained and correctly fitted.

This means that the speaker microphone bung is inserted, and

the battery pack and antenna are attached and securely

fastened.

LITHIUM ION BATTERY PACK WARNING

MThis equipment contains a Lithium Ion Battery Pack.

MThe Lithium Ion Battery Pack contained in this equipment may

explode if disposed of in a fire.

MDo not short-circuit the Battery Pack.

MDo not charge the Lithium Ion Battery Pack used in this

equipment in any charger other than the one designed to

charge this Battery Pack. Using another charger may damage

the Battery Pack or cause the Battery Pack to explode.

MLithium Ion batteries must be disposed of properly.

USER LICENSE INFORMATION

The citizen band radio service is licenced in Australia by

ACMA Radio-communications (Citizen Band Radio

Stations) Class Licence and in New Zealand by MED

General User Licence for Citizen Band Radio and

operation is subject to conditions contained in those

licenses.

CONTENTS

1

Introduction

Features ..................................................................................................2

Included in your Package ........................................................................3

Optional Accessories ............................. .................................................3

Getting Started

Mounting the Drop-in Charger ................................................................4

Attaching the Antenna .............................................................................4

Attaching the Battery Pack ......................................................................5

Attaching the Beltclip ...............................................................................5

Charging the Battery Pack.......................................................................6

Battery Level Display...............................................................................7

SPKR/MIC Jack Cap ...............................................................................7

Connecting the SPKR/MIC ......................................................................7

Operation

Power On/Off...........................................................................................8

Volume.....................................................................................................8

Adjusting the Key Beeps .........................................................................8

Roger Beep .............................................................................................9

Selecting Channel ...................................................................................9

Squelch..................................................................................................10

To Transmit and Receive ......................................................................11

Using a Repeater Channel ....................................................................12

To Operate UH076SX in Duplex Mode..................................................13

Scanning................................................................................................13

Open Scan (OS) Mode.....................................................................13

Group Scan (GS) Mode....................................................................14

Programming Scan Channels ..........................................................15

Priority Channel .....................................................................................15

Choosing a Priority Channel.............................................................15

Drop-Out Delay......................................................................................15

Advanced Features ...............................................................................16

CTCSS ............................................................................................16

VOX .................................................................................................16

Power Save ...........................................................................................18

Back Lighting .........................................................................................18

Keypad Lock .........................................................................................18

Busy Channel Lock-out (BCL) ...............................................................19

Monitor ..................................................................................................19

UHF Channel and Frequencies.................................................................20

CTCSS Codes and Frequencies ..............................................................21

Warranty .....................................................................................................22

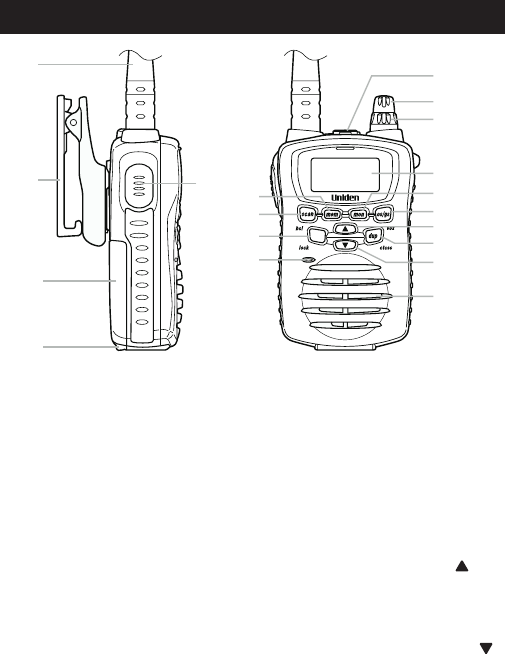

Controls and Indicators ...........................................................................23

2

INTRODUCTION

The UH076SX is a JIS7 Waterproof, portable two-way UHF-CB

radio. It is compact, rugged and fits easily in your hand. This hand

held UHF radio will give you consistent, outstanding performance in

virtually all conditions and situations. To ensure that you get the

most from the UH076SX features, please read this operating guide

carefully before using the unit.

FEATURES

!40 UHF CB Channels

!5W Max TX Power

!1W/5W Switchable TX Power

!Waterproof (meets JIS7 waterproof specifications)*

!Rubber Grips/Seal

!38 Built-in CTCSS codes

!Backlit Keypad & LCD Display

!Duplex Mode

!Open and Group Scan

!Busy Channel Lockout Function

!VOX Function

!Headset Jack

!Keypad Lock

!Battery Type: Lithium-lon Rechargeable

!Low Battery Alert

!Battery strength Indicator

!Auto Battery Save

!Battery Cover with charge contacts

!Roger Beep

* The UH076SX radio meets waterproof (JIS7) specifications only

when the battery, the antenna and speaker MIC jack cap are

correctly installed. The UH076SX will retain its JIS7 rating when the

accessory Speaker MIC is connected correctly but the Speaker MIC

itself is not splash or waterproof.

3

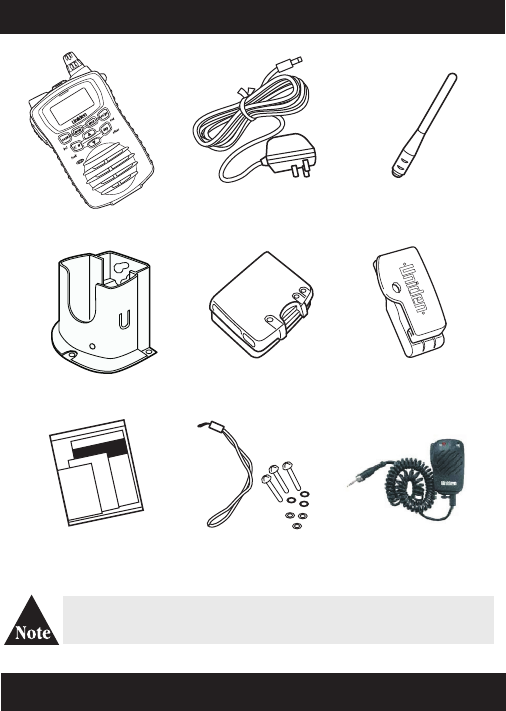

INCLUDED IN YOUR PACKAGE

Drop-in Charger

(DT076)

Beltclip

Wrist Strap and

Lithium Battery

(BP075)

AC Adapter

(AAD-075S(M))

UH076SX Antenna

Printed Material Mounting Screws

If any of these items are missing from the box, contact your

place of purchase, immediately.

OPTIONAL ACCESSORIES

M VOX Headset

6

UH07 SX

5

Speaker Mic

(SM078)

M Heavy Duty Speaker Mic

4

GETTING STARTED

Attaching the Antenna

Attach the antenna to the UH076SX.

Be sure the antenna is firmly seated.

Mounting the Drop-in Charger

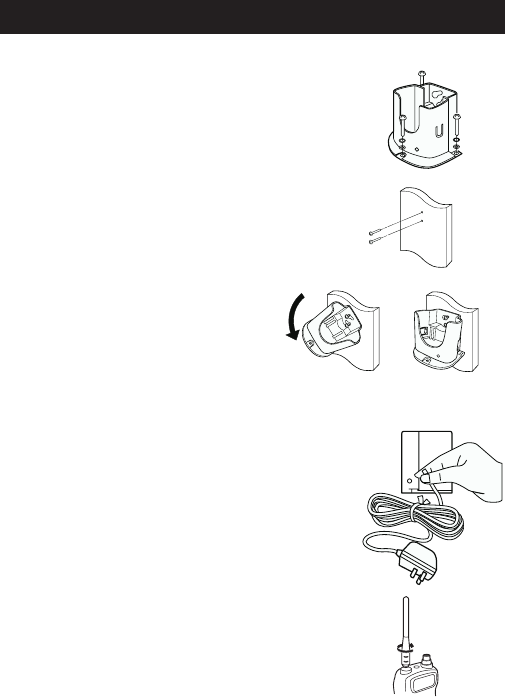

1. Mount the drop-in charger to either a table or wall.

Table:

Attach the drop-in charger using the mounting

screws and washers.

Wall:

Insert the two mounting screws into the wall

keeping the same space as the holes on the

charger.

Place the charger with the screws

through the larger holes then turn the

charger.

2. Plug one end of the AC adapter into the wall outlet

and the other end into the drop-in charger.

When you mount the drop-in charger in a mobile

vehicle, use the optional cigarette lead instead.

5

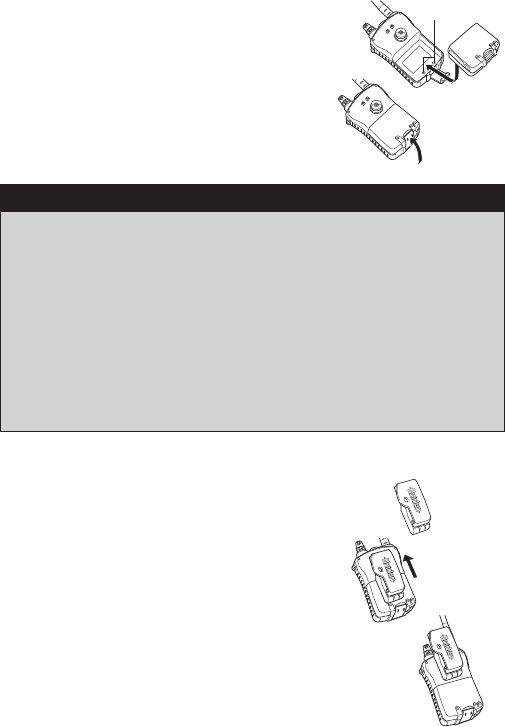

Attaching the Battery Pack

1. Place the battery pack onto the back of the

radio. It will only fit in one way.

2. Snap the battery release clip until it clicks.

Be sure the battery pack fits tightly against

the UH076SX body.

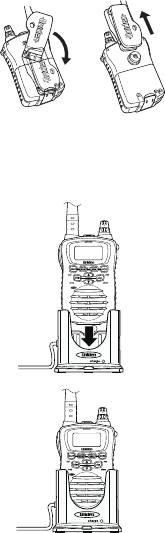

Attaching the Beltclip

1. Hold the beltclip in the direction.

2. Apply it to the hanger piece on the back of

the radio. Then slide it up.

3. You will hear a click. The beltclip is firmly

attached.

Contacts

Avoid exposing the Lithium Ion battery, attached or unattached to

the radio, in direct sunshine, heated cars, or in areas with

temperatures below –20°C (–4°F) or above +60°C (+140°F).

Exposing the chemicals contained within the battery pack to

temperatures above +60 °C (+140°F) may cause the battery to

rupture, fail or reduce performance.

In case of exposure to cell contents, wash the affected area

thoroughly, and seek medical attention.

Additional battery cautions should be applied as described on page

i of your Owner ’s Manual.

CAUTION!

6

! The charger won’t overcharge the battery pack. When charging is

completed, the charge LED is no longer illuminated.

! Do not transmit when the UH076SX is in the drop-in charger!

! You can monitor incoming calls while the UH076SX is in the

drop-in charger.

4. To take the beltclip off the radio, turn it

and slid it up.

Charging the Battery Pack

Your radio is powered by a specially designed Lithium Ion battery pack.

! Before operating the UH076SX, charge the Lithium Ion battery pack for 5

hours without interruption in the drop-in charger.

1. Place the UH076SX in the drop-in charger.

2. The red LED illuminates and stays ON, until fully

charged.

UHO76SX

UHO76SX

7

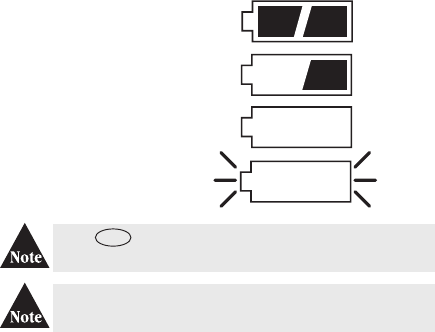

Battery Level Display

The BATTERY icon in the top right hand corner of the screen indicates the

UH076SX current battery voltage level at all times. The battery level is displayed in

4 levels.

LEVEL 4

Battery 100% full

LEVEL 3

Battery approx. 40% capacity

LEVEL 2

Low Battery

LEVEL 1 (flashing)

Empty Battery

When is pressed at Level Empty, battery icon and

channel number will flash, transmission is disabled.

Recharge the battery at any time. From empty the battery

will take up to 5 hours to fully charge.

Battery Life : 12 Hours (Typical)

This is based on the following Duty Cycle:

Transmit (Low Power) 5%

Receive 5%

Stand-by 90%

PTT

SPKR/MIC Jack Cap

Make sure the SPKR/MIC jack cap is firmly pushed in to maintain submersible

rating.

Connecting the SPKR/MIC

Release the SPKR/MIC jack cap to plug in the SPKR/MIC. Secure the

SPKR/MIC plug by tightening the plug collar clockwise.

8

OPERATION

POWER ON/OFF

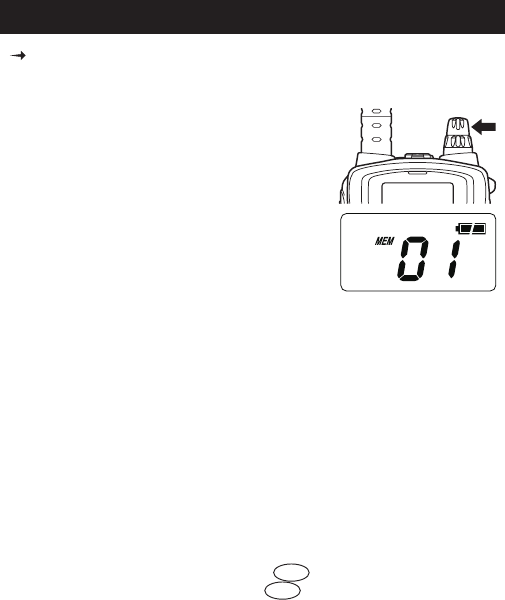

To turn the unit ON, rotate the [ON/OFF VOL]

clockwise. A channel number and battery level

should appear on the display.

To turn the unit OFF, rotate the [ON/OFF VOL]

knob counter-clockwise. The display will disappear.

ADJUSTING THE KEY BEEPS

Your radio emits a beep each time-one of the keys (except for the PTT or mon)

are pressed.

VOLUME

Rotate the [ON/OFF VOL] knob clockwise or counter-clockwise to adjust

speaker volume to desired listening level.

See the Controls and Indicators page at the back of this operating guide for

button and key operations.

To turn OFF this beep: Press and hold while turning on the radio.

To turn ON this beep: Press and hold while turning on the radio.

UH076SX

dup

dup

9

ROGER BEEP

Roger Beep is a BEEP that is sent to notify the end of transmission (both PTT

and VOX transmission.) Roger Beep can be heard through the speaker when

Key Beep is on. Roger Beep is transmitted even if key beep is turned off.

However Roger Beep will not be heard from the speaker.

To turn OFF Roger Beep: Press and hold while turning on the radio.

To turn ON Roger Beep: Press and hold while turning on the radio.

SELECTING CHANNEL

Press or to select the desired channel.

If you press and hold the or ,

channel number will scroll rapidly.

10

SQUELCH

The squelch is used to eliminate any annoying background noise when there

are no signals present.

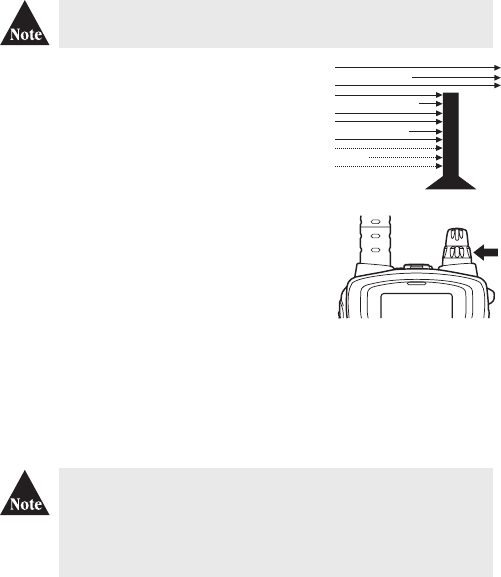

Think of squelch as a gate. Turn [SQ] fully

clockwise. This raises the "Squelch Gate" so high

that only the very strong signals can get through.

Turn [SQ]

fully counter clockwise until you hear a

hiss. This opens the "Squelch Gate" so that

everything gets through noise, weak signal, and

strong signals.

To set the "Squelch Gate" to the desired level, turn

[SQ] counter-clockwise until you hear noise. Then

turn the [SQ] clockwise just until the noise

stopped. Now only the desired signal can get

through.

If an incoming signal is very weak there is a

possibility that you will have a choppy or broken

reception, due to the sensitivity of the squelch.

In this case, simply rotate the [SQ] clockwise

until the weak signal is heard clearly.

Noise

Weak Signals

Medium Signals

Strong Signals

Make sure to first select a channel not in use before setting the

squelch in your UH076SX UHF-CB radio.

UH076SX

11

TO TRANSMIT AND RECEIVE

The UH076SX uses the 40 UHF-CB Channels. For your reference a list of the

available channels and corresponding frequencies is printed on page 20.

1. The maximum RF transmit power of UH076SX is 5 Watts.

2. Before you transmit, listen for activity on the

selected channel.

3. When the channel is clear, press and hold the

to transmit. TX appears on the LCD.

4. When you have finished speaking, release the

and listen for a response. TX indicator

then disappears on the LCD.

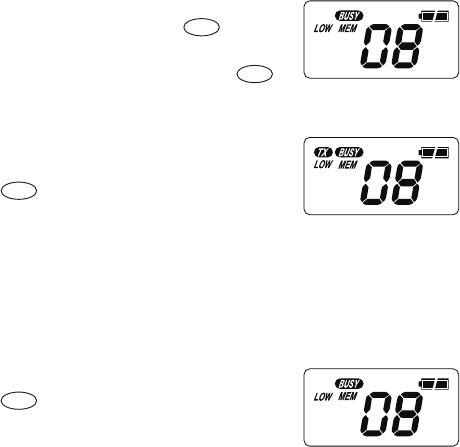

The display shows BUSY when a transmission

is being received by your radio.

Hold the radio with microphone approximately

five cms in front of your mouth with the

antenna at approximately 45* angle away from

your head. Speak in a clear, normal

conversational voice.

To switch to low power, press . LOW

appears on the LCD.

To switch back to higher power, press

again. LOW indicator disappears from the LCD.

PTT

PTT

1/5w

1/5w

12

USING A REPEATER CHANNEL

UHF CB Repeaters are used to retransmit or relay your signal. Repeaters will

extend the range of your radio and overcome the shielding effect caused by

solid obstructions.

In normal Simplex operation, your radio transmits on one particular frequency

and receives on that same frequency. If there is a barrier (i.e. a Tall Building)

that partially blocks your transmitted signal, the possibility of the other radio

receiving the signal is very slim. Valleys, metallic structures, etc., tend to act as a

screen between radios.

With Duplex operation, the signal coming from your radio is received by the

Repeater station and then re-transmitted at the same time on another channel.

Your UH076SX is designed with duplex capability on Channels 1 to 8. When any

of these channels are set to operate in duplex mode during transmission, the

UH076SX automatically sends the signal at a frequency 30 channels above the

original in order to access the repeater station. After transmitting, the radio

reverts back to its original operating frequency.

For example:

1. CH01 is on Duplex Mode

- will receive on CH01 but Transmit on CH31

2. CH02 is on Duplex Mode

- will Receive on CH02 but Transmit on CH32, etc….

Refer to UHF Channel & Frequencies table on page 20.

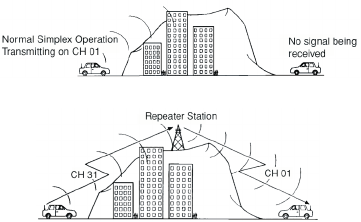

Standard Operation without the aid of a Repeater Station

Operation with the aid of a Repeater

13

TO OPERATE UH076SX IN DUPLEX MODE

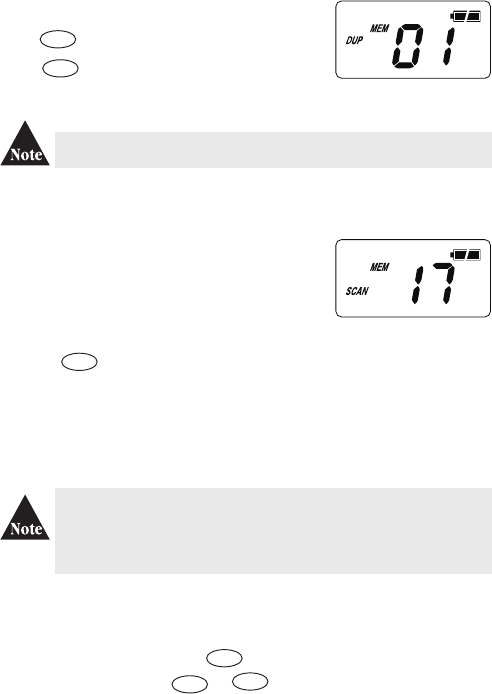

Eg. CH01 is being used in your area for repeater use.

SCANNING

The UH076SX has two types of scanning; Open Scanning (OS) and Group

Scanning (GS).

Scanning allows you to search for active channels

programmed in the OS or GS memory.

To initiate scanning;

1. Assuming the unit is on CH17 when switched on.

2. Press and scanning starts. SCAN icon flashes during scanning.

Open Scan (OS) Mode (the absence of GS icon indicates that the unit is on

OS mode)

Allows continuous scanning of channels stored in the Open Scan (OS) memory.

If an active channel is found, scanning will stop on that channel.

The factory has preprogrammed all the 40 UHF channels into the

Open Scan channel memory. However, you can change or

customize the channels by following the steps on programming

Scan Channels on page 15.

Example: CH40 becomes active

If the received signal cease, the unit will wait for at least 3 seconds for the

signal to return, otherwise scanning resumes.

To skip the active channel, press momentarily. Scanning resumes.

To deactivate SCAN, press or .

Check with your local retailer for available repeaters.

Press momentarily. The DUP icon appears.

Press again to deactivate the duplex operation.

UH076SX will return to simplex operation.

PTT

dup

dup

scan

scan

mem

14

Group Scan (GS) Mode

Allows you to monitor a Priority Channel while scanning.

To use GS Mode Scanning, press the key. .

GS icon appears on the

display.

GS Scanning checks the Priority channel activity regularly.

If SCAN is deactivated while in an active channel, the UH076SX will

stay on that active channel. If no other channels are active, the

UH076SX will reinstate the starting channel.

If SCAN is deactivated while it is turned to an active channel, the

UH076SX will stay on that active channel. If none of the channels are

active, the UH076SX will reinstate the Priority channel.

If GS Scanning is initiated when there are no channels

programmed in GS memory, an error tone will be heard and

scanning will not start.

If the Priority channel becomes active the radio will stay on that channel for as

long as the signal is present. If the received signal ceases, Priority scanning

continues after 3 seconds.

If scanning stops on a channel which is not a Priority Channel the

UH076SX will continue monitoring the Priority Channel for activity

while listening to the active one.

To deactivate SCAN, press the or .

PTT

os/gs

scan

15

Programming Scan Channels

1. Select which Scanning Mode you wish to use OS or GS Mode.

OS is indicated by the absence of the GS icon.

2. Select the channel you want to store by pressing or .

3. Press and hold for 1.5 secs. to store. MEM icon appears and two

short tone beeps are heard.

4. To remove the channels from Memory, press and hold for 1.5 secs.

once more. Two short tone beeps are heard and the MEM icon disappears.

PRIORITY CHANNEL

The Priority Channel feature allows user to monitor one of 40 channels in the

UH076SX, monitoring it every 1.5 secs. during Group Scanning.

Choosing a Priority Channel

DROP-OUT DELAY

While scanning, the UH076SX stops at a busy channel and receives a

transmission. When the received signal is over, the unit will wait for 3 seconds

for the return of the signal, otherwise, the radio resumes scanning.

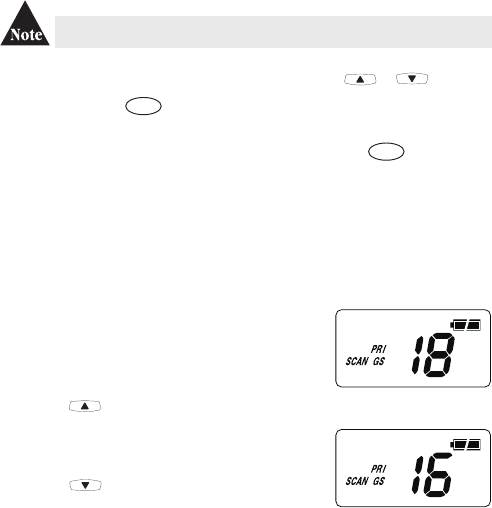

The starting channel, when Group Scanning is

initiated, is always the Priority Channel. To change

the priority channel setting while scanning, (eg. PRI

Channel is CH17 (476.825 MHz ));

a. press , to select a higher channel (scanning

pauses).

or

b. press , to select a lower channel.

mem

mem

16

ADVANCED FEATURES

VOX

MBuilt-in Voice Activated Circuit (VOX) feature enables the user to

transmit automatically by speaking on the microphone of the VOX headset

(not supplied) without pressing the PTT switch.

CTCSS (Continuous Tone Coded Squelch System)

CTCSS is a feature that allows a group to talk to each other without hearing

other users on the same channel.

Programming CTCSS Code

1. Select a desired channel to be used with CTCSS.

2. Press and hold for 1.5 secs. CTCSS icon blinks.

3. Press or to select the desired CTCSS code.

4. Press to save the selected code. CTCSS icon stops blinking.

The UH076SX will return to standby mode after 10 secs. of no

activity. CTCSS code can be programmed on every channel. There

are 38 available CTCSS tone per channel.

CTCSS Scan Operation

1. Press to start scanning (GS or OS) mode.

2. Press and hold to change to CTCSS scan mode.

3. When a signal is sensed on a CTCSS CH, the UH076SX stops for about

400 msecs (decode time) to decode the CTCSS code. If there is no code or the

receive code does not match the one programmed on the unit, the unit

resumes scanning.

Channels 5 and 35 are used for emergency channels. CTCSS will

not operate on these channels.

ctcss

ctcss

ctcss

scan

17

VOX feature will not work without the Vox Headset Microphone.

The built in mic of UH076SX is temporarily disabled, however

accidental pressing of will cause the unit to transmit briefly.

Changing the VOX sensitivity setting to oF without removing the

microphone will cause the unit to transmit continuously.

To activate VOX

1. Press and hold for 1.5 secs. VOX icon blinks.

2. Press either or within 10 secs to select the desired

VOX sensitivity level (9 with the lowest sensitivity to 1 with the

highest sensitivity).

3. Press to save the selected level. VOX icon stops blinking.

4. Install VOX Headset (not supplied) to UH076SX.

To De-activate VOX

1. Remove VOX Headset from UH076SX.

2. Press and hold for 1.5 secs. until VOX blinks.

3. Press repeatedly and until oF is displayed.

4. Press to save the setting. VOX icon disappears.

PTT

vox

vox

vox

vox

18

POWER SAVE

Battery Save feature extends the battery life by switching the receiver circuit

power ON and OFF. This feature automatically activates during standby mode

(RX mode without signal).

BACK LIGHTING

The Liquid Crystal Display (LCD) and function keys are backlit for easy

viewing at night or in low light situations. The back lighting automatically

switches ON every time a key (except PTT) is pressed. It turns OFF 5 secs

after the last key is pressed.

KEYPAD LOCK

To prevent accidental entries, you can lock the keypad.

Press and hold the button until it beeps to activate Key Lock.

icon appears.

To unlock the keypad, press and hold the button again. icon

disappears.

When the Key Lock is active, a warning beep will be heard if you

attempt to press keys. (except for the PTT button)

lock

lock

19

BUSY CHANNEL LOCK-OUT (BCL)

This feature prevents accidental transmission on a busy channel.

This is recommended on channels where CTCSS is being used. If the

channel is "active" and the signal is coming from a non or different CTCSS

code user the BCL feature will prevent you from transmitting.

To activate BCL

Press and hold for 1.5 secs. until BCL appears on display.

To De-activate BCL

Press and hold for 1.5 secs. until BCL disappears from the display.

MONITOR

This feature enables users to listen in for weak signals on the current channel

at the press of a button.

To use monitor

! For brief listening, press .

! For continuous listening. Press and hold for 2 sec. A two tone

beep will be heard and the receiver circuit will stay open letting in both

the noise & weak signals.

! Display shows MON and BUSY icons.

! To return to normal receive mode press .

bcl

bcl

mon

mon

mon

20

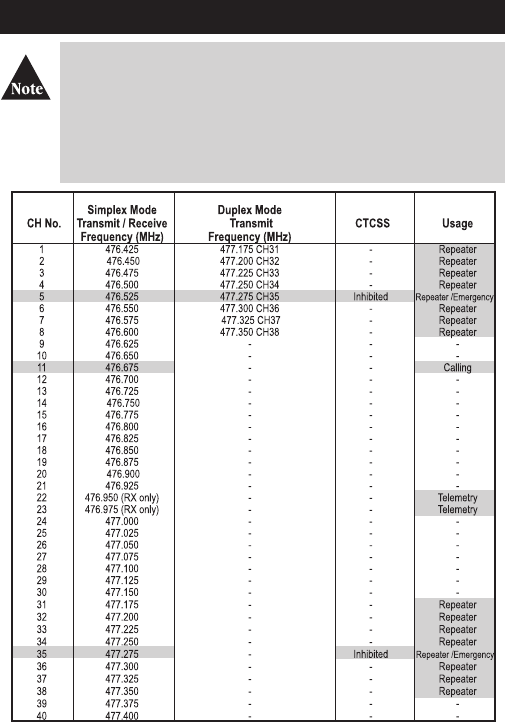

UHF CHANNEL & FREQUENCIES

Please follow these guidelines for channel use in Australia:

• Channels 05 and 35 are Emergency Channels.

• Channel 11 is a Calling Channel.

• Channels 22 and 23 are for telemetry and telecommand applications and

voice transmissions are not permitted on these channels.

General communication is accepted on all other channels with these

guidelines:

• Channel 40 - road channel (Australia).

• Channels 01- 08 (and 31- 38) are repeater channels.• Channels 01- 08 (and 31- 38) are repeater channels.

21

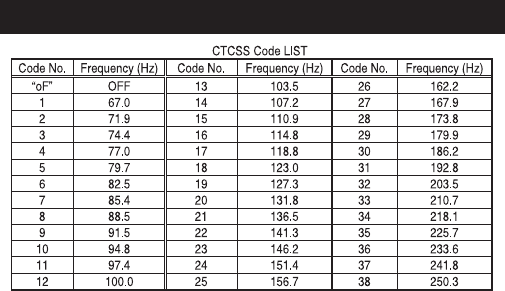

CTCSS CODES & FREQUENCIES

22

WARRANTY

UNIDEN UH076SX UHF CB TRANSCEIVER RADIO

Two Year Limited Warranty

Note: Please keep your sales docket as it provides evidence of warranty.

Warrantor: Uniden Australia Pty Limited ABN 58 001 865 498 Uniden New Zealand Limited

Warranty only available in original country of purchase

Elements of Warranty: Uniden warrants to the original retail owner for the duration of this

warranty, its UH076SX UHF CB Transceiver Radio (hereinafter referred to as the Product)

to be free from defects in materials and craftsmanship with only the limitations or

exclusions set out below.

Warranty Duration: This warranty to the original retail owner only, shall terminate and be

of no further effect TWO (2) years after the date of original retail sale. This warranty will

be deemed invalid if the Product is;

(A) Damaged or not maintained as reasonable and necessary,

(B) Modified, altered or used as part of any conversion kits, subassemblies, or any

configurations not sold by Uniden,

(C) Improperly installed,

(D) Repaired by someone other than an authorized Uniden Repair Agent for a defect or

malfunction covered by this warranty,

(E) Used in conjunction with any equipment or parts or as part of a system not

manufactured by Uniden, or

(F) Where the Serial Number label of the product has been removed or damaged beyond

recognition.

Warranty only valid in the country of original retail/sale.

Parts Covered: This warranty covers for TWO (2) years, the Product and included

accessories.

Statement of remedy: In the event that the Product does not conform to this warranty at

any time while this warranty is in effect, the warrantor at its discretion, will repair the

defect or replace the Product and return it to you without charge for parts or service. This

warranty does not provide for reimbursement or payment of incidental or consequential

damages.

This EXPRESS WARRANTY is in addition to and does not in any way affect your rights

under the TRADE PRACTICES ACT 1974 (Cth) (Australia) or the CONSUMER

GUARANTEES ACT (New Zealand).

Procedure for obtaining performance of warranty: In the event that the Product does

not conform to this warranty, the Product should be shipped or delivered, freight prepaid,

with evidence of original purchase, (eg. a copy of the sales docket) to the warrantor at:

UNIDEN AUSTRALIA PTY LIMITED UNIDEN NEW ZEALAND LIMITED

Service Division Service Division

345 Princes Highway, 150 Harris Road, East Tamaki,

Rockdale NSW 2216 Auckland

Fax (02) 9599 3278 Fax (09) 274 4253

www.uniden.com.au www.uniden.co.nz

Customers in other states should ship or deliver the Product freight pre-paid to the

nearest Uniden Authorized Repair Centre. (Contact Uniden for the Warranty Agent

nearest you.)

23

CONTROLS & INDICATORS

1 Antenna

2 Belt Clip

3 Battery

4 Battery Release Clip

5 PTT (Push to Talk) Key

6 Memory Key (mem)

7 Scan Button (scan)/

Busy Channel Lock-Out

Mode (bcl)

8 TX Power/Lock Button

9 Microphone

10 Speaker MIC Jack

11 ON/OFF VOL Knob

12 Squelch Knob (SQ)

13 LCD Display

14 Monitor Button (mon)

15 Open Scan/Group Scan

(os/gs)/VOX

16 Channel Up Button ( )

17 Duplex Key (dup)/

CTCSS Key (ctcss)

18 Channel Down Button ( )

19 Speaker

11

12

13

14

10

15

16

17

18

19

6

8

7

9

1

2

3

4

5

UH076SX

1/5w

24

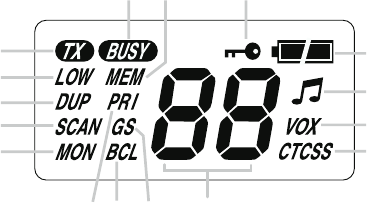

LCD Display

A Transmit

B 1W Power

C Duplex Transmit

D Scanning

E Monitor

F Priority

G Busy Channel Lock Out

H Group Scanning

I Channel Numbers

J CTCSS

K VOX

L Roger Beep

M Battery Level Indicator

N Key Lock

O Memory

P Receive

GI

K

L

M

NOP

B

C

D

A

E

F

J

H

25

Note:

©2008 Uniden Australia Pty Limited/Uniden New Zealand Limited

Part Code UTZZ01913AZ(0). Printed in China
