UIC Bezel5 payment card Reader

Programmer’s Manual

RS232 & USB Interface

Document #: PM098

Revision 1.4

May. 7th, 2014

UIC Bezel5 Programmer’s Manual Page.2/166 UDN PM098 Rev. 1.0

Document History

Document Version

Author Change Date

1.1 Robin Tang Initial version

1.2 Vicky Tuan 16, Dec, 2013

1.3 Stanley Lui Adjusted some wordings 18, Dec, 2013

1.4 Ting Sun Adjusted some wordings(Bezel5) 07.May.2014

UIC Bezel5 Programmer’s Manual Page.3/166 UDN PM098 Rev. 1.0

Table of Contents

LIST OF TABLES ...............................................................................................................................10

LIST OF FIGURES.............................................................................................................................11

NOTICE ...........................................................................................................................................11

AGENCY APPROVED .......................................................................................................................11

WARRANTY ....................................................................................................................................11

PREFACE .........................................................................................................................................11

1. GENERAL DESCRIPTION ..........................................................................................................11

1.1. FEATURES.................................................................................................................................. 11

1.2. APPLICATION.............................................................................................................................. 11

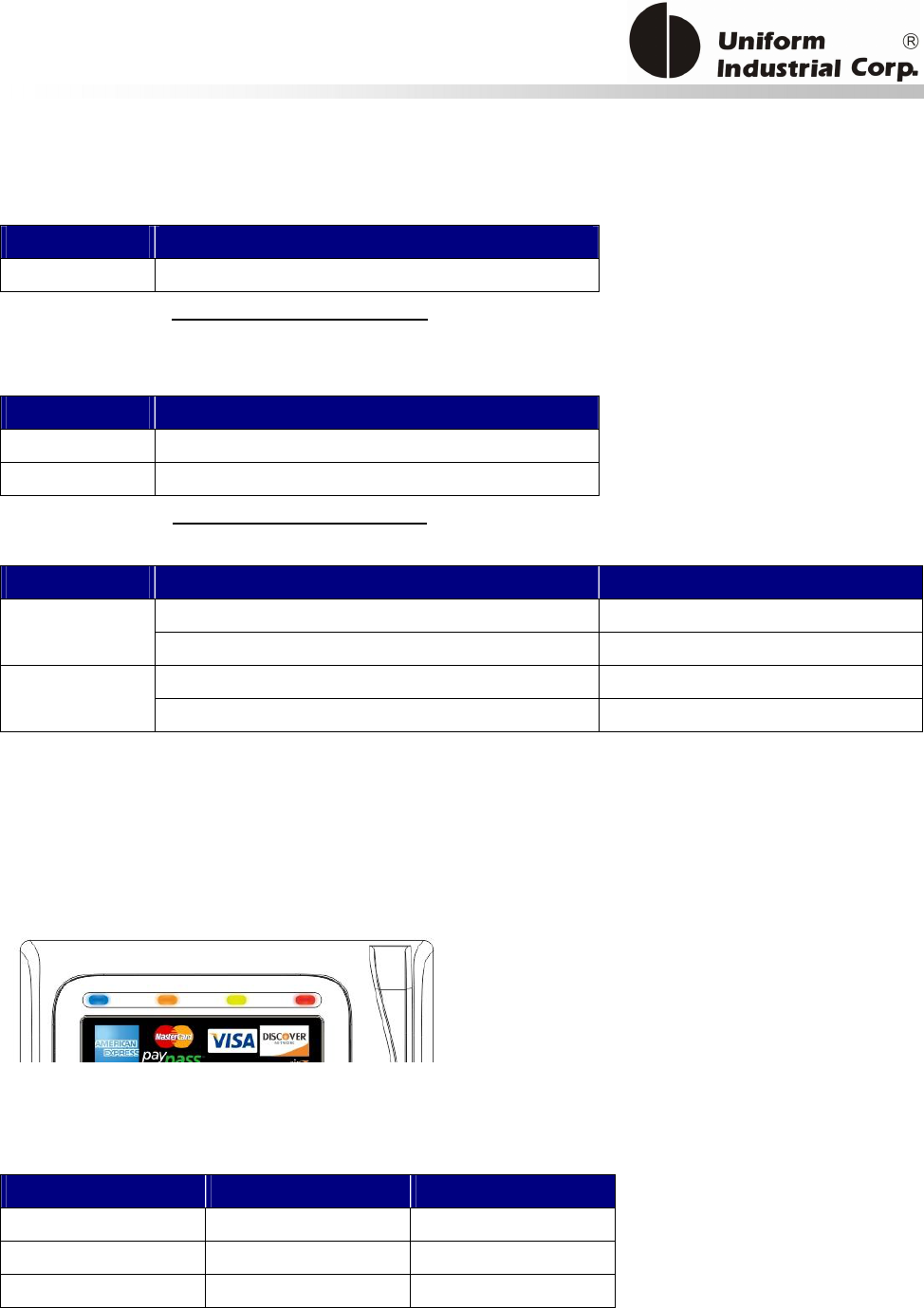

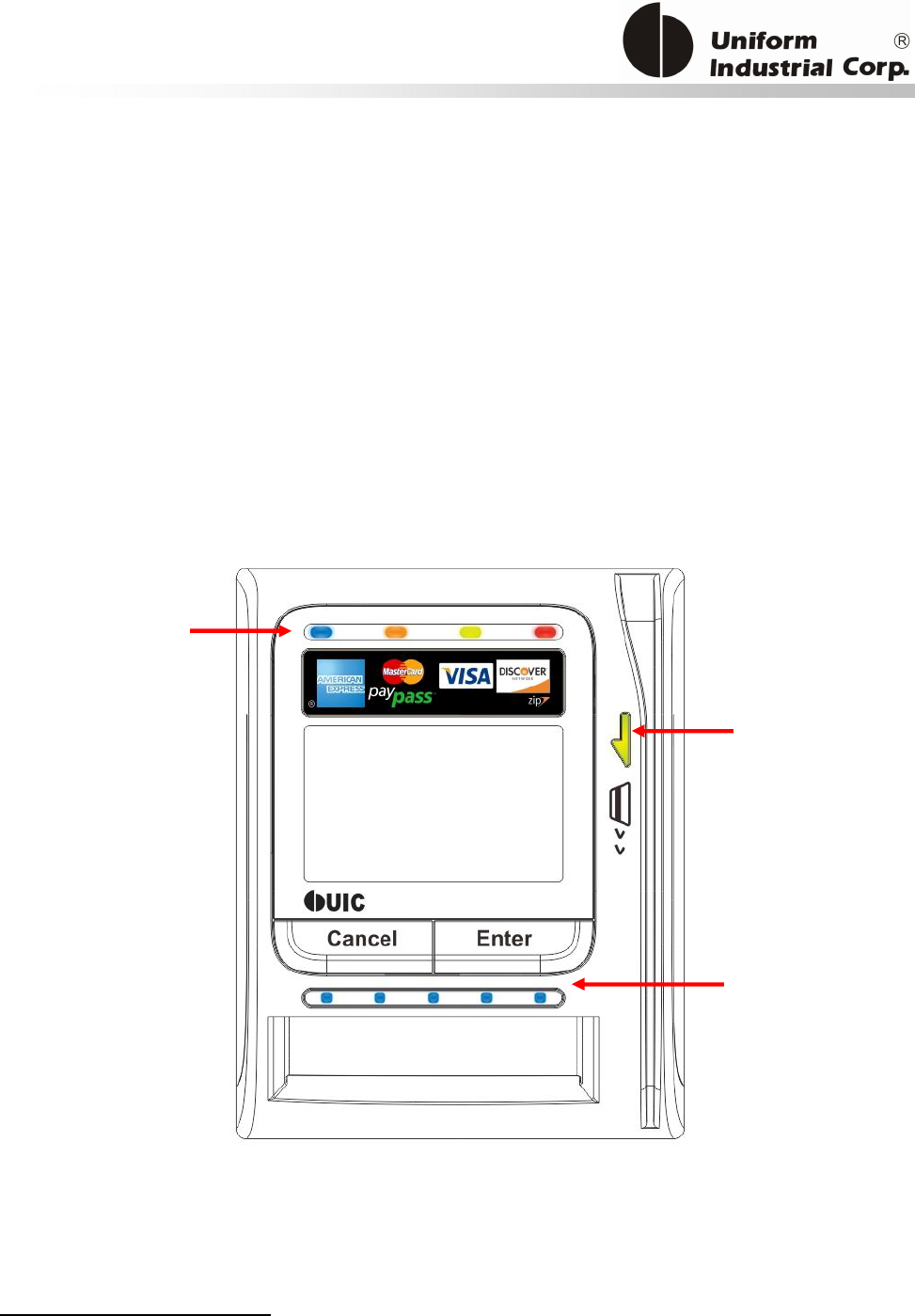

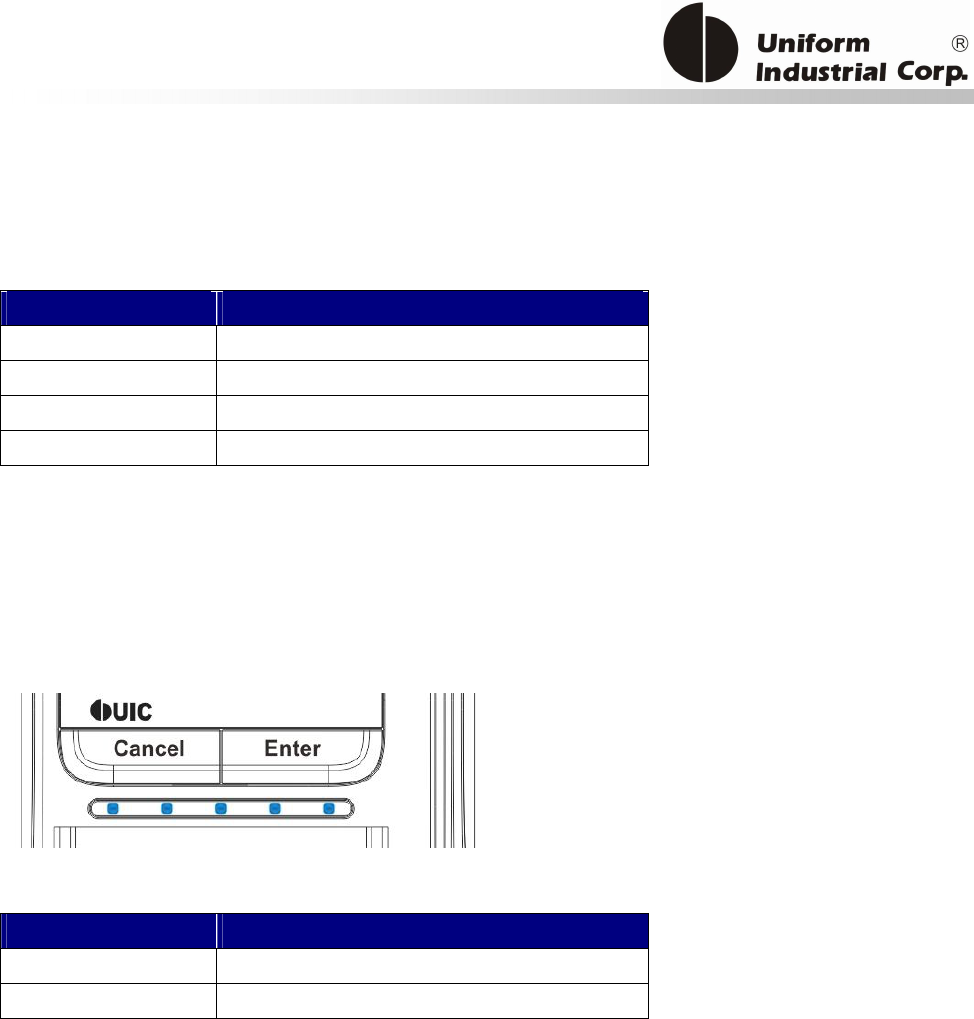

1.3. PHYSICAL LED INDICATION............................................................................................................ 11

2. CONFIGURATIONS ..................................................................................................................11

2.1. FUNCTIONAL SPECIFICATIONS......................................................................................................... 11

2.2. MECHANICAL SPECIFICATIONS........................................................................................................ 11

2.3. ELECTRICAL SPECIFICATIONS .......................................................................................................... 11

Power Required.................................................................................................................................... 11

Power Consumption............................................................................................................................. 11

Communication.................................................................................................................................... 11

Communication Signal (RS232)............................................................................................................. 11

2.4. ENVIRONMENTAL SPECIFICATIONS................................................................................................... 11

Temperature ........................................................................................................................................ 11

Humidity.............................................................................................................................................. 11

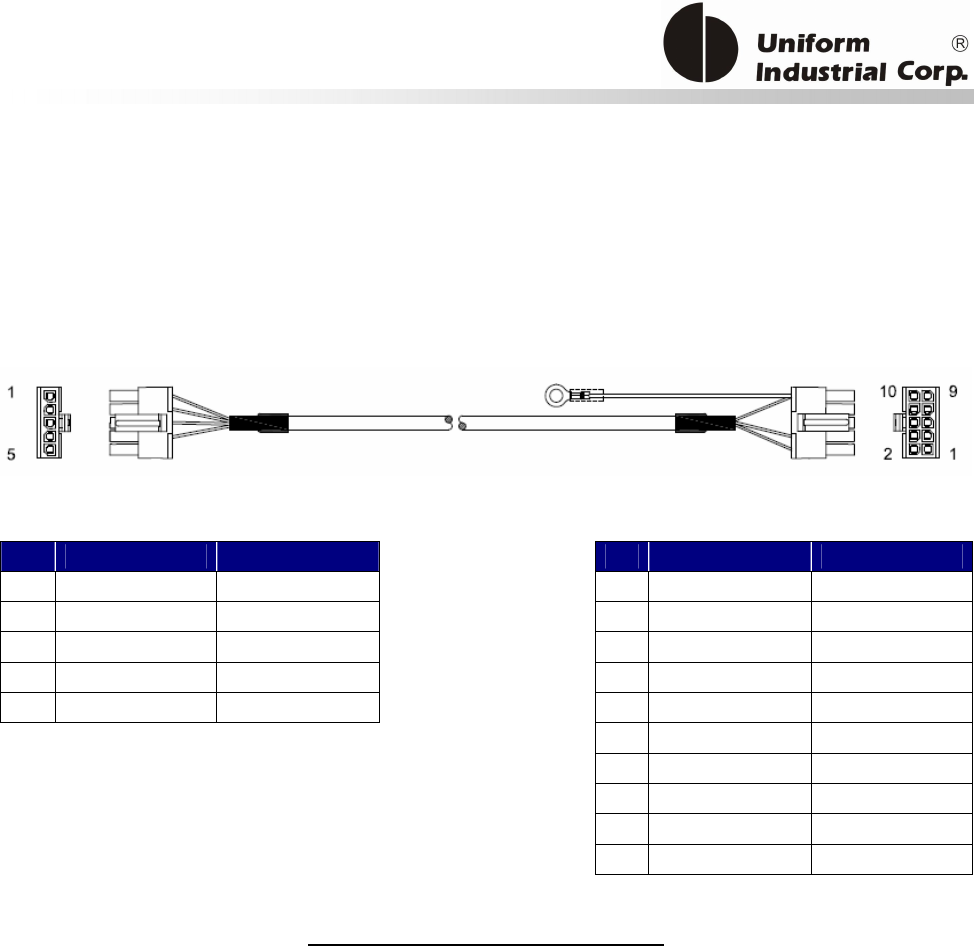

2.5. PIN ASSIGNMENT........................................................................................................................ 11

2.6. COMMUNICATION....................................................................................................................... 11

URS232 Interface Data Output ............................................................................................................. 11

USB Interface ....................................................................................................................................... 11

Identification Information .................................................................................................................... 11

3. OPERATION ............................................................................................................................11

UIC Bezel5 Programmer’s Manual Page.4/166 UDN PM098 Rev. 1.0

3.1. READER DEFAULT SETTING ............................................................................................................ 11

3.2. PRESSING THE BUTTONS AND MAGNETIC CARD ‘WIGGLING’ ................................................................ 11

3.2.1. Pressing the Cancel Button.................................................................................................... 11

3.2.2. Pressing the Enter Button...................................................................................................... 11

3.2.3. Magnetic Card is ‘Wiggled’.................................................................................................... 11

3.3. READER CONFIGURATIONS ............................................................................................................ 11

3.3.1. Transmission Protocol ........................................................................................................... 11

Protocol 0 ............................................................................................................................. 11

Protocol 2 ............................................................................................................................. 11

3.3.2. Configuration Protocol .......................................................................................................... 11

BLP Protocol ......................................................................................................................... 11

3.3.3. Self – Arm Mode................................................................................................................... 11

20BCard Data Output in Self-Arm and Host-Polled modes ..................................................... 11

3.3.4. Host Poll Mode ..................................................................................................................... 11

22BRead card data using commands in the Host-Polled mode ............................................... 11

3.3.5. EMV Mode............................................................................................................................ 11

The Application Diagram....................................................................................................... 11

3.3.6. Details of the Payment Card Tracks Data................................................................................ 11

Card Data Output Between a MSR Card and a RFID Card........................................................ 11

Track 3 Data Format for Magstripe Card ................................................................................ 11

Track 3 Data Format for Contactless Payment........................................................................ 11

TLV (Tag Length Value) Description........................................................................................ 11

Value of Card Type ................................................................................................................ 11

Value of Transaction Result.................................................................................................... 11

3.3.7. Payment Card Data Output Example...................................................................................... 11

PayPass–Magstripe3.3........................................................................................................... 11

PayPass–MChip..................................................................................................................... 11

Visa (qVSDC, MSD)................................................................................................................ 11

4. COMMANDS AND RESPONSES ...............................................................................................11

4.1. COMMON COMMAND DESCRIPTION ............................................................................................... 11

4.1.1. % (25H) - Retransmit............................................................................................................. 11

4.1.2. 70 (37H30H) or 90(39H30H) - Serial Number Report.............................................................. 11

UIC Bezel5 Programmer’s Manual Page.5/166 UDN PM098 Rev. 1.0

4.1.3. 71 (37H31H) or 91 (39H31H) - Copyright Report.................................................................... 11

4.1.4. 7A (37H41H) or 9A (39H41H) - Module Version Report.......................................................... 11

4.1.5. 7F (37H 46H) – Get Hardware Status ..................................................................................... 11

4.1.6. ? (3FH) - Select Verbose Responses Command....................................................................... 11

4.1.7. $ (24H) – Reader Status Request............................................................................................ 11

4.1.8. # (23H) – Configuration Request............................................................................................ 11

4.1.9. <CAN> (18H) – Clear Data Buffer ........................................................................................... 11

4.1.10. <7FH> – Warm Reset............................................................................................................. 11

4.1.11. 5 (35H) – Set RTC Time.......................................................................................................... 11

51 (35H31H) - Read Date....................................................................................................... 11

52 (35H32H) - Read Time ...................................................................................................... 11

54 (35H34H) - Set Date.......................................................................................................... 11

55 (35H35H) - Set Time......................................................................................................... 11

4.1.12. B (42H) – Buzzer Beep control ............................................................................................... 11

4.1.13. I (49H) – Load RSA Key .......................................................................................................... 11

4.1.14. w (77H) – Exception File........................................................................................................ 11

4.1.15. @ (40H) – Display Control ..................................................................................................... 11

4.1.16. L (4Ch) / l (6Ch) / ( (28h)- LED Control.................................................................................... 11

4.1.17. LE (4Ch 45h) / LD (4Ch 44h) - Flash LED Control ..................................................................... 11

4.2. GENERAL COMMANDS DESCRIPTION ............................................................................................... 11

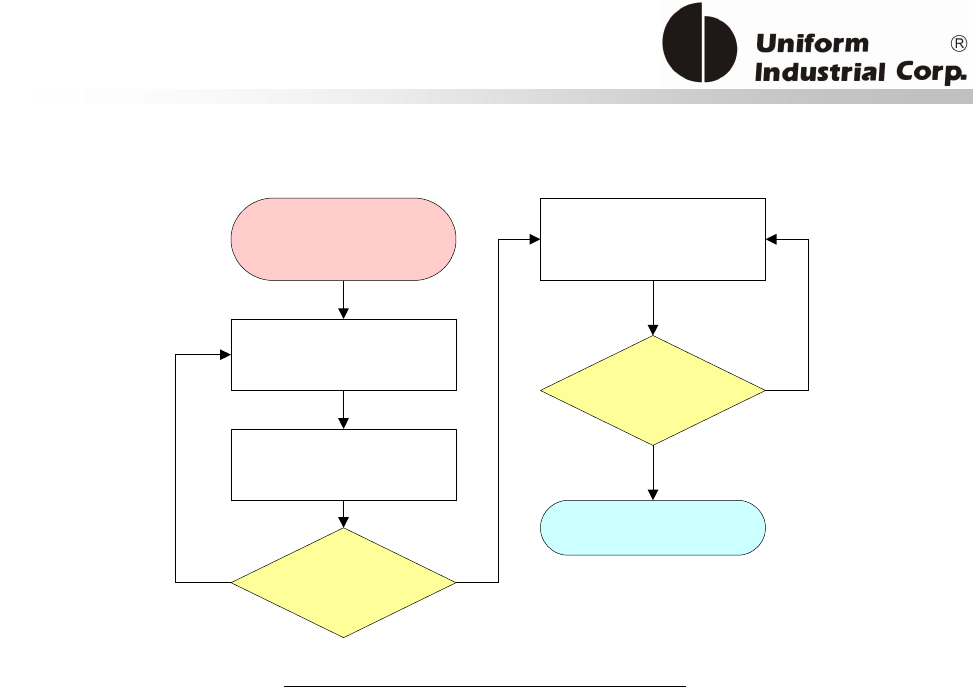

Self-Arm Mode transaction process Example flow................................................................................. 11

Host Poll Mode transaction process Example flow ................................................................................ 11

4.2.1. H (48H) – Self-Arm function disable/enable........................................................................... 11

4.2.2. P (50H) – Arm to Read........................................................................................................... 11

4.2.3. p (70H) – Arm to Read (Used for Manufacturing Test Only) .................................................... 11

4.2.4. <ESC> (1BH) – Abort Arm to Read.......................................................................................... 11

4.2.5. Q, R, S – Get Transmit Track Data........................................................................................... 11

4.2.6. T (54H) – Transaction Command............................................................................................ 11

4.3. CONFIGURATION COMMAND DESCRIPTION ....................................................................................... 11

4.3.1. CCx(43h 43h x) － Set Code................................................................................................. 11

4.3.2. CKx – Enable/Disable User CA Key ......................................................................................... 11

4.3.3. CLx(43h 4Ch x) － Set TRM Parameters ............................................................................... 11

UIC Bezel5 Programmer’s Manual Page.6/166 UDN PM098 Rev. 1.0

4.3.4. CPx(43h 50h x) － PayPass Support ..................................................................................... 11

4.3.5. CTx(43h 54h x) － Set Terminal/Transaction Type/Info......................................................... 11

4.3.6. DFx(44h 46h x) － Default Setting ....................................................................................... 11

4.3.7. DWx(44h 57h x) － Set Wait Amount mode......................................................................... 11

4.3.8. ECx(45h 43h x) － Extended Configuration Report Enable/Disable....................................... 11

4.3.9. EGx(45h 47h x) － Output Data Encryption Enable/Disable.................................................. 11

4.3.10. ERx(45h 52h x) － Record RF card data................................................................................ 11

4.3.11. ESx(45h 53h x) － SS/ES Enable/Disable .............................................................................. 11

4.3.12. Fxy(46h x y) － Set Track 1, 2, 3 Prefix/Suffix Code, Preamble/Postamble Code.................... 11

4.3.13. LB0x(4Ch 42h 30h x) － Set Read Card Mode....................................................................... 11

4.3.14. LCx(4Ch 43h x) － LRC Enable/Disable................................................................................. 11

4.3.15. MFxy(4Dh 46h x y) － Set Payment Card and MIFARE Auto-Polling ...................................... 11

4.3.16. PCx(50h 43h x) － Set Host Protocol.................................................................................... 11

4.3.17. PEx (50h 45h x) － Set Pass-Through Function..................................................................... 11

4.3.18. PHx(50h 48h x) － Set Power On Character ......................................................................... 11

4.3.19. SAx(53h 41h x) － Self-Arm Mode Enable/Disable ............................................................... 11

4.3.20. SEx(53h 45h x) － Self-Arm Mode Data Envelope Enable/Disable......................................... 11

4.3.21. TKx(54h 4Bh x) － Set Transmitting Data Tracks................................................................... 11

4.3.22. TMx(54h 4Dh x) － Set Error Code output Enable/ Disable .................................................. 11

4.3.23. TOx(54h 4Fh x) － Set Transmitting Data Output Format...................................................... 11

4.3.24. USBx(55h 53h 42h x) － USB Mode (Optional)..................................................................... 11

4.3.25. UTx(55h 54h x) － Set TAC................................................................................................... 11

4.3.26. VTx(56h 54h x) － VISA Terminal Transaction Qualifier(Tag ‘9F66’) Setting ........................... 11

4.3.27. VVx(56h 56h x) － VISA Version setting ............................................................................... 11

4.3.28. VLx(56h 4Ch x) － VISA CVM Required Limit setting............................................................. 11

4.4. CONTACTLESS OPERATION COMMANDS DESCRIPTION.......................................................................... 11

4.4.1. G (47H) – ISO 14443 Type Protocol Select.............................................................................. 11

4.4.2. O (4FH) – Antenna power ON................................................................................................ 11

4.4.3. o (6FH) – Antenna power OFF ............................................................................................... 11

4.4.4. b (62H) – Request.................................................................................................................. 11

4.4.5. c (63H) – Anti-collision(type A)/Slot-MARKER(type B) ............................................................ 11

UIC Bezel5 Programmer’s Manual Page.7/166 UDN PM098 Rev. 1.0

4.4.6. f (66H) – Select(type A)/Attrib(type B)................................................................................... 11

4.4.7. g (67H) – MIFARE Classic Card Authentication........................................................................ 11

4.4.8. h (68H) – MIFARE Classic Card Read Block(Supports MIFARE Ultralight).................................. 11

4.4.9. i (69H) – MIFARE Classic Card Write Block(Supports MIFARE Ultralight).................................. 11

4.4.10. t (74H) – MIFARE Classic Card Value Operation...................................................................... 11

4.4.11. W (57H) – ISO 14443A Detection........................................................................................... 11

4.4.12. X (58H) – MIFARE Classic Card Activation (Supports MIFARE Ultralight).................................. 11

4.4.13. u (75H) – MIFARE Classic Card Read Sector............................................................................ 11

4.4.14. v (76H) – MIFARE Classic Card Write Sector ........................................................................... 11

4.4.15. J (4AH) – Activate PICC cpu card ............................................................................................ 11

4.4.16. j (6AH) – Load MIFARE Key(Supports MIFARE Classic only) ..................................................... 11

4.4.17. F (58H) – Identify MIFARE Card Type...................................................................................... 11

4.4.18. y (79H) – Send DESELECT command ...................................................................................... 11

4.4.19. Z (5AH) – I/O to contactless CPU card with APDU format ....................................................... 11

4.4.20. z (7AH) – I/O to contactless card for block data exchange ...................................................... 11

5. EMV TRANSACTION OPERATING COMMAND.........................................................................11

5.1. CONFIGURATION COMMANDS........................................................................................................ 11

5.1.1. T01 (54H, 30H, 31H) – Terminal Configuration Setup ............................................................. 11

5.1.2. T03 (54H, 30H, 33H) – Certificate Authority Public Key Setup................................................. 11

5.1.3. T15 (54H, 31H, 35H) – Contactless Application Configuration Setup....................................... 11

5.1.4. T19 (54H, 31H, 39H) – EMV Contactless Configuration Data Query ........................................ 11

5.1.5. T1B (54H, 31H, 42H) – Delete EMV Contactless Configuration Data........................................ 11

5.1.6. T0C (54H, 30H, 43H) –Configuration Version/Checksum......................................................... 11

5.1.7. T1C (54H, 31H, 43H) –Terminal and Application List Default Setting....................................... 11

Terminal Configuration Settings............................................................................................. 11

Visa Application Identifier..................................................................................................... 11

PayPass Application Identifier................................................................................................ 11

MaestroCard Application Identifier........................................................................................ 11

American Express Application Identifier................................................................................. 11

Discover Zip Application Identifier......................................................................................... 11

Interac Application Identifier................................................................................................. 11

5.2. GENERAL COMMAND................................................................................................................... 11

UIC Bezel5 Programmer’s Manual Page.8/166 UDN PM098 Rev. 1.0

5.2.1. (C8H) – Activate/Deactivate Contactless/MSR Reading command .......................................... 11

5.2.2. (C9H) – Response of Start Transaction ................................................................................... 11

5.2.3. (CEH) – Return the Specific EMV Tags.................................................................................... 11

6. AUTHENTICATION AND CARD DATA ENCRYPTION ???............................................................11

6.1. DATA SECURITY AND KEY MANAGEMENT.......................................................................................... 11

6.2. PRODUCT LIFE CYCLE ................................................................................................................... 11

6.3. OPERATION FLOW....................................................................................................................... 11

6.4. AUTHENTICATION........................................................................................................................ 11

6.5. DOUBLE DUKPT ........................................................................................................................ 11

6.5.1. Auto Rollover 1: key generation............................................................................................. 11

6.5.2. Auto Rollover 2: key generation............................................................................................. 11

6.6. TRACK OUTPUT FORMAT (SELF-ARM).............................................................................................. 11

6.6.1. RS232/USB Virtual................................................................................................................. 11

6.6.2. HID MSR (Optional)............................................................................................................... 11

6.7. ADMINISTRATION COMMANDS ...................................................................................................... 11

6.7.1. 90H 02H – Load Session ID .................................................................................................... 11

6.7.2. 90H 03H – Get KSN & Encrypted Random.............................................................................. 11

6.7.3. 90H 04H – Select DUKPT Key Slot .......................................................................................... 11

6.7.4. 90H 05H – Select DUKPT Management Mode........................................................................ 11

6.7.5. 90H 06H – DUKPT Key Iteration Test ...................................................................................... 11

6.7.6. 90H 07H – Get Encrypted Status............................................................................................ 11

6.7.7. 90H 10H – Get Challenge....................................................................................................... 11

6.7.8. 90H 11H – Load Encrypt Initial Key........................................................................................ 11

6.7.9. 90H 12H – Change Encrypt Mode for Data Output Format..................................................... 11

6.8. LOAD SESSION ID........................................................................................................................ 11

6.9. LOAD DUKPT KEY ...................................................................................................................... 11

6.10. LOAD GOOGLE WALLET MERCHANT SYMMETRY KEY........................................................................... 11

6.11. LOAD AUTHENTICATION RSA KEY ................................................................................................... 11

6.12. CHANGE ENCRYPT MODE FOR DATA OUTPUT FORMAT ........................................................................ 11

7. GOOGLE WALLET ....................................................................................................................11

7.1. TRACK OUTPUT SCENARIOS........................................................................................................... 11

UIC Bezel5 Programmer’s Manual Page.9/166 UDN PM098 Rev. 1.0

7.2. CONFIGURATION OPTION.............................................................................................................. 11

7.3. TAG FFFF820E DATA FORMAT ...................................................................................................... 11

7.4. GOOGLE WALLET MERCHANT KEY UPDATE ....................................................................................... 11

7.5. GOOGLE WALLET COMMANDS....................................................................................................... 11

7.5.1. D (44H) – Google Card Operation .......................................................................................... 11

D<03> (44H 03H) - Read transmission log.............................................................................. 11

D<04> (44H 04H) - Clear transmission log.............................................................................. 11

D<07> (44H 07H) – Load Google wallet MIFARE secret key.................................................... 11

D<08> (44H 08H) –Get SHA1 value of MIFARE key................................................................. 11

D<09> (44H 09H) –Get Google Polling Mode ......................................................................... 11

D<0A> (44H 0AH) –Get SHA1 value of All Encrypt MIFARE key............................................... 11

8. ISIS WALLET ............................................................................................................................11

8.1. TRACK OUTPUT CONCEPT ............................................................................................................. 11

8.2. CONFIGURATION OPTION.............................................................................................................. 11

8.3. TAG FFFF820E OUTPUT FORMAT .................................................................................................. 11

8.4. ISIS COMMANDS ........................................................................................................................ 11

8.4.1. Configuration Command Protocol ......................................................................................... 11

8.4.2. Activate/or deactivate wallet application............................................................................... 11

8.4.3. Merchant ID.......................................................................................................................... 11

8.4.4. Merchant Store ID................................................................................................................. 11

8.4.5. Load Loyalty ID...................................................................................................................... 11

8.4.6. Load OFFER_TYPE_CODES..................................................................................................... 11

8.4.7. Load MERCHANT_CAPABILITIES............................................................................................. 11

8.4.8. Load TERMINAL_STARTUP_MODE......................................................................................... 11

8.4.9. Set SmarTap Application Version ........................................................................................... 11

UIC Bezel5 Programmer’s Manual Page.10/166 UDN PM098 Rev. 1.0

List of Tables

Table 1-1 Bezel5 features ........................................................................................................11

Table 2-1. Pin Assignment of Interface Cable...........................................................................11

Table 3-1. Default Configuration settings.................................................................................11

Table 3-2. Track 3 Data Format ................................................................................................11

Table 3-3. TLV Tag format and descriptions..............................................................................11

Table 3-4. Card Type indication in Track 3................................................................................11

Table 3-5. Transaction Result indication in Track 3...................................................................11

Table 4-1. Module Version Report Description ........................................................................11

Table 4-2. First Byte Description of Reader Status Request......................................................11

Table 4-3. Second Byte Description of Reader Status Request..................................................11

Table 4-4. First byte of Configuration Request response..........................................................11

Table 4-5. Load RSA Key Type ..................................................................................................11

Table 4-6. Load RSA Key Data Description................................................................................11

Table 4-7. Load RSA Key example (I1 command)......................................................................11

Table 4-8. Authentication RSA Key data format (I2 command).................................................11

Table 4-9. Padding Frame of Authentication RSA Key command..............................................11

Table 4-10. Load Authentication RSA Key example (I2 command)............................................11

Table 4-11. LCD Function Table................................................................................................11

Table 4-12. Clear LCD command option...................................................................................11

Table 4-13. Write Characters to LCD ........................................................................................11

Table 4-14. Graphic Picture Selection ......................................................................................11

Table 4-15. LCD Inverse Option................................................................................................11

Table 4-16. Cursor Blink Option...............................................................................................11

Table 4-17. Cursor Display Option ...........................................................................................11

Table 4-18. Cursor Position Set................................................................................................11

Table 4-19. LCD Blinking Option ..............................................................................................11

Table 4-20. Set LCD Blinking Time ...........................................................................................11

UIC Bezel5 Programmer’s Manual Page.11/166 UDN PM098 Rev. 1.0

Table 4-21. LCD Backlight Control............................................................................................11

Table 4-22. Commands related to Self-Arm mode transaction example flow ...........................11

Table 4-23. Commands related to Host-Poll mode transaction example flow...........................11

Table 4-24. BLP Configuration Protocol....................................................................................11

Table 4-25. Set Configuration Code Table ................................................................................11

Table 4-26. Public Key switch Table .........................................................................................11

Table 4-27. Set TRM Parameters..............................................................................................11

Table 4-28. Configure PayPass supporting mode .....................................................................11

Table 4-29. Set Terminal, Transaction Type/Info Table .............................................................11

Table 4-30. Set Wait Amount mode.........................................................................................11

Table 4-31. Extended Configuration Report Option .................................................................11

Table 4-32. Output Data Encryption Setup ..............................................................................11

Table 4-33. Record RF card data option ...................................................................................11

Table 4-34. SS/ES Option.........................................................................................................11

Table 4-35. Track Format Configuration Table..........................................................................11

Table 4-36. Set Read Card Mode..............................................................................................11

Table 4-37. LRC Option ............................................................................................................11

Table 4-38. Mifare Card Type Response table ..........................................................................11

Table 4-39. Set Transmitting Data Tracks .................................................................................11

Table 4-40. Set TAC Table (for PayPass Only)............................................................................11

Table 5-1. Terminal Configuration Setup Tag list ......................................................................11

Table 5-2. Certificate Authority Public Key parameters description..........................................11

Table 5-3. Application Configuration Tag List ...........................................................................11

Table 5-4. EMV Contactless Configuration Data Query Type ....................................................11

Table 5-5. Configuration Version/Checksum Mode..................................................................11

Table 5-6. Configuration Version/Checksum Options...............................................................11

Table 5-7. Terminal Configuration Settings Tag List ..................................................................11

Table 5-8. Visa Application ID Default Tag Value......................................................................11

Table 5-9. PayPass Application ID Default Tag Value.................................................................11

UIC Bezel5 Programmer’s Manual Page.12/166 UDN PM098 Rev. 1.0

Table 5-10. MaestroCard Application ID Default Tag Value ......................................................11

Table 5-11. American Express Application ID Default Tag Value ...............................................11

Table 5-12 Discover Zip Application ID Default Tag Value.........................................................11

Table 5-13. Interac Flash Application ID Default Tag Value .......................................................11

Table 5-14. Interface Priority of Activate Contactless/MSR Reading Command........................11

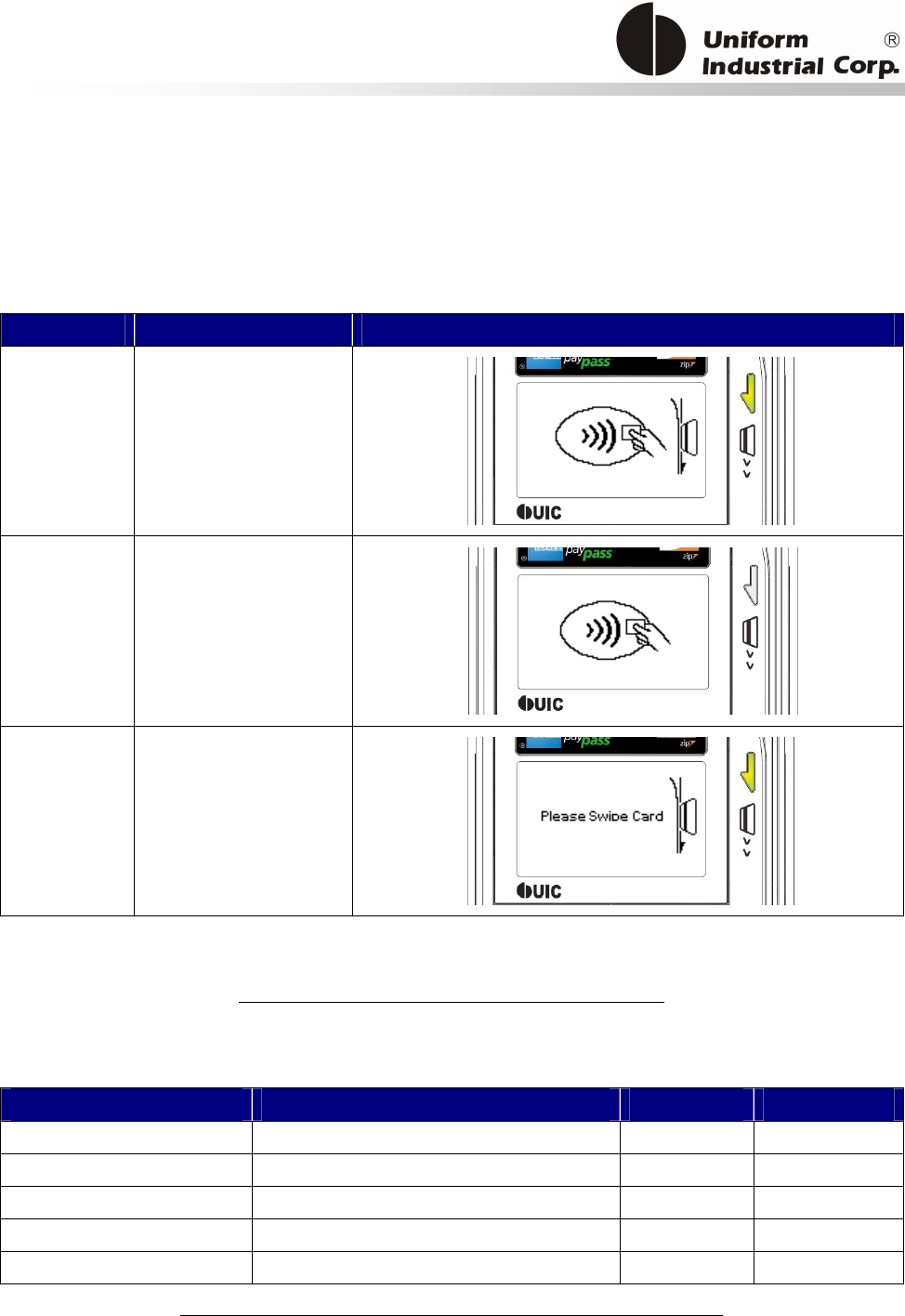

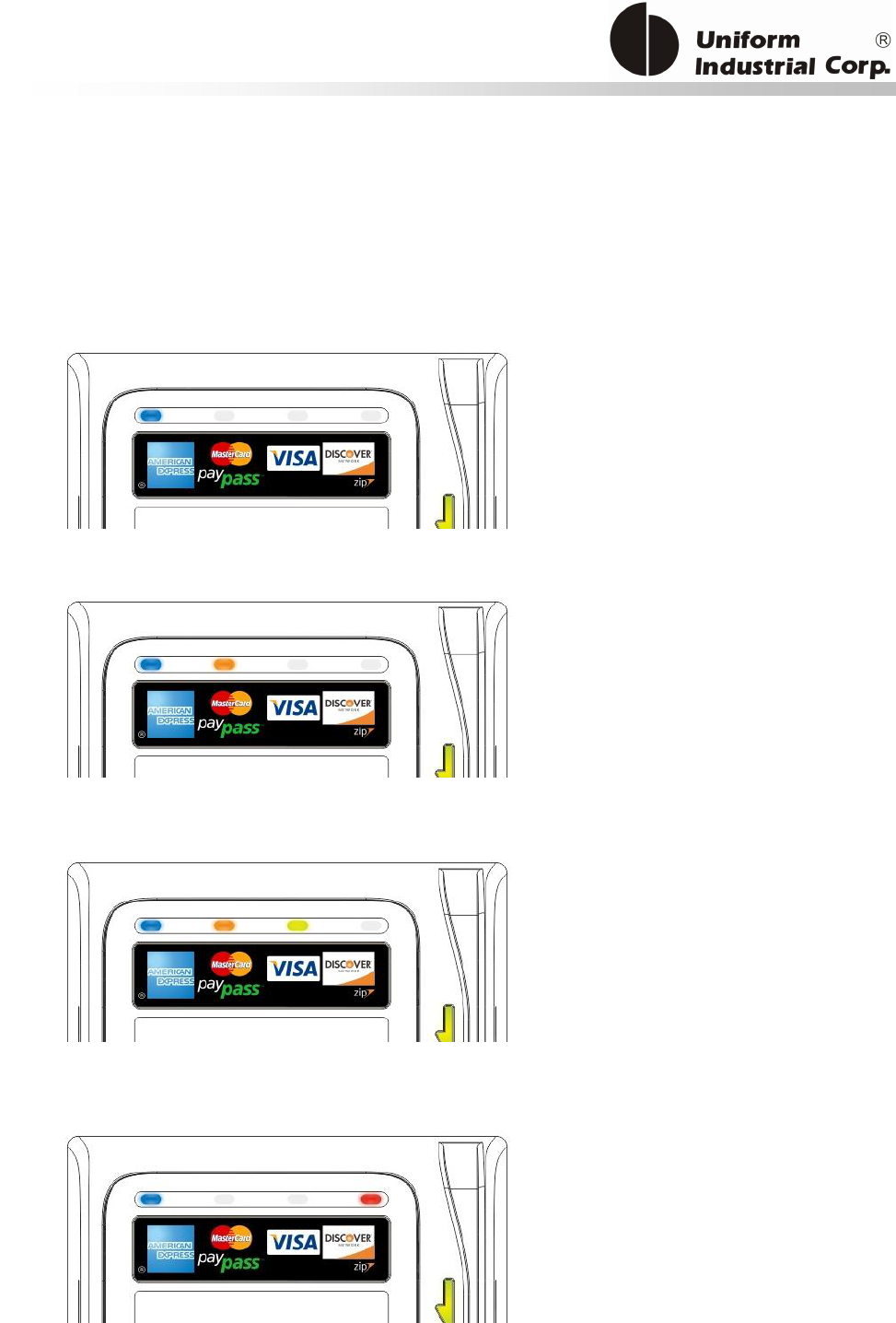

Table 5-15. Display picture reference of Interface Priority .......................................................11

Table 5-16. Required TLV Tags in Activate Contactless Reading Command ...............................11

Table 5-17. Error Code indication of Transaction Result...........................................................11

Table 5-18. POS Entry indication of Transaction Result ............................................................11

Table 5-19. Field Description of Contactless Transaction Data .................................................11

Table 5-20. Field Description of MSR Transaction Data............................................................11

Table 6-1. Data Security Operations ........................................................................................11

Table 6-2. Key Management Mode..........................................................................................11

Table 6-3. HID MSR Offset Table ..............................................................................................11

Table 6-4. Get Challenge Padding Frame .................................................................................11

Table 6-5. Load Initial Key Padding Frame................................................................................11

Table 6-6. Encrypt Mode of Load Initial Key.............................................................................11

Table 6-7. DUKPT Key Slot of Load Initial Key...........................................................................11

Table 6-8. Padding Frame of Change Encrypt Mode for Data Output Format ...........................11

Table 6-9. Encrypt Mode of Data Output Format.....................................................................11

Table 6-10. Example of Load Session ID...................................................................................11

Table 6-11. Example of Load DUKPT Key..................................................................................11

Table 6-12. Example of Load Google Wallet Merchant Symmetry Key .....................................11

Table 6-13. Example of Load Authentication RSA Key ..............................................................11

Table 6-14 Example of Change Encrypt Mode for Data Output Format....................................11

Table 7-1. Track/Tag information of Google Wallet Transaction Format ...................................11

Table 7-2. Selectable Configuration of Google Wallet transaction mode..................................11

Table 7-3. Card Data Output mode for different types of card and reader configurations ........11

Table 7-4. Google Wallet Data Transmission Tag Format..........................................................11

UIC Bezel5 Programmer’s Manual Page.13/166 UDN PM098 Rev. 1.0

Table 7-5. Google Wallet Operation Command Type ...............................................................11

Table 8-1 Track/Tag information of Google Wallet Transaction Format ....................................11

Table 8-2. ISIS Wallet Tag Data Output Format ........................................................................11

Table 8-3. ISIS Wallet Data Transmission Tag Format ...............................................................11

UIC Bezel5 Programmer’s Manual Page.14/166 UDN PM098 Rev. 1.0

List of Figures

Figure 3-1. EMV Configuration command diagram ..................................................................11

Figure 3-2. Self-Arm Mode Transaction Process Example Flow ................................................11

Figure 3-3. Host Poll Mode Transaction Process Example Flow................................................11

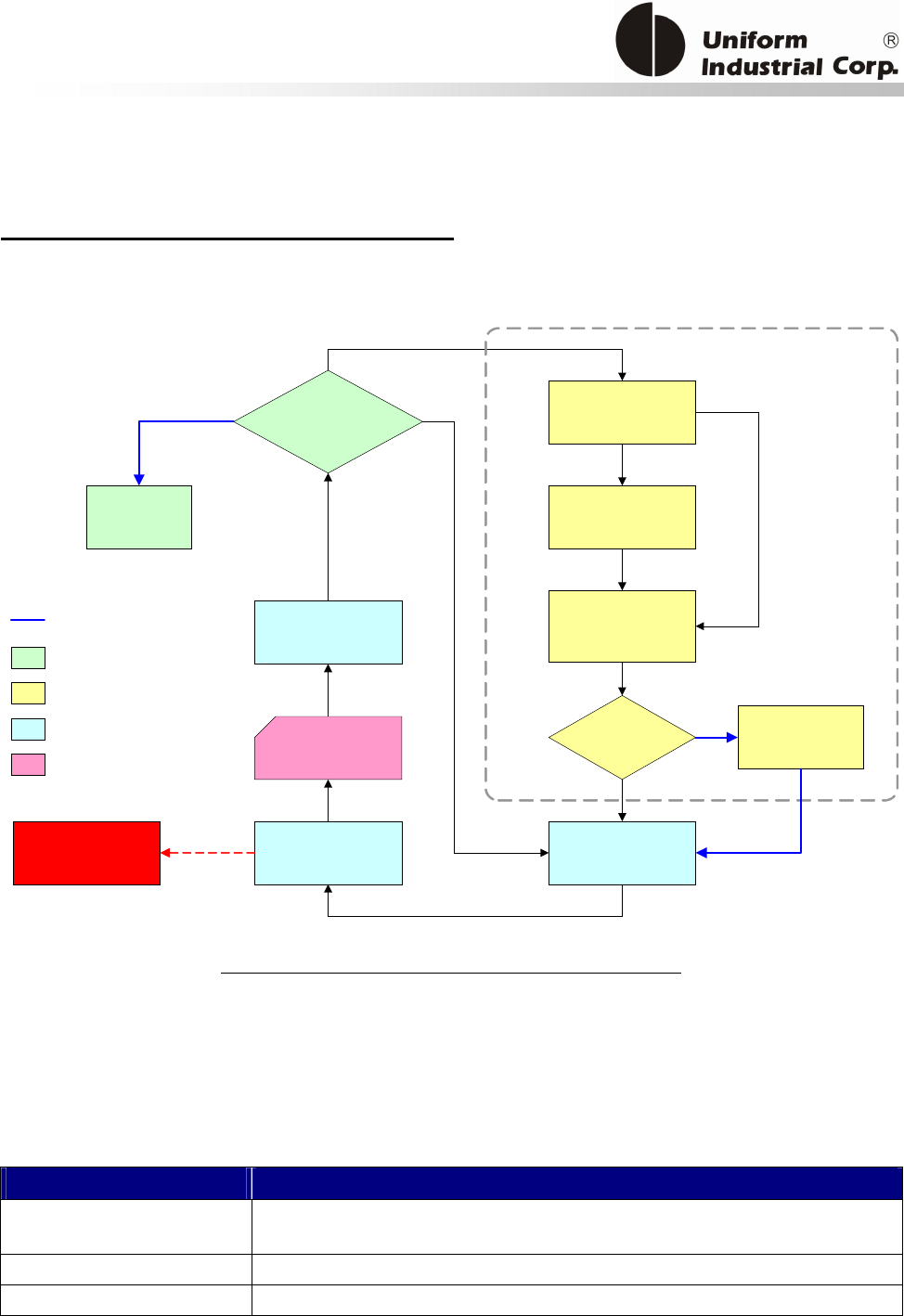

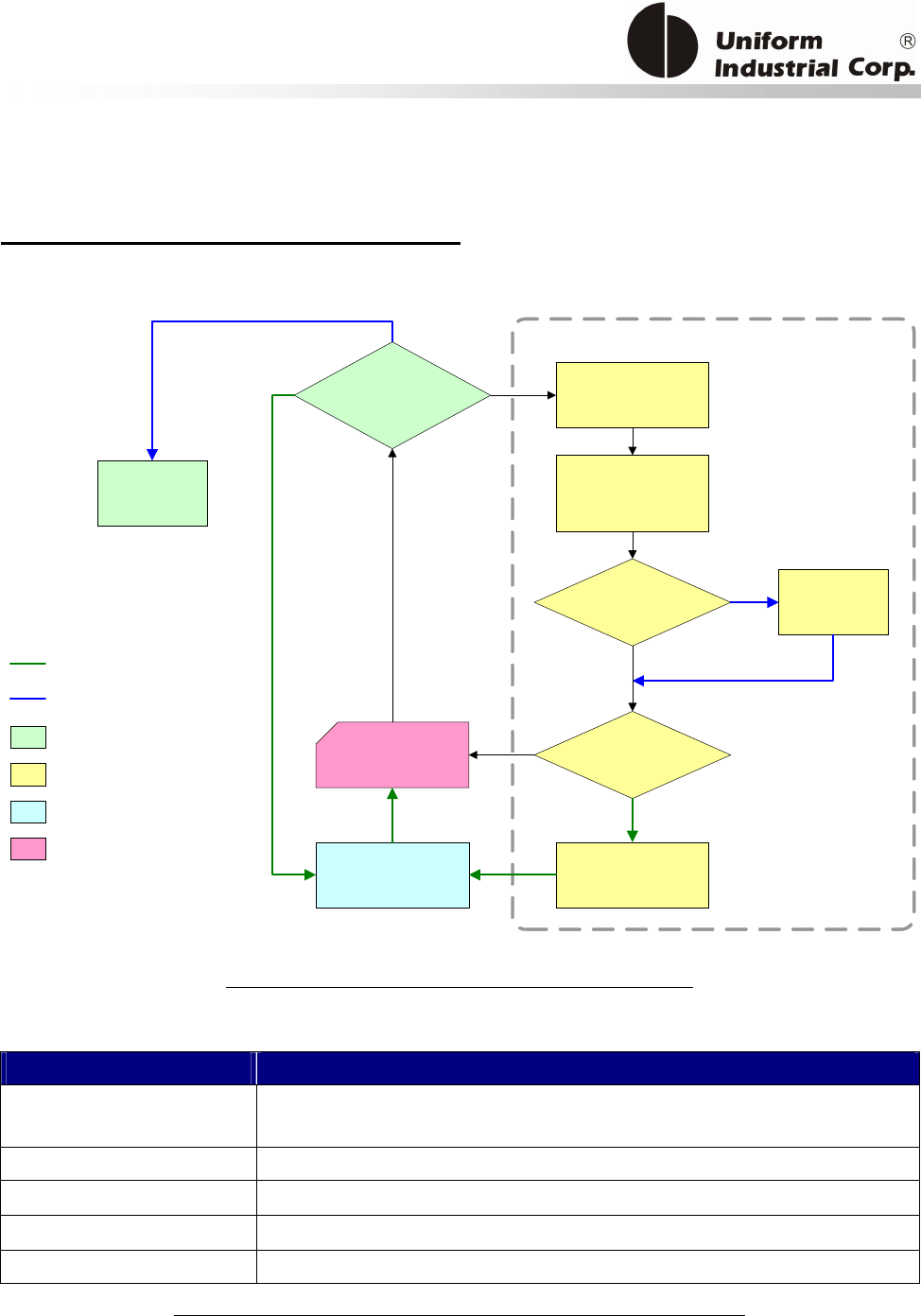

Figure 6-1. Data Security Operation Flow ................................................................................11

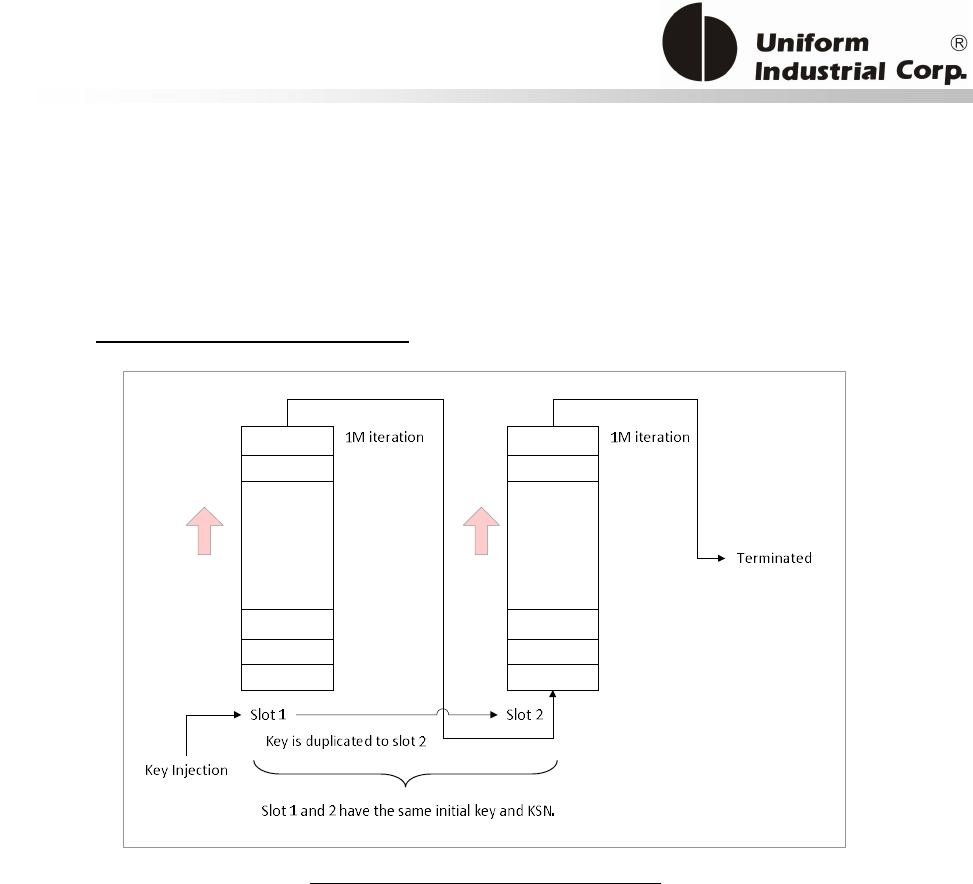

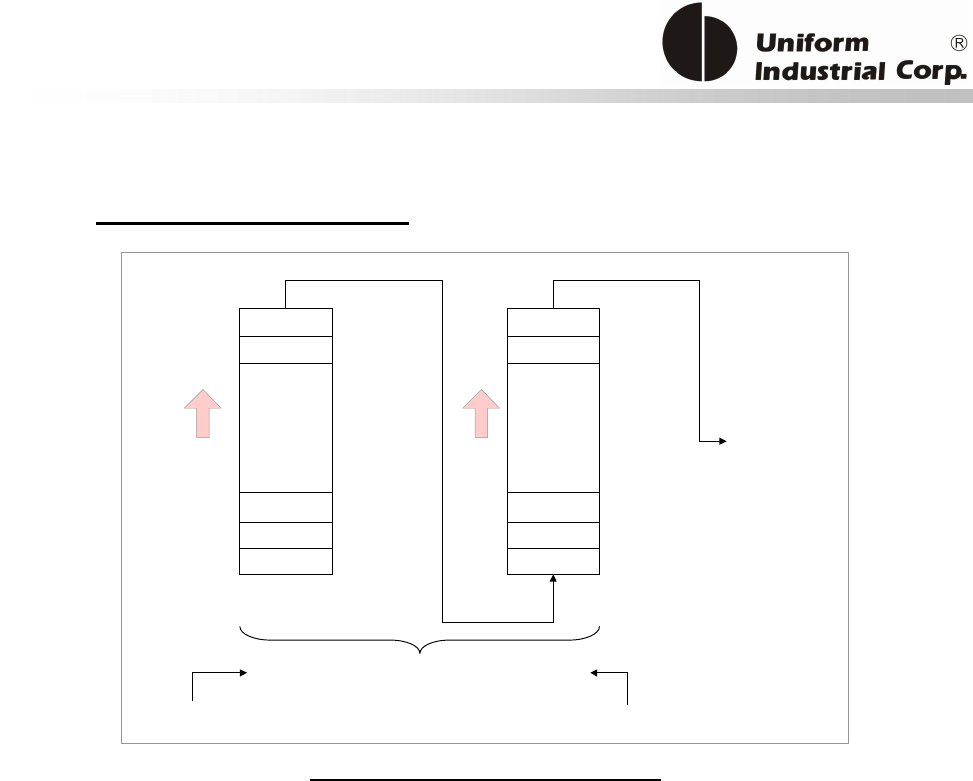

Figure 6-2. Auto Rollover 1: Key Generation............................................................................11

Figure 6-3. Auto Rollover 2: Key Generation............................................................................11

UIC Bezel5 Programmer’s Manual Page.15/166 UDN PM098 Rev. 1.0

NOTICE

The issuer of this manual has made every effort to provide accurate information

contained in this manual. The issuer shall not be held liable for any technical and editorial

omissions or errors made herein; nor for incidental consequential damages resulting

from the furnishing, performance or use of this material.

This document contains proprietary information protected by copyright. All rights are

reserved. No part of this document may be photocopied, reproduced, or translated

without the prior written permission of the issuer. The information provided in this

manual is subject to change without notice.

AGENCY APPROVED

- Specification for FCC Class B

- Specification for CE Class B, CISPR 22 Class B

NOTE: This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following

measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

- Consult the dealer or an experienced radio/ TV technician for help.

You are cautioned that any change or modifications to the equipment not expressly

approve by the party responsible for compliance could void your authority to operate

such equipment.

Pb

UIC Bezel5 Programmer’s Manual Page.16/166 UDN PM098 Rev. 1.0

WARRANTY

This product is served under one-year warranty of defects in material and functionality to

the original purchasers. Within the warranty period, if the product found to be defective

will be repaired or replaced. This warranty applies to the products only under the normal

use of the original purchasers, and in no circumstances covers incidental or consequential

damages through consumers’ misuse or modification of the product.

PREFACE

This manual provides detailed information relating to the overall operational, electrical,

mechanical, environmental and functional aspects of the Bezel5 reader. This document

should be read and understood prior to the initial operation of the product.

For ease of installation and programming use, we have addressed everything from its

attractive features to its various configurations.

When designing the Bezel5 reader, we selected what we feel are the most useful features

and functions. If in some cases you find that your specific needs differ from our existing

product, we welcome your comments and suggestions. Custom-designed models are also

available.

If further questions do arise, please call for technical support. Our FAE will assist you in

any way we can.

UIC Bezel5 Programmer’s Manual Page.17/166 UDN PM098 Rev. 1.0

1. General Description

This section presents general information about the basic characteristics of the Bezel5.

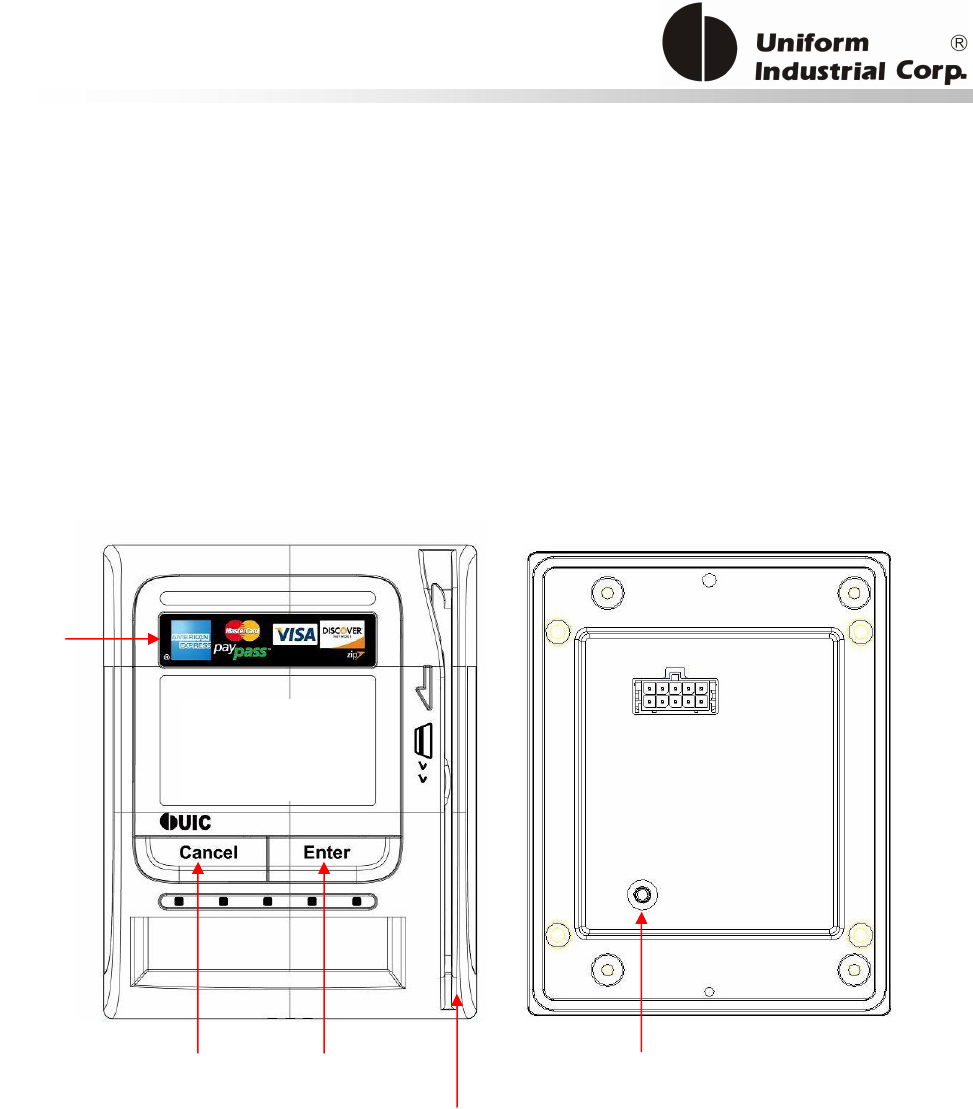

1.1. Features

Reset Button

The LCD can be refreshed by a short click on the reset button. After the button is released it will

generate a short beep to indicate the LCD refresh is complete. For hardware reset, please hold the

reset button for 8 seconds. The reader will reset after the button is released.

Cancel button

Enter button Reset button

2x16 LCD Display

MSR reader

Contactless

card brand

label

UIC Bezel5 Programmer’s Manual Page.18/166 UDN PM098 Rev. 1.0

The Bezel5 reader provides the following features:

Bezel5

1 Integrated magnetic stripe reader to read magnetic stripe cards that conform to ISO standard

2 Bi-directional card swipe and triple track read capability

3 64x128 Graphic LCD display with backlight

4 Front: Two Buttons (cancel button and enter button) ;

Back: One Button (reset button)

5 LED and Buzzer indicators indicate card status

6 Encrypted card data output (optional)

8 Support RS232, USB 2.0 and serial TTL (optional) interfaces by use of corresponding cables.

9 Supports ISO 14443 & ISO 18092 standard

10

Supports American Express® ExpressPay, MasterCard® PayPassTM (Contactless MagStripe and M/Chip), Visa®

PayWave (MSD and qVSDC), and Discover Network Zip Contactless Payments applications, Google Wallet, ISIS

Wallet.

11

Reads/Writes NXP MIFARE Plus/Classic/Ultralight/DESFire cards

12

NFC Peer-to-Peer function

Table 1-1 Bezel5 features

1.2. Application

The contactless smart card payment card reader is mainly used to support the contactless payment

operations in the vending machine stations. The reader communicates with a host computer or

terminal using a standard RS-232 or USB interface.

UIC Bezel5 Programmer’s Manual Page.19/166 UDN PM098 Rev. 1.0

1.3. Physical LED Indication

Bezel5 has 3 sets of LED for different indications:

1. Scrolling LED – for catching the attentions of people that the reader is available for accepting

payments.

2. Magstripe Ready arrow LED – an indicator to show the Bezel5 is ready to accept Magstripe

card swipe

3. Contactless transaction LEDs – leftmost LED indicates Bezel5 is ready to accept contactless card.

Rest of LEDs to indicate the transaction status.

There are 2 contactless LED indication modes supported by Bezel5:

1. Self-Arm / Host poll Mode: Under this mode, the reader will read and transmit payment cardF

1

F

1 Payment card – the card with MasterCard PayPass, VISA payWave, ExpressPay, or Discover Zip application.

Scrolling LED

Magstripe

Arrow LED

Contactless

Transaction

LEDs

UIC Bezel5 Programmer’s Manual Page.20/166 UDN PM098 Rev. 1.0

data automatically. The contactless LEDs will be flashing from left to right sequentially.

2. EMV Transaction Mode: Under this mode, the LEDs are lighted during the transaction process.

Each LED will represent a different transaction stage in the process.

Idle, ready to accept contactless card

Processing, transaction is processing and do not remove card.

Complete, transaction has been completed by the reader and the card can be removed now.

Card Remove Warning/Bad card read/Transaction Terminated, if card was not remove, red

LED will light on to remind cardholder remove the card.

UIC Bezel5 Programmer’s Manual Page.21/166 UDN PM098 Rev. 1.0

2. Configurations

This section shows the various specifications of the Bezel5 reader.

2.1. Functional Specifications

Basic functions

Read high or low coercivity magnetic stripes (300-4000oe)

5 LEDs for attention grabbing

Programmable audio buzzer

Real time clock /w 5 years battery life

Contactless communication at 13.56MHz

4 LEDs for contactless payment indication (optional for 2nd phase

development)

Standards

ISO 7810/ 7811

ISO 14443 type A and B compliant

ISO 18092 compliant

11BUInterfaces

RS232 and USB2.0 interfaces by use of corresponding cables.

USB 2.0 compliant interface configurable to support USB HID MSR,

or USB Virtual COM.

RS232 data output baud rate up to 115.2K BPS

Encrypted card data

output (optional)

Encrypted card data (AES or Triple DES)

DUKPT key management with more than 2M keys (model

selectable)

UIC Bezel5 Programmer’s Manual Page.22/166 UDN PM098 Rev. 1.0

Authentication with RSA 2048 bit key

Antennas

Build-in direct matching antenna

13BUPayment applications

American Express ExpressPay

Discover ZIP

MasterCard PayPass/MCHIP

Visa MSD/qVSDC

Google wallet

ISIS wallet

MIFARE applications

Read/Write of MIFARE Plus/Classic/Ultralight/DESFire cards

Support MIFARE higher baud rate up to 424KHz

2.2. Mechanical Specifications

Dimension

Length: 107 mm

Width: 84 mm

Depth: 57.5 mm

UIC Bezel5 Programmer’s Manual Page.23/166 UDN PM098 Rev. 1.0

2.3. Electrical Specifications

Power Required

7.5 VDC ~ 45 VDC

Power Consumption

75mA in idle mode; 90mA in operating mode (preliminary

estimate) at 34 V working voltage

Communication

Standard RS232 signal level

Compatible with USB 2.0 specification

Logic 1 = -3 volts to -15 volts Communication Signal

(RS232)

Logic 0 = +3 volts to +15 volts

2.4. Environmental Specifications

Temperature

Operating: -20 to 70℃

Storage: -30 to 80℃

Humidity

Operating: 5 to 95% (non condensing)

UIC Bezel5 Programmer’s Manual Page.24/166 UDN PM098 Rev. 1.0

2.5. Pin Assignment

Interface Pin Assignment

Signal Comment Pin

Signal Comment

1 VCC 5VDC 1 VCC 5VDC

2 RXD 2 TXD

3 TXD 3 RXD

4 Signal Ground 4 DN

5 N/C 5 DP

6 Hi power 7.5VDC ~ 45VDC

7 N/C

8 N/C

9 Signal Ground

10

Shield Ground

Table 2-1. Pin Assignment of Interface Cable

UIC Bezel5 Programmer’s Manual Page.25/166 UDN PM098 Rev. 1.0

2.6. Communication

URS232 Interface Data Output

Synchronization

The interface receives and transmits serial asynchronous data at voltage levels compatible with the

RS232 specification.

Baud Rate

9600 BPS default (optional: 1200/2400/4800/9600/19200/38400/56000/115.2K BPS)

USB Interface

Compatible with USB specification 2.0

The in/out commands will use the HidD_GetFeature/HidD_SetFeature functions of the Windows

standard USB HID driver.

Identification Information

USB Vendor ID: 6352

USB Product ID: BE5A (Virtual COM) / BE5B (HID-MSR)

UIC Bezel5 Programmer’s Manual Page.26/166 UDN PM098 Rev. 1.0

3. Operation

After power up of the reader, the scrolling LEDs are turned on together with one beep sound,

indicating that the reader is ready to operate.

As factory default setting, the Bezel5 reader is set to Self-Arm mode enabled. Under this mode, the

reader will read and transmit payment cardF

2

F data automatically. User needs to disable this mode in

order to send contactless card operation commands.

3.1. Reader Default Setting

Item Description EEPROM Default Value

UART setting 9600-8-N-1

USB Interface USB HID MSR

Buzzer Enabled

Protocol format Protocol 2 (USI2)

Self-Arm mode Disabled

EMV Mode Enabled

Administration command protect Enabled

Data Encryption Disabled in Protocol 0 / Enabled in Protocol 2

Crypto Algorithm TDES

DUKPT Key Management Mode Auto rollover3

Contactless smart card manual type

(only available in host poll mode) Type A

Optional functions for the variant versions3F

Google application Mifare First

Pre-load encryption key (Customer specific or UIC default)

Pre-load Google Wallet merchant keys Yes (per merchant request)

Table 3-1. Default Configuration settings

2 Payment cards– the card with MasterCard PayPass, VISA payWave, ExpressPay, or Discover Zip application.

3 Please contact UIC support team for more detailed information.

UIC Bezel5 Programmer’s Manual Page.27/166 UDN PM098 Rev. 1.0

3.2. Pressing the Buttons and Magnetic Card ‘Wiggling’

3.2.1. Pressing the Cancel Button

The message “SSS” is transmitted out from the reader after someone presses the Cancel button

3.2.2. Pressing the Enter Button

The message “AAA” is transmitted out from the reader after someone presses the Enter Button.

3.2.3. Magnetic Card is ‘Wiggled’

The message “BBB” is transmitted out from the reader after someone wiggles the magnetic card

back and forth.

UIC Bezel5 Programmer’s Manual Page.28/166 UDN PM098 Rev. 1.0

3.3. Reader Configurations

3.3.1. Transmission Protocol

The user may select from two different protocols: Protocol 0 and 2.

Upon reset, the reader will send out the default power-on character “:”, or any character specified

by the configuration setting.

Important:

When the Bezel5 reader is working in the USB interface mode, we need to add the header byte C2h

and the 2-byte data length before the command.

Protocol 0

In Protocol 0, all characters are transmitted and received using exactly the characters listed in

Section 4. There are no headers and Block Check Characters (BCC). Protocol 0 presumes no

transmission errors. If the host detects an error, it may request a retransmission.

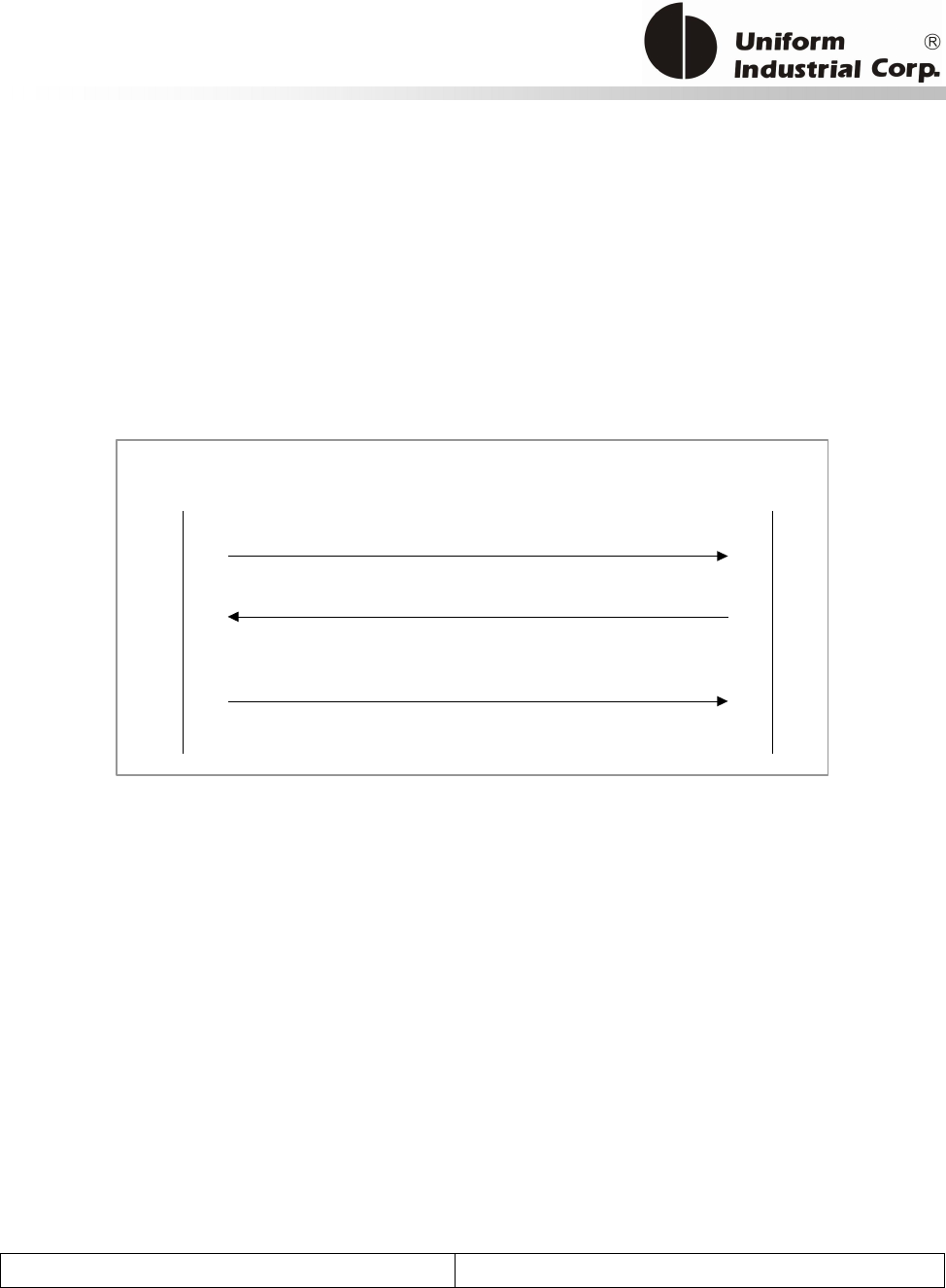

Example of Protocol 0, RS232 Interface

Example of Protocol 0, USB Interface (Optional)

Protocol 2

In Protocol 2, all messages are preceded by the ASCII character <SOH>, followed by a one byte

reader address, two bytes character count and terminated with a one byte <BCC>.

The <BCC> is an XOR of the characters (8 bits) in the entire message, including <SOH>.

Format: <SOH><ADDRESS><00Hex><COUNT><MESSAGE><BCC>

Host Command Reader Response Comment

P Ready to read

^ Reader ACK

Host Command Reader Response Comment

<C2h><00h><01h>P Ready to read

<C2h><00h><01h>^ Reader ACK

UIC Bezel5 Programmer’s Manual Page.29/166 UDN PM098 Rev. 1.0

Example of Protocol 2, RS232 Interface

Host Command Reader Response Comment

<01><00><00><01>P<50h> Ready to read

<01><00><00><01>^<5Eh> Reader ACK

Example of Protocol 2, USB Interface

Host Command Reader Response Comment

<C2><00><06><01><00><00><01>P<50h> Ready to read

<C2><00><06><01><00><00><01>^<5Eh> Reader ACK

The <ADDRESS> field is for a multi-reader system. This function is not currently supported. The

recommended value for this field is NULL (00Hex) but any value will work.

For Protocols 2, if the reader detects an error in an incoming transmission, it will respond with a

“Communications Error” message. If the host detects a transmission error, it may request a

retransmission.

Protocol 0 is the simplest protocol without adding the redundant data. In order to handle the

properly communication, it enforces a 100mSec timeout between characters. In brief, the reader

expects the incoming command is ready after 100 ms timeout.

For the applications with the short latency requirement, please choose Protocol 2. The reader

processes the incoming command right after received a complete packet.

If the application requests to exchange the binary data, Protocol 2 is recommended.

UIC Bezel5 Programmer’s Manual Page.30/166 UDN PM098 Rev. 1.0

3.3.2. Configuration Protocol

BLP Protocol

In BLP Protocol, all messages are preceded by the ASCII character <HT>, followed by a one byte

reader address, one byte character count and terminated with a one byte <BCC>.

<BCC> is an XOR of the 7 data bits, excluding parity, of each character in the entire message,

including <HT>.

Format: <HT><00Hex><COUNT><MESSAGE><BCC>

Where HT=09Hex

Example of BLP Protocol, RS232 Interface

Host Command Reader Response Comment

<09h><00h><03h>DF<00h><08h> Load Default

^ Reader ACK

Example of BLP Protocol, USB Interface

Host Command Reader Response Comment

Load Default

<C2><00><01>^ Reader ACK

UIC Bezel5 Programmer’s Manual Page.31/166 UDN PM098 Rev. 1.0

3.3.3. Self – Arm Mode

The default reader configuration is in “Self-Arm Mode”. This allows the payment cards (including

VISA MSD, ExpressPay card and the general magnetic stripe credit cards) reading functions to run

automatically, reporting the card data to the host without any instruction sent from the host.

With the reader running in the Self-Arm Mode, it can be configured to the “Host Polled Mode” by

disabling the Self-Arm Mode. The “Host Polled Mode” allows the card reading functions to be

controlled by the relevant host commands.

19BCard Data Output for Different Types of Card and Reader Configurations

With the reader running in the Self-Arm mode and depending on the configuration set in the reader

and the type of card to be read, the reader will output different types of card information. The

following table lists out the summary of it:

Reader Configuration

Mifare Card Support

Type of Card

Disabled (MFxy = 10)F

4

F Enabled (MFxy = 11)

Payment Card Track data Track data

Mifare Standard 1K N/A “M2”

Mifare Standard 4K N/A “M3”

Mifare Ultralight N/A “M1”

Mifare Ultralight C N/A “M1”

Mifare DESFire N/A “M4”

Mifare Plus N/A “M5”

20BCard Data Output in Self-Arm and Host-Polled modes

Sending card data under the Self-Arm mode:

Under the Self-Arm mode, the card data output will not include the protocol envelope code. The

user can insert the envelope code by utilizing the configuration commands－SE and TOF

5

F.

4 Please refer to 4.3.15. MFxy(4Dh 46h x y)

－

Set Payment Card and MIFARE Auto-Polling

5 Please refer to 4.3.20. SEx(53h 45h x)

－

Self-Arm Mode Data Envelope Enable/Disable

4.3.23. TOx(54h 4Fh x)

－

Set Transmitting Data Output Format

UIC Bezel5 Programmer’s Manual Page.32/166 UDN PM098 Rev. 1.0

Card data output clear format (Self-Arm mode)

Preamble

Protocol Envelope code

Tk1 prefix

Tk1 Data Tk1 suffix

Separator Tk2 prefix

Tk2 Data Tk2 suffix

Separator Tk3 prefix

Tk3 Data Tk3 suffix

Protocol Envelope code

Postamble

The preamble/postamble is only available in the card data output format under Self-Arm mode. The

Bezel5 reader can be configured to become a secure reader which will output encrypted card data.

The data format is as follows:

21BEncrypted Card data output formatF

6

F

(Self-Arm mode)

DUKPT data output format

Encrypt

Mode |

Encrypted

Tk1 Data |

Encrypted

Tk2 Data |

Encrypted

Tk3 Data |

DUKPT

KSN |

Encrypted

Session ID |

RSA data output format

Encrypt

Mode |

Encrypted

Tk1 Data |

Encrypted

Tk2 Data |

Encrypted

Tk3 Data |

Notes Encrypt Mode – 1: DUKPT TDES Mode

2: DUKPT AES Mode

3: RSA Mode

6 Please refer to section 6 Authentication and Card Data Encryption for more information.

UIC Bezel5 Programmer’s Manual Page.33/166 UDN PM098 Rev. 1.0

3.3.4. Host Poll Mode

Under this mode, user can send out commands manually. Examples like the Q, R, S commands for

individual track card data; the commands for controlling the LED and commands for turn on/off

antenna power. Host Poll mode is disabled if the reader is configured with default setting.

22BRead card data using commands in the Host-Polled mode

The reader replies to the so called “Host-Polled” command such as “Transmit Track Data”. The

requested message is encapsulated in the protocol envelope.

The response of the Transmit Track Data command is listed as below:

Read TK1 data for command

Protocol Envelope code Tk1 prefix Tk1* Data Tk1 suffix Protocol Envelope code

Read TK2 data for command

Protocol Envelope code Tk2 prefix Tk2* Data Tk2 suffix Protocol Envelope code

Read TK3 data for command

Protocol Envelope code Tk3 prefix Tk3* Data Tk3 suffix Protocol Envelope code

The Protocol Envelope code can be <HEADERS>, <BCC> or NONE, it depends on which protocol is

being used.

UIC Bezel5 Programmer’s Manual Page.34/166 UDN PM098 Rev. 1.0

3.3.5. EMV Mode

The EMV transaction is supported by two command groups in Bezel5:

1. Configuration command group

2. General command group.

Usually before the deployment, the configuration commands are set to the bezel with the specific

EMV transaction parameters. The settings are stored in the nonvolatile memory and kept until new

settings are downloaded. This data is acquirer/issuer related. In other words, once the EMV data

has been set, it won’t change frequently unless the acquirer/issuer would like to revoke the

application or publish new data.

The various general commands are called during the process of the EMV transaction. Each

transaction will require several commands. When the transaction is complete, the bezel will return

the transaction data.

Note: The configuration commands and the general commands are using different protocol formats.

Detailed information can be found in the command section. The bezel can accept both formats at

the same time.

The Application Diagram

The below diagram describes how the EMV commands work with the bezel.

EMV Parameters Initialization – They use the bezel configuration commands (BPL protocol). The

process is done before deployment but could be updated after installation if the Gateway/Acquirer

provides that facility.

In order to process EMV transactions, the bezel must be initialized properly according to the

transaction types it has to support. Known as EMV application configuration, the controller needs

to configure the bezel with the necessary application related data. All of the application data is

stored in the nonvolatile memory of the bezel and is set once before the bezel is deployed to the

field site. However, new configuration data can be updated via the remote downloading process if a

new application is required to be supported by the bezel.

There are three different groups of reader configurations:

1. Terminal Configuration

2. Application Configuration

3. Public Key

UIC Bezel5 Programmer’s Manual Page.35/166 UDN PM098 Rev. 1.0

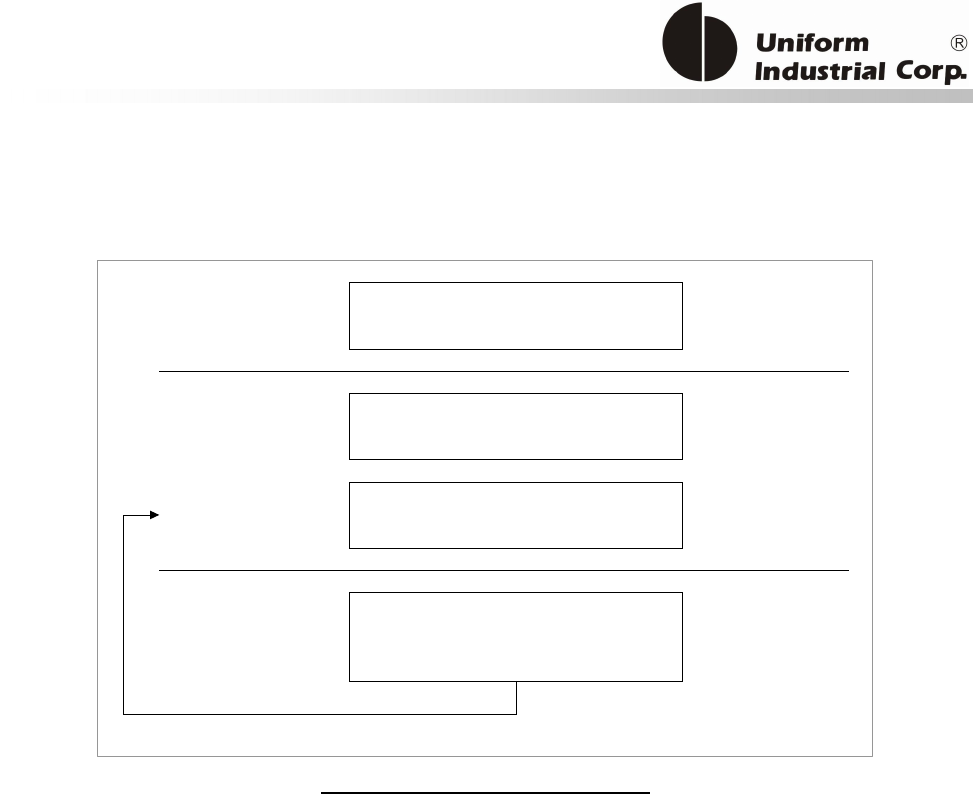

Start

Terminal Configuration Setup

(T01 command)

Application Configuration

Setup (T15 command)

Done?

Public key loading

(T03 command)

Done?

Ready for Deployment

YesNo

Yes

No

Figure 3-1. EMV Configuration command diagram

EMV Transaction - Using the bezel general commands (Protocol 2). There are many transaction

scenarios for EMV transactions. The on-line transaction is shown in the above as one example.

EMV Parameters Maintenance - After the bezel has been deployed, the acquirer may need to

update the EMV parameters such as the public key. The parameter update process is similar to the

EMV initialization. The controller must be able to handle this kind of process to accept the data

from the acquirer. Then converts it to the suitable data format and send to the bezel.

UIC Bezel5 Programmer’s Manual Page.36/166 UDN PM098 Rev. 1.0

3.3.6. Details of the Payment Card Tracks Data

The Bezel5 reader running at Self-Arm mode will automatically decode the payment card data

according to the payment application type. For non-supported payment cards, it is possible to go

through the host-polled mode to query the card data.

In general, for the supported payment cards, track 1 and 2 card data will always be present for a

successful reading.

Card Data Output Between a MSR Card and a RFID Card

The Bezel5 reader is able to read two types of payment cards: MSR and RFID. The card data output

for each type of card will have a 5-byte string attached before the card data. Their 5-byte strings are

pre-defined in the [Preamble field] as below:

1) MSR card: ‘CARD-‘

2) RFID card: ‘RFID-‘

Track 3 Data Format for Magstripe Card

If the magstripe card is swiped and the track 3 is read, the Bezel5 reader will output Track 3 data

conform with the ISO 7811 format.

Track 3 Data Format for Contactless Payment

Some contactless payment transactions may require extra information outside track 1 & track 2.

The Bezel5 has introduced a way to reduce the communication time between the host and the

reader with the particular information stored in track 3 or in a special Tag. The data is depended on

the card type and its application. It is described in the following sections.

The track 3 data of the contactless card is additional card information required for the specific

payment transactions. Currently these track 3 data is available for the PayPass-MChip card and the

Visa qVSDC/MSD card, and not for other contactless payment cards. These track 3 data is the

necessary additional information to be used for System Integration.

To simplify the host application process, this data contains only the value field of the Tag Length

Value (TLV) data objects and is expressed in Hex format. The data objects placement is arranged in

fixed sequence and are separated by the field separator ‘=’. The transaction data object field is

empty if the data object is absent in the card. Moreover, the track 3 data begins with start sentinel

and ends with end sentinel.

UIC Bezel5 Programmer’s Manual Page.37/166 UDN PM098 Rev. 1.0

Track 3 Data Format

Start

sentinel Card Type

Transaction

Result

Transaction Data Object(s)

(card type dependent) End sentinel

1-byte 1-byte 2-byte Each object is separated by the field separator.(n

Bytes) 1-byte

Table 3-2. Track 3 Data Format

Table of Various Tags with Tag Length Value and their Descriptions

Tag Description Card Type*

Data Object Format in Payment

Specification

Type, Data Length (byte)

Track 3 (ASCII-HEX) ,

RS232/Vcom Interface

Data Length (byte)

+ Start Sentinel

x Card Type

xx Transaction Result

= Field Separator

50 Application Label MasterCard

ans, up to 16 bytes Up to 16 bytes

57 Track 2 Equivalent Data V/M Binary, 1~19 var. 2~38 bytes

5A PAN V/M cn, 0~19 var, up to 10 byte. 0~20 bytes

5F20

Cardholder Name VISA ans 2~26, 2~26 bytes 2~26 bytes

5F24

Expiry Date V/M n 6 (YYMMDD), 3 bytes 6 bytes

5F2A

Transaction Currency Code V/M Binary, 2 bytes 4 bytes

5F34

Application PAN Sequence

Number

V/M n 2, 1 byte 2 bytes

82 Application Interchange

Profile

V/M Binary, 2 bytes 4 bytes

84 Dedicated File Name MasterCard

Binary, 5~16 var. 10~32 var

95 Terminal Verification Results V/M Binary, 5 bytes 10 bytes

9A Transaction Date V/M n 6 (YYMMDD), 3 bytes 6 bytes

9B Transaction Status

Information

V/M Binary, 2 bytes 4 bytes

9C Transaction Type V/M n 2, 1 byte 2 bytes

9F02

Amount, Authorized

(Numeric)

V/M n 12, 6 bytes 12 bytes

9F03

Amount, Other (Numeric) V/M n 12, 6 bytes 12 bytes

9F09

Terminal Application Version

Number

V/M Binary, 2 bytes 4 bytes

9F10

Issuer Application Data V/M Binary, var. up to 32 bytes var. up to 64 bytes

9F11

Issuer Code Table Index MasterCard

n 2, 1 byte 4 bytes

UIC Bezel5 Programmer’s Manual Page.38/166 UDN PM098 Rev. 1.0

Tag Description Card Type*

Data Object Format in Payment

Specification

Type, Data Length (byte)

Track 3 (ASCII-HEX) ,

RS232/Vcom Interface

Data Length (byte)

9F12

Application Preferred Name MasterCard

ans, up to 16 bytes Up to 16 bytes

9F16

Merchant ID V/M ans, 15 bytes 30 bytes

9F17

Personal Identification

Number (PIN) Try Counter

VISA Binary, 1 byte 2 bytes

9F1A

Terminal Country Code V/M Binary, 2 bytes 4 bytes

9F1E

Interface Device Serial

Number (IFD)

V/M an, 8 bytes 16 bytes

9F26

Application Cryptogram V/M Binary, 8 bytes 16 bytes

9F27

Cryptogram Information Data MasterCard

Binary, 1 byte 2 bytes

9F33

Terminal Capabilities V/M Binary, 3 bytes 6 bytes

9F34

Cardholder

Verification Method Results

MasterCard

Binary, 3 bytes 6 bytes

9F35

Terminal Type V/M n 2, 1 byte 2 bytes

9F36

Application Transaction

Counter

V/M Binary, 2 bytes 4 bytes

9F37

Unpredictable Number V/M Binary, 4 bytes 8 bytes

9F40

Additional Terminal

Capabilities

V/M Binary, 5 bytes 10 bytes

9F41

Transaction Sequence Counter

MasterCard

n 4~8 var., 2~4 bytes 4~8 bytes

9F51

Application Currency Code VISA n 3, 2 bytes 4 bytes

9F53

Transaction Category Code MasterCard

Binary, 1 byte 2 bytes

9F54

Cumulative Total Transaction

Amount Limit

VISA n 12, 6 bytes 12 bytes

9F5D

Available Offline Spending

Amount

VISA n 12, 6 bytes 12 bytes

9F66

Terminal Transaction

Qualifiers

VISA Binary, 4 bytes 8 bytes

9F68

Card Additional Processes VISA Binary, 4 bytes 8 bytes

9F6B

Card CVM Limit VISA n 12, 6 bytes 12 bytes

9F6C

Card Transaction Qualifiers VISA Binary, 2 bytes 4 bytes

9F6D

VLP Reset Threshold VISA n 12, 6 bytes 12 bytes

9F6E

Form Factor Indicator VISA Binary, 4 bytes 8 bytes

9F6E

Third Party Data MasterCard

Binary, 5-32 var. 10~64 bytes

9F78

VLP Single Transaction Limit VISA n 12, 6 bytes 12 bytes

9F79

VLP Available Funds VISA n 12, 6 bytes 12 bytes

UIC Bezel5 Programmer’s Manual Page.39/166 UDN PM098 Rev. 1.0

Tag Description Card Type*

Data Object Format in Payment

Specification

Type, Data Length (byte)

Track 3 (ASCII-HEX) ,

RS232/Vcom Interface

Data Length (byte)

9F7C

Customer Exclusive Data VISA Binary, 0~32 var. 0~64 bytes

- POS Entry Mode VISA Binary, 1 byte, VISA only, the

value of ‘91’ for MSD

transactions. The value of ‘07’

for qVSDC transactions

2 bytes

- Terminal Entry Capability VISA “5” (for readers that also

support VSDC contact chip) or

“8” (for readers that do not also

support VSDC contact chip).

1 byte

? End Sentinel

Table 3-3. TLV Tag format and descriptions

TLV (Tag Length Value) Description

[Tag] means the Tag of the TLV item. If the TLV is present in the transaction, it will show in Track 3,

else the [Tag] will leave it as empty. If Value of TLV is not alphanumeric or numeric, the data will be

shown in Hex Format.

Ex: 2AH will show 2A in ASCII code to be visible.

Data objects moved from the card to the reader are encapsulated in TLV encoded data objects.

Data objects that have the numeric (n) format are BCD encoded, right justified with leading

hexadecimal zeros. Data objects that have the compressed numeric (cn) format are BCD encoded,

left justified and padded with trailing 'F's.

Note that the length indicator in the numeric and compressed numeric format notations (e.g. n 4)

specifies the number of digits and not the number of bytes.

Data objects that have the alphanumeric (an) or alphanumeric special (ans) formats are ASCII

encoded, left justified and padded with trailing hexadecimal zeros.

UIC Bezel5 Programmer’s Manual Page.40/166 UDN PM098 Rev. 1.0

Value of Card Type

Card Type: It indicates that the tag may appear in track 3 by reading that particular card. V/M

means VISA and MasterCard. If the card brand doesn’t appear in the card type field, it doesn’t

mean that this card will not support such tag.

Value Card Type*

0 MChip

1 MagStripe V3.3

2 Amex Express Pay/EP3 (Reserve)

3 Visa(qVSDC, MSD)

4 Interac

5 Discover Zip/D-PAS (Reserve)

Table 3-4. Card Type indication in Track 3

Value of Transaction Result

Value Transaction Result**

00 Offline Approved

01 Offline Declined

02 Online

03 Switch to other interface

97 Anti-Collision

99 Terminate

Table 3-5. Transaction Result indication in Track 3

UIC Bezel5 Programmer’s Manual Page.41/166 UDN PM098 Rev. 1.0

3.3.7. Payment Card Data Output Example

PayPass–Magstripe3.3

Track 3 data format:

+

Card Type (1-byte) Transaction Result (2-byte) [DDCard Track1]=[ DDCard Track2]= [9F6E]=[84]=[50]

=[9F12]=[9F11] ?

Track Data:

%B5413330056003529^CUST IMP MC

352/^14122059900909900000099909909969929990400?;5413330056003529=14122059999999469960?+102=9900

909900000099909909969929990400=9999999469960==A0000000041010=ID352 v1 1===?

Parsed Track Data:

Track 1 %B5413330056003529^CUST IMP MC 352/^14122059900909900000099909909969929990400?

Track 2 ;5413330056003529=14122059999999469960?

Track 3 +102=9900909900000099909909969929990400=9999999469960==A0000000041010=ID352 v1

1===?

Parsed Track 3 Data:

Card Type Result

1 02

Magstripe Online Request

Position 1 2 3

Tag DDCard Track1 DDCard Track2 9F6E

Value 9900909900000099909909969929990400 9999999469960

Description

PayPass Third Party Data

Position 4 5 6 7

Tag 84 50 9F12 9F11

Value A0000000041010 ID352 v1 1

Description

DF Name Application Label

Application Preferred Name Issuer Code Table Index

UIC Bezel5 Programmer’s Manual Page.42/166 UDN PM098 Rev. 1.0

PayPass–MChip

Track 3 data format:

+

Card Type

(1-byte)

Transaction

Result

(2-byte)

=[CVM]=[9F26]=[9F10]=[9F37]=[9F36]=[95]=[9B]=[9A]=[9C]=[9F02]=[5F2A]

=[82]=[9F1A]=[9F03]=[9F33]=[9F35]=[84]=[9F09]=[9F1E]=[9F16]=[9F41]=[9F27]

=[9F34]=[9F53]=[5A]=[5F24]=[57]=[9F6E]=[50]=[9F12]=[9F11]=[5F34]

?

Track Data:

%B5413330089600119^0056^ETEC/PAYPASS^141231^^?;5413330089600119=1412==?+002=1F=96EB58603A581C2

F=0110A00000000000000000000000000000FF0000000000000000000000000000=14A946B2=0001=8000000000==

120604=00=000000001500=0978=1880=0056=000000000000=000888=22=A0000000041010=0002=123456789000

0000=303030303030303030303030303031=00000039=80=1F0300=00=5413330089600119=141231=54133300896

00119D14122010123409172==505043204D43442031312076322031===01?

Parsed Track Data:

Track 1 %B5413330089600119^0056^ETEC/PAYPASS^141231^^?

Track 2 ;5413330089600119=1412==?

Track 3 +002=1F=96EB58603A581C2F=0110A00000000000000000000000000000FF00000000000000000000

00000000=14A946B2=0001=8000000000==120604=00=000000001500=0978=1880=0056=00000000

0000=000888=22=A0000000041010=0002=1234567890000000=30303030303030303030303030303

1=00000039=80=1F0300=00=5413330089600119=141231=5413330089600119D1412201012340917

2==505043204D43442031312076322031===01?

Parsed Track 3 Data:

Card Type Result

0 02

M-Chip Online Request

Position 1 2 3 4

Tag CVM 9F26 9F10 9F37

Value 1F 96EB58603A581C2F 0110A000000000000000000000000

00000FF0000000000000000000000

000000

14A946B2

Description

No CVM

Application Cryptogram

Issuer Application Data Unpredictable Number

Position 5 6 7 8

Tag 9F36 95 9B 9A

Value 0001 8000000000 120604

Description

Application Transaction

Counter

Terminal Verification Results

Transaction Status

Information

Transaction Date

UIC Bezel5 Programmer’s Manual Page.43/166 UDN PM098 Rev. 1.0

Position 9 10 11 12

Tag 9C 9F02 5F2A 82

Value 00 000000001500 0978 1880

Description

Transaction Type

Amount, Authorized

Transaction Currency

Code

Application Interchange

Profile

Position 13 14 15 16

Tag 9F1A 9F03 9F33 9F35

Value 0056 000000000000 000888 22

Description

Terminal Country Code

Amount, Other Terminal Capabilities Terminal Type

Position 17 18 19 20

Tag 84 9F09 9F1E 9F16

Value A0000000041010 0002 1234567890000000 3030303030303030

30303030303031

Description

DF Name Terminal Application

Version Number

Interface Device Serial Number

Merchant ID

Position 21 22 23 24

Tag 9F41 9F27 9F34 9F53

Value 00000039 80 1F0300 00

Description

Transaction Sequence

Counter

Cryptogram

Information Data

Cardholder Verification

Method Results

Transaction Category

Code

Position 25 26 27 28

Tag 5A 5F24 57 9F6E

Value 5413330089600119 141231 5413330089600119D14122

010123409172

Description

PAN Expiry Date Track 2 equivalent Data Paypass Third Party Data

Position 29 30 31 32

Tag 50 9F12 9F11 5F34

Value 505043204D43442

031312076322031

01

Description

Application Label Application Preferred Name

Issuer Code Table Index Card Serial Number

UIC Bezel5 Programmer’s Manual Page.44/166 UDN PM098 Rev. 1.0

Visa (qVSDC, MSD)

Track 3 data format:

+

Card Type

(1-byte)

Transaction

Result

(2-byte)

=[9F26]=[9F10]=[9F37]=[9F36]=[9F66]=[95]=[9B]=[9A]=[9F02]=[5F2A]=[82]

=[9F1A]=[9F03]=[9F33]=[9F35]=[9F09]=[9F1E]=[9F16]=[5F34]=[9F40]=[9F6E]

=[9F7C]=[57]=[5A]=[5F20]=[5F24]=[9C]=[9F5D]=[9F68]=[9F6C]=[9F6B]=[9F51]

=[9F17]=[9F78]=[9F79]=[9F6D]=[9F54]=[POS Entry Mode]=[Terminal Enter

Capability]

?

Track Data:

%B4761739001010010^

/^201212000123100399030000?;4761739001010010=20121200012339900031?+300=AABBCCDDEEFF1122=060111

03900000=94018C92=0003=A0804000=0000000000==120604=000000000100=0840=2000=0840=000000000000=0

00888=22=0000=1234567890000000=303030303030303030303030303031=01=6000000001===4761739001010010

D20121200012339900031F=4761739001010010==201231=00=000000010000==3000========07=08=40?

Parsed Track Data:

Track 1 %B4761739001010010^ /^201212000123100399030000?

Track 2 ;4761739001010010=20121200012339900031?

Track 3 +300=AABBCCDDEEFF1122=06011103900000=94018C92=0003=A0804000=0000000000==120604=0

00000000100=0840=2000=0840=000000000000=000888=22=0000=1234567890000000=303030303

030303030303030303031=01=6000000001===4761739001010010D20121200012339900031F=4761

739001010010==201231=00=000000010000==3000========07=08=40?

Parsed Track 3 Data:

Card Type Result

3 02

VISA Online Request

Position 1 2 3 4

Tag 9F26 9F10 9F37 9F36

Value AABBCCDDEEFF1122 06011103900000 94018C92 0003

Description

Application

Cryptogram

Issuer Application Data

Unpredictable Number

Application Transaction

Counter

Position 5 6 7 8

Tag 9F66 95 9B 9A

Value A0804000 0000000000 120604

UIC Bezel5 Programmer’s Manual Page.45/166 UDN PM098 Rev. 1.0

Position 5 6 7 8

Description

Terminal Transaction

Qualifiers

Terminal Verification

Results

Transaction Status

Information

Transaction Date

Position 9 10 11 12

Tag 9F02 5F2A 82 9F1A

Value 000000000100 0840 2000 0840

Description

Amount, Authorized Transaction Currency Code

Application

Interchange Profile

Terminal Country Code

Position 13 14 15 16

Tag 9F03 9F33 9F35 9F09

Value 000000000000 000888 22 0000

Description

Amount, Other Terminal Capabilities Terminal Type Application Version Number

Position 17 18 19 20

Tag 9F1E 9F16 5F34 9F40

Value 1234567890000000 30303030303030303030

3030303031

01 6000000001

Description

Interface Device Serial

Number

Merchant ID Application PAN

Sequence Number

Additional Terminal

Capabilities

Position 21 22 23 24

Tag 9F6E 9F7C 57 5A

Value 4761739001010010D201

21200012339900031F

4761739001010010

Description

Form Factor Indicator Customer Exclusive

Data

Track 2 Equivalent Data PAN

Position 25 26 27 28

Tag 5F20 5F24 9C 9F5D

Value 201231 00 000000010000

Description

Cardholder Name Expiry Date Transaction Type Available Offline Spending Amount

Position 29 30 31 32

Tag 9F68 9F6C 9F6B 9F51

Value 3000

Description

Card Additional

Processes

Card Transaction

Qualifiers

Card CVM Limit Application Currency Code

UIC Bezel5 Programmer’s Manual Page.46/166 UDN PM098 Rev. 1.0

Position 33 34 35 36

Tag 9F17 9F78 9F79 9F6D

Value

Description

PIN Try Counter

VLP Single Transaction Limit

VLP Available Funds VLP Reset Threshold

Position 37 38 39

Tag 9F54 POS Entry Mode Terminal Enter Capability

Value 07 08

Description

Cumulative Total Transaction Amount Limit qVSDC transaction Always set to 8

UIC Bezel5 Programmer’s Manual Page.47/166 UDN PM098 Rev. 1.0

4. Commands and Responses

4.1. Common Command Description

Reader Response Code

Response Meaning

^ Acknowledgement

* Cannot execute (e.g. out of range)

! Bad parameter (e.g. incorrect length)

+ (2BH) No Magnetic Stripe Card Data. Command was received correctly.

? (3FH) Communication Error. Command was not received correctly.

: (3AH) Power On report.

~ (7EH) Unavailable. Hardware is not available to complete this request.

4.1.1. % (25H) - Retransmit

Retransmits the last message sent by the reader.

Example

Host Command Reader Response Example

%

^

Note: This command is ignored if the reader is running in Self-Arm mode.

4.1.2. 70 (37H30H) or 90(39H30H) - Serial Number Report

Gets the reader’s serial number that has been stored in the EEPROM

Example

Host Command Reader Response Example

70

00000000

UIC Bezel5 Programmer’s Manual Page.48/166 UDN PM098 Rev. 1.0

4.1.3. 71 (37H31H) or 91 (39H31H) - Copyright Report

Transmits the version and copyright information

Example

Host Command Reader Response Example

71

131210,BE50131A:V1.G

This command is sent if the user wants to know the version, model and copyright of the currently

loaded Bezel5 firmware. The response is an ASCII string giving the firmware date (yymmdd), reader

type and the firmware version number, followed by the firmware copyright statement. The

firmware copyright statement is absent in the OEM version.

4.1.4. 7A (37H41H) or 9A (39H41H) - Module Version Report

Transmits the version information

This command is sent to request the version of the module in the Bezel5 firmware currently loaded.

The response is a 6-byte ASCII string, reader type and the module version number.

Command Packet

Byte 0-1 Byte 2

7A (37H41H) or 9A (39H41H) 0-7 (See Table 4-1)

Description table

Module In byte Example ("-xxxx" is a 4 bytes checksum)

HAL_VERSION 0 BE5H11-xxxx

PAYPASS_VERSION 1 BE5P11-xxxx

AMEX_VERSION 2 BE5A11-xxxx

VISA_VERSION 3 BE5V11-xxxx

DN_VERSION 4 BE5D11-xxxx

L1_VERSION 5 BE5111-xxxx

L2_VERSION 6 BE5211-xxxx

MIFARE_VERSION 7 BE5M11-xxxx

Table 4-1. Module Version Report Description

Example

UIC Bezel5 Programmer’s Manual Page.49/166 UDN PM098 Rev. 1.0

Host Command Reader Response Example

7A0

BE5H11-xxxx

4.1.5. 7F (37H 46H) – Get Hardware Status

This command can get the hardware status back after powered-on. The host can use this command

to check if there's any hardware initialization issue happened during the power-on process. If all the

ICs are working well, the response should be 4 bytes of zeros.

Response

Byte 0 Meaning

Bit 8 Reserved

Bit7 Reserved

Bit6 Reserved

Bit5 Reserved

Bit4 Reserved

Bit3 Reserved

Bit2 Reserved

Bit1 Reserved

Byte 1 Meaning

Bit 8 Reserved

Bit7 Reserved

Bit6 Reserved

Bit5 Reserved

Bit4 Reserved

Bit3 Reserved

Bit2 Reserved

Bit1 Reserved

Byte 2 Meaning

Bit 8 Create New Session Key

Bit7 Session Key Error

Bit6 RSA Key Error

Bit5 Interface IC Error

UIC Bezel5 Programmer’s Manual Page.50/166 UDN PM098 Rev. 1.0

Byte 2 Meaning

Bit4 Create New DUKPT Key

Bit3 DUKPT KEY Error

Bit2 Create New MAC Key

Bit1 MAC Key Error

Byte 3 Meaning

Bit 8 Create New PingPing Key

Bit7 PingPing Key Error

Bit6 Ext Flash Error

Bit5 Create New RSA Key

Bit4 RSA Chip Error

Bit3 Create New Master Key

Bit2 Initial Master Key Error

Bit1 EEPROM Error

4.1.6. ? (3FH) - Select Verbose Responses Command

Most error responses, until the reader receives a reset command, error response will include a

short descriptive message.

Example

Host Command Reader Response Example

?

^Verbose responses enabled

4.1.7. $ (24H) – Reader Status Request

Interrogate the reader about its operational status. Two bytes of status information will be

returned.

Example

Host Command Reader Response Example

$

`<01>

UIC Bezel5 Programmer’s Manual Page.51/166 UDN PM098 Rev. 1.0

Reader Response Example = ‘<01>

Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

Byte 1, see Table 4-2

0 1 1 0 0 0 0 0

Byte 2, see Table 4-3

0 0 0 0 0 0 0 1

First Status Byte

Bit Value: 0 Value: 1

0 RFU RFU

1 No Card Present Card Seated

2 RFU RFU

3 RFU RFU

4 No Card status Report Auto Card status Report

5 always ‘1’ always ‘1’

6 Not armed to read Armed to read

7 RFU RFU

Table 4-2. First Byte Description of Reader Status Request

Second Status Byte

Bit Value: 0 Value: 1

0 First LED OFF First LED ON

1 LED not Flash LED Flash

2-3 RFU RFU

4 No RFID Read RFID Read

5-7 RFU RFU

Exception: If there is any LED flashes, the bit 0 status will be ignored. (i.e., in this case, bit 0 always = ‘0’)

Table 4-3. Second Byte Description of Reader Status Request

4.1.8. # (23H) – Configuration Request

Returns single byte or extended 16-byte string representing the configuration of the device.

Example

Host Command Reader Response Example

#

?

UIC Bezel5 Programmer’s Manual Page.52/166 UDN PM098 Rev. 1.0

Reader Response Example = “ ? ”

Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

Byte 1, see Table 4-4

0 0 1 1 1 1 1 1

Standard, One Configuration Byte

Bit Value: 0 Value: 1

0 Track 1 not present Track 1 present

1 Track 2 not present Track 2 present

2 Track 3 not present Track 3 present

3-7 RFU RFU

Table 4-4. First byte of Configuration Request response

Extended Configuration Bytes (16 bytes)

Byte Byte 0 Byte 1 Byte 2 Byte 3 Byte 4 Byte 5-15

Remark Equip.0 Equip.1 Protocol Speed Address RFU

Equip. 0 － Extended Configuration Byte 0

Bit Value: 0 Value: 1

0-3 RFU RFU

4 Track 1 not present Track 1 present

5 Track 2 not present Track 2 present

6 Track 3 not present Track 3 present

7 RFU RFU

Equip. 1 － Extended Configuration Byte 1

Bit Value: 0 Value: 1

0-7 Not Used Not Used

Byte 2 – Byte 4

Byte Remark

2 Protocol 00H = USI2; 03H = USI0; 06H = USI1

UIC Bezel5 Programmer’s Manual Page.53/166 UDN PM098 Rev. 1.0

Byte Remark

3 Speed 00H=1200,

01H=2400,

02H=4800,

03H=9600, (Default)

04H=19.2k,

05H=38.4k,

06H=57.6k,

07H=115.2k bps

4 Address Always 00H.

By using the configuration setting command, users can select the standard or extended format. For

the Extend command usage refer to 4.3.8. ECx(45h 43h x) － Extended Configuration Report

Enable/Disable.

UIC Bezel5 Programmer’s Manual Page.54/166 UDN PM098 Rev. 1.0

4.1.9. <CAN> (18H) – Clear Data Buffer

Clears read data buffers.

Example

Host Command Reader Response Example

<18>

^

4.1.10. <7FH> – Warm Reset

It aborts all current actions and causes the device to execute all initialization functions. The device

will respond as if in a "power up" cycle; by default it returns a ‘:’ (3AH). This operation will take at

least 3 seconds to complete.

Example

Host Command Reader Response Example

<7F>

^

4.1.11. 5 (35H) – Set RTC Time

This command is used to set and read device’s RTC Time

Command Packet

Byte 0 Byte 1 Byte 2 Byte 3 Byte 4 Byte 5 Byte 6

5 CMD Date or Time

CMD Description

[CMD, 1 byte] (ASCII – Hex value) Description

1 (or 31h) Read Date

2 (or 32h) Read Time

3 (or 33h) RFU

4 (or 34h) Set Date

5 (or 35h) Set Time

UIC Bezel5 Programmer’s Manual Page.55/166 UDN PM098 Rev. 1.0

51 (35H31H) - Read Date

Response data Packet:

Byte 0 – Byte 1 Byte 2 Byte 3 Byte 4

Year Month Date Week

<20*><12> <12> <06> <04>

*The year <20> can be interpreted

as space character. 01h=Monday, 02h=Tuesday, …

07h=Sunday

Note: BCD format from 010 (0000BCD = 0h) to 910 (1001BCD = 9h)

Example

Host Command Reader Response Example

51

<20*><12><12><06><04>

52 (35H32H) - Read Time

Response data Packet:

Byte 0 – Byte 1 Byte 2 Byte 3 Byte 4

Hour Min Second Millisecond

<16> <30> <00> <04><90>

Note: BCD format from 010 (0000BCD = 0h) to 910 (1001BCD = 9h)

Example

Host Command Reader Response Example

52

<16>0<00><04><90>

UIC Bezel5 Programmer’s Manual Page.56/166 UDN PM098 Rev. 1.0

54 (35H34H) - Set Date

Command Packet:

Byte 0-1 Byte 2-3 Byte 4 Byte 5 Byte 6

Command Year Month Date Week

54 <14><0C> <0C> <06> <04>

Hex value format valid input 01h=Monday, 02h=Tuesday, … 07h=Sunday

Default setting is <20><01><01><01><01>, obtained by Read Date.

YYYY: 14h 00h – 1Eh FFh (2000 – 3000)

If the ‘YYYY’ falls out of range, the reader will restore the configuration to default settings after resetting the device.

Example

Host Command Reader Response Example

54<14><0C><0C><06><04>

^

55 (35H35H) - Set Time

Command Packet: (Hex value format valid input)

Byte 0-1 Byte 2 Byte 3 Byte 4 Byte 5-6

Command Hour Min Second Millisecond

55 <11> <0E> <37> <00><0A>

Example

Host Command Reader Response Example

55<11><0E><37><00><0A>

^

UIC Bezel5 Programmer’s Manual Page.57/166 UDN PM098 Rev. 1.0

4.1.12. B (42H) – Buzzer Beep control

Used to let the Buzzer to beep under user’s control

Command Packet

Byte 0 Byte 1 Byte 2 Byte 3 Byte 4

Command Count Tone On Duration Short Duration

B <31> <30> <7F> <00>

Example

Host Command Reader Response Example

B<31><30><7F><00>

^

Command Type

Field Description

0 (30h, ASCII Hex) – long beep **Important: Once ‘B0’ command starts beeping, NO

command can STOP it–unless users send a “Reset” command to stop it.

Count

1~9, A~F(31h~39h 41h~46h, ASCII Hex) – 1~15 short beeps

Tone For adjusting the frequency level, 00h~FFh(high → low).

On Duration The duration of a beep; time unit is 10ms, 00h means 10ms, FFh means 2560ms.

Short Duration The interval between 2 beeps in unit of 10 milliseconds; 00h means 10ms, FFh means 2560ms.

Note: If Type parameter is omitted, reader will treat it as the ONE SHORT Beep command.

UIC Bezel5 Programmer’s Manual Page.58/166 UDN PM098 Rev. 1.0

4.1.13. I (49H) – Load RSA Key

This command is used to load RSA Key and query Key Index for PayPass MCHIP and VISA qVSDC

applications.

Command Packet

Byte 0 Byte 1 or Byte 1-3 Byte 2~

Command Type, see Table 4-5 Data, see Table 4-6

I 1 <01><00><A2><05><00><00><00><00><01><01><03><03><01><00><

01><80><14><C3><12><D4><88><A7><09><88><A4><F2><19><D5><D

6>~y<8F><DC><A0><A7><0D><90>fc<13>:p<98><1E>a&<F9>+(<8B><E

D><98><D6><97><82><CC><A8><C5><94><B0><CF>*<B2><EC><E7>9<

98><08>WF<88><A1><B8>K<BC><D2><0D>7<E9>-<1C>h<9A>[<BD><8

4>Z<99><88>Q<0C><9A><96><EE>D]L<1D><A3>W<AD>=<14>-^<8B><

C5><D6>DT<92><12>1~z5R’<8B><F8><C6>{_<BF>e<0F><FD><AF>W~<

F2>}{3o<EF>k<A6>Sj<DE>;<A1><09><14><DD>>+l<CD>8<CF>Y<99><88

>y<F0>X<BF><86><C8>’<E0><9E><91>

Command Type

Command Format (ASCII – Hex) Description

0[01H 16H] (or 30H 01H 16H) Show Stored Key’s Index and RID

1 ( or 31h) Load RSA Key

2 ( or 32h) Load Authentication RSA Key

5 ( or 35h) Load Test Key and Test RSA Chip

FFH 00H 00H Erase all Key Entry

Table 4-5. Load RSA Key Type

Command Data

Data Description

Entry Index 1 byte in binary format, must be 1-16.

Total Len Total length of rest data, 2 bytes in binary format.

RID Len 1 byte in binary format, must be 5.

RID 5 bytes in binary format

CAPKI Len 1 byte in binary format, must be 1.

CAPKI Key Index, 1 byte in binary format.

Exp Len 1 byte in binary format, must be 1 or 3.

Exponent 1 or 3 bytes in binary format.

UIC Bezel5 Programmer’s Manual Page.59/166 UDN PM098 Rev. 1.0

Data Description

Mod Len 1 byte in binary format, Max is 248.

Modulus 1-248 bytes in binary format.

Sha_1 Len Len－1 byte in binary format, must be 0 or 20.

Sha_1 20 bytes in binary format, if present.

Table 4-6. Load RSA Key Data Description

I1 command Example

Data Value

RID 0000000001

CA Index 03

Modulus 14C312D488A70988A4F219D5D67E798FDCA0A70D906663133A70981E6126F92B28

8BED98D69782CCA8C594B0CF2AB2ECE7399808574688A1B84BBCD20D37E92D1C68

9A5BBD845A9988510C9A96EE445D4C1DA357AD3D142D5E8BC5D644549212317E7

A3552278BF8C67B5FBF650FFDAF577EF2297B336FEF6BA6536ADE3BA109

Exponent 010001

Sha_1 Value DD3E2B6CCD38CF59998879F058BF86C827E09E91

Command Form:

I1<01><00><A2><05><00><00><00><00><01><01><03><03><01><00><01><80><14><C3><12><D4><88><A7><09><

88><A4><F2><19><D5><D6>~y<8F><DC><A0><A7><0D><90>fc<13>:p<98><1E>a&<F9>+(<8B><ED><98><D6><97><8

2><CC><A8><C5><94><B0><CF>*<B2><EC><E7>9<98><08>WF<88><A1><B8>K<BC><D2><0D>7<E9>-<1C>h<9A>[<BD

><84>Z<99><88>Q<0C><9A><96><EE>D]L<1D><A3>W<AD>=<14>-^<8B><C5><D6>DT<92><12>1~z5R’<8B><F8><C6>

{_<BF>e<0F><FD><AF>W~<F2>}{3o<EF>k<A6>Sj<DE>;<A1><09><14><DD>>+l<CD>8<CF>Y<99><88>y<F0>X<BF><86>

Note: These values are used for testing purposes.

Table 4-7. Load RSA Key example (I1 command)

Command Data Format - (Command I2, Authentication RSA Key)

Data Byte Field Name Length Notes

n Padding Data Var. Padding frame see Table 4-9

16+n Random 16 Bytes Issue 90h 10h command to get random.

17+n Exponent Length 1 Byte

21+n Exponent 4 Bytes

23+n Modules Length 2 Bytes

23+n+m Modules Var. Binary format

43+n+m SHA1 20 Bytes Padding + Random + Exp Len + Exp + Modules Length + Modules

Table 4-8. Authentication RSA Key data format (I2 command)

UIC Bezel5 Programmer’s Manual Page.60/166 UDN PM098 Rev. 1.0

Padding Frame - (Command I2, Authentication RSA Key)

Byte 0~1 Byte 2+n Byte 3+n

00h 01h Var. 00h

Table 4-9. Padding Frame of Authentication RSA Key command

Example - (Command I2, Authentication RSA Key)

Host Command Reader Response

I26F5DFC046F37D2CEFAE240A3E1870CA374F34FF9F1D138D5D78B09AA1863E1129F35E2559

4B40205E46EE1C603AD080141B51020892408DB741A58B203A4E8D75A9E98B45FA33AE495F

24F2D6F78048804320216E295E721DED633EFCCCD8CA91B7D12E8AB7FBA8490B5AC87F17E9

3A2E18C4993B52E020ED3C18138CE4A091D2EB0DA846D50C5432E186AB148257884C409A4D

DBBF42FB8CFBF778E7966E3704DC8B976945B302D21E82515390FCC6F6BCA4894F6CA29B027

40DD22A1B530DA2CD2F90E9F673E3E0BD1EBCAA3BAC2D5F664F5F77C5193B4A78AF8D5CAC

F5344D5E63CF3898D77F96468FA7CBABEE6A4E43E203AF6141E19D3390B9C5565C88F13E091

5EB57034EB4C3788DE6FFEE355364EDDF4E32CABB52DA0DDB816634E58BFA79FFC890B8DE0

F766906C05EBAA2578F85D2D3D3F4D5712722441D1449E40F6BC7205DD281C937E675214D6

63BA69BDB2E5674B4CC8D4D1002814E7BBEED9A96C177A0C8872F59E12593607A440E3ABA

D5DF510798B363505F6E81E63FC3F60884404923768C6D1228CAE34289C051418C2FC8C98F5

8CB98F1DED473A7F8F8449682B572EB56758588DD9D6DFD5BC4EC72FF9D3B7E9C6B79F7231

6B593611FF5D0753466621A80EB71BB2D4575AB795C47A1FD4D21B3D702FB296E67F49ED18

07531177900AFE9D7FE8B4DBF19AA520E9BC6D8AA0EE664887C3CD716B5E

^

Table 4-10. Load Authentication RSA Key example (I2 command)

4.1.14. w (77H) – Exception File

To add or process the PAN in the Exception File. Primary Account Numbers kept by this black list will

be denied for transactions.

Command Packet

Byte 0 Byte 1 Byte 2~

Command Type Data

w 2 <10>6011111111111117

Command Type

ASCII – Hex Value Description

0 ( or 30h) Erase Exception File

1 ( or 31h) Report counts of PANs in the Exception File

2 ( or 32h) Add a PAN to the file, 272 entries max.

3 ( or 33h) Query if a PAN exists in the Exception File

UIC Bezel5 Programmer’s Manual Page.61/166 UDN PM098 Rev. 1.0

ASCII – Hex Value Description

4 ( or 34h) Request a certain PAN from the Exception File

Command Data

Type Description

2 ( or 32h)

3 ( or 33h) data length(1 byte) + PAN(up to 19 bytes ASCII ‘0’~’9’)

4 ( or 34h) 2 bytes long, range from 0000h to 010Fh

Response data format

Type Description

1 ( or 31h) Return 2-byte binary number -- the total number of PANs in the file.

3 ( or 33h) Return ‘1’ if PAN exists; else, return ‘0'.

4 ( or 34h) Return primary account number; else, return 00h.

w1 Example

Host Command Reader Response Example

w1

<00><02>

w2<10>6011111111111117

^

w3<10>6011111111111117

1

w4<00>03>

<10>6011111111111117

4.1.15. @ (40H) – Display Control

The LCD panel can show eight rows x 18 small ASCII font, four rows x 18 big ASCII font or four rows x

9 Chinese code.

Command Packet

Byte 0 Byte 1 Byte 2 ~

Command Type Data

@ <01> <00>

UIC Bezel5 Programmer’s Manual Page.62/166 UDN PM098 Rev. 1.0

Command Type

Type Description

01h LCD Clear, See Table 4-12

02h LCD Write Char, See Table 4-13

03h Graphic picture selection, See Table 4-14

04h LCD Inverse, See Table 4-15

07h Cursor Blink, See Table 4-16

08h Cursor Home

09h Cursor Display, See Table 4-17

0Ah Position Cursor, See Table 4-18

0Bh LCD Blinking, See Table 4-19

0Ch LCD Blink Time, See Table 4-20

16h LCD Backlight control, See Table 4-21

Table 4-11. LCD Function Table

Command Data Option

LCD Clear

Data Description

00h Clear entire display

01h Clear line 1

02h Clear line 2

03h Clear line 3

04h Clear line 4

Table 4-12. Clear LCD command option

Example

Display Line Host Command Reader Response Example

<01><00><00><03>@<01><01>B

1 ^

<01><00><00><03>@<01><02>A

2 ^

<01><00><00><03>@<01><03>@

3 ^

4 <01><00><00><03>@<01><04>G

UIC Bezel5 Programmer’s Manual Page.63/166 UDN PM098 Rev. 1.0

Display Line Host Command Reader Response Example

^

LCD Write Char (5 Fields in binary format)

Field 1 Field 2 Field 3 Field 4 Field 5

1~18 1~64 Length 1 Length 2 Data buffer

Total length = (Length 1 * 256) + Length 2

Table 4-13. Write Characters to LCD

Example

Display Line Host Command Reader Response Example

<01><00><00><16>@<02><00><00><00><10>1234567890123456C

1 ^

<01><00><00><16>@<02><00><01><00><10>1234567890123456B

2 ^

<01><00><00><16>@<02><00><02><00><10>1234567890123456A

3 ^

<01><00><00><16>@<02><00><03><00><10>1234567890123456@

4 ^

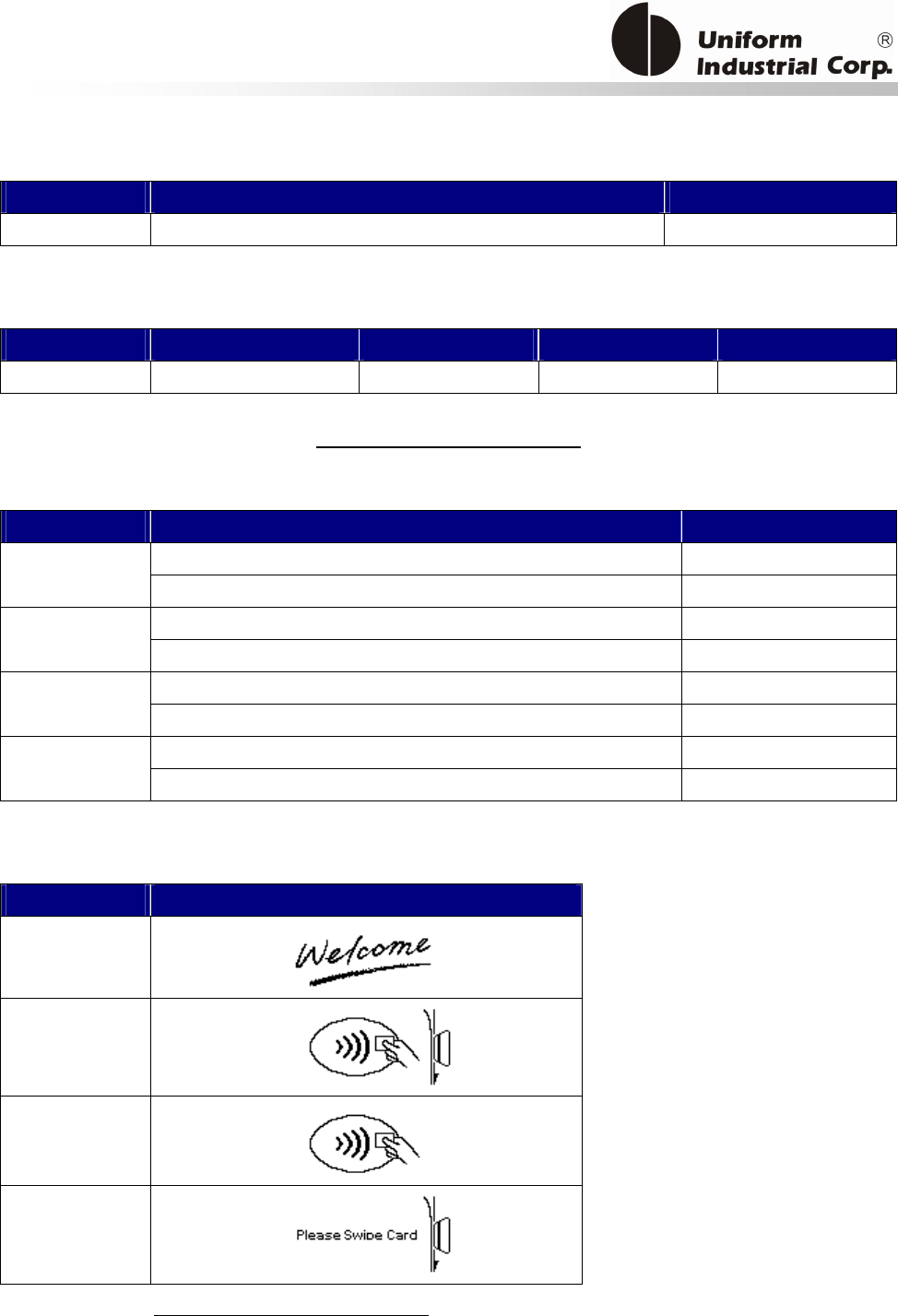

Graphic Picture Selection

Data Description

00h

01h

02h

03h

Table 4-14. Graphic Picture Selection

UIC Bezel5 Programmer’s Manual Page.64/166 UDN PM098 Rev. 1.0

LCD Inverse

Data Description

00h Normal

01h Light pixels on a dark background

Table 4-15. LCD Inverse Option

Example

Host Command Reader Response Example

<01><00><00><03>@<04><01>G

Enable ^

<01><00><00><03>@<04><00>F

Disable ^

Cursor Blink

Data Description

00h No blinking

01h Cursor blink on

Table 4-16. Cursor Blink Option

Cursor Display

Data Description

00h Cursor hides

01h Cursor display

Table 4-17. Cursor Display Option

Position Cursor

Data Description

ux and uy Set cursor position, 2 bytes in binary format

Table 4-18. Cursor Position Set

LCD Blinking

Data Description

00h Blinking off

01h Blinking on

Table 4-19. LCD Blinking Option

UIC Bezel5 Programmer’s Manual Page.65/166 UDN PM098 Rev. 1.0

LCD Blink Time

Data Description

00h~0Fh Setup blinking time, 1 byte in binary format

Table 4-20. Set LCD Blinking Time

LCD Backlight control

Data Description

00h Off

01h Turn on the LCD backlight.

Table 4-21. LCD Backlight Control

Example

Host Command Reader Response Example

<01><00><00><03>@<16><01>U

On ^

<01><00><00><03>@<16><00>T

Off ^

4.1.16. L (4Ch) / l (6Ch) / ( (28h)- LED Control

This command is for Contactless LED control. Usually contactless LED don't have to control by the

host, but this command can be used for LED function testing or specific purpose.

Command Packet

Byte 0 Byte 1 (LED Position) Description

L x LED turn-on

l x LED turn-off

( x LED Flashing

UIC Bezel5 Programmer’s Manual Page.66/166 UDN PM098 Rev. 1.0

LED Position

Type Description

1, (31h) First LED (Blue)

2, (32h) Second LED (Orange)

3, (33h) Third LED (Yellow Green)

4, (34h) Fourth LED (Red)

4.1.17. LE (4Ch 45h) / LD (4Ch 44h) - Flash LED Control

This command is for the user to recognize that the reader is up and functioning. The default is

turned-on upon power up. For specific purpose, it can be disabled and controlled by the host to

determine when the LED be turned on.

Command Description

LE Turn-on Flashing LED

LD Turn-off Flashing LED

UIC Bezel5 Programmer’s Manual Page.67/166 UDN PM098 Rev. 1.0

4.2. General Commands Description

The default setting of the Bezel5 reader, Self-Arm mode, is mainly used to simplify the process so

that the host does not need to communicate back and forth with the reader. In this situation, the

Bezel5 acts like a general magnetic stripe card reader. Whenever it senses the card it will try to

decode the card data automatically and send out the decoded data to the host if the process is

successful. Otherwise, error code will be sent out for host to make next activation.

If the application would like to take complete control on the reader, we recommend the user to use

the “Host-Polled” mode instead of the “Self-Arm” mode. It can be done by either sending

“Self-Arm” disable command or changing the default setting in the reader configuration.

Once the Bezel5 receives the Self-Arm disable command, ‘H0’ (see the command description

section), it will turn off the auto-read function and then wait for the “Arm-to-Read” command, ‘P’

(50h) prepared for the next transaction. Since the Self-Arm disable command won’t change the

EEPROM setting, the Bezel5 will turn back to the Self-Arm mode in the next power cycling. Besides,

the Self-Arm enable command, ‘H1’, can also bring the Bezel5 back to the Self-Arm mode.

To disable the Self-Arm mode permanently, the host needs to set its EEPROM value of the Bezel5.

The configuration command ‘SA' (see 4.3.19. SAx(53h 41h x)

－

Self-Arm Mode Enable/Disable)

saves the setting into the EEPROM of the Bezel5 and keeps the value until the next change.

We recommend users to use Protocol 2 (USI2) in their “host-polled” applications. This protocol

contains the header, message counter and block check character. It is better than using Protocol

0(USI0) as it can prevent the data to be misinterpreted but requires more redundant bytes.

UIC Bezel5 Programmer’s Manual Page.68/166 UDN PM098 Rev. 1.0

Self-Arm Mode transaction process Example flow

Enable

Self-Arm Mode

H1 / SAE Command

Return Error Code? TM<01>

Command

Tap Card

54/55 Command

Set Transaction

Date/Time

T1 Command

Set Amount

Reader Initial

Start new

transaction

No

Error Code

Action

Receive error

from reader

Terminal/Controller

Action

Start Transaction with amount

Return Error Code Process

Terminal/Controller Action

Reader Setting Command

Reader Transaction Command

Tap Contactless Card

Yes

DWE Command

Wait amount to

start transaction?

No

Yes

* Set reader to Self-Arm

mode by send H1

command is for temporary

test, reader will return to

Host-Poll mode after

power cycling.

Figure 4-1. Self-Arm Mode Transaction Process Example Flow

Related Commands:

Function Reference

Self-Arm Mode setting 4.2.1. H (48H) – Self-Arm function disable/enable

4.3.19. SAx(53h 41h x) － Self-Arm Mode Enable/Disable

Set Transaction Date/Time 4.1.11. 5 (35H) – Set RTC Time

Return Error Code setting 4.3.22. TMx(54h 4Dh x)

－

Set Error Code output Enable/ Disable

Wait Amount mode setting 4.3.7. DWx(44h 57h x)

－

Set Wait Amount mode

Set Amount 4.2.6. T (54H) – Transaction Comman

Table 4-22. Commands related to Self-Arm mode transaction example flow

UIC Bezel5 Programmer’s Manual Page.69/166 UDN PM098 Rev. 1.0

Host Poll Mode transaction process Example flow

In this Example, assume the Bezel5 is in protocol USI2 and Self-Arm disable mode.

Host-Poll Mode

Enabled?

*H0/SAD

Command

Return Error Code?

P Command

Arm to Read

TM<01>

Command

Tap Card

54/55 Command

Set Transaction

Date/Time

T1 Command

Set Amount

S Command

Get TK3

Reader Initial

Start new

transaction

No

Error Code

Action

Receive error

from reader Terminal/Controller

Action

Return Error Code Process

Terminal/Controller Action

Reader Setting Command

Reader Transaction Command

Tap Contactless Card

Yes

No

* Bezel-5 Plus has

Host-Poll mode

enabled set to

default.

Abort by Send <1B>

command

Error?

Figure 4-2. Host Poll Mode Transaction Process Example Flow

After the host issues the Arm-to-Read command, the Bezel5 will check if any payment card is

detected in the reading zone or any magnetic stripe card is swiped. No matter the card is decoded

successfully or not, it will return the ‘^’ to indicate that the card has been read. The host can issue

the ‘Q’, ‘R’, ‘S’ commands to retrieve the card data accordingly.

Related Commands:

Function Reference

Host-Poll Mode setting 4.2.1. H (48H) – Self-Arm function disable/enable

4.3.19. SAx(53h 41h x) － Self-Arm Mode Enable/Disable

Set Transaction Date/Time 4.1.11. 5 (35H) – Set RTC Time

Return Error Code setting 4.3.22. TMx(54h 4Dh x)

－

Set Error Code output Enable/ Disable

UIC Bezel5 Programmer’s Manual Page.70/166 UDN PM098 Rev. 1.0

Function Reference

Set Arm to Read 4.2.2. P (50H) – Arm to Read

Set Amount 4.2.6. T (54H) – Transaction Comman

Get Transaction Data 4.2.5. Q, R, S – Get Transmit Track Data

Table 4-23. Commands related to Host-Poll mode transaction example flow

4.2.1. H (48H) – Self-Arm function disable/enable

Used for controlling the contactless auto read function temporarily.

Command Packet

Byte 0 Byte 1

H Type

Command Type

ASCII - Hex 1 Byte Value Description

0 ( or 30h) Self Arm Disable

1 ( or 31h) Self Arm Enable

Example

Host Command Reader Response Example

H0

^

Note: Bezel5 cannot perform the Self-Arm enable command for the contactless payment

card reading under the following conditions:

1. The payment card is decoded successfully and the Bezel5 is waiting for the card to be removed

from the reading zone.

2. The payment card is failed to decode and the Bezel5 is waiting for the card to be removed from

the reading zone.

4.2.2. P (50H) – Arm to Read

1. Clears data buffers.

2. Transmits command acknowledgement (‘^’ 5EH) if successful.

3. Waiting for and detect for an approaching card.

4. The LED1 will light on and then turn off after a successful reading or a MIFARE card being

detected.

UIC Bezel5 Programmer’s Manual Page.71/166 UDN PM098 Rev. 1.0

Example

Host Command Reader Response Example

P

^

Note:

1. After an Arm to Read command is received and acknowledged the only valid commands that

will be accepted for execution are: <ESC> “Abort” and ‘$’ “Status”.

2. Reader will NOT send out track data automatically; the host has to issue the ‘Q’, ‘R’, ‘S’

commands to get the corresponding track data.

3. In the Self-Arm mode, it is not necessary to send this command. If this command is sent, it will

temporarily override the Self-Arm mode.

4.2.3. p (70H) – Arm to Read (Used for Manufacturing Test Only)

Equivalent to the 'P' command, except that the card read acknowledgement is not the ‘^’ character.

Example

Host Command Reader Response Example

p

^

It will report a ‘(‘ (28H) byte if the card media is detected, and a ‘)’ (29H) byte when the media

detection goes inactive.

4.2.4. <ESC> (1BH) – Abort Arm to Read

1. Clear the data buffers.

2. Aborts the Arm to Read command.

Example

Host Command Reader Response Example

<1B>

^

UIC Bezel5 Programmer’s Manual Page.72/166 UDN PM098 Rev. 1.0

4.2.5. Q, R, S – Get Transmit Track Data

Q (51H) Transmit Track 1 data

R (52H) Transmit Track 2 data

S (53H) Transmit Track 3 data

Example

Host Command Reader Response Example

S

+300=AABBCCDDEEFF1122=06011103900000=09861AA8=0003=A0800000=0000000000=0

000=121207=000000000000=0840=2000=0840=000000000000=000888=25=0000=303030

3030303030=303030303030303030303030303031=01=6000000001=======00=00000001

0000==2000========07=08?

4.2.6. T (54H) – Transaction Command

This command is used to view and manipulate transaction activities.

Command Packet

Byte 0 Byte 1 Byte 2 ~

Command Type Data

T 1 <00><00><00><00><01><00>

Example

Host Command Reader Response Example

T1<00><00><00><00><01><00>

^

Command Type

Parameter Description Note

0 ( or 30h) Erase all Transaction records

1 ( or 31h) Enter Amount

2 ( or 32h) Read Transaction Record

B ( or 42h) Query records Count

5 ( or 35h) Clear Amount

Command Type 0, 2, B is related to Data

Record, Bezel5 default is set to clear

record before next transaction start, if

transaction records required to be

control manually, Host need to send ERx

command to enable data record

function. (Refer to Section 0

UIC Bezel5 Programmer’s Manual Page.73/166 UDN PM098 Rev. 1.0

Command Data

Command Type Data Description

T1<Amount> 6 bytes in numeric format, use once only.

T2<Record> 2 bytes in binary format, decide which record to read; range from 0001h to 0186h.

TB<Count> (Get Data) 2 bytes in binary format.

Note: Record data of ‘T2’ command includes Transaction Date and Tracks data.

UIC Bezel5 Programmer’s Manual Page.74/166 UDN PM098 Rev. 1.0

4.3. Configuration Command Description

The configuration commands related to card brands transaction listed in this section only provide

the usage which don't require to have EMV or any card brand certifications. Bezel5 has PayPass 3.0

supported, to process with EMV transaction flow, please use the EMV transaction operating

commands (refer to Section 5 EMV Transaction Operating Command).

The following are configuration commands executed in BLP format.

BLP Protocol – RS232 Interface

Byte 1 Byte 2,3 Byte 4+n Byte 5+n

09h Command Len Command/Data(n bytes) BCC

Table 4-24. BLP Configuration Protocol

Response Code

Response Meaning

^ Acknowledgement

* Cannot execute (e.g. out of range)

! Bad parameter (e.g. incorrect length)

4.3.1. CCx(43h 43h x) － Set Code

Command Packet

Byte 0 Byte 1 Byte 2 ~ 3 (or 4)

CC Type Data

Command Type

Type Length Description Example (Hex)

1 2 Bytes Country Code 09h 00h 05h 43h 43h 31h 08h 40h 75h

2 2 Bytes Currency Code 09h 00h 05h 43h 43h 32h 08h 40h 76h

3 3 Bytes Terminal Capabilities 09h 00h 06h 43h 43h 33h 00h 08h 88h BCh

Table 4-25. Set Configuration Code Table

UIC Bezel5 Programmer’s Manual Page.75/166 UDN PM098 Rev. 1.0

4.3.2. CKx – Enable/Disable User CA Key

To enable/disable the user CA key (i.e. load by I command)

Command Packet

Byte 0~1 Byte 2

CK Parameters, see Table 4-26

Command Type

Parameter Example (Hex) Description

00h 09h 00h 03h 43h 4Bh 00h 02h User CA Key

01h 09h 00h 03h 43h 4Bh 01h 03h Test CA key (default)

Table 4-26. Public Key switch Table

Note:

1. The host must send CK<00> to set user CA keys enabled if the new CA key is set via T03

command. Otherwise, the default test key is used. It impacts the offline authentication in EMV

contactless only. For MSR contactless such as PayPass magstripe or VISA MSD, it has no effect.

2. The reader keeps the setting forever until the next CKx command.

4.3.3. CLx(43h 4Ch x) － Set TRM Parameters

Command Packet

Byte 0 ~ 1 Byte 2 Byte 3+n

CC Type Data

Command Type

Parameter Length Description Example (Hex)

0 Var. Dump setting parameters

09h 00h 03h 43h 4Ch 30h 35h

1 4 Bytes Terminal Floor Limit 09h 00h 07h 43h 4Ch 31h 31h 30h 30h 32h 33h

2 6 Bytes Threshold 09h 00h 09h 43h 4Ch 32h 31h 30h 30h 32h 30h 30h 3Dh

3 1 Byte Target percentage 09h 00h 04h 43h 4Ch 33h 20h 11h

4 1 Byte Max Target percentage 09h 00h 04h 43h 4Ch 34h 26h 10h

Table 4-27. Set TRM Parameters

Note:

1. Set Threshold data format is numeric, others are binary.

2. Target percentage range: 00h ~ 63h.

3. Max Target percentage range: 00h ~ 63h

UIC Bezel5 Programmer’s Manual Page.76/166 UDN PM098 Rev. 1.0

4.3.4. CPx(43h 50h x) － PayPass Support

Command Packet

Byte 0 ~ 1 Byte 2

CP Command Type, see Table 4-28

Command Type

Parameter Example (Hex) Description

00h 09h 00h 03h 43h 50h 00h 19h MagStripe Only

01h 09h 00h 03h 43h 50h 01h 18h MChip Enable

Table 4-28. Configure PayPass supporting mode

4.3.5. CTx(43h 54h x) － Set Terminal/Transaction Type/Info

Command Packet

Byte 0 ~ 1 Byte 2 Byte 3

CT Type Data, see Table 4-29

Command Type

Parameter Length Description Example (Hex)

0 1 Byte Terminal Type 09h 00h 04h 43h 54h 30h 22h 08h

1 1 Byte Transaction Type 09h 00h 04h 43h 54h 31h 00h 2Bh

2 1 Byte Transaction Info 09h 00h 04h 43h 54h 32h 40h 68h

Table 4-29. Set Terminal, Transaction Type/Info Table

4.3.6. DFx(44h 46h x) － Default Setting

The reader will restore the configuration to default manufacture settings after receiving this

command.

Command Packet

Byte 0 ~ 1 Byte 2

DF <00>

Important: It has to power-cycle the reader after this command is processed.

UIC Bezel5 Programmer’s Manual Page.77/166 UDN PM098 Rev. 1.0

4.3.7. DWx(44h 57h x) － Set Wait Amount mode

This command can only operate in Self-Arm mode. If the wait amount mode is enabled, transaction

can only be enabled by reader receiving amount through T1 command.

Command Packet

Byte 0 ~ 1 Byte 2

DW Command Type, see Table 4-30

Command Type

Parameter Length Description Example (Hex)

D 1 Byte Disable 09h 00h 03h 44h 57h 44h 5Dh

E 1 Byte Enable 09h 00h 03h 44h 57h 45h 5Ch

Table 4-30. Set Wait Amount mode

4.3.8. ECx(45h 43h x) － Extended Configuration Report Enable/Disable

Command Packet

Byte 0 ~ 1 Byte 2

EC Command Type, see Table 4-31

Command Type

Parameter Length Description Example (Hex)

D 1 Byte Disable, returns one byte with configuration

(Default) 09h 00h 03h 45h 43h 44h 4Bh

E 1 Byte Enable, returns 16 bytes string with configuration

09h 00h 03h 45h 43h 45h 4Ah

Table 4-31. Extended Configuration Report Option

If the “Extended Configuration Report” is enabled, the Configuration Request Command ‘#’ will

return an extended 16-byte string with configuration, else it will return a standard one byte.

4.3.9. EGx(45h 47h x) － Output Data Encryption Enable/Disable

Command Packet

Byte 0 ~ 1 Byte 2

EG Command Type, see Table 4-32

UIC Bezel5 Programmer’s Manual Page.78/166 UDN PM098 Rev. 1.0

Command Type

Parameter Length Description Example (Hex)

00 1 Byte Output clear data 09h 00h 03h 45h 47h 00h 08h

01 1 Byte Output encrypted data 09h 00h 03h 45h 47h 01h 09h

Table 4-32. Output Data Encryption Setup

4.3.10. ERx(45h 52h x) － Record RF card data

Command Packet

Byte 0 ~ 1 Byte 2

ER Command Type, see Table 4-33

Command Type

Parameter Length Description Example (Hex)

00 1 Byte Not record 09h 00h 03h 45h 52h 00h 1Dh

01 1 Byte Record, but stop recording after memory full,

continue reading 09h 00h 03h 45h 52h 01h 1Ch

02 1 Byte Record, but stop reading after memory full, 3 beeps

09h 00h 03h 45h 52h 02h 1Fh

03 1 Byte Record, but stop reading after memory full, 3 beeps

and send '&' out 09h 00h 03h 45h 52h 03h 1Eh

Table 4-33. Record RF card data option

4.3.11. ESx(45h 53h x) － SS/ES Enable/Disable

Command Packet

Byte 0 ~ 1 Byte 2

ES Command Type, see Table 4-34

Command Type

Parameter Length Description Example (Hex)

D 1 Byte Disable 09h 00h 03h 45h 53h 44h 58h

E 1 Byte Enable 09h 00h 03h 45h 53h 45h 59h

Table 4-34. SS/ES Option

UIC Bezel5 Programmer’s Manual Page.79/166 UDN PM098 Rev. 1.0

If SS/ES is enabled, each track data of magnetic stripe card that sent automatically in Self-Arm mode

will be wrapped by the SS/ES character.

Note: This command is only effective in Self-Arming mode.

4.3.12. Fxy(46h x y) － Set Track 1, 2, 3 Prefix/Suffix Code, Preamble/Postamble Code

Command Packet

Byte 0 Byte 1 Byte 2 (max 5 bytes)

F Type Data (1 ~ 5 Bytes)

Command Type

Parameter (x)

Description Example (Hex) Example Data (y)

TK1 Prefix 09h 00h 07h 46h 41h 42h 45h 35h 30h 31h 3Ah

'BE501'

A TK1 Prefix Disable (Default) 09h 00h 03h 46h 41h 00h 0Dh '00'

TK1 Suffix 09h 00h 07h 46h 61h 42h 45h 35h 30h 31h 1Ah

'BE501'

a TK1 Suffix Disable (Default) 09h 00h 03h 46h 61h 00h 2Dh '00'

TK2 Prefix 09h 00h 07h 46h 42h 42h 45h 35h 30h 32h 3Ah

'BE502'

B TK2 Prefix Disable (Default) 09h 00h 03h 46h 42h 00h 0Eh '00'

TK2 Suffix 09h 00h 07h 46h 62h 42h 45h 35h 30h 32h 1Ah

'BE502'

b TK2 Suffix Disable (Default) 09h 00h 03h 46h 62h 00h 2Eh '00'

TK3 Prefix 09h 00h 07h 46h 43h 42h 45h 35h 30h 33h 3Ah

'BE503'

C TK3 Prefix Disable (Default) 09h 00h 03h 46h 43h 00h 0Fh '00'

TK3 Suffix 09h 00h 07h 46h 63h 42h 45h 35h 30h 33h 1Ah

'BE503'

c TK3 Suffix Disable (Default) 09h 00h 03h 46h 63h 00h 2Fh '00'

Set Preamble Code 09h 00h 07h 46h 50h 70h 72h 65h 30h 31h 7Eh

'pre01'

P Preamble Code Disable (Default)

09h 00h 03h 46h 50h 00h 1Ch '00'

Set Postamble Code 09h 00h 06h 46h 70h 50h 4Fh 53h 54h 21h 'POST'

p Postamble Code Disable (Default)

09h 00h 03h 46h 70h 00h 3Ch '00'

Table 4-35. Track Format Configuration Table

4.3.13. LB0x(4Ch 42h 30h x) － Set Read Card Mode

Command Packet

Byte 0 ~ 2 Byte 3

LB0 Command Type, see Table 4-36

UIC Bezel5 Programmer’s Manual Page.80/166 UDN PM098 Rev. 1.0

Command Type

Parameter Length Description Example (Hex)

00 1 Byte All cards 09h 00h 04h 4Ch 42h 30h 00h 33h

02 1 Byte PayPass 09h 00h 04h 4Ch 42h 30h 02h 31h

03 1 Byte VISA 09h 00h 04h 4Ch 42h 30h 03h 30h

04 1 Byte AMEX 09h 00h 04h 4Ch 42h 30h 04h 37h

05 1 Byte Discover 09h 00h 04h 4Ch 42h 30h 05h 36h

Table 4-36. Set Read Card Mode

4.3.14. LCx(4Ch 43h x) － LRC Enable/Disable

If LRC is enabled, each track data sent automatically in self-arm mode will be followed by the LRC

character.

Command Packet

Byte 0 ~ 1 Byte 2

LC Command Type, see Table 4-37

Command Type

Parameter Length Description Example (Hex)

D 1 Byte Disable (Default) 09h 00h 03h 4Ch 43h 44h 41h

E 1 Byte Enable 09h 00h 03h 4Ch 43h 45h 40h

Table 4-37. LRC Option

4.3.15. MFxy(4Dh 46h x y) － Set Payment Card and MIFARE Auto-Polling

Command Packet

Byte 0 ~ 1 Byte 2 Byte 3

MF Type (Payment) Type (Mifare)

Command Type (Payment)

Parameter Length Description Example (Hex)

0 1 Byte Disable Payment Card 09h 00h 04h 4Dh 46h 30h 31h 07h

1 1 Byte Enable Payment Card 09h 00h 04h 4Dh 46h 31h 31h 06h

*Example set to Mifare Card enabled

UIC Bezel5 Programmer’s Manual Page.81/166 UDN PM098 Rev. 1.0

Command Type (Mifare)

Parameter Length Description Example (Hex)

0 1 Byte Disable Mifare Card 09h 00h 04h 4Dh 46h 31h 30h 07h

1 1 Byte Enable Mifare Card 09h 00h 04h 4Dh 46h 31h 31h 06h

*Example set to Payment Card enabled

Once MIFARE Auto-Polling is enabled, the reader will send out the following characters to the host

if a MIFARE Card is detected.

Card Type

Response Description

M1 MIFARE Ultralight

M2 MIFARE 1K

M3 MIFARE 4K

M4 MIFARE DESFire

M5 MIFARE Plus 2K

M6 MIFARE Mini

M7 MPCOS Gemplus

M8 Jewel for Innovision

M9 JCOP31

M0 Not MIFARE card or Not supported card

Table 4-38. Mifare Card Type Response table

4.3.16. PCx(50h 43h x) － Set Host Protocol

Command Packet

Byte 0 ~ 1 Byte 2

PC Command Type

Command Type

Parameter Length Description Example (Hex)

0 1 Byte Switch to Protocol 2 09h 00h 03h 50h 43h 30h 29h

3 1 Byte Switch to Protocol 0 09h 00h 03h 50h 43h 33h 2Ah

* The reader will warm-reset automatically after this command is received

UIC Bezel5 Programmer’s Manual Page.82/166 UDN PM098 Rev. 1.0

4.3.17. PEx (50h 45h x) － Set Pass-Through Function

Command Packet

Byte 0 ~ 1 Byte 2

PE Command Type

Command Type

Parameter Length Description Example (Hex)

0 1 Byte Pass-Through Disabled

09h 00h 03h 50h 45h 30h 2Fh

1 1 Byte Pass-Through Enabled 09h 00h 03h 50h 45h 31h 2Eh

4.3.18. PHx(50h 48h x) － Set Power On Character

Command Packet

Byte 0 ~ 1 Byte 2

PH Command Type

Command Type

Parameter Length Description Example (Hex)

3Ah 1 Byte Set power on character to " : "

09h 00h 03h 50h 48h 3Ah 28h

00h 1 Byte Disable power on character 09h 00h 03h 50h 48h 00h 12h

*Default power on character is ":"

4.3.19. SAx(53h 41h x) － Self-Arm Mode Enable/Disable

Here is the difference between this command and the "H" command: If the reader is switched to

Self-Arm mode enabled by "H" command, it will return to default after power cycling. If the reader

is switched to Self-Arm mode by receiving the SAE command, the Self-Arm mode is kept enabled

after power cycling.

Command Packet

Byte 0 ~ 1 Byte 2

SA Command Type

Command Type

Parameter Length Description Example (Hex)

D 1 Byte Self-Arm mode Disabled

09h 00h 03h 53h 41h 44h 5Ch

E 1 Byte Self-Arm mode Enabled

09h 00h 03h 53h 41h 45h 5Dh

UIC Bezel5 Programmer’s Manual Page.83/166 UDN PM098 Rev. 1.0

4.3.20. SEx(53h 45h x) － Self-Arm Mode Data Envelope Enable/Disable

Command Packet

Byte 0 ~ 1 Byte 2

SE Command Type

Command Type

Parameter Length Description Example (Hex)

D 1 Byte Disable. The data is not wrapped in the current

protocol envelope (default) 09h 00h 03h 53h 45h 44h 58h

E 1 Byte Enable. The data is wrapped in the current protocol

envelope 09h 00h 03h 53h 45h 45h 59h

* In the self-arm mode, the default is not to send any protocol information with the magnetic stripe card data.

4.3.21. TKx(54h 4Bh x) － Set Transmitting Data Tracks

Command Packet

Byte 0 ~ 1 Byte 2

TK Command Type, see Table 4-39

Command Type

Parameter Length Description Example (Hex)

1 1 Byte Track 1 09h 00h 03h 54h 4Bh 31h 24h

2 1 Byte Track 2 09h 00h 03h 54h 4Bh 32h 27h

3 1 Byte Track 1 & 2 09h 00h 03h 54h 4Bh 33h 26h

4 1 Byte Track 3 09h 00h 03h 54h 4Bh 34h 21h

5 1 Byte Track 1 & 3 09h 00h 03h 54h 4Bh 35h 20h

6 1 Byte Track 2 & 3 09h 00h 03h 54h 4Bh 36h 23h

7 1 Byte Track 1, 2 & 3(default) 09h 00h 03h 54h 4Bh 37h 22h

Table 4-39. Set Transmitting Data Tracks

4.3.22. TMx(54h 4Dh x) － Set Error Code output Enable/ Disable

Command Packet

Byte 0 ~ 1 Byte 2

TM Command Type

UIC Bezel5 Programmer’s Manual Page.84/166 UDN PM098 Rev. 1.0

Command Type

Parameter Length Description Example (Hex)

00h 1 Byte Disabled 09h 00h 03h 54h 4Dh 00h 13h

01h 1 Byte Enabled 09h 00h 03h 54h 4Dh 01h 12h

4.3.23. TOx(54h 4Fh x) － Set Transmitting Data Output Format

Command Packet

Byte 0 ~ 1 Byte 2

TO Command Type

Command Type

Parameter Length Description Example (Hex)

0 1 Byte Protocol 0 09h 00h 03h 54h 4Fh 30h 21h

2 1 Byte Protocol 2 09h 00h 03h 54h 4Fh 32h 23h

4.3.24. USBx(55h 53h 42h x) － USB Mode (Optional)

Command Packet

Byte 0 ~ 2 Byte 3

USB Command Type

Command Type

Parameter Length Description Example (Hex)

00h 1 Byte HID_KBD 09h 00h 04h 55h 53h 42h 00h 49h

01h 1 Byte CDC 09h 00h 04h 55h 53h 42h 01h 48h

02h 1 Byte HID_MSR 09h 00h 04h 55h 53h 42h 02h 4Bh

4.3.25. UTx(55h 54h x) － Set TAC

Command Packet

Byte 0 ~ 1 Byte 2 Byte 3 ~ 7

UT Command Type, see Table 4-40 TAC Parameters

UIC Bezel5 Programmer’s Manual Page.85/166 UDN PM098 Rev. 1.0

Command Type

Parameter Length Description Example (Hex)

0 1 Byte Default 09h 00h 08h 55h 54h 30h 00h 00h 00h 00h 00h 30h

1 1 Byte Denial 09h 00h 08h 55h 54h 31h 00h 00h 00h 00h 00h 31h

2 1 Byte Online 09h 00h 08h 55h 54h 32h 00h 00h 00h 00h 00h 32h

Table 4-40. Set TAC Table (for PayPass Only)

4.3.26. VTx(56h 54h x) － VISA Terminal Transaction Qualifier(Tag ‘9F66’) Setting

Command Packet

Byte 0 ~ 1 Byte 2 ~ 5

VT TTQ parameters

Command Type

Parameter Length Description Example (Hex)

A0 00 00 00 4 Bytes MSD & qVSDC 09h 00h 06h 56h 54h A0h 00h 00h 00h ADh

4.3.27. VVx(56h 56h x) － VISA Version setting

Command Packet

Byte 0 ~ 1 Byte 2

VV Command Type

Command Type

Parameter Length Description Example (Hex)

02h 1 Byte Auto Polling Mode 09h 00h 03h 56h 56h 02h 08h

03h 1 Byte Visa 2.1 Only 09h 00h 03h 56h 56h 03h 09h

4.3.28. VLx(56h 4Ch x) － VISA CVM Required Limit setting

Command Packet

Byte 0 ~ 1 Byte 2 ~ 7

VL CVM Required Limit value

UIC Bezel5 Programmer’s Manual Page.86/166 UDN PM098 Rev. 1.0

Example

Parameter Length

Description Example (Hex)

31h 30h 30h 30h 30h 30h

6 Bytes

Amount=$313,030,303,030 09h 00h 08

h 56h 4Ch 31h 30h 30h 30h 30h

30h 1Ah

*CVM Required Limit value is fixed at 6 bytes and data format is numeric.

UIC Bezel5 Programmer’s Manual Page.87/166 UDN PM098 Rev. 1.0

4.4. Contactless Operation Commands Description

4.4.1. G (47H) – ISO 14443 Type Protocol Select

Select which manual command to be operated – ISO 14443 Type A or B.

Command Packet

Byte 0 Byte 1

Command Type

G 0

Command Type

Type Description

0 (30h, ASCII Hex) ISO 14443 Type A

4 (34h, ASCII Hex) ISO 14443 Type B

Note: The default contactless smart card type is Type A after power up.

Example

Host Command Reader Response Example

G0

^

4.4.2. O (4FH) – Antenna power ON

To apply power to the antenna. This command is for manual command operation.

Example

Host Command Reader Response Example

O

^

Note: If the reader is in Self-Arm mode. The antenna power cannot be turned on by manual

command setting.

UIC Bezel5 Programmer’s Manual Page.88/166 UDN PM098 Rev. 1.0

4.4.3. o (6FH) – Antenna power OFF

To Turns off the antenna power

Example

Host Command Reader Response Example

o

^

Note: If the reader is in Self-Arm mode. The antenna power cannot be turned off by manual

command setting.

4.4.4. b (62H) – Request

The ‘Request’ command.

Command Packet - ISO 14443 type A

Byte 0 Byte 1

Command Req command

b 52

The request command code is ISO 14443 type A. It can be either 26(REQA) or 52(WUPA).

Note: If the [Req command] field does not appear in the request command, reader will set the

request mode to WUPA automatically.

Command Packet - ISO 14443 type B

Byte 0 Byte 1 Byte 2

Command AFI PARAM

b 00 00

Command Description

Byte Description

AFI(optional) Binary Hex(00h to FFh), please refer to ISO 14443-3 for detailed information.

PARAM(optional) Binary Hex(00h to FFh), please refer to ISO 14443-3 for detailed information.

If the [AFI] and [PARAM] fields do not appear in the request command, reader will set the request

mode to WUPB automatically.

UIC Bezel5 Programmer’s Manual Page.89/166 UDN PM098 Rev. 1.0

Success Response Data Format

Message Type Description

ATQA 2 bytes, type A, Binary Hex

ATQB 16 bytes, type B, Binary Hex

Note: If reader response ‘*’ = No card response or No power on the antenna

4.4.5. c (63H) – Anti-collision(type A)/Slot-MARKER(type B)

In type A mode, reader sends the ANTICOLLISION command to the card.

In type B mode, reader sends the Slot-MARKER command to the card.

Command Packet -

Card Type Byte 0 Byte 1

ISO 14443 type A c

ISO 14443 type B c APn

Command Description

Byte Description

APn Anti-collision Prefix byte, please refer to ISO 14443-3 for detailed information.

Success Response Data Format

Card Type Description

ISO 14443 type A PICC serial number for type A(Binary Hex)

ISO 14443 type B PICC send ATQB(12 bytes, Binary Hex) for type B

Note: If reader response ‘*’ = No card response or No power on the antenna

4.4.6. f (66H) – Select(type A)/Attrib(type B)

In type A mode, reader sends the SELECT command to the card.

In type B mode, reader sends the ATTRIB command to the card.

Example

Host Command Reader Response (ISO 14443 Type A) Reader Response (ISO 14443 Type B)

f

‘^’ + SAK(1 byte) ‘^’ + MBLI/CID(1 byte)

‘*’ - No card response or No power on the antenna

UIC Bezel5 Programmer’s Manual Page.90/166 UDN PM098 Rev. 1.0

4.4.7. g (67H) – MIFARE Classic Card Authentication

An authentication command has to be carried out before any operation in order to allow further

commands.

Command Packet

Byte 0 Byte 1-3 Byte 4 Byte 5

Command Block number Key number Key type

g 001 0 A

Or

Byte 0 Byte 1-3 Byte 4 Byte 5-16

Command Block number Key Type Key

g 001 A FFFFFFFFFFFF

Authenticate the card with the key stored in EEPROM.

Block Number – 2 Types

Block Number Type Data Format

000 to 255 30h30h30h to 32h35h35h, ASCII Hex

B<00><00> to B<00><FF> 42h00h00h to 42h00hFFh, ASCII Hex

Key Information

Field Length Description

Key Number 1 Byte 0 to 4(30h to 34h, ASCII Hex)

Key Type 1 Byte A or B(41h or 42h)

Key 12 Bytes 0 to 9 or A to F(30h to 39h or 41h to 46h, ASCII Hex)

Example

Host Command Reader Response Example

g001AFFFFFFFFFFFF

^

4.4.8. h (68H) – MIFARE Classic Card Read Block(Supports MIFARE Ultralight)

MIFARE Classic card read command.

UIC Bezel5 Programmer’s Manual Page.91/166 UDN PM098 Rev. 1.0

Command Packet

Byte 0 Byte 1-3

Command Block number

h 001

Block Number – 2 Types

Block Number Type Data Format

000 to 255 30h30h30h to 32h35h35h, ASCII Hex

B<00><00> to B<00><FF> 42h00h00h to 42h00hFFh, ASCII Hex

Example

Host Command Reader Response Example

h001

1111111111111111

Response Block data (16 bytes, Binary Hex)

4.4.9. i (69H) – MIFARE Classic Card Write Block(Supports MIFARE Ultralight)

MIFARE Classic card write command.

Command Packet

Byte 0 Byte 1-3 Byte 4-7 or Byte 4-19

Command Block number Block data

i 001 1234123412341234

Block Number – 3 Types

Block Number Type Data Format Description

000 to 255 30h30h30h to 32h35h35h, ASCII Hex

B<00><00> to B<00><FF> 42h00h00h to 42h00hFFh, ASCII Hex

General MIFARE block

<00><00> to U<00><FF> 55h00h00h to 55h00hFFh, ASCII Hex MIFARE Ultralight

Block Data

Card Type Length

MIFARE Ultralight 4 Bytes

Others 16 Bytes

UIC Bezel5 Programmer’s Manual Page.92/166 UDN PM098 Rev. 1.0

Example

Host Command Reader Response Example

i0011234123412341234

^

4.4.10. t (74H) – MIFARE Classic Card Value Operation

Value Block Operation commands.

Command Packet

Byte 0 Byte 1-3 Byte 4 Byte 5-8 Byte 9-11

Command Block number Operation mode Value Transfer block

t 001 3 00 02

Block Number – 2 Types

Block Number Type Data Format

000 to 255 30h30h30h to 32h35h35h, ASCII Hex

B<00><00> to B<00><FF> 42h00h00h to 42h00hFFh, ASCII Hex

Operation Mode

ASCII – Hex Value Description

0 ( or 30h) Decrement

1 ( or 31h) Increment

2 ( or 32h) RFU

3 ( or 33h) Decrement and transfer to the different block

4 ( or 34h) Create MIFARE Value in the block

Others

Field Description

Value Binary Hex from 00h to FFh

Transfer block For option 3 only, the data format is the same as [Block number]. If [transfer block] is not

given, reader will regard it as normal Decrement command.

Example

Host Command Reader Response Example

t00140002

UIC Bezel5 Programmer’s Manual Page.93/166 UDN PM098 Rev. 1.0

Host Command Reader Response Example

^

t00100001

^

t00110001

^

t00130001002

^

4.4.11. W (57H) – ISO 14443A Detection

To detect the ISO 14443A cards

Response ‘M’ if detects an ISO 14443A card.

4.4.12. X (58H) – MIFARE Classic Card Activation (Supports MIFARE Ultralight)

Performs the request/anti-collision/select commands to activate the card

It is also can be used for any ISO 14443 compatible cards.

Card Type Description

Type A ATQA/SAK/serial number if command executed successfully

Type B ATQB(12 bytes) if command executed successfully

Example

Host Command Reader Response Example

X

<04><00><08>d<AC>Eq

4.4.13. u (75H) – MIFARE Classic Card Read Sector

MIFARE Classic card read sector command.

Command Packet

Byte 0 Byte 1-3

Command Block number

u 001

UIC Bezel5 Programmer’s Manual Page.94/166 UDN PM098 Rev. 1.0

Block Number – 2 Types

Block Number Type Data Format

000 to 255 30h30h30h to 32h35h35h, ASCII Hex

B<00><00> to B<00><FF> 42h00h00h to 42h00hFFh, ASCII Hex

Note: For MIFARE Classic 4K, sectors 0~31 contains 4 blocks each and sectors 32~39 contains 16

blocks each.

Response Sector data (64/256 bytes, depending on the card) if command executed successfully

4.4.14. v (76H) – MIFARE Classic Card Write Sector

MIFARE Classic card write sector command.

Command Packet

Byte 0 Byte 1-3 Byte 4~

Command Sector number Sector Data

Sector Number – 2 Types

Block Number Type Data Format

000 to 255 30h30h30h to 32h35h35h, ASCII Hex

B<00><00> to B<00><FF> 42h00h00h to 42h00hFFh, ASCII Hex

Sector Data

For MIFARE Classic 4K, sectors 0~31 contains 4 blocks each and sectors 32~39 contains 16 blocks

each. That is, the sector data should be 64 bytes for MIFARE 1K card, 64/256 bytes for MIFARE 4K

card.

4.4.15. J (4AH) – Activate PICC cpu card

PICC cpu card activation command. The Antenna POWER ON command has to be sent first.

Response ATS (type A) or PUPI (type B) if the command is executed successfully

4.4.16. j (6AH) – Load MIFARE Key(Supports MIFARE Classic only)

Saves up to 5 key sets for MIFARE Classic card application

Note: For security reasons, there is no way to retrieve the keys.

UIC Bezel5 Programmer’s Manual Page.95/166 UDN PM098 Rev. 1.0

Command Packet

Byte 0 Byte 1 Byte 2~13

Command Key number Key data

Key Information

Field Data Format

Key number 0 to 4 (or 30h to 34h, ASCII Hex)

Key data 0 to 9 or A to F( or 30h to 39h or 41h to 46h, ASCII Hex)

4.4.17. F (58H) – Identify MIFARE Card Type

To reports the MIFARE Card type. It also can be used for any ISO 14443A compatible cards.

Host Command Reader Response Example

F

Card Type*

Response Description

1 (31H) MIFARE Ultralight

2 (32H) MIFARE 1K

3 (33H) MIFARE 4K

4 (34H) MIFARE DESFire

5 (35H) MIFARE Plus 2K

6 (36H) MIFARE Mini

7 (37H) MPCOS Gemplus

8 (38H) Jewel for Innovision

9 (39H) JCOP31

0 (30H) Not MIFARE card or Not supported card

’*’ No card response or No power on the antenna

Note: This command is only available after users successfully activate the MIFARE cards (after the ‘f’

or ‘X’ command).

4.4.18. y (79H) – Send DESELECT command

Sends the ISO 14443 layer 4 DESELECT command to the card.

UIC Bezel5 Programmer’s Manual Page.96/166 UDN PM098 Rev. 1.0

4.4.19. Z (5AH) – I/O to contactless CPU card with APDU format

The command is used to pass an APDU to the card where both data and an ISO status are expected

in the response.

Command Packet

Byte 0 Byte 1~ (262 Bytes max)

Command APDU (Binary hex(00h to FFh))

If successful, the data from the ICC and the two bytes SW1/SW2 ISO 7816-4 response are returned.

If unsuccessful, reader transmits '*'.

APDU Command Structure

CLA INS P1 P2 P3 (Lc or Le) Data (If Lc present)

APDU Response Structure

Data (optional) SW1 SW2

4.4.20. z (7AH) – I/O to contactless card for block data exchange

The command is used to pass a block data to a card.

Command Packet

Byte 0 Byte 1 Byte 2-5 Byte 5~ (384 Bytes max)

Command CRC mode Wait time Block data

CRC Mode

Mode Description

0 (30h, ASCII Hex) Block data contain 2 bytes CRC and enable CRC transmission.

1 (31h, ASCII Hex) No CRC in block data and disable CRC transmission.

Others

Field Description

Wait time 0000 to 9999(30h30h30h30h to 39h39h39h39h, ASCII Hex) in milliseconds.

Block data Binary hex(00h to FFh), maximum 384 bytes.

If successful, the data from the ICC are returned.

If unsuccessful, reader transmits '*'.

UIC Bezel5 Programmer’s Manual Page.97/166 UDN PM098 Rev. 1.0

5. EMV Transaction Operating Command

In order to process EMV transactions, the reader must be initialized properly according to the

transactions it has to support. Known as EMV application configuration, the controller needs to

configure the reader with the necessary application data. All of the application data is stored in the

nonvolatile memory of the reader and is set once before the reader is deployed to the field site.

However, it is also possible to update that configuration data via the remote downloading process if

a new application is required to be supported by the reader.

There are three different groups of reader configurations:

1. Terminal Configuration: there is only one terminal configuration data set per reader.

2. Application Configuration: multiple applications are allowed to be saved at the reader (up to

11 applications). Each application with a unique AID is associated with its own set of

application data.

3. CA Public Key: the RSA public keys are stored at the reader. Up to a maximum of 30 public keys

are accommodated in the secure area of the reader.

All of the data in the parameter field of the Terminal configuration and Application configuration

must be presented in the TLV binary format. For Example, the tag 9F35 with 1 bytes data length and

the data is 22h. It will use 4 bytes as 9Fh, 35h, 01h, and 22h.

Byte 1 Byte 2 Byte 3 Byte 4

9Fh 35h 01h 22h

UIC Bezel5 Programmer’s Manual Page.98/166 UDN PM098 Rev. 1.0

5.1. Configuration Commands

The following are configuration commands executed in BLP format

BLP Protocol – RS232 Interface

Byte 1 Byte 2,3 Byte 4+n Byte 5+n

09h Command Len Command/Data(n bytes) BCC

Response Code

Response Meaning

^ Acknowledgement

* Cannot execute (e.g. out of range)

! Bad parameter (e.g. incorrect length)

5.1.1. T01 (54H, 30H, 31H) – Terminal Configuration Setup

The EMV application uses this command to send the Terminal Configuration Data to the reader.

Command

Byte 1,2,3 Byte 4+n

T01 TLV Data Object List (n bytes)

Required TLV Parameters

Tag Description Remarks

9F15 Merchant Category

9F16 Merchant ID

9F1A Terminal Country Code

9F1C Terminal ID

9F1E IFD Serial NO

9F35 Terminal Type

9F4E Merchant Name and Location Optional

Table 5-1. Terminal Configuration Setup Tag list

UIC Bezel5 Programmer’s Manual Page.99/166 UDN PM098 Rev. 1.0

Note:

1. The reader will reject the command if the data is in non-TLV format and with invalid coding.

2. For all the unknown tags or tags with incorrect values, it will be ignored by the reader.

3. For the duplicate tags, the reader always overwrites the earlier tag value by the latter tag.

4. The reader accepts partial data update of TLV data.

5. See appendix A for the terminal default value.

Example - Update 9F 1A Terminal Country Code:

Host Command Reader Response Example

<09><00><08>T01<9F><1A><02><08>@<9B>

^

5.1.2. T03 (54H, 30H, 33H) – Certificate Authority Public Key Setup

The EMV application uses this command to send the Certificate Authority Public key data to the

bezel. The key will be used in the EMV transaction.

Command

Byte

1,2,3

Byte

4,5,…,13

Byte

14, 15

Byte

16, 17

Byte

18,19,…,57

Byte

58,59

Byte

60,61

Byte

62,63,…, 67

Byte

68+n

T03 RID PKI Hash algo Hash PK Algo

PK len PK Exponent PK Modulus

(n bytes)

Parameter description

Parameters Length Description

RID 10 bytes Hexadecimal string, the left 5 bytes of EMV Application ID.

PKI 2 bytes Public Key Index, hexadecimal string. (Refer to EMV 4.1, tag ‘9F22’)

Hash Algo 2 bytes Hash Algorithm Index, hexadecimal string. ‘01’: SHA-1 is the only acceptable

value.

Hash 40 bytes (same calculation method issued by the card brand association)

PK Algo 2 bytes Public Key Algorithm, hexadecimal string. ‘01’: RSA digital signature is the only

acceptable value.

PK len 2 bytes Public Key size, hexadecimal string, for Example ‘80’ = 128 bytes = 1024 bits

PK Exponent 6 bytes Public Key Exponent’s size, hexadecimal, ‘000003’ or ‘010001’

PK Modulus Var. bytes Public Key Modulus, presented in hexadecimal, data length = 2*[PK length]

Table 5-2. Certificate Authority Public Key parameters description

UIC Bezel5 Programmer’s Manual Page.100/166 UDN PM098 Rev. 1.0

5.1.3. T15 (54H, 31H, 35H) – Contactless Application Configuration Setup

The EMV application uses this command to send one set of EMV application configuration data to

the reader. T15 command is acceptable by the reader up to a maximum of 1K bytes for one

application. A total of 11 applications can be stored. The command will be rejected if it goes beyond

the max number of the application configurations. Please use the T1B command to delete the

unnecessary application configuration.

Command Packet

Byte ,1,2,3 Byte 4+n

T15 Data Object (TLV format) (n bytes)

Required TLV Parameters

Tag Data Object Name Format Length (Byte)

Mandatory Tags

9F06 Application Identifier (AID) –card b 5-16

9C Transaction Type b 1

Group Tags (Can be sent individually or combined with other tags together)

FFFF8001 Registered Application Provider Identifier (RID) b 5

FFFF8002 Application Selection Indicator n 1

FFFF8003 Kernel ID n 1

FFFF8004 Disable Contactless Transaction Limit b 1

FFFF8005 Zero allow b 1

FFFF8006 CVN17 Enable (VISA) b 1

FFFF8007 Sign Unit Check (VISA) b 1

FFFF8008 Amount Option 1/2 Select (VISA) b 1

FFFF8009 CVM Require Limit Check Enable (VISA) b 1

FFFF800A Reader Contactless Floor Limit Check (VISA) b 1

FFFF800B Online Capable Disable (VISA) b 1

FFFF800C Exception Check Enable b 1

FFFF800D ReFund b 1

FFFF8101 Terminal Contactless Floor Limit n12 6

FFFF8102 Terminal Contactless Transaction Limit n12 6

FFFF8103 CVM Required Limit n12 6

FFFF8201 Terminal Action Code (Online) b 5

FFFF8202 Terminal Action Code (Default) b 5

UIC Bezel5 Programmer’s Manual Page.101/166 UDN PM098 Rev. 1.0

Tag Data Object Name Format Length (Byte)

FFFF8203 Terminal Action Code (Denial) b 5

FFFF8204 Terminal Entry Capability (VISA) b 1

FFFF8205 Time-Out Value b 4

FFFF8206 Retry Counter for Wait Online Response (DPAS) b 1

FFFF8207 Time-Out for Wait Online Response b 4

FFFF8208 Transaction Info b 1

FFFF8209 Default TDOL b n

FFFF820A Default PDOL b n

FFFF8210 Paypass Phone Message Table b n

FFFF8211 Certification Revocation List b n

FFFF8212 Paypass Signal Out b n

FFFF8213 Paypass Message Out b n

9F09 Application Version Number (M/Chip) (Value = 00 02) b 2

9F6D Application Version Number (MagStripe) (Value = 00 01) b 2

9F1B Terminal Floor Limit b 4

9F33 Terminal Capabilities b 3

DF2A Threshold Value for Biased Random Selection b 6

DF2B Maximum Target Percentage for Biased Random Selection b 1

DF2C Target Percentage for Random Selection b 1

9F40 Additional Terminal Capabilities b 6

9F1D Terminal Risk Management Data b 1

9F66 Terminal Transaction Qualifiers (TTQ) b 4

FFFF820B Application Program IDs (VISA) b 16

FFFF820C Single Unit Value b 1

Table 5-3. Application Configuration Tag List

Note:

1. Tag 9f 06 (AID) and Transaction Type (9C) are the mandatory tag for each T15 command.

UIC680 use AID and Transaction Type to identify the group tags to be stored in the proper

location.

2. The reader will reject the command if the data is non-TLV format or with invalid coding.

3. For the unknown tags or tags with incorrect values, it will be ignored by the reader.

4. For the duplicate tags, the reader always overwrites the earlier tag value by the latter tag.

5. The reader accepts the partial data update TLV data.

6. See appendix A for the application terminal default value.

UIC Bezel5 Programmer’s Manual Page.102/166 UDN PM098 Rev. 1.0

Example - Update 9F66 of VISA AID (A0 00 00 00 03 10 10) in the group tags:

Host Command Reader Response Example

<09><00><17>T15<9F><06><07><A0><00><00><00><03><10><10><9C><01>

<00><9F>f<04><80><00><00><00><93>

^

5.1.4. T19 (54H, 31H, 39H) – EMV Contactless Configuration Data Query

To retrieve the group ID of the EMV application or the CA public key stored in the rerader.

Command Packet

Byte 1,2,3 Byte 4

T19 Configuration Type Table 5-4

Configuration Type

Parameter Description

31h All the IDs of CA public key, setup by T03.

32h All the IDs of EMV application data, setup by T15.

33h + AID +

Transaction Type

Read data setting of AID and Transaction Type. (Ex: A000000310109C0100)

34h Read data of terminal

Table 5-4. EMV Contactless Configuration Data Query Type

Response

Result Response Description

Success ID List The concatenation of IDs. There is a <1C> between each ID. Only present if

the result is successful

* Bad parameters

Failed ! Can’t execute

Example

Host Command Reader Response Example

<09><00><04>T191`

A00000015201<1C>A00000015203

<09><00><04>T192c

UIC Bezel5 Programmer’s Manual Page.103/166 UDN PM098 Rev. 1.0

Host Command Reader Response Example

A0000000031010<1C>A0000000999090<1C>A0000000032010<1C>A00000

00041010<1C>A0000000043060<1C>B012345678<1C>A00000002501<1C>

A0000003241010<1C>A0000001523010

<09><00><13>T193A0000000031010<0

0><07>

<9F><06><07><A0><00><00><00><03><10><10><9C><01><00><FF><FF><

80><02><01><01><FF><FF><80><03><01><03><FF><FF><80><04><01><01

><FF><FF><80><05><01><01><9F><1B><04><00><00>’<10><FF><FF><81>

<01><06><00><00><00><10><00><00><FF><FF><81><02><06><00><00><

00>P<00><00><FF><FF><81><03><06><00><00><00><20><00><00><9F><0

9><02><00><02><9F>3<03><00><08><88><9F>f<04><A0><00><00><00><9

F><1A><02><08>@<FF><FF><80><06><01><01><FF><FF><80><07><01><0

1><FF><FF><80><08><01><00><FF><FF><80><09><01><00><FF><FF><80>

<0A><01><01><FF><FF><80><0B><01><00><9F>5<01>%

<09><00><04>T194e

<9F><15><08>00000000<9F><16><0F>000000000000001<9F><1A><02><0

8>@<9F><1C><08>00000000<9F><1E><08>00000000<9F>5<01><00>

5.1.5. T1B (54H, 31H, 42H) – Delete EMV Contactless Configuration Data

To delete the EMV application or the CA public key stored in the reader.

Command Packet

Byte 1,2,3

Byte 4 Byte 5 Byte 6+n

T1B Configuration Type <1A> (Optional) ID List (Optional)* (n bytes)

*The concatenation of IDs. There is a <1C> between each ID.

Configuration Type

Parameter Description

31h All the IDs of CA public key, setup by T03.

32h All the IDs of EMV application data, setup by T15.

33h Delete all CA public keys.

34h Delete all EMV application data.

35h Delete Terminal Setting.

Example

Host Command Reader Response Example

<09><00><04>T1B4<1E>

^

UIC Bezel5 Programmer’s Manual Page.104/166 UDN PM098 Rev. 1.0

5.1.6. T0C (54H, 30H, 43H) –Configuration Version/Checksum

To retrieve the checksum/version of the EMV application or the CA public key stored in the reader.

Command Packet

Byte 1,2,3 Byte 4 Byte 5

T0C Mode, see Table 5-5 Options, see Table 5-6

Mode

Parameter Description

31h Terminal data checksum request.

32h EMV Contactless application data checksum request.

33h Public key data checksum request.

Table 5-5. Configuration Version/Checksum Mode

Options

Parameter Description

AID/(RID+CAPKI) +

Transaction Type

To read EMV application data checksum request, user need to enter AID string and

Transaction Type. (Ex. A0000000041010<00>)

AID/(RID+CAPKI) To read Public key data checksum request, user need to input AID String. ( Ex:

A0000000031010)

Table 5-6. Configuration Version/Checksum Options

Response

Result Response Description

Success 20 bytes SHA1 checksum Only present if the result is successful

* Bad parameters

Failed ! Can’t execute

Example

Host Command Reader Response Example

<09><00><04>T0C1<1B>

<92><00>cX<A6><04>o<0E><8F>y<A1><F0><95>-<20>@<CE>Q<A8>o

<09><00><13>T0C2A0000000031010<00>}

<9F><F0><AD><F2><0B>~z<AE><02>om<D0><E8>d<CD><D6><20>B<D9><D7>

<09><00><10>T0C3A00000015201{

UIC Bezel5 Programmer’s Manual Page.105/166 UDN PM098 Rev. 1.0

5.1.7. T1C (54H, 31H, 43H) –Terminal and Application List Default Setting

To restore the default terminal and application data in the reader (For testing only)

Command Packet

Byte 1~3

T1C

Example

Host Command Reader Response Example

T1C

^

1. This command will take 15 ~ 20 seconds to update EEPROM.

2. Note 2: Be careful to use this command because the previous data will be changed permanently.

Default terminal and application data

Terminal Configuration Settings

Tag Length

Value Description

9F1A 02 0056 Terminal Country Code

9F1C 08 3030303030303031 Terminal Identification

9F1E 08 3030303030303031 Interface Device (IFD) Serial

Number

9F4E 08 3030303030303031 Merchant Name and Location

DF811C 02 0000 Max Lifetime of Torn

Transaction Log Record

DF811D 01 00 Max Number of Torn

Transaction Log Records

FFFF8211 81C4 A0000000045CF85A00001000001100010100011000011

100100000100100101000101100110000110100111000

111101000001000101001001001101010001010101011

101100001100101101001101101110001110101111001

1111100000100001B0123456785CF85A0000100000110

001010001100001110010000010010010100010110011

000011010011100011110100000100010100100100110

101000101010101110110000110010110100110110111

00011101011110011111100000100001

Certification Revocation List

Table 5-7. Terminal Configuration Settings Tag List

UIC Bezel5 Programmer’s Manual Page.106/166 UDN PM098 Rev. 1.0

Visa Application Identifier

Tag Length

Value Description

9F06 07 A0000000031010 AID Visa

9C 01 00 Transaction Type

FFFF8002 01 01 ASI

DF810C 01 03 Kernel ID

FFFF800F 01 00 Dynamic Reader Limits Enable

FFFF8007 01 01 Status Check(Signal Unit Enable)

FFFF8005 01 01 Zero allow

FFFF8008 01 01 Select Amount Option 1/2

FFFF8004 01 01 Disable Contactless Transaction Limit

DF8124 06 000000003000 Reader Contactless Transaction Limit

FFFF8009 01 01 CVM Required Limit Check

DF8126 06 000000001000 CVM Required Limit

FFFF800A 01 01 Reader Contactless Floor Limit Check

DF8123 06 000000002000 Reader Contactless Floor Limit

9F1B 04 000007D0 Reader Floor Limit

9F09 02 0002 Application Version Number

9F66 04 A6004000 Terminal Transaction Qualifiers

FFFF8006 01 01 CVN17 Enable

FFFF800B 01 01 Online Capable Enable

FFFF800C 01 00 Exception Check Enable

9F35 01 25 Terminal Type

9F1A 02 0840 Country Code

9F33 03 000888 Terminal Capabilities

Table 5-8. Visa Application ID Default Tag Value

PayPass Application Identifier

Tag Length

Value Description

9F06 07 A0000000041010 AID MaestroCard

9C 01 00 Transaction Type

FFFF8002 01 01 Application Selection Identifier

FFFF8004 01 01 Disable Contactless Transaction Limit

FFFF8005 01 01 Zero allow

UIC Bezel5 Programmer’s Manual Page.107/166 UDN PM098 Rev. 1.0

Tag Length

Value Description

FFFF8007 01 01 Sign Unit Check

FFFF8009 01 01 CVM Require Limit Check Enable

FFFF8010 01 00 Extended Selection Support flag

FFFF8208 01 40 Transaction Info

5F57 00 N/A Account Type

9F01 00 N/A Acquirer Identifier

9F40 05 0000000000 Additional Terminal Capabilities

9F09 02 0002 App Version

DF8117 01 00 Card Data Input Capability

DF8118 01 60 CVM Capability-CVM Required

DF8119 01 08 CVM Capability-No CVM Required

DF811A 03 9F6A04 Default UDOL

DF8130 00 N/A Hold Time Value

DF811B 01 20 Kernel Configuration

DF810C 01 02 Kernekl ID

9F6D 02 0001 Mag-stripe Application Version Number

DF811E 01 10 Mag-stripe CVM Capability-CVM Required

DF812C 01 00 Mag-stripe CVM Capability-No CVM Required

9F15 02 0001 Merchant Category Code

DF812D 03 000000 Message Hold Time

9F7E 00 N/A Mobile Support Indicator

DF8123 06 000000010000 Reader Contactless Floor Limit

DF8124 06 000000030000 Reader CTL (No On-device CVM)

DF8125 06 000000050000 Reader CTL (On-device CVM)

DF8126 06 000000001000 CVM Required Limit

DF811F 01 08 Security Capability (CDA)

DF8120 05 0000000000 Terminal Action Code-Default

DF8121 05 0000000000 Terminal Action Code-Denial

DF8122 05 0000000000 Terminal Action Code-Online

9F33 00 N/A Terminal Capabilities

9F35 01 22 Terminal Type

FFFF8026 01 01 Transaction Type Check

5F36 01 02 Transaction Currency Exponent

Table 5-9. PayPass Application ID Default Tag Value

UIC Bezel5 Programmer’s Manual Page.108/166 UDN PM098 Rev. 1.0

MaestroCard Application Identifier

Tag Length

Value Description

9F06 07 A0000000043060 AID MaestroCard

9C 01 00 Transaction Type

FFFF8002 01 01 Application Selection Identifier

FFFF8004 01 01 Disable Contactless Transaction Limit

FFFF8005 01 01 Zero allow

FFFF8007 01 01 Sign Unit Check

FFFF8009 01 01 CVM Require Limit Check Enable

FFFF8010 01 00 Extended Selection Support flag

FFFF8208 01 40 Transaction Info

5F57 00 N/A Account Type

9F01 00 N/A Acquirer Identifier

9F40 05 0000000000 Additional Terminal Capabilities

9F09 02 0002 App Version

DF8117 01 00 Card Data Input Capability

DF8118 01 60 CVM Capability-CVM Required

DF8119 01 08 CVM Capability-No CVM Required

DF811A 03 9F6A04 Default UDOL

DF8130 01 00 Hold Time Value

DF811B 01 A0 Kernel Configuration

DF810C 01 02 Kernekl ID

9F6D 02 0001 Mag-stripe Application Version Number

DF811E 01 10 Mag-stripe CVM Capability–CVM Required

DF812C 01 00 Mag-stripe CVM Capability–No CVM Required

9F15 02 0001 Merchant Category Code

DF812D 03 000000 Message Hold Time

9F7E 00 N/A Mobile Support Indicator

DF8123 06 000000010000 Reader Contactless Floor Limit

DF8124 06 000000030000 Reader CTL (No On-device CVM)

DF8125 06 000000050000 Reader CTL (On-device CVM)

DF8126 06 000000030000 CVM Required Limit

DF811F 01 08 Security Capability

DF8120 05 0000000000 Terminal Action Code-Default

UIC Bezel5 Programmer’s Manual Page.109/166 UDN PM098 Rev. 1.0

Tag Length

Value Description

DF8121 05 0000000000 Terminal Action Code-Denial

DF8122 05 0000000000 Terminal Action Code-Online

9F33 00 N/A Terminal Capabilities

9F35 01 22 Terminal Type

FFFF8026 01 01 Transaction Type Check

5F36 01 02 Transaction Currency Exponent

Table 5-10. MaestroCard Application ID Default Tag Value

American Express Application Identifier

Tag Length

Value Description

9F06 06 A00000002501 AID American Express

9C 01 00 Transaction Type

FFFF8002 01 03 Application Selection Identifier

DF810C 01 04 Kernel ID

FFFF8004 01 01 Disable Contactless Transaction Limit

FFFF8005 01 01 Zero allow

FFFF8007 01 01 Sign Unit Check

FFFF8009 01 01 CVM Require Limit Check Enable

FFFF8010 01 00 Extended Selection Support flag

FFFF8208 01 40 Transaction Info

5F57 00 N/A Account Type

9F01 00 N/A Acquirer Identifier

9F40 05 0000000000 Additional Terminal Capabilities

9F09 02 0002 App Version

9F33 03 000888 Terminal Capabilities

9F35 01 22 Terminal Type

5F36 01 02 Transaction Currency Exponent

DF8123 06 000000010000 Reader Contactless Floor Limit

DF8124 06 000000030000 Reader CTL (No On-device CVM)

DF8125 06 000000050000 Reader CTL (On-device CVM)

DF8126 06 000000001000 CVM Required Limit

Table 5-11. American Express Application ID Default Tag Value

UIC Bezel5 Programmer’s Manual Page.110/166 UDN PM098 Rev. 1.0

Discover Zip Application Identifier

Tag Length

Value Description

9F06 07 A0000003241010 AID Discover Zip

9C 01 00 Transaction Type

FFFF8002 01 01 Application Selection Identifier

DF810C 01 05 Kernel ID

FFFF8004 01 01 Disable Contactless Transaction Limit

FFFF8005 01 01 Zero allow

FFFF8007 01 01 Sign Unit Check

FFFF8009 01 01 CVM Require Limit Check Enable

FFFF8010 01 00 Extended Selection Support flag

FFFF8208 01 40 Transaction Info

5F57 00 N/A Account Type

9F01 00 N/A Acquirer Identifier

9F40 05 0000000000 Additional Terminal Capabilities

9F09 02 0002 App Version

9F33 00 N/A Terminal Capabilities

9F35 01 22 Terminal Type

5F36 01 02 Transaction Currency Exponent

DF8123 06 000000010000 Reader Contactless Floor Limit

DF8124 06 000000030000 Reader CTL (No On-device CVM)

DF8125 06 000000050000 Reader CTL (On-device CVM)

DF8126 06 000000001000 CVM Required Limit

Table 5-12 Discover Zip Application ID Default Tag Value

Interac Application Identifier

Tag Length

Value Description

9F06 07 A0000002771010 AID Interac Flash

9C 01 00 Transaction Type

5F57 01 00 Account Type

9F01 06 000000000001 Acquirer Identifier

9F09 02 0002 App Version

9F33 03 000888 Terminal Capabilities

9F35 01 25 Terminal Type

UIC Bezel5 Programmer’s Manual Page.111/166 UDN PM098 Rev. 1.0

Tag Length

Value Description

9F40 05 0000000000 Additional Terminal Capabilities

9F5E 02 E000 Terminal Option Status (TOS)

9F58 01 03 Merchant Type Indicator

9F59 03 D84000 Terminal transaction Information (TTI)

9F5A 01 00 Terminal transaction Type TTT

9F5D 06 000000005000 Terminal Contactless Receipt Required limit

DF2A 01 000000000600 Threshold Value for Biased Random Selection

DF2B 01 00 Maximum Target Percentage for Biased Random

Selection

DF2C 01 63 Target Percentage for Random Selection

DF810C 01 06 Kernel ID

DF8120 05 0000000000 Terminal Action Code-Default

DF8121 05 0000000000 Terminal Action Code-Denial

DF8122 05 0000000000 Terminal Action Code-Online

DF8123 06 000000010000 Reader Contactless Floor Limit

DF8126 06 000000001000 CVM Required Limit

FFFF8002 01 01 Application Selection Identifier

FFFF8004 01 01 Disable Contactless Transaction Limit

FFFF8005 01 01 Zero allow

FFFF8007 01 01 Sign Unit Check

FFFF8009 01 01 CVM Require Limit Check Enable

FFFF8208 01 40 Transaction Info

Table 5-13. Interac Flash Application ID Default Tag Value

UIC Bezel5 Programmer’s Manual Page.112/166 UDN PM098 Rev. 1.0

5.2. General Command

The general command of the reader is for daily transaction purpose. Depending on the reader set

for which protocol, the command can be sent by using one of the following protocols: USI0, or USI2

(default).

USI0 – the simplest data format without the header, the trailer or the BCC. The reader relies on a

100ms timeout to determine that a command is received.

USI2 – with 01h (SOH), data length and BCC

Byte 0 Byte 1 Byte 2~3 Byte 4+n Byte 5+n

01h Address (not in use) Command Len

Command/Data (n bytes) BCC

Note: USI2 do not have the 100ms timeout delay.

5.2.1. (C8H) – Activate/Deactivate Contactless/MSR Reading command

This command can activate the reader to start to read the card. Please be noted that the value in

required TLV parameters will impact the transaction result (Refer to Table 5-16)

Command Packet

Byte 0 Byte 1 Byte 2~3 (Optional) Byte 4+n

C8 Interface Priority, 1 byte

See Table 5-14

Time out

(mS, Binary Format)

Data Object List in TLV (n bytes)

See Table 5-16

Note: "Time Out" is an optional field in the C8 command. If "Time Out" was not set in C8 command,

then reader will keep waiting for card tapping, until the host sends the <C8><00> command to

cancel the transaction.

Interface Priority

Parameter Description Note

00 Cancel Disable all interface.

01 RFID & Magstripe Enable both Magstripe and Contactless interface.*

02 RFID Enable Contactless interface only.

03 Magstripe Enable Magstripe interface only.

* The controller determines the priority per transaction.

Table 5-14. Interface Priority of Activate Contactless/MSR Reading Command

UIC Bezel5 Programmer’s Manual Page.113/166 UDN PM098 Rev. 1.0

Default Display picture of Interface Priority

In EMV mode, the display will be empty in the idle mode. After the Host sends the Activate

Contactless Reading command to Bezel5, the display will show the picture according to the

parameter set in the Interface Priority field.

Parameter Description Display

01 RFID & Magstripe

02 RFID

03 Magstripe

Note: The pictures in this table are reference only. For the real position of the signs please refer to

the physical unit.

Table 5-15. Display picture reference of Interface Priority

Required TLV Parameters

Tag Description Length Remarks

9F02 Amount, Authorized 6 Bytes Mandatory

9C Transaction Type 1 Byte Options

9A Transaction Date 3 Bytes Options

9F21 Transaction Time 3 Bytes Options

5F2A Currency Code 2 Bytes Options

Table 5-16. Required TLV Tags in Activate Contactless Reading Command

UIC Bezel5 Programmer’s Manual Page.114/166 UDN PM098 Rev. 1.0

Note:

1. The reader will reject the command if the data is non-TLV format or with invalid coding.

2. For the unknown tags or tags with incorrect values, it will be ignored by the reader.

3. For the duplicate tags, the reader always overwrites the earlier tag value by the latter tag.

4. The reader accepts partial data update TLV data.

5. If "Transaction Date" and "Transaction Time" was not set in C8 command, the reader will

proceed to the transaction by using RTC time (set by command "54" and "55").

5.2.2. (C9H) – Response of Start Transaction

This command is the return of the result to the Start Transaction command (C8h). The controller

should send ‘^’ to acknowledge upon receiving the data.

Command format

Field 1 Field 2 Field 3 Field 4

Byte 0 (1 byte) Byte 1 (1 byte) Byte 2 (1 byte) Byte 3+n (Var. bytes)

C9h Error Code Table 5-17

POS Entry Table 5-18 Card Data

Error Code

Value

Description Contactless

Magstripe

00 Successful ( If contactless transaction, the value means online request

transaction) v v

01 Offline Approved v

02 Offline Declined v

03 Card not support v

04 Initiation error v v

05 Chip error (No AID) v

06 Empty candidate list v v

07 Time out v v

08 Card block v v

09 Application blocked v v

0A Magstripe card data error v v

0B Transaction error v v

0C Authentication error v

0E CVM Failed v v

10 Log full v v

UIC Bezel5 Programmer’s Manual Page.115/166 UDN PM098 Rev. 1.0

Value

Description Contactless

Magstripe

11 Card executing

(Wait for the card (either contactless or contact) to be completely removed

from reading area or card slot.)

v v

12 Try Again v

20 2nd Tap v

33 Switch to Other Interface. (Contactless Used) v

37 Multiple Card v

39 Terminated. (Contactless Used) v

86 Empty candidate list, try other interface v

8C Authentication error, try other interface v

Table 5-17. Error Code indication of Transaction Result

POS Entry

Bit 7 Bit 6 Bit 5 Bit 4 – 0

Description

0 0 0 00001 Contactless – qVSDC Card

0 0 0 00010 Contactless – MSD Card

0 0 0 00011 Contactless – PayPass Mchip Card

0 0 0 00100 Contactless – PayPass Magstripe Card

0 0 0 00101 Contactless – AMEX CPU Card

0 0 0 00110 Contactless – AMEX MSD Card

0 0 0 00111 Contactless – Discover DPAS Card

0 1 0 00001 Mag stripe card

1 0 0 00000 No payment card, no additional data available. *

0 1 0 00000 ISIS Sizzle

*Bit 7 = 0, the additional data is available. Bit 7 = 1, no additional data.

Table 5-18. POS Entry indication of Transaction Result

Card Data Scenario

Contactless card read successful: Error code = 00 (successful) and POS Entry = 02 or 03

Clear Data Encrypted Data Clear Data

RFID- |

TK1

|

TK2

|

TK3 |

DUKPT SN/Counter |

SID

UIC Bezel5 Programmer’s Manual Page.116/166 UDN PM098 Rev. 1.0

Fields Description

Value Length (Byte) Description

‘|’ 1 Field separator.

DUKPT SN/Counter 20 DUKPT Key serial number, DUKPT Key using for data encryption can be

recognized by this serial number.

SID 16 Encrypted Session ID.

Table 5-19. Field Description of Contactless Transaction Data

Magstripe card read successful, Error code = 00 (successful) and POS Entry = 04

Clear Data Encrypted Data Clear Data

CARD- |

TK1

|

TK2

|

TK3 |

DUKPT SN/Counter |

SID

Table 5-20. Field Description of MSR Transaction Data

5.2.3. (CEH) – Return the Specific EMV Tags

The reader will retrieve the data that list on the DOL after the EMV transaction is done.

Response

Response Description

Result, 1 byte, Only present if the result is failed

Tag result in TLV format Only present if the result is successful

Return Data Format

Head Tag 1 Tag 2 Tag 3~

Total Length Tag Length Value Tag Length Value Tag

UIC Bezel5 Programmer’s Manual Page.117/166 UDN PM098 Rev. 1.0

6. Authentication and Card Data Encryption ???

Question: Is this applicable to Bezel5 only? Does it apply to Bezel5?

The Bezel5 can be configured as a secure reader to protect the card holder’s privacy. Once the

Bezel5 enters into the secure reader mode, the output card data is encrypted. And the

administration commands for changing the status or settings of the reader need to be

authenticated.

6.1. Data Security and Key Management

The Bezel5 security arrangement involves a cryptography system for supporting end-to-end

encryption.

1. Card Data Encryption:

It uses the symmetric-key encryption, Triple DES (TDES)/or AES, with the Derived Unique

Key Per Transaction (DUKPT) key management, as well as the RSA mode, to protect the

card data.

2. Authentication for the administration command:

All of the administration commands must be authenticated before their executions. A

challenge-Response mechanism is involved in the process.

3. Google Wallet merchant data update:

In order to simplify the merchant data update in the field site, the UIC680 will pre-load a

TDES injection key. The current data of the merchant key and the merchant id are updated

through the application which sends out the merchant data which is protected by the

injection key.

Here is the brief summary:

1. The payment card data and the Google Wallet application data are going to be encrypted

either by the TDES, AES or RSA mode.

2. The reader leverages the DUKPT for the key management scheme which is used for card

data security.

3. The number of card readings is extended to two millions by arranging two key slots.

4. The encrypted output data of the USB HID report is in binary format.

The reader encryption is enabled as default by the factory. It requires an authentication if the user

UIC Bezel5 Programmer’s Manual Page.118/166 UDN PM098 Rev. 1.0

wants to disable the encryption function. The RSA key length is 2048-bits. TDES will use the

double length key and AES will use 128 bits if it is selected.

6.2. Product Life Cycle

The reader will go through several states in related to its data security operations:

State Operator Function Description Security Remark

Creation UIC Production

Enable encryption, load initial key,

load key management mode, enable

command administration protection

No authentication The key load

in clear text.

Update key, update key management

mode, load unique serial number,

enable/disable encryption

Authentication / Key

is encrypted

Operation -

Administration

System

Integrators or

Merchants

Google Wallet merchant data update Key is encrypted

Operation –

General

Operation

Merchants Reader is ready to operate No Authentication/

Card data is

encrypted

Terminated UIC RMA/

System

Integrator

Key generation reaches to the end,

needs to return to the system

integrator to re-inject the key.

Authentication / Key

is encrypted

Table 6-1. Data Security Operations

UIC Bezel5 Programmer’s Manual Page.119/166 UDN PM098 Rev. 1.0

6.3. Operation Flow

The reader is in the UIC factory to

preload the encryption key.

Creation UIC Factory

The system integrator updates the

key and load the session ID.

Operation -

Administration Field Site/

The merchant operates the reader System Integator

The key generation reaches the end,

no more card reading operation at

the reader

Terminated UIC Factory/

System Integrator

Operation – General

Operation

Re-inject the key

Figure 6-1. Data Security Operation Flow

6.4. Authentication

The command set of the Bezel5 is divided into several groups – the general operation, the

administration and Google wallet merchant key update. The general operation commands,

Examples like the version report, the encrypted track data query, the serial number query, are

allowed to execute in the daily operation without the authentication process required. For the

DUKPT key and the sensitive data updates, they belong to the administration commands and the

authentication process is mandatory. The final command, Google Wallet merchant command, is

protected by the pre-loaded injection key.

The Bezel5 adapts a simple version of entity authentication by using the public key cryptography.

The reader pre-loads with the RSA public key. The authentication process uses RSA/SHA-1 to

validate the incoming command. At the other end, the host must hold the private key for

generating the correct data signature to attach to the command. The process is a kind of unilateral

entity authentication, having the reader challenging the host application. No mutual

authentication is necessary which reduces the complexity of authentication. In this way, the public

key is considered as the part of the sensitive data and thus loaded and saved in the secure storage

area of the reader as well.

UIC Bezel5 Programmer’s Manual Page.120/166 UDN PM098 Rev. 1.0

Authentication involved entities:

1. The claimant = the host application

2. The verifier = the reader

3. TEXT = the command/or key data to be sent from the host to the reader

4. PrivA = The RSA private key at the host application

5. PubA = The RSA public key at the reader

6. TDES/RSA […] = Data encrypted either by RSA or Triple DES

The authentication process proceeds as follows:

1. The claimant makes an authentication request to the verifier.

2. The verifier generates a random number challenge RB (16 bytes data generated by the true

random number generator).

3. The verifier encrypts RB and its SHA1 value, PubA[RB || SHA1(RB )] and sends to the claimant.

4. Upon receiving the challenge, the claimant decrypts RB and validates SHA1 value. If SHA1

fails, the claimant terminates the process or requests RB again.

5. The claimant creates an authentication token, TokenAB, by concatenating data and

generating a digital signature:

TokenAB = PrivA-RSA[ RB || TEXT ||SHA1(RB ||TEXT)]

6. The claimant sends the TokenAB to the verifier.

7. The verifier decrypts the TEXT and retrieves the SHA1 value by using the public RSA key,

PubA.

8. The verifier executes the command data in [TEXT] if the signature is validated OK.

The RB must be used only once to enter the administration mode of the reader.

Device challenge

PubA[ RB ||SHA1(RB)]

Authentication Token

TokenAB = PrivA-RSA[ RB || TEXT || SHA1( RB ||TEXT )]

Acknowledge if successful

Requires authentication

UIC Bezel5 Programmer’s Manual Page.121/166 UDN PM098 Rev. 1.0

6.5. Double DUKPT

In order to support 2 million times of card reading, the Double DUKPT (D-DUKPT) solution is being

used in the Bezel5 reader. There are two DUKPT key slots available inside the reader. They can be

combined in different modes to fit the user application for achieving the 2 million times of

operations. In this way it can extend the life cycle of the reader without the need to return the

reader to the factory for key re-injection. The host application chooses either Triple DES or AES as

the crypto engine to protect the card data.

Key Management Mode

Mode Function Description

Auto rollover 1

(Factory Default)

Under this mode, the user only needs to load the initial key/ key serial number (KSN) to slot 1.

The reader will duplicate the same key and KSN to slot 2. When the slot 1 key generation

reaches the maximum 1M iterations, the reader will roll over the key management to slot 2 to

continue the work.

Note: Loading the key to slot 2 is prohibited.

Note: the EC of KSN will start over when the reader switches the key management to slot 2.

Auto rollover 2 Under this mode, the user needs to load the initial key/key serial number (KSN) to slot 1 and

slot 2 separately. The key management starts at slot 1. When the slot 1 key reaches the end,

the reader will roll over the key management to slot 2 if the key is available. If slot 2 has no key,

the reader enters the terminated state. Otherwise it continues to work at slot 2. The key and

KSN can be different in both slots.

Note: it is allowed to update the key to any slot regardless the slot is active or not. The simple

rule is that the reader always chooses the lower number of the key slot for the key

management if it is available. For Example, if the active key slot is 2 and slot 1 reaches the end,

and then the user updates slot 1. For the next card swipe, the reader will choose slot 1 for the

key management and leave slot 2 unchanged. Once the new key in slot 1 is running over, the

reader will go back to slot 2 (assuming no key update in slot 2) to continue the work.

Traditional mode Reserved and not in use.

Table 6-2. Key Management Mode

D-DUKPT Rules:

1. There are two DUKPT key management slots in the reader.

2. Each key slot has 3 different states:

Empty: No key is loaded.

Active: Key is loaded and is able to do the key management.

Terminated: Passed 1M key iterations. No more function is allowed unless the key is re-injected.

3. No matter the reader is in what mode, it will always examine the key slot starting at the lower

number (i.e. slot 1 then slot 2). If slot 1 is active with the key available, the reader will use the

key for the data encryption. If slot 1 is inactive (empty or terminated) but slot 2 is active, the

UIC Bezel5 Programmer’s Manual Page.122/166 UDN PM098 Rev. 1.0

reader will get the key from slot 2. If both key slots are inactive and the data encryption is

enabled, the reader is in the terminated state then no data output is available.

6.5.1. Auto Rollover 1: key generation

Figure 6-2. Auto Rollover 1: Key Generation

UIC Bezel5 Programmer’s Manual Page.123/166 UDN PM098 Rev. 1.0

6.5.2. Auto Rollover 2: key generation

1M iteration

Slot 2

Terminated

1M iteration

Slot 1

Key Injection

Slot 1 and 2 can have different initial key and KSN

Figure 6-3. Auto Rollover 2: Key Generation

UIC Bezel5 Programmer’s Manual Page.124/166 UDN PM098 Rev. 1.0

6.6. Track Output format (Self-Arm)

The encrypted data output varies according to the encryption mode and the interface type of the

reader.

The card data can be encrypted with one of the following three modes:

1. DUKPT TDES

2. DUKPT AES

3. RSA

The following two interface groups will give totally different output formats of the encrypted card

data:

1. RS232/USB Virtual COM

2. HID MSR

They are described in the following sections.

6.6.1. RS232/USB Virtual

DUKPT data output format

Encrypt

Mode

|

(7Ch)

Encrypt

Tk1 Data

|

Encrypt

Tk2 Data

|

Encrypt

Tk3 Data

|

KSN |

Encrypt Session ID

|

EXAMPLE

1|2B06FD66BF9896C0DD0207B8DFBA25745EC15069ECBE88E65738E6DADA2C7311859568DDDE08437775C8D703FA7

53BC9F57944404A2A5187E554D5B2FDB8E565|894C04A6BCF008448A6A6766A840502DABFC15308971492519C9E09C

3F3EE839400432CDFE924CCB123731F078E29B58|84CF9EBE8E1C2CD04E5A72BCC63142C2300806552ED9C2EDED593

EDC703EB00C39FC75DE6314F8A3C395A44A3B69F3B951838FA0479C7BA55438E1FE56DFF5A5DDC1C840547A4D430EE

5B3DEFBF935AC||55494330303031000044|C9738D7244D6BC57|

RSA data output format

Encrypt

Mode

|

(7Ch)

Encrypted

Tk1 Data |

Encrypted

Tk2 Data |

Encrypted

Tk3 Data |

UIC Bezel5 Programmer’s Manual Page.125/166 UDN PM098 Rev. 1.0

EXAMPLE

3|ZBJPirNzGDqKfOZ9Iar1MB12qQo+Sm4NJZZi5RVyEZ30O0qh1sc4Cq+IctcOQdNLNLlJEAx9bM/O59dV60v4upM5V7hpe

ROaQQCu1H2OQfvz/lEwqgpWEWySTqjWg/w/hh8c2yqT8ZZrWvJjddx0+tJCRpmtLZbmaYdFH7AvCdUQobEpamNnltg1vb

XoZ2OXYAIt9Wps3E6M4ogsoI0wDI87TYXgUXDl3Onz1Tjz+dnXYtoet/lKp4++n8B8MEm/U4wHfmxgjzNwl/HM/ZxhSH5IwL

rOJh/vhTN/SyWZ4jqr/+qUxTLmcITyOtKli3X6+2m5443p5nyQ6GTwsWbrxg==|vZ/M4tMk+1SY8Lyjy7UGzVBO0rOTYZZDY

WMMnnS+c8cEO0kHbnz26j3wbyWkI/rZoq07VTeviCenqFU79QFs/s8ZLGRugWLa6jzJW4rqjB4UT2zlQBtQPtMZ2hVjBi+M

XYg3T9Wwfaj5aa0COTMMhrPHrDLSIYW3CYHN/dPRo8i187HIIwAzmsw+N0cG7gaMz89jgwOpPIehA0E8m1YurqOe0ScdY

wl3zWJH8KMf+3AjKnmRfSAHFjDRvWHkKVLJTwC8jDj/dITyuSCHbD3RpBpq9hBmp9d5VI+0V7YpUyQpakHqzMcix04FCnZ

malaG6ToNjqvY1WVP6QfjQp8hFw==|htdHYRIKrppRiYyS8Lk0s1BG10hpUNMjwAcFxjIGKU9Wb+6a4av+R79NvUiUACNK

RHP3hvwiGzlqpdw1jS7jokroIF8Vjvgn78CxNwN+QRgmII+d4ke0adzY4X39br7iPCqnQau6uZWV/ubokBbvGTjytxLQCgxzG3l

X9iZwqfPQTF504Gn+y6npic/Y5xp/zfWuXoLR2v0SPZMmbNap1givc5W3d93r6lJehmRbWJCJoW16n4dDMoZwiKSE7K8gK

QAsQB1FcNRzFYfHWU4EvpJnBBZ48myzwgreQrhYt2BI8JAGlYRIUNpSOu43TPlwTAFZbadT22fEvDqJU4fv4g==|

6.6.2. HID MSR (Optional)

Offset Usage Name Description

0 Track 1 status 00hdecode error, 01hdecode ok

1 Track 2 status 00hdecode error, 01hdecode ok

2 Track 3 status 00hdecode error, 01hdecode ok

4-5 Track 1 encrypted data length Track 1 encrypted data length

6-7 Track 2 encrypted data length Track 2 encrypted data length

8-9 Track 3 encrypted data length Track 3 encrypted data length

12 Card type See note *.

13 Encrypt Mode 0:Not Encrypt

1:DUKPT TDES

2:DUKPT AES

3: RSA

14-23 DUKPT serial number/counter DUKPT serial number and counter

24-31 Device serial number Serial number for device

32-47 Encrypted Session ID Session ID use DUKPT to encrypt

48-303 Track 1 encrypted data Original TK1 data use the crypto algorithm to encrypt.

304-559 Track 2 encrypted data Original TK2 data use the crypto algorithm to encrypt.

560-1071 Track 3 encrypted data Original TK3 data use the crypto algorithm to encrypt.

* Note (offset 12) Card type

Table 6-3. HID MSR Offset Table

UIC Bezel5 Programmer’s Manual Page.126/166 UDN PM098 Rev. 1.0

Low Nibble

0 ISO/ABA:ISO/ABA encode format for all contactless payments

000 – No payment solution is available or its traditional

magistrate card data

001 – Track of Google payment MID available in track 1 and 2

010 – PayPass Magstripe & Mchip available in track 1, 2 and 3

011 – Visa MSD & qVSDC available in track 1, 2 and 3

100 – Amex available in track 1 and 2

101 – Discover ZIP available in track 1 and 2

High Nibble

Bit 7, 6, 5 – payment instrument

status

111 – Other contactless payment solution (reserved for future)

Example

0000: Google Wallet not available and no other contactless payment instrument available.

0001: Google Wallet available only but neither Google payment MID nor other contactless payment available.

0100: Google Wallet not available but Contactless PayPass available.

0011: Google Wallet is available and the data of Google payment MID is available in track 1 and 2.

UIC Bezel5 Programmer’s Manual Page.127/166 UDN PM098 Rev. 1.0

6.7. Administration Commands

6.7.1. 90H 02H – Load Session ID

This command is used to load 8 bytes Session ID to device.

Command Pocket

Byte 0~1 Byte 2~9 Byte 10~17

Command Encrypted Random Encrypted Session ID

90h 02h Issue 90h 03h command to get random For creating new keys

6.7.2. 90H 03H – Get KSN & Encrypted Random

This command is used to get the DUKPT Key Serial Number and encrypted random number.

Command Pocket

Byte 0~1

Command, 90h 03h

Response

Response Byte 0~9 Byte 10~17

Success DUKPT serial number and counter Random number in encrypted format

Bad Parameters *

Example

Host Command Reader Response Example

<90><03>

<55><49><43><30><30><30><31><00><00><05><FF><AE><E7><96><F3><02><15><2D>

6.7.3. 90H 04H – Select DUKPT Key Slot

This command is used to select DUKPT encrypt key slot of device.

UIC Bezel5 Programmer’s Manual Page.128/166 UDN PM098 Rev. 1.0

Command Pocket

Byte 0~1 Byte 2

Command, 90h 04h Data

Command Data

Data Description

01h Select key slot 1

02h Select key slot 2

Response Code

Response Meaning

^ Acknowledgement

* Cannot execute (e.g. out of range)

! Bad parameter (e.g. incorrect length)

6.7.4. 90H 05H – Select DUKPT Management Mode

This command is used to select DUKPT Management Mode of device.

Command Pocket

Byte 0~1 Byte 2

Command, 90h 05h Data

Command Data

Data Description

01h Select Mode 1

02h Select Mode 2

Response Code

Response Meaning

^ Acknowledgement

* Cannot execute (e.g. out of range)

! Bad parameter (e.g. incorrect length)

UIC Bezel5 Programmer’s Manual Page.129/166 UDN PM098 Rev. 1.0

6.7.5. 90H 06H – DUKPT Key Iteration Test

This message is designed to do DUKPT key iteration test. The reader will return 71 assuming a PIN

of ‘1234’ and pack the data in ANSI X9.8 PIN block format. This command can be used to verify the

key being loaded properly or not.

Command Pocket

Byte 0~1 Byte 2~11 Byte 12 Byte 13 Byte 14~17

Command, 90h 04h Account FS DC Ind Amount

Parameters

Field Description

Account Primary account number, “1234567890” (31H 32H 33H 34H 35H 36H 37H 38H 39H

30H) – Fixed data, don’t change

FS <1C>, field separator

DC Ind ‘D’ (44H) – Fixed data, don’t change

Amount “4567” (34H 35H 36H 37H) – Fixed data, don’t change

Response element

Field Length Value and description

71 2 Message ID

Reserved 1 Always ‘0’

Key Serial# 10..20 Key Serial number used in encrypting PIN. Included only when PIN is entered.

Format: hexadecimal string.

[PIN] 16 Encrypted PIN block.

Format: hexadecimal string.

Error codes

Code Meaning

‘0’ Null Account input field.

‘2’ Account number shorter than 8 digits.

‘3’ Account number longer than 19 digits.

‘4’ Account number have character other than ‘0’-‘9’.

‘5’ [D/C Ind] field not exist or format error.

‘6’ Timeout value error.

'8' Amount string format error.

‘A’ No DUKPT key injected.

UIC Bezel5 Programmer’s Manual Page.130/166 UDN PM098 Rev. 1.0

Code Meaning

‘B’ Flash read/write error.

‘C’ Memory buffer allocation error.

‘F’ DUKPT operation limit (1 million) reached, program stop.

Example

Parameter

Initial Key “554E49464F524D5F44454641554C5421”

Account number “1234567890”

Usage

Send command "<90><06>1234567890<1C>D4567"

Gets PIN Block "710554943303030310003E32FF2D3C47BF9F87E"

Find out current key by using of initial key and

serial number/counter. (DUKPT scheme)

Current Key = "A51DD67C06A54E7F0ADA776534532772"

Decrypt PIN Block by using the current key “2FF2D3C47BF9F87E”

Clear PIN Block "041234FEDCBA9876"

Take max. 12 bytes of account number from

the next-to-last digit, then pad zeroes on the

left to match the length of 16 bytes

“0000000123456789”

XOR the clear PIN Block with account number

"041234FFFFFFFFFF"

“04” means 4 bytes data follows PIN = “1234”

6.7.6. 90H 07H – Get Encrypted Status

This command is used to Get Encrypted Status of device.

Command Pocket

Byte 0~1

Command, 90h 07h

Response

Response Byte 0~5

Success Encrypt Mode (1 byte) + DUKPT Key Slot (1 byte) + DUKPT Management Mode (1 byte) +

DUKPT Key Slot 1 Status (1 byte) + DUKPT Key Slot 2 Status (1 byte)

Bad Parameters *

UIC Bezel5 Programmer’s Manual Page.131/166 UDN PM098 Rev. 1.0

Response element

Encrypt Mode

Code Meaning

00 Not Encrypted

01 DUKPT Mode

02 AES Mode

03 RSA Mode

DUKPT Key Slot

Code Meaning

00 Key Slot 1

01 Key Slot 2

DUKPT Management Mode

Code Meaning

00 Mode 1

01 Mode 2

DUKPT Key Slot 1 Status

Code Meaning

00 DUKPT Key Empty

01 DUKPT Key Active

02 DUKPT Key Terminated

DUKPT Key Slot 2 Status

Code Meaning

00 DUKPT Key Empty

01 DUKPT Key Active

02 DUKPT Key Terminated

UIC Bezel5 Programmer’s Manual Page.132/166 UDN PM098 Rev. 1.0

6.7.7. 90H 10H – Get Challenge

This command is used to get challenge from the reader.

Command Pocket

Byte 0~1

Command, 90h 10h

RSA Encrypted Response

Response Byte n Byte 0~15 +n Byte 16~35 +n

Padding Data

See Table 6-4 Random SHA1 (Padding + Random + Exp Len + Exp + Modules

Length + Modules)

Success

The return length is upon RSA key length.

Bad Parameters *

Padding Frame

Byte 0~1 Byte 2+n Byte 3+n

00h 02h Var. 00h

Table 6-4. Get Challenge Padding Frame

6.7.8. 90H 11H – Load Encrypt Initial Key

This command is used to load initial key to device.

Command Pocket

Byte 0~1 Data

Command, 90h 11h Var. Bytes

Data Format

Data Byte Field Name Length Notes

n Padding Data Var. Padding frame see Table 6-5

16+n Random 16 Bytes Issue 90h 10h command to get random.

17+n Encrypt Mode 1 Byte See Table 6-6

18+n DUKPT Key Slot 1 Byte See Table 6-7

UIC Bezel5 Programmer’s Manual Page.133/166 UDN PM098 Rev. 1.0

Data Byte Field Name Length Notes

19~20 +n Key Length 2 Bytes 2 bytes in binary format

21~28 +n Key Data 8~16 Bytes Initial DUKPT Key, must be 8 or 16 bytes

29~48 +n SHA1 20 Bytes Padding + Random + Encrypt Mode + Key Slot + Key

Length + Key Data

Padding Frame

Byte 0~1 Byte 2+n Byte 3+n

00h 01h Var. 00h

Table 6-5. Load Initial Key Padding Frame

Encrypt Mode

Code Meaning

01 DUKPT Mode

02 Google Wallet merchant symmetry key

Table 6-6. Encrypt Mode of Load Initial Key

DUKPT Key Slot

Code Meaning

01 DUKPT Key Slot 1

02 DUKPT Key Slot 2

Table 6-7. DUKPT Key Slot of Load Initial Key

6.7.9. 90H 12H – Change Encrypt Mode for Data Output Format

This command is used to change the encryption mode of data output format for the device.

Command Pocket

Byte 0~1 Data

Command, 90h 12h Var. Bytes

Data Format

Data Byte Field Name Length Notes

n Padding Data Var. Padding frame see Table 6-8

16+n Random 16 Bytes Issue 90h 10h command to get random.

UIC Bezel5 Programmer’s Manual Page.134/166 UDN PM098 Rev. 1.0

Data Byte Field Name Length Notes

17+n Encrypt Mode 1 Byte See Table 6-9

18~37+n SHA1 20 Bytes Padding + Random + Encrypt Mode

Padding Frame

Byte 0~1 Byte 2+n Byte 3+n

00h 01h Var. 00h

Table 6-8. Padding Frame of Change Encrypt Mode for Data Output Format

Encrypt Mode

Code Meaning

30h None Encrypted Mode

31h DUKPT TDES Mode

32h DUKPT AES Mode

33h RSA Mode

Table 6-9. Encrypt Mode of Data Output Format

UIC Bezel5 Programmer’s Manual Page.135/166 UDN PM098 Rev. 1.0

6.8. Load Session ID

USAGE:

1. Issue the 90h 03h command to get encrypted random number.

2. Decrypt “Encrypted Random” using the current key and gets “Random”.

3. Generate an encryption key by XORing current key and “Random”.

4. Use encryption key to encrypt [(Random) + (New Session ID)].

Put the result into the 90h 02h command packet.

EXAMPLE

Parameter

Initial Key “554E49464F524D5F44454641554C5421”

New Session ID “0102030405060708”

Usage

get encrypted random number from the 90h

03h command

"554943303030310003E103EA68415833B363 "

Find out the current key by using the initial

key and the serial number/counter. (DUKPT

scheme)

Current Key : "13B9BB5C4136505FB9B1335223CC9291"

Random number “03EA68415833B363 "

using the current key to gets Clear Random Clear Random :

"495AF134649D561E"

Generate an encryption key by XORing the

current key and the clear Random

Encryption Key: "5AE34A6825AB0641F0EBC2664751C48F"

Use the encryption key to encrypt (TDES)

[(Random)+(New Session ID)]

Encrypted data: "82CEEAF1C6502358686C954C121E65E6"

Put the result into the 90h 02h command

packet

90h 02h 82h CEh EAh F1h C6h 50h 23h 58h 68h 6Ch 95h 4Ch 12h 1Eh

65h E6h

Table 6-10. Example of Load Session ID

UIC Bezel5 Programmer’s Manual Page.136/166 UDN PM098 Rev. 1.0

6.9. Load DUKPT Key

USAGE:

1. Issue the 90h 10h command to get the encrypted challenge data.

2. Decrypt the “Encrypted Challenge” by using the “RSA Private Key” and then get the “Random”.

3. Use the command format data to get the SHA 1(20 bytes).

4. Use the “RSA Private Key” to encrypt the command format data.

5. Put the result into the 90h 11h command packet.

EXAMPLE

Parameter

New KSN 55494330303031000000

New Initial Key “554E49464F524D5F44454641554C5421”

Exp “00010001”

RSA Private Key “7AD86A3E9BEBCE15EAE06EAC8CEAFF119E8584B0A24AADDDF6827A2ED46AA9D78FC7B

9CE262CAF5CC17BFA3DF074C9E7B79577BDF530784DB3EB57CD455CA2BA5F9CDDA5B38

380C89B1136BE1A1BE82DE9A4ABA2CBC6F0E8F75208EF1B77AA7D4FC7A8642A0C268DC6

A012B908F3D8A646246F70236FAACE67FCF638E75E7EBFAD71D52405EAC4F04D9530BDA

C54D97BB37C9BF229D2F18F140AB071BC7C144F9255947A5C55DFF8B1A465621E64447C

A6AA5D50876F2B22CCEC68EF629AAE7AD78CA9D3D3BC1A72E92FDDACFFC4A347240ED9

FDF245AE0D3545D2249553DD5A4758D58A44E642736B60E6D5B4C2A940C194F4109F458

C9D2636535EC63A82A1”

Modules “BDEA7BE96D7CC049C6D68EFB7AFF404810C23AC88866E744C5E27016E415D3787F57EF8

35B84A5AAC8D550C99E3C2955472525A7AB40C5190CF42351AD41386BD8238A54746373

32BFF35A7B7CF1C3173FA424F466DD574C23B84ED9B748D7350F26BF17D5014EDAEDAD5

917991427C5D3859D16312DEEE2E2A5B2287856CDB435B8B5D3E7C68E70B31398EEC34C

45524EB54DD4153438A3BE50D4EEA7BD54E088873C173F5023AD18FD4AAC9068DA786A

9A5AD7462683CEDA8B862AC3CC19F7715AD37A19E1A9C2AC9169D58283674041B66D7A

2E69D4920E45D4B75AA745DFC0C1C654FDD47E526298F86DEB0DC80BBB6DC26793C48B

DC8D99CB31FFEA42BD”

Usage

Get Challenge Data

from 90h 10h command

"115BBAC1EFF299152081B7C81858820D8A13D6630CB0F322D20110F2FFDF1ED759411A

B528998CCA983ED0503D306B7E17E08B0B2A196983BE52E95BF2554F690F3FC08C50ADB

E94E115BAA44ECBFD9C9E55FA6749981782340B749794F08ACF92271240E8A0EE382863C

29F7455CDAABC9F666D3270580465F2522C6A83FE0EA52D06C48AD93CE9DC803FFF38DD

4EB33966E8618B39C9D580F9F6313A67884C1DC42203EE78CAC9A0029FD41E8F55A54C4

AD65BDDEE605A15C309B608307CC7C86940ADC65BFC260718D236C3DC1D887BFA655EA

7D22EDF6453BDA365CB81F64B5477C53BCCB4792D2C8B09D3C72AB5A55982E5B8369E49

853514E3A6A9EBFF"

Using the RSA Private

key to decrypt 90h

"7AD86A3E9BEBCE15EAE06EAC8CEAFF119E8584B0A24AADDDF6827A2ED46AA9D78FC7B

9CE262CAF5CC17BFA3DF074C9E7B79577BDF530784DB3EB57CD455CA2BA5F9CDDA5B38

380C89B1136BE1A1BE82DE9A4ABA2CBC6F0E8F75208EF1B77AA7D4FC7A8642A0C268DC6

UIC Bezel5 Programmer’s Manual Page.137/166 UDN PM098 Rev. 1.0

10h command result A012B908F3D8A646246F70236FAACE67FCF638E75E7EBFAD71D52405EAC4F04D9530BDA

C54D97BB37C9BF229D2F18F140AB071BC7C144F9255947A5C55DFF8B1A465621E64447C

A6AA5D50876F2B22CCEC68EF629AAE7AD78CA9D3D3BC1A72E92FDDACFFC4A347240ED9

FDF245AE0D3545D2249553DD5A4758D58A44E642736B60E6D5B4C2A940C194F4109F458

C9D2636535EC63A82A1"

gets clear format “000213128446848055107333536843043063130225127201117370049836628096318451

1345200232425145528526184503136810365209537777444951615531096409926153192

2782409A52271033378951605115421705215522657720984452132328205851634102206

26135747447445225318556615053620101236A5256349552436400251106038551298032

5691462212205272480213494445154801158639191173674445039854305894846751965

1414232611163199405454121077815089534523380341246349153232583010410797517

2007E7DF70595A4D1571AEC6AC83F4580A97F1EDC26824B9B6AC828DEB6A5A88F738D61

D10C”

Random data “7E7DF70595A4D1571AEC6AC83F4580A9”

Complement the data

length

“0001FFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFF

FFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFF

FFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFF007E7DF70595A4D1571

AEC6AC83F4580A901010010554E49464F524D5F44454641554C542155494330303031000

000”

get SHA 1 “6170126C75D798FAD28E93FCEBC9A5AC24956BA6”

Combine data “0001FFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFF

FFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFF

FFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFF007E7DF70595A4D1571

AEC6AC83F4580A901010010554E49464F524D5F44454641554C542155494330303031000

0006170126C75D798FAD28E93FCEBC9A5AC24956BA6”

Using the RSA Private

key to encrypt

“AFD7EA2D13FBDBC74DEAB0C427A95612FC38CAAC0F89ABF8F61B20139A82285C97B321

742EE19524A7A2066819F32DCD2AD46CFDE70680896E095238858377BDB7651AA467779

18728E38F0238D6522CEB2D0096A9FD734A08C4C7736EB63E7B5DFBD3D9E738369C90FE

6981923D3C38285EA2ECEADAD9B880C65EAFF1B05775F6B3E2B44BB1C695AEF5DE086FD

1FABAFCE3CDB80F8DE6FA2701B42998B7F3D568DF0248190898CA6A83A2755B0100FC9B

C8F2F73C9E5A399A39B0A76DDB0BE342B605EFC4F687E97244AC60C33337F684765E4C95

8C1F4AC636DDEE9820E3E84BB4E24DD47AB5FE95747A9355F4AB09E72147FAE4E18BD12

968FE69037E9CAA”

Put the result into the

90h 11h command

packet

“<90><11>AFD7EA2D13FBDBC74DEAB0C427A95612FC38CAAC0F89ABF8F61B20139A8228

5C97B321742EE19524A7A2066819F32DCD2AD46CFDE70680896E095238858377BDB7651

AA46777918728E38F0238D6522CEB2D0096A9FD734A08C4C7736EB63E7B5DFBD3D9E738

369C90FE6981923D3C38285EA2ECEADAD9B880C65EAFF1B05775F6B3E2B44BB1C695AEF

5DE086FD1FABAFCE3CDB80F8DE6FA2701B42998B7F3D568DF0248190898CA6A83A2755B

0100FC9BC8F2F73C9E5A399A39B0A76DDB0BE342B605EFC4F687E97244AC60C33337F684

765E4C958C1F4AC636DDEE9820E3E84BB4E24DD47AB5FE95747A9355F4AB09E72147FAE4

E18BD12968FE69037E9CAA”

Table 6-11. Example of Load DUKPT Key

UIC Bezel5 Programmer’s Manual Page.138/166 UDN PM098 Rev. 1.0

6.10. Load Google Wallet Merchant Symmetry Key

USAGE:

1. Issue the 90h 10h command to get the encrypted challenge data.

2. Decrypt the “Encrypted Challenge” using the the “RSA Private Key” and then get the

“Random”.

3. Use the command format data to get the SHA 1(20 bytes).

4. Use the “RSA Private Key” to encrypt the command format data.

5. Put the result into the 90h 11h command packet.

EXAMPLE

Parameter

New Symmetry Key 112233445566778899AABBCCDDEEFF11

Exponent “00010001”

RSA Private Key “7AD86A3E9BEBCE15EAE06EAC8CEAFF119E8584B0A24AADDDF6827A2ED46AA9D78FC7B

9CE262CAF5CC17BFA3DF074C9E7B79577BDF530784DB3EB57CD455CA2BA5F9CDDA5B38

380C89B1136BE1A1BE82DE9A4ABA2CBC6F0E8F75208EF1B77AA7D4FC7A8642A0C268DC6

A012B908F3D8A646246F70236FAACE67FCF638E75E7EBFAD71D52405EAC4F04D9530BDA

C54D97BB37C9BF229D2F18F140AB071BC7C144F9255947A5C55DFF8B1A465621E64447C

A6AA5D50876F2B22CCEC68EF629AAE7AD78CA9D3D3BC1A72E92FDDACFFC4A347240ED9

FDF245AE0D3545D2249553DD5A4758D58A44E642736B60E6D5B4C2A940C194F4109F458

C9D2636535EC63A82A1”

Modules “BDEA7BE96D7CC049C6D68EFB7AFF404810C23AC88866E744C5E27016E415D3787F57EF8

35B84A5AAC8D550C99E3C2955472525A7AB40C5190CF42351AD41386BD8238A54746373

32BFF35A7B7CF1C3173FA424F466DD574C23B84ED9B748D7350F26BF17D5014EDAEDAD5

917991427C5D3859D16312DEEE2E2A5B2287856CDB435B8B5D3E7C68E70B31398EEC34C

45524EB54DD4153438A3BE50D4EEA7BD54E088873C173F5023AD18FD4AAC9068DA786A

9A5AD7462683CEDA8B862AC3CC19F7715AD37A19E1A9C2AC9169D58283674041B66D7A

2E69D4920E45D4B75AA745DFC0C1C654FDD47E526298F86DEB0DC80BBB6DC26793C48B

DC8D99CB31FFEA42BD”

Usage

Use 90h 10h command

to get the encrypted

challenge data

"553B9A174DFE7B9D23C3C888AF16F658AAED690BC32900F99647A2E41A2B206D050DB0

2032A789EEB577C65DE1B8EDA36DEE1ECC13E55E4BB315EF2F2A4B3648B29D975C9516C

180A14A939FF05AB648D3795E8957E47C1BDD2704350B3D9F463A3D27D5BA3E4F738420

C1AB2A36F49CD7DF3CD8A9B3628C07BA8E64D58AE0762420E27A574B0D7412B26770682

963ECB1BB28F73717C650EF13AEFD969A383C9A8D9B5586B943D9A09EFCFAE75C2B90D6

4C4B7B336AF1D2D796E2D2EF3107EE0DC64586B88AD3A5397496A3B1B06B820D10AD28

66BD8BEE0DFFFA566CFCBAEE96F2EF264C76F4959F0B06C11BC65B40CD24E0D4F7780C6A

A16D05F9C3228C12"

Using the RSA Private

key to decrypt challenge

data then gets clear

“000221121594264486233532718792540694605011393993939132395445052538546241

3795364563300354304063330414814532809465084321420681852650545225432319437

2987535730243527681408210576453834025294324914553401003421337519483235237

UIC Bezel5 Programmer’s Manual Page.139/166 UDN PM098 Rev. 1.0

format 5246048350230716256119815505945234153193597310555761037509143415560395999

1042127044404248709333974621853650201647513489037542275934139063120931881

3020127526814474630130205503555125012019698125060363012279079380506308573

9007284558CF716CA567844661192AD23C99DEE8B5255D018714140BFE60D122467ECF17

5A7”

Random data “7284558CF716CA567844661192AD23C9”

Complement the data

length7

“0001FFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFF

FFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFF

FFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFF0

07284558CF716CA567844661192AD23C902010010112233445566778899AABBCCDDEEFF

111”

Get SHA 1 “5AE7E8F57264369B47FC6E06703712EEECC11FF”

Combine data “0001FFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFF

FFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFF

FFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFF0

07284558CF716CA567844661192AD23C902010010112233445566778899AABBCCDDEEFF

1115AE7E8F57264369B47FC6E06703712EEECC11FF”

Using the RSA Private

key to encrypt the

combine data

“312AD2AD1849FE8ACC2A769D4BE22F0FAD504C85D9BD98C3C1B9E27F2055727709E16C

DB6F37F009032BBE33E34D475DB8FB1EA2C94995A44A144E3E91A740065FD5FAECEB134

1A92896A1C087B038D2360F048A4F6EAF1647C19C4DEBF2F58770B3B8D5651C5E3FDED5

C3857135D3B405AD0E77DA24DED419F88D3CB37A177F24C3440B033D61331CD3813C86

A102970464842DD7ED261A76E023F73BEEB48AC69763F6EFABAFC32416796E62169DB453

7038EAE3C9ADD13141763B20193392D812151B8F24183E8DB31CEA2D30DAF0CB9600A5

B395744E946A0AEF94FD7497F628EB6D145DF023E8A349CDA1F5C790C84B58D4E1D1A44

F1525696BB2C37E01”

Put the result into 90h

11h command packet

“<90><11>312AD2AD1849FE8ACC2A769D4BE22F0FAD504C85D9BD98C3C1B9E27F205572

7709E16CDB6F37F009032BBE33E34D475DB8FB1EA2C94995A44A144E3E91A740065FD5F

AECEB1341A92896A1C087B038D2360F048A4F6EAF1647C19C4DEBF2F58770B3B8D5651C

5E3FDED5C3857135D3B405AD0E77DA24DED419F88D3CB37A177F24C3440B033D61331C

D3813C86A102970464842DD7ED261A76E023F73BEEB48AC69763F6EFABAFC32416796E62

169DB4537038EAE3C9ADD13141763B20193392D812151B8F24183E8DB31CEA2D30DAF0

CB9600A5B395744E946A0AEF94FD7497F628EB6D145DF023E8A349CDA1F5C790C84B58D

4E1D1A44F1525696BB2C37E01”

Table 6-12. Example of Load Google Wallet Merchant Symmetry Key

7 If Data Length < RSA Private Key Length, then

complement data length = RSA Private Key Length – sha1(20 bytes) – 2 bytes (head and end)

If Data Length > RSA Private Key Length, then

complement data length = Multiple (RSA Private Key Length) – sha1(20 bytes) – 2*n bytes (head and End)；n= qty’ of page

UIC Bezel5 Programmer’s Manual Page.140/166 UDN PM098 Rev. 1.0

6.11. Load Authentication RSA Key

USAGE:

1. Issue the 90h 10h command to get the encrypted challenge data.

2. Decrypt the “Encrypted Challenge” using the “RSA Private Key” and then get the “Random”.

3. Use the command format data to get the SHA 1(20 bytes).

4. Use the “RSA Private Key” to encrypt the command format data.

5. Put the result into the “I2” command packet.

EXAMPLE

Parameter

New Modules

(First byte should be

greater then “6A”)

“C827FF33BD1C24C6A2919F8B182975F1399697F460514B2B67BB7822DB9A4D11457F0A1

0EE420011D96A42F91BA42D1DEDB5EA4B6B7A32E3EBE67574211E68D78FAB65994A6D9

AD3343CDCC5C28F0E46AE391054811EE4B1D11DE4EAB6EF9EAF79750F049DA24678D835

C06587A9101B0AE1344D71D5D58E469F7FE352AD61A587924F47A8E5EECD9911440E9C0

9CF2625CD34CB9B4907A19C7EEFE3DC460759AEDBDC902174D2A8F5D21E35B690EEFB75

6E6C1A88D0B8B9D243C1C0785617FC21B8D4B441F3341B00566A05AEFE31D3277EF8E3B

0A7E8660C9C7278E9418DB5BF2924B50FB84CEE4E9A03250DBA83FD3B9245F0727FAFCF8

5C71B9ED87BE01B”

New Exponent “00010001”

Exponent “00010001”

RSA Private Key “7AD86A3E9BEBCE15EAE06EAC8CEAFF119E8584B0A24AADDDF6827A2ED46AA9D78FC7B

9CE262CAF5CC17BFA3DF074C9E7B79577BDF530784DB3EB57CD455CA2BA5F9CDDA5B38

380C89B1136BE1A1BE82DE9A4ABA2CBC6F0E8F75208EF1B77AA7D4FC7A8642A0C268DC6

A012B908F3D8A646246F70236FAACE67FCF638E75E7EBFAD71D52405EAC4F04D9530BDA

C54D97BB37C9BF229D2F18F140AB071BC7C144F9255947A5C55DFF8B1A465621E64447C

A6AA5D50876F2B22CCEC68EF629AAE7AD78CA9D3D3BC1A72E92FDDACFFC4A347240ED9

FDF245AE0D3545D2249553DD5A4758D58A44E642736B60E6D5B4C2A940C194F4109F458

C9D2636535EC63A82A1”

Modules “BDEA7BE96D7CC049C6D68EFB7AFF404810C23AC88866E744C5E27016E415D3787F57EF8

35B84A5AAC8D550C99E3C2955472525A7AB40C5190CF42351AD41386BD8238A54746373

32BFF35A7B7CF1C3173FA424F466DD574C23B84ED9B748D7350F26BF17D5014EDAEDAD5

917991427C5D3859D16312DEEE2E2A5B2287856CDB435B8B5D3E7C68E70B31398EEC34C

45524EB54DD4153438A3BE50D4EEA7BD54E088873C173F5023AD18FD4AAC9068DA786A

9A5AD7462683CEDA8B862AC3CC19F7715AD37A19E1A9C2AC9169D58283674041B66D7A

2E69D4920E45D4B75AA745DFC0C1C654FDD47E526298F86DEB0DC80BBB6DC26793C48B

DC8D99CB31FFEA42BD”

Usage

Use 90h 10h command

to get the encrypted

challenge data

"A08B1810E85D8D5B9DD8E324A6D204DD2E6C3ED6DA2706EEE461469567DD9B3EA9053

F60CB48168922161E640340C782FEF919B5BF1B293EDD2F0C5B7449543134877B150FACF

558ACFCF7719473DAA20C7E389B17C3159D3DBDF6CEFD3CA15652EB916D8B8252077AF

B32CF5416D12FC79F06E8AB9ED2834CE6CE5AD98018BC5C62A4074389004B04AE4BC7FE

F027F87694F45912DD238A6043FD6AFA38F6F9CD2E307FB3186C784F3D3C093BB665FF41

UIC Bezel5 Programmer’s Manual Page.141/166 UDN PM098 Rev. 1.0

C923CB0FEF00EC2A9BE648E952AFB7502733D11EBA0CE4D3642EDAC412F58773AA793C9

784BACD3068A8CF76CC65175001AE879E78F437D67051CE604839C3BA4177407B353FEB0

887A3FFC2A47940"

Using the RSA Private

key to decrypt challenge

data then gets clear

format

“000290503282591385508221843391503270417040350361787725870210458535565343

46428212305541795712283982062056A5103685107835553812620610084709515281116

0037930080451625357213530957558147293393101182408247185240470195245305292

294510361970931605044744353414A508130184732033202054404326349151207544054

3548102078998077614401818313444192728A55190150354234451459599308024558041

0280210216780521343004033224587476330621061445055389200412632075454684562

40046C66E3F4D4AA86FFF55132FBB71C845179D53D3B8BC9210DA8CAA1319E835A12FC7

8114”

Random data “46C66E3F4D4AA86FFF55132FBB71C845”

Complement the data

length8

“0001FFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFF

FFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFF

FFFFFFFFFFFFFFFFF0046C66E3F4D4AA86FFF55132FBB71C84504000100010100C827FF33B

D1C24C6A2919F8B182975F1399697F460514B2B67BB7822DB9A4D11457F0A10EE420011

D96A42F91BA42D1DEDB5EA4B6B7A32E3EBE67574211E68D78FAB65994A6D9AD3343CDC

C5C28F0E46AE391054811EE4B1D11DE4EAB6EF9EAF79750F049DA24678D835C06587A91

01B0AE1344D71D5D58E469F7FE352AD61A587924F47A8E5EECD9911440E9C09CF2625CD

34CB9B4907A19C7EEFE3DC460759AEDBDC902174D2A8F5D21E35B690EEFB756E6C1A88D

0B8B9D243C1C0785617FC21B8D4B441F3341B00566A05AEFE31D3277EF8E3B0A7E8660C

9C7278E9418DB5BF2924B50FB84CEE4E9A03250DBA83FD3B9245F0727FAFCF85C71B9ED8

7BE01B”

Get SHA 1 “9A2A410325F5ECE9A251A3316B449E7DF649BDD2”
