PP795SE Simple Manual 2012-7-19
PP795SE SERIES
Contactless & Signature Pin Pad
- RS232 & USB -
(Support Paypass, Paywave)
Thank you for purchasing the PP795SE series products.
The contactless & Signature Pad PP795SE is to support the contactless
payment systems , Pin Pad and Signature. The small footprint size of the
device makes it easily to integrate to the current transaction system such as
Point-of-Sale terminal as the part of the system. The device communicates
with a host computer or terminal using a standard RS-232 or USB interface.
FEATURES
High Performance and High Security
Integrated Magnetic stripe , IC card reader and Contactless reader
Electronic Signature Pad for credit card authenticate
Conforms to EMV Level 1 & Level 2 requirement
Conforms to PCI PED Online & Offline PIN Verification
Supports DES/TDES , MAC , DUKPT , RSA , AES , SHA encryption
32 bits fast processor
Tamper Evidence Resistant and Responsive
Privacy Shield
PP795SE Specifications
Processor 32 bits high performance processor
Memory System Flash 16Mb , SDRAM 16Mb .
LCD Display 320x240 pixels Graphical Display with LED Backlight
Touch Screen Resistive technology; scratch resistant with screen
protector
MSR Support ISO7811 Track 1 , 2 , 3 reading
ICC 1 ISO7816 Card slot (option)
SAM 3 SAM Card Slots (support 5V and 3.3V SAM) (option)
Contactless Build-in contactless module (option) , supported ISO
PP795SE Simple Manual 2012-7-19
14443 13.56Mhz contactless card .
RTC Battery backup real time clock
Communication Provided RS232 Ports can run at 115200bps
simultaneously.
Provide standard USB Port to connect PC/Terminal
Dimensions (L)210 x (W) 150 x (H) 60mm
Power Requirements 5VDC
Operation Environment Temperature 0 °C to +40 °C; Humidity 15% to 90%
AGENCY APPROVAL
● Specifications for FCC Class B
Changes or modifications are not expressly approved by the manufacturer could void the
user's authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:(1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation
NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/ TV technician for help.
You are cautioned that any change or modifications to the equipment not expressly approve by
the party responsible for compliance could void your authority to operate such equipment.
PP795SE Simple Manual 2012-7-19

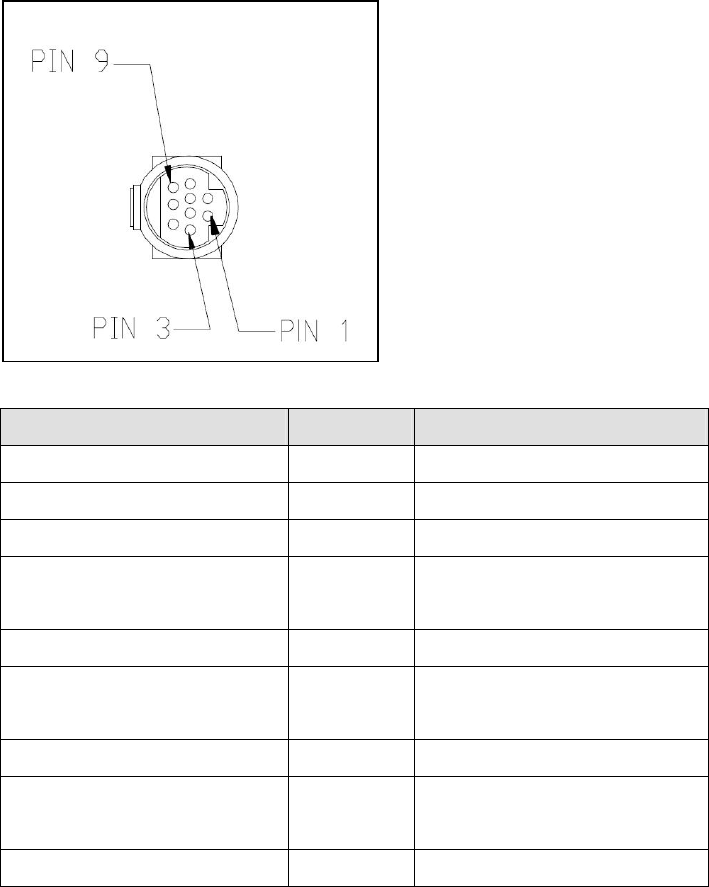

Interface Mini-Din Pin Assignment
Description MiniDin Signal
Ground 1 GND
Request To Send 2 RTS
USB data 3 USB D-
Serial data to host 4 RXD
Clear To Send 5 CTS
Serial data from host 6 TXD
USB data 7 USB D+
Cable Select
( +5V : RS232 , 0V : USB ) 8 +5V/0V
Power In 9 +5V
