Unigen UGWSX931 900MHz Transceiver Module User Manual
Unigen Corporation 900MHz Transceiver Module
Unigen >
user manual
ARES/ATHENA UHF Modules
Solutions for a Real Time World User Manual
RE-TEK-1890 1 45388 Warm Springs Blvd. Fremont, CA 94539
support@unigen.com TEL: (510) 668.2088 FAX: (510) 661.2788
http://www.unigen.com Toll Free: (800) 826.0808
Copyright Unigen Corporation, 2012
UNIGEN CORP. WIRELESS MODULE PRODUCTS
ARES: UGWSX931SM0033U
ATHENA: UGWSX933SM0033U
Low Power Integrated UHF Transceivers
USER MANUAL
ARES FCC ID: R8KUGWSX931
ATHENA FCC ID: R8KUGWSX931
ARES IC ID: 5125A-UGWSX931
ATHENA IC ID: 5125A-UGWSX931
Issue Date: 30 September, 2012
Revision: 0.90
Revision History
Rev. No. History Issue Date Remarks
0.9 First Release
30 September,
2012 First release
ARES/ATHENA
Solutions for a Real Time World User Manual
RE-TEK-1890 2 45388 Warm Springs Blvd. Fremont, CA 94539
support@unigen.com TEL: (510) 668.2088 FAX: (510) 661.2788
http://www.unigen.com Toll Free: (800) 826.0808
Copyright Unigen Corporation, 2009
THIS DOCUMENT IS PROVIDED “AS IS” WITH NO WARRANTIES WHATSOEVER,
INCLUDING ANY WARRANTY OF MERCHANTABILITY, NON-INFRINGEMENT, FITNESS
FOR ANY PARTICULAR PURPOSE, OR ANY WARRANTY OTHERWISE ARISING OUT OF
ANY PROPOSAL, SPECIFICATION OR SAMPLE.
Unigen Corporation disclaims all liability, including liability for infringement of any
proprietary rights, relating to use of information in this document. No license,
expressed or implied, by estoppel or otherwise, to any intellectual property rights is
granted herein.
*Third-party brands, names, and trademarks are the property of their respective
owners.
ARES/ATHENA
Solutions for a Real Time World User Manual
RE-TEK-1890 3 45388 Warm Springs Blvd. Fremont, CA 94539
support@unigen.com TEL: (510) 668.2088 FAX: (510) 661.2788
http://www.unigen.com Toll Free: (800) 826.0808
Copyright Unigen Corporation, 2009
UNIGEN CORP. WIRELESS MODULE PRODUCTS 1
FCC ID: R8KUGWAS82 1
ELIGIBILITY REQUIREMENTS FOR REGULATORY MODULE APPROVAL 5
User Guide Information 6
United States of America Requirements 6
General User Guide Requirements 6
Topics Not Covered 7
UNITED STATES REGULATORY APPROVAL FCC MODULAR APPROVAL (MA) 7
Design Criteria for Modular Approval 7
General Conditions 7
Antennae 7
Antenna Interconnect & Impedance 8
Physical Implementation 8
Emissions Compliance Testing 8
Co-location of Additional Transmitters 8
Product Labeling Requirements 9
INDUSTRY CANADIAN REGULATORY APPROVAL 10
Design Criteria for Modular Approval 10
General Conditions 10
Antennae 10
Antenna Interconnect & Impedance 11
Physical Implementation 11
Emissions Compliance Testing 12
Product Labeling Requirements 12
EUROPEAN UNION REGULATORY APPROVAL 13
Design Criteria for Modular Approval 13
General Conditions 13
Antennae 13
Antenna Interconnect & Impedance 14
Physical Implementation 14
Emissions Compliance Testing 14
ARES/ATHENA
Solutions for a Real Time World User Manual
RE-TEK-1890 4 45388 Warm Springs Blvd. Fremont, CA 94539
support@unigen.com TEL: (510) 668.2088 FAX: (510) 661.2788
http://www.unigen.com Toll Free: (800) 826.0808
Copyright Unigen Corporation, 2009
Exterior Labeling Requirements 16
UNITED STATES AND INTERNATIONAL TYPE APPROVAL (STANDARD REGULATORY
EQUIPMENT CERTIFICATION) 17
CONTACT INFORMATION 17
APPENDIX A: 18
Agency Certifications: 18
Regulatory Compliance Statement: 18
EUROPEAN UNION “DECLARATION OF CONFORMITY” 19
MECHANICAL CHARACTERISTICS: 19
APPENDIX B: 22
FCC Grant# - R8KUGWSX931 22
ARES/ATHENA
Solutions for a Real Time World User Manual
RE-TEK-1890 5 45388 Warm Springs Blvd. Fremont, CA 94539
support@unigen.com TEL: (510) 668.2088 FAX: (510) 661.2788
http://www.unigen.com Toll Free: (800) 826.0808
Copyright Unigen Corporation, 2009
ELIGIBILITY REQUIREMENTS FOR REGULATORY MODULE APPROVAL
The Unigen UGWSX933SM0033U WiFi module (the “UGWSX933SM0033U”) marketed under
the name APOLLO, is a device that transmits and receives radio signals in accordance with the
spectrum regulations for the 2.4-GHz unlicensed frequency range. Regional regulatory agency
approval may be required to operate UGWSX933SM0033U throughout the world.
For purposes of ease of integration, time to market, and product surety, Unigen submitted
UGWSX933SM0033U to relevant agencies and obtained regulatory approvals for specific
countries. UGWSX933SM0033U was approved under the “Modular Approval (MA) Grant”. This
certification represents a significant cost savings to the OEM.
The radio certification portion of this grant is transferable to Digital Electronic Device
manufacturers given adherence to specific implementation criteria noted herein. Any
modification of the UGWSX933SM0033U will void the manufacturer’s warranty. Any alteration
or deviation from the documented installation and/or use of the UGWSX933SM0033U will void
the MA Grant as it applies to the end-product.
In the event the Digital Electronic Device manufacturer alters the herein described and
approved installation of the UGWSX933SM0033U, the end-product may require a complete
battery of regulatory agency certification test Digital Electronic Device manufacturer may be
required to submit to a complete battery of tests, depending on the requirements noted in the
region they wish to sell their product.
The MA Grant provides that Digital Electronic Device manufacturers who incorporate
UGWSX933SM0033U
as tested and approved
, and can be relieved from having to perform
the Radio Regulatory certification portion of the respective agency certification.
The MA Grant is valid only in countries that recognize the MA Grant certification process.
Countries currently accepting the MA Grant include; the USA, Canada, and many European
countries as noted in the General User Guide Requirements Section of this document. Terms
and conditions of regulatory approval for these countries are also described herein. However,
this “grandfathered” radio certification does
not
relieve the Digital Electronic Device
manufacturers from submitting their device for digital emissions certifications.
Electronic device manufacturers may disregard the requirements of this section provided they
accept full responsibility for regulatory type-approval of the electronic device with an
integrated UGWSX933SM0033U wireless module.
ARES/ATHENA
Solutions for a Real Time World User Manual
RE-TEK-1890 6 45388 Warm Springs Blvd. Fremont, CA 94539
support@unigen.com TEL: (510) 668.2088 FAX: (510) 661.2788
http://www.unigen.com Toll Free: (800) 826.0808
Copyright Unigen Corporation, 2009
User Guide Information
Electronic device manufacturers using Unigen’s Modular Approval are required to place the
below text in their product user’s guide in accompaniment with other regulatory information.
The text may be disbursed according to language or geographic regions if desired, but the
exact text
shown below must be maintained.
United States of America Requirements
The following text must be copied exactly into the products user’s guide:
“This device complies with part 15 of the FCC rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Caution: Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment.”
General User Guide Requirements
The following countries associated regulatory agencies recognizing the noted certifications for
this product as authorized for sale and use are:
USA Canada Belgium
Denmark France Finland
Germany Italy Netherlands
Spain Sweden UK
This list will be updated to reflect additional grants obtained or needed in future revisions.
Note:
As of the date of publication, Japan does not recognize the “Modular Approval”
certification. Regulatory certification for Japan (TELEC) must be acquired through typical
approval procedures. These approvals are the sole responsibility of the OEM. Unigen may
recommend, upon request, TELEC certified laboratories capable of facilitating the appropriate
test procedures for the UGWSX933SM0033U.
ARES/ATHENA
Solutions for a Real Time World User Manual
RE-TEK-1890 7 45388 Warm Springs Blvd. Fremont, CA 94539
support@unigen.com TEL: (510) 668.2088 FAX: (510) 661.2788
http://www.unigen.com Toll Free: (800) 826.0808
Copyright Unigen Corporation, 2009
Topics Not Covered
Topics that not covered in this manual include:
Standard type approval for any country
Japan’s (TELEC) regulatory approvals
UNITED STATES REGULATORY APPROVAL FCC MODULAR APPROVAL (MA)
The requirements for FCC Modular Approval were released in June 2000 in the FCC’s Public
Notice: FCC Public Notice DA 00-1407, Part 15 Unlicensed Modular Transmitter Approvals.
Design Criteria for Modular Approval
General Conditions
The following conditions must be strictly adhered to for modular approval:
1. No modification to the module including the circuitry is permitted
2. The design criteria including antenna, interconnects and transmission line
3. Testing of the final device configuration for Digital Emissions Compliance
The UGWSX933SM0033U may not be altered or modified in any way by the OEM or other
integrator(s). Additionally, no component(s) may be added which change the radio frequency
(RF) characteristics. These include unintentional or spurious emissions, immunity, ESD
characteristics, or other items commonly associated with RF devices. This includes all
components; passive and active (such as RF filters, RF amplifiers, RF switches, etc).
Additionally, no RF components may be placed between the RF output of the
UGWSX933SM0033U and the antenna.
Antennae
The antennae listed in the UGWSX933SM0033U datasheet have been qualified and approved for use
under the Modular Approval certification. These antennae are designed to be compatible with
the RF transmission line impedance and frequency range of the UGWSX933SM0033U. These
antennae may not be modified or altered in any way from the original design as represented in the
antenna datasheets as supplied by the manufacturer.
The antennas selected have been specifically tested with the UGWSX933SM0033U, and they are
certified through the regulatory agencies in the US, Canada, and European Union for authorized use.
Use of antennas in a platform other than the antennas selected by Unigen voids the MA grant
for that platform.
ARES/ATHENA
Solutions for a Real Time World User Manual
RE-TEK-1890 8 45388 Warm Springs Blvd. Fremont, CA 94539
support@unigen.com TEL: (510) 668.2088 FAX: (510) 661.2788
http://www.unigen.com Toll Free: (800) 826.0808
Copyright Unigen Corporation, 2009
Antenna Interconnect & Impedance
Unigen has pre-qualified antennas that integrate the connectors, transmission line and the antenna.
UGWSX933SM0033U requires the use of a ½ wavelength dipole, 902-928MHz frequency range, with
a VSWR no greater than 2.0 and having a maximum output no greater than +2dBi The transmission
line must be designed to be 50-Ohm impedance.
Physical Implementation
The physical implementation of the RF transmission line must conform to the following
guidelines:
• Coaxial Cable: A coaxial of varying length may be used providing the impedance
measures 50 +/- 2 ohms and is non-radiating. Best practice RF engineering suggests
the cable should be kept to the minimum length required to satisfy the application.
Excessive cable and interconnect loss may adversely effect the effective transmission
and reception range of the end product.
Emissions Compliance Testing
Notwithstanding the Modular Approval for the Radio Device with associated antenna, the end
product configuration must meet digital emissions compliance and must be tested in
accordance with FCC Part 15 requirements confirming radiated emissions are within specified
limits.
Applicable sections include:
Part 15 Section 15.109 Sub-paragraph A, Class B Radiated Emission Limits
These emissions tests can be conducted by the manufacturer or by contacting an approved
test facility equipped and certified accordingly. The results of these emissions tests are not
required to be submitted to the FCC or Unigen, but should be kept on file by the OEM.
Co-location of Additional Transmitters
Digital Electronic Devices manufacturers using this MA grant should refer to Appendix B (FCC
Grant #) for end-products using two or more co-located RF transmitters. This grant states:
“This modular transmitter is approved for use in Digital Electronic Devices and
may operate in conjunction with other mobile and portable transmitters in the
same device; provided, the other mobile and portable transmitters have
satisfied the appropriate RF exposure requirements contained in the FCC
rules. The grantee must also provide Digital Electronic Device integrators, or
end users if marketed directly to end users, with installation and operating
instructions for satisfying RF exposure requirements. The Grantee must
ARES/ATHENA
Solutions for a Real Time World User Manual
RE-TEK-1890 9 45388 Warm Springs Blvd. Fremont, CA 94539
support@unigen.com TEL: (510) 668.2088 FAX: (510) 661.2788
http://www.unigen.com Toll Free: (800) 826.0808
Copyright Unigen Corporation, 2009
inform second manufacturers/installers that in order for this module to be
operated in any configuration other than that permitted in the preceding
sentences, a separate FCC equipment authorization must be obtained for
each device into which this module is installed.“
This modular approval is granted provided Digital Electronic Devices manufacturers assume
responsibility for ensuring that other transmitters operating in conjunction with the
UGWSX933SM0033U comply with RF exposure requirements associated with their use. The
use of one or more additional RF transmitters will require review by the FCC and may require
end-product re-certification, including the UGWSX933SM0033U to ensure emissions
compliance and RF safety. It is the sole responsibility of the Digital Electronic Device
manufacturer to obtain end-product regulatory compliance for configurations including two or
more RF transmitters.
Product Labeling Requirements
FCC product labeling requirements stipulate an FCC label, including specific text, be placed on
the device containing the UGWSX933SM0033U module. The product label must include the
following text and must be affixed to the exterior of the OEM’s product. The text should be
located beneath the FCC compliance logo.
“Module FCC ID: R8KUGWSX931”
ARES/ATHENA
Solutions for a Real Time World User Manual
RE-TEK-1890 10 45388 Warm Springs Blvd. Fremont, CA 94539
support@unigen.com TEL: (510) 668.2088 FAX: (510) 661.2788
http://www.unigen.com Toll Free: (800) 826.0808
Copyright Unigen Corporation, 2009
INDUSTRY CANADIAN REGULATORY APPROVAL
Industry Canada regulatory approval typically conforms to the FCC in terms of emission levels
and other regulatory requirements. It is the position of the Industry Canada agency that the
OEM primarily responsibility for ensuring end product compliance. Unigen as grantee and
supplier of the module maintains responsibility for the Modular Approved design.
Design Criteria for Modular Approval
General Conditions
The following conditions must be strictly adhered to for modular approval:
1. No modification to the module including the circuitry is permitted
2. The design criteria including antenna, interconnects and transmission line
3. Testing of the final device configuration for Digital Emissions Compliance
The UGWSX933SM0033U may not be altered or modified in any way by the OEM or other
integrator(s). Additionally, no component(s) may be added which change the radio frequency
(RF) characteristics. These include unintentional or spurious emissions, immunity, ESD
characteristics, or other items commonly associated with RF devices. This includes all
components; passive and active (such as RF filters, RF amplifiers, RF switches, etc).
Additionally, no RF components may be placed between the RF output of the
UGWSX933SM0033U and the antenna(e) except the RF interconnect transmission line.
Antennae
The antennae listed in the UGWSX933SM0033U datasheet have been qualified and approved for use
under the Modular Approval certification. These antennae are designed to be compatible with
the RF transmission line impedance and frequency range of the UGWSX933SM0033U. These
antennae may not be modified or altered in any way from the original design as represented in the
antenna datasheets as supplied by the manufacturer.
The antennas selected have been specifically tested with the UGWSX933SM0033U, and they are
certified through the regulatory agencies in the US, Canada, and European Union for authorized use.
Use of antennas in a platform other than the antennas selected by Unigen voids the MA grant
for that platform.
ARES/ATHENA
Solutions for a Real Time World User Manual
RE-TEK-1890 11 45388 Warm Springs Blvd. Fremont, CA 94539
support@unigen.com TEL: (510) 668.2088 FAX: (510) 661.2788
http://www.unigen.com Toll Free: (800) 826.0808
Copyright Unigen Corporation, 2009
Antenna Interconnect & Impedance
Unigen has pre-qualified antennas that integrate the connectors, transmission line and the antenna.
UGWSX933SM0033U requires the use of a ½ wavelength dipole, 902-928MHz frequency range, with
a VSWR no greater than 2.0 and having a maximum output no greater than +2dBi The transmission
line must be designed to be 50-Ohm impedance.
Physical Implementation
The physical implementation of the RF transmission line must conform to the following
guidelines:
• Coaxial Cable: A coaxial of varying length may be used providing the impedance
measures 50 +/- 2 ohms and is non-radiating. Best practice RF engineering suggests
the cable should be kept to the minimum length required to satisfy the application.
Excessive cable and interconnect loss may adversely effect the effective transmission
and reception range of the end product.
ARES/ATHENA
Solutions for a Real Time World User Manual
RE-TEK-1890 12 45388 Warm Springs Blvd. Fremont, CA 94539
support@unigen.com TEL: (510) 668.2088 FAX: (510) 661.2788
http://www.unigen.com Toll Free: (800) 826.0808
Copyright Unigen Corporation, 2009
Emissions Compliance Testing
Notwithstanding the Modular Approval for the Radio Device with associated interconnect and
antennae, the end product configuration must meet digital emissions compliance and must be
tested in accordance with Industry Canada RSS-210 (Low Power License-Exempt Radio
communication Devices) requirements confirming radiated emissions are within specified
limits.
Applicable sections include:
Part 15 Section 15.109 Sub-paragraph A, Class B Radiated Emission Limits
These emissions tests can be conducted by the manufacturer or by contacting an approved
test facility equipped and certified accordingly. The results of these emissions tests are not
required to be submitted to the FCC or Unigen, but should be kept on file by the OEM.
Note:
Industry Canada generally follows the guidelines of the FCC for emissions level requirements.
FCC end-product compliance certification results may be used to satisfy Industry Canada
requirements. Please consult the Industry Canada, RSS 210 specifications to confirm inter-
agency compliance. If comparable FCC testing has not been performed or if the specifications
are not cross compliant, RSS 210 testing will be required.
Product Labeling Requirements
Industry Canada product labeling requirements stipulate specific text be placed on the device
containing the UGWSX933SM0033U module. The product must include the following text and
must be located on the exterior of the OEM’s product. This same information must be
included in the product user manual.
“IC: 5125A-UGWSX931”
ARES/ATHENA
Solutions for a Real Time World User Manual
RE-TEK-1890 13 45388 Warm Springs Blvd. Fremont, CA 94539
support@unigen.com TEL: (510) 668.2088 FAX: (510) 661.2788
http://www.unigen.com Toll Free: (800) 826.0808
Copyright Unigen Corporation, 2009
EUROPEAN UNION REGULATORY APPROVAL
The requirements for EU Regulatory Approval were released in April 2000 in the EU R&TTE
Directive.
This directive supports self directed testing and certification for “harmonized” bands within
OEM facilities or by third party. In the case of WiFi, standards have become harmonized
(although frequencies are not). The R&TTE directive no longer requires a Technical
Construction File however; frequency notification to EU countries is still applicable.
Article 6 of the R&TTE directive states: “The manufacturer or the person responsible for
placing the apparatus on the market provides information for the user on the intended use of
the apparatus, together with the declaration of conformity to the essential requirements.”
Ensuring regulatory compliance of the end product is the sole responsibility of the OEM.
Unigen maintains responsibility for conformance of the UGWSX933SM0033U, the interconnect,
and the antennae, as the manufacturer.
The R&TTE directive maintains that first level compliance be reviewed by a “Notified Body”
prior to general product marketing. This is not mandatory, but reduces the risk of the product
being challenged for non-compliance. Although not specifically stated in the R&TTE Directive,
corrections of non-compliance issues are the responsibility of the end product manufacturer.
Design Criteria for Modular Approval
General Conditions
The following conditions must be strictly adhered to for modular approval:
1. No modification to the module including the circuitry is permitted
2. The design criteria including antennas, interconnects and transmission line
3. Testing of the final device configuration for Digital Emissions Compliance
The UGWSX933SM0033U may not be altered or modified in any way by the OEM or other
integrator(s). Additionally, no component(s) may be added which change the radio frequency
(RF) characteristics. These include unintentional or spurious emissions, immunity, ESD
characteristics, or other items commonly associated with RF devices. This includes all
components; passive and active (such as RF filters, RF amplifiers, RF switches, etc).
Additionally, no RF components may be placed between the RF output of the
UGWSX933SM0033U and the antenna(e) except the RF interconnect transmission line.
Antennae
The antennae listed in the UGWSX933SM0033U datasheet have been qualified and approved for use
under the Modular Approval certification. These antennae are designed to be compatible with
ARES/ATHENA
Solutions for a Real Time World User Manual
RE-TEK-1890 14 45388 Warm Springs Blvd. Fremont, CA 94539
support@unigen.com TEL: (510) 668.2088 FAX: (510) 661.2788
http://www.unigen.com Toll Free: (800) 826.0808
Copyright Unigen Corporation, 2009
the RF transmission line impedance and frequency range of the UGWSX933SM0033U. These
antennae may not be modified or altered in any way from the original design as represented in the
antenna datasheets as supplied by the manufacturer.The antennas selected have been specifically
tested with the UGWSX933SM0033U, and they are certified through the regulatory agencies in the
US, Canada, and European Union for authorized use.Use of antennas in a platform other than the
antennas selected by Unigen voids the MA grant for that platform.
Regulator Used.
In order to leverage the FCC/IC modular approval, the host system/system integrator must use the
XC6204B302MR (Mfg: Torex: 3.0V fixed regulator SOT23-5 package) regulator.
Antenna Interconnect & Impedance
Unigen has pre-qualified antennas that integrate the connectors, transmission line and the antenna.
UGWSX933SM0033U requires the use of a ½ wavelength dipole, 902-928MHz frequency range, with
a VSWR no greater than 2.0 and having a maximum output no greater than +2dBi The transmission
line must be designed to be 50-Ohm impedance.
Physical Implementation
The physical implementation of the RF transmission line must conform to the following
guidelines:
• Coaxial Cable: A coaxial of varying length may be used providing the impedance
measures 50 +/- 2 ohms and is non-radiating. Best practice RF engineering suggests
the cable should be kept to the minimum length required to satisfy the application.
Excessive cable and interconnect loss may adversely effect the effective transmission
and reception range of the end product.
Emissions Compliance Testing
The end-product configuration must meet digital emissions compliance and must be tested in
accordance with the European Union standards ETSI 300 328 and ETSI 300 826
(Electromagnetic Compatibility). Detailed European Union documents may be obtained from
the web location:
http://europa.eu.int/comm/enterprise/rtte/infor.htm
These emissions tests can be conducted by the manufacturer or by contacting an approved
test facility equipped and certified accordingly. The results of these emissions tests are not
required to be submitted to the FCC or Unigen, but should be kept on file by the OEM.
Note:
The European Union generally follows the guidelines of the FCC for emissions level
ARES/ATHENA
Solutions for a Real Time World User Manual
RE-TEK-1890 15 45388 Warm Springs Blvd. Fremont, CA 94539
support@unigen.com TEL: (510) 668.2088 FAX: (510) 661.2788
http://www.unigen.com Toll Free: (800) 826.0808
Copyright Unigen Corporation, 2009
requirements. FCC end-product compliance certification results, if available, may be used to
satisfy EU requirements (Substitution Method). Please consult the ETSI 300 328 specifications
to confirm inter-agency compliance. If comparable FCC testing has not been performed or if
the specifications are not cross compliant, ETSI 300 328 testing will be required. Additionally,
testing to the ETSI 301 489-17 (immunity testing) is strongly recommended. Unigen assumes
no responsibility for compliance of the end-product configuration.
ARES/ATHENA
Solutions for a Real Time World User Manual
RE-TEK-1890 16 45388 Warm Springs Blvd. Fremont, CA 94539
support@unigen.com TEL: (510) 668.2088 FAX: (510) 661.2788
http://www.unigen.com Toll Free: (800) 826.0808
Copyright Unigen Corporation, 2009
Exterior Labeling Requirements
European Union product labeling requirements stipulate specific text is placed on the device
containing the UGWSX933SM0033U module. The product must include the following text and
must be located on the exterior of the OEM’s product. This same information may be included
in the product user manual, however is not mandatory. Packaging and user documentation
must indicate the use restrictions of the end-product (i.e. countries disallowing the operating
frequencies of the UGWSX933SM0033U).
Note:

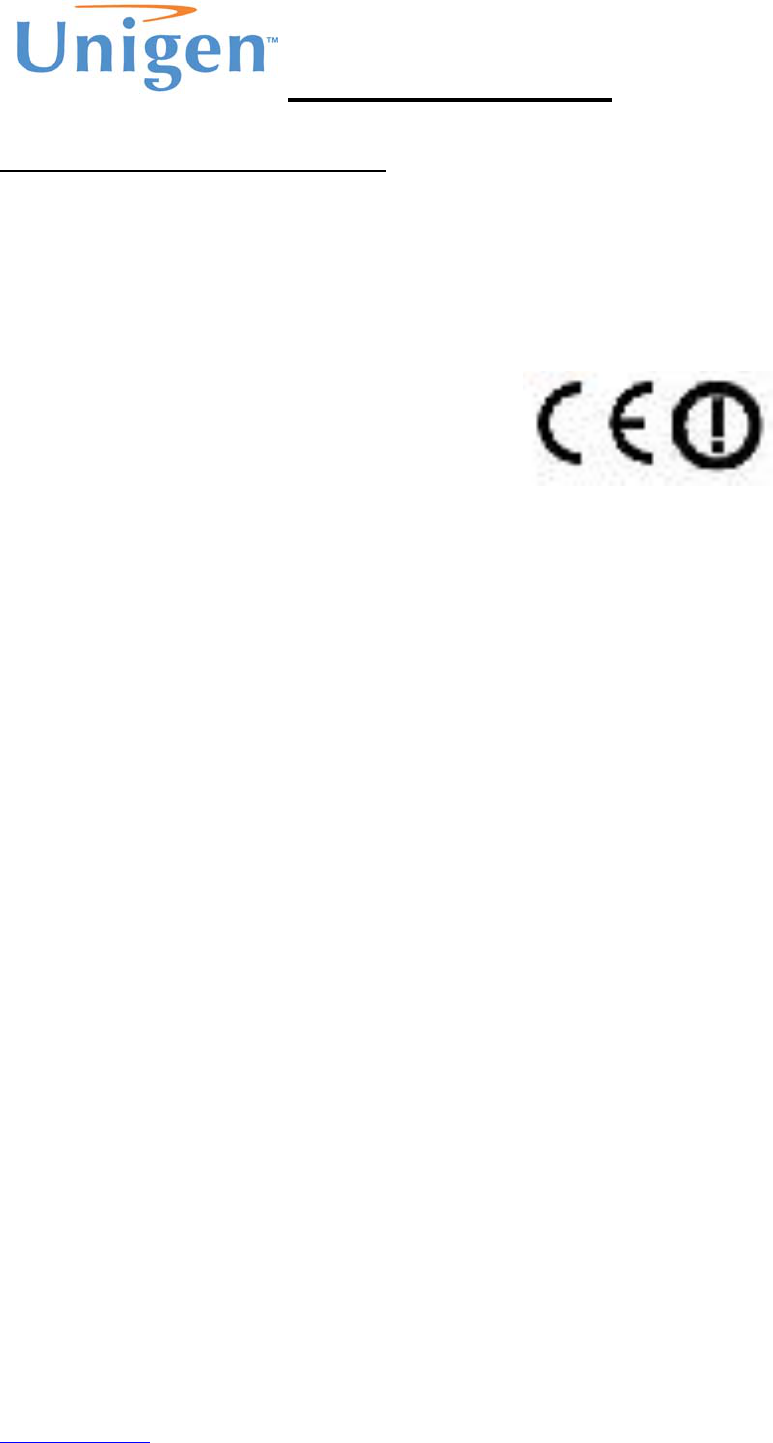

The end-product must be labeled "CE" and an exclamation mark to the right of the CE mark
should have; '!' with a circle around it. The exclamation mark designates a non-harmonized
frequency band.
ARES/ATHENA
Solutions for a Real Time World User Manual
RE-TEK-1890 17 45388 Warm Springs Blvd. Fremont, CA 94539
support@unigen.com TEL: (510) 668.2088 FAX: (510) 661.2788
http://www.unigen.com Toll Free: (800) 826.0808
Copyright Unigen Corporation, 2009
UNITED STATES AND INTERNATIONAL TYPE APPROVAL
(STANDARD REGULATORY EQUIPMENT CERTIFICATION)
OEMs may need to obtain standard equipment regulatory agency certification as previously
noted herein, and for end-product deployment in countries where Modular Approval is not
recognized, or for implementations using non-certified antennae or interconnections.
The details of standard equipment regulatory compliance are beyond the scope of this
document. OEMs needing standard equipment regulatory testing or who need council for
determining regional requirement should contact approved certification and test service
providers accordingly.
The following test house(s) have been identified by Unigen to assist in both US and
International approval processes. This list is by no means complete or preferential:
1. Pending
Filing with certification facilities typically requires the submission of technical information (ie
block diagrams, schematics, etc.) pertinent to the radio portions of the R8KUGWSX931.
Unigen will provide assistance in obtaining such documents when required by the OEM.
CONTACT INFORMATION
Outside of the United States of America:
To locate in-country Unigen distributors of the UGWG4US, please refer to the Unigen Website
www.unigen.com. These distributor(s) represent local contacts for this product.
CORPORATE HEADQUARTERS:
Unigen Corporation
45388 Warm Springs Boulevard
Fremont, CA 94539, USA
Main Number: 1.510.688.2088
Fax: 1.510.661.2767
Email: support@unigen.com
Web: www.unigen.com
ARES/ATHENA
Solutions for a Real Time World User Manual
RE-TEK-1890 18 45388 Warm Springs Blvd. Fremont, CA 94539
support@unigen.com TEL: (510) 668.2088 FAX: (510) 661.2788
http://www.unigen.com Toll Free: (800) 826.0808
Copyright Unigen Corporation, 2009
APPENDIX A:
Agency Certifications:
Agency Test Performed Type Limit Result Margin
EU Radiated Spurious
Emissions 30-12.75MHz Transmit Mode EN 300 328 Pending Pending
30-12.75MHz Transmit Mode EN 300 328 Pending Pending
FCC
15.249 Radiated Emissions
30 25,000 Spurious Emissions FCC Part
15.209/15.249(a) Pending Pending
6dB Bandwidth 15.249(a) Pending Pending
99% Bandwidth IC RSS-210 Pending Pending
Output Power 15.249(a) Pending Pending
Pending Pending
Bandedge FCC Part 15.209
/15.247(d) Pending Pending
Out of band 15.249(d) Pending Pending
EU
Radio Performance Test
Output Power, Power spectral density
at normal conditions EN 300 328-1 Pending Pending
Frequency Range at normal
conditions EN 300 328-1 Pending Pending
Output Power over extreme
conditions EN 300 328-1 Pending Pending
Frequency Range over extreme
conditions EN 300 328-1 Pending Pending
Conducted spurious emissions, 30MHz
- 12750MHz, transmit mode EN 300 328-1 Pending Pending
Conducted spurious emissions, 30MHz
- 12750MHz, receive/stand-by mode EN 300 328-1 Pending Pending
Radiated Spurious
Emissions
30 - 12,750 MHz -Spurious Emissions
Transmit Mode EN 300 328 V1.2.1 Pending Pending
30 - 12,750 MHz -Spurious Emissions
Receive Mode EN 300 328 V1.2.1 Pending Pending
Table 5 – Regulatory Agency Certifications
Regulatory Compliance Statement:
The Unigen APOLLO UGWSX933SM0033U WiFi module has been tested against the relevant requirements
of standards: EN 300 328, EN 301 489-17, FCC part 15 and Industry Canada RSS-210. The module is certified by
the regulatory authorities in the USA and Canada and complies with the applicable essential requirements of the
Radio & Telecommunication Terminal Equipment (R&TTE) directive in the EU. The module can thus be
incorporated into products sold worldwide with little or no additional testing of the module itself. The end
product must meet the appropriate technical requirements that apply to that product type but re-certification of
the radio module is not required in the USA and Canada. In the EU, the integrator is responsible for evaluating
their product type per the essential performance requirements of the R&TTE directive (except those associated
with the module), declaring compliance and then notifying the member states prior to marketing the
product (because the module uses a frequency band that is not harmonized in the EU). It is the responsibility of
the module integrator to obtain the necessary approvals to sell products incorporating this module in other
countries outside of North America and the EU. The report of measurements performed on the module in
compliance with the FCC rules and EN standards can be used in these submittals (as the requirements in many
other markets around the world are based in part or in whole on the standards prevalent in North America and
the EU)
ARES/ATHENA
Solutions for a Real Time World User Manual
RE-TEK-1890 19 45388 Warm Springs Blvd. Fremont, CA 94539
support@unigen.com TEL: (510) 668.2088 FAX: (510) 661.2788
http://www.unigen.com Toll Free: (800) 826.0808
Copyright Unigen Corporation, 2009
EUROPEAN UNION “DECLARATION OF CONFORMITY”
DECLARATION OF CONFORMITY
Unigen Corporation
45388 Warm Springs Blvd.
Fremont, CA 94538
USA
declare under our sole responsibility that the product(s)
ARES/ATHENA UGWSX933SM0033U
to which this declaration relate(s) is in conformance with the following standards:
EN 300-328 v1.7.1
EN 301 489-17
EN 55022 limits B
following the provisions of the 73/23/EEC and 2004/108/EEC Directives.
___________________ ________________________________________________
Unigen Corporation, Fremont CA -
MECHANICAL CHARACTERISTICS:
Item Description Specification
1 PCB Material FR-4
2 PCB Layers 4
3 Connector Type SMT
5 UGWAS82 Dimensions 22mm x 22mm
ARES/ATHENA
Solutions for a Real Time World User Manual
RE-TEK-1890 20 45388 Warm Springs Blvd. Fremont, CA 94539
support@unigen.com TEL: (510) 668.2088 FAX: (510) 661.2788
http://www.unigen.com Toll Free: (800) 826.0808
Copyright Unigen Corporation, 2009
RF Radiation Hazard Warning (RSS-102, FCC)
“To ensure compliance with FCC and Industry Canada RF exposure requirements, this device must be installed
in a location where the antennas of the device will have a minimum distance of at least 20 cm from all
persons. Using higher gain antennas and types of antennas not certified for use with this product is not
allowed. The device shall not be co-located with another transmitter.”
French – “Installez l'appareil en veillant à conserver une distance d'au moins 20 cm entre les éléments
rayonnants et les personnes. Cet avertissement de sécurité est conforme aux limites d'exposition définies par
la norme CNR-102 at relative aux fréquences radio.”
Antenna Limitations (RSS-GEN)
Per RSS-GEN, section 7.1.2 – “Under Industry Canada regulations, this radio transmitter may only operate
using an antenna of type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To
reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the
equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful
communication.”
French – “Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner
avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie
Canada. Dans le but de réduire les risques de brouillage radioélectrique à l'intention des autres utilisateurs, il
faut choisir le type d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne
dépasse pas l'intensité nécessaire à l'établissement d'une communication satisfaisante.”
Per RSS-GEN, section 7.1.2 (detachable antennas)– “This radio transmitter has been approved by Industry
Canada to operate with the antenna types listed below with the maximum permissible gain and required
antenna impedance for each antenna type indicated. Antenna types not included in this list, having a gain
greater than the maximum gain indicated for that type, are strictly prohibited for use with this device.”
Fench – “Le présent émetteur radio a été approuvé par Industrie Canada pour fonctionner avec les types
d'antenne énumérés ci-dessous et ayant un gain admissible maximal et l'impédance requise pour chaque type
d'antenne. Les types d'antenne non inclus dans cette liste, ou dont le gain est supérieur au gain maximal
indiqué, sont strictement interdits pour l'exploitation de l'émetteur”.
ARES/ATHENA
Solutions for a Real Time World User Manual
RE-TEK-1890 21 45388 Warm Springs Blvd. Fremont, CA 94539
support@unigen.com TEL: (510) 668.2088 FAX: (510) 661.2788
http://www.unigen.com Toll Free: (800) 826.0808
Copyright Unigen Corporation, 2009
General Two Part Statement (RSS-Gen, section 7.1.3):
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the
following two conditions: (1) this device may not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de
licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de
brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d'en compromettre le fonctionnement.
Two Part Statement (FCC, 15.19) – If not on the label, then it must be in the user’s manual
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Non-modification statement (FCC, 15.21) –
User’s manual shall caution the user the changes or modifications not expressly approved by Unigen
Corporation could void the user’s authority to operate the equipment.
Modular Requirements -
The manual for the module must instruct the integrator how to properly label the end product and what
statements must be in the user’s manual.
Label for host product:
“Contains FCC ID: R8KUGWSX931”
“Contains IC: 5125A-UGWSX931”
ARES/ATHENA
Solutions for a Real Time World User Manual
RE-TEK-1890 22 45388 Warm Springs Blvd. Fremont, CA 94539
support@unigen.com TEL: (510) 668.2088 FAX: (510) 661.2788
http://www.unigen.com Toll Free: (800) 826.0808
Copyright Unigen Corporation, 2009
APPENDIX B:
FCC Grant# - R8KUGWSX931
The modular transmitter is approved for use in Digital Electronic Devices and
may operate in conjunction with other mobile and portable transmitters in the
same device; provided, the other mobile and portable transmitters have satisfied
the appropriate RF exposure requirements contained in the FCC rules. The
grantee must also provide Digital Electronic Device integrators, or end users if
marketed directly to end users, with installation and operating instructions for
satisfying RF exposure requirements. The Grantee must inform second
manufacturers/installers that in order for this module to be operated in any
configuration other than that permitted in the preceding sentences; a separate
FCC equipment authorization must be obtained for each device into which this
module is installed.
