ELIGIBILITY REQUIREMENTS FOR REGULATORY MODULE APPROVAL
The Unigen UGWW2US WirelessUSB™ module (the “UGWW2US”) marketed under the name
JUNO-W, is a device that transmits and receives radio signals in accordance with the spectrum
regulations for the 2.4-GHz unlicensed frequency range. Regional regulatory agency approval
may be required to operate UGWW2US throughout the world.
For purposes of ease of integration, time to market, and product surety, Unigen submitted
UGWW2US to relevant agencies and obtained regulatory approvals for specific countries.
UGWW2US was approved under the “Modular Approval (MA) Grant”. This certification
represents a significant cost savings to the OEM.
The radio certification portion of this grant is transferable to Digital Electronic Device
manufacturers given adherence to specific implementation criteria noted herein. Any
modification of the UGWW2US will void the manufacturer’s warranty. Any alteration or
deviation from the documented installation and/or use of the UGWW2US will void the MA
Grant as it applies to the end-product.
In the event the Digital Electronic Device manufacturer alters the herein described and
approved installation of the UGWW2US, the end-product may require a complete battery of
regulatory agency certification test Digital Electronic Device manufacturer may be required to
submit to a complete battery of tests, depending on the requirements noted in the region they
wish to sell their product.
The MA Grant provides that Digital Electronic Device manufacturers who incorporate
UGWW2US
as tested and approved
, and can be relieved from having to perform the Radio
Regulatory certification portion of the respective agency certification.
The MA Grant is valid only in countries that recognize the MA Grant certification process.
Countries currently accepting the MA Grant include; the USA, Canada, and many European
countries as noted in the General User Guide Requirements Section of this document. Terms
and conditions of regulatory approval for these countries are also described herein. However,
this “grandfathered” radio certification does
not
relieve the Digital Electronic Device
manufacturers from submitting their device for digital emissions certifications.
Electronic device manufacturers may disregard the requirements of this section provided they
accept full responsibility for regulatory type-approval of the electronic device with an
integrated UGWW2US wireless module.
WirelessUSB™ - UGWW2US
Solutions for a Real Time World User Manual
UM-UGWW2US 5 45388 Warm Springs Blvd. Fremont, CA 94539
support@unigen.com TEL: (510) 668.2088 FAX: (510) 661.2788
http://www.unigen.com Toll Free: (800) 826.0808
Copyright Unigen Corporation, 2004
User Guide Information
Electronic device manufacturers using Unigen’s Modular Approval are required to place the
below text in their product user’s guide in accompaniment with other regulatory information.
The text may be disbursed according to language or geographic regions if desired, but the
exact text
shown below must be maintained.
United States of America Requirements
The following text must be copied exactly into the products user’s guide:
“This device complies with part 15 of the FCC rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Caution: Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment.”
General User Guide Requirements
The following text must be copied exactly into the product’s user’s guide:
“This product contains a radio transmitter with WirelessUSB technology
which has been tested and found to be compliant with the applicable
regulations governing a radio transmitter in the 2.400 GHz to 2.4835 GHz
frequency range.”
The following countries associated regulatory agencies recognizing the noted certifications for
this product as authorized for sale and use are:
USA Canada Belgium
Denmark France Finland
Germany Italy Netherlands
Spain Sweden UK
This list will be updated to reflect additional grants obtained or needed in future revisions.
Note:
As of the date of publication, Japan does not recognize the “Modular Approval”
certification. Regulatory certification for Japan (TELEC) must be acquired through typical
approval procedures. These approvals are the sole responsibility of the OEM. Unigen may
recommend, upon request, TELEC certified laboratories capable of facilitating the appropriate
test procedures for the UGWW2US.
WirelessUSB™ - UGWW2US
Solutions for a Real Time World User Manual
UM-UGWW2US 6 45388 Warm Springs Blvd. Fremont, CA 94539
support@unigen.com TEL: (510) 668.2088 FAX: (510) 661.2788
http://www.unigen.com Toll Free: (800) 826.0808
Copyright Unigen Corporation, 2004
Topics Not Covered
Topics that not covered in this manual include:
¾ Standard type approval for any country
¾ Japan’s (TELEC) regulatory approvals
WirelessUSB™ - UGWW2US
Solutions for a Real Time World User Manual
UM-UGWW2US 7 45388 Warm Springs Blvd. Fremont, CA 94539
support@unigen.com TEL: (510) 668.2088 FAX: (510) 661.2788
http://www.unigen.com Toll Free: (800) 826.0808
Copyright Unigen Corporation, 2004
UNITED STATES REGULATORY APPROVAL FCC MODULAR APPROVAL (MA)
The requirements for FCC Modular Approval were released in June 2000 in the FCC’s Public
Notice: FCC Public Notice DA 00-1407, Part 15 Unlicensed Modular Transmitter Approvals.
Design Criteria for Modular Approval
General Conditions
The following conditions must be strictly adhered to for modular approval:
1. No modification to the module including the circuitry is permitted
2. The design criteria including antenna, interconnects and transmission line
3. Testing of the final device configuration for Digital Emissions Compliance
The UGWW2US may not be altered or modified in any way by the OEM or other integrator(s).
Additionally, no component(s) may be added which change the radio frequency (RF)
characteristics. These include unintentional or spurious emissions, immunity, ESD
characteristics, or other items commonly associated with RF devices. This includes all
components; passive and active (such as RF filters, RF amplifiers, RF switches, etc).
Additionally, no RF components may be placed between the RF output of the UGWW2US and
the antenna.
Antennae
The antenna is integrated in the module and has been qualified and approved for use under
the Modular Approval certification. This antenna is designed to be compatible with the RF
impedance and frequency range of the UGWW2US. This antenna may not be modified or
altered in any way from the original design as represented by the manufacturer.
The antenna selected have been specifically tested with the UGWW2US, and they are certified
through the regulatory agencies in the US, Canada, and European Union for authorized use.
Use of an altered antenna in a platform other than the antenna selected by Unigen voids the
MA grant for that platform.
Emissions Compliance Testing
Notwithstanding the Modular Approval for the Radio Device with associated antenna, the end
product configuration must meet digital emissions compliance and must be tested in
accordance with FCC Part 15 requirements confirming radiated emissions are within specified
limits.
Applicable sections include:
WirelessUSB™ - UGWW2US
Solutions for a Real Time World User Manual
UM-UGWW2US 8 45388 Warm Springs Blvd. Fremont, CA 94539
support@unigen.com TEL: (510) 668.2088 FAX: (510) 661.2788
http://www.unigen.com Toll Free: (800) 826.0808
Copyright Unigen Corporation, 2004
• Part 15 Section 15.109 Sub-paragraph A, Class B Radiated Emission Limits
These emissions tests can be conducted by the manufacturer or by contacting an approved
test facility equipped and certified accordingly. The results of these emissions tests are not
required to be submitted to the FCC or Unigen, but should be kept on file by the OEM.
Co-location of Additional Transmitters
Digital Electronic Devices manufacturers using this MA grant should refer to Appendix B (FCC
Grant #) for end-products using two or more co-located RF transmitters. This grant states:
“This modular transmitter is approved for use in Digital Electronic Devices and
may operate in conjunction with other mobile and portable transmitters in the
same device; provided, the other mobile and portable transmitters have
satisfied the appropriate RF exposure requirements contained in the FCC
rules. The grantee must also provide Digital Electronic Device integrators, or
end users if marketed directly to end users, with installation and operating
instructions for satisfying RF exposure requirements. The Grantee must
inform second manufacturers/installers that in order for this module to be
operated in any configuration other than that permitted in the preceding
sentences, a separate FCC equipment authorization must be obtained for
each device into which this module is installed.“
This modular approval is granted provided Digital Electronic Devices manufacturers assume
responsibility for ensuring that other transmitters operating in conjunction with the UGWW2US
comply with RF exposure requirements associated with their use. The use of one or more
additional RF transmitters will require review by the FCC and may require end-product re-
certification, including the UGWW2US to ensure emissions compliance and RF safety. It is the
sole responsibility of the Digital Electronic Device manufacturer to obtain end-product
regulatory compliance for configurations including two or more RF transmitters.
Product Labeling Requirements
FCC product labeling requirements stipulate an FCC label, including specific text, be placed on
the device containing the UGWW2US module. The product label must include the following
text and must be affixed to the exterior of the OEM’s product. The text should be located
beneath the FCC compliance logo.
“Module FCC ID: R8KUGWW2USHN33A”
WirelessUSB™ - UGWW2US
Solutions for a Real Time World User Manual
UM-UGWW2US 9 45388 Warm Springs Blvd. Fremont, CA 94539
support@unigen.com TEL: (510) 668.2088 FAX: (510) 661.2788
http://www.unigen.com Toll Free: (800) 826.0808
Copyright Unigen Corporation, 2004
INDUSTRY CANADIAN REGULATORY APPROVAL
Industry Canada regulatory approval typically conforms to the FCC in terms of emission levels
and other regulatory requirements. It is the position of the Industry Canada agency that the
OEM primarily responsibility for ensuring end product compliance. Unigen as grantee and
supplier of the module maintains responsibility for the Modular Approved design.
Design Criteria for Modular Approval
General Conditions
The following conditions must be strictly adhered to for modular approval:
1. No modification to the module including the circuitry is permitted
2. The design criteria including antenna, interconnects and transmission line
3. Testing of the final device configuration for Digital Emissions Compliance
The UGWW2US may not be altered or modified in any way by the OEM or other integrator(s).
Additionally, no component(s) may be added which change the radio frequency (RF)
characteristics. These include unintentional or spurious emissions, immunity, ESD
characteristics, or other items commonly associated with RF devices. This includes all
components; passive and active (such as RF filters, RF amplifiers, RF switches, etc).
Additionally, no RF components may be placed between the RF output of the UGWW2US and
the antenna(e) except the RF interconnect transmission line.
Antennae
The antenna is integrated in the module and has been qualified and approved for use under
the Modular Approval certification. This antenna is designed to be compatible with the RF
impedance and frequency range of the UGWW2US. This antenna may not be modified or
altered in any way from the original design as represented by the manufacturer.
The antenna selected have been specifically tested with the UGWW2US, and they are certified
through the regulatory agencies in the US, Canada, and European Union for authorized use.
Use of an altered antenna in a platform other than the antenna selected by Unigen voids the
MA grant for that platform.
Emissions Compliance Testing
Notwithstanding the Modular Approval for the Radio Device with associated interconnect and
antennae, the end product configuration must meet digital emissions compliance and must be
tested in accordance with Industry Canada RSS-210 (Low Power License-Exempt Radio
communication Devices) requirements confirming radiated emissions are within specified limits.
Applicable sections include:
WirelessUSB™ - UGWW2US
Solutions for a Real Time World User Manual
UM-UGWW2US 10 45388 Warm Springs Blvd. Fremont, CA 94539
support@unigen.com TEL: (510) 668.2088 FAX: (510) 661.2788
http://www.unigen.com Toll Free: (800) 826.0808
Copyright Unigen Corporation, 2004
• Part 15 Section 15.109 Sub-paragraph A, Class B Radiated Emission Limits
These emissions tests can be conducted by the manufacturer or by contacting an approved
test facility equipped and certified accordingly. The results of these emissions tests are not
required to be submitted to the FCC or Unigen, but should be kept on file by the OEM.
Note:
Industry Canada generally follows the guidelines of the FCC for emissions level requirements.
FCC end-product compliance certification results may be used to satisfy Industry Canada
requirements. Please consult the Industry Canada, RSS 210 specifications to confirm inter-
agency compliance. If comparable FCC testing has not been performed or if the specifications
are not cross compliant, RSS 210 testing will be required.
Product Labeling Requirements
Industry Canada product labeling requirements stipulate specific text be placed on the device
containing the UGWW2US module. The product must include the following text and must be
located on the exterior of the OEM’s product. This same information must be included in the
product user manual.
“This product contains Unigen WirelessUSB module
Canadian Cert No IC: 5125A-UGWW2US”
WirelessUSB™ - UGWW2US
Solutions for a Real Time World User Manual
UM-UGWW2US 11 45388 Warm Springs Blvd. Fremont, CA 94539
support@unigen.com TEL: (510) 668.2088 FAX: (510) 661.2788
http://www.unigen.com Toll Free: (800) 826.0808
Copyright Unigen Corporation, 2004
EUROPEAN UNION REGULATORY APPROVAL
The requirements for EU Regulatory Approval were released in April 2000 in the EU R&TTE
Directive.
This directive supports self directed testing and certification for “harmonized” bands within
OEM facilities or by third party. In the case of WirelessUSB, standards have become
harmonized (although frequencies are not). The R&TTE directive no longer requires a
Technical Construction File however; frequency notification to EU countries is still applicable.
Article 6 of the R&TTE directive states: “The manufacturer or the person responsible for
placing the apparatus on the market provides information for the user on the intended use of
the apparatus, together with the declaration of conformity to the essential requirements.”
Ensuring regulatory compliance of the end product is the sole responsibility of the OEM.
Unigen maintains responsibility for conformance of the UGWW2US, the interconnect, and the
antennae, as the manufacturer.
The R&TTE directive maintains that first level compliance be reviewed by a “Notified Body”
prior to general product marketing. This is not mandatory, but reduces the risk of the product
being challenged for non-compliance. Although not specifically stated in the R&TTE Directive,
corrections of non-compliance issues are the responsibility of the end product manufacturer.
Design Criteria for Modular Approval
General Conditions
The following conditions must be strictly adhered to for modular approval:
1. No modification to the module including the circuitry is permitted
2. The design criteria including antennas, interconnects and transmission line
3. Testing of the final device configuration for Digital Emissions Compliance
The UGWW2US may not be altered or modified in any way by the OEM or other integrator(s).
Additionally, no component(s) may be added which change the radio frequency (RF)
characteristics. These include unintentional or spurious emissions, immunity, ESD
characteristics, or other items commonly associated with RF devices. This includes all
components; passive and active (such as RF filters, RF amplifiers, RF switches, etc).
Additionally, no RF components may be placed between the RF output of the UGWW2US and
the antenna(e) except the RF interconnect transmission line.
Antennae
The antenna is integrated in the module and has been qualified and approved for use under
the Modular Approval certification. This antenna is designed to be compatible with the RF
WirelessUSB™ - UGWW2US
Solutions for a Real Time World User Manual
UM-UGWW2US 12 45388 Warm Springs Blvd. Fremont, CA 94539
support@unigen.com TEL: (510) 668.2088 FAX: (510) 661.2788
http://www.unigen.com Toll Free: (800) 826.0808
Copyright Unigen Corporation, 2004
impedance and frequency range of the UGWW2US. This antenna may not be modified or
altered in any way from the original design as represented by the manufacturer.
The antenna selected have been specifically tested with the UGWW2US, and they are certified
through the regulatory agencies in the US, Canada, and European Union for authorized use.
Use of an altered antenna in a platform other than the antenna selected by Unigen voids the
MA grant for that platform.
Emissions Compliance Testing
The end-product configuration must meet digital emissions compliance and must be tested in
accordance with the European Union standards ETSI 300 328 (European Telecommunications
Standard for 2.4 GHz ISM band Emissions) and ETSI 300 826 (Electromagnetic Compatibility).
Detailed European Union documents may be obtained from the web location:
http://europa.eu.int/comm/enterprise/rtte/infor.htm
These emissions tests can be conducted by the manufacturer or by contacting an approved
test facility equipped and certified accordingly. The results of these emissions tests are not
required to be submitted to the FCC or Unigen, but should be kept on file by the OEM.
Note:
The European Union generally follows the guidelines of the FCC for emissions level
requirements. FCC end-product compliance certification results, if available, may be used to
satisfy EU requirements (Substitution Method). Please consult the ETSI 300 328 specifications
to confirm inter-agency compliance. If comparable FCC testing has not been performed or if
the specifications are not cross compliant, ETSI 300 328 testing will be required. Additionally,
testing to the ETSI 301 489-17 (immunity testing) is strongly recommended. Unigen assumes
no responsibility for compliance of the end-product configuration.
WirelessUSB™ - UGWW2US
Solutions for a Real Time World User Manual
UM-UGWW2US 13 45388 Warm Springs Blvd. Fremont, CA 94539
support@unigen.com TEL: (510) 668.2088 FAX: (510) 661.2788
http://www.unigen.com Toll Free: (800) 826.0808
Copyright Unigen Corporation, 2004
Exterior Labeling Requirements
European Union product labeling requirements stipulate specific text is placed on the device
containing the UGWW2US module. The product must include the following text and must be
located on the exterior of the OEM’s product. This same information may be included in the
product user manual, however is not mandatory. Packaging and user documentation must
indicate the use restrictions of the end-product (i.e. countries disallowing the operating
frequencies of the UGWW2US).
Note:

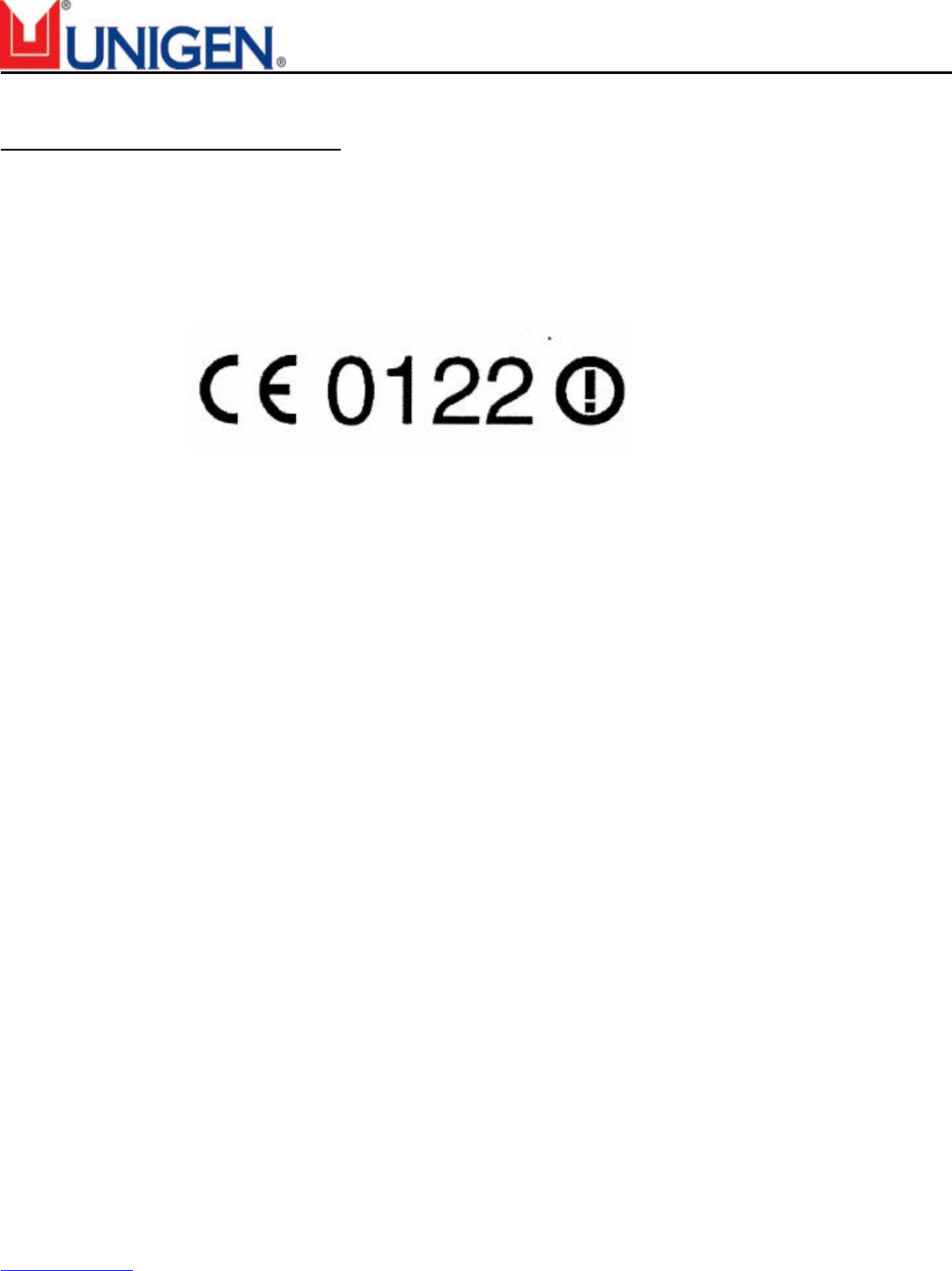

The end-product must be labeled "CE" and an exclamation mark to the right of the CE mark
should have; '!' with a circle around it. The exclamation mark designates a non-harmonized
frequency band.
WirelessUSB™ - UGWW2US
Solutions for a Real Time World User Manual
UM-UGWW2US 14 45388 Warm Springs Blvd. Fremont, CA 94539
support@unigen.com TEL: (510) 668.2088 FAX: (510) 661.2788
http://www.unigen.com Toll Free: (800) 826.0808
Copyright Unigen Corporation, 2004
UNITED STATES AND INTERNATIONAL TYPE APPROVAL
(STANDARD REGULATORY EQUIPMENT CERTIFICATION)
OEMs may need to obtain standard equipment regulatory agency certification as previously
noted herein, and for end-product deployment in countries where Modular Approval is not
recognized, or for implementations using non-certified antennae or interconnections.
The details of standard equipment regulatory compliance are beyond the scope of this
document. OEMs needing standard equipment regulatory testing or who need council for
determining regional requirement should contact approved certification and test service
providers accordingly.
The following test house(s) have been identified by Unigen to assist in both US and
International approval processes. This list is by no means complete or preferential:
1. M. Flom Associates, Inc.
Filing with certification facilities typically requires the submission of technical information (ie
block diagrams, schematics, etc.) pertinent to the radio portions of the UGWW2US. Unigen
will provide assistance in obtaining such documents when required by the OEM.
CONTACT INFORMATION
Outside of the United States of America:
To locate in-country Unigen distributors of the UGWW2US, please refer to the Unigen Website
www.unigen.com. These distributor(s) represent local contacts for this product.
CORPORATE HEADQUARTERS:
Unigen Corporation
45388 Warm Springs Boulevard
Fremont, CA 94539, USA
Mark Morrissey: 1.510.688.2088 X2087
Fax: 1.510.661.2767
Email: mmorrissey@unigen.com
Web: www.unigen.com
WirelessUSB™ - UGWW2US
Solutions for a Real Time World User Manual
UM-UGWW2US 15 45388 Warm Springs Blvd. Fremont, CA 94539
support@unigen.com TEL: (510) 668.2088 FAX: (510) 661.2788
http://www.unigen.com Toll Free: (800) 826.0808
Copyright Unigen Corporation, 2004
APPENDIX A:
Agency Certifications:
Agency Test Performed Type Limit Result Margin
30-12.75MHz Transmit Mode EN 300 328 PASS Results on File
EU Radiated Spurious
Emissions 30-12.75MHz Transmit Mode EN 300 328 PASS Results on File
30 25,000 Spurious Emissions FCC Part
15.209/15.247 (c) PASS Results on File
6dB Bandwidth 15.247(a) PASS Results on File
99% Bandwidth IC RSS-210 PASS Results on File
Output Power 15.247(b) PASS Results on File
Power Spectral Density (PSD) 15.247(d) PASS Results on File
Bandedge FCC Part 15.209
/15.247( c) PASS Results on File
FCC
15.247 Radiated Emissions
Out of band 15.247( c) PASS Results on File
Output Power, Power spectral density
at normal conditions EN 300 328-1 PASS Results on File
Frequency Range at normal
conditions EN 300 328-1 PASS Results on File
Output Power over extreme
conditions EN 300 328-1 PASS Results on File
Frequency Range over extreme
conditions EN 300 328-1 PASS Results on File
Conducted spurious emissions, 30MHz
- 12750MHz, transmit mode EN 300 328-1 PASS Results on File
Radio Performance Test
Conducted spurious emissions, 30MHz
- 12750MHz, receive/stand-by mode EN 300 328-1 PASS Results on File
30 - 12,750 MHz -Spurious Emissions
Transmit Mode EN 300 328 V1.2.1 PASS Results on File
EU
Radiated Spurious
Emissions 30 - 12,750 MHz -Spurious Emissions
Receive Mode EN 300 328 V1.2.1 PASS Results on File
Table 5 – Regulatory Agency Certifications
Regulatory Compliance Statement:
The Unigen JUNO-M UGWW2US WirelessUSB module has been tested against the relevant requirements
of standards: EN 300 328, EN 301 489-17, FCC part 15 and Industry Canada RSS-210. The module is certified by
the regulatory authorities in the USA and Canada and complies with the applicable essential requirements of the
Radio & Telecommunication Terminal Equipment (R&TTE) directive in the EU. The module can thus be
incorporated into products sold worldwide with little or no additional testing of the module itself. The end
product must meet the appropriate technical requirements that apply to that product type but re-certification of
the radio module is not required in the USA and Canada. In the EU, the integrator is responsible for evaluating
their product type per the essential performance requirements of the R&TTE directive (except those associated
with the module), declaring compliance and then notifying the member states prior to marketing the
product (because the module uses a frequency band that is not harmonized in the EU). It is the responsibility of
the module integrator to obtain the necessary approvals to sell products incorporating this module in other
countries outside of North America and the EU. The report of measurements performed on the module in
compliance with the FCC rules and EN standards can be used in these submittals (as the requirements in many
other markets around the world are based in part or in whole on the standards prevalent in North America and
the EU)
WirelessUSB™ - UGWW2US
Solutions for a Real Time World User Manual
UM-UGWW2US 16 45388 Warm Springs Blvd. Fremont, CA 94539
support@unigen.com TEL: (510) 668.2088 FAX: (510) 661.2788
http://www.unigen.com Toll Free: (800) 826.0808
Copyright Unigen Corporation, 2004
EUROPEAN UNION “DECLARATION OF CONFORMITY”
DECLARATION OF CONFORMITY
Unigen Corporation
45388 Warm Springs Blvd.
Fremont, CA 94538
USA
declare under our sole responsibility that the product(s)
WirelessUSB™ - UGWW2US
to which this declaration relate(s) is in conformance with the following standards:
EN 300-328 v1.3.1
EN 301 489-17
EN 55022 limits B
following the provisions of the 73/23/EEC and 89/336/EEC Directives.
___________________ ________________________________________________
Unigen Corporation, Fremont CA - Mark Morrissey, Director of Business Development
MECHANICAL CHARACTERISTICS:
Item Description Specification
1 PCB Material FR-4
2 PCB Layers 2
3 Connector Type Straight thru-hole or header, mirrored through hole or header, bare.
Please see Table 4 for pin assignments
4 PCB Number PDC-9208/JUNO-W
5 Flammability Rating UL94 V-0
6 UGWW2US Dimensions 0.950” x 0.950” x 0.375” (24.13mm x 24.13mm x 9.525mm)
8 User Serviceable Parts None
WirelessUSB™ - UGWW2US
Solutions for a Real Time World User Manual
UM-UGWW2US 17 45388 Warm Springs Blvd. Fremont, CA 94539
support@unigen.com TEL: (510) 668.2088 FAX: (510) 661.2788
http://www.unigen.com Toll Free: (800) 826.0808
Copyright Unigen Corporation, 2004
APPENDIX B:
FCC Grant# - R8KUGWW2USHN33A
The modular transmitter is approved for use in Digital Electronic Devices and
may operate in conjunction with other mobile and portable transmitters in the
same device; provided, the other mobile and portable transmitters have satisfied
the appropriate RF exposure requirements contained in the FCC rules. The
grantee must also provide Digital Electronic Device integrators, or end users if
marketed directly to end users, with installation and operating instructions for
satisfying RF exposure requirements. The Grantee must inform second
manufacturers/installers that in order for this module to be operated in any
configuration other than that permitted in the preceding sentences; a separate
FCC equipment authorization must be obtained for each device into which this
module is installed.
