Unimo Technology BIT-1 Bluetooth Helmet Headset User Manual

Unimo Technology Co., Ltd. Bluetooth Helmet Headset

user manual

페이지 1 / 11
BiT-1, BiT-2
BiT-1 and BiT-2 are functionally equivalent!
Contents
1. GETTING STARTED
Main Feature
Unpacking and Inspection
Battery and Battery charging
Installation
2. GETTING TO KNOW YOUR BiT-1, BiT-2
Buttons and Inputs
3. BASIC FUNCTION
Power on / off
Volume up / down
Voice calling
Redial
Audio-Power-Off
4. MOBILE PHONE CONNECTION
Mobile pairing
Answer an Incoming call
Put on hold call
Reject an Incoming call
Hang up call
Auto-Answer call
Transfer Audio sound
5. SECOND MOBILE-PHONE CONNECTION
Second Mobile-phone pairing
Put the current call on hold, Answer an incoming call
Hang up the current call, Answer an incoming call
Put the current call on hold, Reject an incoming call
Hang up the call
6. MUSIC
Enter Music Mode
Exit Music Mode
Music Play / Stop
페이지 2 / 11
Fast Forward/ Rewind
7. RESET
Factory Reset (To initialize all the settings)
Cold Reset (To restart the stopped unit)
DFU Reset (To update the newest firmware)
8. CERTIFICATION
9. SUPPORT
Precaution
Limited Warranty
Technical Data
Home page / contact info
1. GETTING STARTED
Thank you for choosing our ChatterBox BiT-1, BiT-2, Motorcycle Bluetooth Communication System.
(1) Main Feature (BiT-1, BiT-2 are Functionally Equivalent)
1. Bluetooth V 4.1
2. Advanced Noise Control
3. Usable during Charging
4. Dual Pairing with Smartphone/Bluetooth Device
5. Water Resistance
6. Voice Command
(2) Unpacking and Inspection
BiT-1 contents
페이지 3 / 11
Main Unit with a pre-installed battery
USB charging Cable and AC Adaptor
Headset with Microphones for Open and Full face helmets. Velcro
Speaker Disks, Foam Mic-covers, Microphone Velcro
Helmet Mounting Velcro-type-sticker
Manual and ChatterBox logo sticker
BiT-2 contents
Main Unit with a pre-installed battery
USB charging Cable and AC Adaptor
Headset with Microphones for Open and Full face helmets. Velcro
Speaker Disks, Foam Mic-covers, Microphone Velcro
Helmet Mounting bracket with Cradle, Screws and Allen Wrench
Manual and ChatterBox logo sticker
(3) Battery Charging
Connect the supplied USB cable into a PC or wall Charger.
(4) Battery
This product has an irreplaceable rechargeable battery inside. Therefore, when using the product, make
sure to adhere to the following:
Never separate the battery from the product as this may damage the product
The battery performance may be reduced over time with usage
In recharging the battery, make sure to use an approved charger provided by the manufacture. Use
of a non-approved charger may cause fire, explosion, leakage, and other hazards may also reduce
the life time or performance of the battery.
Do not use cigarette chargers other than the included cigarette charger to charge the unit.
Store the battery at the temperatures of -20°C ~+50°C / -4°F~+122°F. Higher or lower
temperatures may reduce the capacity and life of the battery or may cause temporary non-
operation.
페이지 4 / 11
Do not use the product in sub-zero temperature, because it may cause serious reduction of the
battery performance.
If you apply heat to the battery or throw it into fire, it may explode.
Do not use the product with a damaged battery. It may explode and/or cause accidents.
Battery life may vary depending on conditions, environmental factors, functions of the product in
use, and devices used with it.
(5) Installation of Headset and Main unit

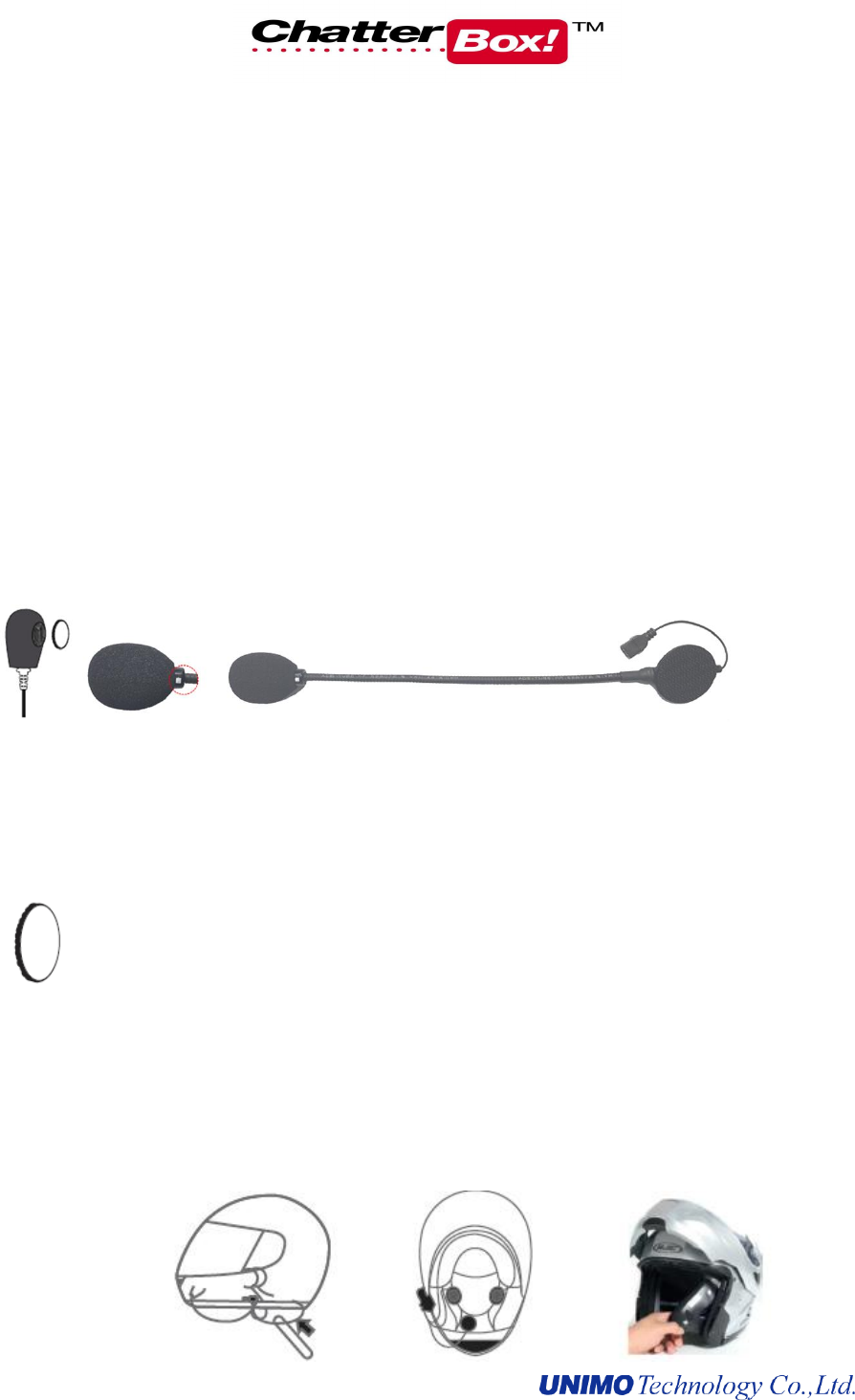

The Headset comes with both with open and full face microphones. Please choose the one that you
intend to use and plug it in the connector on the cradle. Please keep the microphone that you are not
using in a safe place for future use. All microphones come with sponge cover. For full face helmet, attach
soft Velcro disk to the helmet chin bar and hard Velcro disk to the microphones.
The Headset speakers should already have Velcro on the back casing. Simply apply the soft Velcro disks
on the liner of your helmet. Mound them in the indentation of the helmet padding where your ears
would line up. Please keep in mind that you need to mount the speakers in a location that is directly
next to your ears.
Attach the right speaker (with the longer wire) to the corresponding Velcro disk that you applied on the
helmet liner. Attach the left speaker (with the shorter wire) to the other Velcro disk. For helmets with
speaker pockets, simply insert the speakers in each corresponding pocket. If your helmet has washable
lining that pops out, you can tuck the wires behind that.
페이지 5 / 11
BiT-1 Installation by using Glued Mounting plate
① Clean the surface of the helmet where BiT-1 need to be placed by using a clean towel
② Peel off a protective wrap-cover of the Velcro tape
③ Stick the Velcro on the helmet tightly.
④ Stick the BiT-1 unit on top of the attached Velcro
BiT-2 Installation by using cradle
① Unscrew the cradle and let the cradle snuggle up to the bottom left side of the helmet.
② Fasten the mounting bracket by using the bolts supplied.
③ Make sure that the back side of the Unit is aligned with the grooves on the mounting bracket.
④ Slide the BiT-2 unit down on the mounting bracket until it latches firmly into the place.
Insert the Male end of the Headset into the Female Headset jack on the bottom of the cradle.
2. GETTING TO KNOW YOUR BiT-1, BiT-2
(1) Buttons and Inputs

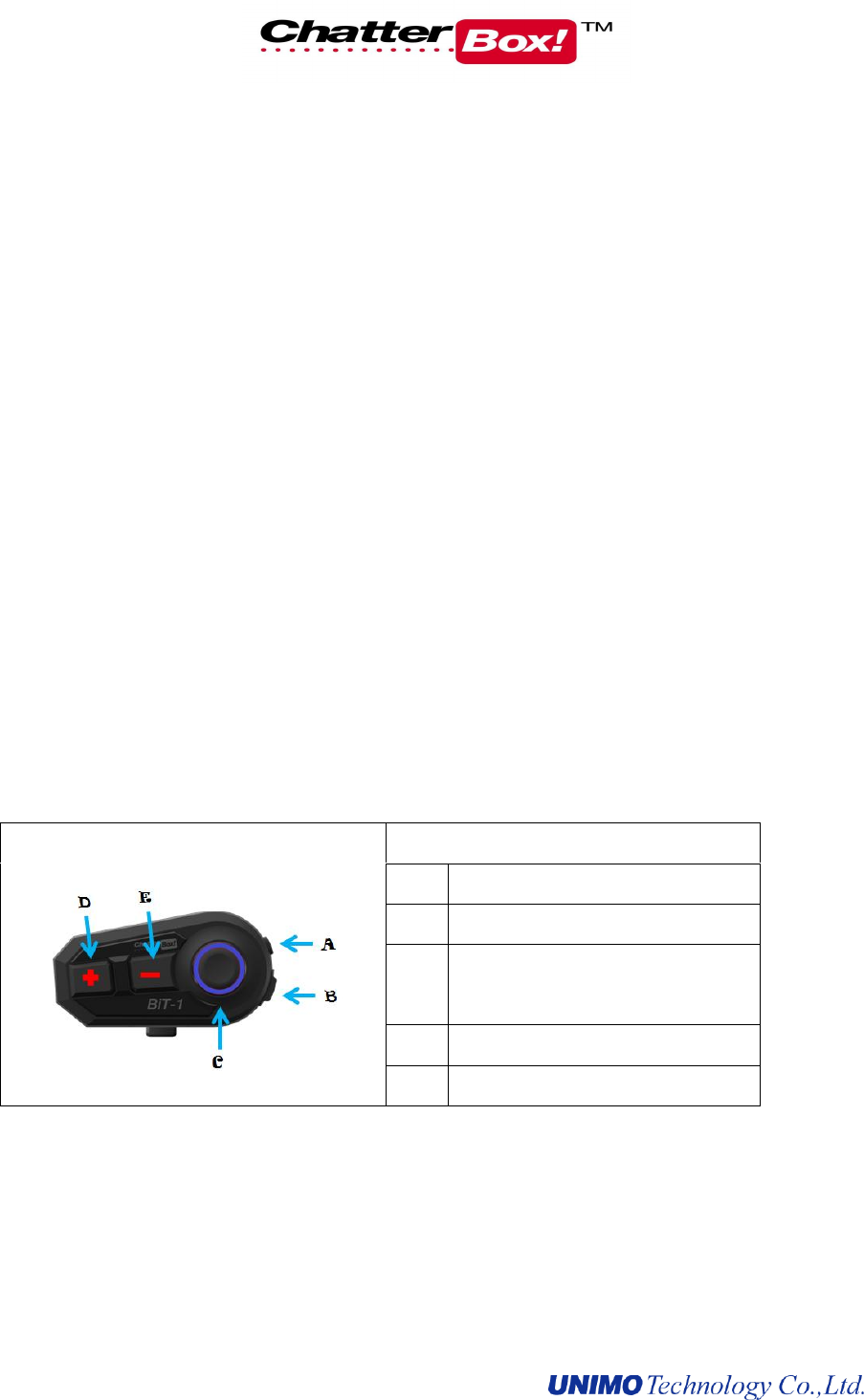

BUTTONS & INPUTS
A
B
C
D
E
3. BASIC FUNCTION
Power On : Long press POWER button(A) for 3 seconds
Power OFF: Long press POWER button(A)for 6 seconds
Volume up : Short press PLUS button(D)
Volume down : Short press MINUS button (E)
페이지 6 / 11
Voice calling : Long press PLUS button(D) for 1.5 seconds
Last number dial : Long press MINUS button(E) for 1.5 seconds
Automatic power-off : As no-operation is running for 90 minutes, the unit automatically turned off to
prevent self-discharge
4. MOBILE PHONE CONNECTION
Mobile Pairing :
① On power off Mode :
② Press and hold POWER button (A) for 8 seconds until the LED turns and flashes in Red and Blue.
③ Turn on the Bluetooth function in the mobile and search and select the name of BiT (ChatterBox BiT1/2
v55)
④ Certain mobile-phones may require a password <password : 0000>
⑤ After completion, slow Blue-LED flashes twice regularly.
Answer : Short press MAIN FUNCTION(C) button
Put on hold : Short press MAIN FUNCTION(C) button
Reject : Long press MAIN FUNCTION button(C) for 2.5 seconds
Hang up : Long press MAIN FUNCTION button (C) for 2.5 seconds
Automatic Answer Call : Incoming calls remained idle for 10 seconds will be answered automatically
Transfer Audio sound from Device to Mobile, and Vice Versa : On the power-on mode, press and hold
PLUS (D) and MINUS(E) buttons simultaneously
5. SECOND MOBILE PHONE CONNECTION
Second-Mobile phone Pairing
① After pairing of the first mobile, turn off the BiT 1/2 unit and the Bluetooth function of the first mobile-
phone.
② Press and hold POWER button (A) for 8 seconds until the LED turns and flashes in Red and Blue.
③ Turn on the Bluetooth function of the second mobile-phone and search and select the name of BiT-1/2
(ChatterBox BiT1/2 v55)
④ After completion, slow Blue LED flashes twice regularly.
페이지 7 / 11
Put the current call on hold, Answer an incoming call : Short press M.F button (C)
Hang up the current call, Answer an Incoming call : Double press M.F button (C)
Put the current call on hold, Reject an Incoming call : Long press M.F button (C) for 1 second
Hang up the call : Long press M.F button (C) for 2.5 seconds
6. MUSIC
Enter Music Mode : Short press M.F button(C)
Exit Music Mode : Double press M.F button(C)
Music Play : Short press M.F button(C)
Music Stop : Short press M.F button(C)
Fast forward : Double press PLUS button(D)
Rewind : Double press MINUS button(E)
7. RESET
FACTORY RESET (To initialize all the settings)
On power ON Mode : Long press MAIN FUNCTION button(C) + MINUS button (E) for 8 seconds

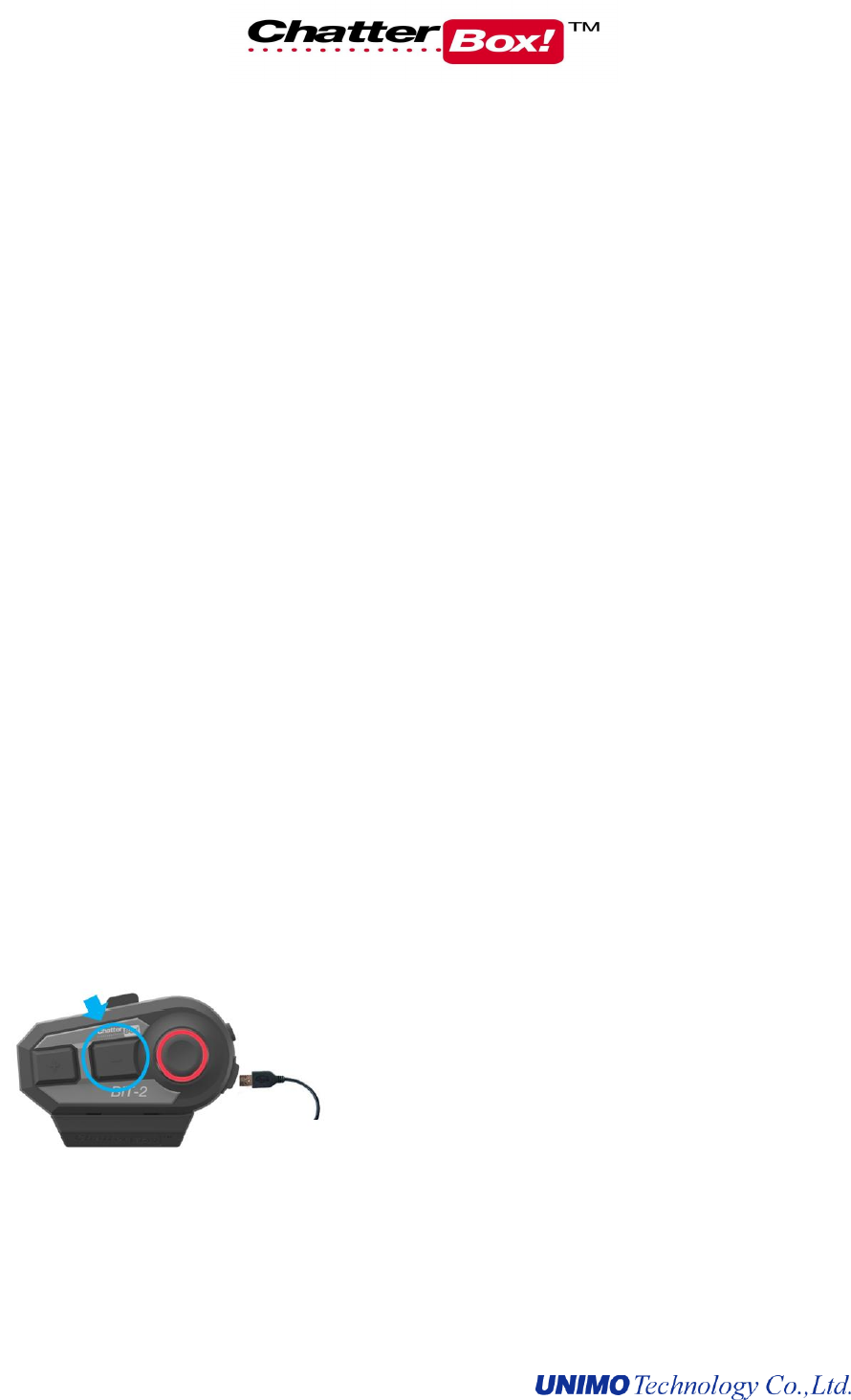

COLD RESET (To restart the stopped unit)
On power ON Mode : press MINUS button (E) and then, insert USB charging cable
8. OBTAINED CERTIFICATIONS
FCC, CE, KC Certifications
Your ChatterBox BiT products comply with FCC, CE, and KC’s rules and regulations.
NOTE: Changes or modifications not expressly approved by the party responsible for compliance could
페이지 8 / 11
void the user's authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
9. SUPPORT
(1) Precaution
Keep the product away from dust, water, fire and any source of ignitions
Store the product at the temperature of -20°C ~+50°C / -4°F~+122°F. Too high and low
temperature may damage or shorten the battery life.
Do not disassemble the unit. It may cause a serious functional disorder.
Poor handling, physical impact, electrical shock, dropping or rough handling may cause a
functional failure and result in a serious damage to the product.
Do not apply any chemicals on the surface of the product on any account
Keep Children or Animals away from the product
Do not put the device in a microwave or in any similar electronic-machine. It may explode.
Do not try to operate the product while operating a vehicle. This behavior may lead to a
very dangerous accident.
If the unit seems to be damaged or malfunction, stop using immediately and contact the
nearest local service center to repair
Prolonged exposure to a loud noise may damage your eardrum and worsen hearing loss.
Failure to comply with the above precautions will lead to product damage and/or
malfunction
Please read the instructions before use
Designs and Features are subject to change for improvement
(2) ChatterBox Limited Warranty
Our limited warranty can cover only 24 months for the main unit and 12 months for the battery and
accessories from the date of original purchase.
The warranty period starts at the time of the original purchase by the first end-user
페이지 9 / 11
In order to get this service, the first end-user must be able to provide the purchase receipt with the
date of purchase
In case of returning via courier, the end-user must be able to return the defective product with its
original package along with the original purchase receipt to the store where the purchase was made
The warranty service will be provided through the store where the first purchase was made. If you
have difficulty contacting the store, please contact us at the provided contact information through
this manual
Reasons for Limited Liabilities
If you do not return the product after claiming, you relinquish all rights to liabilities, loss, claims, and
claims for reimbursement of expense (including attorney’s fees). Therefore, Chatterbox will not be
liable for physical injury, death, or any loss or damage of transportation means, possessions, or assets
which belong to you or third parties that may have occurred while you use the product. Further,
ChatterBox will not be liable for any substantial damage not related to the condition, environment, or
malfunction of the product. All risks related with the operation of the product depend entirely on the
user regardless of its use by the initial purchaser of a third party. Use of this product may violate
local or national laws. In addition, be aware once again that correct and safe use of the product is
entirely responsibility.
Limitation of Liability
To the full extent allowed by law Chatterbox excludes for itself and its suppliers any liability, whether
based on contract or tort (Including negligence) for incidental, consequential, indirect, special, or
punitive damages of any kind, or for loss of revenue or profits, loss of business, loss of information
or data or their financial loss arising out of in connection with the sale, installation, maintenance, use,
performance, failure, or interruption of its products, even if ChatterBox or its authorized reseller has
been advised of the possibility of such damages, and limits its liability to repair replacement, or
refund of the purchase price paid at ChatterBox’s option. This disclaimer of liability for damages will
not be affected if any remedy provided herein shall fail of its essential purpose. In any case the total
compensation liabilities of ChatterBox or its sales agents shall not exceed the price paid for the
product by the purchaser.
페이지 10 / 11
Liabilities Disclaimer
In addition to damages which may occur due to the use of the product,
Chatterbox will not be liable for damages of the product which occur due to the following events.
In the event the product is misused or used for purposes other than its intended purposes.
In the event the product is damaged because the user does not follow the content of the product
manual.
In the event the product is damaged because it has been left unattended or has undergone any
other accident.
In the event the product is damaged because the user has used any parts or software which are not
provided by the manufacturer.
In the event the product is damaged because the user has disassembled, repaired, or modified it in
such way as is not explained in the product manual.
In the event the product damaged by a third party.
In the event the product is damaged due to Acts of God (including fire, flood, earthquake, storm,
hurricane or other natural disaster.)
In the event the surface of the product is damaged by use.
Motorcycle Laws in US and Europe
Certain countries, states and localities may prohibit the use of two earpieces or two-piece headsets
while operating a vehicle. Please check and follow all applicable national laws and regulations
regarding the use of electronics, earpieces and headsets before operating your vehicle.
(3) Technical Information
BiT-1, BiT-2
Dimension
69 x37x17mm / 2.7 x 1.5 x 0.7 inch
Weight of Main Unit
BiT-1 (35g/1.3oz) / BiT-2 (48g /1.7oz– cradle included)
BT Version
4.1
Battery Capacity
500mAH
Battery Size
22x40x6 mm
Battery Usage Hours
11 Hours
Battery Standby Hours
264 Hours / 11 days
Battery Charging Hours
2 and half Hours
Battery Type
Lithium Polymer
Battery
Built-In
Operating Temperature
-20°C ~ + 50°C / -4°F ~ +122°F
페이지 11 / 11
Bluetooth Chip
Qualcomm
RF Power
Class 2
Audio Power
250mW x 2
Operating Voltage
3.7V
Current (Talking)
50mA
Current (Standby)
2mA
Antenna Type
Strip line Type
Installation
BiT-1 : Velcro Type BiT-2 : Cradle Type
(4) ChatterBox Home page :
ChatterBox USA : www.chatterboxusa.com
ChatterBox Head office : www.unimo.co.kr

Navigation menu
