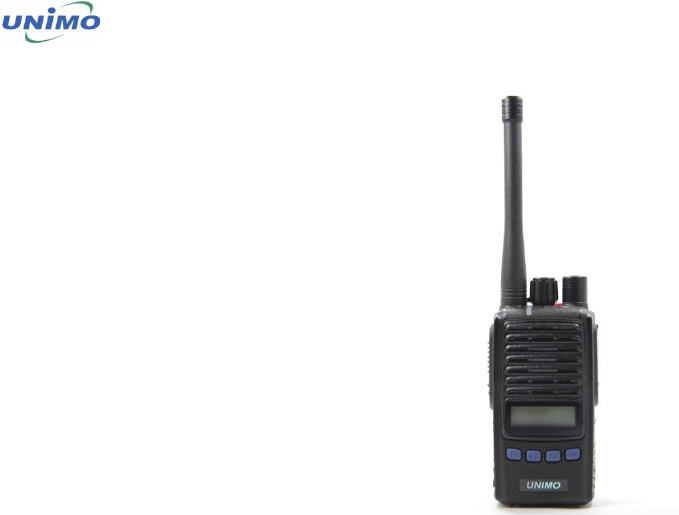

Unimo Technology PT-1500GD TETRA Hand Portable Radio User Manual
Unimo Technology Co., Ltd. TETRA Hand Portable Radio
User Manual
PT-1500GD
TETRA Handportable
USER Guide
www.unimo.co.kr
USER GUIDE
2 / 29
Table of Contents
1 INTRODUCTION ............................................................................................................ 4
2 SAFETY & WARNINGS .................................................................................................. 5
2.1 GENERAL .............................................................................................................5
2.2 ELECTROMAGNETIC COMPATIBILITY ...............................................................6
3 WARNINGS .................................................................................................................... 7
4 FIRST STEP................................................................................................................. 12
4.1 ANTENNA ........................................................................................................... 12
4.2 BATTERY ............................................................................................................ 12
4.2.1 INSERTING THE BATTERY ............................................................. 12
4.3 CHARGING THE BATTERY PACKS ................................................................... 13
4.3.1 WARNINGS ...................................................................................... 13
4.3.2 CHARGER ....................................................................................... 13
4.3.3 PROCEDURE FOR CHARGING THE BATTERY ............................. 14
4.4 START-UP PROCEDURE ................................................................................... 15
5 BASIC USE OF THE TERMINAL .................................................................................. 16
5.1 CONTROLS ........................................................................................................ 17
5.2 SCREEN INDICATOR ......................................................................................... 18
5.3 LIGHT INDICATOR ............................................................................................. 19
5.4 MAIN SCREEN ................................................................................................... 20

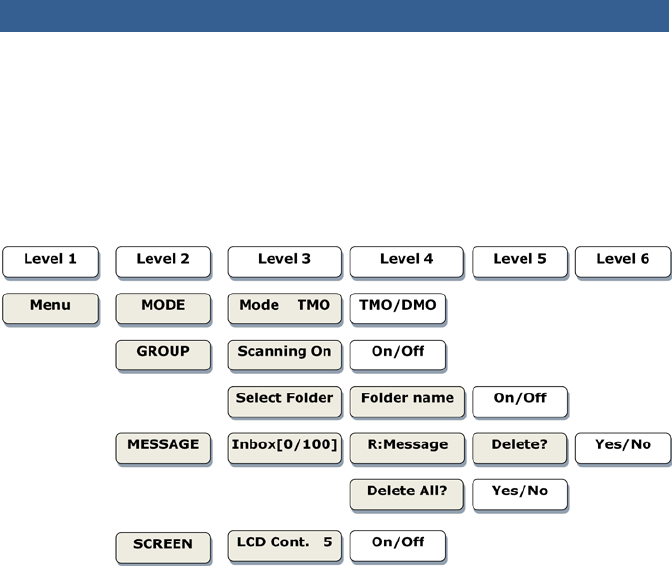

6 MAIN MENU ................................................................................................................. 21
7 BASIC FUNCTIONS ..................................................................................................... 24
USER GUIDE
3 / 29
7.1 GROUP CALLS ................................................................................................... 24
7.2 INDIVIDUAL CALLS ............................................................................................ 25
8 SPECIAL FUNCTIONS ................................................................................................. 25
8.1 EMERGENCY CALL ........................................................................................... 26
8.2 OPERATION MODES: DIRECT MODE ............................................................... 26
8.3 SECURITY .......................................................................................................... 27
8.4 SUPPLEMENTARY SERVICES .......................................................................... 27
8.5 GPS RECEIVER (OPTION) ................................................................................29
USER GUIDE
4 / 29
1 INTRODUCTION
With this manual, you will quickly discover how easy it is to use the main functions of your
handheld terminal.
Before using the handheld terminal, read carefully this manual. In addition to the
instructions for how to use the handheld terminal, you will also find important
information on using it safely. Keep the manual for future reference. For any
additional information, consult your supplier.
Some functions described in this guide may depend on the configuration and options of the
handheld terminal, as well as the firmware version. Please, contact your service provider for
more detailed information about the available features of your handheld terminal.
USER GUIDE
5 / 29
2 SAFETY & WARNINGS
2.1 General
Do not use the terminal without the antenna. To guarantee the safety requirements,
always use antennas validated by UNIMO.
UNIMO has approved a r ange of accessories for the handheld terminal: antennas,
batteries, chargers, audio accessories, etc. These accessories have passed all
types of tests that ensure their suitability and safety for the use for which they are
intended. Use only UNIMO approved accessories.
For your safety, only allow UNIMO qualified staff to repair the terminal or its
accessories. If the installation or repair is not correct, it may be dangerous and may
void the guarantee of the terminal.
The handheld terminal is functional between -20ºC to +55ºC (-4ºF and +131ºF).
Unapproved modifications or changes to this equipment may cause harmful
interference unless the modifications are expressly approved by UNIMO. In this
case, the user could lose the authority to operate with this equipment.
USER GUIDE
6 / 29
2.2 Electromagnetic compatibility
The majority of electronic devices are susceptible to electromagnetic interference if they are
not adequately shielded, designed or configured for electromagnetic compatibility.
To avoid these compatibility conflicts, respect the current regulations of the area you
are in, and turn off the terminal whenever its use is prohibited, when it may cause
interference or be hazardous, for example, at hospitals or health care premises,
where equipment sensitive to external RF radiation may be being used.
Aircraft
Follow all existing restrictions, according to the regulations of the airlines or the
instructions of the crew
Pacemakers
Pacemaker manufacturers recommend keeping a minimum safety distance of 15 cm
between a portable radio terminal and a pacemaker, to avoid possible interferences
with the latter. People with pacemakers should:
When switched on, always keep the terminal more than 15 cm away from the pacemaker.
Not carry the terminal in your breast pocket.
Use the terminal with the ear on t he opposite side to the pacemaker to minimize possible
interference.
Turn off the terminal immediately if, for any reason, you suspect it is causing interference.
USER GUIDE
7 / 29
Hearing aids or other medical devices
Some digital mobile devices may interfere with these appliances. If this interference
occurs, contact your service supplier or the manufacturer of the hearing aid or
medical device.
3 WARNINGS
Do not allow metallic objects contact or short-circuit the battery’s terminals. Avoid
placing it on metallic surfaces or putting it into a pocket, bag or recipient with metallic
elements.
The RF signals may affect the electronic systems of motor vehicles that are not well
installed or protected, for example, electronic injection systems, electronic anti-
locking brake systems (ABS), speed control systems or airbag systems. For further
information, verify these aspects of your vehicle, or equipment that has been added, with the
corresponding manufacturers.
Do not place the terminal in the area above the airbag or in the area where it would
inflate. Airbags inflate with great force and the terminal may be thrown, causing
serious injury to the occupants of the vehicle.
Potentially explosive environments
Disconnect the terminal when it is in an area where explosions may occur and obey
all signs and instructions.
The areas where explosions may occur are usually, but not always, marked. These areas
USER GUIDE
8 / 29
include fuel loading areas, such as ship decks, petrol stations, premises for storage and
transport of motor fuel or chemical products, vehicles that use liquid gas petroleum and areas
where the air contains chemical particles or elements, as grain, powder or metallic particles.
Sparks in these areas may cause explosions or fire, with the subsequent risk of injury or even
death.
Check the laws and r egulations about the use of mobile telephones and
radiotelephones in the area where you are driving and always respect them. While
driving, pay full attention, and always keep your hands free for operating the vehicle.
As measure of caution, whenever possible, park off the road before making or answering a
call.
Acoustic shock
The terminal has a hi gh power speaker for calls. Do not keep the terminal near to
your ear for calls, otherwise it may damage your ear.
Outdoor use
UNIMO guarantees that the equipment features an IP67 degree of protection when it
is completely sealed and has all the protective gaskets on the different connectors,
as it is first supplied by UNIMO. To comply with this degree of protection it is also necessary
that the battery is inserted in the equipment.
Use under severe conditions
Under aggressive environments (heavy rain, excess of humidity, chemical
substances, dusty environments,…) or if any of the terminal gaskets is taken off or
lost, additional protections are needed. In this case it is recommended to protect the terminal
USER GUIDE
9 / 29
with covers. To make this protection level is also necessary that the terminal will put your
battery and antenna.
Programming
The equipment must always be programmed using a programmer release
compatible with its firmware.
USER GUIDE
RF Exposure Compliance and Control Guidelines and Operating Instructions
To control your exposure and ensure compliance with the occupational/controlled
environment exposure limits always adhere to the following procedures.
Guidelines:
• Do not remove the RF Exposure Label from the device.
• User awareness instructions should accompany device when transferred to other
users.
• Do not use this device if the operational requirements described herein are not
met.
Operating Instructions:
• Transmit no more than the rated duty factor of 50% of the time. To transmit
(talk), push the Push-To-Talk (PTT) button. To receive calls, release the PTT button.
Transmitting 50 % of the time, or less, is important because this radio generates measurable
RF energy exposure only when transmitting (in terms of measuring for standards
compliance).
• Hold the radio in a vertical position in front of face with the microphone (and the
other parts of the radio, including the antenna) at least one inch (2.5 cm) away from the
nose.
Keeping the radio at the proper distance is important because RF exposures decrease
with distance from the antenna. Antenna should be kept away from eyes.
10 / 29
USER GUIDE
• When worn on the body, always place the radio in a Hytera’s approved clip, holder,
holster, case, or body harness for this product. Using approved body-worn accessories is
important because the use of Hytera’s or other manufacturer’s non-approved accessories
may result in exposure levels, which exceed the FCC’s occupational/controlled
environment RF exposure limits.
• Use only manufacturer’s name approved supplied or replacement antennas, batteries,
and accessories. Use of non-manufacturer-name approved antennas, batteries, and
accessories may exceed the FCC RF exposure guidelines.
• Use only manufacturer’s name approved supplied or replacement antennas, batteries,
and accessories. Use of non-manufacturer-name approved antennas, batteries, and
accessories may exceed the FCC RF exposure guidelines.
11 / 29
USER GUIDE
12 / 29
4 FIRST STEP
4.1 Antenna
(1) Turn the antenna clockwise into the antenna connector of the handheld terminal, until it
is suitably secured. Do not force the thread of the connector.
(2) To remove the antenna, turn it counter-clockwise.
4.2 Battery
4.2.1 Inserting the Battery
(1) Insert the battery as shown in the figure. Press and slide the battery fully upper side of
the handheld terminal until the battery release latch clicks into place.
(2) To remove the battery, press down the battery release latch and slide the battery down
side of the handheld terminal.
(3) Antenna model name (P/N) : 02015041-06340
Antenna type : Whip Antenna Frequency Band : 806 - 870 MHz
Max Gain(dBi) : 0 dBi
USER GUIDE
13 / 29
4.3 Charging the Battery Packs
(1) New batteries, or batteries that have been stored for a long time period, should be fully
charged before placing into service.
(2) Low battery voltage will shorten the talk range and will worsen the performance of the
handheld terminal.
4.3.1 Warnings
(1) Only use the battery charger provided by UNIMO.
(2) The battery can be charged separately or while connected to the terminal.
(3) Before starting to use your terminal, make sure the battery is fully charged.
4.3.2 Charger

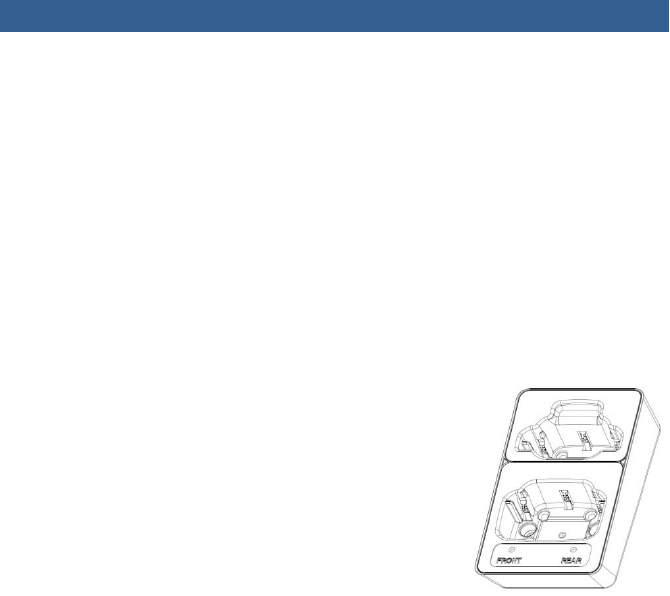

(1) The desktop charger, as seen in figure can
simultaneously charge a detached battery and a terminal.
(2) Charger used with battery packs must be supplied by
UNIMO. The use of any other type of battery packs or
chargers will invalidate the guarantee and can lead to
early breakdown
USER GUIDE
14 / 29
4.3.3 Procedure for charging the battery
(1) Get the AC-DC adaptor to plug its input into mains outlet and its output into charger.
(2) When charging the battery installed in the handheld terminal, insert the set into slot of
the charger after powering off the handheld terminal.
(3) When charging the battery alone, insert it into slot of the charger.
(4) Although the green LED is lighted up, please continue the charging for 30 minutes more
for the complete full charge.

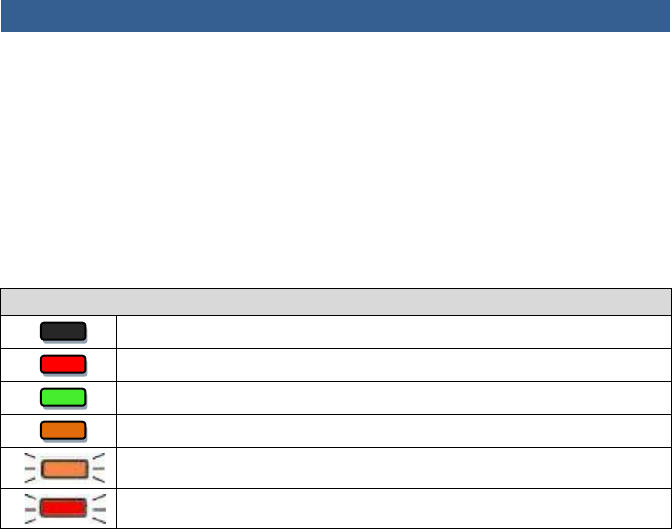

Indicative Light
LED indications on the desktop charger
OFF Standby, No Battery
Red, continuous Detecting battery / Fast charging
Green, continuous Charge completed
Orange, continuous Standby to charging for Rear port
Orange, Blinking Temperature out of range
Red, Blinking Error condition
USER GUIDE
15 / 29
Indications on the handheld terminal:
When the battery requires charging, the battery status icon will blink on the display and
the handheld terminal will generate a sound.
4.4 Start-up procedure
(1) Press and hold for a few seconds the F4 function key to turn ON the handheld terminal.
(2) While the terminal starts up, it will show a welcome message. A beep sound confirms
that the booting process has completed.
(3) There are two operating modes, network mode (TMO) and direct mode (DMO),
depending on how the handheld terminal is configured. In network mode, the terminal
will be operative when it has successfully registered on the system.
(4) When the registration process is finished and the terminal is ready to work on the
network. The signal strength icons will be displayed. And "Group name" will be
appeared on the LCD screen. Also you can also hear a characteristic tone.
(5) If the terminal is configured to start up in direct mode, after startup, the direct mode icon
will be displayed on the main screen.
(6) To turn OFF the handheld terminal, press and hold for a few seconds the F4 function key.
A beep sound confirms that turning off is in process.
USER GUIDE
16 / 29
5 BASIC USE OF THE TERMINAL
USER GUIDE
17 / 29

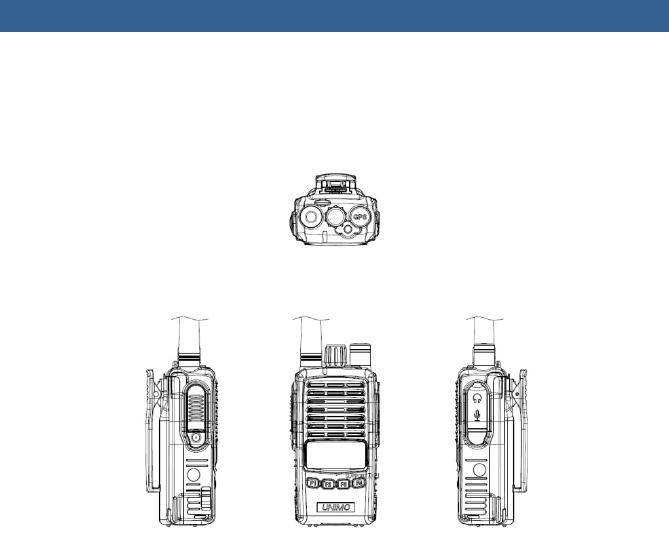

5.1 Controls
No. Description Observations
1 Rotary knob This allows you to set the audio volume to the desired level.
To increase audio sounds, turn the ‘Volume’ knob clockwise.
To decrease the audio sounds, turn the knob counter
clockwise.
2 Emergency
button
Hold it down for a few seconds to make a priority call to the
preset destination.
3 Indicator Light Color LED with various associated functions.
4 GPS antenna GPS antenna (Option)
5 PTT Press to talk button. Press it down to make a Group call.
6 Mode This allows you to turn On and Off the backlight on the LCD
screen.
7 Auxiliary
connector
This connector for programming or special
function(debugging)
8 Speaker Speaker for simplex calls
9 Microphone Microphone for simplex calls
10 Screen Mono display LCD and 14 characters cab be displayed.
11 Function
buttons
F1, F2, F3, F4
These buttons will be used for dedicated function or additional
USER GUIDE
18 / 29
function which can be programmed. Normally, ‘F1’ button acts
as UP button, ‘F2’ button act as DOWN button, ‘F3’ button act
as MENU/Select button and ‘F4’ button act as cancel button.
‘F4’ button also act as the On/Off button. Press the ‘F4’ button
for 2 or 3 seconds to turn the terminal on / off.
12 Audio
accessory
connector
Side connector to connect Speaker/Micro accessory. And it
also can be used for programming with special programming
cable.
5.2 Screen indicator
The screen indicators show information about terminal operation.
Symbol Description
Level of coverage
Direct mode (DMO)
Emergency Call
GPS module state
Flashing: GPS module is synchronizing and still does not have position
information
Constant: GPS active and obtained connection with satellites
Audio accessory is connected.
USER GUIDE
19 / 29
New message in inbox.
Enable alert tones (Key tone, PTT tone, Incoming call tone and etc)
Locked key button without PTT button
Battery status, High / medium / Low level.
When the battery is flat and requires charging immediately, the icon will
be flashed.
5.3 Light indicator
The indicator light provides additional information about terminal operations.
LED state Descriptions
Green / flashing On standby and registered on the system
Red / flashing On standby and out of service
Red / constant Transmission
Green / constant Receiving
Green / fast flashing Standby, call active but nobody transmitting
USER GUIDE
20 / 29
5.4 Main screen
The main screen is the ‘Voice call – Group mode’ screen. The terminal is ready for you to
press PTT and make a c all directly to the selected group which is displayed on the LCD
screen.
As it showed in the following figure, the basic information displayed on the screen consists of
the service status or selected group belongs to the name of group and its status.
Group Name
USER GUIDE
21 / 29
6 MAIN MENU
The terminal has a main menu and sub-menu system accessible using the MEMU button (F3).
Press hold the F3 button then the main menu will be displayed on the LCD screen. You use
the F1, F2 buttons to move next menu items. When you press the F3 button, it starts from sub-
menu.
When you press the F4 button then the menu will be moved to prior stage.
Below you can see a diagram with the menu structure.
USER GUIDE
22 / 29
Note: How to change on level 4
When you press F3 button on level-3 menu then the selected screen is displayed including a
selected menu name. You use the F1, F2 button to change level-4.
USER GUIDE
23 / 29

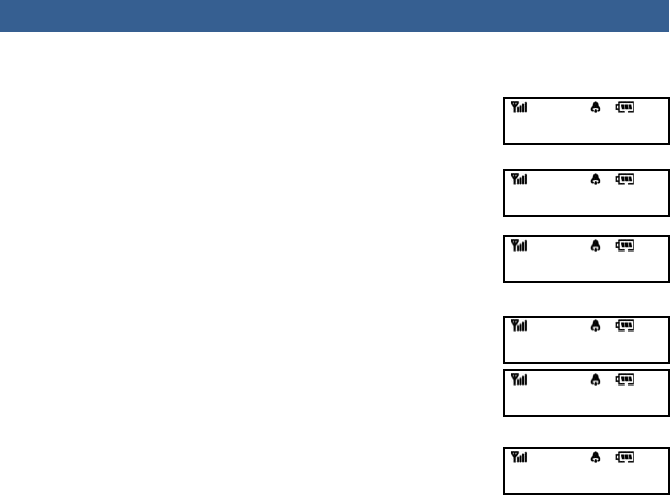

For example, you want to change blackout mode;
(1) Press hold the F3 button, the MODE is displayed. (1st menu
name on level 2)
(2) You use a F1, F2 button to move the “BlackOut Mode”.
(3) Press the F3 button, current setting status is displayed.
(4) Press the F3 button, the following screen is displayed and “Off”
character is flashed. You use the F1, F2 button to change “On”
/ “Off”.
(5) When “On” is flashing, you press the F3 button. Then the
Blackout mode is changed and “BlackOut On” is displayed.
MODE
BlackOut Mode
BlackOut Off
BlackOut?Off
BlackOut ON
BlackOut?On
USER GUIDE
You can configure the groups so that they are on listen (scanned groups), so that you will
receive all the communications of the groups with this status. You can configure this by
24 / 29
7 BASIC FUNCTIONS
7.1 Group calls
Group calls allow you to communicate with a group of users who have the option to participate
in the communication enabled, by attaching the groups into the network.
The groups are organized into folders. Each folder may have a variety of groups, the group
distribution is programmed.
The name of the group you have selected appears on the LCD screen. You can change the
different groups in the lists of group use a F1 or F2 button.
To change the folder, access the Group menu.
Once you have selected the chosen group, press PTT to initiate the call. You will bear an
acoustic warning and t he indicator light will turn red when the network has given permission
for transmission. Whenever you wish to stop speaking, release the button.
The terminal always shows the progress of the call and the identity of the speaker.
To disconnect the call, press the ‘F4’ key, or simply release the PTT and wait for the system to
disconnect the call.
To optimize the sound quality of the terminal, ensure that the terminal is vertical with the
antenna pointing upwards, between 2.5 and 10cm from your mouth, while you are
pressing the PTT.
USER GUIDE
25 / 29
programming or using the menu: Groups/scanning lists.
You do not require any specific action to receive a group call from the selected group or from
those configured in scan. It will be received automatically and, on the screen, you can see the
group receiving the call and the identifier of the user that has made it.
7.2 Individual calls
Individual calls are private calls between 2 us ers. No other user can hear the conversation.
But you cannot make individual call yourself. It is only able to receiving first form the other user.
In addition, they may be hal f-duplex (to speak you must press the PTT) or, of the network
allows it, duplex (the call is similar to a telephone call, and there is no need to press the PTT
to speak).
In case of duplex call, you can’t answer the call without an ear -microphone accessory. This
terminal does not support to make a duplex call.
USER GUIDE
26 / 29
8 SPECIAL FUNCTIONS
8.1 Emergency call
There is a special red button, at the top of the terminal, with which you can make emergency
calls.
The emergency calls may be:
Group call (to the preset group)
The main characteristic of these calls is that they have maximum priority and interrupt any
other ongoing calls.
The emergency icon appears when the call is active, whether you have initiated the call
or you are the recipient.
If the call is not connected, the terminal retries periodically until it connects, or until the action
is cancelled by pressing the emergency button again.
Besides, being able to send the standard emergency status (status code: 0) it can be
configured just before sending the programmed event to the emergency key.
Another possible configuration is to set the PTT priority as pre-emptive. This option (only
available by programming) will allow you to define priority users who will be abl e to interrupt
the talking party within a call.
8.2 Operation modes: Direct mode
This special operation mode, called DMO, allows you to communicate directly with other
USER GUIDE
27 / 29
TETRA terminals without having to use a network.
To access DMO mode, select the Modes/DMO menu or press hold the F1 button quick access
you have configured in the terminal for this function.
In DMO mode you can make group calls and i ndividual calls. The emergency button is also
available, with which you can make a maximum priority call (pre-emptive) as explained in the
previous section.
Each group programmed to work in DMO mode is associated with a frequency, so changing
the group involves changing the frequency and onl y terminals with the same group selected
may communicate with each other in this operation mode.
Group calls
To make a group call in DMO mode, select the group with the arrows and pr ess PTT. The
procedure is similar to a group call in network mode.
8.3 Security
The terminal has encryption services to ensure the confidentiality of your communications.
Consult your services supplier for how to configure your terminal to work in encrypted mode.
8.4 Supplementary services
The following TETRA supplementary services are also available for this terminal:
USER GUIDE
28 / 29
Late Entry:
This service provides continuous call in progress updates to allow latecomers to join a
communications channel. This is not a service but an air interface feature the allows a trunked
radio terminal to behave in a s imilar way to conventional PMR terminals. For example, if a
user turns on their TETRA terminal the control channel will automatically divert the user's
terminal to a talk group call, if a call is already in progress. Similarly, if the user's terminal has
been outside radio coverage, for example in tunnel, the control channel will also divert the
user's terminal to a talk group call assuming a call is already in progress.
Ambience Listening:
This service is defined as the facility whereby a control point may place a TETRA MS (or LS)
into a special type of individual voice call tele-service so that the called MS transmits without
any action from, or indication to, the called user. Ambience listening only is set-up if the called
unit is not already engaged in a call.
In the same way, Ambience Listening supplementary service does not prevent the affected
user form making or receiving other calls.
Dynamic Group Number Assignment(DGNA):
This service allows the creation of unique Groups of users handle different communication
needs and may also be used to group participants in an ongo ing call. This service is
considered by many public safety organisations to be extremely users in setting up a common
talk group for incident communications. For example, selected users from the Police, Fire and
Ambulance could be br ought together to manage a major emergency where close co-
ordination between the three emergency service is required. Similarly, DGNA is also
considered useful for managing incidents by other user organisations such as utilities and
transportation.
USER GUIDE
29 / 29
Fall-back mode (local mode):
PT-1500GD terminal support working in cells in fallback mode (disconnected from the rest of
the system) indicating this situation to the MMI user.
The Terminal avoids registration in fall-back cells unless there are no ot her available cells.
Services available in this mode will depend on system configuration.
Consult your supplier for other available services and special options.
8.5 GPS receiver (Option)
The PT-1500GD may incorporate an internal GPS receiver that enables you to know its exact
location at all times.
Of the terminal has this option, you can access this information from the menu GPS/Loc info.
The current location position is displayed on the screen. When the GPS module gets a valid
position, the text will be shown.
In addition, via programming, you can configure various parameters for sending the GPS
position to a central application which will manage this location information. Consult your
service supplier for details on how to configure your terminal for this service.
