Unimo Technology PZ-100 FM TRANSCEIVER User Manual PZ Service Manual R2A
Unimo Technology Co., Ltd. FM TRANSCEIVER PZ Service Manual R2A
Users Manual
Maintenance Manual

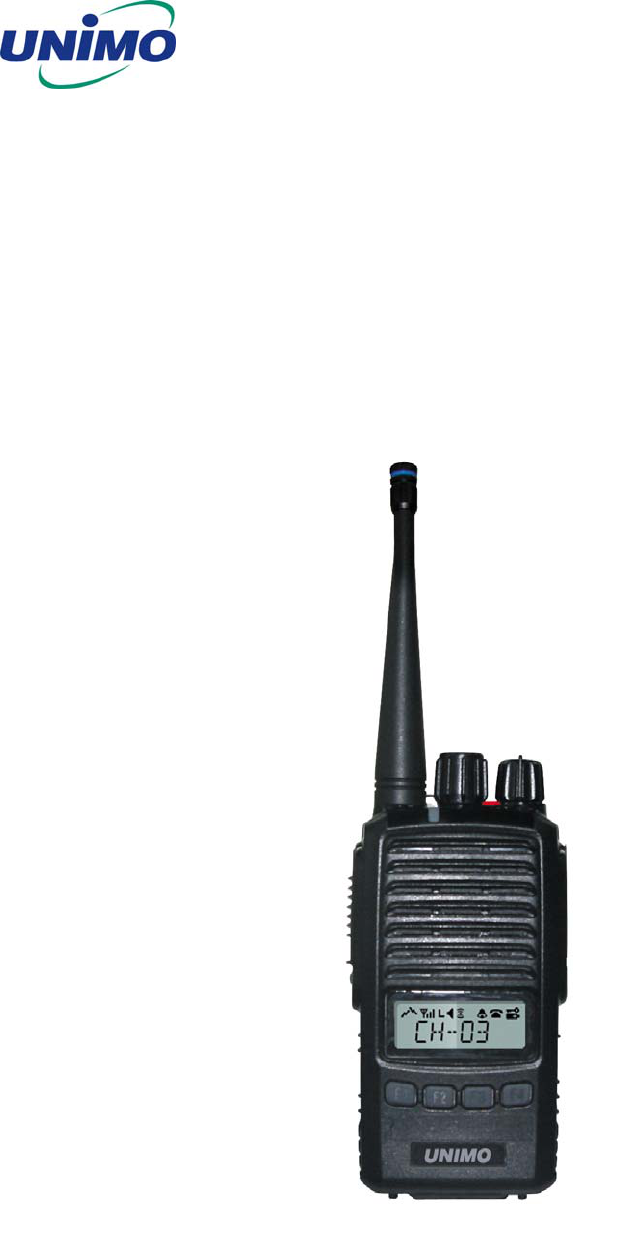

PZ-series Portable Radio
PZ-400, PZ-100
Maintenance Manual
2
TABLE OF CONTENTS
SPECIFICATIONS .................................................................................................................................................4
MODEL: PZ-100.............................................................................................................................................4
MODEL: PZ-400.............................................................................................................................................5
MODEL NUMBER.................................................................................................................................................6
PZ-SERIES RADIO PACKAGE NUMBERS ........................................................................................................6
FEATURES.............................................................................................................................................................7
CONTROLS & INDICATORS...............................................................................................................................8
Controls ...........................................................................................................................................................9
Indicators .......................................................................................................................................................10

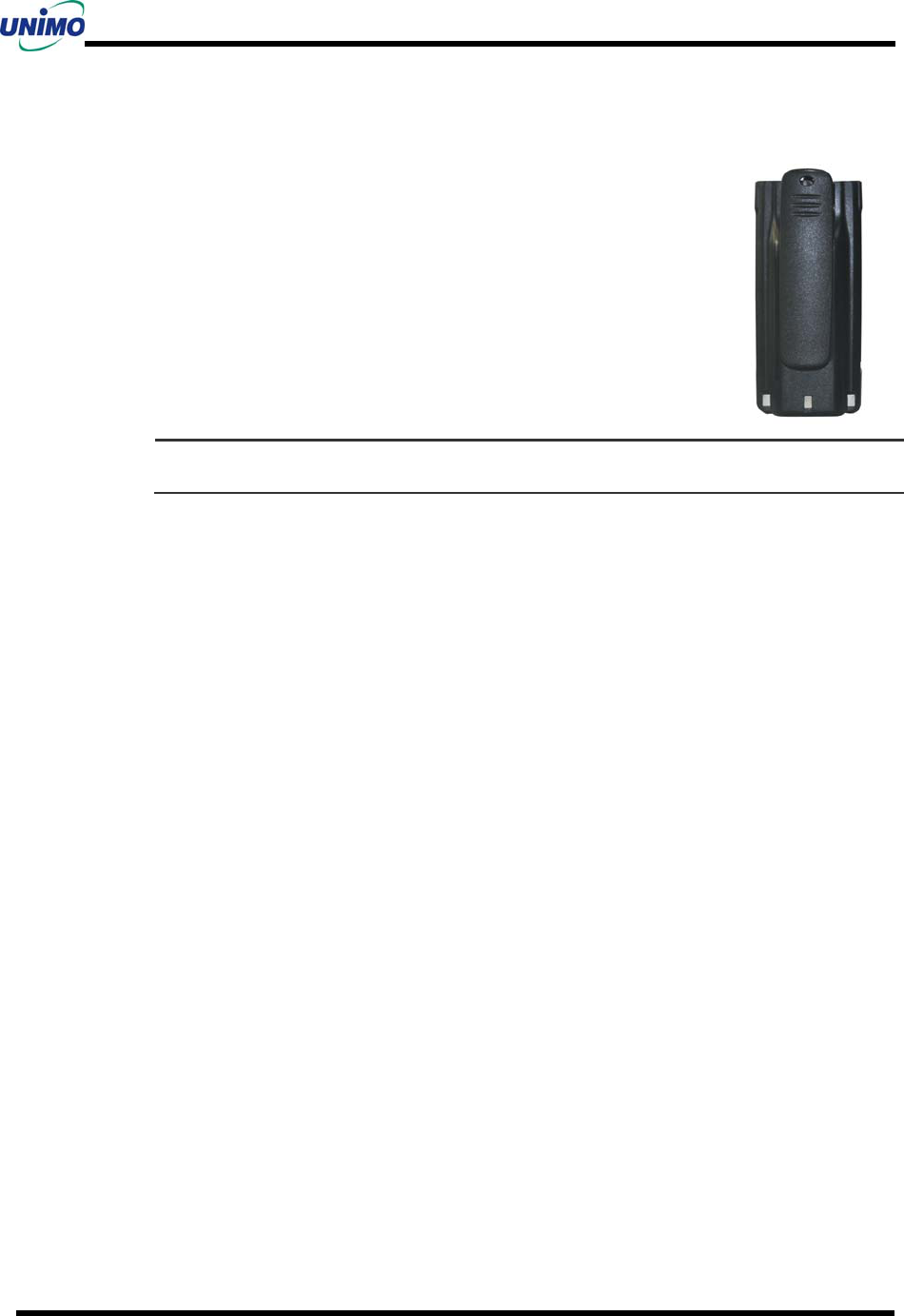

BATTERY PACKS................................................................................................................................................12

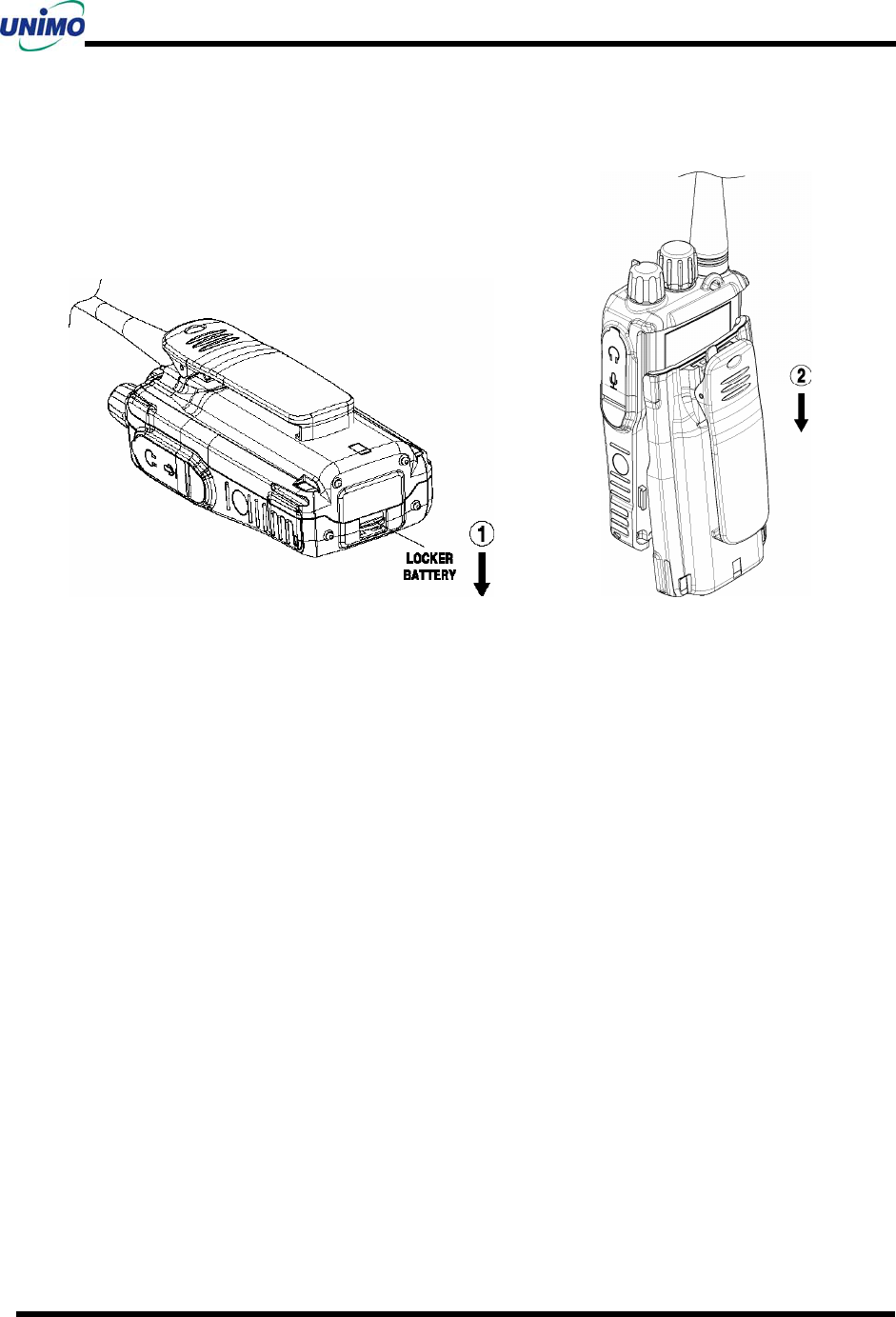

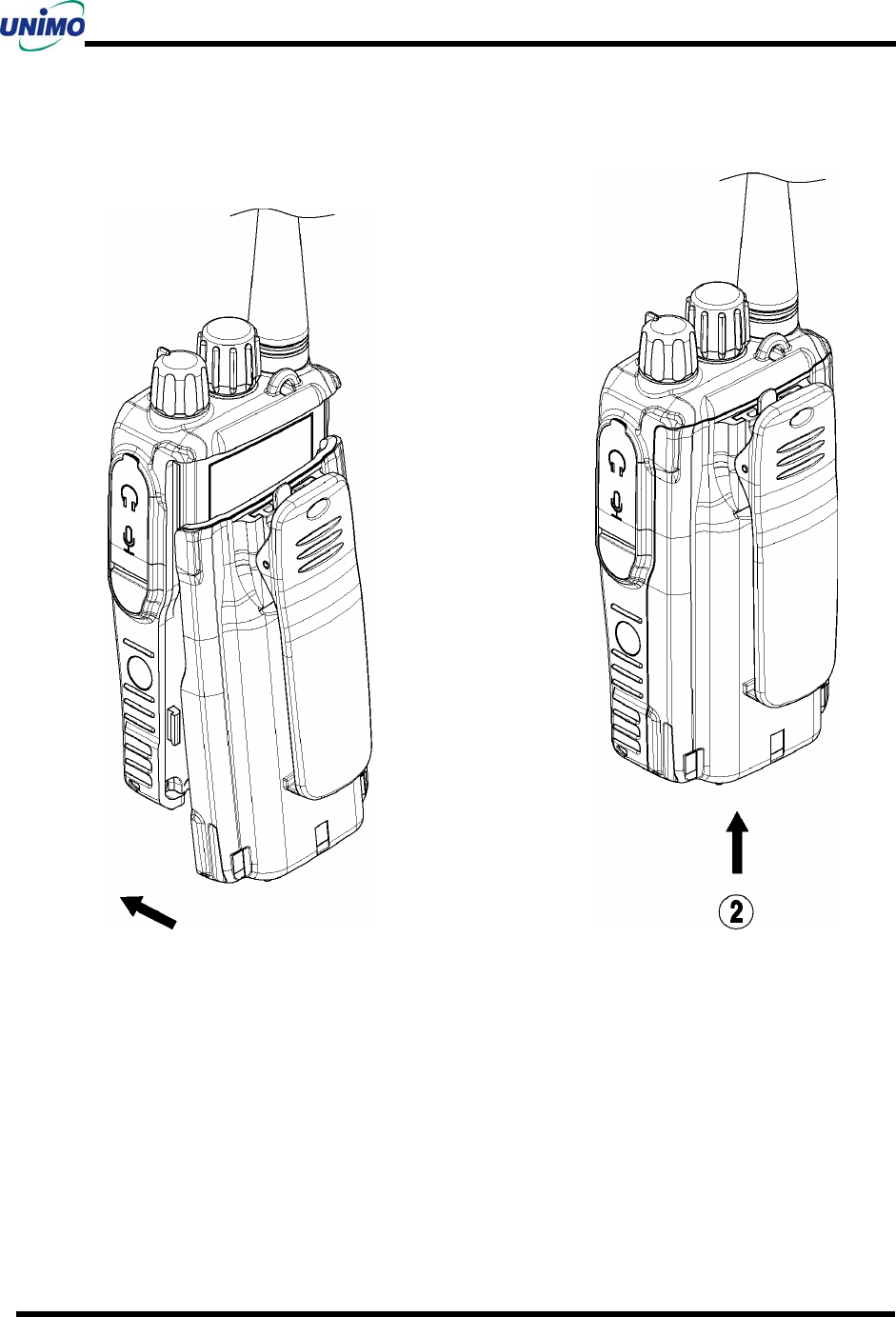

Installing the Battery Pack.............................................................................................................................13
Removing the Bttery Pack.............................................................................................................................14
Charging the Battery Pack.............................................................................................................................15

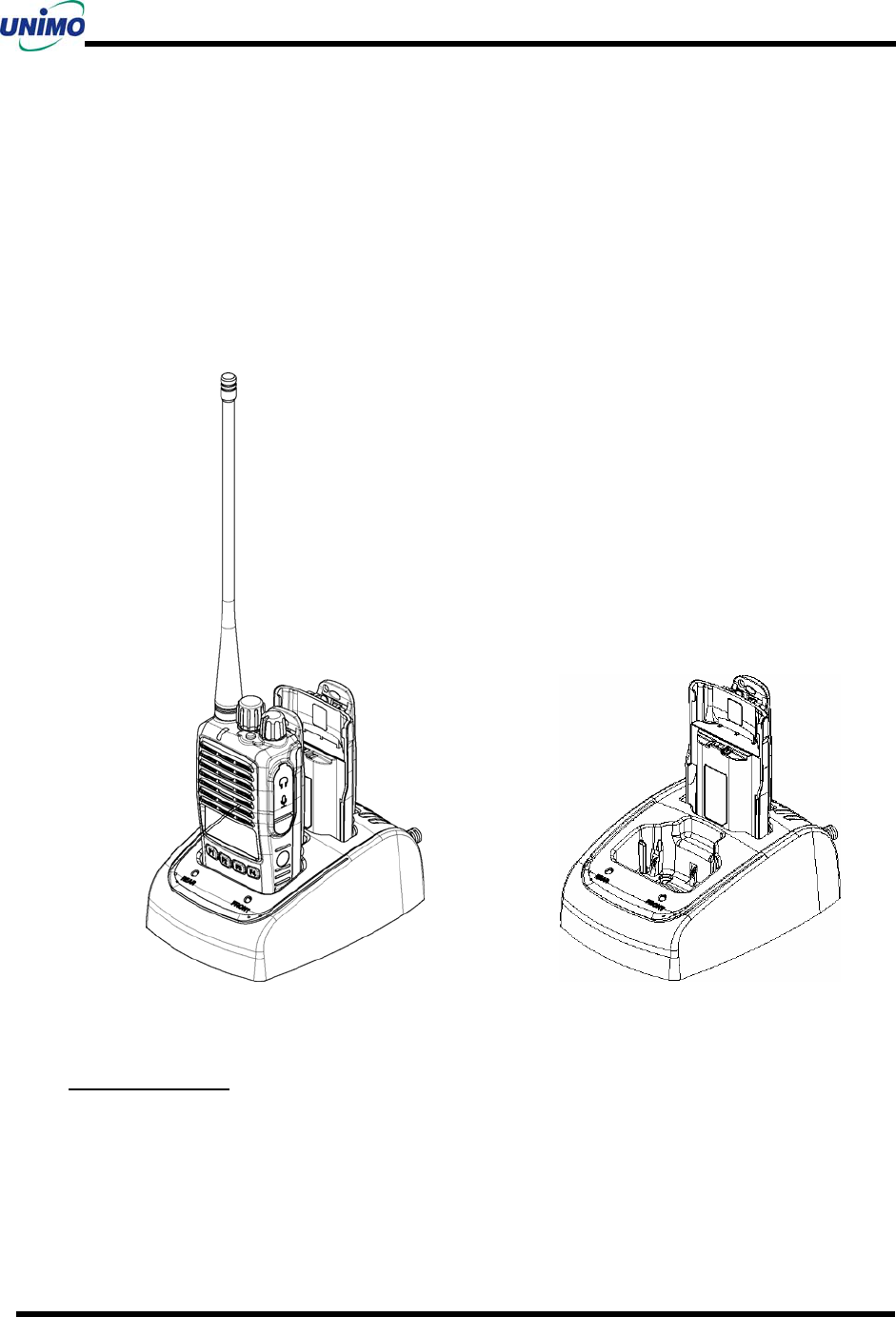

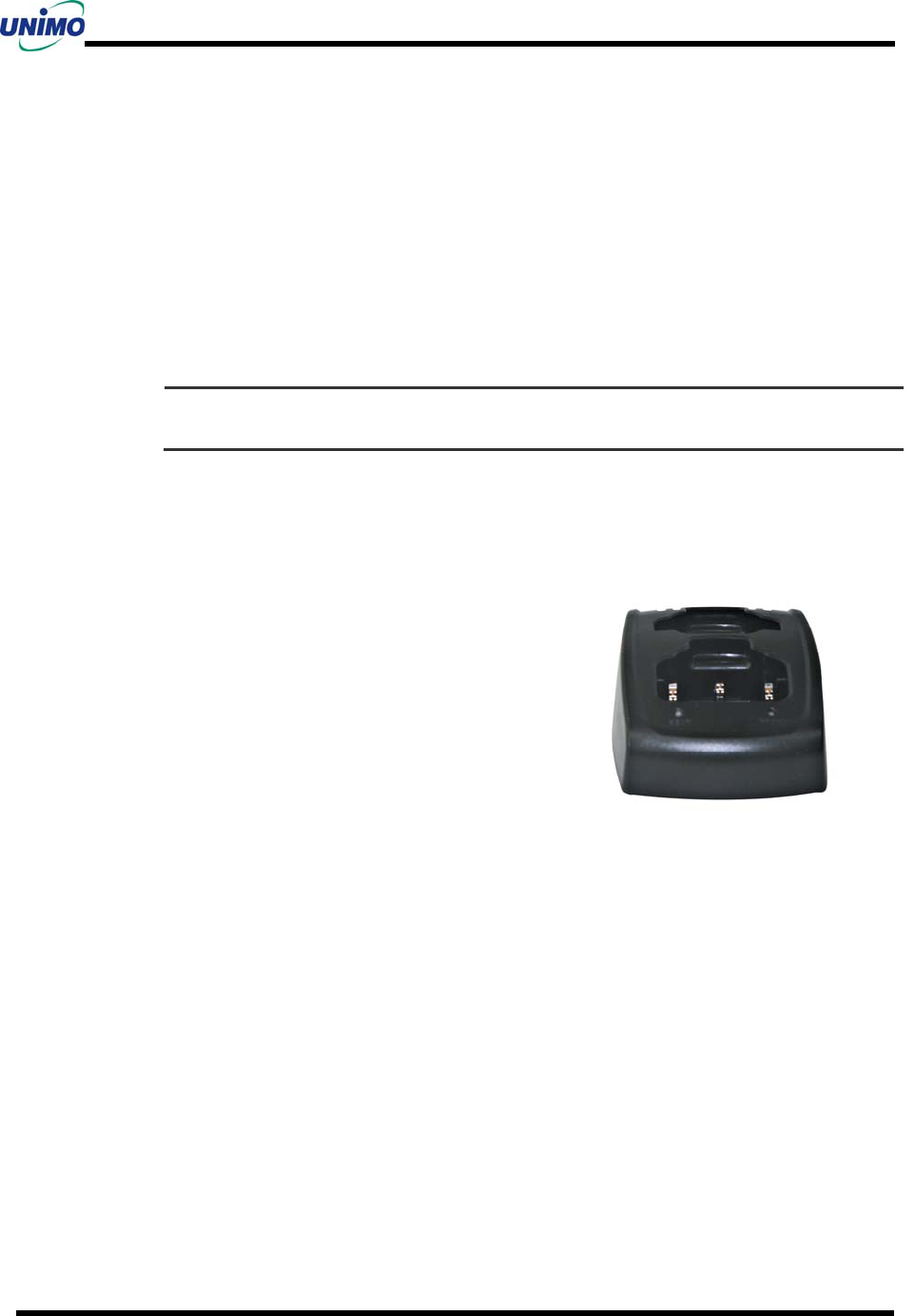

CHARGER............................................................................................................................................................16
RADIO OPERATIONS.........................................................................................................................................17
Installation and Removal of Antenna.............................................................................................................17
Power On/Off.................................................................................................................................................17
Transmission..................................................................................................................................................17
Receiving.......................................................................................................................................................18
Changing Channels........................................................................................................................................18
Adjusting Transmitting Power.......................................................................................................................18
Maintenance Manual
3
SCAN Operating mode..................................................................................................................................18

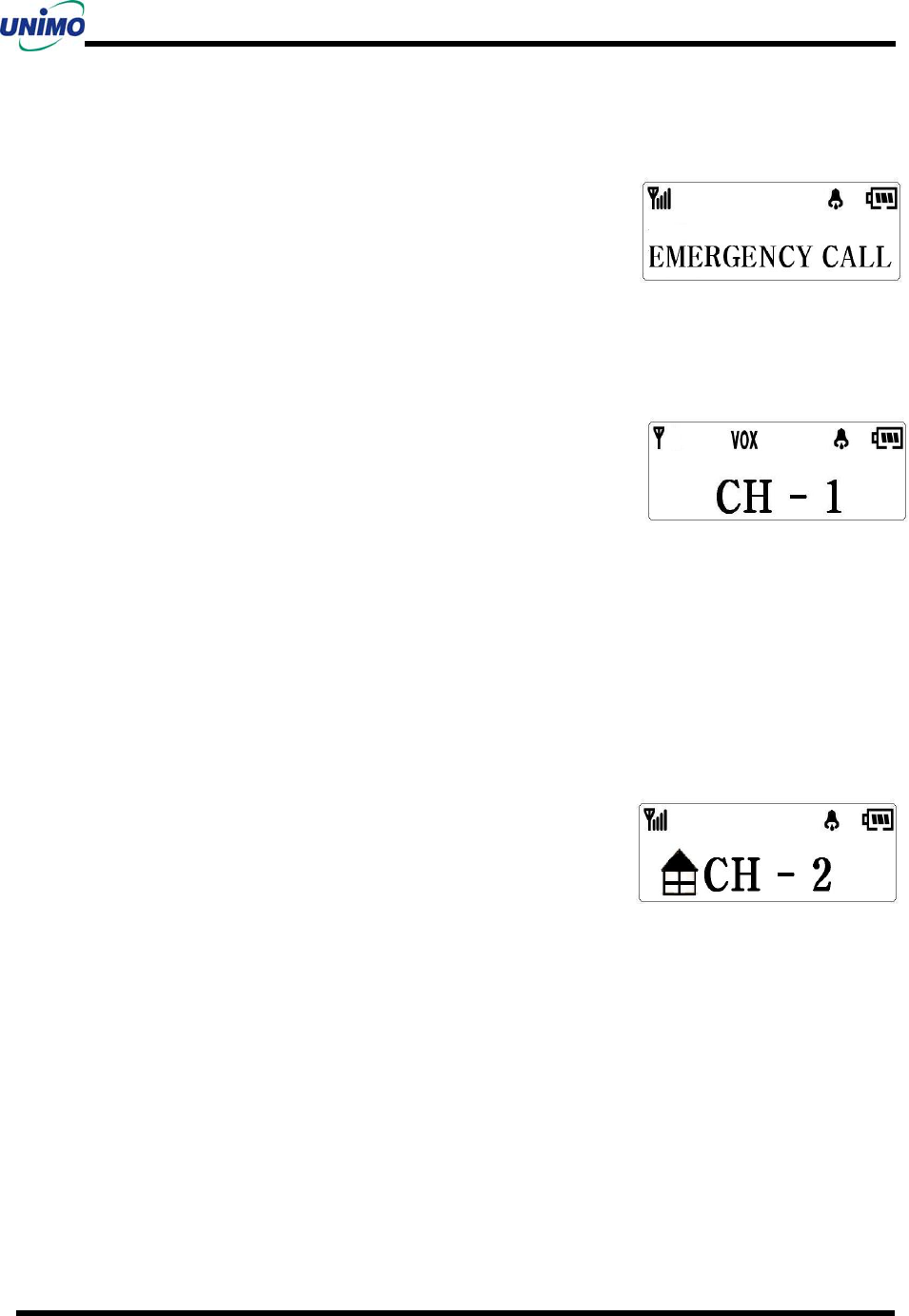

Emergency Call .............................................................................................................................................20
VOX ..............................................................................................................................................................20
Monitor..........................................................................................................................................................20
Dual PTT (Home Channel) mode..................................................................................................................20
Subtone..........................................................................................................................................................21
2 Tone Function .............................................................................................................................................23

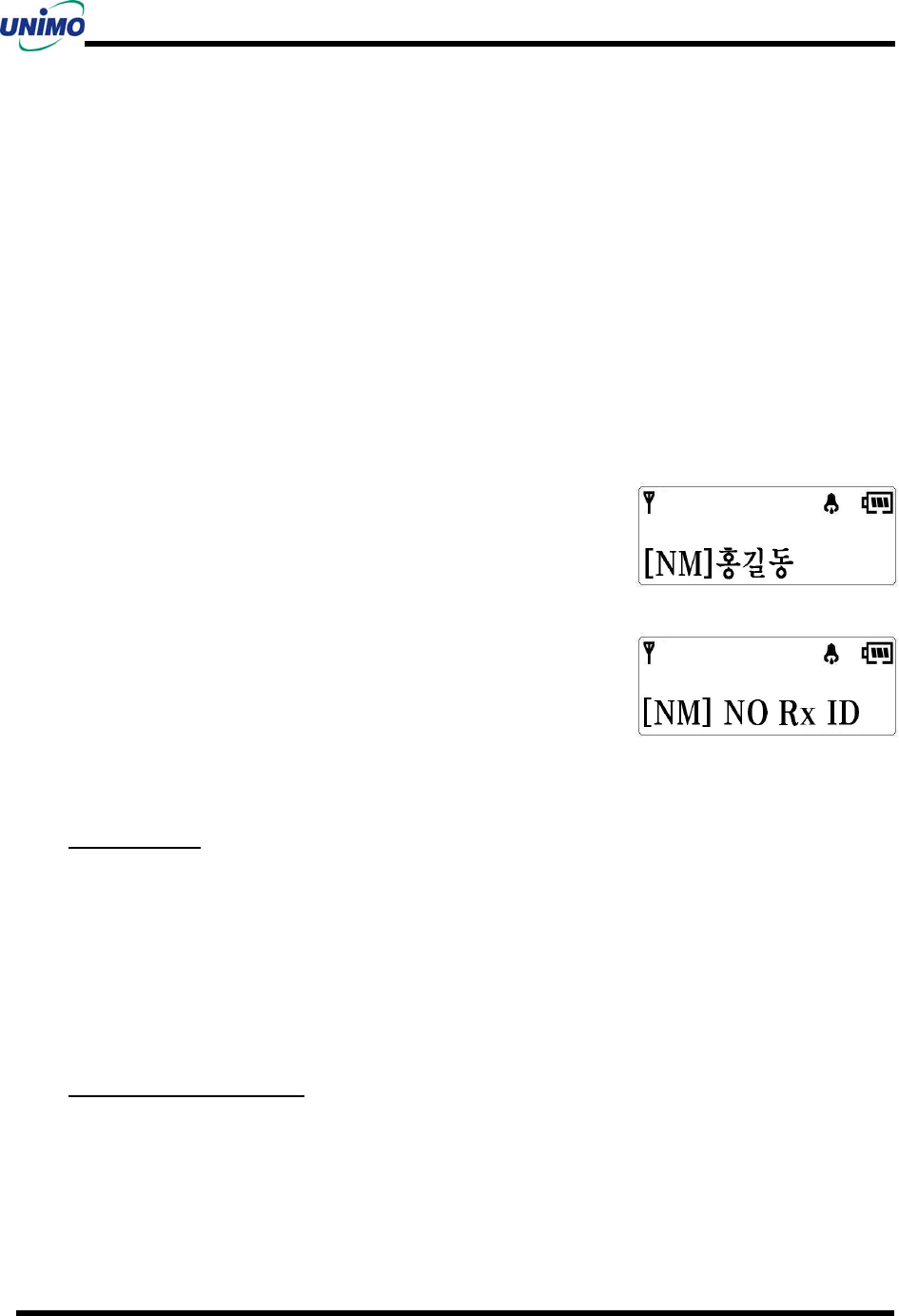

Call Function .................................................................................................................................................23
Compander.....................................................................................................................................................24

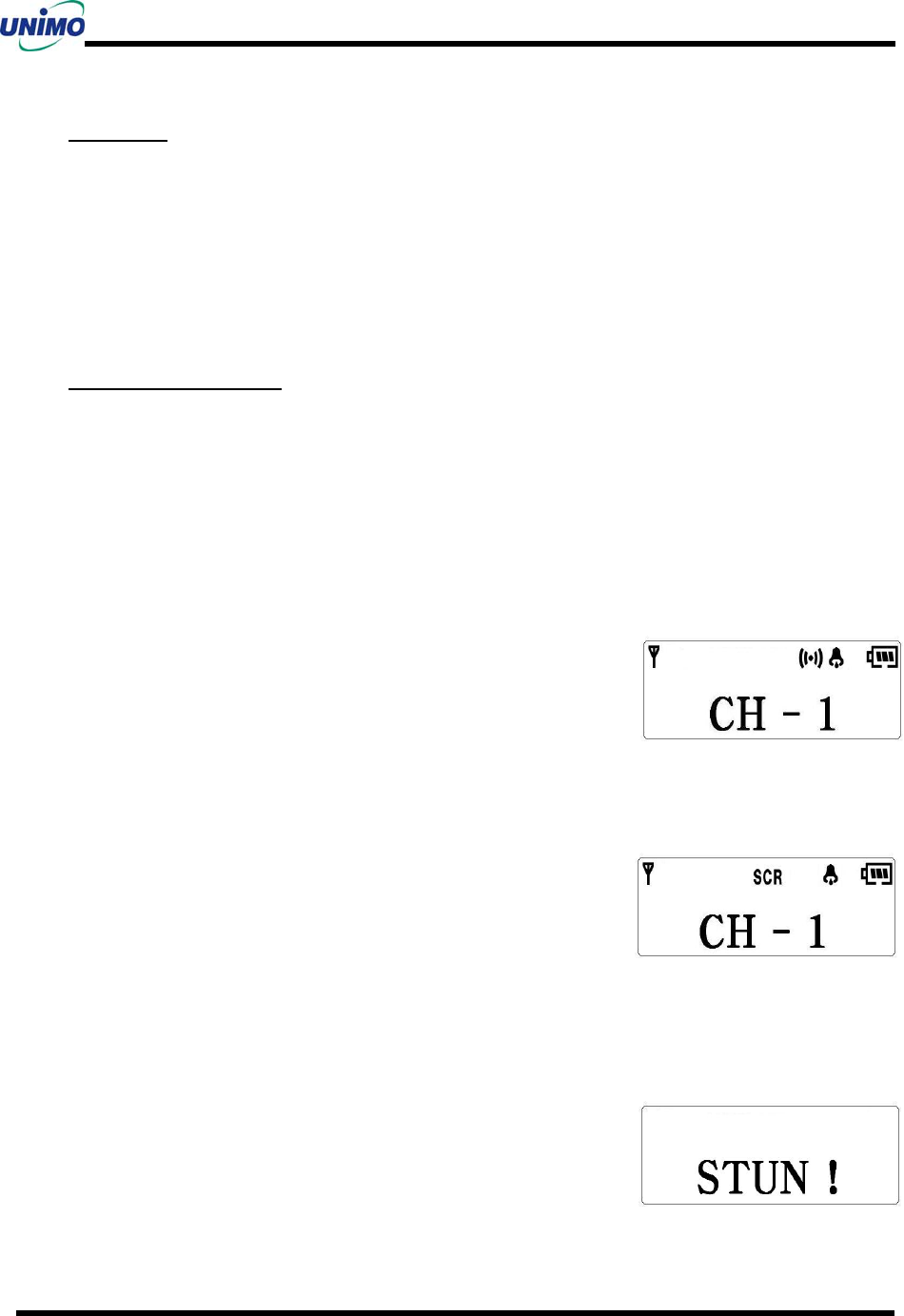

Scramble........................................................................................................................................................24
Stun / Revive Function ..................................................................................................................................24
BCL/BCLO....................................................................................................................................................25
TOT ...............................................................................................................................................................25
Key Lock .......................................................................................................................................................25
Initial..............................................................................................................................................................25
Whisper mode................................................................................................................................................25
PSC................................................................................................................................................................26
Equalizer........................................................................................................................................................26
Password........................................................................................................................................................26
Language .......................................................................................................................................................26
Squelch Level ................................................................................................................................................26

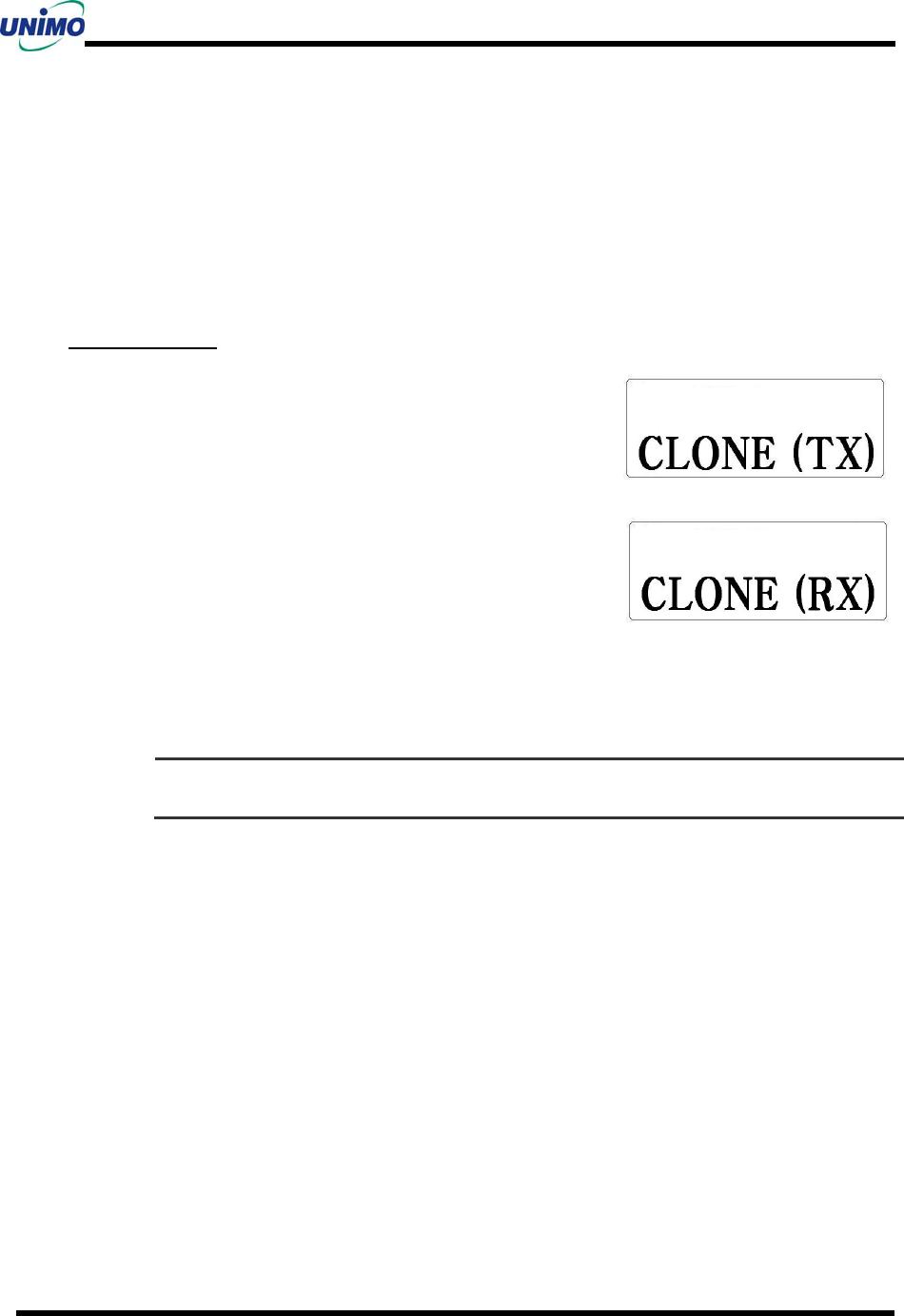

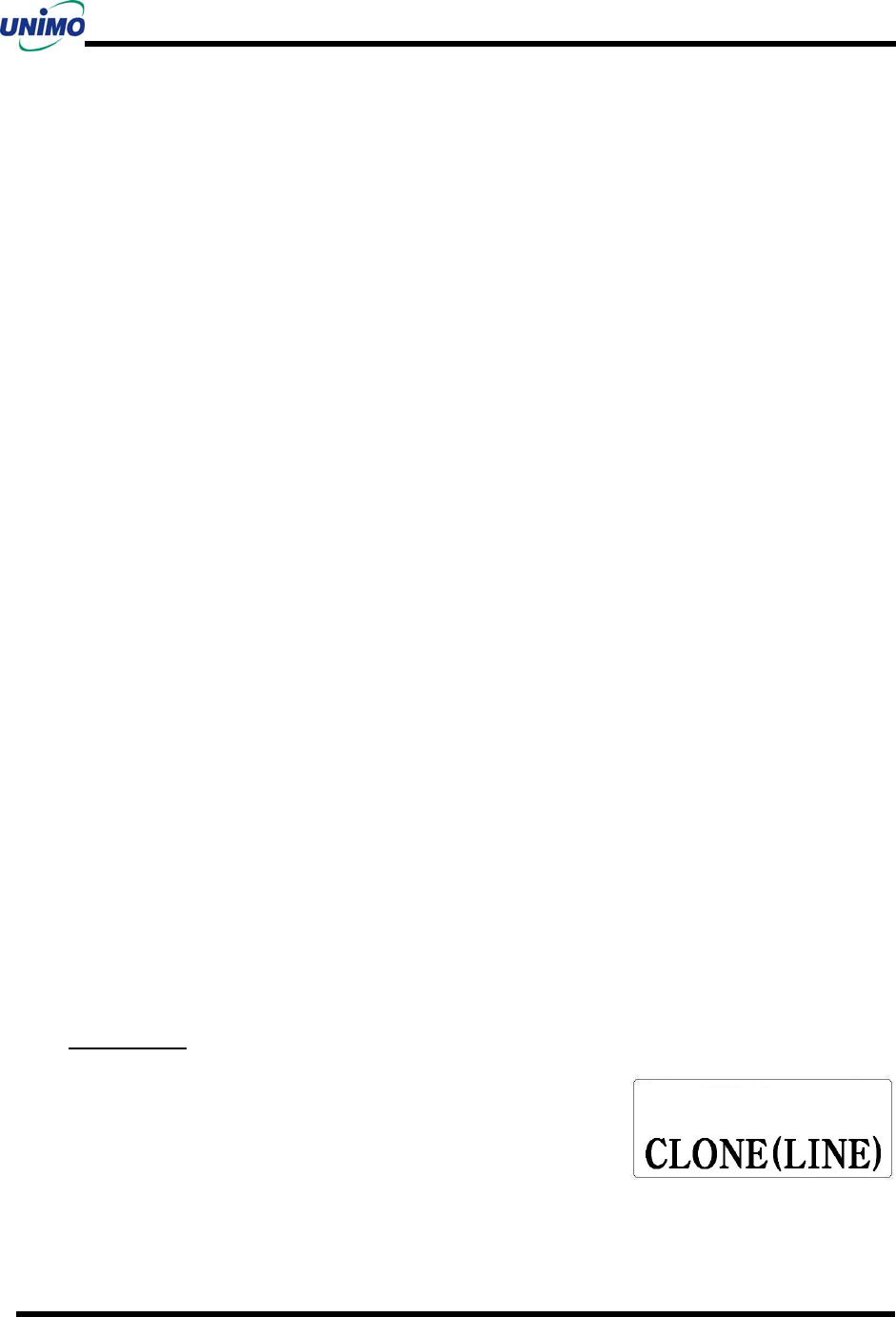

Cloning ..........................................................................................................................................................26
Maintenance Manual
4
SPECIFICATIONS
MODEL: PZ-100
GENERAL
Dimensions(Less Antenna) H x W x D
Weight
Radio (less battery)
with battery (2600mAH)
Programmable Channels
Channel Spacing
Power Source
Current Drain (maximum)
Receive Standby mode
Receive Full Audio
Transmit at 5 Watts
112.2 × 56mm × 31.9 mm
16 Channels
12.5 / 25 kHz
7.5V DC Rechargeable Li-ion 2600 mAH battery pack
60 mA
350 mA
1.6 A
TRANSMITTER
Frequency Range
Frequency Stability
RF Power Output
Spurious and Harmonic
FM Hum and Noise
Audio Distortion
Audio Frequency Response
136 ~ 174 MHz
±2.5 ppm (-30 to +60℃)
5 Watts / 2 Watts
-65dB
40dB (12.5 kHz), 45dB (25 kHz)
5% maximum
+1, -3dB from 6dB per octave pre-emphasis
Characteristic from 300 ~ 3000Hz
RECEIVER
Frequency Range
Sensitivity
Squelch Sensitivity
Selectivity
Spurious and Harmonic Rejection
Inter-modulation
FM Hum and Noise
Audio Output Power
Audio Distortion
Audio Response
136 ~ 174 MHz
.282uV 12 dB SINAD
.25uV 10dB SINAD
60dB (12.5KHz), 65dB(25KHz)
70dB
60dB
40dB
1 Watt across an 16-ohm load
Less than 5% at rated output
+1, -3 dB from 6dB per octave de-emphasis
Characteristic from 300 ~ 3000Hz
Maintenance Manual
5
MODEL: PZ-400
GENERAL
Dimensions(Less Antenna) H x W x D
Weight
Radio (less battery)
with battery (2600mAH)
Programmable Channels
Channel Spacing
Power Source
Current Drain (maximum)
Receive Standby mode
Receive Full Audio
Transmit at 5 Watts
112.2 × 56mm × 31.9 mm
512 Channels
12.5 / 25 kHz
7.5V DC Rechargeable Li-ion 2600 mAH battery pack
60 mA
350 mA
1.6 A
TRANSMITTER
Frequency Range
Frequency Stability
RF Power Output
Spurious and Harmonic
FM Hum and Noise
Audio Distortion
Audio Frequency Response
400 ~ 470 MHz
±2.5 ppm (-30 to +60℃)
4 Watts / 2 Watts
-65dB
40dB (12.5 kHz), 45dB (25 kHz)
5% maximum
+1, -3dB from 6dB per octave pre-emphasis
Characteristic from 300 ~ 3000Hz
RECEIVER
Frequency Range
Sensitivity
Squelch Sensitivity
Selectivity
Spurious and Harmonic Rejection
Inter-modulation
FM Hum and Noise
Audio Output Power
Audio Distortion
Audio Response
400 ~ 470 MHz
.282uV 12 dB SINAD
.25uV 10dB SINAD
60dB (12.5KHz), 65dB(25KHz)
70dB
60dB
40dB
1 Watt across an 16-ohm load
Less than 5% at rated output
+1, -3 dB from 6dB per octave de-emphasis
Characteristic from 300 ~ 3000Hz
Maintenance Manual
6
MODEL NUMBER
To identify the model number of PZ-series Radio is as followings
P Z – 1 0 0
Model Number Description
PZ - 100 Frequency band: 136 – 174 Mhz,
PZ - 400 Frequency band: 400 – 470 Mhz,
PZ-SERIES RADIO PACKAGE NUMBERS
Package Number Description
PZ10XXXE
PZ10GXXE
PZ10XBXE
PZ10GBXE
PZ10XXWE
PZ10GXWE
PZ10XBWE
PZ10GBWE
PZ40XXXE
PZ40GXXE
PZ40XBXE
PZ40GBXE
PZ40XXWE
PZ40GXWE
PZ40XBWE
PZ40GBWE
136 – 174Mhz PZ series radio
136 – 174Mhz PZ series radio with GPS
136 – 174Mhz PZ series radio with Bluetooth
136 – 174Mhz PZ series radio with GPS and Bluetooth
136 – 174Mhz PZ series radio (Waterproof model)
136 – 174Mhz PZ series radio with GPS (Waterproof model)
136 – 174Mhz PZ series radio with Bluetooth (Waterproof model)
136 – 174Mhz PZ series radio with GPS and Bluetooth (Waterproof model)
400 – 470Mhz PZ series radio
400 – 470Mhz PZ series radio with GPS
400 – 470Mhz PZ series radio with Bluetooth
400 – 470Mhz PZ series radio with GPS and Bluetooth
400 – 470Mhz PZ series radio (Waterproof model)
400 – 470Mhz PZ series radio with GPS (Waterproof model)
400 – 470Mhz PZ series radio with Bluetooth (Waterproof model)
400 – 470Mhz PZ series radio with GPS and Bluetooth (Waterproof model)
Identification number of radio
manufactured by UNIMO
Frequency Band
Maintenance Manual
7
FEATURES
PZ-series radio is designed for a rugged, lightweight and it can be provided for powerful sound and for
better performance of conversation distance & sound quality. The new PZ-series radio provides reliable
service in the industrial fields and public places for the safety & convenience of users.
The PZ-series radio is offered with several packages available with respect to the options (GPS function,
Bluetooth function). The radio is programmed using a Personal computer and program cable connected to
the phone jack on the side of the radio.
512 channels are selectable.
Call Guard Squelch of standardized 53 CTCSS / 104 DCS Tones.
Scramble function of frequency Inverter Type
Compander function
Dual Tone Modulation Frequency (DTMF)
Selectable Channel Spacing (12.5kHz / 25KHz)
Normal Scanning and Priority Scanning
Time-Out Timer (TOT)
2-Tone Paging
BCL (Busy Channel Lock) / BCLO (Busy Channel Lock Out)
High/Low Power Switching
10 Step Squelch Control Using RSSI (0~9)
Remote Radio Stun/Revive (Use 5 Tone)
Monitor
VOX
Easy Cloning
USB PC Programming
PC Tuning
GPS function (Option)
Bluetooth function (Option)
Maintenance Manual
8

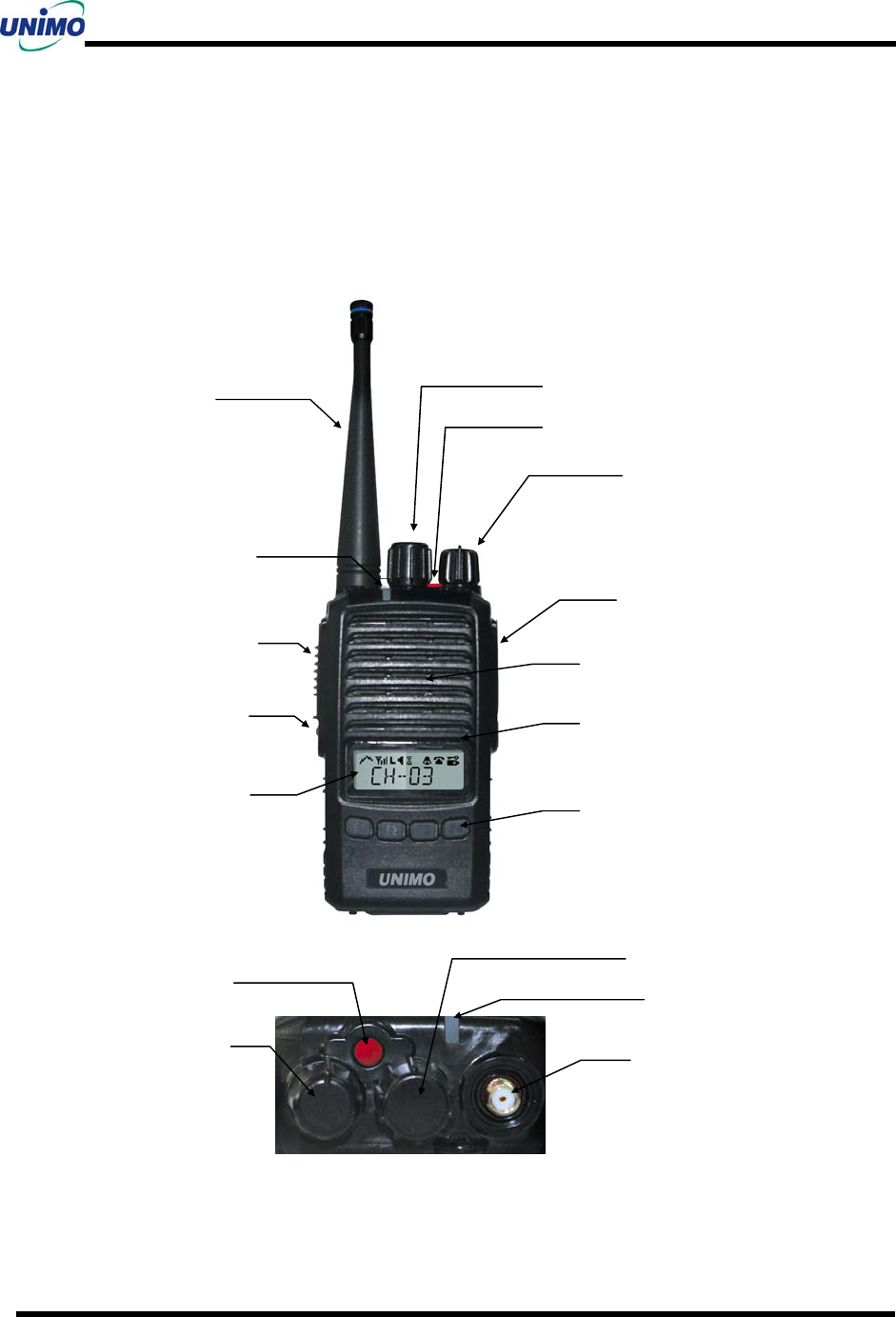

CONTROLS & INDICATORS
The following section provides a description of the controls and Indicators for the PZ-series radio.
Detailed operating instructions can be found the later chapter.
Antenna
Status LED
Channel Select switch
Emergency Button
ON/OFF Volume switch
Speaker-Microphone Jack
Speaker
Microphone
Function buttons
PTT Button
Monitor Button
LCD
Emergency
Button
Antenna connector
Status LED
Channel Select switch
ON/OFF Volume
switch
Maintenance Manual
9
Controls
On/Off Volume Switch
Turn the knob of Volume Switch clockwise to turn the Radio on and if turning the Switch to the opposite
direction, the Radio is turned off. The audio volume level can be adjusted by turning the Volume Switch
and when adjusting the volume, please refer to the index mark indicated nearby the Volume knob. The
knob of volume doesn’t exist for the GPS model of PZ-series radio. In this case, press and hold the “F4”
button then the radio is turn ON. And during the operation press and hold “F4” button then the radio is
turn OFF.
Channel Select Switch
Turn the knob of Channel Select Switch clockwise to increase the channel number and if turning the
switch to the opposite direction then decrease the channel number. The channel numbers are pre-
programmed using by PC program. The channel selections also can be changed by up and down buttons
on front side of the radio.
PTT Button
The radio is converted to transmission mode and transmitting the RF power by pressing and holding the
PTT button on the side of the radio. The status indication LED lights in red color. And the radio is
converted to receive standby mode by release the PTT button. It is recommended to talk about 5~7cm
away from the microphone for using in better sound quality and for better voice communication.
Monitor Button
The receiving status of the selected channel can be checked using by “Monitor” button.
Normal Mode: During the press and holding the “Monitor” button for about 2 seconds, it is possible to
check the receiving status of the channel.
Continuous Mode: Press and holding the “Monitor” button for more than 2 seconds, a beep tone is heard
along with a noise and the monitor function is continuously maintained. If pressing the Monitor button
again, the monitor function will be released.
Emergency Button
Press the “Emergency” button in an emergency situation, an emergency siren sound will be heard through
the speaker in the Radio. And the Radio will transmit an emergency signal to the party through the
Maintenance Manual
10
emergency channel.
Menu Button (Scan Button)
If pressing Menu button for about 2 seconds, the Scan operation is proceeded and by pressing the Menu
button again, the Scan operation is released.
Speaker Microphone Jack
The speaker microphone Jack on the side of the radio will be used for interface with external speaker
microphone accessories and making PC programming/Cloning/Tuning,
Indicators
Status Indication LED
The users can be recognized the current status of PZ-series radio by the color of LED. The status
indication will be as followings.
When the transmitting status is normal, the red LED will be ON.
When the receiving status is normal, the green LED will be ON.
When the CTCSS tone or DCS code is not being received due to mismatch, the green LED will be
blinked.
When the low battery condition, the red LED will be blinked and an alert tone will be generated.
When the Cloning mode, the orange LED will be blinked.

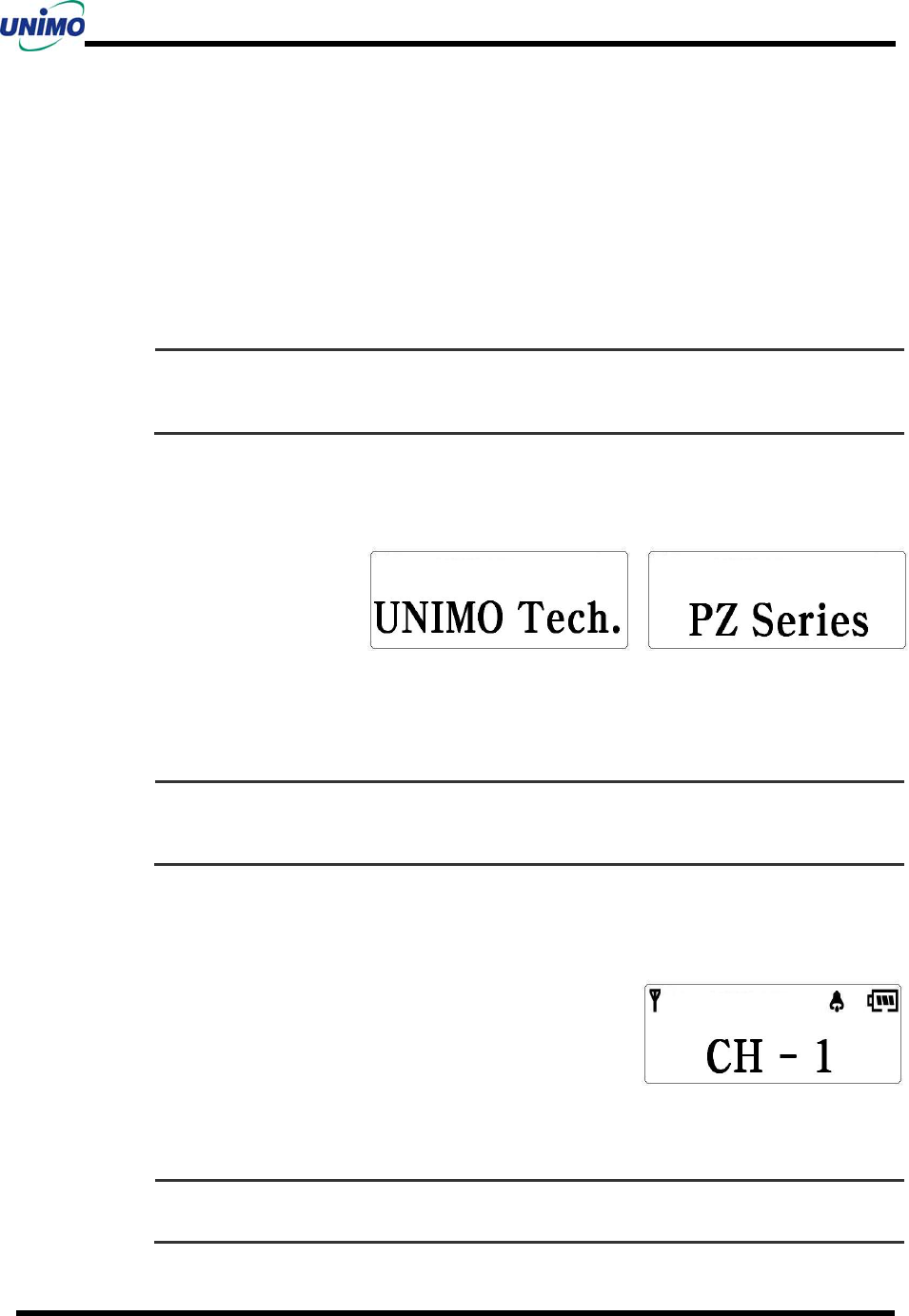

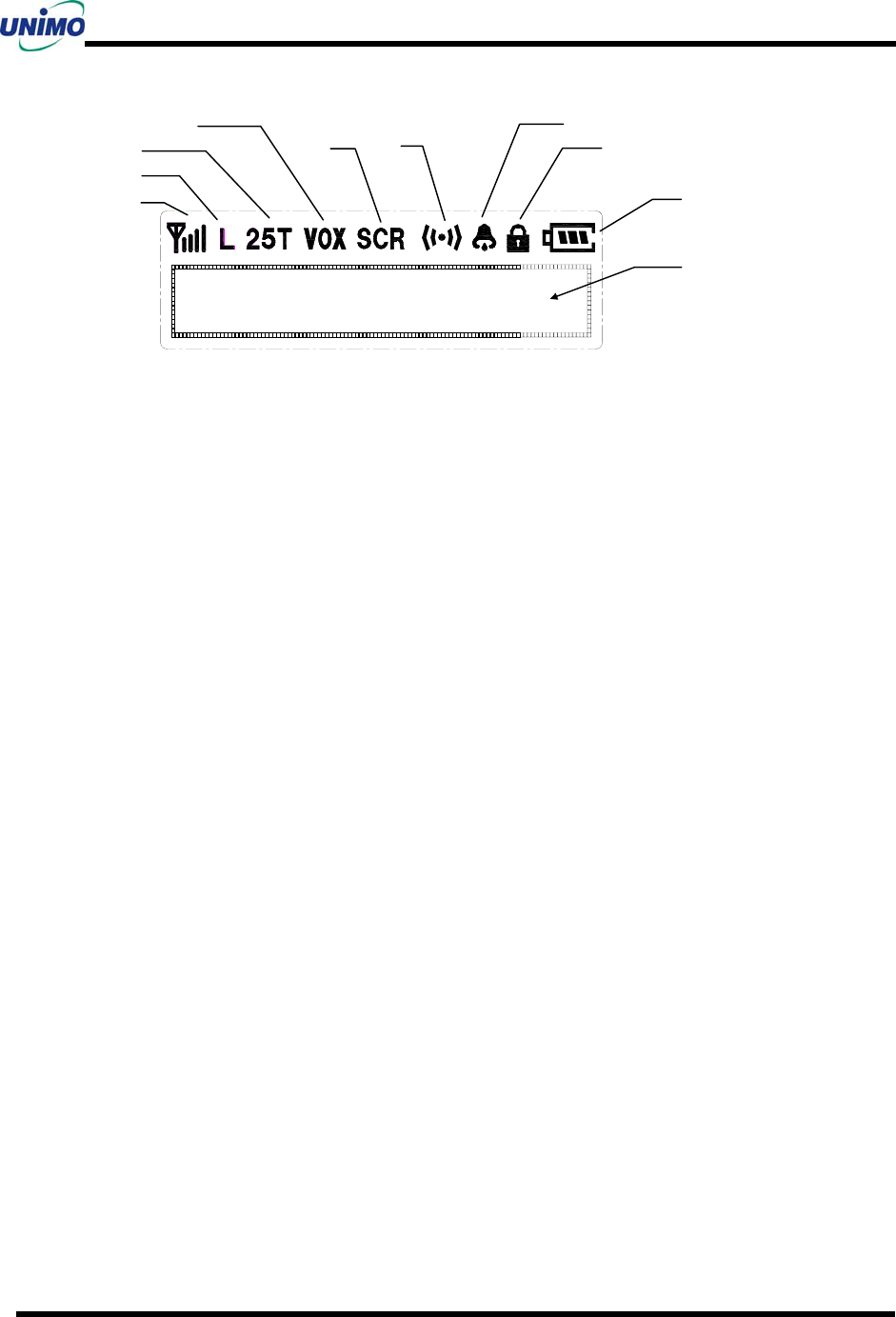

Graphic LCD
The one line of 14 characters (7 characters for Korean language) graphic type of LCD uses for indication
of several kinds of status of the radio. The Group/Channel number or the frequency or the pre-
programmed name of the channel will be displayed on the LCD. And provides the menu operation. In
addition there are 9 status ICON indicators, also can be displayed the several kinds of status of the radio.
Maintenance Manual
11
① Signal strength indicator is ON when the radio receives RF signal. It can be divided for 4 kinds of
signal levels. In case of good signal, all 4 the signal strength indicator bar is ON.
② Transmitting power indicator is ON when the Low power mode is selected.
③ 2Tone, 5Tone mode indicator is ON when the channel is programmed for 2Tone, 5Tone operation.
④ VOX indicator is ON when the VOX mode is activated.
⑤ Scrambler mode indicator is ON when the scrambler function is activated.
⑥ Compander mode indicator is ON when the compander function is activated.
⑦ Radio generates a several kinds of alert tones when the alert tone function is activated. This
indicator is OFF when this function is deactivated.
⑧ Lock indicator is ON when the radio is locked.
⑨ Battery capacity indicator. All the indicators are ON when the battery is full charged. After in use
the battery capacity indicator inner the box is OFF one by one. Outer box is blinked when the
battery power is low and need to charging
⑩ The one line of 14 characters (7 characters for Korean language) graphic LCD area.
The LCD backlighting can be programmed to turn on anytime a button is pressed. It will remain on for a
programmable length of time after the button is released. And it may be programmed to remain off all
times.
④ ⑦
①
②
③ ⑤ ⑥⑧
⑨
⑩
Maintenance Manual
12
BATTERY PACKS
The following battery pack is available for use with the PZ-series radio.
PBX-2260LA: Rechargeable Battery Packs (2600mAH Li-ion).
The PX-Series Radio receives power from high-performance Li-ion battery. The
battery is safe, of high-performance and highly reliable. Using the enclosed
standard charger makes it possible to get sufficient efficiency and lifetime of the
battery.
☞
CAUTION
Battery Packs used with the PZ-series radio must be supplied by UNIMO Technology Co., Ltd.
Maintenance Manual
13
Installing the Battery Pack
Ensure the ON/OFF volume switch is set to OFF position of the radio.
Hold the radio and battery pack with the back of them facing you. See Figure
Align the hook back of the radio with the hook front side of the battery pack
Press and slide the battery pack fully upper side of the radio until the battery release latch click into
place.
Maintenance Manual
14
Removing the Battery Pack
Ensure the ON/OFF volume switch is set to OFF position of the radio.
Press down the release latch and slide the battery pack down side of the radio. See Figure
Maintenance Manual
15
Charging the Battery Pack
New batteries or batteries that have been stored for a long time period of time, should be fully charged
before placing into service. Low battery voltage will shorten the talk range and will make the
performance of radio worse.
When the battery pack requires charging the battery indicator in the LCD will blink and the radio will
sound a high pitch tone every seconds.
How to Charging
Plug the charger (CHZ-260FB) into the electricity power outlet for AC220V.
The charger (CHZ-260FB) has two slots.
When charging the radio with the battery installed, insert the radio into front slot of the charger
after power off.
Maintenance Manual
16
When charging the battery only, insert battery into rear slot of the charger.
Although the green LED is on after full charge, please continue the charging for 30 more minutes
for the complete full charge.
During the charging
After complete charging
Error condition
During maintaining charge
red LED is turn ON
green LED is turn ON
red LED is blinks
green LED is turn ON
☞
CAUTION
Charger used with battery packs must be supplied by UNIMO Technology Co., Ltd. Charging the
battery on the other manufacturer’s can cause unexpected damage of the battery and the radio
CHARGER
The CHZ-260FB is designed for charging the high
capacity batteries(PBZ-2260LA) of PZ series radio.
Input Voltage
Battery
Rapid Charging Time
Operating Temperature
Charging Current
AC 85V ∼ 250V
PBZ-2260LA, PBZ-2260LB
In 3 and half hour
0 ~ 50℃
900 mA (Fast Charging)
Maintenance Manual
17
RADIO OPERATIONS
Installation and Removal of Antenna
Put the antenna into the antenna connector of the radio and turn the antenna clockwise for installation of
antenna and in order to remove the antenna from Radio, turn the antenna counterclockwise.
☞
CAUTION`
When installation of the antenna, giving a strong pressure to the Radio or pulling the antenna from
Radio with a strong power can make damage on the antenna connector, which may cause the Radio
to have critical problem.
Power On/Off
Turn Power switch clockwise and
as soon as power is supplied, a
“beep” sound is heard and the
model name of the radio is
displayed and the Radio enters into the previous latest state. If the user ID is pre-programmed than this is
displayed on the LCD.
☞
CAUTION`
If turning power on by pressing a button on Radio, the Radio may enter into a special mode, in this
case, the transmitting and receiving of radio may not be possible. Don’t use the Radio for the other
purpose apart from the above.
Transmission
Pressing the PTT button on the left side of Radio for transmission. The
DTMF or 5 Tone is transmitted according to the setting of the radio.
During this time voice communication will not be made and after that
the red LED is turned on and voice is transmitted. For voice
communication in the best sound quality, it is recommended to talk 5~10cm away from the radio.
☞
CAUTION`
If transmitting consecutively for more than a certain time when setting of BCLO function and TOT
function, the transmission can be forcibly interrupted for other users.
Maintenance Manual
18
Receiving
The radio operates as a receiving standby mode except for the transmitting period. User can adjust the
volume by using the volume switch. The green LED is turn ON when the radio receives the RF signal and
can heard the transmitting voice. According to the setting of transmitting radio, can be heard the DTMF
tone or 5 Tone and displayed caller ID on the LCD.
If frequency is same as current channel but sub-tone is not same as current setting than the green LED
blinks. In order to check if the current channel is in use, press the Monitor button (M) on the left side of
Radio. If pressing the Monitor button (M) for about 2 seconds, the monitor function is activated with a
“beep” sound. To release from the monitor function, press the monitor button shortly.
Changing Channels
Channel Switch and “F1”/”F2” buttons are used for changing
channels. Turn the Channel switch clockwise or press “F1” button to
increase the channel number with beep sound. And Turn the Channel
switch counter-clockwise or press “F2” button to decrease the
channel number with beep sound. Press and hold “F1”/”F2” button then changing channel continuously.

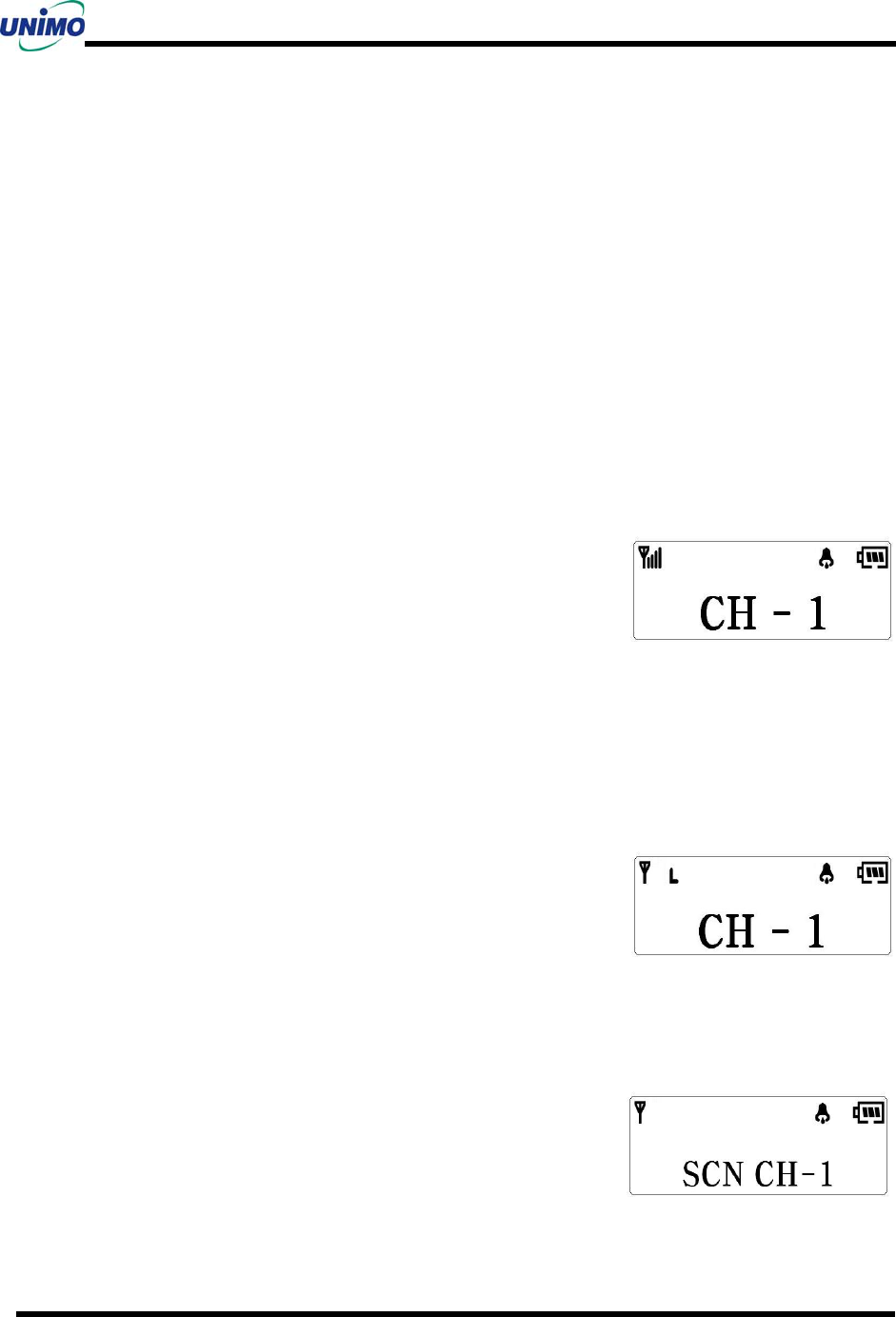

When the channel is changed, channel number or channel names are displayed on the LCD. The channel
frequencies include sub-tone information are pre-programmed by PC program.
Adjusting Transmitting Power
The transmitting power can be selected to High-Power mode or Low-
Power mode. The user can change the transmitting power on the
Menu mode. When Low-Power mode is selected, the indicator icon
“L” is displayed on the LCD. By changing the power to Low-power
mode under a good communication condition, the user can extend the battery life.
SCAN Operating mode
SCAN function is executed with a “beep” sound when pressing the
“F3” and “F2” button consecutively within 0.5 seconds during the
standby state. The radio will change the scan channel and check the
RF signal at regular interval. Pressing “F4” button then SCAN
function can be deactivated.
Maintenance Manual
19

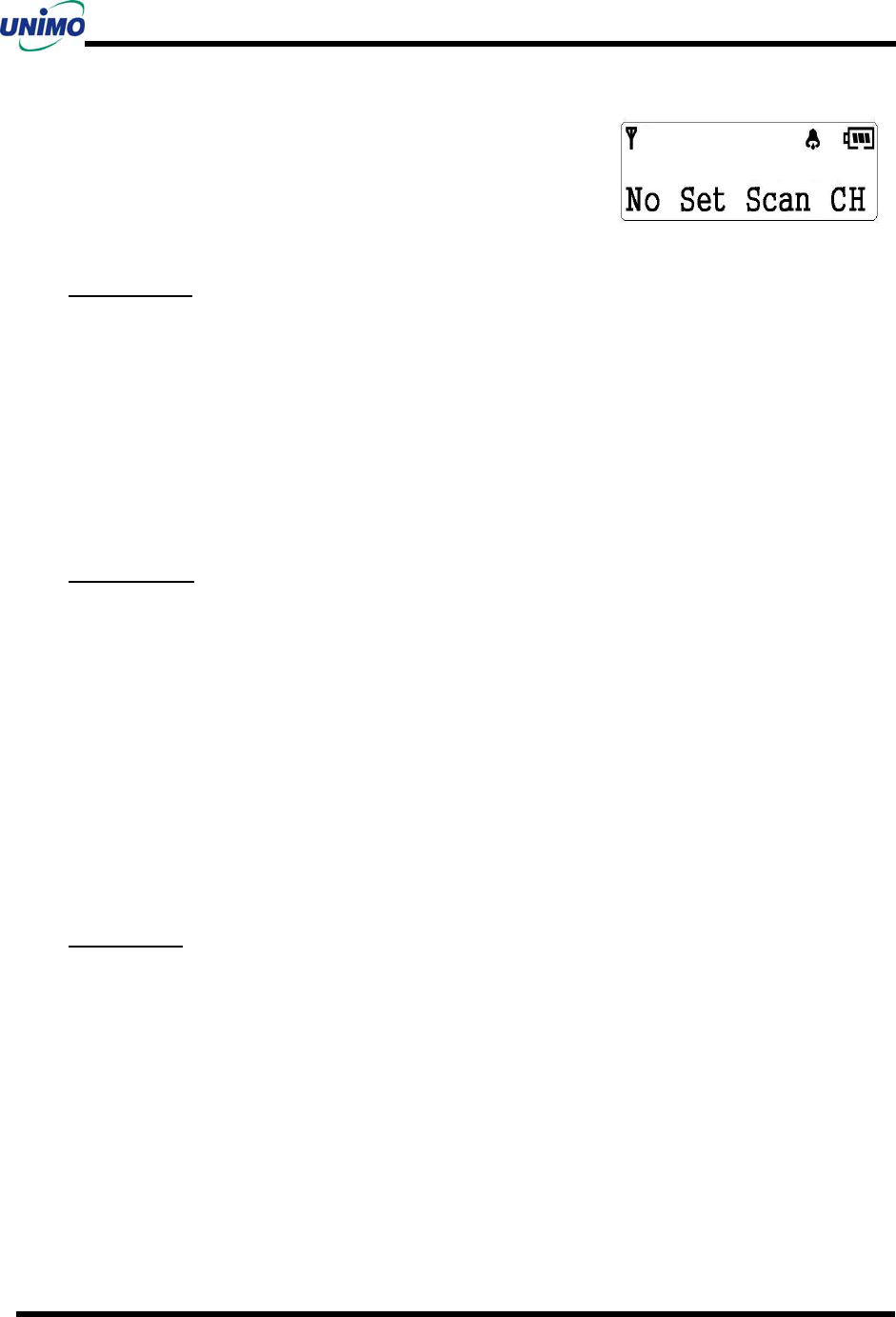

A scan channel list must be created before SCAN can be used. The
radio will not go into SCAN mode where no scan channels are
programmed. The scan channel list can be established in PC
program of Menu mode.
Normal Scan
Once SCAN is activated, the radio will perform a normal scan mode. When the scan channel list is NS1,
NS2 and NS3 on the normal scan mode, the radio proceeds to scan in the sequence of NS1, NS2, NS3,
NS1, NS2, NS3.... During the receiving mode user can move to the next channel by pressing the “F1” or
“F2” buttons. And delete current receiving channel temporarily from the scan channel list.
If getting out of SCAN Mode or turning on power again, the list deleted temporarily is returned back to
the original.
Priority Scan
As soon as priority scan channel is detected, the radio will change priority scan mode. When the scan
channel list is NS1, NS2, NS3 and priority scan channel is PS, the radio proceeds to scan in the sequence
of PS, NS1, PS, NS2, PS, NS3, PS, NS1....
During receiving signal through common channel, the radio scans the priority channel periodically. And if
the radio detects the signal on the priority channel, it starts to receive the signal from the priority channel.
During the receiving mode user can move to the next channel by pressing the “F1” or “F2” buttons. The
user can delete current receiving channel temporarily from the scan list and at that time, user can move to
the next channel. But the radio receives the signal from priority channel then it will not be deleted.
Transmitting
Pressing the PTT button cause the radio to transmit on selected channel frequency and to stop the SCAN
mode. And the selected channel frequency can be established in PC programmer.
Home channel.
Last receiving channel
Current scan channel.
Maintenance Manual
20
Emergency Call
If pressing the EMR key, radio transmitting the emergency alert tone
or 5-Tone message in Sell-call mode. Also user can hear the
emergency alert tone. If the radio is set up in repeated mode, the
radio transmitting the emergency alert tone periodically. This function
can be performed when SCAN is activated.
VOX
The VOX function is set up by Pc-Programmer and without pressing
the PTT key, the voice signal is transmitted through microphone.
Monitor
In order to open the squelch compulsorily, press the MON key. If pressing the MON key for more than 2
seconds, the squelch is opened continuously with a “beep” sound. If you want to get out of this mode,
press the MON key shortly once again, or turn off and on the power.
Dual PTT (Home Channel) mode
If pressing the “F3” + PTT key successively, the radio generates a
“beep” sound and makes the conversion to the HOME channel
designated by PC Programmer. “[HM]” message is displayed on the
left side of the LCD. In order to release from the Dual PTT function,
press the EMR + PTT key once again, or turn off and on the power. This function can be performed when
SCAN is activated.
Maintenance Manual
21
Subtone
The radio can be programmed for CTCSS encode/decode tone frequencies and DCS code.
CTCSS tone frequency
A list of standard tone frequencies for CTCSS tone are as shown below.
No. Frequency No. Frequency No. Frequency No. Frequency
1 67.0 15 110.9 29 179.9 43 196.6
2 71.9 16 114.8 30 186.2 44 199.5
3 74.4 17 118.8 31 192.8 45 206.5
4 77.0 18 123.0 32 203.5 46 229.1
5 79.7 19 127.3 33 210.7 47 254.1
6 82.5 20 131.8 34 218.1 48 165.5
7 85.4 21 136.5 35 225.7 49 171.3
8 88.5 22 141.3 36 233.6 50 177.3
9 91.5 23 146.2 37 241.8 51 60.7
10 94.8 24 151.4 38 250.3 52 62.5
11 97.4 25 156.7 39 69.3 53 64.7
12 100.0 26 162.2 40 159.8
13 103.5 27 167.9 41 183.5
14 107.2 28 173.8 42 189.9
Maintenance Manual
22
DCS code
A list of standard tone frequencies for CTCSS tone are as shown below.
No. DCS Code No. DCS Code No. DCS Code No. DCS Code
1 023 27 165 53 413 79 731
2 025 28 172 54 423 80 732
3 026 29 174 55 431 81 734
4 031 30 205 56 432 82 743
5 032 31 223 57 445 83 754
6 043 32 226 58 464 84 036
7 047 33 243 59 465 85 053
8 051 34 244 60 466 86 122
9 054 35 245 61 503 87 122
10 065 36 251 62 506 88 212
11 071 37 261 63 516 89 225
12 072 38 263 64 532 90 246
13 073 39 265 65 546 91 252
14 074 40 271 66 565 92 255
15 114 41 306 67 606 93 266
16 115 42 311 68 612 94 274
17 116 43 315 69 624 95 325
18 125 44 331 70 627 96 332
19 131 45 343 71 631 97 356
20 132 46 346 72 632 98 446
21 134 47 351 73 654 99 452
22 143 48 364 74 662 100 454
23 152 49 365 75 664 101 455
24 155 50 371 76 703 102 462
25 156 51 411 77 712 103 523
26 162 52 412 78 723 104 526
Maintenance Manual
23
2 Tone Function
The radio encodes the received 2 Tone before receiving the transmission voice when current channel is
activated 2 Tone. If the 2 Tone corresponds with that of current channel then radio receives the
corresponding 2 Tone normally. (In case of No Tone or the corresponding Sub-tone)
Call Function
The radio can be called the individual radio or Group of radio using by 5 Tome of Call Function. The
radio can be programmed for 200 different IDs and names using by PC programmer.
The radio enters Call mode when pressing the “F3” and “F1” button
simultaneously during the standby mode. When the Call mode is
activated then call IDs are displayed on the LCD and change next IDs
using by channel select switch. And press “F1” button the call the
individual or group of radio. Press “F3” button then transmitting the
reset tone. If user doesn’t select a ID of called radio then display “No
Rx ID” on the LCD screen.
The radio returns the standby mode when pressing the “F4” button.
The call mode can’t be activated when the caller’s ID doesn’t program into the radio.
Individual Call
Enters the Call mode using by press the “F3” and “F1” buttons simultaneously.
Select the Call ID that the user wants to communicate.
To initiate a call, the user press the “F1” button then the radio transmits the calling signal. And the
caller’s ID was displayed on receiving radio. The receiving radio enters the Call mode when
receives the calling signal.
Individual Communication
Enters the Call mode using by press the “F3” and “F1” buttons simultaneously.
Select the Call ID that the user wants to communicate.
To initiate a communication, the user press the PTT key then the radio transmits the calling signal
after that transmitting the voice.
Maintenance Manual
24
Group Call
Enters the Call mode using by press the “F3” and “F1” buttons simultaneously.
Select the Group Call ID that the user wants to communicate. The Group IDs can be programmed
using by PC programmer.
To initiate a call, the user press the “F1” button then the radio transmits the calling signal. And the
caller’s Group ID was displayed on receiving radios.
Group Communication
Enters the Call mode using by press the “F3” and “F1” buttons simultaneously.
Select the Group Call ID that the user wants to communicate.
To initiate a communication, the user press the PTT key then the radio transmits the calling signal
after that transmitting the voice.
Compander
The compander function is used for improving the voice quality. When
transmitting, it transmits compressed voice and when receiving, it
expands the compressed voice, which is for improvement of
communication quality.
Scramble
The scramble function is used to protect the radio from overhearing of
the other radio that is used same frequency. The scramble can be
activated by Menu mode. Although the power is turned off and on,
this function is maintained. Indicator Icon “SCR” is ON when the
scramble is activated.
Stun / Revive Function
It is possible to stun and revive the radio with Stun ID from the control
center. If the radio receives Stun ID then all of the key and buttons of
the radio doesn’t perform. In this state, pressing the PTT buttons then
can be heard alert sound. And although the power is turned off and on,
this state is maintained.
Maintenance Manual
25
If the radio receives Revive ID from the other radio, the Radio returns back to the original with a ”beep”
sound.
BCL/BCLO
BCL/BCLO function is used not to interrupt the other users who are using the same frequency. If
BCL/BCLO is activated then transmitting is prohibited from the same channel that was used for others. In
this case, alert sound is heard and message is displayed on the LCD.
BCL(Busy Channel Lock) : Prohibit transmission from the same frequency.
BCLO(Busy Channel Lock Override) : Prohibit transmission in case of different sub-tone.
TOT
TOT function is used to prevent from using one channel continuously for a long time. If the radio
transmits over the TOT time continuously, the transmitting is automatically stopped and an alert sound is
generated. If a Penalty time is set up then the radio makes transmitting normally after the penalty time.
The TOT and penalty time can be setup by PC programmer.

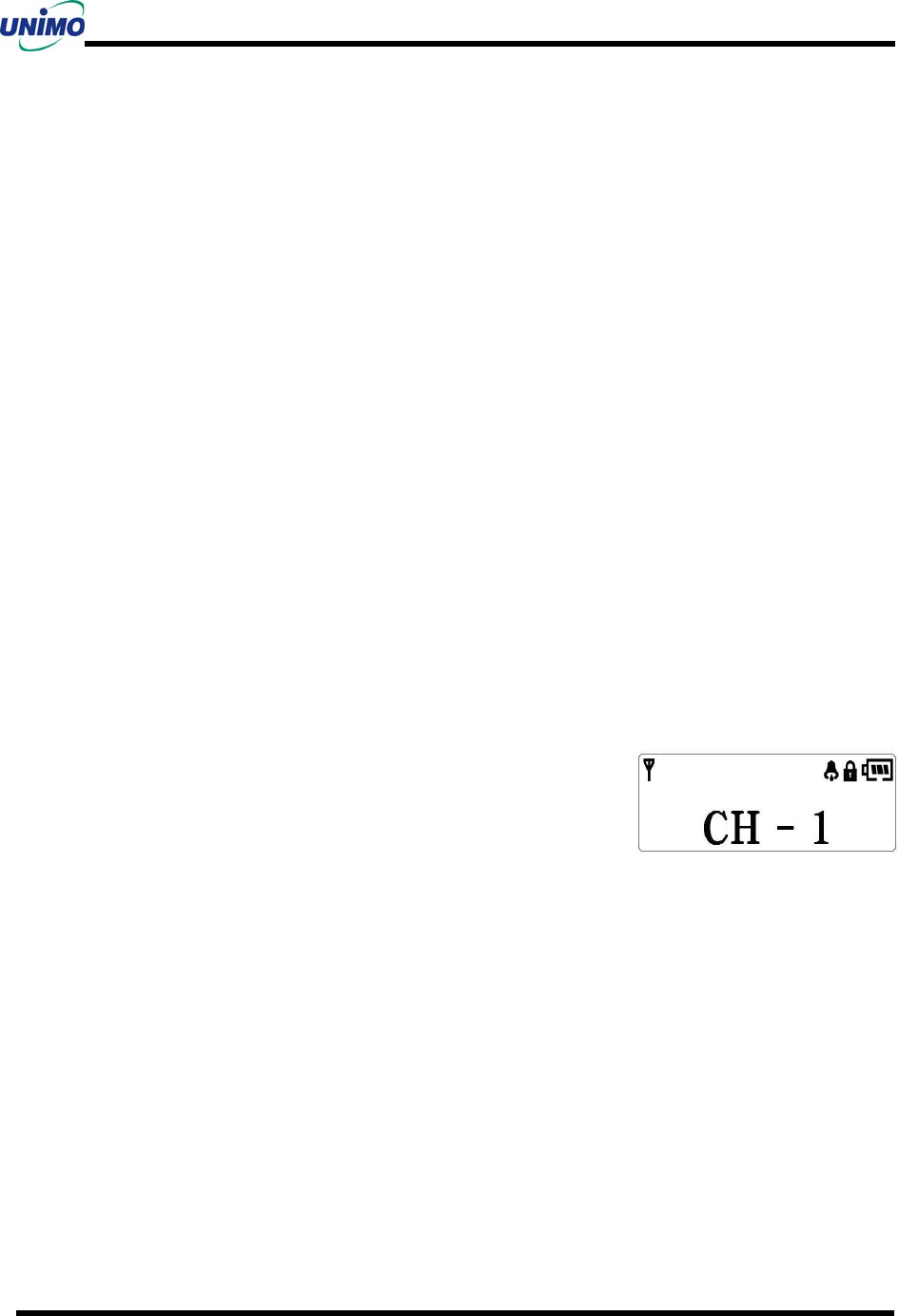

Key Lock
Pressing and holding the “F4” buttons over 2 seconds then Key Lock
is activated when the radio is standby mode. And the indicator Icon is
ON. Up/Down and Menu buttons doesn’t operate during this function
is activated. Key Lock function can be deactivated, pressing the
“F4” buttons once more when the Key Lock is activated.
Initial
The radio should be turn on with pressing the “F3” button. The radio can be initialized the setting of the
function by user. And display “INITIAL” on the LCD screen.
Whisper mode
It can be possible to amplify the very low voice for the normal transmitting voice. It can be changed on
the PC programmer or Menu mode on the radio.
Maintenance Manual
26
PSC
It can be increased the battery lifetime when the PSC function is activated. It can be changed on the PC
programmer or Menu mode on the radio.
Equalizer
It can be possible to emphasize the high or low frequency band of the receiving audio. It can be changed
on the PC programmer or Menu mode on the radio.
Password
User can be set the password into the radio. The password input screen is displayed on the LCD screen
when turn the radio power on. When the user put in the correct password then the radio is activated. It can
be changed on the PC programmer or Menu mode on the radio.
Language
User can be selected the language of the radio. It can be changed on the PC programmer or Menu mode
on the radio.
Squelch Level
The user can be set the 9 different squelch level on the radio. It can be changed on the PC programmer or
Menu mode on the radio.
Cloning
The personality data of radio such as frequency/Tone/Scan can be copied to other radio directly using by
cloning function. The following section provides a description of 2 different kind of cloning function.
Wire Cloning
Prepare the cloning cable (PECLONA) for PZ-series radio.
The original radio should be turned on with pressing the PTT
button and the radio to be copied should be in the standby mode
for receiving.
“Clone(Line)” message will be displayed on the LCD screen of the original radio.
Maintenance Manual
27
Ear/Microphone jack of original radio connect to the target radio through cloning cable.
If pressing the “F3” button of the original radio, the copy is executed. After completing the copy,
“Clone complete” message will be displayed on the LCD.
Removing the cloning cable, turn off and on the power of 2 Radios. Please use the radio after checking if
the copy is succeeded without problem.
Wireless Cloning
The original radio should be turned ON with pressing the
Monitor button and press “F1” button then radio is ready to set
the transmitting mode. “CLONE(TX)” message will be
displayed on the LCD screen.
The radios to be copied should be turned ON with pressing the
Monitor button and press “F2” button then radios are ready to
set the receiving mode. “CLONE(RX)” message will be
displayed on the LCD screen.
The copy is executed when pressing the “F3” button of the original radio.
After completing the copy, “complete” message will be displayed on the LCD screen.
☞
CAUTION`
If the Cloning is made into other maker’s Radio, a critical malfunction can happen.
Acknowledging Special Precautions and the FCC Notice Cautions.
Modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
FCC compliance Information
This device complies with part 15 of FCC Rules.
Operation is subject to the following two conditions: 1. This device may not cause
harmful interference, and 2. This device must accept any interference received.
Including interference that may cause undesired operation.
Information to User
This equipment has been tested and found to comply with the limits for a Class B
digital device, Pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio Frequency energy and, if not
installed and used in accordance with th einstruction, may cause harmful interference
to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television
reception, whic h can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
> Reorient or relocate the receiving antenna.
> Increase the separation between the equipment and receiver
> Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
RADIO FREQUENCY ENERGY SAFETY INFORMATION
This UNIMO transceiver has been tested and complies with the standards listed below, in
regards to radio Frequency(RF) energy electromagnetic energy(EME) generated by the
transceiver
> FCC RF exposure limits for Occupational use only. RF exposure limits adopted by the FCC
are generally based on recommendations from the national council on radiation protection and
measurement, & the American National National Standards Institute.
> FCC OET Bulletin 65 Edition 97-01 Supplement C
> American National Standards Institute(C95.1-1992)
> American National Standards Institute(C95.3-1992)
WARNING
This UNIMO transceiver generates RF EME while transmitting. RF EME(Radio Frequency
Electric & Magnetic Energy)has the potential to cause slight thermal, or heating effects to any
part of your body less than the recommended distance from this radio transmitter's antenna.
RF energy exposure is determined primarily by the distance to and the power of the
transmitting device. In general, RF exposure is minimized when the lowest possible power is
used or transmission time is kept to the minimum required for consistent communications, and
the greatest distance possible from the antenna to the body is maintain.
The transceiver has been designed for and is classified for Occupational use only.
Occupational/controlled exposure limits are applicable to situations in which persons are
exposed to RF energy as a consequence of their employment, and such persons have been
made aware of the potential for exposure and can exercise control over their exposure.
This means you can use the transceiver only if you are aware of the hazards of operating a
transceiver and are familiar in ways to minimize these hazards. This transceiver is not intended
for use by the general public in uncontrolled environments.
Uncontrolled environment exposure limits are applicable to situations in which the general
public may be exposed to RF energy ,or in which the persons who are exposed as a
consequence of their employment may not be fully aware of the potential for exposure or
cannot exercise control over their exposure
The following list provides you with the information required to ensure that you are aware of RF
exposure and of how to operate this transceiver so that the FCC RF exposure limitations are
not exceeded.
> While transmitting(holding the PTT switch), always keep the antenna at least 2.5cm (1
inches) from your body or face ,as well as from any bystanders
> Do not transmit for more than 50% of the total transceiver use time; transmitting over 50%
of the total use time may exceed the limits in accordance to the FCC RF exposure
requirements. Nominal transceiver operation is 5% transmission time,5% reception time, and
90% stand-by time
> Use only the specified antenna for this transceiver; this may be either the antenna provided
with the transceiver or another antenna authorized by UNIMO.
Use only UNIMO authorized accessories (antennas, battery packs, belt clips, Speaker/Mics or
headsets etc.):
When worn on the body, always place the radio in a UNIMO recommended clip or carrying
case meant for this product. The use of other than recommended or approved body-worn
accessories may result in RF exposure levels which exceed the FCC's occupational
/controlled environment RF exposure limits.
CAUTION
To ensure that your exposure to RF EME is within the FCC limits for occupational use, you
must observe and adhere to the above points.
Electromagnetic Interference Compatibility
Electronic devices are susceptible to electromagnetic interference(EMI)if they are not
adequately shielded or designed for electromagnetic compatibility. Because this transceiver
generates RF energy, it can cause interference to such equipment.
>Turn OFF your transceiver where signs are posted to do so. Hospitals and health care
facilities use equipment that is sensitive to electromagnetic radiation.
> Turn OFF your transceiver while on board an aircraft when so instructed, Use of the
transceiver must be in accordance with airline regulations and/or crew instructions.

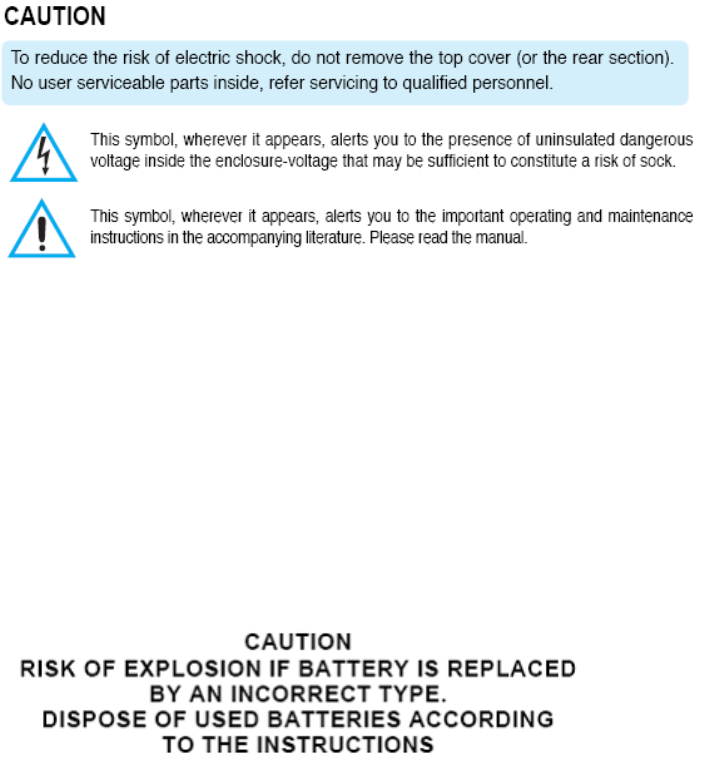

IMPORTANT Safety Instruction:
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this equipment near water.
6) Do not using near any heat sources such as radiators, heat resisters, stove, or other
equipment that produce heat.
European Union Regulatory Notice
Compliance with these directives implies conformity to harmonized European standards
(European Norms) that are listed in the EU Declaration of Conformity issued by HP for this
product or product family. This compliance is indicated by the following conformity marking
placed on the product.
CE RF Radiation Exposure Statement:
Caution This equipment complies with European RF radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with a minimum
distance of 20 centimeters between the radiator and your body.This transmitter must not be co-
located or operating in conjunction with any other antenna or transmitter.
