Unimo Technology PZ-S100 FM TRANSCEIVER User Manual CIRCUIT ANALYSIS
Unimo Technology Co., Ltd. FM TRANSCEIVER CIRCUIT ANALYSIS
Users Manual
Manual
PZ-S series Portable Radio
PZ-S400, PZ-S100
Maintenance Manual
2
TABLE OF CONTENTS
SPECIFICATIONS ................................................................................................................................................. 5
MODEL: PZ-S100 ........................................................................................................................................... 5
MODEL: PZ-S400 ........................................................................................................................................... 6
MODEL NUMBER ................................................................................................................................................. 7
PZ-S SERIES RADIO PACKAGE NUMBERS ..................................................................................................... 7
FEATURES ............................................................................................................................................................. 7
CONTROLS & INDICATORS ............................................................................................................................... 9
Controls ......................................................................................................................................................... 10
On/Off Volume Switch ........................................................................................................... 10
Channel Select Switch .......................................................................................................... 10
PTT Button ............................................................................................................................ 10
Monitor Button ...................................................................................................................... 10
Red Button ............................................................................................................................. 10
Side Button (Scan Button) ..................................................................................................... 11
Speaker Microphone Jack ..................................................................................................... 11
Indicators ....................................................................................................................................................... 11
Status Indication LED ............................................................................................................ 11
BATTERY PACKS ................................................................................................................................................ 12
Installing the Battery Pack ............................................................................................................................. 13
Removing the Battery Pack ........................................................................................................................... 14
Charging the Battery Pack ............................................................................................................................. 15
How to Charging ................................................................................................................... 15
CHARGER ............................................................................................................................................................ 16
RADIO OPERATIONS ......................................................................................................................................... 17
Maintenance Manual
3
Installation and Removal of Antenna ............................................................................................................. 17
Power On/Off ................................................................................................................................................. 17
Transmission .................................................................................................................................................. 17
Receiving ....................................................................................................................................................... 17
Changing Channels ........................................................................................................................................ 18
Adjusting Transmitting Power ....................................................................................................................... 18
SCAN Operating mode .................................................................................................................................. 18
Normal Scan .......................................................................................................................... 18
Priority Scan .......................................................................................................................... 19
Transmitting .......................................................................................................................... 19
Emergency Call ............................................................................................................................................. 19
Monitor .......................................................................................................................................................... 19
Subtone .......................................................................................................................................................... 20
CTCSS tone frequency ......................................................................................................... 20
DCS code ............................................................................................................................... 21
2 Tone Function ............................................................................................................................................. 22
VOX .............................................................................................................................................................. 22
Compander ..................................................................................................................................................... 22
Scramble ........................................................................................................................................................ 22
Stun / Revive Function .................................................................................................................................. 22
BCL/BCLO .................................................................................................................................................... 23
TOT ............................................................................................................................................................... 23
Key Lock ....................................................................................................................................................... 23
Battery Indication .......................................................................................................................................... 23
PSC ................................................................................................................................................................ 23
Maintenance Manual
4
Squelch Level ................................................................................................................................................ 24
Cloning .......................................................................................................................................................... 24
Wire Cloning .......................................................................................................................... 24
Maintenance Manual
5
SPECIFICATIONS
MODEL: PZ-S100
GENERAL
Dimensions(Less Antenna) H x W x D
Weight
Radio (less battery)
with battery (2600mAH)
Programmable Channels
Channel Spacing
Power Source
Current Drain (maximum)
Receive Standby mode
Receive Full Audio
Transmit at 5 Watts
112.2 × 56mm × 31.9 mm
16 Channels
12.5 / 25 kHz
7.5V DC Rechargeable Li-ion 2600 mAH battery pack
69 mA
350 mA
1.6 A
TRANSMITTER
Frequency Range
Frequency Stability
RF Power Output
Spurious and Harmonic
FM Hum and Noise
Audio Distortion
Audio Frequency Response
136 ~ 174 MHz
±2.5 ppm (-30 to +60℃)
5 Watts / 2 Watts
-65dB
40dB (12.5 kHz), 45dB (25 kHz)
5% maximum
+1, -3dB from 6dB per octave pre-emphasis
Characteristic from 300 ~ 3000Hz
RECEIVER
Frequency Range
Sensitivity
Squelch Sensitivity
Selectivity
Spurious and Harmonic Rejection
Inter-modulation
FM Hum and Noise
Audio Output Power
Audio Distortion
Audio Response
136 ~ 174 MHz
.282uV 12 dB SINAD
.25uV 10dB SINAD
60dB (12.5KHz), 65dB(25KHz)
70dB
60dB
40dB
1 Watt across an 16-ohm load
Less than 5% at rated output
+1, -3 dB from 6dB per octave de-emphasis
Characteristic from 300 ~ 3000Hz
Maintenance Manual
6
MODEL: PZ-S400
GENERAL
Dimensions(Less Antenna) H x W x D
Weight
Radio (less battery)
with battery (2600mAH)
Programmable Channels
Channel Spacing
Power Source
Current Drain (maximum)
Receive Standby mode
Receive Full Audio
Transmit at 5 Watts
112.2 × 56mm × 31.9 mm
16 Channels
12.5 / 25 kHz
7.5V DC Rechargeable Li-ion 2600 mAH battery pack
69 mA
350 mA
1.6 A
TRANSMITTER
Frequency Range
Frequency Stability
RF Power Output
Spurious and Harmonic
FM Hum and Noise
Audio Distortion
Audio Frequency Response
400 ~ 470 MHz
±2.5 ppm (-30 to +60℃)
4 Watts / 2 Watts
-65dB
40dB (12.5 kHz), 45dB (25 kHz)
5% maximum
+1, -3dB from 6dB per octave pre-emphasis
Characteristic from 300 ~ 3000Hz
RECEIVER
Frequency Range
Sensitivity
Squelch Sensitivity
Selectivity
Spurious and Harmonic Rejection
Inter-modulation
FM Hum and Noise
Audio Output Power
Audio Distortion
Audio Response
400 ~ 470 MHz
.282uV 12 dB SINAD
.25uV 10dB SINAD
60dB (12.5KHz), 65dB(25KHz)
70dB
60dB
40dB
1 Watt across an 16-ohm load
Less than 5% at rated output
+1, -3 dB from 6dB per octave de-emphasis
Characteristic from 300 ~ 3000Hz
Maintenance Manual
7
MODEL NUMBER
To identify the model number of PZ-S series Radio is as followings
P Z – S1 0 0
Model Number Description
PZ – S100
Frequency band: 136 – 174 Mhz,
PZ – S400
Frequency band: 400 – 470 Mhz,
PZ-S SERIES RADIO PACKAGE NUMBERS
Package Number Description
PZS10XE
PZS10WE
PZS40XE
PZS40WE
136 – 174Mhz PZ series radio
136 – 174Mhz PZ series radio (Waterproof model)
400 – 470Mhz PZ series radio
400 – 470Mhz PZ series radio (Waterproof model)
FEATURES
PZ-S series radio is designed for a rugged, lightweight and it can be provided for powerful sound and for
better performance of conversation distance & sound quality. The new PZ-S series radio provides reliable
service in the industrial fields and public places for the safety & convenience of users.
The PZ-S series radio is offered with several packages available with respect to the options (Waterproof
function). The radio is programmed using a Personal computer and program cable connected to the phone
jack on the side of the radio.
16 channels are selectable.
Call Guard Squelch of standardized 53 CTCSS / 104 DCS Tones.
Identification number of radio
manufactured by UNIMO
Frequency Band
Maintenance Manual
8
Scramble function of frequency Inverter Type
Compander function
Dual Tone Modulation Frequency (DTMF)
Selectable Channel Spacing (12.5kHz / 25KHz)
Normal Scanning and Priority Scanning
Time-Out Timer (TOT)
2-Tone Paging
BCL (Busy Channel Lock) / BCLO (Busy Channel Lock Out)
High/Low Power Switching
9 Step Squelch Control Using RSSI (0~9)
Remote Radio Stun/Revive (Use 5 Tone)
Monitor
VOX
Easy Cloning
USB PC Programming
PC Tuning
Maintenance Manual
9
CONTROLS & INDICATORS

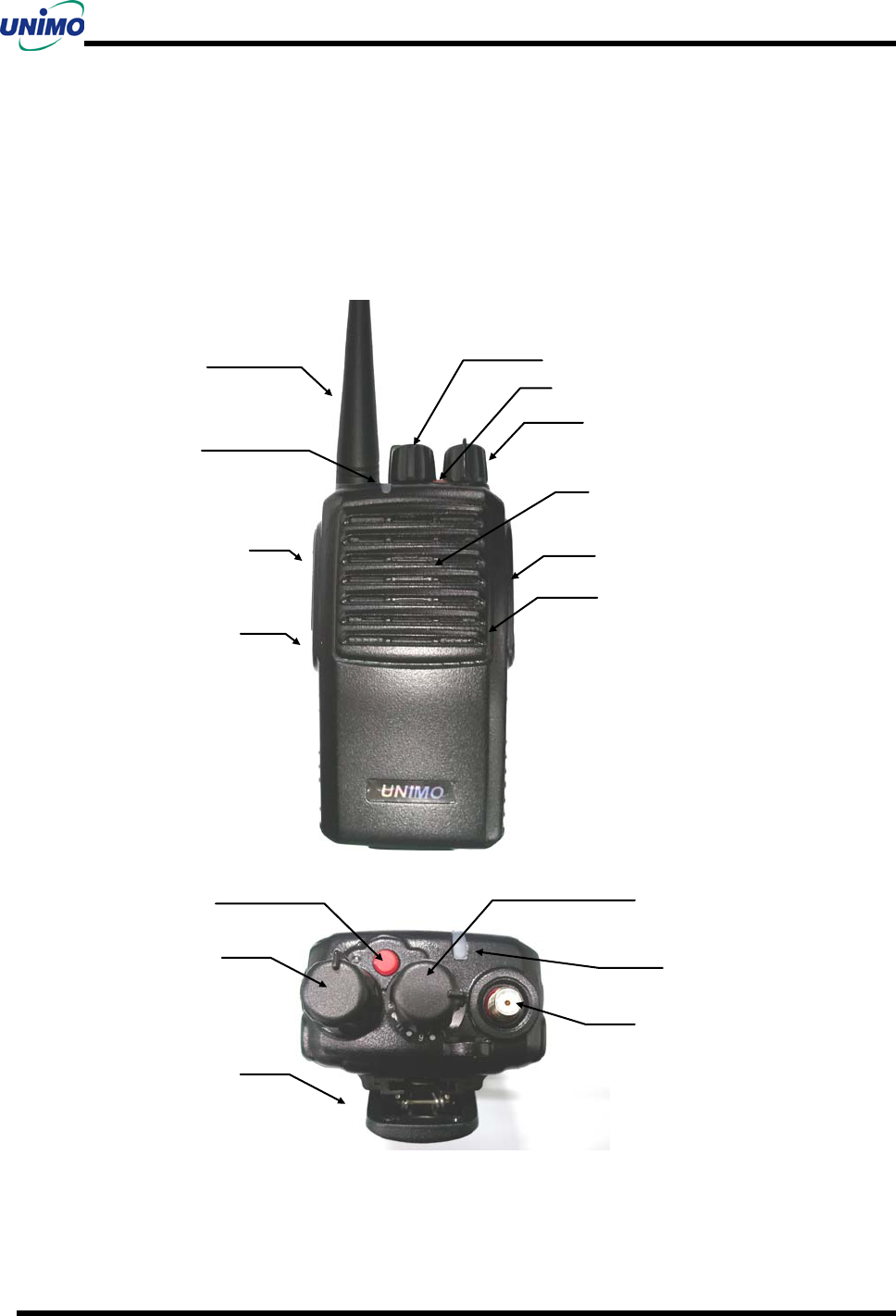

The following section provides a description of the controls and Indicators for the PZ-S series radio.
Detailed operating instructions can be found the later chapter.
Antenna
Channel Select switch
Emergency Button
ON/OFF Volume switch
Speaker-Microphone Jack
Speaker
Microphone
PTT Button
Monitor Button
Status LED
Emergency
Button
Antenna connector
Status LED
16 Channel Select switch
ON/OFF Volume
switch
Belt-clip
Maintenance Manual
10
Controls
On/Off Volume Switch
Turn the knob of Volume Switch clockwise to turn the Radio on and if turning the Switch to the opposite
direction, the Radio is turned off. The audio volume level can be adjusted by turning the Volume Switch
and when adjusting the volume, please refer to the index mark indicated nearby the Volume knob. The
knob of volume doesn’t exist for the GPS model of PZ-S series radio. In this case, press and hold the
“F4” button then the radio is turn ON. And during the operation press and hold “F4” button then the radio
is turn OFF.
Channel Select Switch
Turn the knob of Channel Select Switch clockwise to increase the channel number and if turning the
switch to the opposite direction then decrease the channel number. The channel numbers are pre-
programmed using by PC program.
PTT Button
The radio is converted to transmission mode and transmitting the RF power by pressing and holding the
PTT button on the side of the radio. The status indication LED lights in red color. And the radio is
converted to receive standby mode by release the PTT button. It is recommended to talk about 5~7cm
away from the microphone for using in better sound quality and for better voice communication.
Monitor Button
When this button is assigned to “Monitor” then this function is activated.
The receiving status of the selected channel can be checked using by “Monitor” button.
Normal Mode: During the press and holding the “Monitor” button for about 2 seconds, it is possible to
check the receiving status of the channel.
Continuous Mode: Press and holding the “Monitor” button for more than 2 seconds, a beep tone is heard
along with a noise and the monitor function is continuously maintained. If pressing the Monitor button
again, the monitor function will be released.
Red Button
This button can be pre-assigned for several kinds of function.
Maintenance Manual
11
When this button is assigned to “Emergency” then the red button is activated for emergency function.
Press the “Emergency” button in an emergency situation, an emergency siren sound will be heard through
the speaker in the Radio. And the Radio will transmit an emergency signal to the party through the
emergency channel.
Side Button (Scan Button)
This button can be pre-assigned for several kinds of function.
Speaker Microphone Jack
The speaker microphone Jack on the side of the radio will be used for interface with external speaker
microphone accessories and making PC programming/Cloning/Tuning,
Indicators
Status Indication LED
The users can be recognized the current status of PZ-S series radio by the color of LED. The status
indication will be as followings.
When the transmitting status is normal, the red LED will be ON.
When the receiving status is normal, the green LED will be ON.
When the CTCSS tone or DCS code is not being received due to mismatch, the green LED will be
blinked.
When the low battery condition, the red LED will be blinked and an alert tone will be generated.
When the Cloning mode, the orange LED will be blinked.
Maintenance Manual
12
BATTERY PACKS

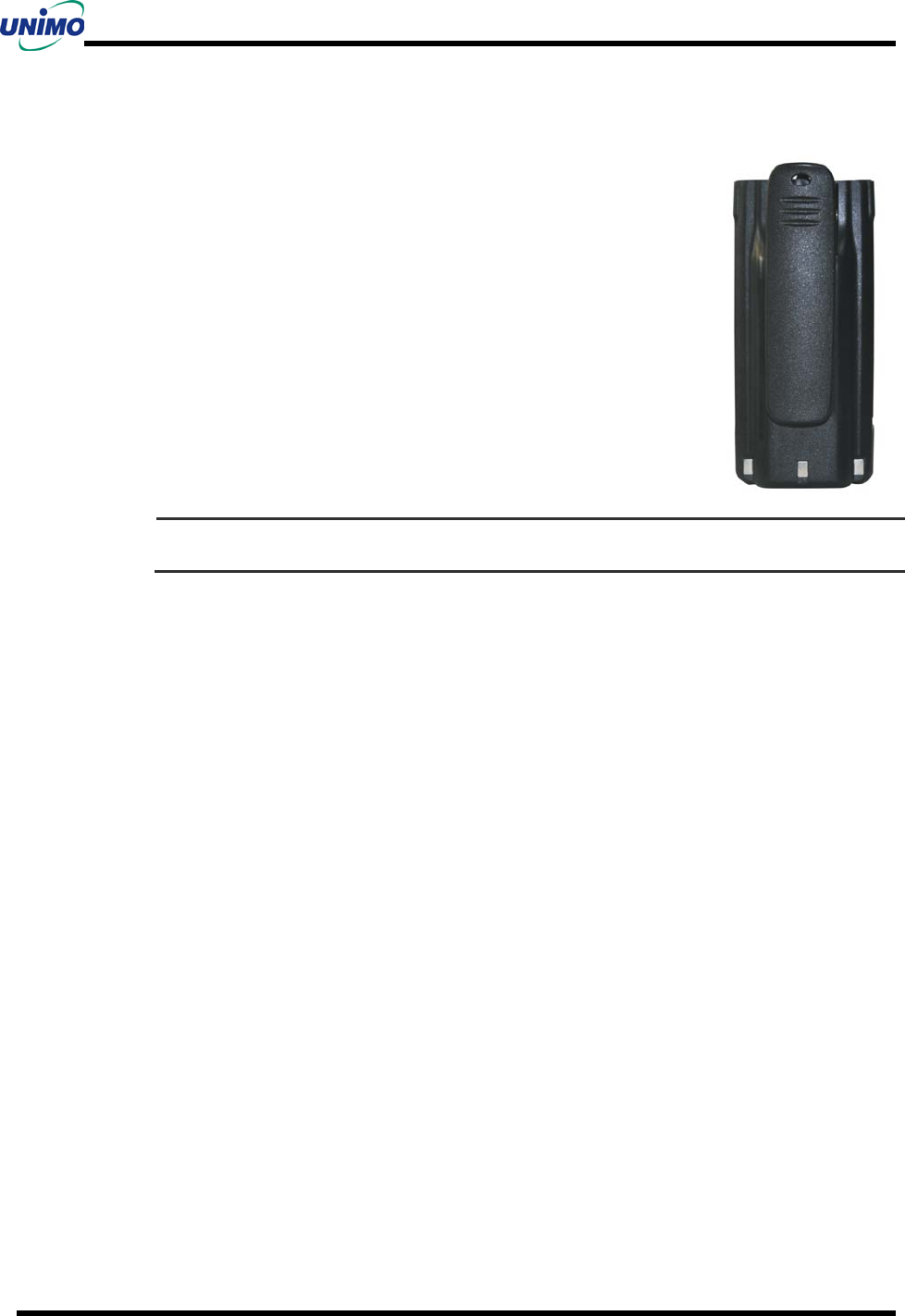

The following battery pack is available for use with the PZ-S series radio.
PBX-2260LA: Rechargeable Battery Packs (2600mAH Li-ion).
PBX-2220LA: Rechargeable Battery Packs (2200mAH Li-ion).
The PZ-S series Radio receives power from high-performance Li-ion battery.
The battery is safe, of high-performance and highly reliable. Using the
enclosed standard charger makes it possible to get sufficient efficiency and
lifetime of the battery.
☞
CAUTION
Battery Packs used with the PZ-S series radio must be supplied by UNIMO Technology Co., Ltd.
Maintenance Manual
13

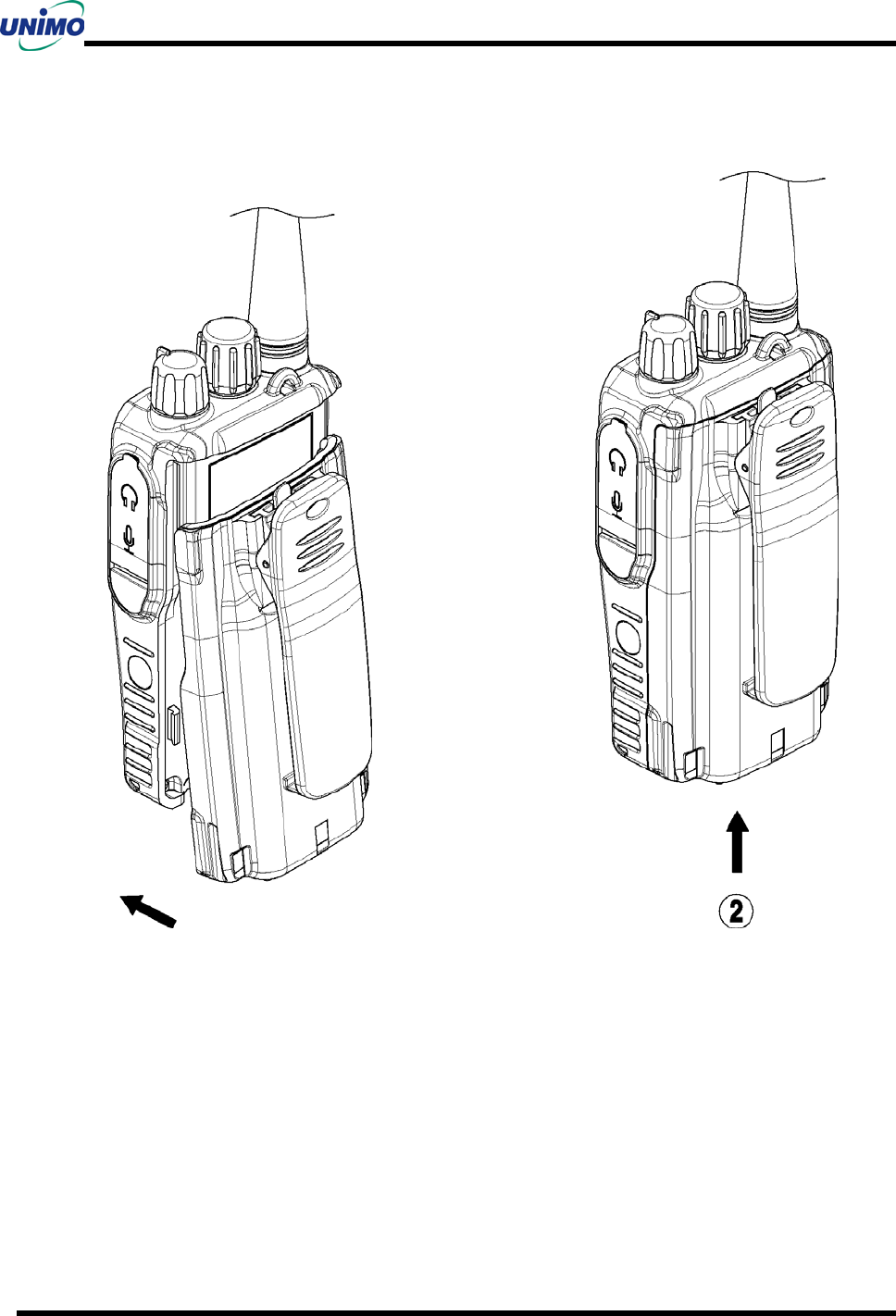

Installing the Battery Pack
Ensure the ON/OFF volume switch is set to OFF position of the radio.
Hold the radio and battery pack with the back of them facing you. See Figure
Align the hook back of the radio with the hook front side of the battery pack
Press and slide the battery pack fully upper side of the radio until the battery release latch click into
place.
Maintenance Manual
14

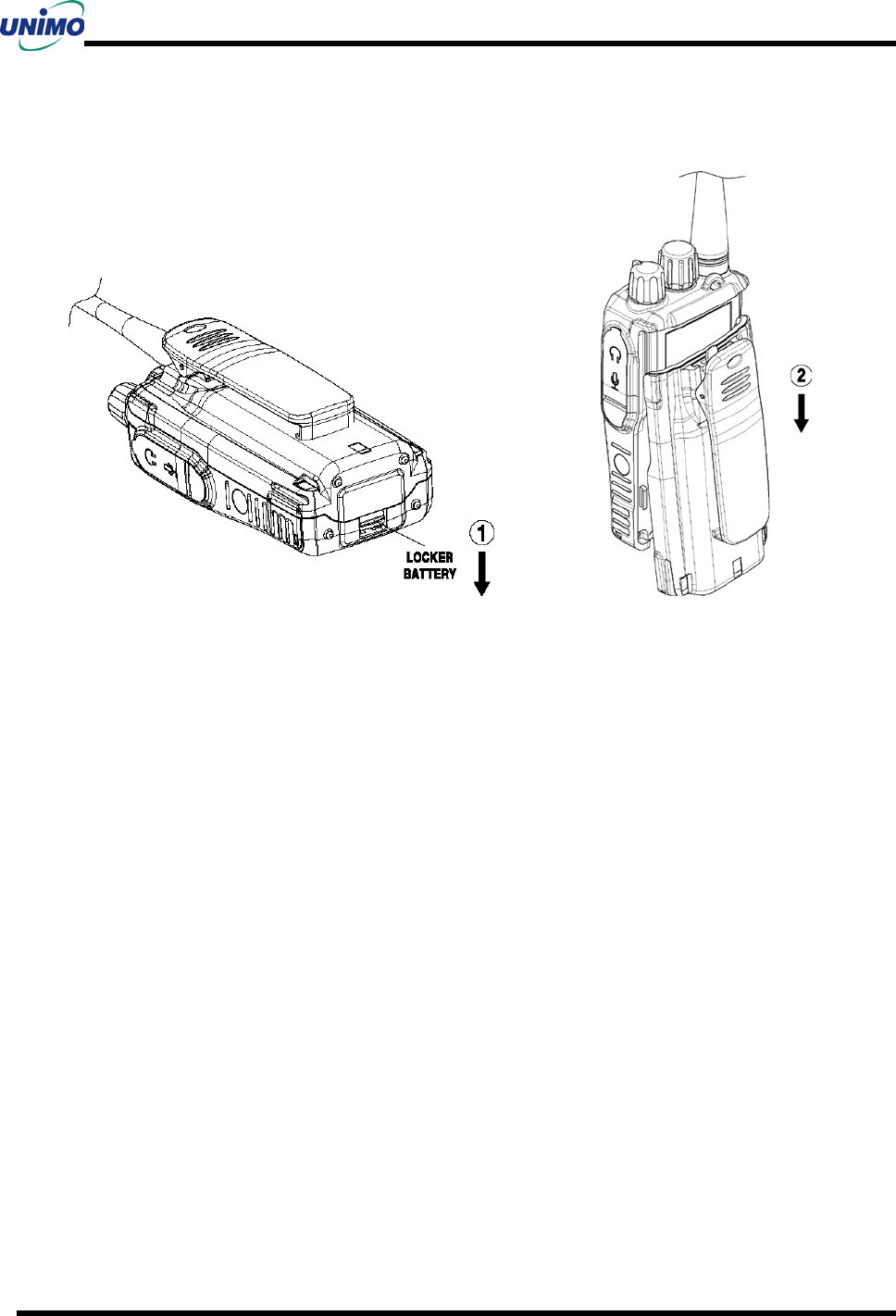

Removing the Battery Pack
Ensure the ON/OFF volume switch is set to OFF position of the radio.
Press down the release latch and slide the battery pack down side of the radio. See Figure
Maintenance Manual
15
Charging the Battery Pack
New batteries or batteries that have been stored for a long time period should be fully charged before
placing into service. Low battery voltage will shorten the talk range and will make the performance of
radio worse.
When the battery pack requires charging then the radio will sound a high pitch tone every second
How to Charging
Plug the charger (CHZ-260FB) into the electricity power outlet for AC220V.

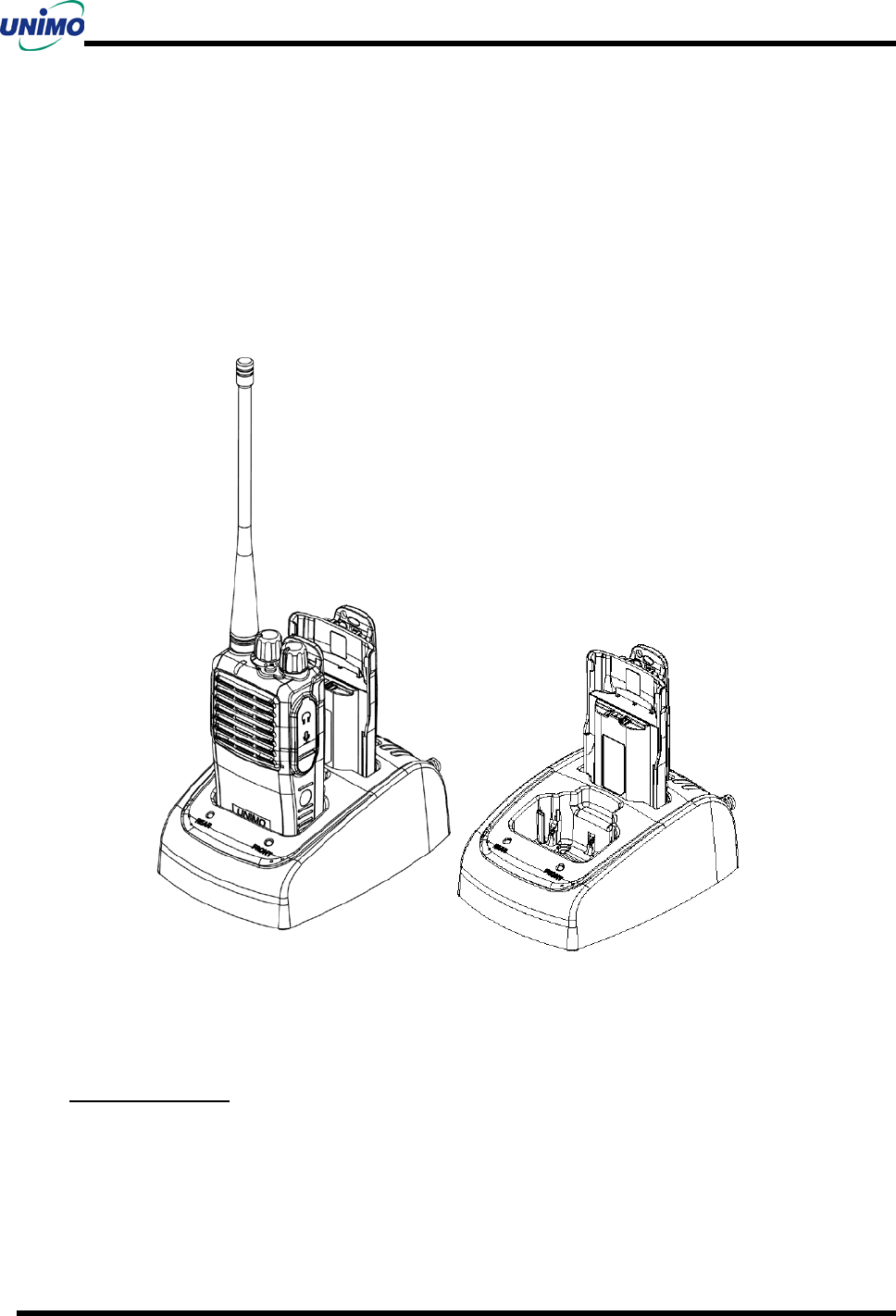

The charger (CHZ-260FB) has two slots.
When charging the radio with the battery installed, insert the radio into front slot of the charger
after power off.
Maintenance Manual
16
When charging the battery only, insert battery into rear slot of the charger.
Although the green LED is on after full charge, please continue the charging for 30 more minutes
for the complete full charge.
During the charging
After complete charging
Error condition
During maintaining charge
red LED is turn ON
green LED is turn ON
red LED is blinks
green LED is turn ON
☞
CAUTION
Charger used with battery packs must be supplied by UNIMO Technology Co., Ltd. Charging the
battery on the other manufacturer’s can cause unexpected damage of the battery and the radio

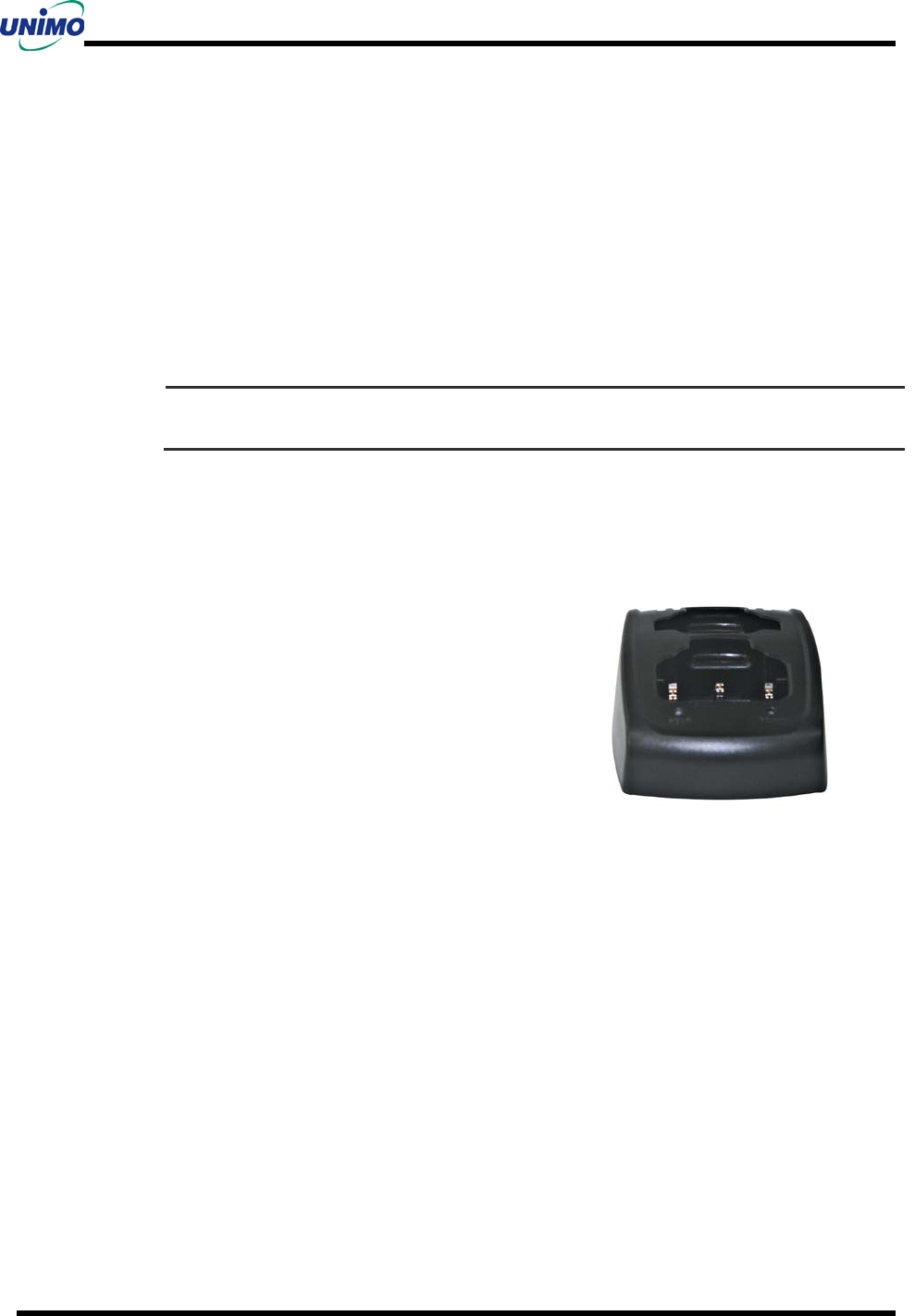

CHARGER
The CHZ-260FB is designed for charging the high
capacity batteries (PBZ-2260LA) of PZ-S series radio.
Input Voltage
Battery
Rapid Charging Time
Operating Temperature
Charging Current
AC 85V ∼ 250V
PBZ-2260LA, PBZ-2260LB
In 3 and half hour
0 ~ 50℃
900 mA (Fast Charging)
Maintenance Manual
17
RADIO OPERATIONS
Installation and Removal of Antenna
Put the antenna into the antenna connector of the radio and turn the antenna clockwise for installation of
antenna and in order to remove the antenna from Radio, turn the antenna counterclockwise.
☞
CAUTION`
When installation of the antenna, giving a strong pressure to the Radio or pulling the antenna from
Radio with a strong power can make damage on the antenna connector, which may cause the Radio
to have critical problem.
Power On/Off
Turn Power switch clockwise and as soon as power is supplied, a “beep” sound is heard and the model
name of the radio is displayed and the Radio enters into the previous latest state.
☞
CAUTION`
If turning power on by pressing a button on Radio, the Radio may enter into a special mode, in this
case, the transmitting and receiving of radio may not be possible. Don’t use the Radio for the other
purpose apart from the above.
Transmission
Press the PTT button on the left side of Radio for transmission. The DTMF or 5 Tone is transmitted
according to the setting of the radio. During this time voice communication will not be made and after
that the red LED is turned on and voice is transmitted. For voice communication in the best sound quality,
it is recommended to talk 5~10cm away from the radio.
☞
CAUTION`
If transmitting consecutively for more than a certain time when setting of BCLO function and TOT
function, the transmission can be forcibly interrupted for other users.
Receiving
The radio operates as a receiving standby mode except for the transmitting period. User can adjust the
volume by using the volume switch. The green LED is turn ON when the radio receives the RF signal and
can heard the transmitting voice. According to the setting of transmitting radio, can be heard the DTMF
Maintenance Manual
18
tone or 5 Tone.
If frequency is same as current channel but sub-tone is not same as current setting than the green LED
blinks. In order to check if the current channel is in use, press the Monitor button (M) on the left side of
Radio. If pressing the Monitor button (M) for about 2 seconds, the monitor function is activated with a
“beep” sound. To release from the monitor function, press the monitor button shortly.
Changing Channels
Channel Switch is used for changing channels. Turn the Channel switch clockwise to increase the channel
number with beep sound or channel number announced voice. And Turn the Channel switch counter-
clockwise to decrease the channel number with beep sound or channel number announced voice. The
channel frequencies include sub-tone information are pre-programmed by PC program.
Adjusting Transmitting Power
The transmitting power can be selected to High-Power mode or Low-Power mode. The user can change
the transmitting power by pressing the button which is pre-assigned by PC program. By changing the
power to Low-power mode under a good communication condition, the user can extend the battery life.
SCAN Operating mode
SCAN function is executed with a “beep” sound when pressing the button which is pre-assigned by PC
program during the standby state. The radio will change the scan channel and check the RF signal at
regular interval. Repress this button shortly then SCAN function can be deactivated.
A scan channel list must be created before SCAN can be used. The radio will not go into SCAN mode
where no scan channels are programmed.
Normal Scan
Once SCAN is activated, the radio will perform a normal scan mode. When the scan channel list is NS1,
NS2 and NS3 on the normal scan mode, the radio proceeds to scan in the sequence of NS1, NS2, NS3,
NS1, NS2, NS3.... During the receiving mode user can move to the next channel by pressing the red
button. And delete current receiving channel temporarily from the scan channel list.
If getting out of SCAN Mode or turning on power again, the list deleted temporarily is returned back to
the original.
Maintenance Manual
19
Priority Scan
As soon as priority scan channel is detected, the radio will change priority scan mode. When the scan
channel list is NS1, NS2, NS3 and priority scan channel is PS, the radio proceeds to scan in the sequence
of PS, NS1, PS, NS2, PS, NS3, PS, NS1....
During receiving signal through common channel, the radio scans the priority channel periodically. And if
the radio detects the signal on the priority channel, it starts to receive the signal from the priority channel.
During the receiving mode user can move to the next channel by pressing the red button. The user can
delete current receiving channel temporarily from the scan list and at that time, user can move to the next
channel. But the radio receives the signal from priority channel then it will not be deleted.
Transmitting
Pressing the PTT button cause the radio to transmit on selected channel frequency and to stop the SCAN
mode. And the selected channel frequency can be established in PC programmer.
Home channel.
Last receiving channel
Current scan channel.
Emergency Call
If pressing the button which is pre-assigned by PC program, radio transmitting the emergency alert tone
or 5-Tone message in Sell-call mode. Also user can hear the emergency alert tone. If the radio is set up
in repeated mode, the radio is transmitting the emergency alert tone periodically. This function can be
performed when SCAN is activated.
Monitor
In order to open the squelch compulsorily, press the button which is pre-assigned by PC program. If
pressing the MON key for more than 2 seconds, the squelch is opened continuously with a “beep” sound.
If you want to get out of this mode, press the MON key shortly once again, or turn off and on the power.
Maintenance Manual
20
Subtone
The radio can be programmed for CTCSS encode/decode tone frequencies and DCS code.
CTCSS tone frequency
A list of standard tone frequencies for CTCSS tone are describing as shown below.
No. Frequency No. Frequency No. Frequency No. Frequency
1
67.0
15
110.9
29
179.9
43
196.6
2
71.9
16
114.8
30
186.2
44
199.5
3
74.4
17
118.8
31
192.8
45
206.5
4
77.0
18
123.0
32
203.5
46
229.1
5
79.7
19
127.3
33
210.7
47
254.1
6
82.5
20
131.8
34
218.1
48
165.5
7
85.4
21
136.5
35
225.7
49
171.3
8
88.5
22
141.3
36
233.6
50
177.3
9 91.5 23 146.2 37 241.8 51 60.7
10
94.8
24
151.4
38
250.3
52
62.5
11
97.4
25
156.7
39
69.3
53
64.7
12
100.0
26
162.2
40
159.8
13
103.5
27
167.9
41
183.5
14
107.2
28
173.8
42
189.9
Maintenance Manual
21
DCS code
A list of standard DCS tone codes are described as shown below.
No. DCS Code No. DCS Code No. DCS Code No. DCS Code
1
023
27
165
53
413
79
731
2
025
28
172
54
423
80
732
3
026
29
174
55
431
81
734
4
031
30
205
56
432
82
743
5
032
31
223
57
445
83
754
6
043
32
226
58
464
84
036
7
047
33
243
59
465
85
053
8
051
34
244
60
466
86
122
9
054
35
245
61
503
87
122
10
065
36
251
62
506
88
212
11
071
37
261
63
516
89
225
12
072
38
263
64
532
90
246
13
073
39
265
65
546
91
252
14
074
40
271
66
565
92
255
15
114
41
306
67
606
93
266
16
115
42
311
68
612
94
274
17 116 43 315 69 624 95 325
18
125
44
331
70
627
96
332
19 131 45 343 71 631 97 356
20
132
46
346
72
632
98
446
21 134 47 351 73 654 99 452
22
143
48
364
74
662
100
454
23 152 49 365 75 664 101 455
24
155
50
371
76
703
102
462
25
156
51
411
77
712
103
523
26
162
52
412
78
723
104
526
Maintenance Manual
22
2 Tone Function
The radio encodes the received 2 Tone before receiving the transmission voice when current channel is
activated 2 Tone. If the 2 Tone corresponds with that of current channel then radio receives the
corresponding 2 Tone normally. (In case of No Tone or the corresponding Sub-tone)
VOX
The VOX function is set up by Pc-Programmer and without pressing the PTT key, the voice signal is
transmitted through microphone.
Compander
The compander function is used for improving the voice quality. When transmitting, it transmits
compressed voice and when receiving, it expands the compressed voice, which is for improvement of
communication quality.
This function is activated by pressing the button which is pre-assigned by PC program. In case of
compander function is activated, when turn ON the radio the green LED is turned ON. And after the
“beep” sound the green LED is turn OFF.
Scramble
The scramble function is used to protect the radio from overhearing of the other radio that is used same
frequency. The scramble can be activated by pressing the button which is pre-assigned by PC program. In
case of scramble function is activated, when turn ON the radio the red LED is turned ON. And after the
“BEEP” sound the red LED is turn OFF. Although the power is turned off and on, this function is
maintained.
Stun / Revive Function
It is possible to stun and revive the radio with Stun ID from the control center. If the radio receives Stun
ID then all of the key and buttons of the radio doesn’t perform. And the red and green LED is blinking
periodically.
In this state, pressing the PTT buttons then can be heard alert sound. And although the power is turned off
and on, this state is maintained.
If the radio receives Revive ID from the other radio, the Radio returns back to the original mode
Maintenance Manual
23
with ”beep” sound.
BCL/BCLO
BCL/BCLO function is used not to interrupt the other users who are using the same frequency. If
BCL/BCLO is activated then transmitting is prohibited from the same channel that was used for others. In
this case, alert sound is heard.
BCL(Busy Channel Lock) : Prohibit transmission from the same frequency.
BCLO(Busy Channel Lock Override) : Prohibit transmission in case of different sub-tone.
TOT
TOT function is used to prevent from using one channel continuously for a long time. If the radio
transmits over the TOT time continuously, the transmitting is automatically stopped and an alert sound is
generated. If a Penalty time is set up then the radio makes transmitting normally after the penalty time.
The TOT and penalty time can be setup by PC programmer.
Key Lock
Press buttons over 2 seconds then Key Lock is activated when the radio is standby mode. The buttons
doesn’t operate during this function is activated except PTT and this button. Key Lock function can be
deactivated, pressing the pre-assigned button once more when the Key Lock is activated.
Battery Indication
Press the pre-assigned button when the radio is standby mode. The pre-assigned color of LED is turned
ON for one second.
Green color : full charged
Yellow color : sufficient
Red color : Requires charging
Red color of LED is blinked : The radio is turned OFF
PSC
It can be increased the battery lifetime when the PSC function is activated. It can be changed on the PC
programmer.
Maintenance Manual
24
Squelch Level
The user can be set the 9 different squelch levels on the radio. It can be changed on the PC programmer or
press the pre-assigned button.
Cloning
The personality data of radio such as frequency/Tone/Scan can be copied to other radio directly using by
cloning function. The following section provides a description of 2 different kind of cloning function.
Wire Cloning
Prepare the cloning cable (PECLONA) for PZ-S series radio.
The originated radio should be turned on with pressing the PTT button and the radio to be copied
should be in the standby mode for receiving.
The yellow LED is turned ON of the originated Radio.
Ear/Microphone jack of originated radio connect to the target radio through cloning cable.
If pressing the pre-assigned button of the originated radio, the copy is executed. After completing
the copy, the green LED is turned ON. In case of failed then the red LED is turned OFF.
Remove the cloning cable from these two radios.
Turn off radio and re-power of two Radios.
Please use the radio after checking if the copy is succeeded without problem.
☞
CAUTION`
If the Cloning is made into other maker’s Radio, a critical malfunction can happen.
Acknowledging Special Precautions and the FCC Notice Cautions.
Modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
FCC compliance Information
This device complies with part 15 of FCC Rules.
Operation is subject to the following two conditions: 1. This device may not cause
harmful interference, and 2. This device must accept any interference received.
Including interference that may cause undesired operation.
Information to User
This equipment has been tested and found to comply with the limits for a Class B
digital device, Pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio Frequency energy and, if not
installed and used in accordance with th einstruction, may cause harmful interference
to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television
reception, whic h can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
> Reorient or relocate the receiving antenna.
> Increase the separation between the equipment and receiver
> Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
RADIO FREQUENCY ENERGY SAFETY INFORMATION
This UNIMO transceiver has been tested and complies with the standards listed below, in
regards to radio Frequency(RF) energy electromagnetic energy(EME) generated by the
transceiver
> FCC RF exposure limits for Occupational use only. RF exposure limits adopted by the FCC
are generally based on recommendations from the national council on radiation protection and
measurement, & the American National National Standards Institute.
> FCC OET Bulletin 65 Edition 97-01 Supplement C
> American National Standards Institute(C95.1-1992)
> American National Standards Institute(C95.3-1992)
WARNING
This UNIMO transceiver generates RF EME while transmitting. RF EME(Radio Frequency
Electric & Magnetic Energy)has the potential to cause slight thermal, or heating effects to any
part of your body less than the recommended distance from this radio transmitter's antenna.
RF energy exposure is determined primarily by the distance to and the power of the
transmitting device. In general, RF exposure is minimized when the lowest possible power is
used or transmission time is kept to the minimum required for consistent communications, and
the greatest distance possible from the antenna to the body is maintain.
The transceiver has been designed for and is classified for Occupational use only.
Occupational/controlled exposure limits are applicable to situations in which persons are
exposed to RF energy as a consequence of their employment, and such persons have been
made aware of the potential for exposure and can exercise control over their exposure.
This means you can use the transceiver only if you are aware of the hazards of operating a
transceiver and are familiar in ways to minimize these hazards. This transceiver is not intended
for use by the general public in uncontrolled environments.
Uncontrolled environment exposure limits are applicable to situations in which the general
public may be exposed to RF energy ,or in which the persons who are exposed as a
consequence of their employment may not be fully aware of the potential for exposure or
cannot exercise control over their exposure
The following list provides you with the information required to ensure that you are aware of RF
exposure and of how to operate this transceiver so that the FCC RF exposure limitations are
not exceeded.
> While transmitting(holding the PTT switch), always keep the antenna at least 2.5cm (1
inches) from your body or face ,as well as from any bystanders
> Do not transmit for more than 50% of the total transceiver use time; transmitting over 50%
of the total use time may exceed the limits in accordance to the FCC RF exposure
requirements. Nominal transceiver operation is 5% transmission time,5% reception time, and
90% stand-by time
> Use only the specified antenna for this transceiver; this may be either the antenna provided
with the transceiver or another antenna authorized by UNIMO.
Use only UNIMO authorized accessories (antennas, battery packs, belt clips, Speaker/Mics or
headsets etc.):
When worn on the body, always place the radio in a UNIMO recommended clip or carrying
case meant for this product. The use of other than recommended or approved body-worn
accessories may result in RF exposure levels which exceed the FCC's occupational
/controlled environment RF exposure limits.
CAUTION
To ensure that your exposure to RF EME is within the FCC limits for occupational use, you
must observe and adhere to the above points.
Electromagnetic Interference Compatibility
Electronic devices are susceptible to electromagnetic interference(EMI)if they are not
adequately shielded or designed for electromagnetic compatibility. Because this transceiver
generates RF energy, it can cause interference to such equipment.
>Turn OFF your transceiver where signs are posted to do so. Hospitals and health care
facilities use equipment that is sensitive to electromagnetic radiation.
> Turn OFF your transceiver while on board an aircraft when so instructed, Use of the
transceiver must be in accordance with airline regulations and/or crew instructions.
IMPORTANT Safety Instruction:
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this equipment near water.
6) Do not using near any heat sources such as radiators, heat resisters, stove, or other
equipment that produce heat.
European Union Regulatory Notice
Compliance with these directives implies conformity to harmonized European standards
(European Norms) that are listed in the EU Declaration of Conformity issued by HP for this
product or product family. This compliance is indicated by the following conformity marking
placed on the product.
