User Manual
Remote Control
KP-66MS
User manual
Micro USB
For Charging
Earphone Jack
Charge Indicator
Overview
POWER MOUSE HOME
EX IT
MENU GUIDE
COMM.
SK IP
A/V MODE AUX MODE TV MODE
MIC
Wireless Signal
Indicator
Microphone
Charging Indicator
Docking Station
Button Label Function
POWER
MOUSE
HOME
A/V MODE
AUX MODE
TV MODE
DELETE
Button Label Function
Button Label and for Short PressFunction
mouse ON/OFF
Main Menu Screen
Escape / Back
Menu Options
EPG
Skip Fwd
Pause
Channel up/down
Navigate keys
Mute
info
Delete
Microphone , hold to speak
A/V MODE
AUX MODE
TV MODE
OK
IR learning button IR learning button
Prev Channel
Button Label Function
HOME
DELETE
Button Label Function
Button Label and For Long PressFunction
Live TV
APP Exit
Search
EPG finder
Skip Back
Time Save(Strech)
Next/Prev Fav Chan
Subtitles on/off
Eenter Into Deep Sleeping
Settings
Record
Jump Previous
Jump Fwd
Fast Rev
Fast Fwd
Select Fav Channel
0Fast Restart
Note:
when mouse function is on:
Enter function as mouse left
Right arrow function as mouse right

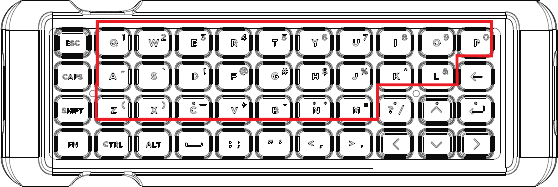

The back of the keyboard
composite keys：FN+“ ”=“1...=”Q.....M
Basic Specification:
RF 2.4G connection
Power supply: rechargeable Li-ion battery
Battery capacity: 850mA
Charge: Micro USB DC 5V/1A
Size：160X54X16mm
Weight of the remote：151.5g
Weight of the base：90g
What you will find in the package:
Multi-function remote 1
Docking Station: 1
User manual 1
USB Receiver 1
RE-PAIR:
In case of losing connection between remote and USB
receiver, please follow below step to do re-pair procedure:
1. Hold button MENU and Right Arrow button till LED light up.
2. Insert USB receiver into USB port of your device
3. Put remote close to the USB receiver
4. LED off means they pair successfully.
Note: LED mentioned here is wireless signal indicator.
Right Arrow
Wireless Signal Indicator
MENU
IR Learning Function:
1. Click button“TV MODE", backlight under this button will light up.
2. Then Long press on the key“TV MODE”for about 3 seconds till backlight flash
one time
3. On this remote, click “POWER” button, backlight will flash slowly
4. Face IR head of this remote towards IR head of TV remote.
5. On TV remote, click “ POWER” button, backlight will flash quickly then light up
with steady on.
4.Please follow above steps complete other two buttons.
5.Click the key“TV MODE”to save the code.
We here take TV remote as sample to show how to learn IR code from TV remote:
Note:
1. Only POWER, VOL+, VOL- are capable of IR learning function
2. This remote can save 3 sets of IR code for different device: AV MODE,
AUX MODE, TV MODE.
