Unisen KP-810-30XX Smart Remote control User Manual KP 810 51

Unisen Limited Smart Remote control KP 810 51

Users Manual

Unisen Industrial Limited
Page 1 of 7
UNISEN INDUSTRIAL LIMITED
SPECIFICATIONS
CUSTOMER：
iPazzPort
PRODUCT NAME： SMART REMOTE CONTROL
MODEL： KP-810-30
CUSTOMER NO.：
MEMO ：
CUSTOMER CONFIRM：
PREPARED BY：
APPROVED BY：
DATE：
DATE：
Unisen Industrial Limited
Page 2 of 7
1. PRODUCDT DESCRIPTION：
This new model apply with 2.4G radio frequency technology, combined with
infrared remote control, Radio frequency works in the range of 2.402G Hz to
2.480G Hz, carry frequency for infrared control is 38K Hz, top face is QWERTY
keyboard with 44 keys and bottom face is 40 infrared buttons and 1 mouse button
- using gyroscope for mouse control
- RF 2.4G receiver, plug and play
- Rechargeable Li-ion battery power supply
- Fashion style,

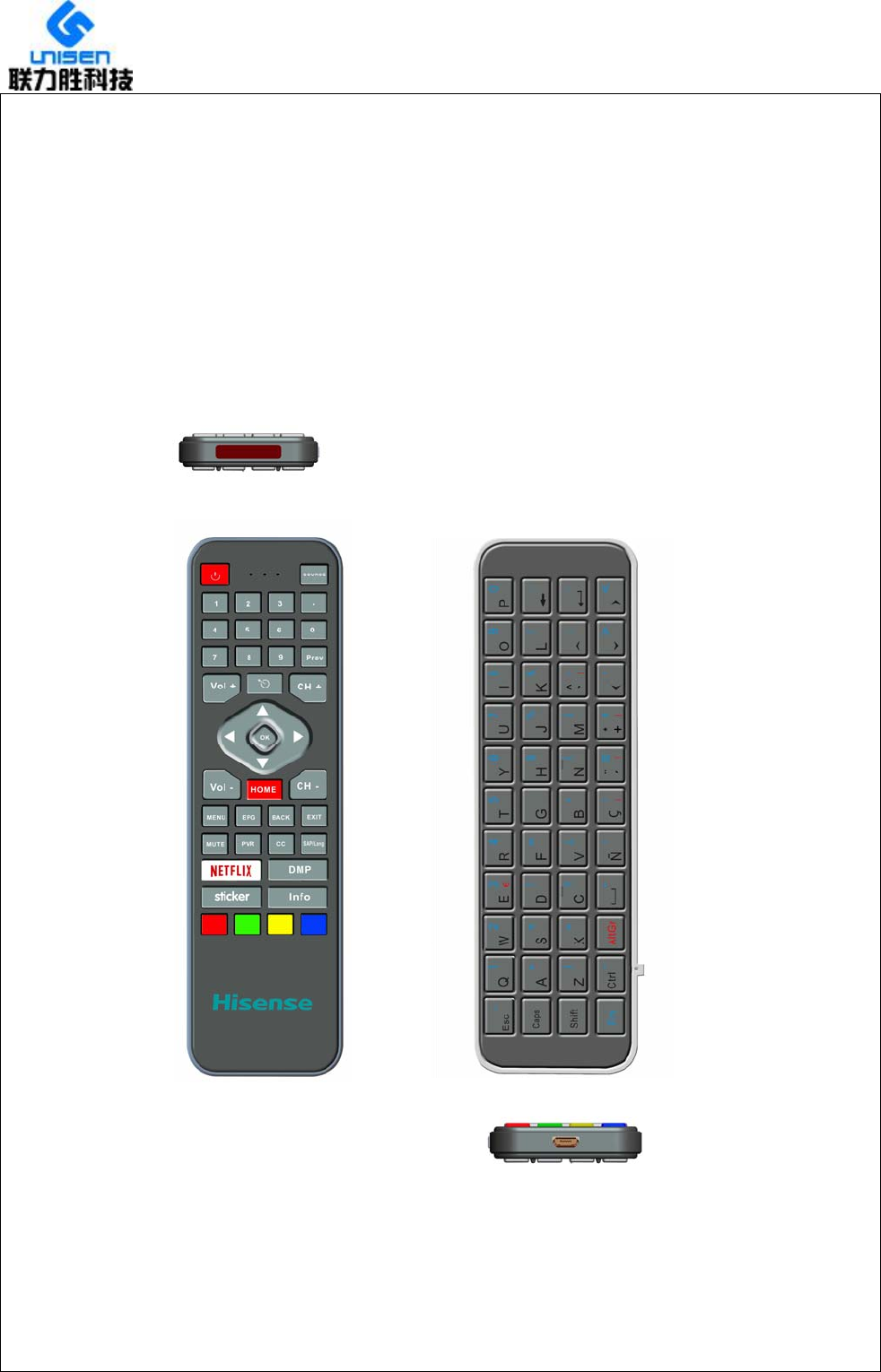

2. Product overview
TOP VIEW
FRONT VIEW
BOTTOM VIEW
BACK VIEW
Unisen Industrial Limited
Page 3 of 7
2：ELECTRIC SPECIFICATIONS:
ITEM SPECIFICATIONS
1 RATE VOTAGE 3.7V
2 WORKING VOTAGE 3.70V
3 STANDBY CONSUPTION 50uA
4 POWER SUPPLY Li-ion battery 400mA
5 RADIO FREQUENCY 2.4G RF（2.402-2.480 G Hz ISM）
6 IR CARRY FREQUENCY 38kHz
7 MOUSE CONTROL GYROSCOPE
8 WIRELESS
DISTANCE(IR)
6M
9 WIRELESS
DISTANCE(RF 2.4G)
8M-10M
3. PHYSICAL SPECIFICATIONS：
ITEM SPECIFICATIONS
1 SIZE 160X46X10.2mm
2 WEIGHT 100g
①HEIGHT ①H=0.27mm+/-0.05mm 3
METAL
DOME
HEIGHT
②FUNCTIONAL HEIGHT ②H1=0.18+/-0.05MM
4 METAL DOME FORCE m=160g+/-30g
5
METAL
DOME
INTENSITY
30N
6 LIFE TEST 2 SECOND/3TIMES 500,000 CYCLES
7 DROP TEST Height: 80cm, 6 sides and 3 edges, 1 corners
8 A
lcohol
TEST
FOR
SILKSCREEN
Material ：alcohol concentration：95%，cotton cloth，
weight 500g
Unisen Industrial Limited
Page 4 of 7
4. 2.4G pair： auto.
5： Key Value：
Key symbol Key value Key symbol Key value
` 0x35 s 16
1 1e d 0x07
2 1f f o9
3 20 g 0a
4 21 h 0b
5 22 j 0d
6 23 k 0e
7 24 l 0f
8 25 ; 33
9 26 \ 31
0 27 z 1d
- 2d x 1b
= 2e c 0x06
Tab 2b v 19
q 14 b 0x05
w 1a n 11
e 0x08 m 10
r 15 , 36
t 17 . 37
y 1c ?/ 38
u 18 enter 28
i 0c Shift e1
o 12 Ctrl e0
p 13 AltGr e2
[ 2f space 2c
] 30 up 52
caps 39 down 51
a 0x04 Esc 29
left 50 Backspace 2a
right 4f
Unisen Industrial Limited
Page 5 of 7
5. IR button code
Key symbol IR CODE Key symbol Key value
POWER 0C EPG 35
1 01 BACK 37
2 02 EXIT 1F
3 03 MUTE 0D
4 04 UP 2F
5 05 DOWN 30
6 06 LEFT 31
7 07 RIGHT 33
8 08 OK 1B
9 09 PVR 1D
0 00 CC 27
. 0A SAP/Lang 23
SOURCE 38 NETFILX 3A
FAV 0F DMP 17
Vol + 10 STICKER 3E
Vol - 11 INFO 0F
CH + 20 RED 37
CH - 21 GREEN 36
HOME 1A YELLOW 32
MENU 2E BLUE 34
Unisen Industrial Limited
Page 6 of 7

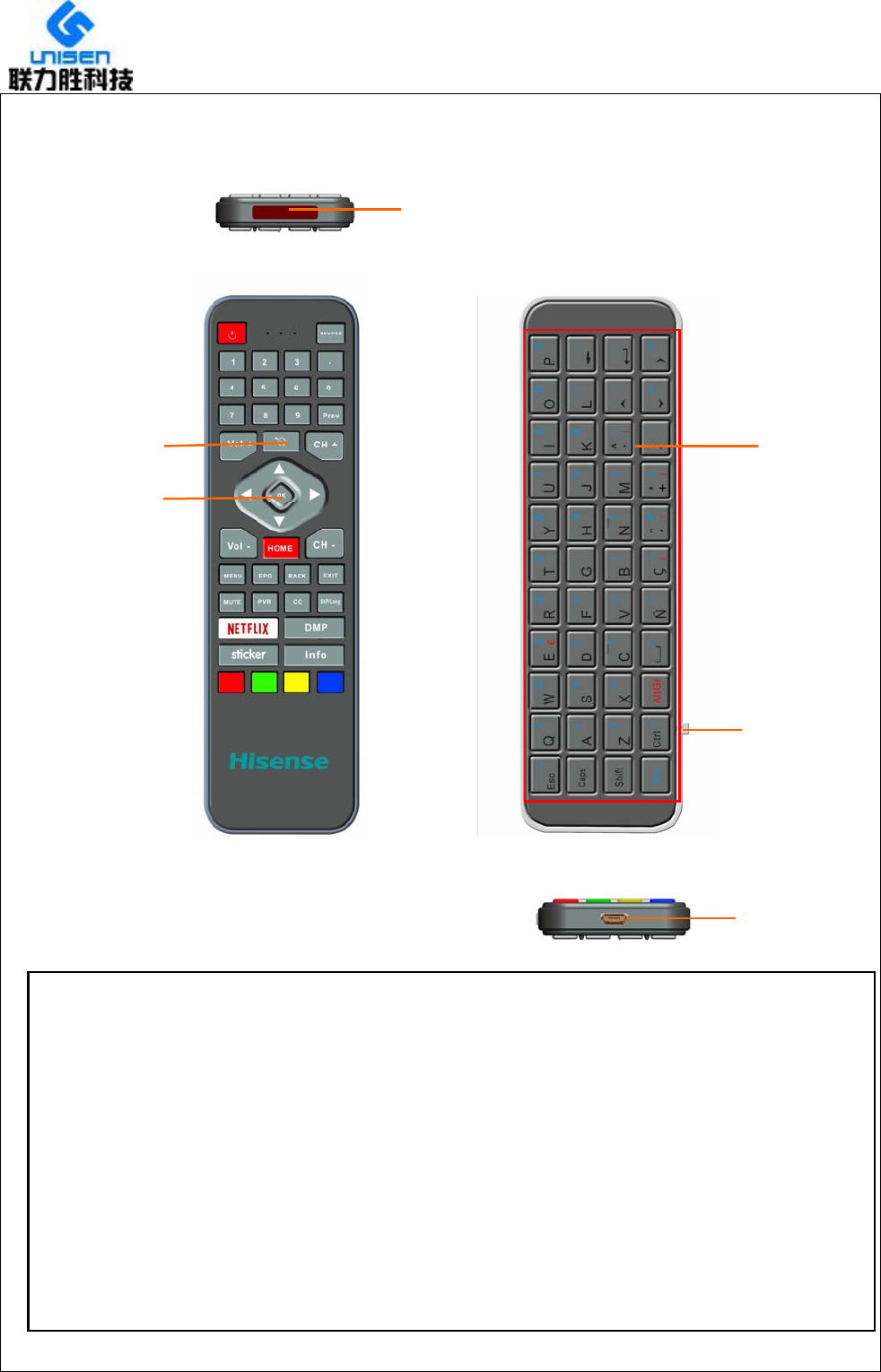

6. KEY FUNCTION BUTTONS DESCIPTION:
see note 1
IR EMMITER
Mouse: press to
activate mouse
Power switch
Note:
1. when mouse is activated, button “OK” will function as mouse left.
2. to input these letter with blue color, you must press this key and Fn, for example: if you want input
numeric key “1”, you have to press Fn and key “Q” simultaneously, some letters with red color, to input
it, you have to press this key and AltGR simultaneously.
Micro USB port
for charge
See note 2
Unisen Industrial Limited
Page 7 of 7
FCC Caution
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Any Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates uses
and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help.
