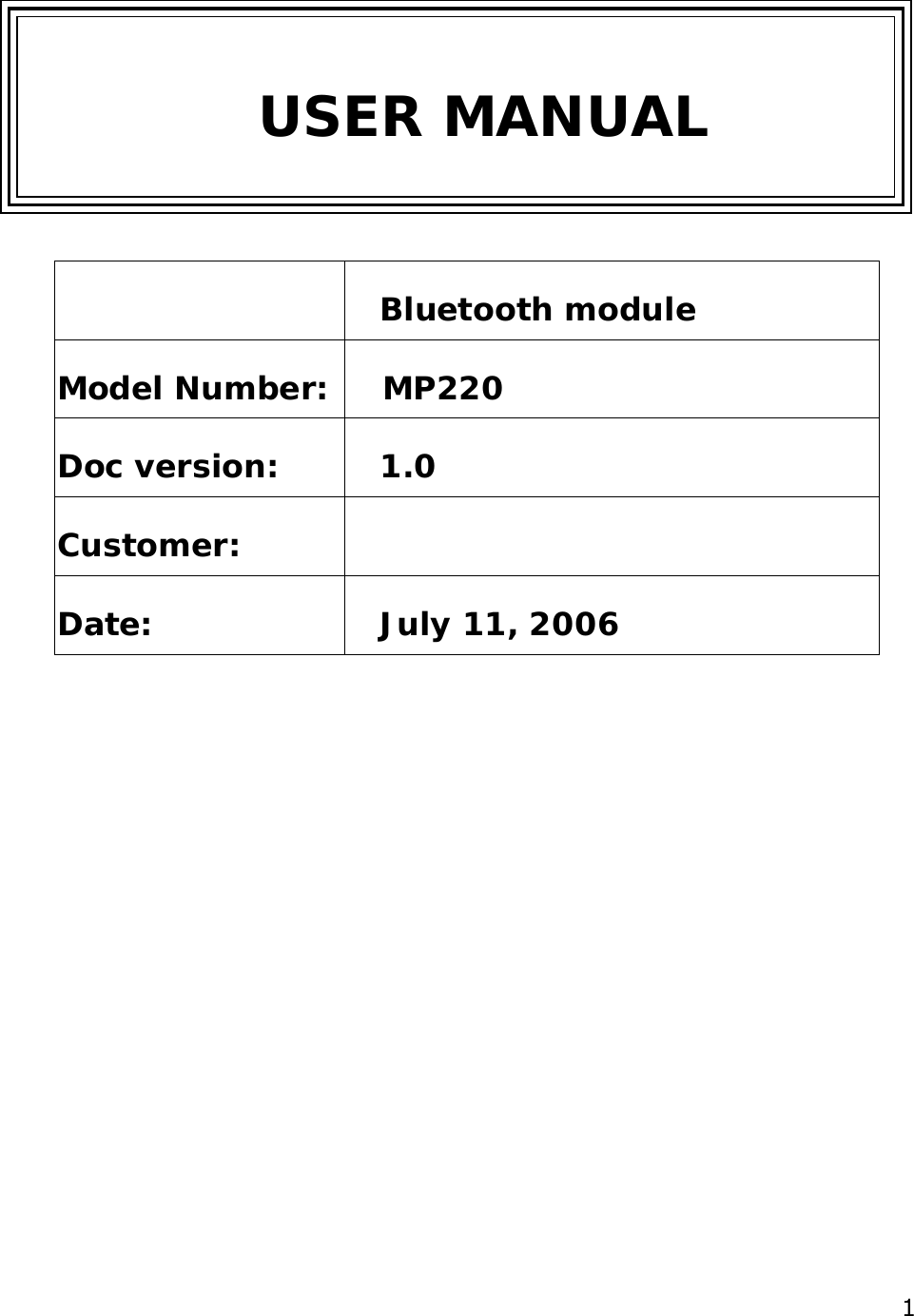

1 Bluetooth module Model Number: MP220Doc version: 1.0 Customer: Date: July 11, 2006 USER MANUAL

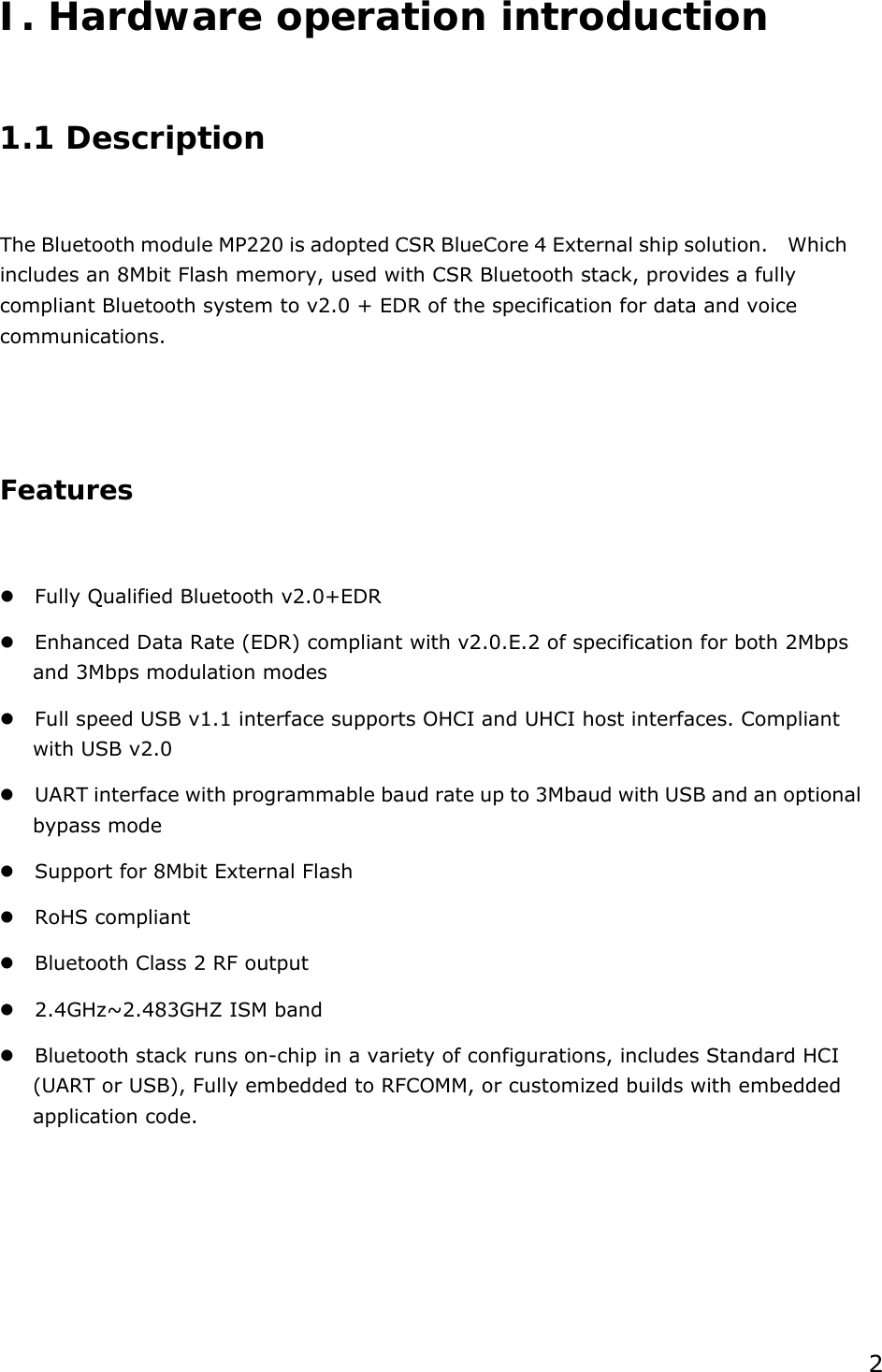

2 I. Hardware operation introduction 1.1 Description The Bluetooth module MP220 is adopted CSR BlueCore 4 External ship solution. Which includes an 8Mbit Flash memory, used with CSR Bluetooth stack, provides a fully compliant Bluetooth system to v2.0 + EDR of the specification for data and voice communications. Features  Fully Qualified Bluetooth v2.0+EDR  Enhanced Data Rate (EDR) compliant with v2.0.E.2 of specification for both 2Mbps and 3Mbps modulation modes  Full speed USB v1.1 interface supports OHCI and UHCI host interfaces. Compliant with USB v2.0  UART interface with programmable baud rate up to 3Mbaud with USB and an optional bypass mode  Support for 8Mbit External Flash  RoHS compliant  Bluetooth Class 2 RF output  2.4GHz~2.483GHZ ISM band  Bluetooth stack runs on-chip in a variety of configurations, includes Standard HCI (UART or USB), Fully embedded to RFCOMM, or customized builds with embedded application code.

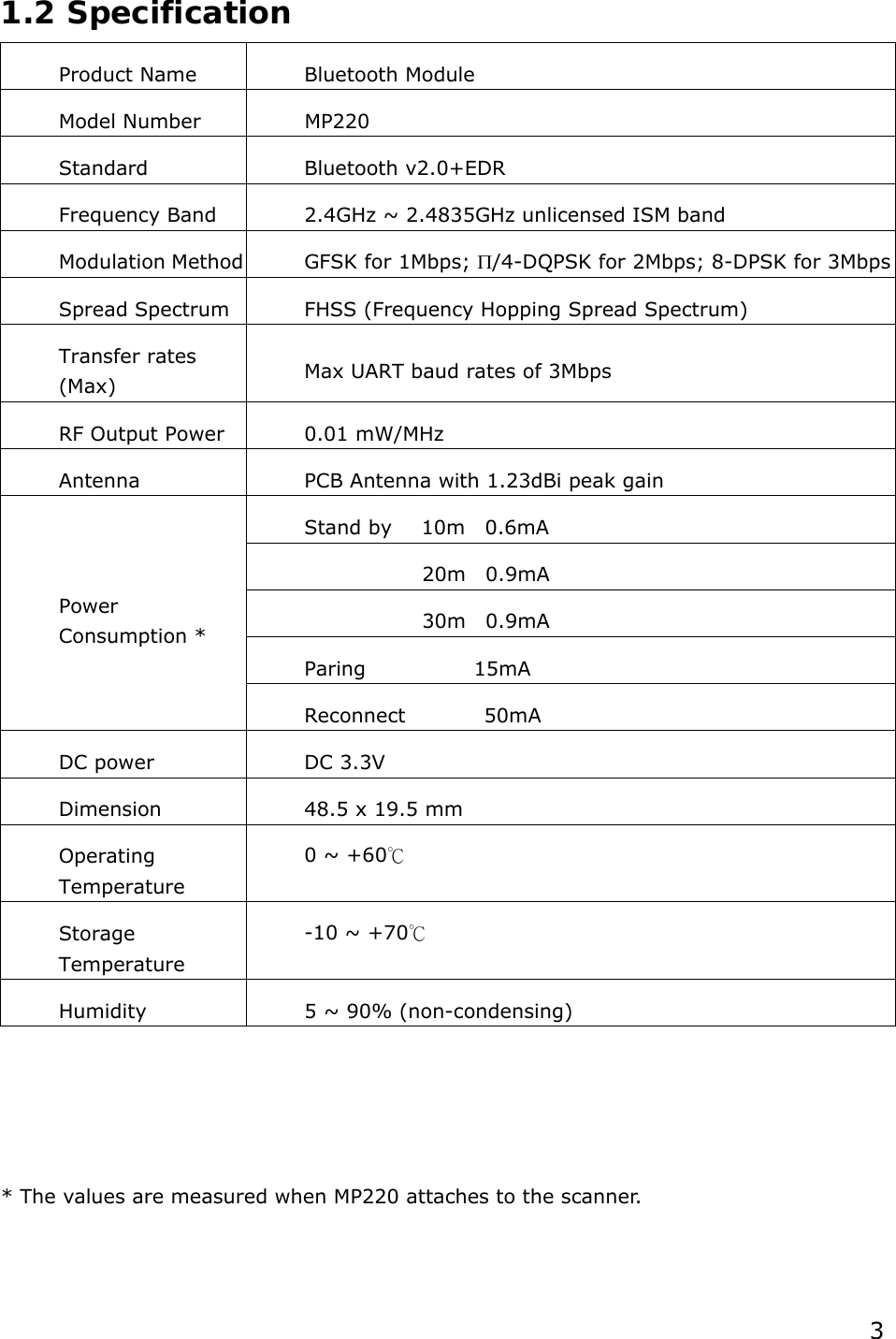

3 1.2 Specification Product Name Bluetooth Module Model Number MP220Standard Bluetooth v2.0+EDR Frequency Band 2.4GHz ~ 2.4835GHz unlicensed ISM band Modulation Method GFSK for 1Mbps; Π/4-DQPSK for 2Mbps; 8-DPSK for 3Mbps Spread Spectrum FHSS (Frequency Hopping Spread Spectrum) Transfer rates (Max) Max UART baud rates of 3Mbps RF Output Power 0.01 mW/MHz Antenna PCB Antenna with 1.23dBi peak gain Stand by 10m 0.6mA 20m 0.9mA 30m 0.9mA Paring 15mA Power Consumption * Reconnect 50mA DC power DC 3.3V Dimension 48.5 x 19.5 mm Operating Temperature 0 ~ +60℃ Storage Temperature -10 ~ +70℃ Humidity 5 ~ 90% (non-condensing) * The values are measured when MP220 attaches to the scanner.

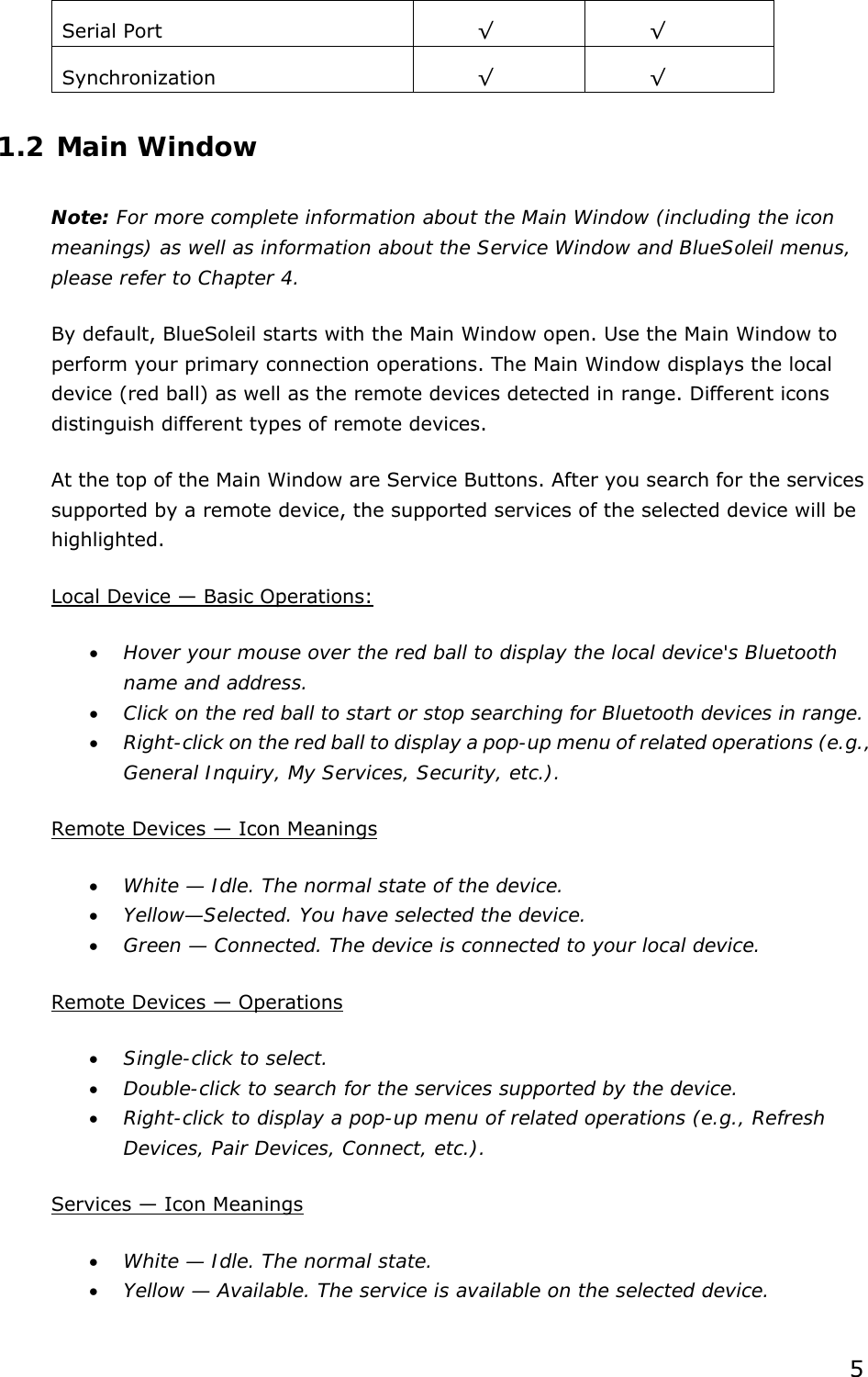

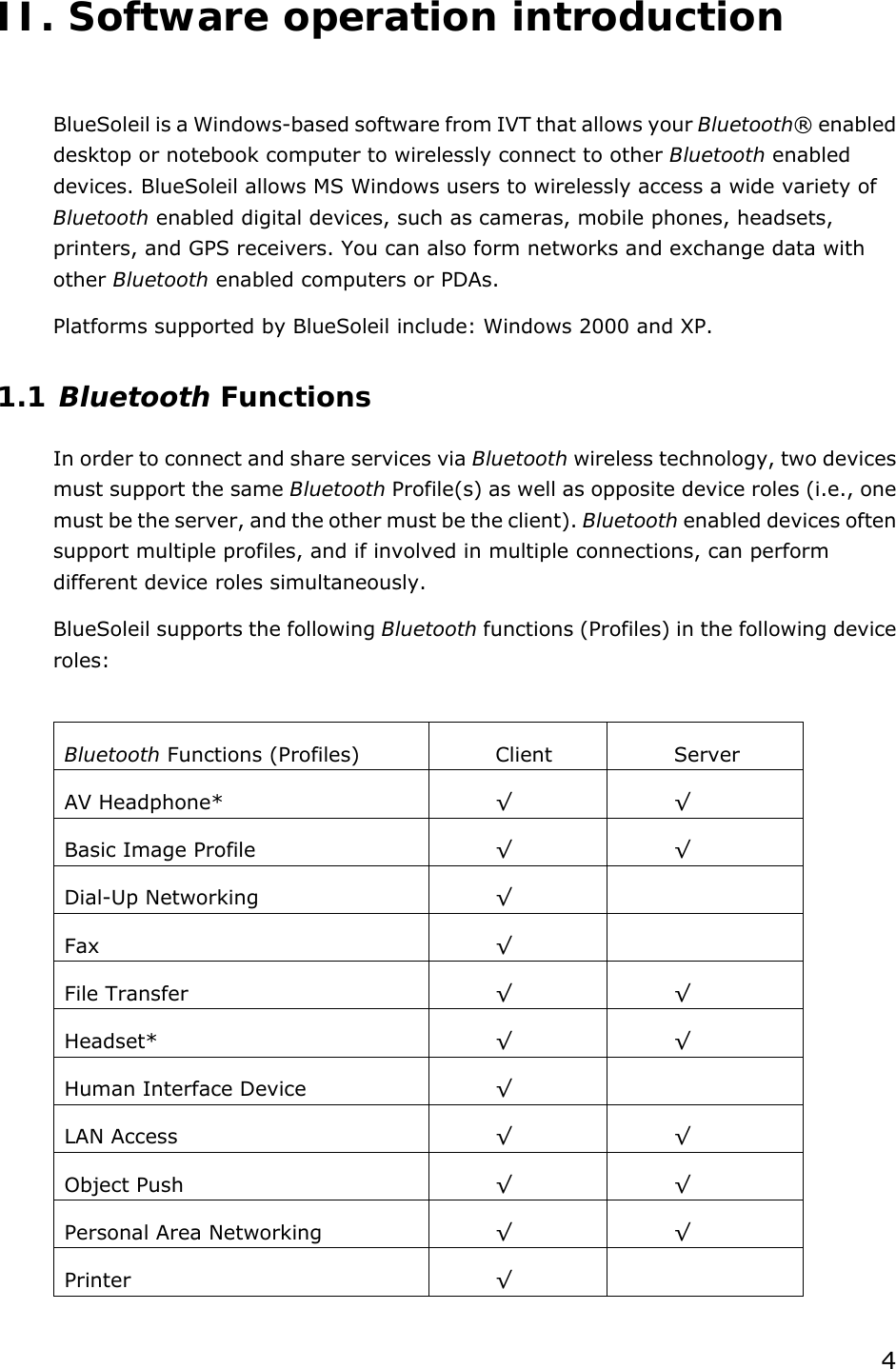

5 Serial Port √ √ Synchronization √ √ 1.2 Main Window Note: For more complete information about the Main Window (including the icon meanings) as well as information about the Service Window and BlueSoleil menus, please refer to Chapter 4. By default, BlueSoleil starts with the Main Window open. Use the Main Window to perform your primary connection operations. The Main Window displays the local device (red ball) as well as the remote devices detected in range. Different icons distinguish different types of remote devices. At the top of the Main Window are Service Buttons. After you search for the services supported by a remote device, the supported services of the selected device will be highlighted. Local Device — Basic Operations: • Hover your mouse over the red ball to display the local device's Bluetooth name and address. • Click on the red ball to start or stop searching for Bluetooth devices in range. • Right-click on the red ball to display a pop-up menu of related operations (e.g., General Inquiry, My Services, Security, etc.). Remote Devices — Icon Meanings • White — Idle. The normal state of the device. • Yellow—Selected. You have selected the device. • Green — Connected. The device is connected to your local device. Remote Devices — Operations • Single-click to select. • Double-click to search for the services supported by the device. • Right-click to display a pop-up menu of related operations (e.g., Refresh Devices, Pair Devices, Connect, etc.). Services — Icon Meanings • White — Idle. The normal state. • Yellow — Available. The service is available on the selected device.

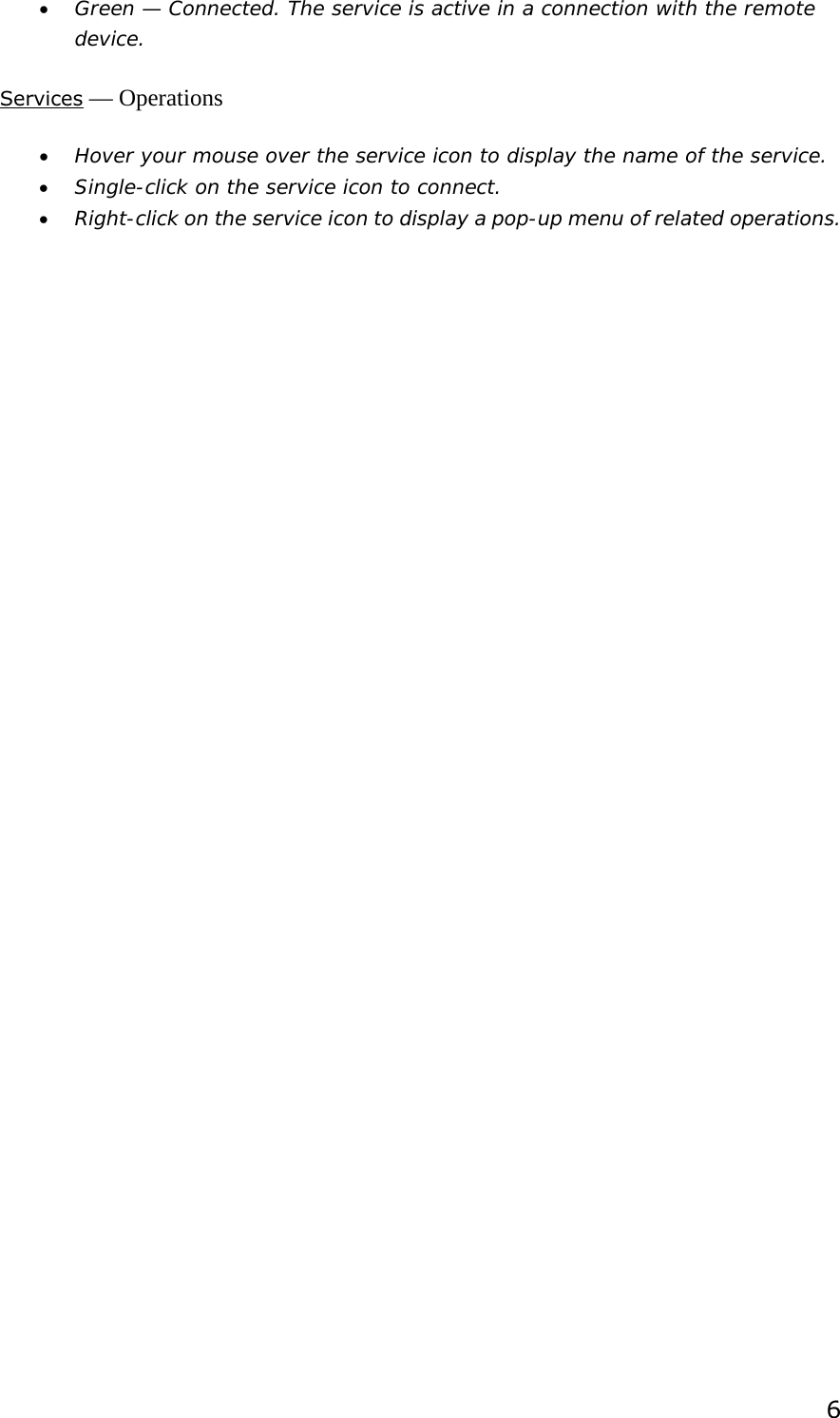

6 • Green — Connected. The service is active in a connection with the remote device. Services — Operations • Hover your mouse over the service icon to display the name of the service. • Single-click on the service icon to connect. • Right-click on the service icon to display a pop-up menu of related operations.

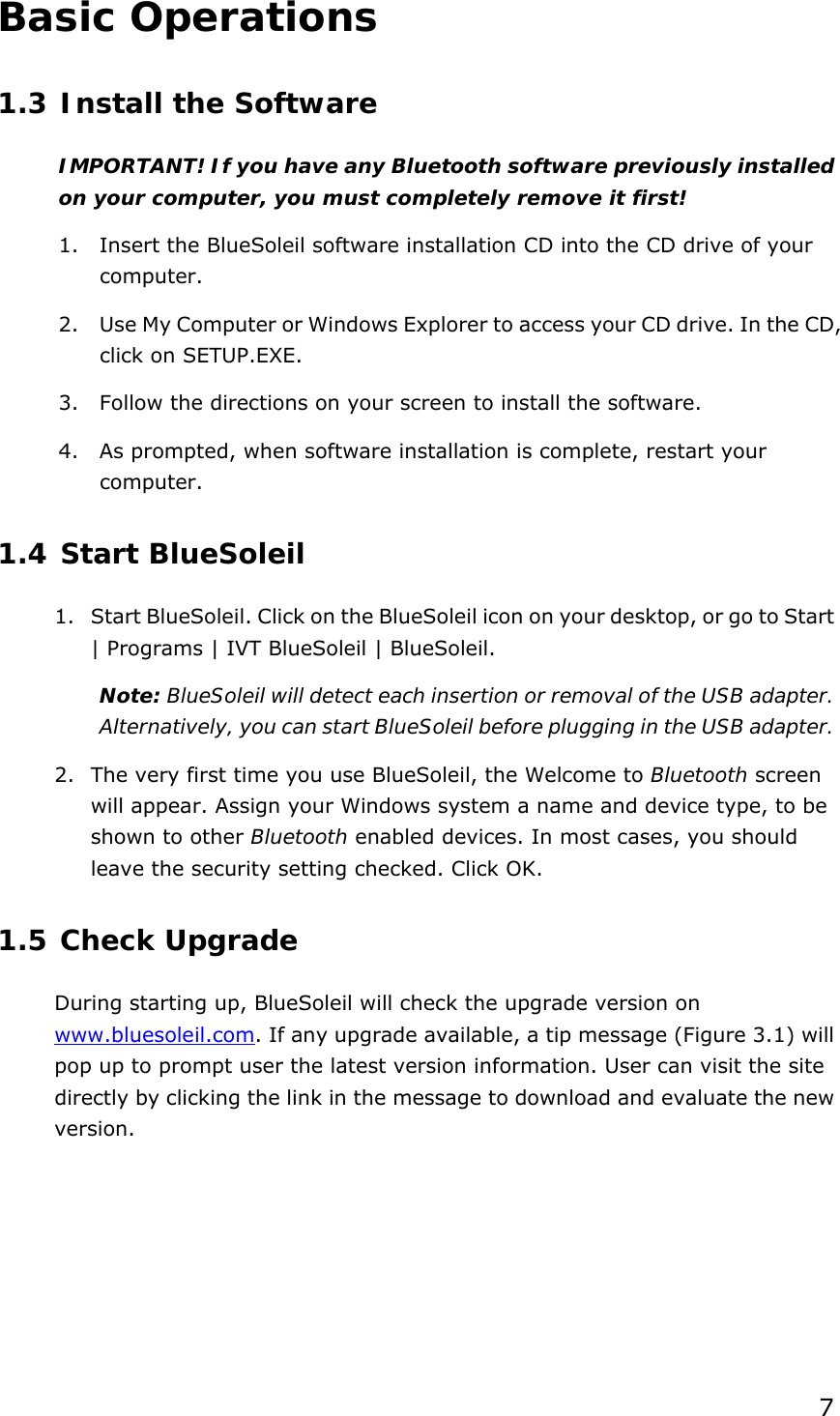

7 Basic Operations 1.3 Install the Software IMPORTANT! If you have any Bluetooth software previously installed on your computer, you must completely remove it first! 1. Insert the BlueSoleil software installation CD into the CD drive of your computer. 2. Use My Computer or Windows Explorer to access your CD drive. In the CD, click on SETUP.EXE. 3. Follow the directions on your screen to install the software. 4. As prompted, when software installation is complete, restart your computer. 1.4 Start BlueSoleil 1. Start BlueSoleil. Click on the BlueSoleil icon on your desktop, or go to Start | Programs | IVT BlueSoleil | BlueSoleil. Note: BlueSoleil will detect each insertion or removal of the USB adapter. Alternatively, you can start BlueSoleil before plugging in the USB adapter. 2. The very first time you use BlueSoleil, the Welcome to Bluetooth screen will appear. Assign your Windows system a name and device type, to be shown to other Bluetooth enabled devices. In most cases, you should leave the security setting checked. Click OK. 1.5 Check Upgrade During starting up, BlueSoleil will check the upgrade version on www.bluesoleil.com. If any upgrade available, a tip message (Figure 3.1) will pop up to prompt user the latest version information. User can visit the site directly by clicking the link in the message to download and evaluate the new version.

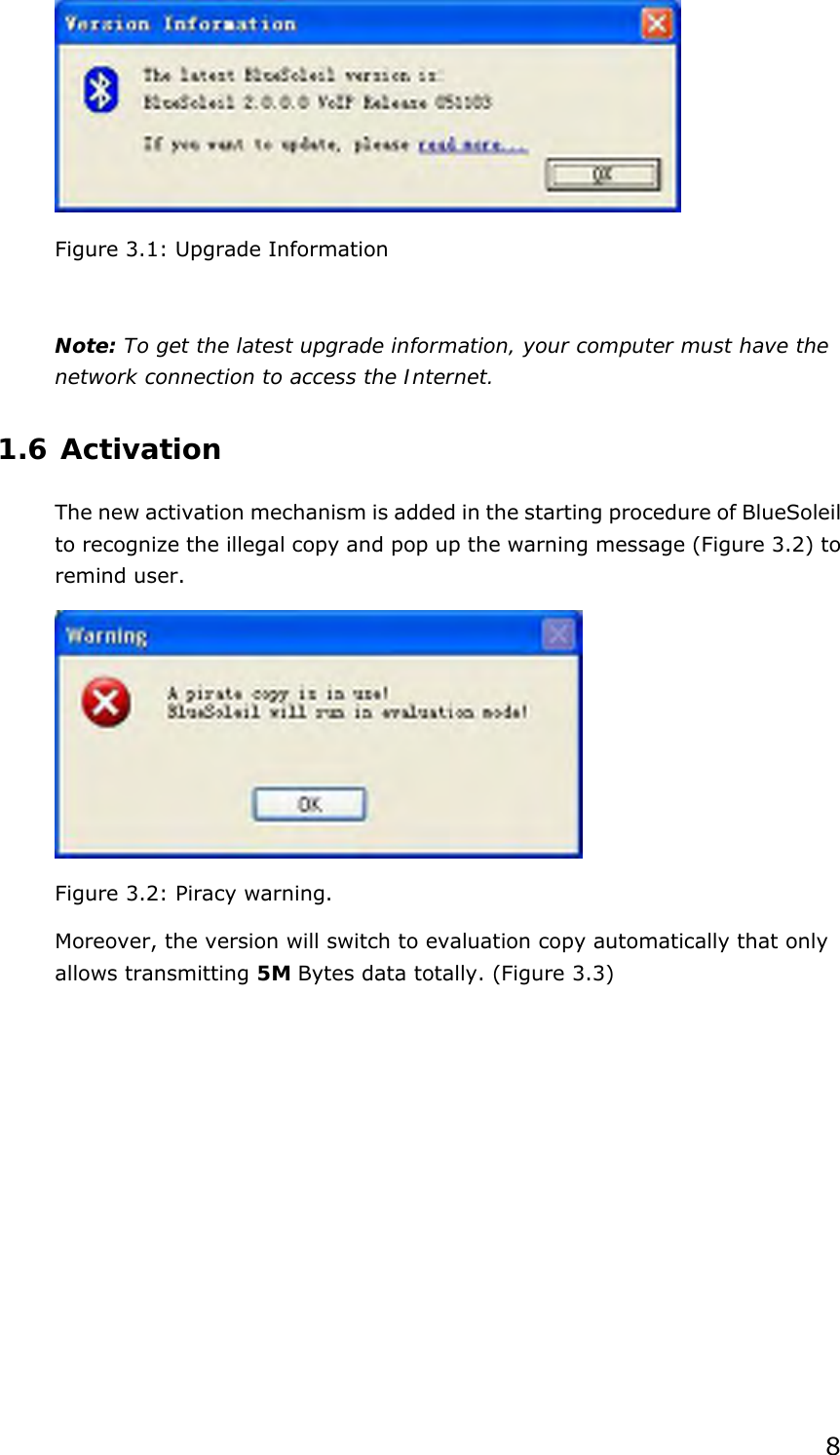

8 Figure 3.1: Upgrade Information Note: To get the latest upgrade information, your computer must have the network connection to access the Internet. 1.6 Activation The new activation mechanism is added in the starting procedure of BlueSoleil to recognize the illegal copy and pop up the warning message (Figure 3.2) to remind user. Figure 3.2: Piracy warning. Moreover, the version will switch to evaluation copy automatically that only allows transmitting 5M Bytes data totally. (Figure 3.3)

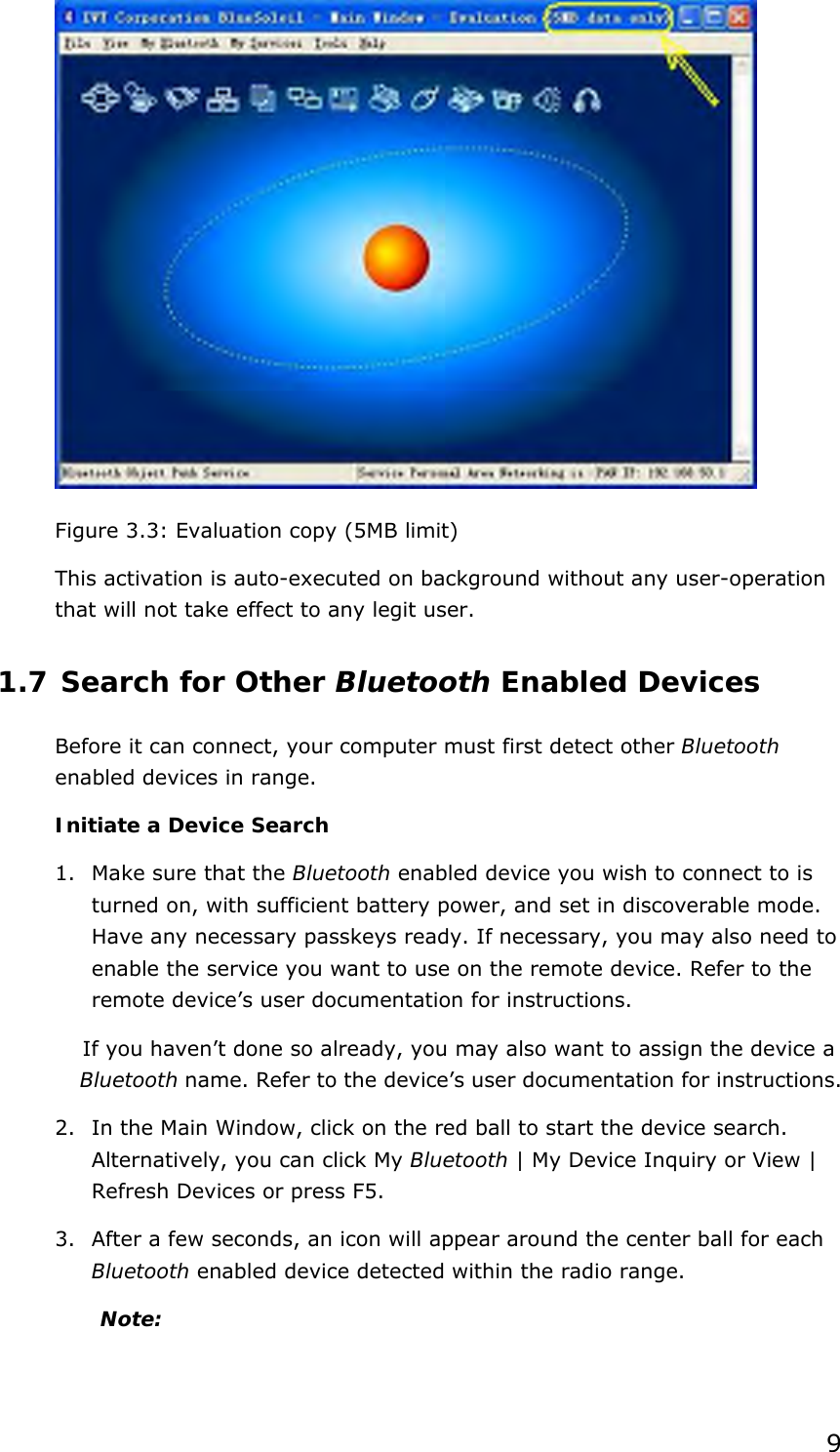

9 Figure 3.3: Evaluation copy (5MB limit) This activation is auto-executed on background without any user-operation that will not take effect to any legit user. 1.7 Search for Other Bluetooth Enabled Devices Before it can connect, your computer must first detect other Bluetooth enabled devices in range. Initiate a Device Search 1. Make sure that the Bluetooth enabled device you wish to connect to is turned on, with sufficient battery power, and set in discoverable mode. Have any necessary passkeys ready. If necessary, you may also need to enable the service you want to use on the remote device. Refer to the remote device’s user documentation for instructions. If you haven’t done so already, you may also want to assign the device a Bluetooth name. Refer to the device’s user documentation for instructions. 2. In the Main Window, click on the red ball to start the device search. Alternatively, you can click My Bluetooth | My Device Inquiry or View | Refresh Devices or press F5. 3. After a few seconds, an icon will appear around the center ball for each Bluetooth enabled device detected within the radio range. Note:

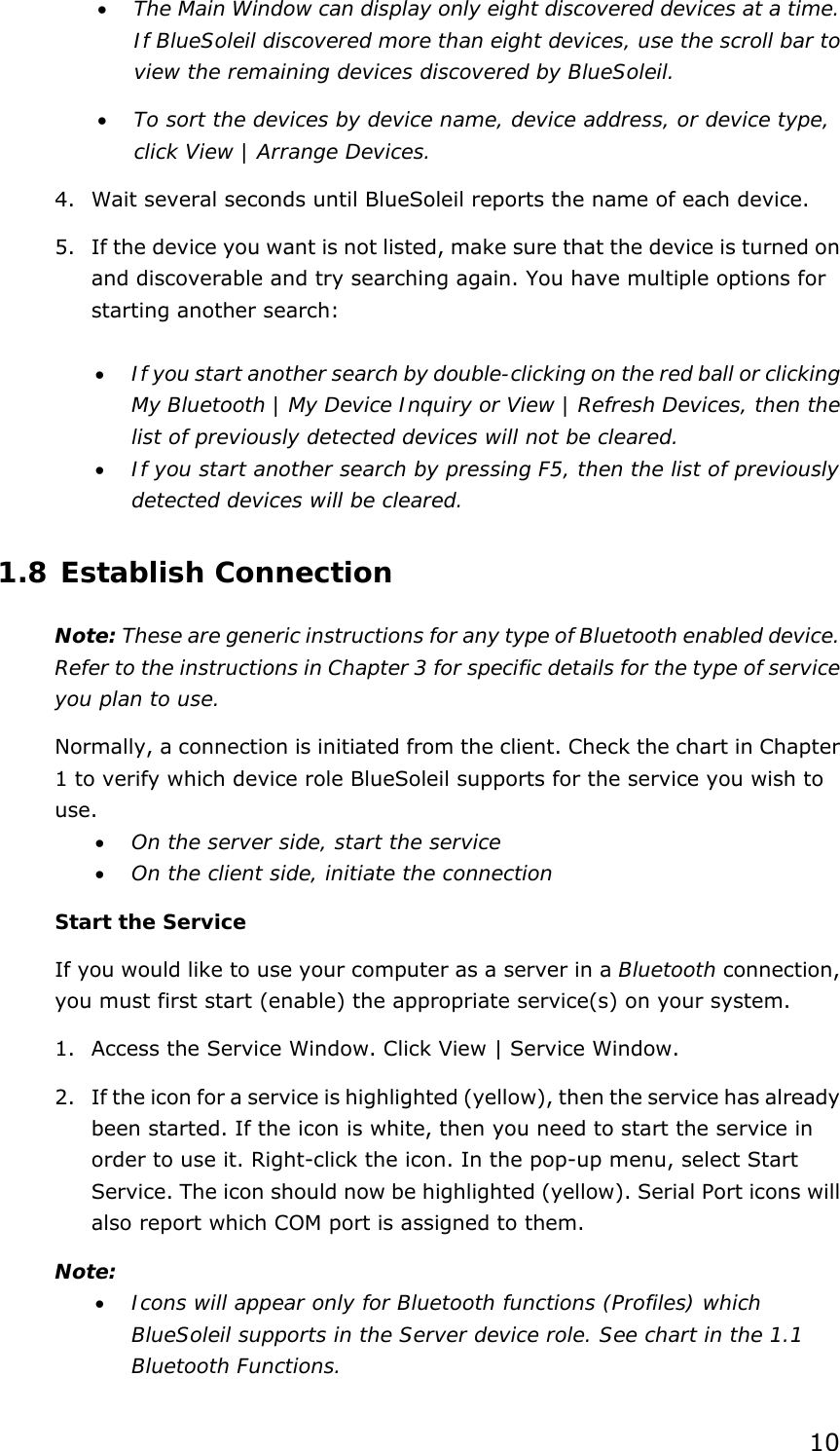

10 • The Main Window can display only eight discovered devices at a time. If BlueSoleil discovered more than eight devices, use the scroll bar to view the remaining devices discovered by BlueSoleil. • To sort the devices by device name, device address, or device type, click View | Arrange Devices. 4. Wait several seconds until BlueSoleil reports the name of each device. 5. If the device you want is not listed, make sure that the device is turned on and discoverable and try searching again. You have multiple options for starting another search: • If you start another search by double-clicking on the red ball or clicking My Bluetooth | My Device Inquiry or View | Refresh Devices, then the list of previously detected devices will not be cleared. • If you start another search by pressing F5, then the list of previously detected devices will be cleared. 1.8 Establish Connection Note: These are generic instructions for any type of Bluetooth enabled device. Refer to the instructions in Chapter 3 for specific details for the type of service you plan to use. Normally, a connection is initiated from the client. Check the chart in Chapter 1 to verify which device role BlueSoleil supports for the service you wish to use. • On the server side, start the service • On the client side, initiate the connection Start the Service If you would like to use your computer as a server in a Bluetooth connection, you must first start (enable) the appropriate service(s) on your system. 1. Access the Service Window. Click View | Service Window. 2. If the icon for a service is highlighted (yellow), then the service has already been started. If the icon is white, then you need to start the service in order to use it. Right-click the icon. In the pop-up menu, select Start Service. The icon should now be highlighted (yellow). Serial Port icons will also report which COM port is assigned to them. Note: • Icons will appear only for Bluetooth functions (Profiles) which BlueSoleil supports in the Server device role. See chart in the 1.1 Bluetooth Functions.

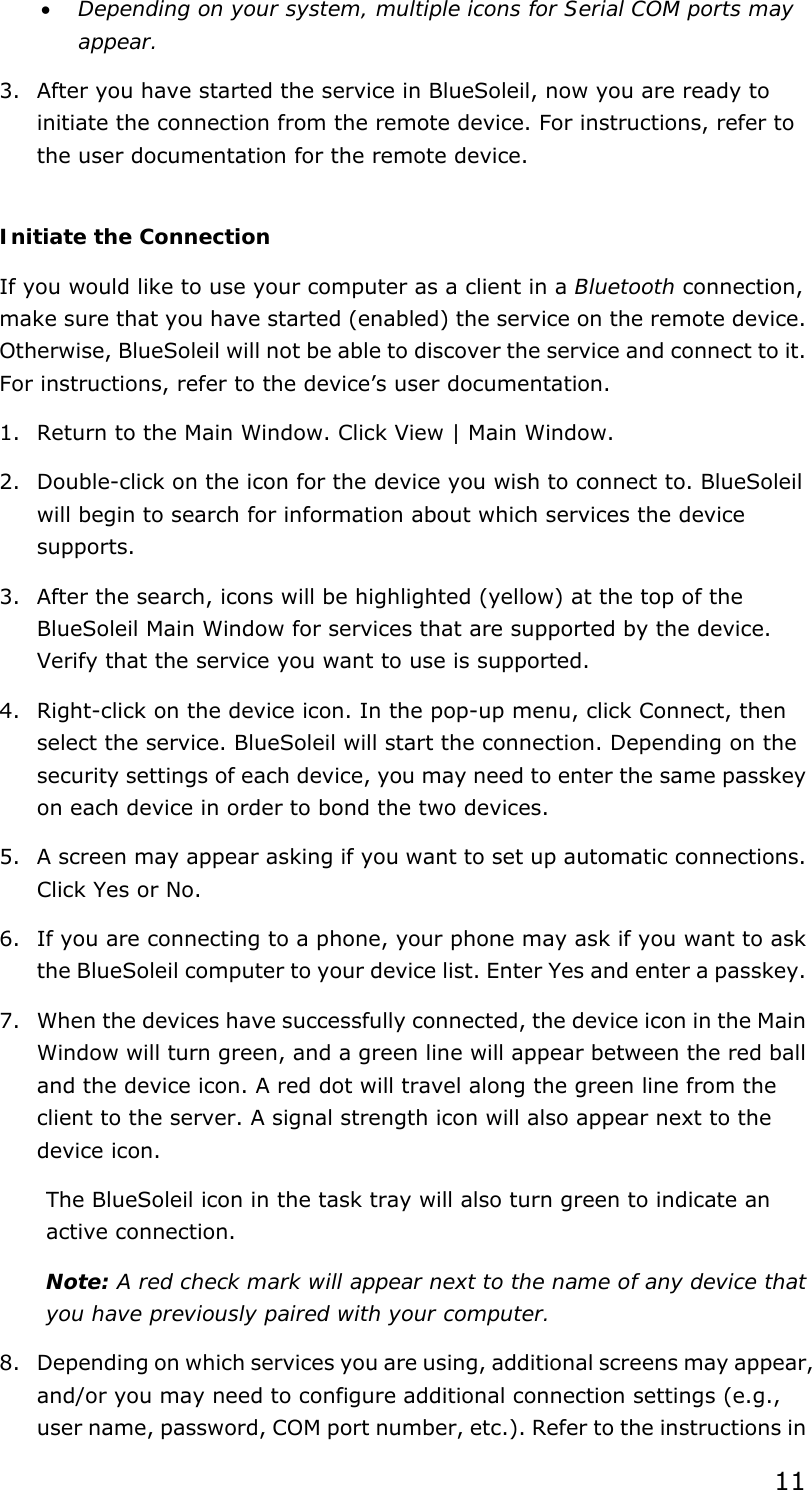

11 • Depending on your system, multiple icons for Serial COM ports may appear. 3. After you have started the service in BlueSoleil, now you are ready to initiate the connection from the remote device. For instructions, refer to the user documentation for the remote device. Initiate the Connection If you would like to use your computer as a client in a Bluetooth connection, make sure that you have started (enabled) the service on the remote device. Otherwise, BlueSoleil will not be able to discover the service and connect to it. For instructions, refer to the device’s user documentation. 1. Return to the Main Window. Click View | Main Window. 2. Double-click on the icon for the device you wish to connect to. BlueSoleil will begin to search for information about which services the device supports. 3. After the search, icons will be highlighted (yellow) at the top of the BlueSoleil Main Window for services that are supported by the device. Verify that the service you want to use is supported. 4. Right-click on the device icon. In the pop-up menu, click Connect, then select the service. BlueSoleil will start the connection. Depending on the security settings of each device, you may need to enter the same passkey on each device in order to bond the two devices. 5. A screen may appear asking if you want to set up automatic connections. Click Yes or No. 6. If you are connecting to a phone, your phone may ask if you want to ask the BlueSoleil computer to your device list. Enter Yes and enter a passkey. 7. When the devices have successfully connected, the device icon in the Main Window will turn green, and a green line will appear between the red ball and the device icon. A red dot will travel along the green line from the client to the server. A signal strength icon will also appear next to the device icon. The BlueSoleil icon in the task tray will also turn green to indicate an active connection. Note: A red check mark will appear next to the name of any device that you have previously paired with your computer. 8. Depending on which services you are using, additional screens may appear, and/or you may need to configure additional connection settings (e.g., user name, password, COM port number, etc.). Refer to the instructions in

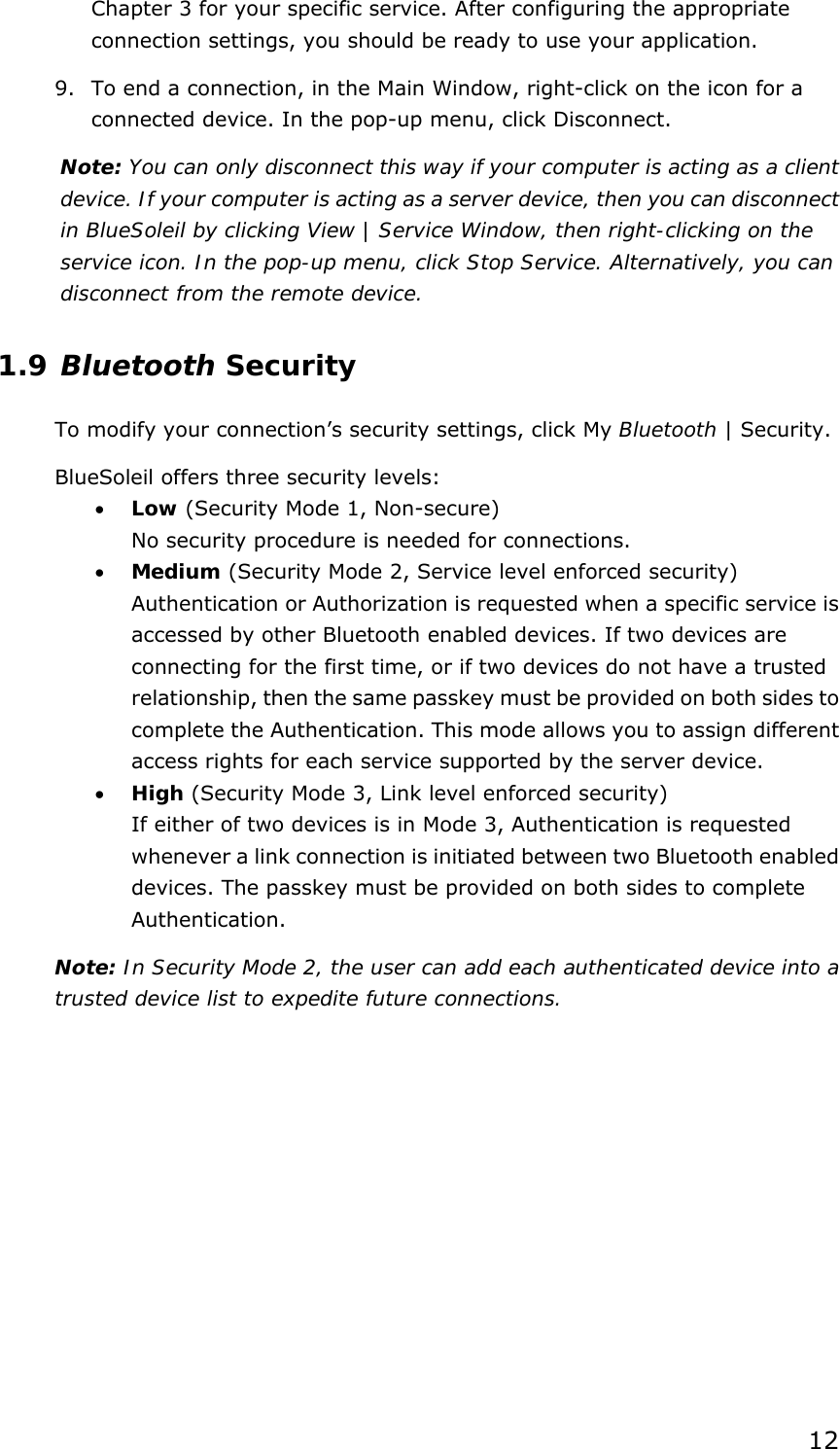

12 Chapter 3 for your specific service. After configuring the appropriate connection settings, you should be ready to use your application. 9. To end a connection, in the Main Window, right-click on the icon for a connected device. In the pop-up menu, click Disconnect. Note: You can only disconnect this way if your computer is acting as a client device. If your computer is acting as a server device, then you can disconnect in BlueSoleil by clicking View | Service Window, then right-clicking on the service icon. In the pop-up menu, click Stop Service. Alternatively, you can disconnect from the remote device. 1.9 Bluetooth Security To modify your connection’s security settings, click My Bluetooth | Security. BlueSoleil offers three security levels: • Low (Security Mode 1, Non-secure) No security procedure is needed for connections. • Medium (Security Mode 2, Service level enforced security) Authentication or Authorization is requested when a specific service is accessed by other Bluetooth enabled devices. If two devices are connecting for the first time, or if two devices do not have a trusted relationship, then the same passkey must be provided on both sides to complete the Authentication. This mode allows you to assign different access rights for each service supported by the server device. • High (Security Mode 3, Link level enforced security) If either of two devices is in Mode 3, Authentication is requested whenever a link connection is initiated between two Bluetooth enabled devices. The passkey must be provided on both sides to complete Authentication. Note: In Security Mode 2, the user can add each authenticated device into a trusted device list to expedite future connections.

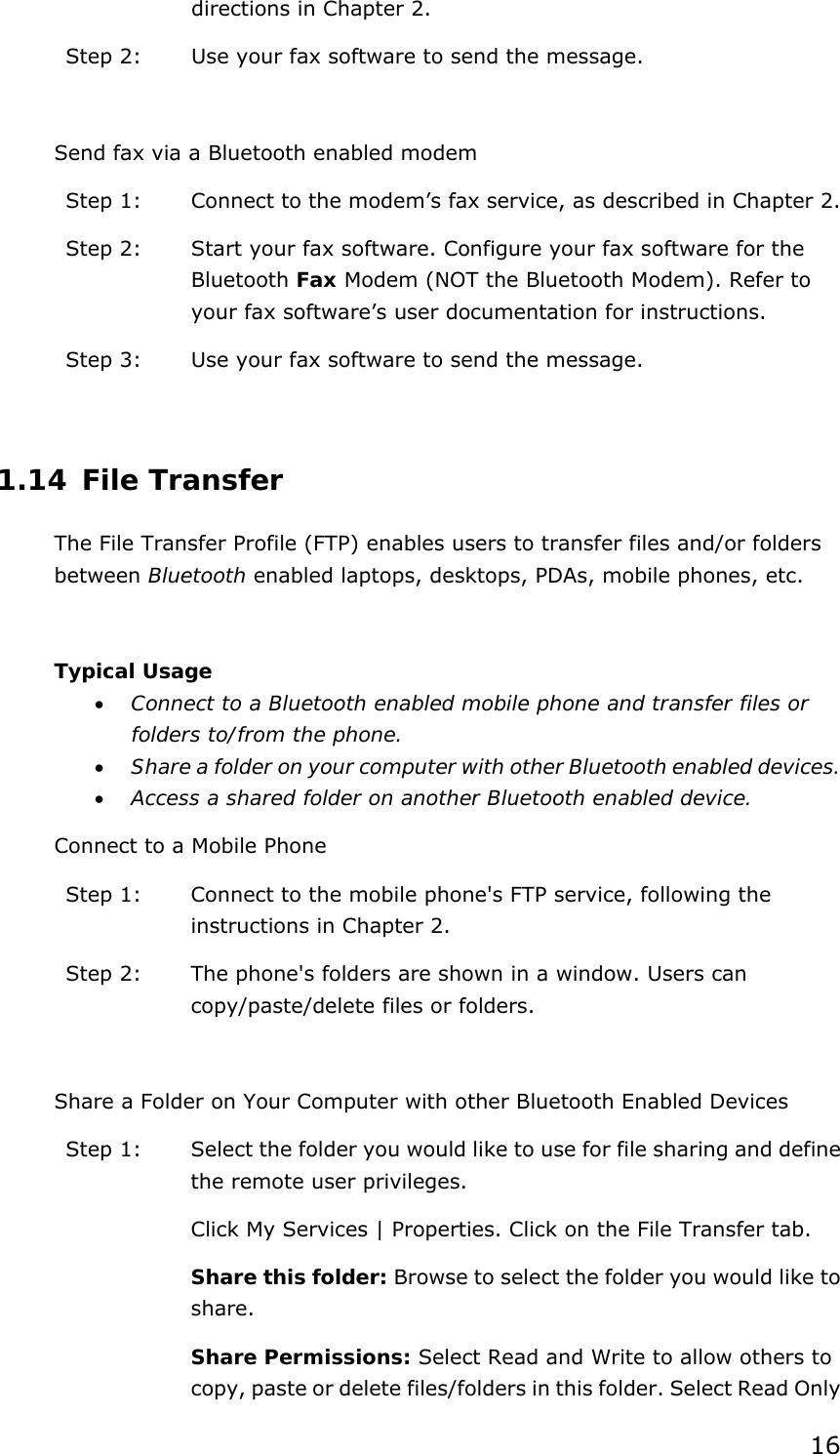

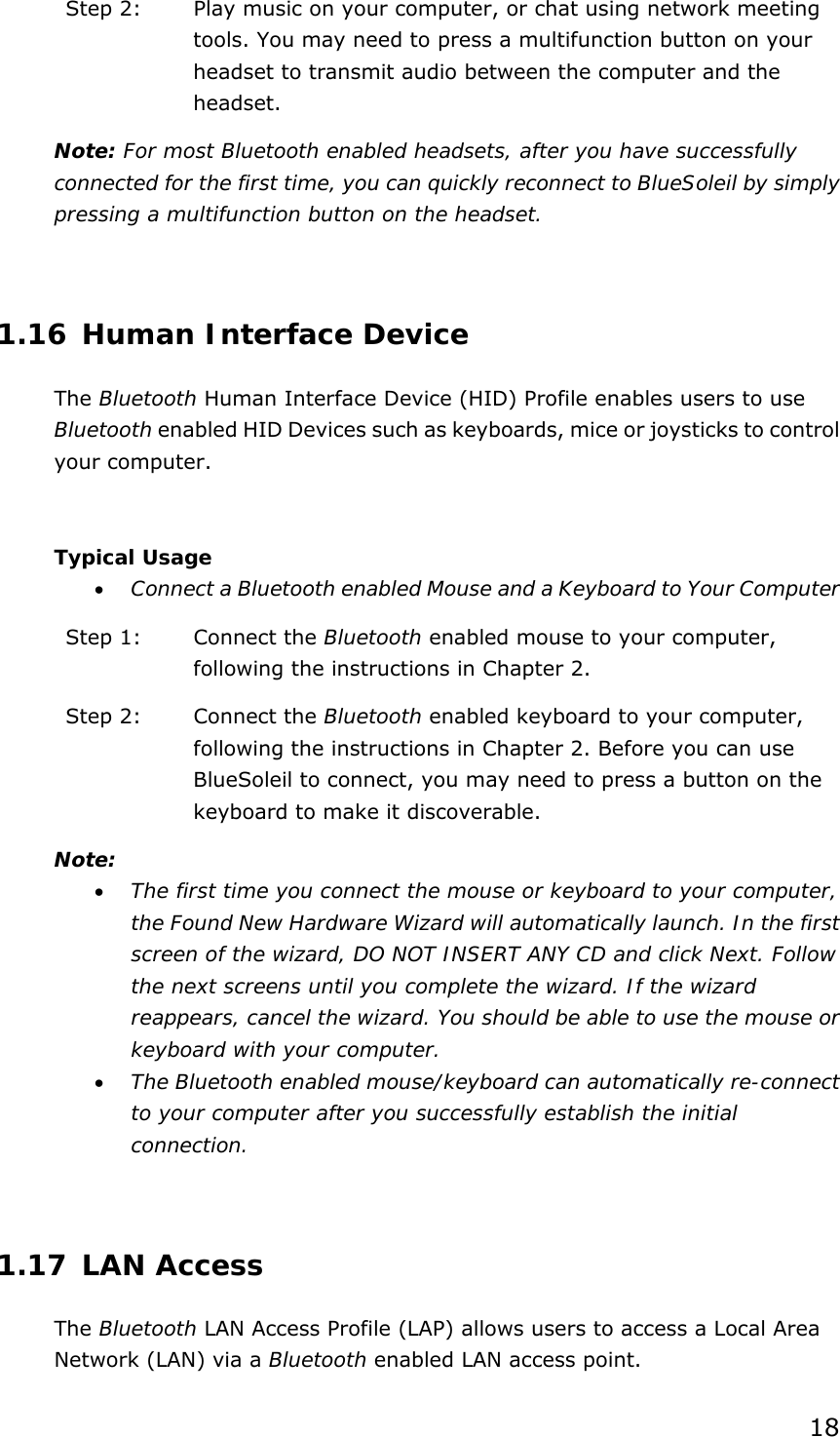

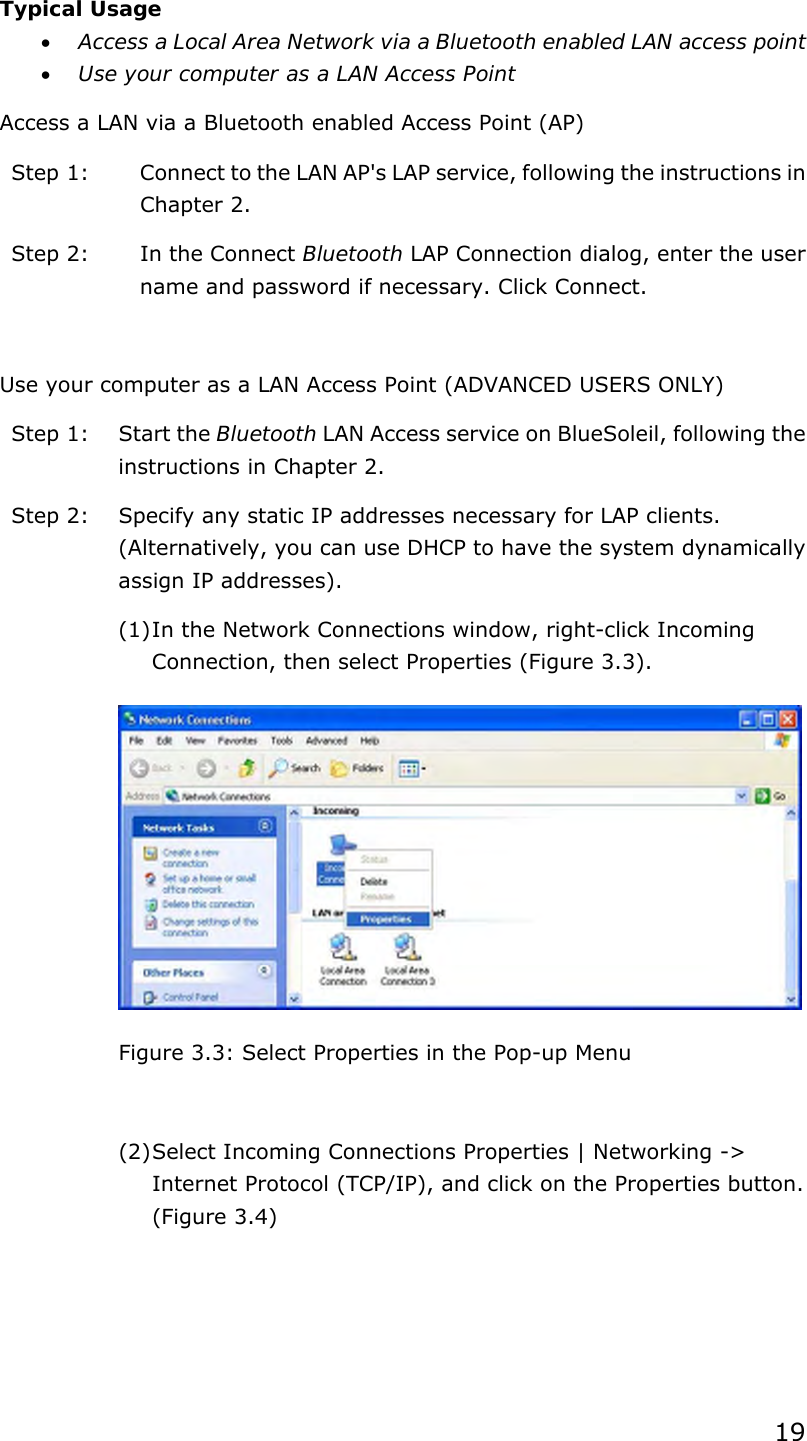

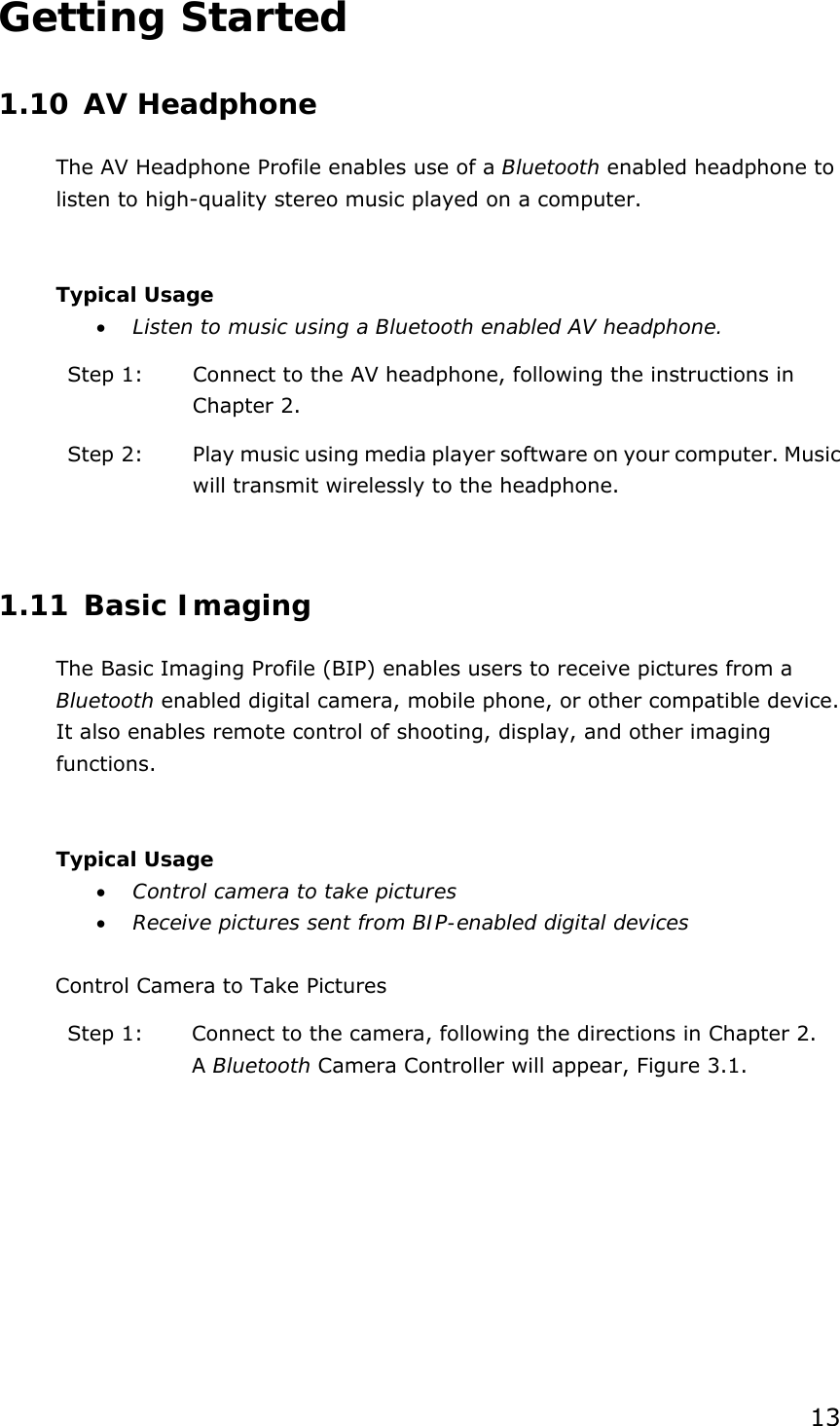

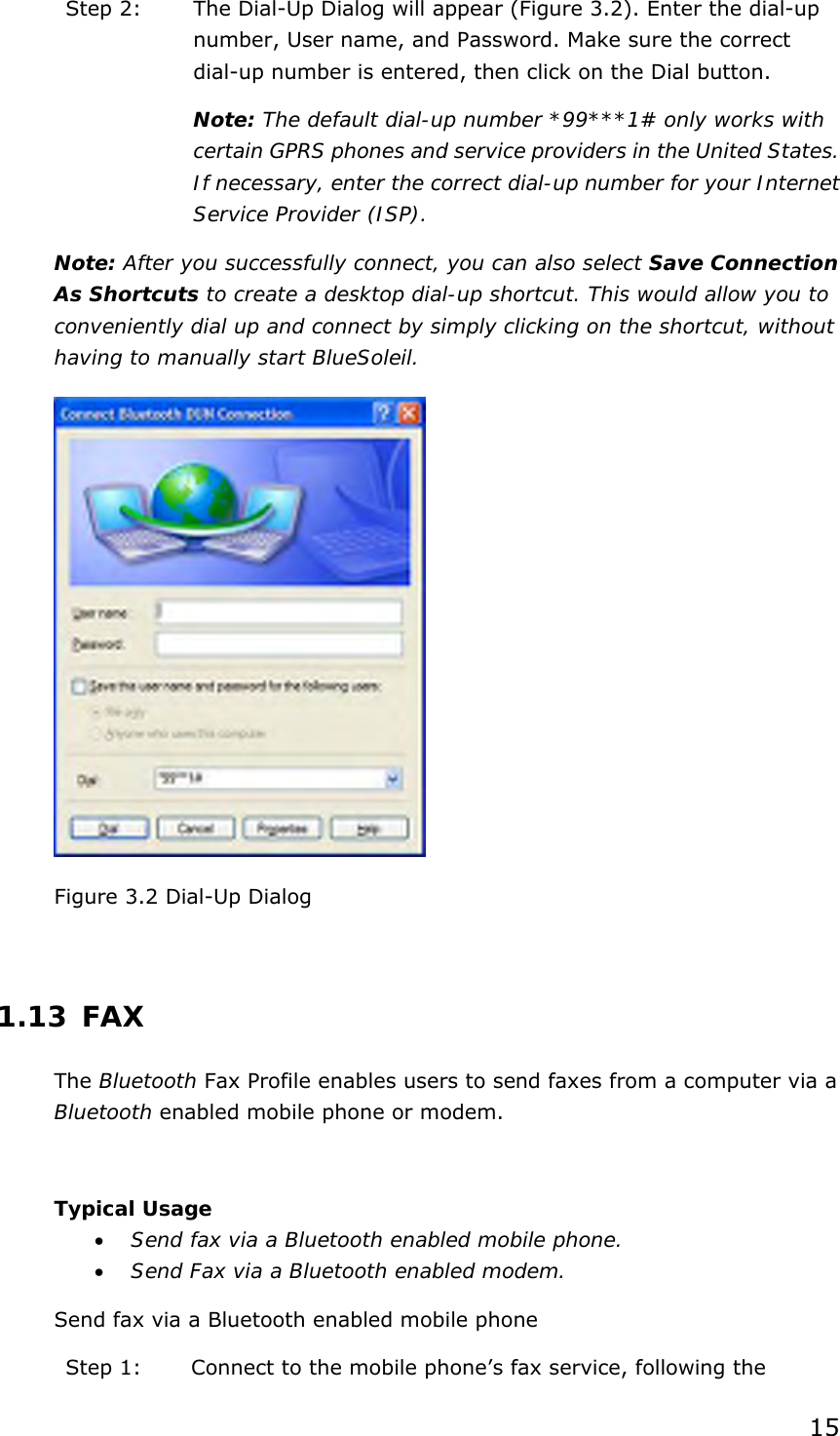

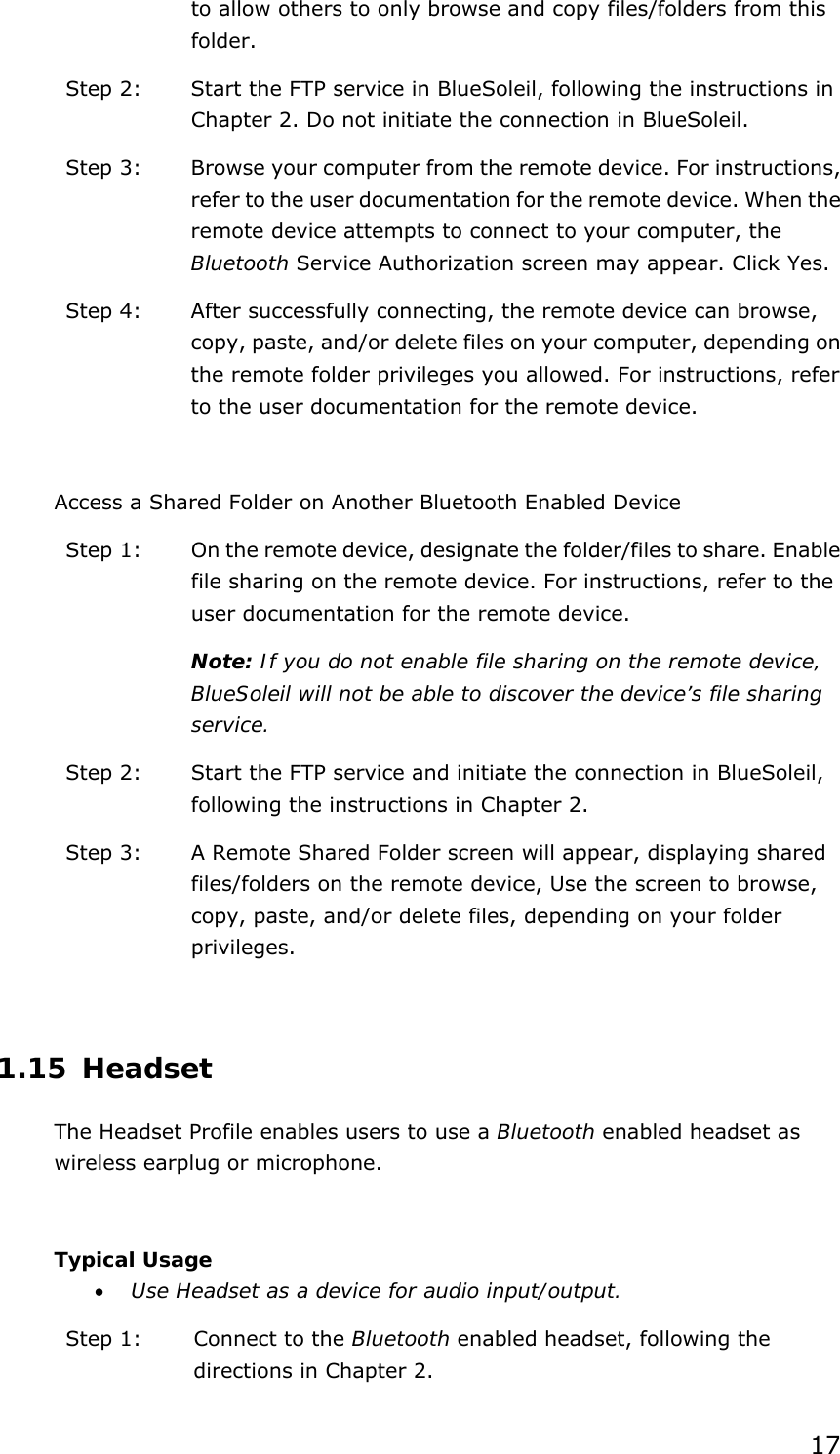

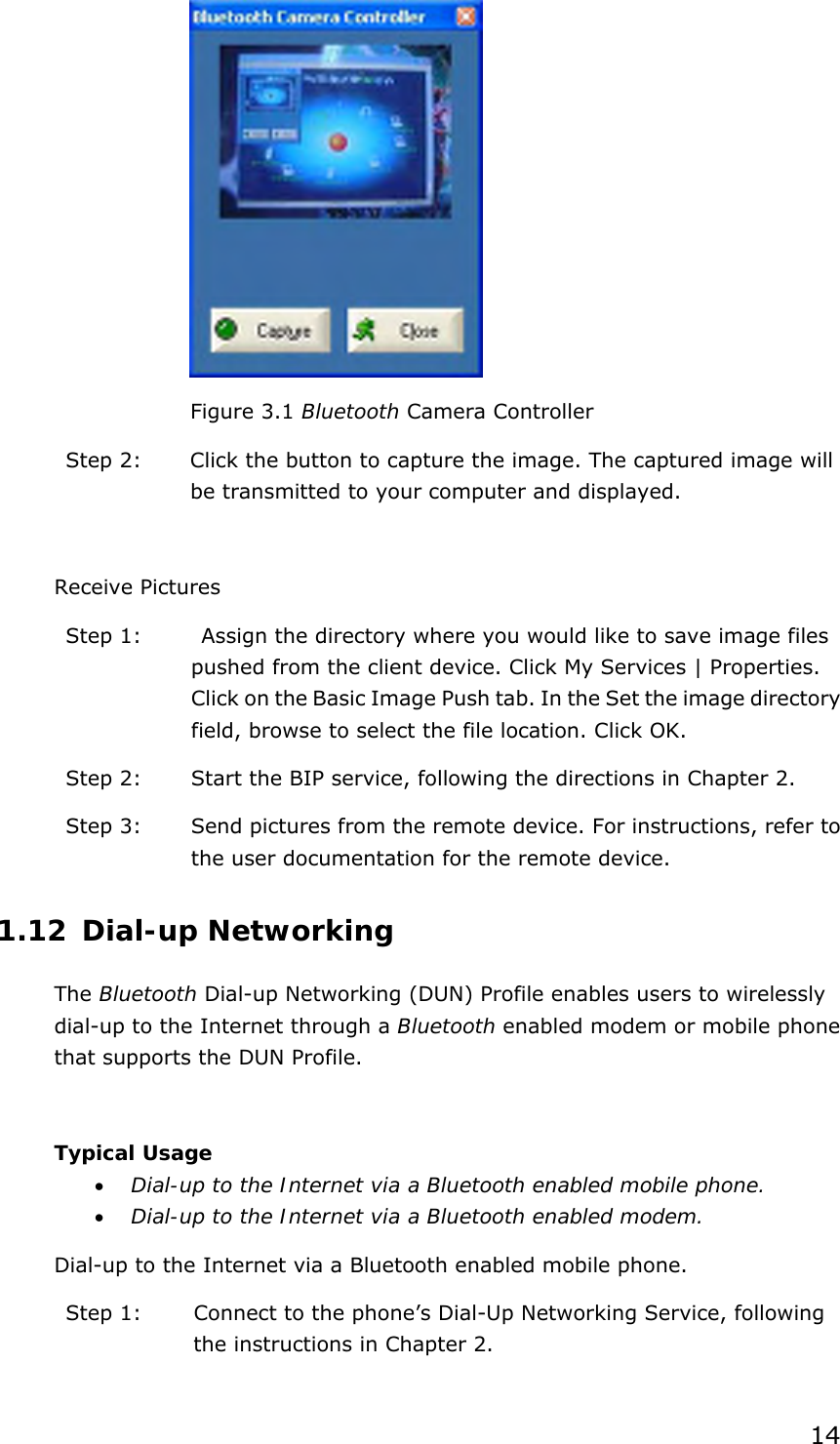

19 Typical Usage • Access a Local Area Network via a Bluetooth enabled LAN access point • Use your computer as a LAN Access Point Access a LAN via a Bluetooth enabled Access Point (AP) Step 1: Connect to the LAN AP's LAP service, following the instructions in Chapter 2. Step 2: In the Connect Bluetooth LAP Connection dialog, enter the user name and password if necessary. Click Connect. Use your computer as a LAN Access Point (ADVANCED USERS ONLY) Step 1: Start the Bluetooth LAN Access service on BlueSoleil, following the instructions in Chapter 2. Step 2: Specify any static IP addresses necessary for LAP clients. (Alternatively, you can use DHCP to have the system dynamically assign IP addresses). (1) In the Network Connections window, right-click Incoming Connection, then select Properties (Figure 3.3). Figure 3.3: Select Properties in the Pop-up Menu (2) Select Incoming Connections Properties | Networking -> Internet Protocol (TCP/IP), and click on the Properties button. (Figure 3.4)

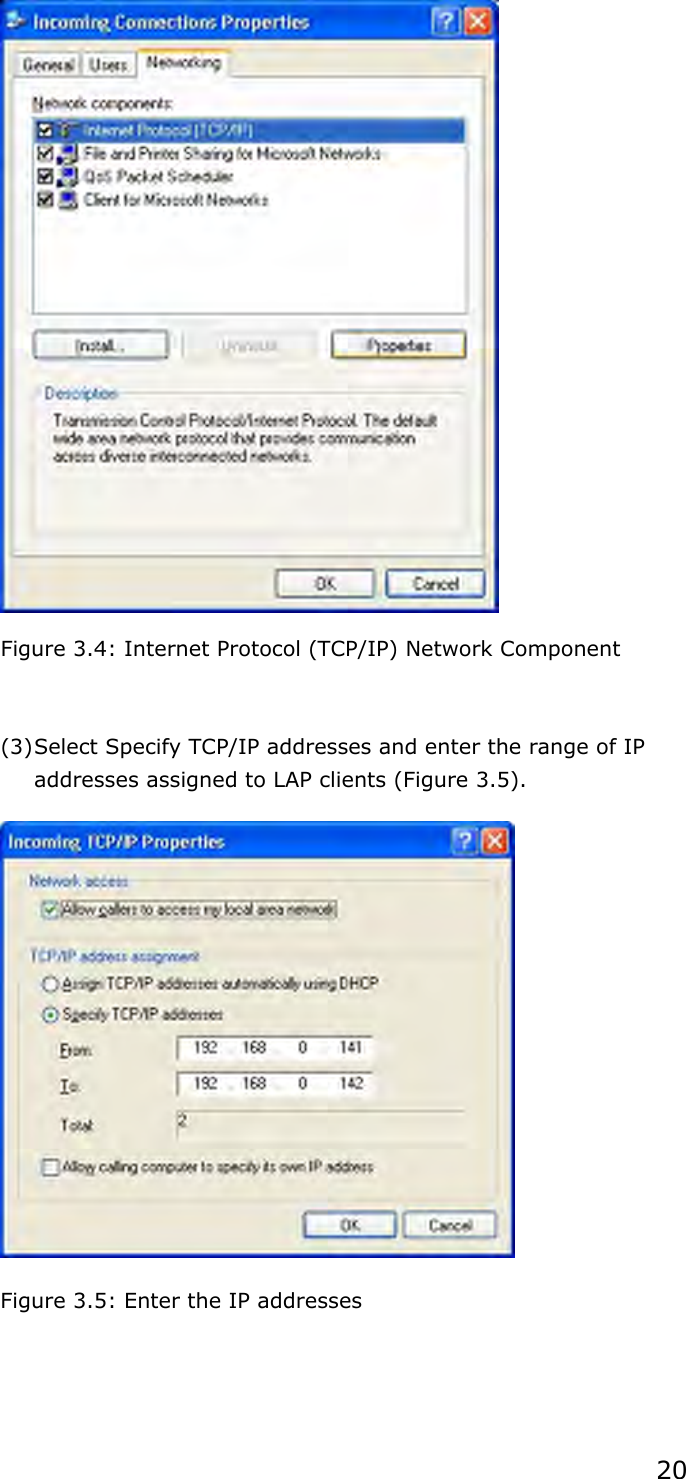

20 Figure 3.4: Internet Protocol (TCP/IP) Network Component (3) Select Specify TCP/IP addresses and enter the range of IP addresses assigned to LAP clients (Figure 3.5). Figure 3.5: Enter the IP addresses

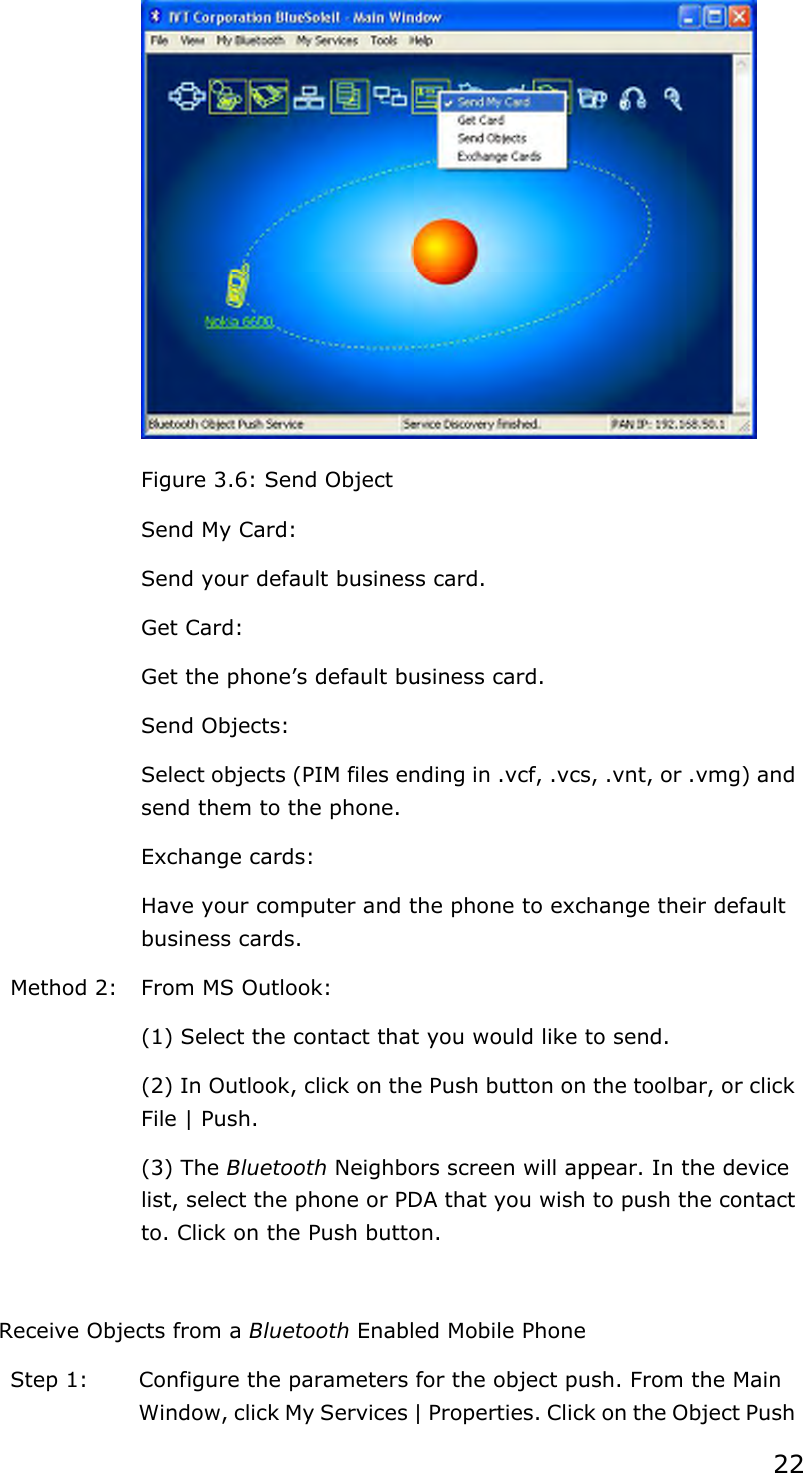

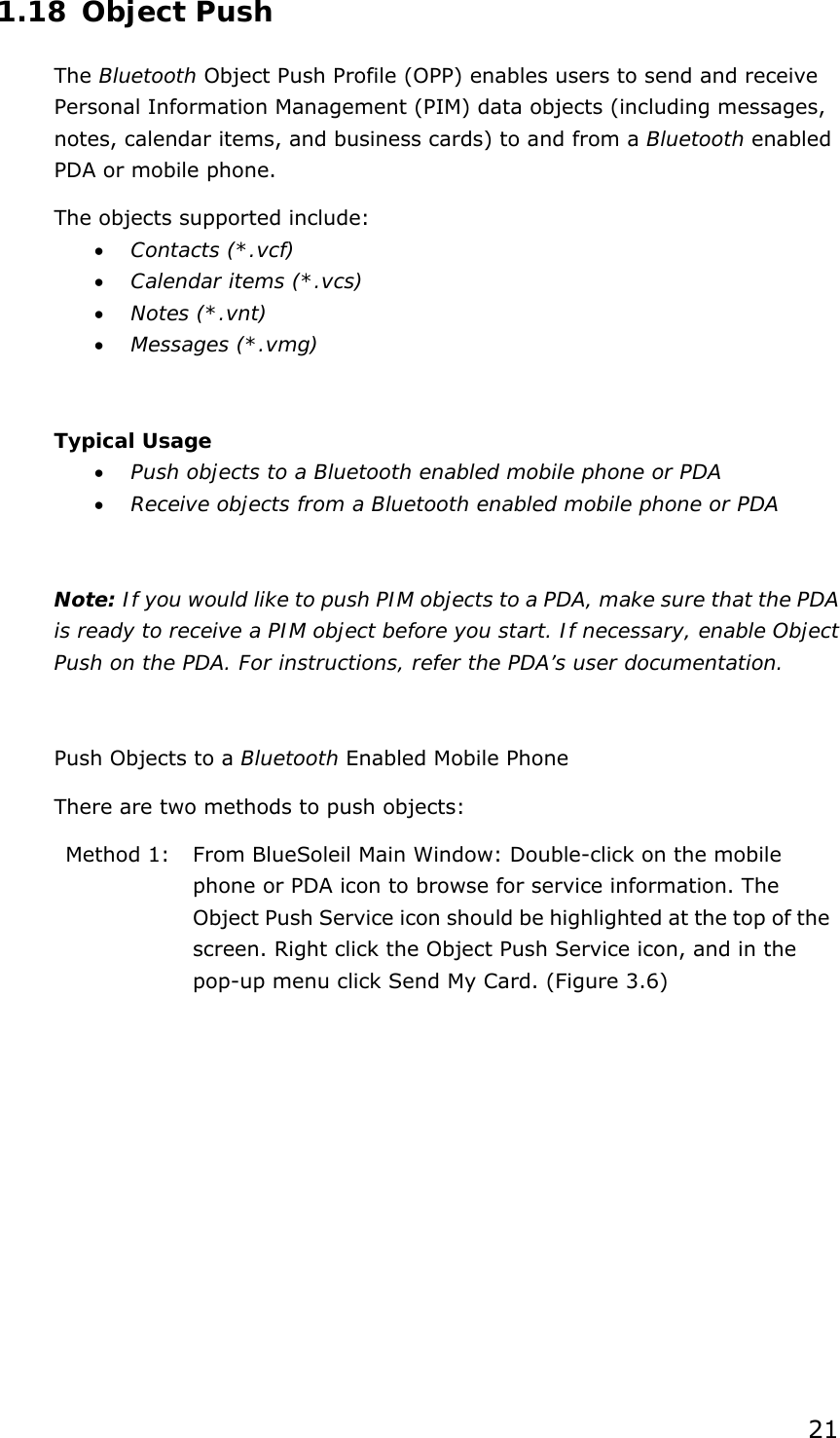

22 Figure 3.6: Send Object Send My Card: Send your default business card. Get Card: Get the phone’s default business card. Send Objects: Select objects (PIM files ending in .vcf, .vcs, .vnt, or .vmg) and send them to the phone. Exchange cards: Have your computer and the phone to exchange their default business cards. Method 2: From MS Outlook: (1) Select the contact that you would like to send. (2) In Outlook, click on the Push button on the toolbar, or click File | Push. (3) The Bluetooth Neighbors screen will appear. In the device list, select the phone or PDA that you wish to push the contact to. Click on the Push button. Receive Objects from a Bluetooth Enabled Mobile Phone Step 1: Configure the parameters for the object push. From the Main Window, click My Services | Properties. Click on the Object Push

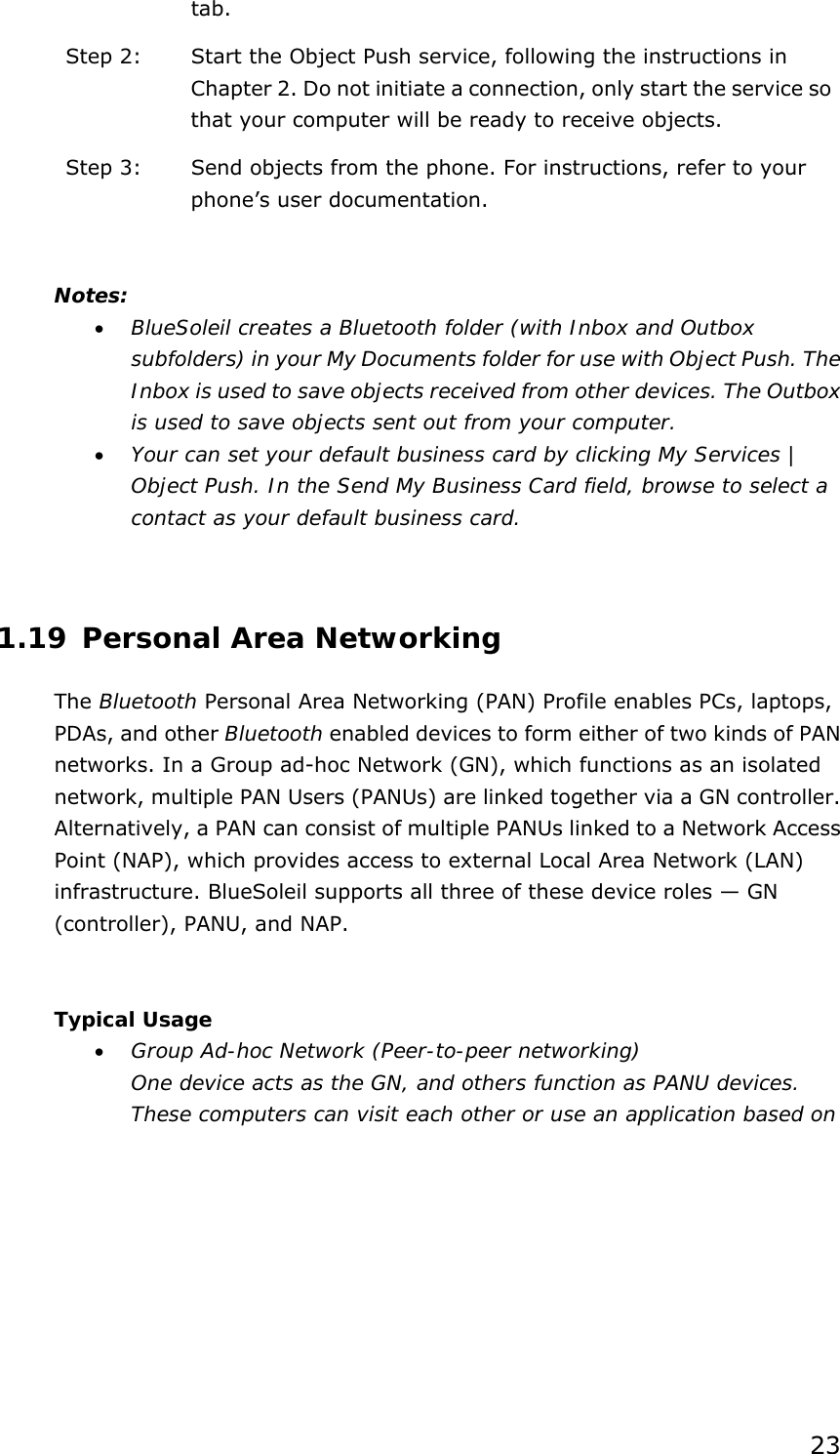

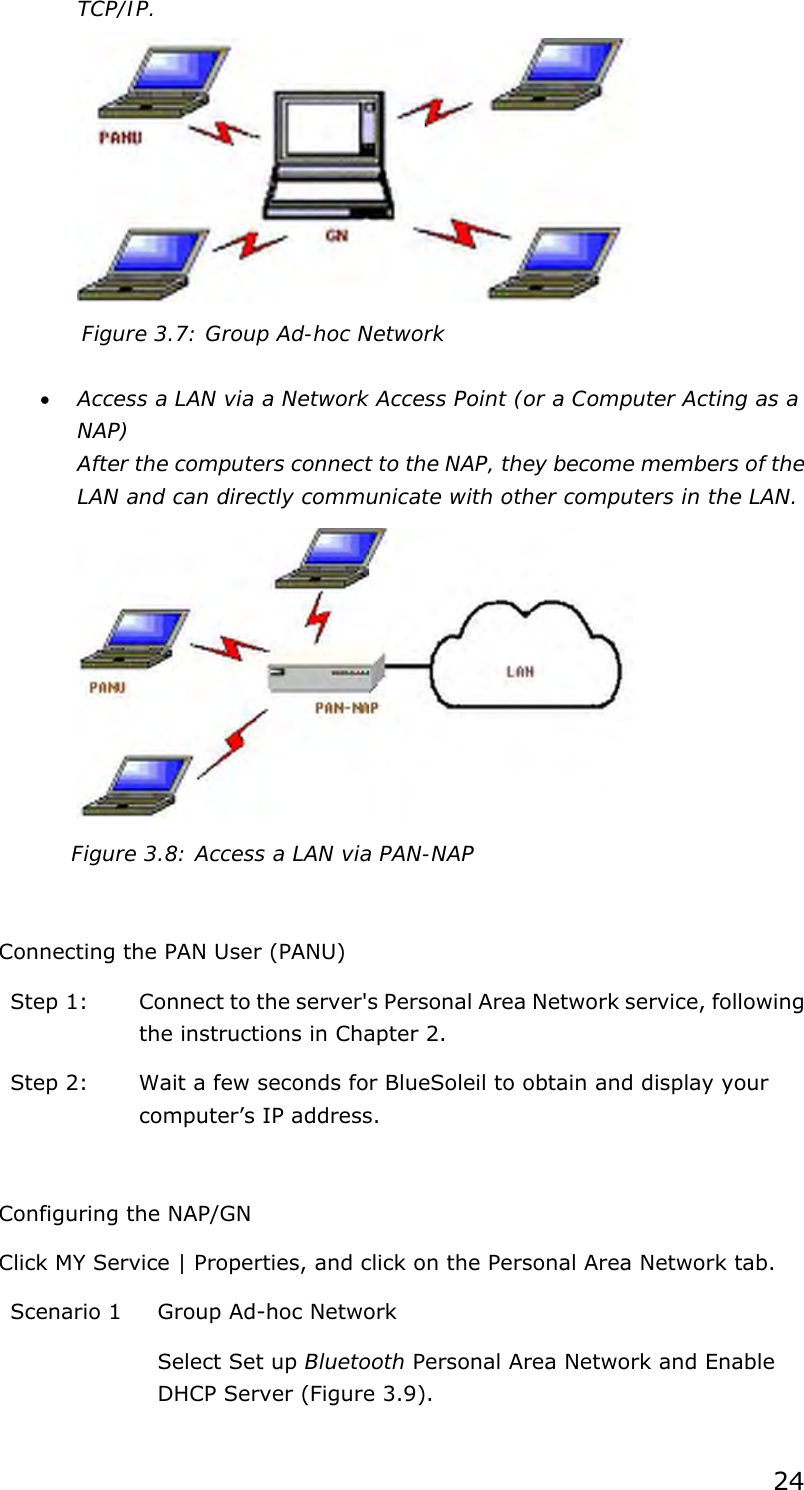

24 TCP/IP. Figure 3.7: Group Ad-hoc Network • Access a LAN via a Network Access Point (or a Computer Acting as a NAP) After the computers connect to the NAP, they become members of the LAN and can directly communicate with other computers in the LAN. Figure 3.8: Access a LAN via PAN-NAP Connecting the PAN User (PANU) Step 1: Connect to the server's Personal Area Network service, following the instructions in Chapter 2. Step 2: Wait a few seconds for BlueSoleil to obtain and display your computer’s IP address. Configuring the NAP/GN Click MY Service | Properties, and click on the Personal Area Network tab. Scenario 1 Group Ad-hoc Network Select Set up Bluetooth Personal Area Network and Enable DHCP Server (Figure 3.9).

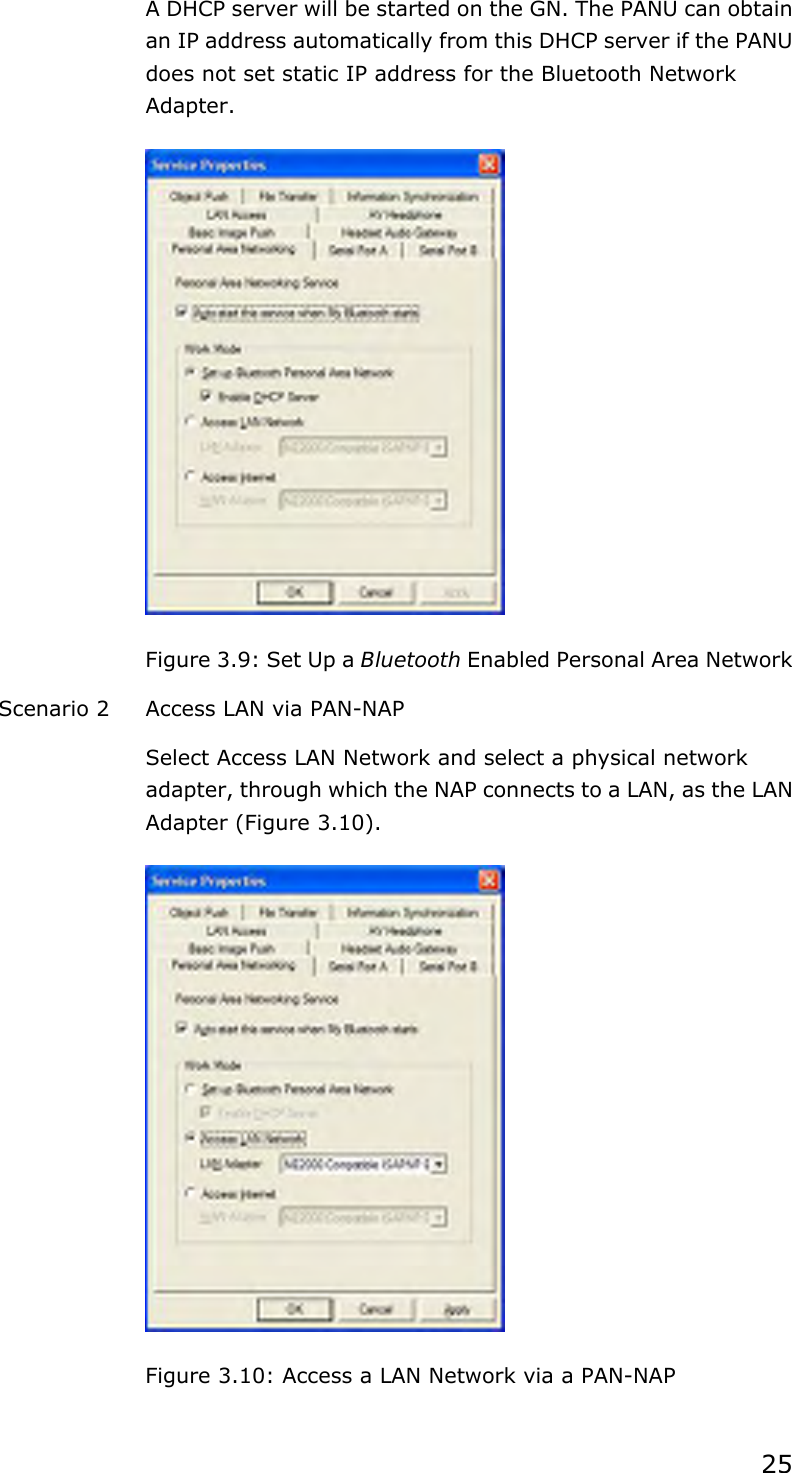

25 A DHCP server will be started on the GN. The PANU can obtain an IP address automatically from this DHCP server if the PANU does not set static IP address for the Bluetooth Network Adapter. Figure 3.9: Set Up a Bluetooth Enabled Personal Area Network Scenario 2 Access LAN via PAN-NAP Select Access LAN Network and select a physical network adapter, through which the NAP connects to a LAN, as the LAN Adapter (Figure 3.10). Figure 3.10: Access a LAN Network via a PAN-NAP

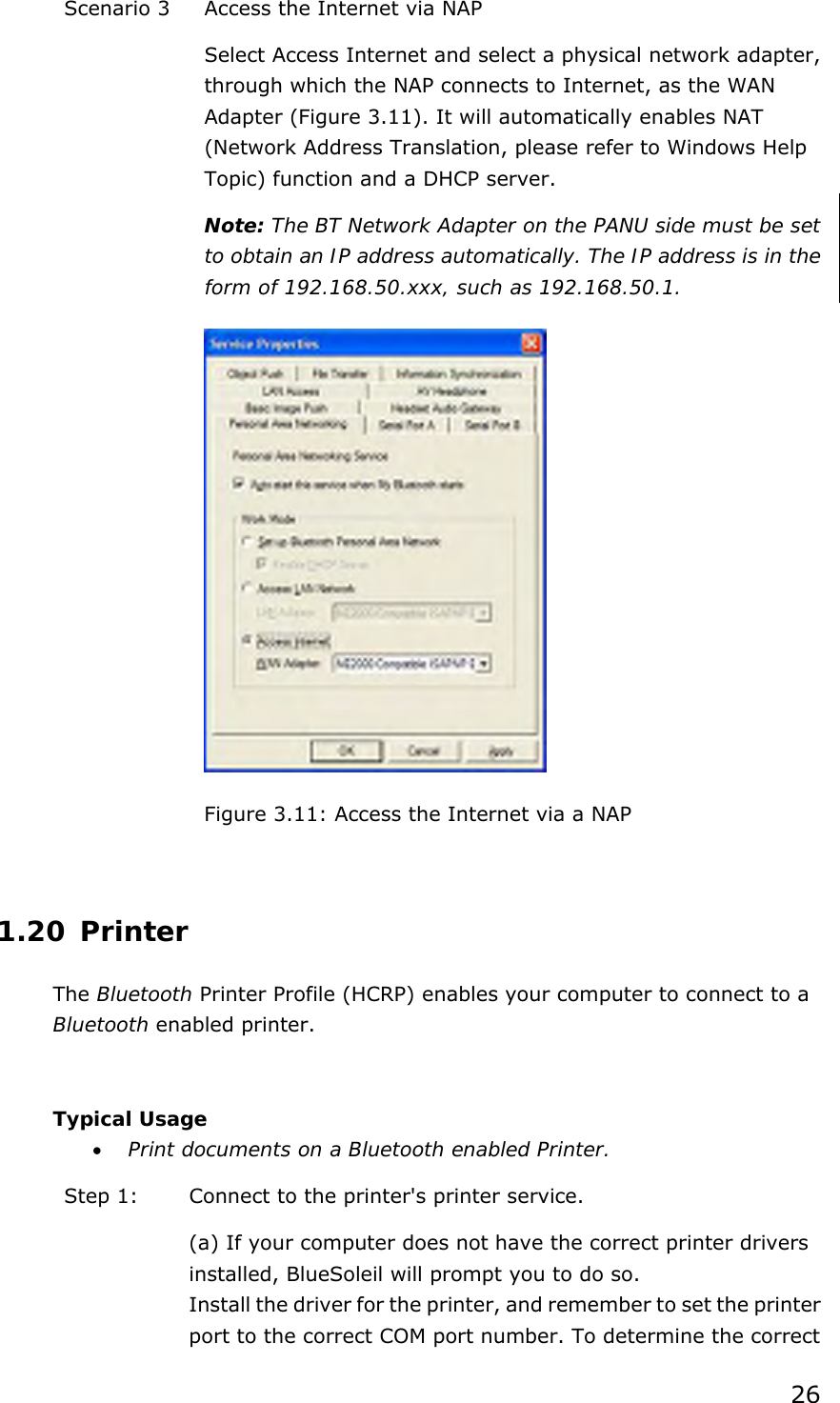

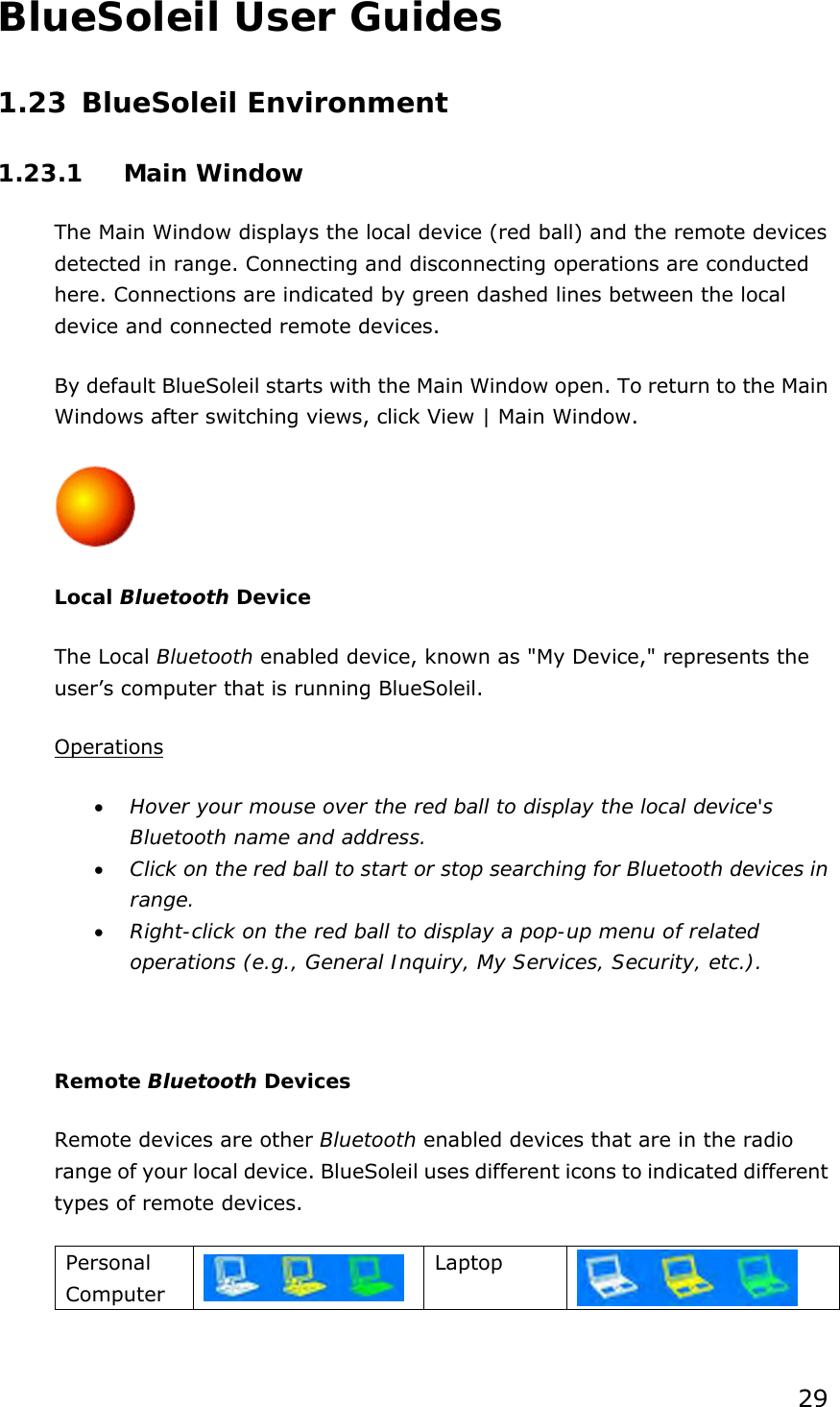

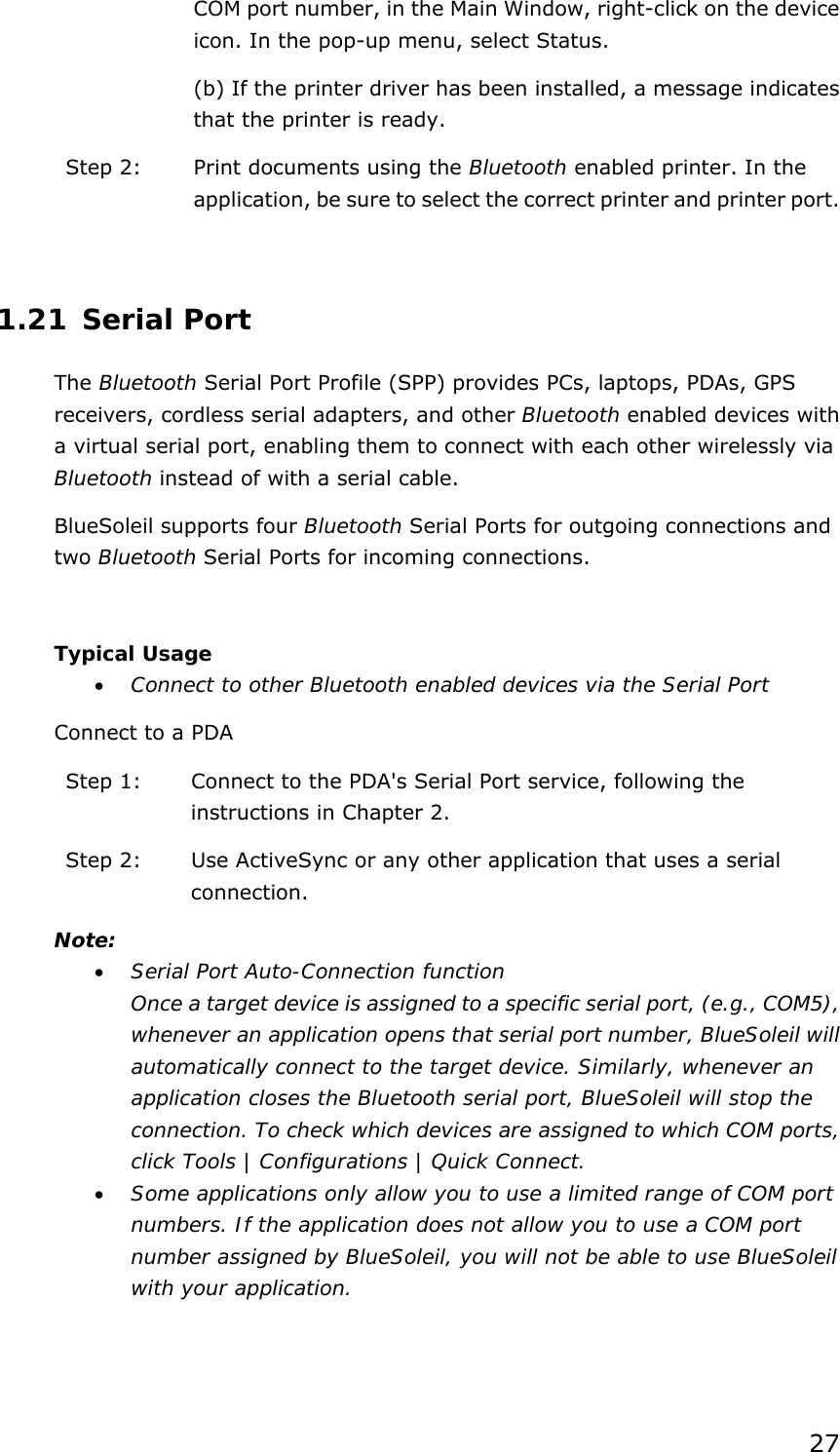

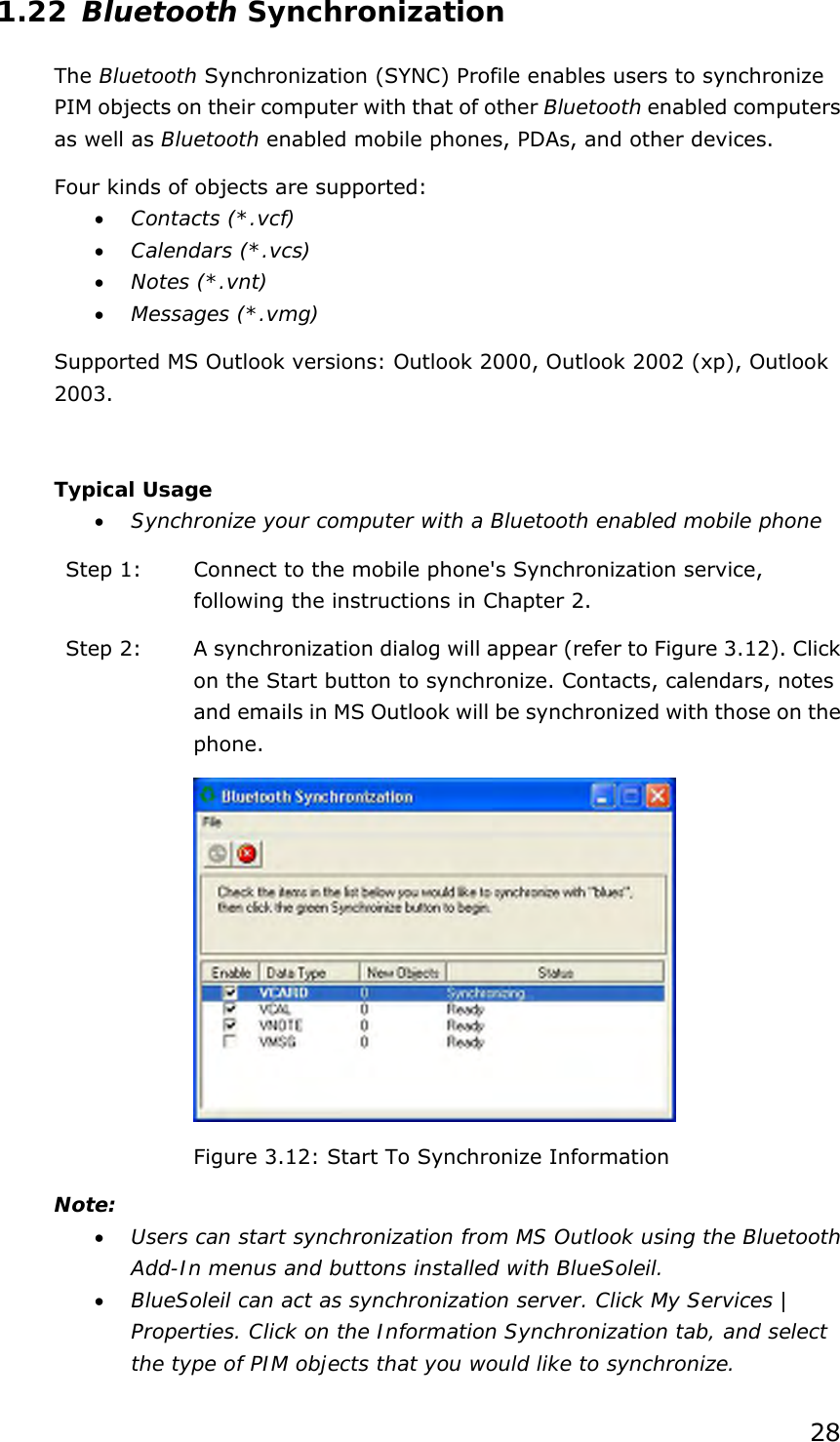

29 BlueSoleil User Guides 1.23 BlueSoleil Environment 1.23.1 Main Window The Main Window displays the local device (red ball) and the remote devices detected in range. Connecting and disconnecting operations are conducted here. Connections are indicated by green dashed lines between the local device and connected remote devices. By default BlueSoleil starts with the Main Window open. To return to the Main Windows after switching views, click View | Main Window. Local Bluetooth Device The Local Bluetooth enabled device, known as "My Device," represents the user’s computer that is running BlueSoleil. Operations • Hover your mouse over the red ball to display the local device's Bluetooth name and address. • Click on the red ball to start or stop searching for Bluetooth devices in range. • Right-click on the red ball to display a pop-up menu of related operations (e.g., General Inquiry, My Services, Security, etc.). Remote Bluetooth Devices Remote devices are other Bluetooth enabled devices that are in the radio range of your local device. BlueSoleil uses different icons to indicated different types of remote devices. Personal Computer Laptop

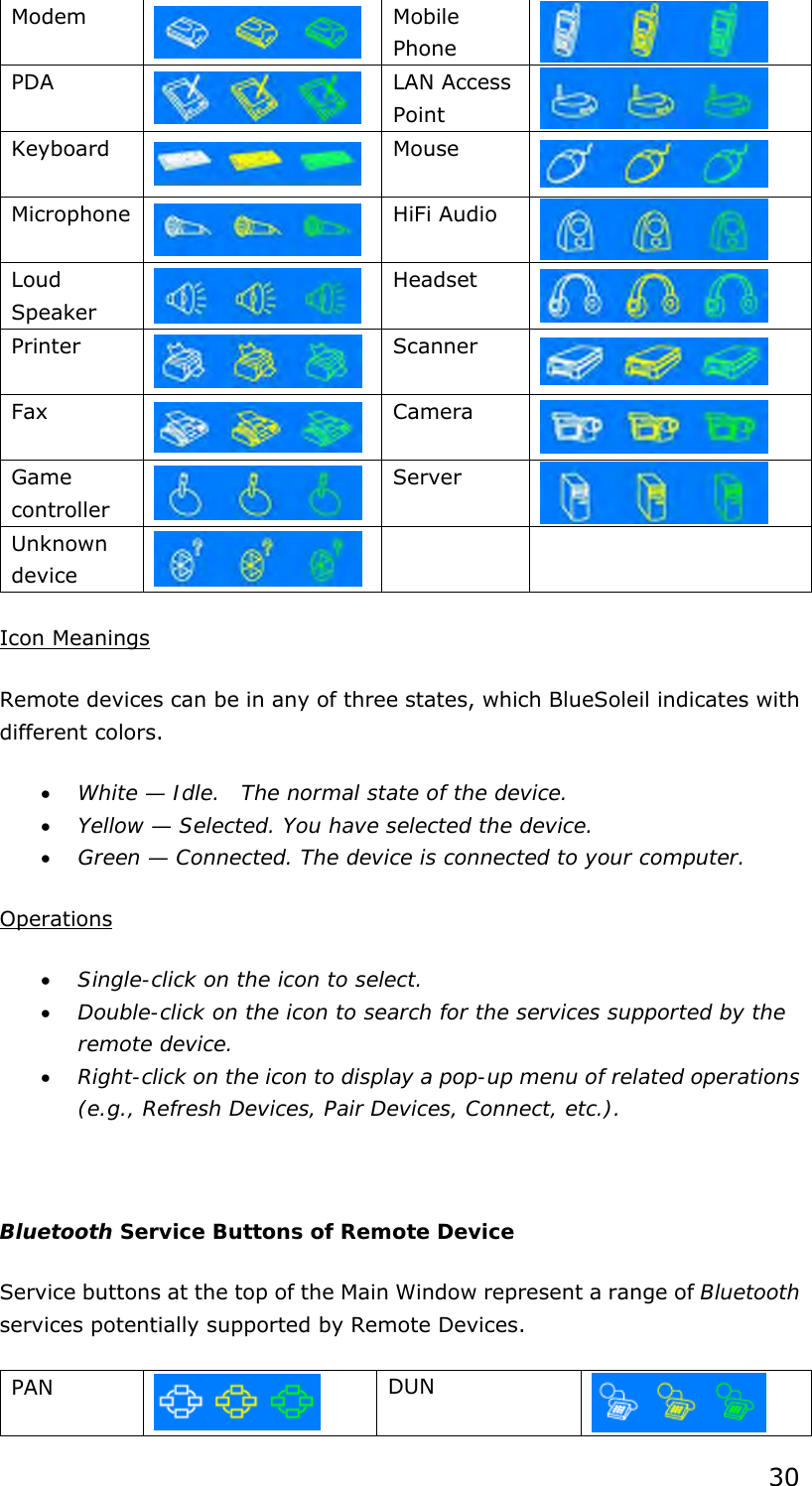

30 Modem Mobile Phone PDA LAN Access Point Keyboard Mouse Microphone HiFi Audio Loud Speaker Headset Printer Scanner Fax Camera Game controller Server Unknown device Icon Meanings Remote devices can be in any of three states, which BlueSoleil indicates with different colors. • White — Idle. The normal state of the device. • Yellow — Selected. You have selected the device. • Green — Connected. The device is connected to your computer. Operations • Single-click on the icon to select. • Double-click on the icon to search for the services supported by the remote device. • Right-click on the icon to display a pop-up menu of related operations (e.g., Refresh Devices, Pair Devices, Connect, etc.). Bluetooth Service Buttons of Remote Device Service buttons at the top of the Main Window represent a range of Bluetooth services potentially supported by Remote Devices. PAN DUN

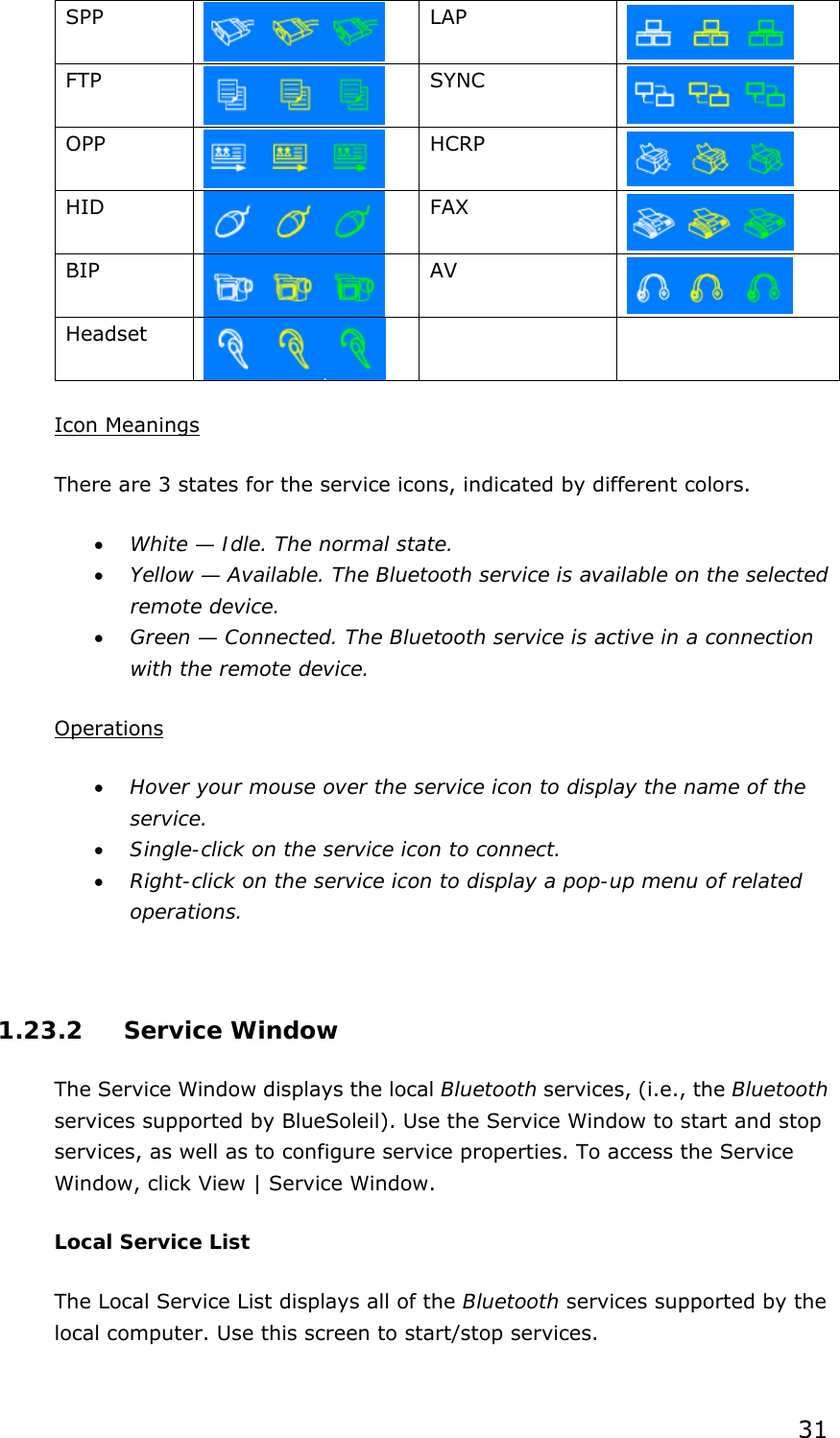

31 SPP LAP FTP SYNC OPP HCRP HID FAX BIP AV Headset Icon Meanings There are 3 states for the service icons, indicated by different colors. • White — Idle. The normal state. • Yellow — Available. The Bluetooth service is available on the selected remote device. • Green — Connected. The Bluetooth service is active in a connection with the remote device. Operations • Hover your mouse over the service icon to display the name of the service. • Single-click on the service icon to connect. • Right-click on the service icon to display a pop-up menu of related operations. 1.23.2 Service Window The Service Window displays the local Bluetooth services, (i.e., the Bluetooth services supported by BlueSoleil). Use the Service Window to start and stop services, as well as to configure service properties. To access the Service Window, click View | Service Window. Local Service List The Local Service List displays all of the Bluetooth services supported by the local computer. Use this screen to start/stop services.

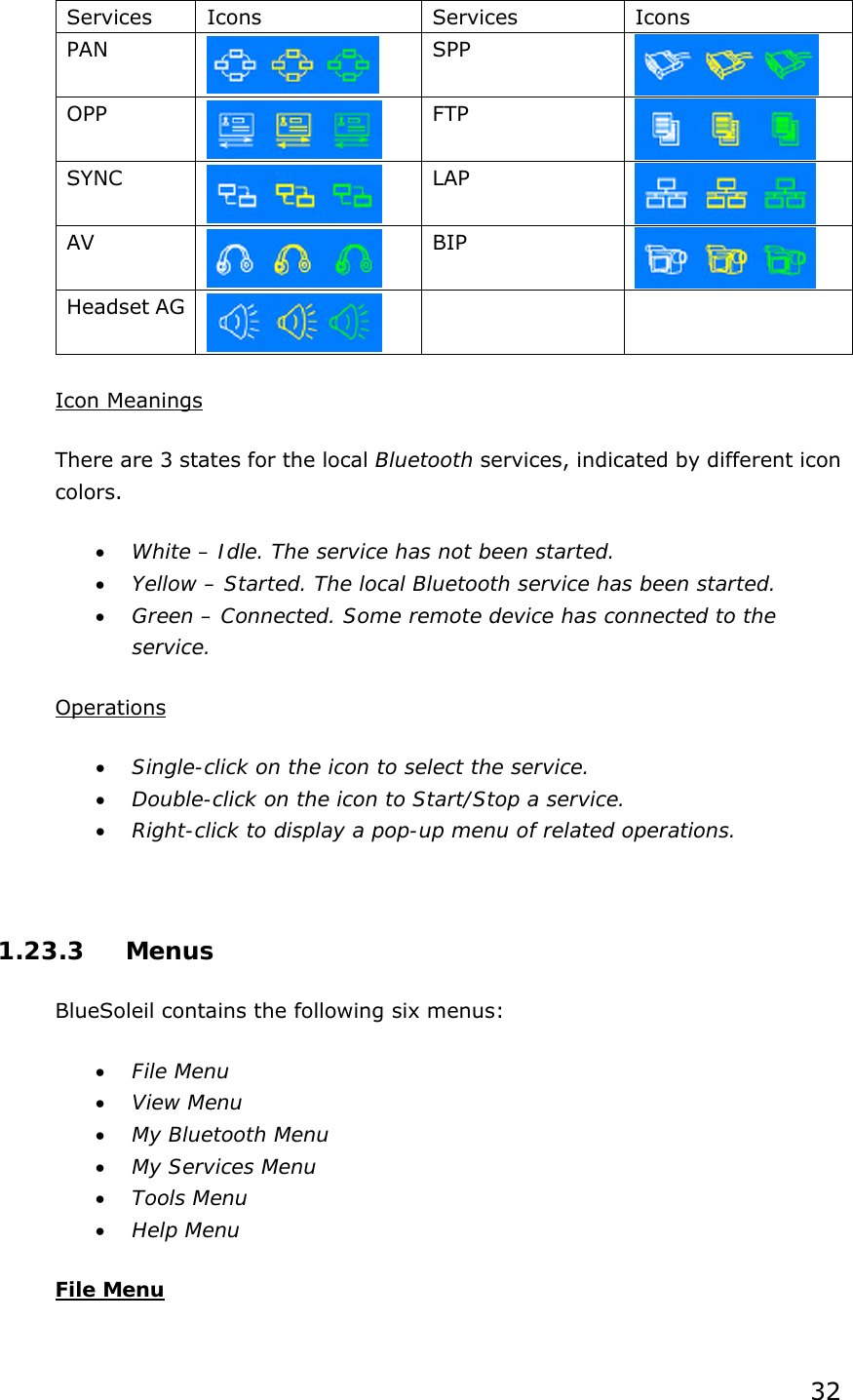

32 Services Icons Services Icons PAN SPP OPP FTP SYNC LAP AV BIP Headset AG Icon Meanings There are 3 states for the local Bluetooth services, indicated by different icon colors. • White – Idle. The service has not been started. • Yellow – Started. The local Bluetooth service has been started. • Green – Connected. Some remote device has connected to the service. Operations • Single-click on the icon to select the service. • Double-click on the icon to Start/Stop a service. • Right-click to display a pop-up menu of related operations. 1.23.3 Menus BlueSoleil contains the following six menus: • File Menu • View Menu • My Bluetooth Menu • My Services Menu • Tools Menu • Help Menu File Menu

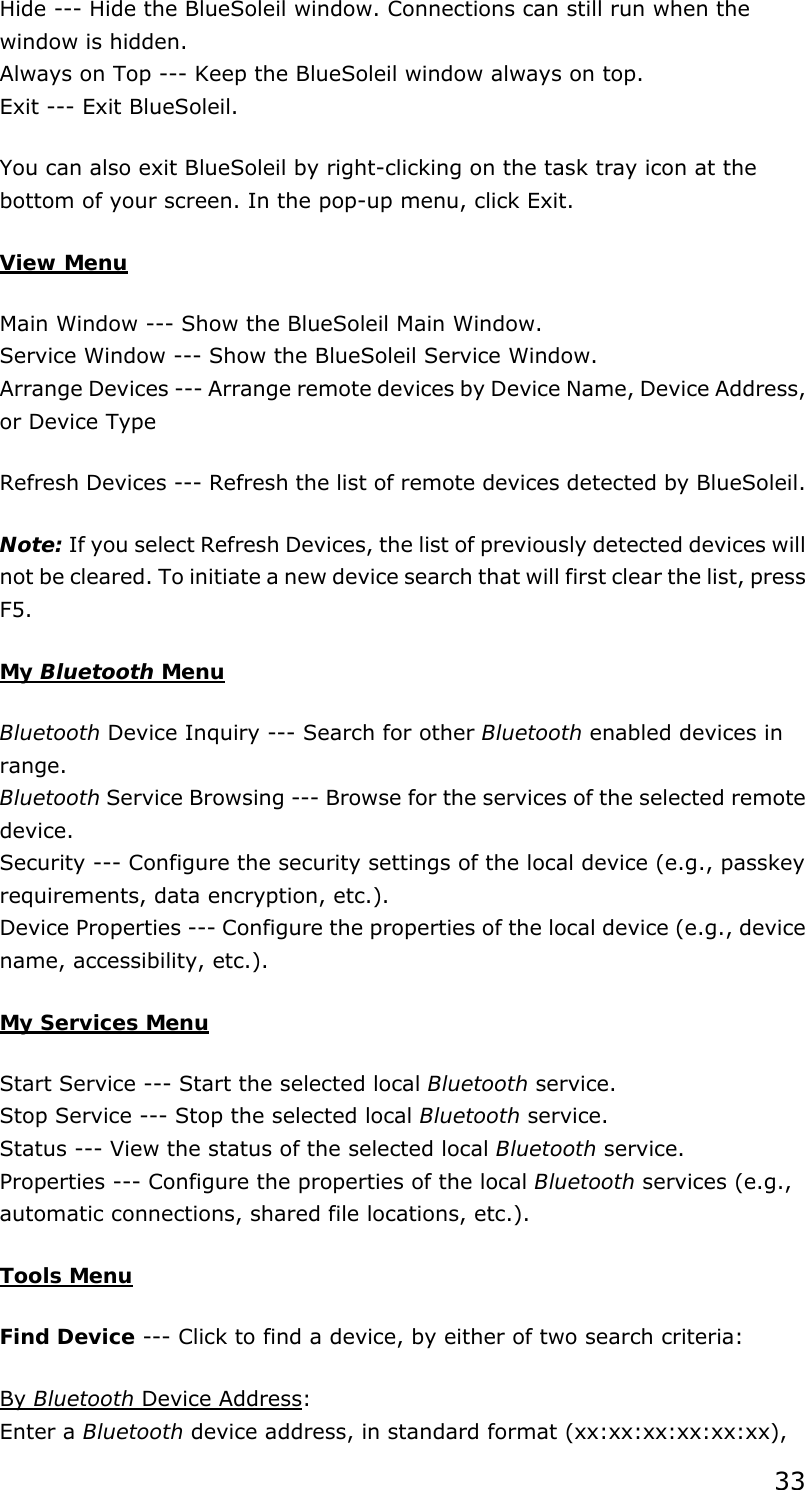

33 Hide --- Hide the BlueSoleil window. Connections can still run when the window is hidden. Always on Top --- Keep the BlueSoleil window always on top. Exit --- Exit BlueSoleil. You can also exit BlueSoleil by right-clicking on the task tray icon at the bottom of your screen. In the pop-up menu, click Exit. View Menu Main Window --- Show the BlueSoleil Main Window. Service Window --- Show the BlueSoleil Service Window. Arrange Devices --- Arrange remote devices by Device Name, Device Address, or Device Type Refresh Devices --- Refresh the list of remote devices detected by BlueSoleil. Note: If you select Refresh Devices, the list of previously detected devices will not be cleared. To initiate a new device search that will first clear the list, press F5. My Bluetooth Menu Bluetooth Device Inquiry --- Search for other Bluetooth enabled devices in range. Bluetooth Service Browsing --- Browse for the services of the selected remote device. Security --- Configure the security settings of the local device (e.g., passkey requirements, data encryption, etc.). Device Properties --- Configure the properties of the local device (e.g., device name, accessibility, etc.). My Services Menu Start Service --- Start the selected local Bluetooth service. Stop Service --- Stop the selected local Bluetooth service. Status --- View the status of the selected local Bluetooth service. Properties --- Configure the properties of the local Bluetooth services (e.g., automatic connections, shared file locations, etc.). Tools Menu Find Device --- Click to find a device, by either of two search criteria: By Bluetooth Device Address: Enter a Bluetooth device address, in standard format (xx:xx:xx:xx:xx:xx),

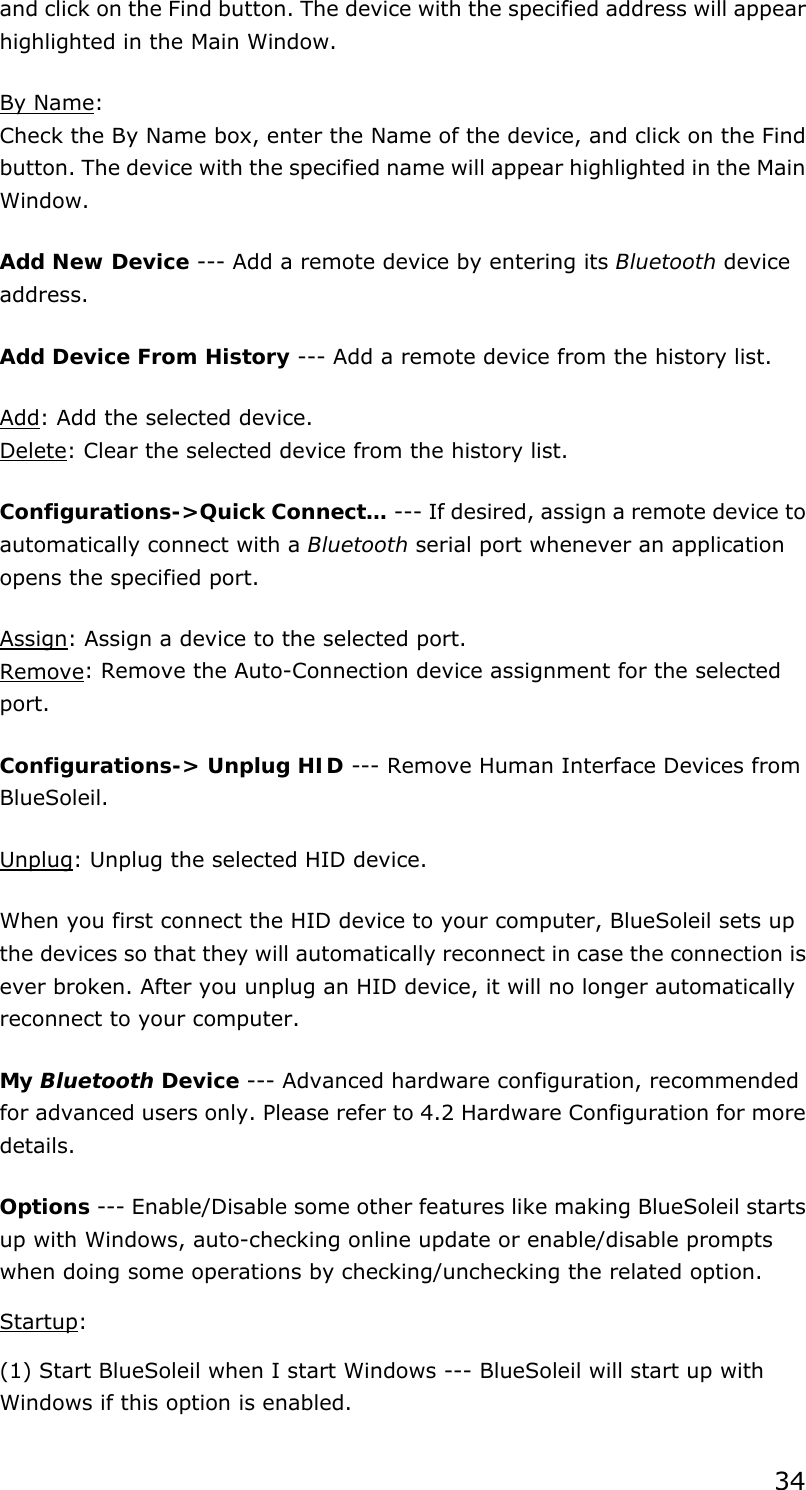

34 and click on the Find button. The device with the specified address will appear highlighted in the Main Window. By Name: Check the By Name box, enter the Name of the device, and click on the Find button. The device with the specified name will appear highlighted in the Main Window. Add New Device --- Add a remote device by entering its Bluetooth device address. Add Device From History --- Add a remote device from the history list. Add: Add the selected device. Delete: Clear the selected device from the history list. Configurations->Quick Connect… --- If desired, assign a remote device to automatically connect with a Bluetooth serial port whenever an application opens the specified port. Assign: Assign a device to the selected port. Remove: Remove the Auto-Connection device assignment for the selected port. Configurations-> Unplug HID --- Remove Human Interface Devices from BlueSoleil. Unplug: Unplug the selected HID device. When you first connect the HID device to your computer, BlueSoleil sets up the devices so that they will automatically reconnect in case the connection is ever broken. After you unplug an HID device, it will no longer automatically reconnect to your computer. My Bluetooth Device --- Advanced hardware configuration, recommended for advanced users only. Please refer to 4.2 Hardware Configuration for more details. Options --- Enable/Disable some other features like making BlueSoleil starts up with Windows, auto-checking online update or enable/disable prompts when doing some operations by checking/unchecking the related option. Startup: (1) Start BlueSoleil when I start Windows --- BlueSoleil will start up with Windows if this option is enabled.

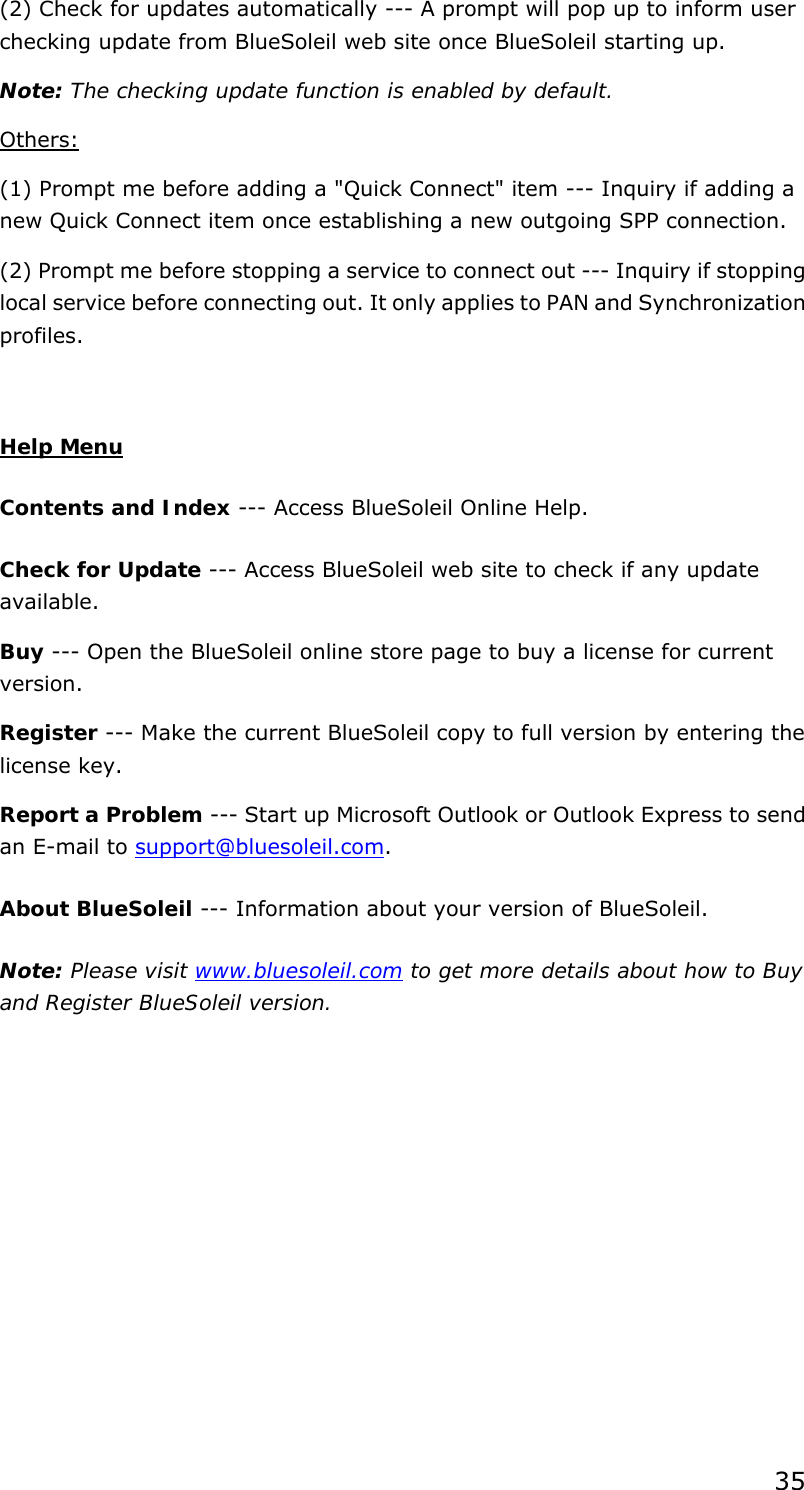

35 (2) Check for updates automatically --- A prompt will pop up to inform user checking update from BlueSoleil web site once BlueSoleil starting up. Note: The checking update function is enabled by default. Others: (1) Prompt me before adding a "Quick Connect" item --- Inquiry if adding a new Quick Connect item once establishing a new outgoing SPP connection. (2) Prompt me before stopping a service to connect out --- Inquiry if stopping local service before connecting out. It only applies to PAN and Synchronization profiles. Help Menu Contents and Index --- Access BlueSoleil Online Help. Check for Update --- Access BlueSoleil web site to check if any update available. Buy --- Open the BlueSoleil online store page to buy a license for current version. Register --- Make the current BlueSoleil copy to full version by entering the license key. Report a Problem --- Start up Microsoft Outlook or Outlook Express to send an E-mail to support@bluesoleil.com. About BlueSoleil --- Information about your version of BlueSoleil. Note: Please visit www.bluesoleil.com to get more details about how to Buy and Register BlueSoleil version.

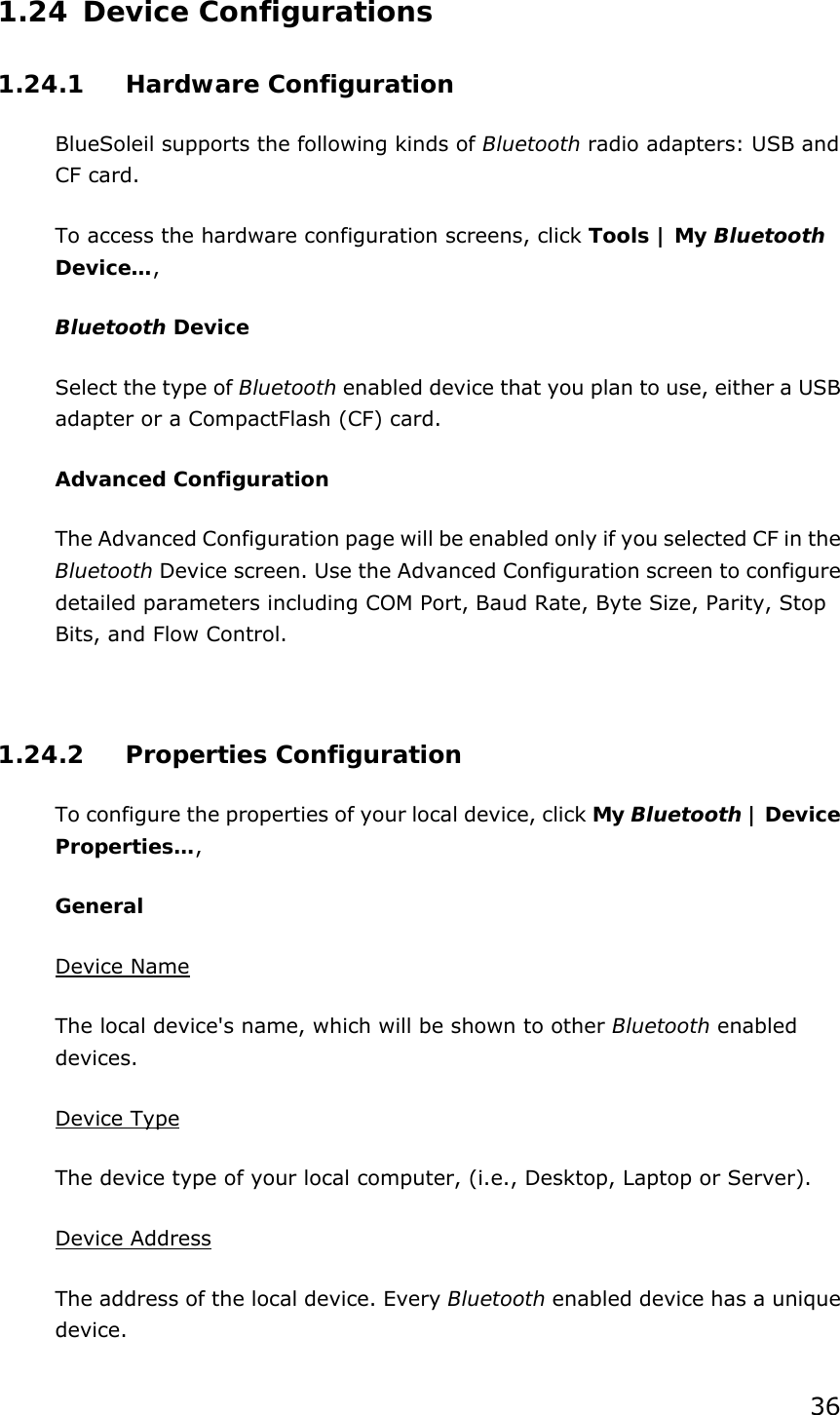

36 1.24 Device Configurations 1.24.1 Hardware Configuration BlueSoleil supports the following kinds of Bluetooth radio adapters: USB and CF card. To access the hardware configuration screens, click Tools | My Bluetooth Device…, Bluetooth Device Select the type of Bluetooth enabled device that you plan to use, either a USB adapter or a CompactFlash (CF) card. Advanced Configuration The Advanced Configuration page will be enabled only if you selected CF in the Bluetooth Device screen. Use the Advanced Configuration screen to configure detailed parameters including COM Port, Baud Rate, Byte Size, Parity, Stop Bits, and Flow Control. 1.24.2 Properties Configuration To configure the properties of your local device, click My Bluetooth | Device Properties…, General Device Name The local device's name, which will be shown to other Bluetooth enabled devices. Device Type The device type of your local computer, (i.e., Desktop, Laptop or Server). Device Address The address of the local device. Every Bluetooth enabled device has a unique device.

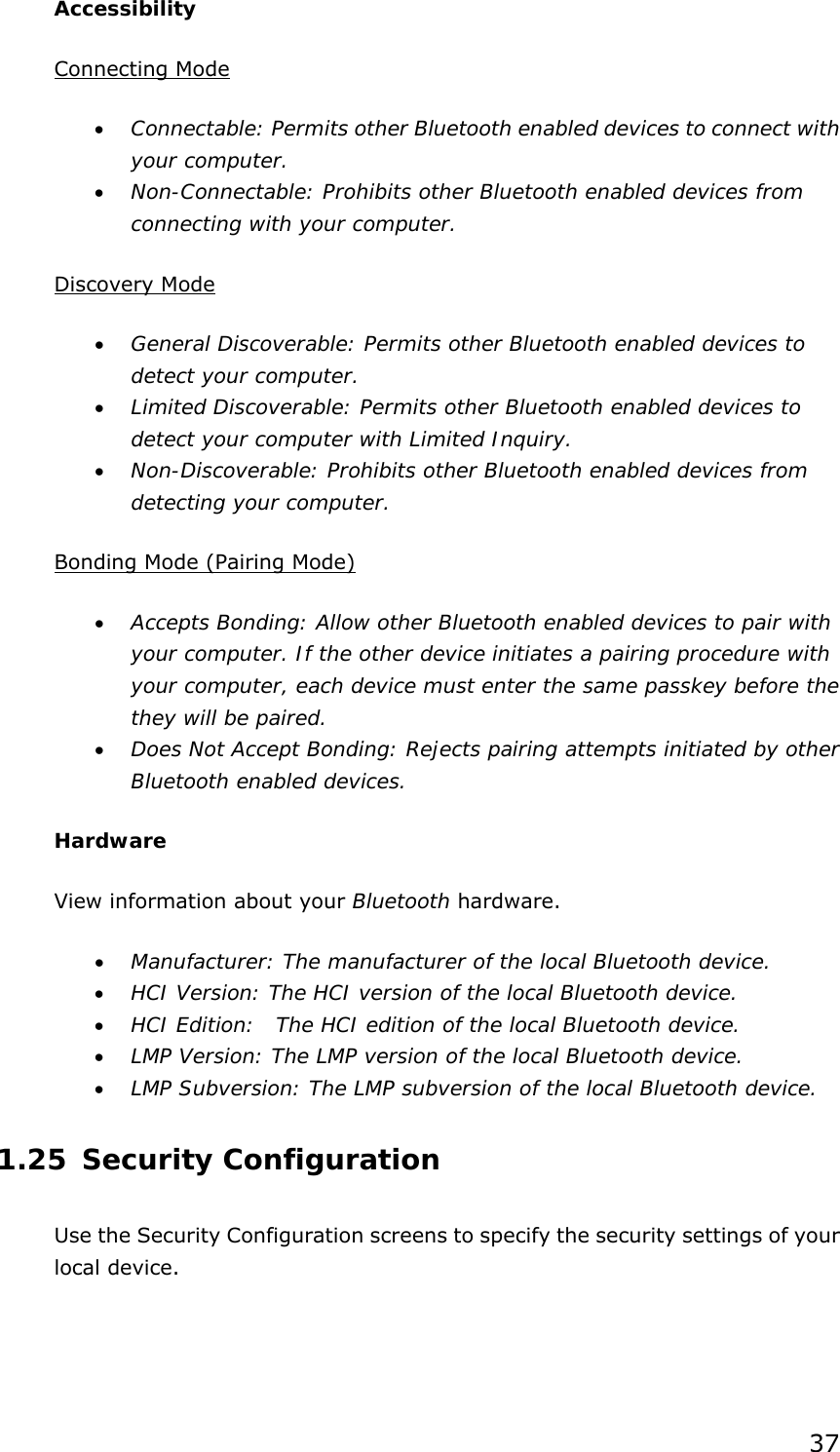

37 Accessibility Connecting Mode • Connectable: Permits other Bluetooth enabled devices to connect with your computer. • Non-Connectable: Prohibits other Bluetooth enabled devices from connecting with your computer. Discovery Mode • General Discoverable: Permits other Bluetooth enabled devices to detect your computer. • Limited Discoverable: Permits other Bluetooth enabled devices to detect your computer with Limited Inquiry. • Non-Discoverable: Prohibits other Bluetooth enabled devices from detecting your computer. Bonding Mode (Pairing Mode) • Accepts Bonding: Allow other Bluetooth enabled devices to pair with your computer. If the other device initiates a pairing procedure with your computer, each device must enter the same passkey before the they will be paired. • Does Not Accept Bonding: Rejects pairing attempts initiated by other Bluetooth enabled devices. Hardware View information about your Bluetooth hardware. • Manufacturer: The manufacturer of the local Bluetooth device. • HCI Version: The HCI version of the local Bluetooth device. • HCI Edition: The HCI edition of the local Bluetooth device. • LMP Version: The LMP version of the local Bluetooth device. • LMP Subversion: The LMP subversion of the local Bluetooth device. 1.25 Security Configuration Use the Security Configuration screens to specify the security settings of your local device.

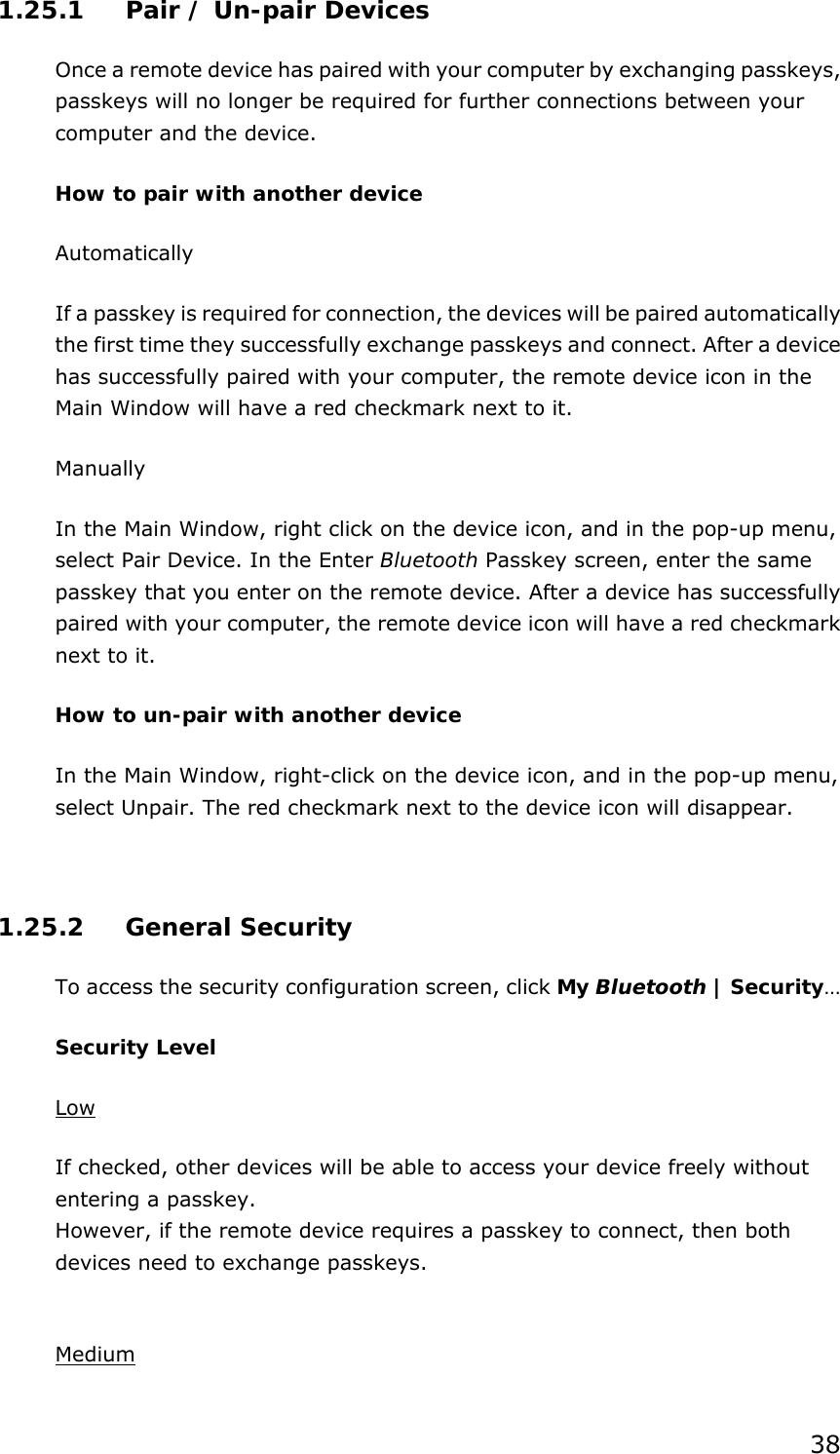

38 1.25.1 Pair / Un-pair Devices Once a remote device has paired with your computer by exchanging passkeys, passkeys will no longer be required for further connections between your computer and the device. How to pair with another device Automatically If a passkey is required for connection, the devices will be paired automatically the first time they successfully exchange passkeys and connect. After a device has successfully paired with your computer, the remote device icon in the Main Window will have a red checkmark next to it. Manually In the Main Window, right click on the device icon, and in the pop-up menu, select Pair Device. In the Enter Bluetooth Passkey screen, enter the same passkey that you enter on the remote device. After a device has successfully paired with your computer, the remote device icon will have a red checkmark next to it. How to un-pair with another device In the Main Window, right-click on the device icon, and in the pop-up menu, select Unpair. The red checkmark next to the device icon will disappear. 1.25.2 General Security To access the security configuration screen, click My Bluetooth | Security… Security Level Low If checked, other devices will be able to access your device freely without entering a passkey. However, if the remote device requires a passkey to connect, then both devices need to exchange passkeys. Medium

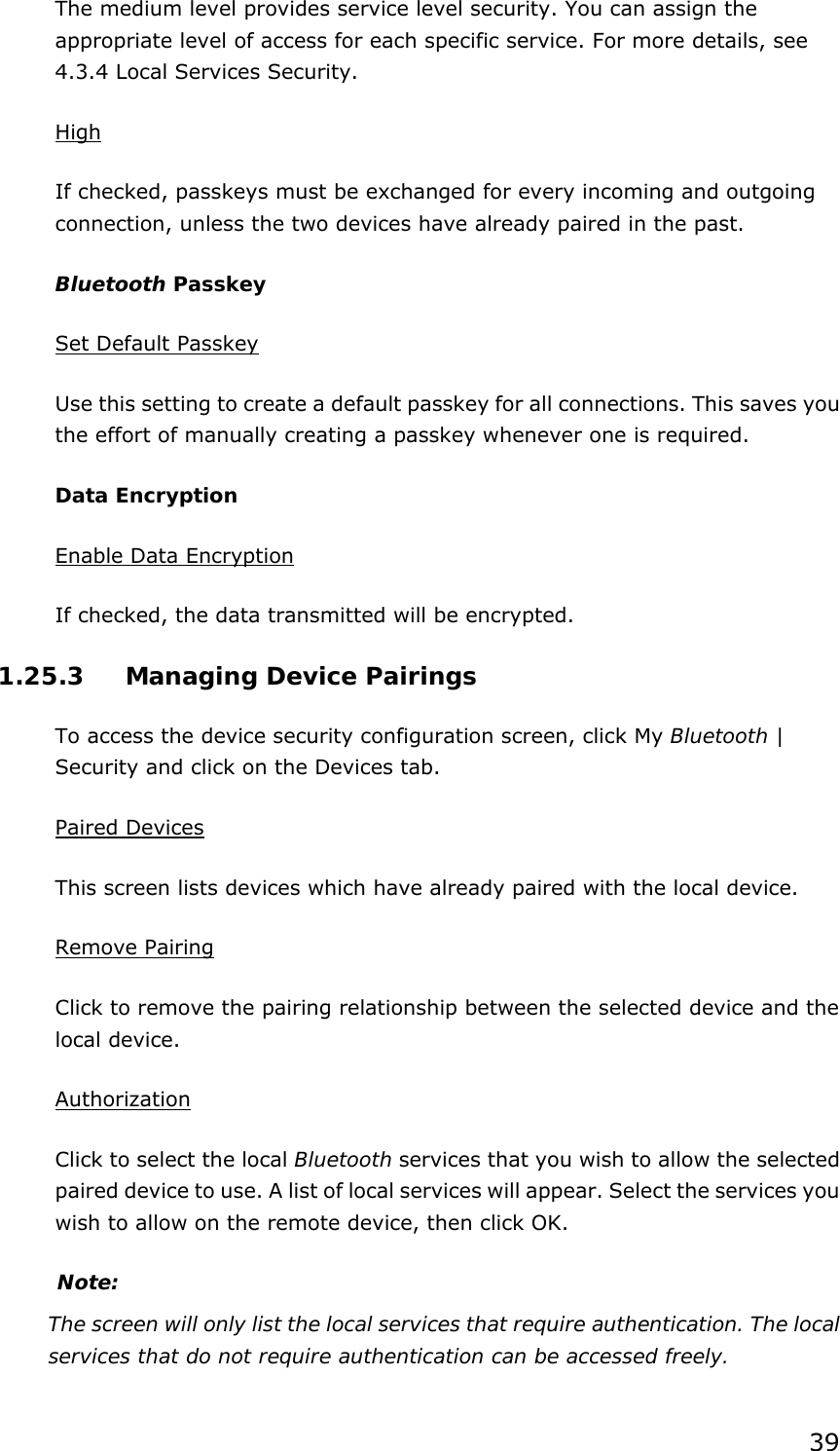

39 The medium level provides service level security. You can assign the appropriate level of access for each specific service. For more details, see 4.3.4 Local Services Security. High If checked, passkeys must be exchanged for every incoming and outgoing connection, unless the two devices have already paired in the past. Bluetooth Passkey Set Default Passkey Use this setting to create a default passkey for all connections. This saves you the effort of manually creating a passkey whenever one is required. Data Encryption Enable Data Encryption If checked, the data transmitted will be encrypted. 1.25.3 Managing Device Pairings To access the device security configuration screen, click My Bluetooth | Security and click on the Devices tab. Paired Devices This screen lists devices which have already paired with the local device. Remove Pairing Click to remove the pairing relationship between the selected device and the local device. Authorization Click to select the local Bluetooth services that you wish to allow the selected paired device to use. A list of local services will appear. Select the services you wish to allow on the remote device, then click OK. Note: The screen will only list the local services that require authentication. The local services that do not require authentication can be accessed freely.

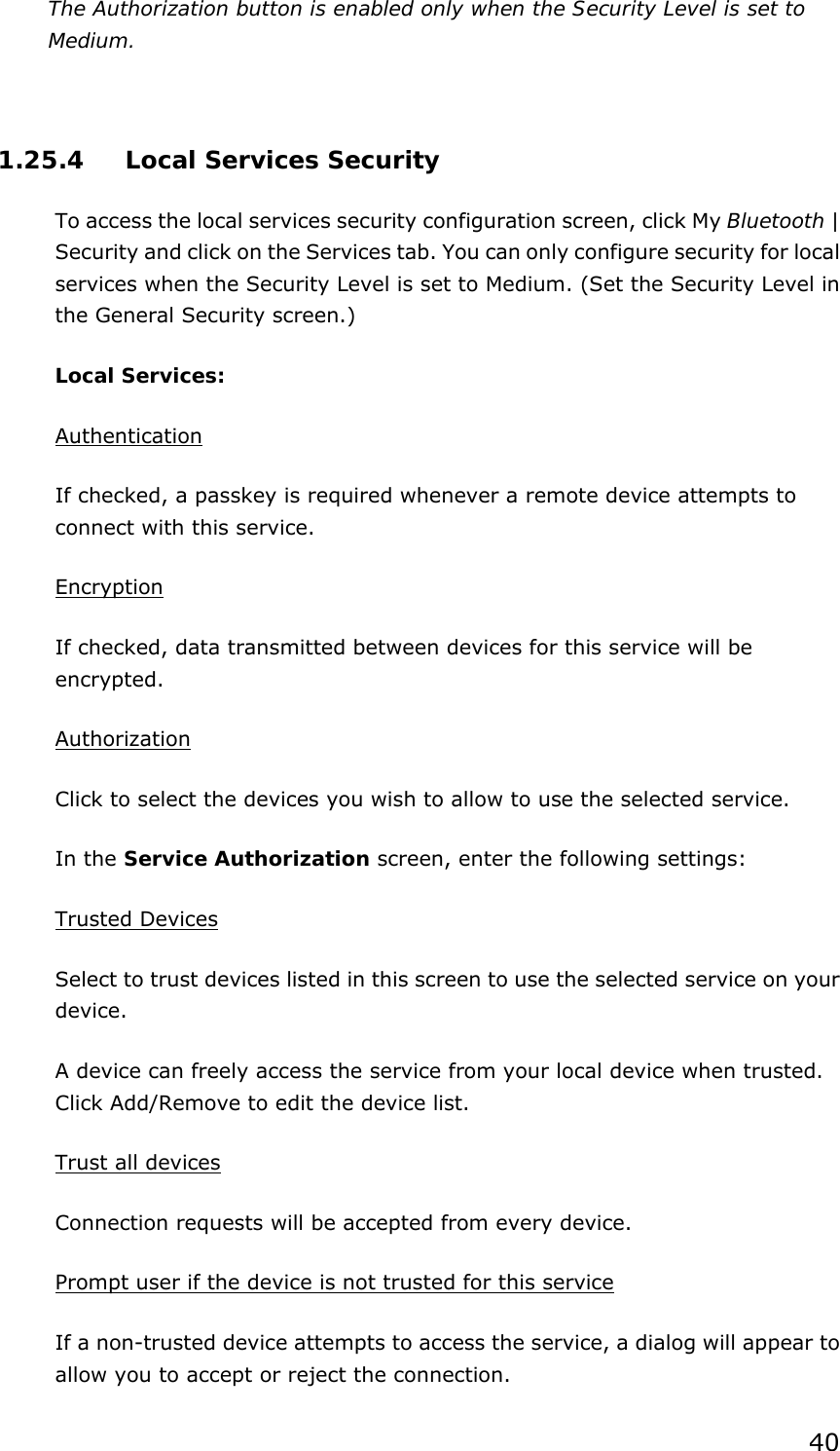

40 The Authorization button is enabled only when the Security Level is set to Medium. 1.25.4 Local Services Security To access the local services security configuration screen, click My Bluetooth | Security and click on the Services tab. You can only configure security for local services when the Security Level is set to Medium. (Set the Security Level in the General Security screen.) Local Services: Authentication If checked, a passkey is required whenever a remote device attempts to connect with this service. Encryption If checked, data transmitted between devices for this service will be encrypted. Authorization Click to select the devices you wish to allow to use the selected service. In the Service Authorization screen, enter the following settings: Trusted Devices Select to trust devices listed in this screen to use the selected service on your device. A device can freely access the service from your local device when trusted. Click Add/Remove to edit the device list. Trust all devices Connection requests will be accepted from every device. Prompt user if the device is not trusted for this service If a non-trusted device attempts to access the service, a dialog will appear to allow you to accept or reject the connection.

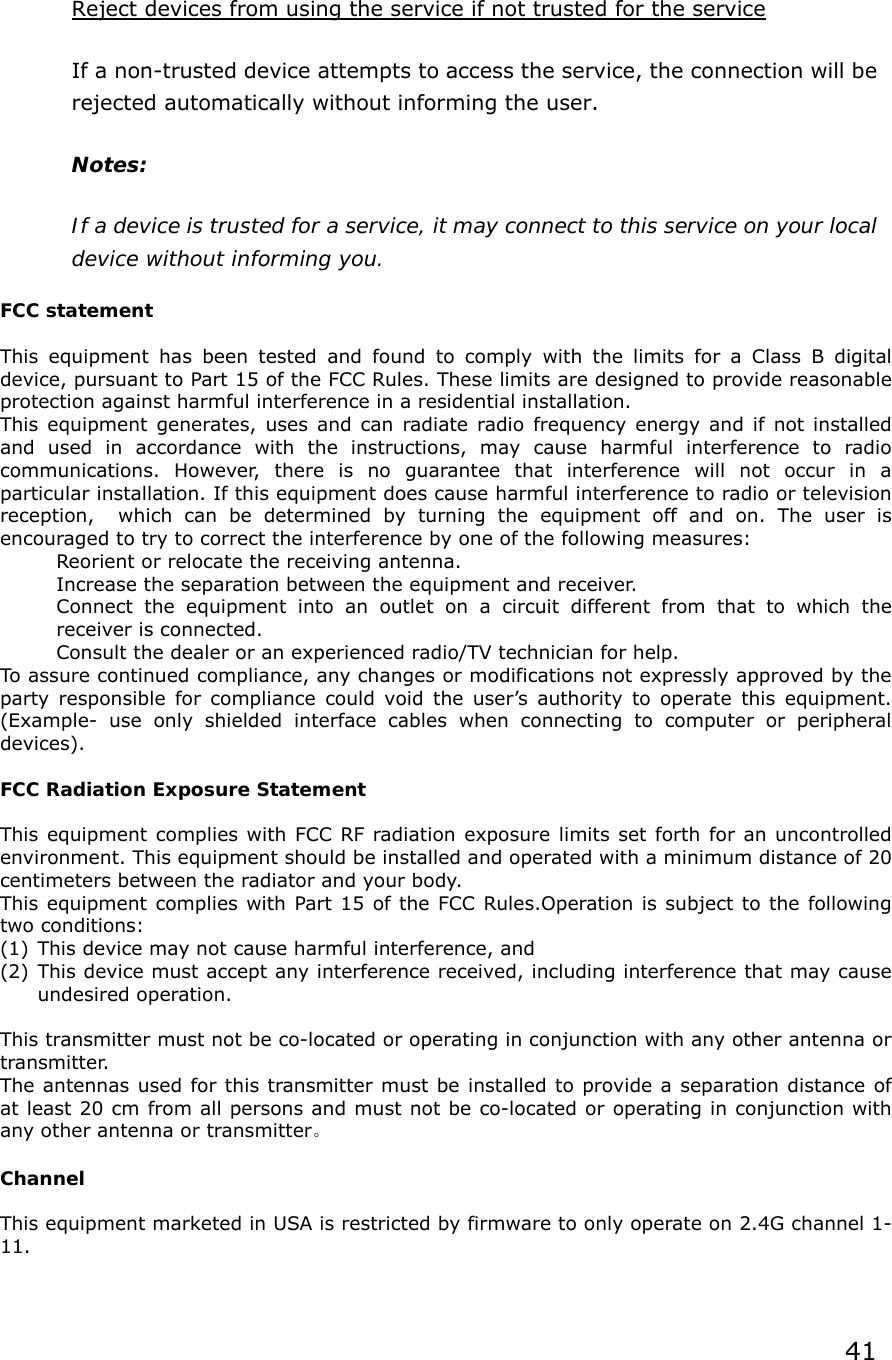

Reject devices from using the service if not trusted for the service If a non-trusted device attempts to access the service, the connection will be rejected automatically without informing the user. Notes: If a device is trusted for a service, it may connect to this service on your local device without informing you. FCC statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on. The user is encouraged to try to correct the interference by one of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. (Example- use only shielded interface cables when connecting to computer or peripheral devices). FCC Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. This equipment complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter。 Channel This equipment marketed in USA is restricted by firmware to only operate on 2.4G channel 1-11. 41
