Wireless 2D Imager Scanner- MS842/MS842P - User’s ManualVersion 1.4යᒘൿ༴ᕴEpohmf!gps!NT95Y!xjsfmftt!tdboofs!!!!!!!!!!!!!!!!!!!!!!!!!!!!NT95Y.3!

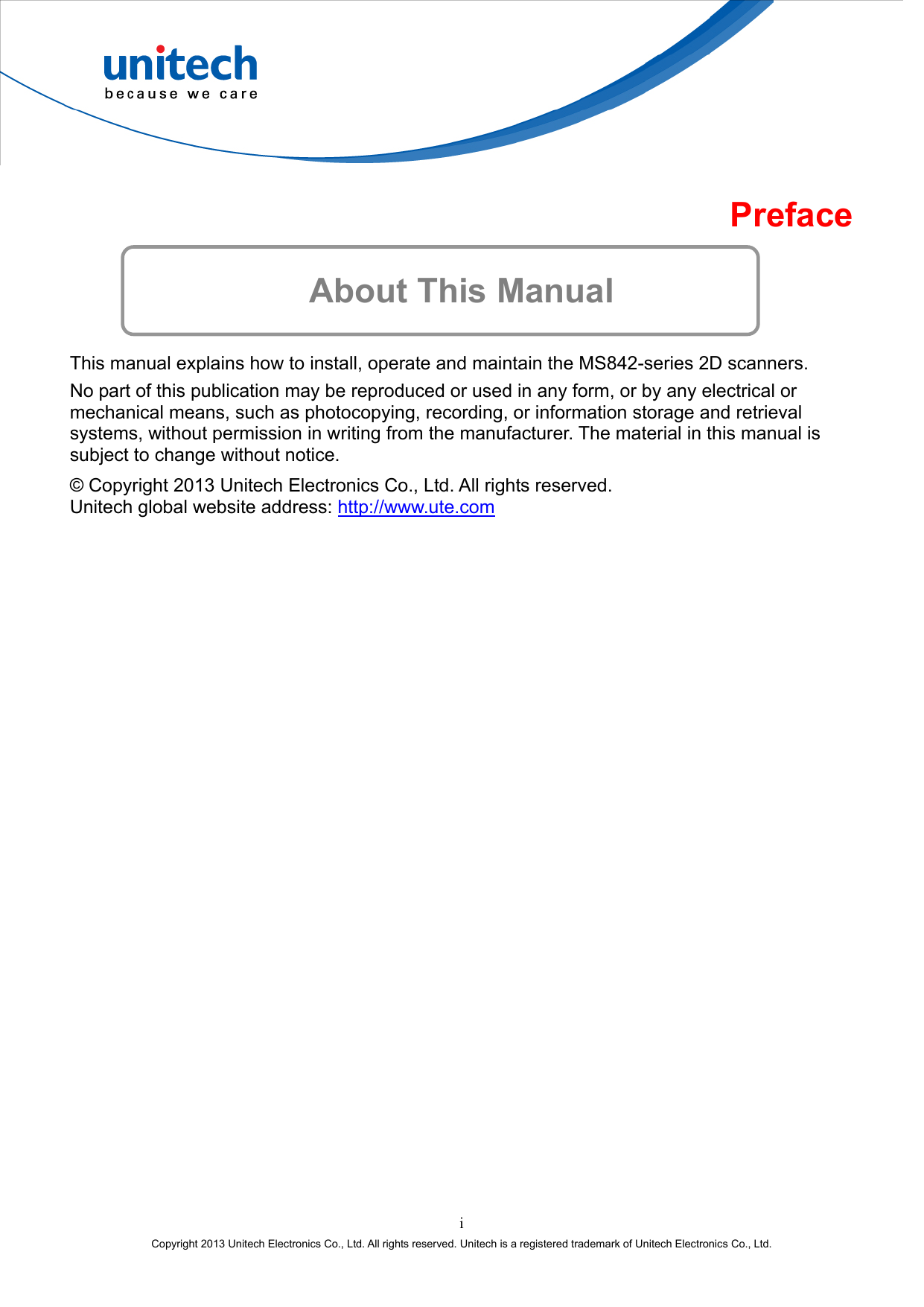

Preface About This Manual This manual explains how to install, operate and maintain the MS842-series 2D scanners. No part of this publication may be reproduced or used in any form, or by any electrical or mechanical means, such as photocopying, recording, or information storage and retrieval systems, without permission in writing from the manufacturer. The material in this manual is subject to change without notice. © Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech global website address: http://www.ute.com i Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.

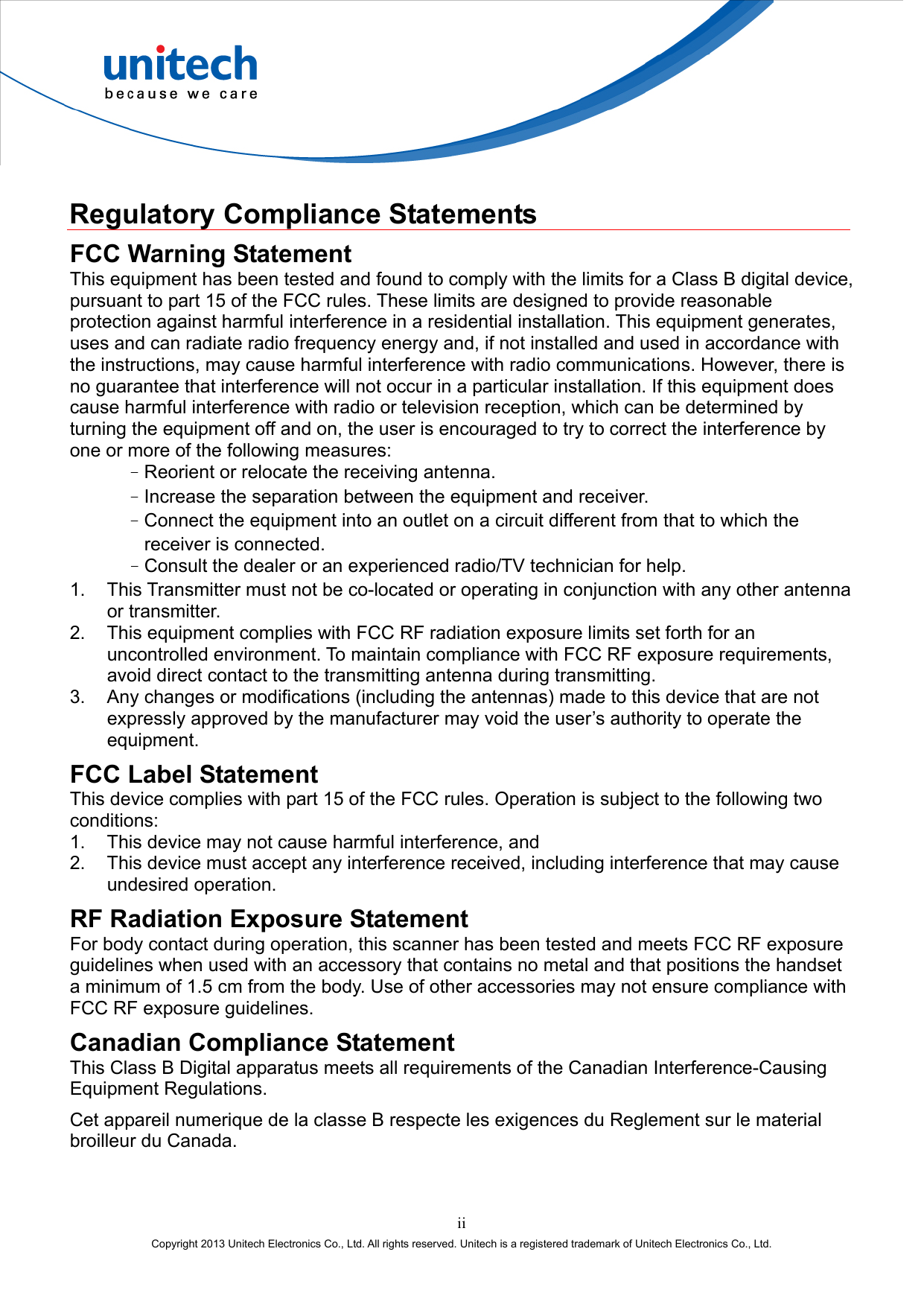

ii Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd. Regulatory Compliance Statements FCC Warning Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference with radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference with radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: –Reorient or relocate the receiving antenna. –Increase the separation between the equipment and receiver. –Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. –Consult the dealer or an experienced radio/TV technician for help. 1. This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 2. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. To maintain compliance with FCC RF exposure requirements, avoid direct contact to the transmitting antenna during transmitting. 3. Any changes or modifications (including the antennas) made to this device that are not expressly approved by the manufacturer may void the user’s authority to operate the equipment. FCC Label Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. RF Radiation Exposure Statement For body contact during operation, this scanner has been tested and meets FCC RF exposure guidelines when used with an accessory that contains no metal and that positions the handset a minimum of 1.5 cm from the body. Use of other accessories may not ensure compliance with FCC RF exposure guidelines. Canadian Compliance Statement This Class B Digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations. Cet appareil numerique de la classe B respecte les exigences du Reglement sur le material broilleur du Canada.

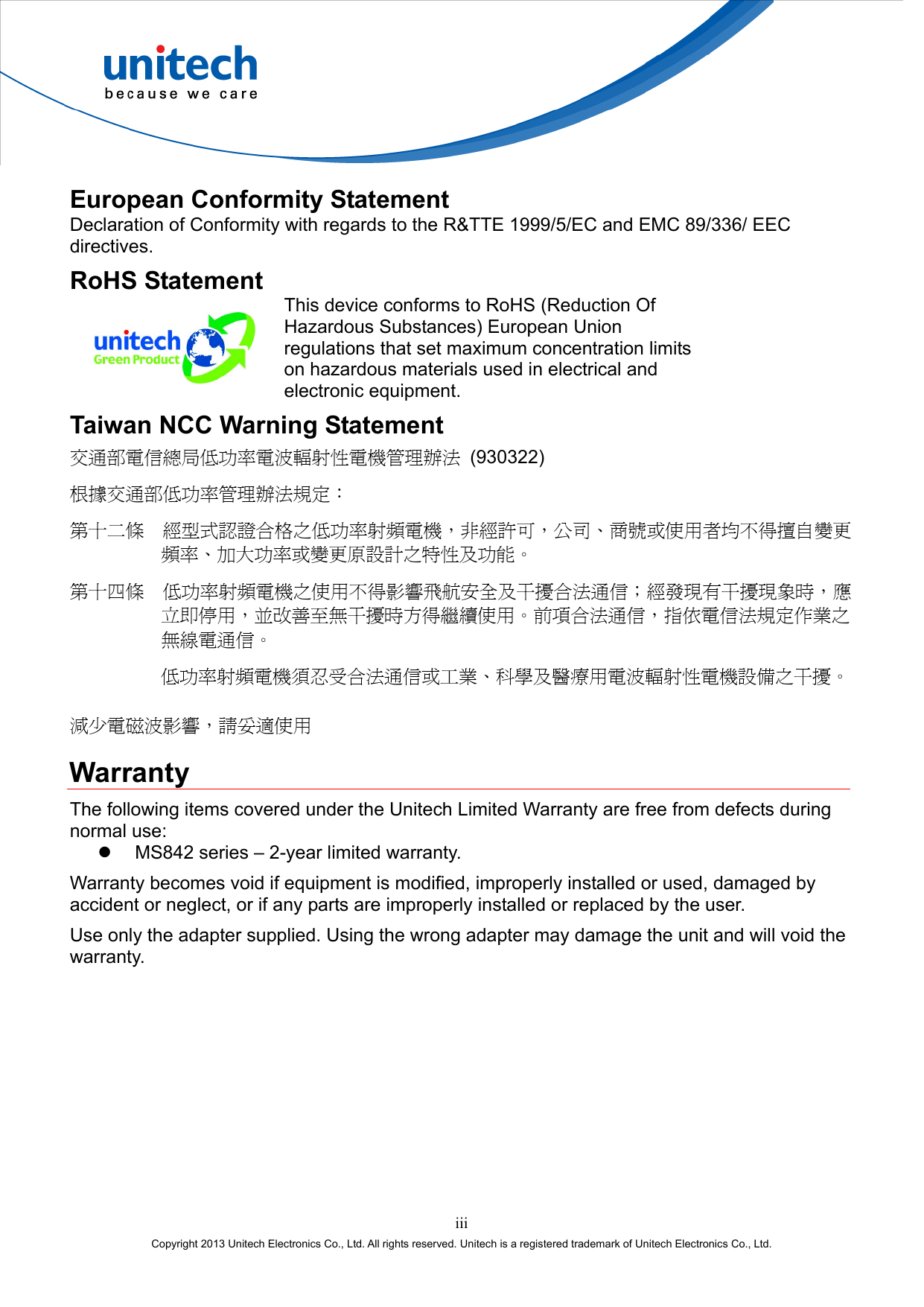

European Conformity Statement Declaration of Conformity with regards to the R&TTE 1999/5/EC and EMC 89/336/ EEC directives. RoHS Statement This device conforms to RoHS (Reduction Of Hazardous Substances) European Union regulations that set maximum concentration limits on hazardous materials used in electrical and electronic equipment. Taiwan NCC Warning Statement 交通部電信總局低功率電波輻射性電機管理辦法 (930322) 根據交通部低功率管理辦法規定：第十二條經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加大功率或變更原設計之特性及功能。第十四條低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改善至無干擾時方得繼續使用。前項合法通信，指依電信法規定作業之無線電通信。低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。減少電磁波影響，請妥適使用 Warranty The following items covered under the Unitech Limited Warranty are free from defects during normal use:  MS842 series – 2-year limited warranty. Warranty becomes void if equipment is modified, improperly installed or used, damaged by accident or neglect, or if any parts are improperly installed or replaced by the user. Use only the adapter supplied. Using the wrong adapter may damage the unit and will void the warranty. iii Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.

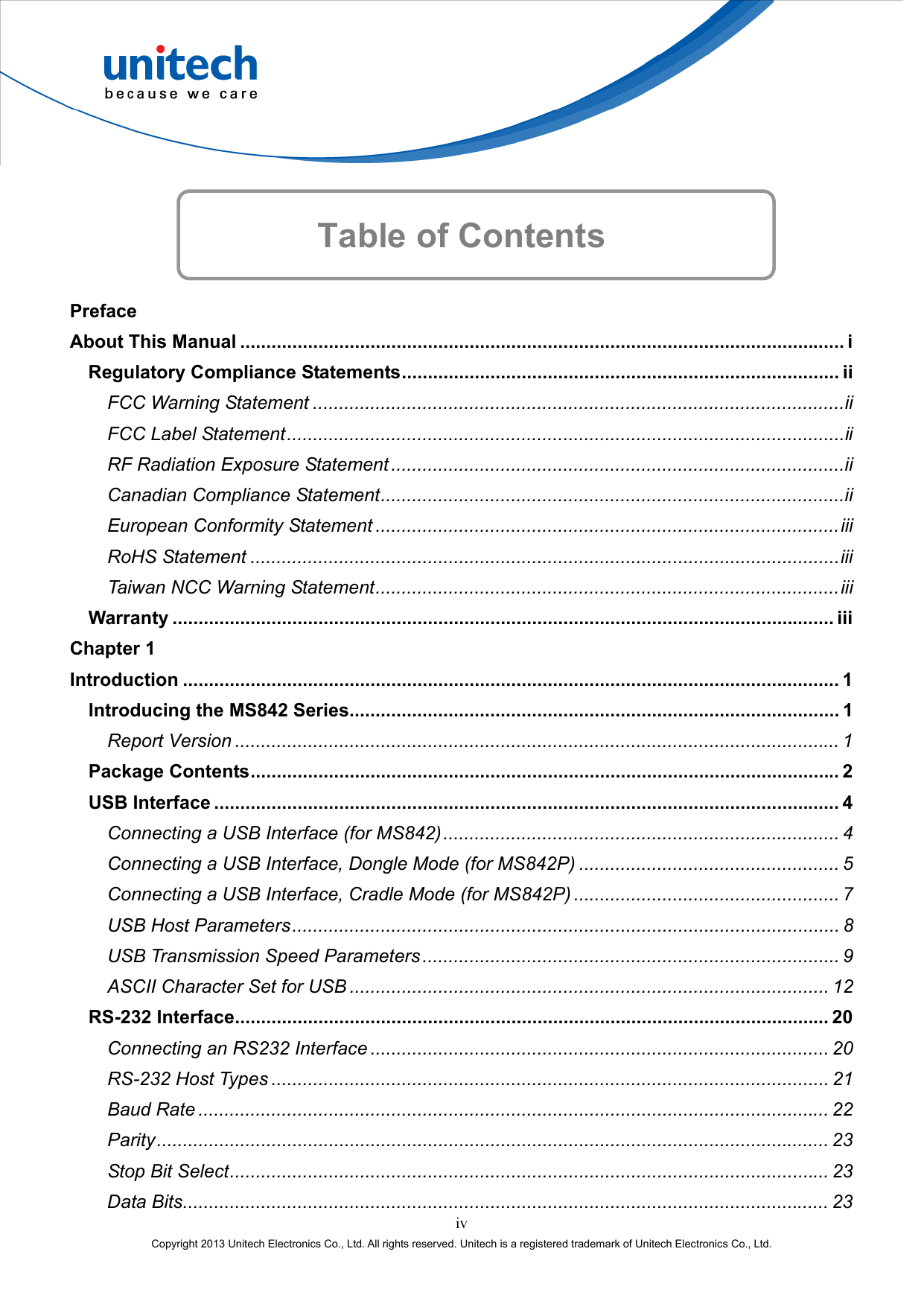

Table of Contents Preface About This Manual .................................................................................................................... i Regulatory Compliance Statements.................................................................................... ii FCC Warning Statement ......................................................................................................ii FCC Label Statement...........................................................................................................ii RF Radiation Exposure Statement.......................................................................................ii Canadian Compliance Statement.........................................................................................ii European Conformity Statement .........................................................................................iii RoHS Statement .................................................................................................................iii Taiwan NCC Warning Statement.........................................................................................iii Warranty ............................................................................................................................... iii Chapter 1 Introduction .............................................................................................................................. 1 Introducing the MS842 Series.............................................................................................. 1 Report Version .................................................................................................................... 1 Package Contents................................................................................................................. 2 USB Interface ........................................................................................................................ 4 Connecting a USB Interface (for MS842)............................................................................ 4 Connecting a USB Interface, Dongle Mode (for MS842P) .................................................. 5 Connecting a USB Interface, Cradle Mode (for MS842P) ................................................... 7 USB Host Parameters......................................................................................................... 8 USB Transmission Speed Parameters ................................................................................ 9 ASCII Character Set for USB ............................................................................................ 12 RS-232 Interface.................................................................................................................. 20 Connecting an RS232 Interface ........................................................................................ 20 RS-232 Host Types ........................................................................................................... 21 Baud Rate ......................................................................................................................... 22 Parity................................................................................................................................. 23 Stop Bit Select................................................................................................................... 23 iv Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd. Data Bits............................................................................................................................ 23

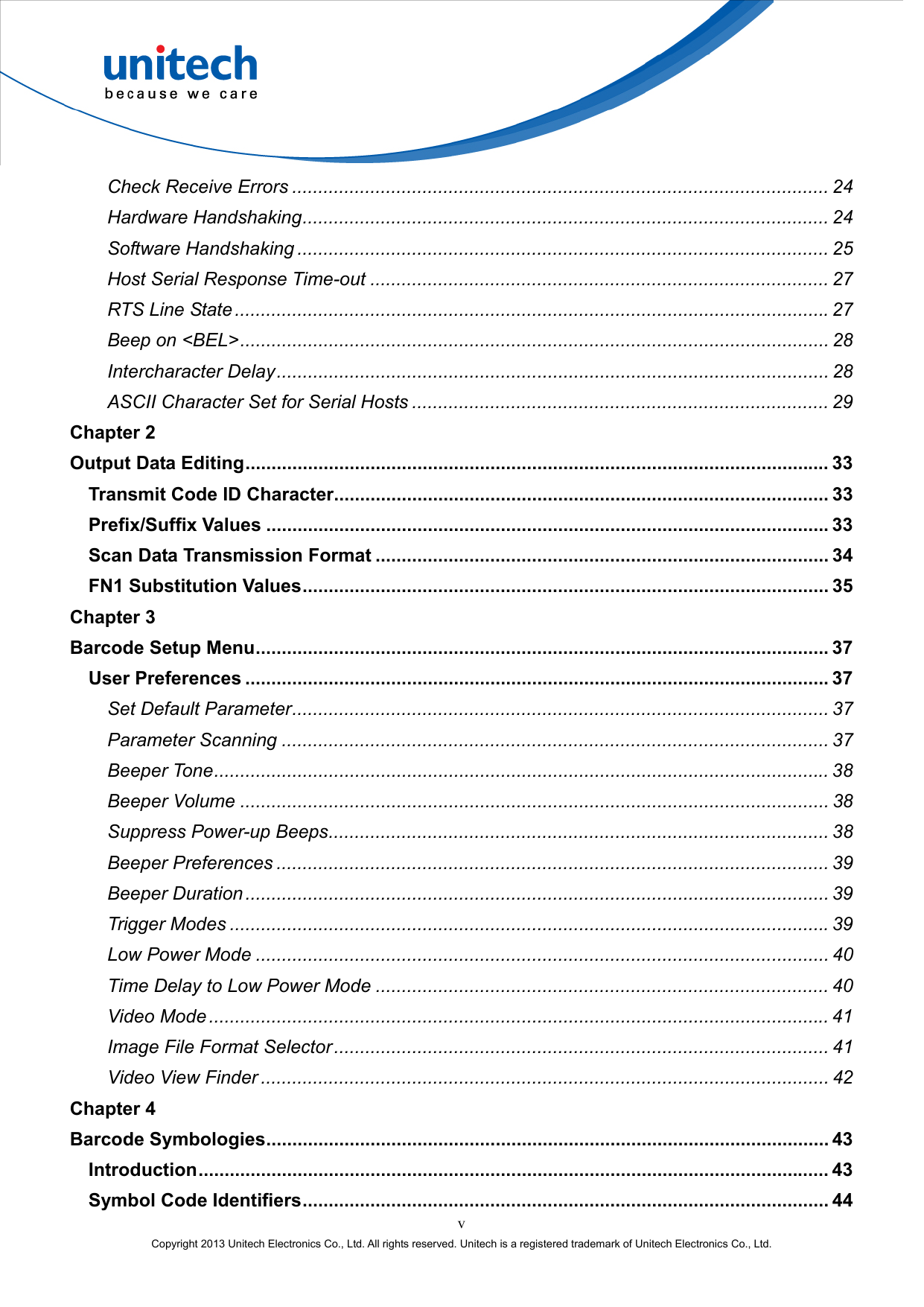

v Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd. Check Receive Errors ....................................................................................................... 24 Hardware Handshaking..................................................................................................... 24 Software Handshaking ...................................................................................................... 25 Host Serial Response Time-out ........................................................................................ 27 RTS Line State..................................................................................................................27 Beep on <BEL>................................................................................................................. 28 Intercharacter Delay.......................................................................................................... 28 ASCII Character Set for Serial Hosts ................................................................................ 29 Chapter 2 Output Data Editing................................................................................................................ 33 Transmit Code ID Character............................................................................................... 33 Prefix/Suffix Values ............................................................................................................33 Scan Data Transmission Format ....................................................................................... 34 FN1 Substitution Values..................................................................................................... 35 Chapter 3 Barcode Setup Menu..............................................................................................................37 User Preferences ................................................................................................................37 Set Default Parameter....................................................................................................... 37 Parameter Scanning ......................................................................................................... 37 Beeper Tone...................................................................................................................... 38 Beeper Volume ................................................................................................................. 38 Suppress Power-up Beeps................................................................................................ 38 Beeper Preferences .......................................................................................................... 39 Beeper Duration ................................................................................................................ 39 Trigger Modes ...................................................................................................................39 Low Power Mode .............................................................................................................. 40 Time Delay to Low Power Mode ....................................................................................... 40 Video Mode ....................................................................................................................... 41 Image File Format Selector............................................................................................... 41 Video View Finder ............................................................................................................. 42 Chapter 4 Barcode Symbologies............................................................................................................ 43 Introduction......................................................................................................................... 43 Symbol Code Identifiers..................................................................................................... 44

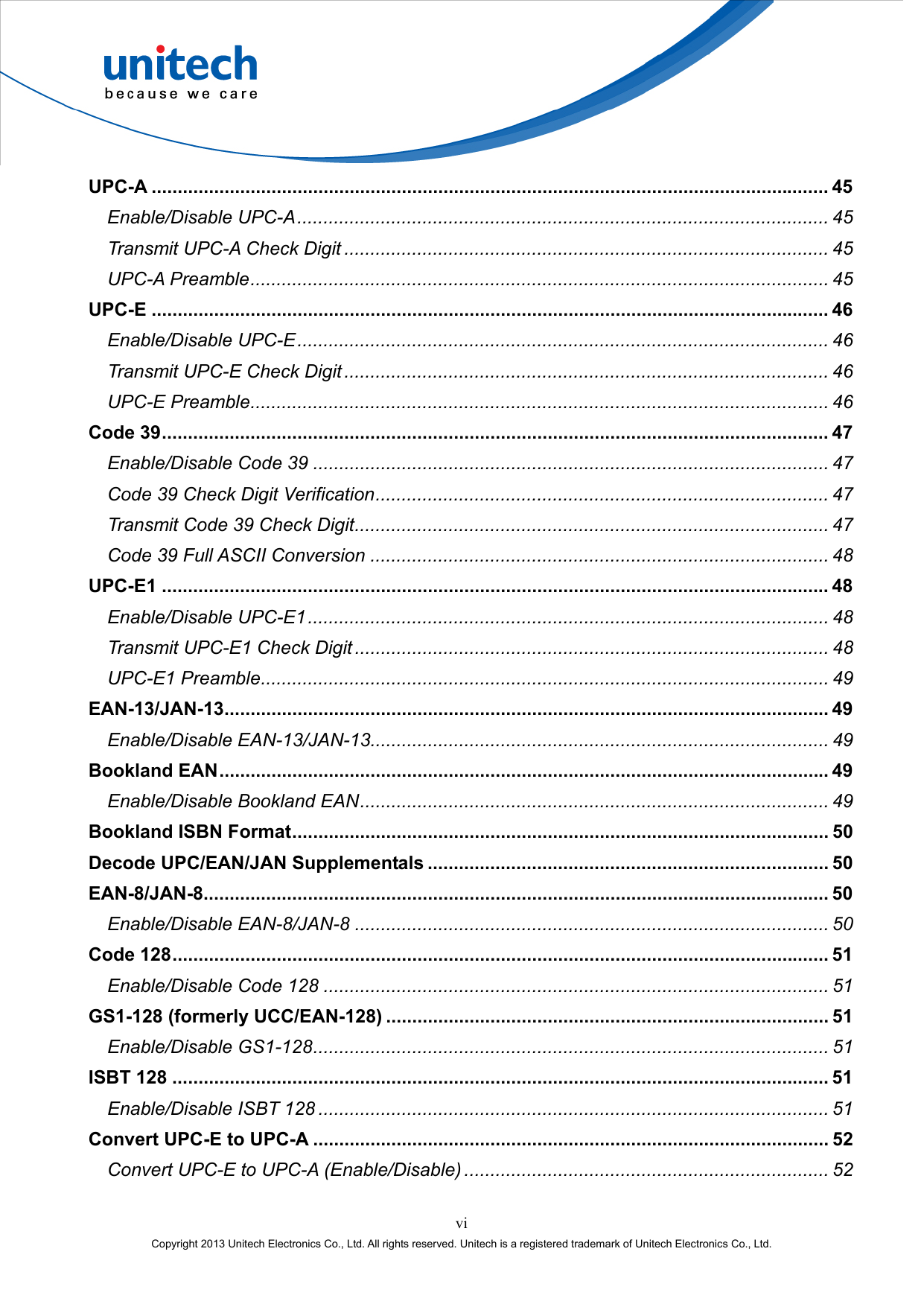

vi Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd. UPC-A .................................................................................................................................. 45 Enable/Disable UPC-A...................................................................................................... 45 Transmit UPC-A Check Digit ............................................................................................. 45 UPC-A Preamble............................................................................................................... 45 UPC-E .................................................................................................................................. 46 Enable/Disable UPC-E...................................................................................................... 46 Transmit UPC-E Check Digit ............................................................................................. 46 UPC-E Preamble............................................................................................................... 46 Code 39................................................................................................................................ 47 Enable/Disable Code 39 ................................................................................................... 47 Code 39 Check Digit Verification....................................................................................... 47 Transmit Code 39 Check Digit........................................................................................... 47 Code 39 Full ASCII Conversion ........................................................................................ 48 UPC-E1 ................................................................................................................................ 48 Enable/Disable UPC-E1.................................................................................................... 48 Transmit UPC-E1 Check Digit ........................................................................................... 48 UPC-E1 Preamble............................................................................................................. 49 EAN-13/JAN-13.................................................................................................................... 49 Enable/Disable EAN-13/JAN-13........................................................................................ 49 Bookland EAN..................................................................................................................... 49 Enable/Disable Bookland EAN.......................................................................................... 49 Bookland ISBN Format....................................................................................................... 50 Decode UPC/EAN/JAN Supplementals ............................................................................. 50 EAN-8/JAN-8........................................................................................................................ 50 Enable/Disable EAN-8/JAN-8 ........................................................................................... 50 Code 128.............................................................................................................................. 51 Enable/Disable Code 128 ................................................................................................. 51 GS1-128 (formerly UCC/EAN-128) ..................................................................................... 51 Enable/Disable GS1-128................................................................................................... 51 ISBT 128 .............................................................................................................................. 51 Enable/Disable ISBT 128 .................................................................................................. 51 Convert UPC-E to UPC-A ................................................................................................... 52 Convert UPC-E to UPC-A (Enable/Disable) ...................................................................... 52

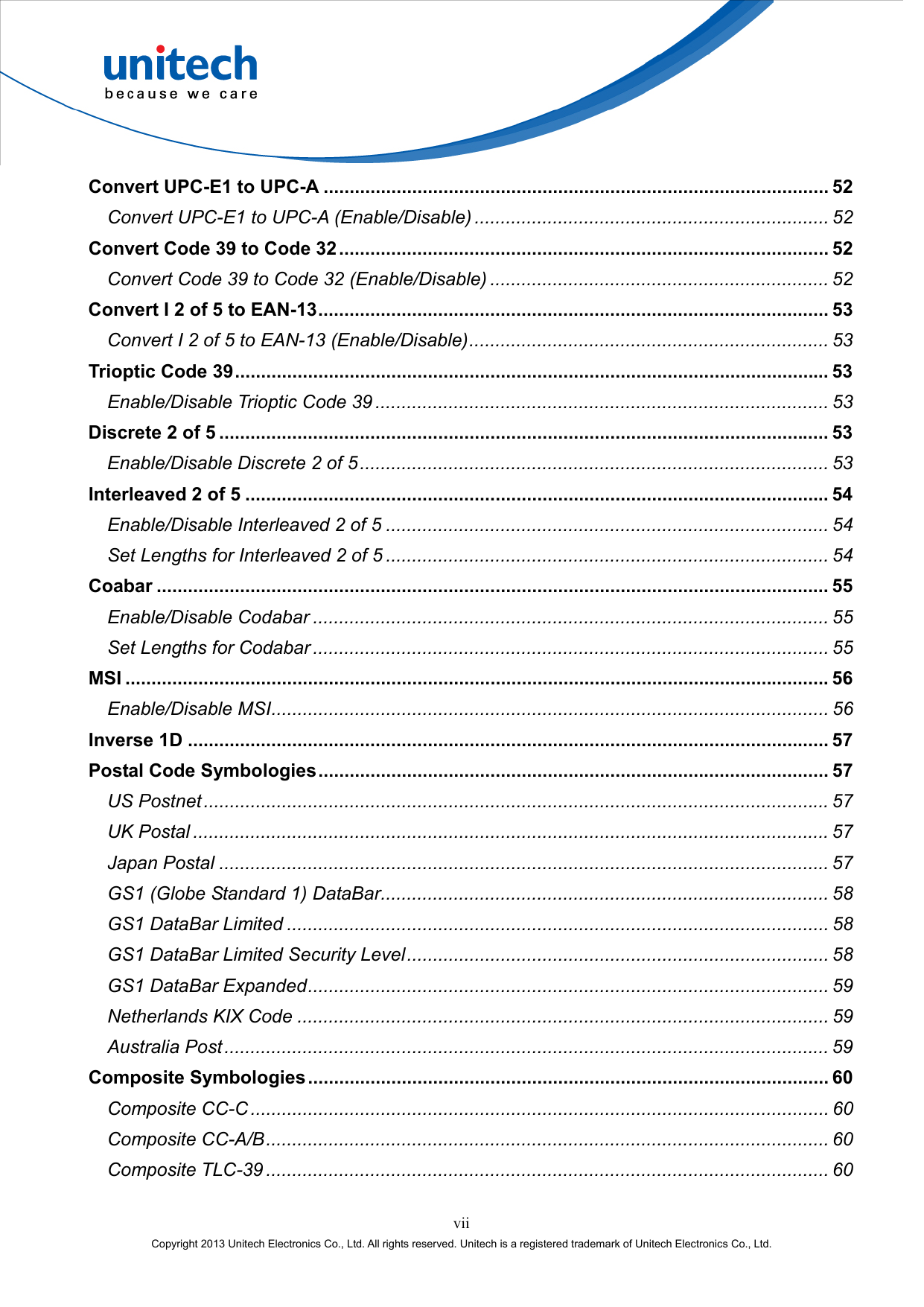

vii Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd. Convert UPC-E1 to UPC-A ................................................................................................. 52 Convert UPC-E1 to UPC-A (Enable/Disable) .................................................................... 52 Convert Code 39 to Code 32.............................................................................................. 52 Convert Code 39 to Code 32 (Enable/Disable) ................................................................. 52 Convert I 2 of 5 to EAN-13.................................................................................................. 53 Convert I 2 of 5 to EAN-13 (Enable/Disable)..................................................................... 53 Trioptic Code 39.................................................................................................................. 53 Enable/Disable Trioptic Code 39 ....................................................................................... 53 Discrete 2 of 5 ..................................................................................................................... 53 Enable/Disable Discrete 2 of 5.......................................................................................... 53 Interleaved 2 of 5 ................................................................................................................ 54 Enable/Disable Interleaved 2 of 5 ..................................................................................... 54 Set Lengths for Interleaved 2 of 5 ..................................................................................... 54 Coabar ................................................................................................................................. 55 Enable/Disable Codabar ................................................................................................... 55 Set Lengths for Codabar ................................................................................................... 55 MSI ....................................................................................................................................... 56 Enable/Disable MSI........................................................................................................... 56 Inverse 1D ........................................................................................................................... 57 Postal Code Symbologies.................................................................................................. 57 US Postnet........................................................................................................................ 57 UK Postal .......................................................................................................................... 57 Japan Postal ..................................................................................................................... 57 GS1 (Globe Standard 1) DataBar...................................................................................... 58 GS1 DataBar Limited ........................................................................................................ 58 GS1 DataBar Limited Security Level................................................................................. 58 GS1 DataBar Expanded.................................................................................................... 59 Netherlands KIX Code ...................................................................................................... 59 Australia Post.................................................................................................................... 59 Composite Symbologies.................................................................................................... 60 Composite CC-C ............................................................................................................... 60 Composite CC-A/B............................................................................................................ 60 Composite TLC-39 ............................................................................................................ 60

viii Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd. 2D Symbologies..................................................................................................................60 PDF417............................................................................................................................. 60 MicroPDF417 .................................................................................................................... 61 Code 128 Emulation.......................................................................................................... 61 Data Matrix........................................................................................................................ 61 Data Matrix Inverse ........................................................................................................... 61 Decode Mirror Images (Data Matrix Only)......................................................................... 62 Maxicode........................................................................................................................... 62 QR Code ........................................................................................................................... 62 QR Inverse........................................................................................................................ 63 MicroQR............................................................................................................................ 63 Aztec ................................................................................................................................. 63 Aztec Inverse .................................................................................................................... 64 Redundancy Level ............................................................................................................ 64 Security Level.................................................................................................................... 65 Intercharacter Gap Size .................................................................................................... 66 Macro PDF Features......................................................................................................... 66 Macro PDF Transmit / Decode Mode Symbols ................................................................. 67 Transmit Macro PDF Control Header ................................................................................ 68 Escape Characters............................................................................................................ 69 Flush Macro Buffer............................................................................................................ 69 Abort Macro PDF Entry ..................................................................................................... 69 Appendix A Sample Barcodes ................................................................................................................... 71 2D Barcodes........................................................................................................................ 71 Data Matrix........................................................................................................................ 71 Maxicode........................................................................................................................... 71 QR Code ........................................................................................................................... 71 PDF417............................................................................................................................. 71 MicroPDF417 .................................................................................................................... 71 US Postnet........................................................................................................................ 72 UK Postal .......................................................................................................................... 72 1D Barcodes........................................................................................................................ 72 EAN-13 ............................................................................................................................. 72

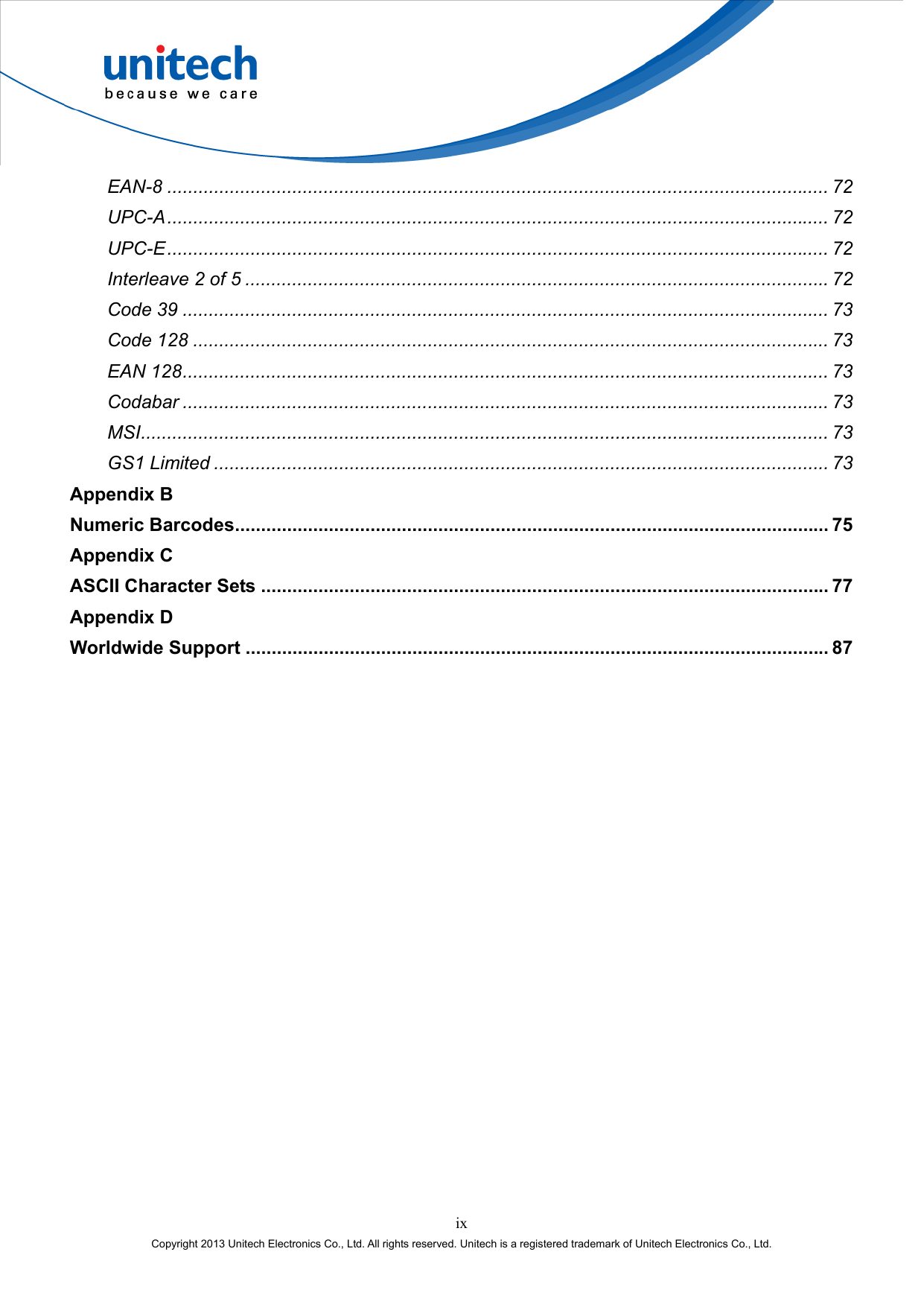

ix Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd. EAN-8 ............................................................................................................................... 72 UPC-A............................................................................................................................... 72 UPC-E............................................................................................................................... 72 Interleave 2 of 5 ................................................................................................................ 72 Code 39 ............................................................................................................................ 73 Code 128 .......................................................................................................................... 73 EAN 128............................................................................................................................ 73 Codabar ............................................................................................................................ 73 MSI.................................................................................................................................... 73 GS1 Limited ...................................................................................................................... 73 Appendix B Numeric Barcodes.................................................................................................................. 75 Appendix C ASCII Character Sets ............................................................................................................. 77 Appendix D Worldwide Support ................................................................................................................ 87

x Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.

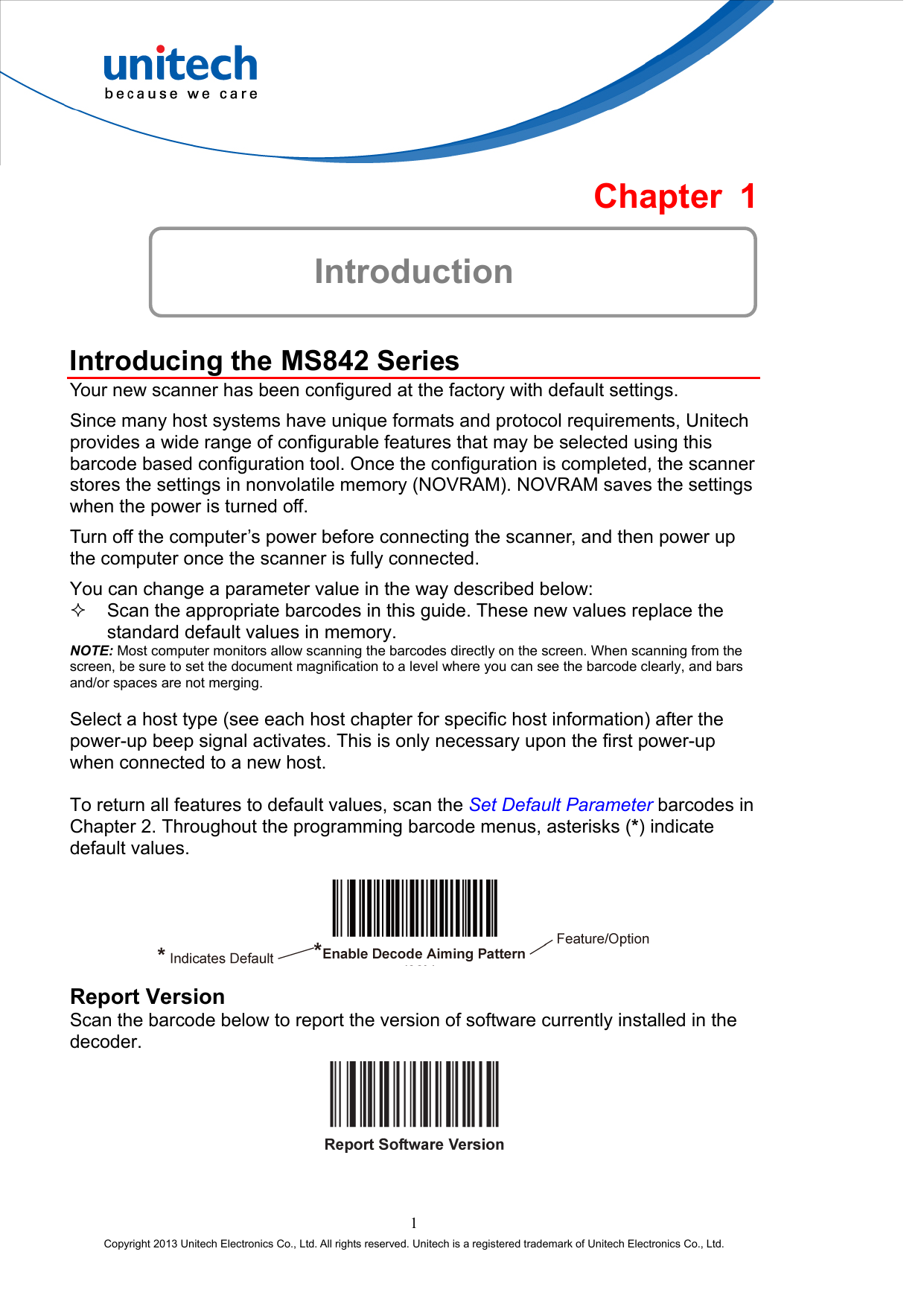

Chapter 1 Introduction Introducing the MS842 Series Your new scanner has been configured at the factory with default settings. Since many host systems have unique formats and protocol requirements, Unitech provides a wide range of configurable features that may be selected using this barcode based configuration tool. Once the configuration is completed, the scanner stores the settings in nonvolatile memory (NOVRAM). NOVRAM saves the settings when the power is turned off. Turn off the computer’s power before connecting the scanner, and then power up the computer once the scanner is fully connected. You can change a parameter value in the way described below:  Scan the appropriate barcodes in this guide. These new values replace the standard default values in memory. NOTE: Most computer monitors allow scanning the barcodes directly on the screen. When scanning from the screen, be sure to set the document magnification to a level where you can see the barcode clearly, and bars and/or spaces are not merging. Select a host type (see each host chapter for specific host information) after the power-up beep signal activates. This is only necessary upon the first power-up when connected to a new host. To return all features to default values, scan the Set Default Parameter barcodes in Chapter 2. Throughout the programming barcode menus, asterisks (*) indicate default values. Report Version Scan the barcode below to report the version of software currently installed in the decoder. 1 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.

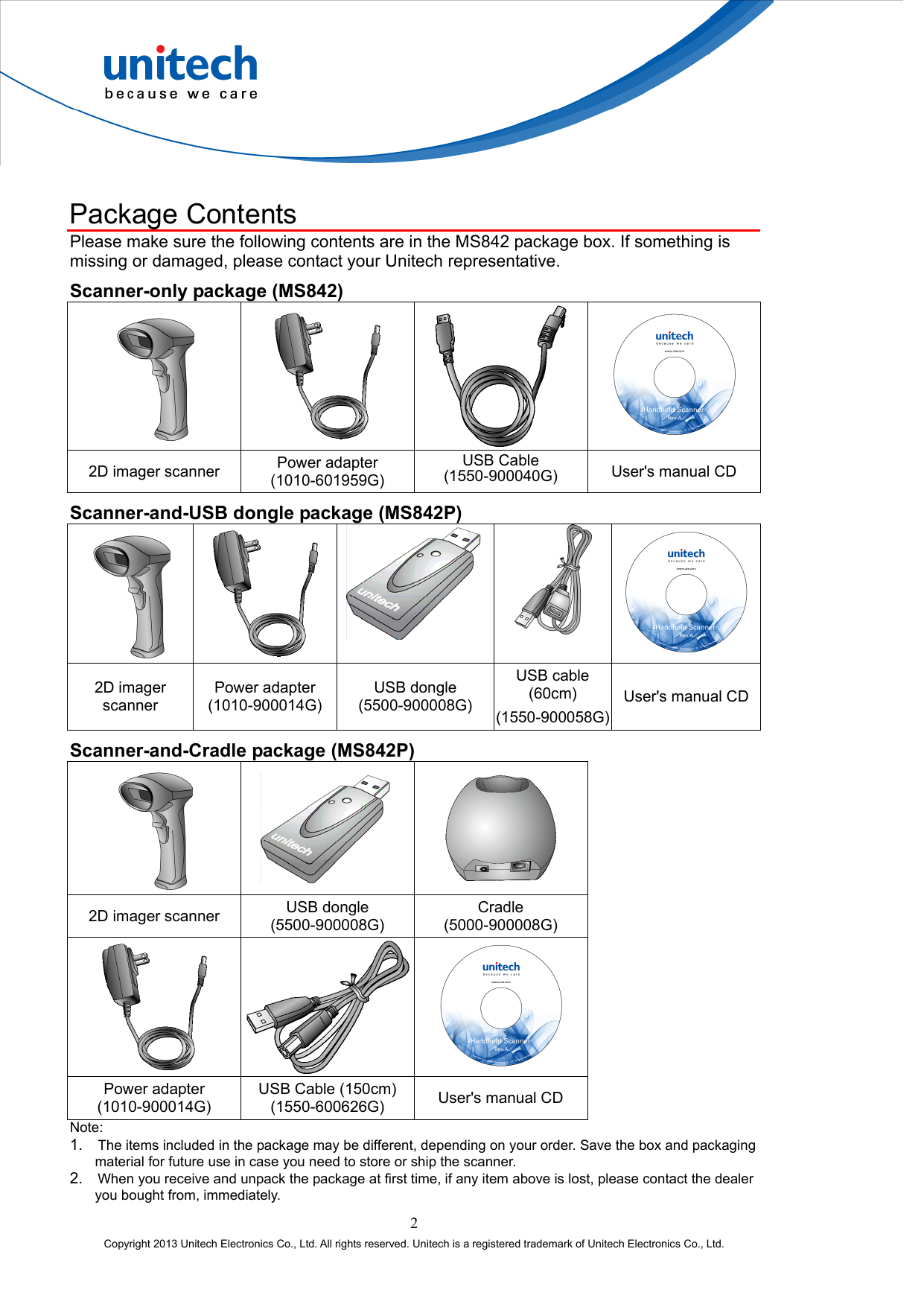

Package Contents Please make sure the following contents are in the MS842 package box. If something is missing or damaged, please contact your Unitech representative. Scanner-only package (MS842) 2D imager scanner Power adapter (1010-601959G) USB Cable (1550-900040G) User's manual CD Scanner-and-USB dongle package (MS842P) 2D imager scanner Power adapter (1010-900014G) USB dongle (5500-900008G) USB cable (60cm) (1550-900058G)User's manual CD Scanner-and-Cradle package (MS842P) 2D imager scanner USB dongle (5500-900008G) Cradle (5000-900008G) Power adapter (1010-900014G) USB Cable (150cm) (1550-600626G) User's manual CD Note: 1. The items included in the package may be different, depending on your order. Save the box and packaging material for future use in case you need to store or ship the scanner. 2. When you receive and unpack the package at first time, if any item above is lost, please contact the dealer you bought from, immediately. 2 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.

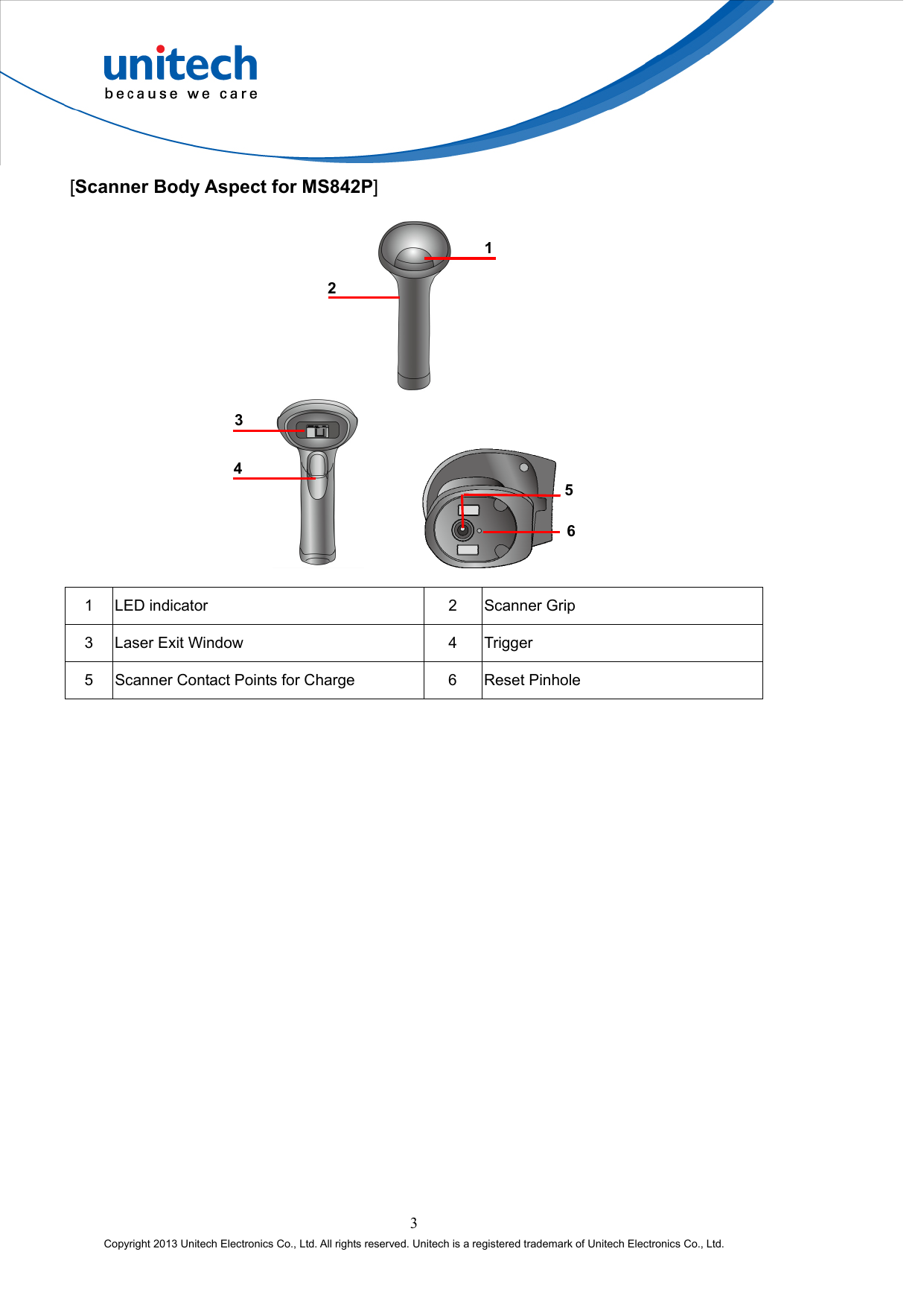

[Scanner Body Aspect for MS842P] 1 2 3 4 5 61 LED indicator 2 Scanner Grip 3 Laser Exit Window 4 Trigger 5 Scanner Contact Points for Charge 6 Reset Pinhole 3 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.

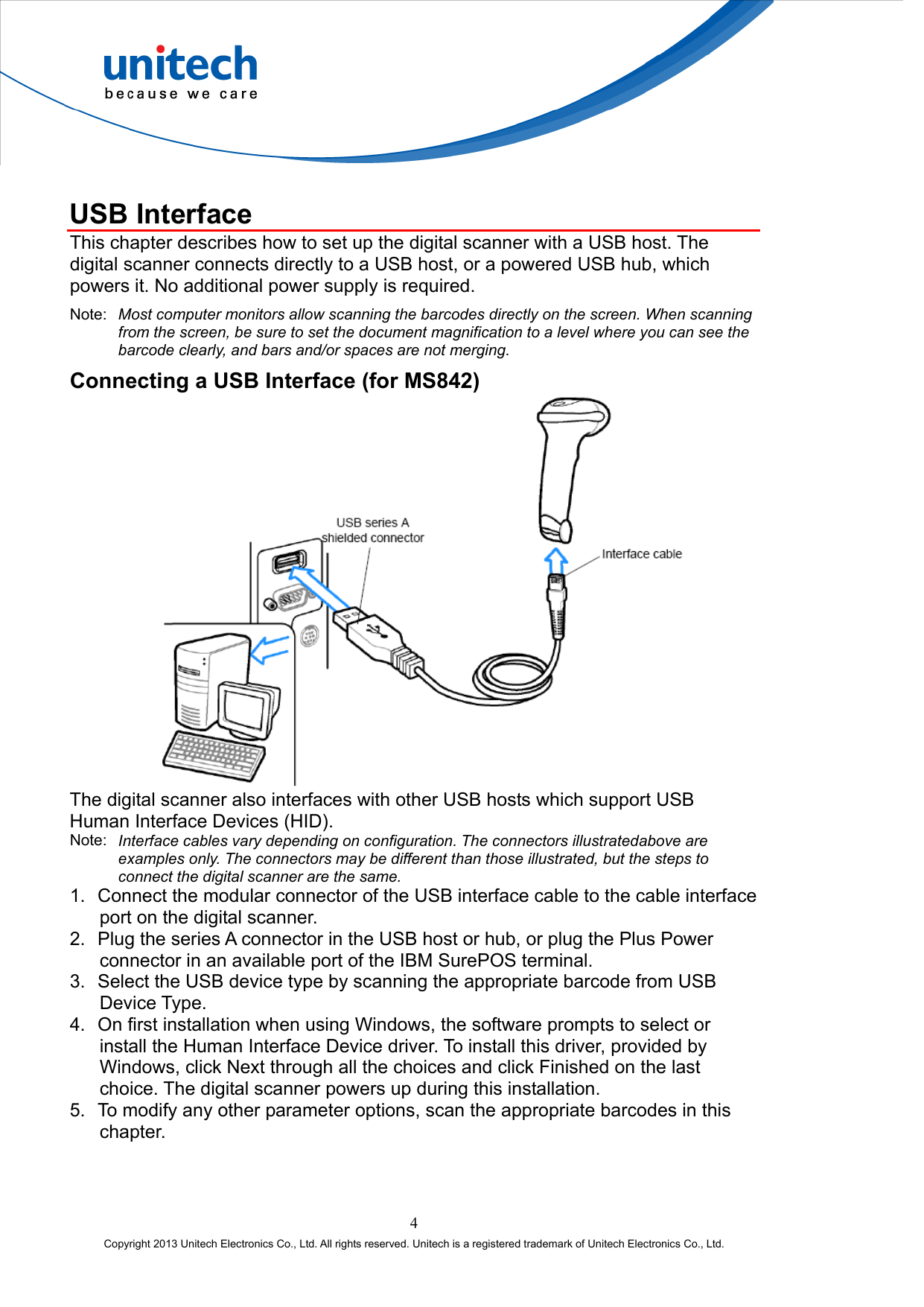

USB Interface This chapter describes how to set up the digital scanner with a USB host. The digital scanner connects directly to a USB host, or a powered USB hub, which powers it. No additional power supply is required. Note: Most computer monitors allow scanning the barcodes directly on the screen. When scanning from the screen, be sure to set the document magnification to a level where you can see the barcode clearly, and bars and/or spaces are not merging. Connecting a USB Interface (for MS842) The digital scanner also interfaces with other USB hosts which support USB Human Interface Devices (HID). Note: Interface cables vary depending on configuration. The connectors illustratedabove are examples only. The connectors may be different than those illustrated, but the steps to connect the digital scanner are the same. 1. Connect the modular connector of the USB interface cable to the cable interface port on the digital scanner. 2. Plug the series A connector in the USB host or hub, or plug the Plus Power connector in an available port of the IBM SurePOS terminal. 3. Select the USB device type by scanning the appropriate barcode from USB Device Type. 4. On first installation when using Windows, the software prompts to select or install the Human Interface Device driver. To install this driver, provided by Windows, click Next through all the choices and click Finished on the last choice. The digital scanner powers up during this installation. 5. To modify any other parameter options, scan the appropriate barcodes in this chapter. 4 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.

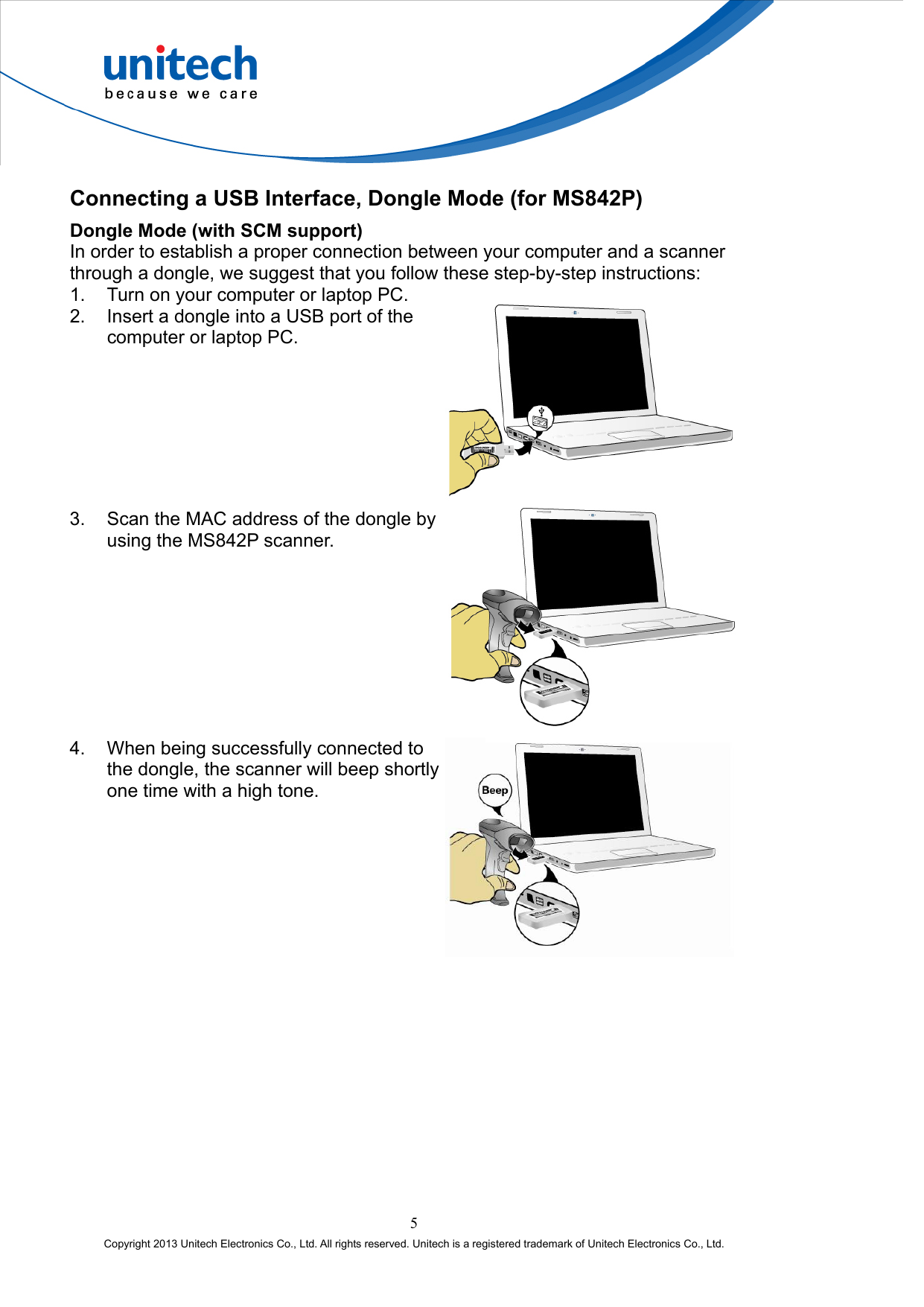

Connecting a USB Interface, Dongle Mode (for MS842P) Dongle Mode (with SCM support) In order to establish a proper connection between your computer and a scanner through a dongle, we suggest that you follow these step-by-step instructions: 1. Turn on your computer or laptop PC. 2. Insert a dongle into a USB port of the computer or laptop PC. 3. Scan the MAC address of the dongle by using the MS842P scanner. 4. When being successfully connected to the dongle, the scanner will beep shortly one time with a high tone. 5 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.

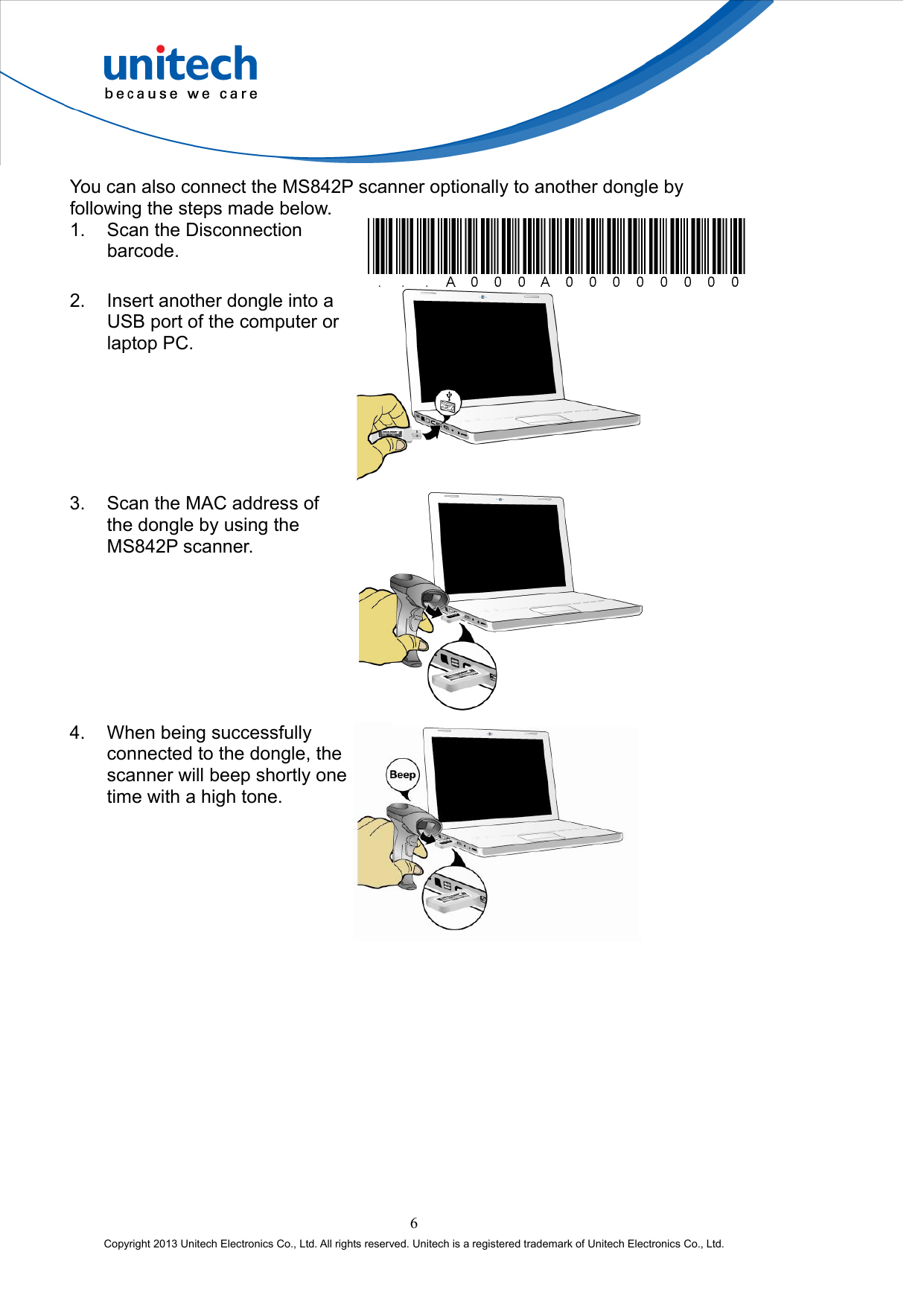

You can also connect the MS842P scanner optionally to another dongle by following the steps made below. 1. Scan the Disconnection barcode. 2. Insert another dongle into a USB port of the computer or laptop PC. 3. Scan the MAC address of the dongle by using the MS842P scanner. 4. When being successfully connected to the dongle, the scanner will beep shortly one time with a high tone. 6 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.

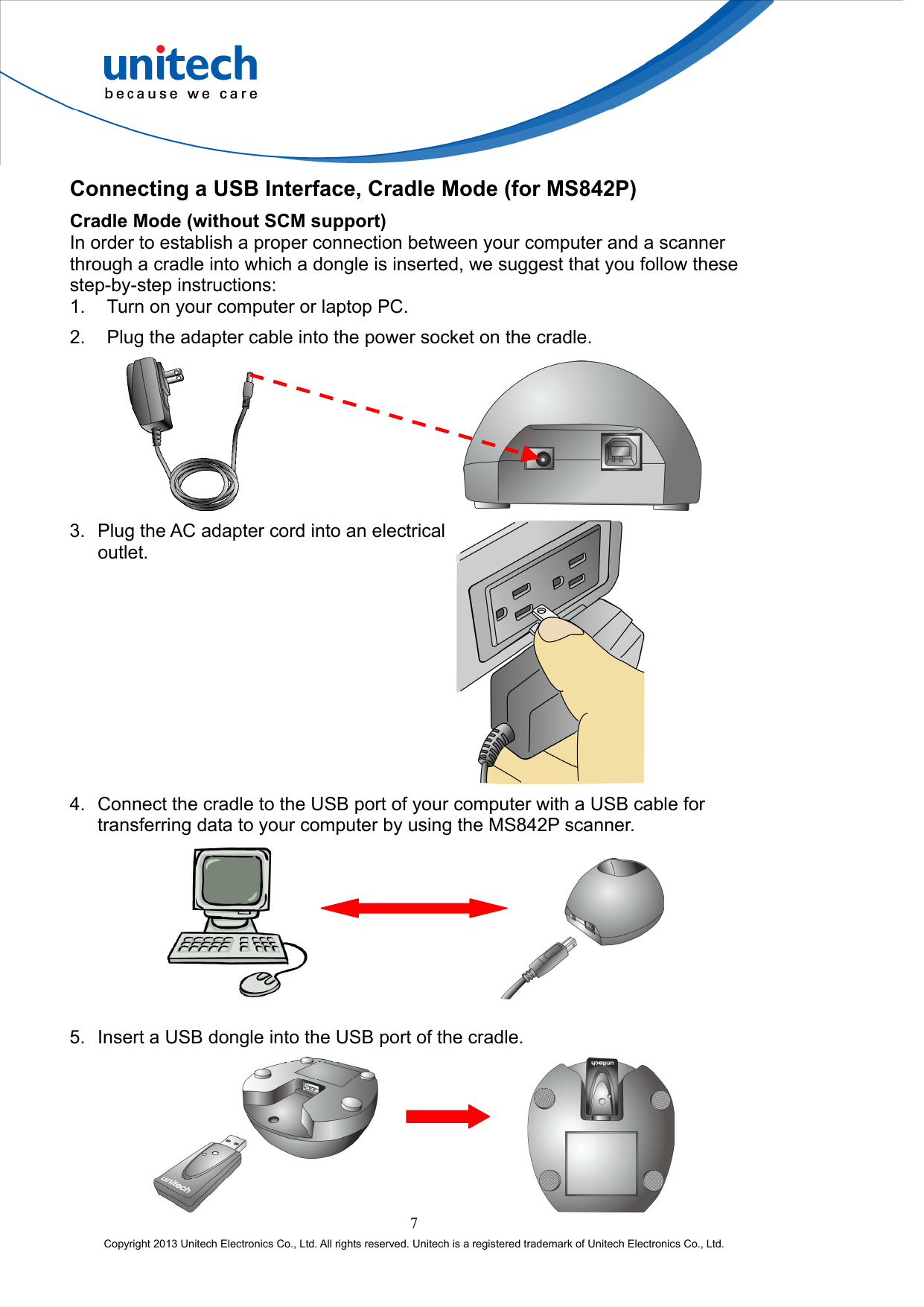

Connecting a USB Interface, Cradle Mode (for MS842P) Cradle Mode (without SCM support) In order to establish a proper connection between your computer and a scanner through a cradle into which a dongle is inserted, we suggest that you follow these step-by-step instructions: 1. Turn on your computer or laptop PC. 2. Plug the adapter cable into the power socket on the cradle. 3. Plug the AC adapter cord into an electrical outlet. 4. Connect the cradle to the USB port of your computer with a USB cable for transferring data to your computer by using the MS842P scanner. 5. Insert a USB dongle into the USB port of the cradle. 7 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.

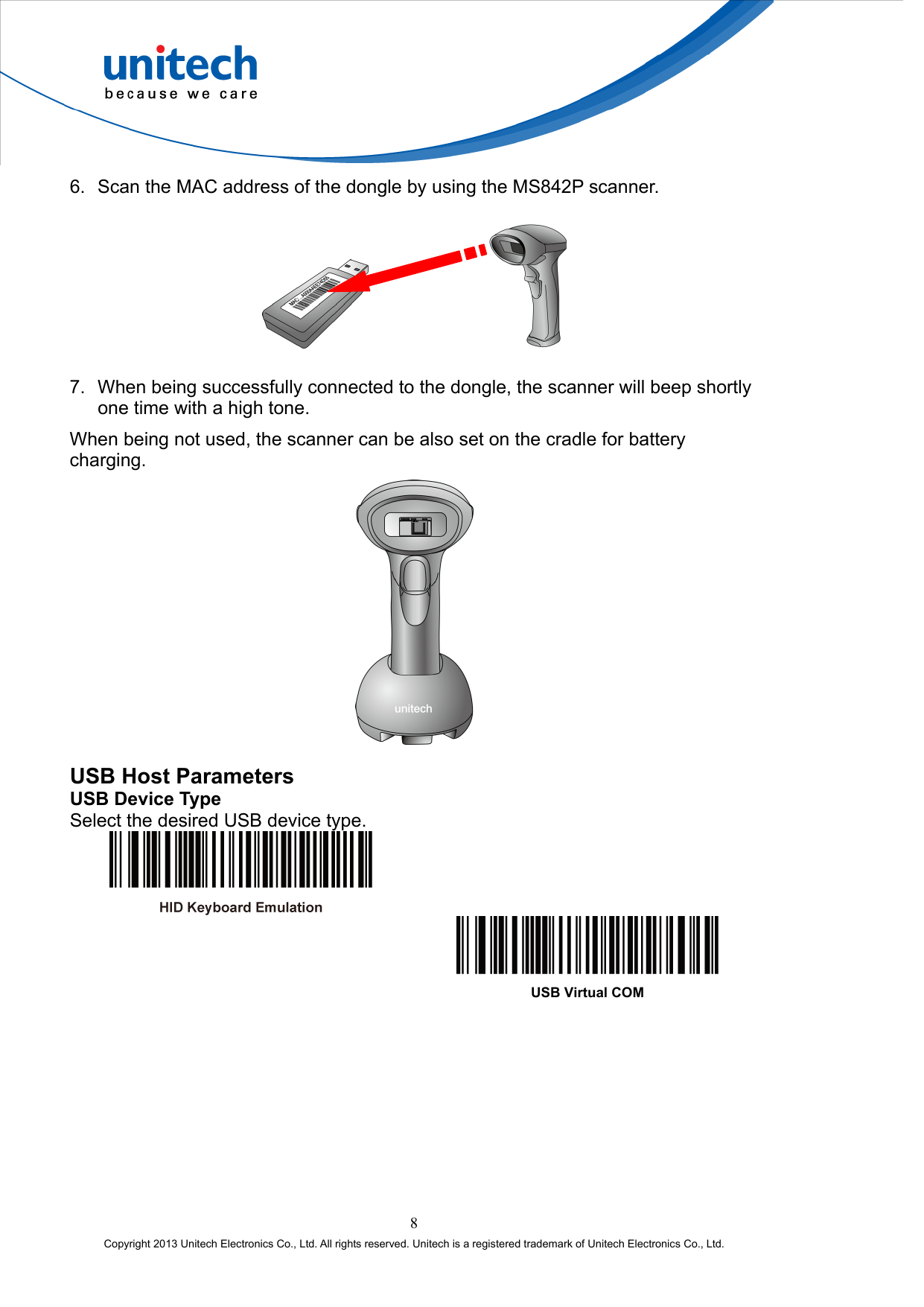

6. Scan the MAC address of the dongle by using the MS842P scanner. 7. When being successfully connected to the dongle, the scanner will beep shortly one time with a high tone. When being not used, the scanner can be also set on the cradle for battery charging. USB Host Parameters USB Device Type Select the desired USB device type. USB Virtual COM 8 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.

USB Transmission Speed Parameters Use the following parameters to speed USB data transmission:  USB Polling Interval - When using more current USB systems, use this parameter to set a lower interval in order to increase data transmission speed.  Fast HID Keyboard - When configured as a USB HID keyboard device, use this parameter to increase the data transmission speed of printable (7-bit) ASCII characters.  Quick Keypad Emulation - When configured as a USB HID keyboard device, use this parameter to increase the data transmission speed of a mix of both printable (7-bit) and full (8-bit) ASCII characters. Note: Emulate Keypad and Quick Emulation override Fast HID. USB Polling Interval This option speeds data transmission for all USB devices except CDC. Scan a barcode below to set the polling interval. The polling interval determines the rate at which data can be sent between the scanner and the host computer. A lower number indicates a faster data rate. The default value is 8 msec. Changing the polling interval re-initializes the scanner. CAUTION Ensure your host machine can handle the selected data rate. Selecting a data rate that is too fast for the host can result in lost data. 9 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.

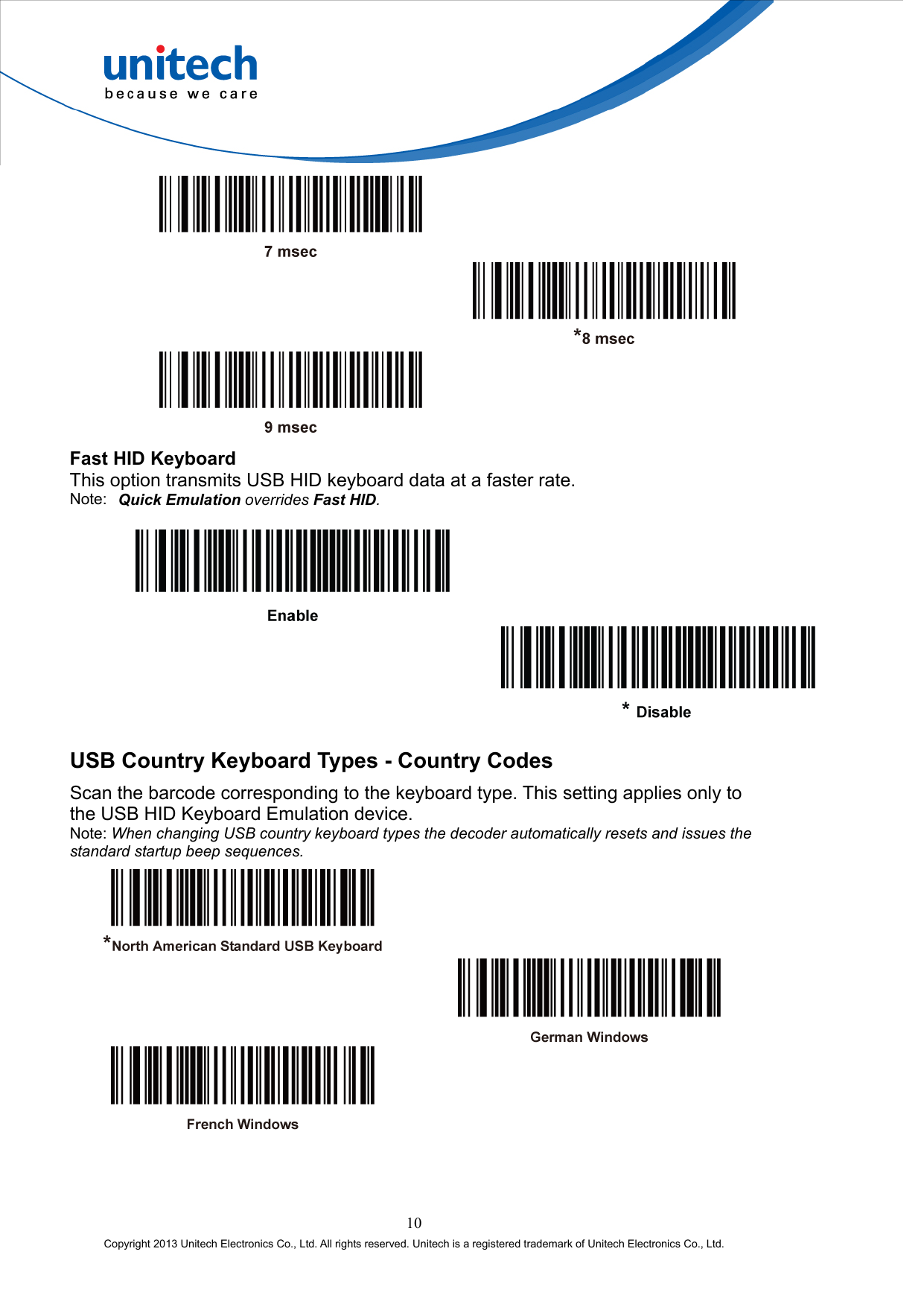

Fast HID Keyboard This option transmits USB HID keyboard data at a faster rate. Note: Quick Emulation overrides Fast HID. USB Country Keyboard Types - Country Codes Scan the barcode corresponding to the keyboard type. This setting applies only to the USB HID Keyboard Emulation device. Note: When changing USB country keyboard types the decoder automatically resets and issues the standard startup beep sequences. 10 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.

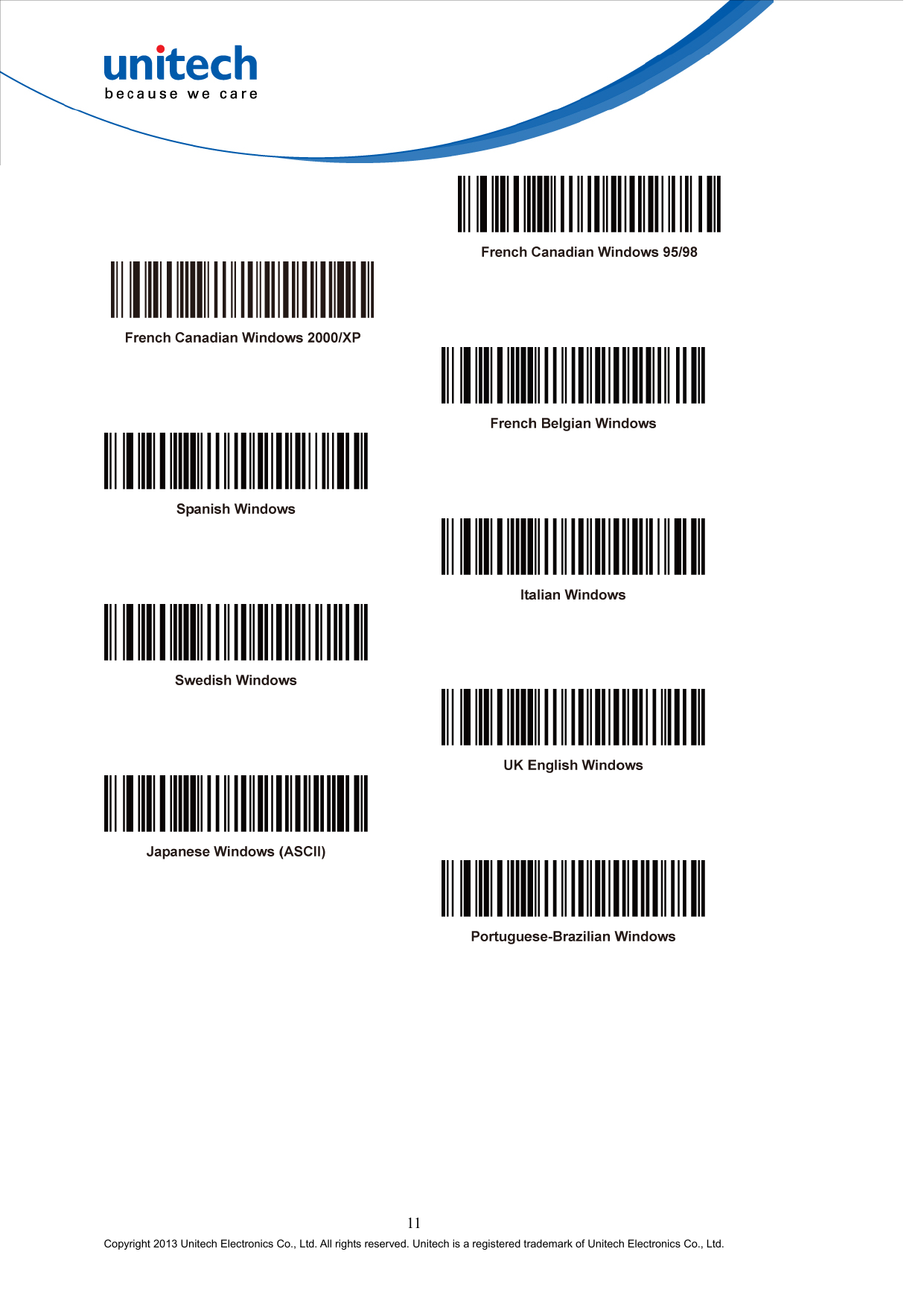

11 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.

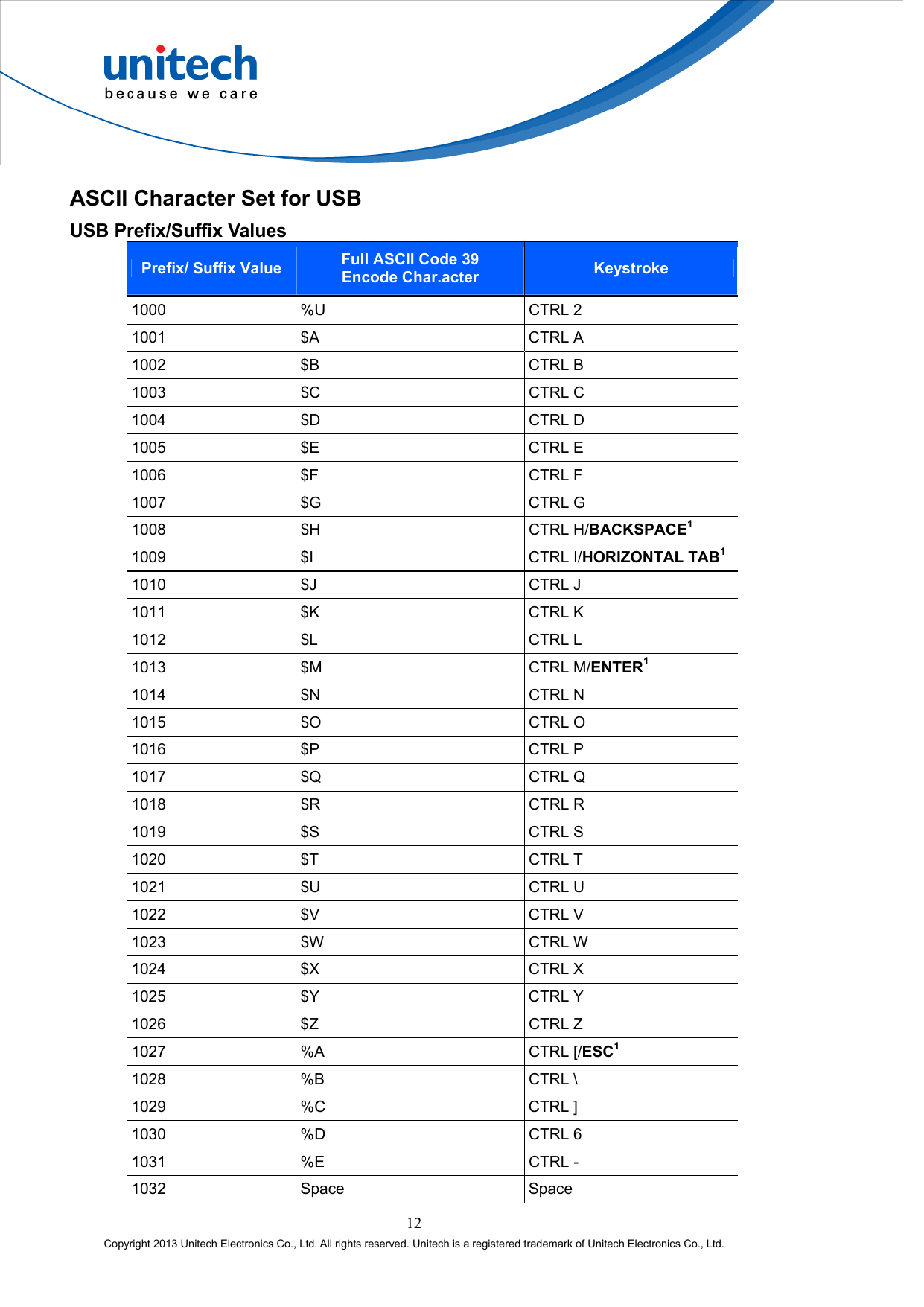

$12 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd. ASCII Character Set for USB USB Prefix/Suffix Values Prefix/ Suffix Value Full ASCII Code 39 Encode Char.acter Keystroke 1000 %U CTRL 2 1001 $A CTRL A 1002 $B CTRL B 1003 $C CTRL C 1004 $D CTRL D 1005 $E CTRL E 1006 $F CTRL F 1007 $G CTRL G 1008 $H CTRL H/BACKSPACE1 1009 $I CTRL I/HORIZONTAL TAB1 1010 $J CTRL J 1011 $K CTRL K 1012 $L CTRL L 1013 $M CTRL M/ENTER1 1014 $N CTRL N 1015 $O CTRL O 1016 $P CTRL P 1017 $Q CTRL Q 1018 $R CTRL R 1019 $S CTRL S 1020 $T CTRL T 1021 $U CTRL U 1022 $V CTRL V 1023 $W CTRL W 1024 $X CTRL X 1025 $Y CTRL Y 1026 $Z CTRL Z 1027 %A CTRL [/ESC1 1028 %B CTRL \ 1029 %C CTRL ] 1030 %D CTRL 6 1031 %E CTRL - 1032 Space Space$

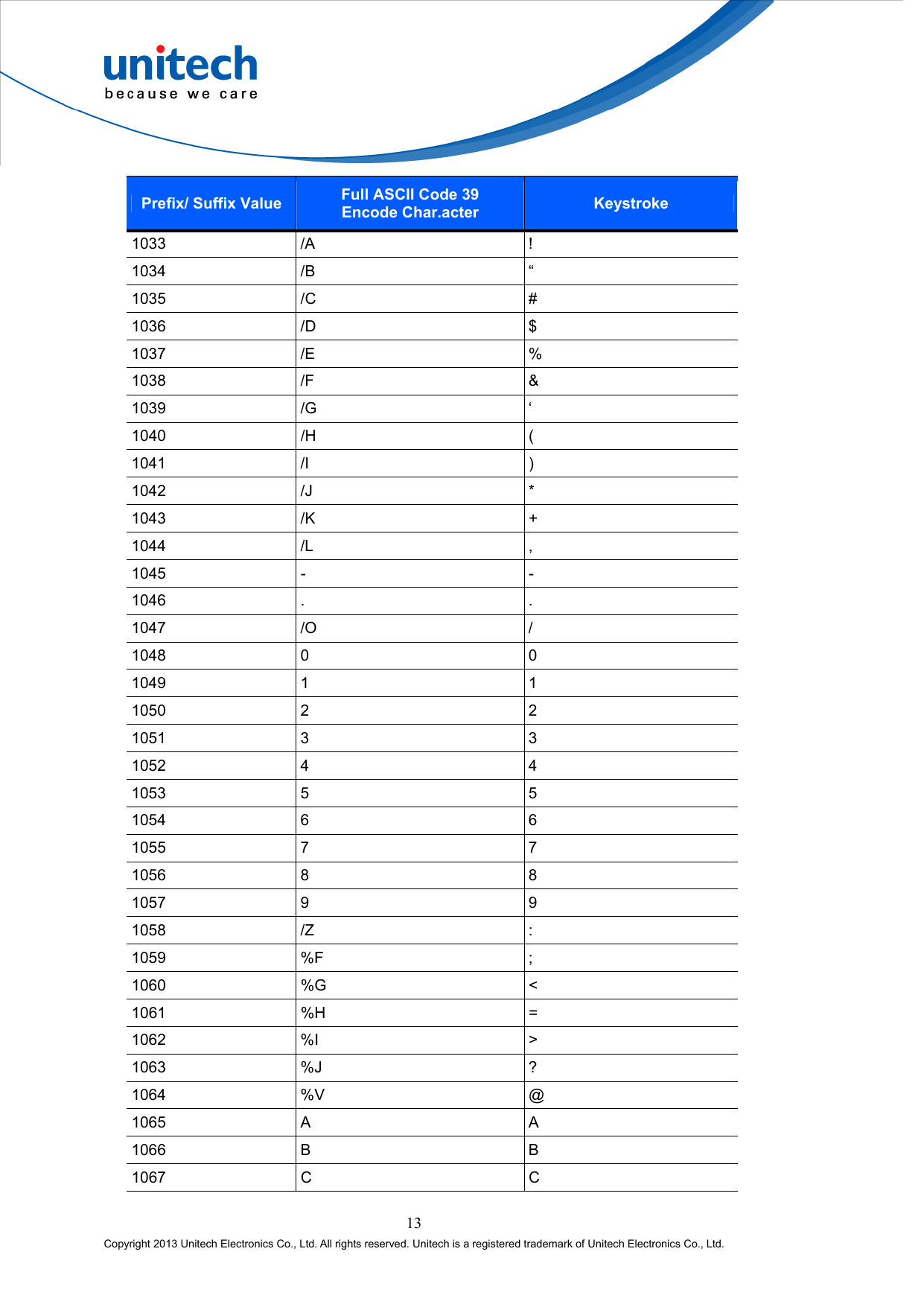

13 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd. Prefix/ Suffix Value Full ASCII Code 39 Encode Char.acter Keystroke 1033 /A ! 1034 /B “ 1035 /C # 1036 /D $ 1037 /E % 1038 /F & 1039 /G ‘ 1040 /H ( 1041 /I ) 1042 /J * 1043 /K + 1044 /L , 1045 - - 1046 . . 1047 /O / 1048 0 0 1049 1 1 1050 2 2 1051 3 3 1052 4 4 1053 5 5 1054 6 6 1055 7 7 1056 8 8 1057 9 9 1058 /Z : 1059 %F ; 1060 %G < 1061 %H = 1062 %I > 1063 %J ? 1064 %V @ 1065 A A 1066 B B 1067 C C

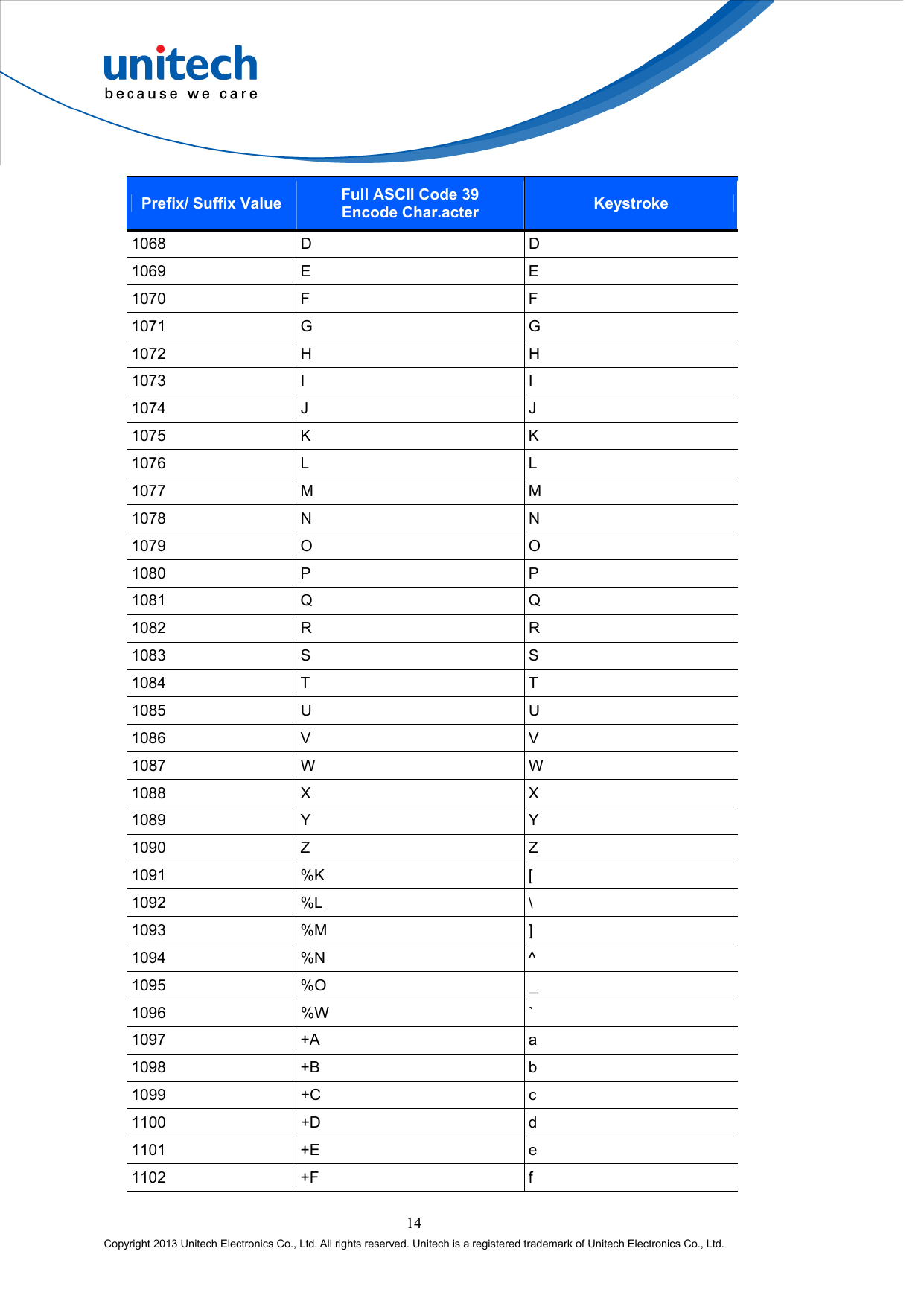

$14 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd. Prefix/ Suffix Value Full ASCII Code 39 Encode Char.acter Keystroke 1068 D D 1069 E E 1070 F F 1071 G G 1072 H H 1073 I I 1074 J J 1075 K K 1076 L L 1077 M M 1078 N N 1079 O O 1080 P P 1081 Q Q 1082 R R 1083 S S 1084 T T 1085 U U 1086 V V 1087 W W 1088 X X 1089 Y Y 1090 Z Z 1091 %K [ 1092 %L \ 1093 %M ] 1094 %N ^ 1095 %O _ 1096 %W ` 1097 +A a 1098 +B b 1099 +C c 1100 +D d 1101 +E e 1102 +F f$

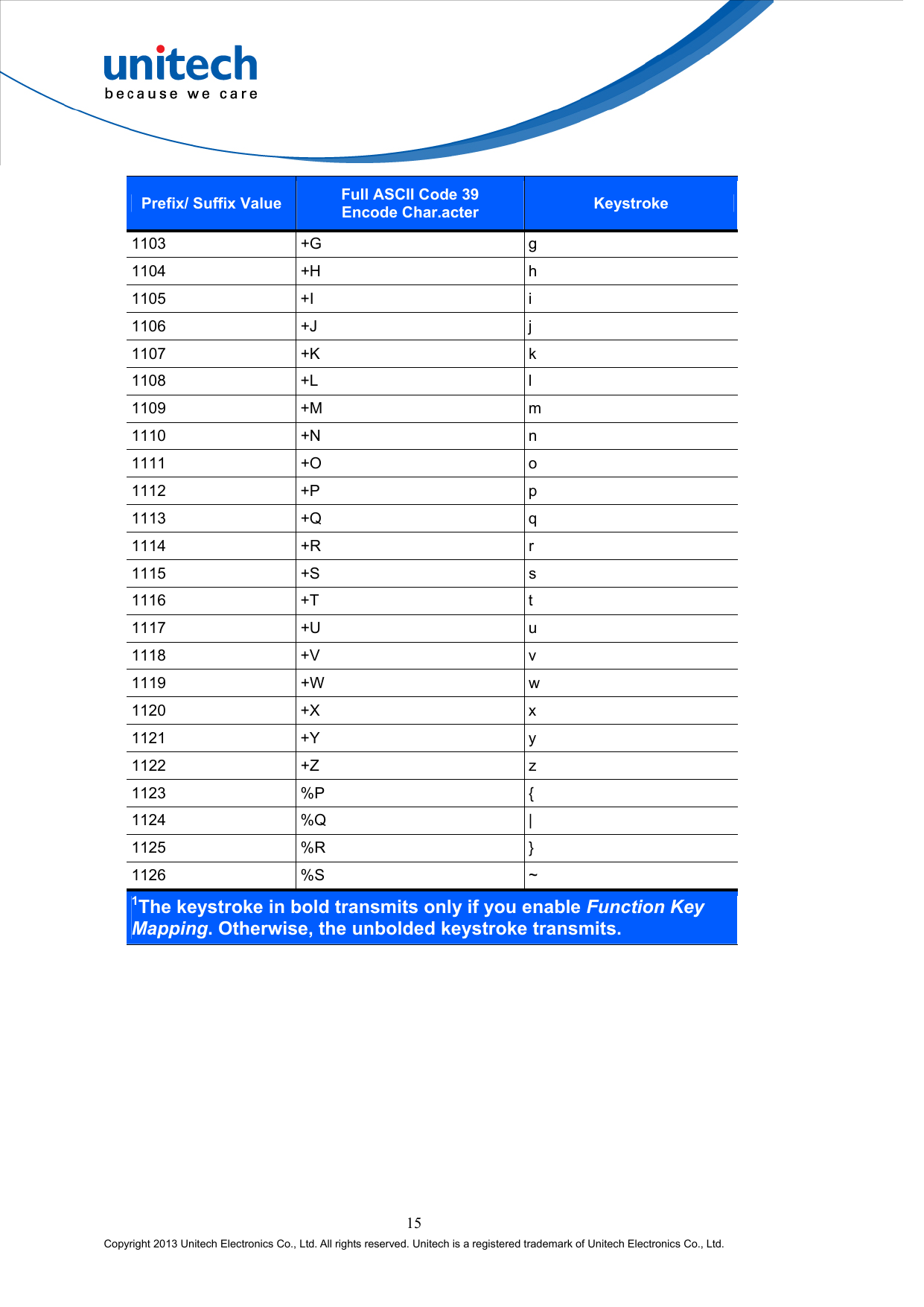

15 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd. Prefix/ Suffix Value Full ASCII Code 39 Encode Char.acter Keystroke 1103 +G g 1104 +H h 1105 +I i 1106 +J j 1107 +K k 1108 +L l 1109 +M m 1110 +N n 1111 +O o 1112 +P p 1113 +Q q 1114 +R r 1115 +S s 1116 +T t 1117 +U u 1118 +V v 1119 +W w 1120 +X x 1121 +Y y 1122 +Z z 1123 %P { 1124 %Q | 1125 %R } 1126 %S ~ 1The keystroke in bold transmits only if you enable Function Key Mapping. Otherwise, the unbolded keystroke transmits.

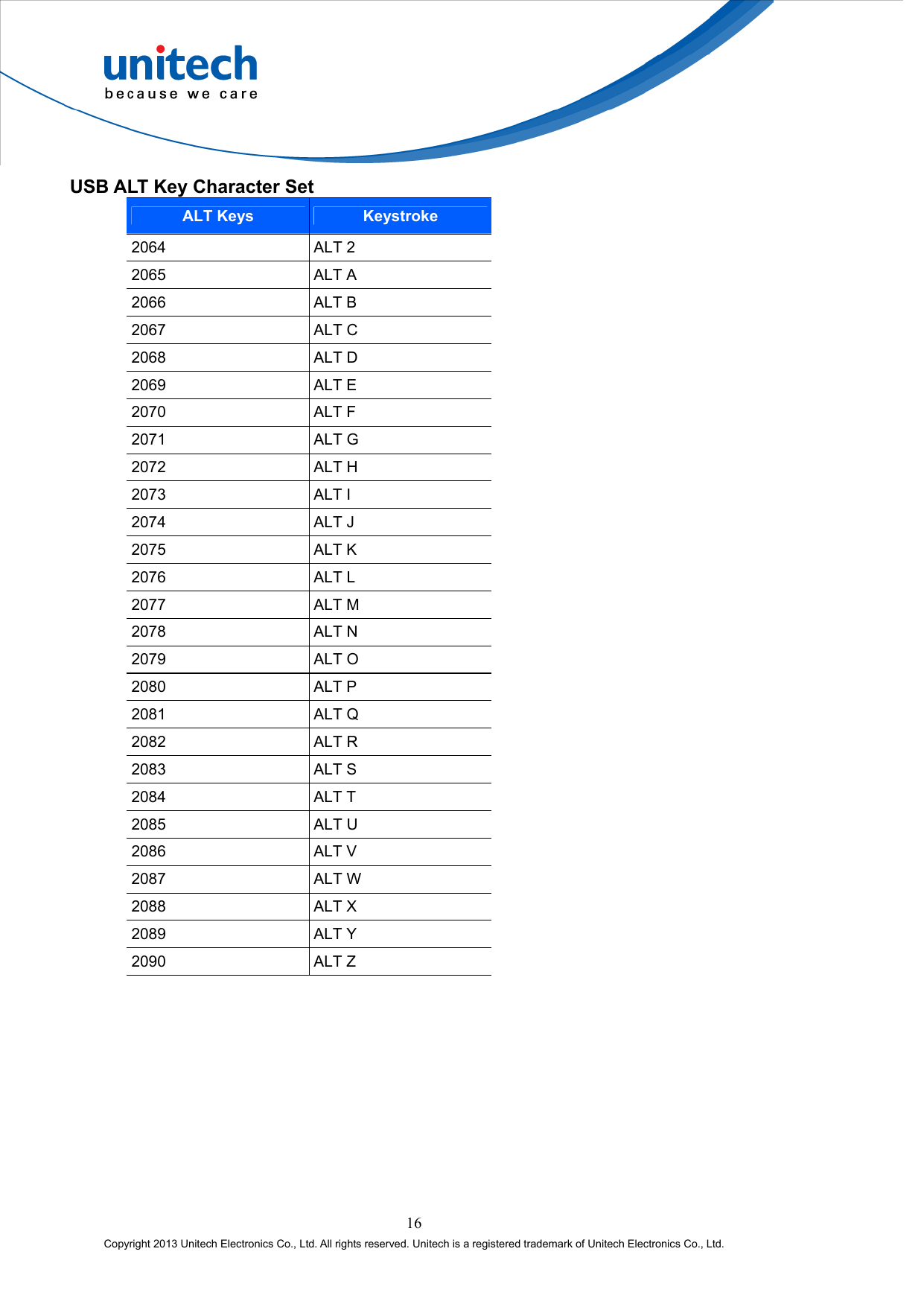

16 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd. USB ALT Key Character Set ALT Keys Keystroke 2064 ALT 2 2065 ALT A 2066 ALT B 2067 ALT C 2068 ALT D 2069 ALT E 2070 ALT F 2071 ALT G 2072 ALT H 2073 ALT I 2074 ALT J 2075 ALT K 2076 ALT L 2077 ALT M 2078 ALT N 2079 ALT O 2080 ALT P 2081 ALT Q 2082 ALT R 2083 ALT S 2084 ALT T 2085 ALT U 2086 ALT V 2087 ALT W 2088 ALT X 2089 ALT Y 2090 ALT Z

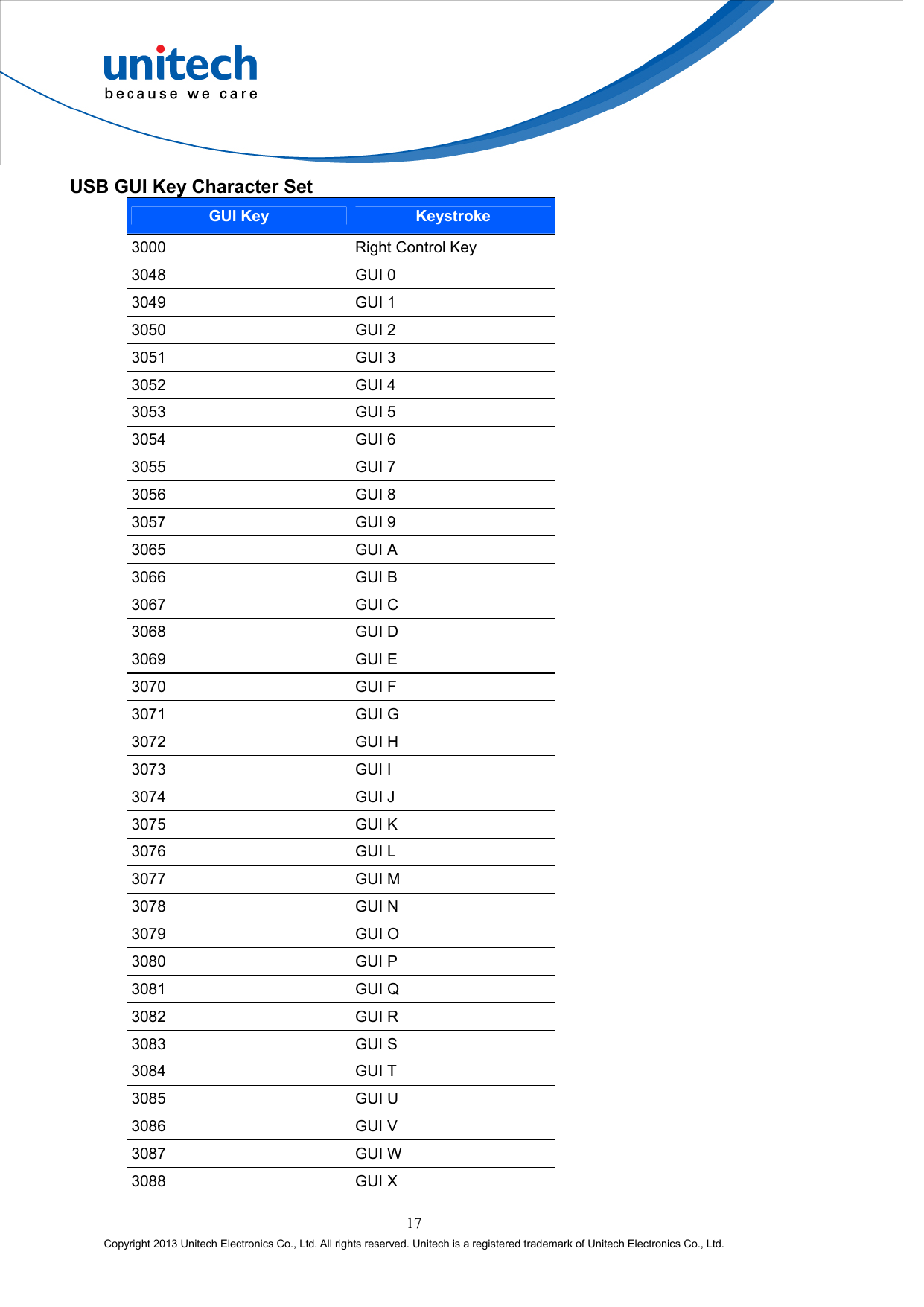

17 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd. USB GUI Key Character Set GUI Key Keystroke 3000 Right Control Key 3048 GUI 0 3049 GUI 1 3050 GUI 2 3051 GUI 3 3052 GUI 4 3053 GUI 5 3054 GUI 6 3055 GUI 7 3056 GUI 8 3057 GUI 9 3065 GUI A 3066 GUI B 3067 GUI C 3068 GUI D 3069 GUI E 3070 GUI F 3071 GUI G 3072 GUI H 3073 GUI I 3074 GUI J 3075 GUI K 3076 GUI L 3077 GUI M 3078 GUI N 3079 GUI O 3080 GUI P 3081 GUI Q 3082 GUI R 3083 GUI S 3084 GUI T 3085 GUI U 3086 GUI V 3087 GUI W 3088 GUI X

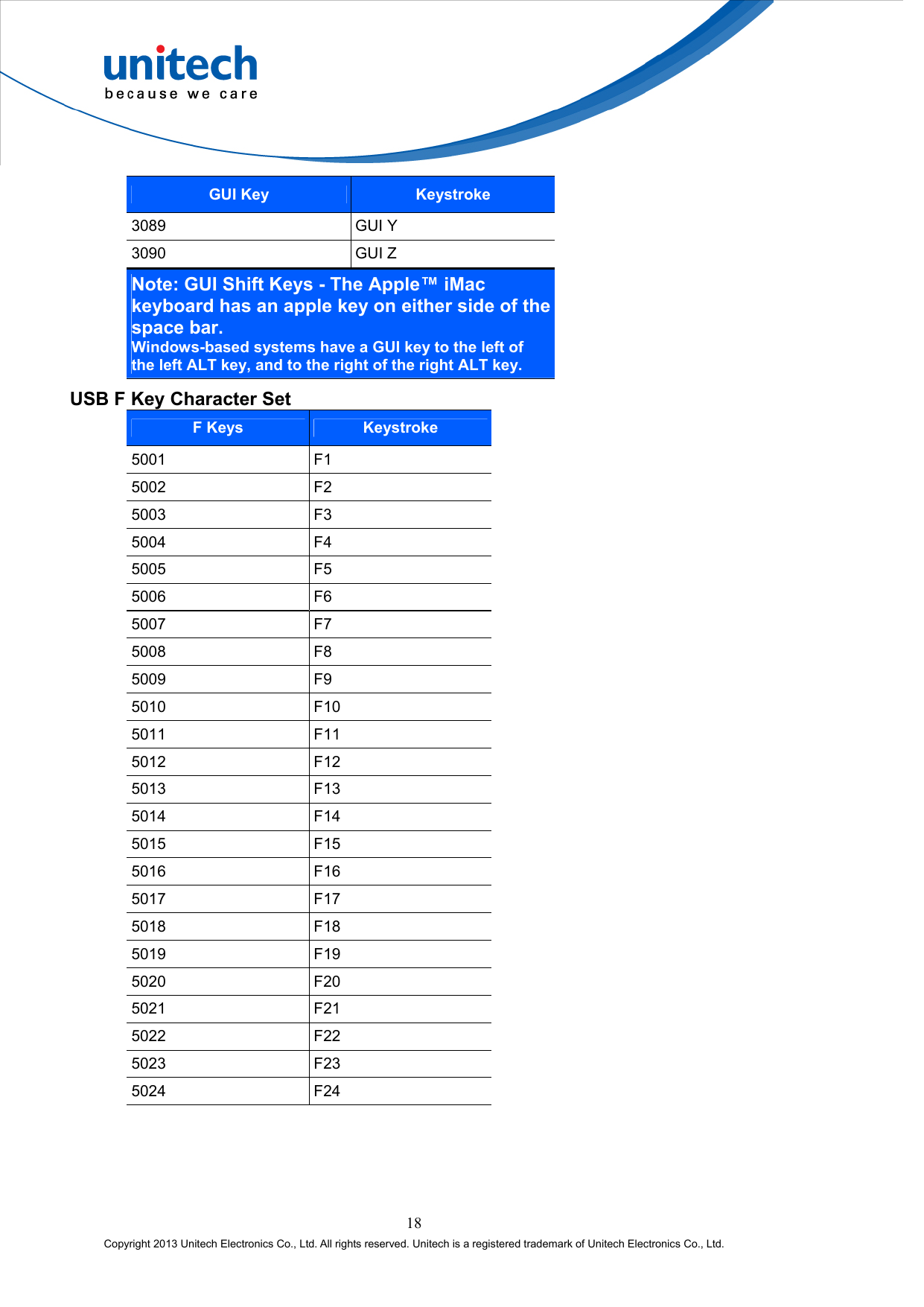

18 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd. GUI Key Keystroke 3089 GUI Y 3090 GUI Z Note: GUI Shift Keys - The Apple™ iMac keyboard has an apple key on either side of the space bar. Windows-based systems have a GUI key to the left of the left ALT key, and to the right of the right ALT key. USB F Key Character Set F Keys Keystroke 5001 F1 5002 F2 5003 F3 5004 F4 5005 F5 5006 F6 5007 F7 5008 F8 5009 F9 5010 F10 5011 F11 5012 F12 5013 F13 5014 F14 5015 F15 5016 F16 5017 F17 5018 F18 5019 F19 5020 F20 5021 F21 5022 F22 5023 F23 5024 F24

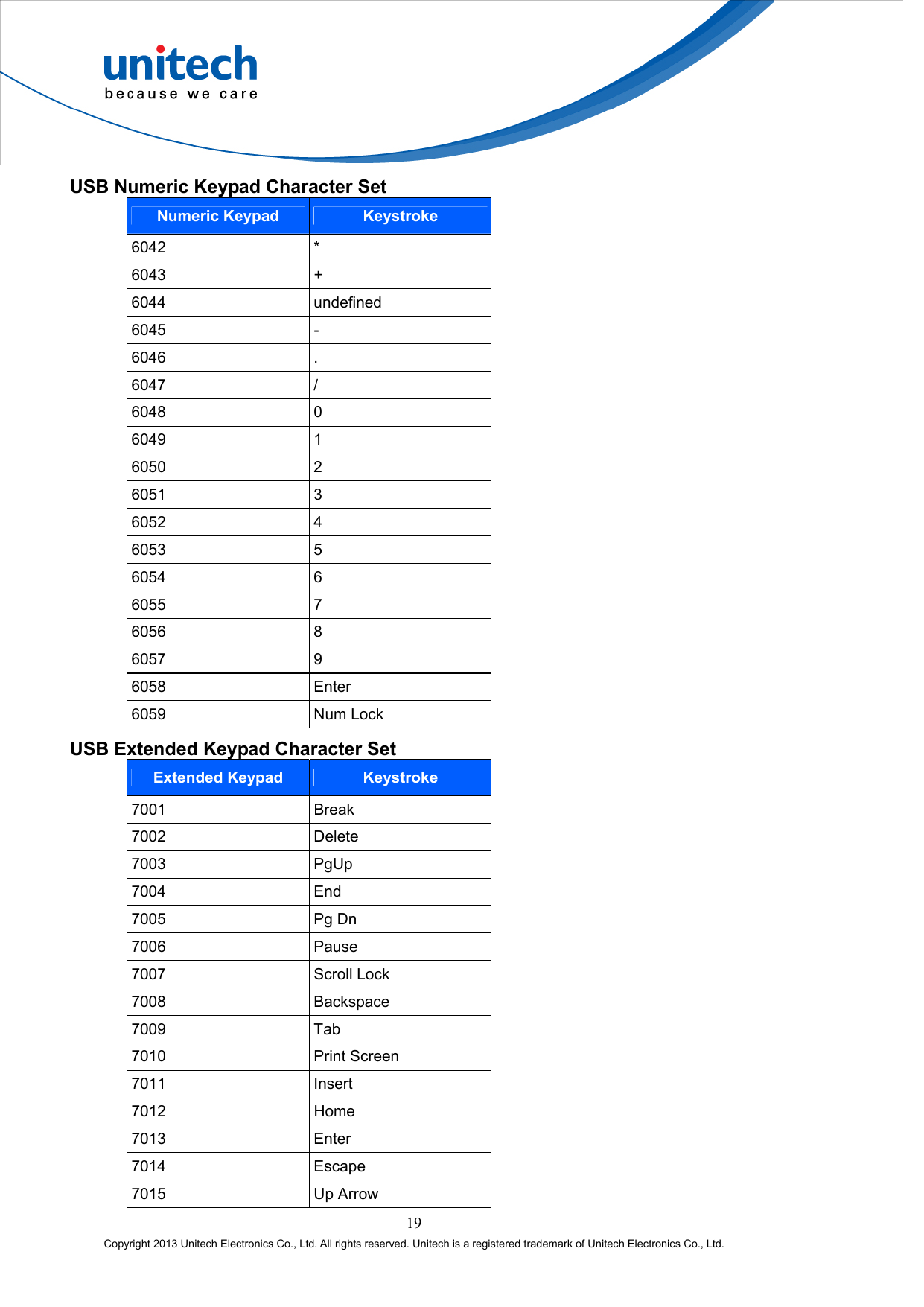

19 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd. USB Numeric Keypad Character Set Numeric Keypad Keystroke 6042 * 6043 + 6044 undefined 6045 - 6046 . 6047 / 6048 0 6049 1 6050 2 6051 3 6052 4 6053 5 6054 6 6055 7 6056 8 6057 9 6058 Enter 6059 Num Lock USB Extended Keypad Character Set Extended Keypad Keystroke 7001 Break 7002 Delete 7003 PgUp 7004 End 7005 Pg Dn 7006 Pause 7007 Scroll Lock 7008 Backspace 7009 Tab 7010 Print Screen 7011 Insert 7012 Home 7013 Enter 7014 Escape 7015 Up Arrow

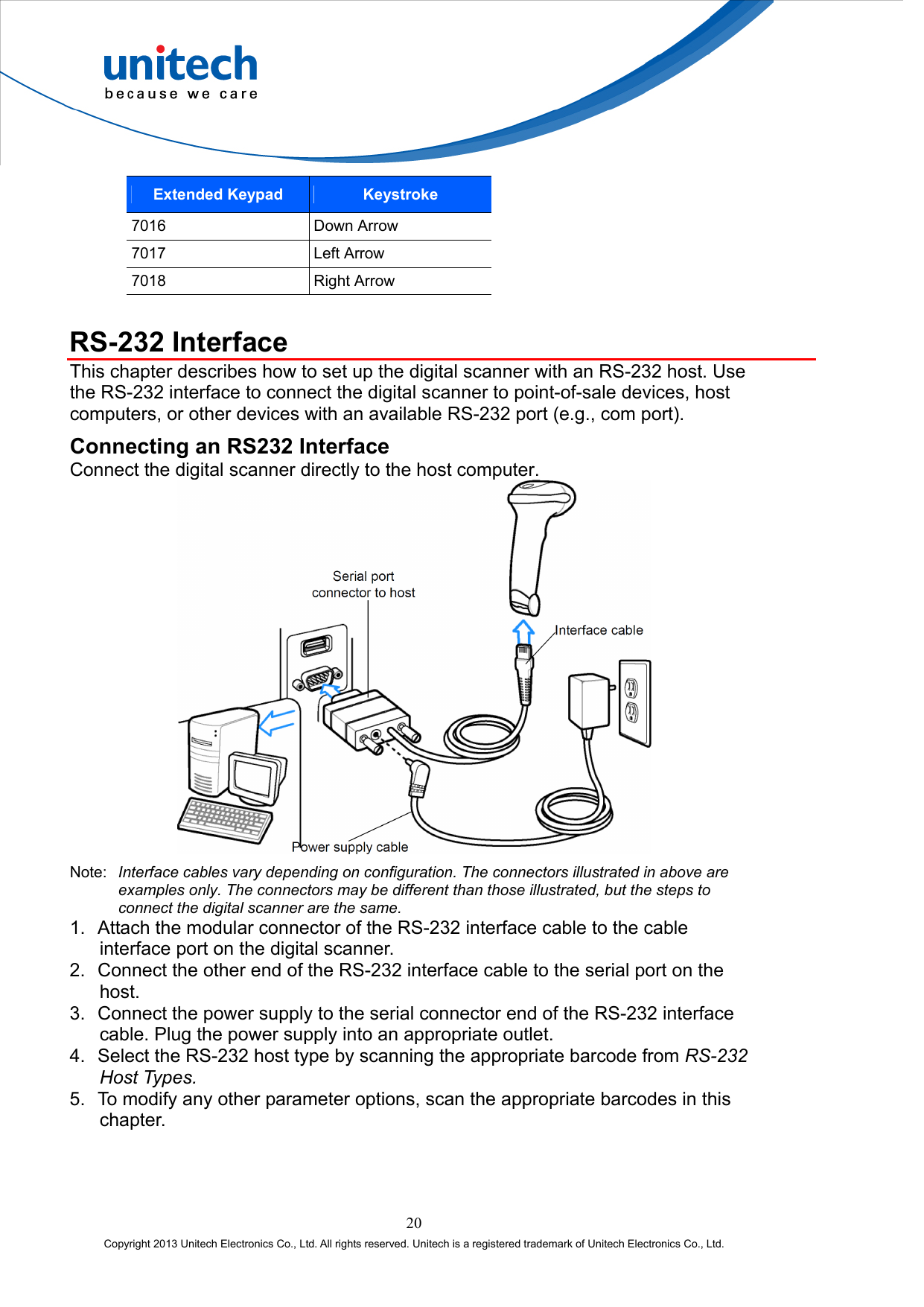

20 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd. Extended Keypad Keystroke 7016 Down Arrow 7017 Left Arrow 7018 Right Arrow RS-232 Interface This chapter describes how to set up the digital scanner with an RS-232 host. Use the RS-232 interface to connect the digital scanner to point-of-sale devices, host computers, or other devices with an available RS-232 port (e.g., com port). Connecting an RS232 Interface Connect the digital scanner directly to the host computer. Note: Interface cables vary depending on configuration. The connectors illustrated in above are examples only. The connectors may be different than those illustrated, but the steps to connect the digital scanner are the same. 1. Attach the modular connector of the RS-232 interface cable to the cable interface port on the digital scanner. 2. Connect the other end of the RS-232 interface cable to the serial port on the host. 3. Connect the power supply to the serial connector end of the RS-232 interface cable. Plug the power supply into an appropriate outlet. 4. Select the RS-232 host type by scanning the appropriate barcode from RS-232 Host Types. 5. To modify any other parameter options, scan the appropriate barcodes in this chapter.

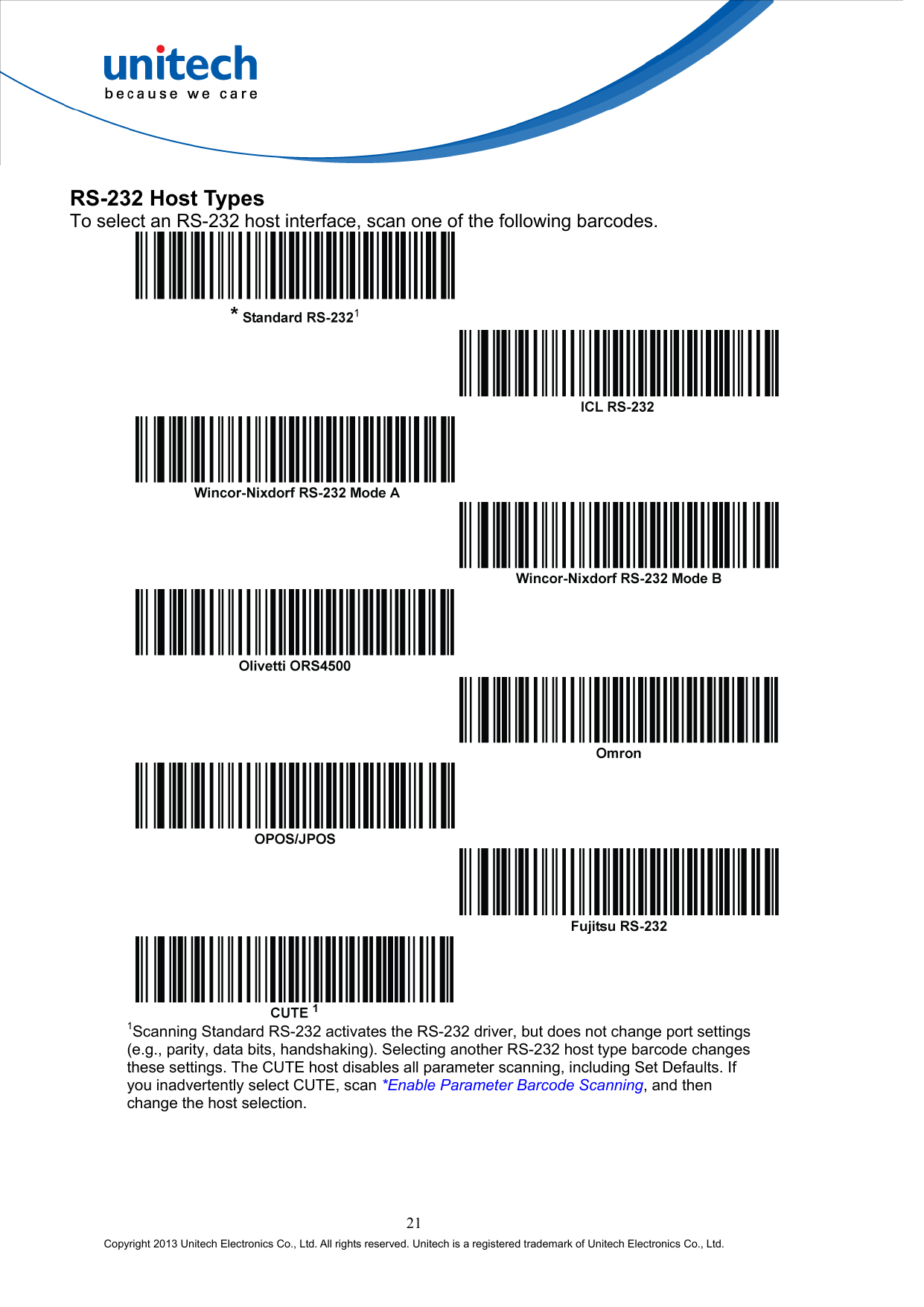

RS-232 Host Types To select an RS-232 host interface, scan one of the following barcodes. 1Scanning Standard RS-232 activates the RS-232 driver, but does not change port settings (e.g., parity, data bits, handshaking). Selecting another RS-232 host type barcode changes these settings. The CUTE host disables all parameter scanning, including Set Defaults. If you inadvertently select CUTE, scan *Enable Parameter Barcode Scanning, and then change the host selection. 21 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.

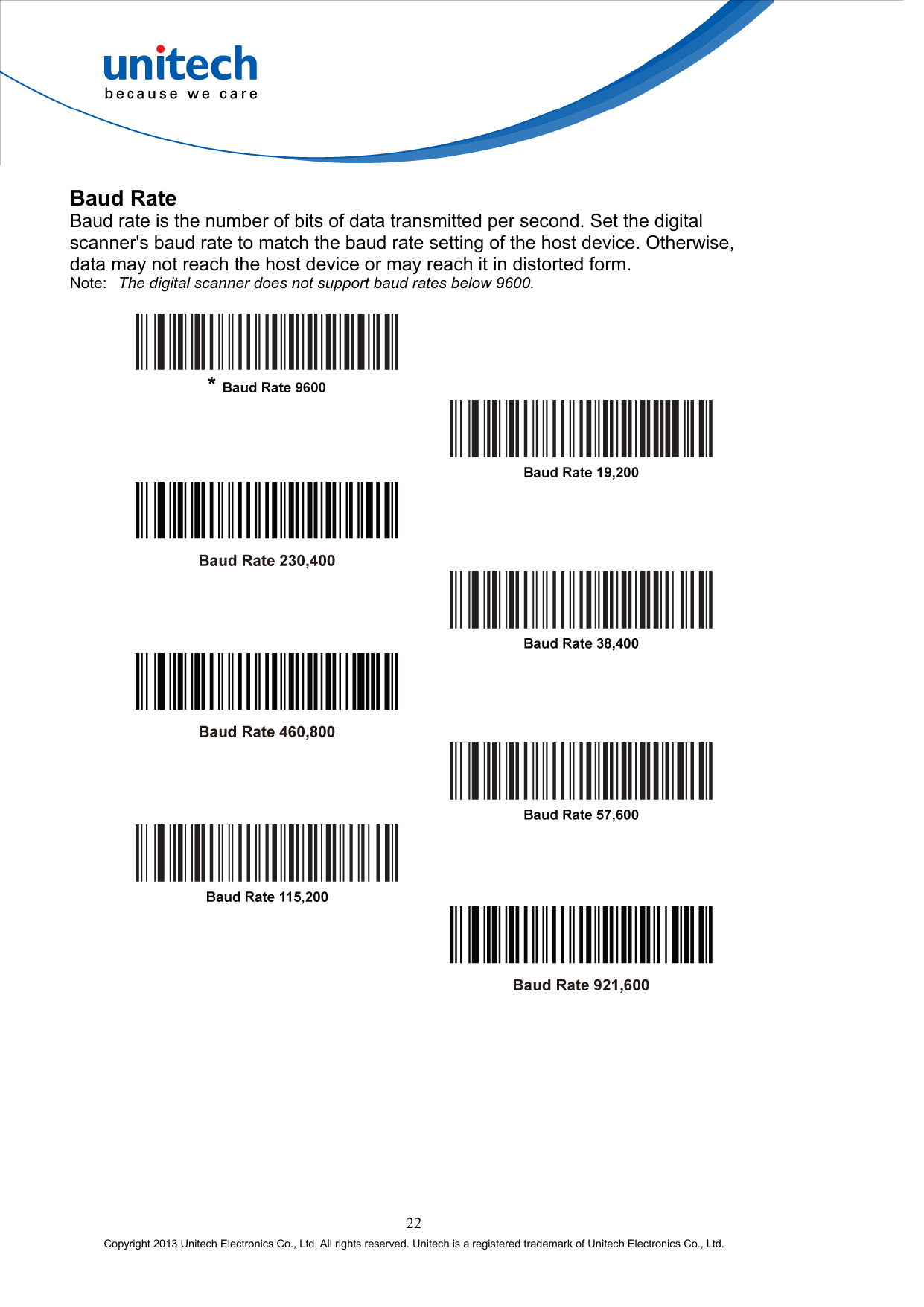

Baud Rate Baud rate is the number of bits of data transmitted per second. Set the digital scanner's baud rate to match the baud rate setting of the host device. Otherwise, data may not reach the host device or may reach it in distorted form. Note: The digital scanner does not support baud rates below 9600. 22 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.

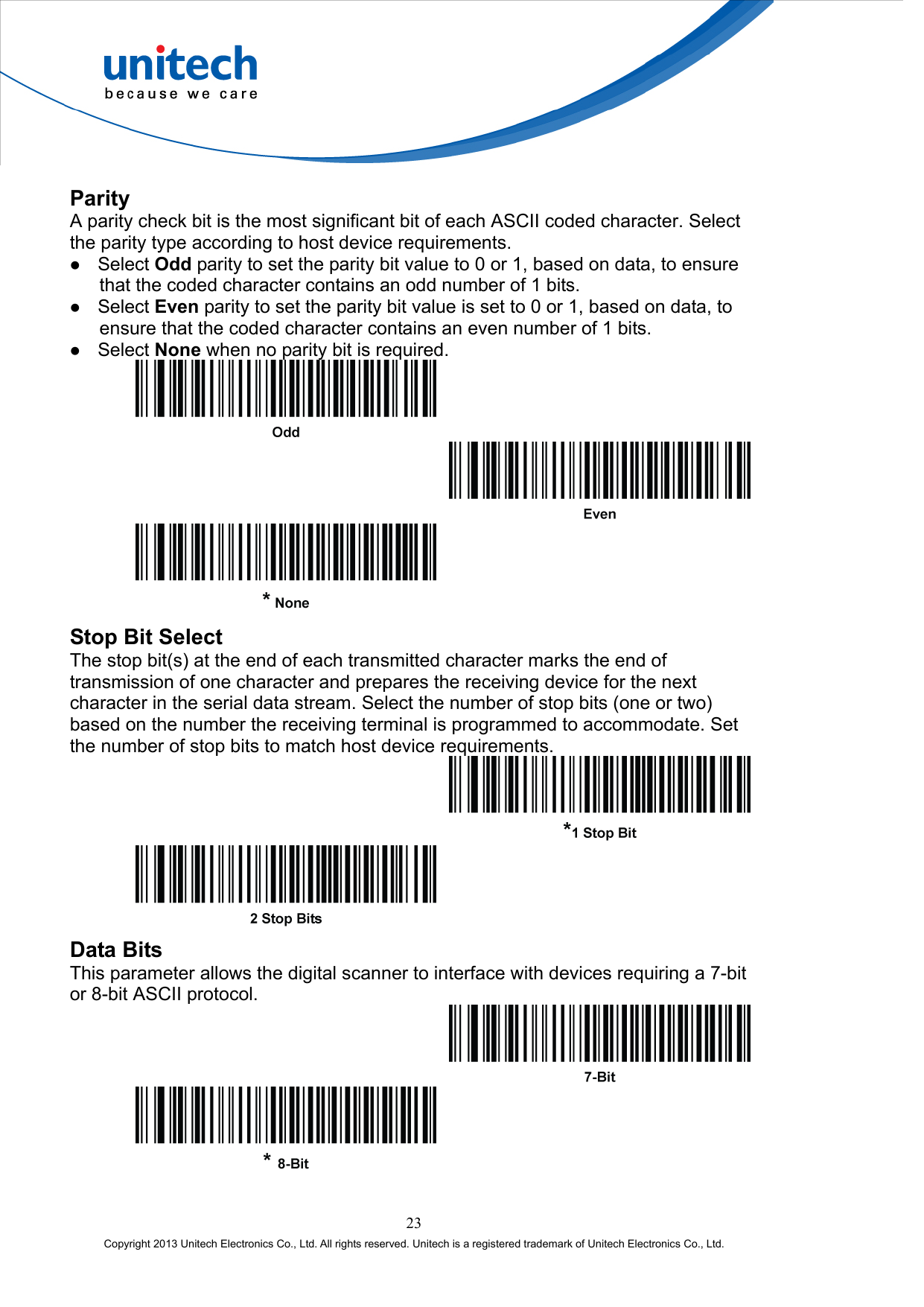

Parity A parity check bit is the most significant bit of each ASCII coded character. Select the parity type according to host device requirements.  Select Odd parity to set the parity bit value to 0 or 1, based on data, to ensure that the coded character contains an odd number of 1 bits.  Select Even parity to set the parity bit value is set to 0 or 1, based on data, to ensure that the coded character contains an even number of 1 bits.  Select None when no parity bit is required. Stop Bit Select The stop bit(s) at the end of each transmitted character marks the end of transmission of one character and prepares the receiving device for the next character in the serial data stream. Select the number of stop bits (one or two) based on the number the receiving terminal is programmed to accommodate. Set the number of stop bits to match host device requirements. Data Bits This parameter allows the digital scanner to interface with devices requiring a 7-bit or 8-bit ASCII protocol. 23 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.

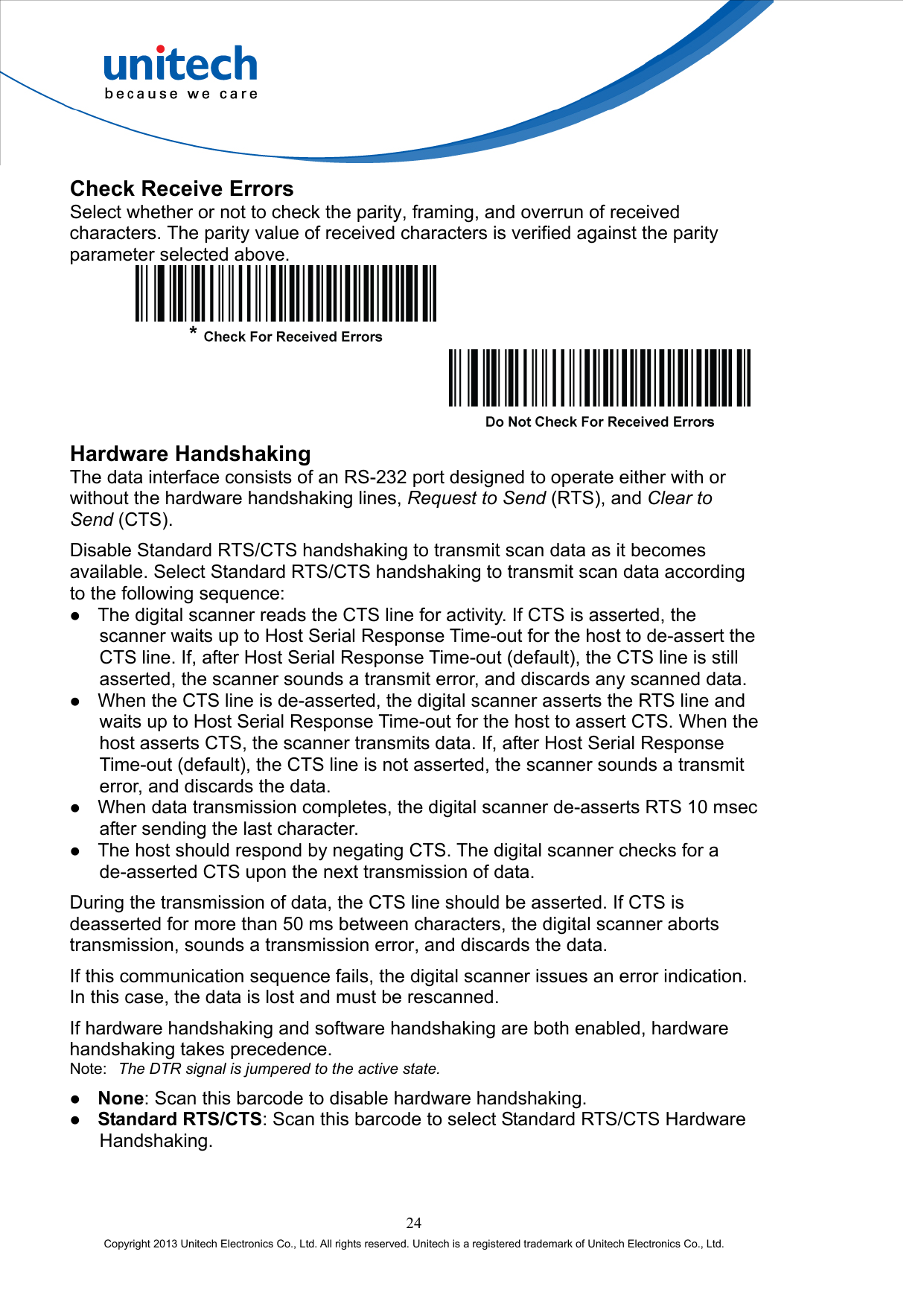

Check Receive Errors Select whether or not to check the parity, framing, and overrun of received characters. The parity value of received characters is verified against the parity parameter selected above. Hardware Handshaking The data interface consists of an RS-232 port designed to operate either with or without the hardware handshaking lines, Request to Send (RTS), and Clear to Send (CTS). Disable Standard RTS/CTS handshaking to transmit scan data as it becomes available. Select Standard RTS/CTS handshaking to transmit scan data according to the following sequence:  The digital scanner reads the CTS line for activity. If CTS is asserted, the scanner waits up to Host Serial Response Time-out for the host to de-assert the CTS line. If, after Host Serial Response Time-out (default), the CTS line is still asserted, the scanner sounds a transmit error, and discards any scanned data.  When the CTS line is de-asserted, the digital scanner asserts the RTS line and waits up to Host Serial Response Time-out for the host to assert CTS. When the host asserts CTS, the scanner transmits data. If, after Host Serial Response Time-out (default), the CTS line is not asserted, the scanner sounds a transmit error, and discards the data.  When data transmission completes, the digital scanner de-asserts RTS 10 msec after sending the last character.  The host should respond by negating CTS. The digital scanner checks for a de-asserted CTS upon the next transmission of data. During the transmission of data, the CTS line should be asserted. If CTS is deasserted for more than 50 ms between characters, the digital scanner aborts transmission, sounds a transmission error, and discards the data. If this communication sequence fails, the digital scanner issues an error indication. In this case, the data is lost and must be rescanned. If hardware handshaking and software handshaking are both enabled, hardware handshaking takes precedence. Note: The DTR signal is jumpered to the active state.  None: Scan this barcode to disable hardware handshaking.  Standard RTS/CTS: Scan this barcode to select Standard RTS/CTS Hardware Handshaking. 24 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.

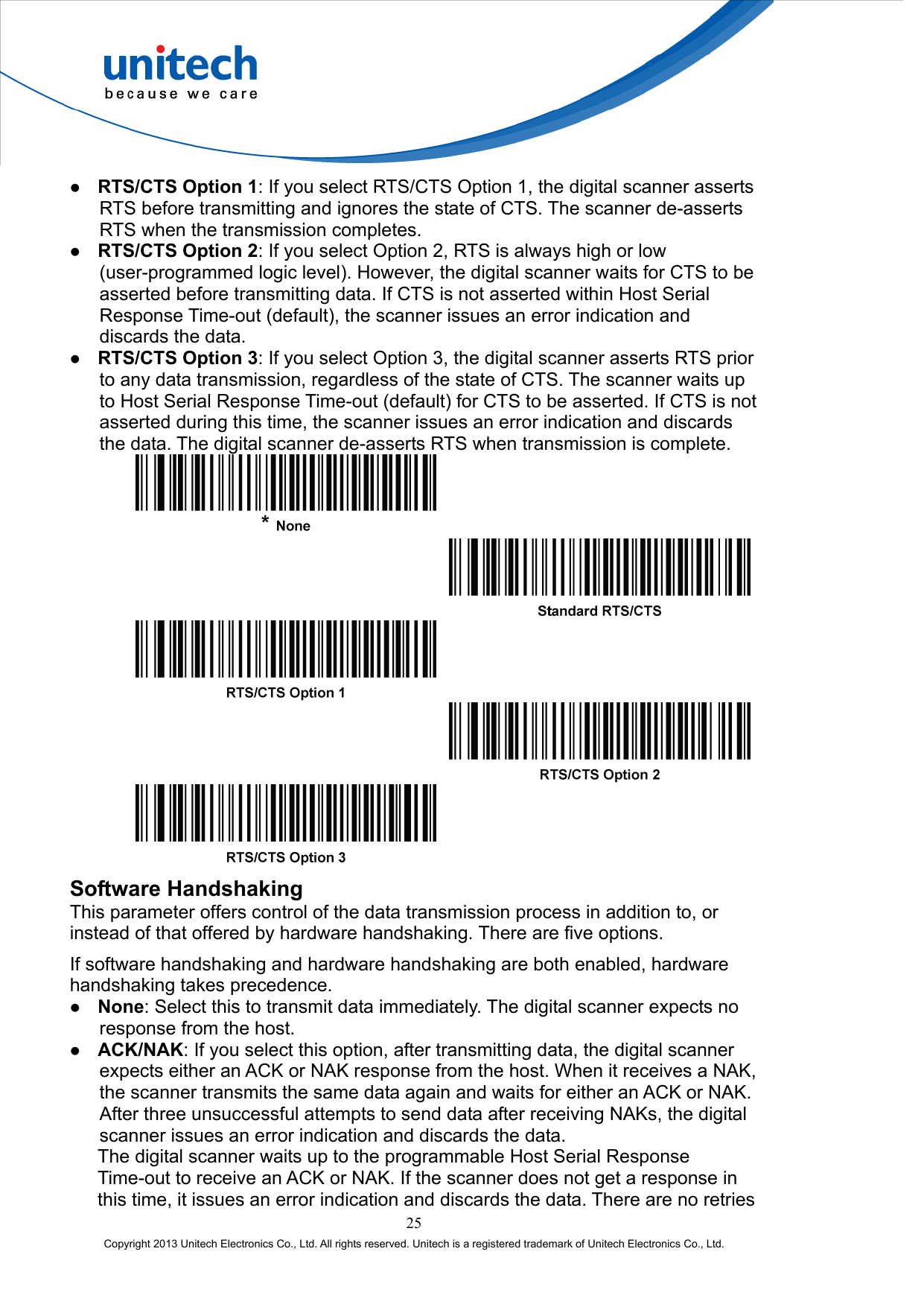

 RTS/CTS Option 1: If you select RTS/CTS Option 1, the digital scanner asserts RTS before transmitting and ignores the state of CTS. The scanner de-asserts RTS when the transmission completes.  RTS/CTS Option 2: If you select Option 2, RTS is always high or low (user-programmed logic level). However, the digital scanner waits for CTS to be asserted before transmitting data. If CTS is not asserted within Host Serial Response Time-out (default), the scanner issues an error indication and discards the data.  RTS/CTS Option 3: If you select Option 3, the digital scanner asserts RTS prior to any data transmission, regardless of the state of CTS. The scanner waits up to Host Serial Response Time-out (default) for CTS to be asserted. If CTS is not asserted during this time, the scanner issues an error indication and discards the data. The digital scanner de-asserts RTS when transmission is complete. Software Handshaking This parameter offers control of the data transmission process in addition to, or instead of that offered by hardware handshaking. There are five options. If software handshaking and hardware handshaking are both enabled, hardware handshaking takes precedence.  None: Select this to transmit data immediately. The digital scanner expects no response from the host.  ACK/NAK: If you select this option, after transmitting data, the digital scanner expects either an ACK or NAK response from the host. When it receives a NAK, the scanner transmits the same data again and waits for either an ACK or NAK. After three unsuccessful attempts to send data after receiving NAKs, the digital scanner issues an error indication and discards the data. The digital scanner waits up to the programmable Host Serial Response Time-out to receive an ACK or NAK. If the scanner does not get a response in this time, it issues an error indication and discards the data. There are no retries 25 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.

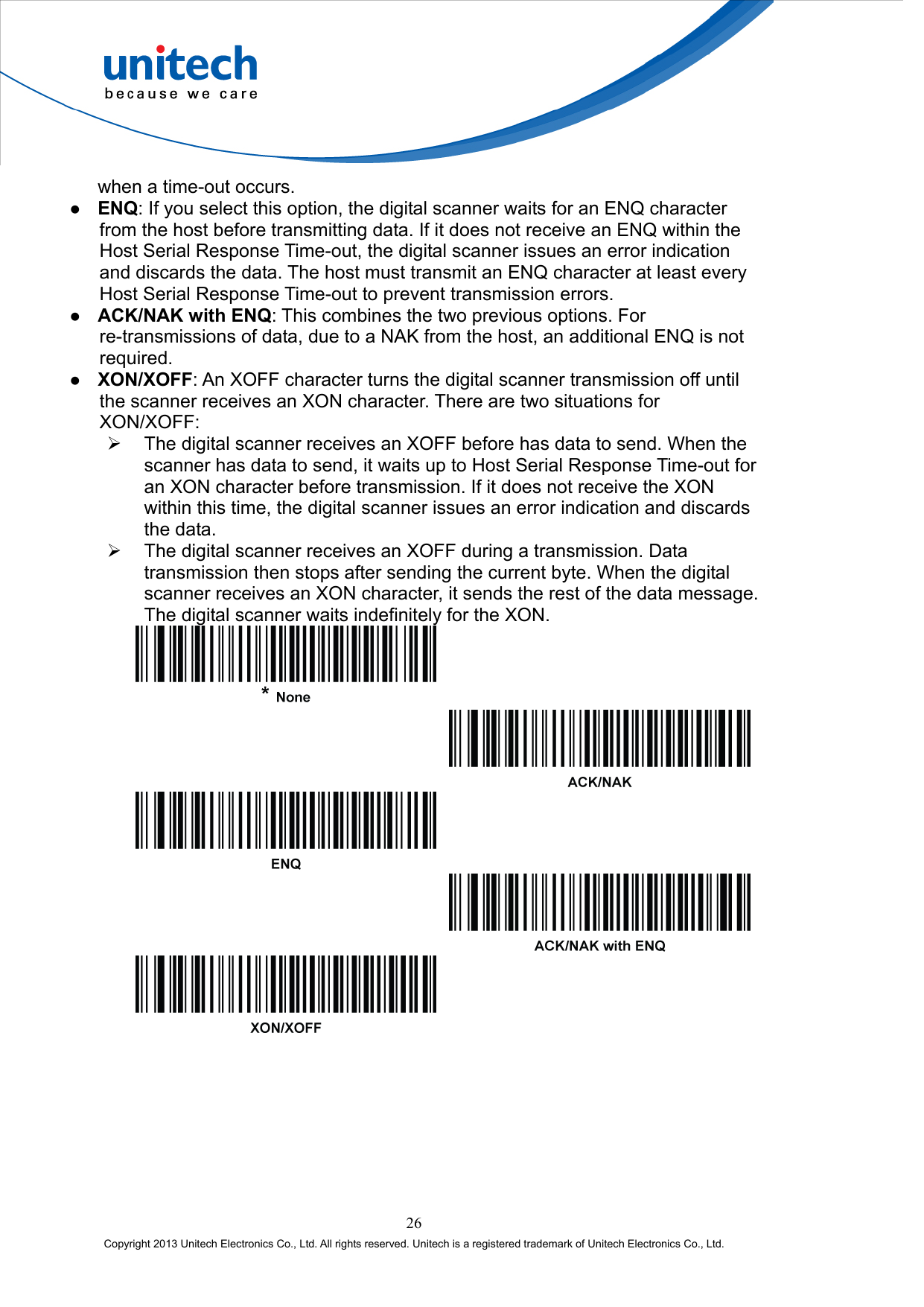

when a time-out occurs.  ENQ: If you select this option, the digital scanner waits for an ENQ character from the host before transmitting data. If it does not receive an ENQ within the Host Serial Response Time-out, the digital scanner issues an error indication and discards the data. The host must transmit an ENQ character at least every Host Serial Response Time-out to prevent transmission errors.  ACK/NAK with ENQ: This combines the two previous options. For re-transmissions of data, due to a NAK from the host, an additional ENQ is not required.  XON/XOFF: An XOFF character turns the digital scanner transmission off until the scanner receives an XON character. There are two situations for XON/XOFF:  The digital scanner receives an XOFF before has data to send. When the scanner has data to send, it waits up to Host Serial Response Time-out for an XON character before transmission. If it does not receive the XON within this time, the digital scanner issues an error indication and discards the data.  The digital scanner receives an XOFF during a transmission. Data transmission then stops after sending the current byte. When the digital scanner receives an XON character, it sends the rest of the data message. The digital scanner waits indefinitely for the XON. 26 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.

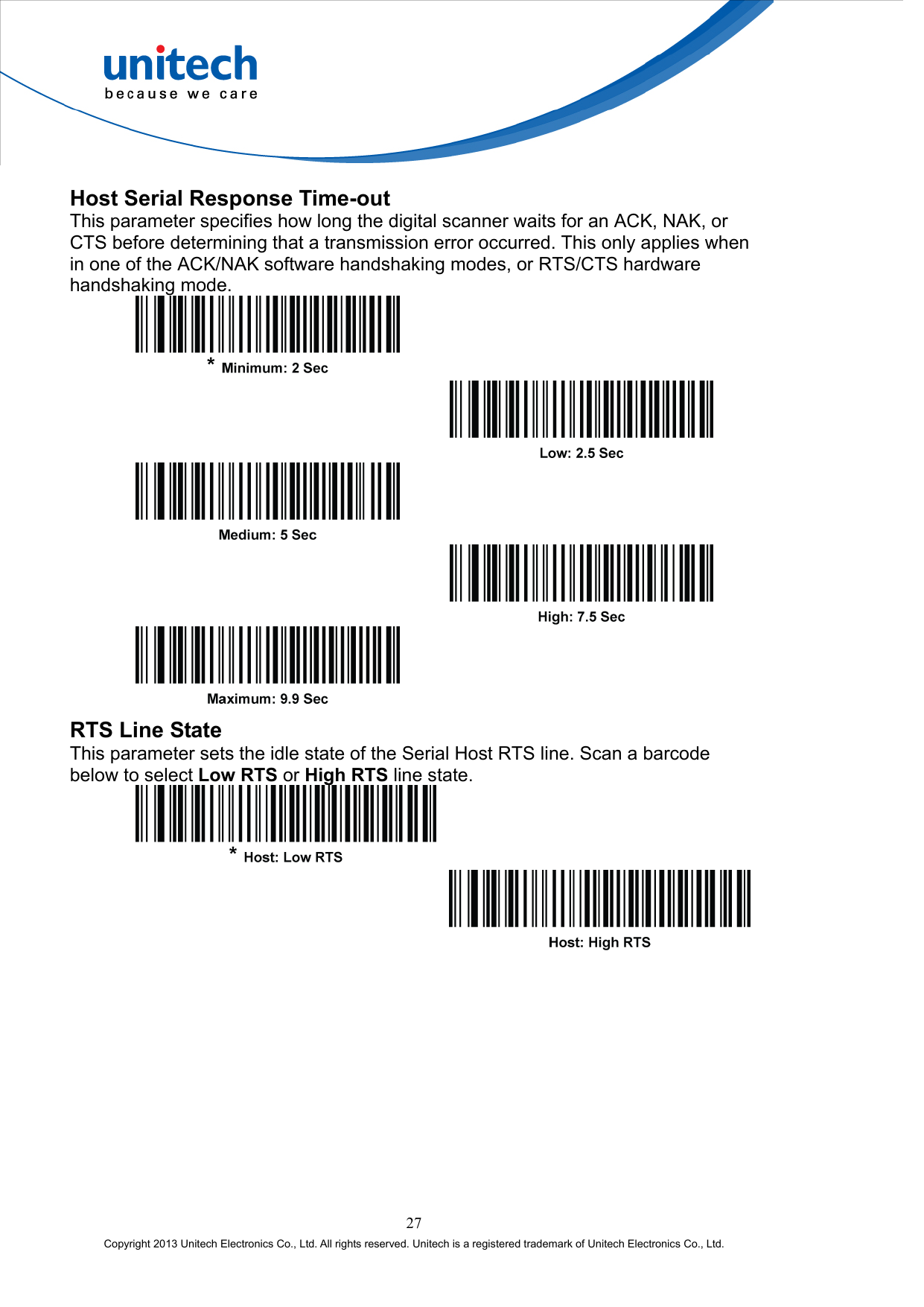

Host Serial Response Time-out This parameter specifies how long the digital scanner waits for an ACK, NAK, or CTS before determining that a transmission error occurred. This only applies when in one of the ACK/NAK software handshaking modes, or RTS/CTS hardware handshaking mode. RTS Line State This parameter sets the idle state of the Serial Host RTS line. Scan a barcode below to select Low RTS or High RTS line state. 27 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.

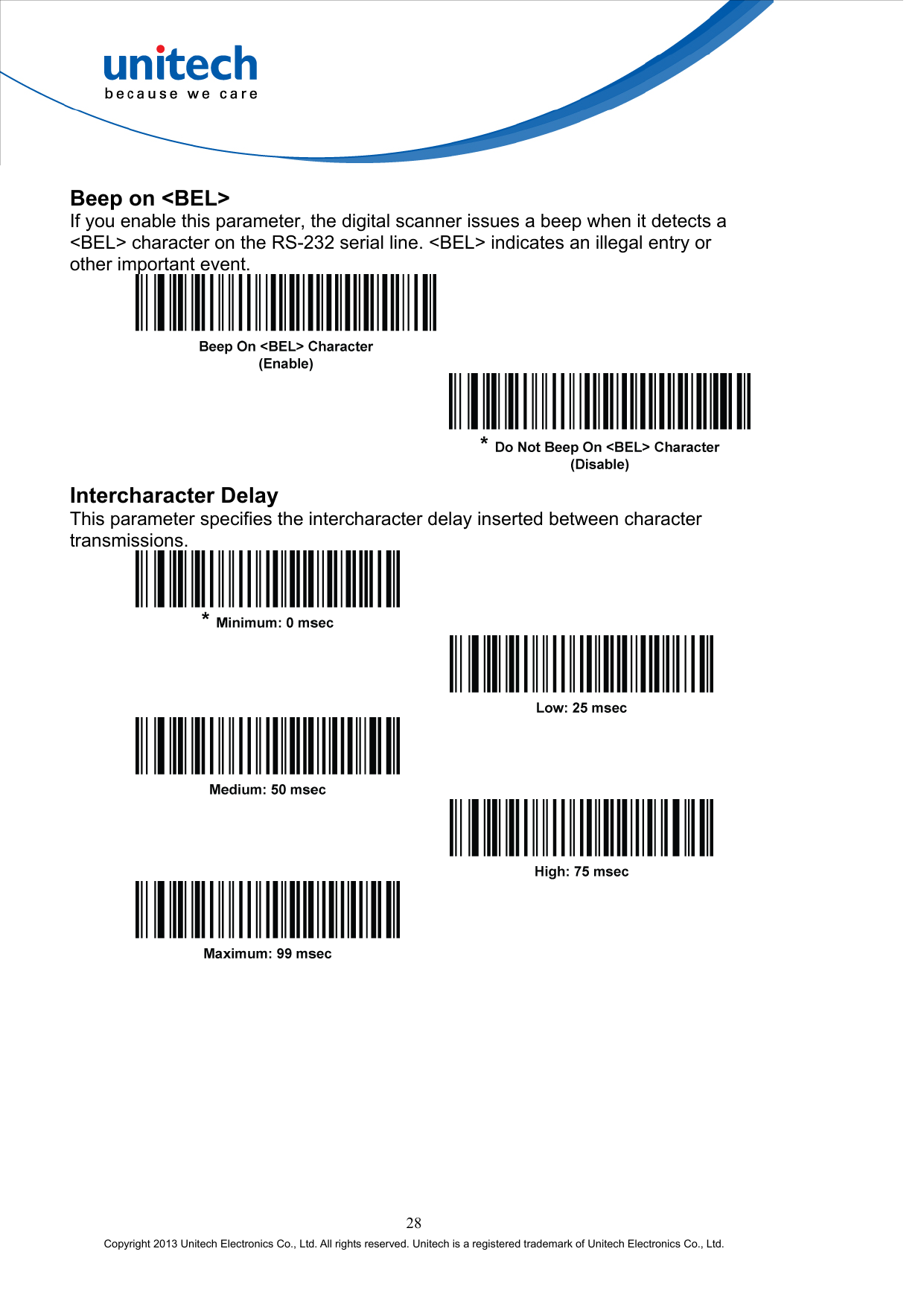

Beep on <BEL> If you enable this parameter, the digital scanner issues a beep when it detects a <BEL> character on the RS-232 serial line. <BEL> indicates an illegal entry or other important event. Intercharacter Delay This parameter specifies the intercharacter delay inserted between character transmissions. 28 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.

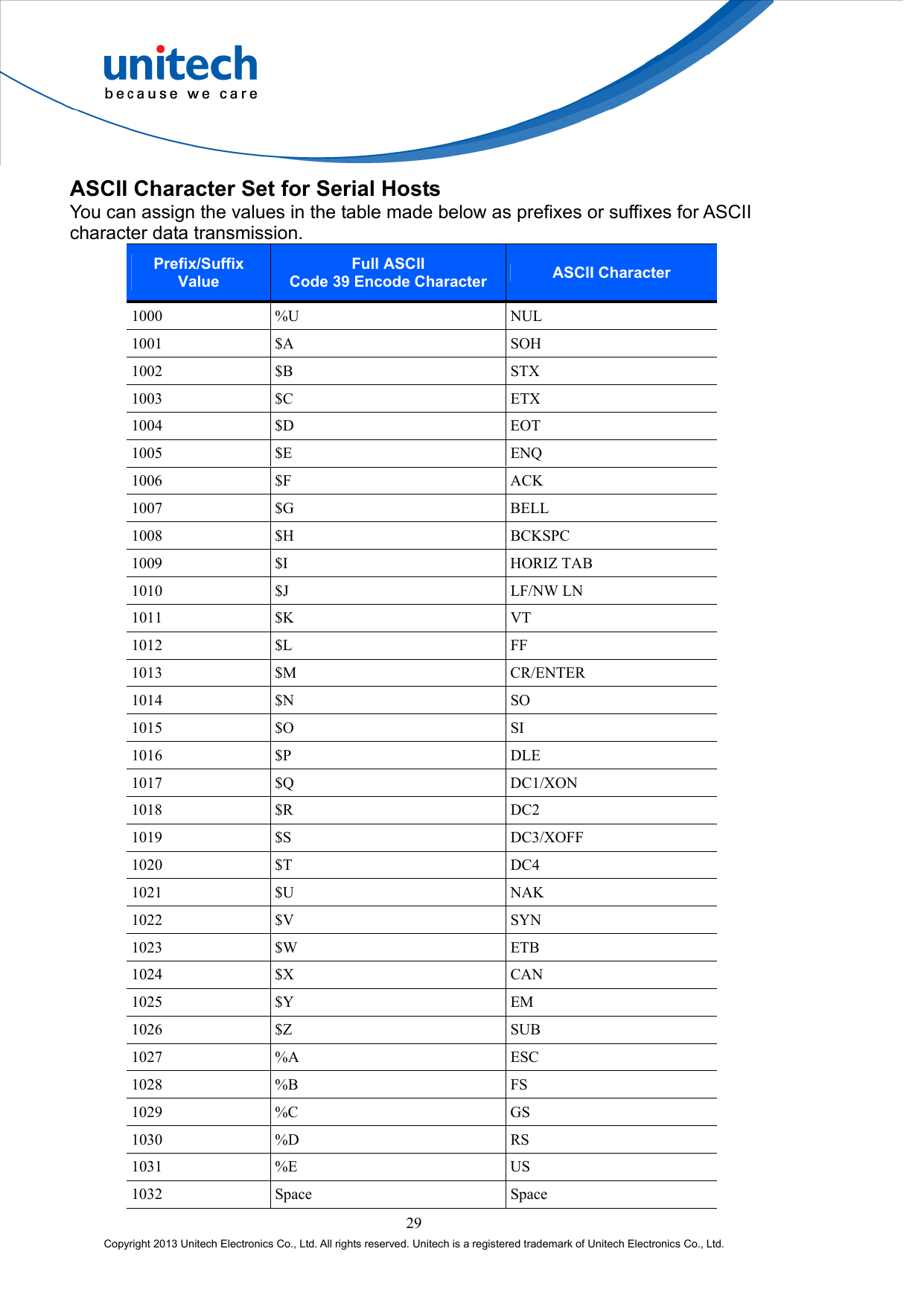

29 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd. ASCII Character Set for Serial Hosts You can assign the values in the table made below as prefixes or suffixes for ASCII character data transmission. Prefix/Suffix Value Full ASCII Code 39 Encode Character ASCII Character 1000 %U NUL 1001 $A SOH 1002 $B STX 1003 $C ETX 1004 $D EOT 1005 $E ENQ 1006 $F ACK 1007 $G BELL 1008 $H BCKSPC 1009 $I HORIZ TAB 1010 $J LF/NW LN 1011 $K VT 1012 $L FF 1013 $M CR/ENTER 1014 $N SO 1015 $O SI 1016 $P DLE 1017 $Q DC1/XON 1018 $R DC2 1019 $S DC3/XOFF 1020 $T DC4 1021 $U NAK 1022 $V SYN 1023 $W ETB 1024 $X CAN 1025 $Y EM 1026 $Z SUB 1027 %A ESC 1028 %B FS 1029 %C GS 1030 %D RS 1031 %E US 1032 Space Space

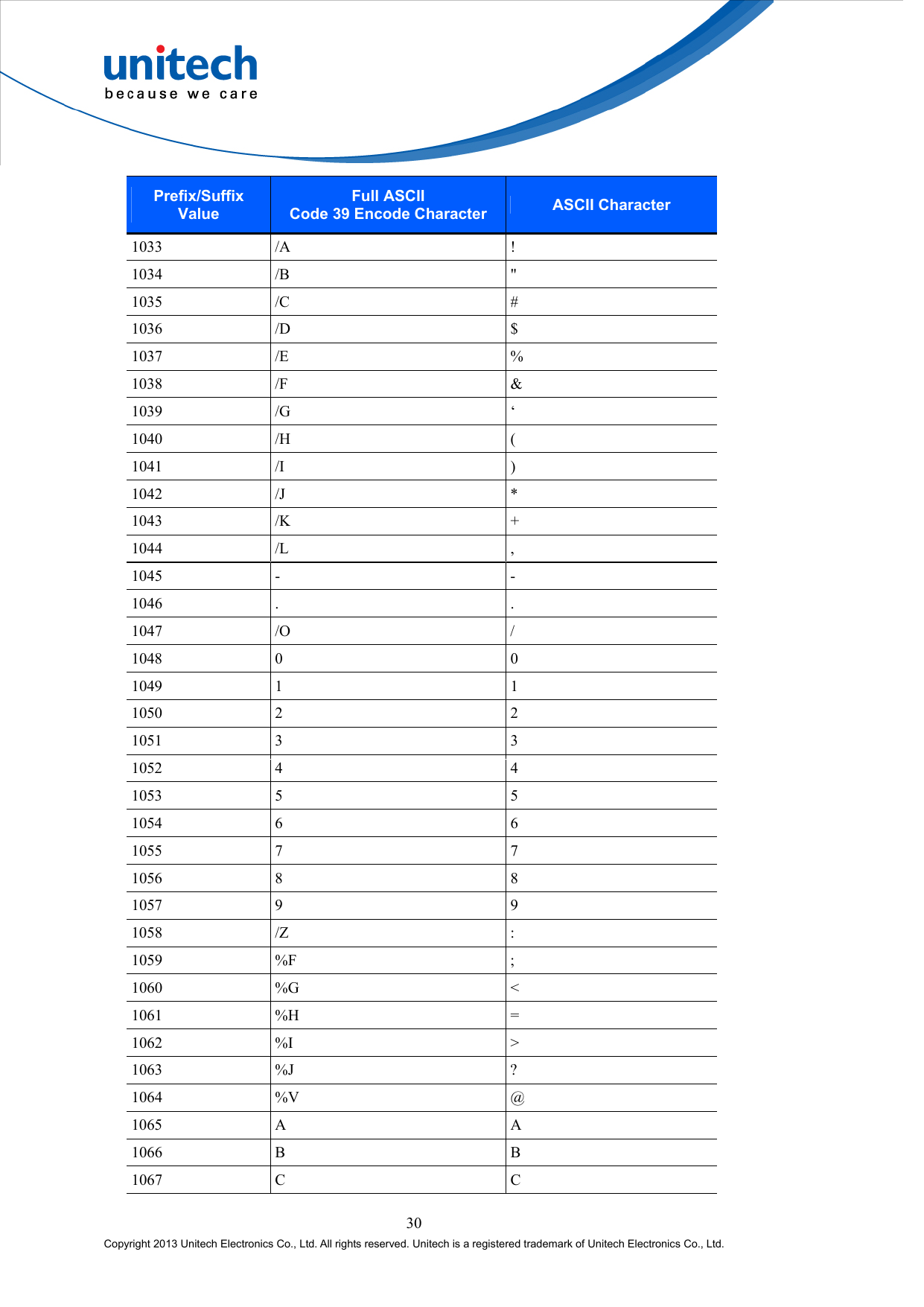

30 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd. Prefix/Suffix Value Full ASCII Code 39 Encode Character ASCII Character 1033 /A ! 1034 /B " 1035 /C # 1036 /D $ 1037 /E % 1038 /F & 1039 /G ‘ 1040 /H ( 1041 /I ) 1042 /J * 1043 /K + 1044 /L , 1045 - - 1046 . . 1047 /O / 1048 0 0 1049 1 1 1050 2 2 1051 3 3 1052 4 4 1053 5 5 1054 6 6 1055 7 7 1056 8 8 1057 9 9 1058 /Z : 1059 %F ; 1060 %G < 1061 %H = 1062 %I > 1063 %J ? 1064 %V @ 1065 A A 1066 B B 1067 C C

$31 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd. Prefix/Suffix Value Full ASCII Code 39 Encode Character ASCII Character 1068 D D 1069 E E 1070 F F 1071 G G 1072 H H 1073 I I 1074 J J 1075 K K 1076 L L 1077 M M 1078 N N 1079 O O 1080 P P 1081 Q Q 1082 R R 1083 S S 1084 T T 1085 U U 1086 V V 1087 W W 1088 X X 1089 Y Y 1090 Z Z 1091 %K [ 1092 %L \ 1093 %M ] 1094 %N ^ 1095 %O _ 1096 %W ` 1097 +A a 1098 +B b 1099 +C c 1100 +D d 1101 +E e 1102 +F f$

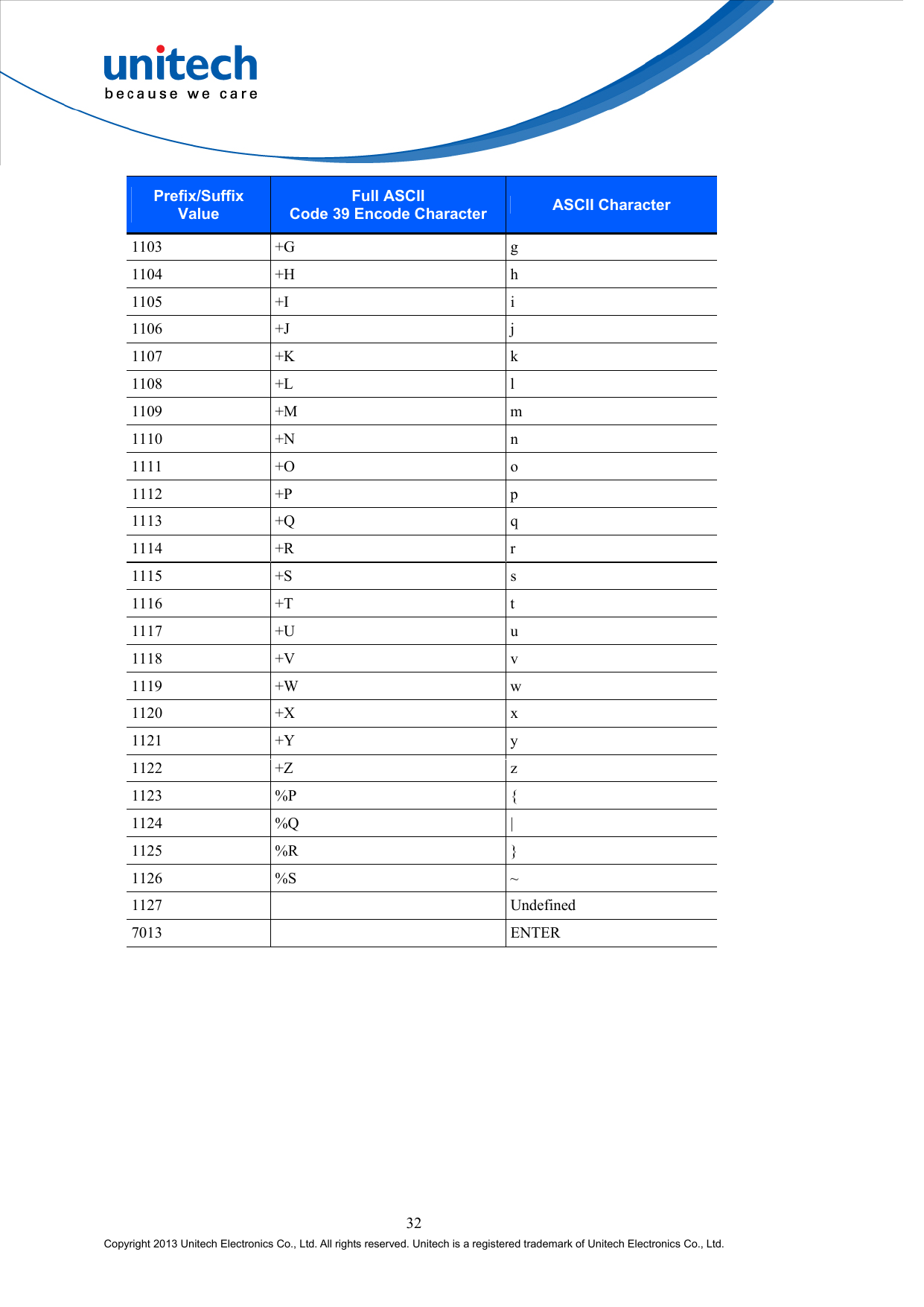

32 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd. Prefix/Suffix Value Full ASCII Code 39 Encode Character ASCII Character 1103 +G g 1104 +H h 1105 +I i 1106 +J j 1107 +K k 1108 +L l 1109 +M m 1110 +N n 1111 +O o 1112 +P p 1113 +Q q 1114 +R r 1115 +S s 1116 +T t 1117 +U u 1118 +V v 1119 +W w 1120 +X x 1121 +Y y 1122 +Z z 1123 %P { 1124 %Q | 1125 %R } 1126 %S ~ 1127 Undefined 7013 ENTER

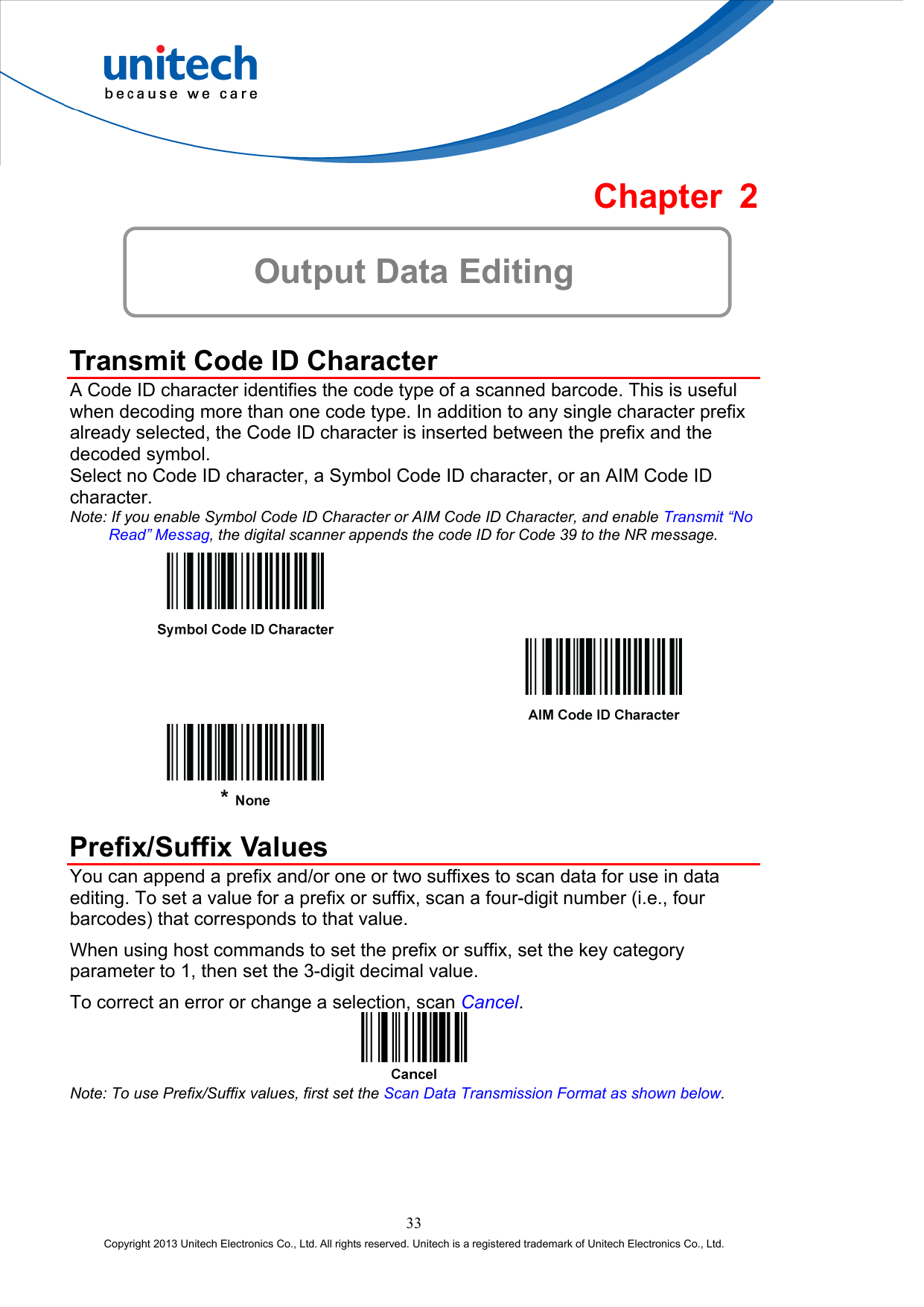

Chapter 2 Output Data Editing Transmit Code ID Character A Code ID character identifies the code type of a scanned barcode. This is useful when decoding more than one code type. In addition to any single character prefix already selected, the Code ID character is inserted between the prefix and the decoded symbol. Select no Code ID character, a Symbol Code ID character, or an AIM Code ID character. Note: If you enable Symbol Code ID Character or AIM Code ID Character, and enable Transmit “No Read” Messag, the digital scanner appends the code ID for Code 39 to the NR message. Prefix/Suffix Values You can append a prefix and/or one or two suffixes to scan data for use in data editing. To set a value for a prefix or suffix, scan a four-digit number (i.e., four barcodes) that corresponds to that value. When using host commands to set the prefix or suffix, set the key category parameter to 1, then set the 3-digit decimal value. To correct an error or change a selection, scan Cancel. Note: To use Prefix/Suffix values, first set the Scan Data Transmission Format as shown below. 33 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.

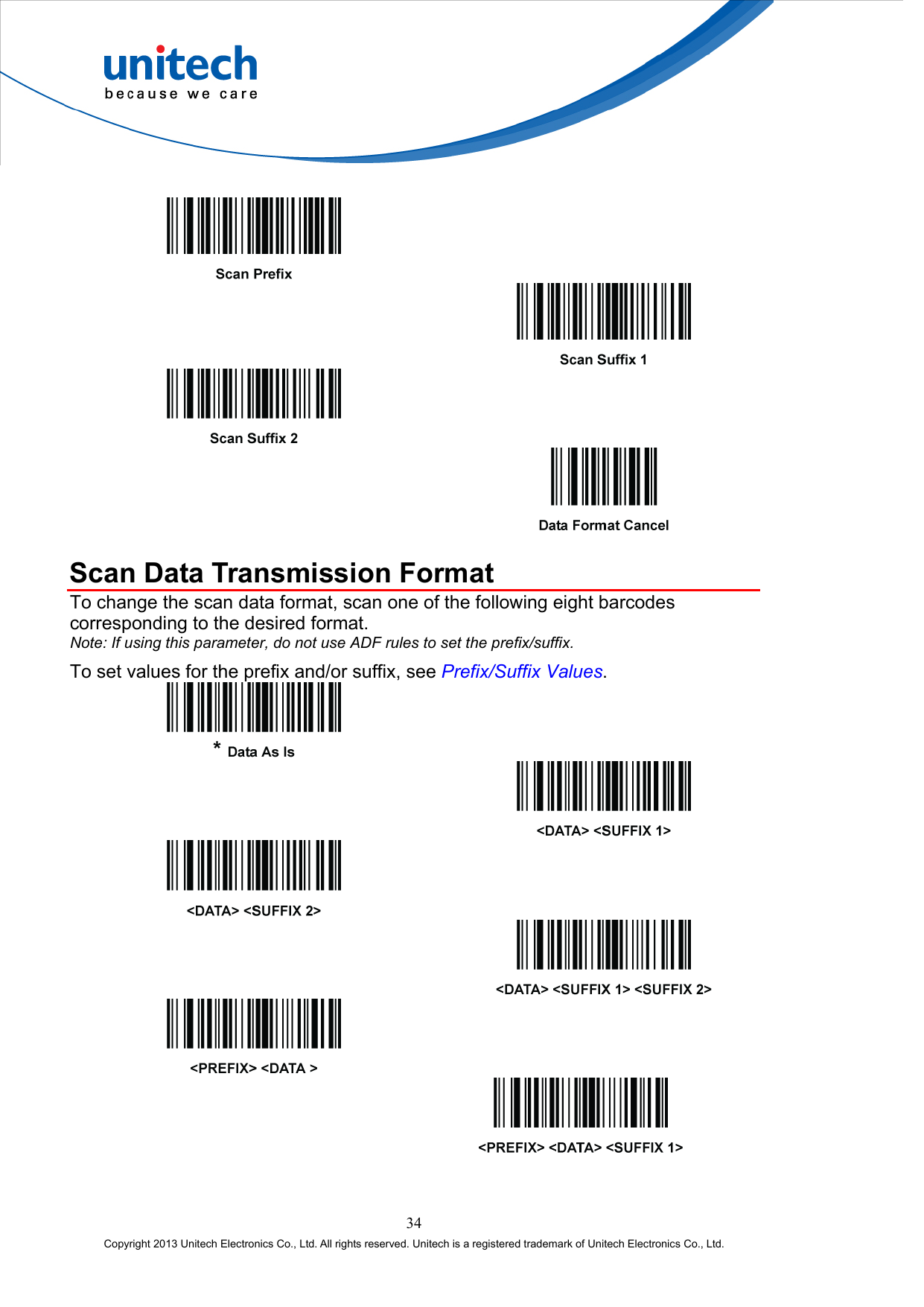

Scan Data Transmission Format To change the scan data format, scan one of the following eight barcodes corresponding to the desired format. Note: If using this parameter, do not use ADF rules to set the prefix/suffix. To set values for the prefix and/or suffix, see Prefix/Suffix Values. 34 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.

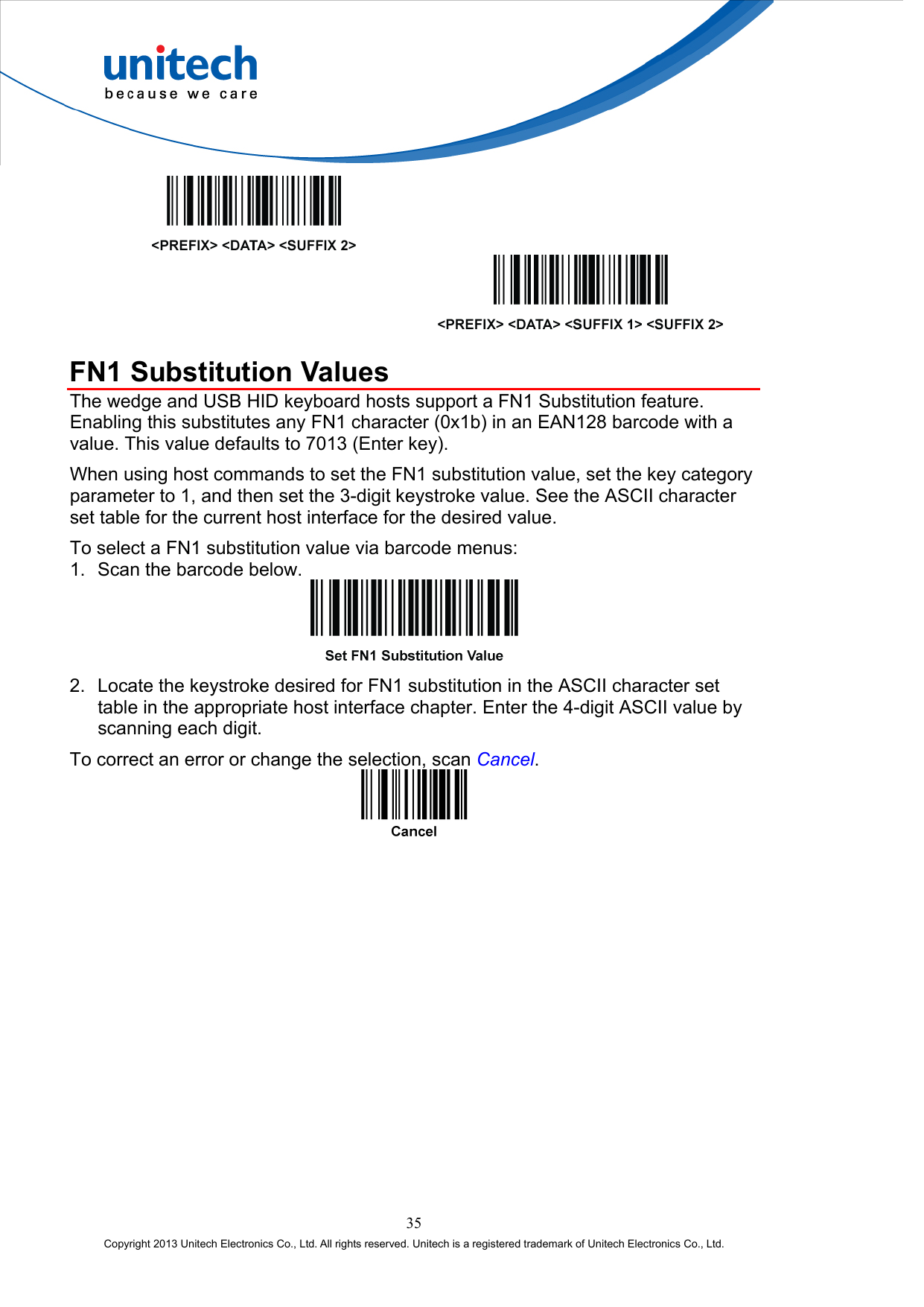

FN1 Substitution Values The wedge and USB HID keyboard hosts support a FN1 Substitution feature. Enabling this substitutes any FN1 character (0x1b) in an EAN128 barcode with a value. This value defaults to 7013 (Enter key). When using host commands to set the FN1 substitution value, set the key category parameter to 1, and then set the 3-digit keystroke value. See the ASCII character set table for the current host interface for the desired value. To select a FN1 substitution value via barcode menus: 1. Scan the barcode below. 2. Locate the keystroke desired for FN1 substitution in the ASCII character set table in the appropriate host interface chapter. Enter the 4-digit ASCII value by scanning each digit. To correct an error or change the selection, scan Cancel. 35 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.

36 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.

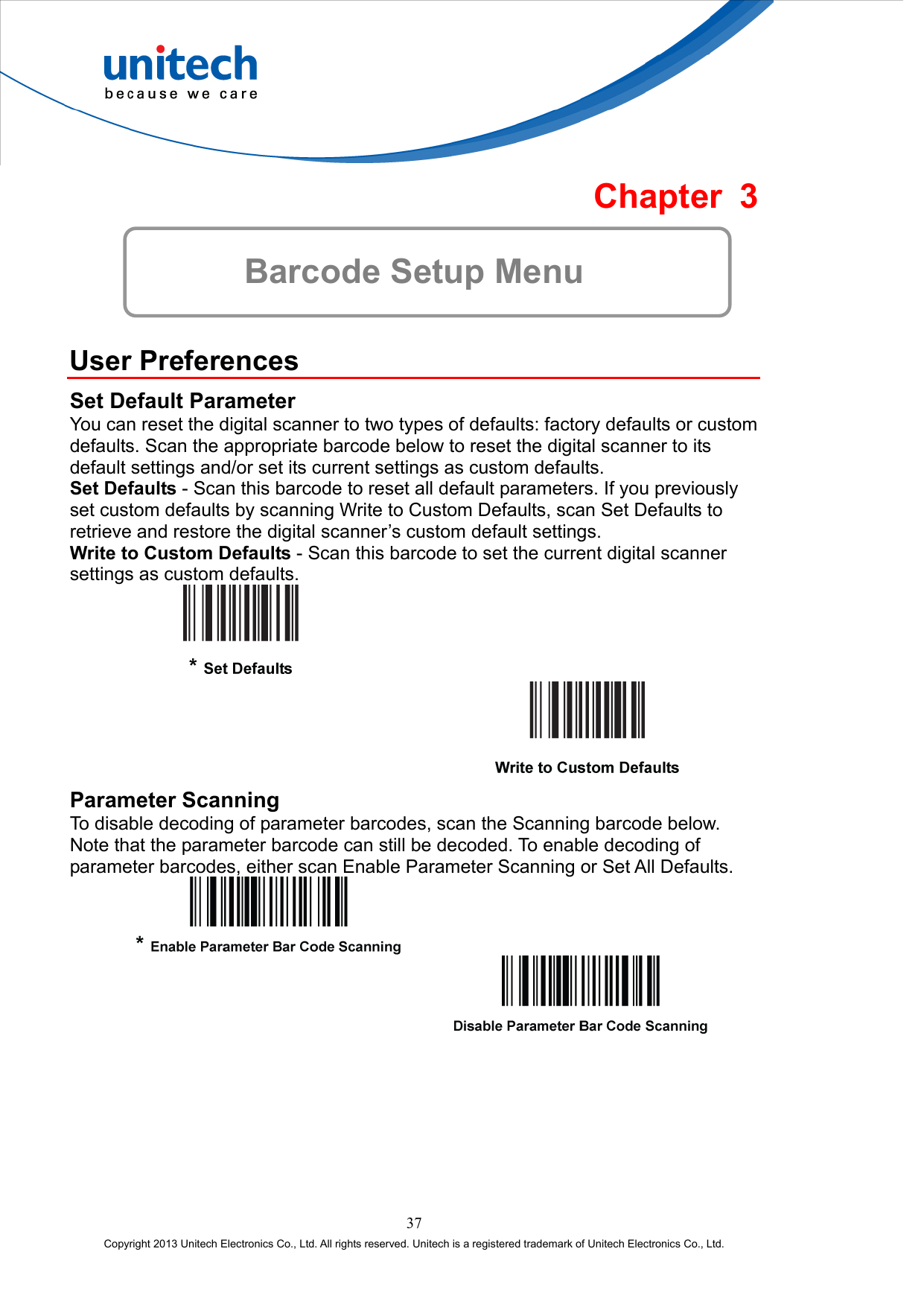

Chapter 3 Barcode Setup Menu User Preferences Set Default Parameter You can reset the digital scanner to two types of defaults: factory defaults or custom defaults. Scan the appropriate barcode below to reset the digital scanner to its default settings and/or set its current settings as custom defaults. Set Defaults - Scan this barcode to reset all default parameters. If you previously set custom defaults by scanning Write to Custom Defaults, scan Set Defaults to retrieve and restore the digital scanner’s custom default settings. Write to Custom Defaults - Scan this barcode to set the current digital scanner settings as custom defaults. Parameter Scanning To disable decoding of parameter barcodes, scan the Scanning barcode below. Note that the parameter barcode can still be decoded. To enable decoding of parameter barcodes, either scan Enable Parameter Scanning or Set All Defaults. 37 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.

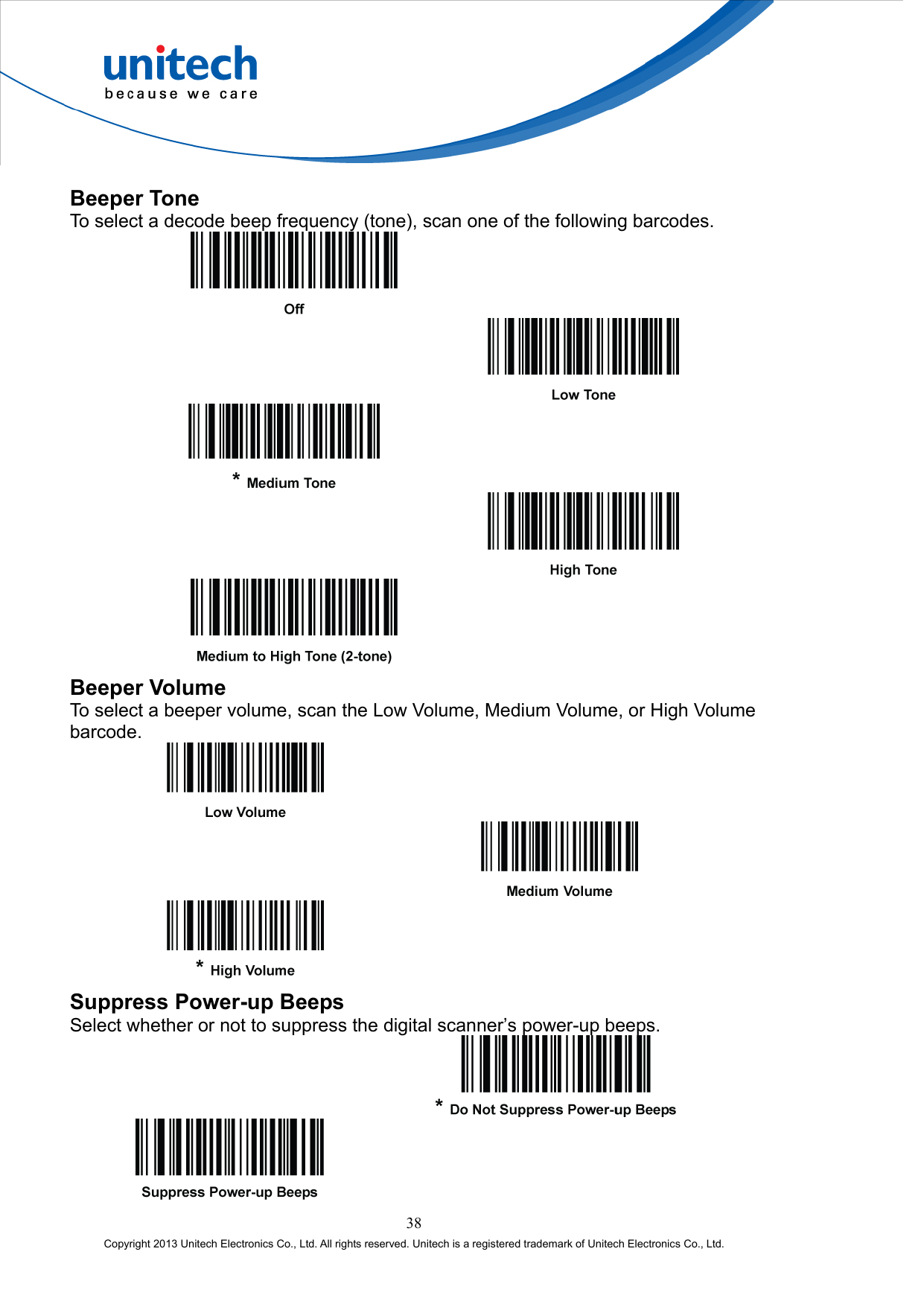

Beeper Tone To select a decode beep frequency (tone), scan one of the following barcodes. Beeper Volume To select a beeper volume, scan the Low Volume, Medium Volume, or High Volume barcode. Suppress Power-up Beeps Select whether or not to suppress the digital scanner’s power-up beeps. 38 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.

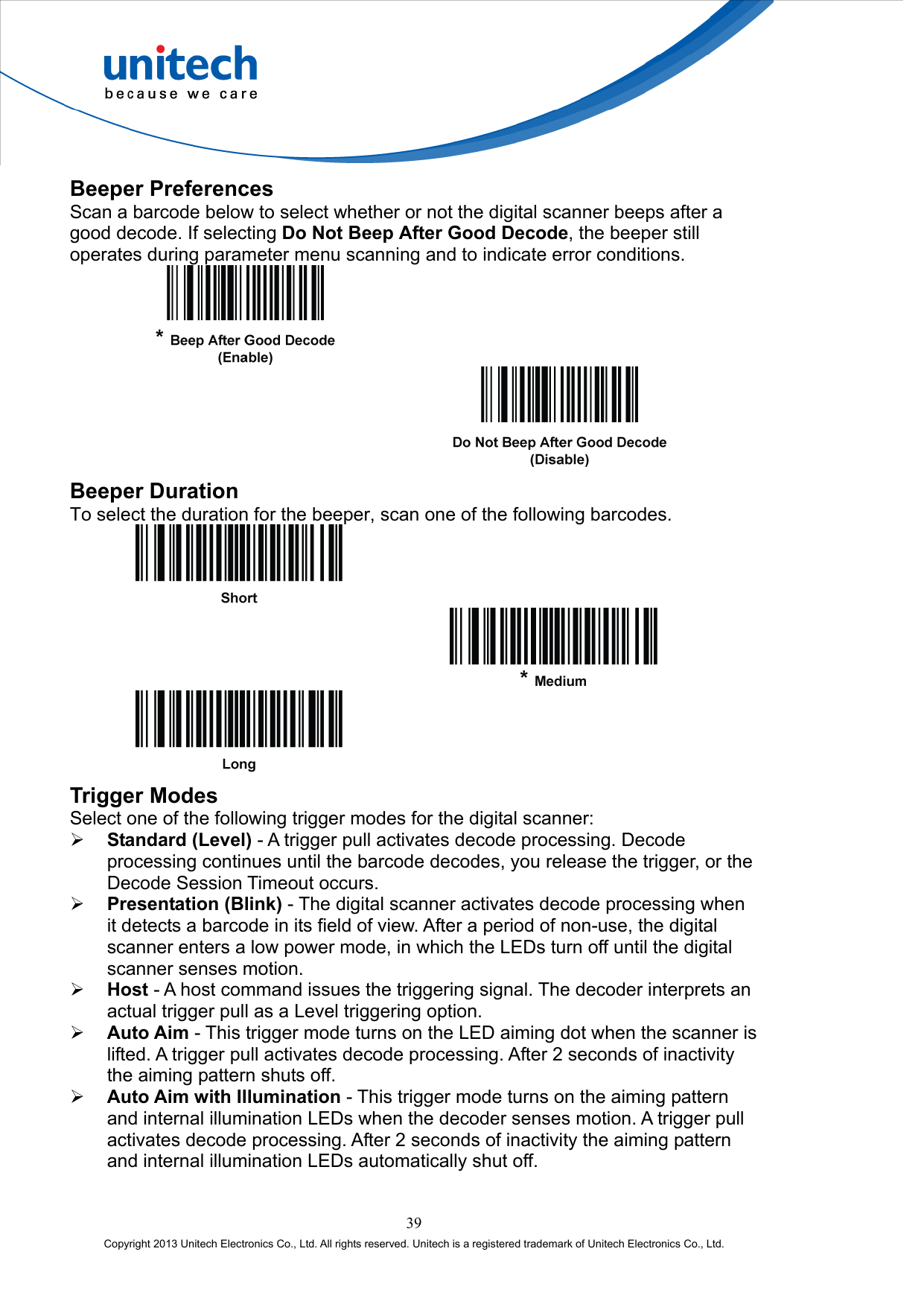

Beeper Preferences Scan a barcode below to select whether or not the digital scanner beeps after a good decode. If selecting Do Not Beep After Good Decode, the beeper still operates during parameter menu scanning and to indicate error conditions. Beeper Duration To select the duration for the beeper, scan one of the following barcodes. Trigger Modes Select one of the following trigger modes for the digital scanner:  Standard (Level) - A trigger pull activates decode processing. Decode processing continues until the barcode decodes, you release the trigger, or the Decode Session Timeout occurs.  Presentation (Blink) - The digital scanner activates decode processing when it detects a barcode in its field of view. After a period of non-use, the digital scanner enters a low power mode, in which the LEDs turn off until the digital scanner senses motion.  Host - A host command issues the triggering signal. The decoder interprets an actual trigger pull as a Level triggering option.  Auto Aim - This trigger mode turns on the LED aiming dot when the scanner is lifted. A trigger pull activates decode processing. After 2 seconds of inactivity the aiming pattern shuts off.  Auto Aim with Illumination - This trigger mode turns on the aiming pattern and internal illumination LEDs when the decoder senses motion. A trigger pull activates decode processing. After 2 seconds of inactivity the aiming pattern and internal illumination LEDs automatically shut off. 39 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.

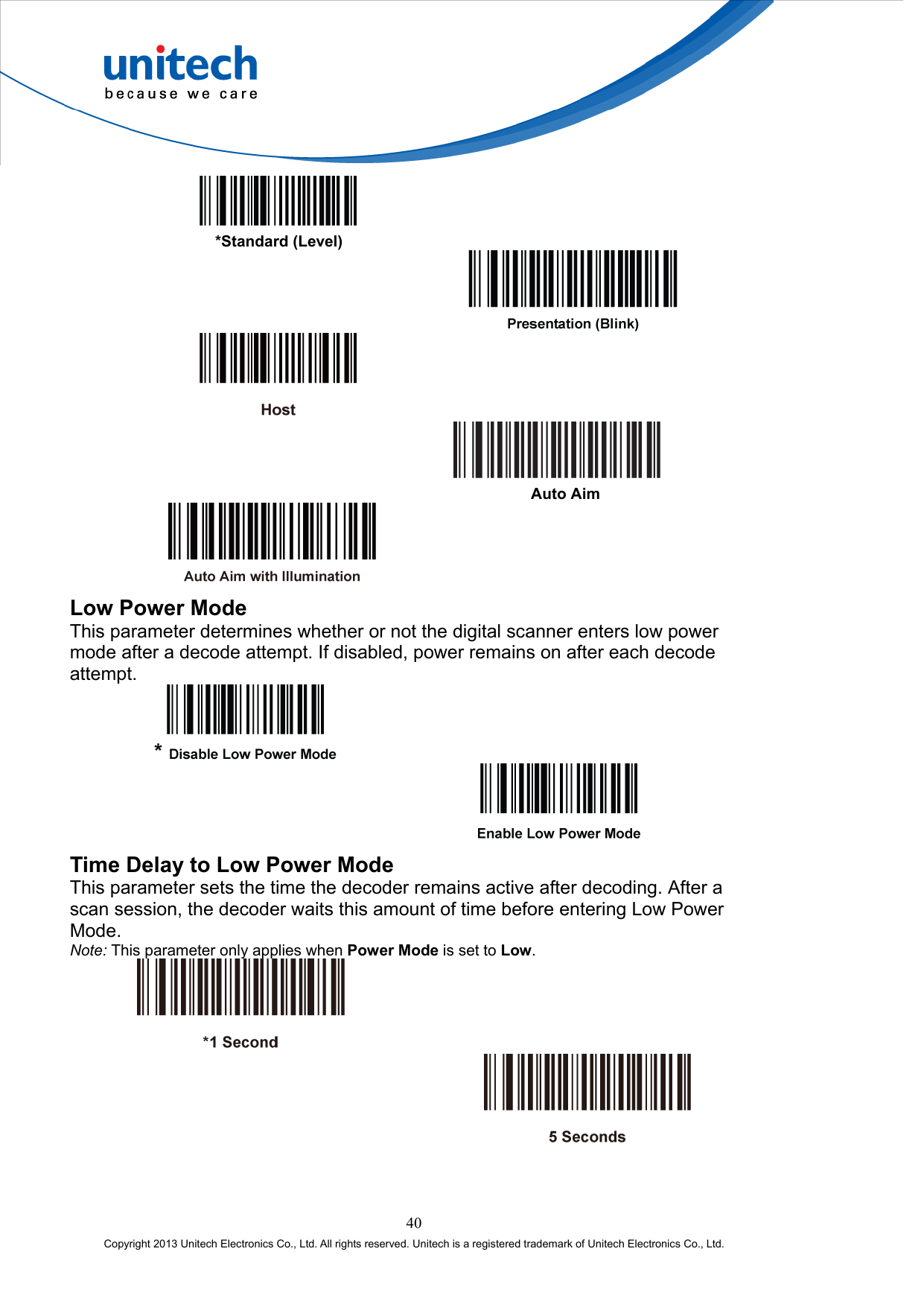

*Standard (Level) Auto Aim Low Power Mode This parameter determines whether or not the digital scanner enters low power mode after a decode attempt. If disabled, power remains on after each decode attempt. Time Delay to Low Power Mode This parameter sets the time the decoder remains active after decoding. After a scan session, the decoder waits this amount of time before entering Low Power Mode. Note: This parameter only applies when Power Mode is set to Low. 40 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.

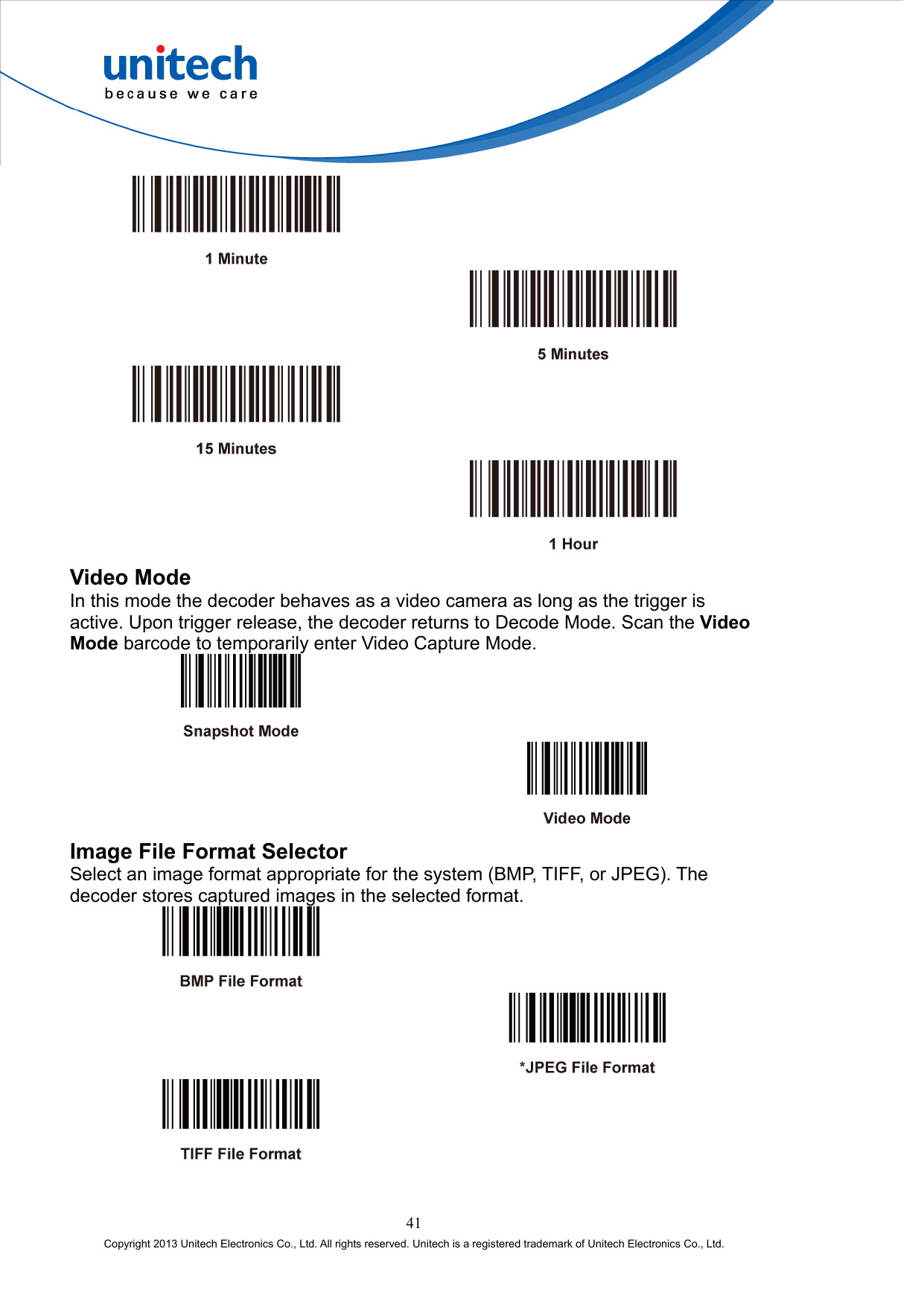

Video Mode In this mode the decoder behaves as a video camera as long as the trigger is active. Upon trigger release, the decoder returns to Decode Mode. Scan the Video Mode barcode to temporarily enter Video Capture Mode. Image File Format Selector Select an image format appropriate for the system (BMP, TIFF, or JPEG). The decoder stores captured images in the selected format. 41 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.

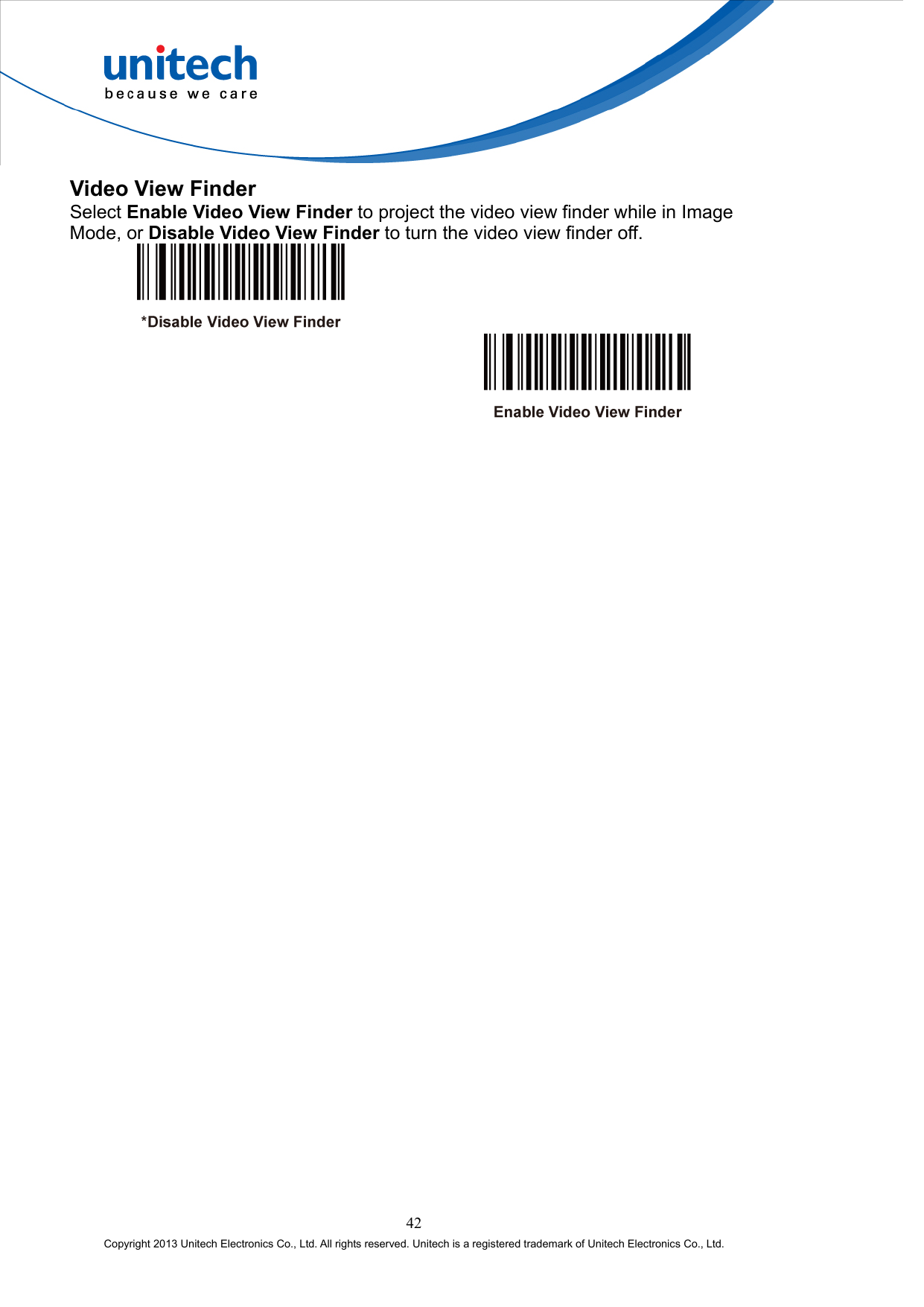

Video View Finder Select Enable Video View Finder to project the video view finder while in Image Mode, or Disable Video View Finder to turn the video view finder off. 42 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.

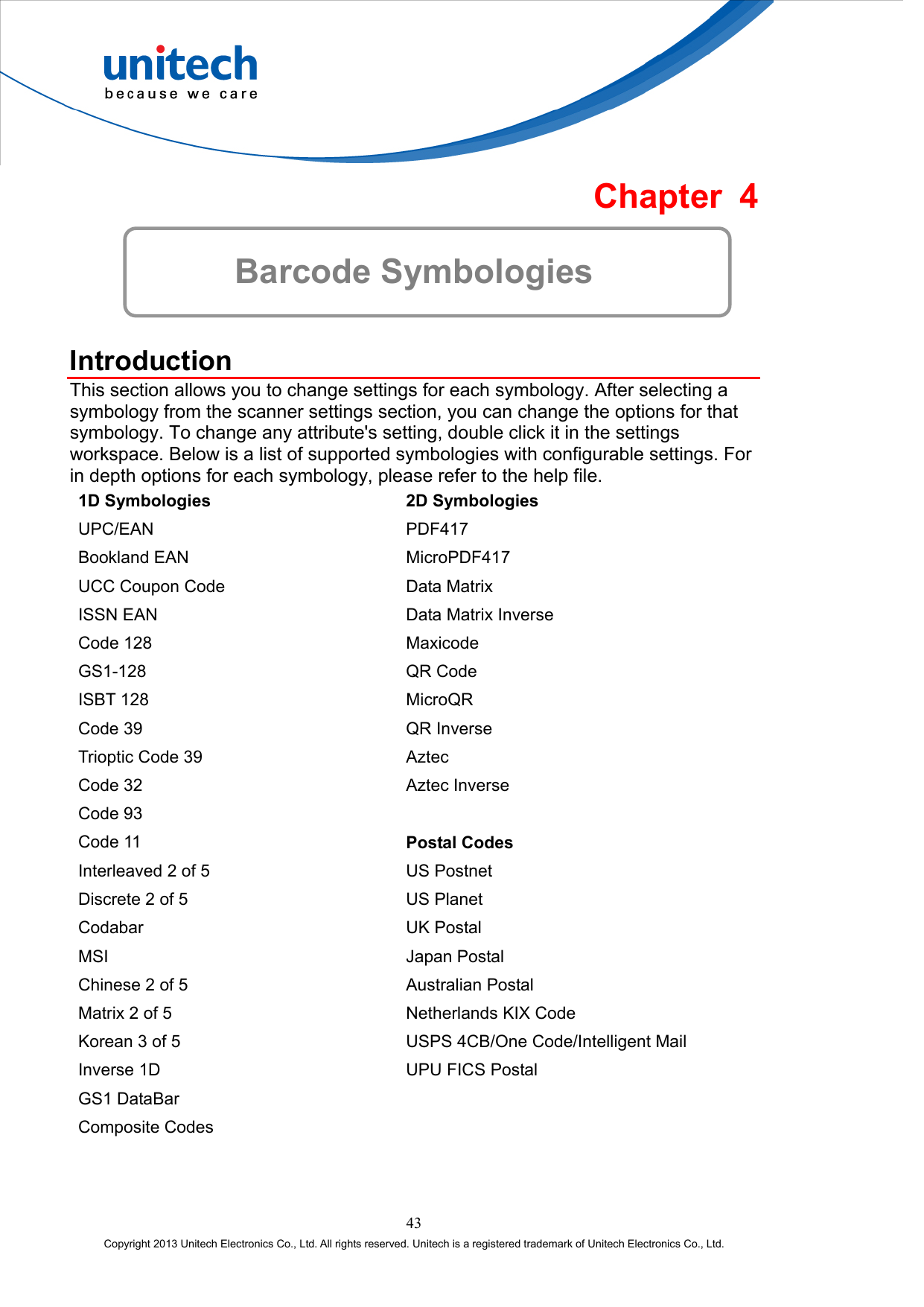

Chapter 4 Barcode Symbologies Introduction This section allows you to change settings for each symbology. After selecting a symbology from the scanner settings section, you can change the options for that symbology. To change any attribute's setting, double click it in the settings workspace. Below is a list of supported symbologies with configurable settings. For in depth options for each symbology, please refer to the help file. 1D Symbologies 2D Symbologies UPC/EAN PDF417 Bookland EAN MicroPDF417 UCC Coupon Code Data Matrix ISSN EAN Data Matrix Inverse Code 128 Maxicode GS1-128 QR Code ISBT 128 MicroQR Code 39 QR Inverse Trioptic Code 39 Aztec Code 32 Aztec Inverse Code 93 Code 11 Postal Codes Interleaved 2 of 5 US Postnet Discrete 2 of 5 US Planet Codabar UK Postal MSI Japan Postal Chinese 2 of 5 Australian Postal Matrix 2 of 5 Netherlands KIX Code Korean 3 of 5 USPS 4CB/One Code/Intelligent Mail Inverse 1D UPU FICS Postal GS1 DataBar Composite Codes 43 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.

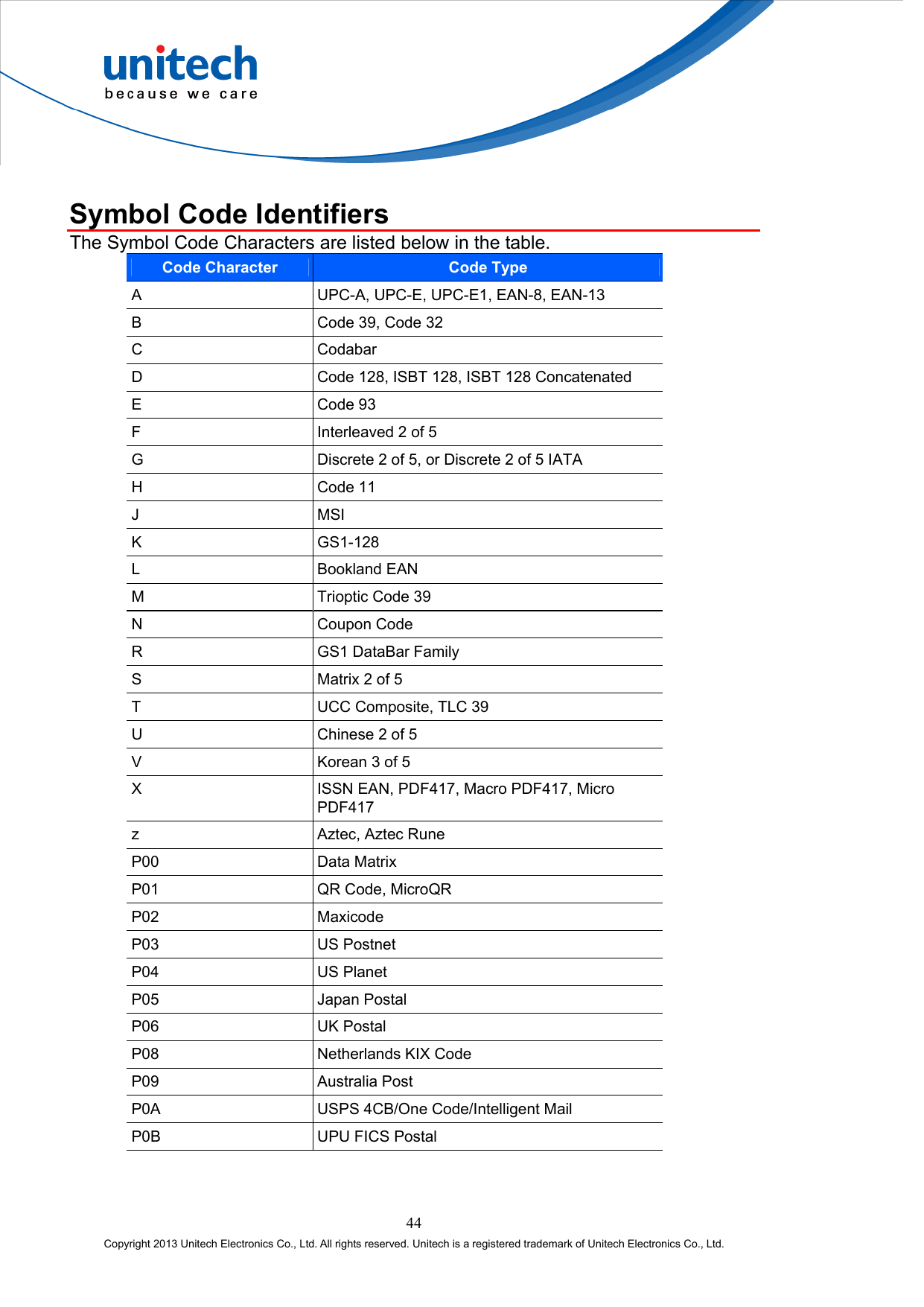

44 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd. Symbol Code Identifiers The Symbol Code Characters are listed below in the table. Code Character Code Type A UPC-A, UPC-E, UPC-E1, EAN-8, EAN-13 B Code 39, Code 32 C Codabar D Code 128, ISBT 128, ISBT 128 Concatenated E Code 93 F Interleaved 2 of 5 G Discrete 2 of 5, or Discrete 2 of 5 IATA H Code 11 J MSI K GS1-128 L Bookland EAN M Trioptic Code 39 N Coupon Code R GS1 DataBar Family S Matrix 2 of 5 T UCC Composite, TLC 39 U Chinese 2 of 5 V Korean 3 of 5 X ISSN EAN, PDF417, Macro PDF417, Micro PDF417 z Aztec, Aztec Rune P00 Data Matrix P01 QR Code, MicroQR P02 Maxicode P03 US Postnet P04 US Planet P05 Japan Postal P06 UK Postal P08 Netherlands KIX Code P09 Australia Post P0A USPS 4CB/One Code/Intelligent Mail P0B UPU FICS Postal

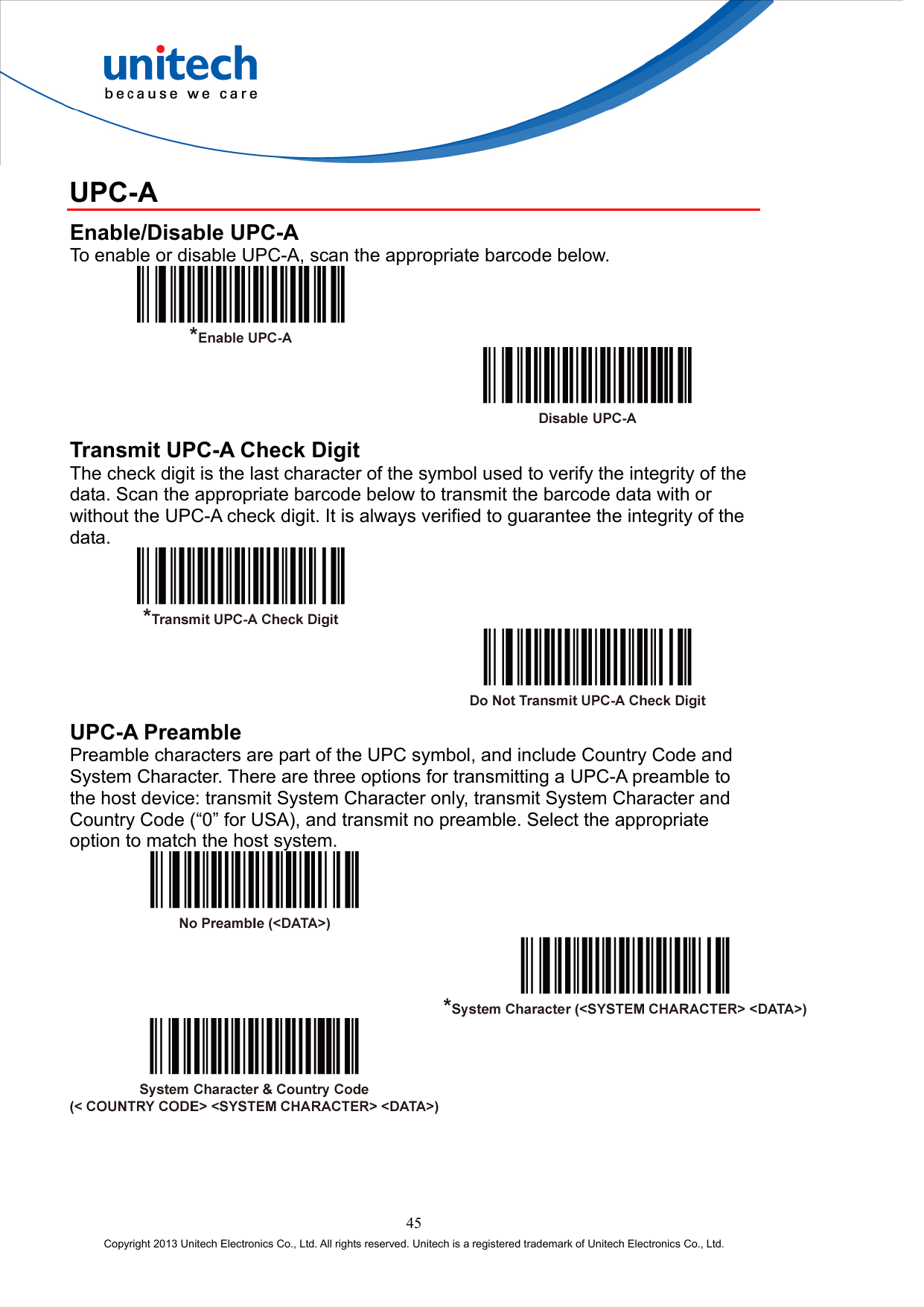

UPC-A Enable/Disable UPC-A To enable or disable UPC-A, scan the appropriate barcode below. Transmit UPC-A Check Digit The check digit is the last character of the symbol used to verify the integrity of the data. Scan the appropriate barcode below to transmit the barcode data with or without the UPC-A check digit. It is always verified to guarantee the integrity of the data. UPC-A Preamble Preamble characters are part of the UPC symbol, and include Country Code and System Character. There are three options for transmitting a UPC-A preamble to the host device: transmit System Character only, transmit System Character and Country Code (“0” for USA), and transmit no preamble. Select the appropriate option to match the host system. 45 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.

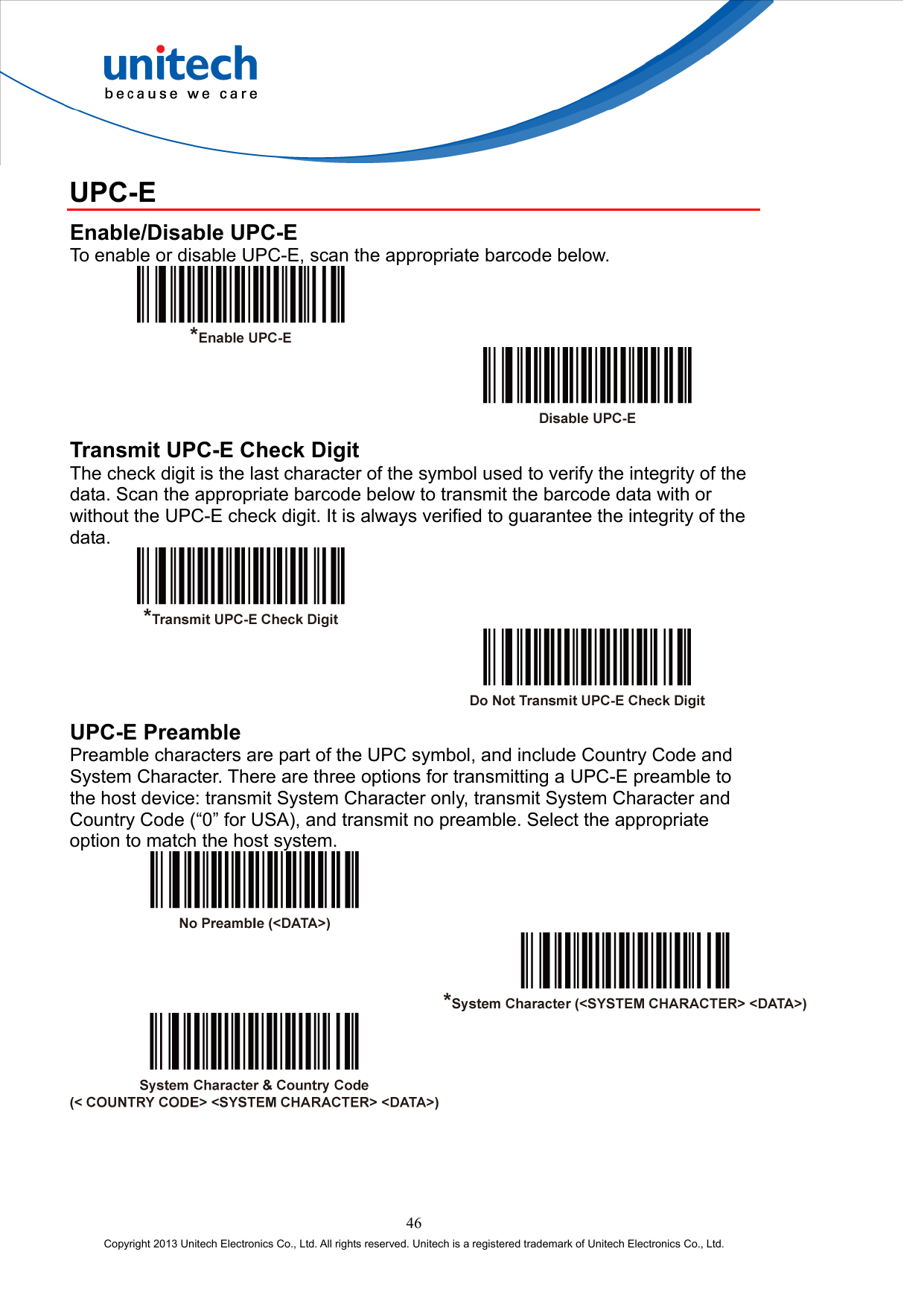

UPC-E Enable/Disable UPC-E To enable or disable UPC-E, scan the appropriate barcode below. Transmit UPC-E Check Digit The check digit is the last character of the symbol used to verify the integrity of the data. Scan the appropriate barcode below to transmit the barcode data with or without the UPC-E check digit. It is always verified to guarantee the integrity of the data. UPC-E Preamble Preamble characters are part of the UPC symbol, and include Country Code and System Character. There are three options for transmitting a UPC-E preamble to the host device: transmit System Character only, transmit System Character and Country Code (“0” for USA), and transmit no preamble. Select the appropriate option to match the host system. 46 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.

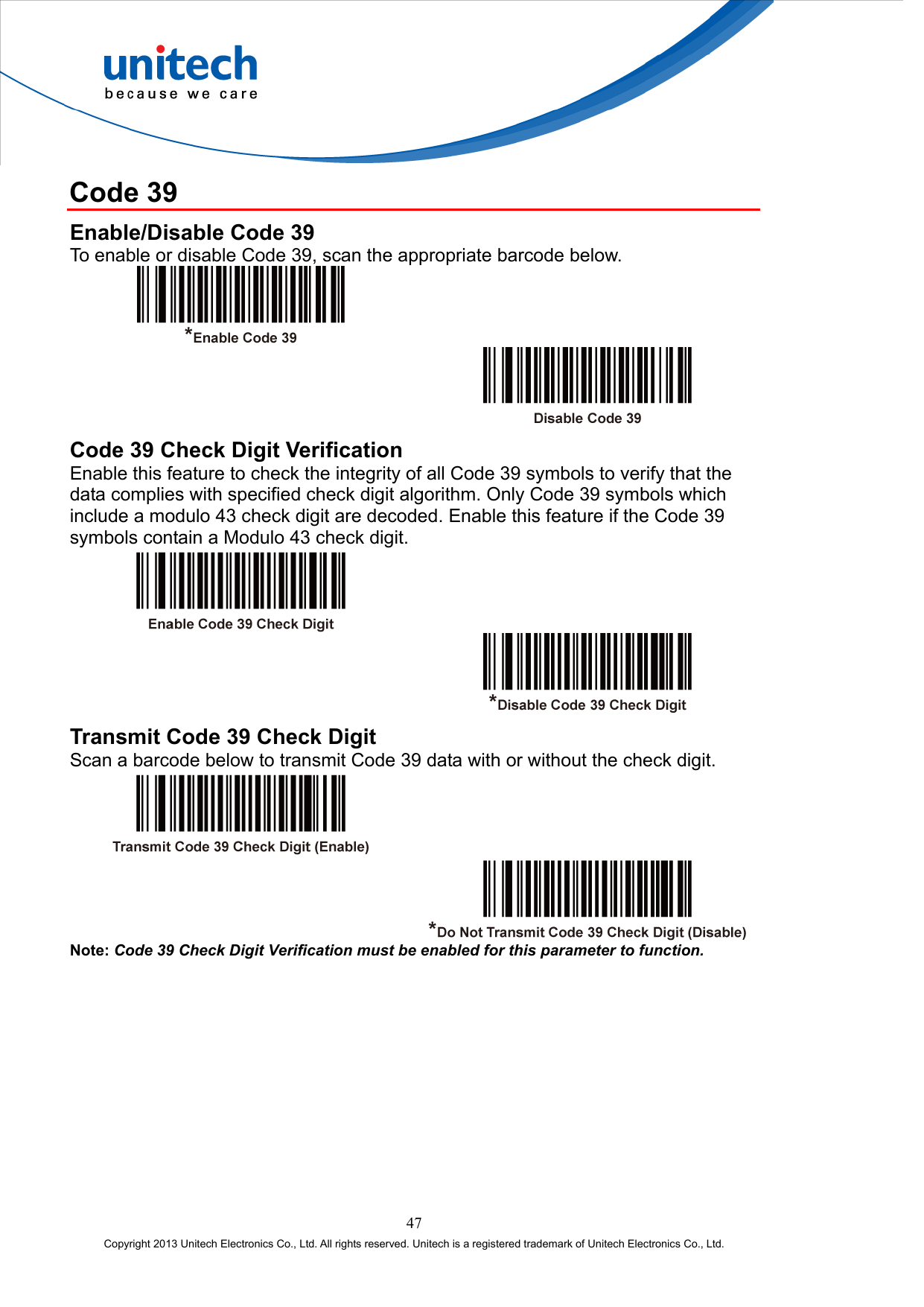

Code 39 Enable/Disable Code 39 To enable or disable Code 39, scan the appropriate barcode below. Code 39 Check Digit Verification Enable this feature to check the integrity of all Code 39 symbols to verify that the data complies with specified check digit algorithm. Only Code 39 symbols which include a modulo 43 check digit are decoded. Enable this feature if the Code 39 symbols contain a Modulo 43 check digit. Transmit Code 39 Check Digit Scan a barcode below to transmit Code 39 data with or without the check digit. Note: Code 39 Check Digit Verification must be enabled for this parameter to function. 47 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.

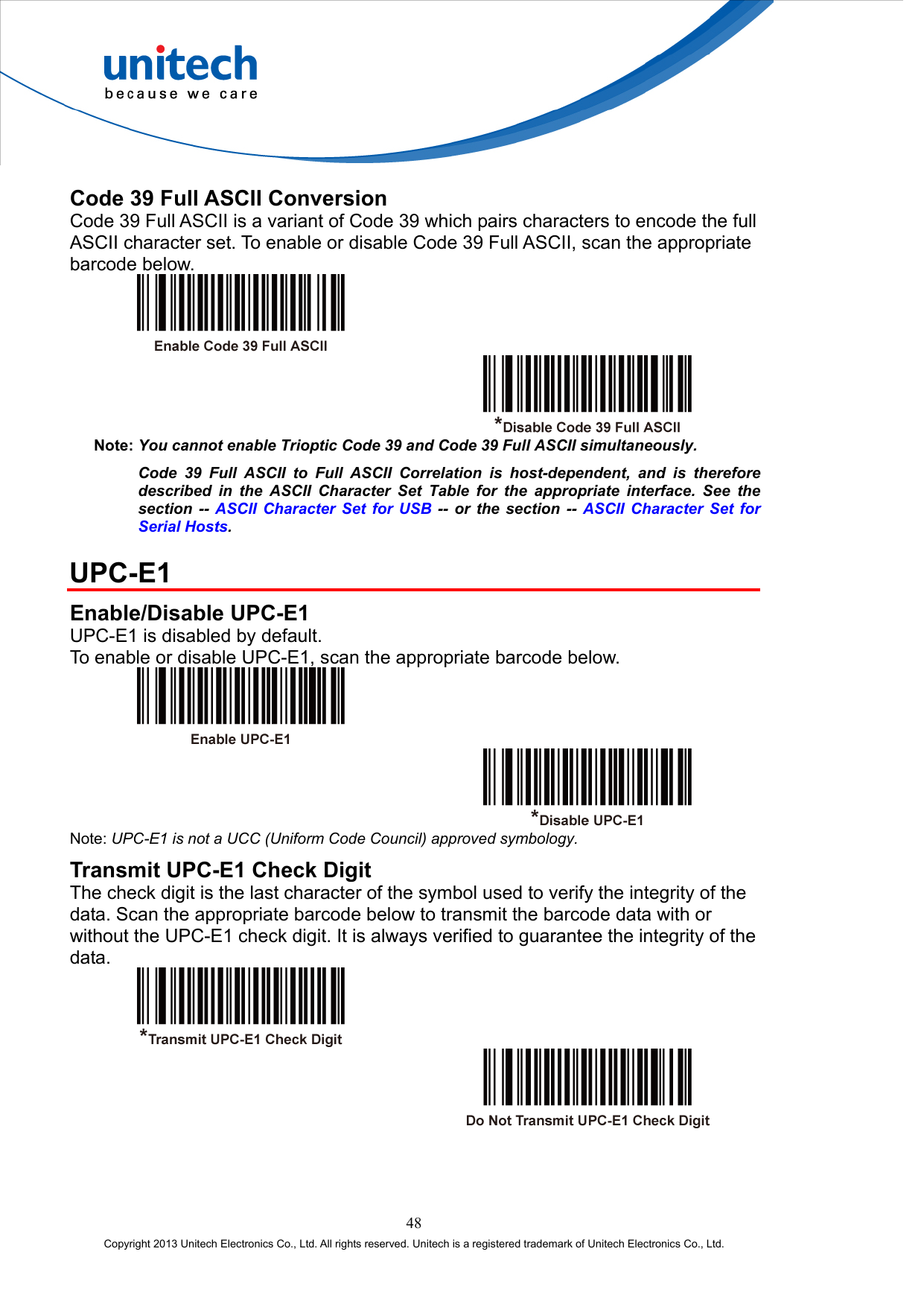

Code 39 Full ASCII Conversion Code 39 Full ASCII is a variant of Code 39 which pairs characters to encode the full ASCII character set. To enable or disable Code 39 Full ASCII, scan the appropriate barcode below. Note: You cannot enable Trioptic Code 39 and Code 39 Full ASCII simultaneously. Code 39 Full ASCII to Full ASCII Correlation is host-dependent, and is therefore described in the ASCII Character Set Table for the appropriate interface. See the section -- ASCII Character Set for USB -- or the section -- ASCII Character Set for Serial Hosts. UPC-E1 Enable/Disable UPC-E1 UPC-E1 is disabled by default. To enable or disable UPC-E1, scan the appropriate barcode below. Note: UPC-E1 is not a UCC (Uniform Code Council) approved symbology. Transmit UPC-E1 Check Digit The check digit is the last character of the symbol used to verify the integrity of the data. Scan the appropriate barcode below to transmit the barcode data with or without the UPC-E1 check digit. It is always verified to guarantee the integrity of the data. 48 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.

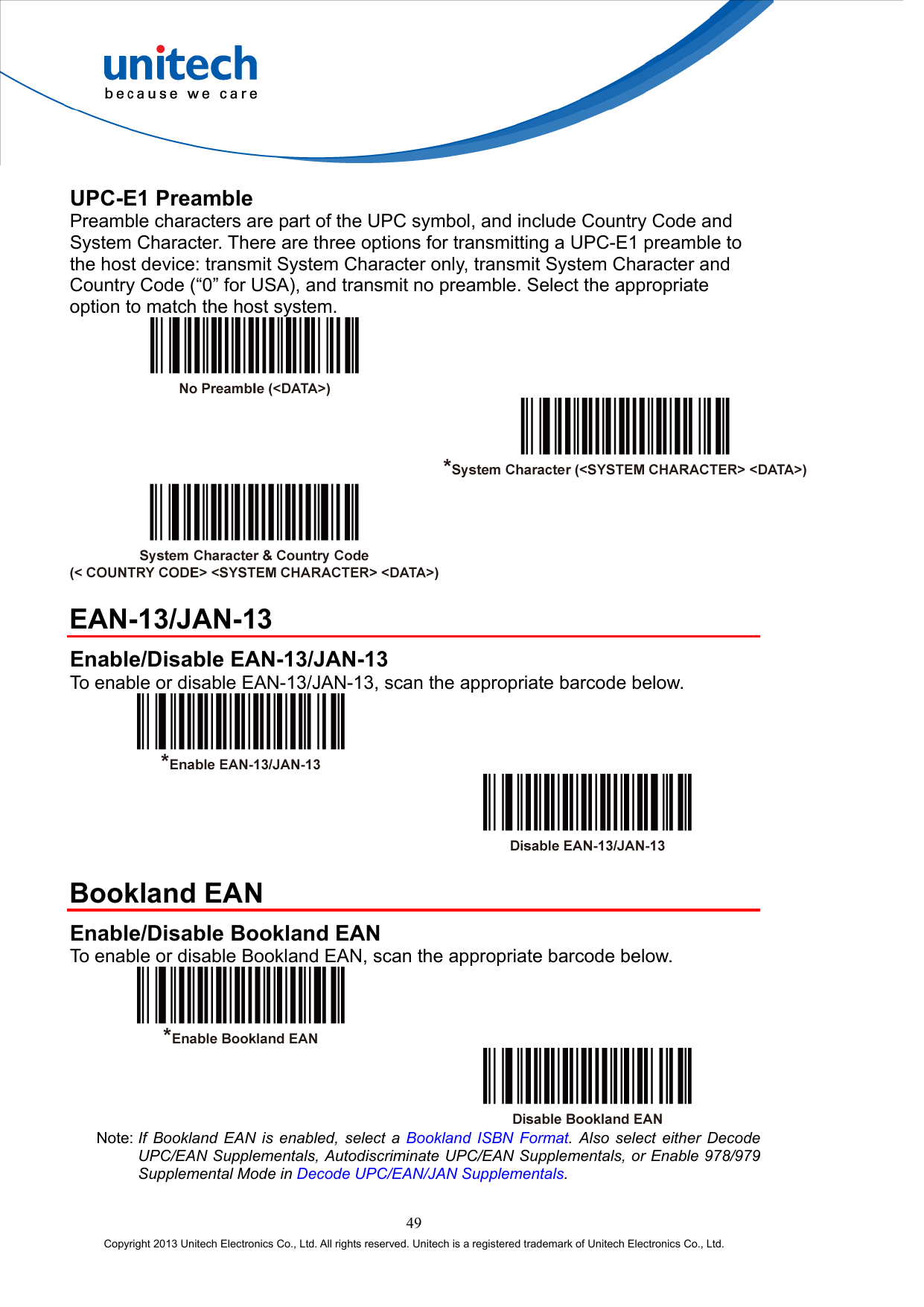

UPC-E1 Preamble Preamble characters are part of the UPC symbol, and include Country Code and System Character. There are three options for transmitting a UPC-E1 preamble to the host device: transmit System Character only, transmit System Character and Country Code (“0” for USA), and transmit no preamble. Select the appropriate option to match the host system. EAN-13/JAN-13 Enable/Disable EAN-13/JAN-13 To enable or disable EAN-13/JAN-13, scan the appropriate barcode below. Bookland EAN Enable/Disable Bookland EAN To enable or disable Bookland EAN, scan the appropriate barcode below. Note: If Bookland EAN is enabled, select a Bookland ISBN Format. Also select either Decode UPC/EAN Supplementals, Autodiscriminate UPC/EAN Supplementals, or Enable 978/979 Supplemental Mode in Decode UPC/EAN/JAN Supplementals. 49 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.

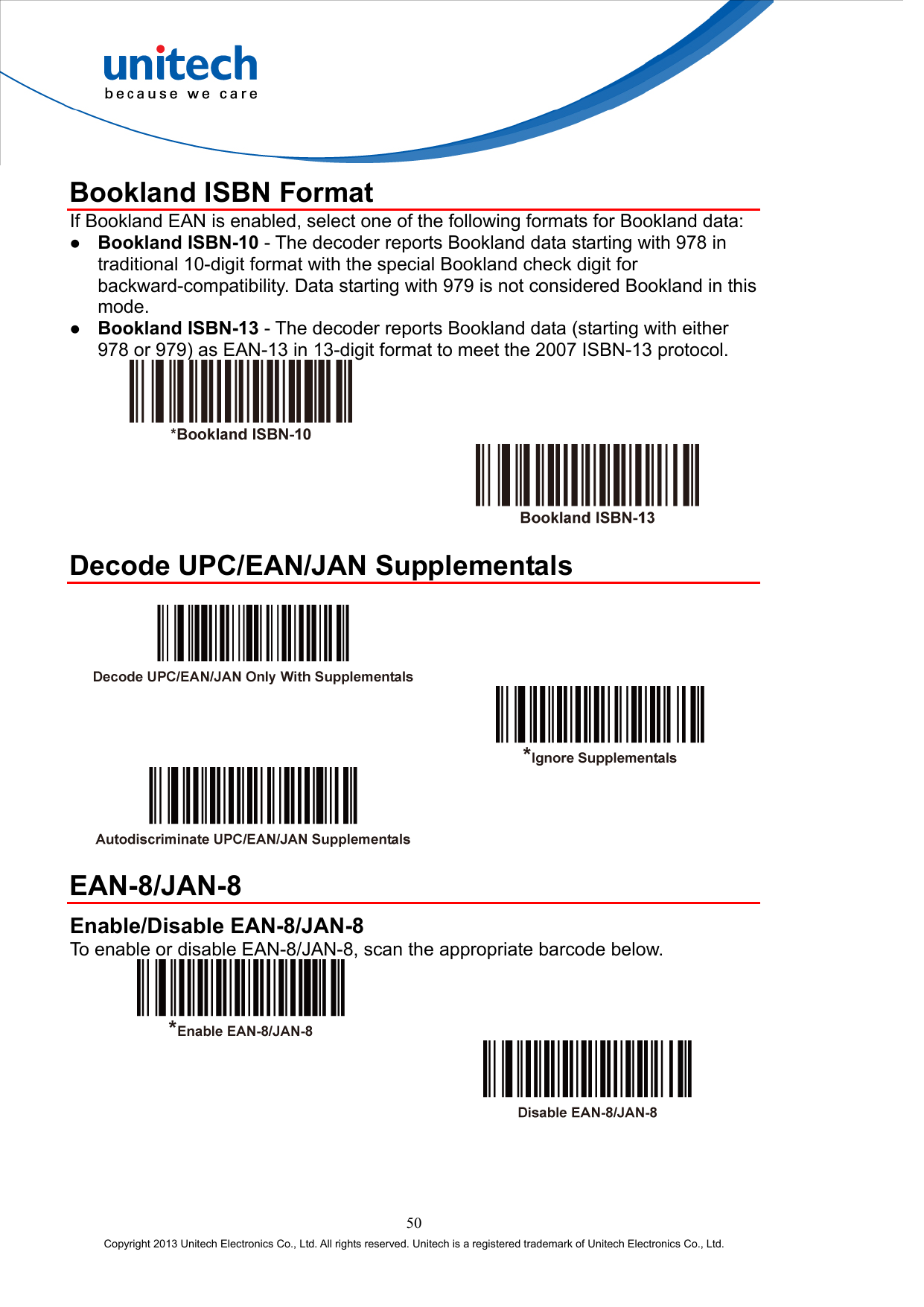

Bookland ISBN Format If Bookland EAN is enabled, select one of the following formats for Bookland data:  Bookland ISBN-10 - The decoder reports Bookland data starting with 978 in traditional 10-digit format with the special Bookland check digit for backward-compatibility. Data starting with 979 is not considered Bookland in this mode.  Bookland ISBN-13 - The decoder reports Bookland data (starting with either 978 or 979) as EAN-13 in 13-digit format to meet the 2007 ISBN-13 protocol. Decode UPC/EAN/JAN Supplementals EAN-8/JAN-8 Enable/Disable EAN-8/JAN-8 To enable or disable EAN-8/JAN-8, scan the appropriate barcode below. 50 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.

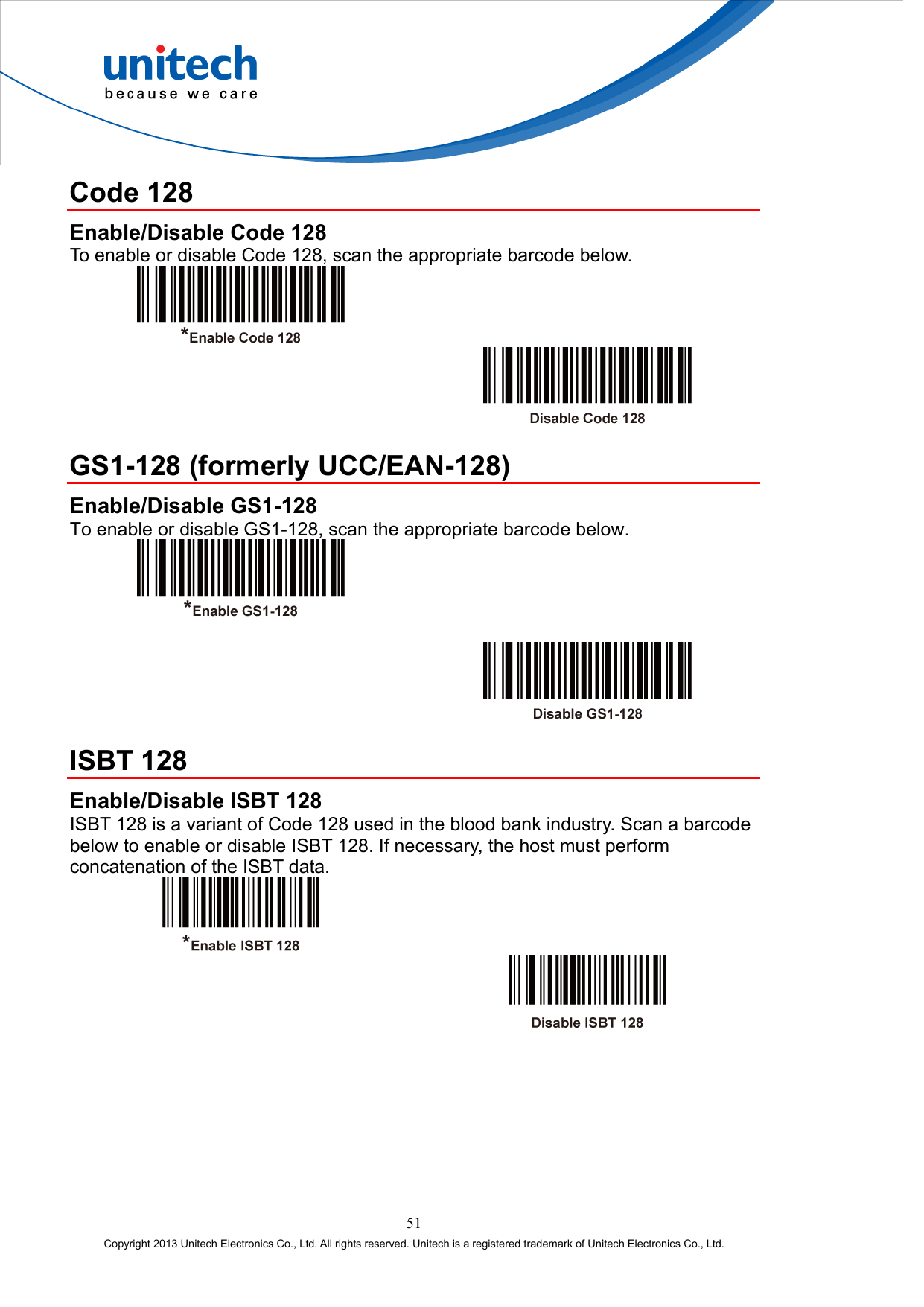

Code 128 Enable/Disable Code 128 To enable or disable Code 128, scan the appropriate barcode below. GS1-128 (formerly UCC/EAN-128) Enable/Disable GS1-128 To enable or disable GS1-128, scan the appropriate barcode below. ISBT 128 Enable/Disable ISBT 128 ISBT 128 is a variant of Code 128 used in the blood bank industry. Scan a barcode below to enable or disable ISBT 128. If necessary, the host must perform concatenation of the ISBT data. 51 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.

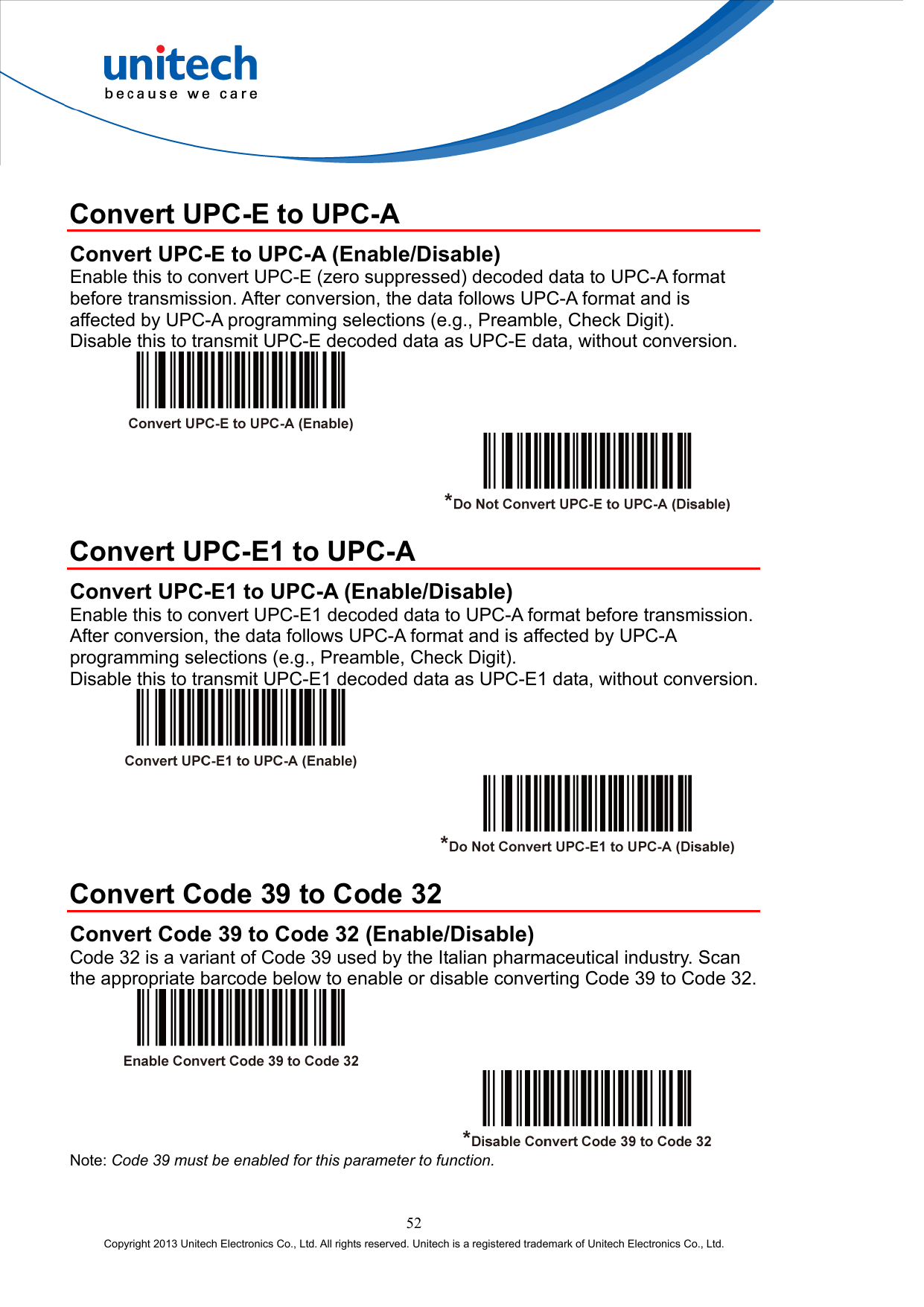

Convert UPC-E to UPC-A Convert UPC-E to UPC-A (Enable/Disable) Enable this to convert UPC-E (zero suppressed) decoded data to UPC-A format before transmission. After conversion, the data follows UPC-A format and is affected by UPC-A programming selections (e.g., Preamble, Check Digit). Disable this to transmit UPC-E decoded data as UPC-E data, without conversion. Convert UPC-E1 to UPC-A Convert UPC-E1 to UPC-A (Enable/Disable) Enable this to convert UPC-E1 decoded data to UPC-A format before transmission. After conversion, the data follows UPC-A format and is affected by UPC-A programming selections (e.g., Preamble, Check Digit). Disable this to transmit UPC-E1 decoded data as UPC-E1 data, without conversion. Convert Code 39 to Code 32 Convert Code 39 to Code 32 (Enable/Disable) Code 32 is a variant of Code 39 used by the Italian pharmaceutical industry. Scan the appropriate barcode below to enable or disable converting Code 39 to Code 32. Note: Code 39 must be enabled for this parameter to function. 52 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.

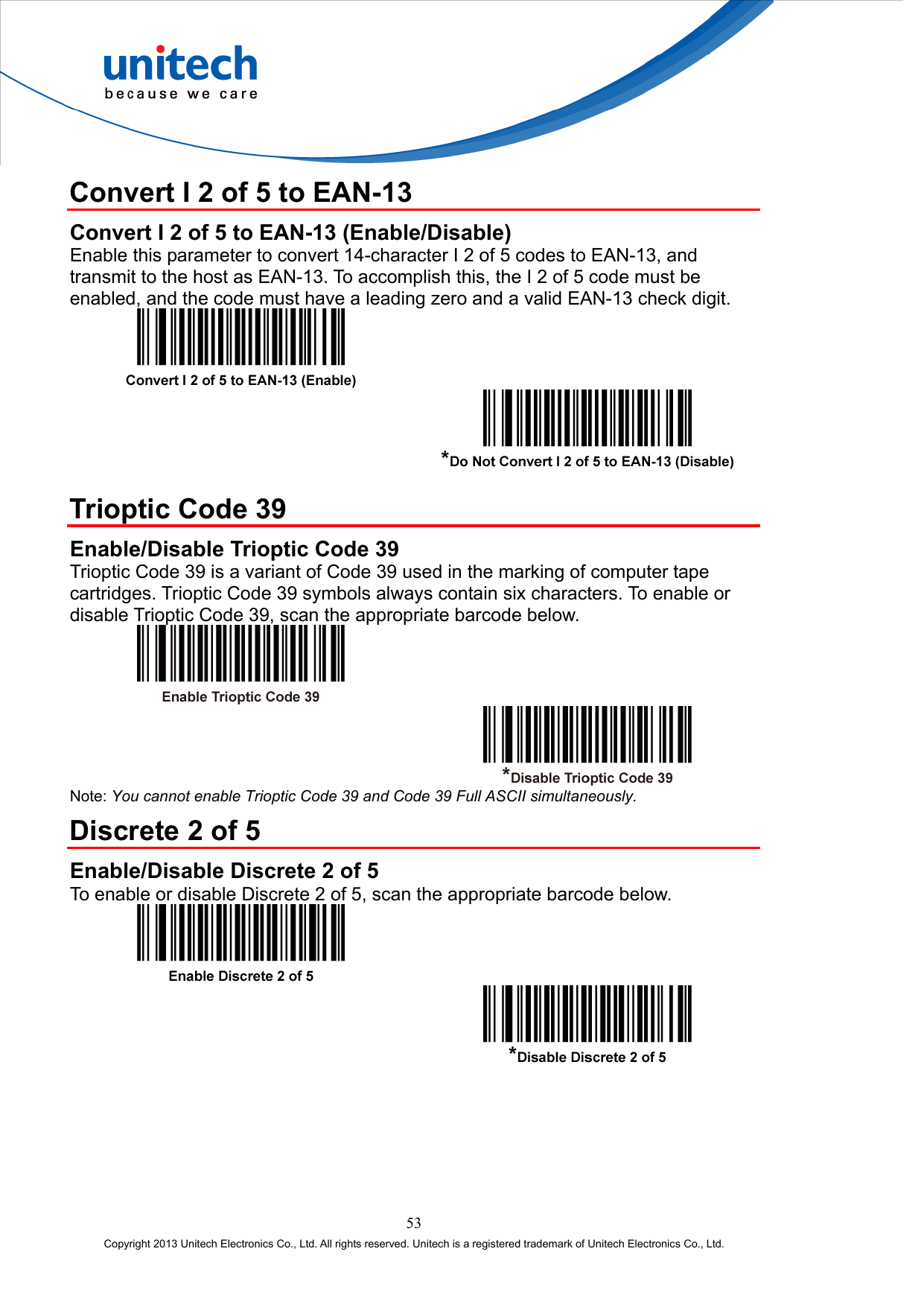

Convert I 2 of 5 to EAN-13 Convert I 2 of 5 to EAN-13 (Enable/Disable) Enable this parameter to convert 14-character I 2 of 5 codes to EAN-13, and transmit to the host as EAN-13. To accomplish this, the I 2 of 5 code must be enabled, and the code must have a leading zero and a valid EAN-13 check digit. Trioptic Code 39 Enable/Disable Trioptic Code 39 Trioptic Code 39 is a variant of Code 39 used in the marking of computer tape cartridges. Trioptic Code 39 symbols always contain six characters. To enable or disable Trioptic Code 39, scan the appropriate barcode below. Note: You cannot enable Trioptic Code 39 and Code 39 Full ASCII simultaneously. Discrete 2 of 5 Enable/Disable Discrete 2 of 5 To enable or disable Discrete 2 of 5, scan the appropriate barcode below. 53 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.

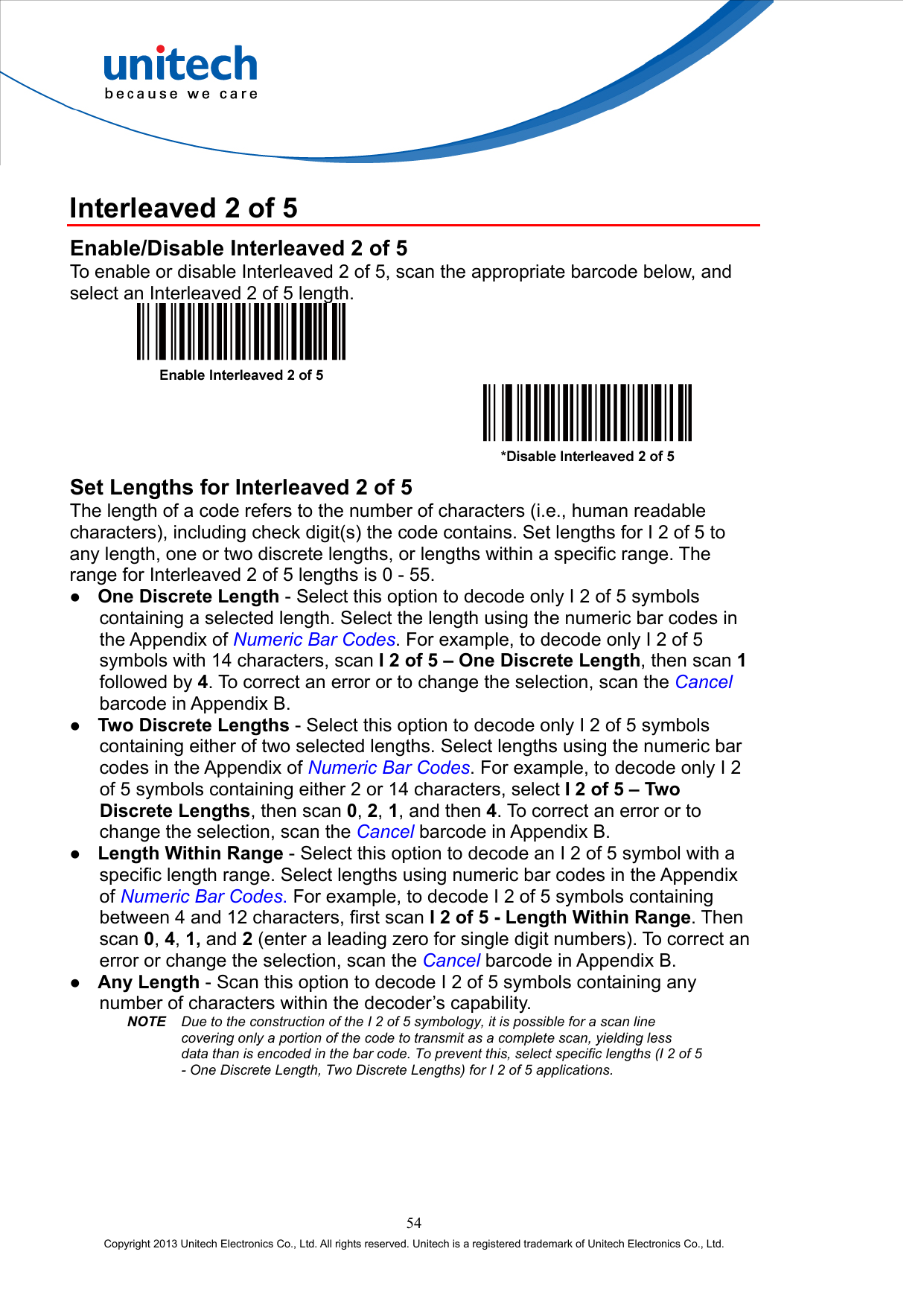

Interleaved 2 of 5 Enable/Disable Interleaved 2 of 5 To enable or disable Interleaved 2 of 5, scan the appropriate barcode below, and select an Interleaved 2 of 5 length. Set Lengths for Interleaved 2 of 5 The length of a code refers to the number of characters (i.e., human readable characters), including check digit(s) the code contains. Set lengths for I 2 of 5 to any length, one or two discrete lengths, or lengths within a specific range. The range for Interleaved 2 of 5 lengths is 0 - 55.  One Discrete Length - Select this option to decode only I 2 of 5 symbols containing a selected length. Select the length using the numeric bar codes in the Appendix of Numeric Bar Codes. For example, to decode only I 2 of 5 symbols with 14 characters, scan I 2 of 5 – One Discrete Length, then scan 1 followed by 4. To correct an error or to change the selection, scan the Cancel barcode in Appendix B.  Two Discrete Lengths - Select this option to decode only I 2 of 5 symbols containing either of two selected lengths. Select lengths using the numeric bar codes in the Appendix of Numeric Bar Codes. For example, to decode only I 2 of 5 symbols containing either 2 or 14 characters, select I 2 of 5 – Two Discrete Lengths, then scan 0, 2, 1, and then 4. To correct an error or to change the selection, scan the Cancel barcode in Appendix B.  Length Within Range - Select this option to decode an I 2 of 5 symbol with a specific length range. Select lengths using numeric bar codes in the Appendix of Numeric Bar Codes. For example, to decode I 2 of 5 symbols containing between 4 and 12 characters, first scan I 2 of 5 - Length Within Range. Then scan 0, 4, 1, and 2 (enter a leading zero for single digit numbers). To correct an error or change the selection, scan the Cancel barcode in Appendix B.  Any Length - Scan this option to decode I 2 of 5 symbols containing any number of characters within the decoder’s capability. NOTE Due to the construction of the I 2 of 5 symbology, it is possible for a scan line covering only a portion of the code to transmit as a complete scan, yielding less data than is encoded in the bar code. To prevent this, select specific lengths (I 2 of 5 - One Discrete Length, Two Discrete Lengths) for I 2 of 5 applications. 54 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.

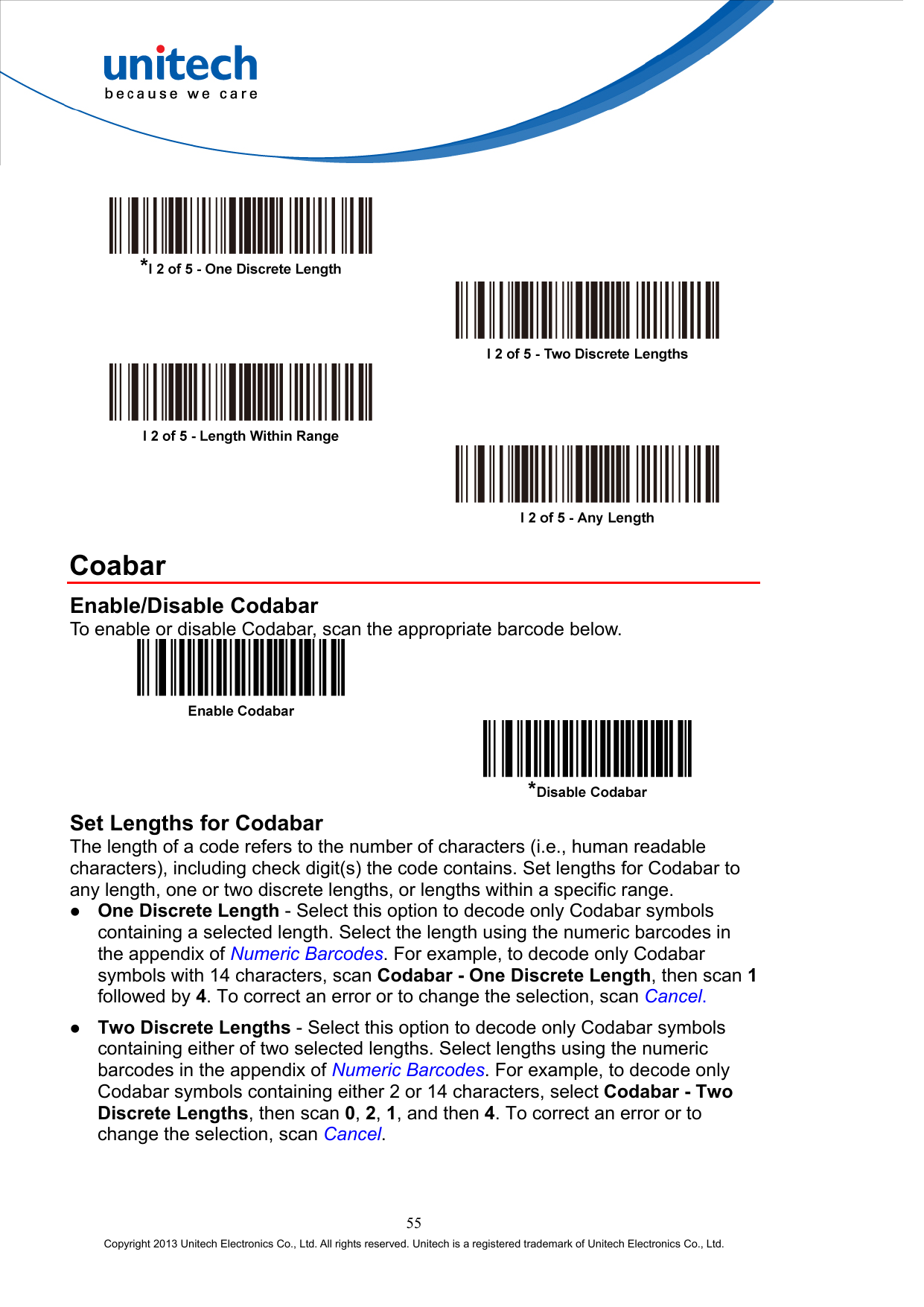

Coabar Enable/Disable Codabar To enable or disable Codabar, scan the appropriate barcode below. Set Lengths for Codabar The length of a code refers to the number of characters (i.e., human readable characters), including check digit(s) the code contains. Set lengths for Codabar to any length, one or two discrete lengths, or lengths within a specific range.  One Discrete Length - Select this option to decode only Codabar symbols containing a selected length. Select the length using the numeric barcodes in the appendix of Numeric Barcodes. For example, to decode only Codabar symbols with 14 characters, scan Codabar - One Discrete Length, then scan 1 followed by 4. To correct an error or to change the selection, scan Cancel.  Two Discrete Lengths - Select this option to decode only Codabar symbols containing either of two selected lengths. Select lengths using the numeric barcodes in the appendix of Numeric Barcodes. For example, to decode only Codabar symbols containing either 2 or 14 characters, select Codabar - Two Discrete Lengths, then scan 0, 2, 1, and then 4. To correct an error or to change the selection, scan Cancel. 55 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.

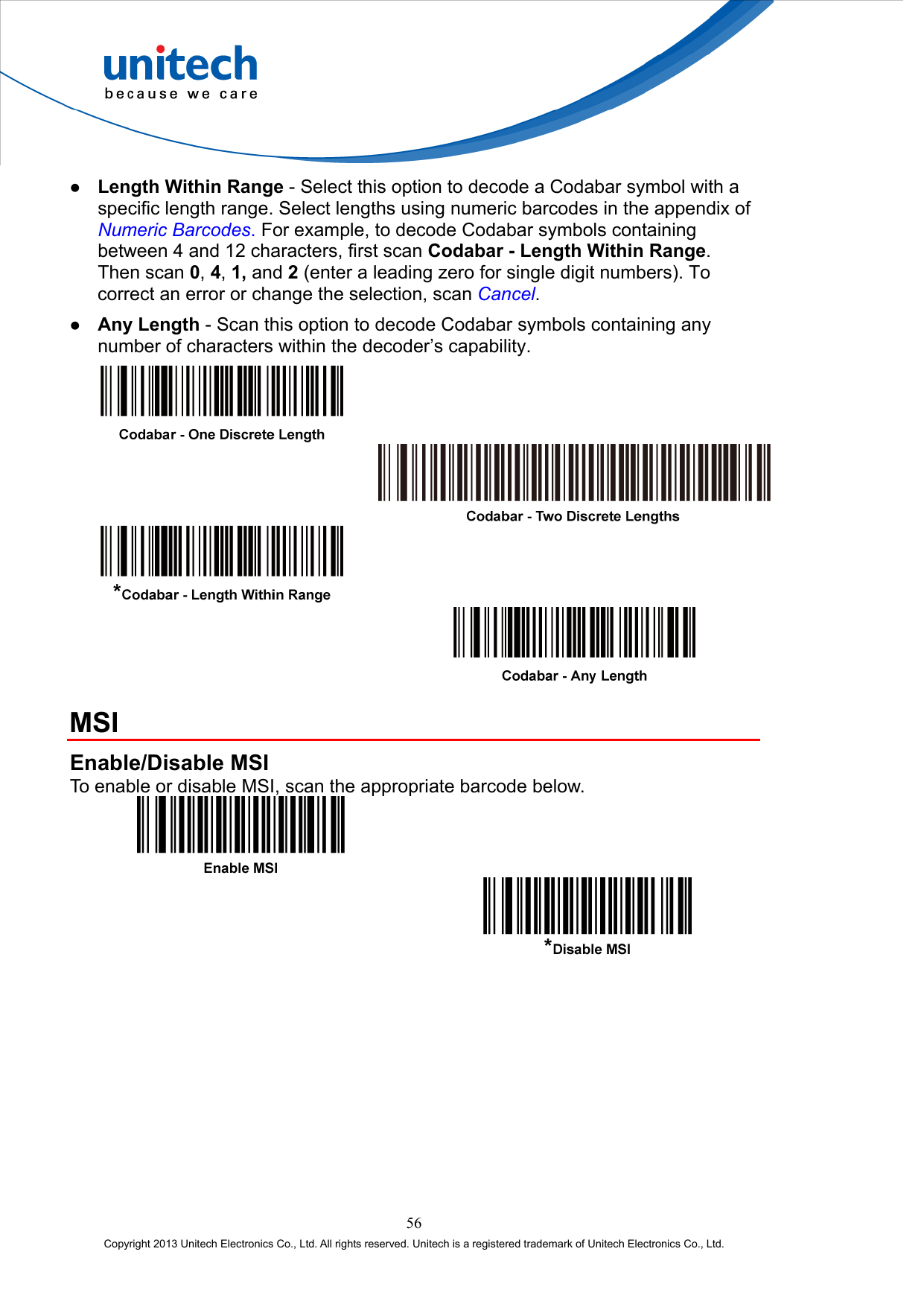

 Length Within Range - Select this option to decode a Codabar symbol with a specific length range. Select lengths using numeric barcodes in the appendix of Numeric Barcodes. For example, to decode Codabar symbols containing between 4 and 12 characters, first scan Codabar - Length Within Range. Then scan 0, 4, 1, and 2 (enter a leading zero for single digit numbers). To correct an error or change the selection, scan Cancel.  Any Length - Scan this option to decode Codabar symbols containing any number of characters within the decoder’s capability. MSI Enable/Disable MSI To enable or disable MSI, scan the appropriate barcode below. 56 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.

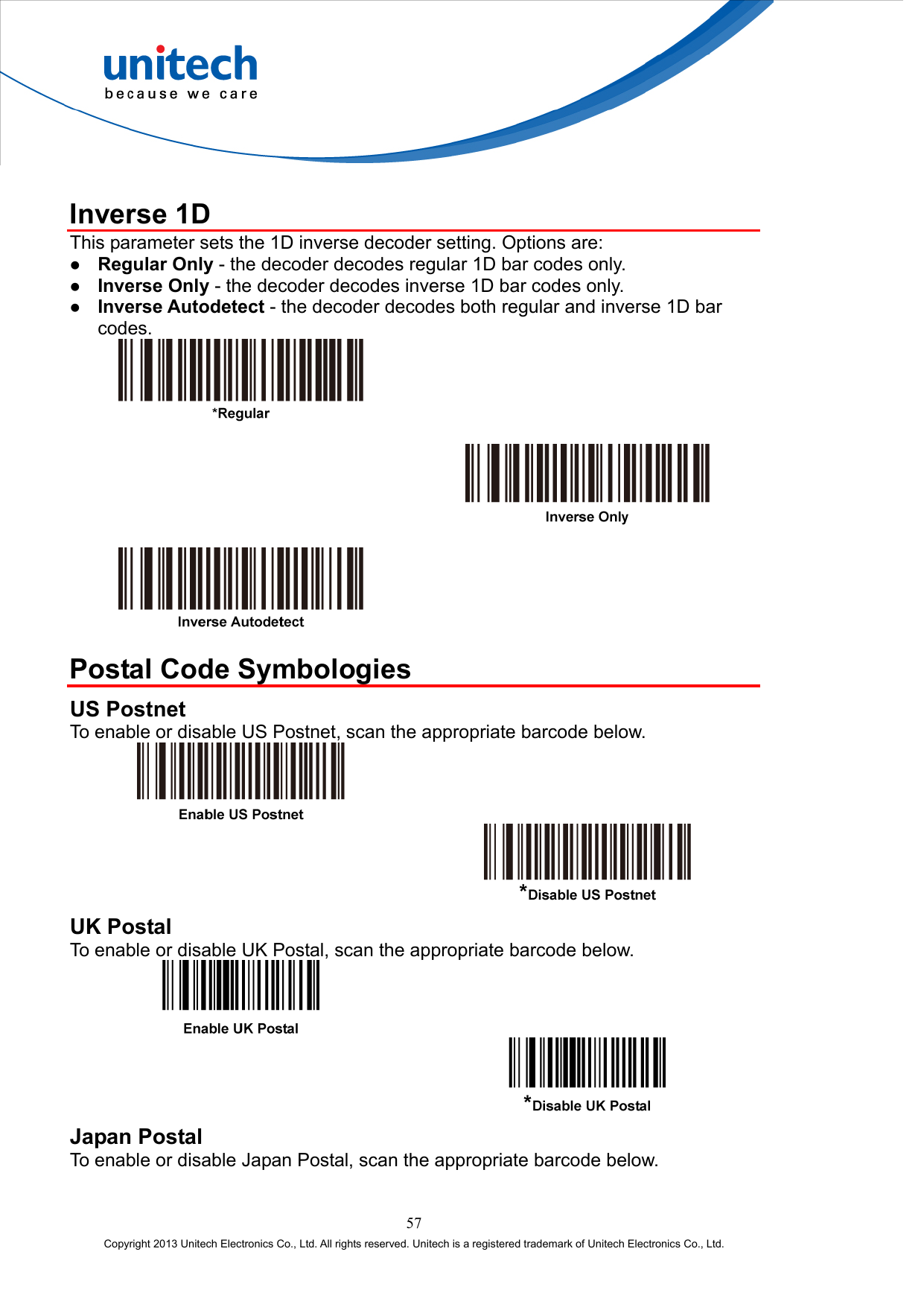

Inverse 1D This parameter sets the 1D inverse decoder setting. Options are:  Regular Only - the decoder decodes regular 1D bar codes only.  Inverse Only - the decoder decodes inverse 1D bar codes only.  Inverse Autodetect - the decoder decodes both regular and inverse 1D bar codes. Postal Code Symbologies US Postnet To enable or disable US Postnet, scan the appropriate barcode below. UK Postal To enable or disable UK Postal, scan the appropriate barcode below. Japan Postal To enable or disable Japan Postal, scan the appropriate barcode below. 57 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.

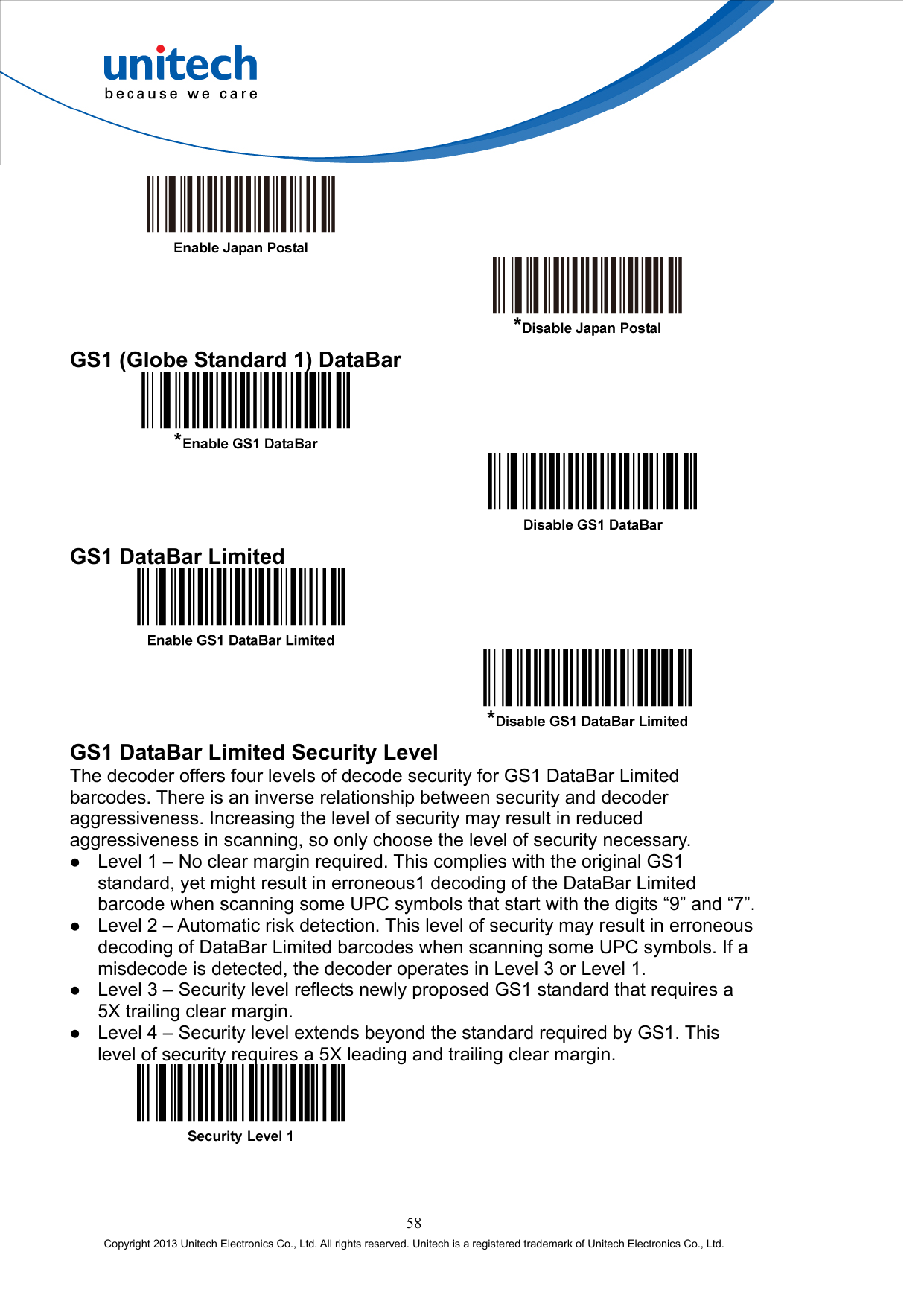

GS1 (Globe Standard 1) DataBar GS1 DataBar Limited GS1 DataBar Limited Security Level The decoder offers four levels of decode security for GS1 DataBar Limited barcodes. There is an inverse relationship between security and decoder aggressiveness. Increasing the level of security may result in reduced aggressiveness in scanning, so only choose the level of security necessary.  Level 1 – No clear margin required. This complies with the original GS1 standard, yet might result in erroneous1 decoding of the DataBar Limited barcode when scanning some UPC symbols that start with the digits “9” and “7”.  Level 2 – Automatic risk detection. This level of security may result in erroneous decoding of DataBar Limited barcodes when scanning some UPC symbols. If a misdecode is detected, the decoder operates in Level 3 or Level 1.  Level 3 – Security level reflects newly proposed GS1 standard that requires a 5X trailing clear margin.  Level 4 – Security level extends beyond the standard required by GS1. This level of security requires a 5X leading and trailing clear margin. 58 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.

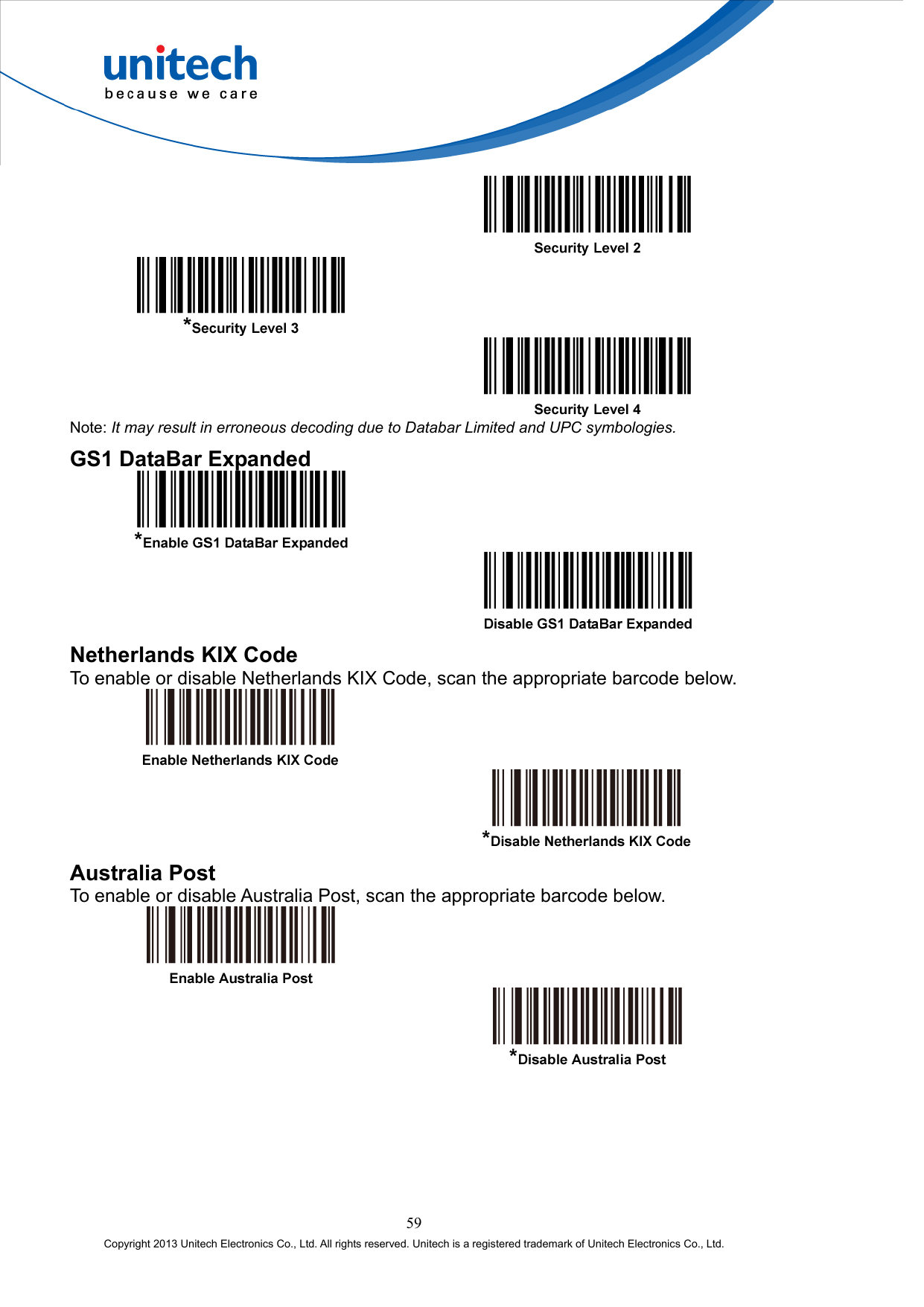

Note: It may result in erroneous decoding due to Databar Limited and UPC symbologies. GS1 DataBar Expanded Netherlands KIX Code To enable or disable Netherlands KIX Code, scan the appropriate barcode below. Australia Post To enable or disable Australia Post, scan the appropriate barcode below. 59 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.

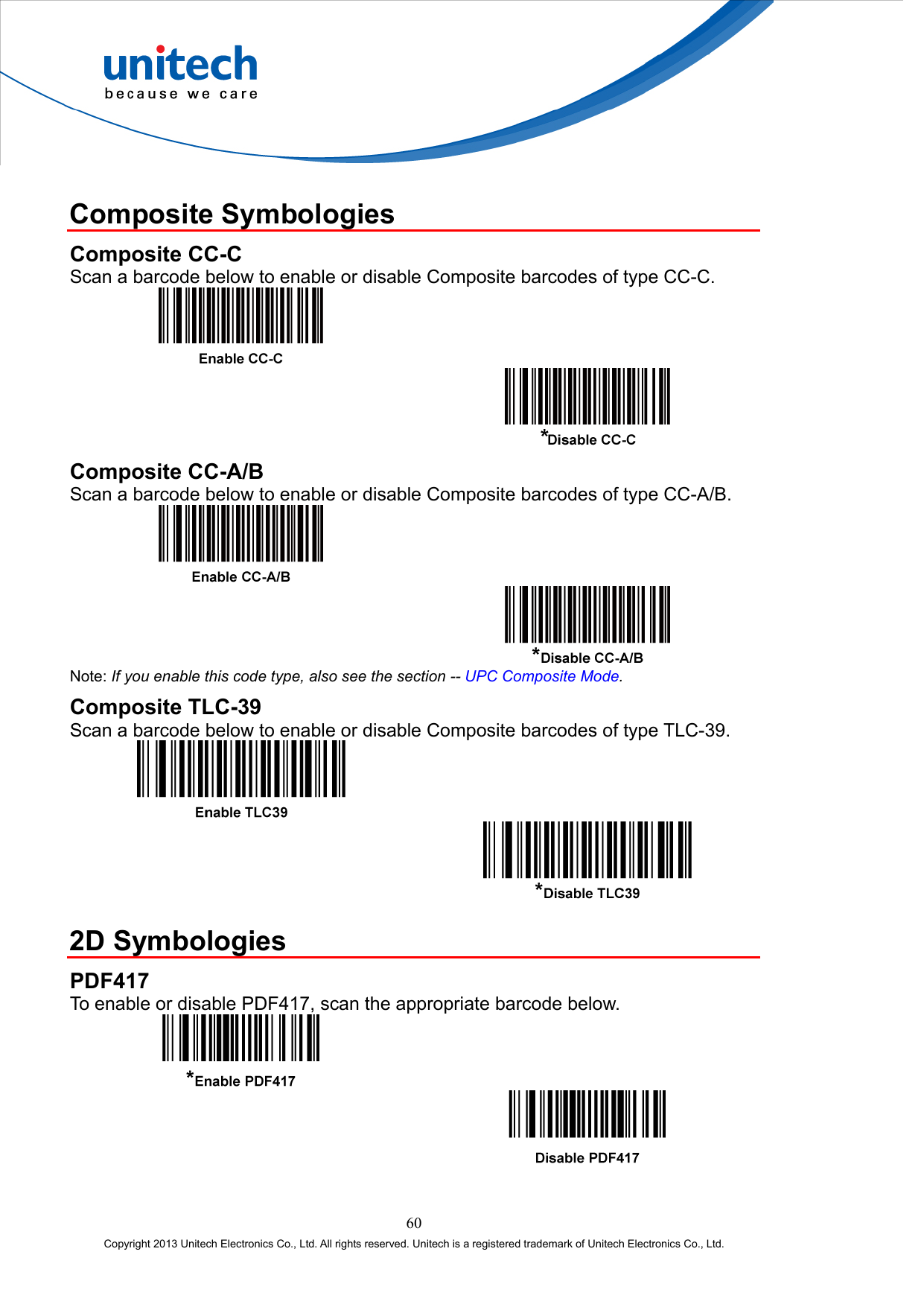

Composite Symbologies Composite CC-C Scan a barcode below to enable or disable Composite barcodes of type CC-C. Composite CC-A/B Scan a barcode below to enable or disable Composite barcodes of type CC-A/B. Note: If you enable this code type, also see the section -- UPC Composite Mode. Composite TLC-39 Scan a barcode below to enable or disable Composite barcodes of type TLC-39. 2D Symbologies PDF417 To enable or disable PDF417, scan the appropriate barcode below. 60 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.

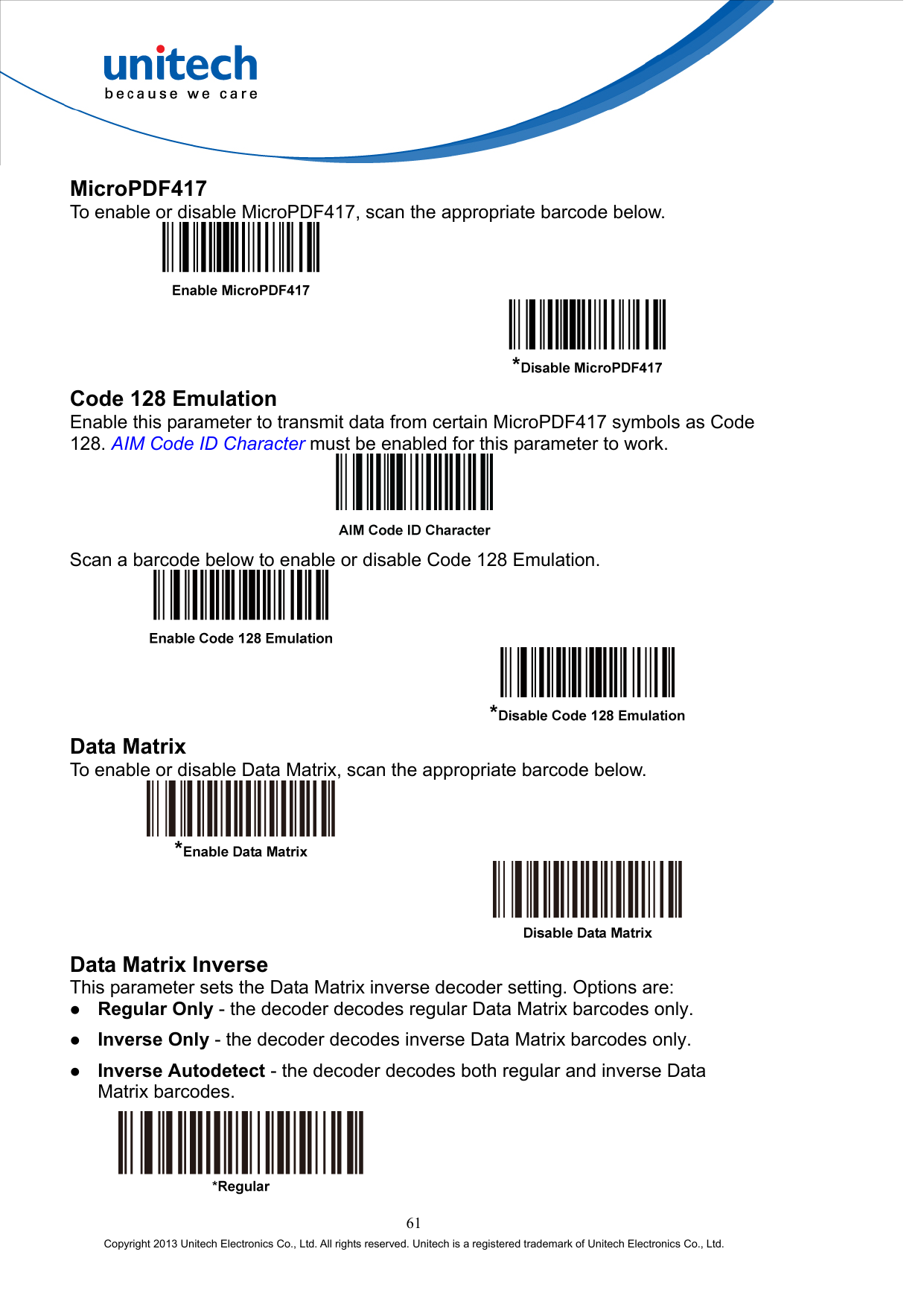

MicroPDF417 To enable or disable MicroPDF417, scan the appropriate barcode below. Code 128 Emulation Enable this parameter to transmit data from certain MicroPDF417 symbols as Code 128. AIM Code ID Character must be enabled for this parameter to work. Scan a barcode below to enable or disable Code 128 Emulation. Data Matrix To enable or disable Data Matrix, scan the appropriate barcode below. Data Matrix Inverse This parameter sets the Data Matrix inverse decoder setting. Options are:  Regular Only - the decoder decodes regular Data Matrix barcodes only.  Inverse Only - the decoder decodes inverse Data Matrix barcodes only.  Inverse Autodetect - the decoder decodes both regular and inverse Data Matrix barcodes. 61 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.

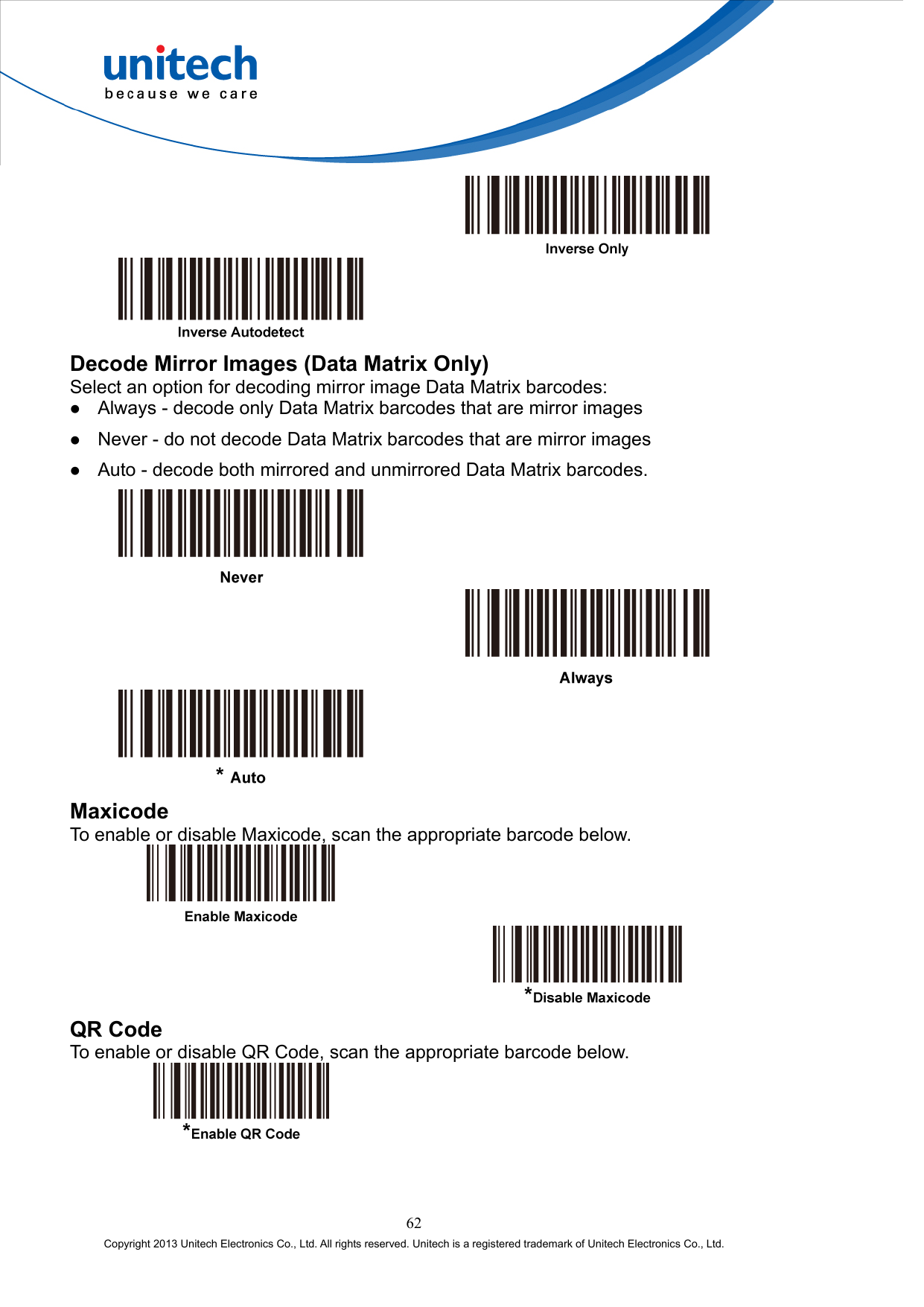

Decode Mirror Images (Data Matrix Only) Select an option for decoding mirror image Data Matrix barcodes:  Always - decode only Data Matrix barcodes that are mirror images  Never - do not decode Data Matrix barcodes that are mirror images  Auto - decode both mirrored and unmirrored Data Matrix barcodes. Maxicode To enable or disable Maxicode, scan the appropriate barcode below. QR Code To enable or disable QR Code, scan the appropriate barcode below. 62 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.

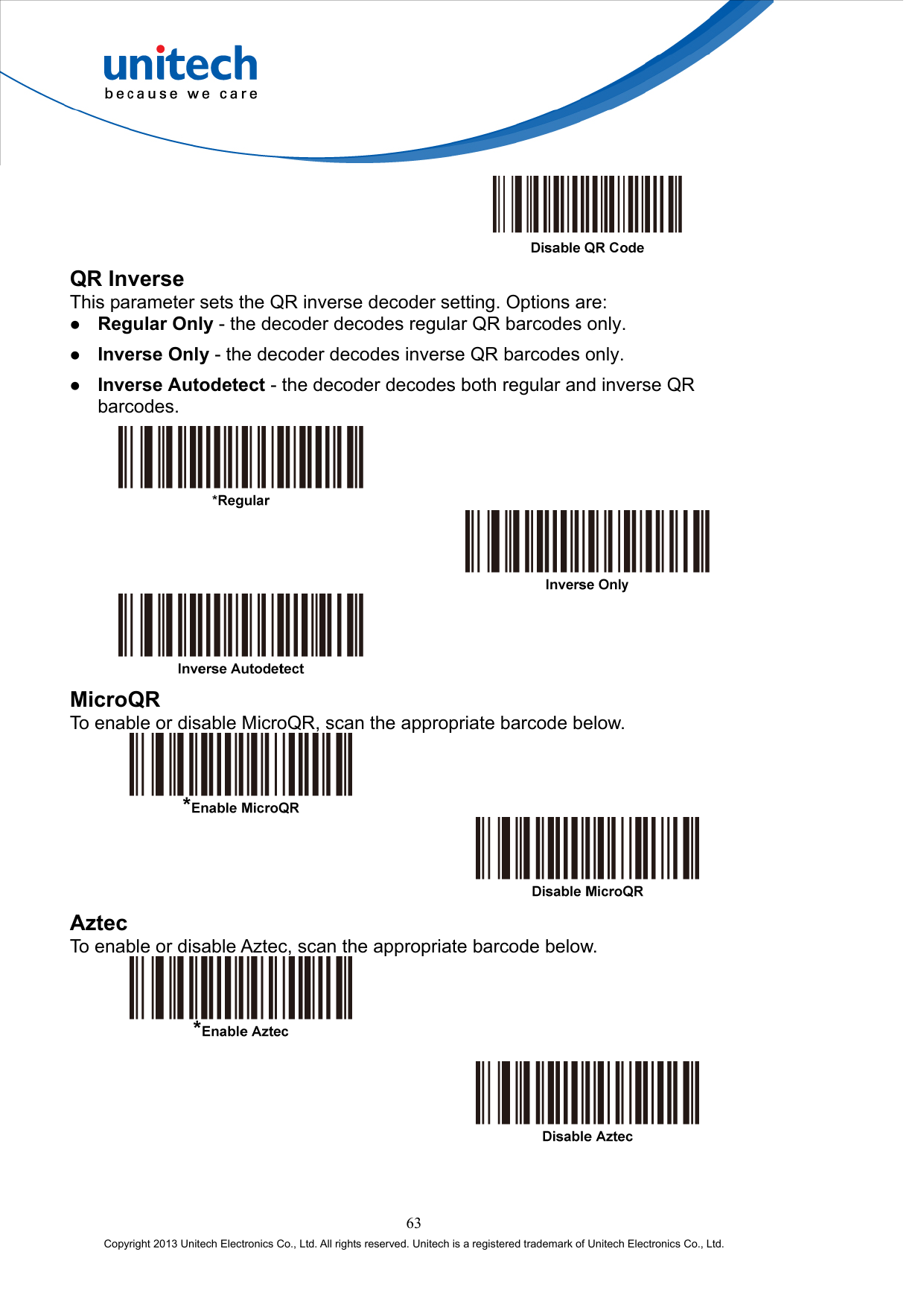

QR Inverse This parameter sets the QR inverse decoder setting. Options are:  Regular Only - the decoder decodes regular QR barcodes only.  Inverse Only - the decoder decodes inverse QR barcodes only.  Inverse Autodetect - the decoder decodes both regular and inverse QR barcodes. MicroQR To enable or disable MicroQR, scan the appropriate barcode below. Aztec To enable or disable Aztec, scan the appropriate barcode below. 63 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.

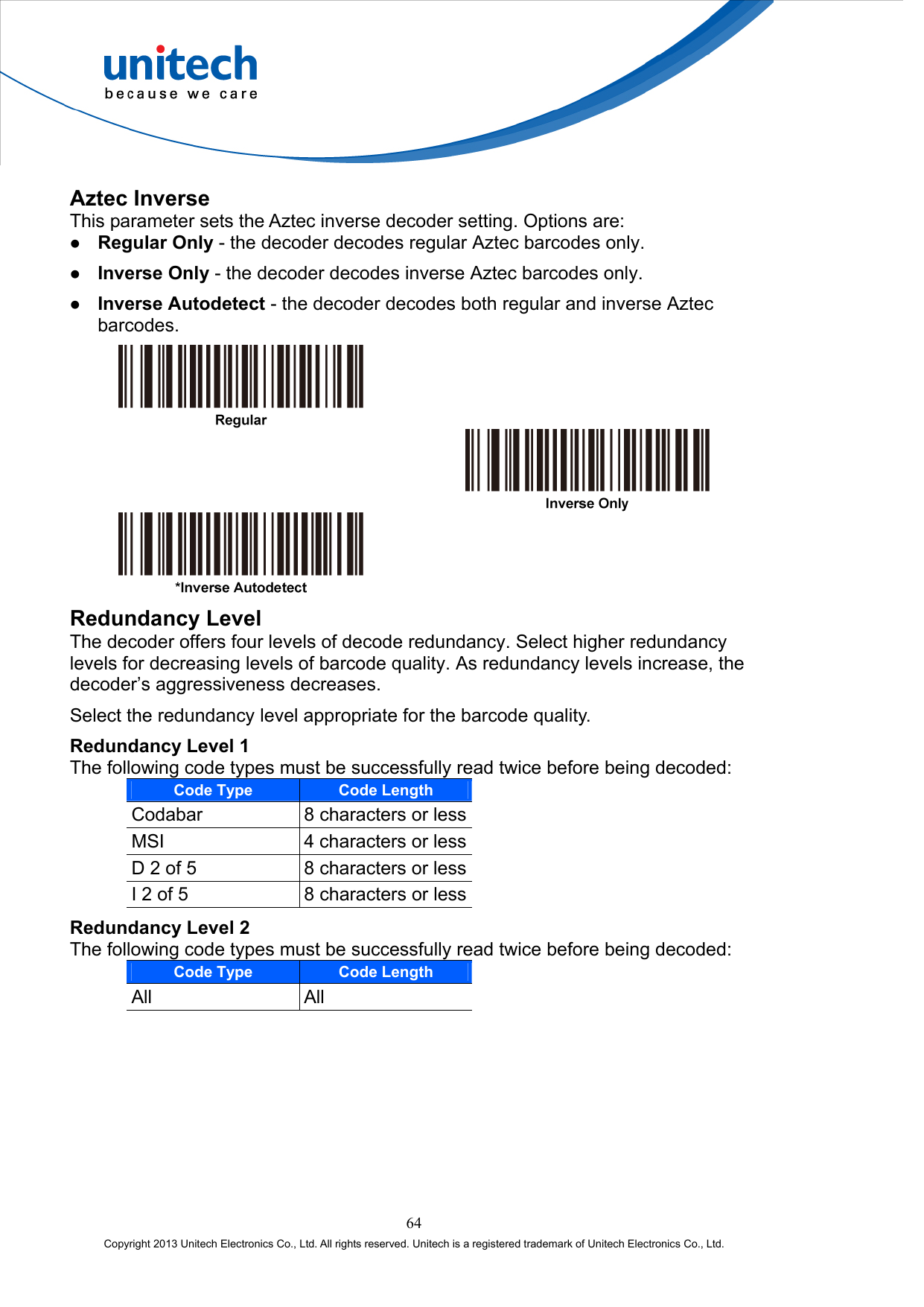

Aztec Inverse This parameter sets the Aztec inverse decoder setting. Options are:  Regular Only - the decoder decodes regular Aztec barcodes only.  Inverse Only - the decoder decodes inverse Aztec barcodes only.  Inverse Autodetect - the decoder decodes both regular and inverse Aztec barcodes. Redundancy Level The decoder offers four levels of decode redundancy. Select higher redundancy levels for decreasing levels of barcode quality. As redundancy levels increase, the decoder’s aggressiveness decreases. Select the redundancy level appropriate for the barcode quality. Redundancy Level 1 The following code types must be successfully read twice before being decoded: Code Type Code Length Codabar 8 characters or lessMSI 4 characters or lessD 2 of 5 8 characters or lessI 2 of 5 8 characters or lessRedundancy Level 2 The following code types must be successfully read twice before being decoded: Code Type Code Length All All 64 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.

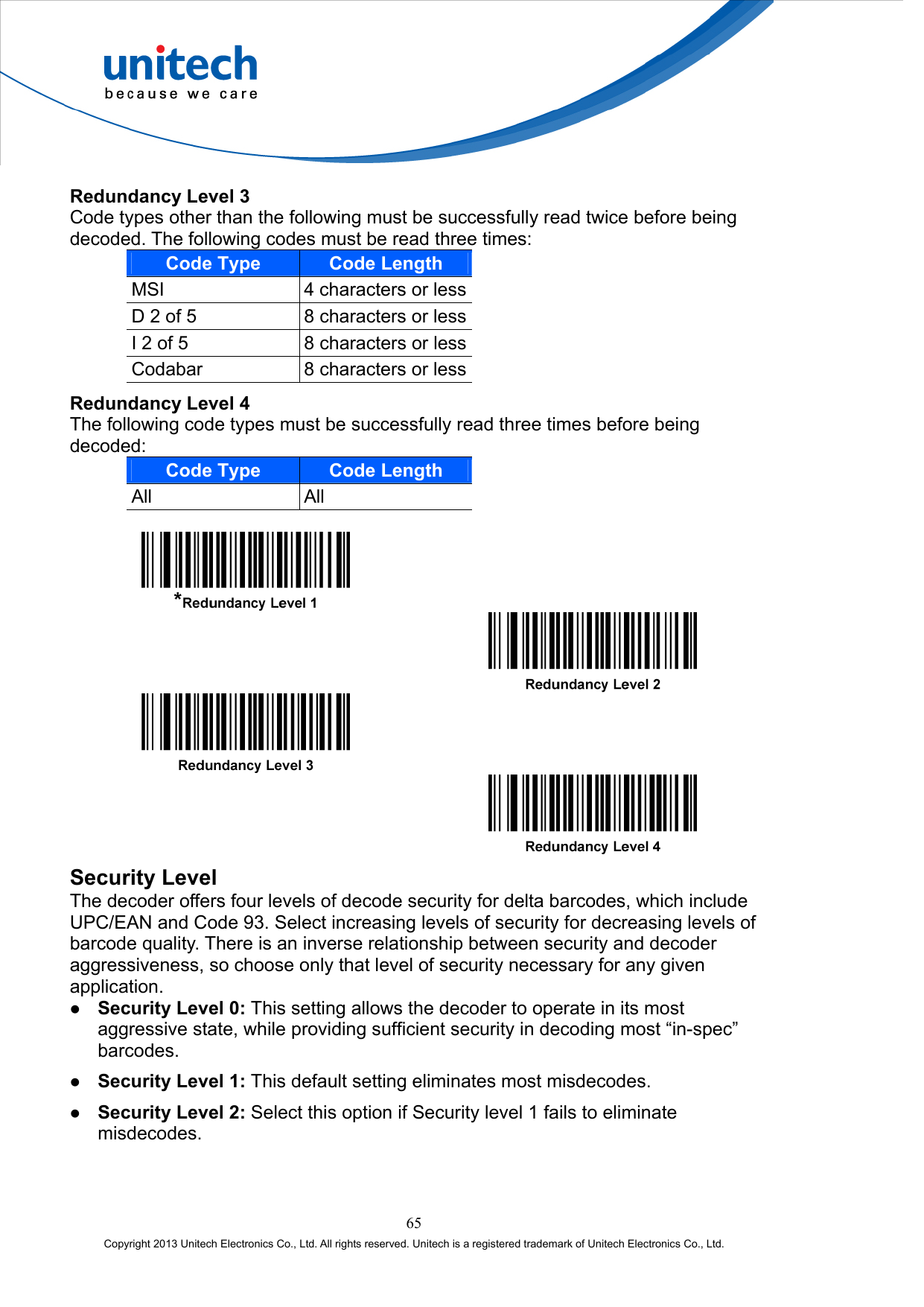

Redundancy Level 3 Code types other than the following must be successfully read twice before being decoded. The following codes must be read three times: Code Type Code Length MSI 4 characters or lessD 2 of 5 8 characters or lessI 2 of 5 8 characters or lessCodabar 8 characters or lessRedundancy Level 4 The following code types must be successfully read three times before being decoded: Code Type Code Length All All Security Level The decoder offers four levels of decode security for delta barcodes, which include UPC/EAN and Code 93. Select increasing levels of security for decreasing levels of barcode quality. There is an inverse relationship between security and decoder aggressiveness, so choose only that level of security necessary for any given application.  Security Level 0: This setting allows the decoder to operate in its most aggressive state, while providing sufficient security in decoding most “in-spec” barcodes.  Security Level 1: This default setting eliminates most misdecodes.  Security Level 2: Select this option if Security level 1 fails to eliminate misdecodes. 65 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.

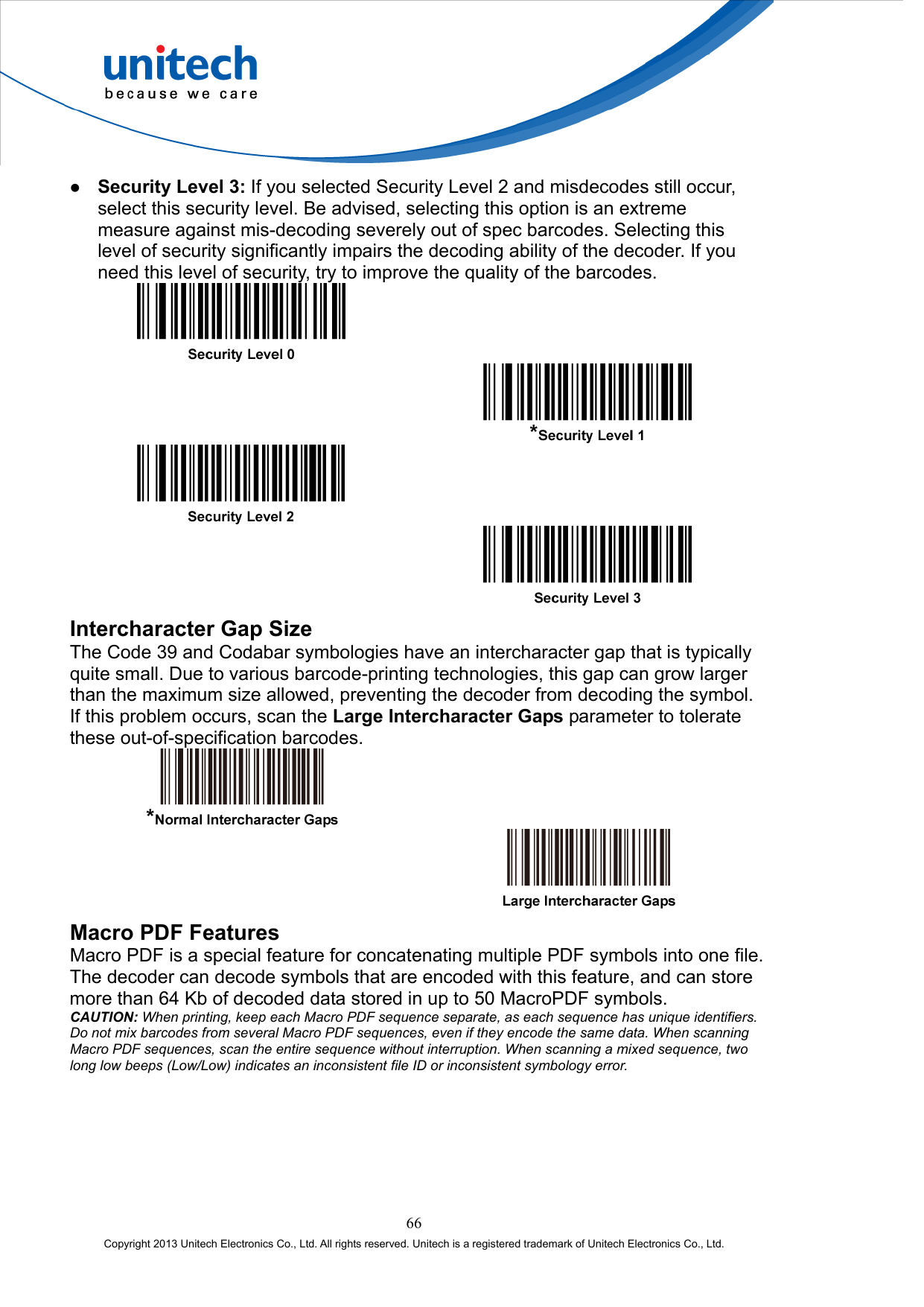

 Security Level 3: If you selected Security Level 2 and misdecodes still occur, select this security level. Be advised, selecting this option is an extreme measure against mis-decoding severely out of spec barcodes. Selecting this level of security significantly impairs the decoding ability of the decoder. If you need this level of security, try to improve the quality of the barcodes. Intercharacter Gap Size The Code 39 and Codabar symbologies have an intercharacter gap that is typically quite small. Due to various barcode-printing technologies, this gap can grow larger than the maximum size allowed, preventing the decoder from decoding the symbol. If this problem occurs, scan the Large Intercharacter Gaps parameter to tolerate these out-of-specification barcodes. Macro PDF Features Macro PDF is a special feature for concatenating multiple PDF symbols into one file. The decoder can decode symbols that are encoded with this feature, and can store more than 64 Kb of decoded data stored in up to 50 MacroPDF symbols. CAUTION: When printing, keep each Macro PDF sequence separate, as each sequence has unique identifiers. Do not mix barcodes from several Macro PDF sequences, even if they encode the same data. When scanning Macro PDF sequences, scan the entire sequence without interruption. When scanning a mixed sequence, two long low beeps (Low/Low) indicates an inconsistent file ID or inconsistent symbology error. 66 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.

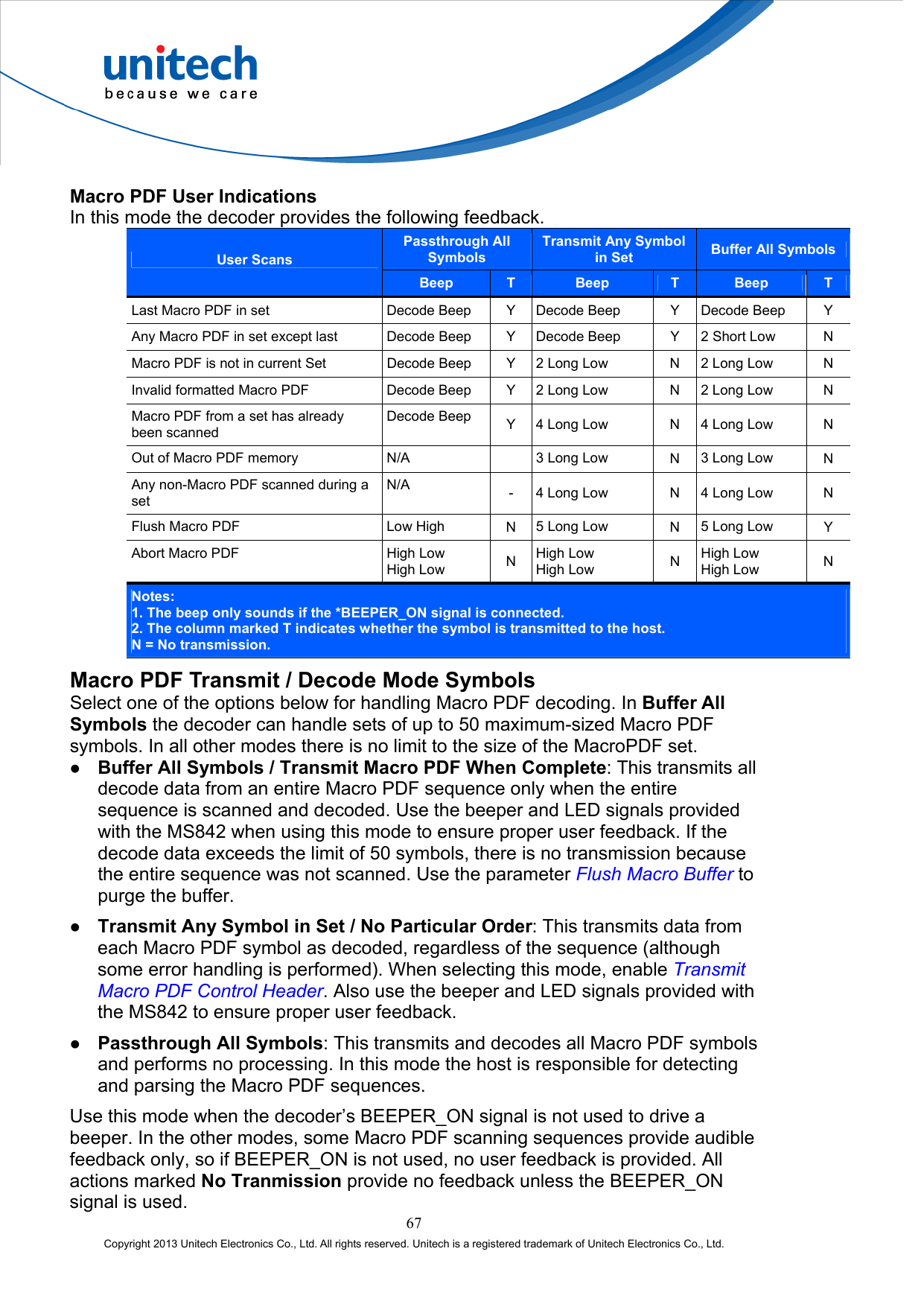

67 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd. Macro PDF User Indications In this mode the decoder provides the following feedback. Passthrough All Symbols Transmit Any Symbol in Set Buffer All Symbols User Scans Beep T Beep T Beep T Last Macro PDF in set Decode Beep Y Decode Beep Y Decode Beep Y Any Macro PDF in set except last Decode Beep Y Decode Beep Y 2 Short Low N Macro PDF is not in current Set Decode Beep Y 2 Long Low N 2 Long Low N Invalid formatted Macro PDF Decode Beep Y 2 Long Low N 2 Long Low N Macro PDF from a set has already been scanned Decode Beep Y 4 Long Low N 4 Long Low N Out of Macro PDF memory N/A 3 Long Low N 3 Long Low N Any non-Macro PDF scanned during a set N/A - 4 Long Low N 4 Long Low N Flush Macro PDF Low High N 5 Long Low N 5 Long Low Y Abort Macro PDF High Low High Low N High Low High Low N High Low High Low N Notes: 1. The beep only sounds if the *BEEPER_ON signal is connected. 2. The column marked T indicates whether the symbol is transmitted to the host. N = No transmission. Macro PDF Transmit / Decode Mode Symbols Select one of the options below for handling Macro PDF decoding. In Buffer All Symbols the decoder can handle sets of up to 50 maximum-sized Macro PDF symbols. In all other modes there is no limit to the size of the MacroPDF set.  Buffer All Symbols / Transmit Macro PDF When Complete: This transmits all decode data from an entire Macro PDF sequence only when the entire sequence is scanned and decoded. Use the beeper and LED signals provided with the MS842 when using this mode to ensure proper user feedback. If the decode data exceeds the limit of 50 symbols, there is no transmission because the entire sequence was not scanned. Use the parameter Flush Macro Buffer to purge the buffer.  Transmit Any Symbol in Set / No Particular Order: This transmits data from each Macro PDF symbol as decoded, regardless of the sequence (although some error handling is performed). When selecting this mode, enable Transmit Macro PDF Control Header. Also use the beeper and LED signals provided with the MS842 to ensure proper user feedback.  Passthrough All Symbols: This transmits and decodes all Macro PDF symbols and performs no processing. In this mode the host is responsible for detecting and parsing the Macro PDF sequences. Use this mode when the decoder’s BEEPER_ON signal is not used to drive a beeper. In the other modes, some Macro PDF scanning sequences provide audible feedback only, so if BEEPER_ON is not used, no user feedback is provided. All actions marked No Tranmission provide no feedback unless the BEEPER_ON signal is used.

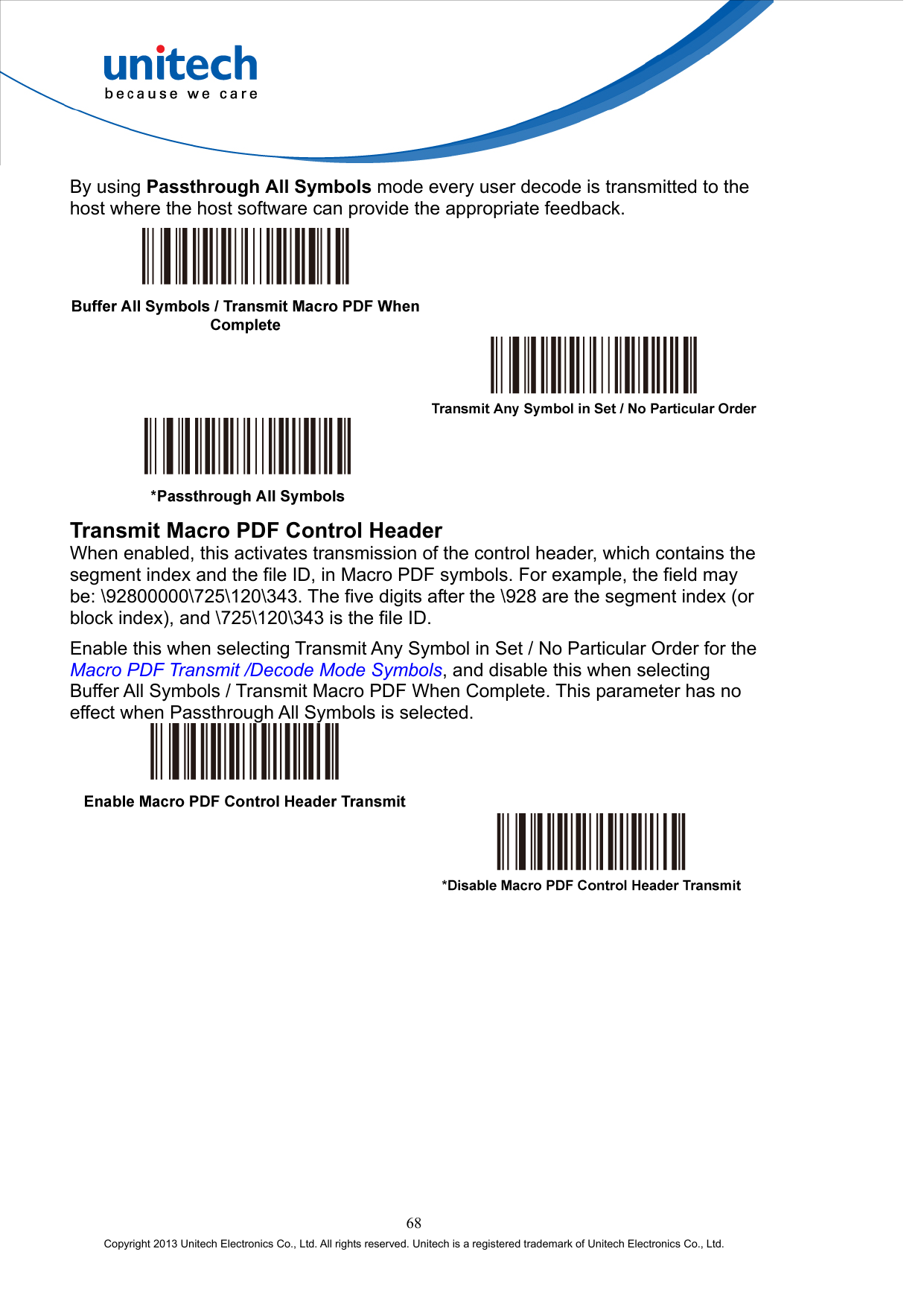

$By using Passthrough All Symbols mode every user decode is transmitted to the host where the host software can provide the appropriate feedback. Transmit Macro PDF Control Header When enabled, this activates transmission of the control header, which contains the segment index and the file ID, in Macro PDF symbols. For example, the field may be: \92800000\725\120\343. The five digits after the \928 are the segment index (or block index), and \725\120\343 is the file ID. Enable this when selecting Transmit Any Symbol in Set / No Particular Order for the Macro PDF Transmit /Decode Mode Symbols, and disable this when selecting Buffer All Symbols / Transmit Macro PDF When Complete. This parameter has no effect when Passthrough All Symbols is selected. 68 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.$

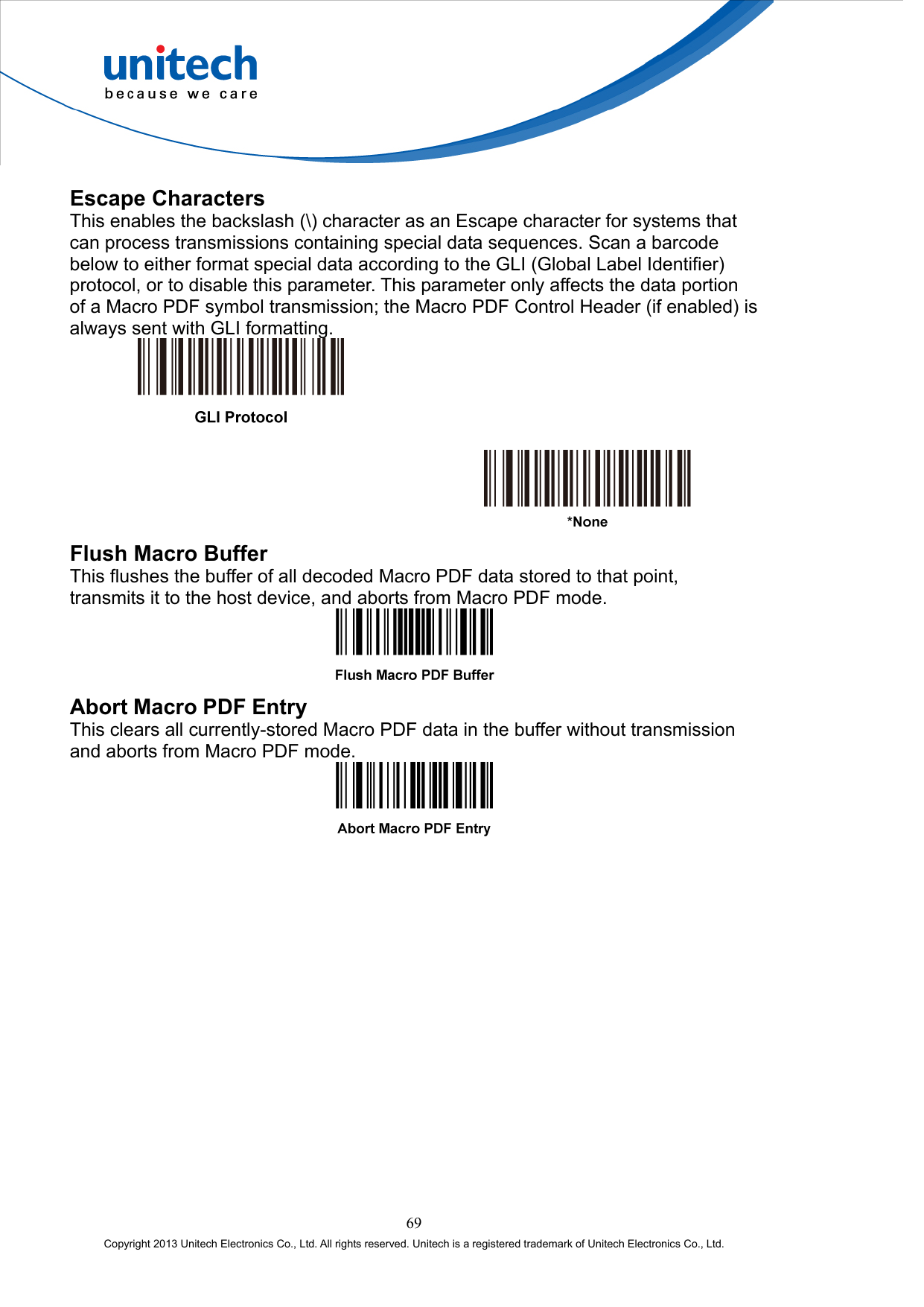

$Escape Characters This enables the backslash (\) character as an Escape character for systems that can process transmissions containing special data sequences. Scan a barcode below to either format special data according to the GLI (Global Label Identifier) protocol, or to disable this parameter. This parameter only affects the data portion of a Macro PDF symbol transmission; the Macro PDF Control Header (if enabled) is always sent with GLI formatting. Flush Macro Buffer This flushes the buffer of all decoded Macro PDF data stored to that point, transmits it to the host device, and aborts from Macro PDF mode. Abort Macro PDF Entry This clears all currently-stored Macro PDF data in the buffer without transmission and aborts from Macro PDF mode. 69 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.$

70 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.

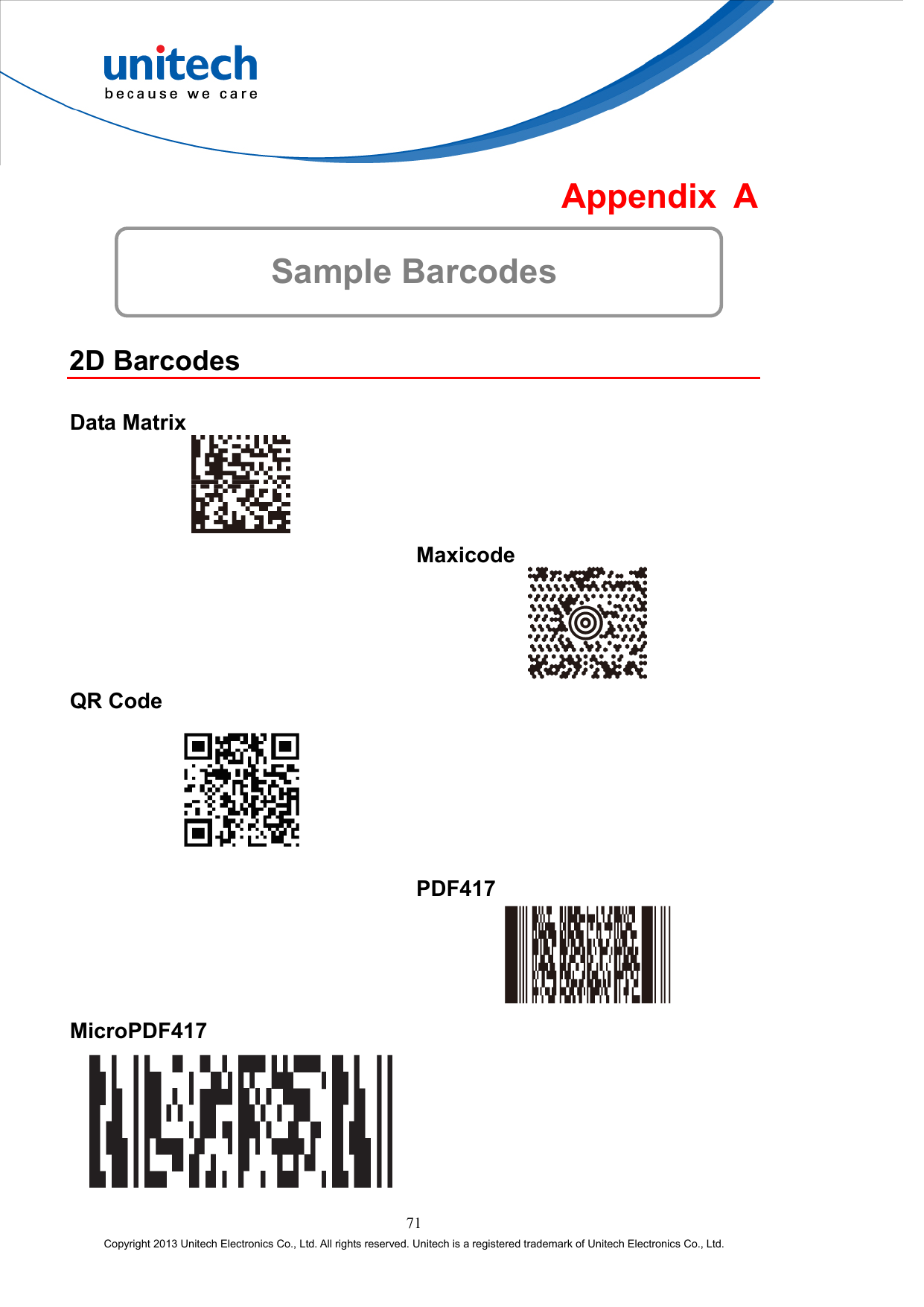

Appendix A Sample Barcodes 2D Barcodes Data Matrix Maxicode QR Code PDF417 MicroPDF417 71 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.

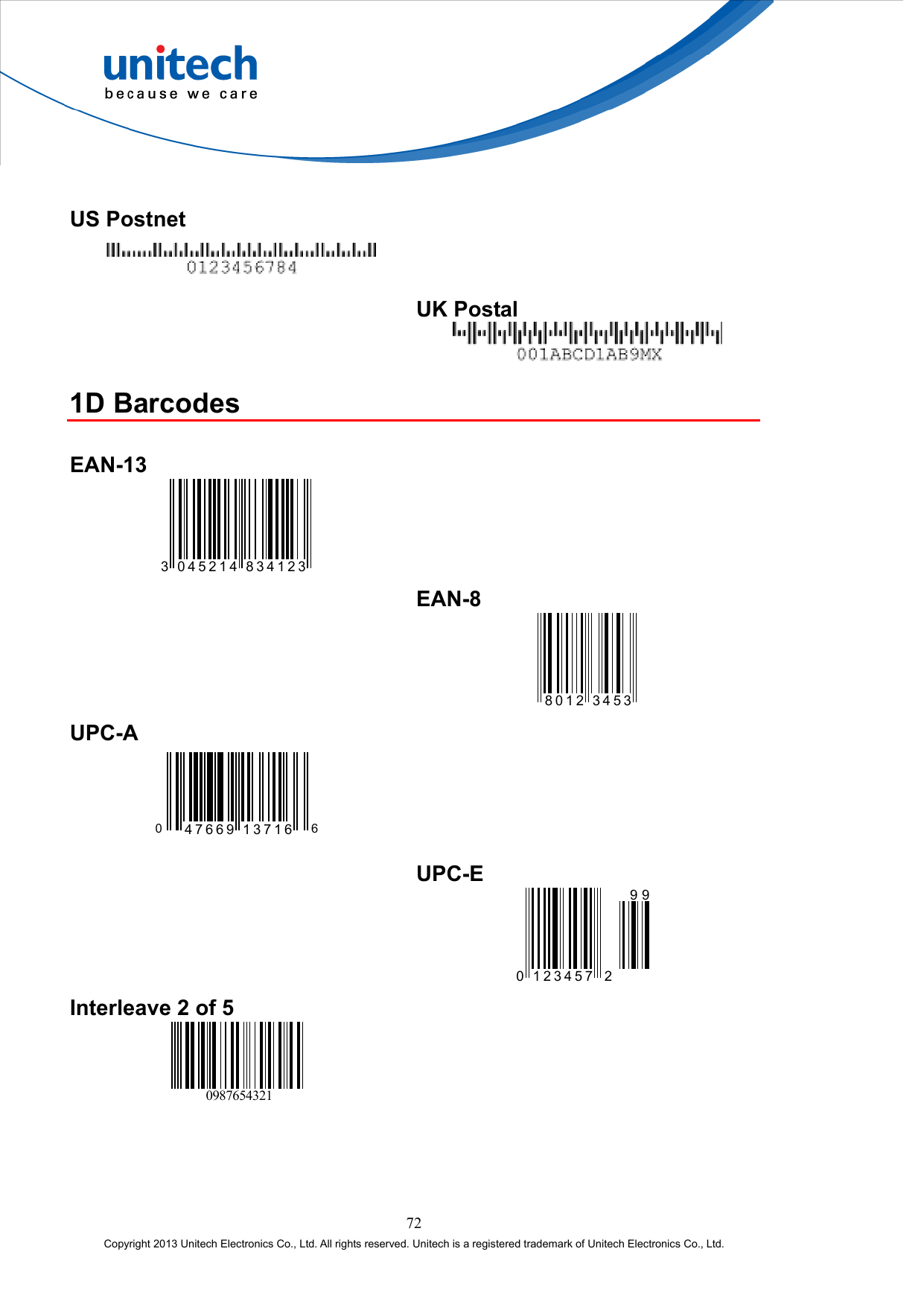

US Postnet UK Postal 1D Barcodes EAN-13 3 045214 834123 EAN-8 8012 3453 UPC-A UPC-E 0212345799 Interleave 2 of 5 0987654321 0647669 1371672 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.

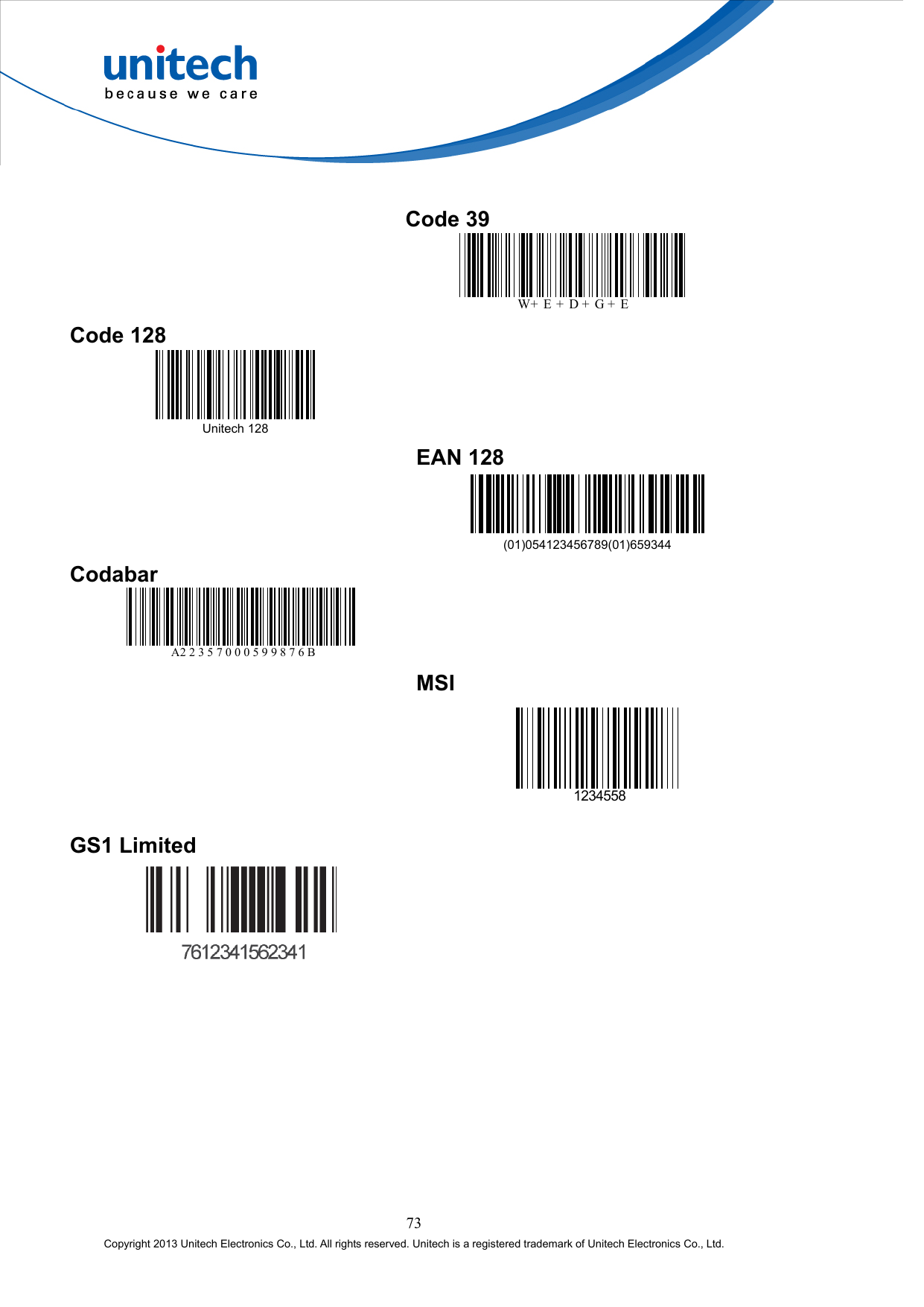

Code 39 W+ E + D + G + E Code 128 Unitech 128 EAN 128 (01)054123456789(01)659344 Codabar A22357000599876B MSI GS1 Limited 1234558 73 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.

74 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.

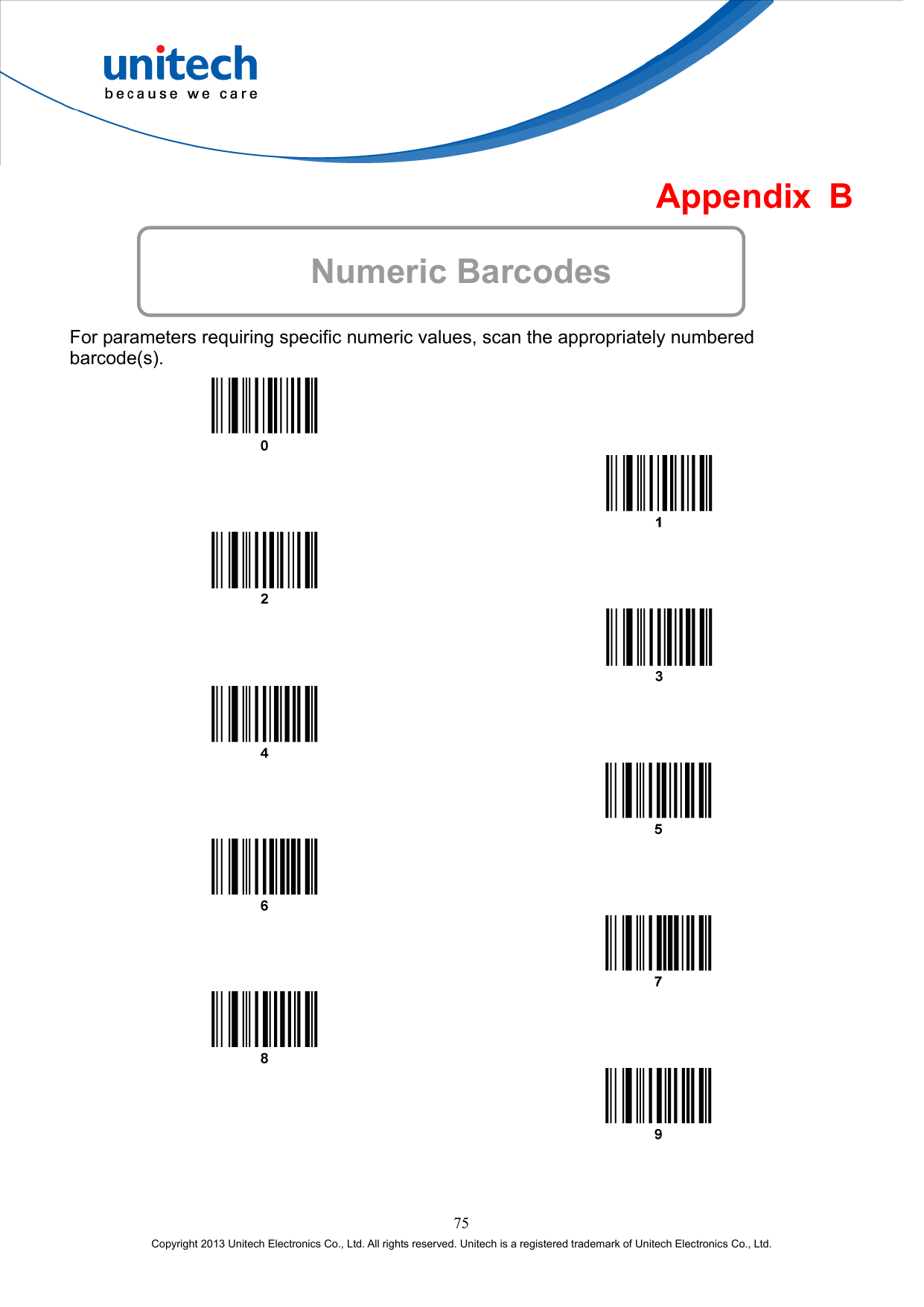

Appendix B Numeric Barcodes For parameters requiring specific numeric values, scan the appropriately numbered barcode(s). 75 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.

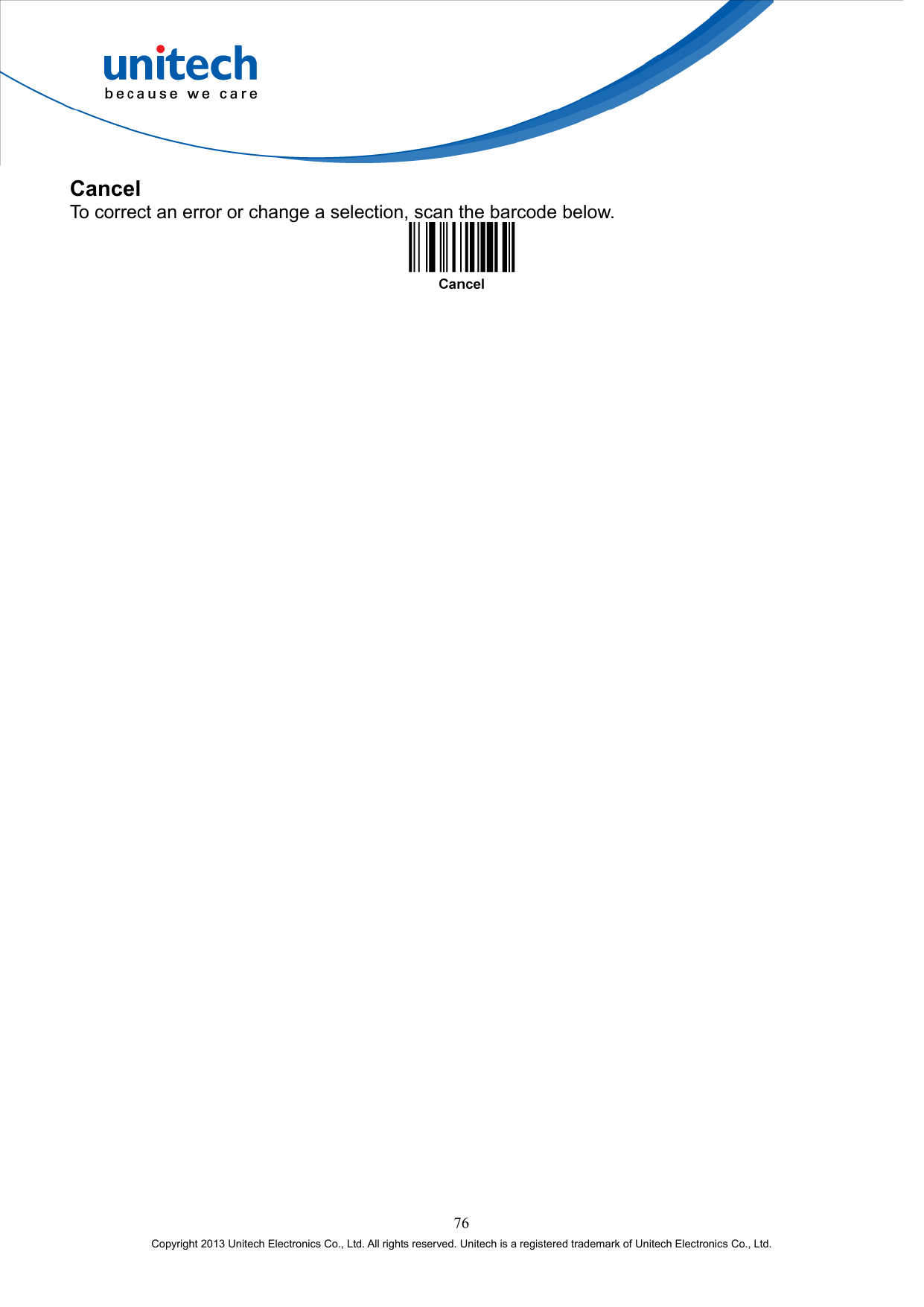

Cancel To correct an error or change a selection, scan the barcode below. 76 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.

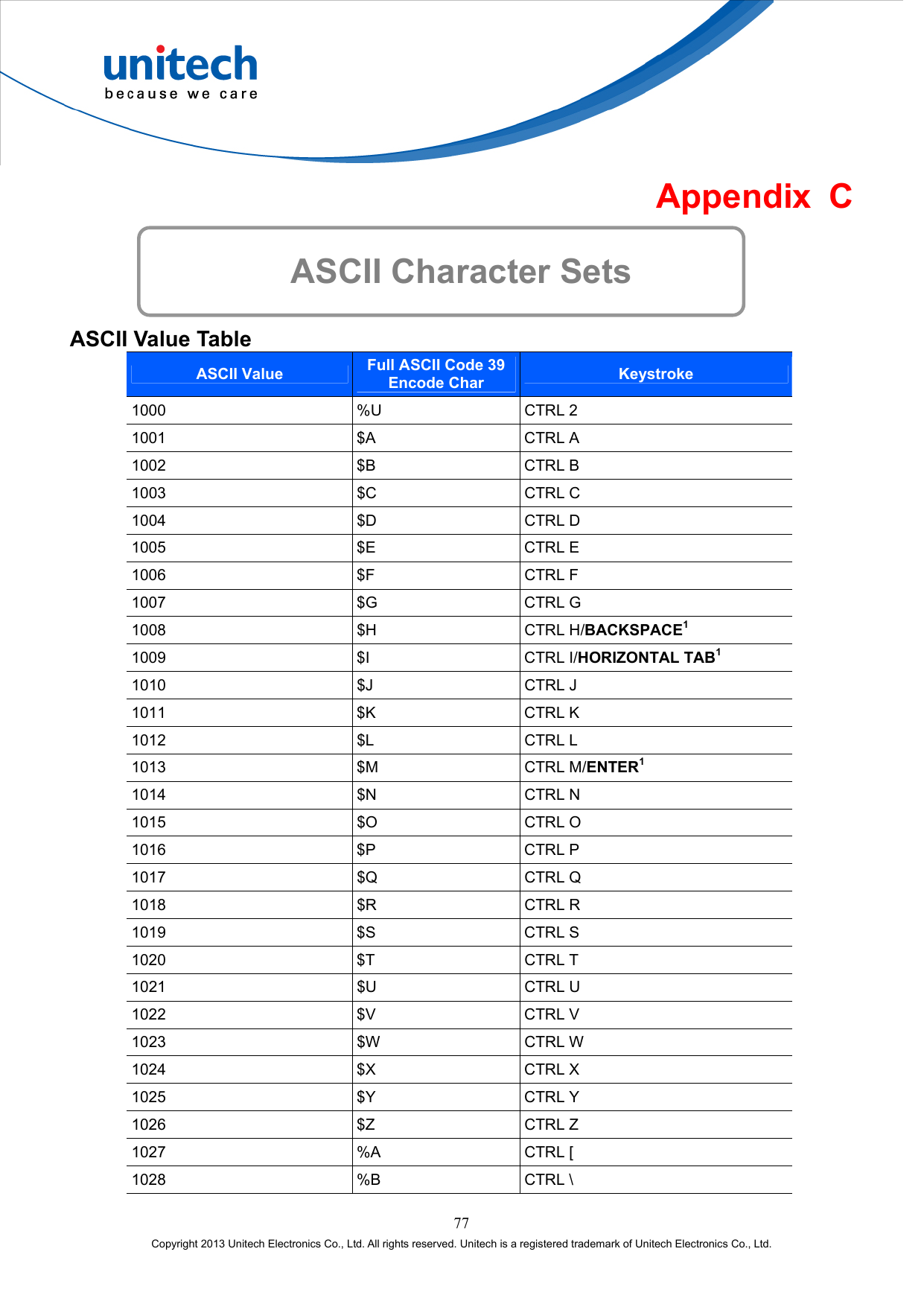

$Appendix C ASCII Character Sets ASCII Value Table ASCII Value Full ASCII Code 39 Encode Char Keystroke 1000 %U CTRL 2 1001 $A CTRL A 1002 $B CTRL B 1003 $C CTRL C 1004 $D CTRL D 1005 $E CTRL E 1006 $F CTRL F 1007 $G CTRL G 1008 $H CTRL H/BACKSPACE1 1009 $I CTRL I/HORIZONTAL TAB1 1010 $J CTRL J 1011 $K CTRL K 1012 $L CTRL L 1013 $M CTRL M/ENTER1 1014 $N CTRL N 1015 $O CTRL O 1016 $P CTRL P 1017 $Q CTRL Q 1018 $R CTRL R 1019 $S CTRL S 1020 $T CTRL T 1021 $U CTRL U 1022 $V CTRL V 1023 $W CTRL W 1024 $X CTRL X 1025 $Y CTRL Y 1026 $Z CTRL Z 1027 %A CTRL [ 1028 %B CTRL \ 77 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.$

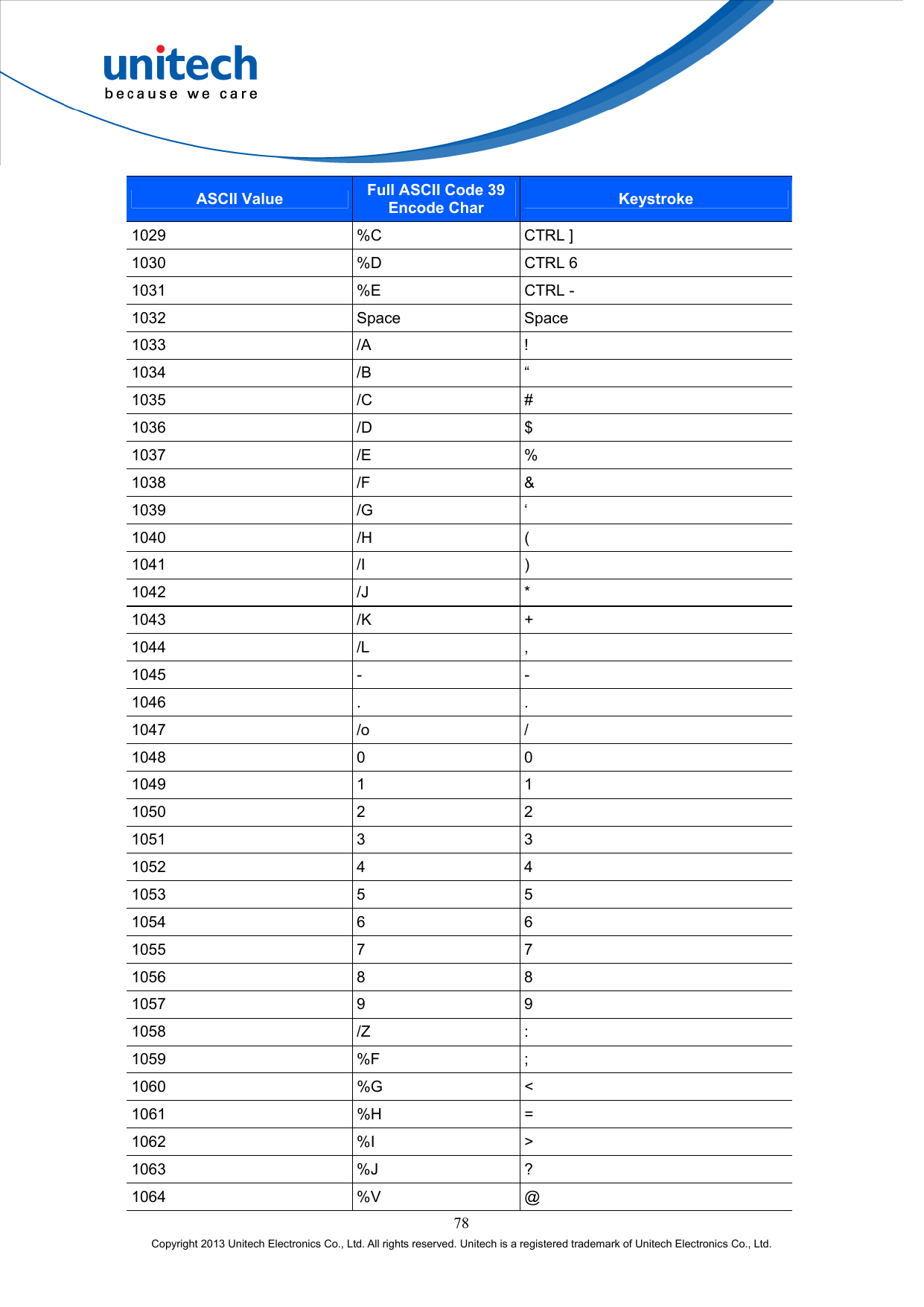

78 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd. ASCII Value Full ASCII Code 39 Encode Char Keystroke 1029 %C CTRL ] 1030 %D CTRL 6 1031 %E CTRL - 1032 Space Space 1033 /A ! 1034 /B “ 1035 /C # 1036 /D $ 1037 /E % 1038 /F & 1039 /G ‘ 1040 /H ( 1041 /I ) 1042 /J * 1043 /K + 1044 /L , 1045 - - 1046 . . 1047 /o / 1048 0 0 1049 1 1 1050 2 2 1051 3 3 1052 4 4 1053 5 5 1054 6 6 1055 7 7 1056 8 8 1057 9 9 1058 /Z : 1059 %F ; 1060 %G < 1061 %H = 1062 %I > 1063 %J ? 1064 %V @

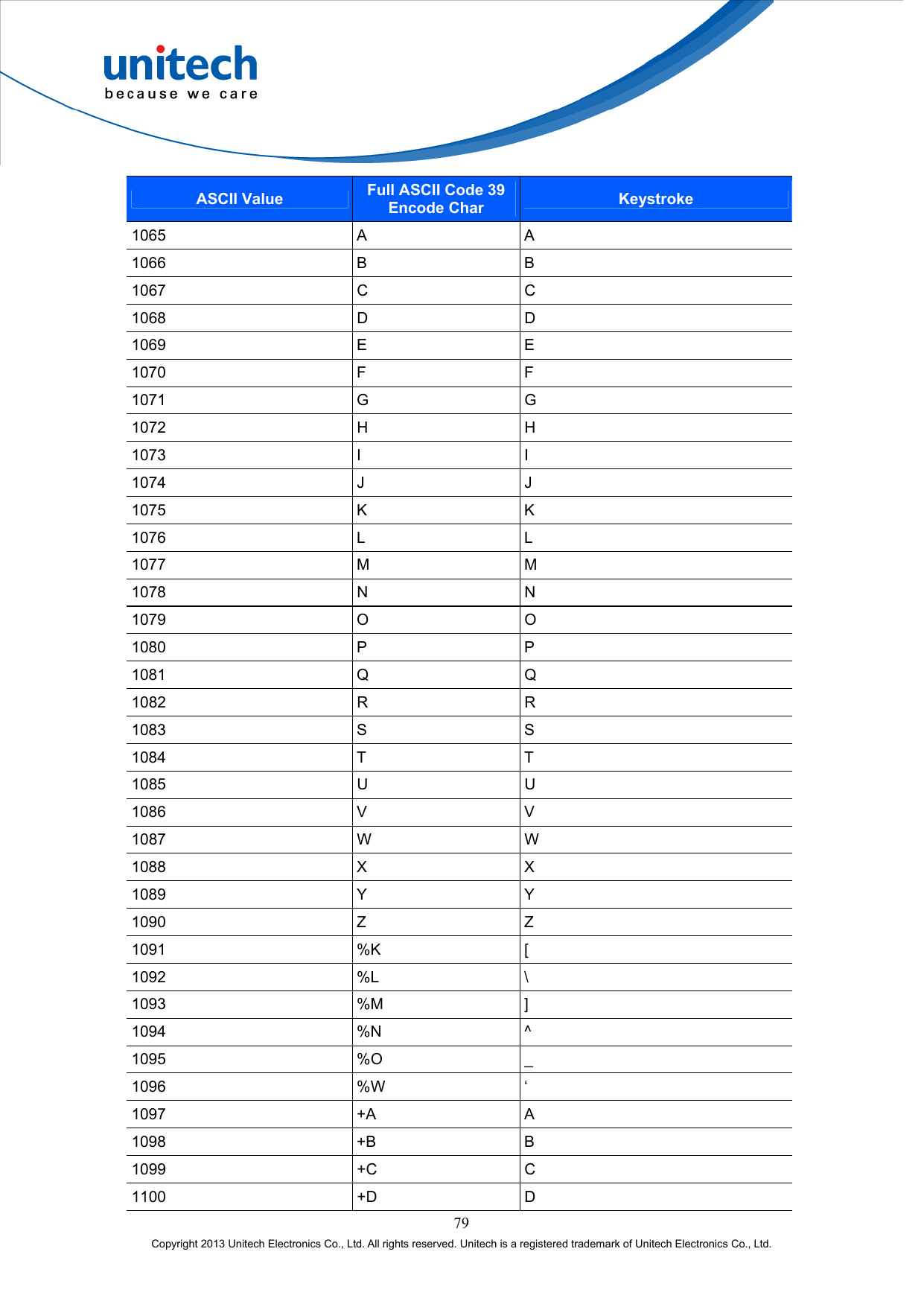

$79 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd. ASCII Value Full ASCII Code 39 Encode Char Keystroke 1065 A A 1066 B B 1067 C C 1068 D D 1069 E E 1070 F F 1071 G G 1072 H H 1073 I I 1074 J J 1075 K K 1076 L L 1077 M M 1078 N N 1079 O O 1080 P P 1081 Q Q 1082 R R 1083 S S 1084 T T 1085 U U 1086 V V 1087 W W 1088 X X 1089 Y Y 1090 Z Z 1091 %K [ 1092 %L \ 1093 %M ] 1094 %N ^ 1095 %O _ 1096 %W ‘ 1097 +A A 1098 +B B 1099 +C C 1100 +D D$
